Number of Heads: 2
Min. Working Thickness: 4 mm
Sanding Belt Width: 1115 mm
Sanding Belt Length: 1900 mm

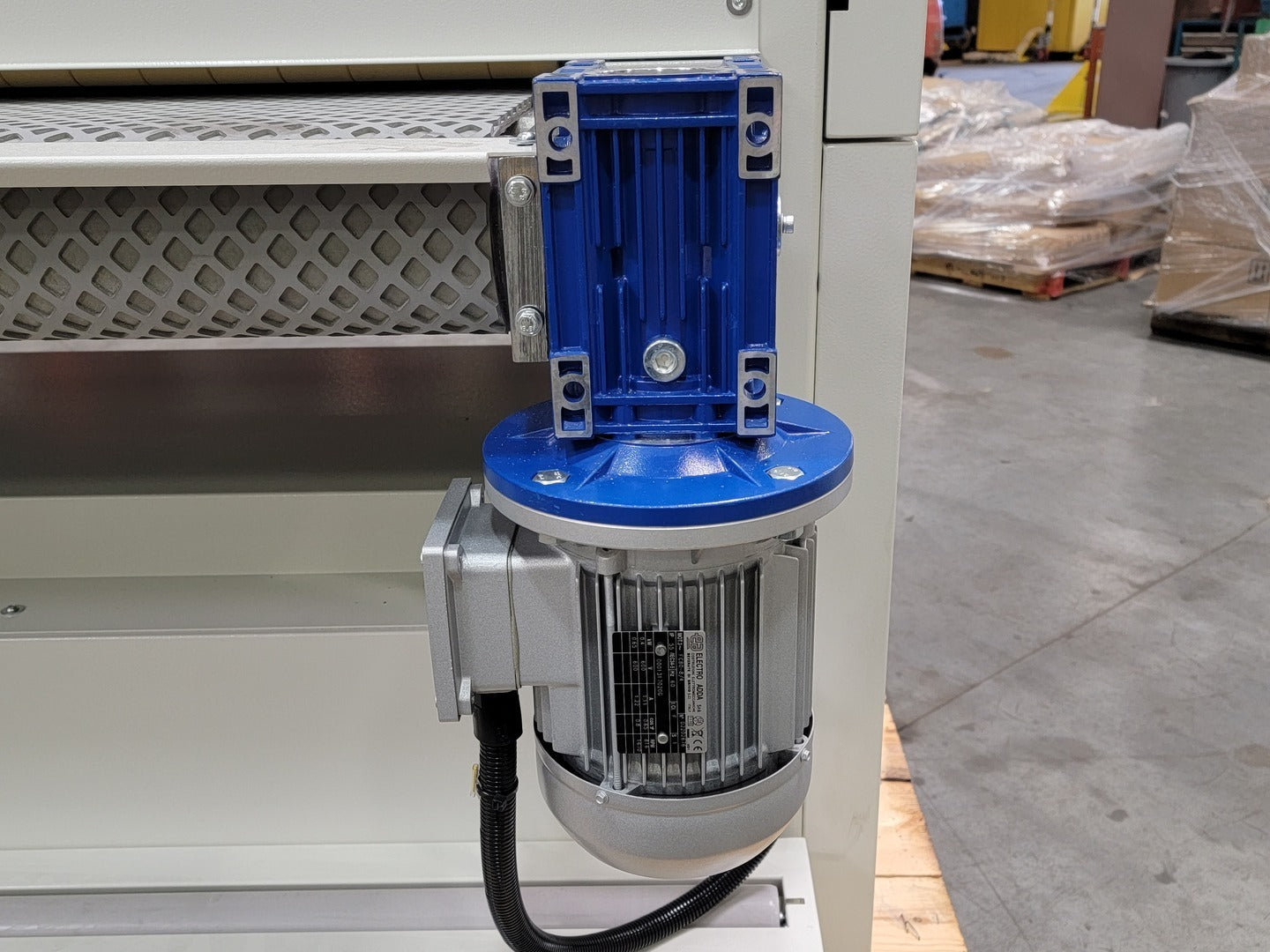

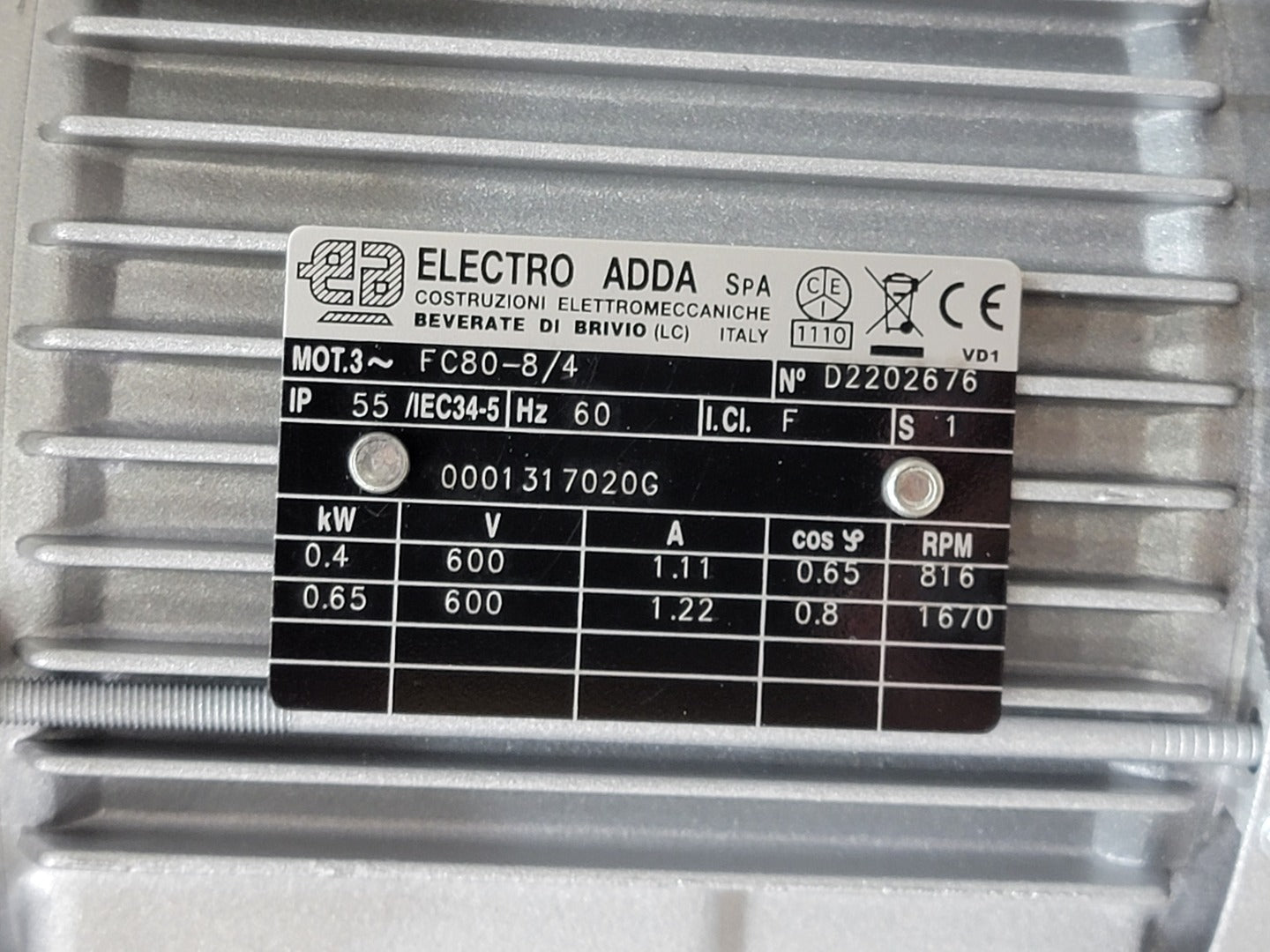

Feed Belt Motor Power: 0.3 / 0.55 kW (0.4 / 0.7 hp)

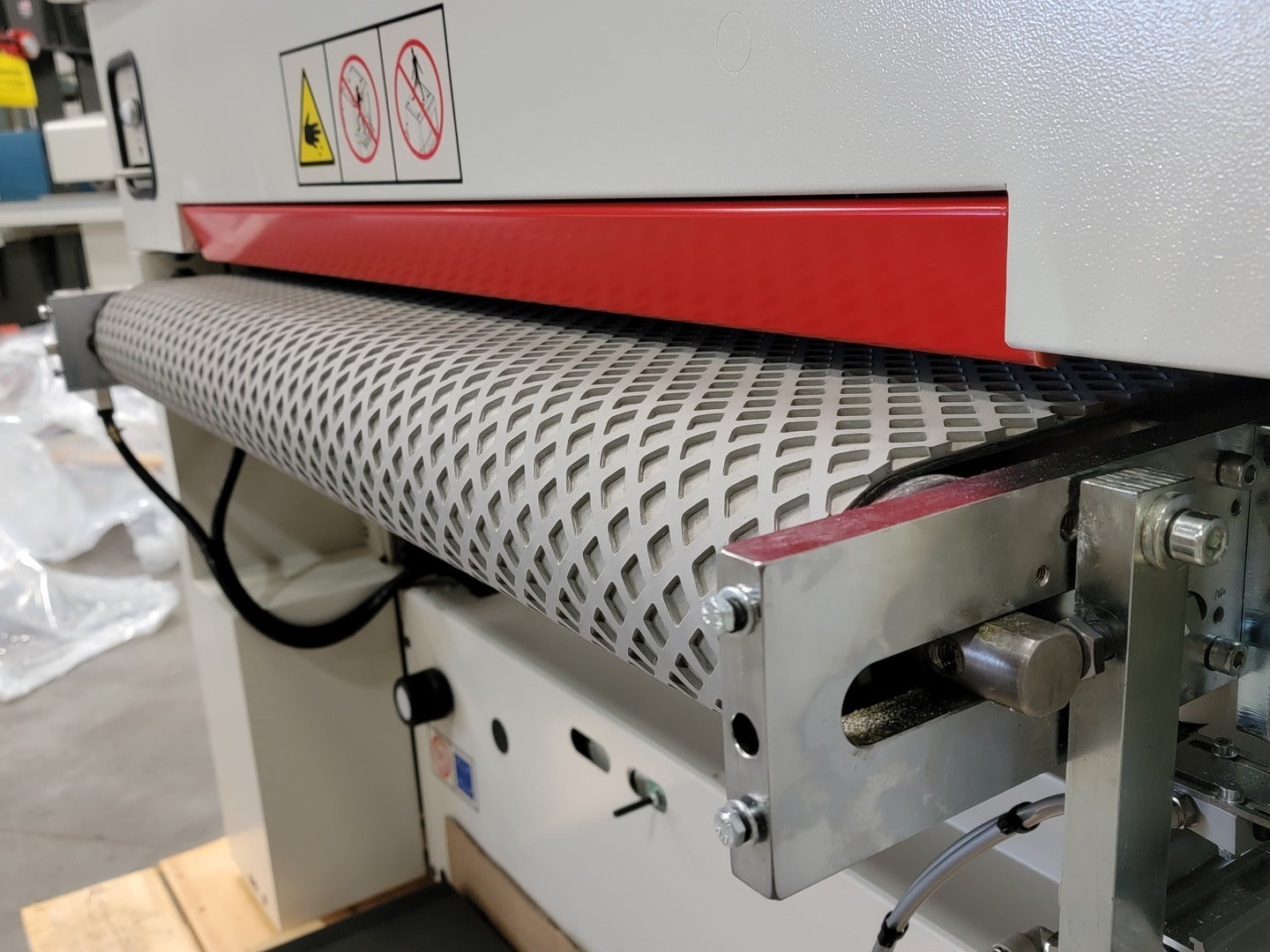

Feed Belt Speed: 4.5 - 9 m/min

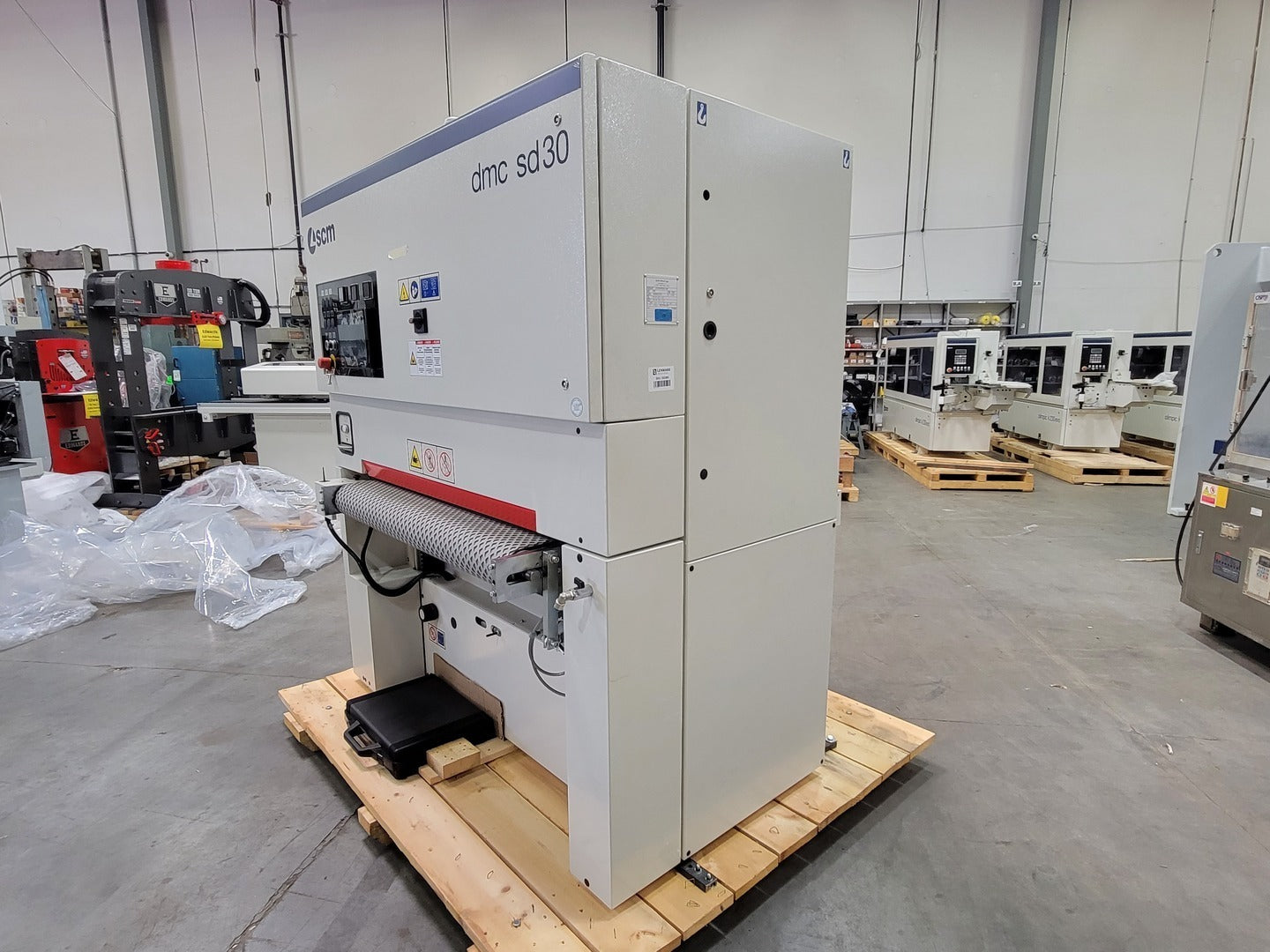

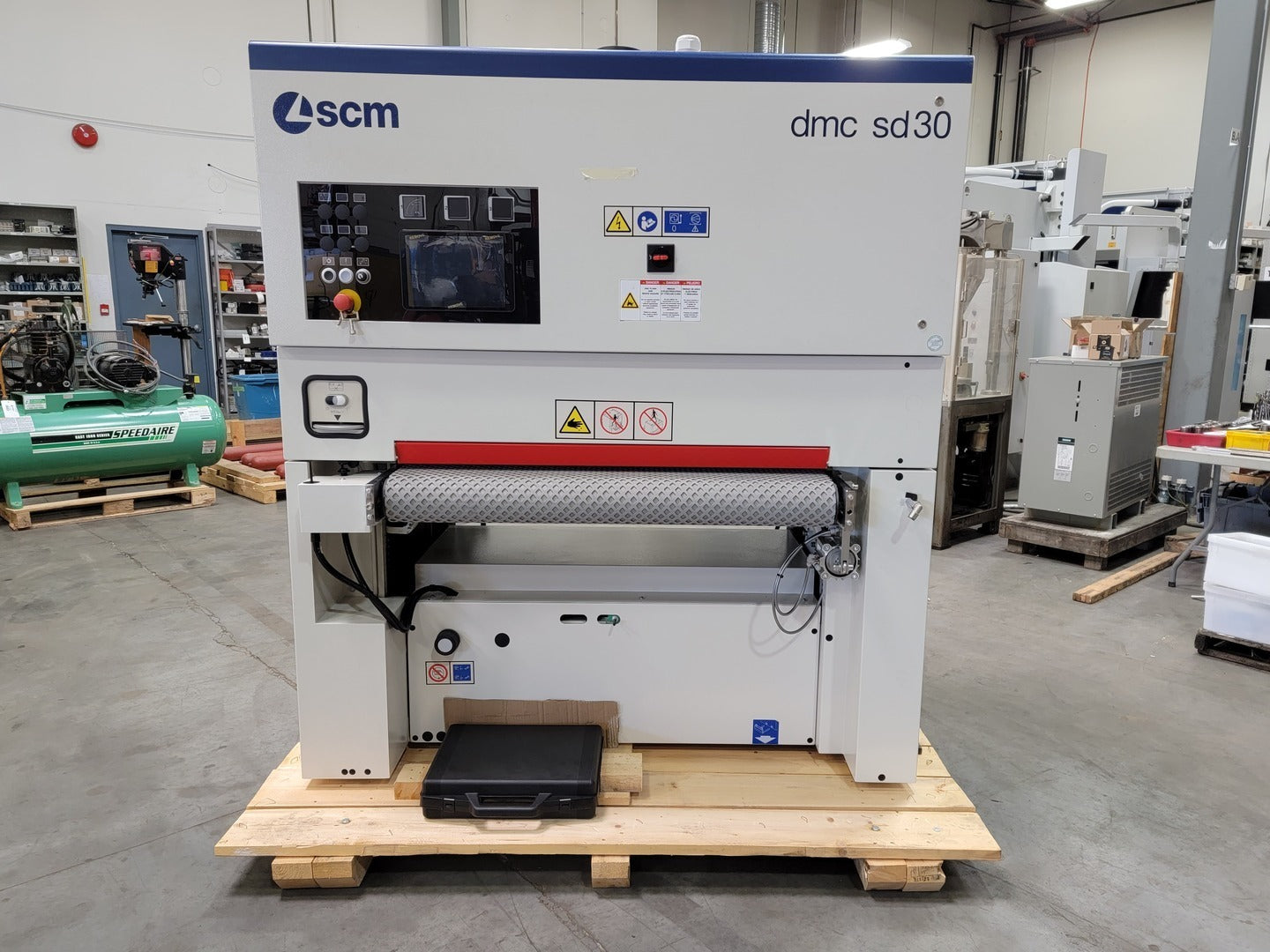

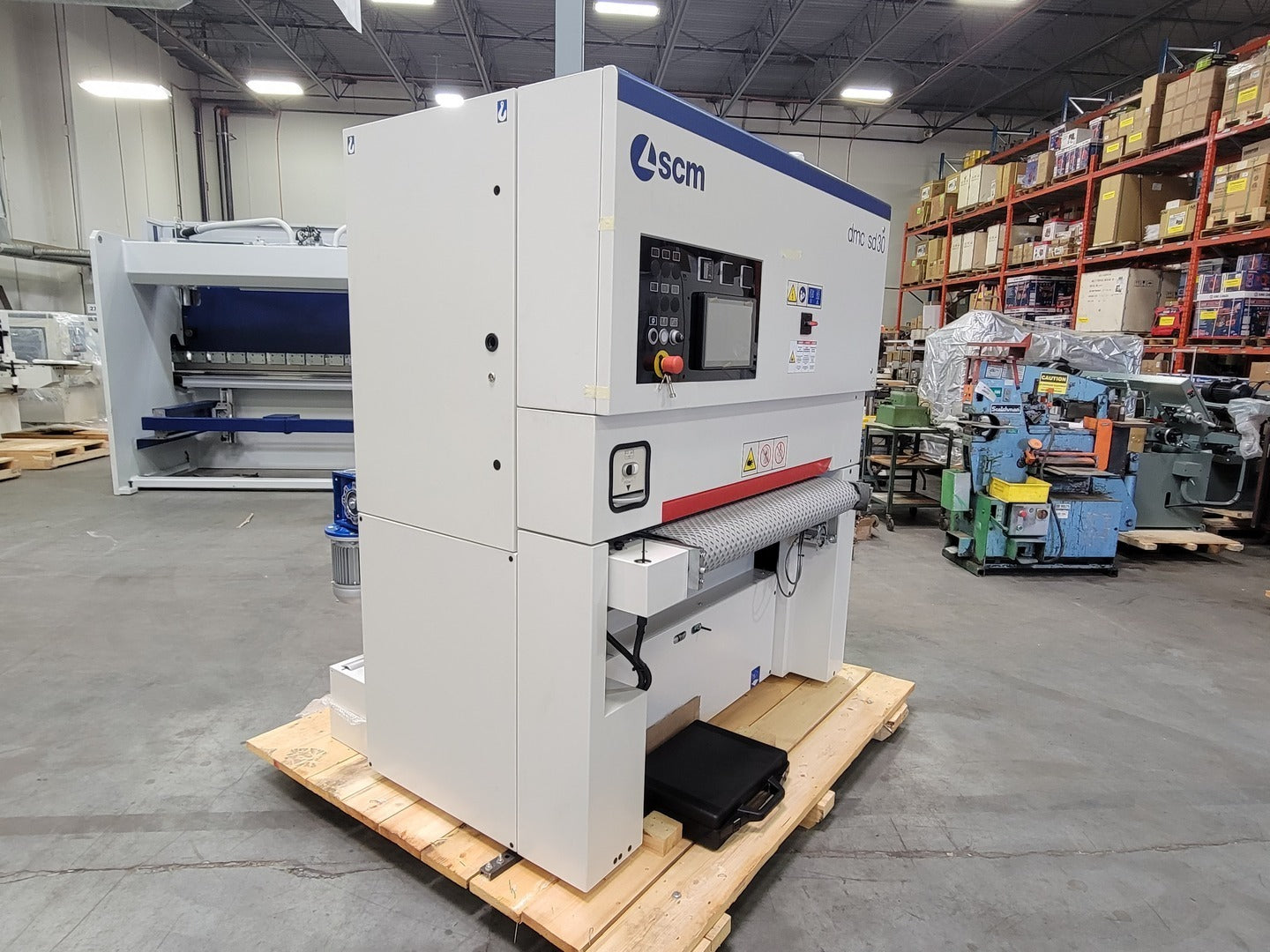

dmc sd 30 composition RCS 110
With 1st "R" group (roller) and 2nd "CS" combined group (roller/pad)
"B" version for RCS 95 - RCS 110
- on/off pneumatic selector of the roller on the 1st "R" group
- on/off pneumatic selector of the roller on the 2nd "CS" group
- "MESAR" elastic sectional pad
- on/off pneumatic selector of the pad
- "Logic 50 K" electronic programmer
- electronic positioning for working table
All pads are also equipped with:
- standard equipment complete with no. 2 contact inserts as follows:
- flat semi-stiff contact insert made of steel flexible plate 0.6 mm thickness + felt D=0.68 and extractable graphite cloth. It is suitable for the sanding of solid wood or veneered panels.
- soft semi-sandwich contact insert made of flexible steel plate, 0.3 mm thickness + rubber + felt D=0.68 extractable graphite cloth. It is suitable for the sanding of veneered and/or painted panels.

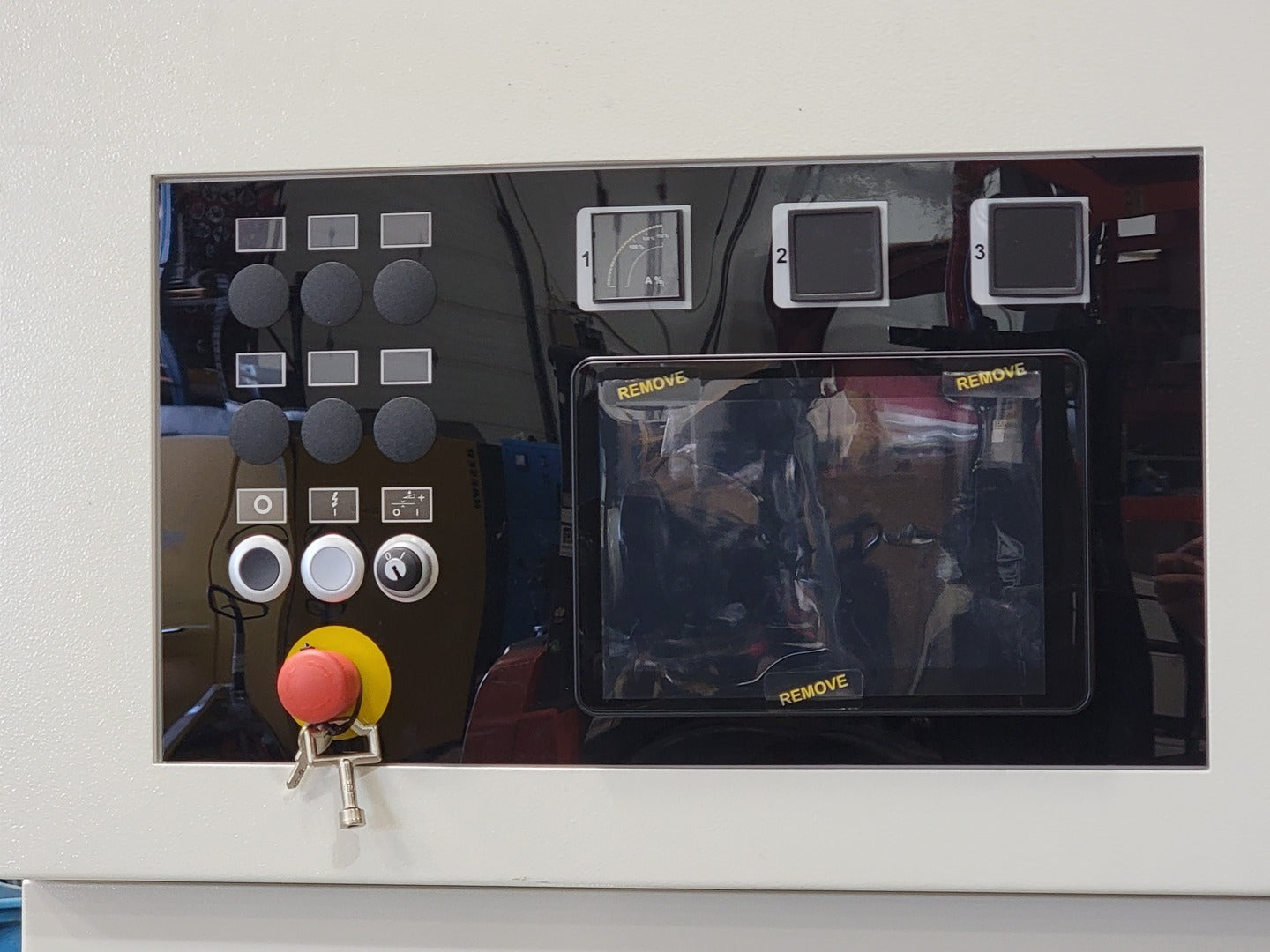

10" Control panel with "eye-S" integration software
For machine equipped with elastic or electronic sectional pad
- 10" touchscreen control panel
Machine control features:
- control of 2 main operating groups
- total control of one electronic sectional pad with activation, exclusion and selection of the pad. Pre-selection and activation of the + or sectors function on the left/right panel side
- control of on/off of the operating groups
- control of the feed by inverter
- working thickness control
- sequential automatic start up of main motors
- blowers timing control for abrasive belts cleaning
- machine control in manual or semi-automatic mode or with working programs which can be configured by the operator. Possibility to save 999 programs
- machine report (working and standby hours)
- machine damage alarms control
- available languages: IT, EN, FR, ES, DE
Additional Features
- Single-phase transformer
- RA grooved steel calibrating roller, 1st group
- Automatic device for feed belt tracking and tensioning
- Pallet + nylon
- French language plate

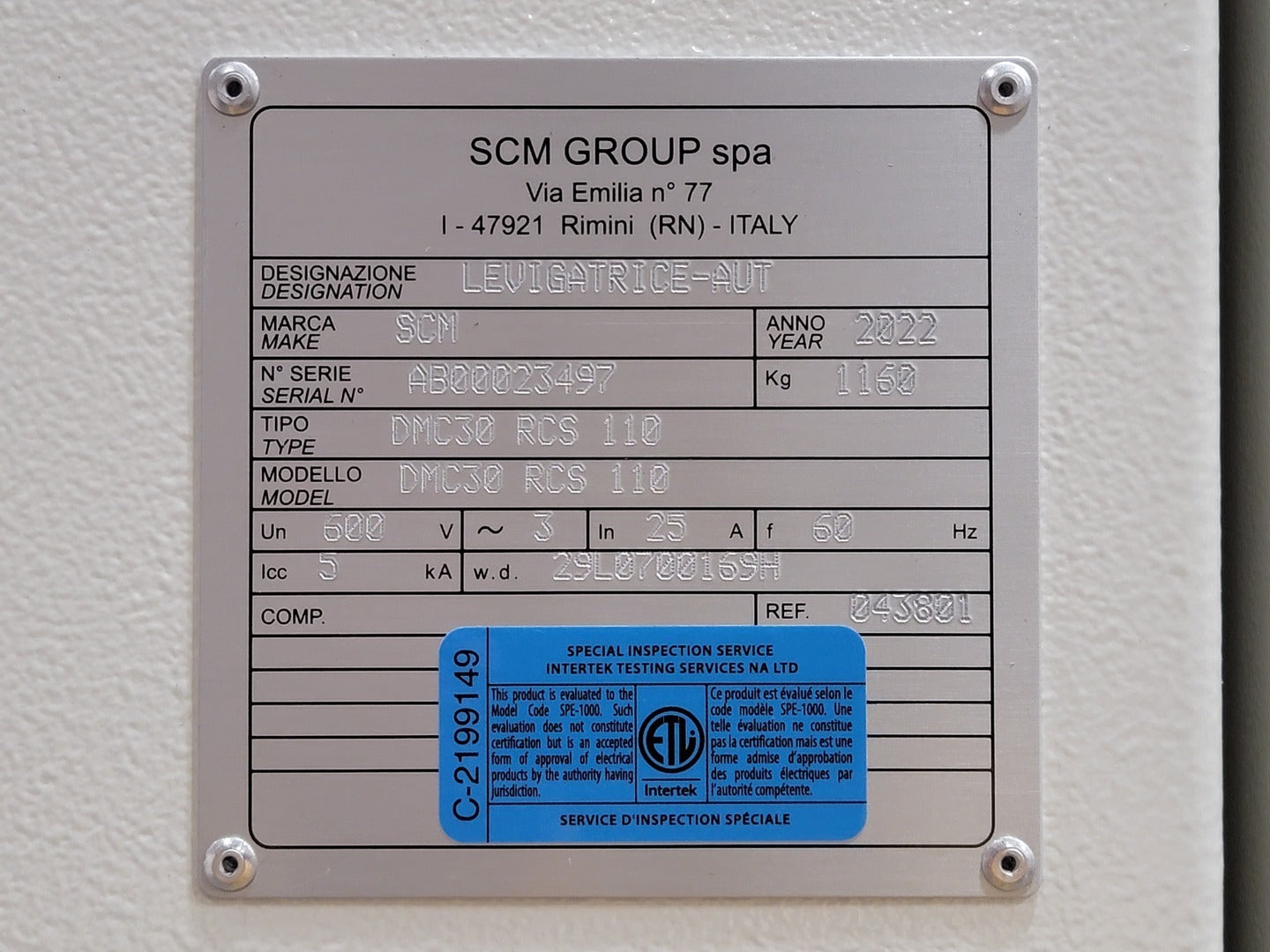

- English machine plate
