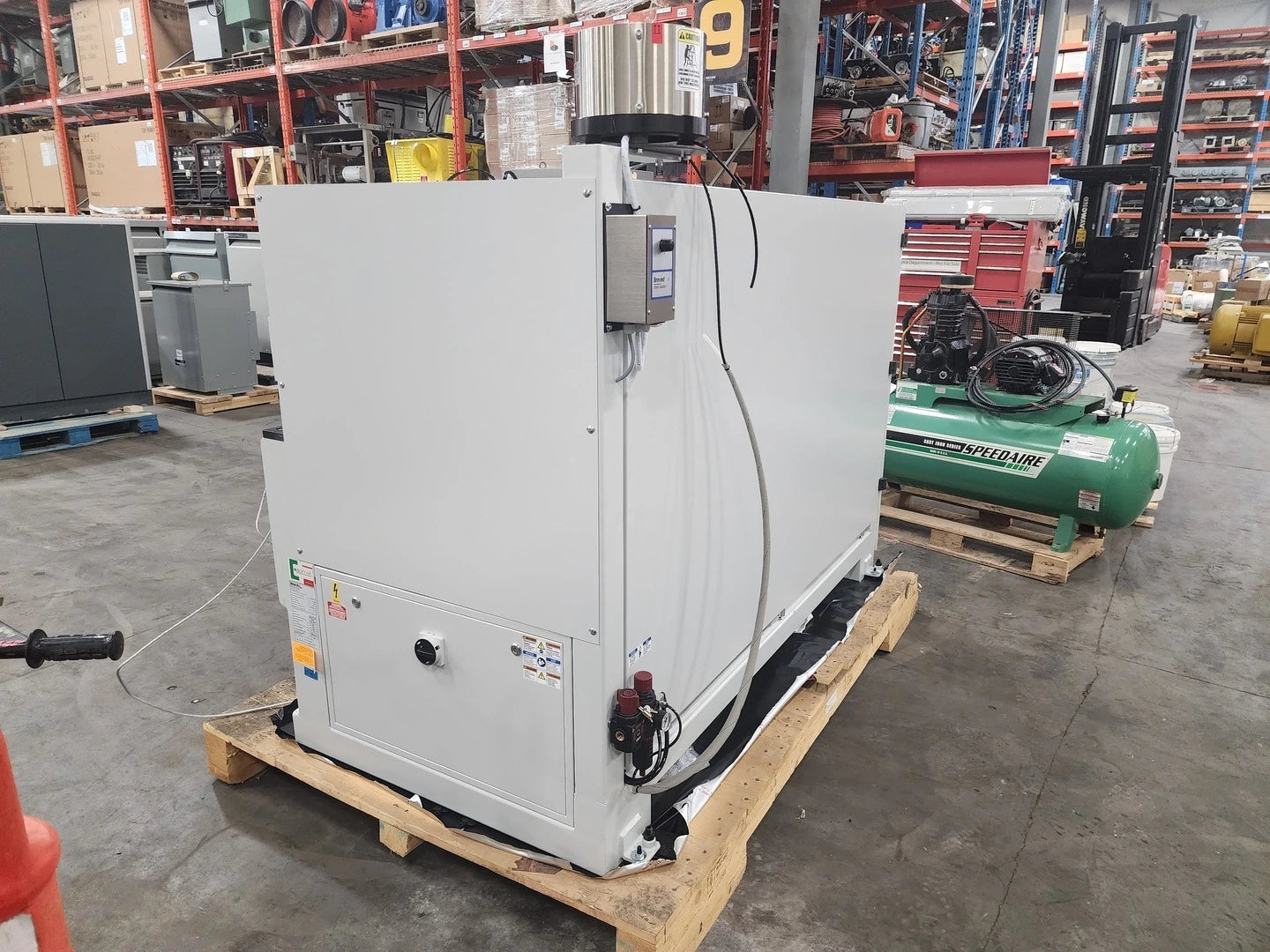

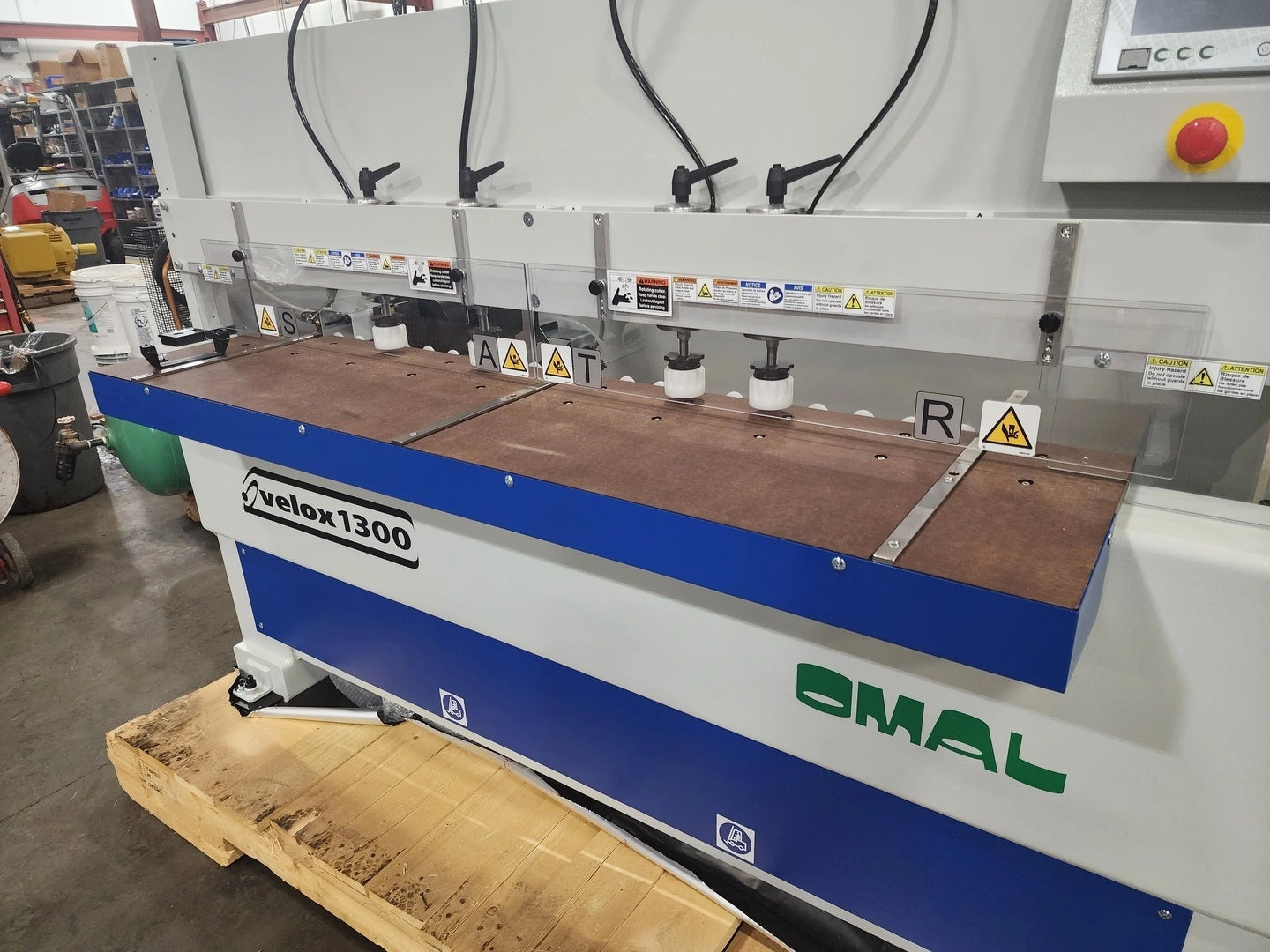

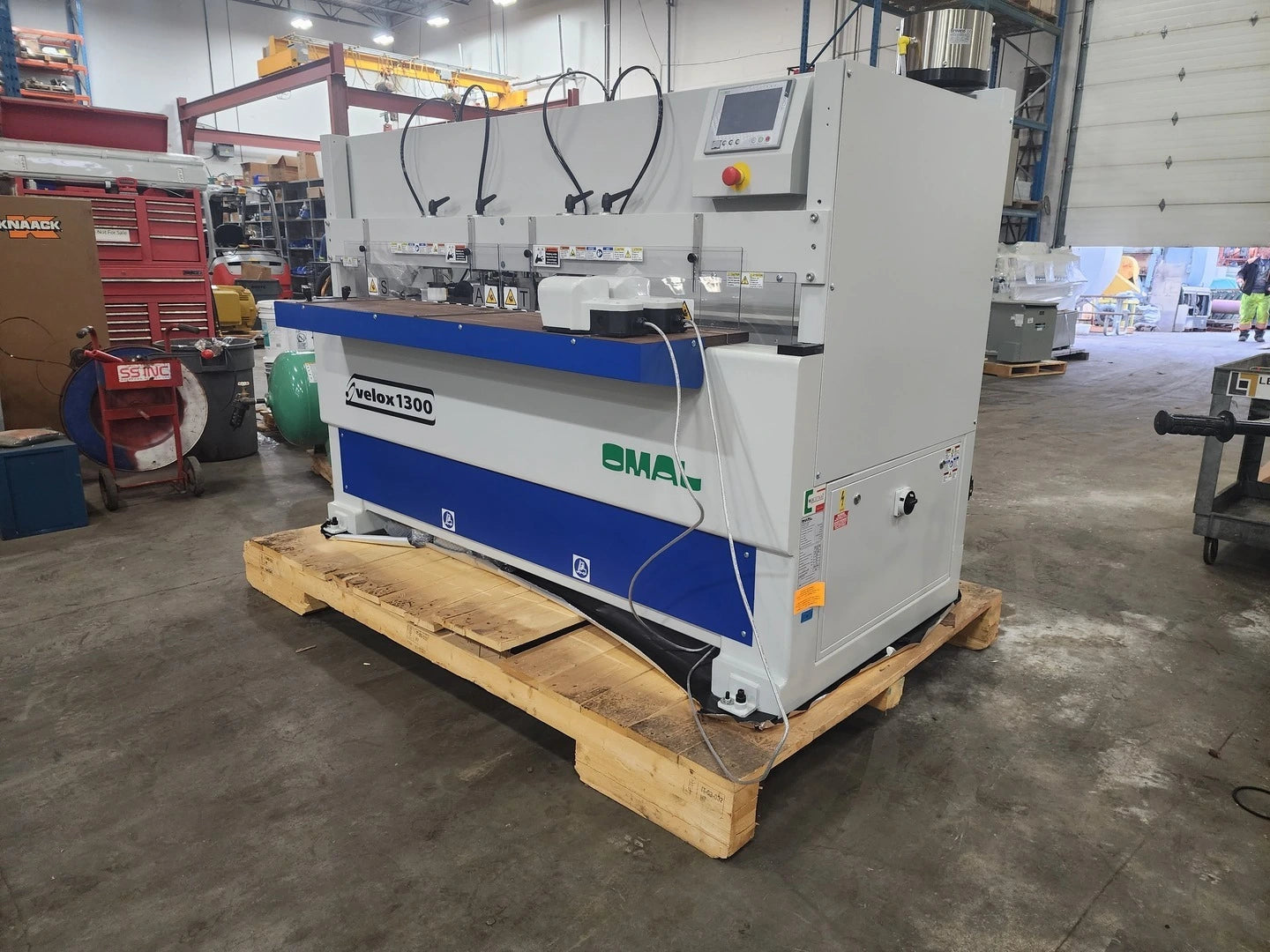

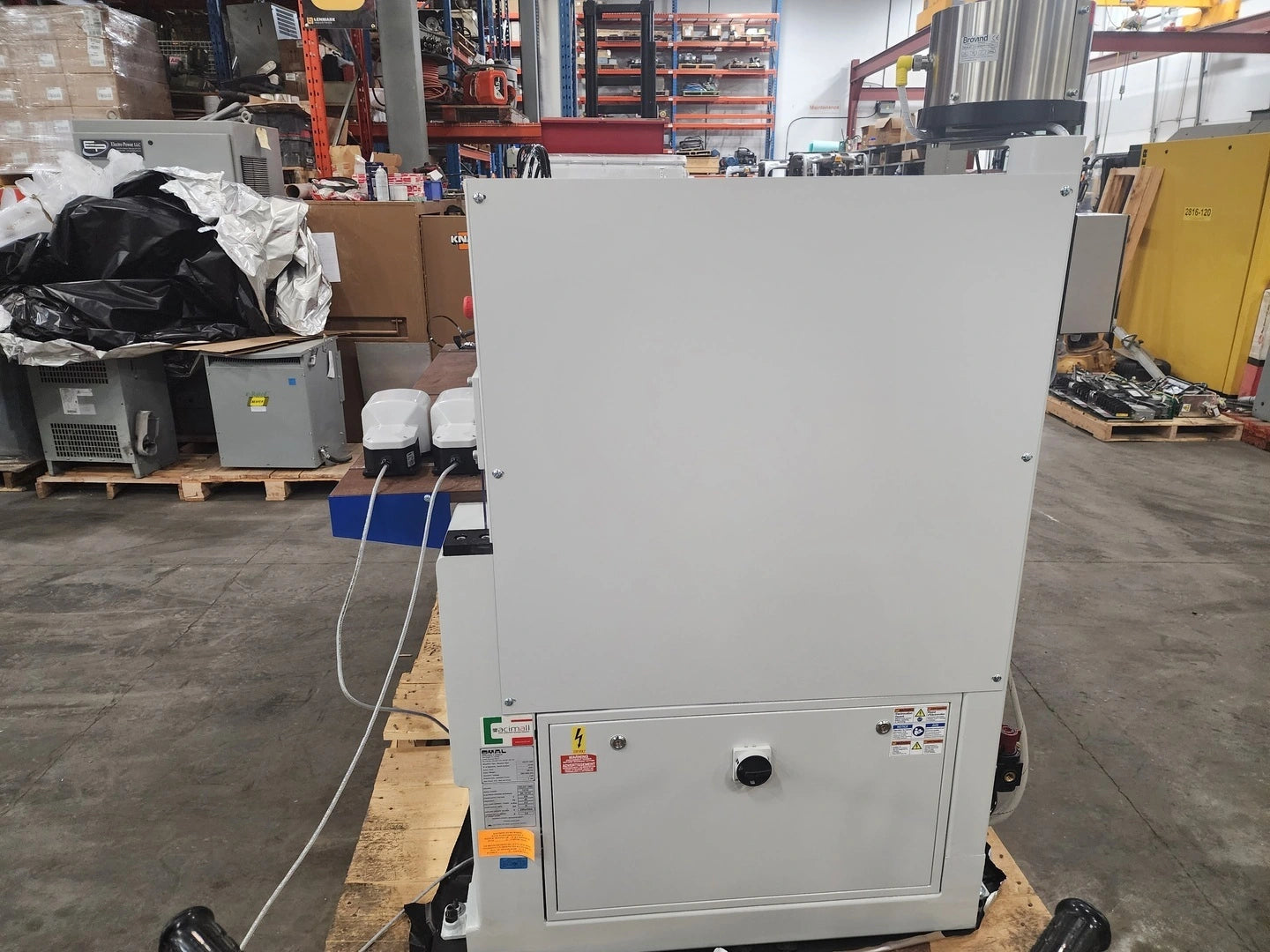

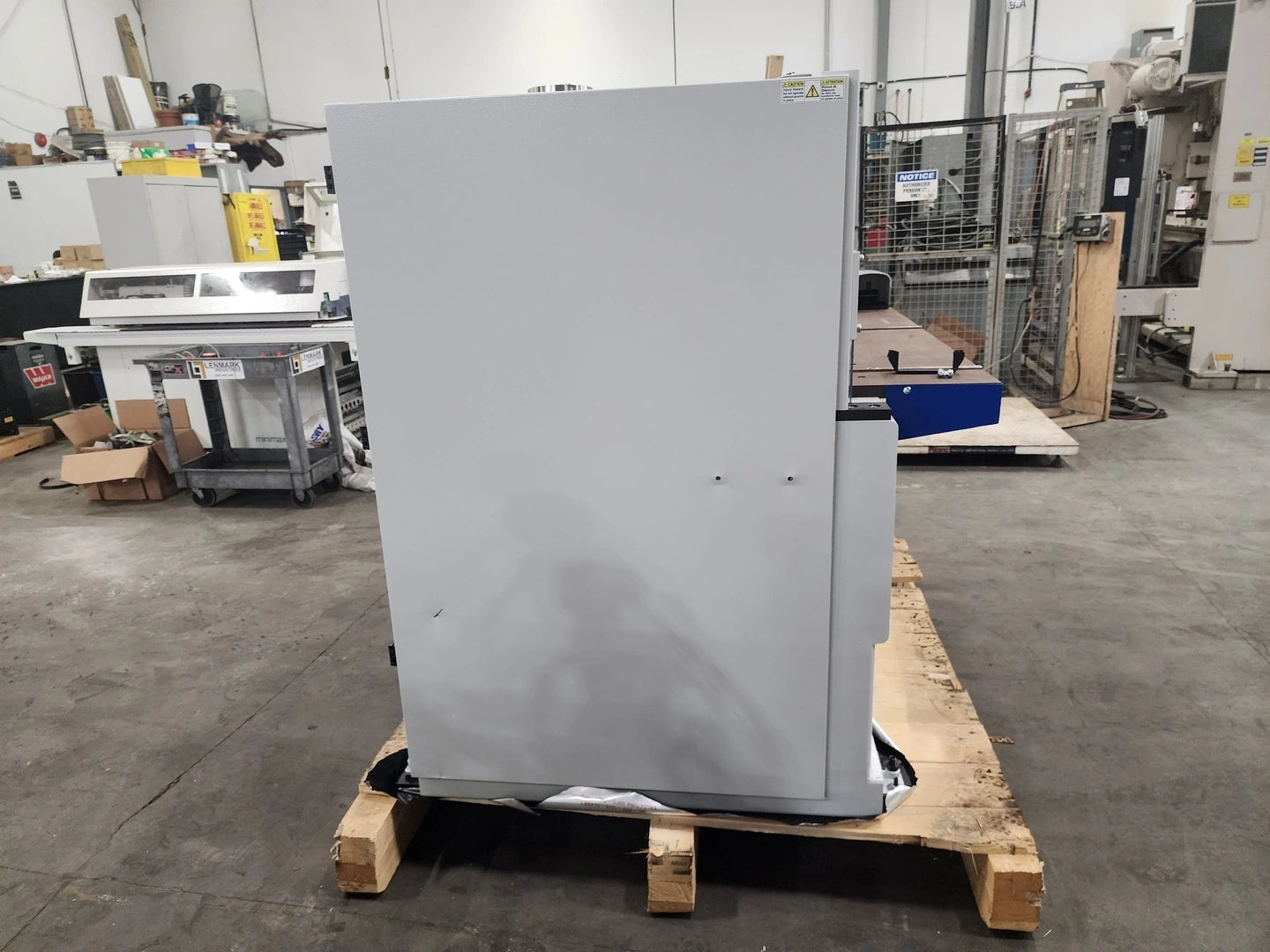

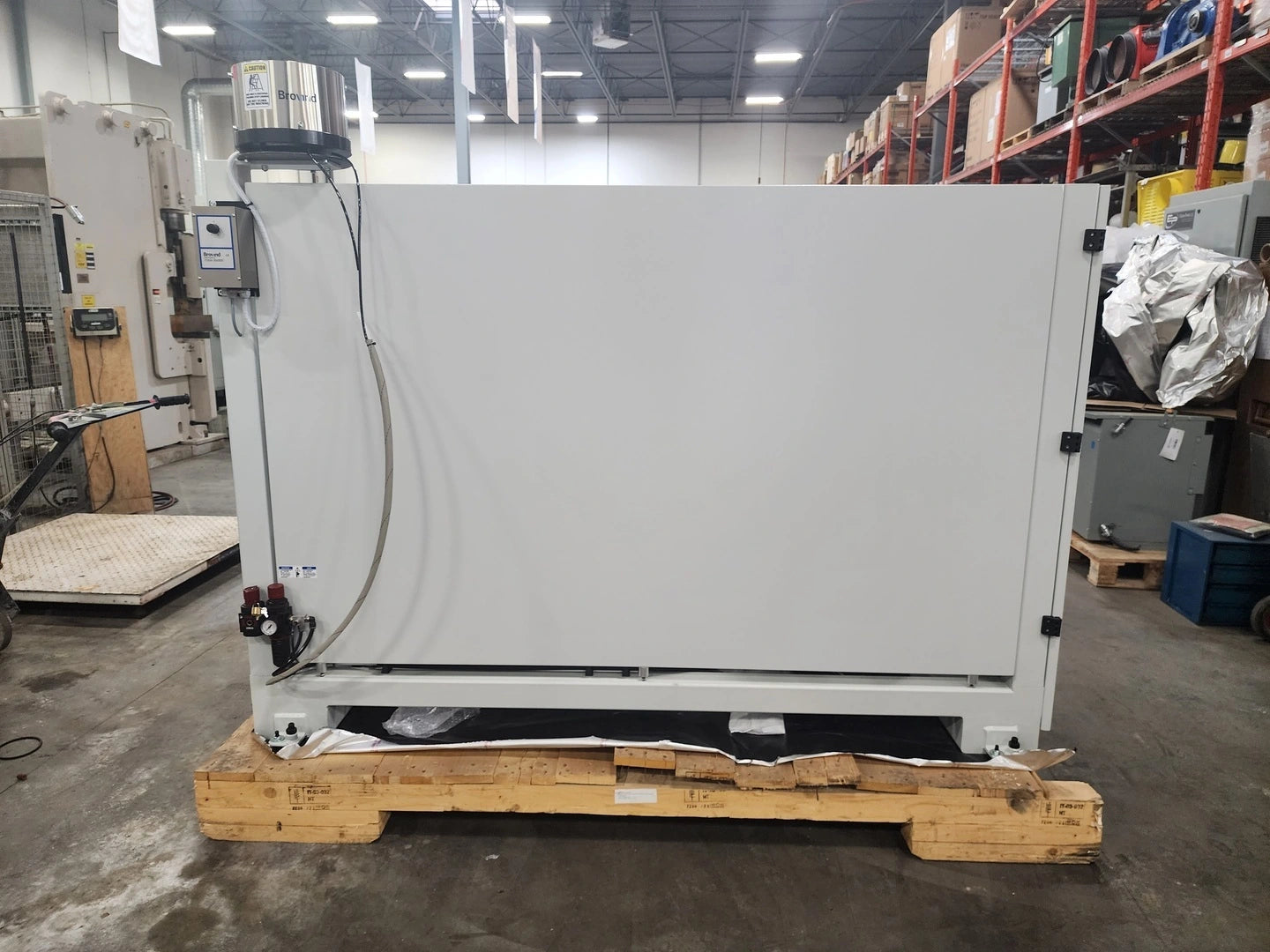

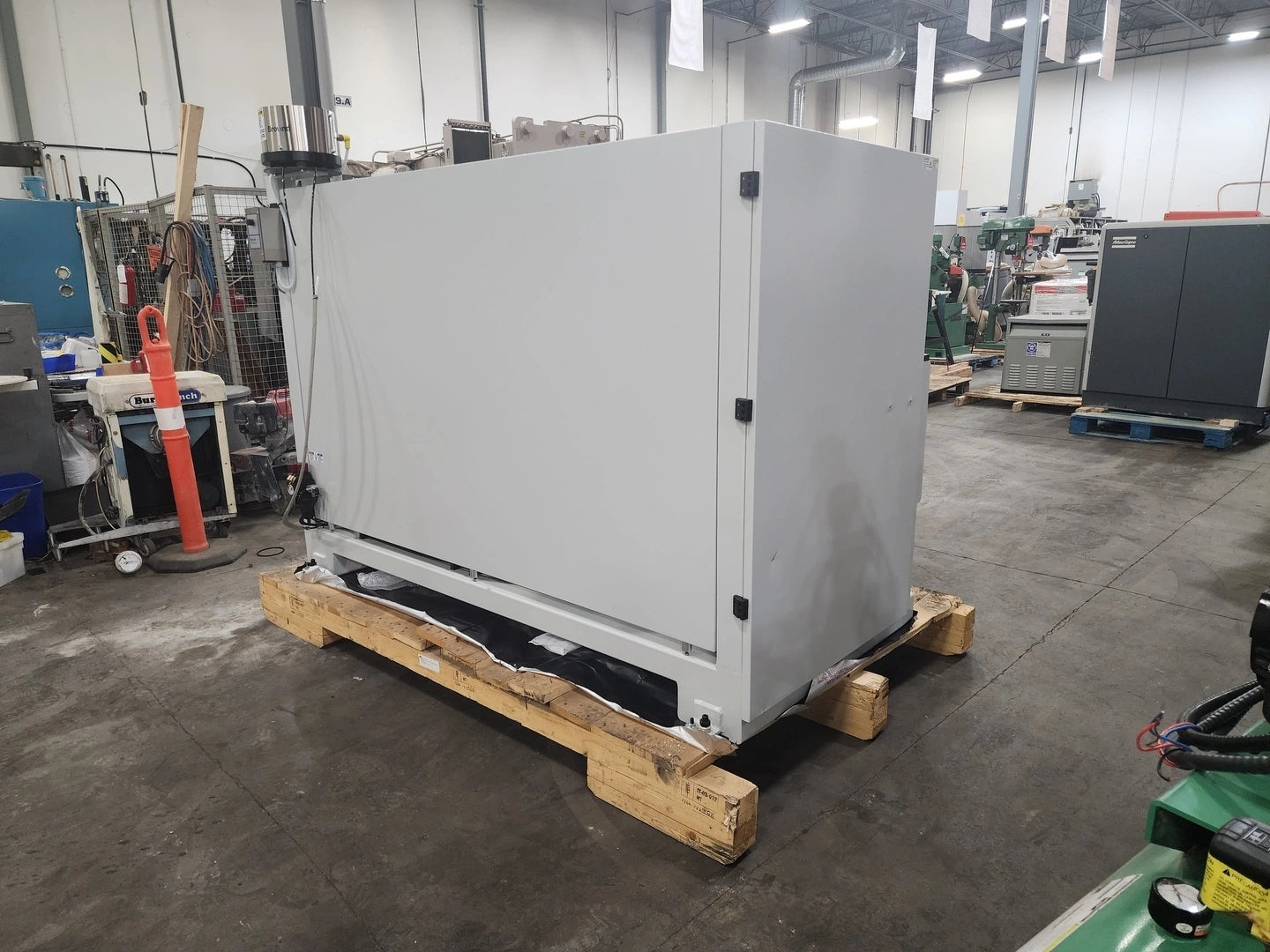

OMAL VELOX 1300 Horizontal Bore and Dowel Machine
SCM

OMAL VELOX 1300 Horizontal Bore and Dowel Machine

SKU: 90134
Price:
$57,900 CAD

Shipping calculated at checkout

Stock:
Available
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

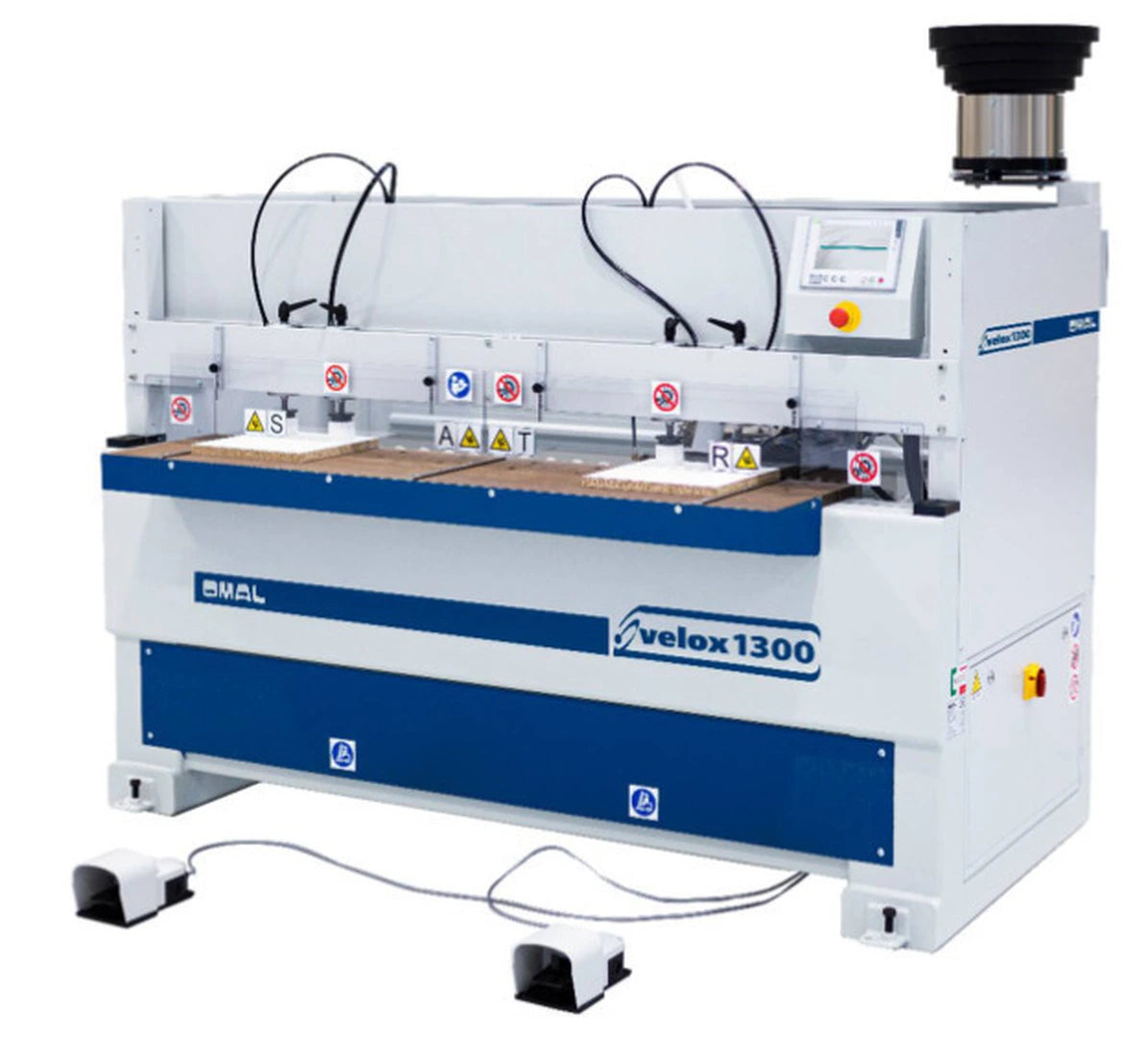

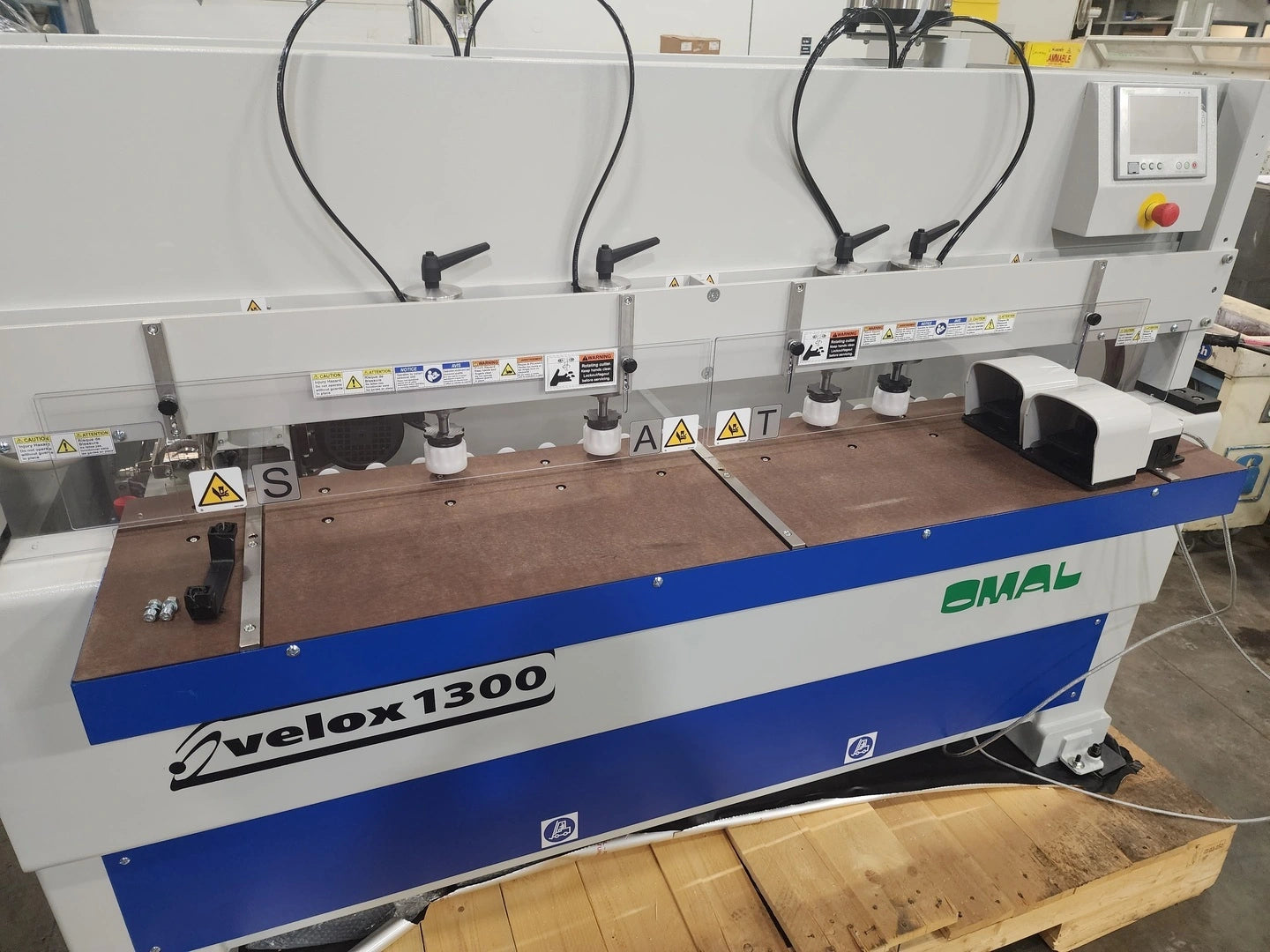

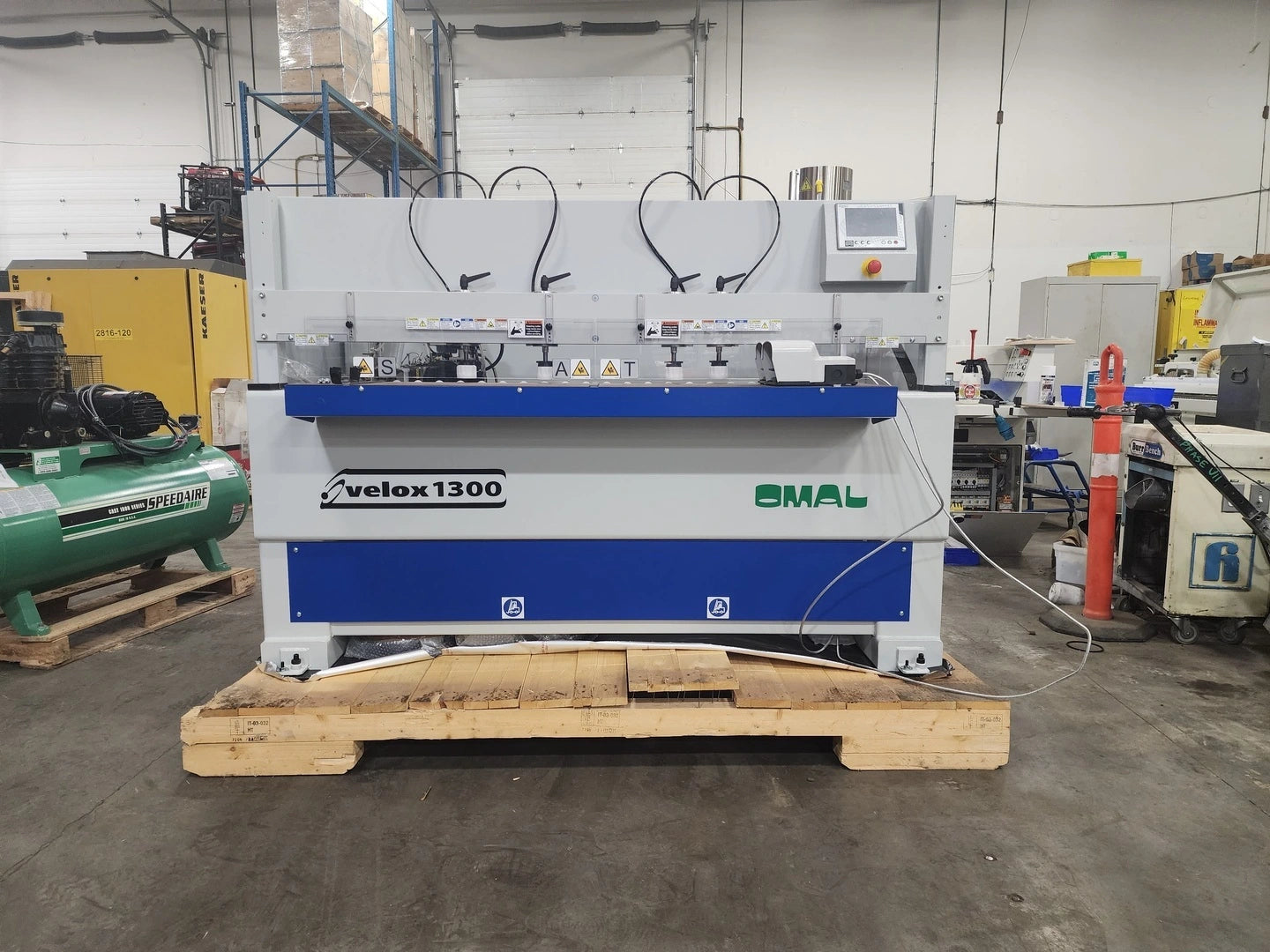

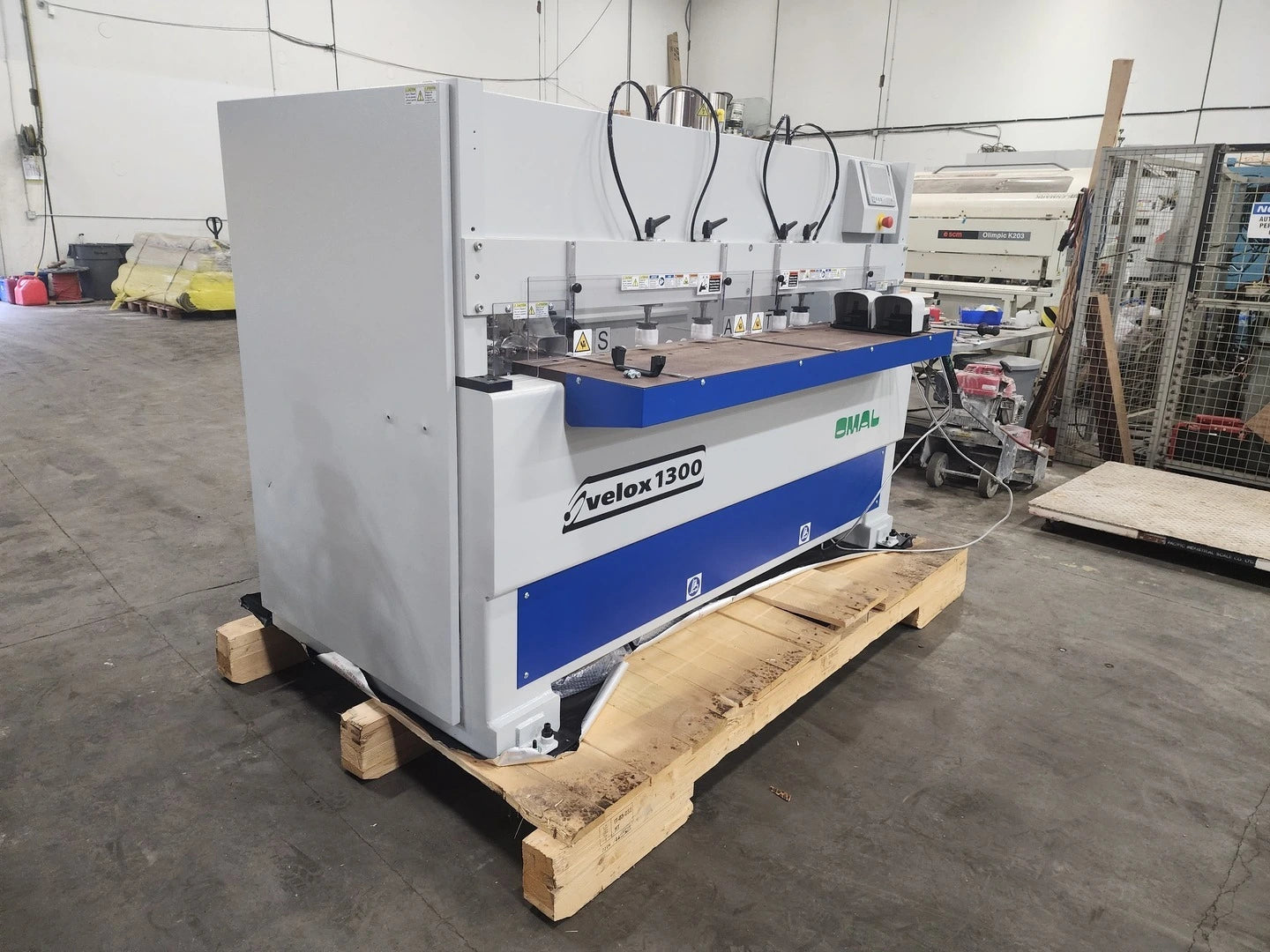

The Velox 1300 Horizontal Bore, Glue, and Dowel machine is a numerically controlled machine to drill, glue and insert dowels on horizontal pieces with FOUR loading zones. Cycle time of approximately ONE second for each bore, glue, and dowel insertion when holes are on 64 mm intervals.
Specifications
Model OMAL VELOX 1300
Made In ITALY
Condition New
General
Horsepower 0.75 hp
# of Spindles 1
CNC Yes

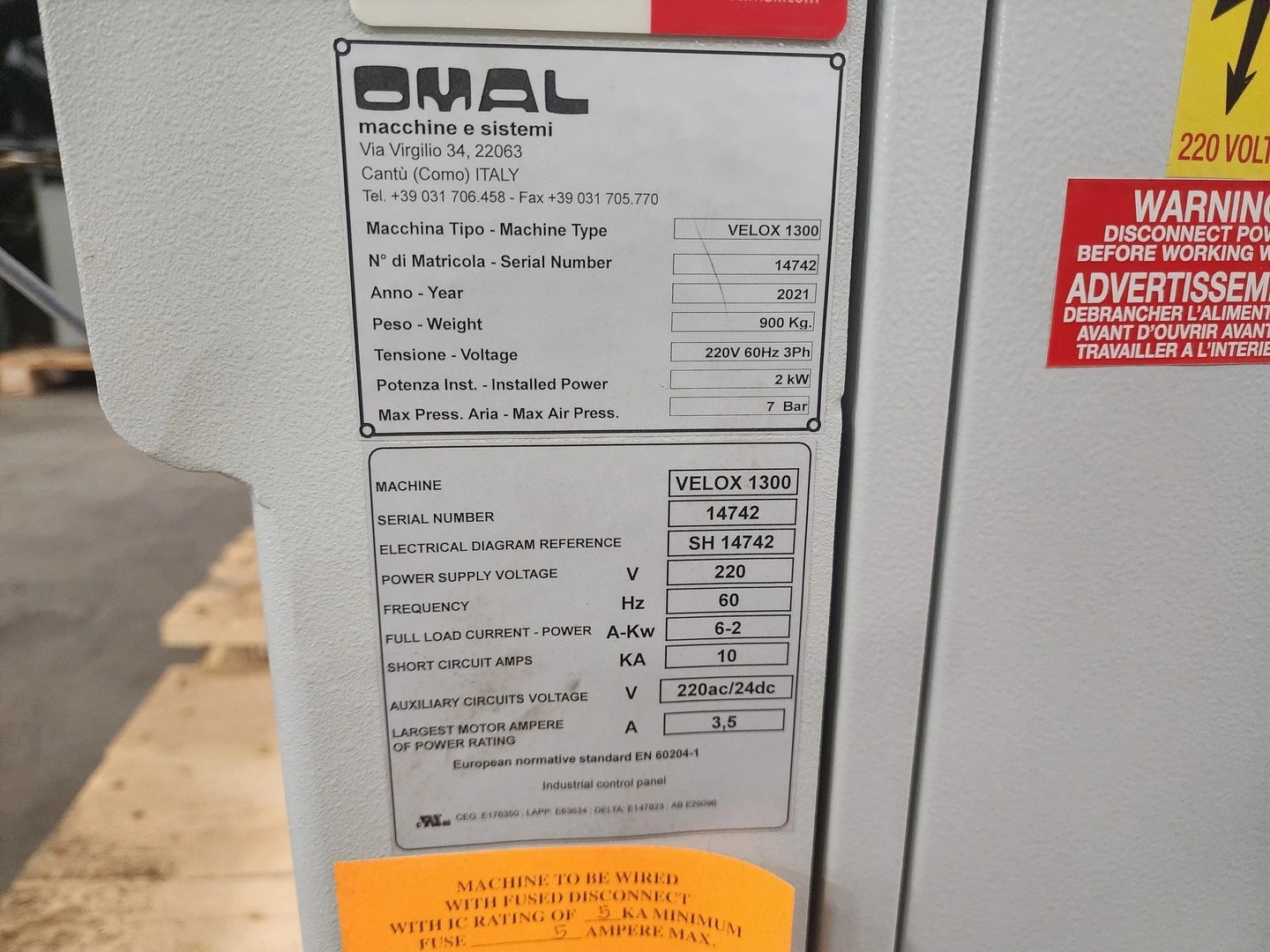

Electrical
Voltage 230 volts
Phase 3-phase
Other Specifications

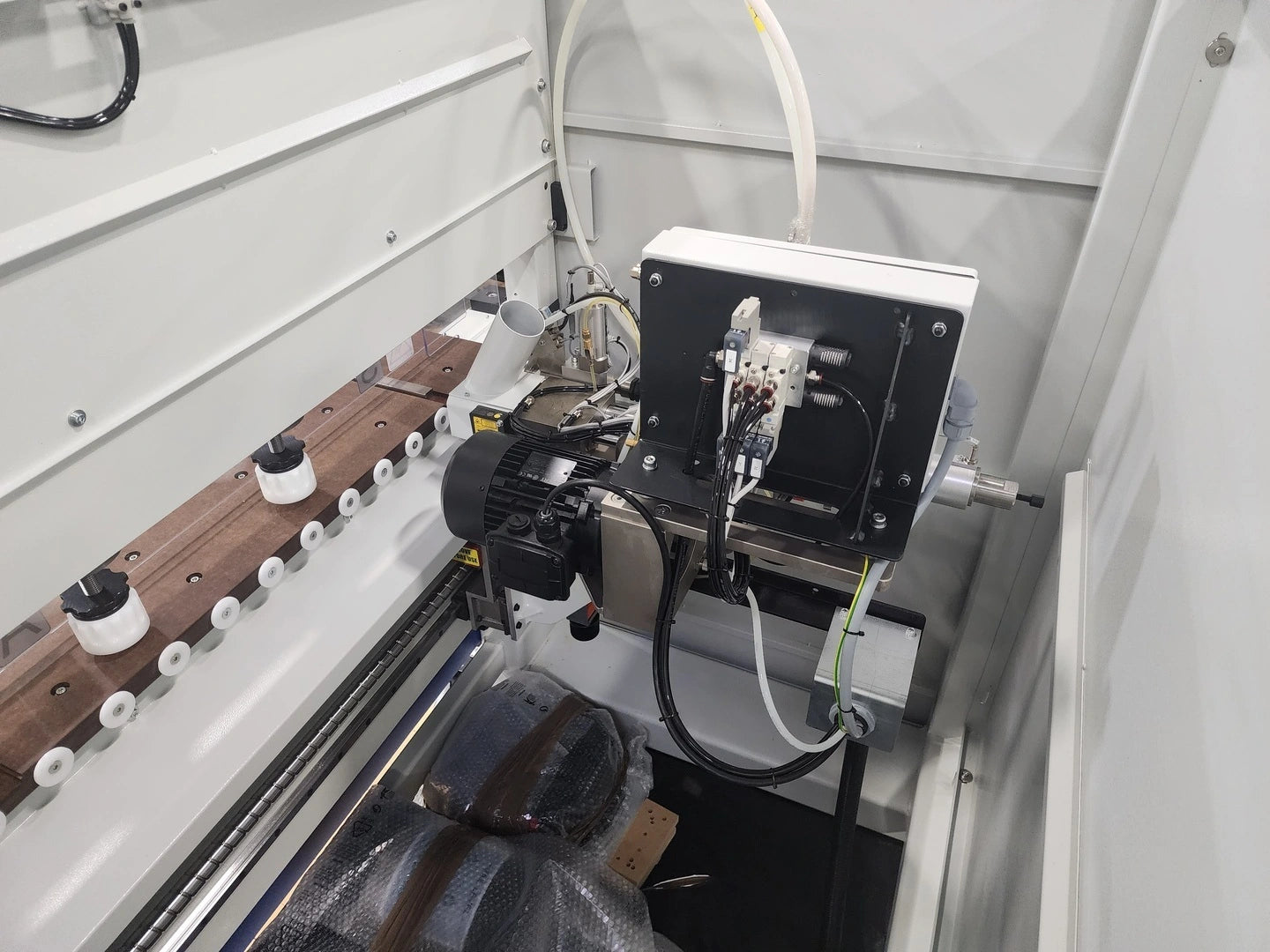

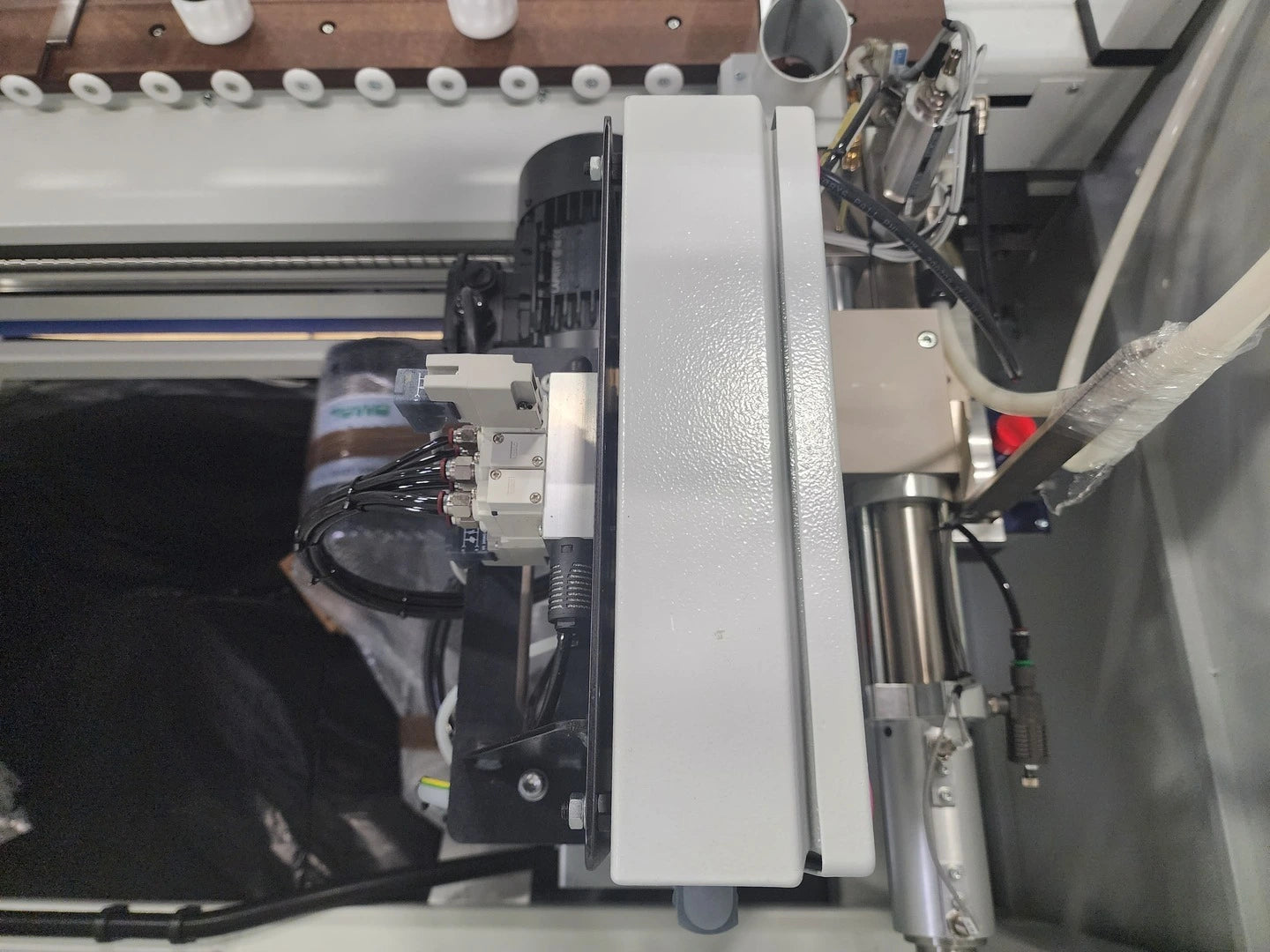

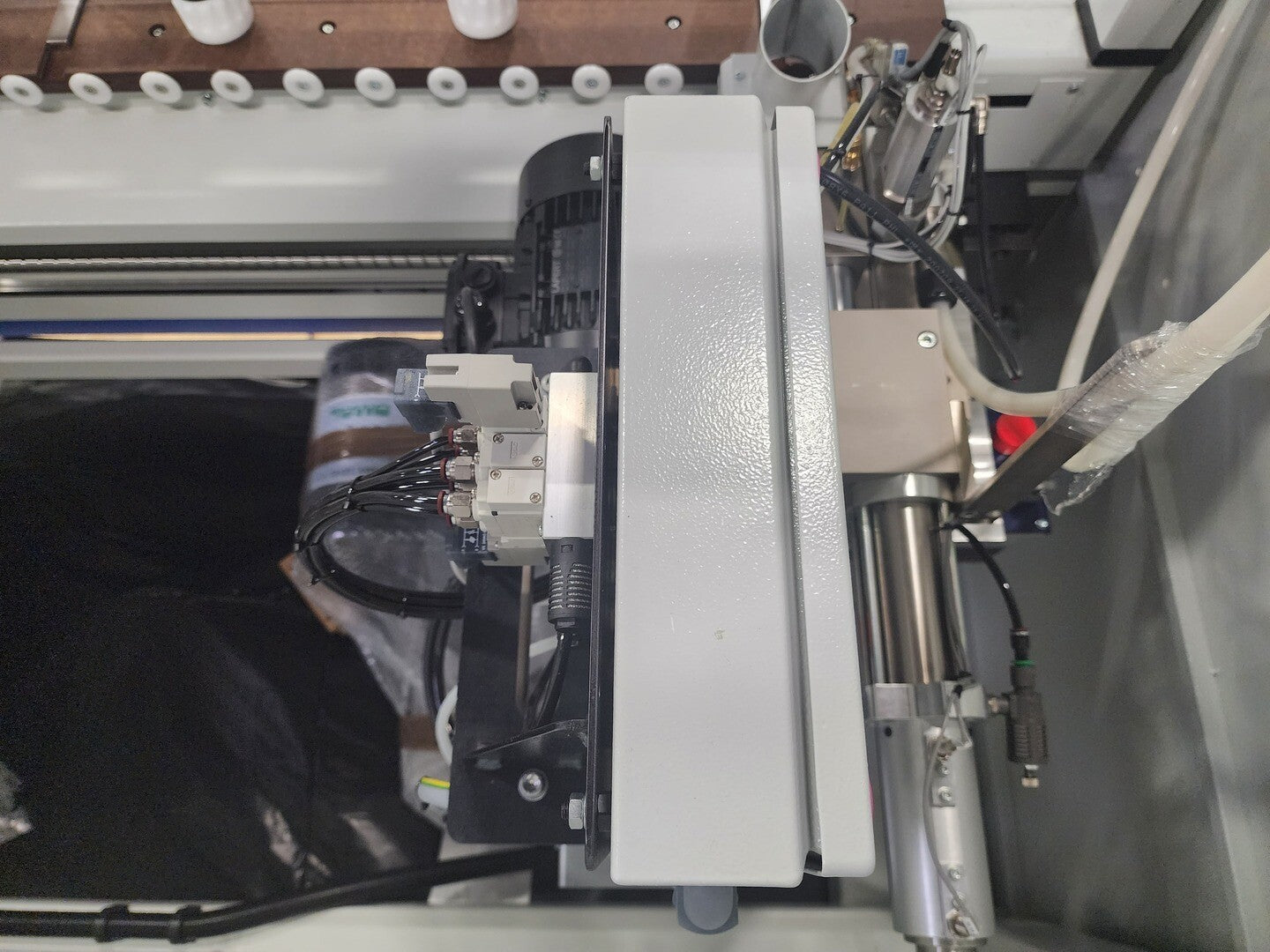

Drilling Unit

  • Number of drilling units: 1
  • Drill Motor: 0.55 kW / 0.75 hp
  • Drills rotation speed: 6000 rpm
  • Max. depth of holes: 30 mm / 1.18"
  • Max. diameter of drill: 10 mm / 3/8"

Dowel insertion unit

  • Number of dowel insertion unit: 1
  • Standard dowel dimension: Diameter 8 x 35 mm
  • Max. Dowel Length: 40 mm
  • Max. Dowel Projection: 20 mm
  • 2 position revolver for dowel
  • Fiber optic sensor for dowel presence
  • The drill and dowel inserter are 64 mm on-center

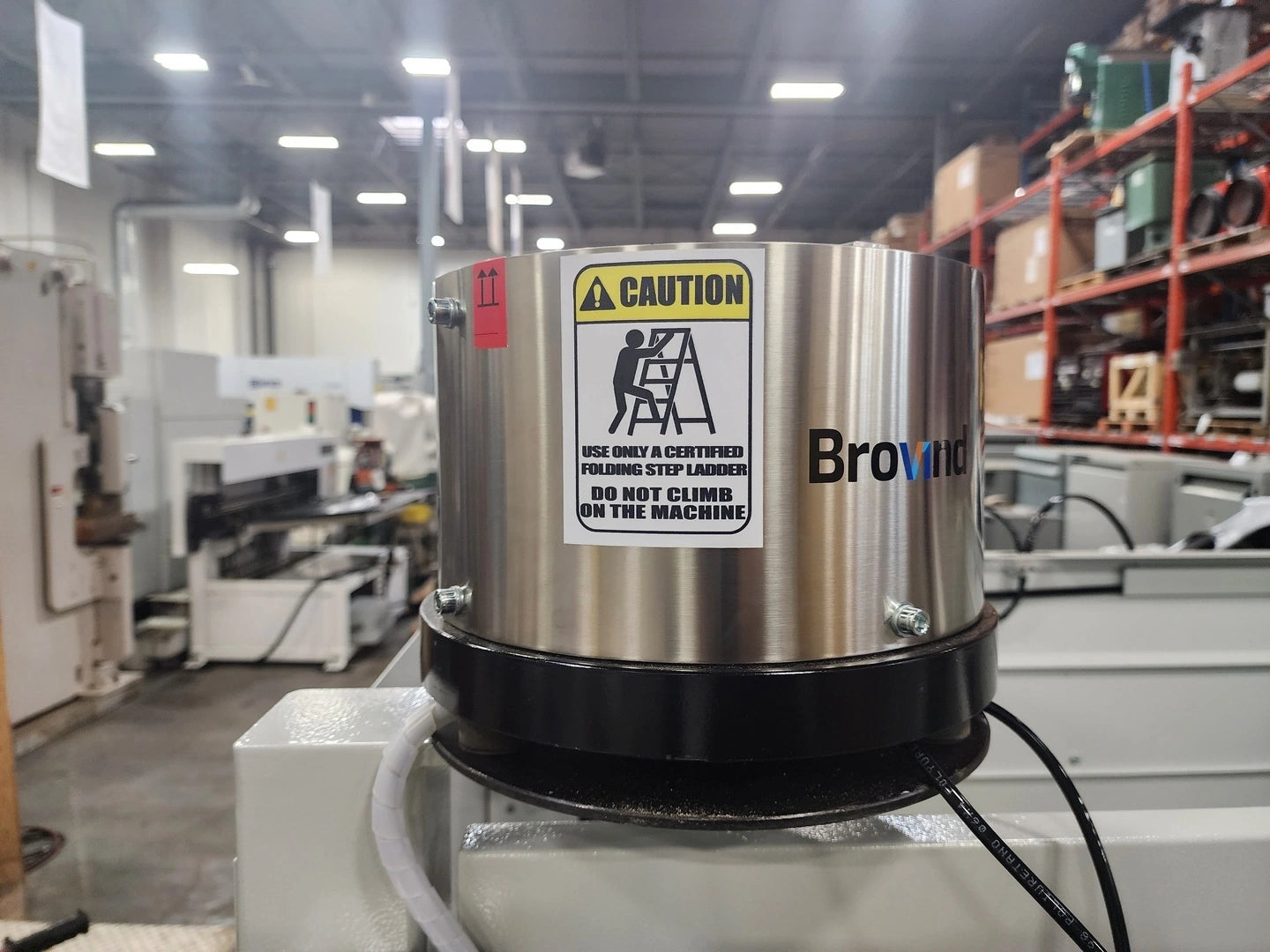

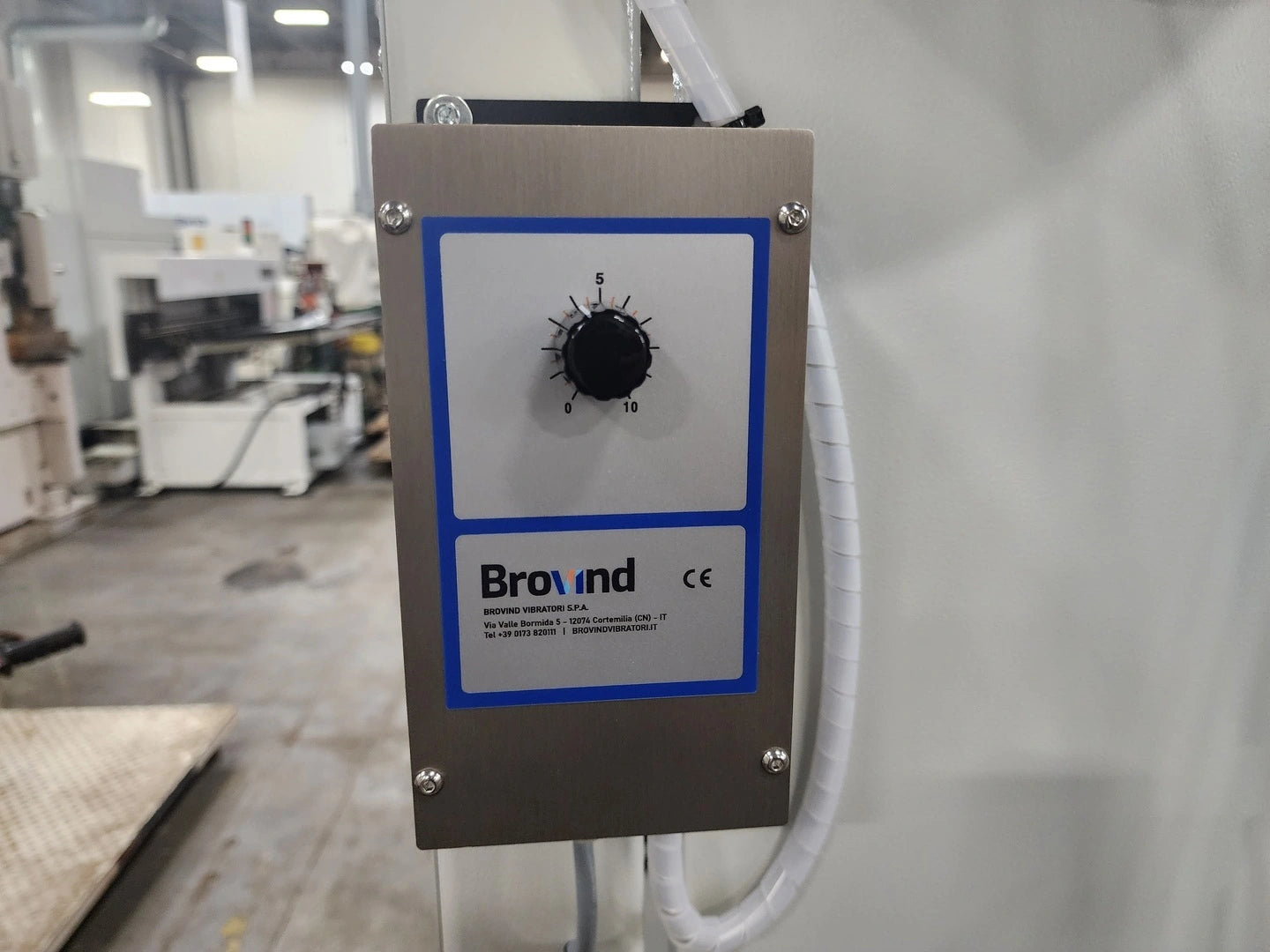

Dowel Vibrator Bowl

  • Capacity: 2000 dowels

Gluing & cleaning unit

  • Capacity of glue tank: 8 Litres
  • Capacity of cleaning tank: 8 Litres
  • Max. glue viscosity: 900 cps
  • NC control of glue amount
  • Injector unit with inductive sensor to verify glue is shot
  • Injector with double, reinforced seals to ensure no nozzle leakage

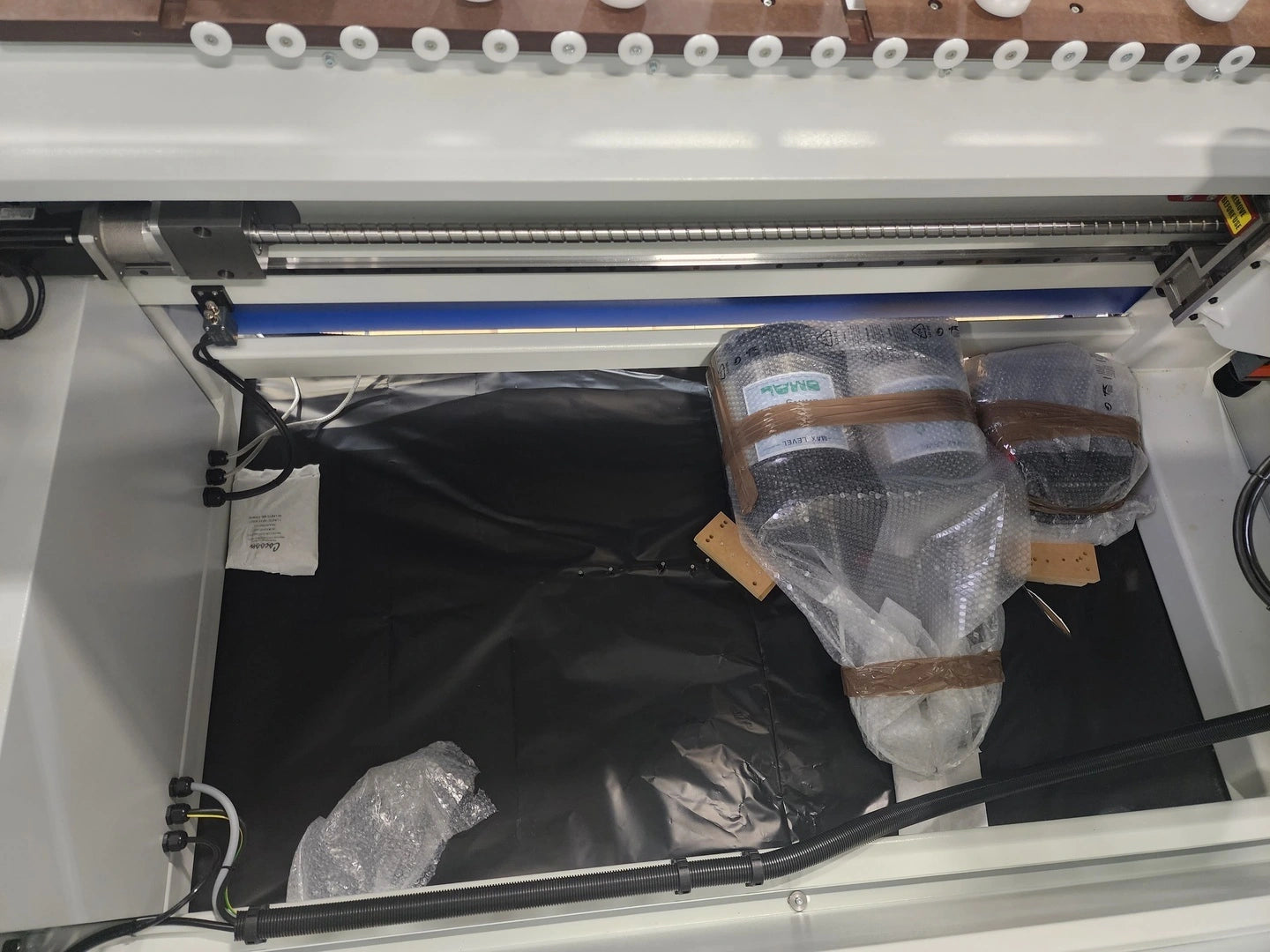

X axis, CNC with ball screw

  • Installed torque: 2.4 Nm
  • Working area: 1300 mm (50")
  • Carriage travel speed: 50 m/min (163.5 ft./min)

DEPTH "Y" axis (manual setting):

  • Working stroke: 40 mm (1.57")

THICKNESS "Z" axis (manual setting):

  • Working stroke: 40 mm (1.57")

Additional

  • 4 (standard) Vertical Clamps
  • 24 VDC Control Voltage
  • 7 bar (101 psi) Air Pressure

PDF Specifications

PDF Footprint
