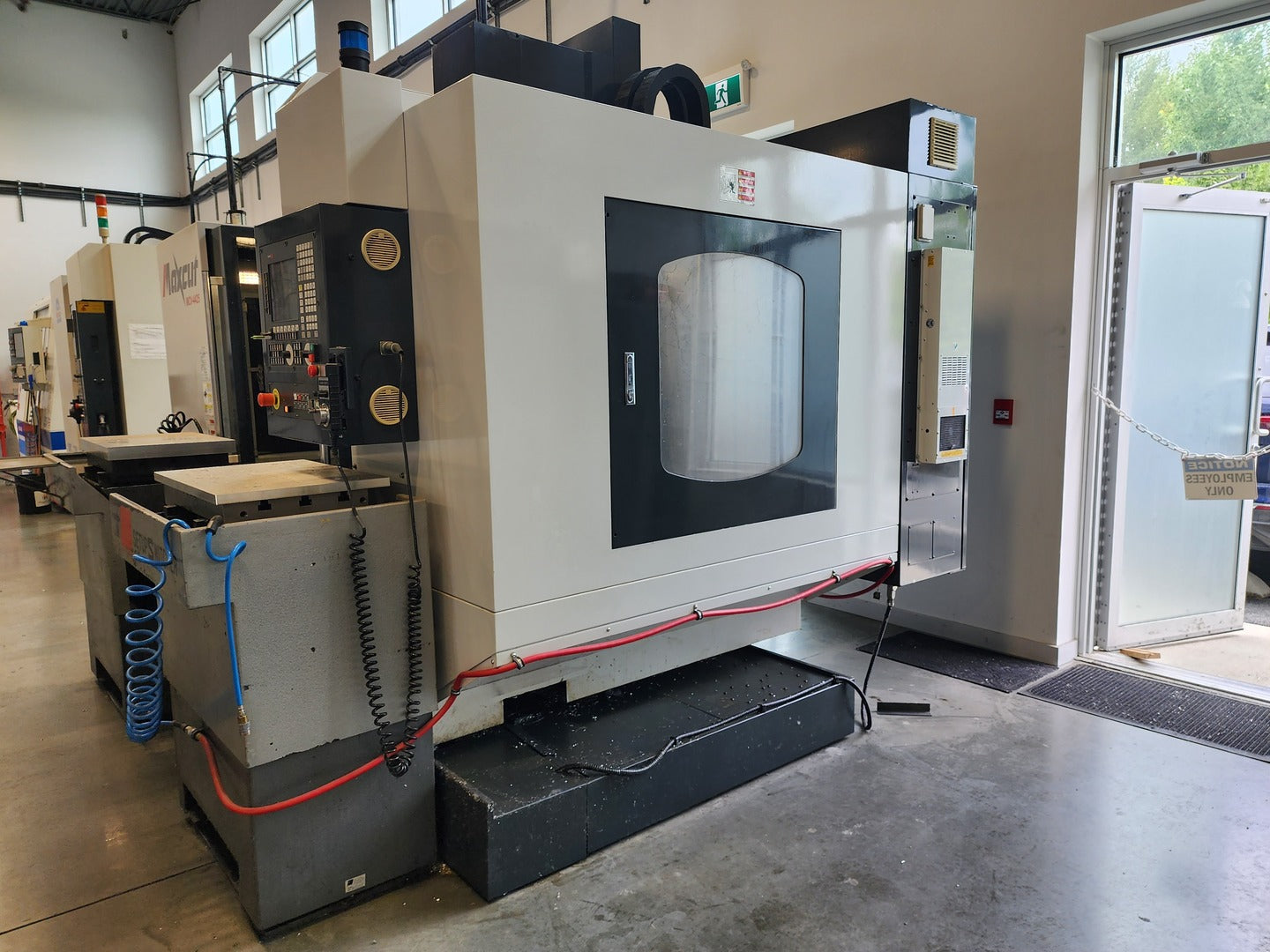

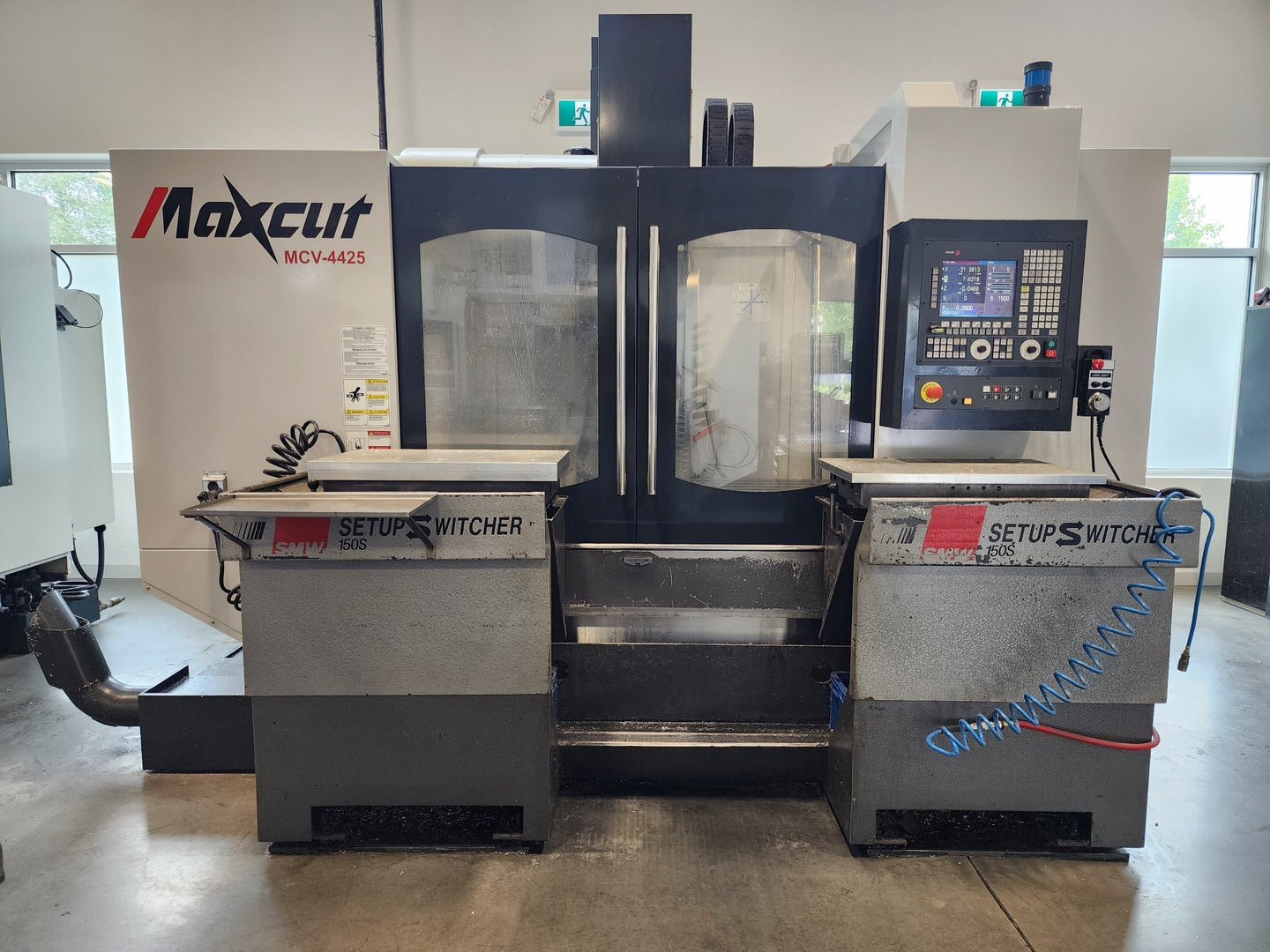

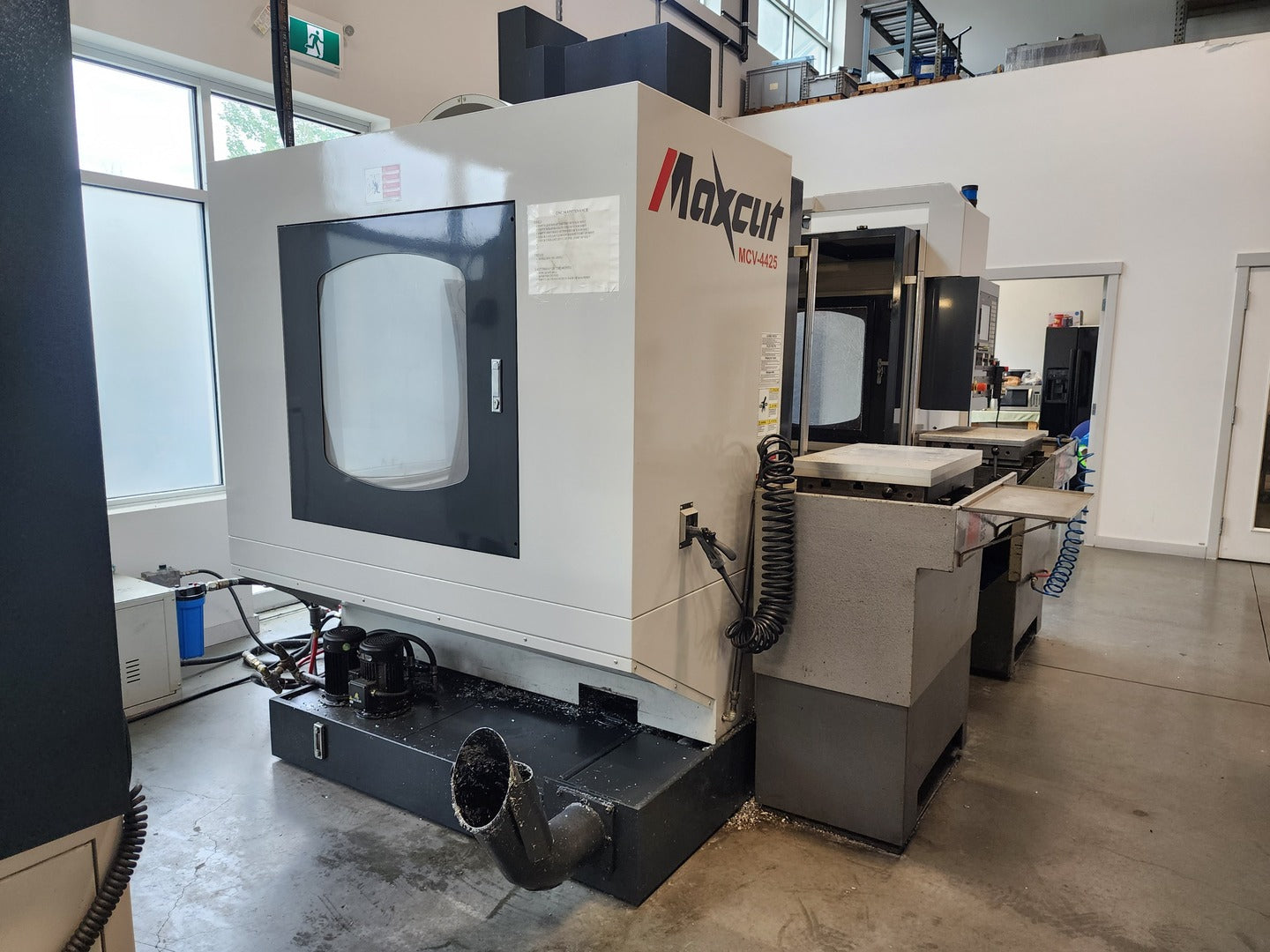

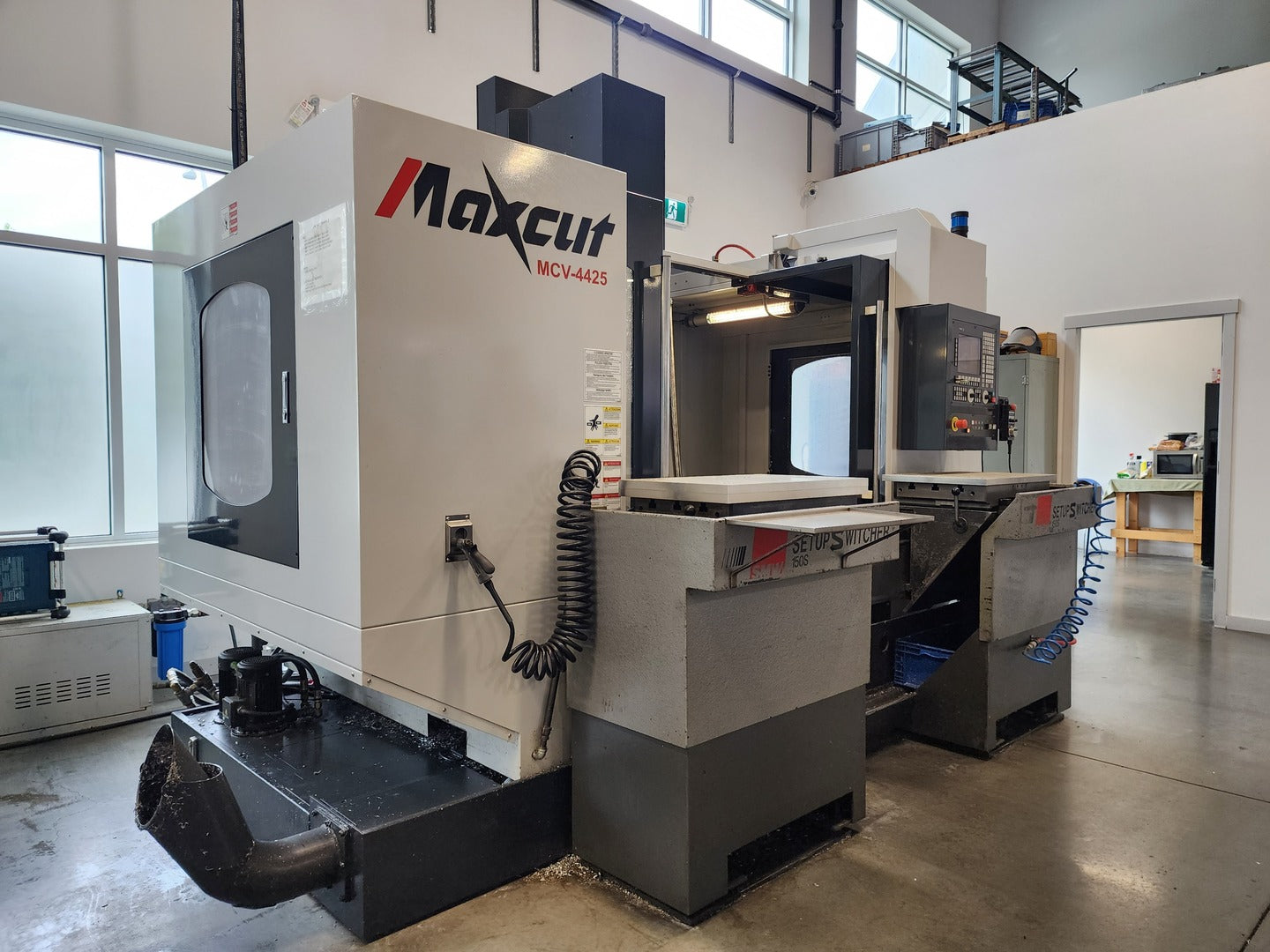

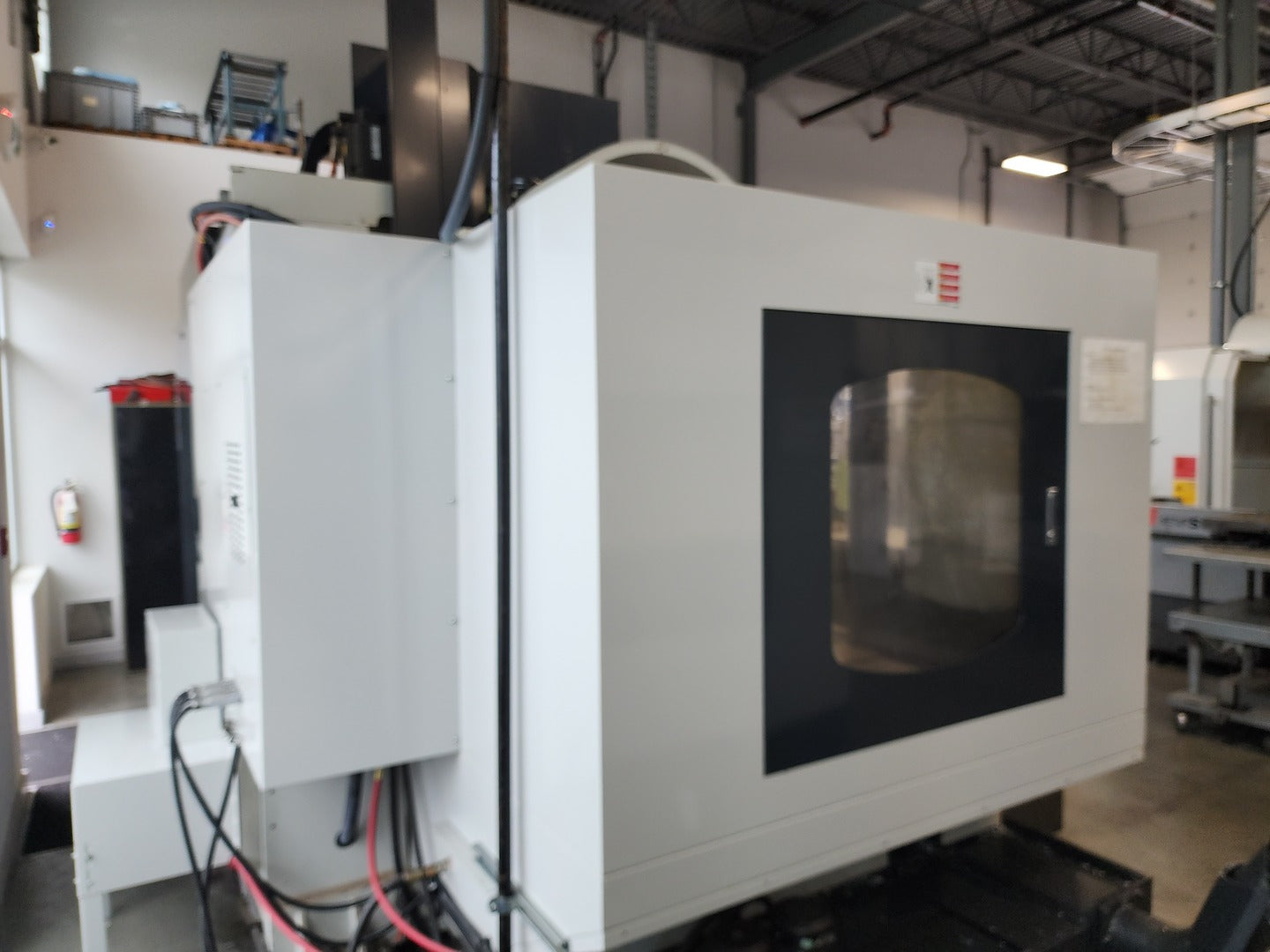

Vertical Machining Center MCV-4425 RH-20 w/ Setup Switcher 150S
MAXCUT

Vertical Machining Center MCV-4425 RH-20 w/ Setup Switcher 150S

SKU: 120253
Price:
$45,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Specifications

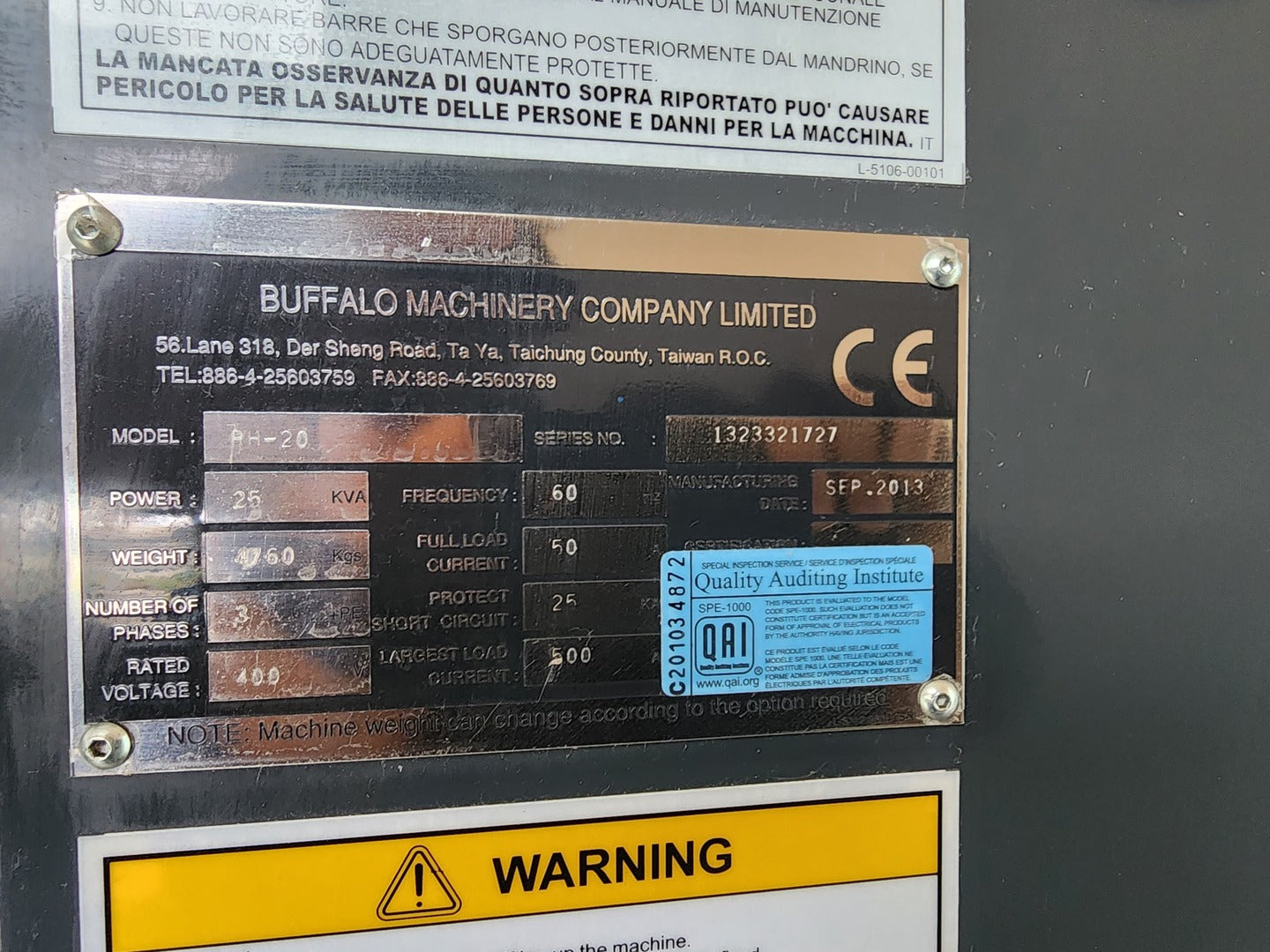

Model MCV-4425 RH-20
Year: 2013
S/N: 1323321727
Condition Used
General
Spindle Taper ISO 40
Table Size 1300 x 600 mm
Speed 8000 rpm
CNC Yes
Electrical
Voltage 400 volts
Phase 3-phase
Amps 50 amps
Other Specifications

VIDEO LINK

Features

  • Fagor 8055i/A MC LCD color display

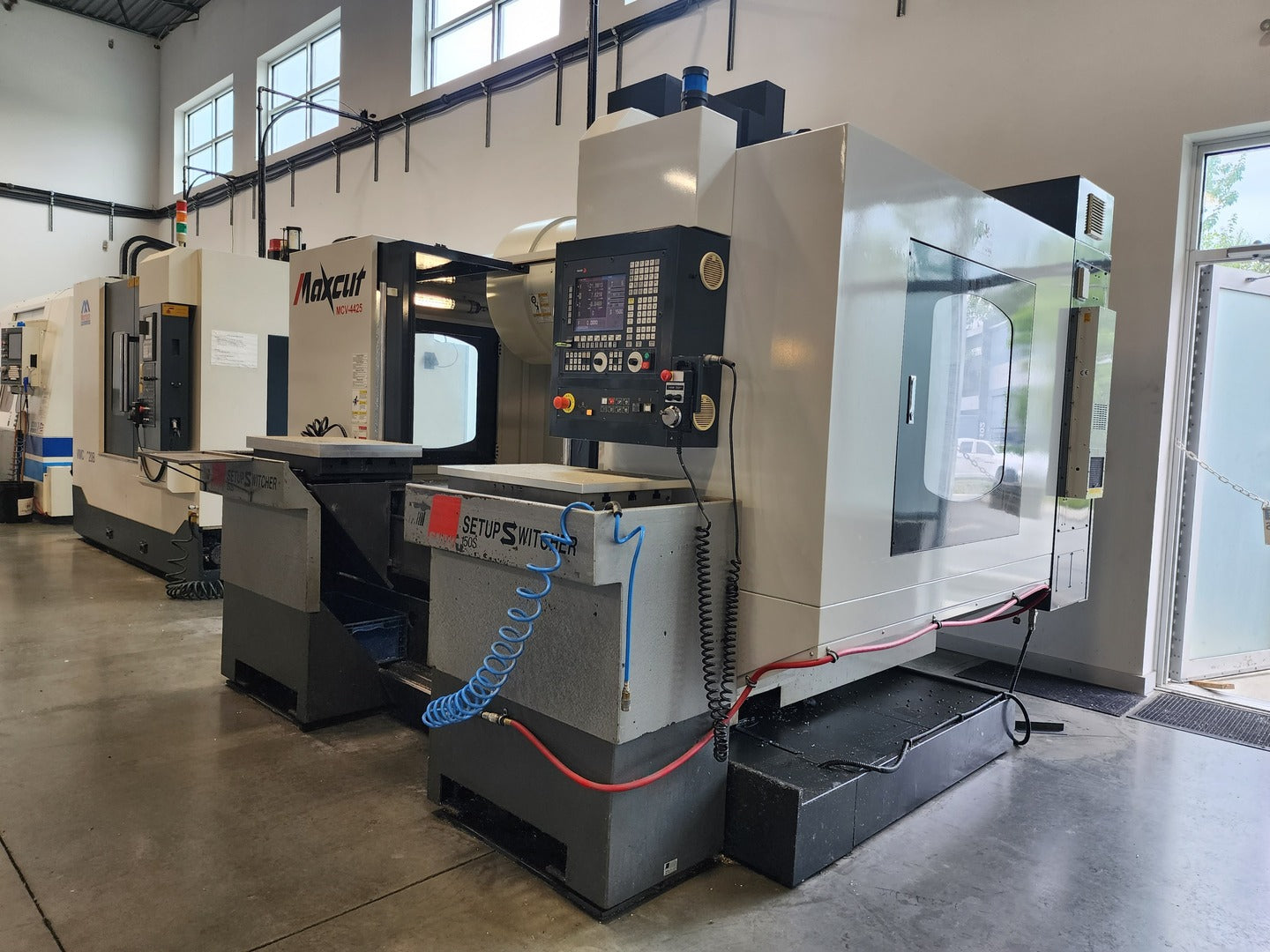

  • S M W Setup switcher model 150S
  • Swing arm type ATC - 24 tools

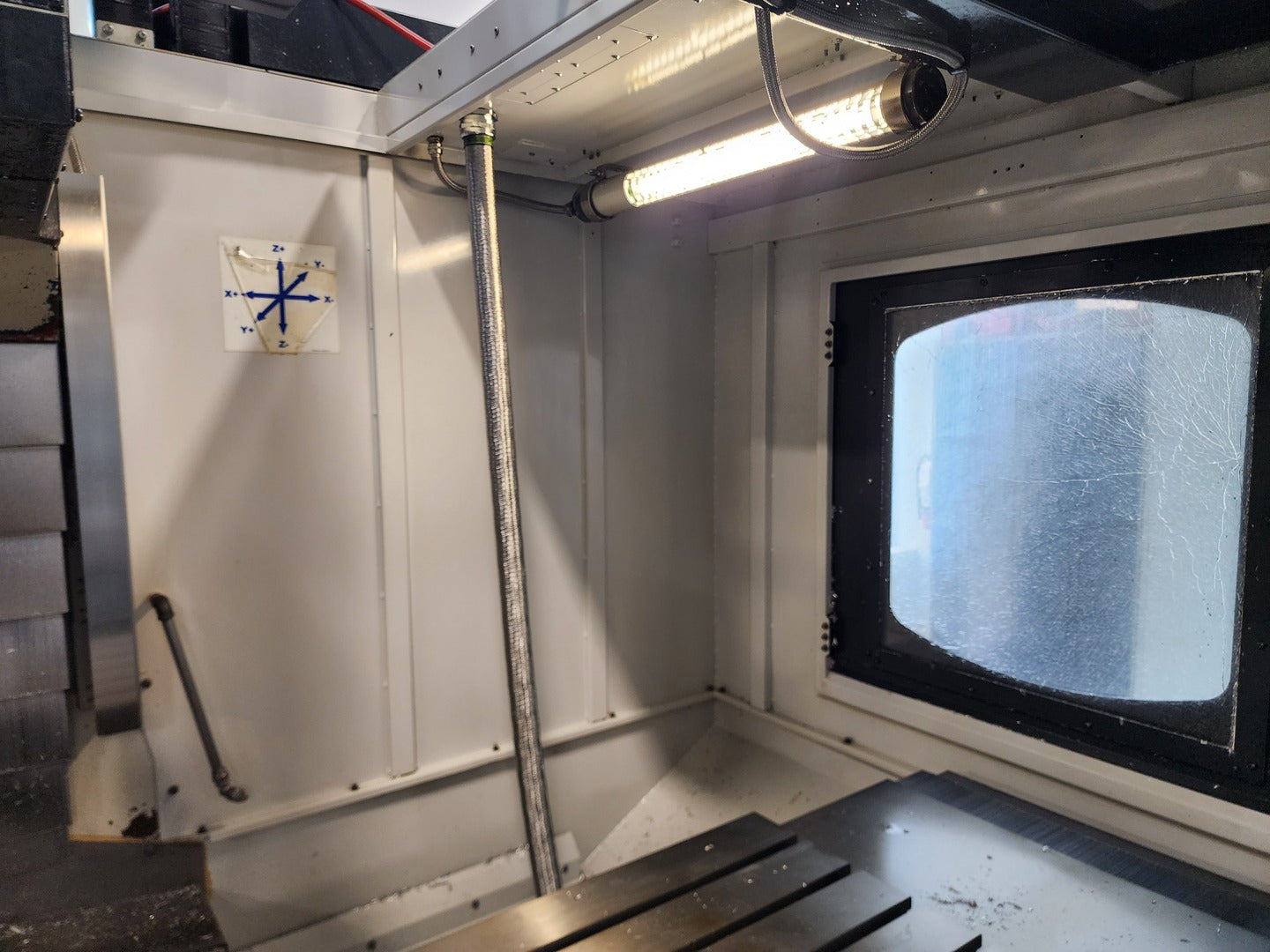

  • Wash down system with coolant gun

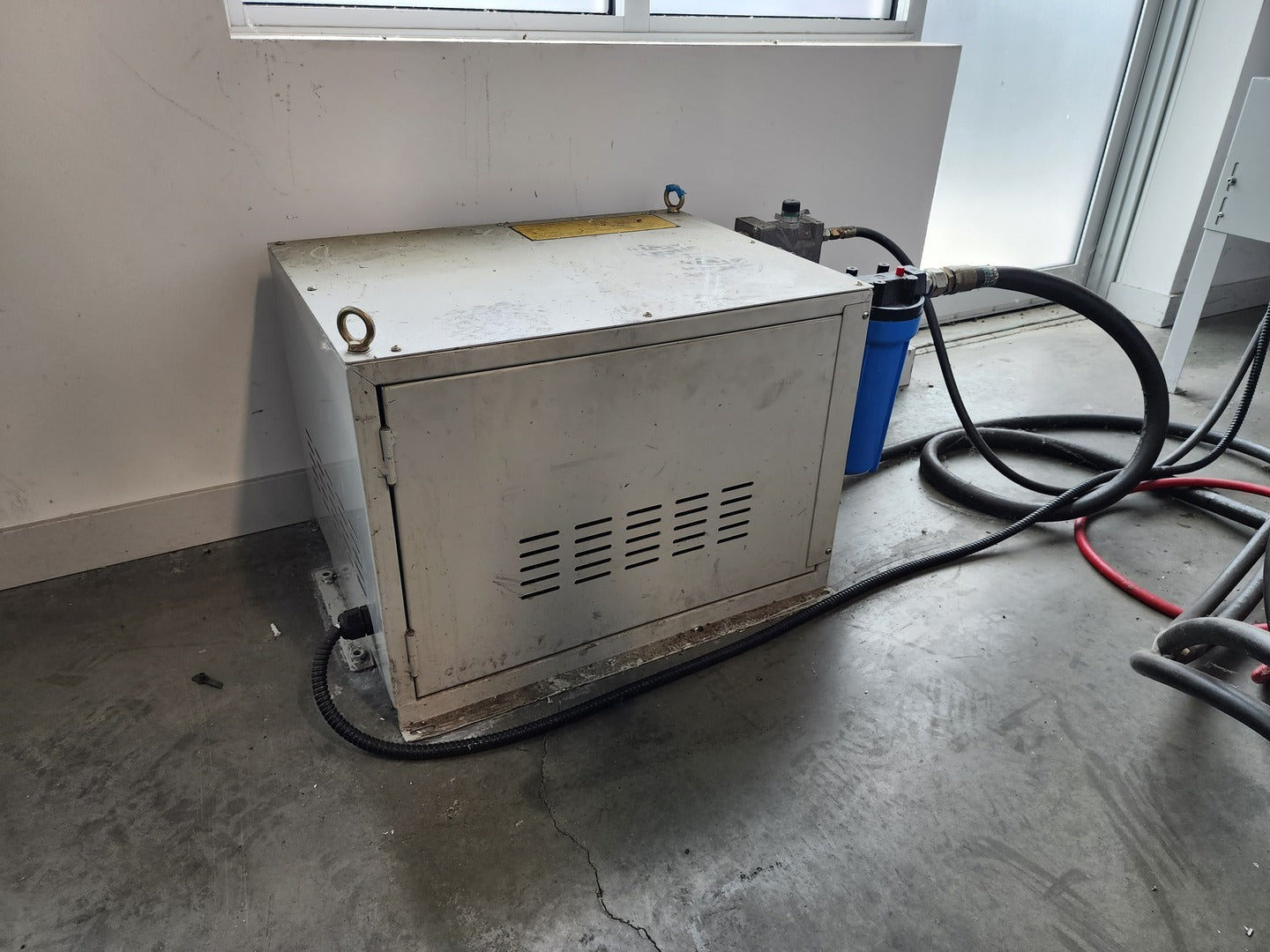

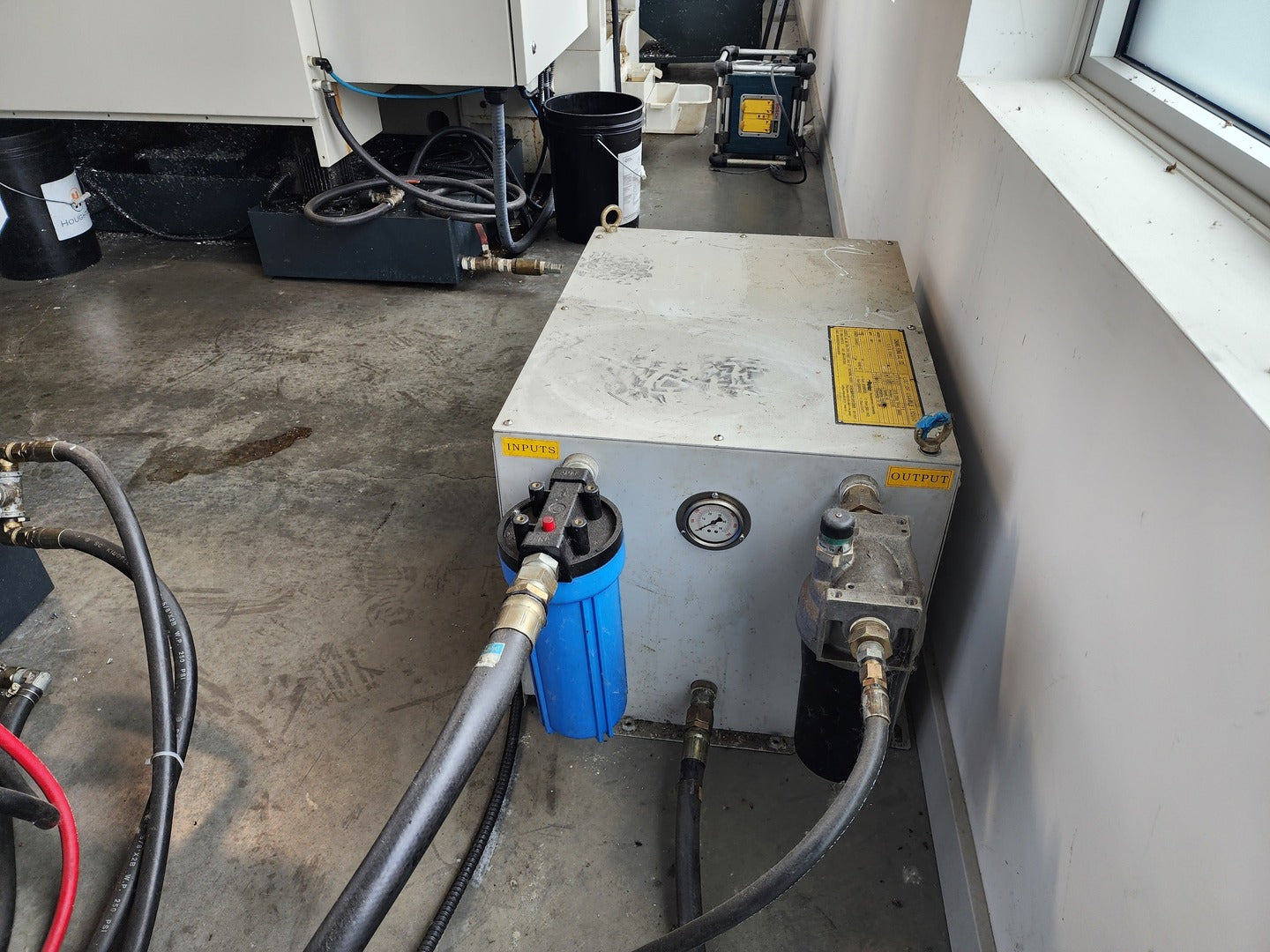

  • Through spindle coolant
  • Full enclosure guard
  • Rigid tapping
  • Portable MPG
  • Heavily ribbed cast iron components
  • One piece box type base with internal rib design

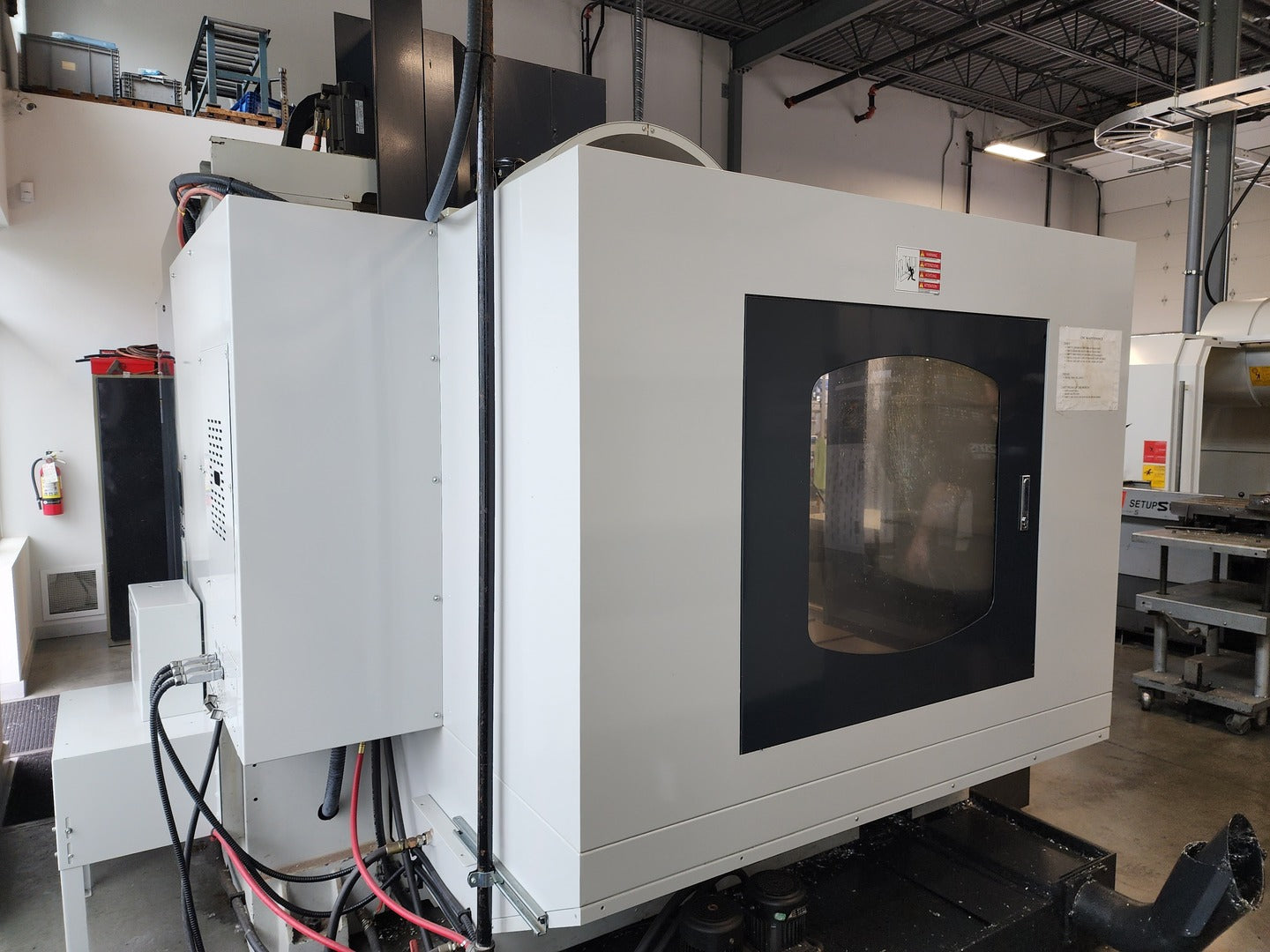

  • Fully enclosure & heavy duty metal guarding with removable side doors

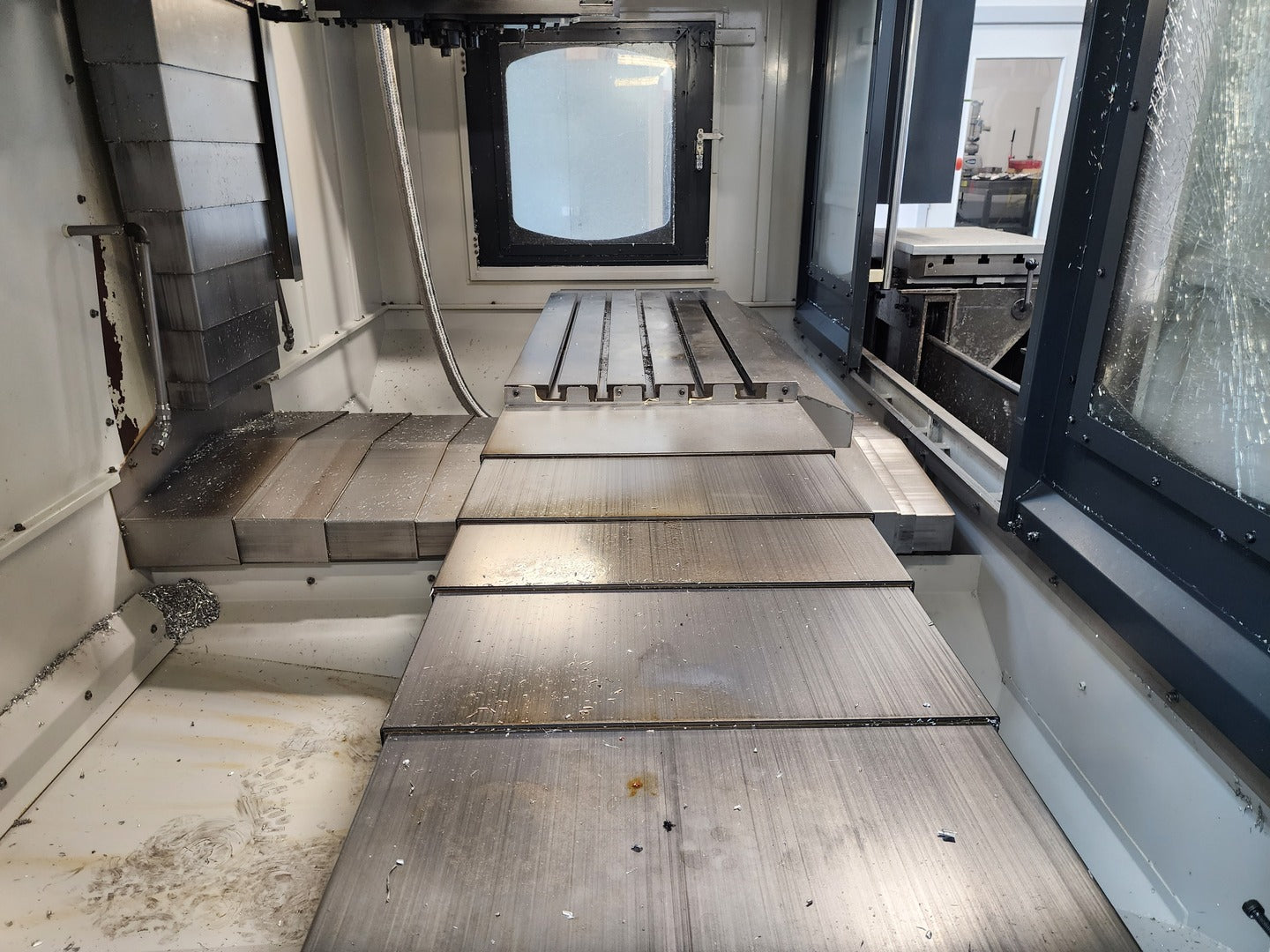

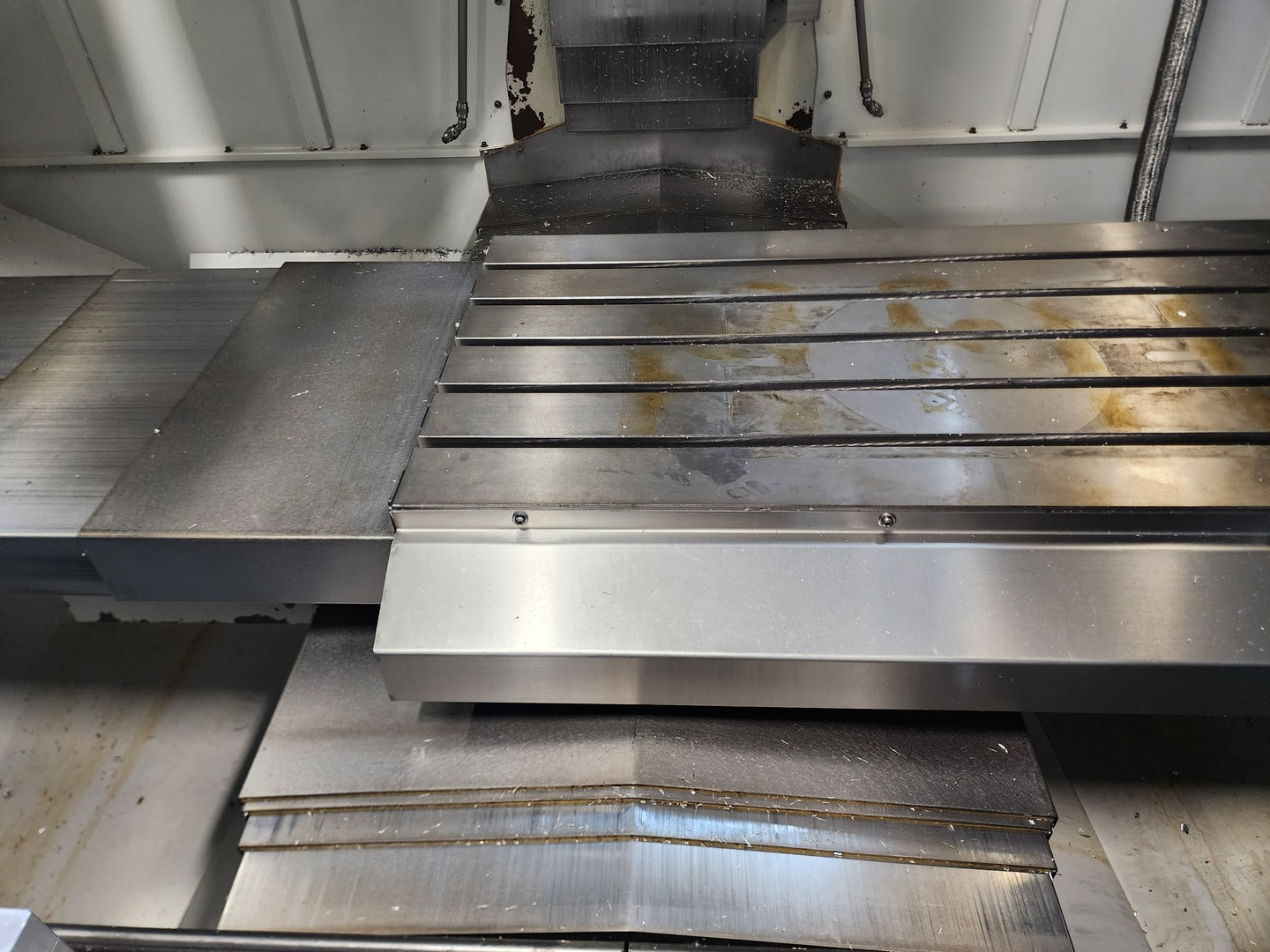

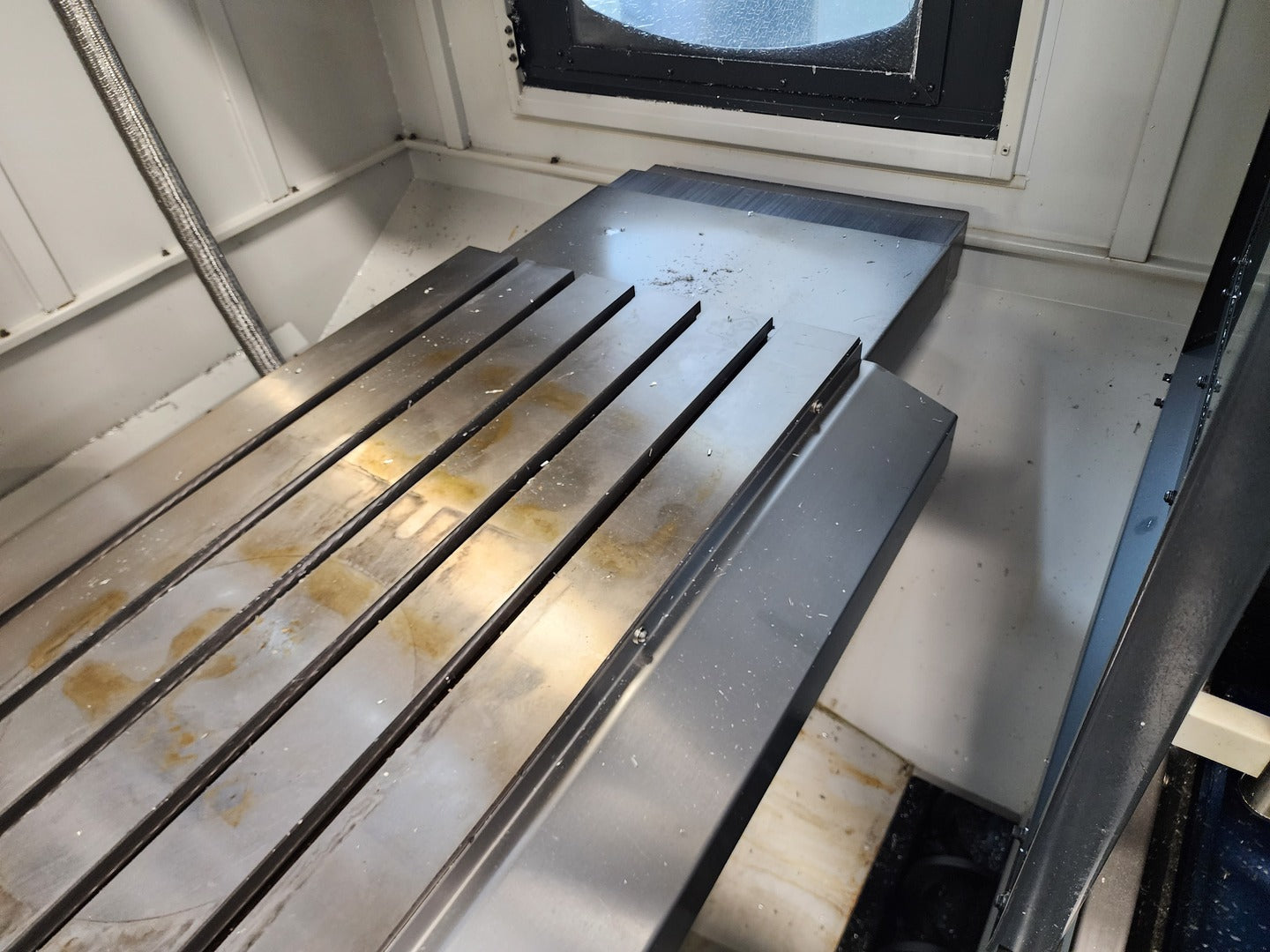

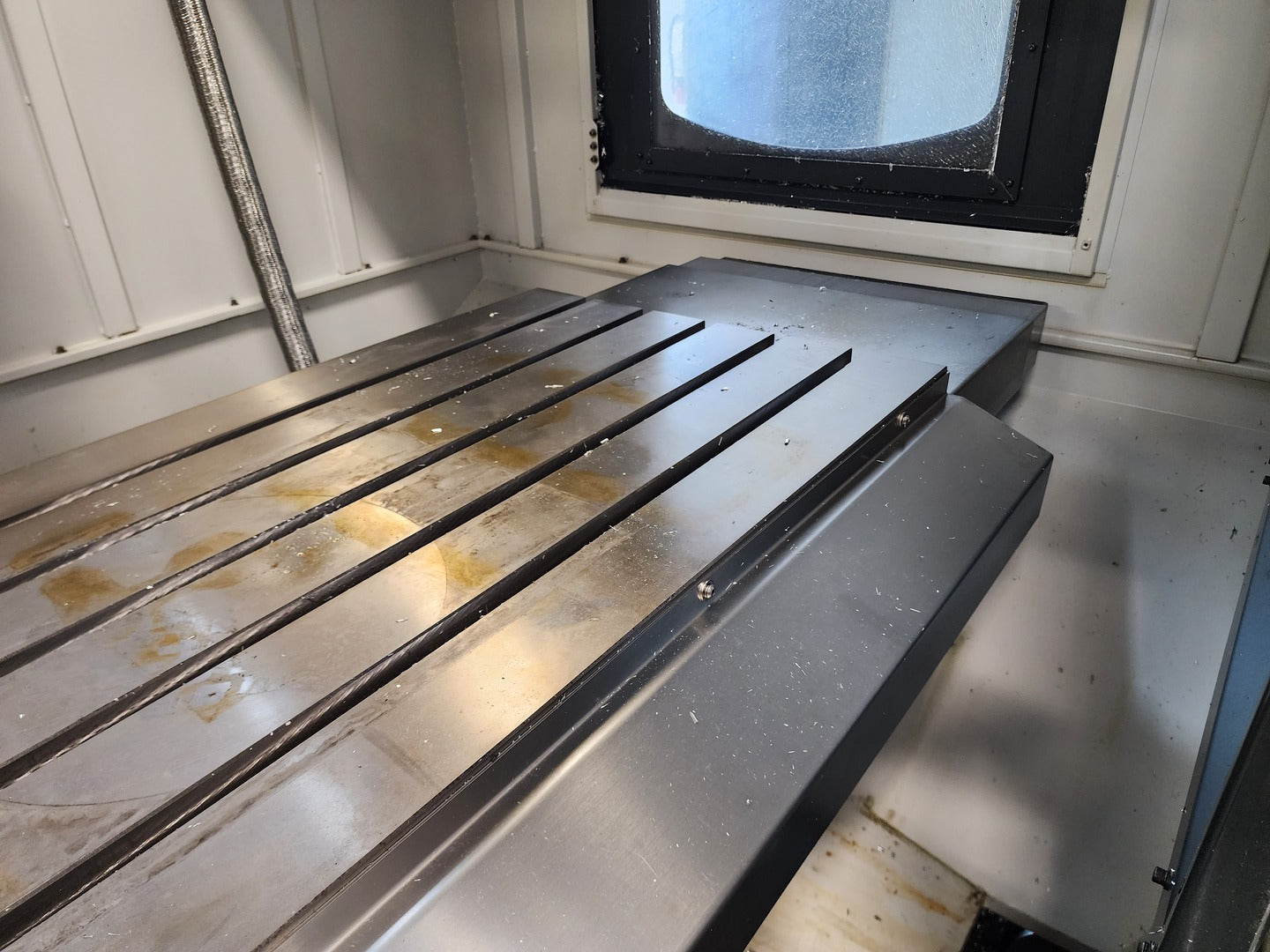

  • Large fully ground work table with 5 T slot
  • Precision ground ball screw
  • Heavy-duty box design

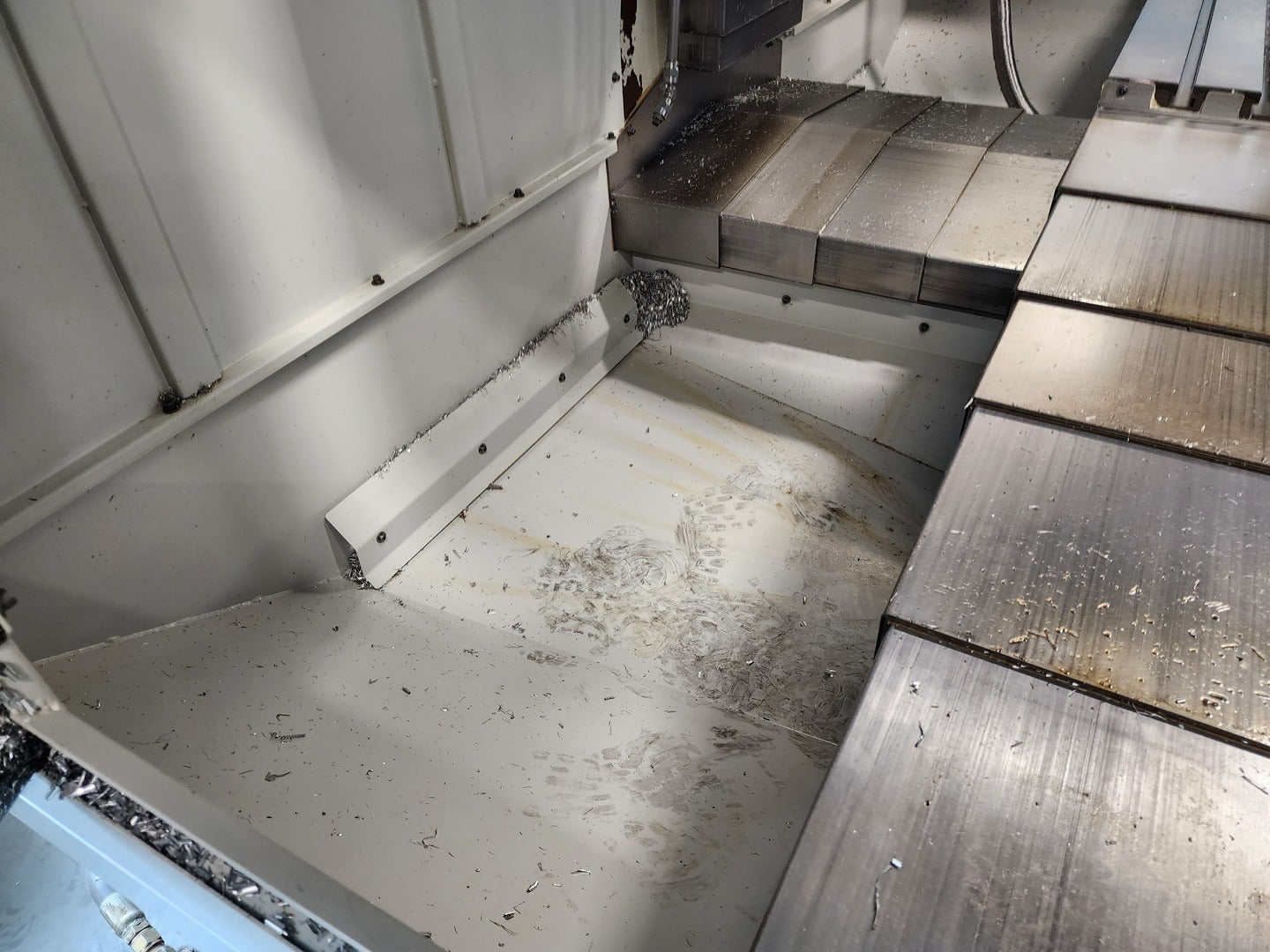

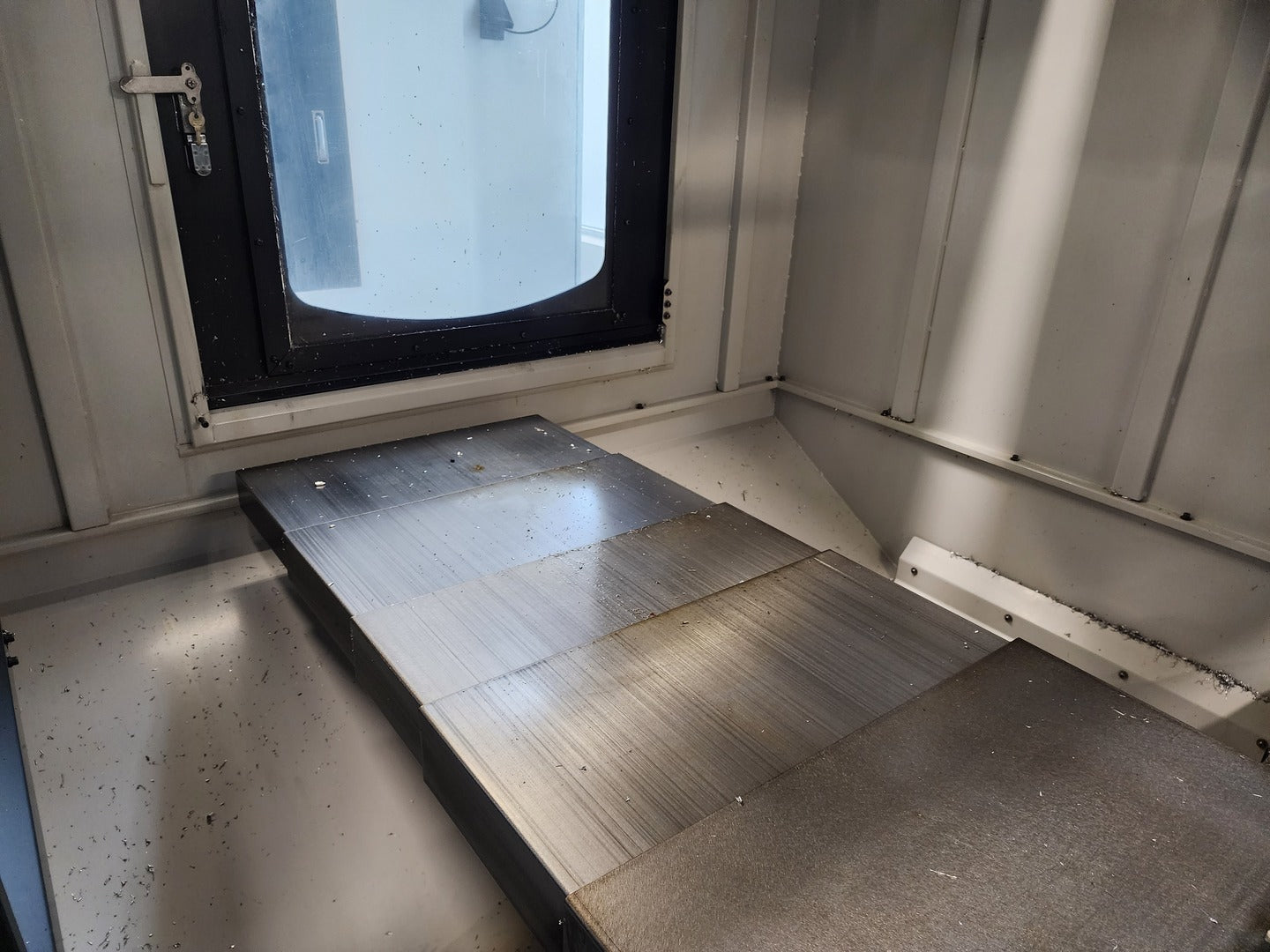

  • Telescopic way covers
  • Automatic lubrication with low lubrication fault
  • 210 L coolant tank
  • Chip auger conveyor
  • Low voltage circuit system

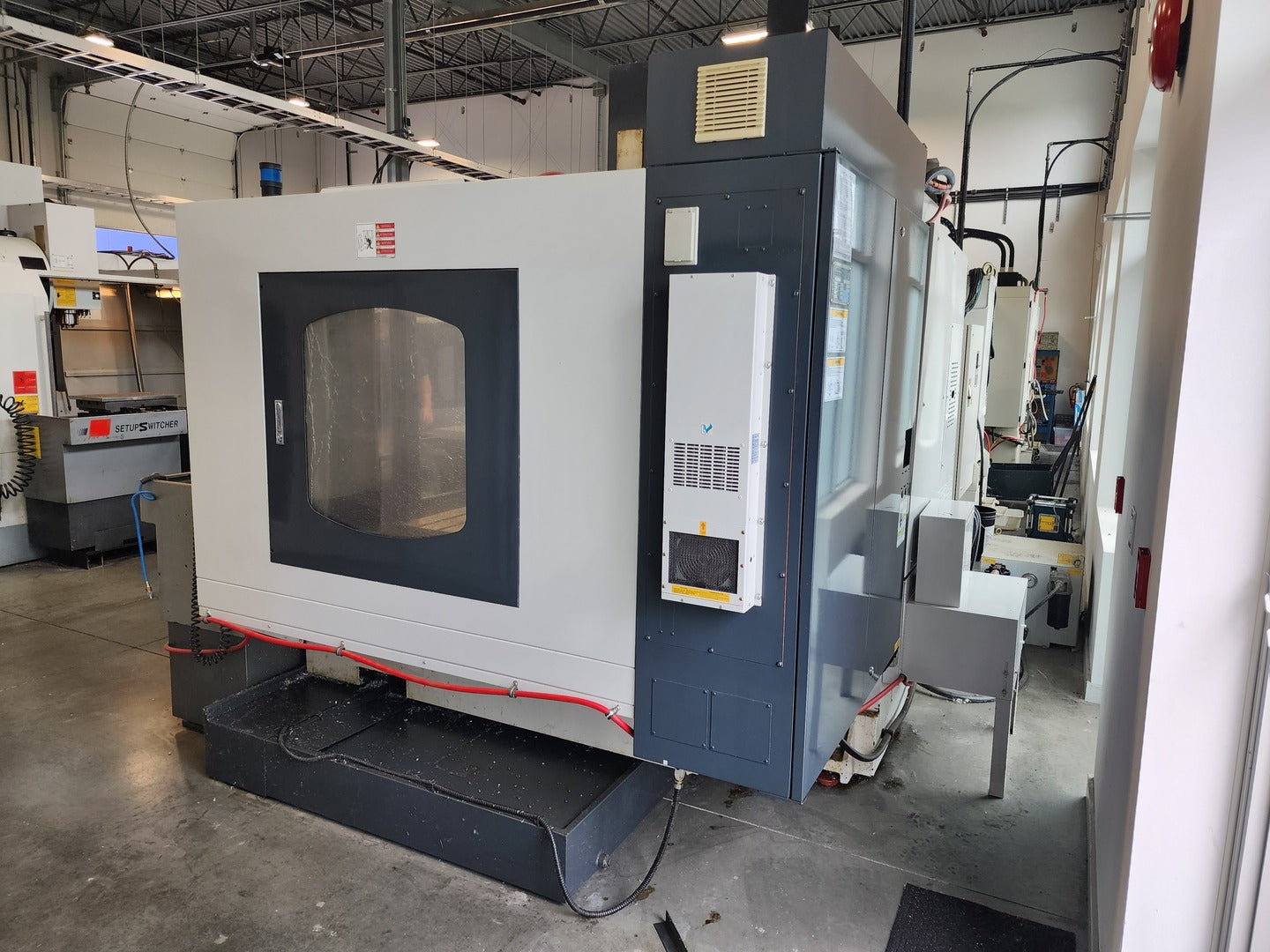

  • Heat exchanger
  • EMC-SCHAFFNER Brand EMC (electromagnetic compatibility)

Power: 25 KVA

Table Height: 840 mm (33")

Table Loading Capacity: 800 kgs (1760 lbs)

Travel

X Travel: 1120 mm (44")

Y Travel: 635 mm (25")

Z Travel: 610 mm (24")

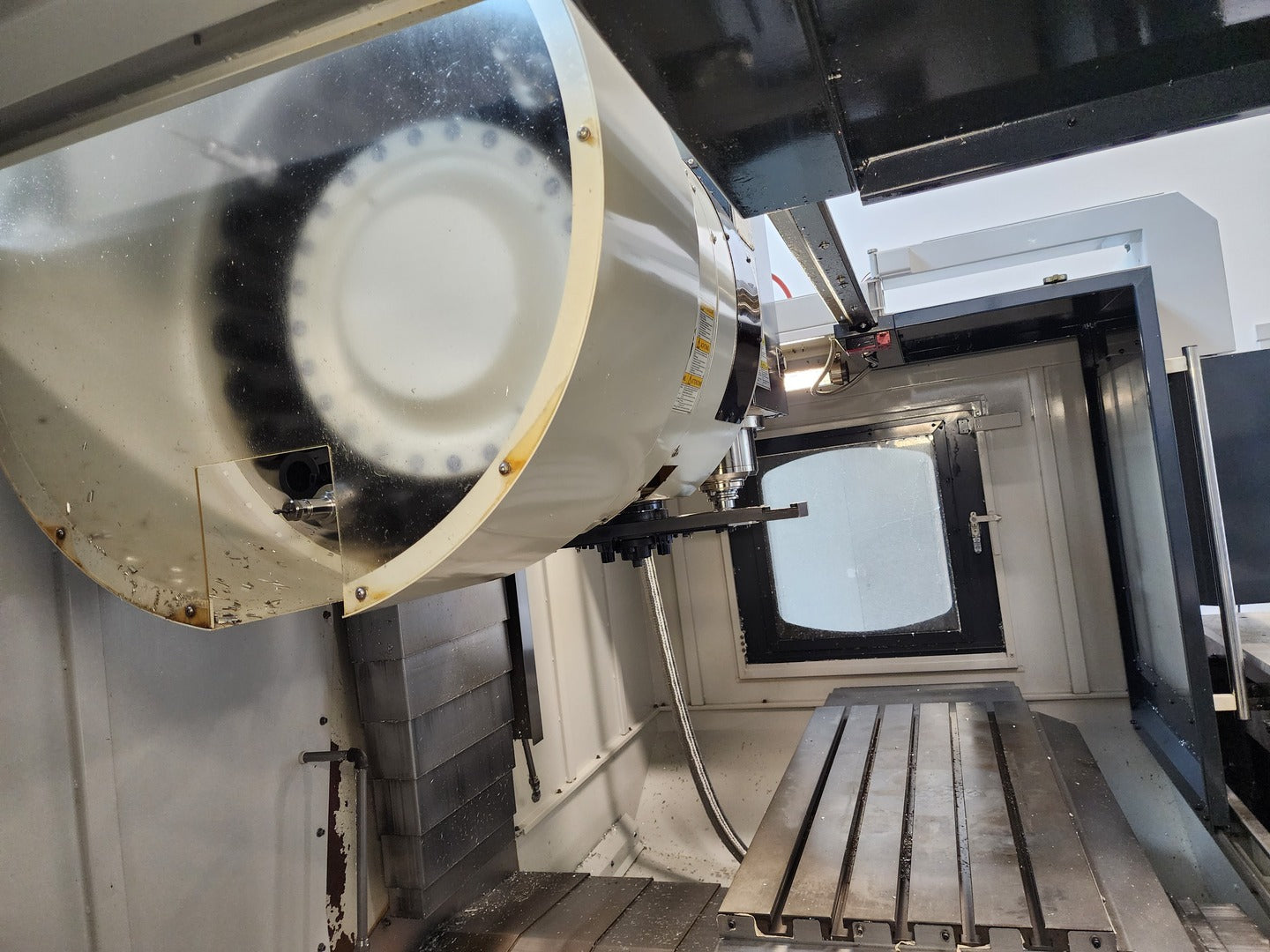

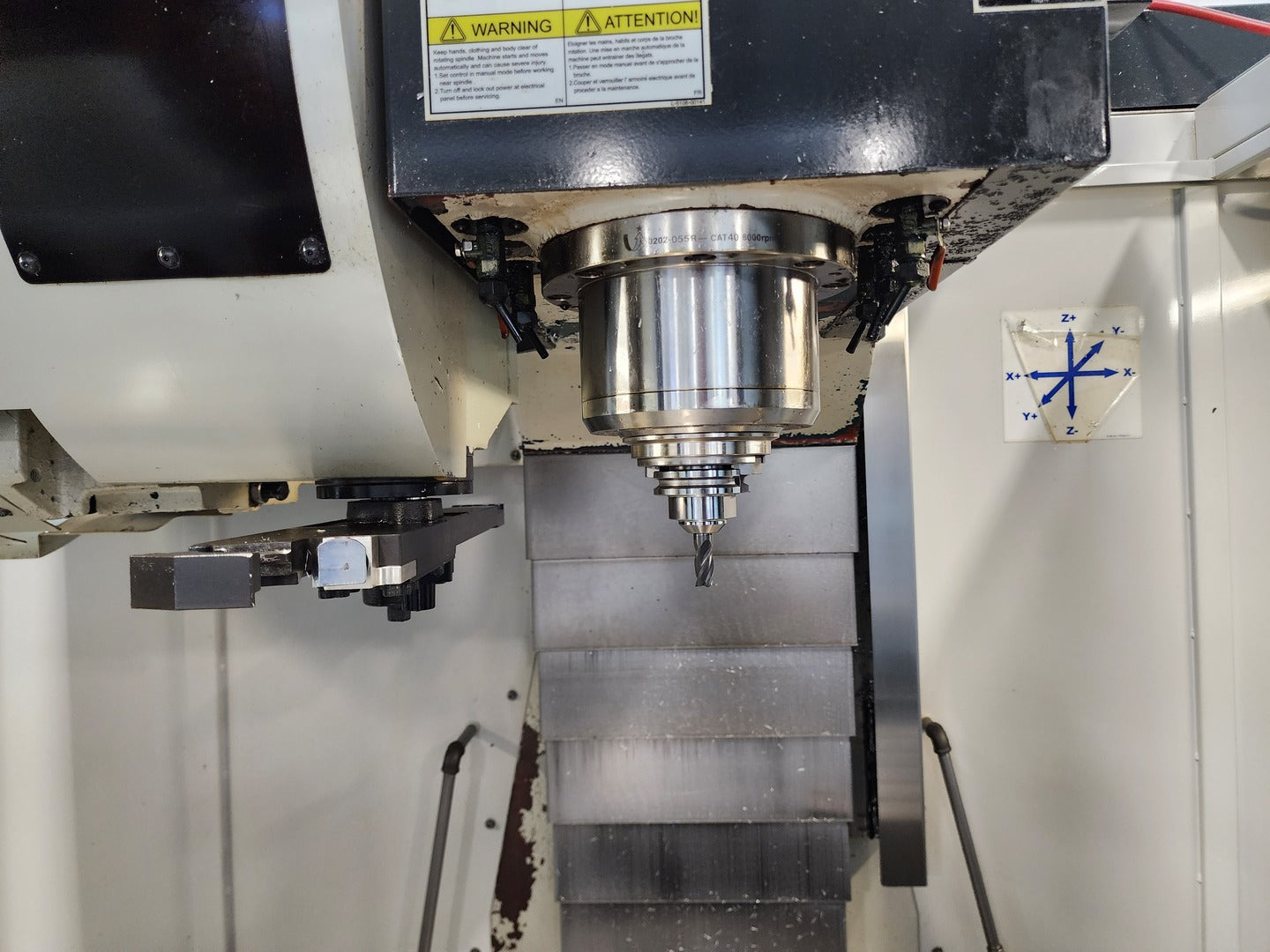

Spindle

Spindle Bearing Inside Diameter: 70 mm (2.756")

Center to Column: 675 mm (26.58")

Nose to Table: 30-640 mm (1.18"-25.19")

Motors

Spindle: 15/18.5 hp

X Axis Motor Torque: 14.84 Nm

Y Axis Motor Torque: 14.84 Nm

Z Axis Motor Torque: 27.34 Nm

Coolant Pump: 3/4 hp

Automatic Tool Changer

Tool Number: 24

Tool Taper: Cat 40

Tool Select by Shortest Path: Bi-directional

Max. Tool Weight: 8 kg / 17.6 lbs

Max. Tool Diameter: 130 mm (5.12")

Max. Tool Diameter (Adjacent Pocket): 70 mm (2.76")

Max. Tool Length: 300 mm (11.81")

Performance

Rapid Traverse X/Y/Z: 24 m/min (1000 ipm)

Feed Rate X/Y/Z: 15 m/min (600 ipm)

Positioning Accuracy: +/- 0.005 mm (+/- 0.0002")

Repeatability: +/- 0.002 mm (+/- 0.00008")

Dimensions & Weight

Length x Width x Height: 3.3 x 2.5 x 2.8 m (132 x 100 x 112 in.)

Weight: 4760 kgs

Floor Space: 5.27 x 3.25 m (207 x 128 in.)
