Description

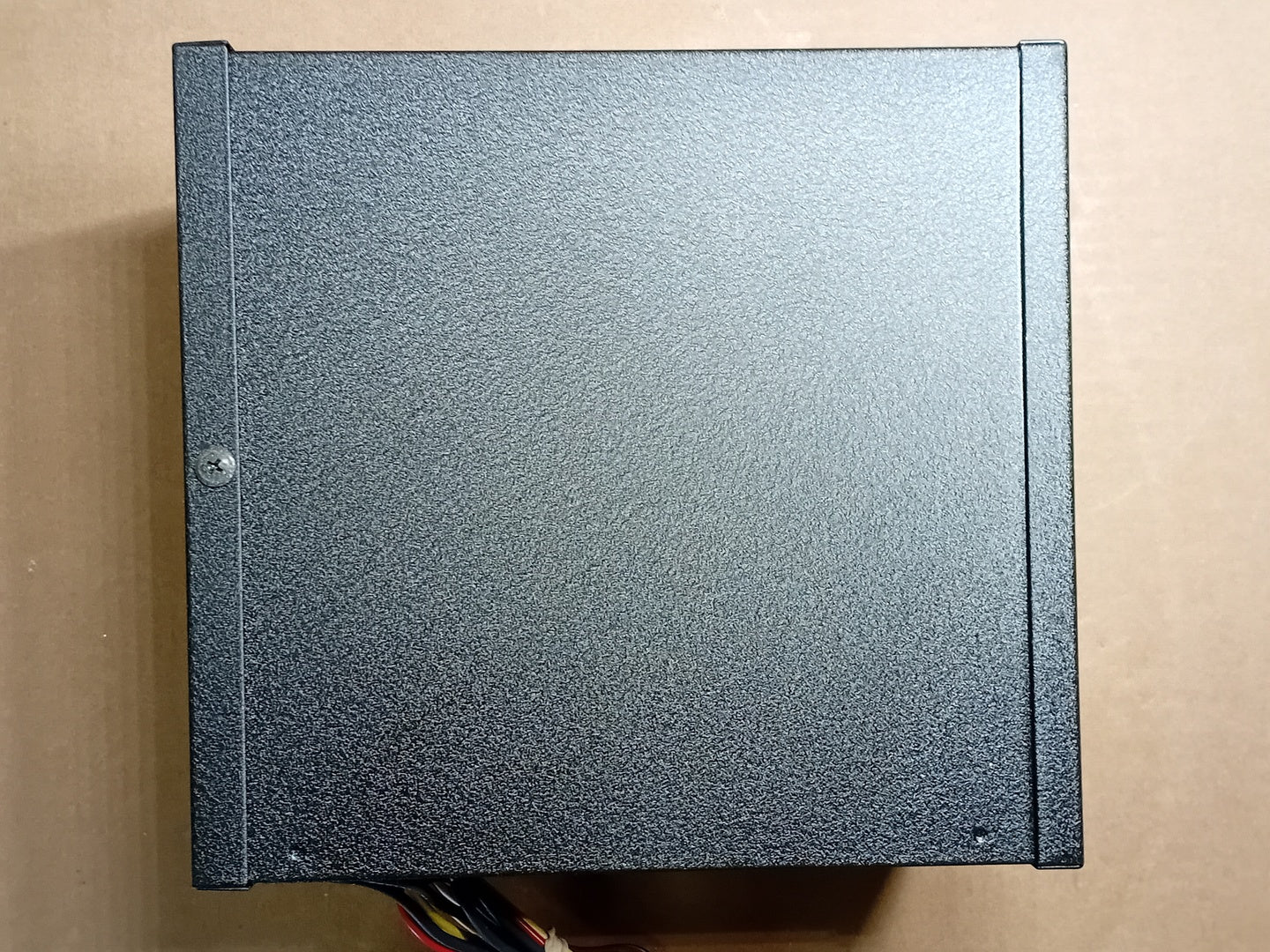

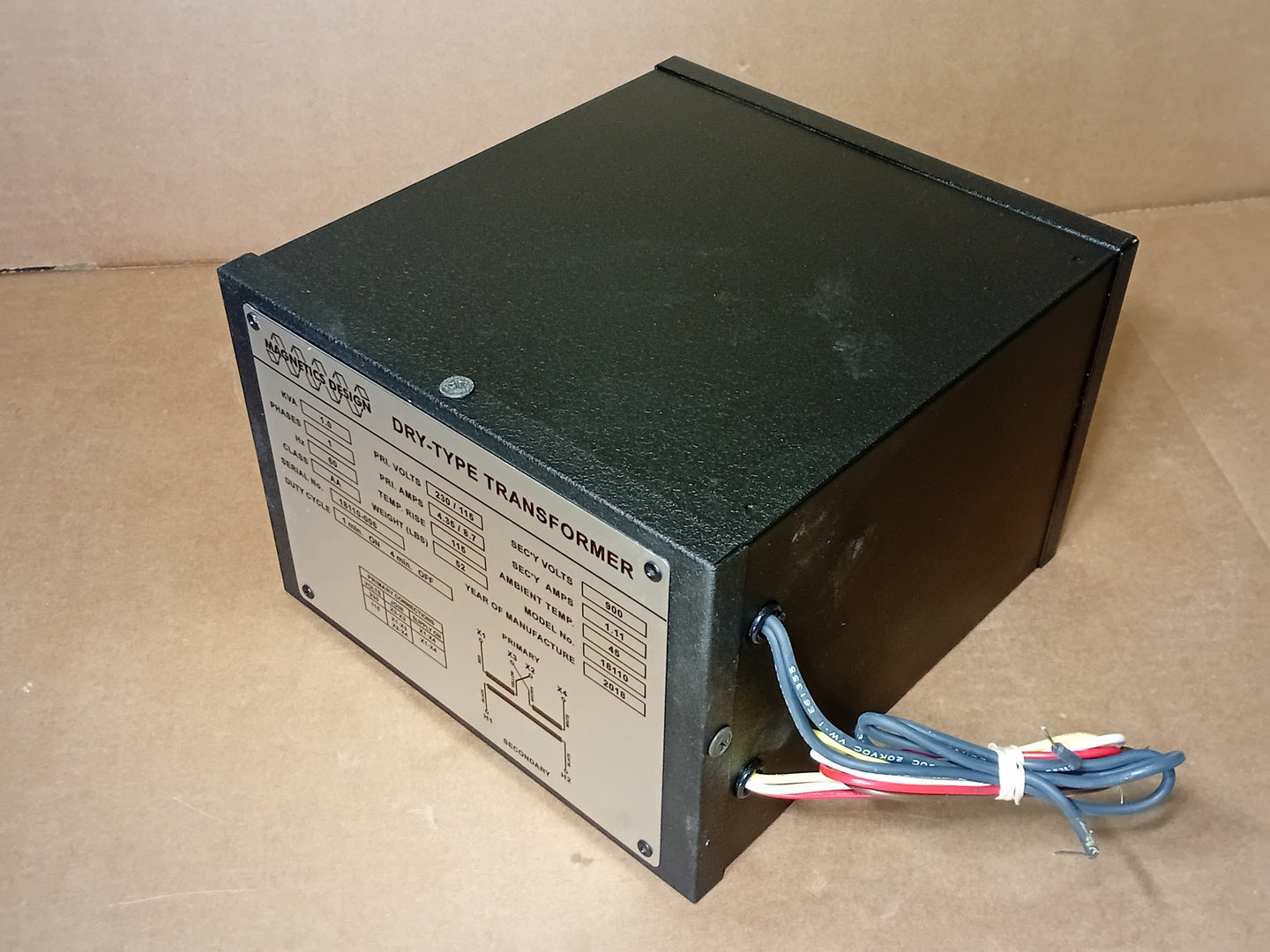

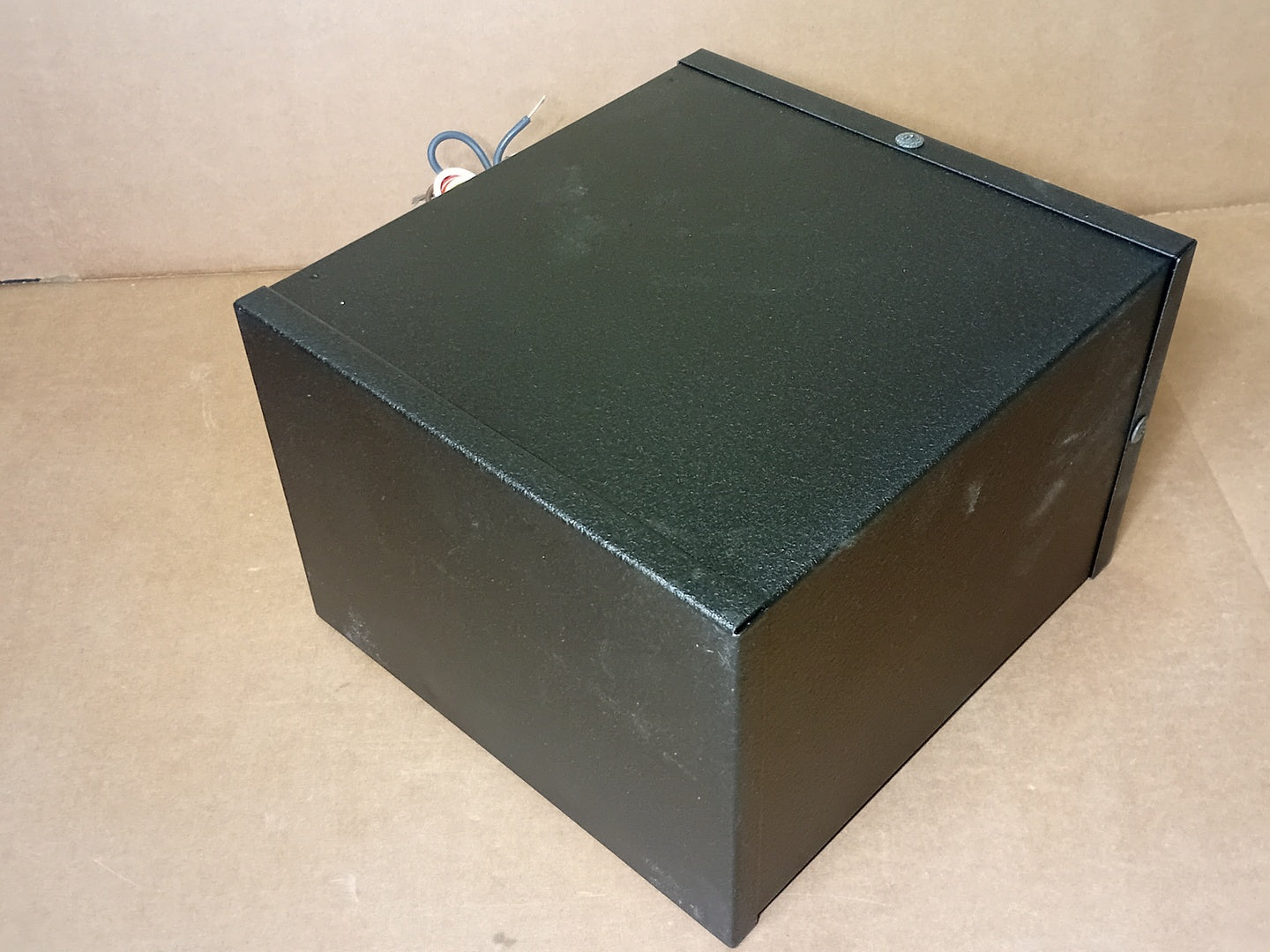

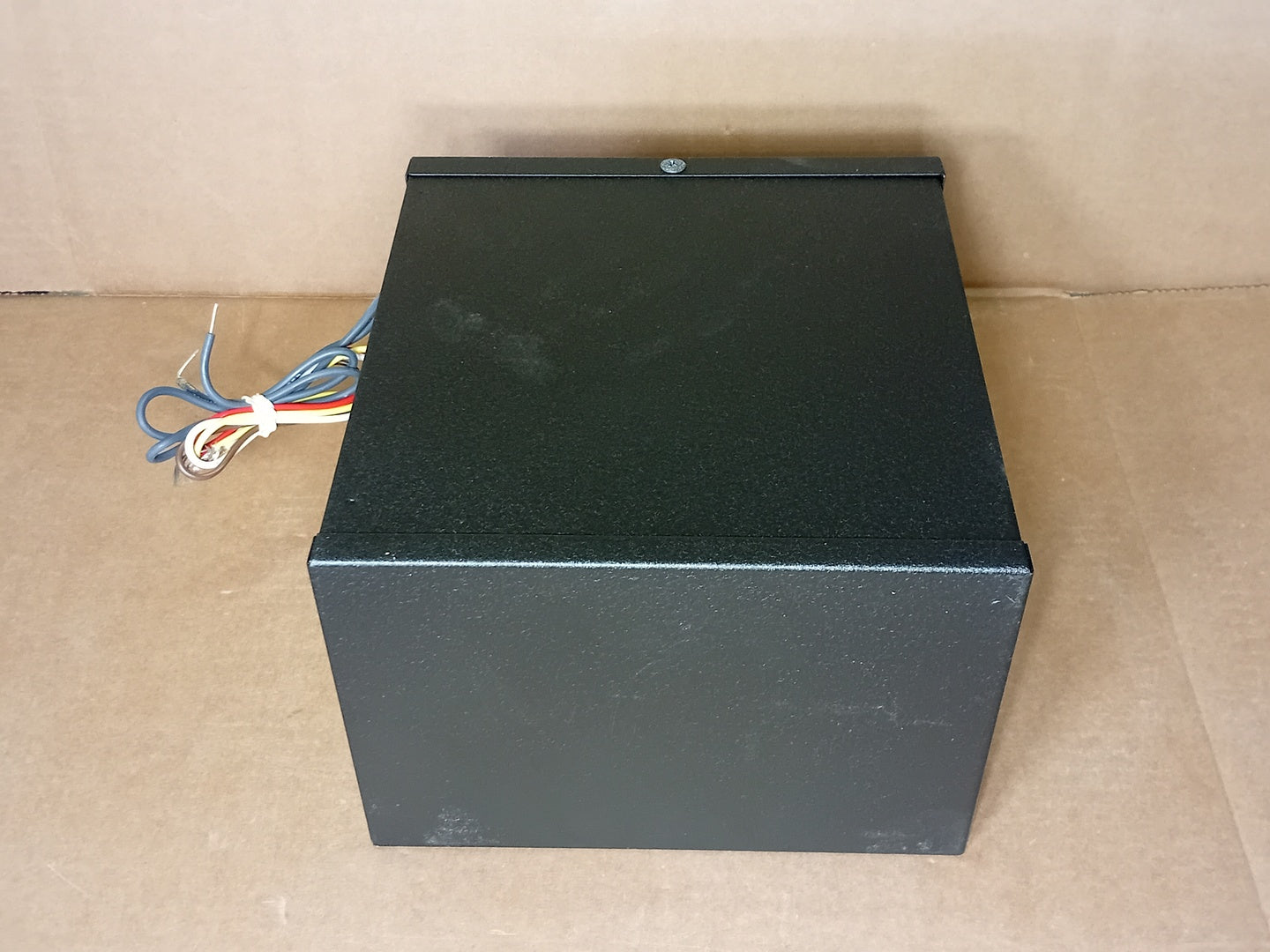

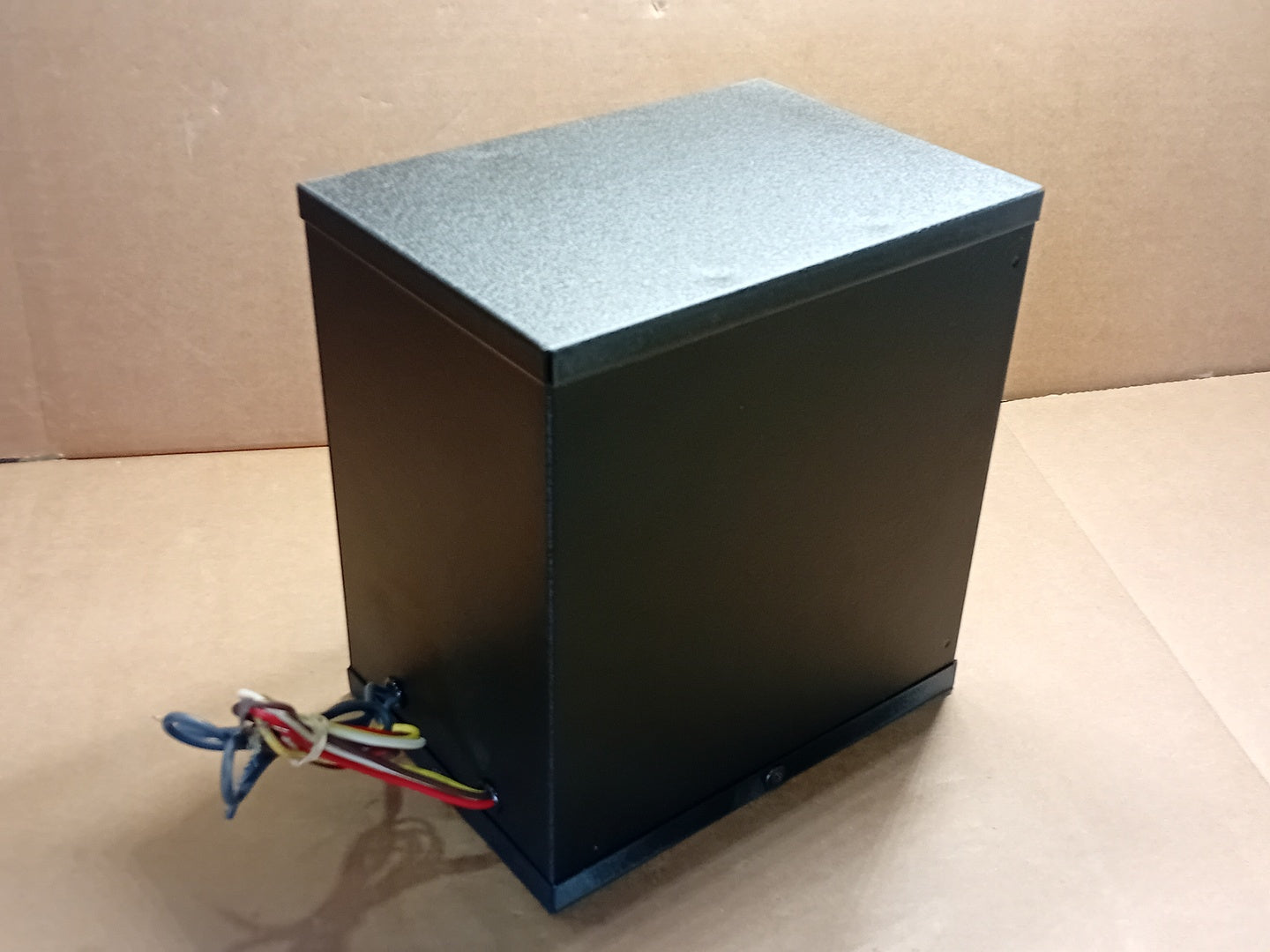

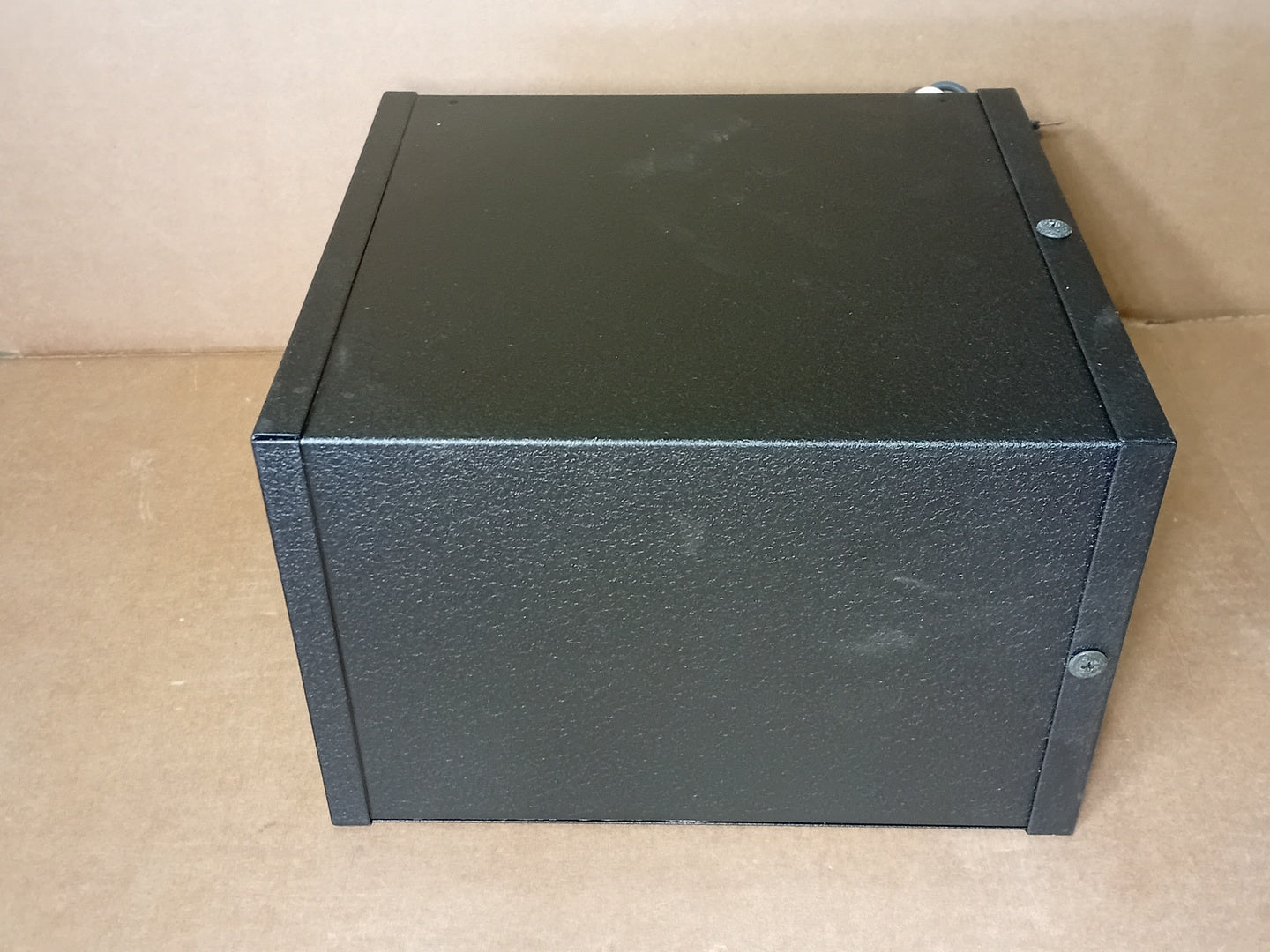

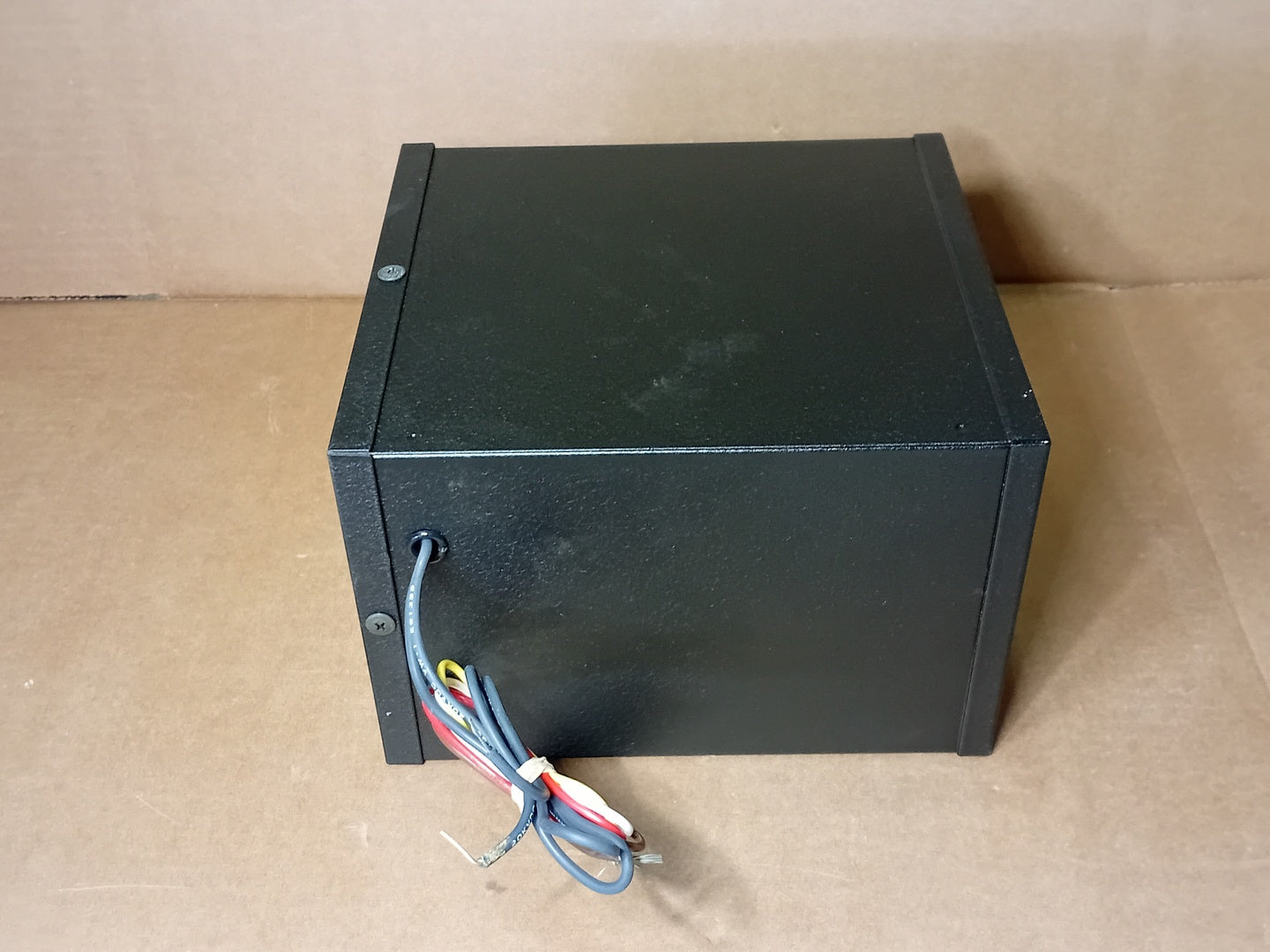

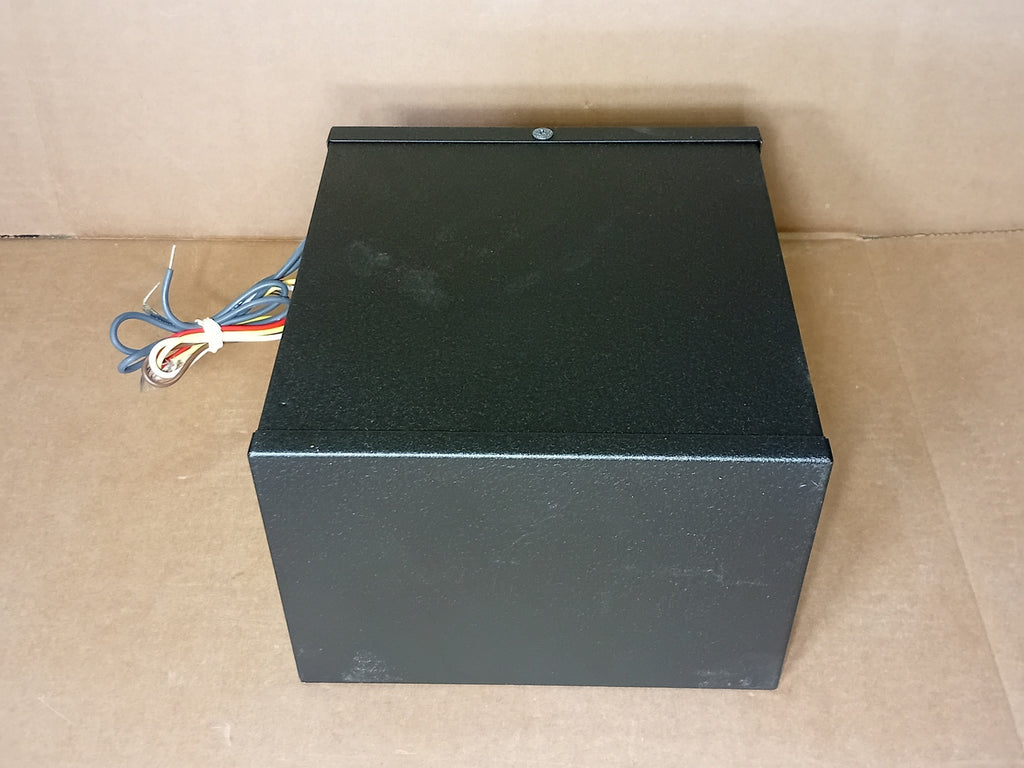

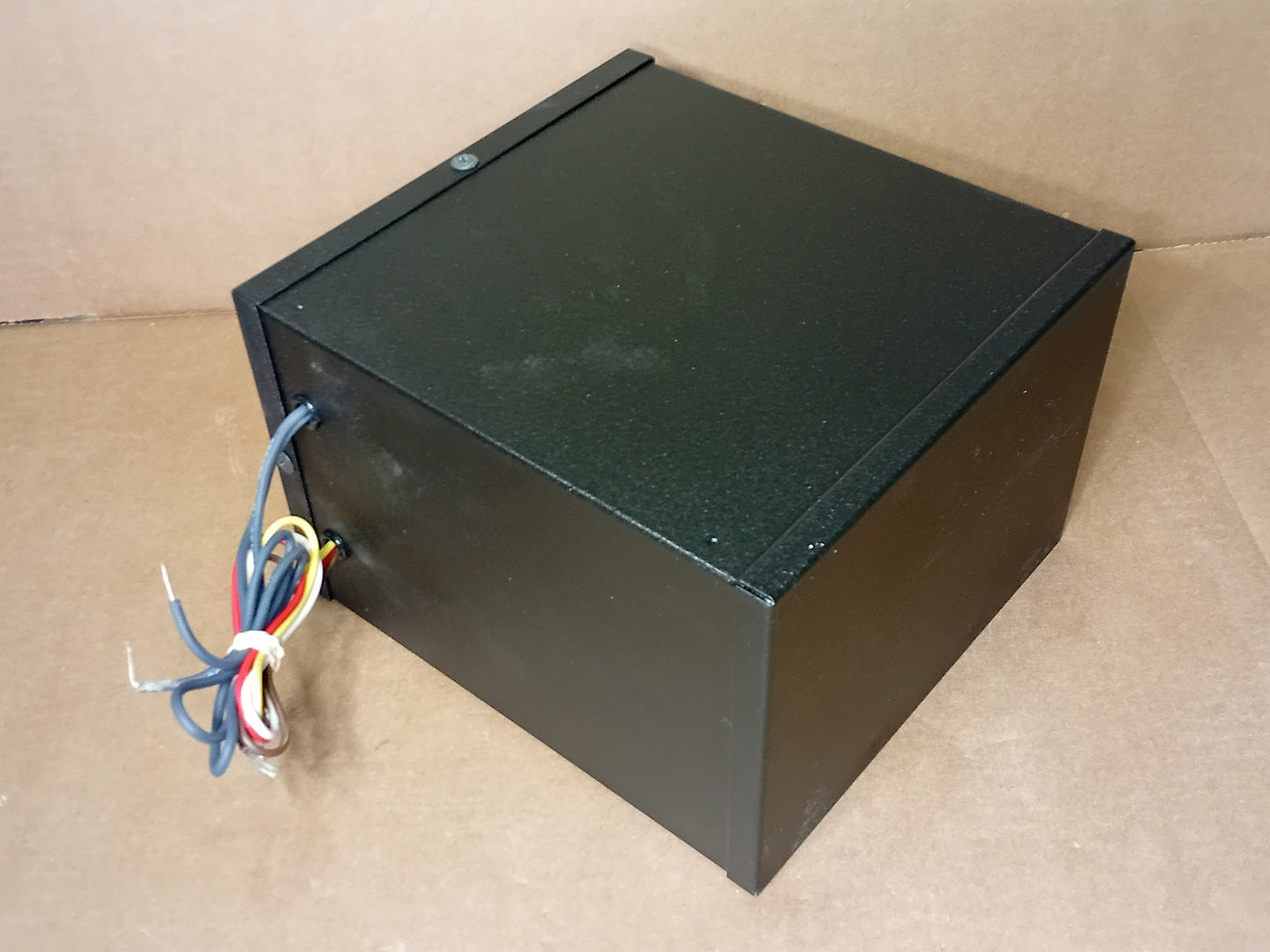

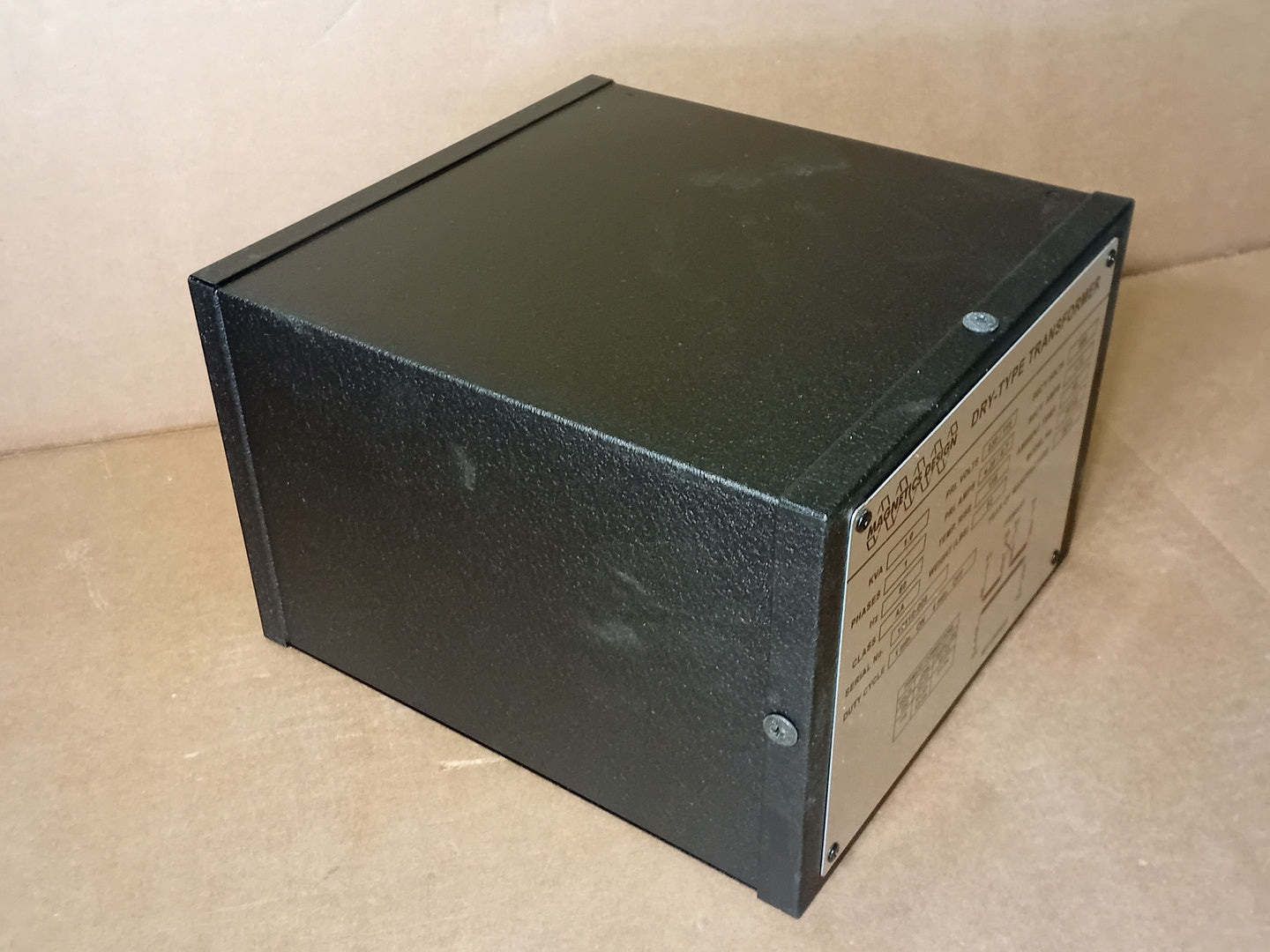

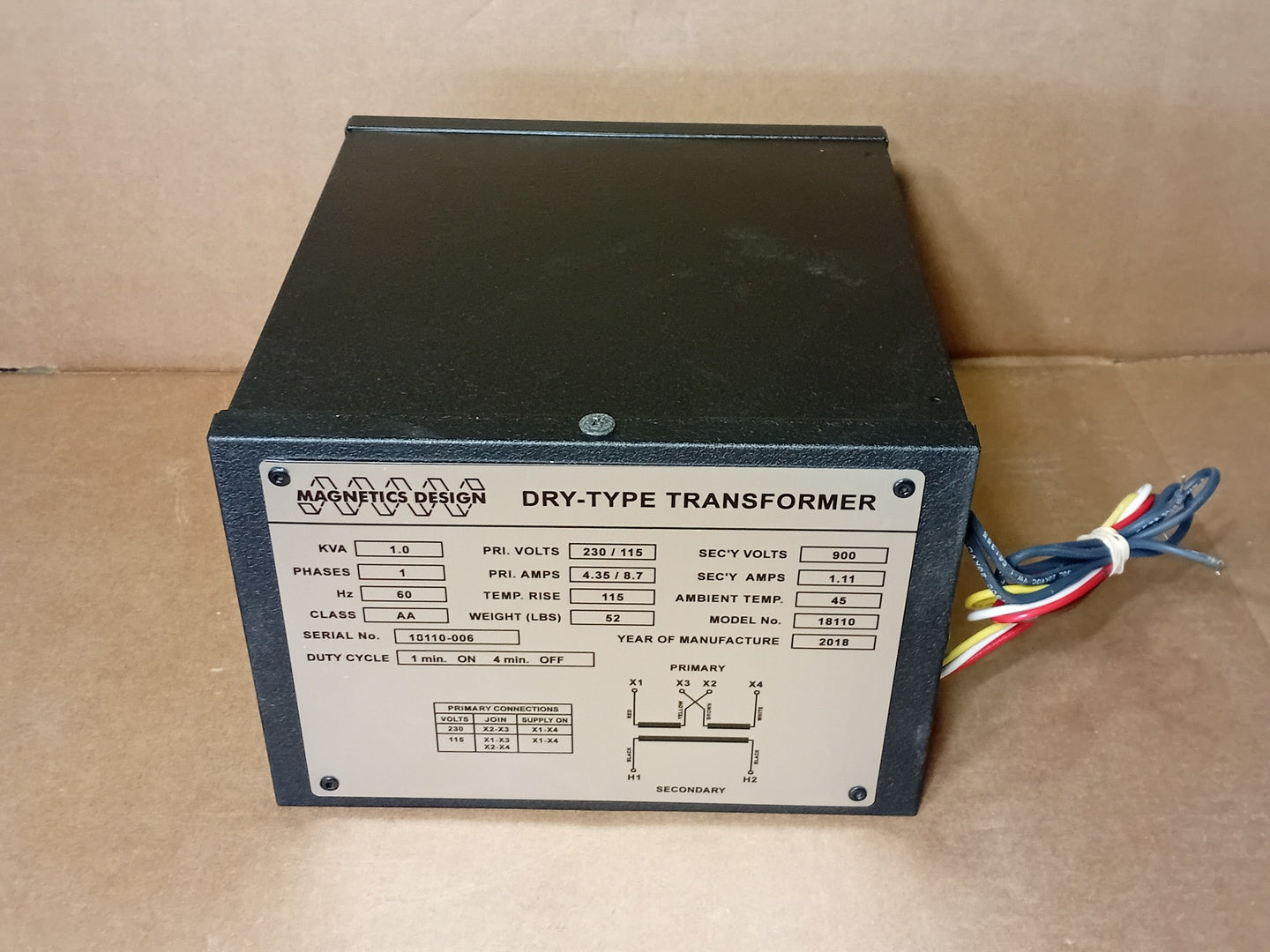

Magnetics Design Model 18110 enclosed single-phase dry-type transformer rated 1.0 kVA. Dual-voltage 115/230VAC primary with 900VAC secondary output at 1.11A. Designed for intermittent operation with a 1-minute ON / 4-minute OFF duty cycle.
| Specifications | |
|---|---|
| Model | 18110 |
| Year: | 2018 |
| Condition | Surplus New | Electrical |
| kVA | 1 kVA |
| Phase | Single-phase | General |
| Transformer Type | Power Transformer |
| Auto VS Isolation | Isolation |
| Oil vs Dry | Dry |
| Other Specifications |
|---|
|

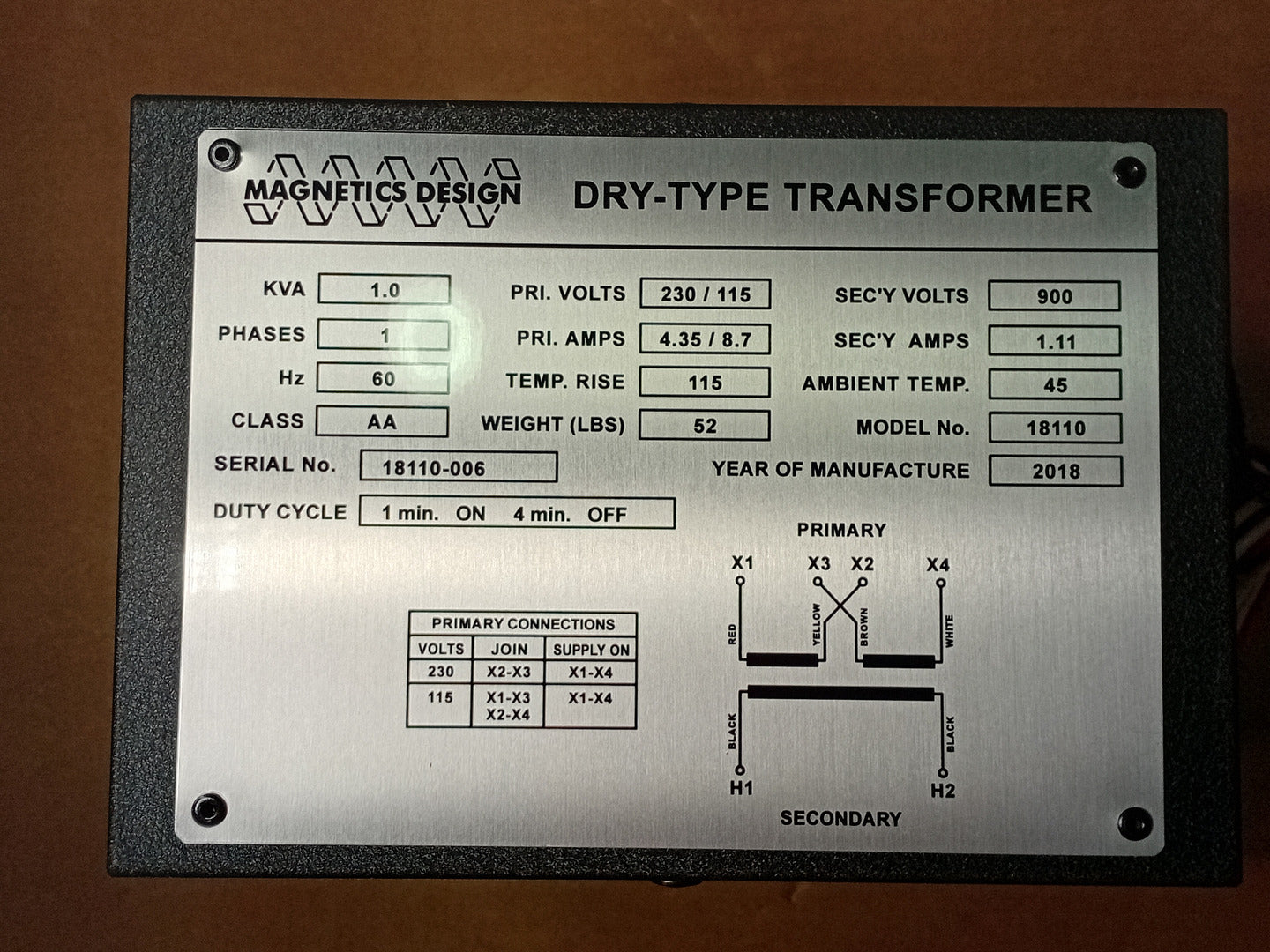

Frequency: 60 Hz Primary Voltage: 230/115 VAC Primary Current: 4.35A / 8.7A Secondary Voltage: 900 VAC Secondary Current: 1.11A Temperature Rise: 115°C Ambient Temperature: 45°C Insulation Class: AA High Impedance, current limited to 6A on 230V side when 900V side shorted |
