Description
| Specifications | |
|---|---|

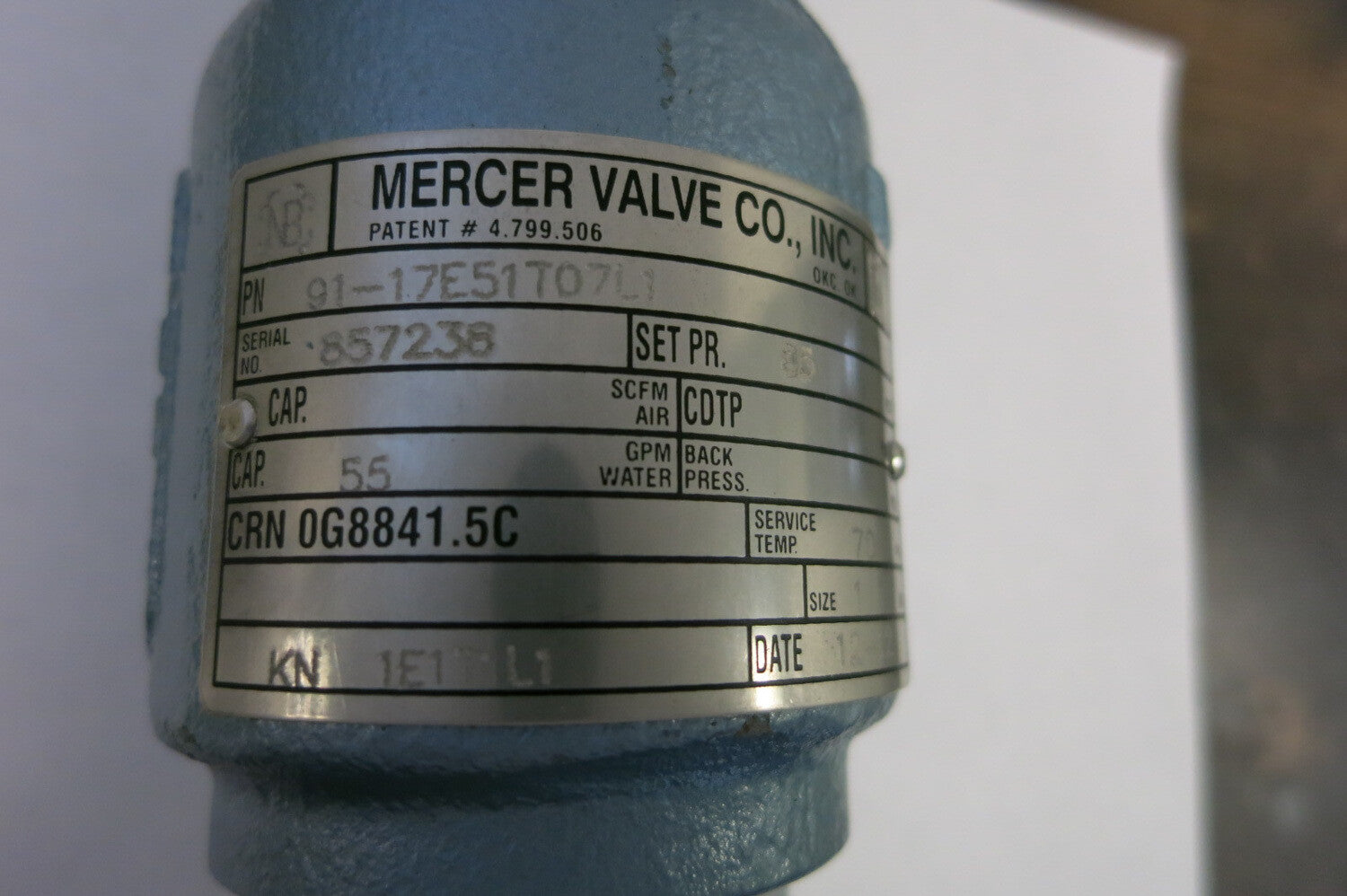

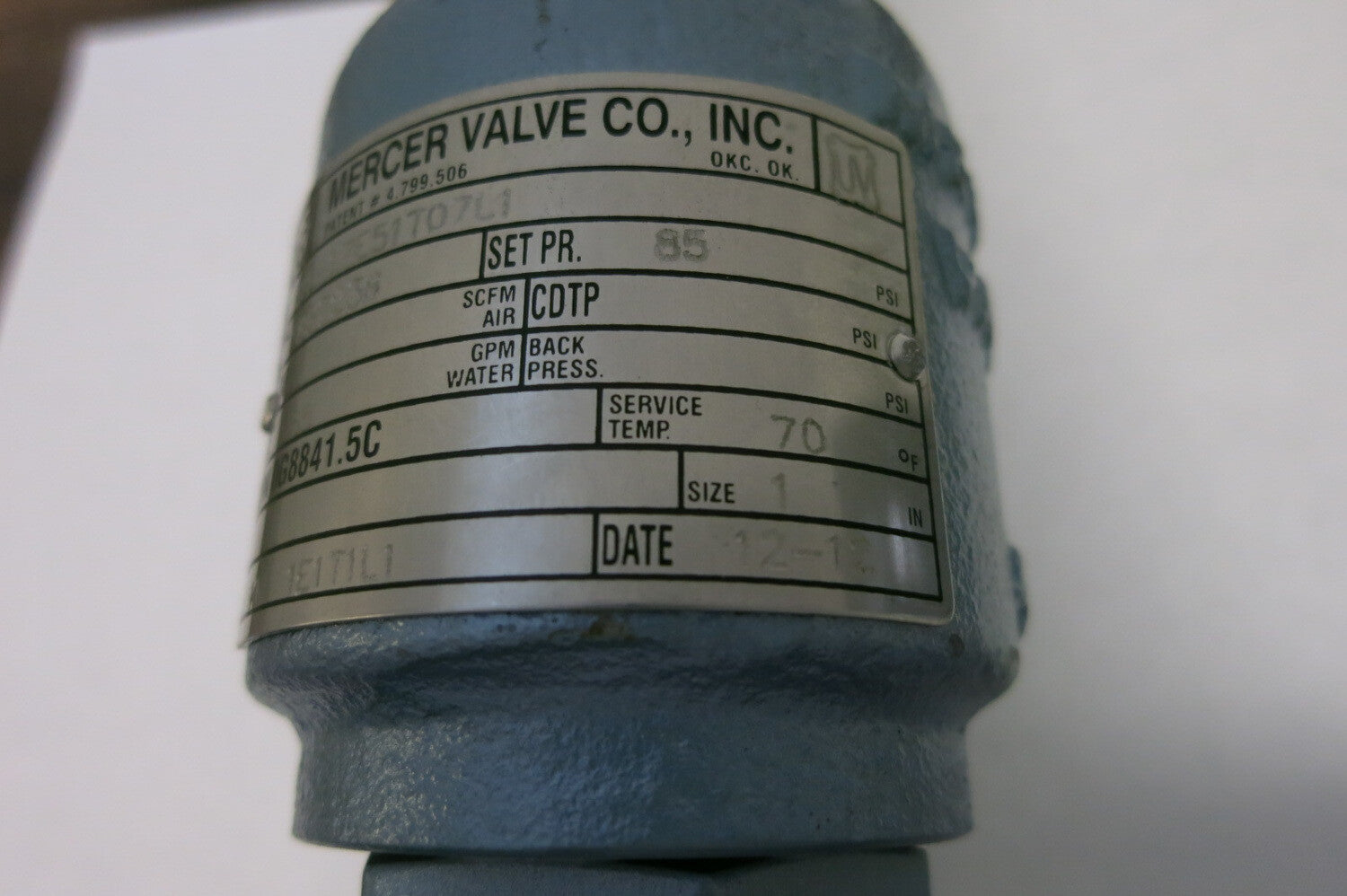

| Model | 91-17E51T07L1 |
| S/N: | 857238 |
| Condition | Used | General |
| Diameter | 1" |
| Valve Style | Pressure Relief |

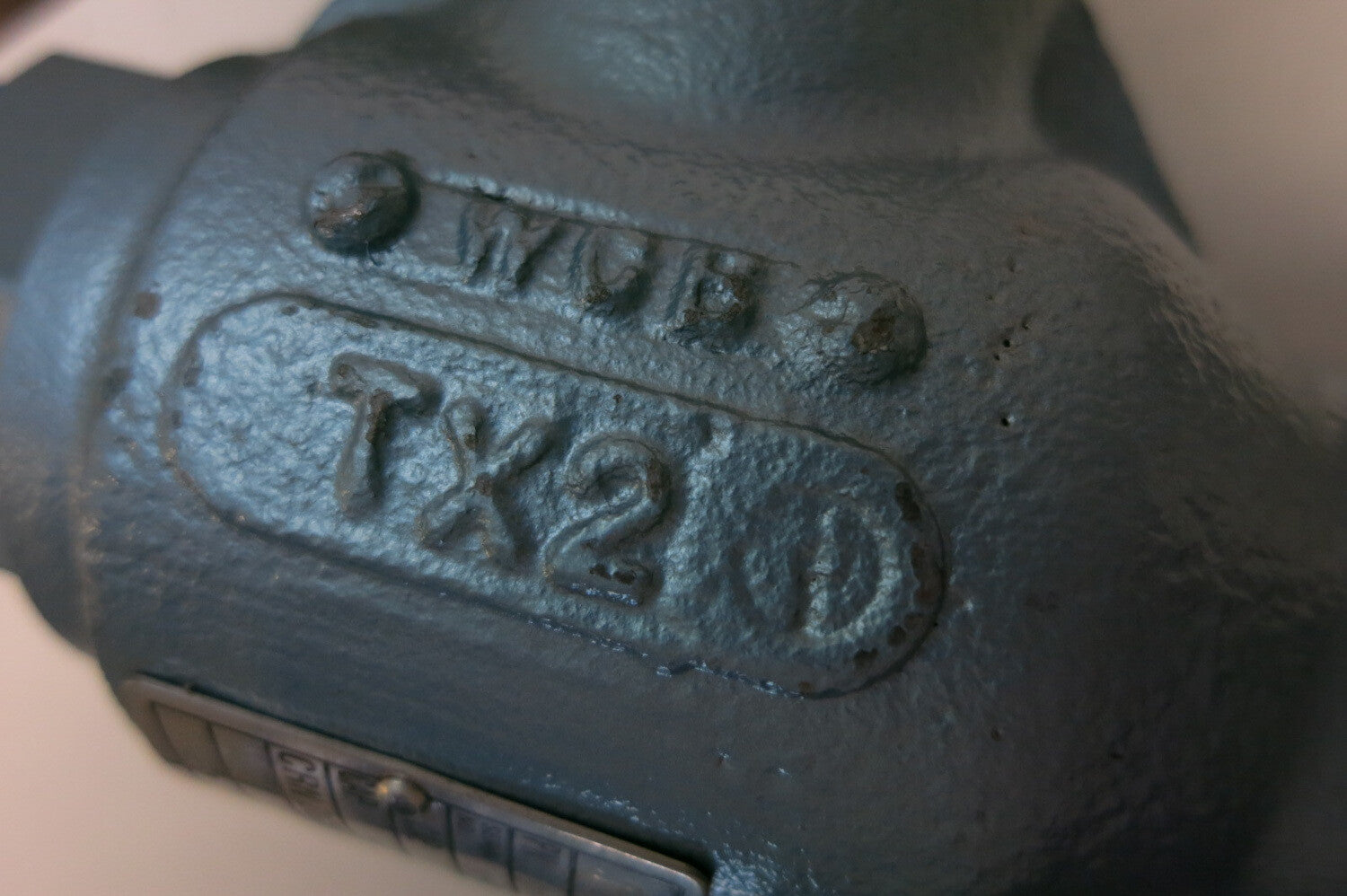

| Body | WCB Carbon Steel |
| Other Specifications |
|---|
|
Inlet and Outlet Connection Type (17): 1" MNPT x 1" FNPT Actual Orifice Area (E): 0.212 in2 Inlet Base & Body Material (5): Carbon Steel / WCB Carbon Steel Cap Type (1): Closed Cap Seat Material (T): PTFE Spring Code (07): Trim (L): 316 S.S. Disk & Nozzle (Liquid Service) O-Ring Material (1): FKM & BUNA-N (Standard) Actual Orifice Diameter: 0.520 in API Orifice Area: 0.196 in2 Pressure Range: 10-3000 psig Standard Temperature Range: -20 deg. F to 400 deg. F ASME Flow Coefficient Kd (Gas): 0.818 ASME Flow Coefficient Kd (Liquid): 0.717 |
