Description
| Specifications | |
|---|---|
| Model | F-45 |
| Year: | 1986 |

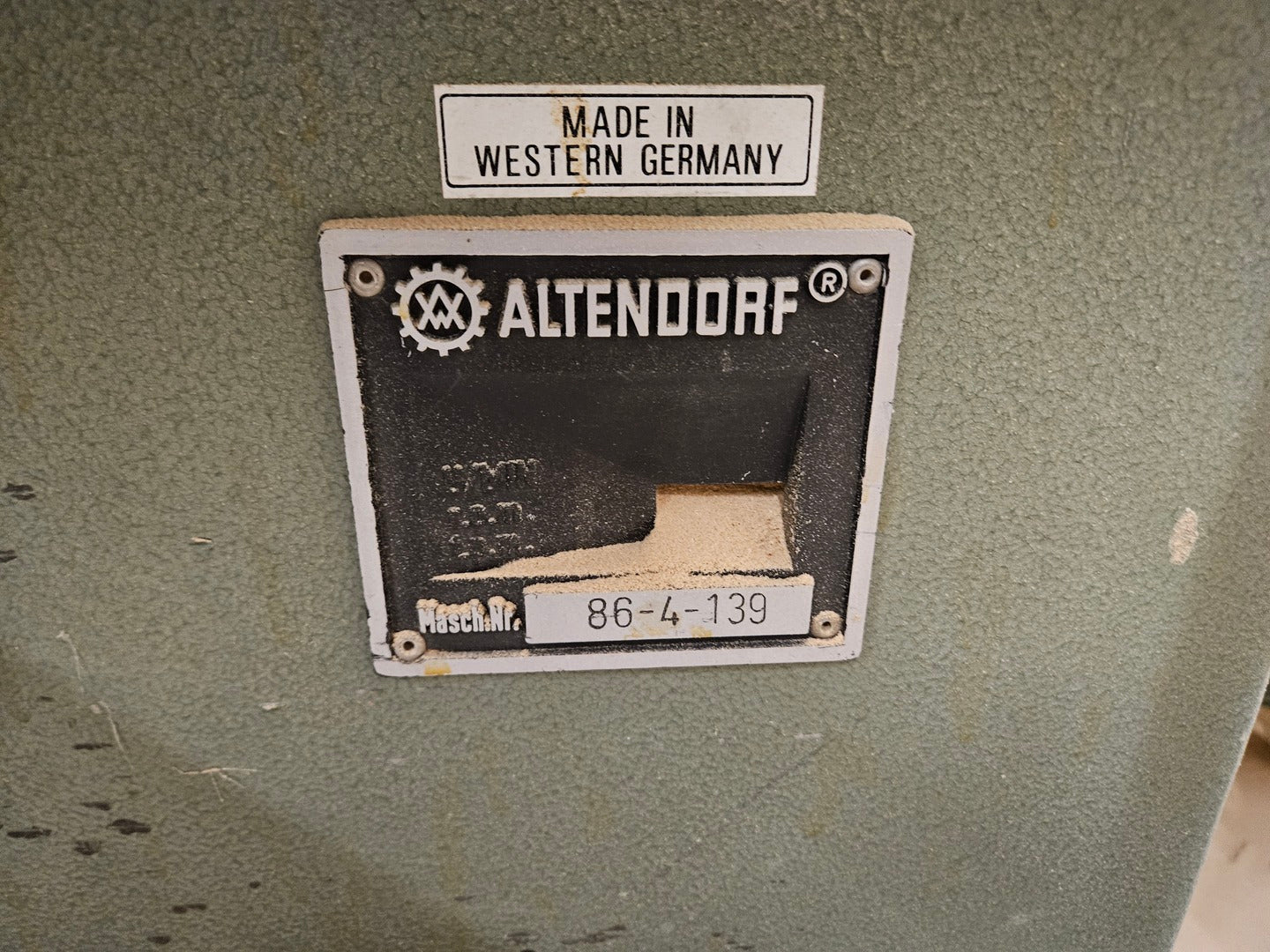

| S/N: | 86-4-139 |
| Condition | Used | General |
| Horsepower | 7.5 hp |
| Voltage | 480 volts |
| Phase | 3-phase |
| Saw Type | Table Saws |
| Other Specifications |
|---|
|

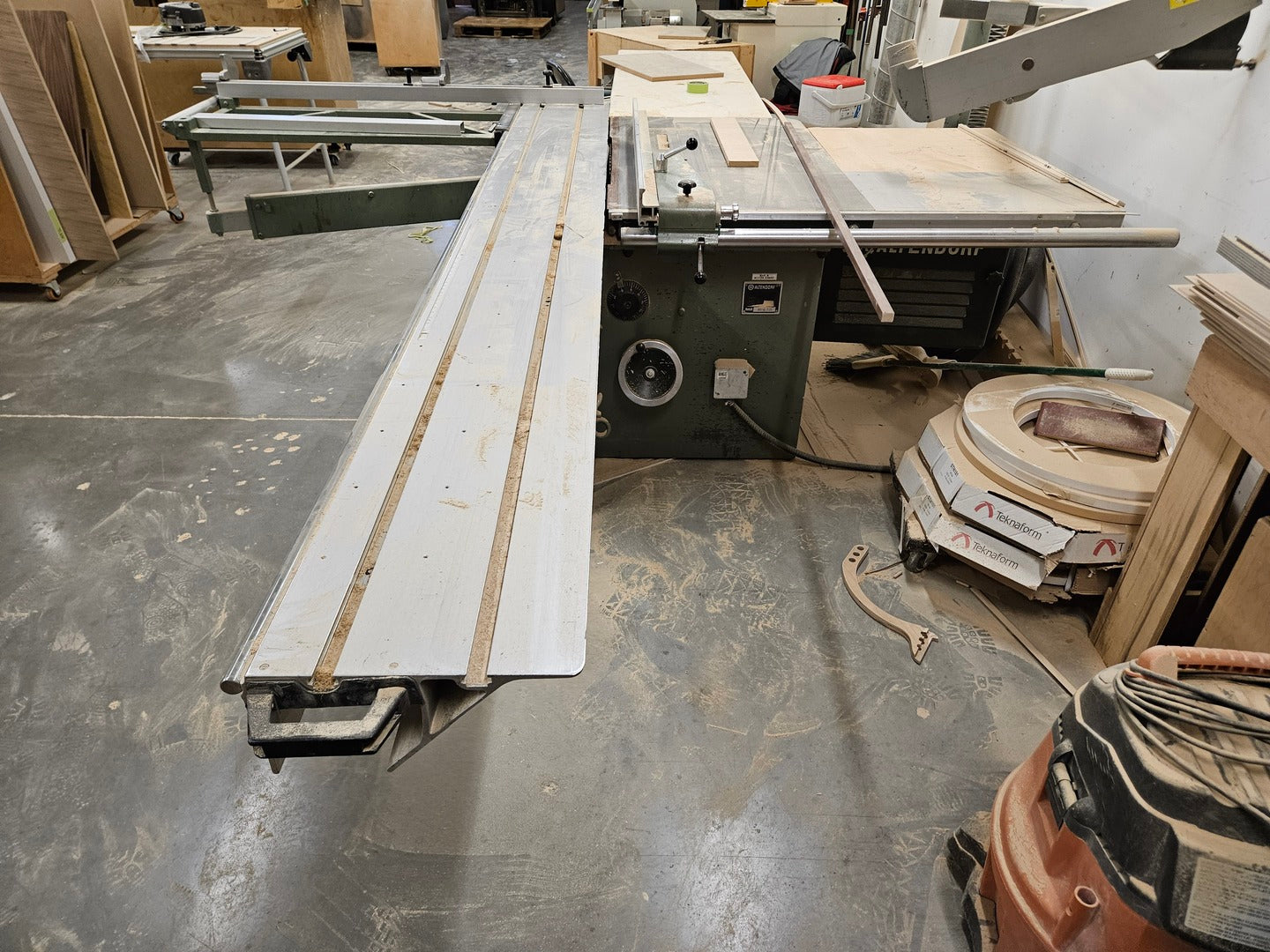

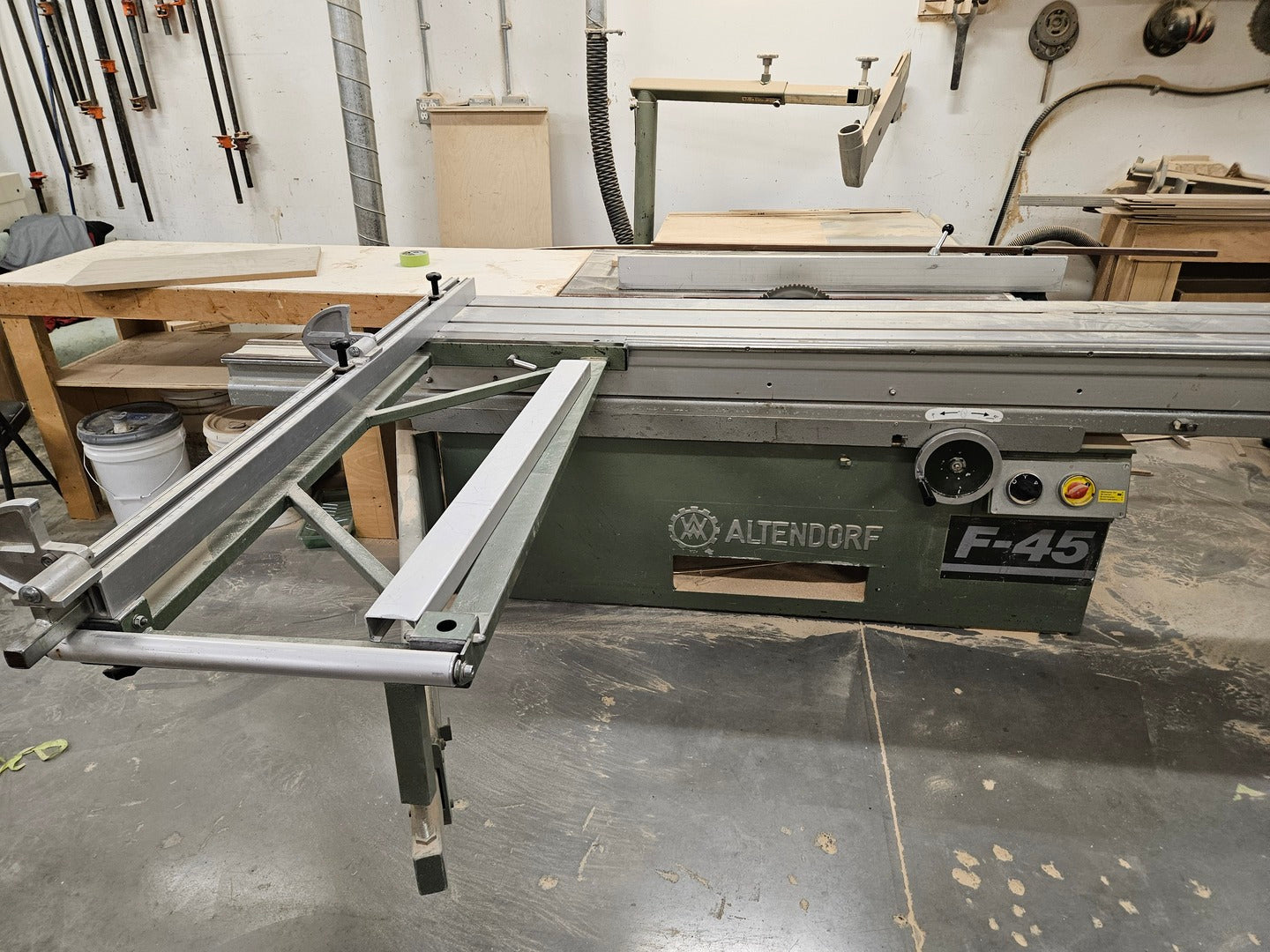

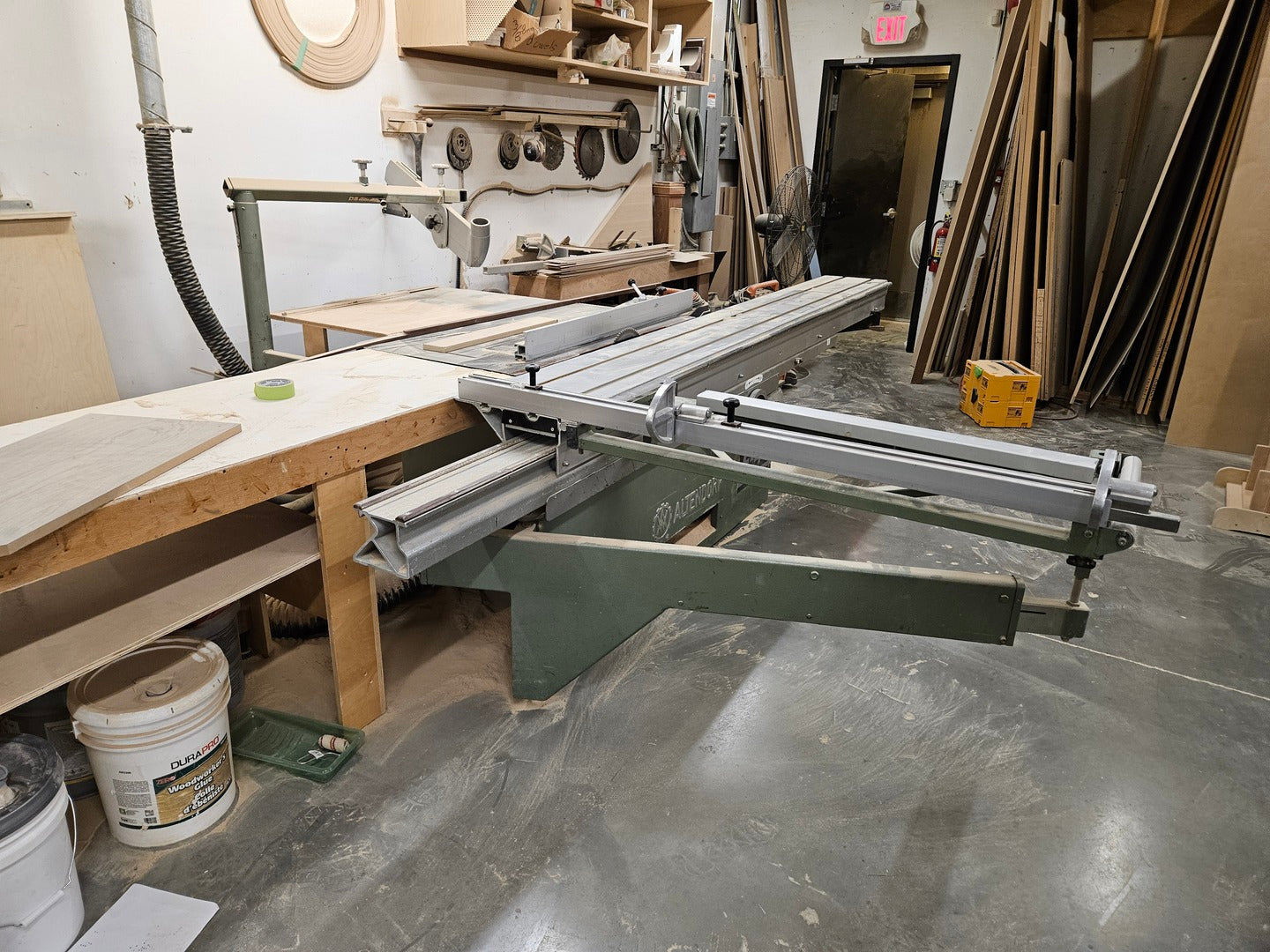

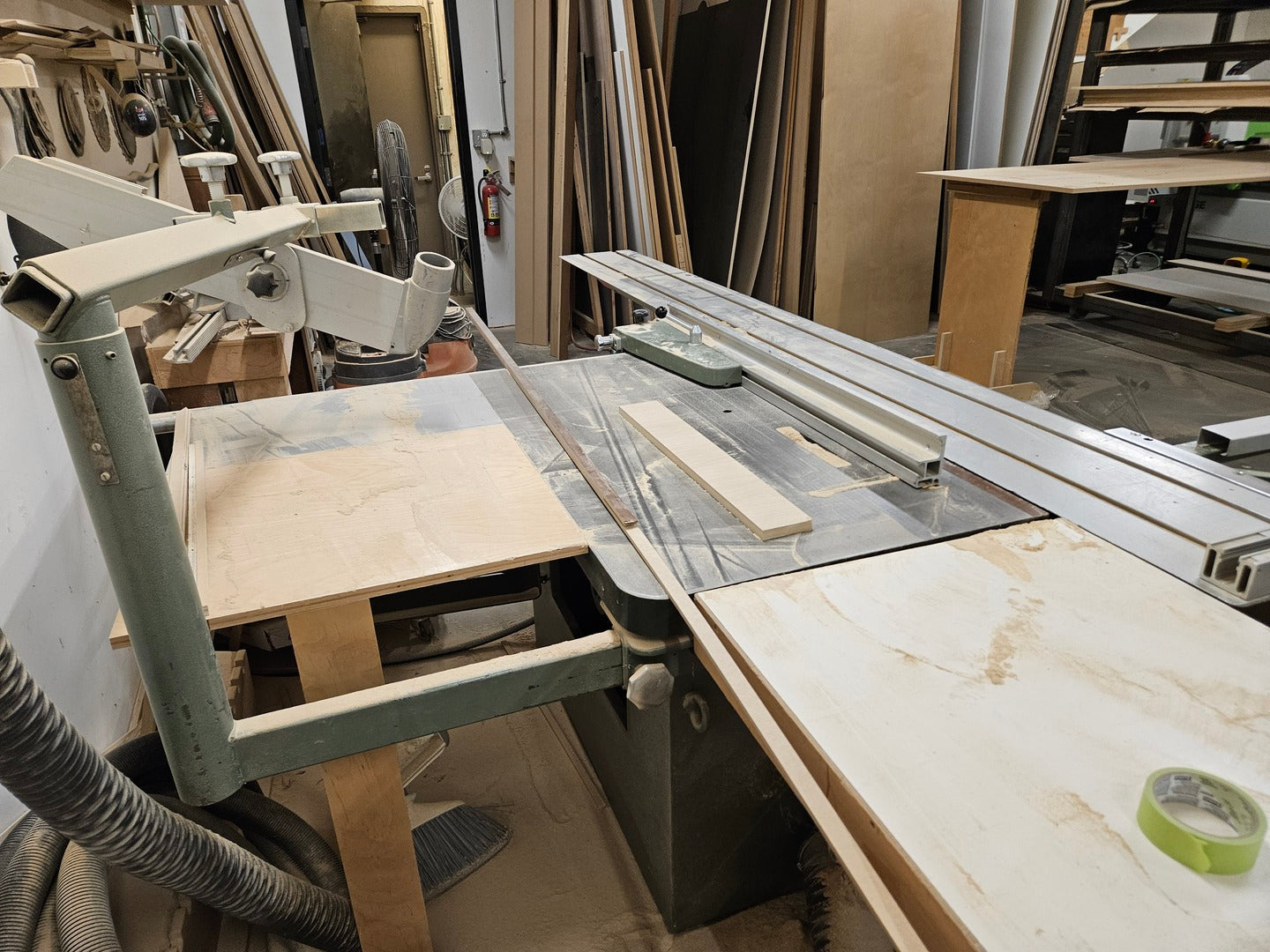

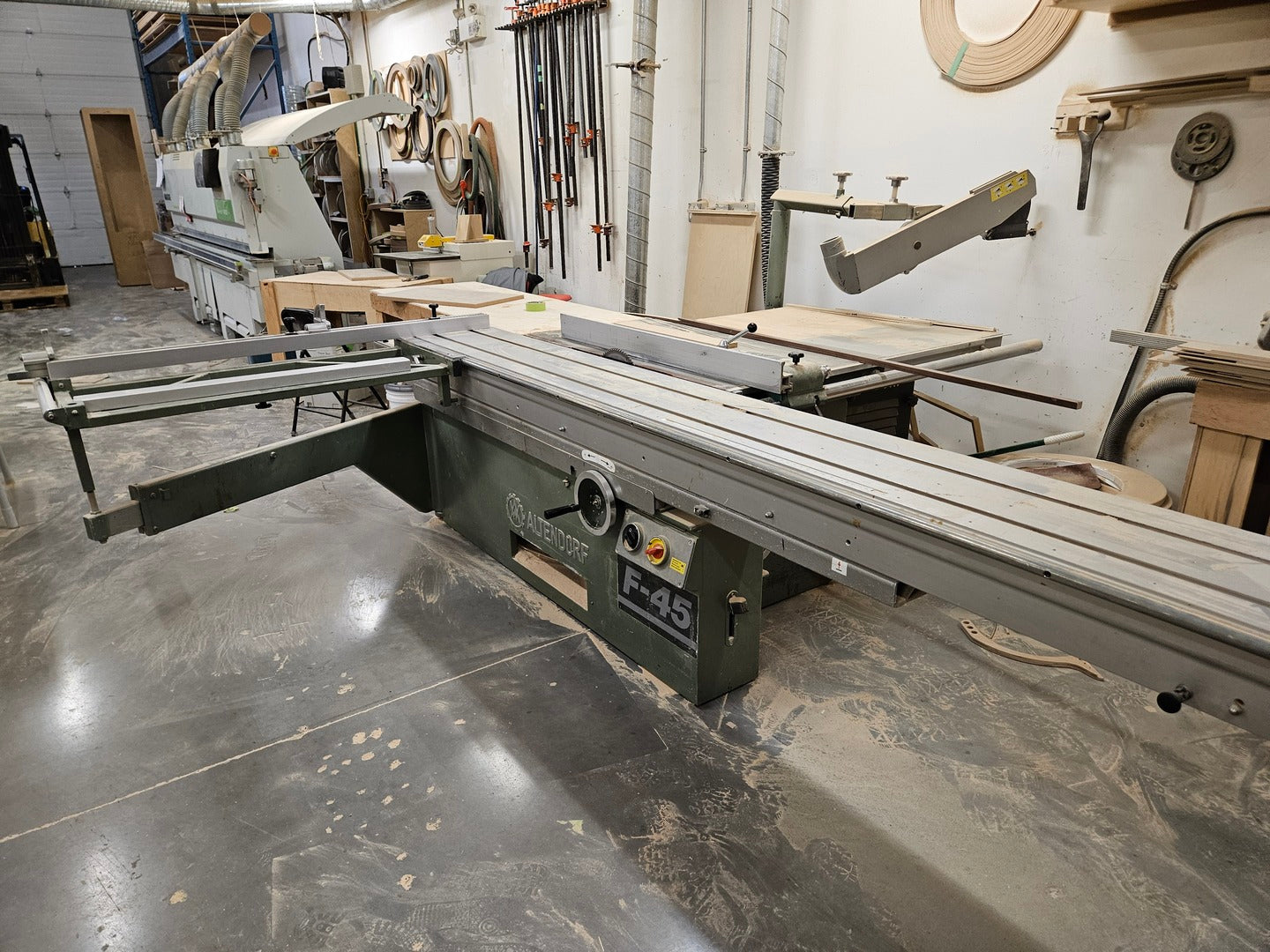

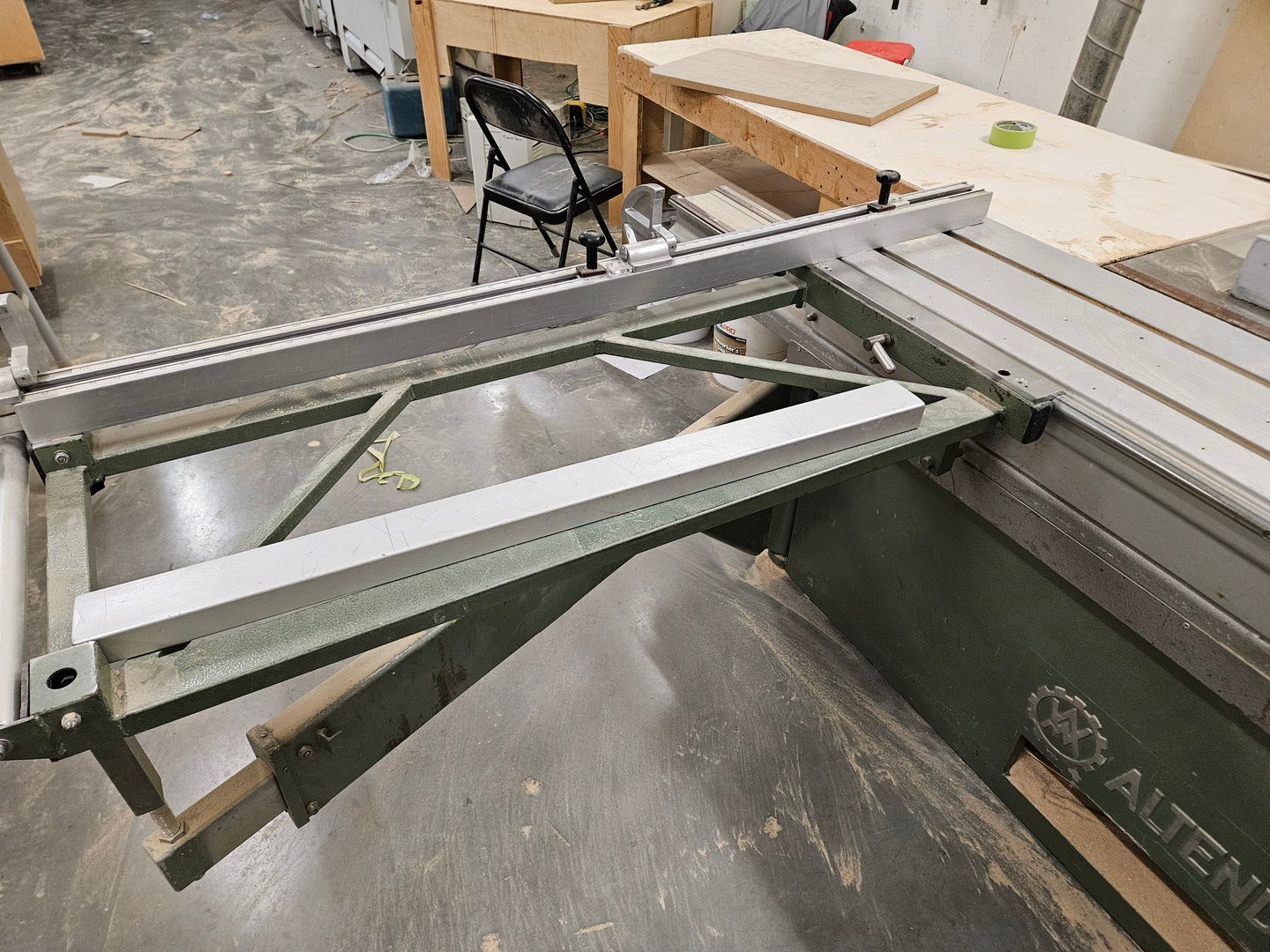

Voltage: 208 - 480 Volts Frequency: 60 Hz Phase: 3 F-45 series 10' (3,200mm) slider with manual rip fence, 0" - 51" control panel with start stop for main and scoring motors; overarm guard assembly with swivel arm 7-1/2 hp, 3 ph, belt drive motor with speed indicator hydraulic pedal raise and lower and tilt of saw blade scoring blade crosscut fence with manual flip stops and telescoping fence. Standard Equipment Standard Scoring unit manual lateral adjustment. Parallel safety hood with dust channel, patented design and fold-away feature. Rip fence for 51" cutting width. Scales with metric and inch dimensions. Hydraulic foot pedal for adjustment of the rise, fall and tilting of the main saw blade. Start, & Stop & Emergency stop button on both sides of saw. Anodized sliding table and fences. Sliding table lock. Motor brake on main motor. |
