Description

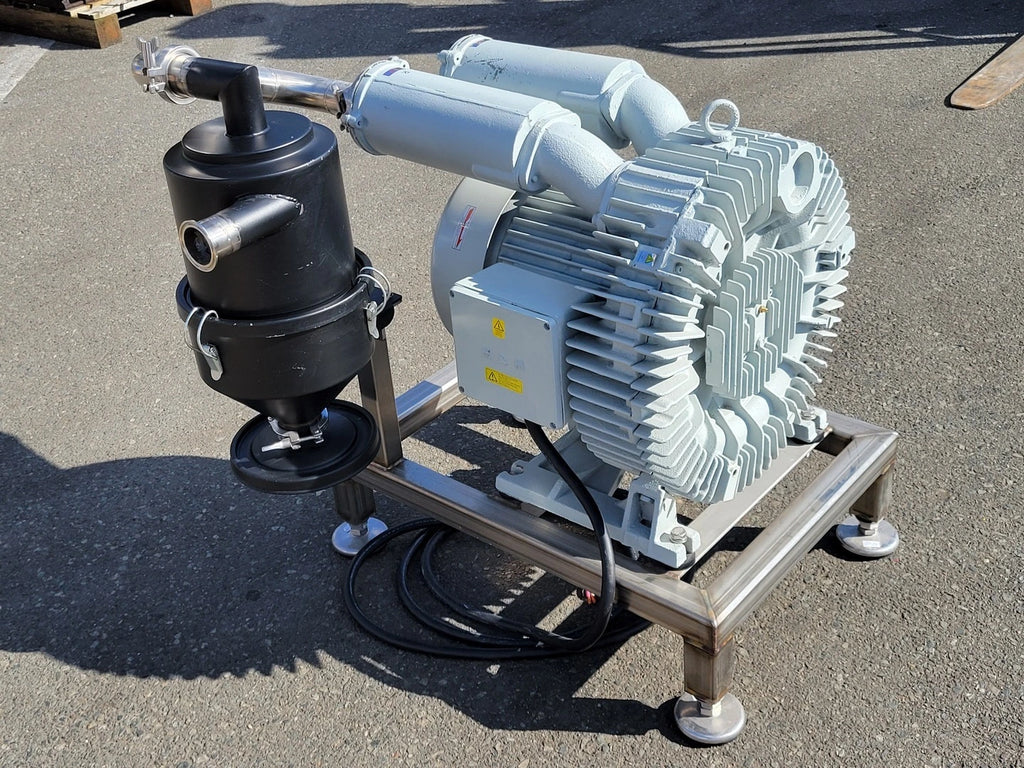

The 11 kW Single Stage Ring Blower HRB-1000 is a fan and blower unit manufactured by Hwanghae. It has dimensions of 33.00 x 36.00 x 35.00 and weighs 190.00. The motor is rated at 50 Hz and operates with a voltage of 220 / 380V. It has a rated current of 40.0 / 23.1A and 2 poles. The power of the fan is 11 / 12.6 kW, with a maximum flow of 8.4 m3/min / 10 m3/min and a rated pressure of 4400 mmAq / 5000 mmAq. The blower operates as a single stage. It has a rotational speed of 2880 RPM, 15 hp horsepower, 297 cfm CFM, and operates in a 3-phase system.
| Specifications | |
|---|---|
| Model | HRB-1000 |
| Made In | SOUTH KOREA |
| Condition | Used | General |
| RPM | 2880 rpm |
| Horsepower | 15 hp |
| CFM | 297 cfm | Electrical |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Motor Ratings
Rated Frequency: 50 Hz
Rated Voltage: 220 / 380 V
Rated Current: 40.0 / 23.1 A
Poles: 2P
Fan Ratings
Power: 11 / 12.6 kW
Max Flow @ 50/60 Hz: 8.4 m3/min / 10 m3/min
Rated Pressure @ 50/60 Hz: 4400 mmAq / 5000 mmAq
Stage: Single
|
