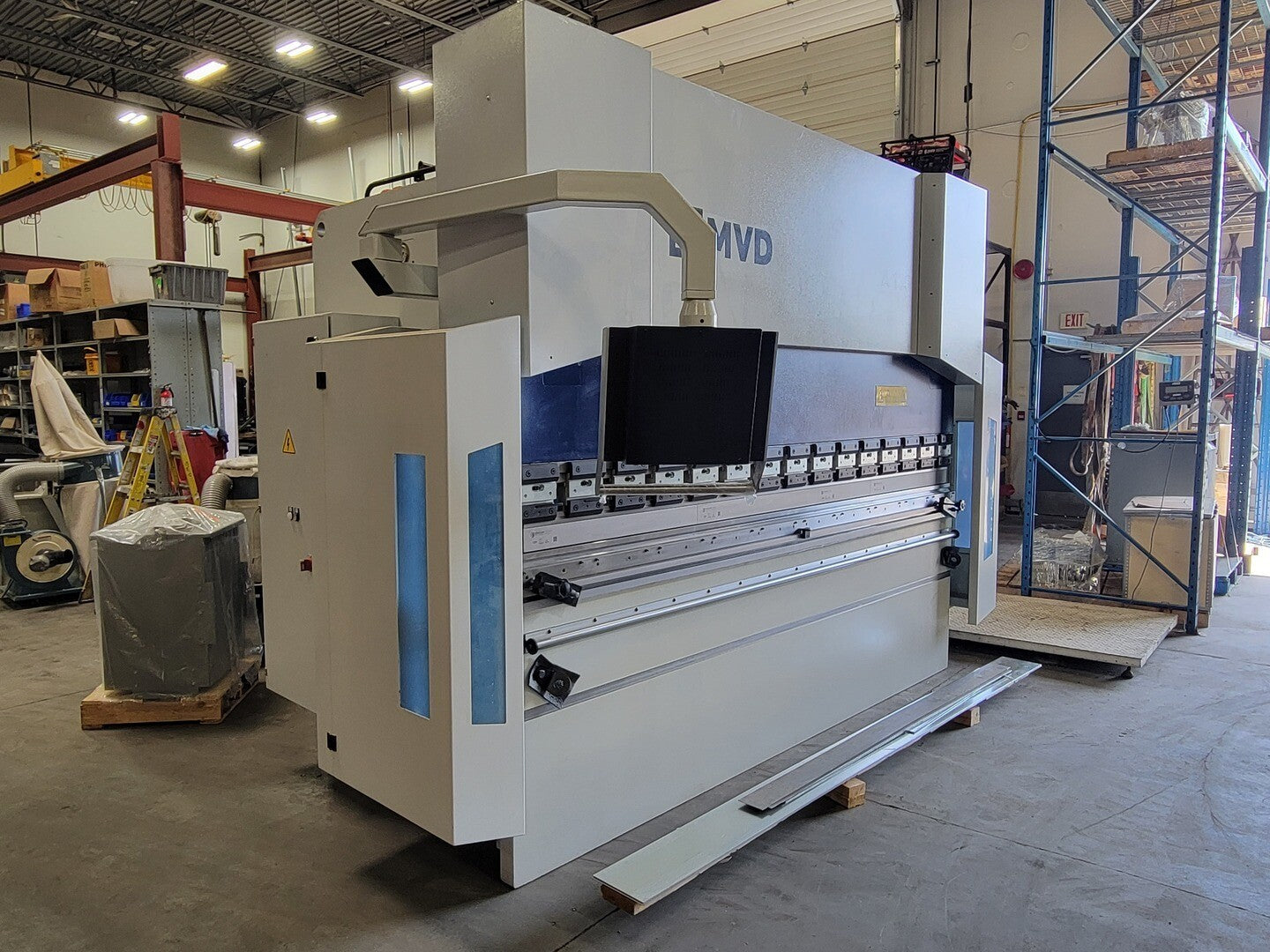

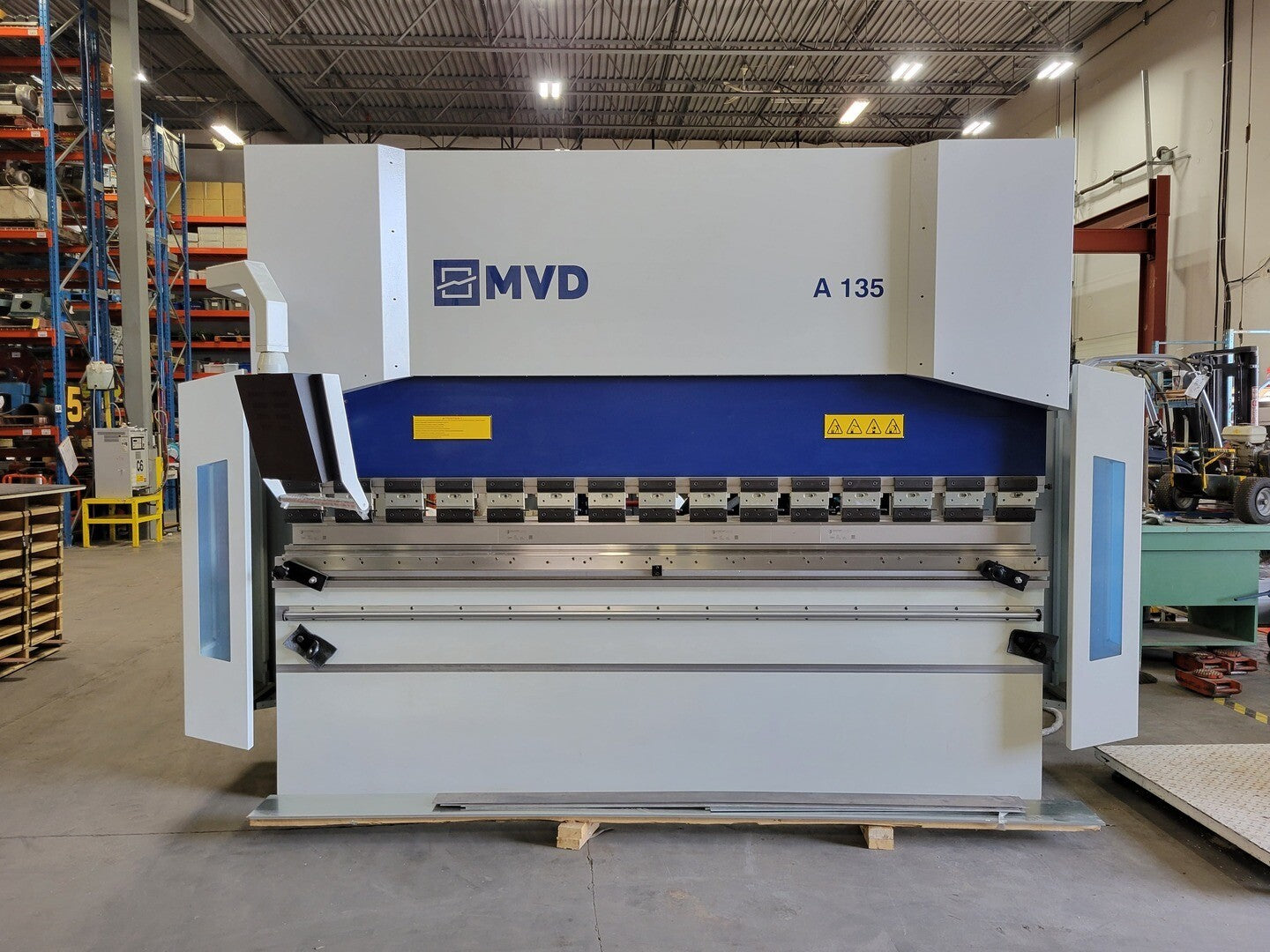

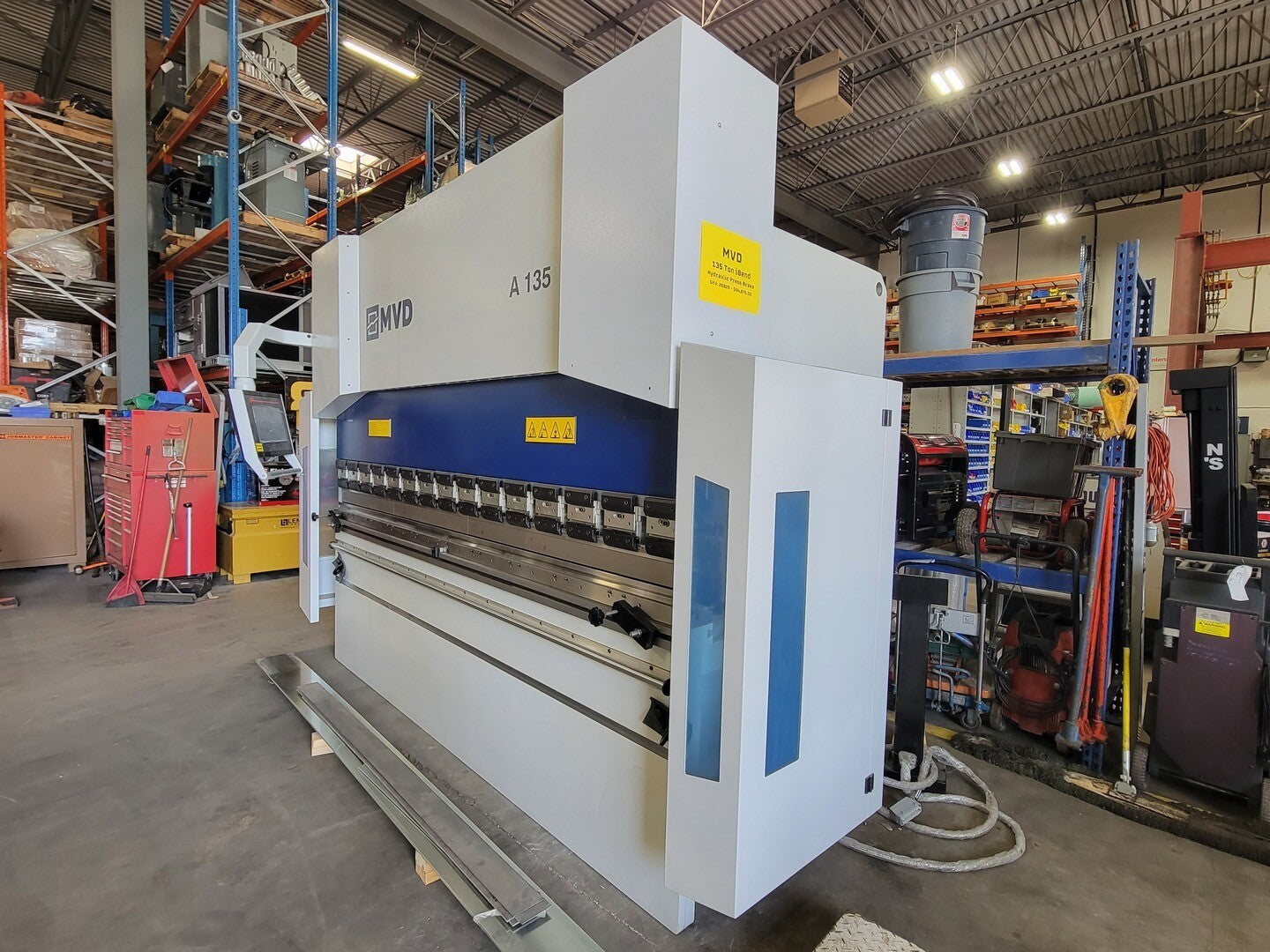

MVD 135 ton iBend Hydraulic Press Brake A-Series A135-3100
MVD

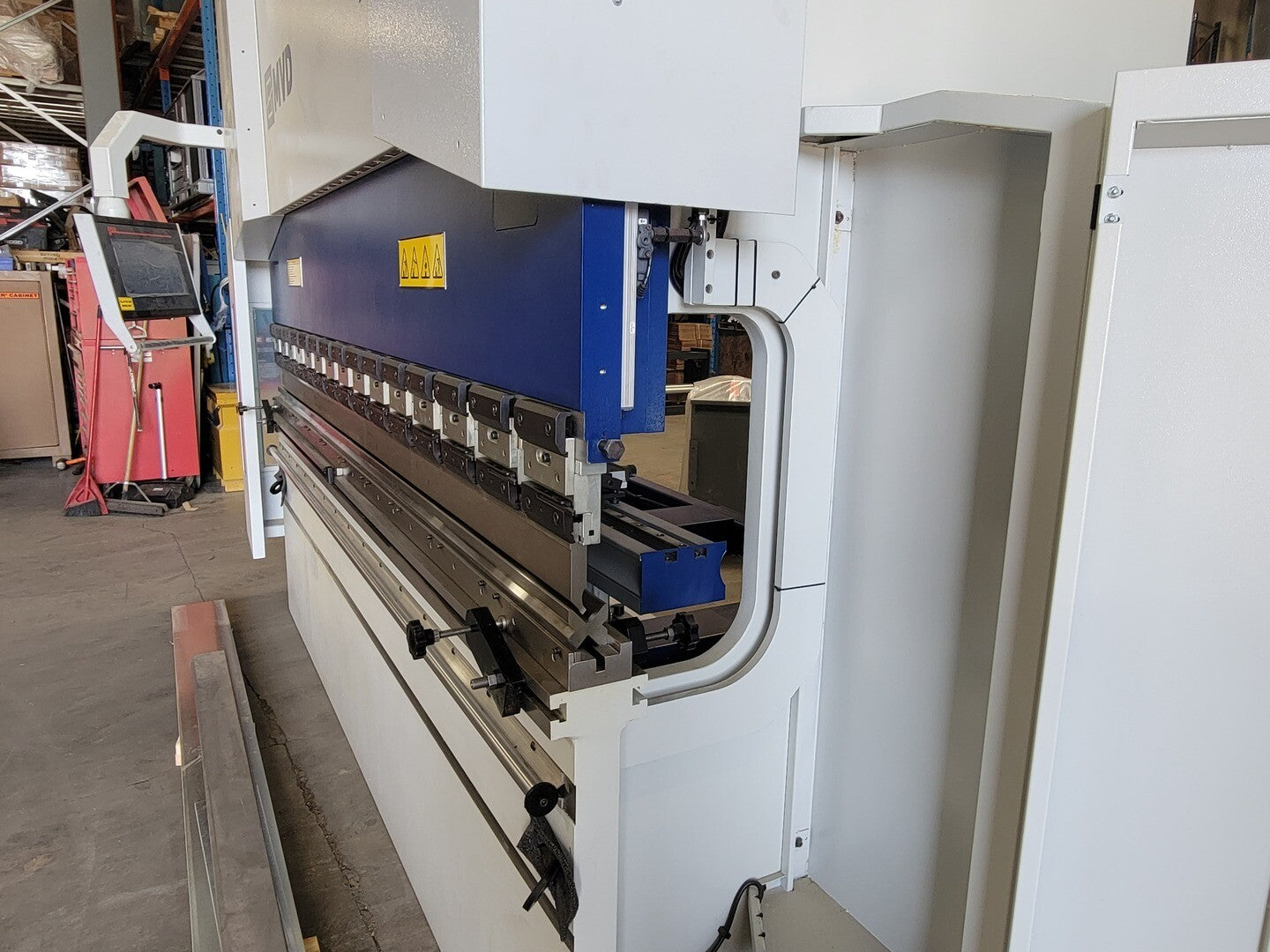

135 ton iBend Hydraulic Press Brake A-Series A135-3100

SKU: 26826
Price:
$91,992

Shipping calculated at checkout

Stock:
Available
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

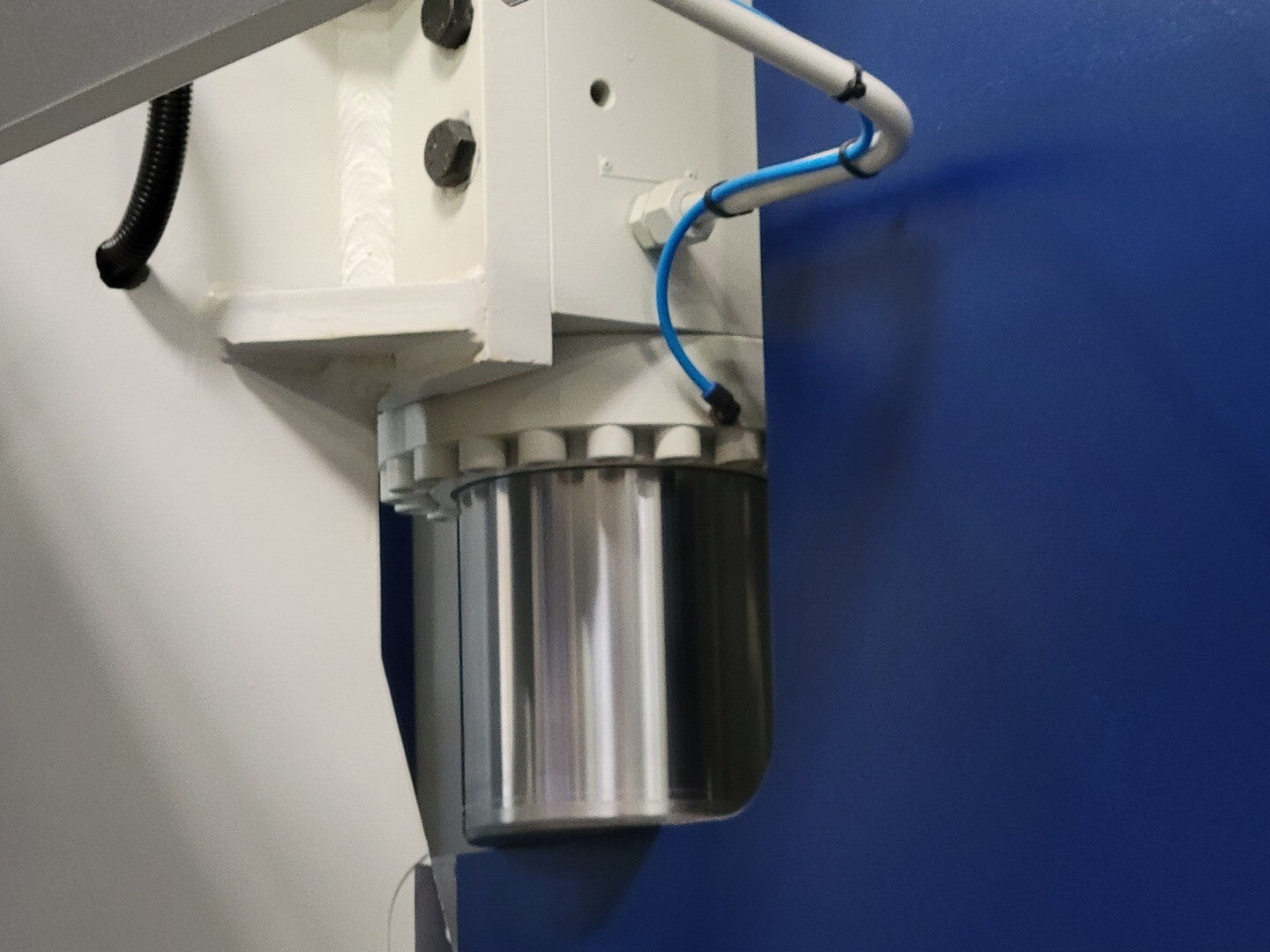

A SERIES Maximum machine performance and high bending accuracy provided by synchronized Hydraulic Cylinders, CNC-controlled, assembly in ideal conditions made the original Germany hydraulic block, Proportional Valves, high quality linear scales.
Specifications

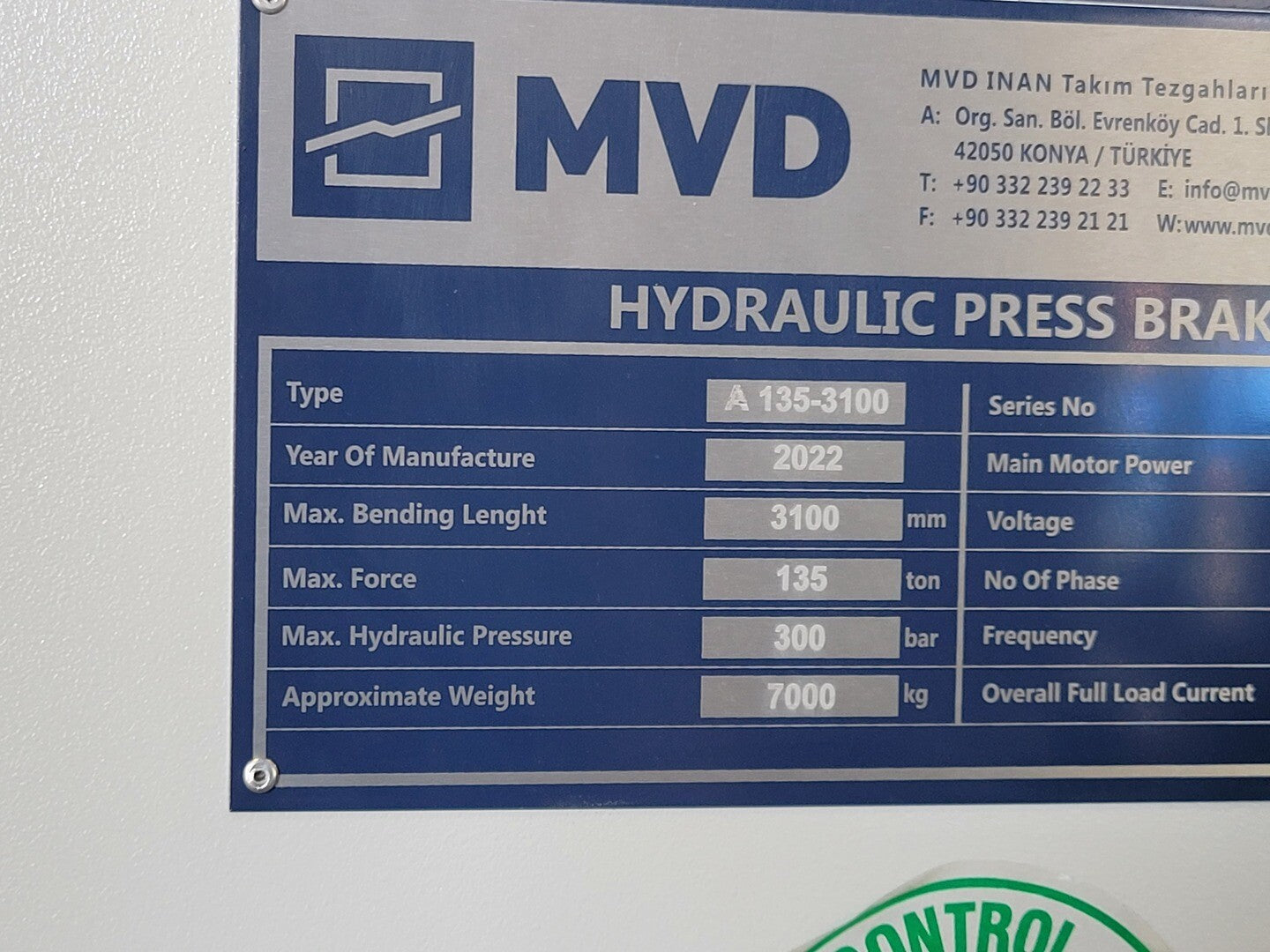

Model A135-3100
Condition New
General
Bed Length 10 ft
Tons 135 ton
Brake Type Hydraulic
CNC Yes

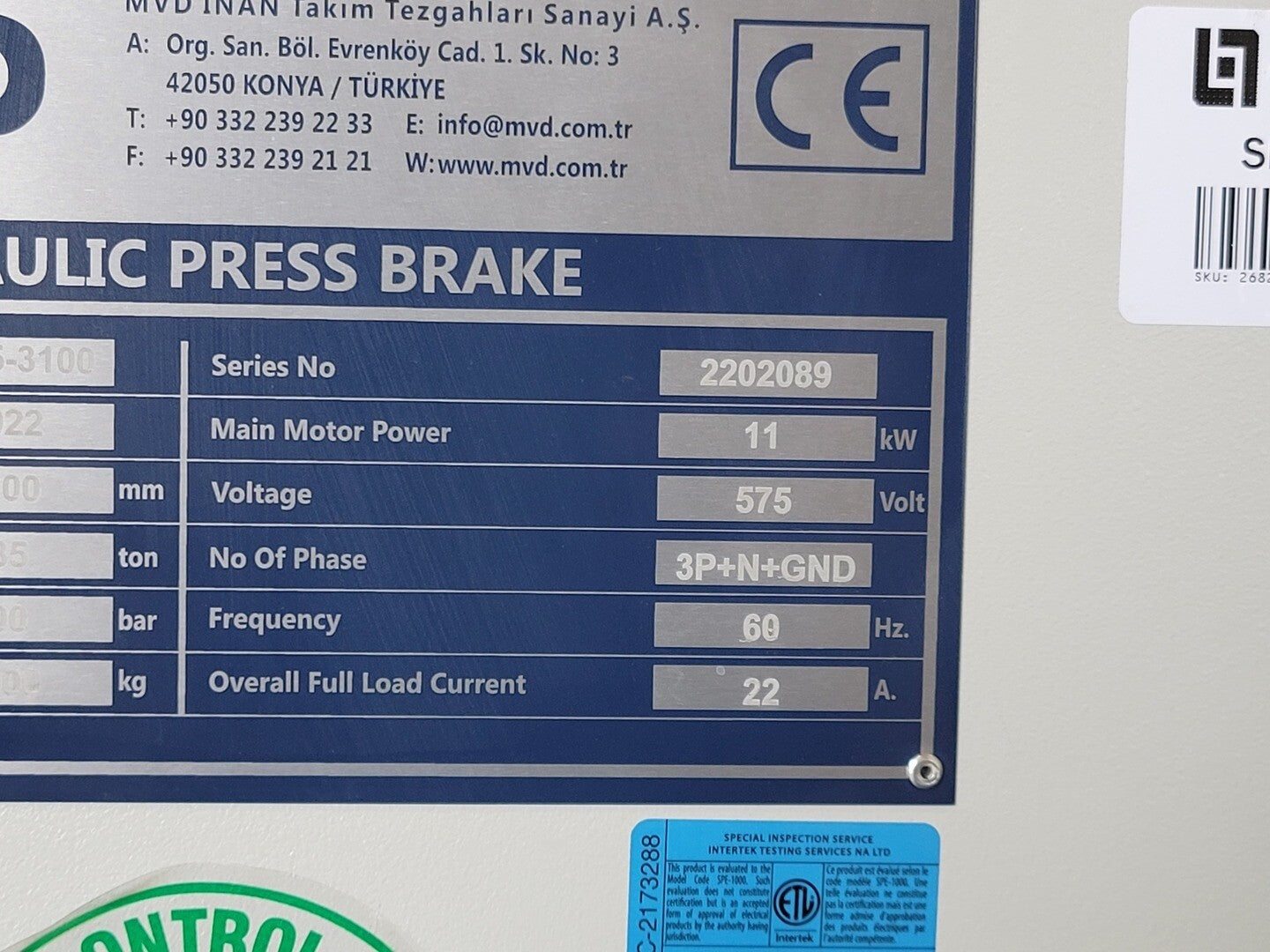

Electrical
Voltage 600 volts
Phase 3-phase
Other Specifications

Distance between columns: 2600 mm / 102.36 in.

Stroke: 210 mm / 8.27 in.

Daylight: 415 mm / 16.34 in.

Throat: 410 mm / 16.14 in.

Table Height: 905 mm / 35.63 in.

Includes:

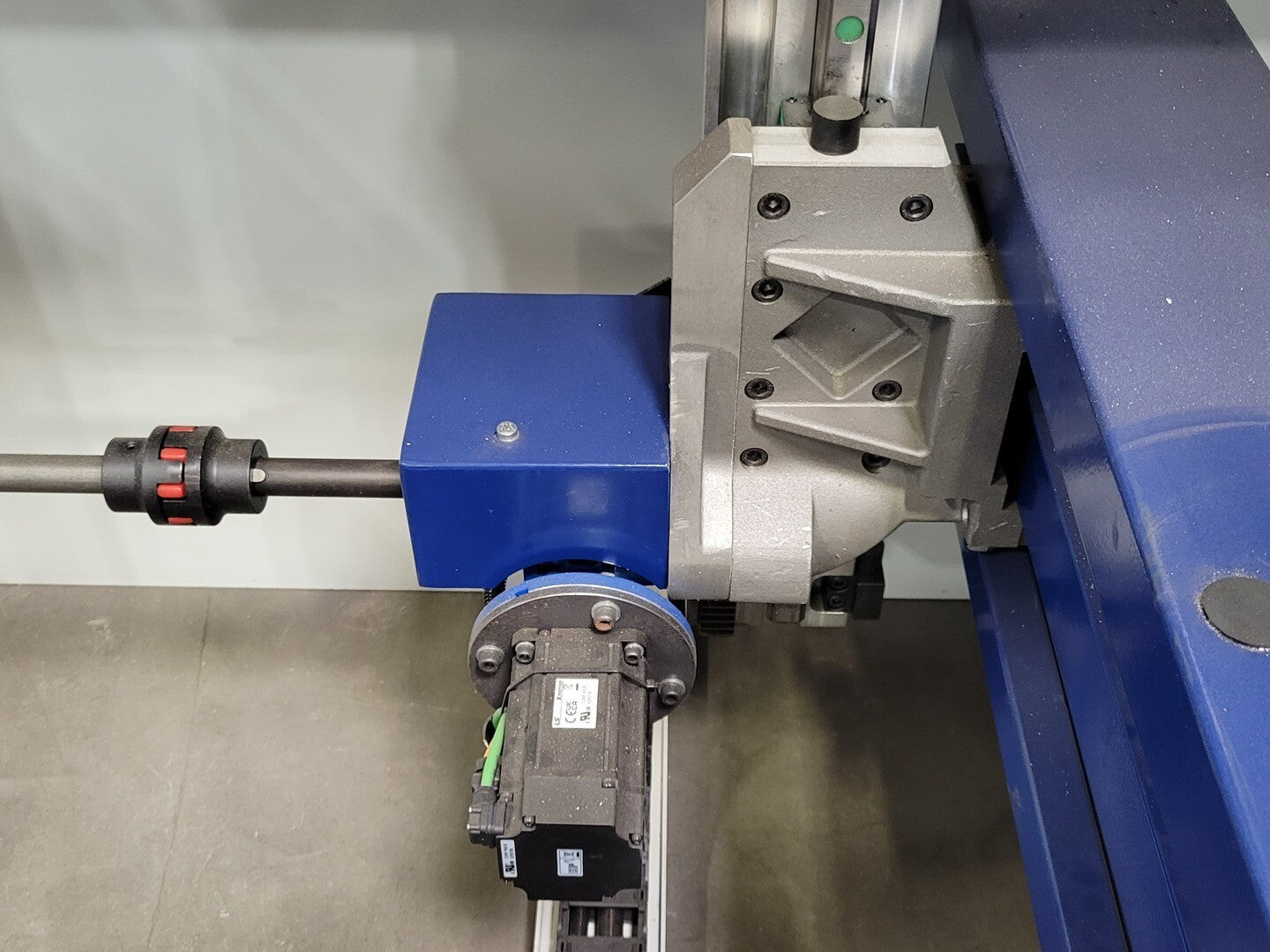

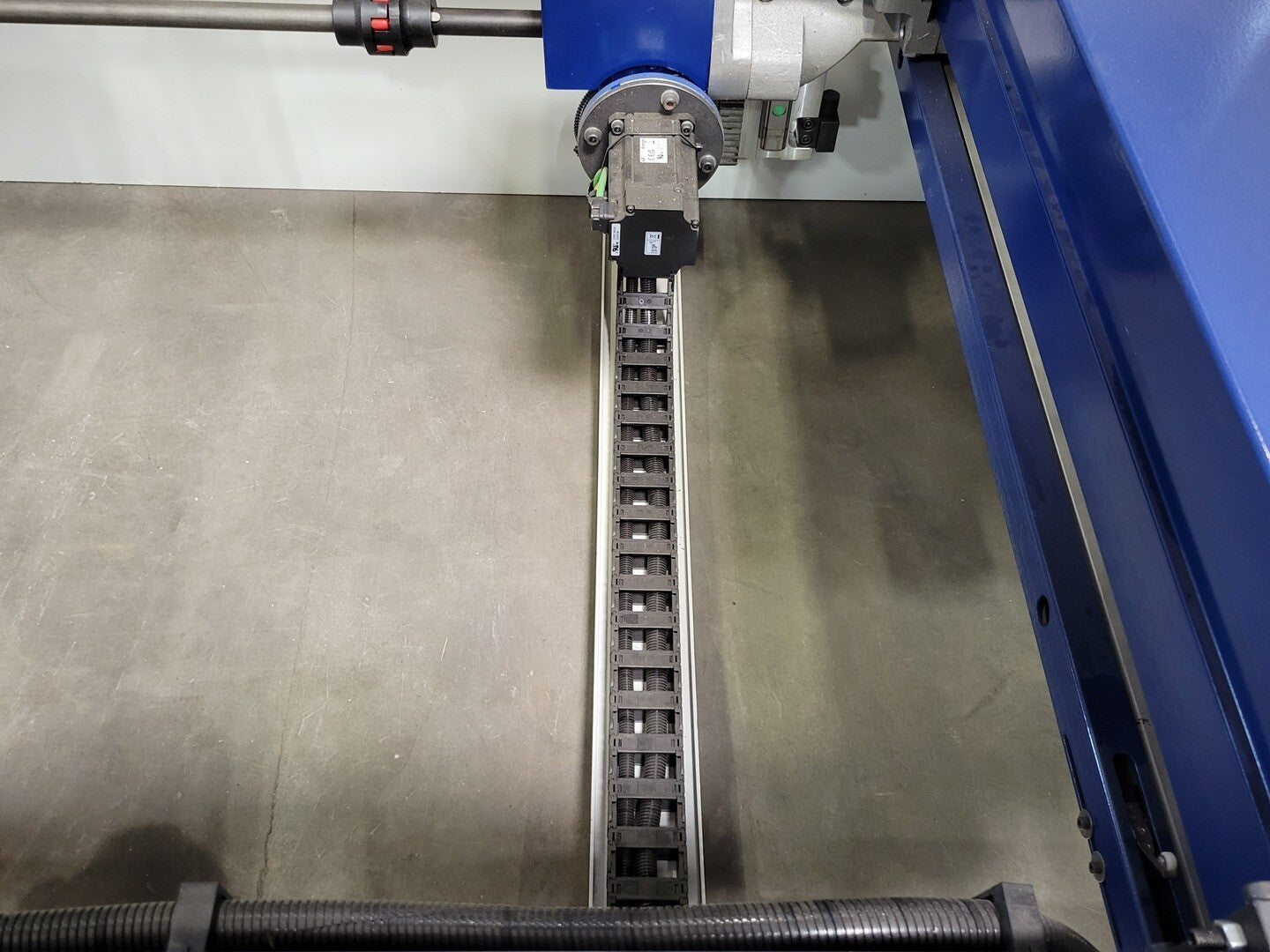

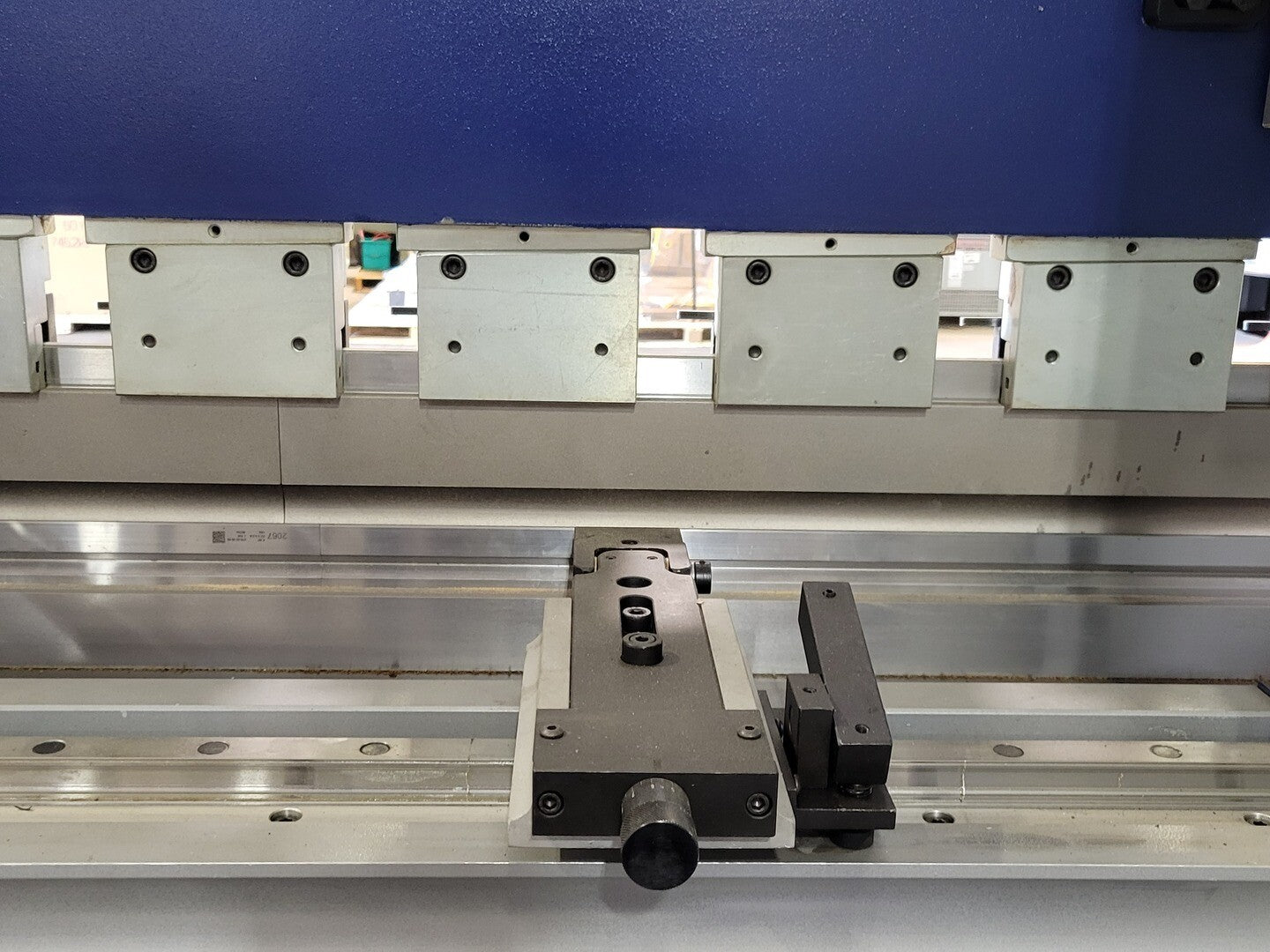

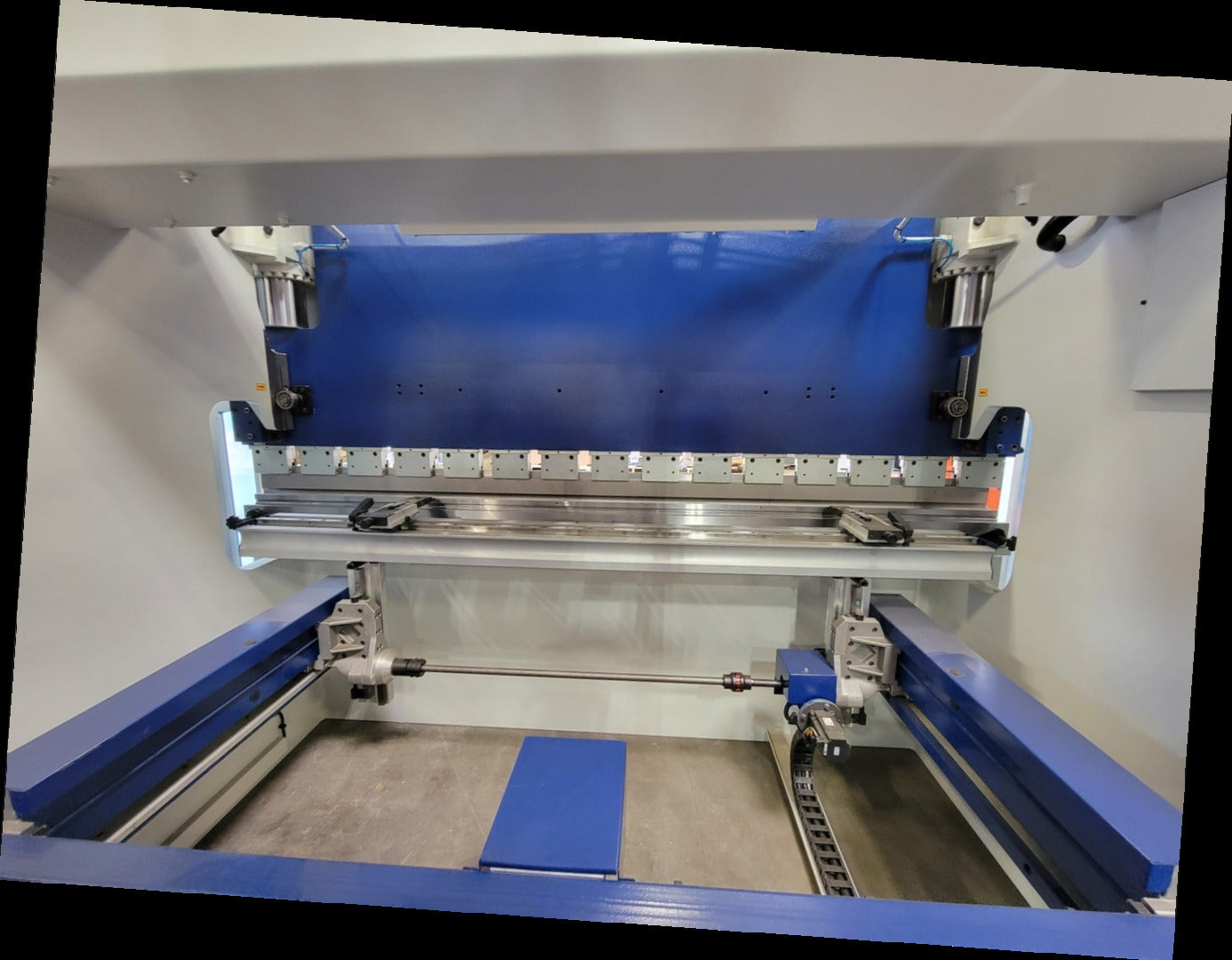

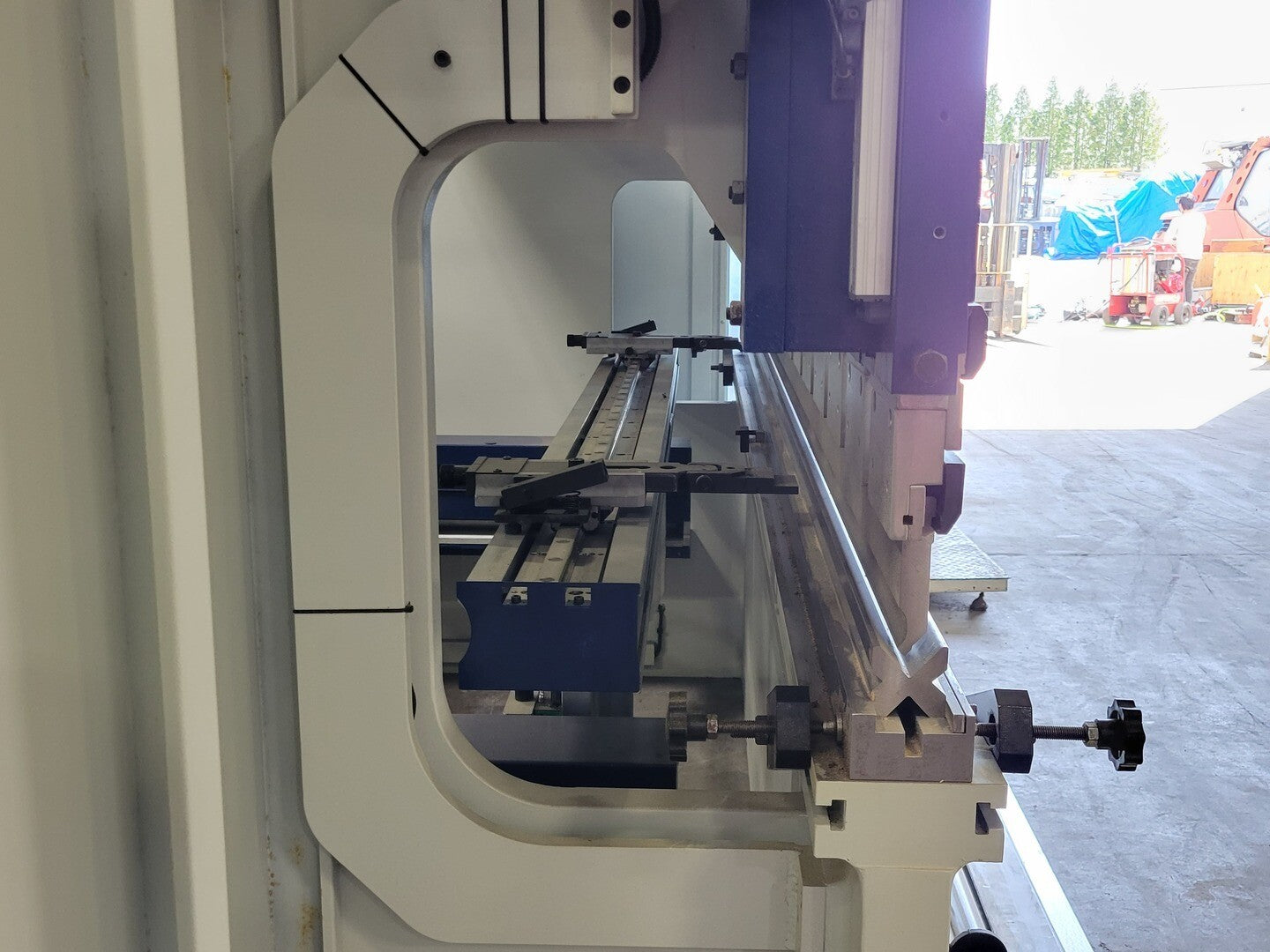

  • iBend - Back Gauge MVD (X+R) - SERVO Motorized

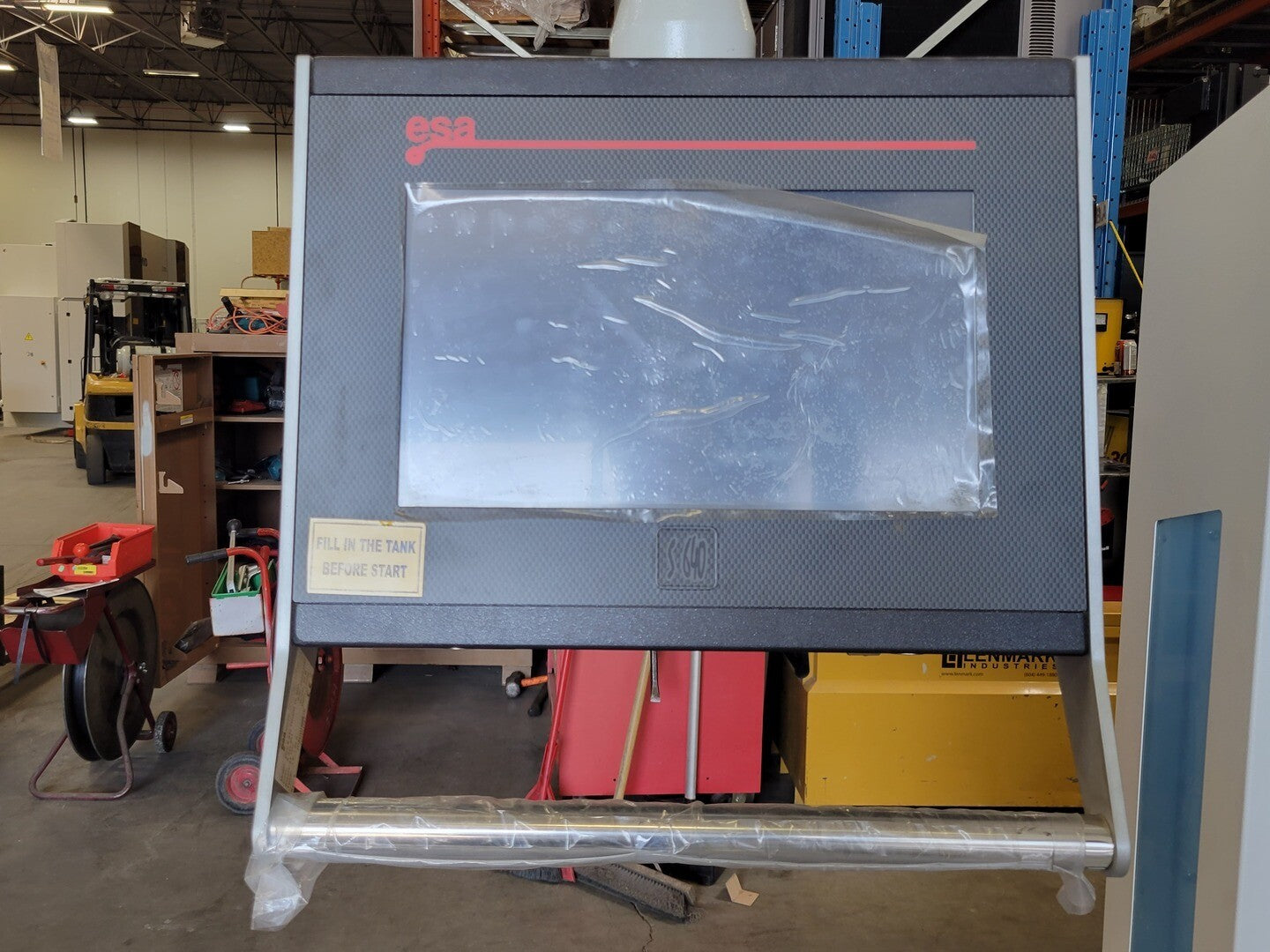

  • ESA S630, 10" Touch Screen, 2D Graphical (3-4 Axes)

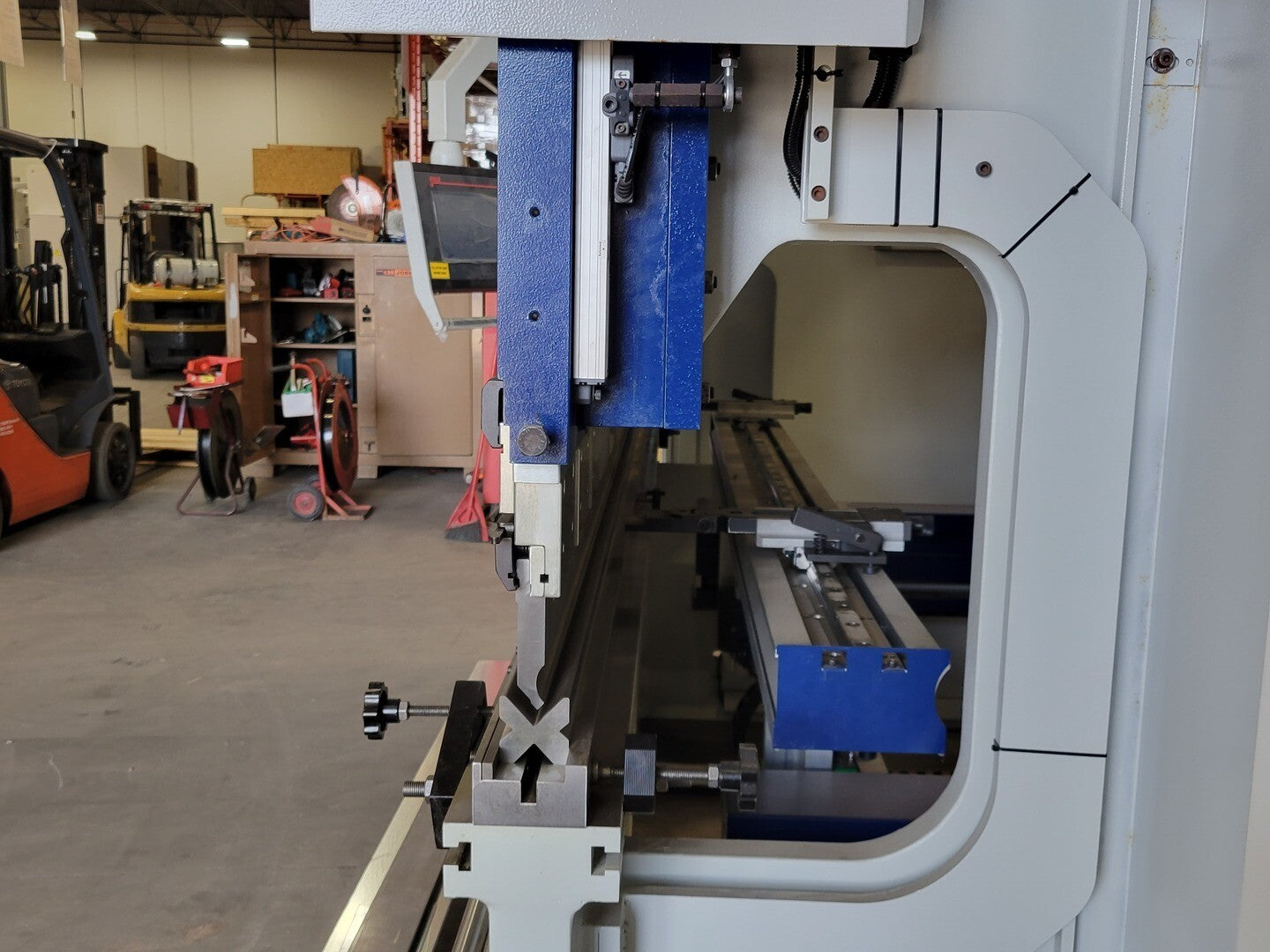

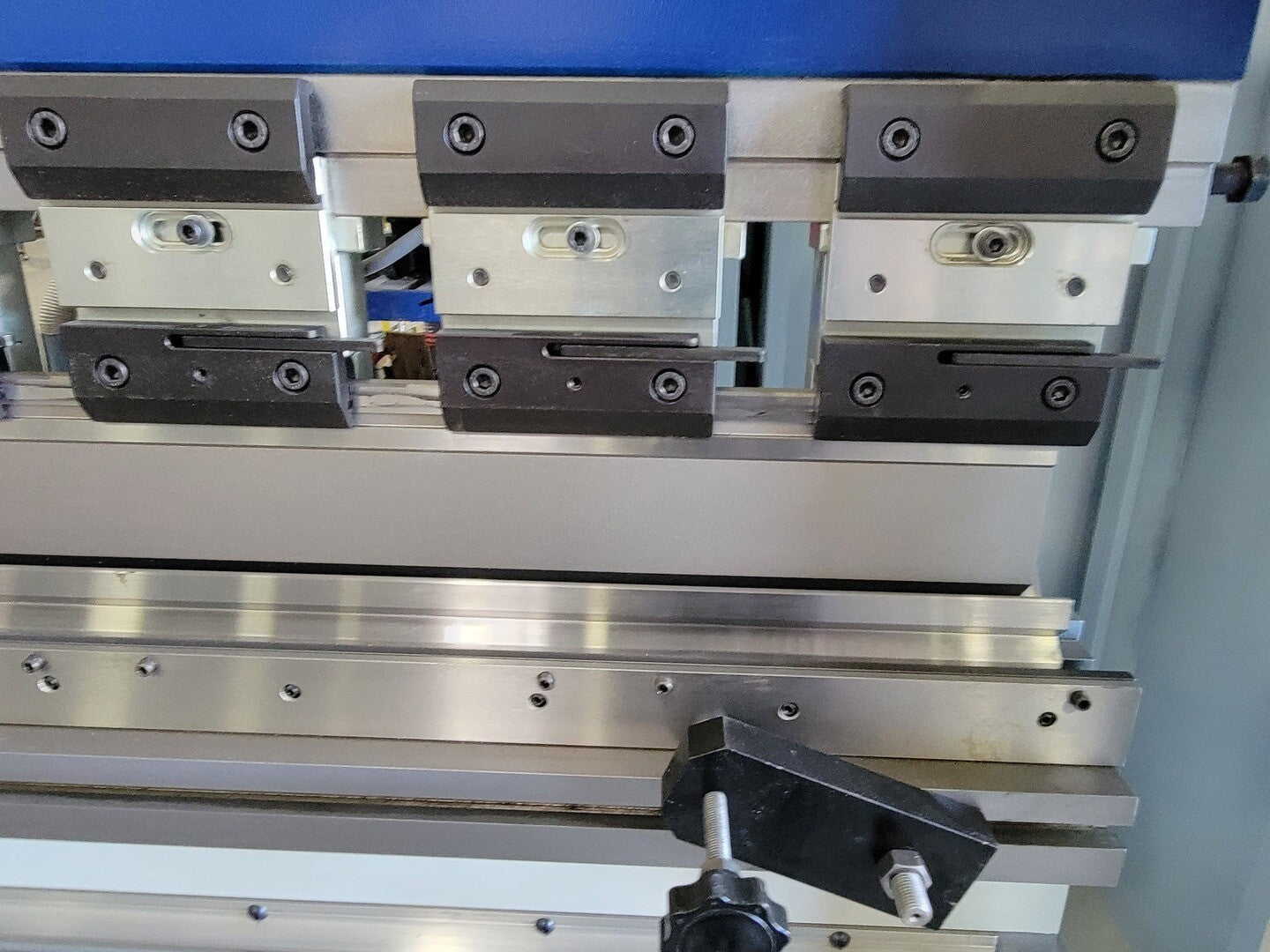

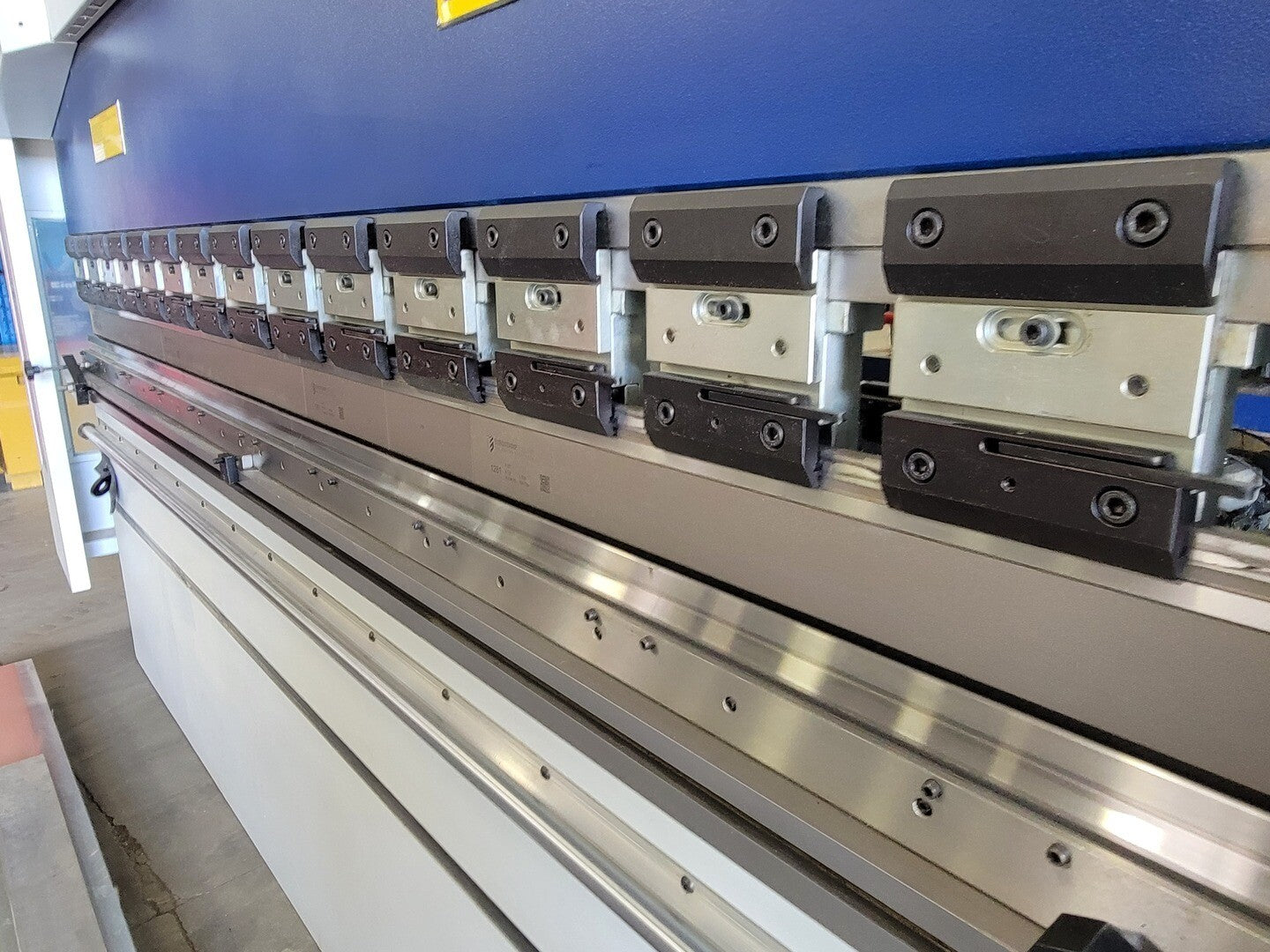

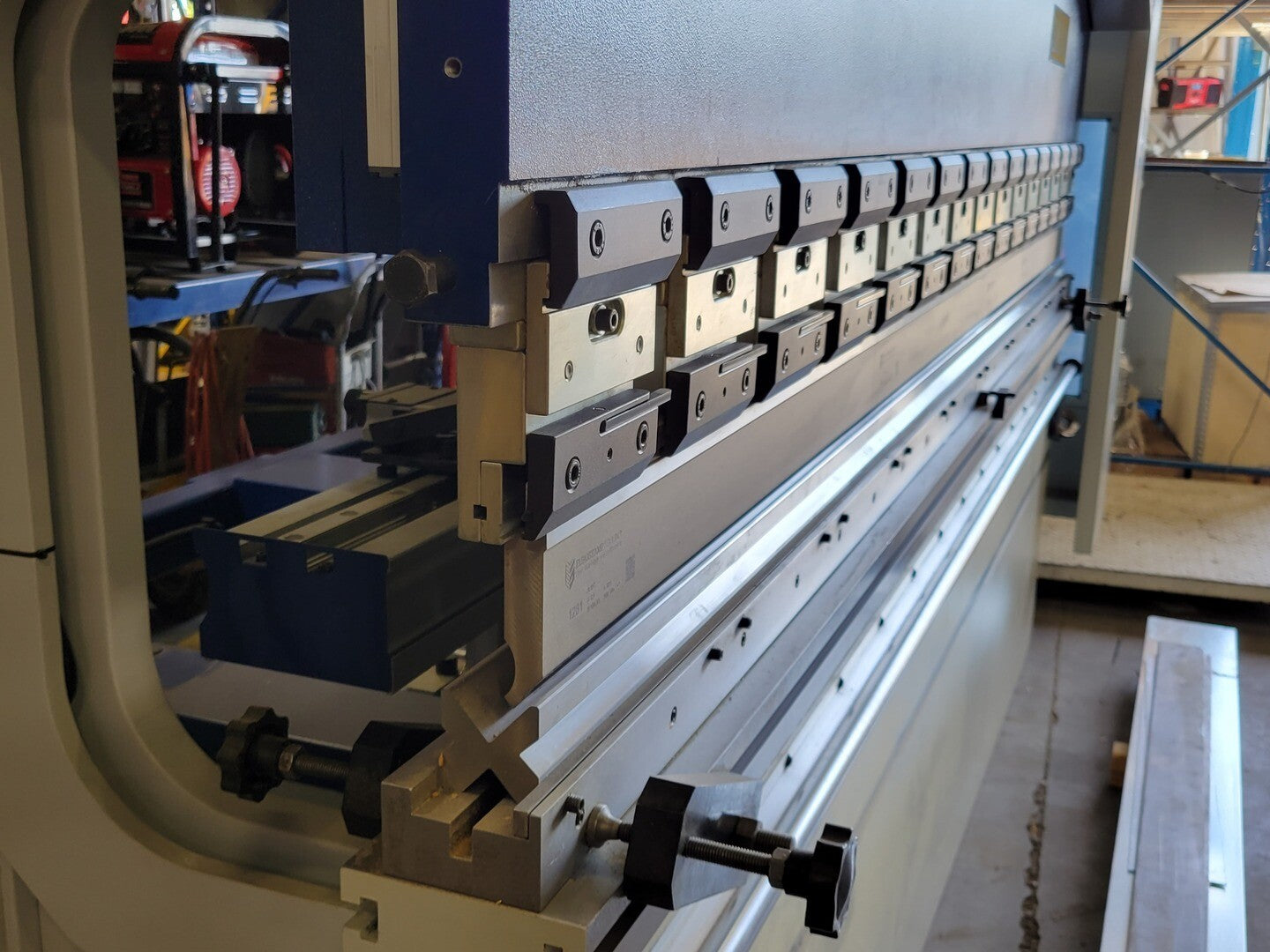

  • Large Bottom table for multi Vee die (150 mm / 5.90 in.) + EU die holder IW = 70mm

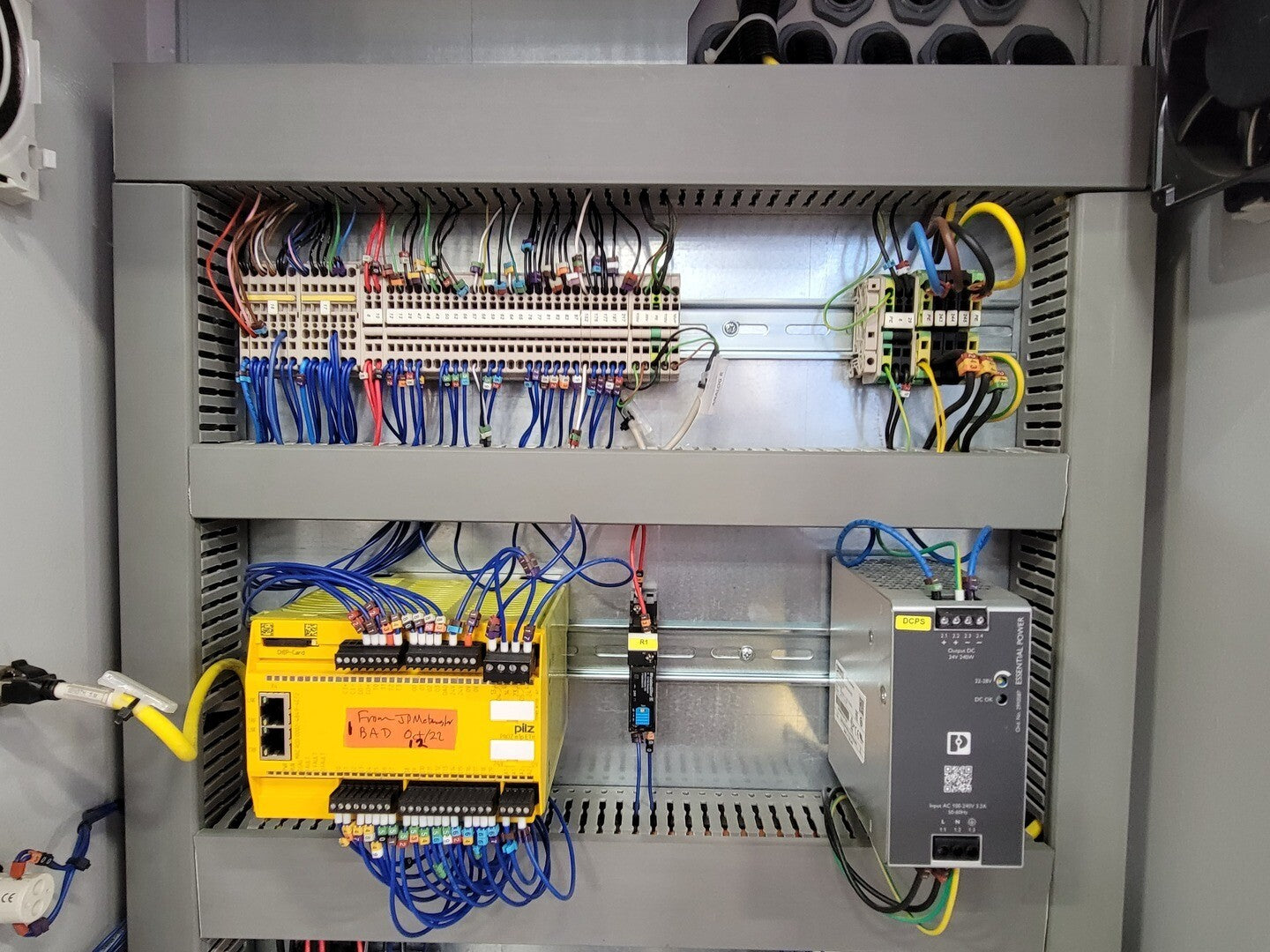

  • Rear Safety Light Barrier PILZ 030/90
  • For Manual Crowning, add $7,000 or $8,000 for CNC Crowning
