Description

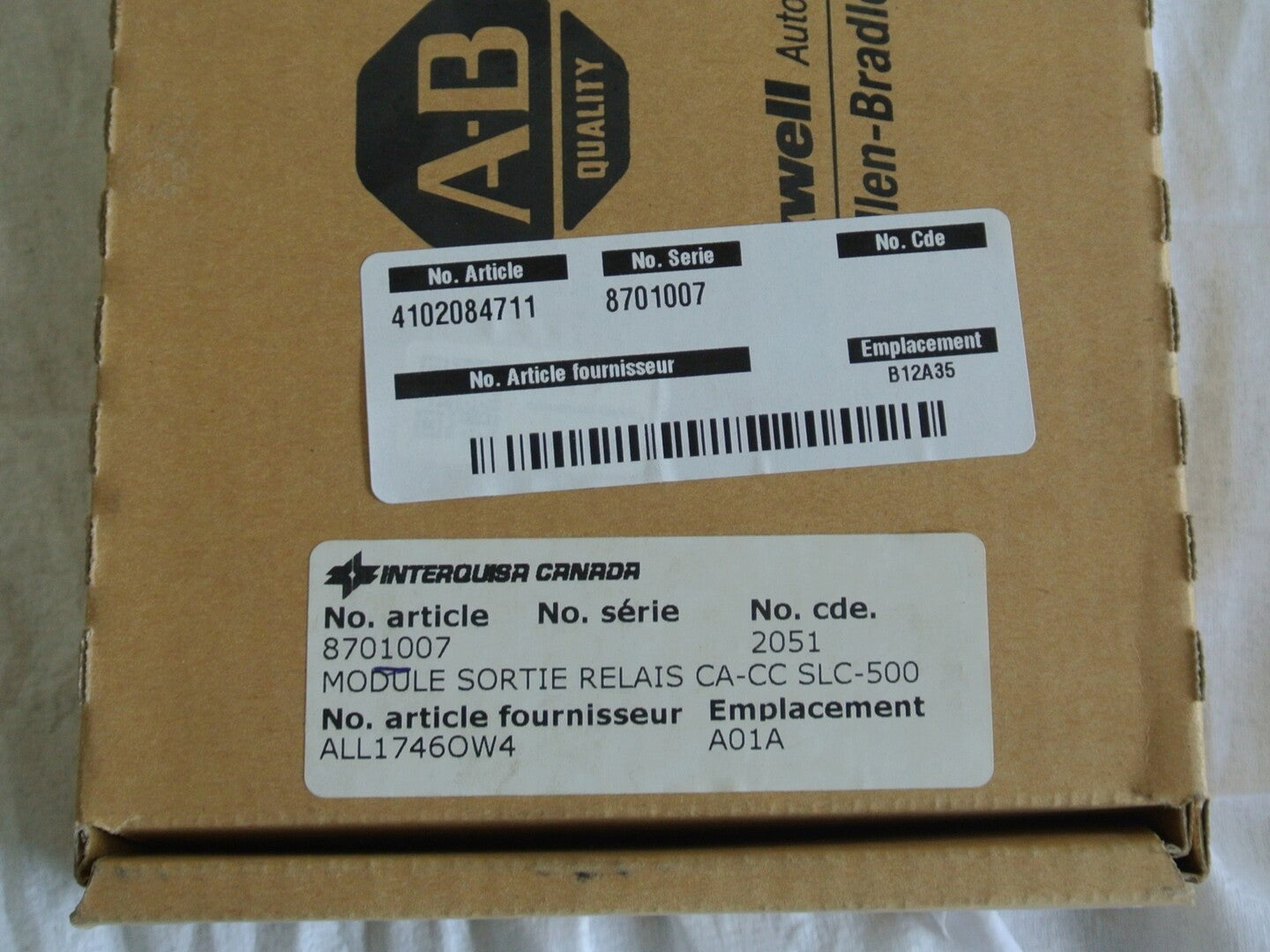

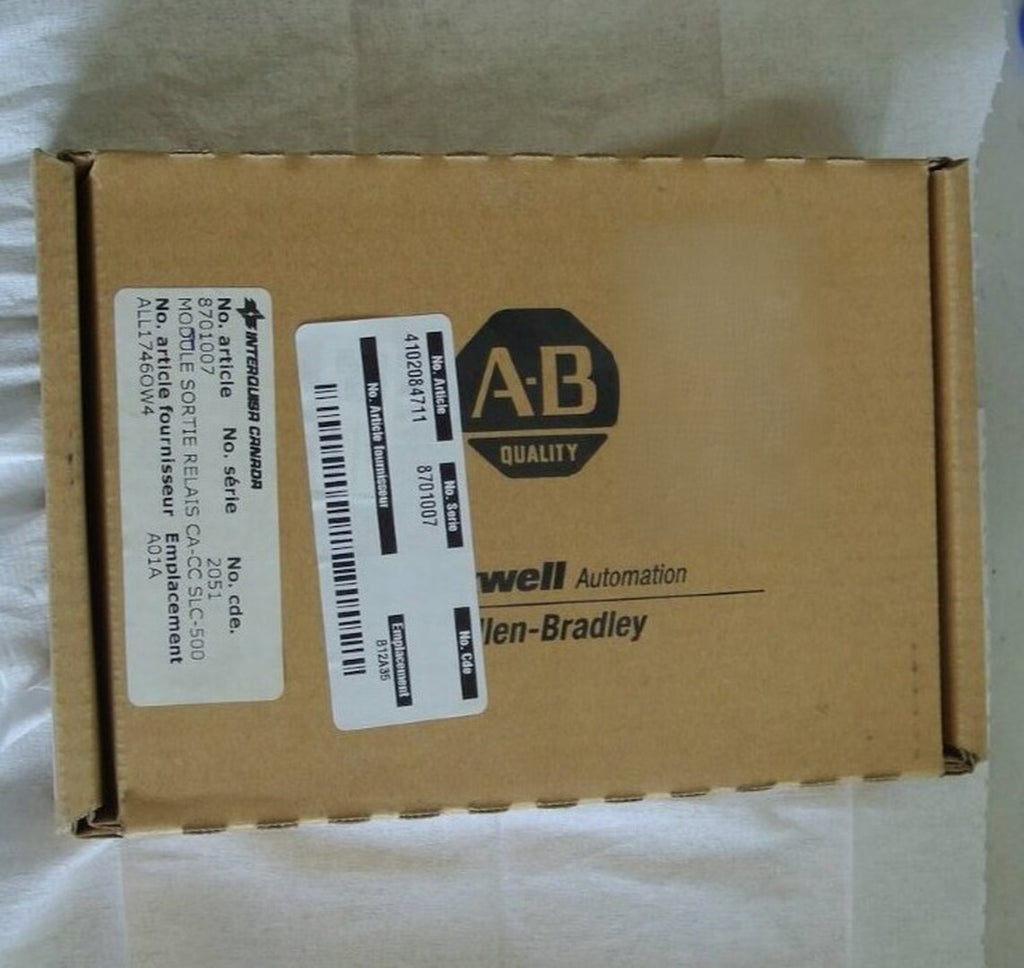

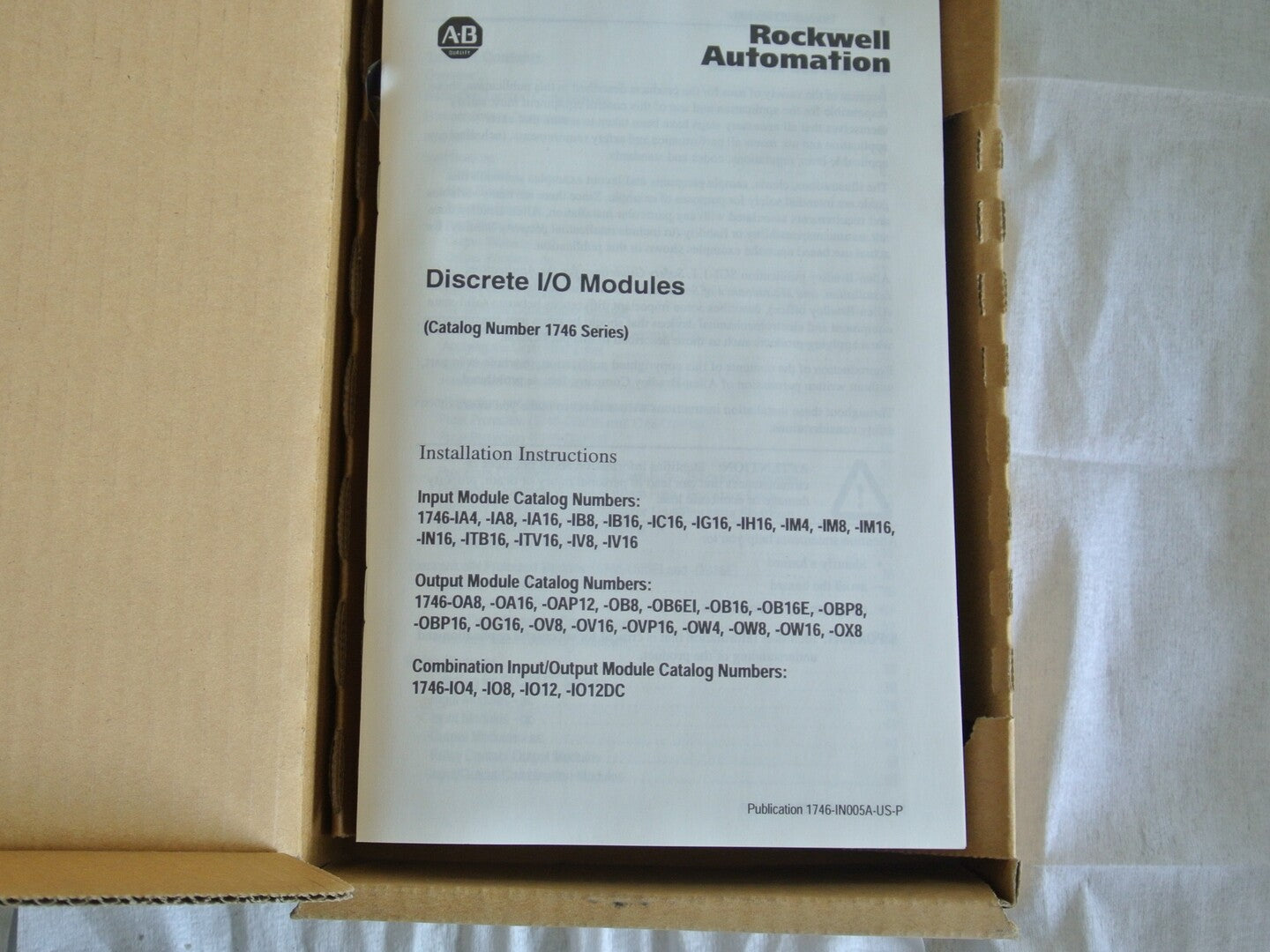

Allen-Bradley 1746-OW4 SLC 500 4-point relay output module for industrial PLC and machine-control applications. Features four relay outputs sharing one common and supports switching both AC and DC loads. Supplied in original Allen-Bradley packaging with installation documentation.
| Specifications | |
|---|---|
| Model | 1746-OW16 |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Product Family: SLC 500 Output Type: AC/DC Relay Number of Outputs: 4 Points per Common: 4 DC Operating Voltage Range: 5-125 VDC AC Operating Voltage Range: 5-265 VAC Minimum Load Current: 10 mA @ 5 VDC Maximum Off-State Leakage: 0 mA Maximum On Delay: 10 ms Maximum Off Delay: 10 ms Backplane Current @ 5 VDC: 0.045 A Backplane Current @ 24 VDC: 0.045 A Continuous Current per Module: 8 A AC Interquisa Article: 8701007 Inventory Number: 4102084711 |
