Description

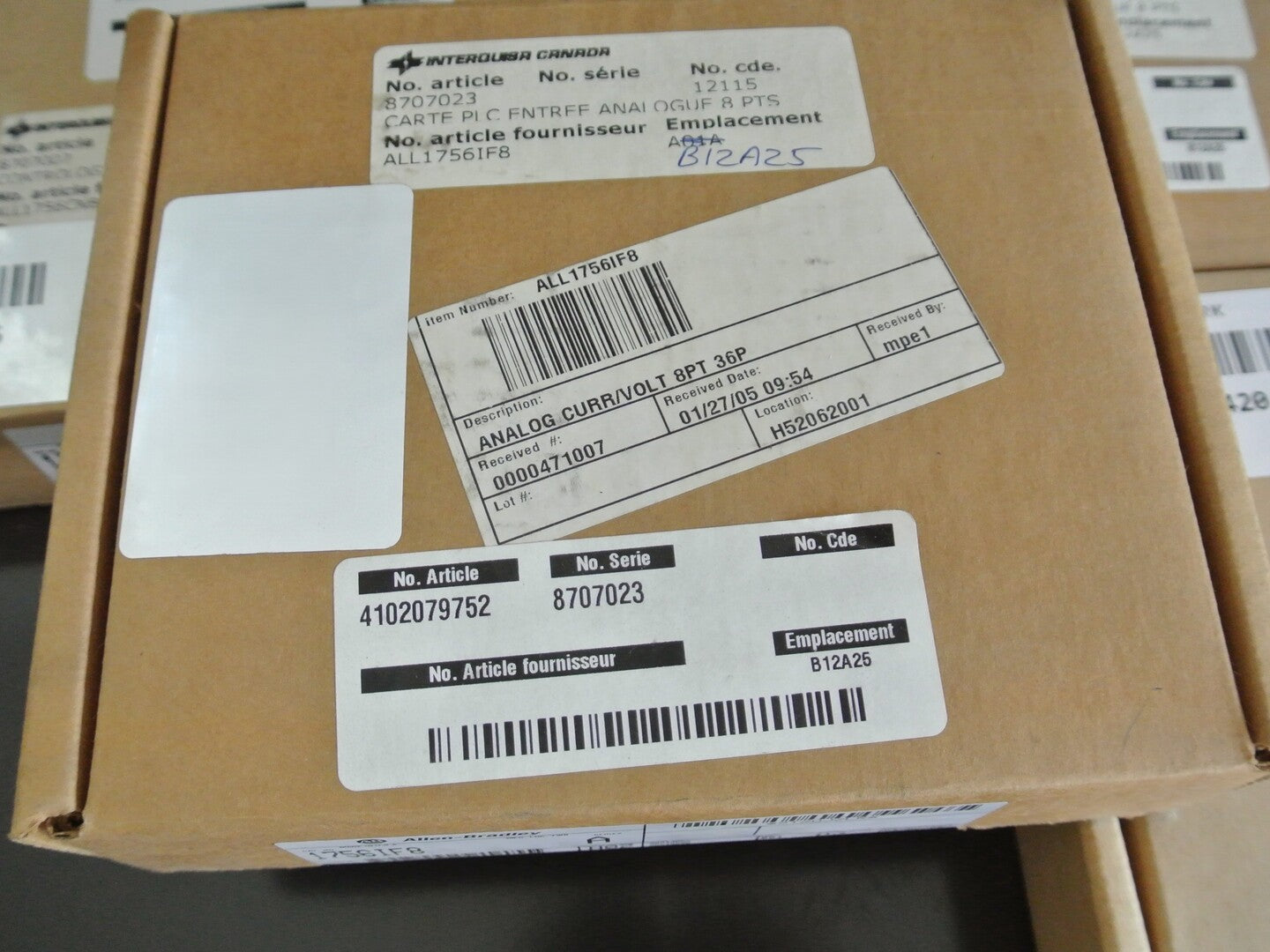

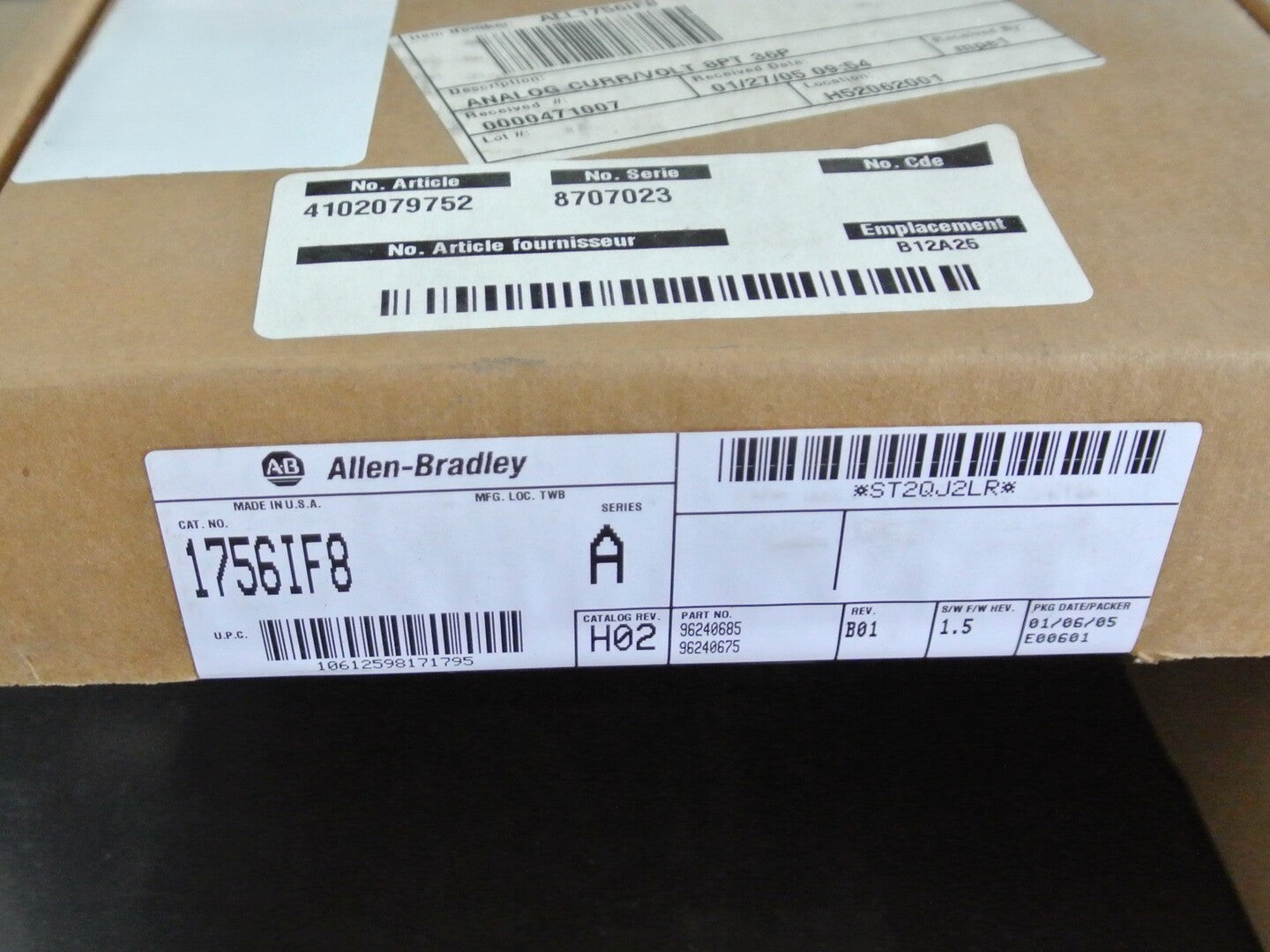

Allen-Bradley 1756-IF8 Series A ControlLogix analog input module, identified from labeled manufacturer packaging. Supports current and voltage inputs with selectable single-ended, differential, and high-speed differential configurations. Box label shows S/W F/W revision 1.5. Condition, contents, and operation remain unverified.
| Specifications | |
|---|---|
| Model | 1756-IF8 |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Series: A Product Family: ControlLogix Module Type: Current/voltage analog input module Input Configuration: 8 single-ended, 4 differential, or 2 high-speed differential Voltage Input Ranges: -10 to +10 VDC, 0-10 VDC, 0-5 VDC Current Input Range: 0-20 mA, including 4-20 mA applications Resolution: 16 bits; bipolar voltage uses 15 bits plus sign Field Connection: 36-pin removable terminal block interface Backplane Current Draw: 150 mA at 5.1 VDC; 40 mA at 24 VDC |
