Description
| Specifications | |
|---|---|

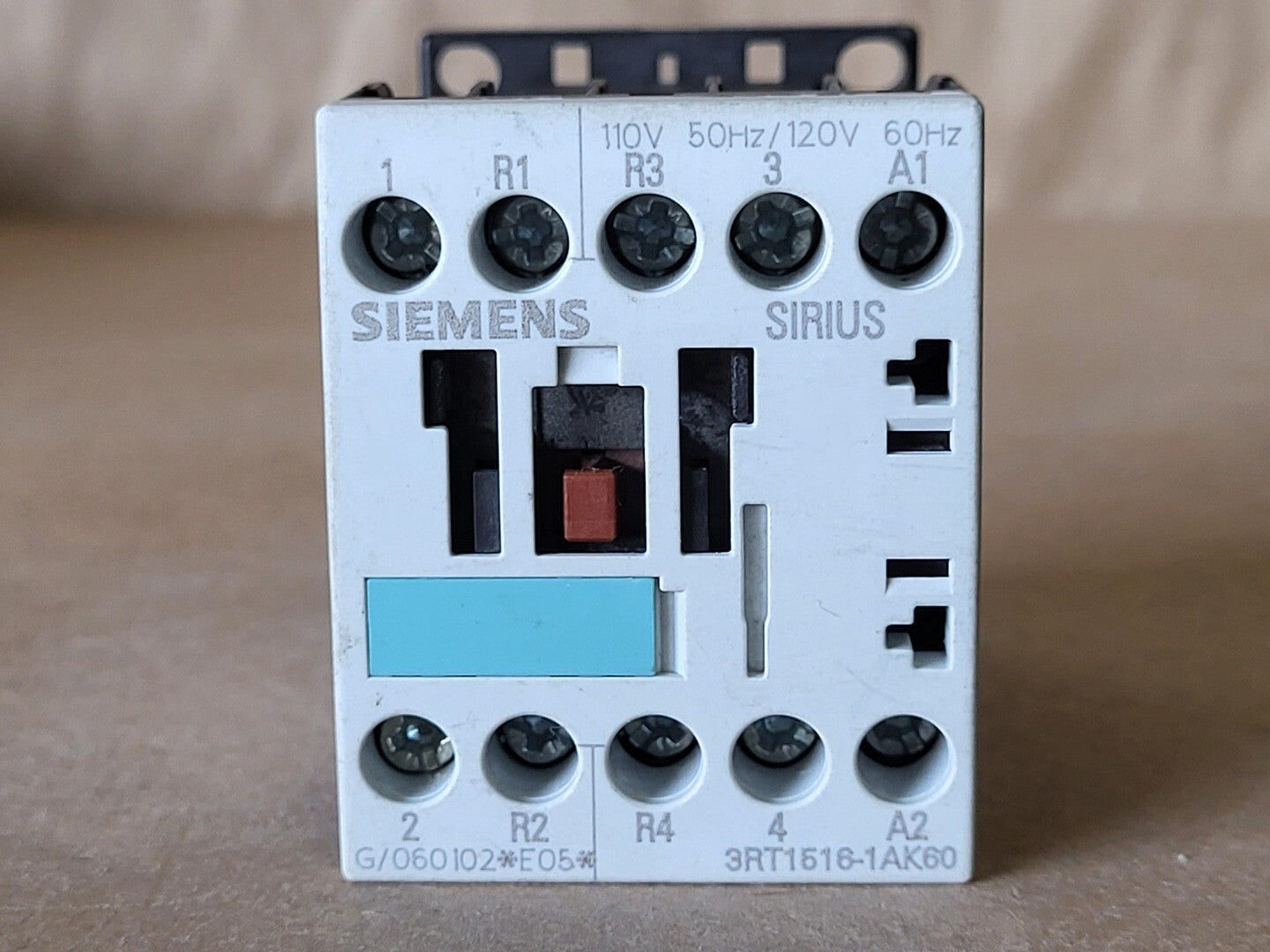

| Model | 3RT1516-1AK60 |
| Condition | Used | Electrical |
| Voltage | 120 volts |
| Amps | 18 amps |
| Other Specifications |
|---|
|
Mounting Type: DIN rail or screw mount Coil Voltage: 110V AC at 50Hz / 120V AC at 60Hz Rated Operational Current (Ie) AC-1: 18 A Rated Insulation Voltage (Ui): 690 V Power Ratings (AC-3):
AC-3 Current Ratings:
AC-15 (Control Circuit) Ratings:
UL / CSA Ratings:
Short Circuit Rating: 5 kA at 600V Maximum Fuse (RK5): 60 A Maximum Circuit Breaker: 50 A Auxiliary Contact Ratings: A600 / P600 Terminal Wire Size:
Tightening Torque: 0.8 to 1.2 Nm (7.1 to 10.3 lb-in) |
