Description

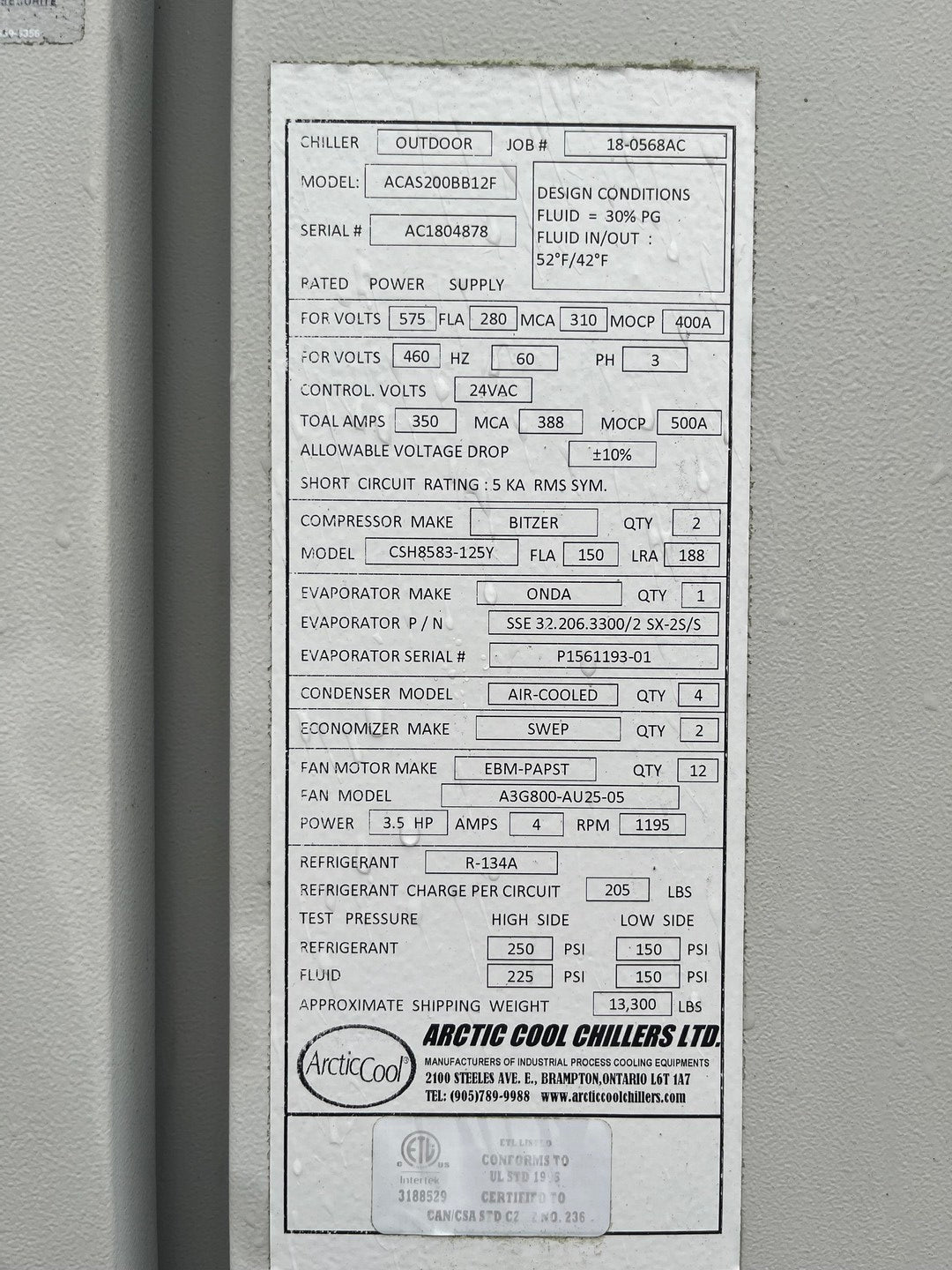

| Specifications | |
|---|---|
| Model | ACAS200BB12F |
| S/N: | AC1804878 |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Chiller Nominal Capacity: 200 Ton Design Conditions: Fluid = 30% propylene glycol at 42F and 52F RWT Flow: 526 GPM @ 9.07 P.S.I.P.D. Rated Power Supply For 575 Volts 3-Phase:
For 460 Volts 3-Phase:

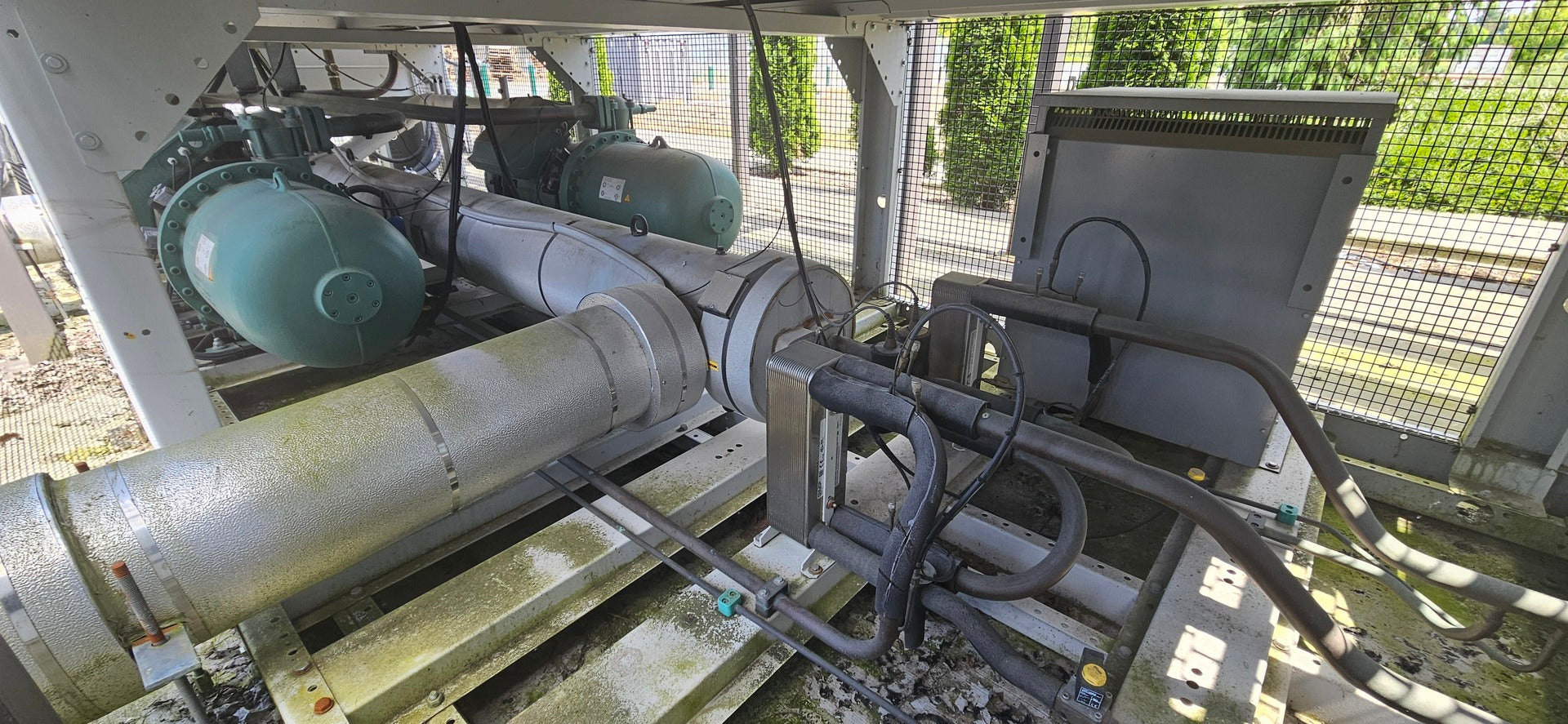

Control Volts: 24 VAC Allowable Voltage Drop: +/- 10% Short Circuit Rating: 5 kA RMS sym. Compressor Make: Bitzer Model: CSH8583-125Y Qty: 2 FLA: 150 LRA: 188 Evaporator Make: Onda Part Number: SSE 32.206.3300/2 SX-2S/S Qty: 1 Condenser Model: Air-Cooled Qty: 4 Economizer Make: Swep Qty: 2 Fan Motor Qty: 12 Power: 3.5 hp Amps: 4 A RPM: 1195 rpm Refrigerant: R-134A Refrigerant Charge Per Circuit: 205 lbs. Test Pressure:
|
