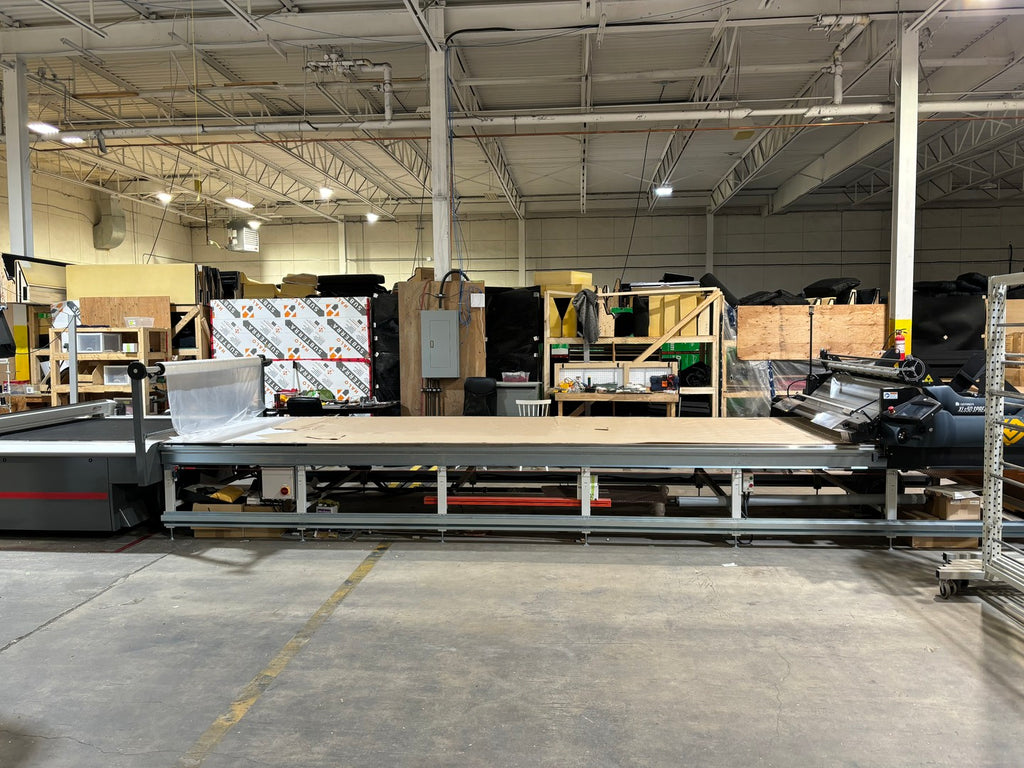

LECTRA Gerber XLS50 Fabric Spreader
LECTRA

Gerber XLS50 Fabric Spreader

SKU: 133913
Price:
$51,178

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Specifications
Model XLS50
Year: 2022
S/N: SA200586
Condition Used - Like New
Other Specifications

Very low working hours. Operated as a testing line for new products. Like new condition and reliable machine.

GERBERspreader XLs offers a tension-free, automated material spreading solution that ensures material rolls are spread without tension and the edges are aligned perfectly. The XLs is ideal for a wide range of material applications. Optimize material utilization.

  • The GERBERspreader XLs system accurately aligns fabric edges so users can nest parts closer to the beginning, end and edges of the spread, eliminating end loss and optimizing material utilization. Choose the flexible solution.
  • The GERBERspreader XLs system spreads woven or knit materials from either rolls or flat folded packs. Optional end catcher device accommodates face up one way or face-to-face (zigzag) spreading. Loading and unloading is simple. The fabric roll cradle feed system tilts automatically for easy material loading and unloading.
  • The GERBERspreader XLs system features an intuitive, icon-driven user interface.
  • Table working area of 7m (23ft) long x 1.83m (6ft / 72 inches) wide.
  • Brio X55-72: spreader for fabric rolls of up to 55kg (121lbs), effective width 1.83m (6ft / 72 inches).
  • Mobile end catcher for Brio spreading solution.
  • Position can be adjusted to suit spread length. 7m (23ft) blowing table for the Brio spreader with effective width of 1.83m (6ft / 72 inches). 7m (23ft) kit line for BRIOX Table. 3 Phase 220/240 Volt, 50/60Hz.

Characteristics

  • Material width 180, 200 or 240 cm 72, 78.7 or 94.5 in
  • Roll weight (maximum) 50 kg 110 lbs
  • Roll diameter (maximum) 40 cm 16 in
  • Spreading height - one way 20 cm 8 in
  • Spreading height - zigzag 12 cm 5 in
  • Maximum speed per minute 100 m 109 yds
  • Operator side Left hand

Dimensions

  • Loading height over tabletop 36 cm 14 in
  • Total height over tabletop 80 cm 32 in
  • Table width for 180 cm machine 200cm 78.7 in
  • Table width for 200 cm machine 220 cm 86.6 in
  • Table width for 240 cm machine 260 cm 102.4 in

Power

  • Power supply 1x220-240V / 3x220-240V / 3x380-415V
  • Main fuse 16 Amp
