250 Amp, 3 Pole, 600 volts Circuit Breaker FD63F250

SKU: 139936
Price:
$372

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

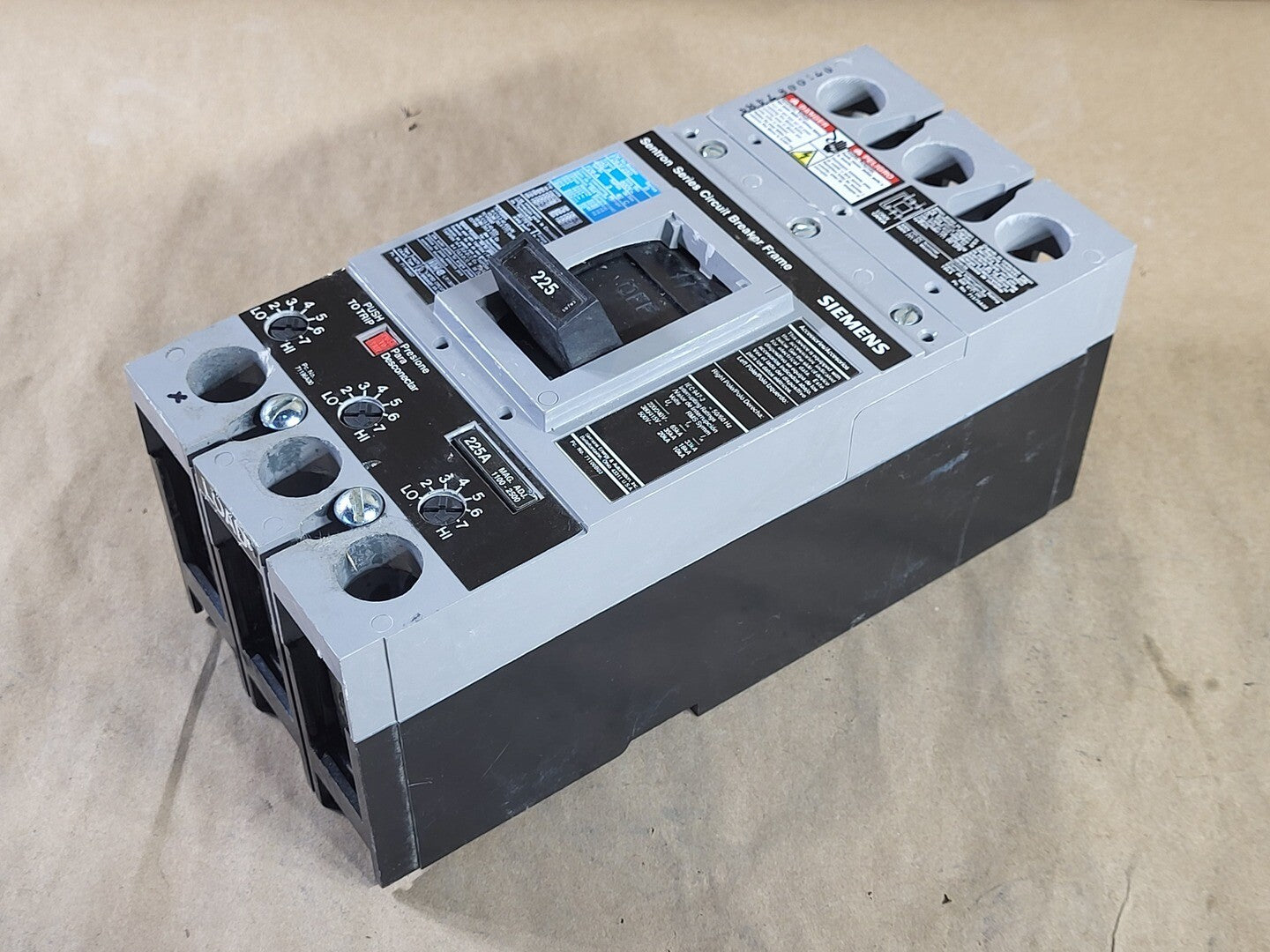

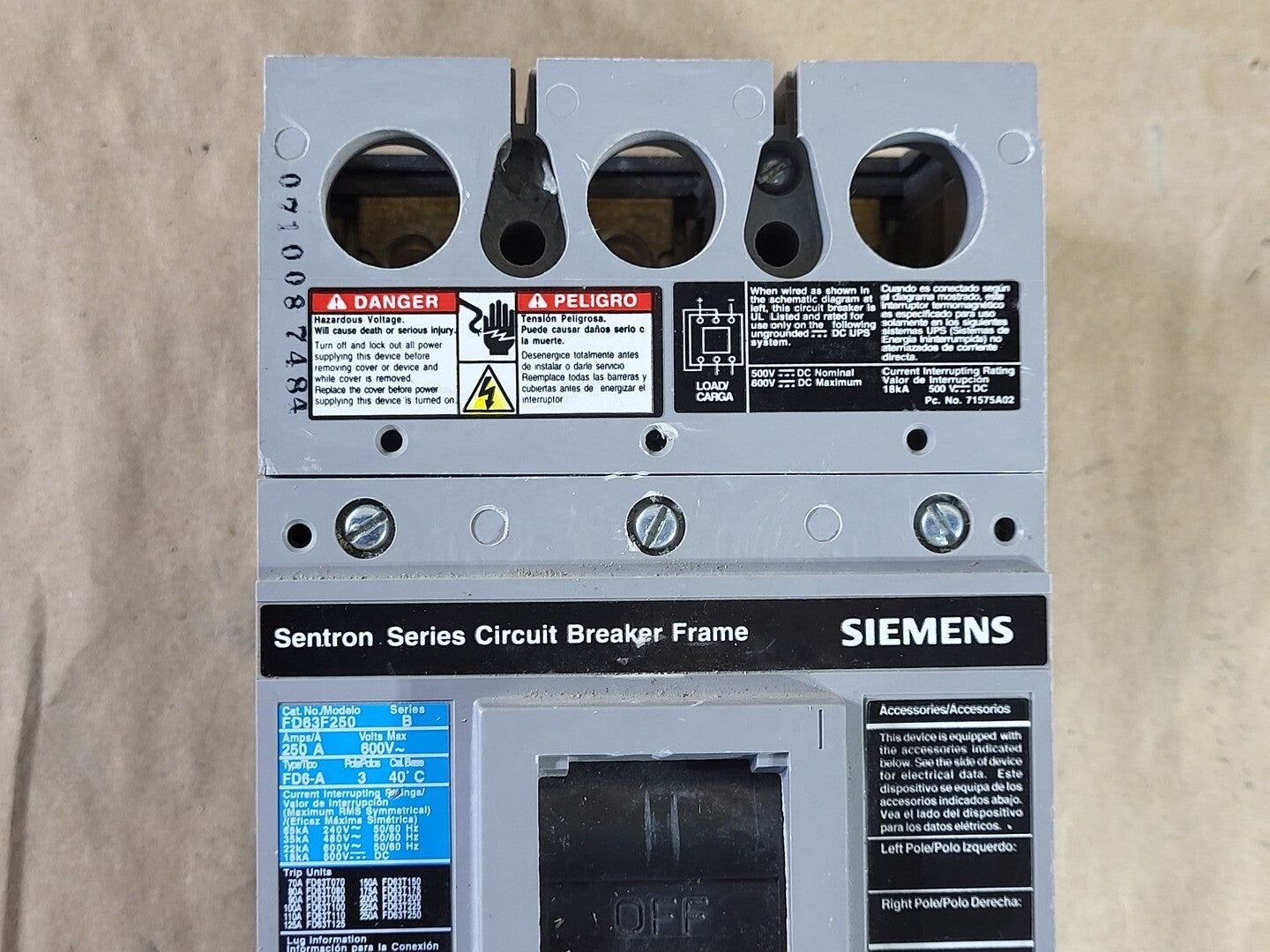

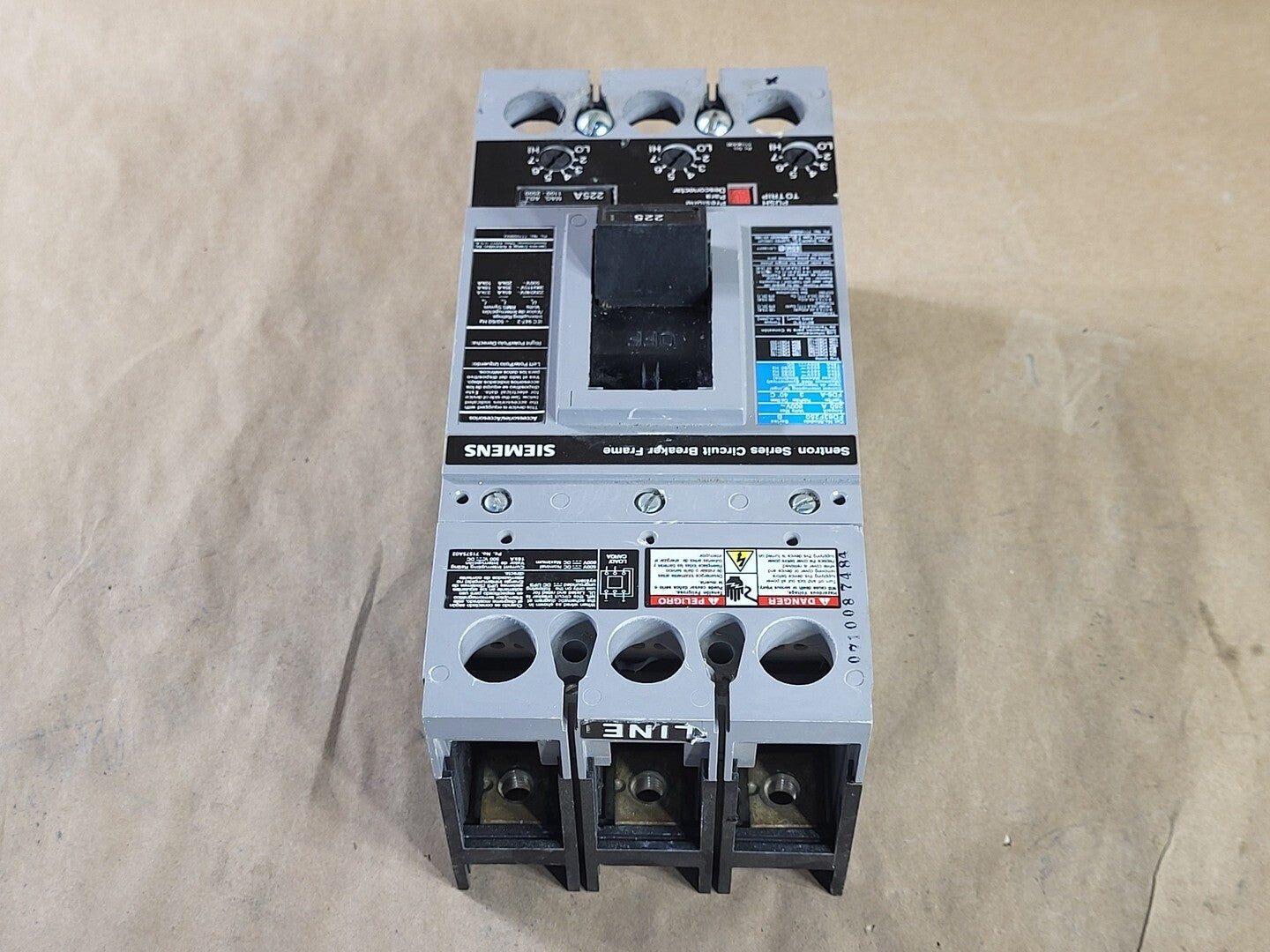

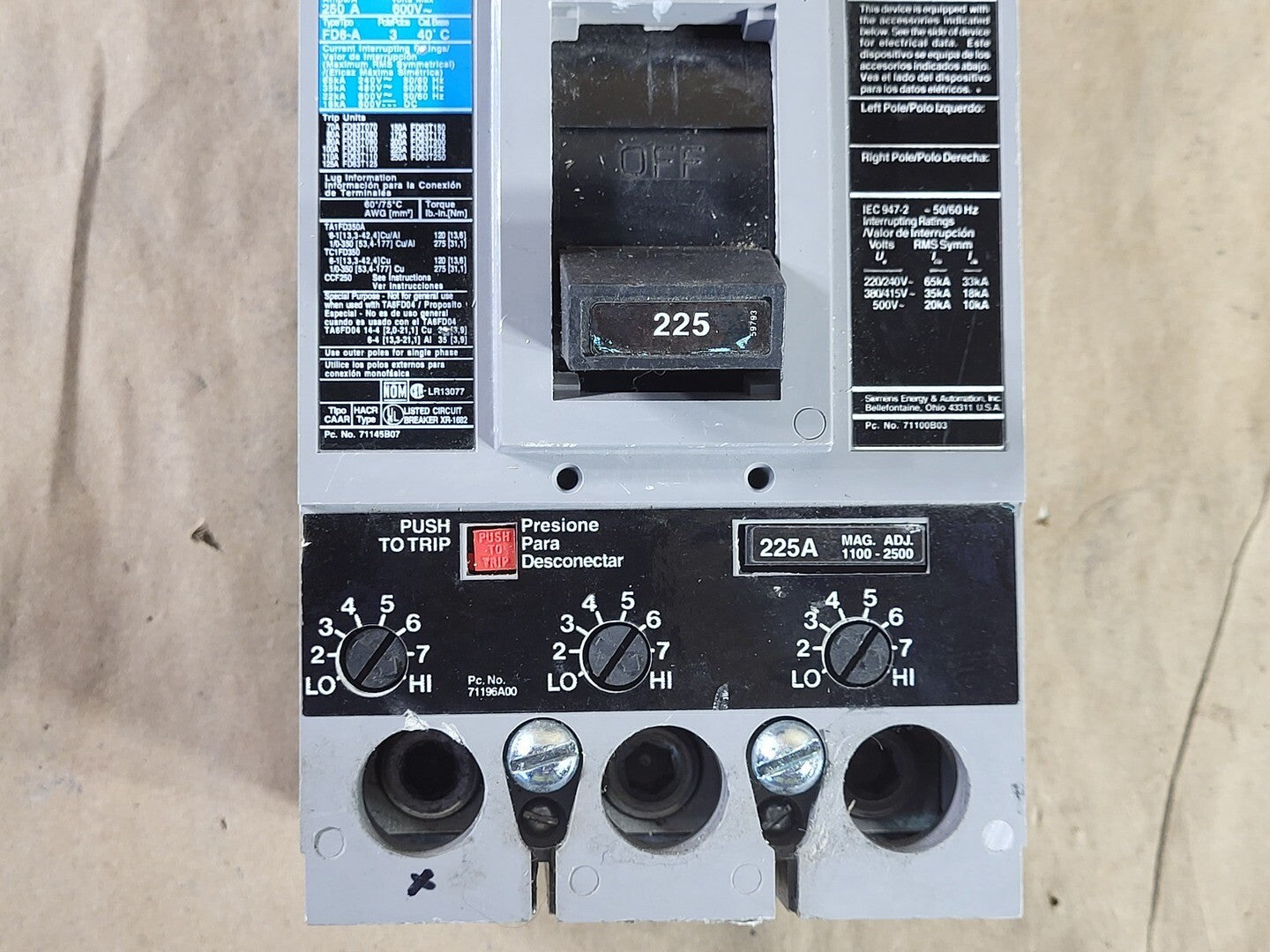

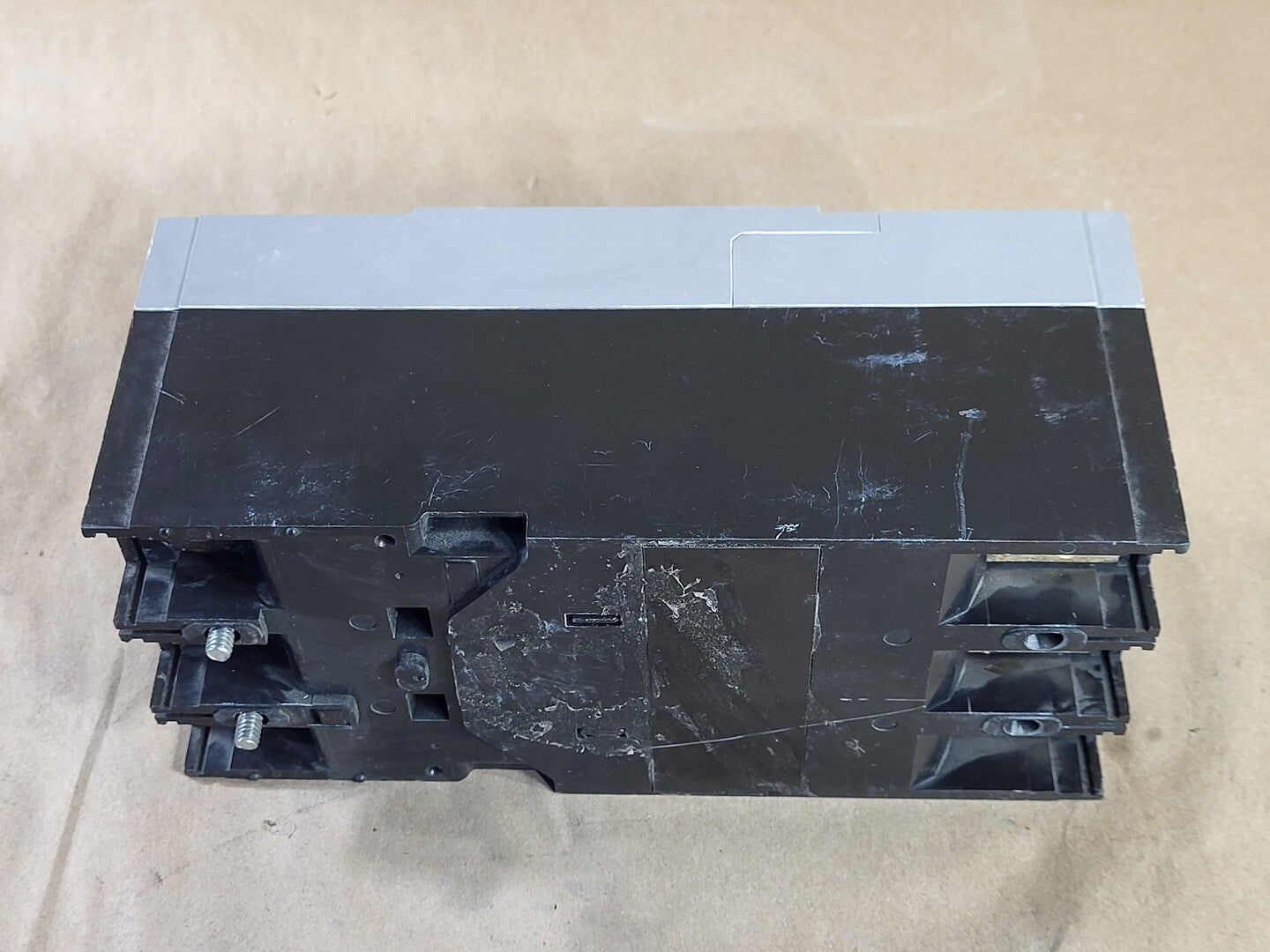

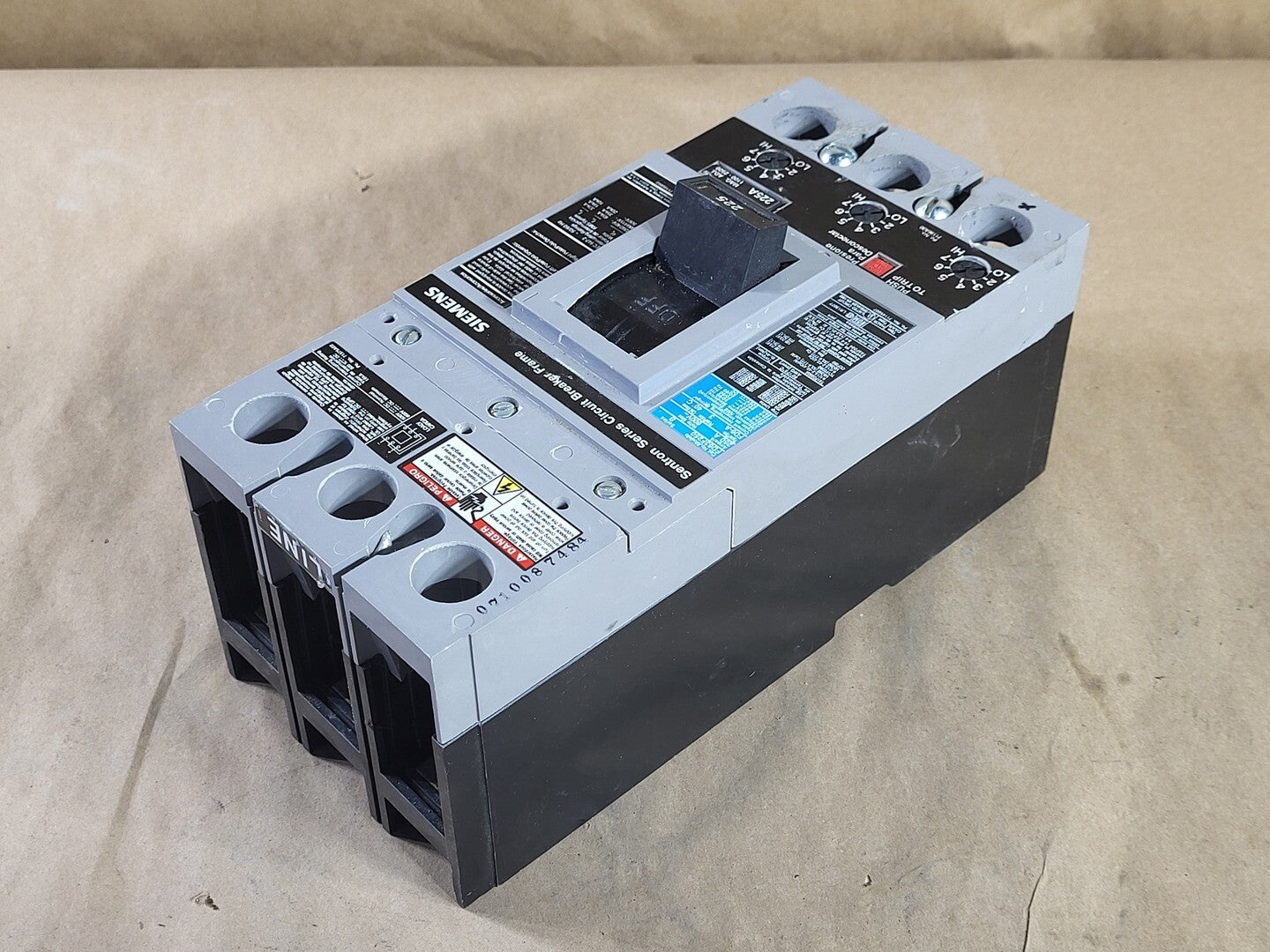

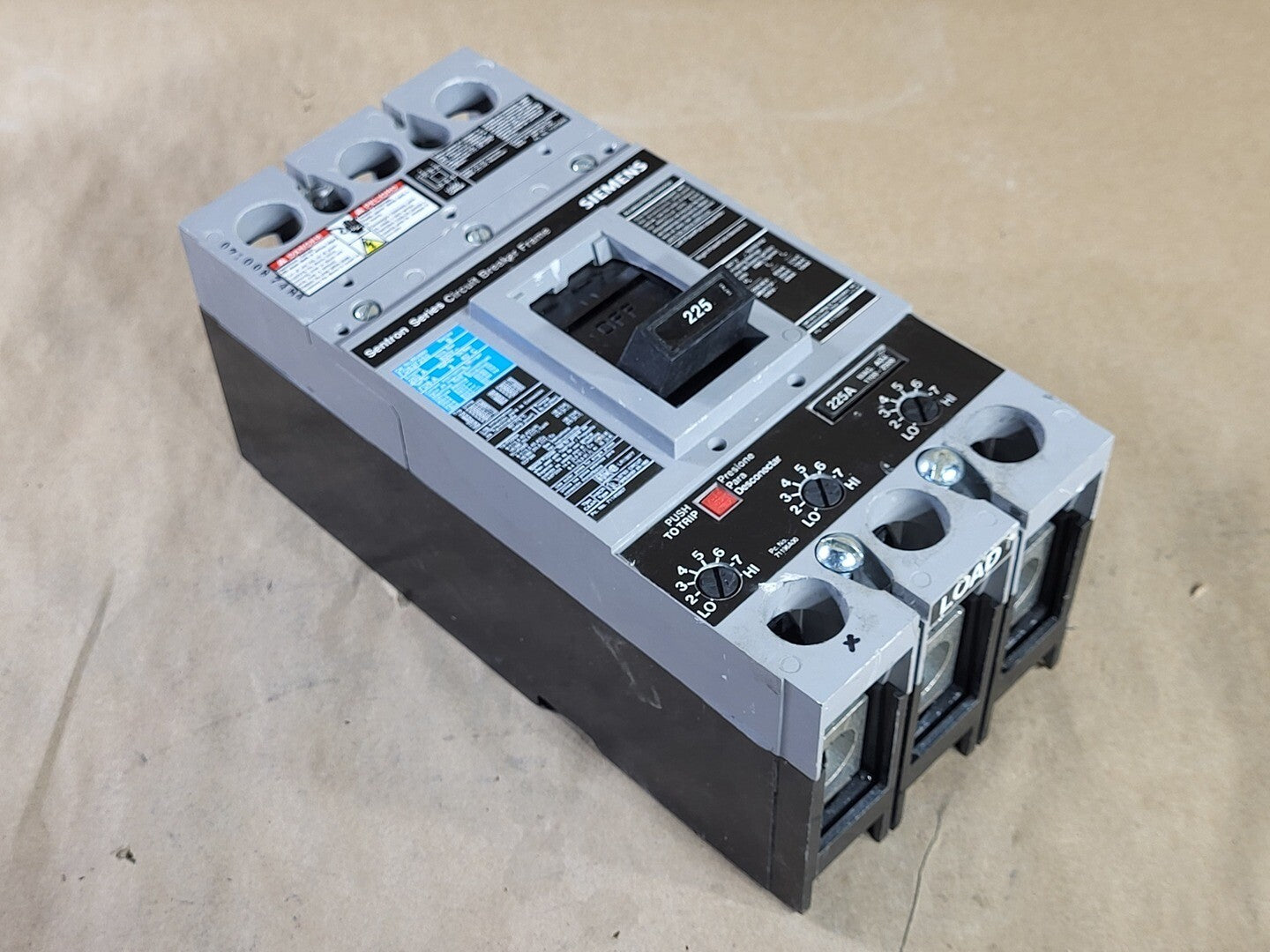

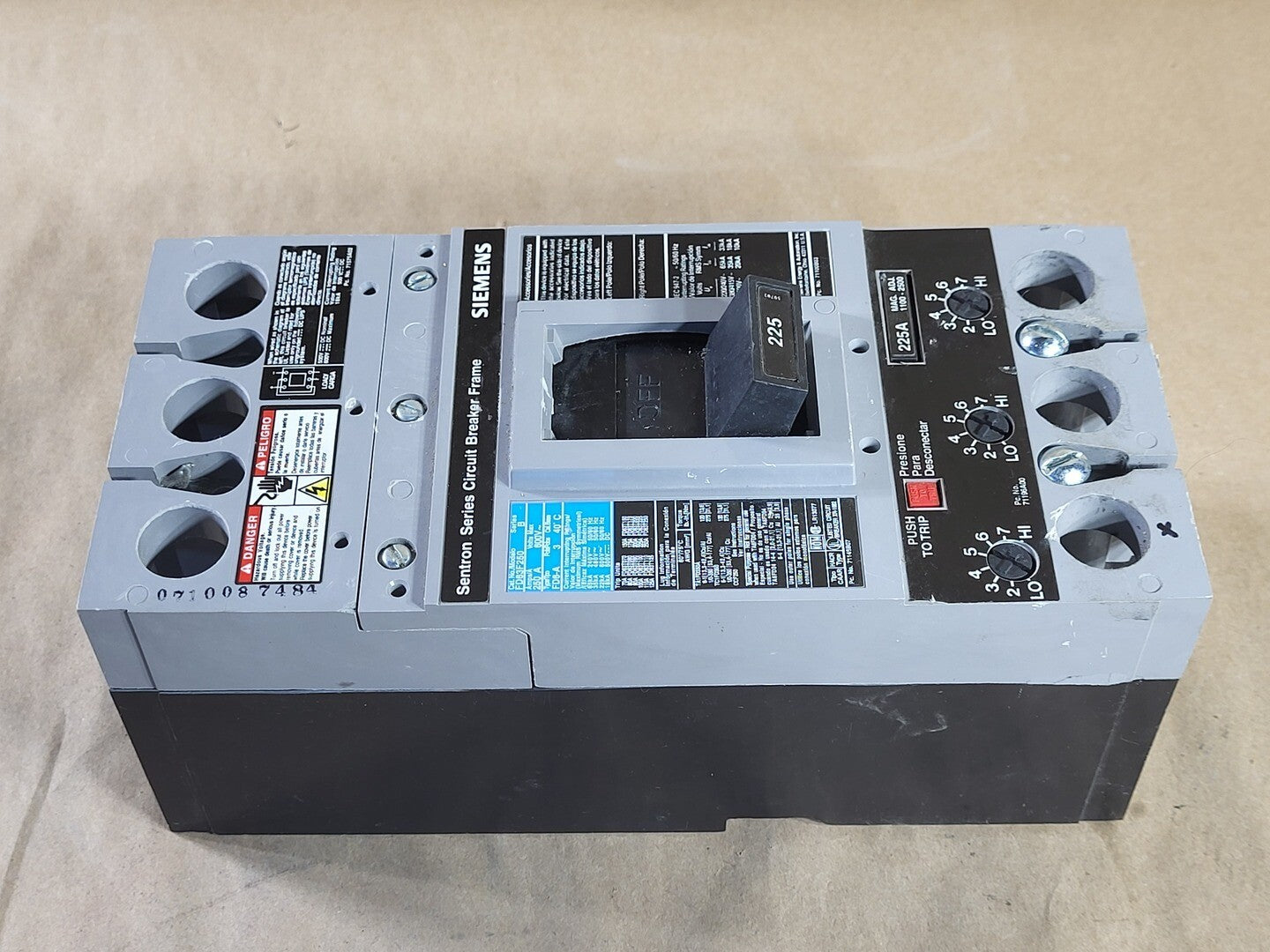

The Siemens FD63F250 is a molded case circuit breaker with an FD frame, three-phase, 3-pole, featuring thermal-magnetic protection, designed for industrial and commercial applications. It offers a rated current of 250 A and supports up to 600 VAC / 500 VDC, with an interrupting capacity of 35 kA at 480 V and 22 kA at 600 V. It mounts using a bolt-on connection and is UL and IEC certified under molded case circuit breaker standards.
Specifications
Model FD63F250
Made In UNITED STATES
Condition Surplus New
General
Amps 250 amps
Series FD
# of Poles 3
Mounting Style Bolt-On
Voltage 600 volts
Phase 3-phase
AFCI No
GFCI No
Other Specifications

Overview:

  • Part Number: FD63F250
  • Frame: FD series
  • Type: Molded Case Circuit Breaker (MCCB)
  • Number of Poles: 3-pole
  • Rated Current: 250 A
  • Rated Voltage: 600 VAC / 500 VDC
  • Interrupting Capacity:
  • 35 kA at 480 VAC
  • 22 kA at 600 VAC
  • Trip Type: Thermal-magnetic
  • Certifications: UL 489, IEC 60947-2
