Description

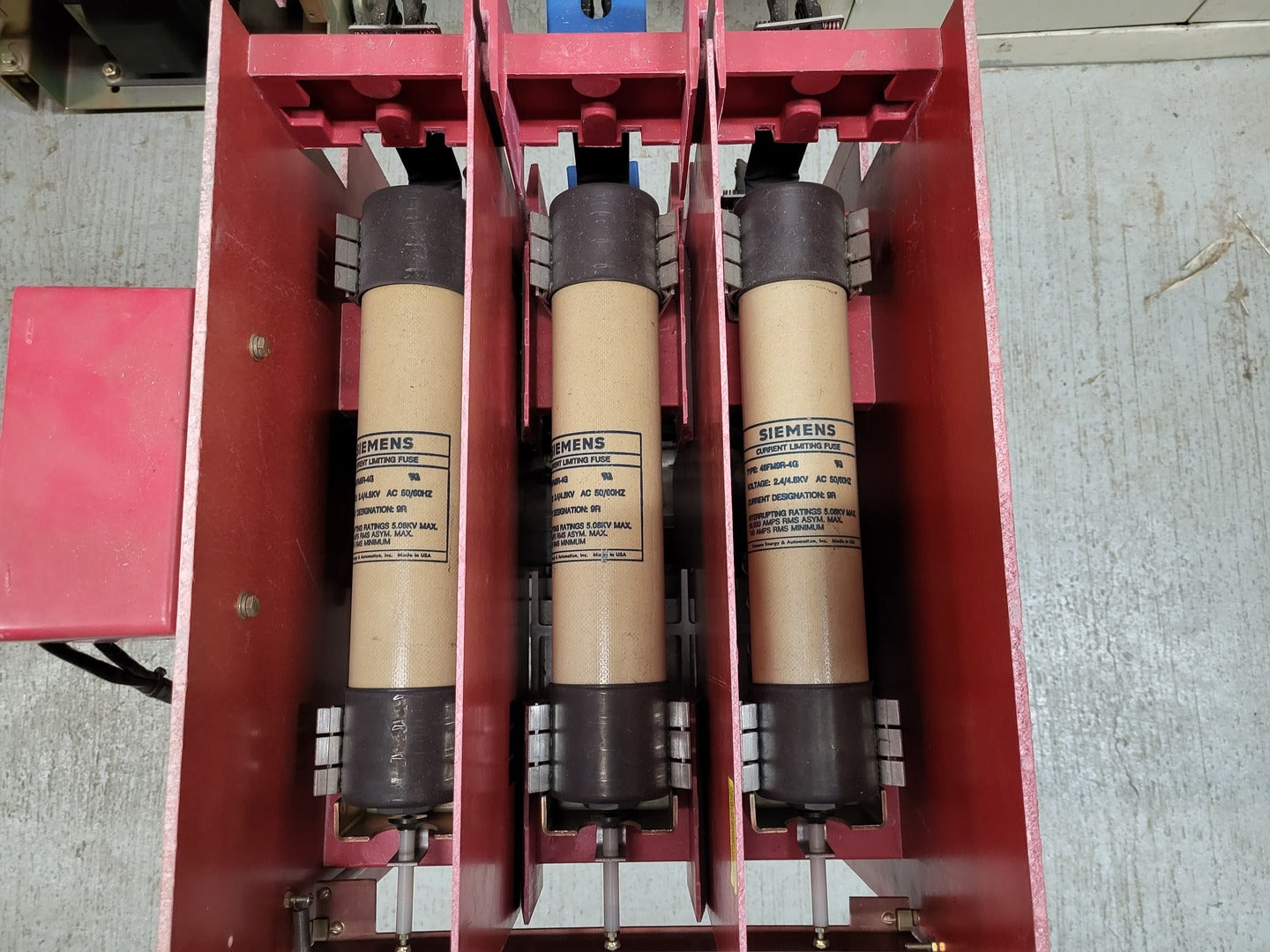

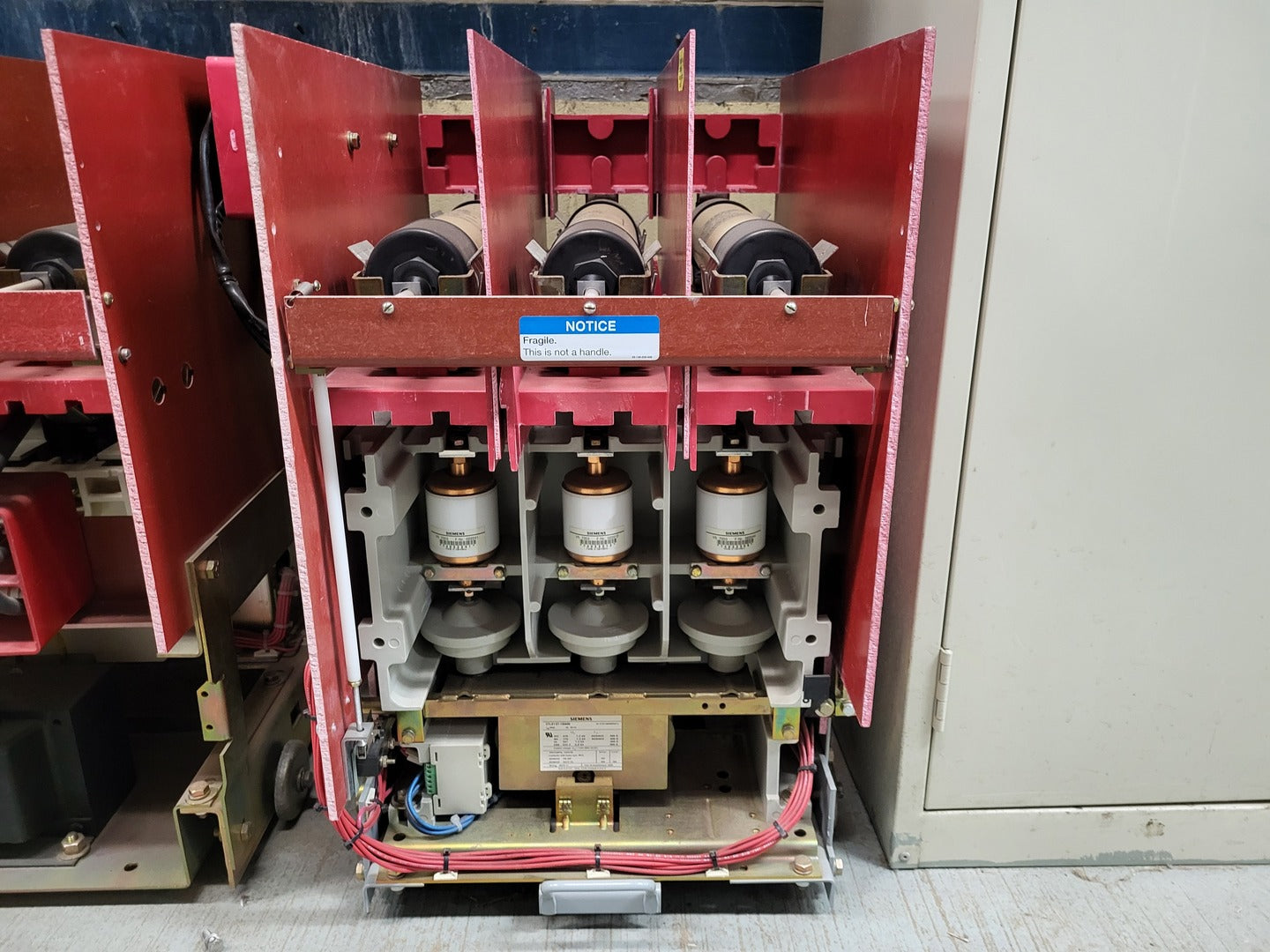

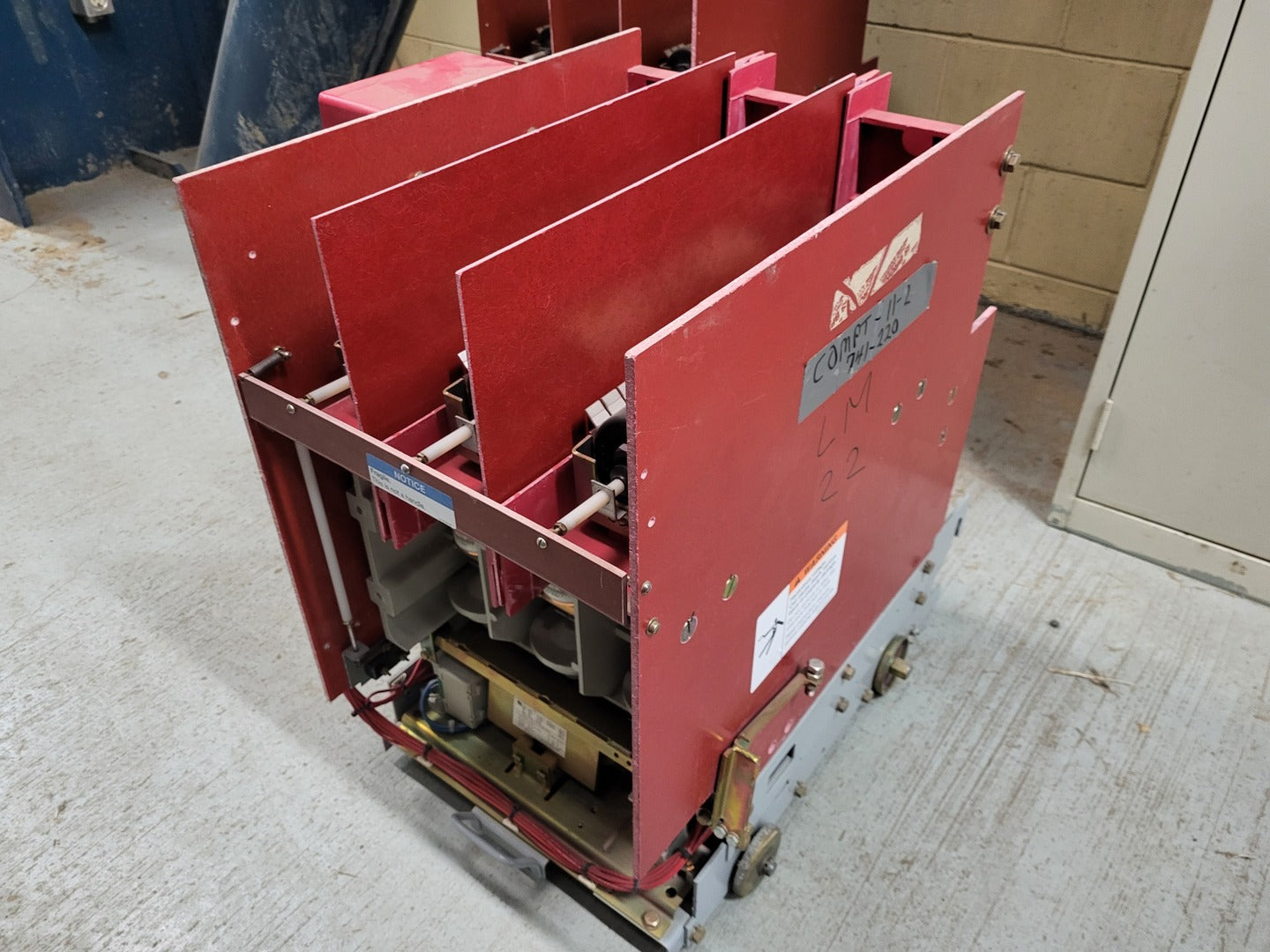

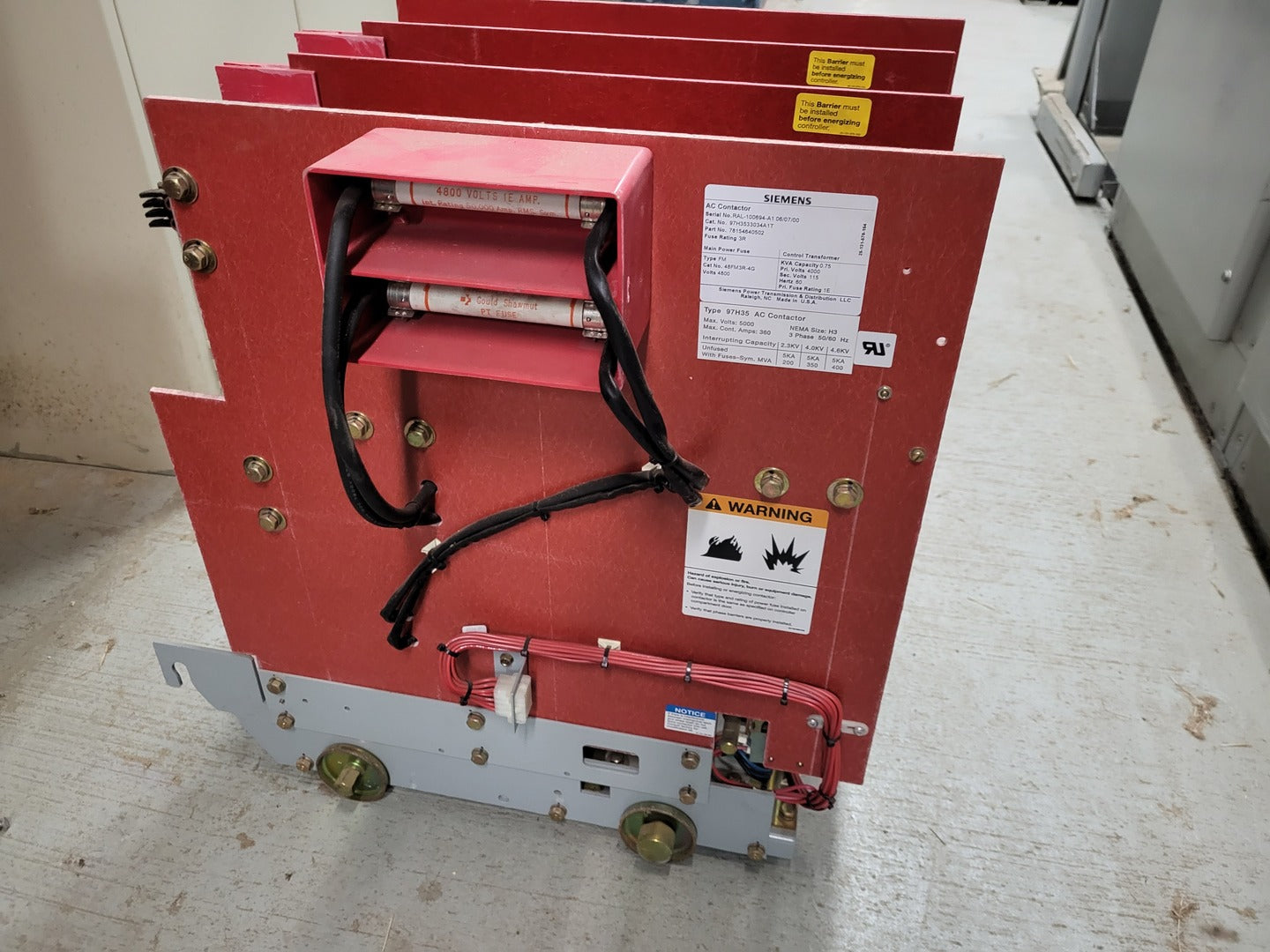

This SIEMENS 360 Amp, 3 Pole AC Vacuum Contactor Type 97H35 is designed with a 5.0 kV insulation voltage and 350 MVA interruption capacity. It features a NEMA 3 size, 3 phase configuration, and includes a drawout contactor. The control transformer specifications include a 4000 V primary voltage and 115 VAC secondary voltage. The main power fuse is a Siemens 48FM3R-4G model with a voltage rating of 4800 V. This contactor is suitable for industrial applications requiring high voltage and current handling capabilities.
| Specifications | |
|---|---|
| Model | 97H3533034A1T |
| Condition | Used | Electrical |
| Voltage | 5000 volts |
| Amps | 360 amps | General |
| Includes Fuses | Yes |
| Control Transforms Sometimes | Yes |
| Other Specifications |
|---|
|

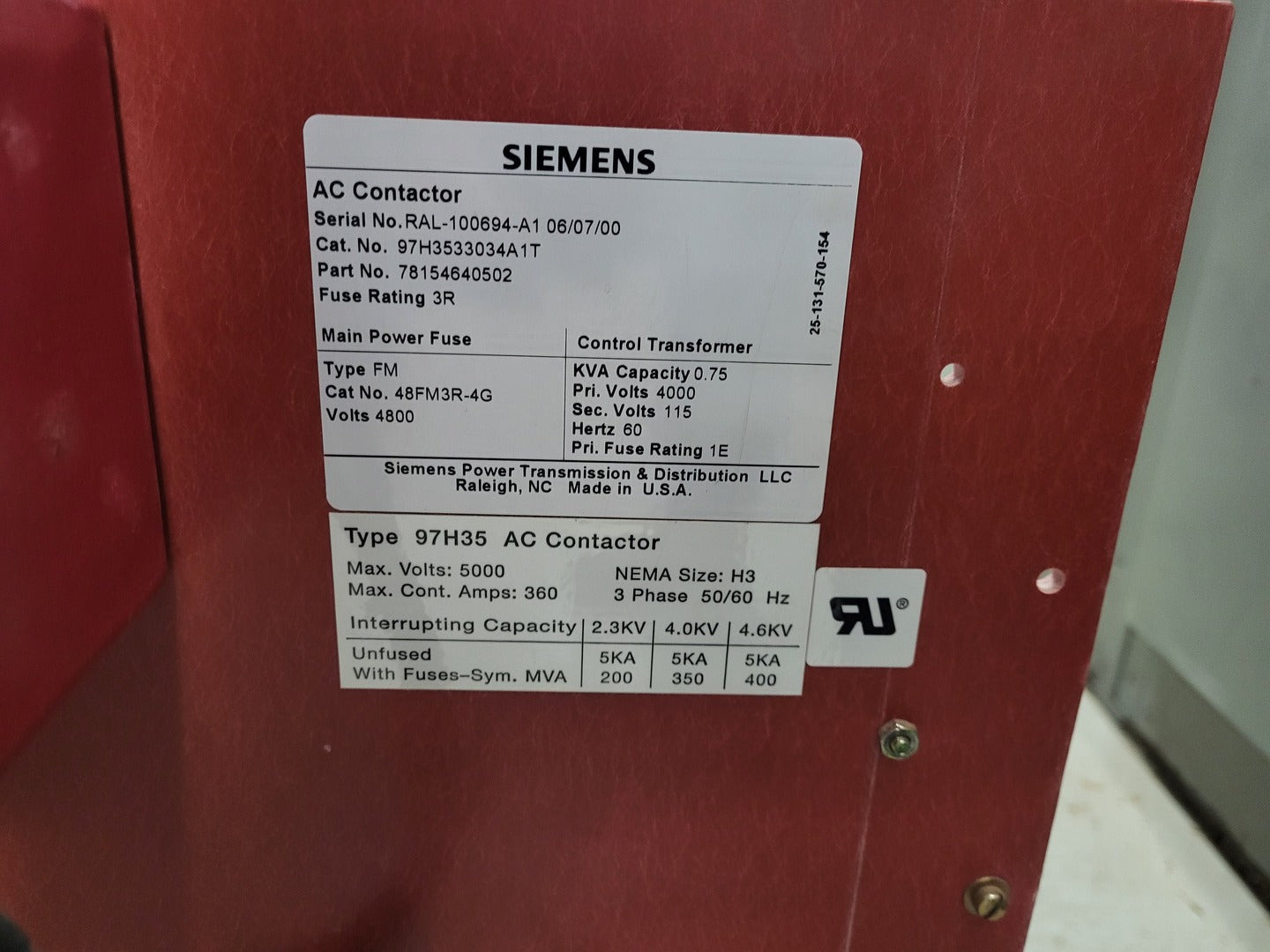

Poles: 3 Insulation Voltage: 5 kV Interruption Capacity: 350 MVA Main Fuse Rating: 3R Contactor Type: Drawout Contactor Size: NEMA 3 Phase: 3 Control Transformer:- CPT Primary Voltage: 4000 V CPT Secondary Voltage: 115 VAC CPT Capacity: 0.75 kVA CPT Primary Fuse Rating: 1 E Main Power Fuse:- Make: Siemens Model: 48FM3R-4G Type: FM Voltage Rating: 4800 V |
