40 Amp, 2 Pole, Definite Purpose Contactor, 208/240 VAC Coil C25BNB240B

SKU: 140095
Price:
$19

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

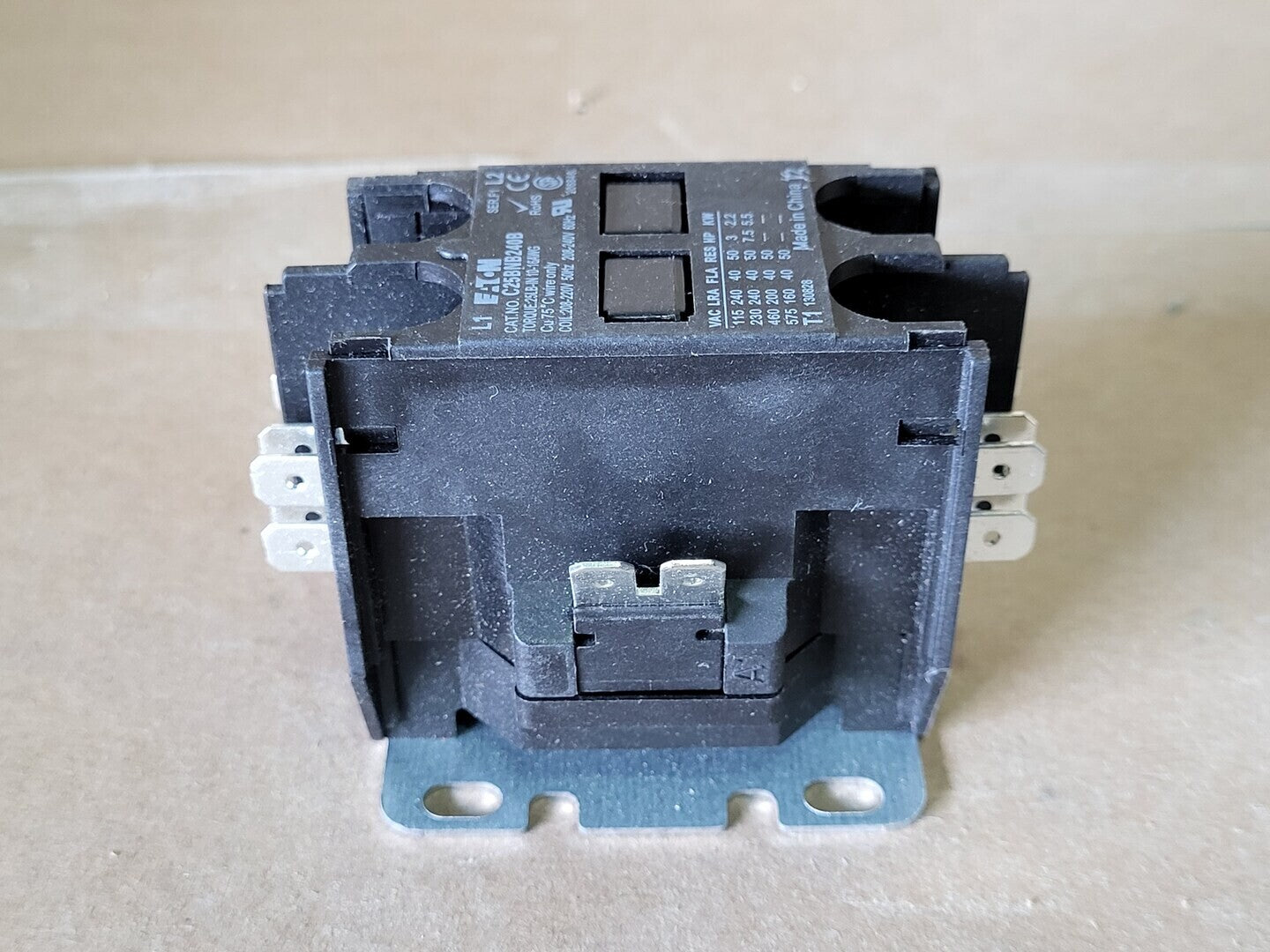

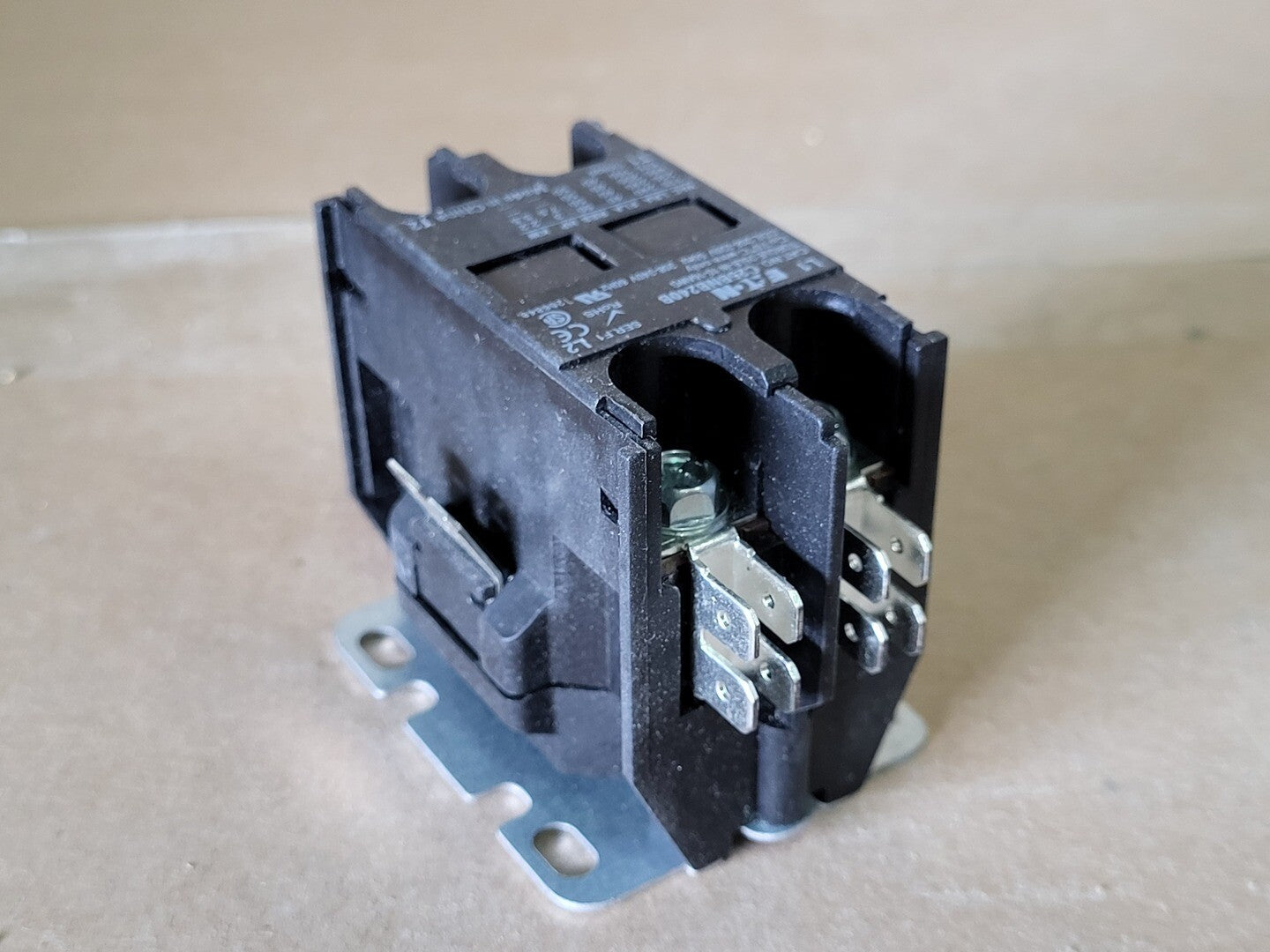

The Eaton C25BNB240B is a definite purpose 2-pole contactor designed to control electrical loads such as motors and heaters. It has a rated current of 40 amps for inductive loads and 50 amps for resistive loads. The coil operates at 208 to 240 volts AC, 50/60 Hz. This contactor does not include auxiliary normally open or normally closed contacts, nor does it have an internal trip function, so external protection with fuses or circuit breakers is required. It can handle motors up to 7.5 HP at 240 V single-phase and up to 15 HP at 480 V three-phase.
Specifications
Model C25BNB240B
Made In CHINA
Condition Surplus New
General
Horsepower TBD hp
Trip No
Includes Fuses No
Electrical
Voltage 208/230 volts
Amps 40 amps
Other Specifications

Overview:

  • Type: Compact, two-pole, non reversing contactor
  • Current Rating
  • Inductive Load: 40 A
  • Resistive Load: 50 A
  • Coil Voltage: 208/240 VAC, 50/60 Hz
  • Mounting: Panel mount
  • Terminals: Binding head screw and quick connect (side-by-side)
  • Certifications: UL Recognized, CSA Certified, RoHS Compliant
