Description

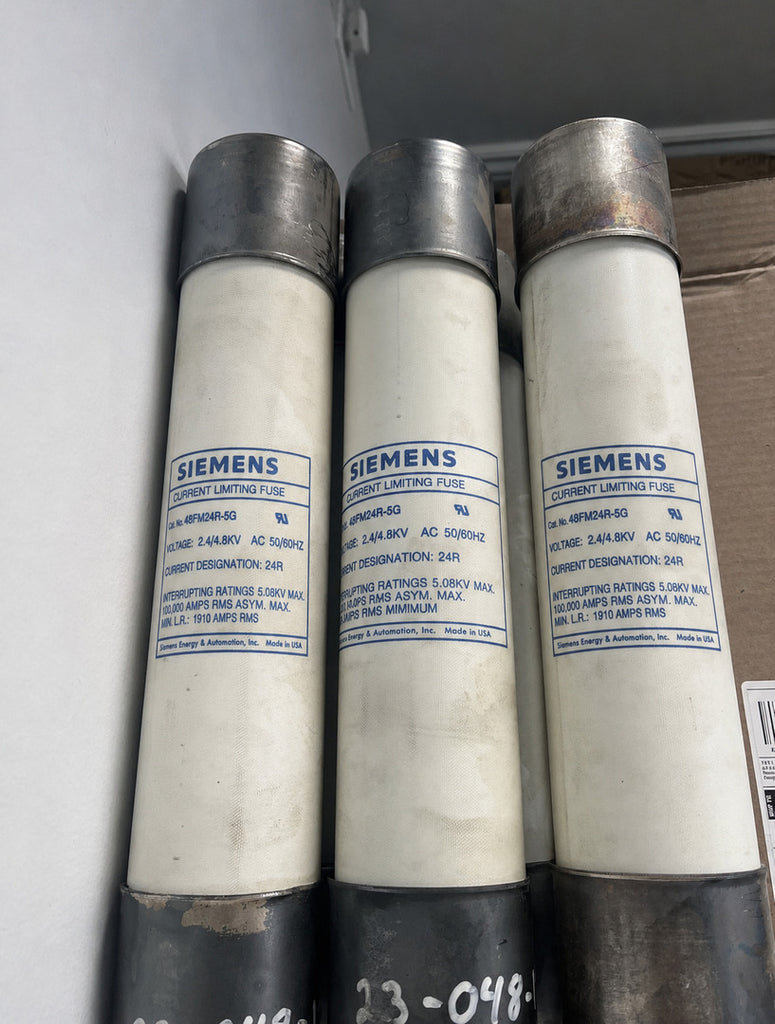

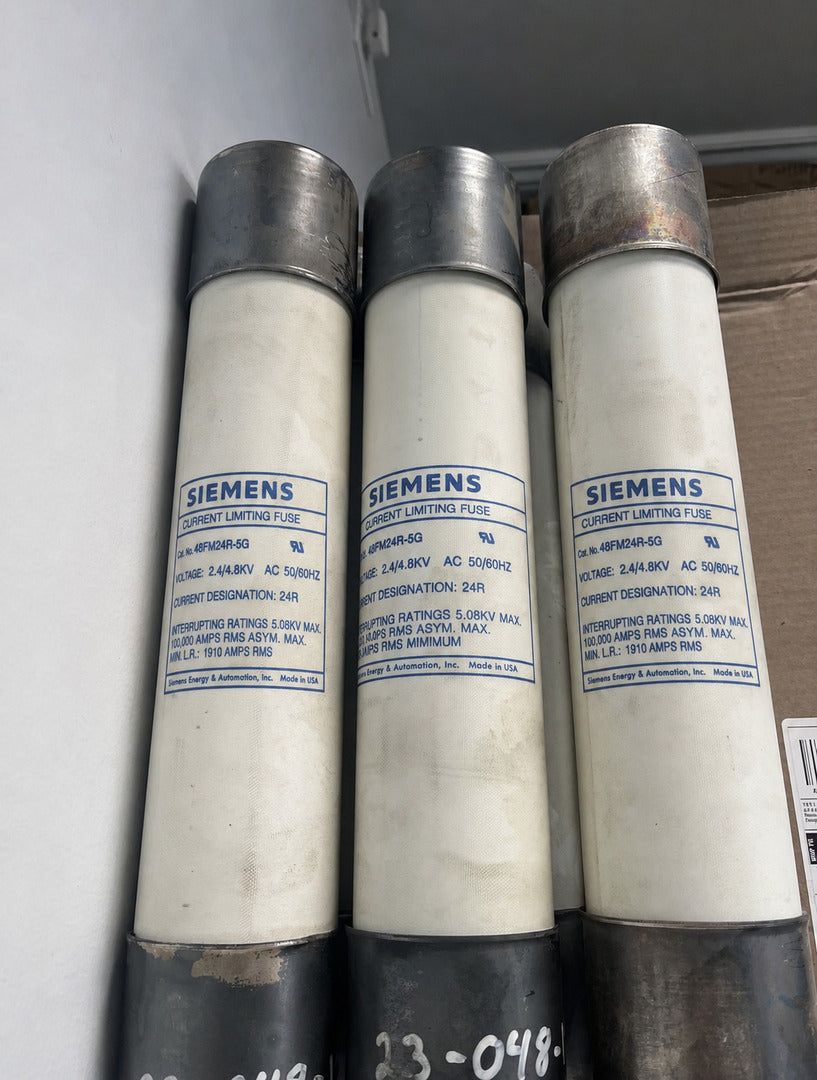

The Siemens 48FM24R-5G is a medium voltage, current limiting R-rated fuse designed to provide short-circuit protection for medium voltage motors, motor starters, and controllers. Rated for 2.4/4.8 kV AC, this ferrule-mounted fuse is intended for use in conjunction with overload relays in motor control applications. It offers fast current-limiting performance to minimize equipment damage during fault conditions.
| Specifications | |
|---|---|
| Model | 48FM24R-5G |
| Condition | Used | Electrical |
| Amps | 24R amps |
| Fuse Type | Medium Volt |
| Current Type | AC |
| Class | R |
| Interrupting Rating | 80 kA |
| One Time Fuse | Yes |
| Other Specifications |
|---|
|
Product Type: Medium Voltage Current Limiting Fuse Voltage Rating: 2.4/4.8 kV AC Frequency: 50/60 Hz Current Designation: 24R Fuse Class: R-Rated Mounting Style: Ferrule Mount Clip Centers: 12 in. Diameter: 3 in. Interrupting Rating: 80,000 A RMS Asymmetrical Maximum @ 5.08 kV Minimum Interrupting Current: 1,910 A RMS Application: Medium Voltage Motor Starter Protection |
