50 Amp, 3 Pole, 600 Volts Circuit Breaker CED63A050

SKU: 139956
Price:
$93

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

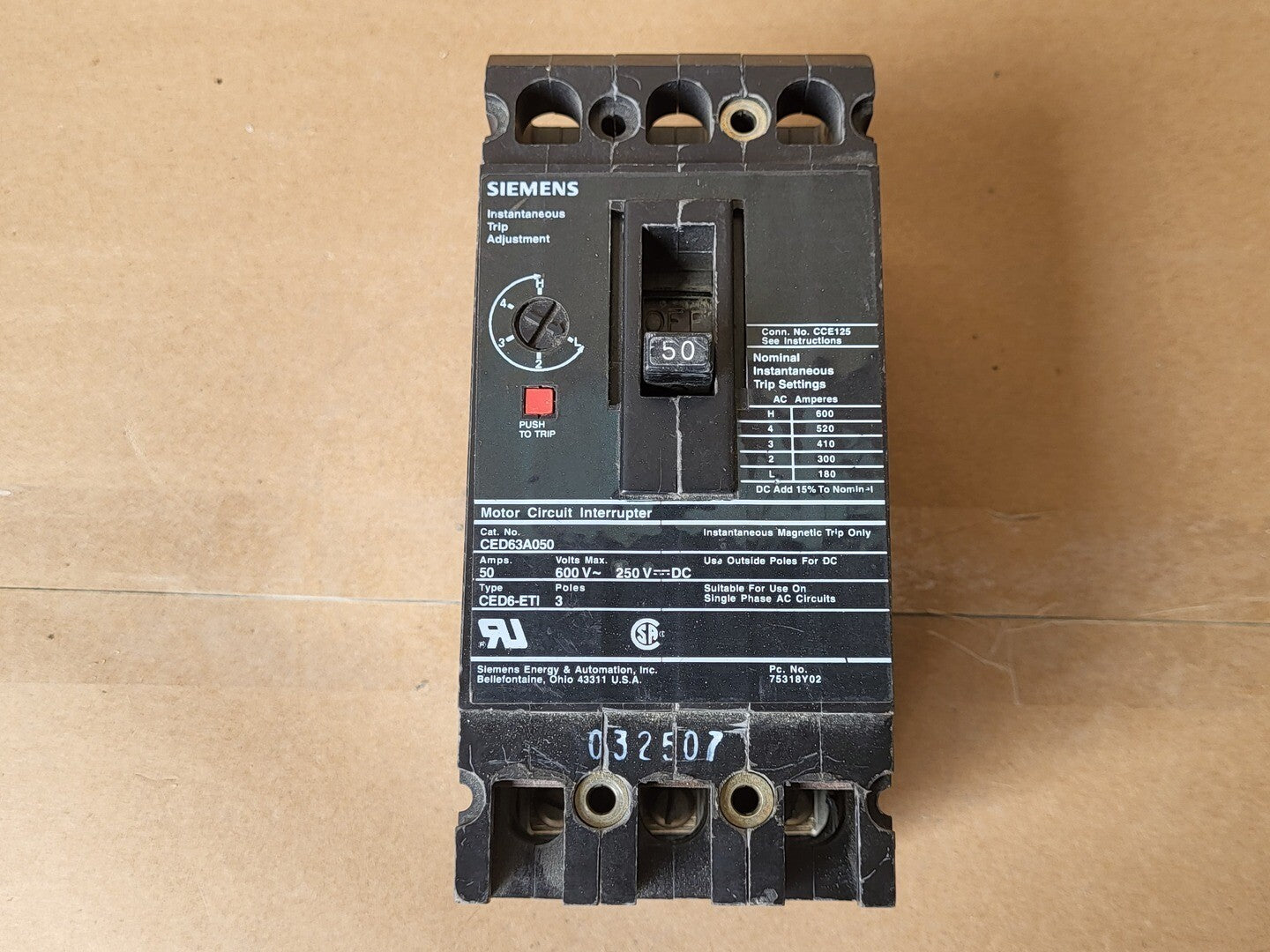

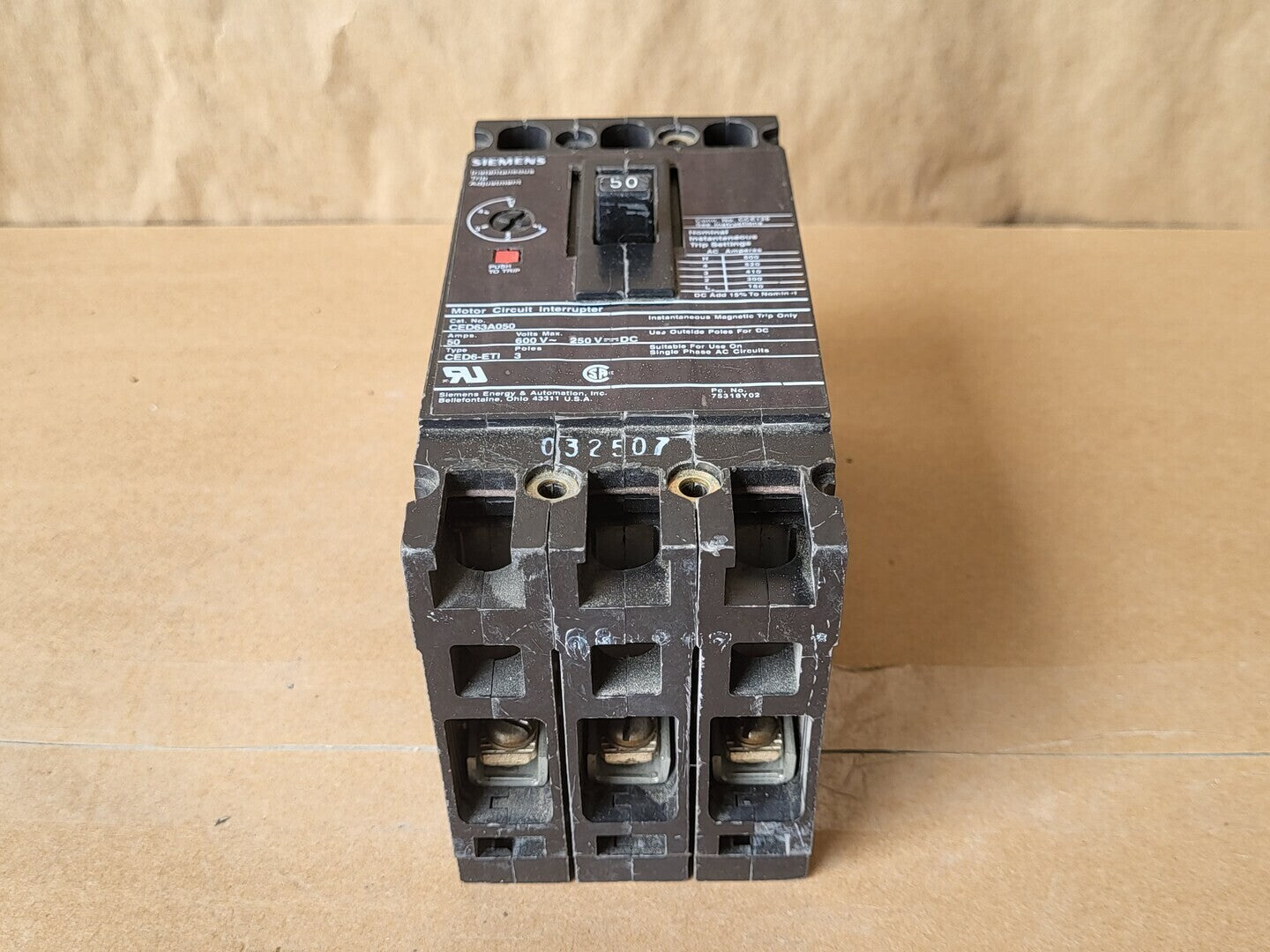

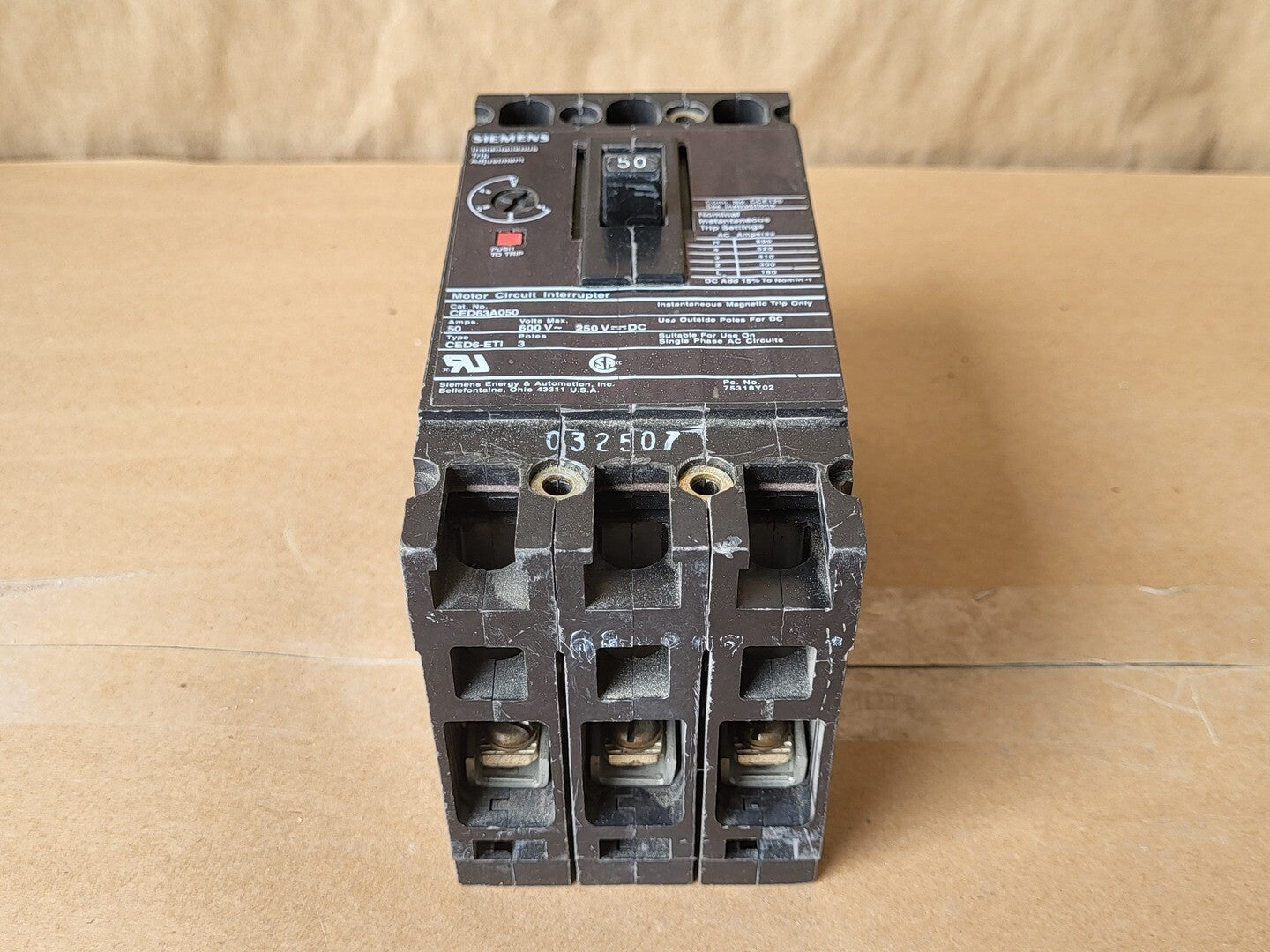

The Siemens CED63A050 is a 3-pole molded case circuit breaker designed for efficient circuit protection in industrial and commercial electrical systems. It has a rated current of 50 A and supports voltages up to 600 VAC and 250 VDC. Equipped with a thermal-magnetic trip unit, it protects circuits from overloads and short circuits. The breaker features an interrupting capacity of 25 kA at 480 VAC and 10 kA at 600 VAC, making it suitable for a variety of electrical applications. It mounts bolt-on and is certified to UL 489 and IEC 60947-2 standards.
Specifications
Model CED63A050
Year: 2007
Made In UNITED STATES
Condition Used
General
Amps 50 amps
Series CED
# of Poles 3
Mounting Style Bolt-On
Voltage 600 volts
Phase 3-phase
AFCI No
GFCI No
Other Specifications

Overview:

  • Part Number: CED63A050
  • Frame: CED series
  • Type: Molded Case Circuit Breaker (MCCB)
  • Number of Poles: 3-pole
  • Rated Current: 50 A
  • Rated Voltage: 600 VAC / 250 VDC
  • Interrupting Capacity:
  • 25 kA at 480 VAC
  • 10 kA at 600 VAC
  • Trip Type: Thermal-magnetic
  • Mounting Style: Bolt-on
  • Certifications: UL 489, IEC 60947-2
