Description

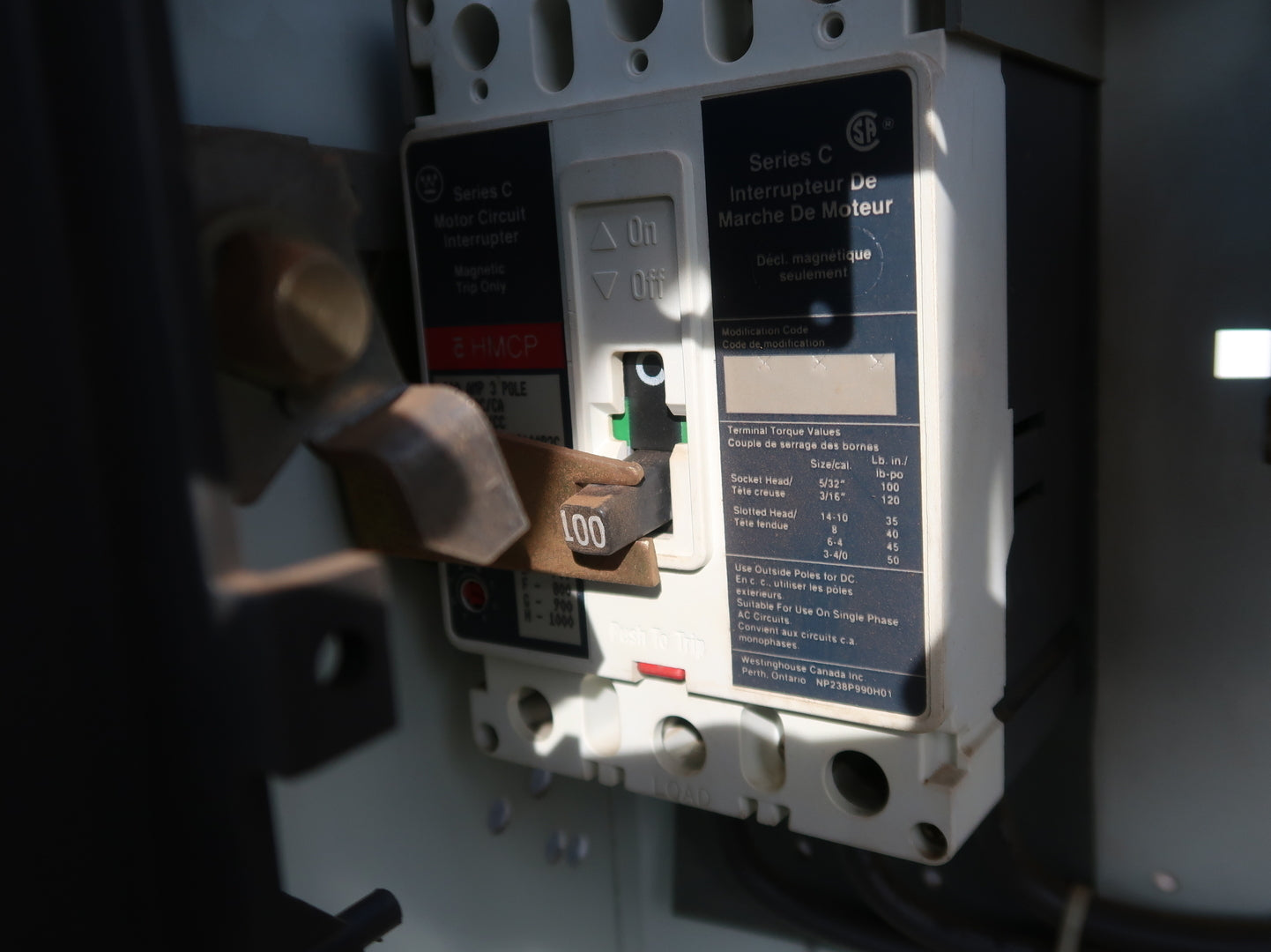

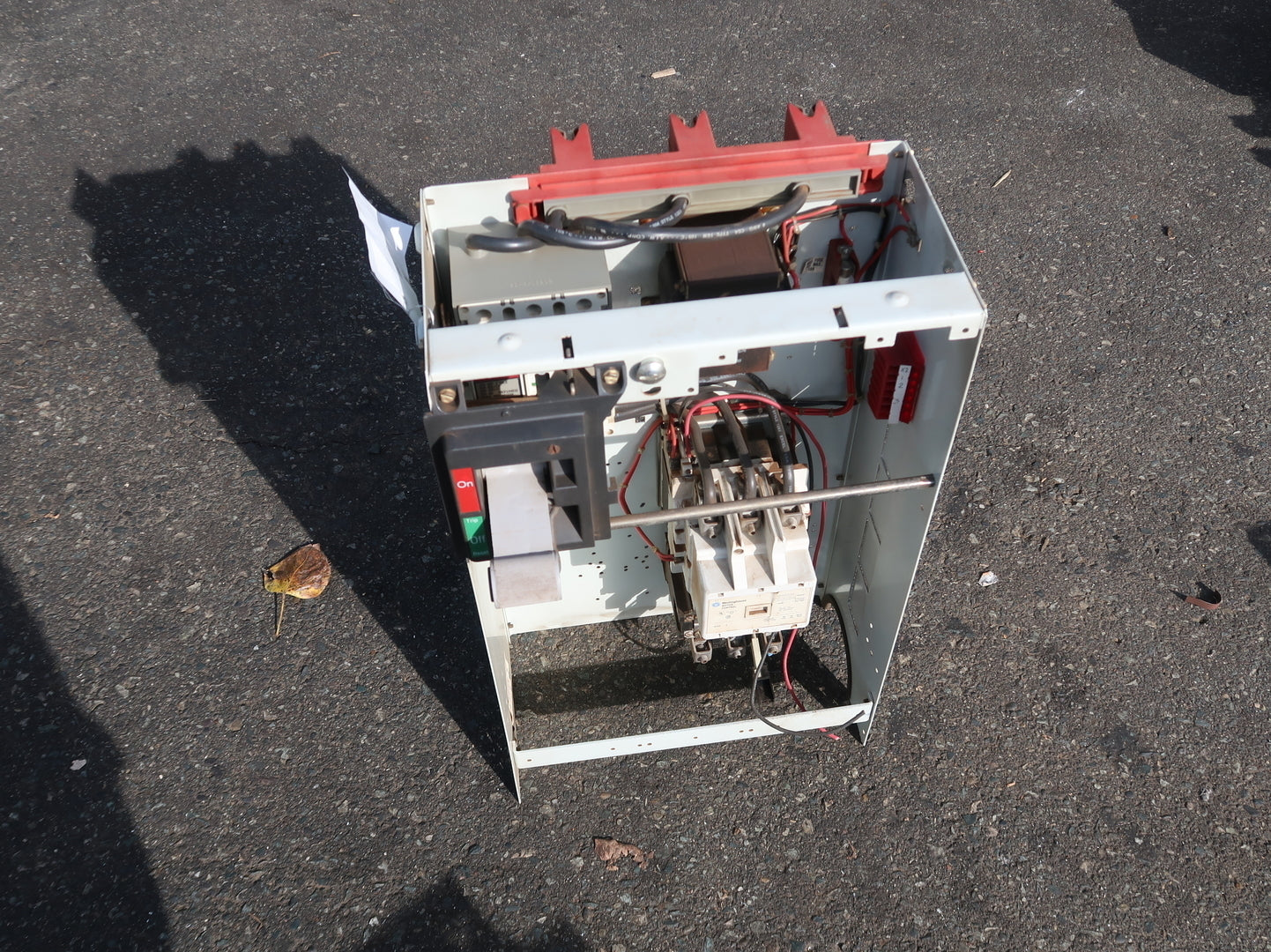

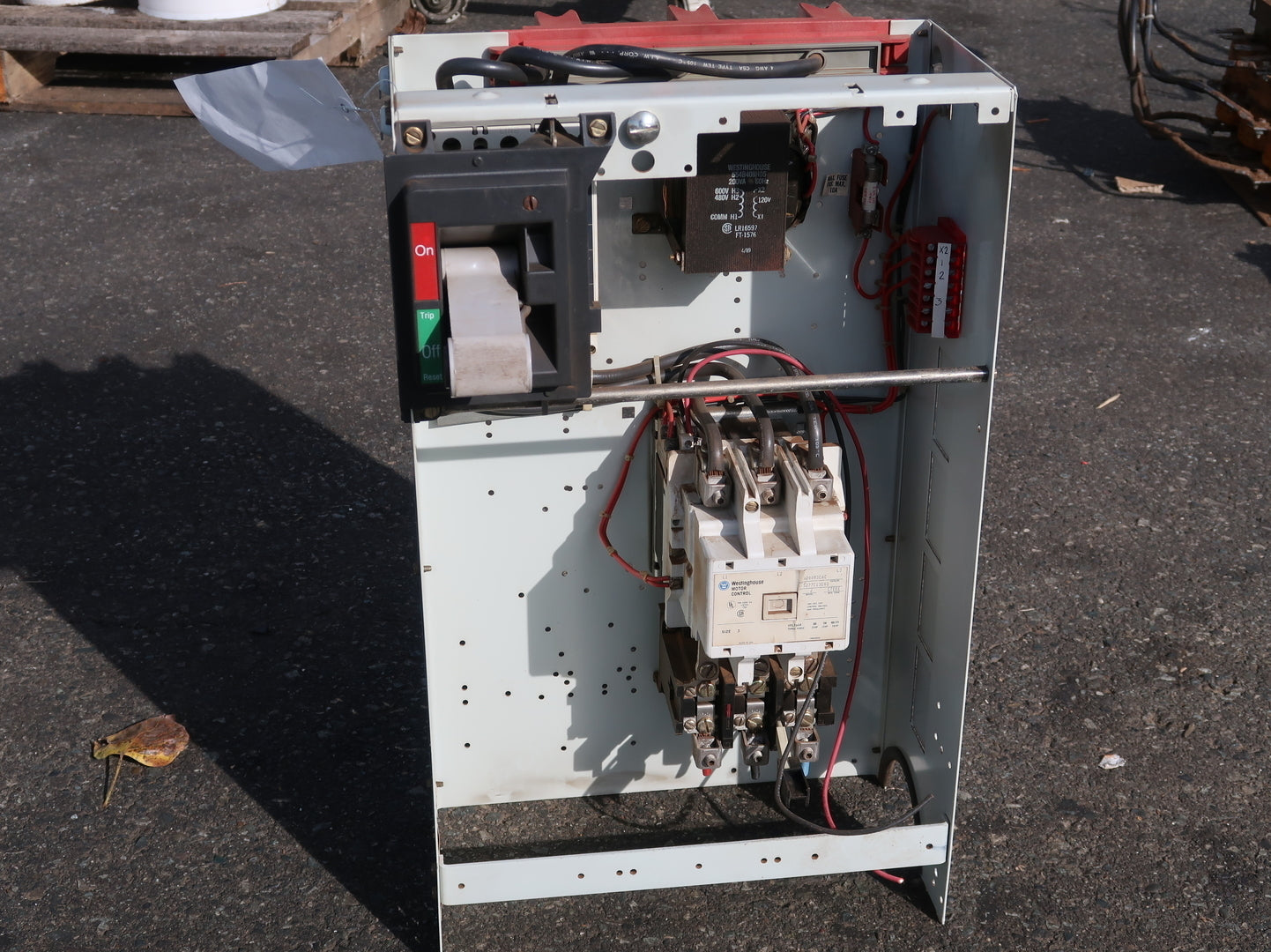

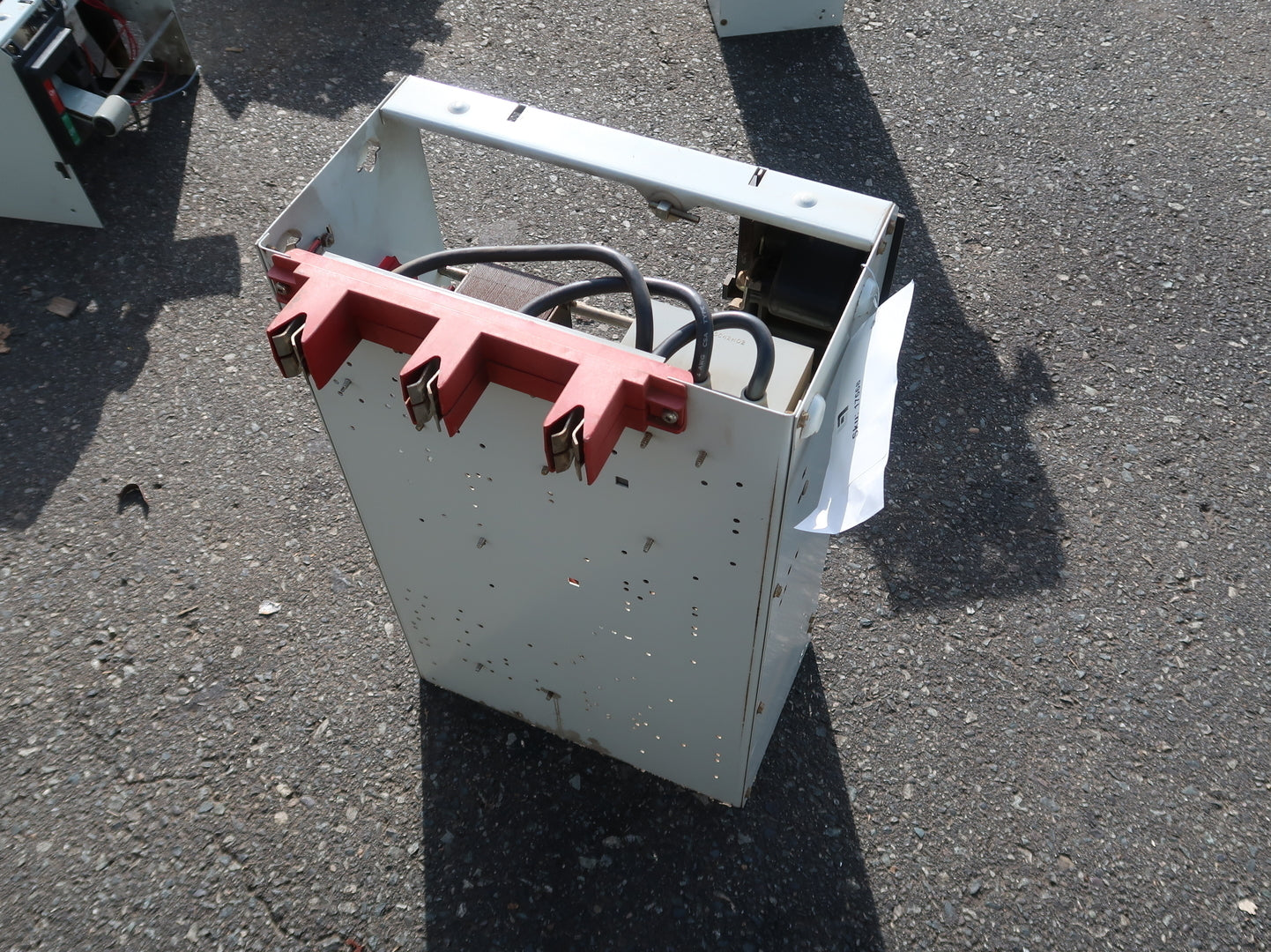

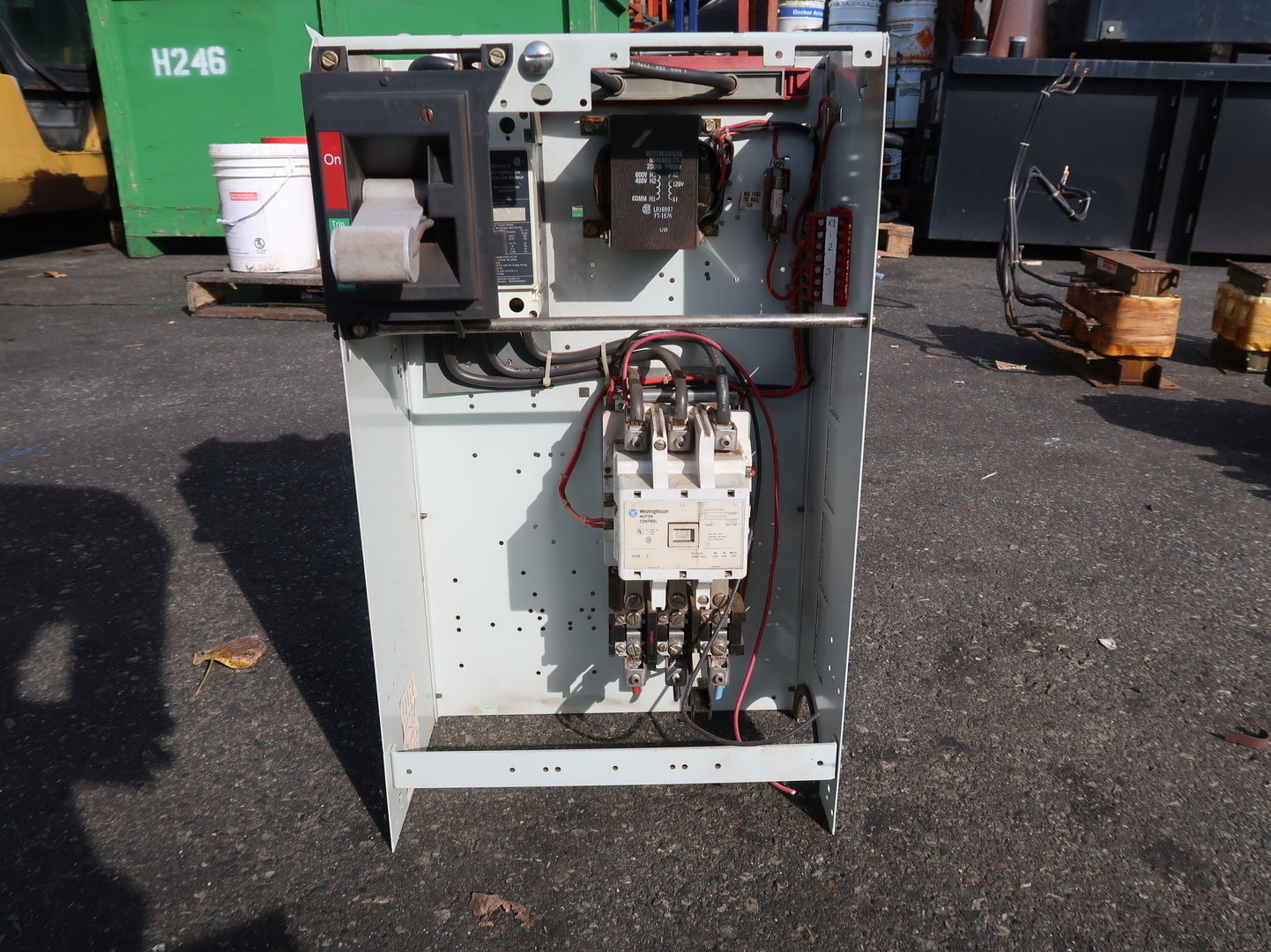

Industrial MCC starter bucket featuring a Westinghouse/Cutler-Hammer A200M3CAC NEMA Size 3 magnetic motor starter with integrated Series C HMCP motor circuit protector and control transformer. Suitable for motor control applications up to approximately 50 HP at 480/600V. Appears to be removed from service and sold as surplus equipment.
| Condition | Used | General |
|---|---|
| Horsepower | 50 hp |
| Trip | Yes | Electrical |
| Voltage | 600 volts |
| Amps | 100 amps |
| Other Specifications |
|---|
|

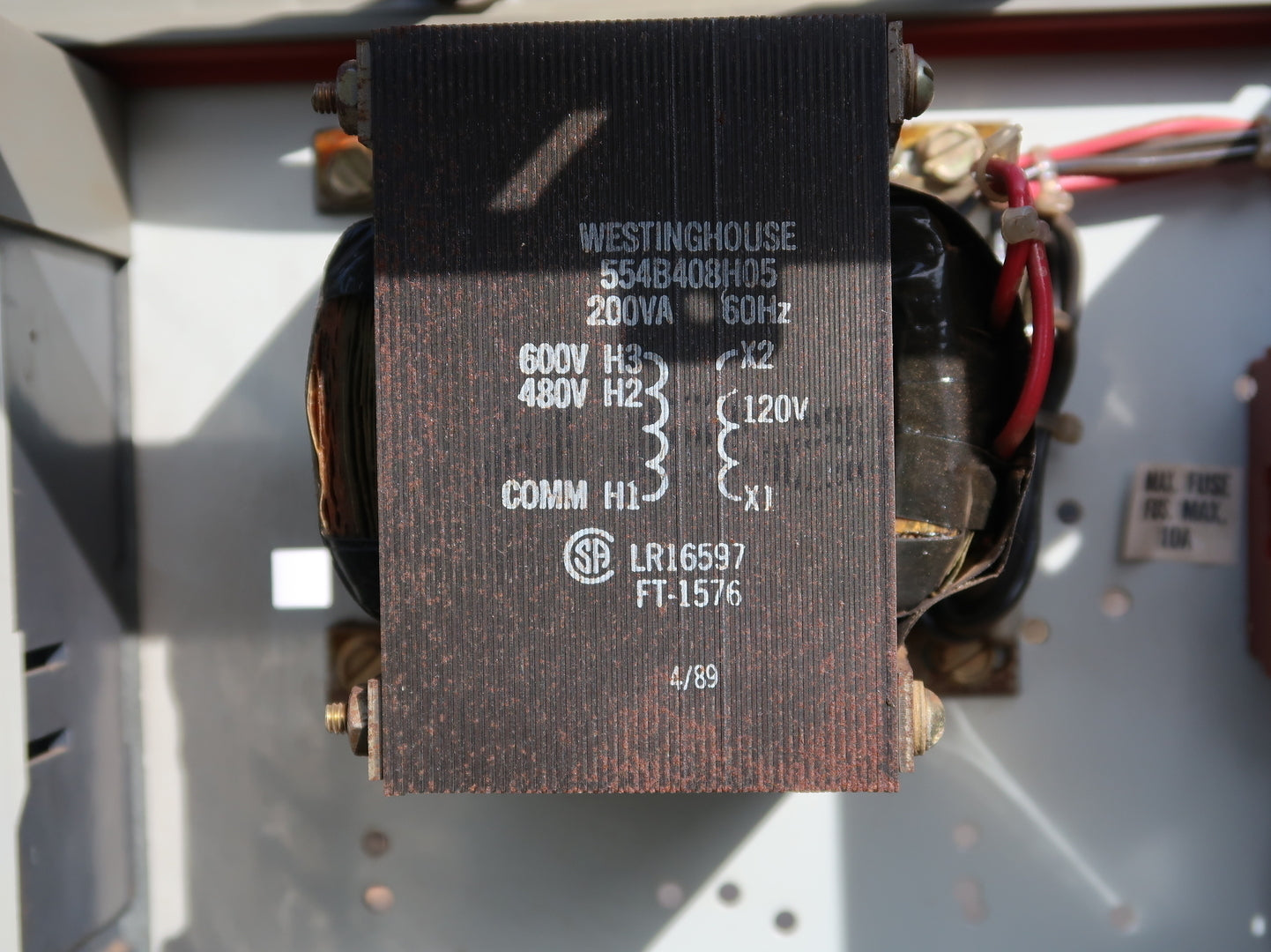

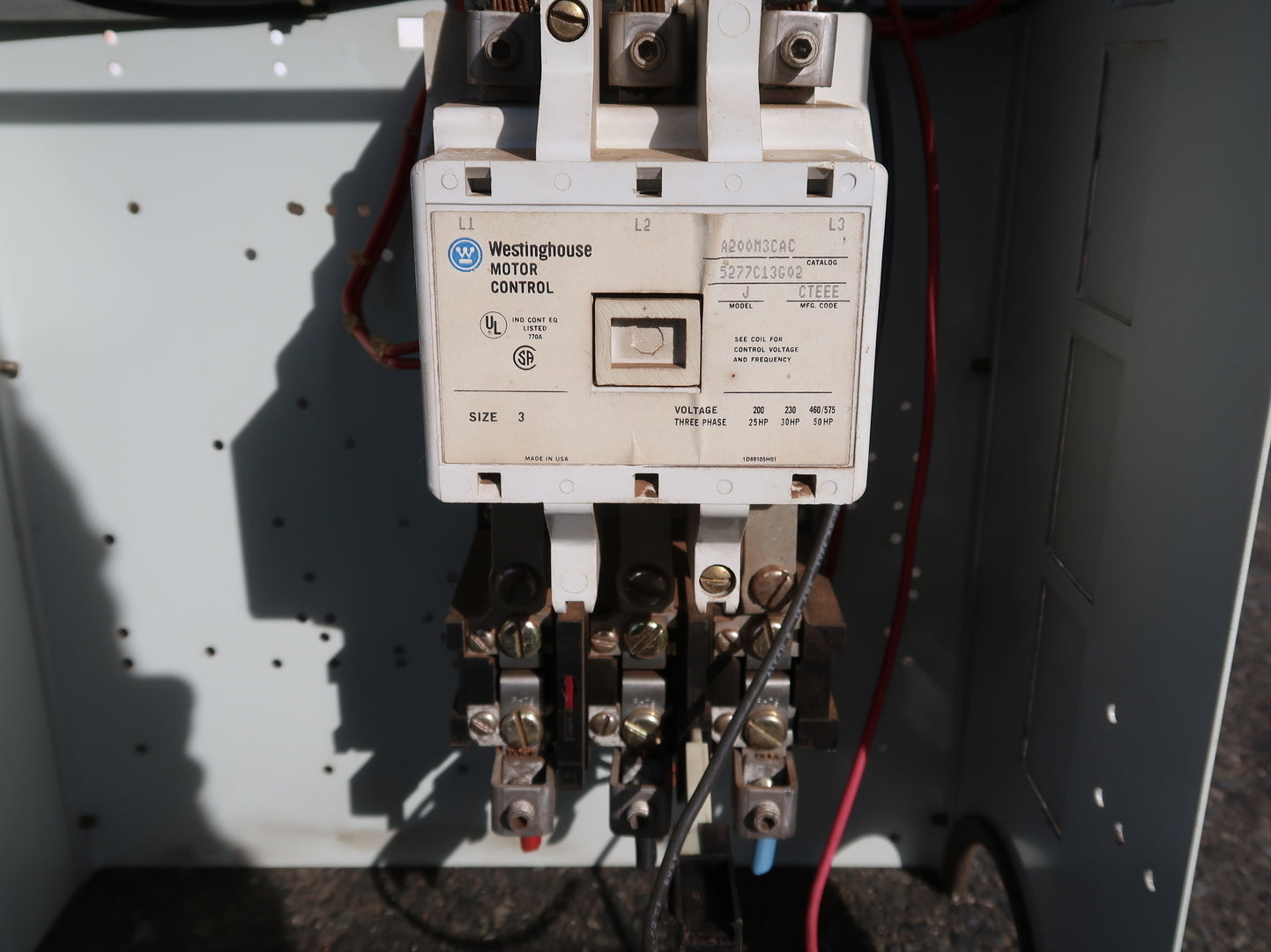

Series: A200 Catalog Number: A200M3CAC Type: Full Voltage Non-Reversing Motor Starter NEMA Size: 3 Poles: 3 Amperage: 90A Voltage Rating: 600V Max Coil Voltage: 120V AC (60Hz) Horsepower Rating: 25 HP @ 208V Horsepower Rating: 30 HP @ 240V Horsepower Rating: 50 HP @ 480V/600V Protection: Series C HMCP Motor Circuit Protector Configuration: MCC Bucket / Combination Starter Control Transformer: 200VA, 600/480V to 120V |
