Description
| Specifications | |
|---|---|

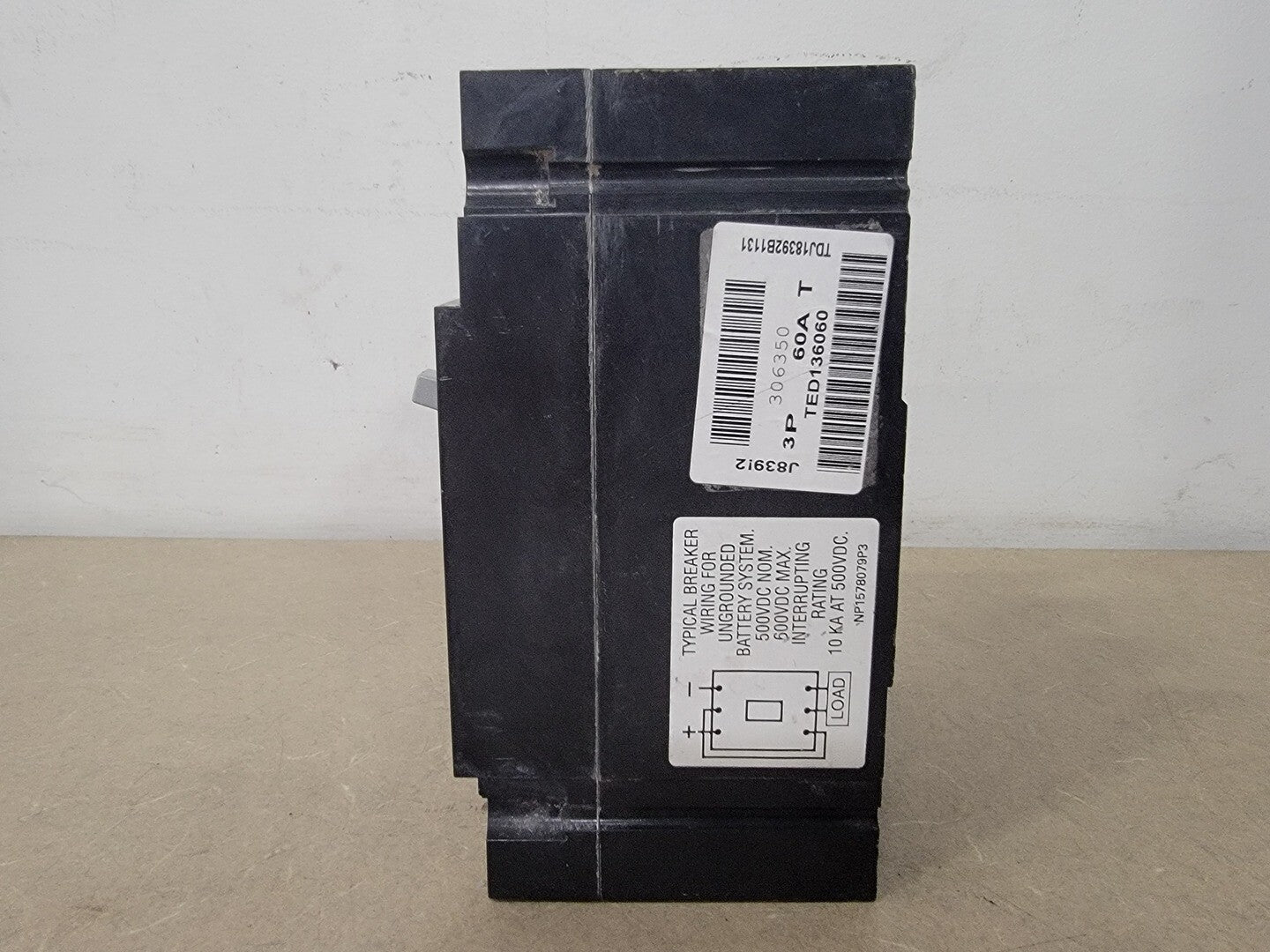

| Model | TED136060 |
| Condition | Used | General |
| Amps | 60 amps |
| # of Poles | 3 |
| Voltage | 600 volts |
| Other Specifications |
|---|
|

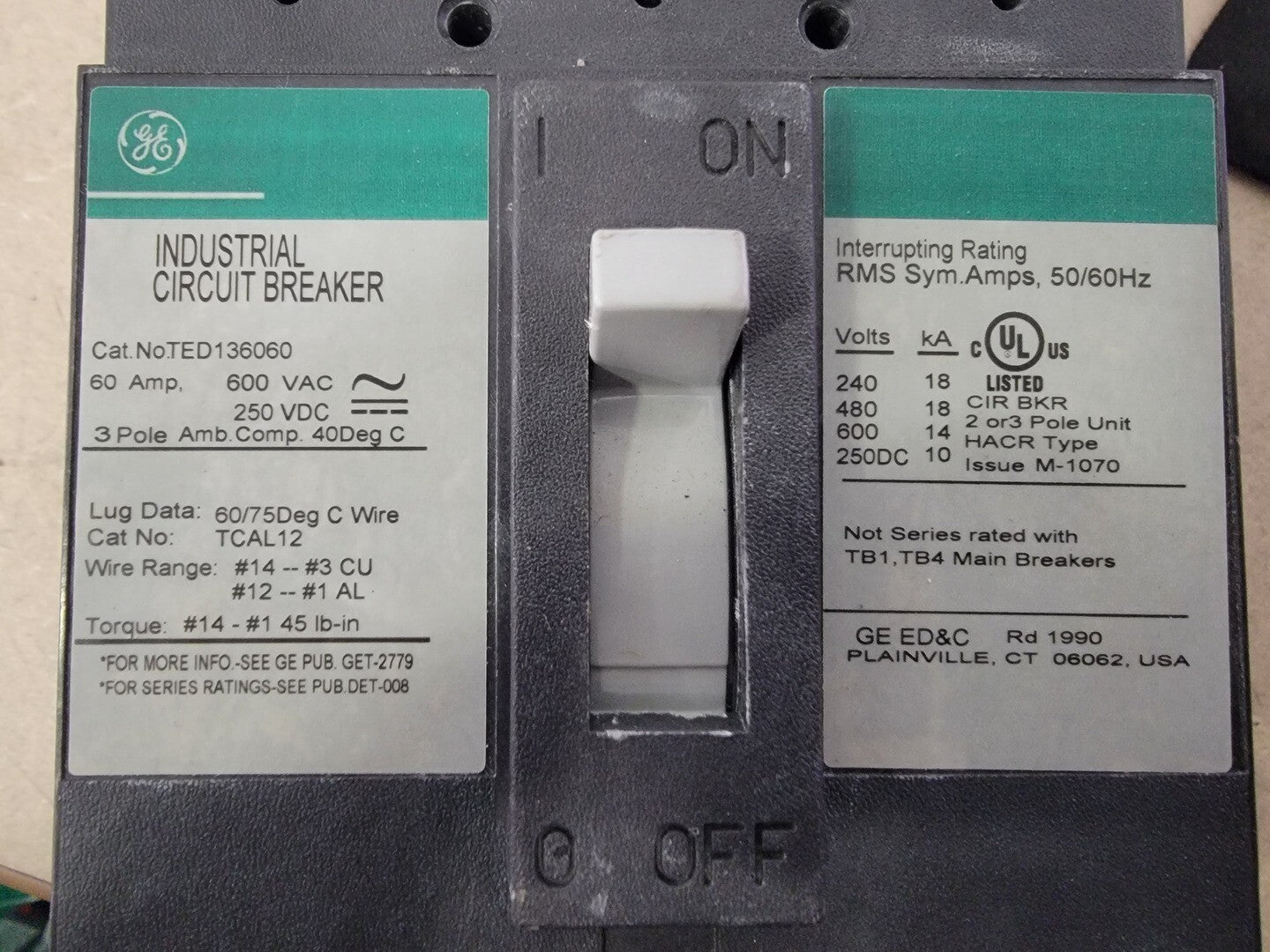

Temperature Rating: 40°C Ambient Compensated Interrupting Rating at 240V: 18 kA RMS Sym Interrupting Rating at 480V: 18 kA RMS Sym Interrupting Rating at 600V: 14 kA RMS Sym Interrupting Rating at 250VDC: 10 kA RMS Sym Wire Range CU: #14 to #3 Wire Range AL: #12 to #1 Torque for #14 to #10: 25 in-lbs Torque for #8 to #1: 45 in-lbs Listing/Certification: UL Listed |
