Description
| Specifications | |
|---|---|

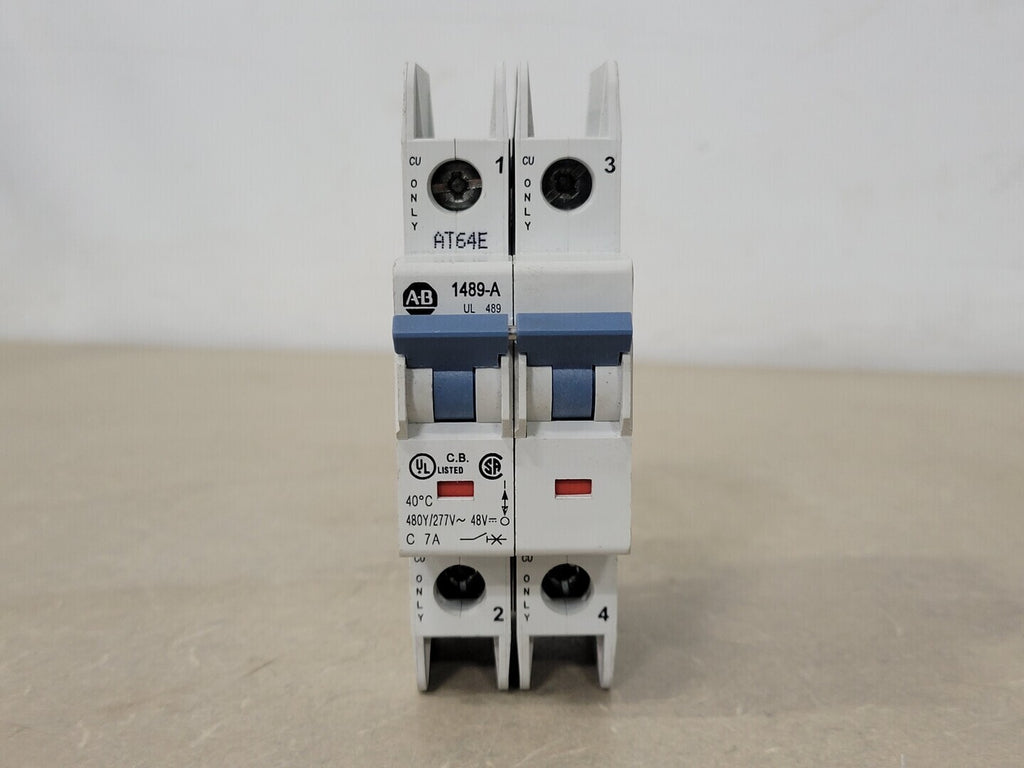

| Model | 1489-A2C070 |
| Condition | Used |
| Other Specifications |
|---|
|
Product Type: Miniature Circuit Breaker (MCB) Trip Curve: Type C Voltage Rating (IEC): 415V AC Interrupting Rating (UL 489): 10 kA Interrupting Rating (IEC 60947-2): Icu = 15 kA, Ics = 7.5 kA Approvals: UL Listed, CSA Certified, CE Marked Mounting: DIN Rail Terminal Capacity: 1 wire: AWG 18 to 6 2 wires: AWG 18 to 10 Torque Ratings: AWG 18-12: 21 lb-in AWG 10-8: 25 lb-in AWG 6: 36 lb-in Temperature Rating: 40 degrees Celsius (ambient) Wire Temperature Rating: 60/75 degrees Celsius Impulse Withstand Voltage (Uimp): 4 kV |
