Description
| Specifications | |
|---|---|

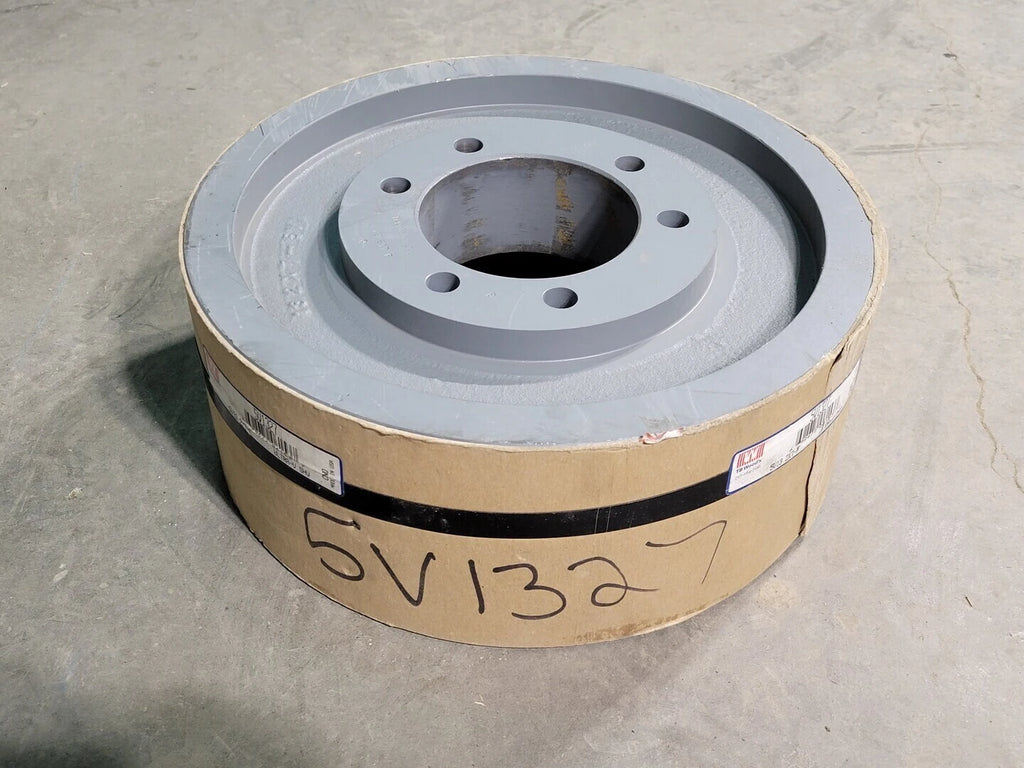

| Model | 5V13.2X7-F |
| Condition | Used |
| Other Specifications |
|---|
|
Family: Narrow
Material Type: CI
Balance: Standard, 1 plane
Bushing: F
Bushing Torque Rating: 40,000.00
Catalog E: 1.5000
Catalog L: 3.625
Component Weight: 63lbs
Datum Diameter: 13.2
Description: 5V13.2X7-F
Dynamic Balance RPM: 1,885E
Dimension in: 1.25
Face Width in: 5.13
Family ID: 2,000
Family Name: V-Belt Sheaves and Pulleys
Hub Diameter in: 7.375
Hub Length in: 2.500
Inside Diameter in: 11.31K
Hub Location in: 2.56
Material: CI30
Material Class: 30
Max Stock Diameter Dec in: 4.0000
Max Stock Diameter Frac in: 4.000000
Max Stock Diameter mm: 90
Min Stock Diameter Dec in: 1.0000
Min Stock Diameter Frac in: 1.000000
Min Stock Diameter mm: 45
Number Of Grooves: 7
Outside Diameter in: 13.20
Parting Line: 3.8125
Pitch Diameter in: 13.20
RPM Lower Limit: 280
RPM Upper Limit: 1,900
Sheave Torque Rating: 308,300
Torque Limit: 40,000
Type: 2
Web Thickness: 0.875
Web Torque: 308,237
Wr2 lbs ft: 211.20
belt section 02: 5V
|
