Description

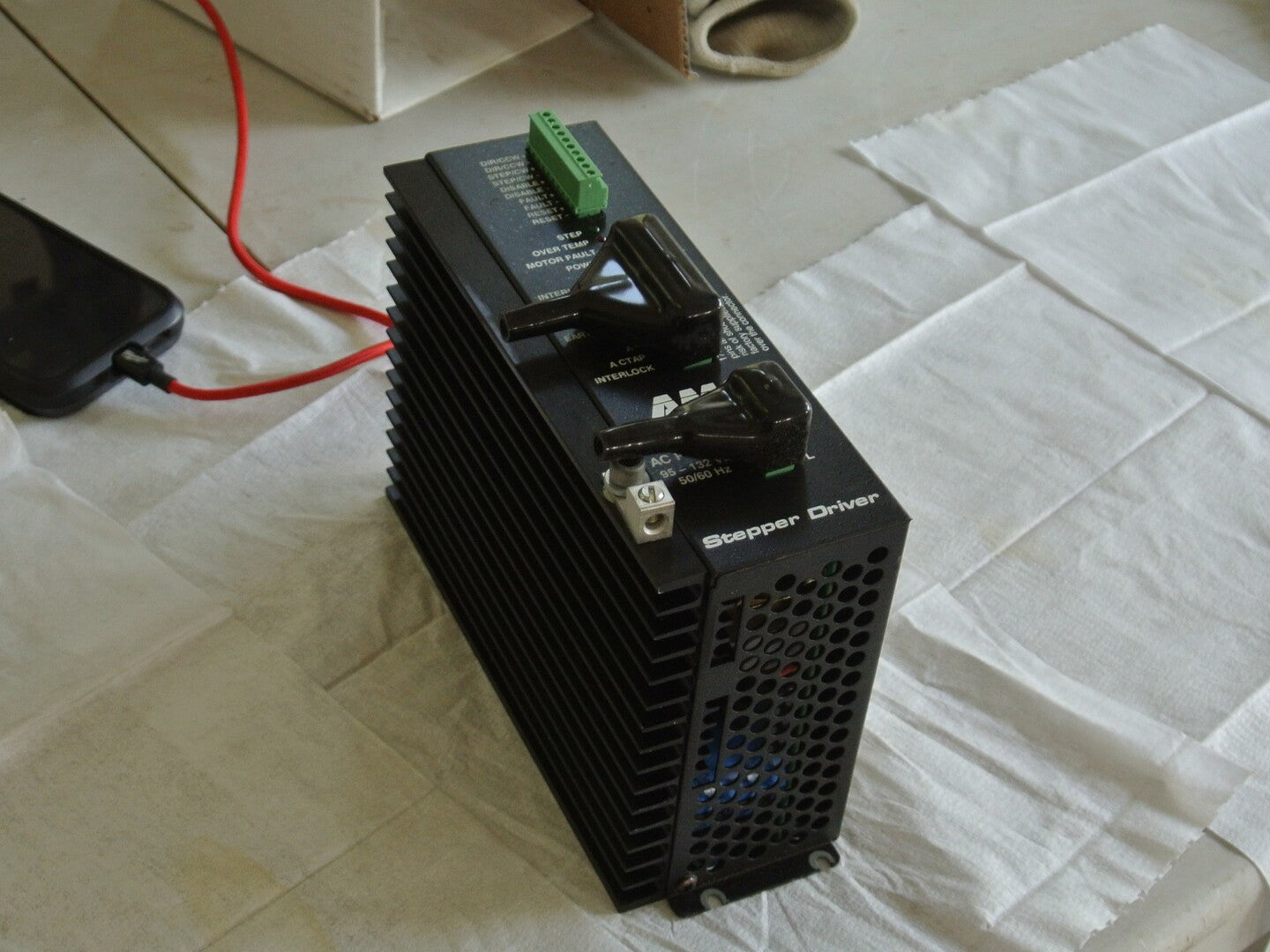

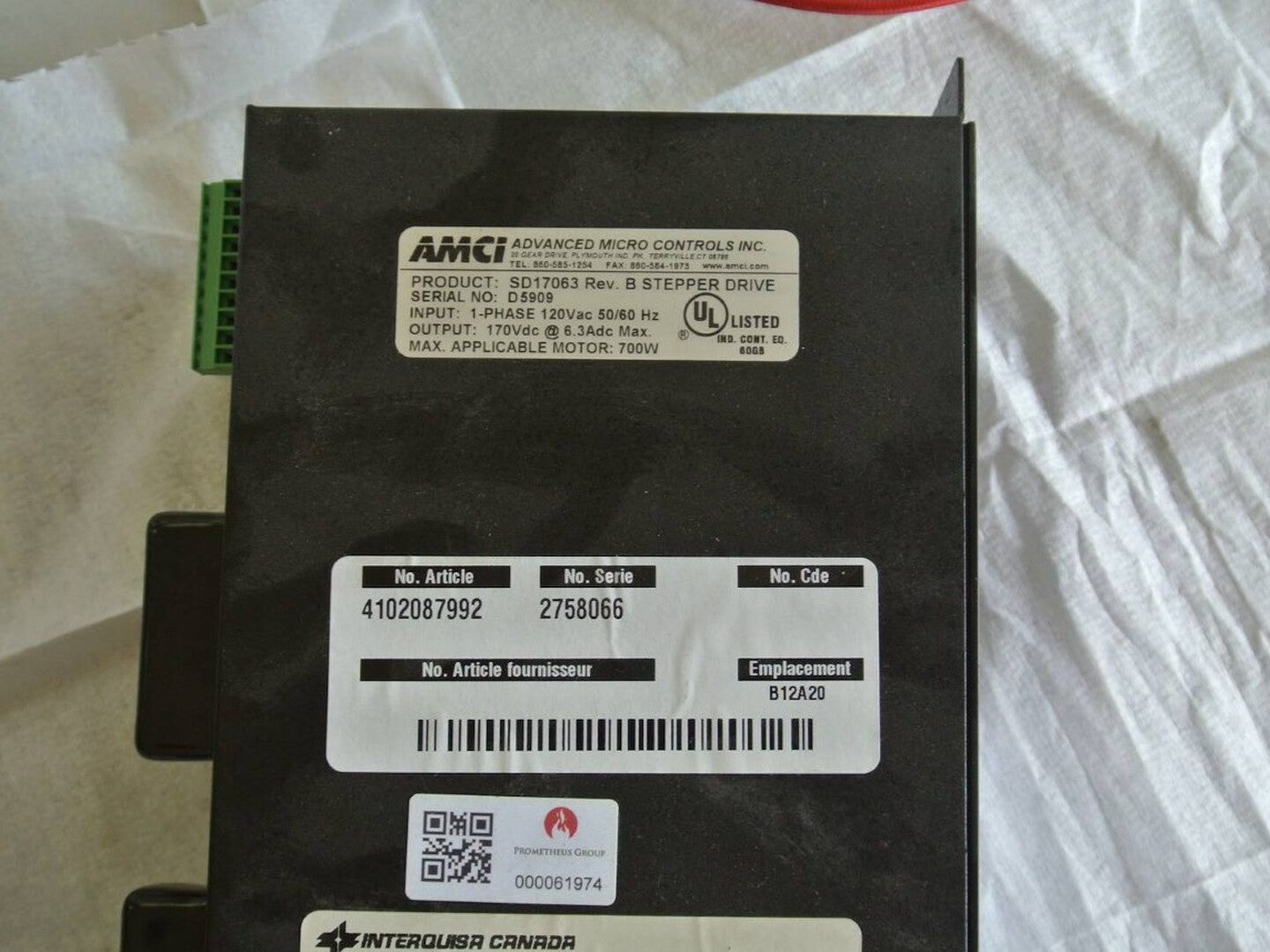

AMCI SD17063 Revision B microstepping motor drive, offered as surplus new. The nameplate specifies 120 VAC single-phase input, 50/60 Hz, and a maximum applicable motor rating of 700 W. Includes the finned heat sink and connectors shown.
| Specifications | |
|---|---|
| Model | SD17063 |
| S/N: | D5909 |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Revision: B Equipment Type: Microstepping stepper motor drive Nominal Input Voltage: 120 VAC Input Phase: Single phase Input Frequency: 50/60 Hz Nameplate Output: 170 VDC at 6.3 ADC maximum Maximum Applicable Motor: 700 W Operating Input Range: 95-132 VAC Motor Current Adjustment: 0.1-6.3 A in 0.1 A increments Step Resolution: Selectable from 200-50,800 steps per revolution Command Modes: Step/direction or CW/CCW pulse inputs Compatible Motor Type: Two-phase hybrid stepper motor with 4, 6, or 8 leads Operating Temperature: 0°C to 50°C |
