Description

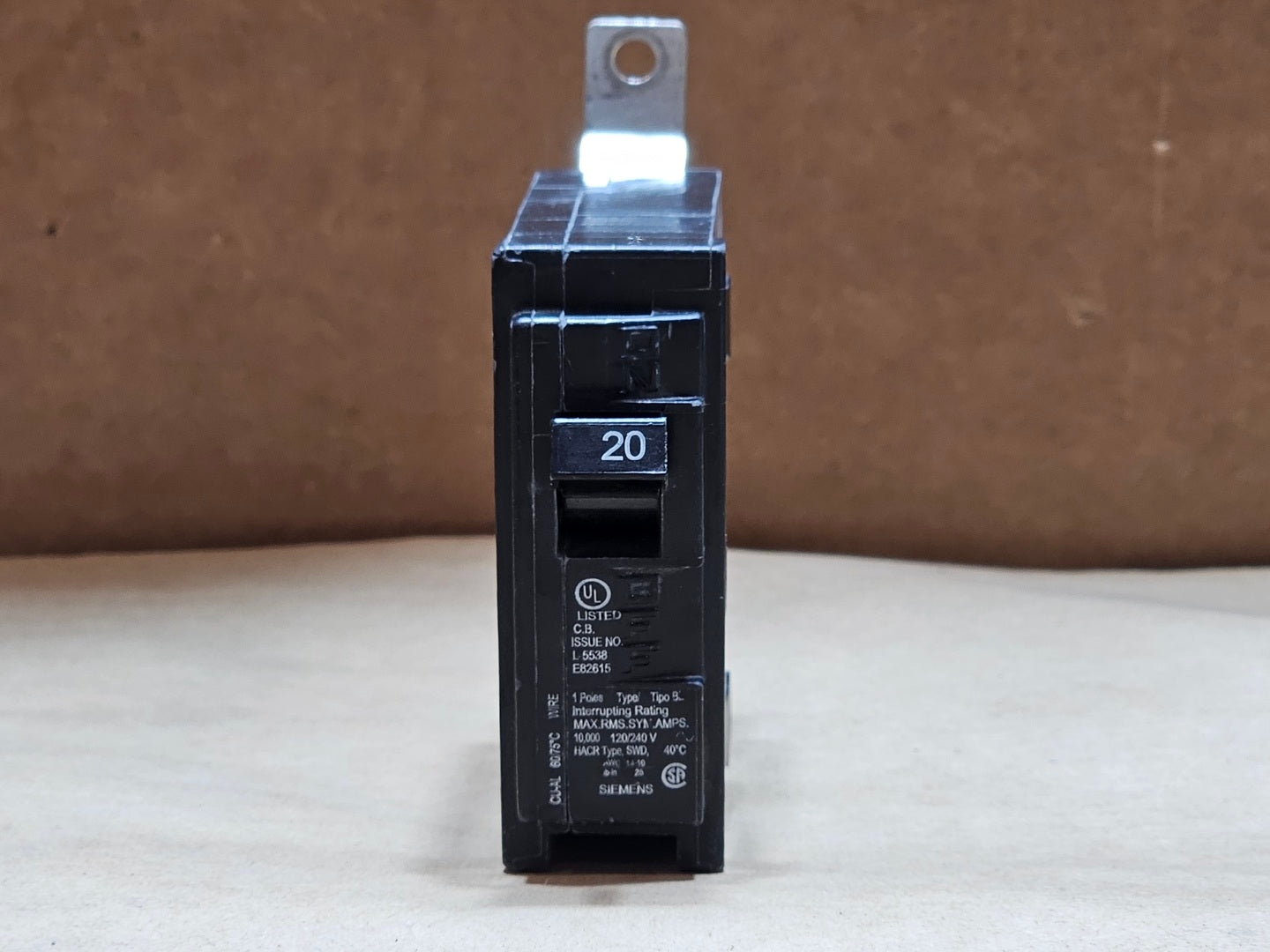

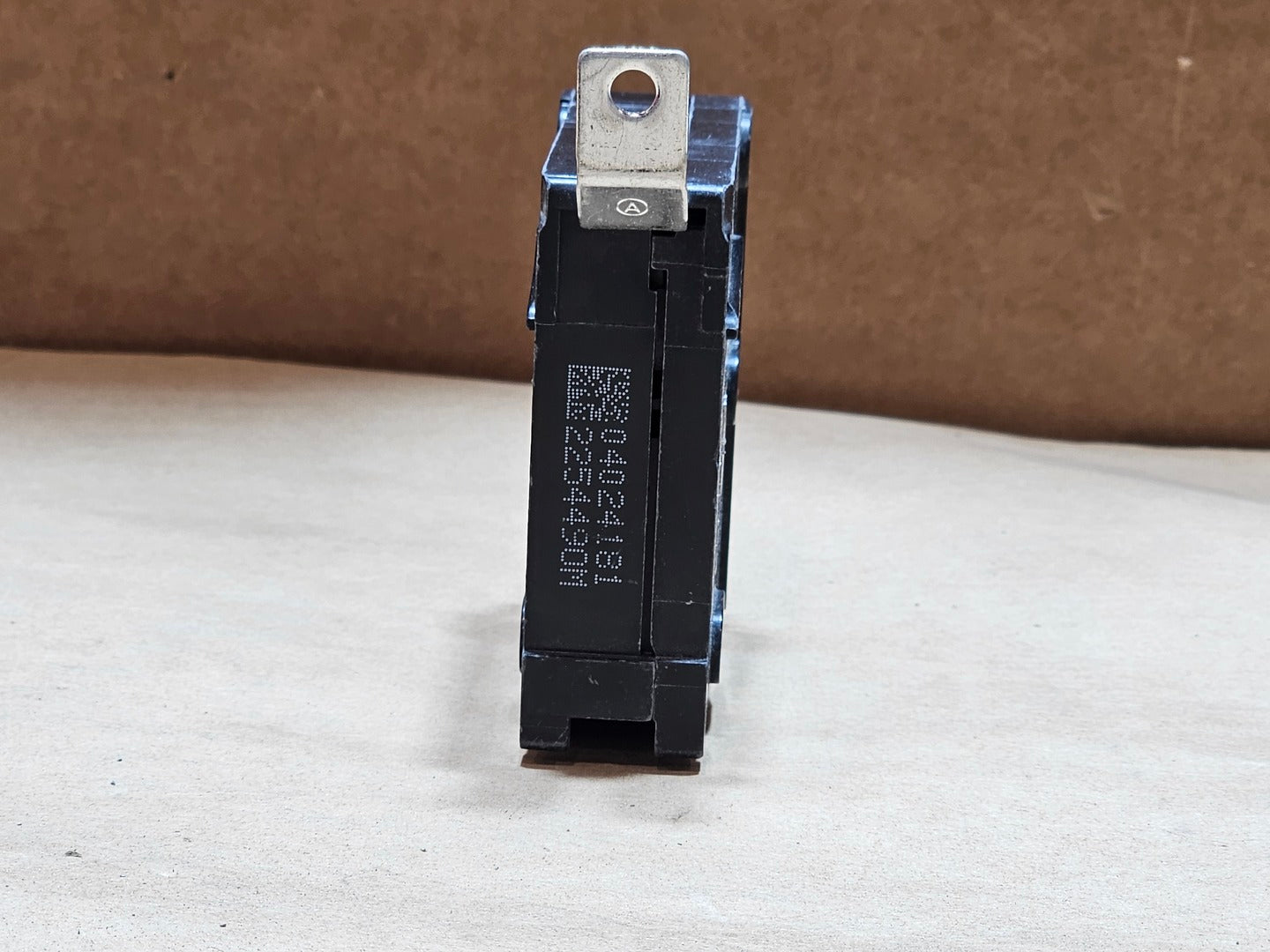

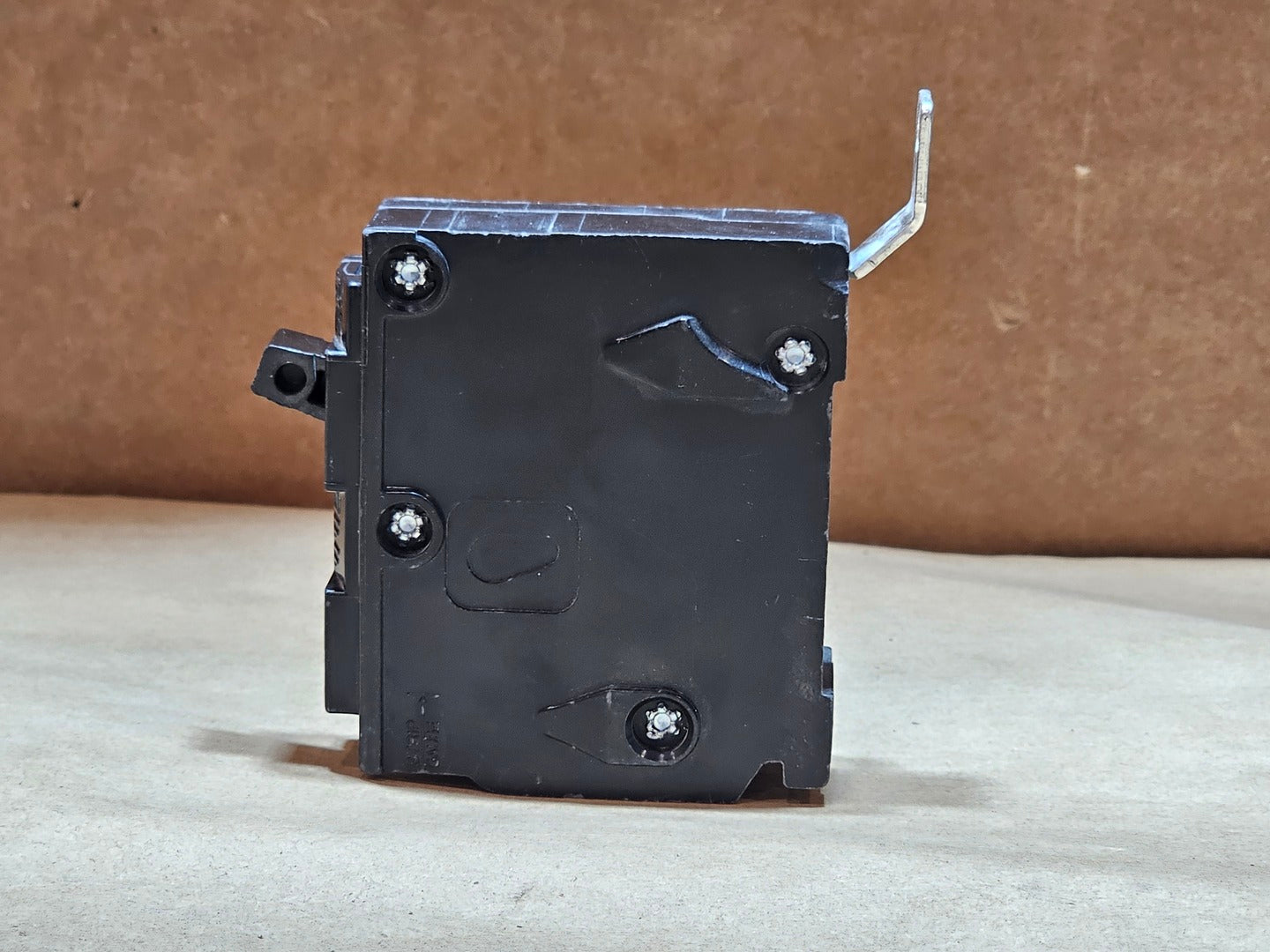

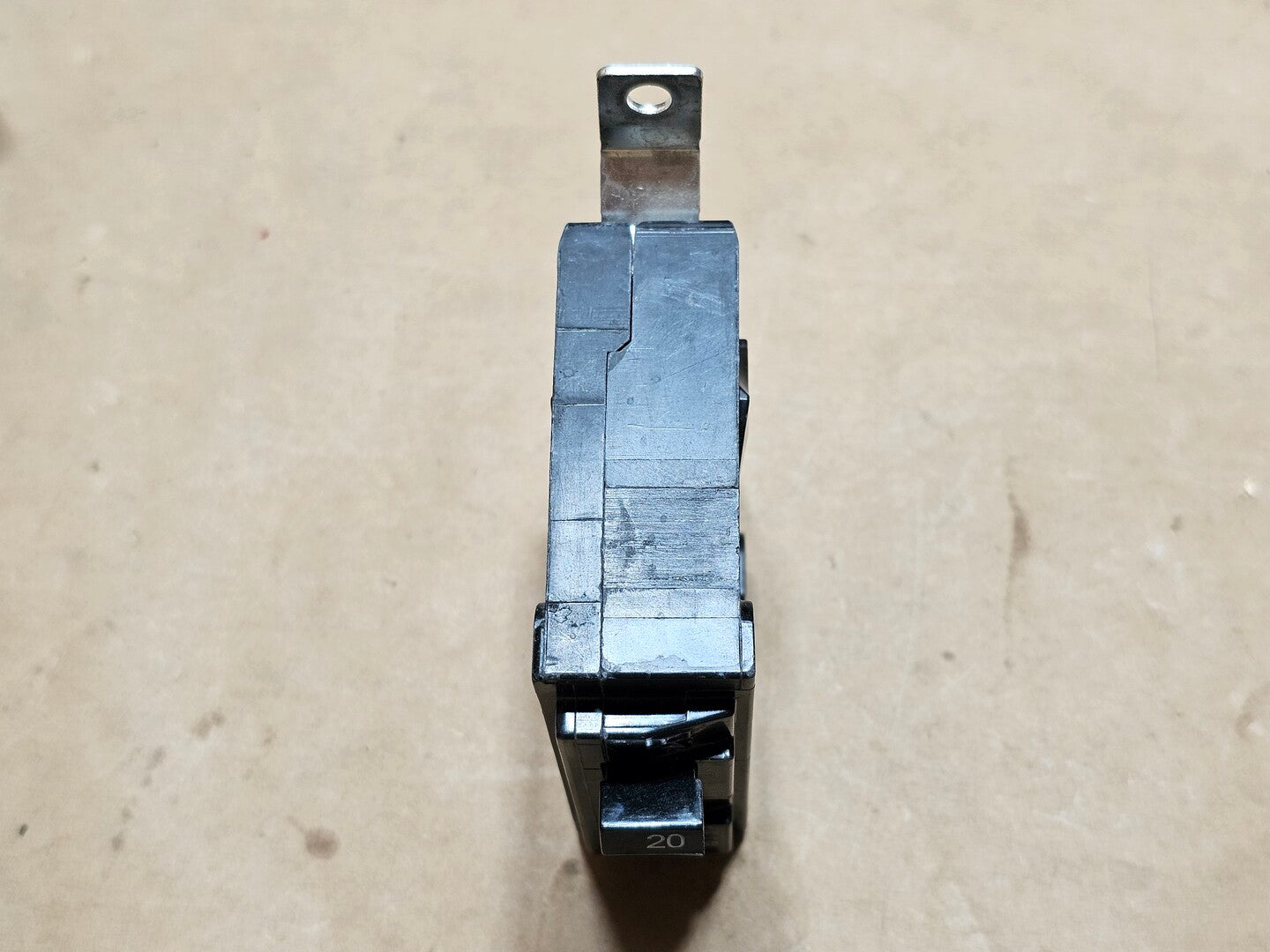

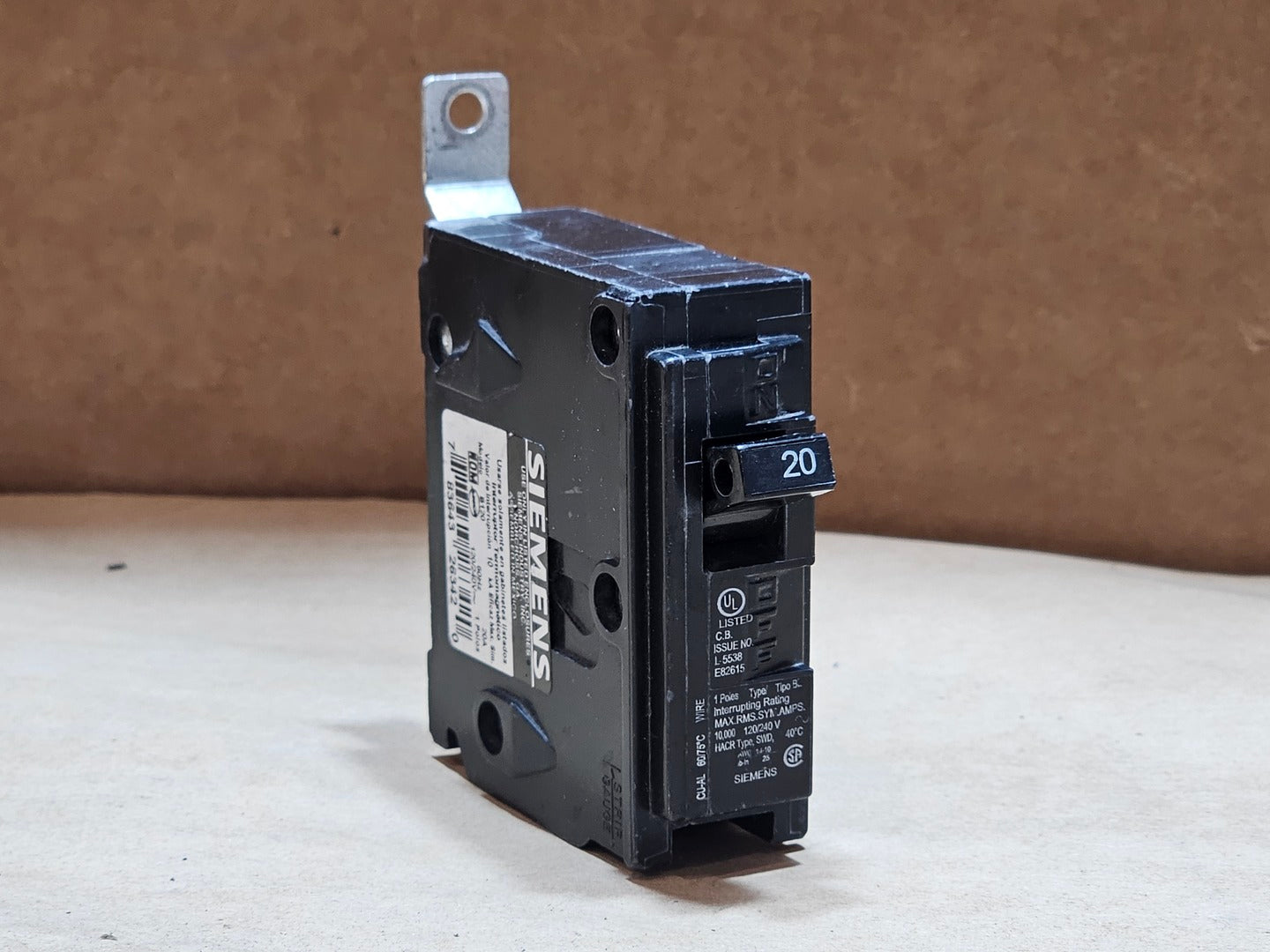

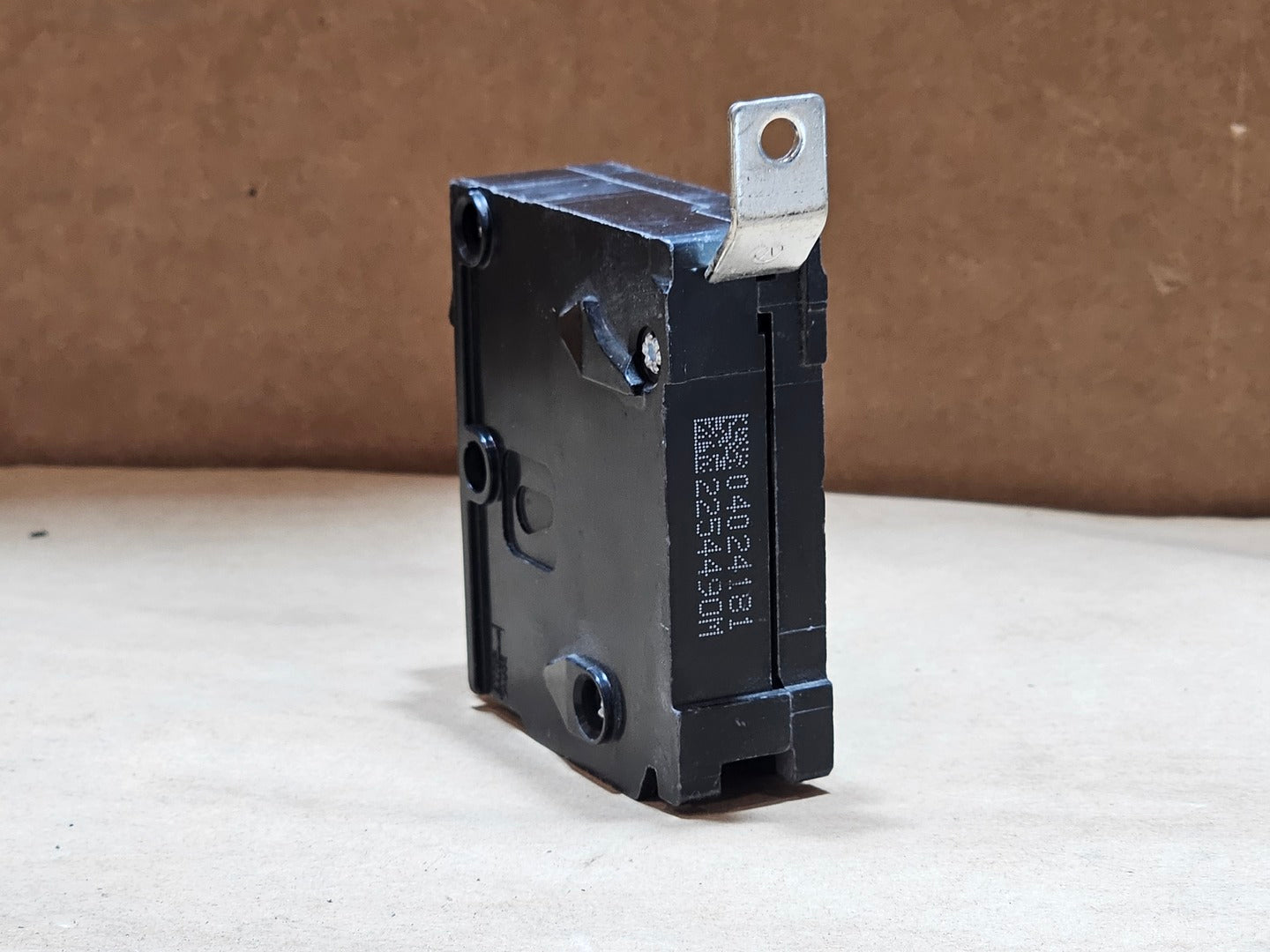

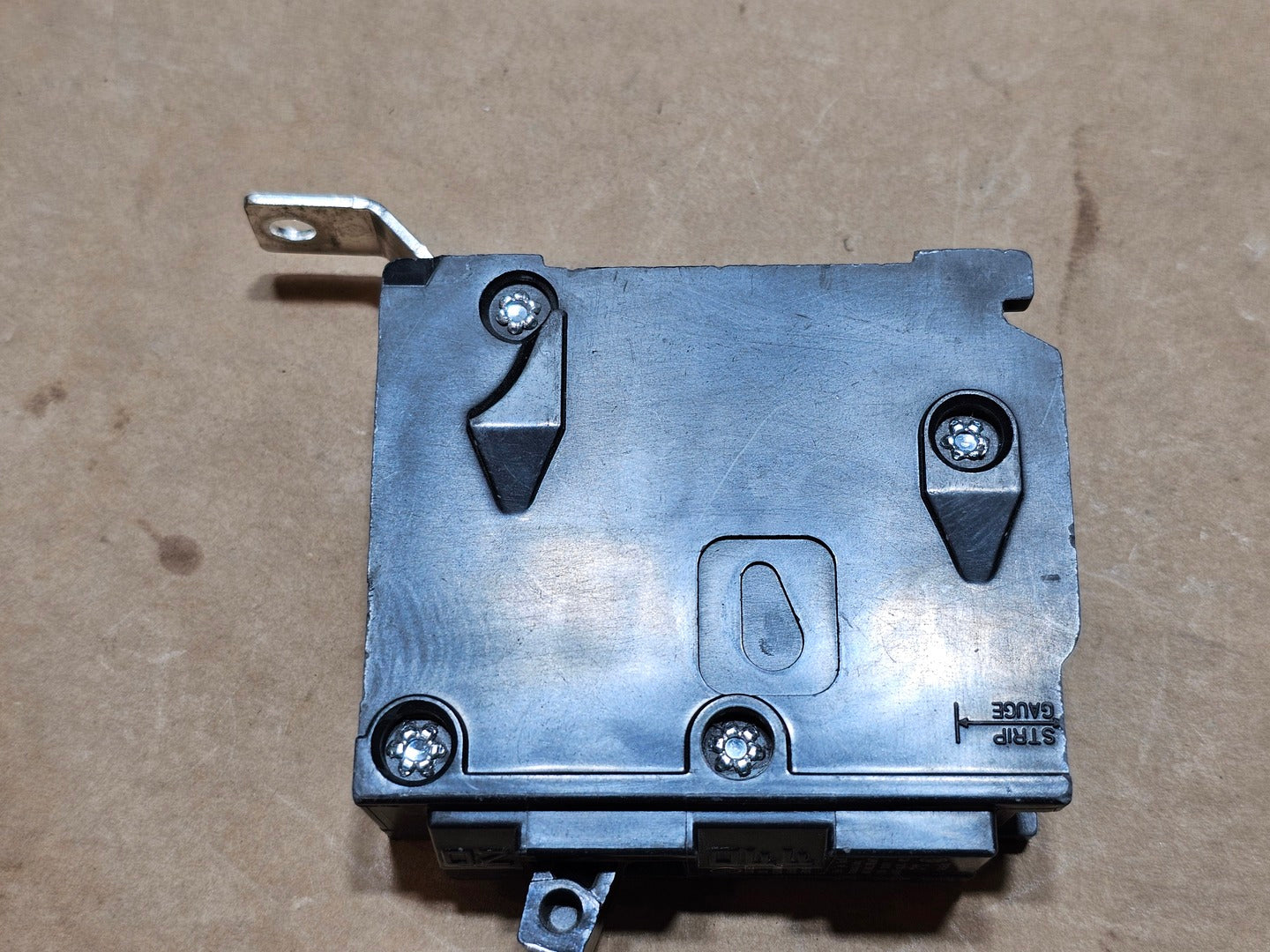

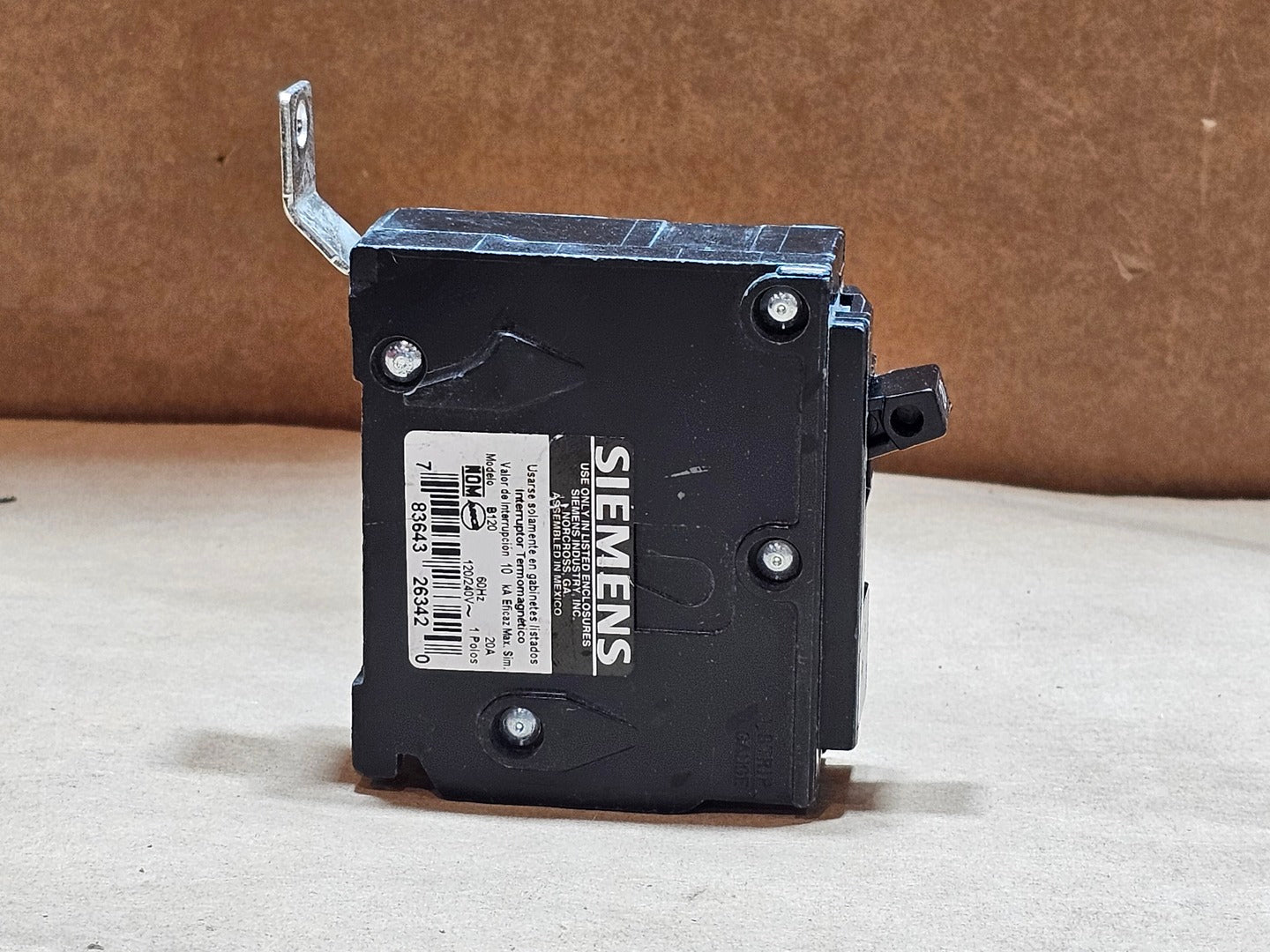

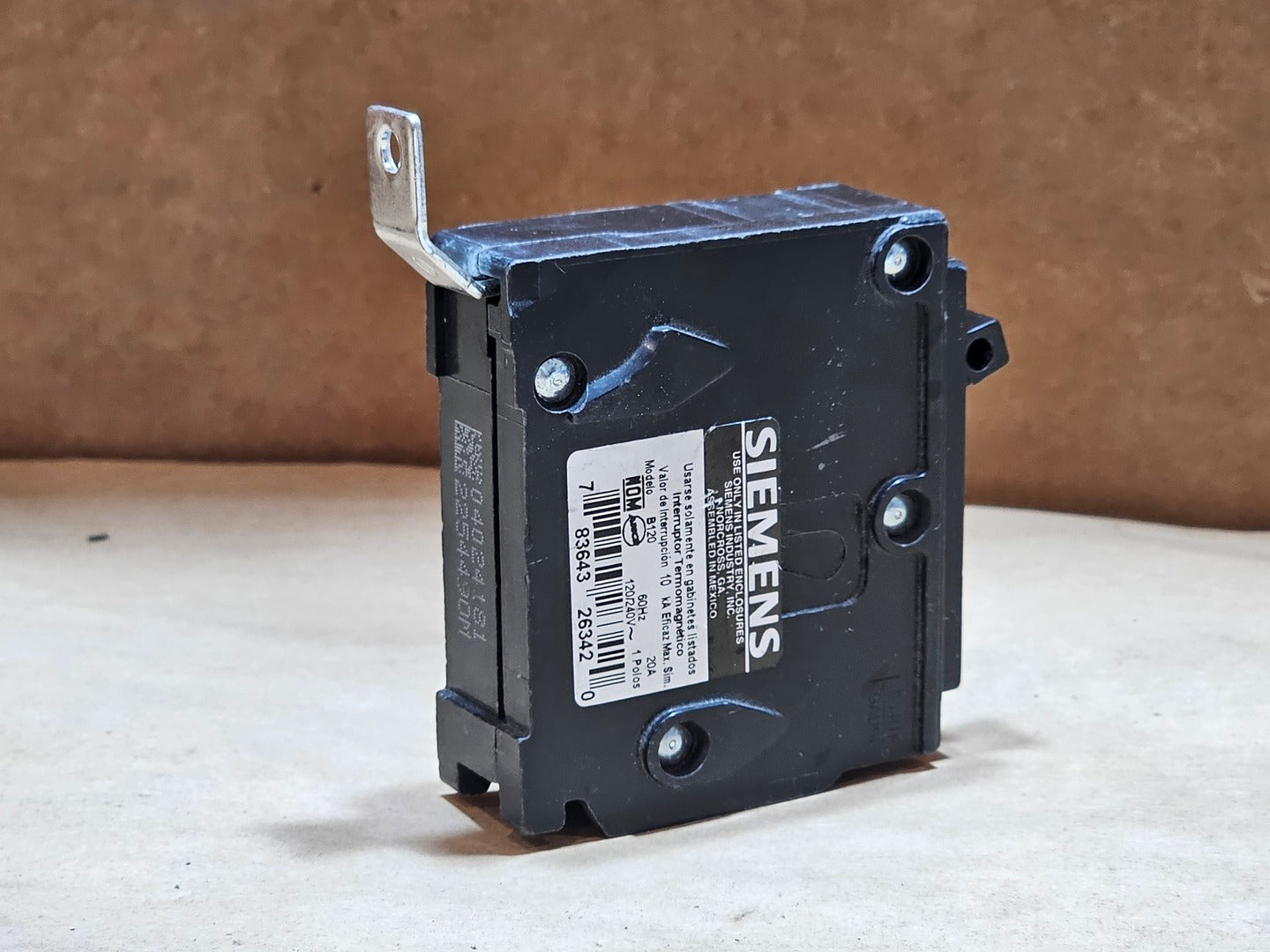

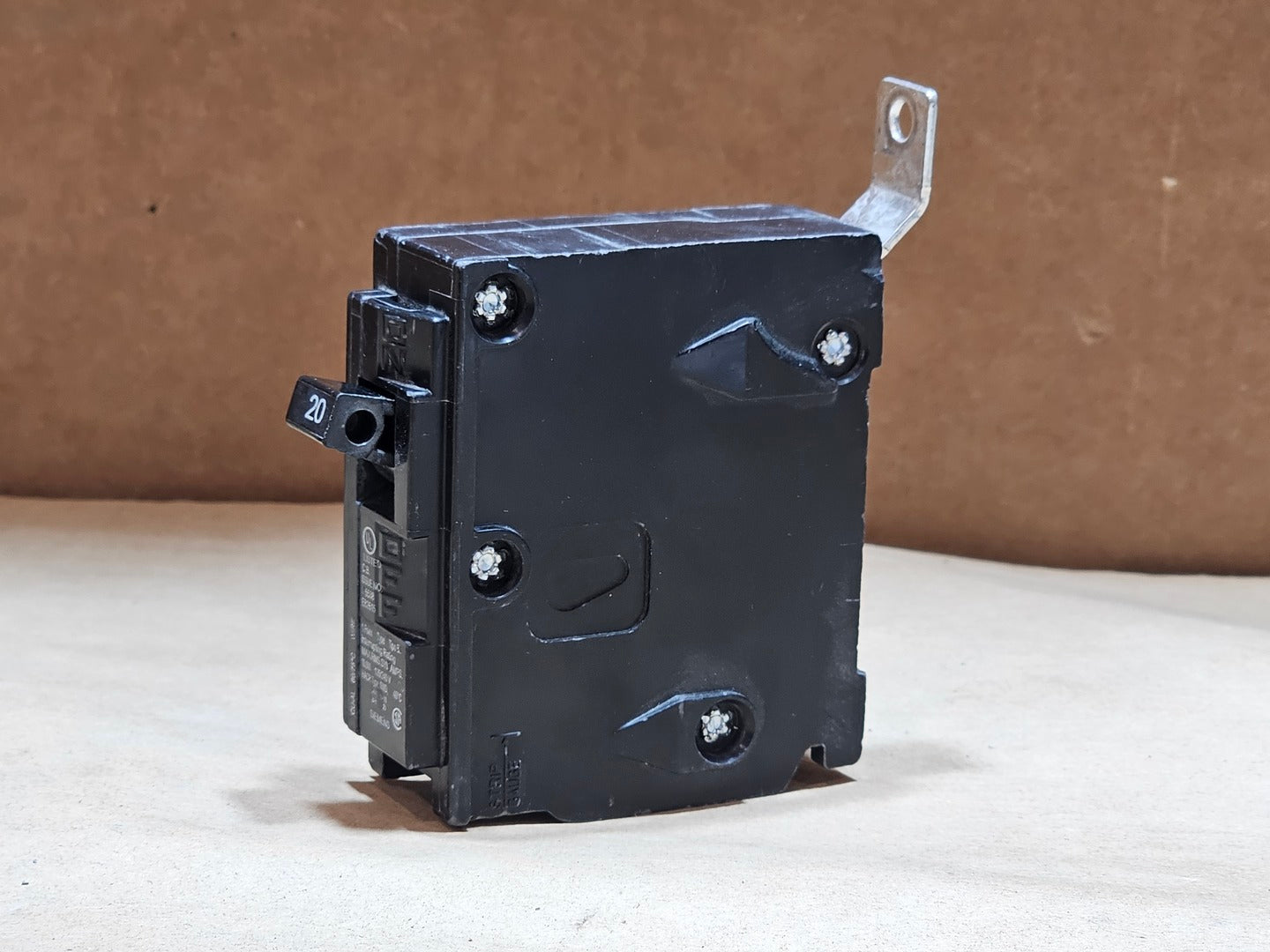

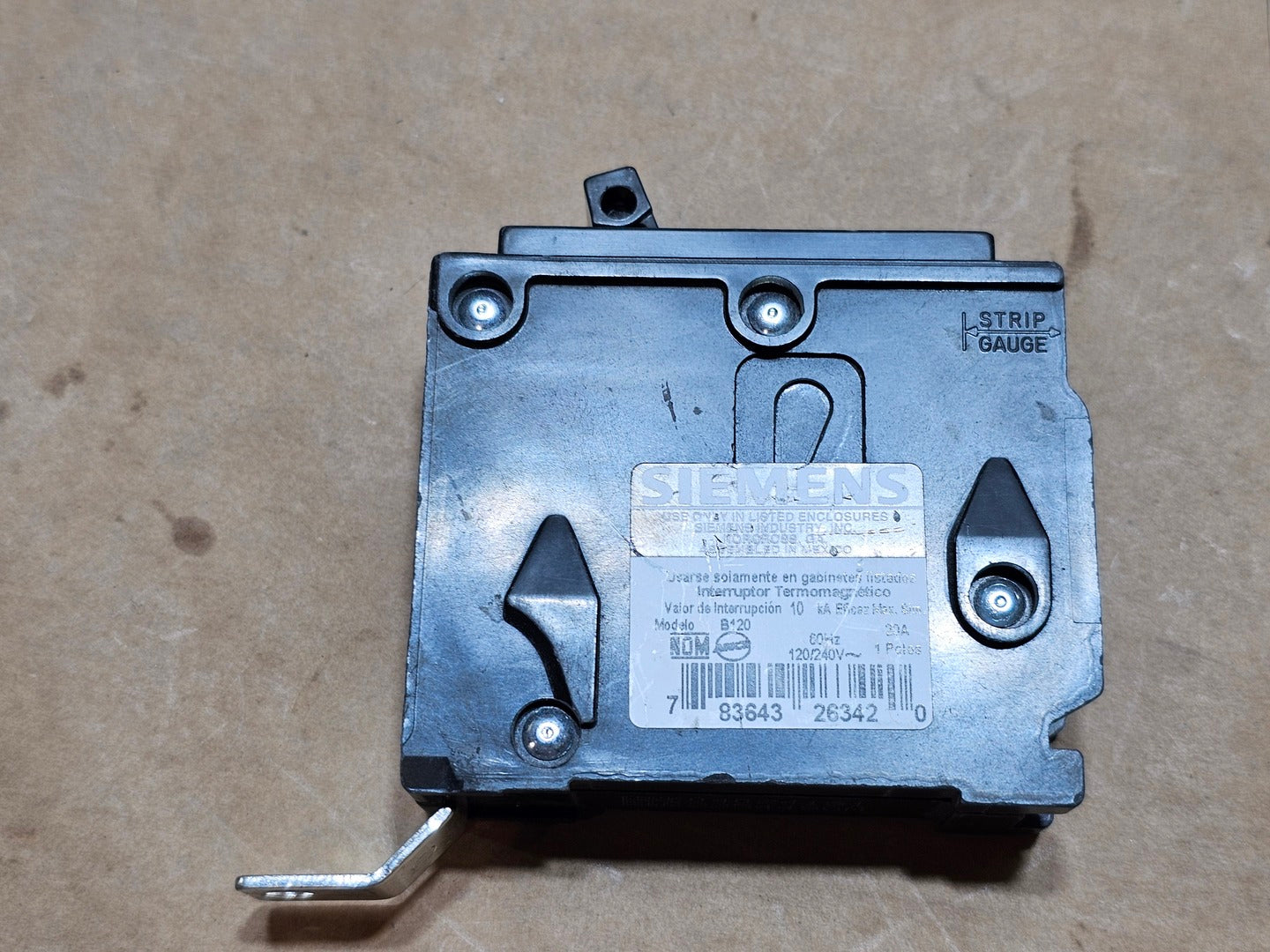

Siemens B120 Type BL thermal-magnetic circuit breaker rated for 20A, single-pole service, and a 10kA interrupting capacity. This breaker uses a bolt-on panelboard connection and is intended for compatible listed Siemens electrical enclosures.
| Specifications | |
|---|---|

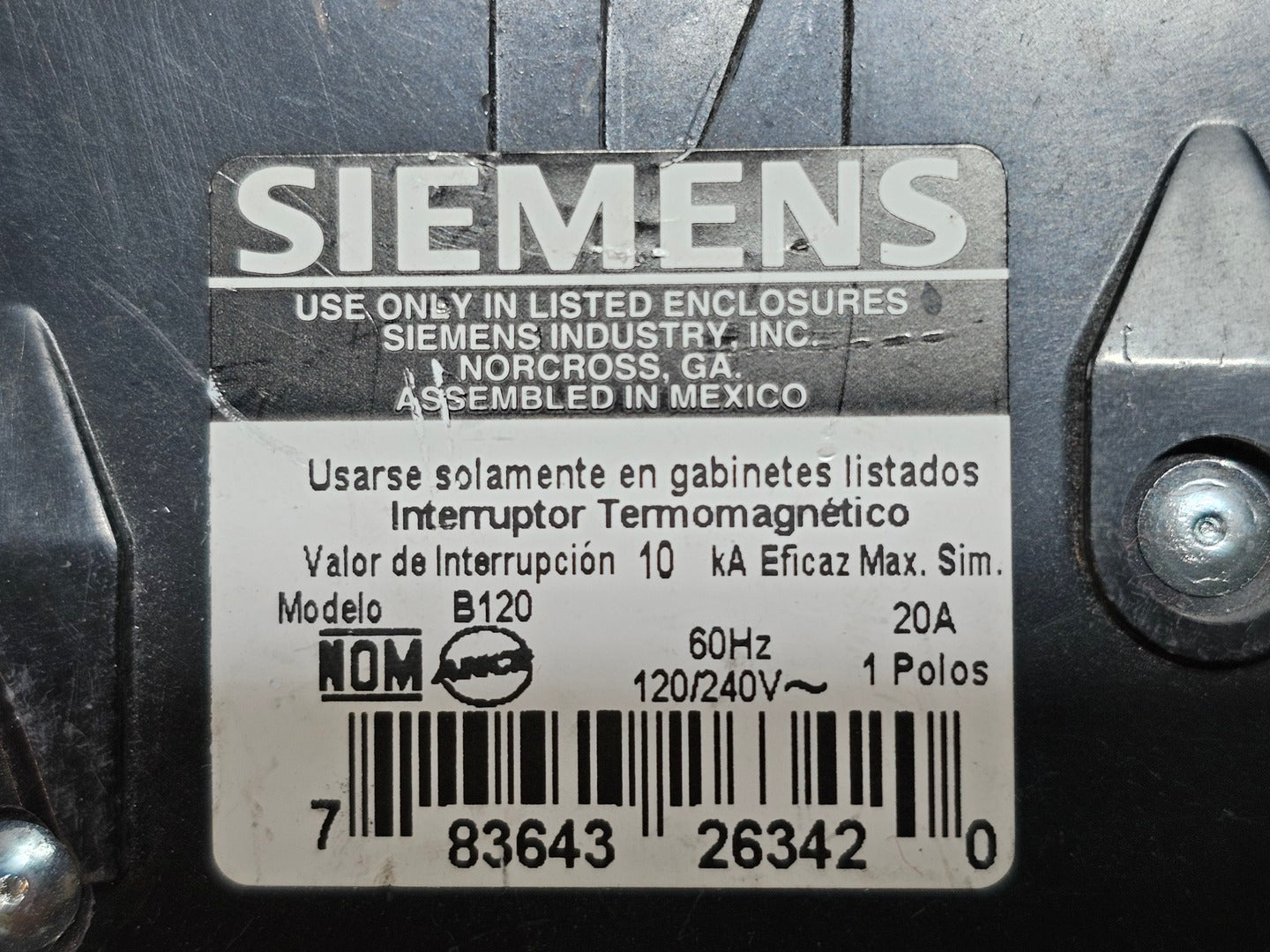

| Model | B120 |
| Made In | MEXICO |
| Condition | Used | General |
| Amps | 20 amps |
| Series | B / BL |
| # of Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

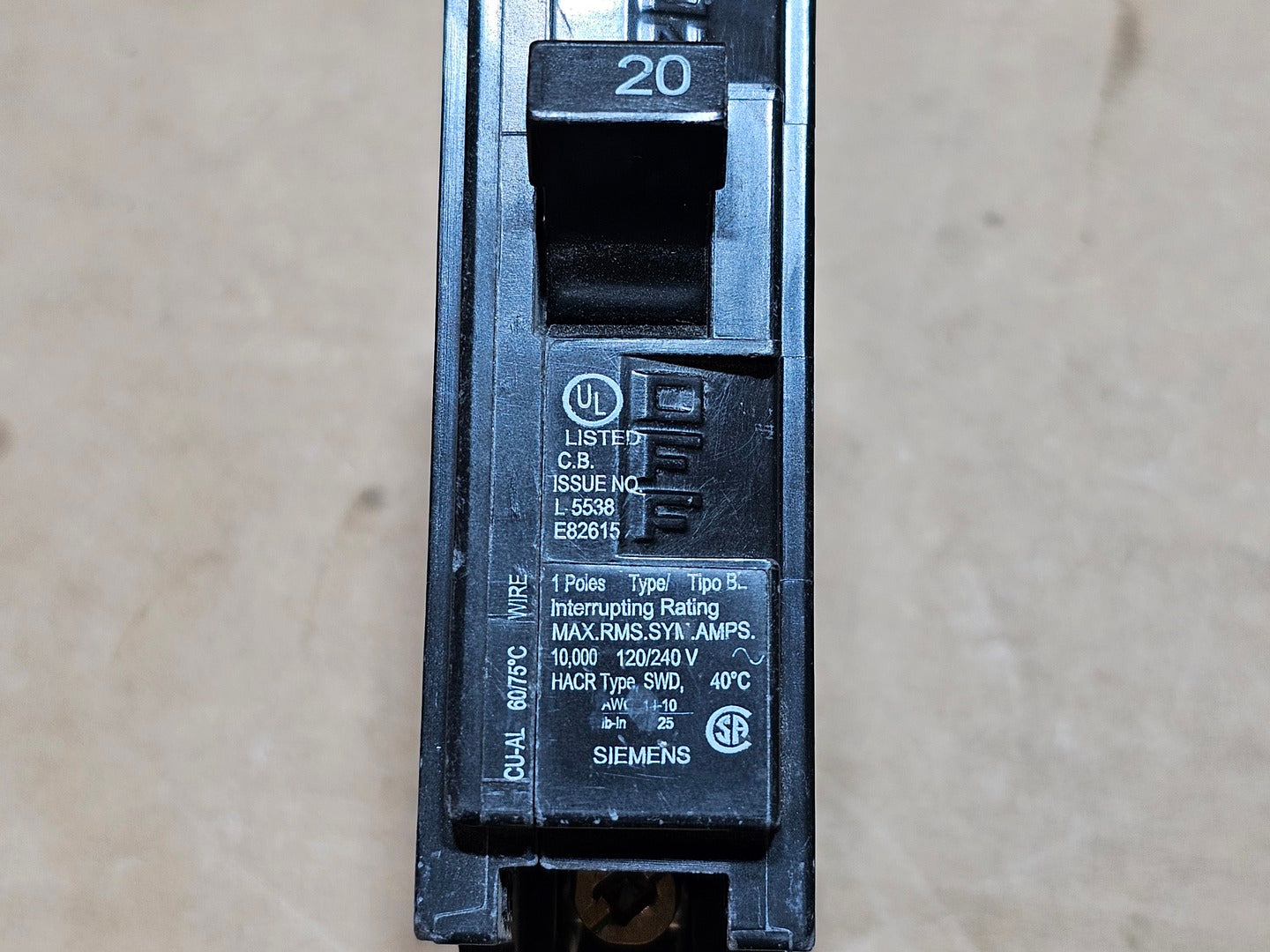

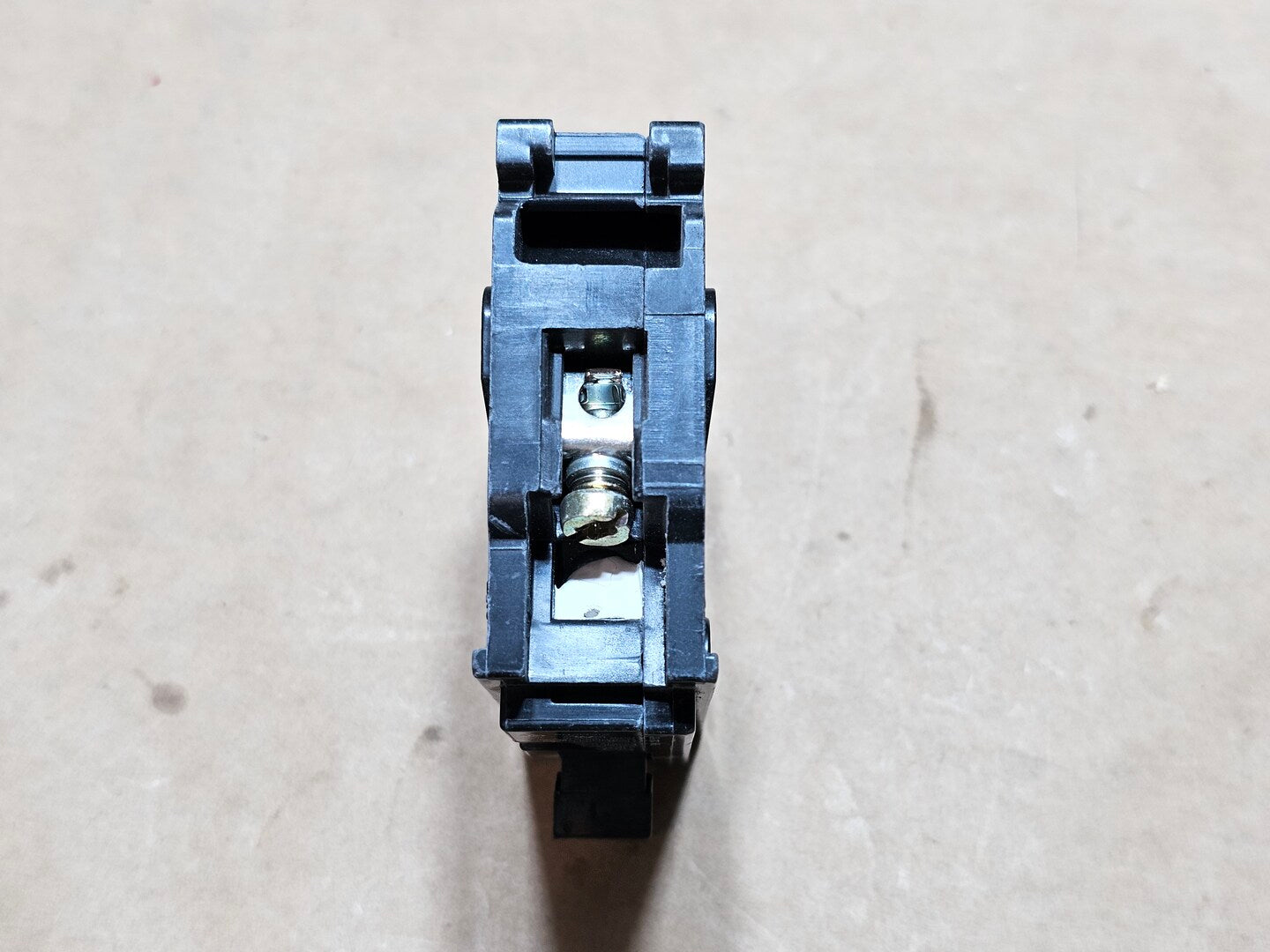

Series: B / BL Series Equipment Type: Miniature molded-case branch circuit breaker Physical Label Voltage: 120/240VAC Frequency: 60 Hz Interrupting Rating: 10kA RMS symmetrical Trip Type: Thermal-magnetic Connection Type: Bolt-on Mounting Type: Panelboard mounted Actuator Type: Toggle Wire Compatibility: Copper or aluminum Marked Wire Range: AWG 14-10 Cu/Al Terminal Torque: 25 lb-in Conductor Temperature Rating: 60/75°C Operating Temperature Marking: 40°C Switching Duty Rating: SWD |
