Cavity Monitoring System CMS V500

SKU: 139185
Price:
$36,195

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

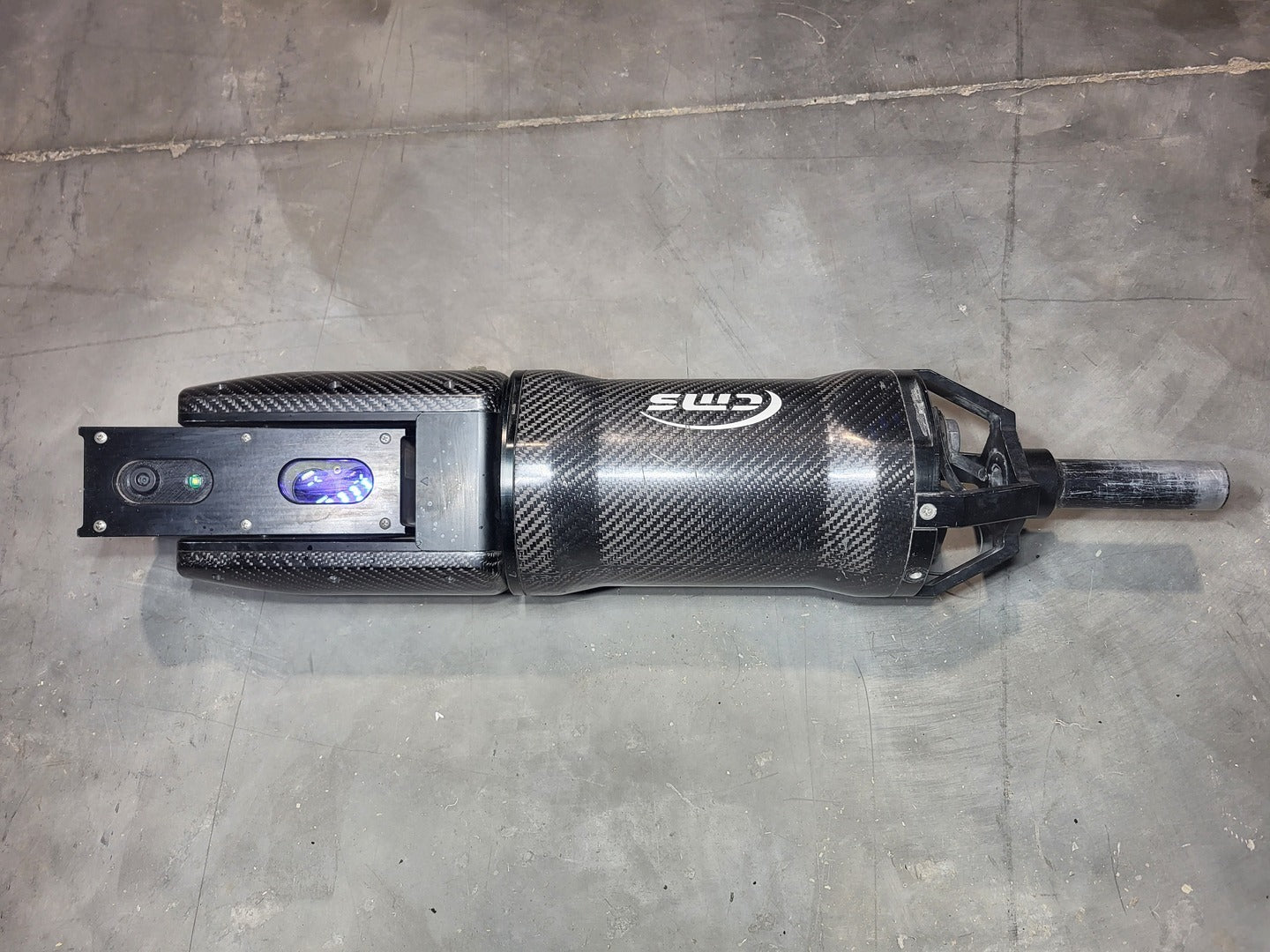

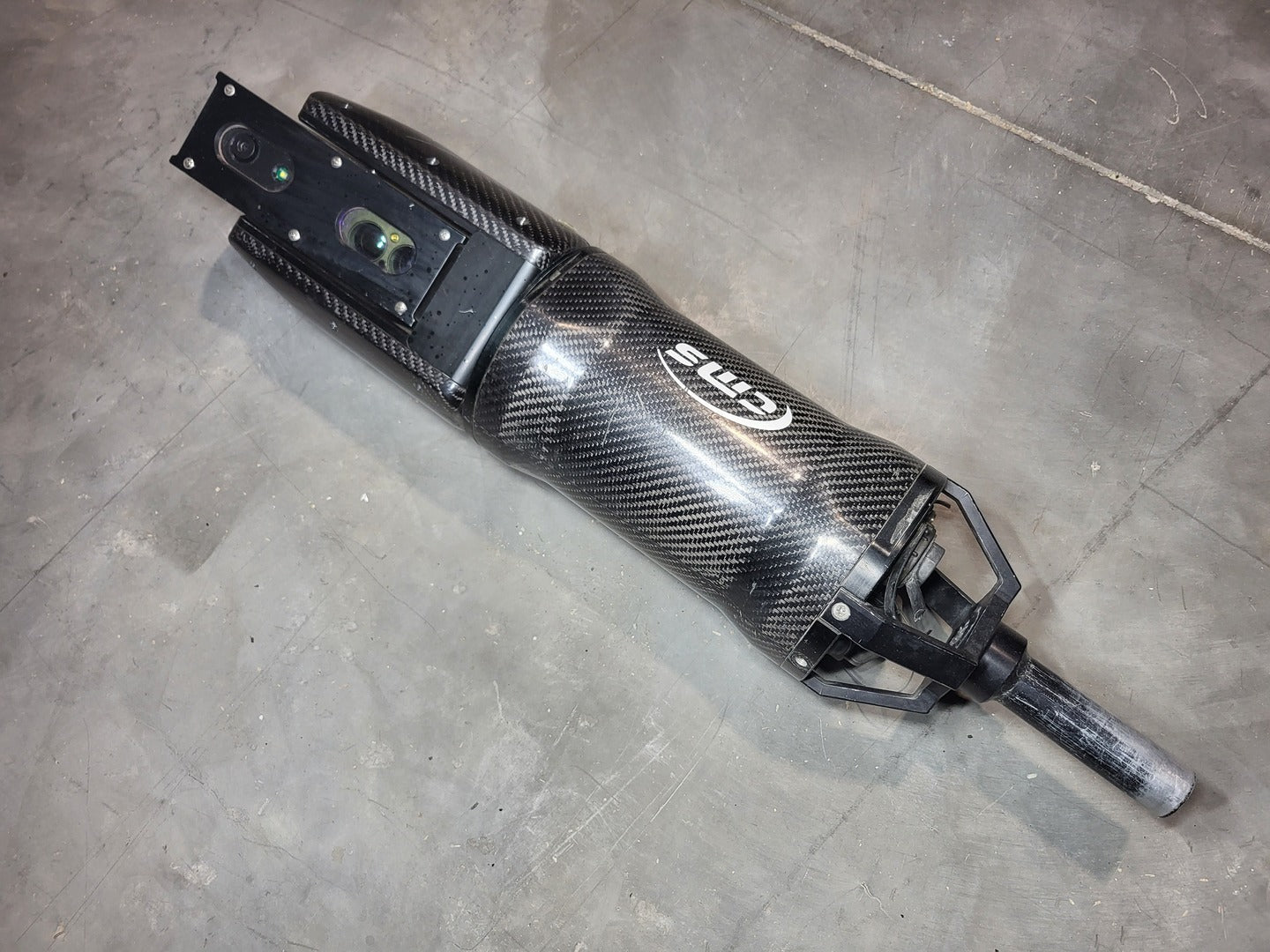

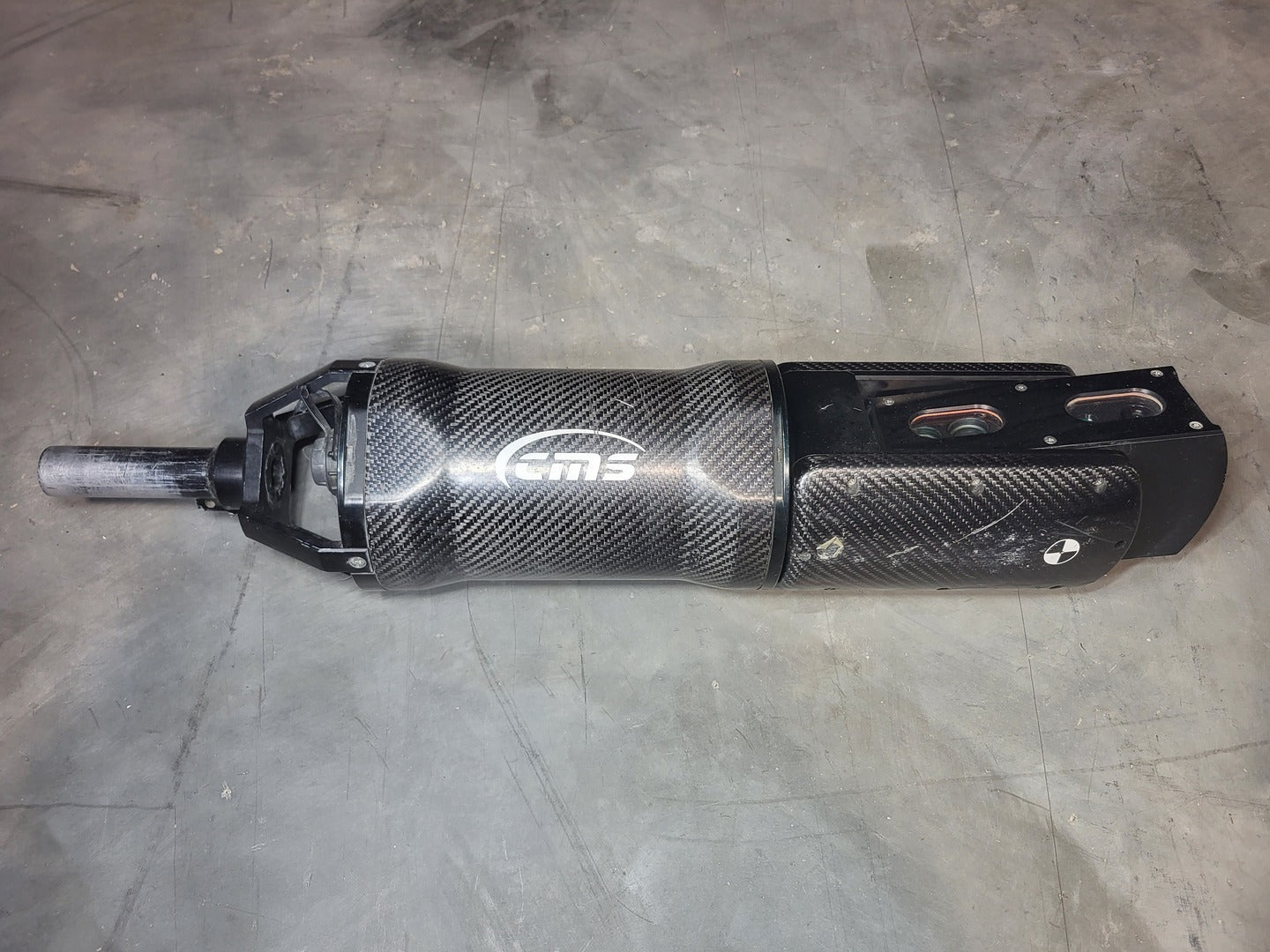

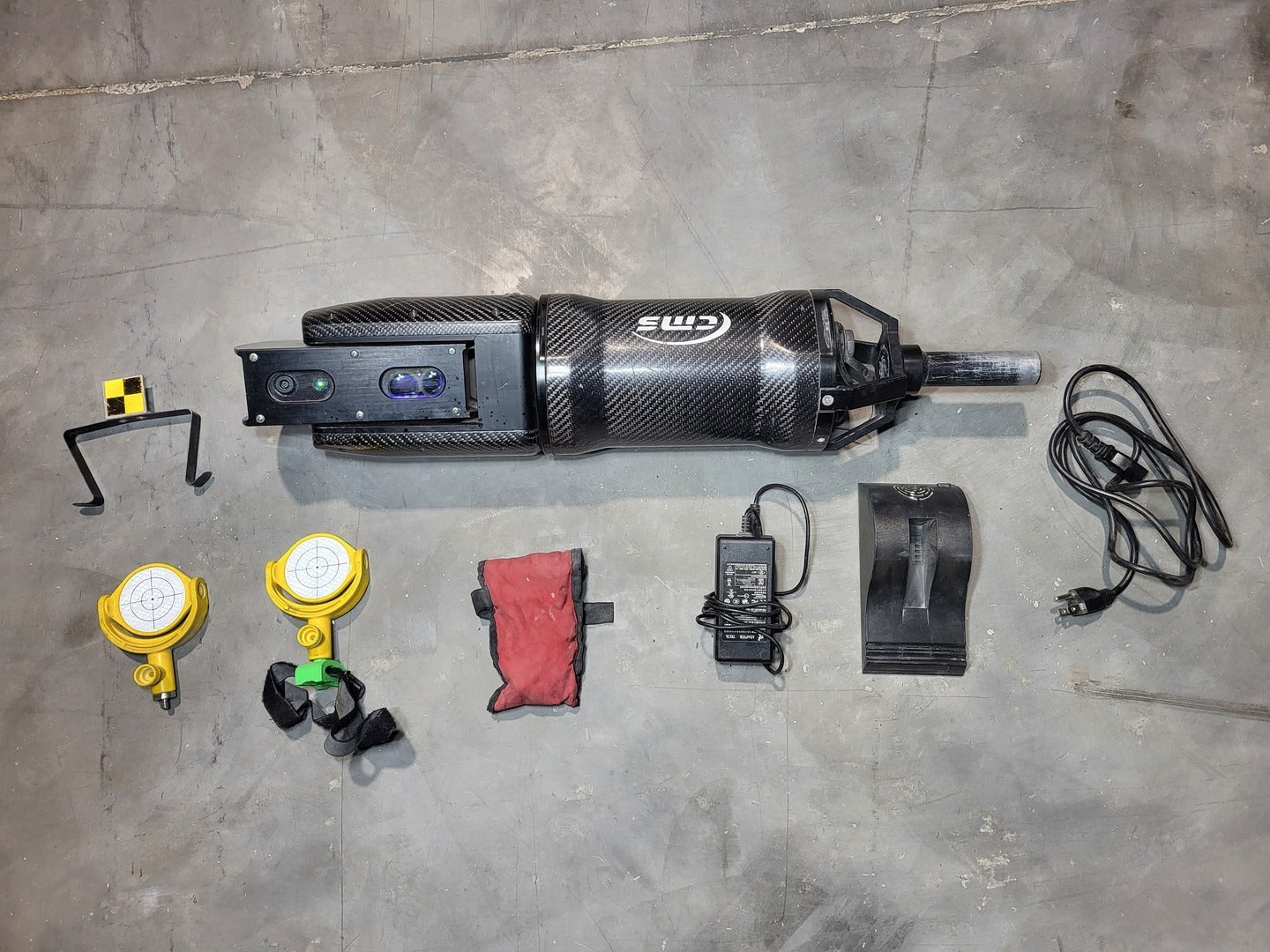

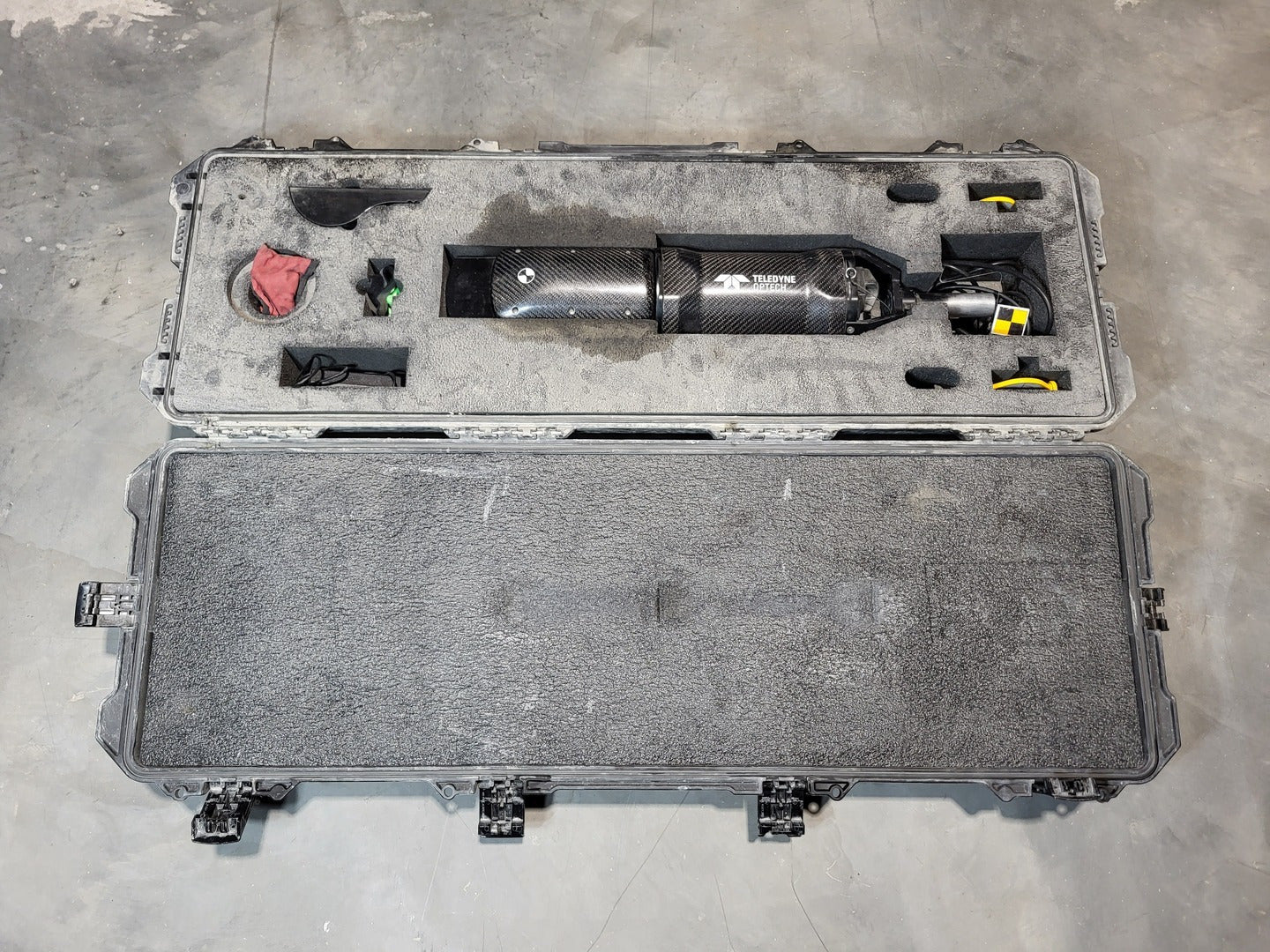

The Teledyne CMS-V500-23 Cavity Monitoring System is a rugged, portable laser-based scanning solution designed for safe 3D monitoring of inaccessible underground cavities in mining and industrial environments. It provides accurate cavity models, integrated camera imaging, and real-time visualization to improve safety and operational efficiency while keeping operators out of hazardous areas.
Specifications

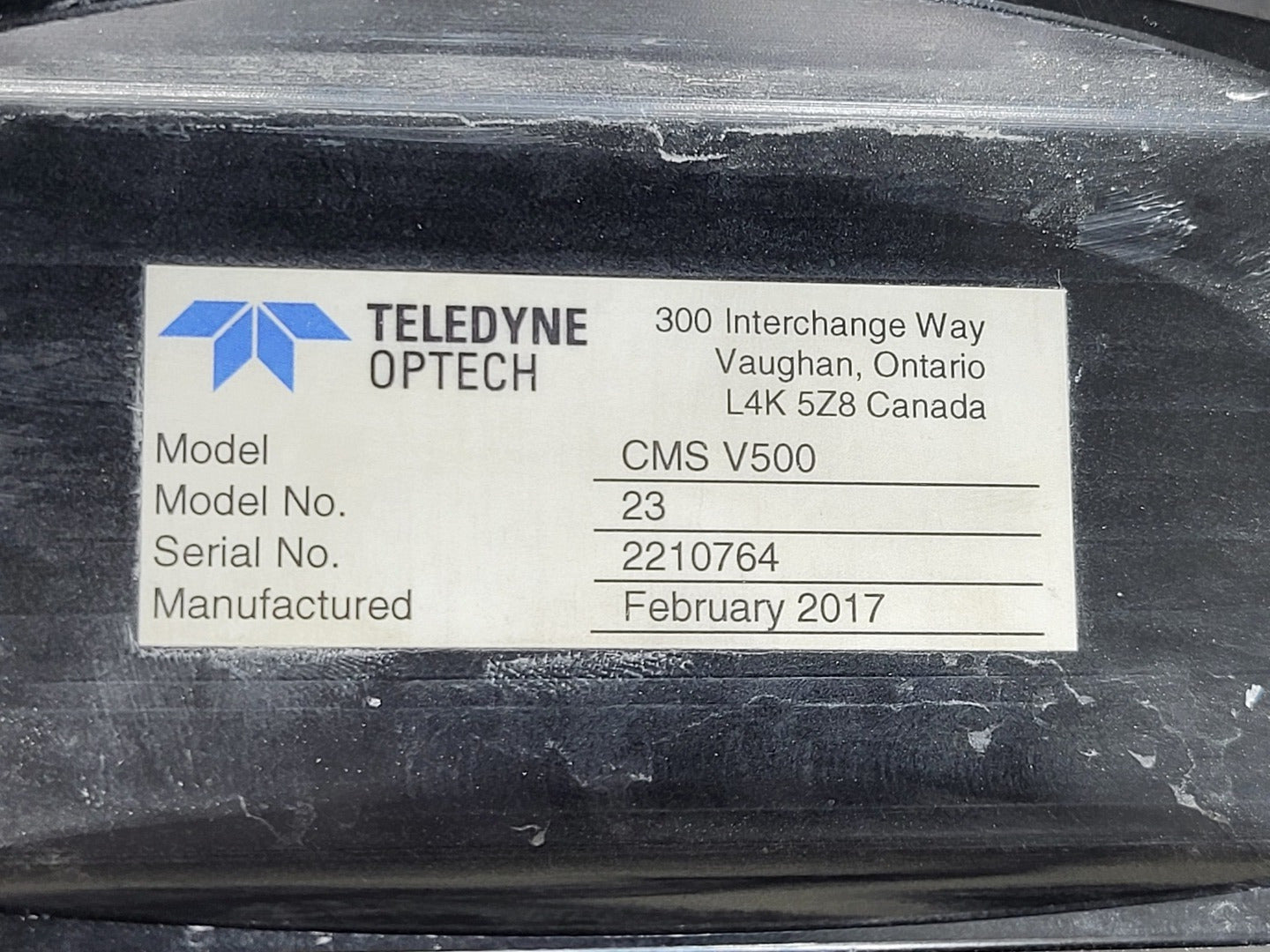

Model CMS V500
Year: 2017
S/N: 2210764
Made In CANADA
Condition Used - Like New
Other Specifications

Overview:

  • System Type: Portable underground cavity monitoring and laser scanning system
  • Technology: Laser-based LiDAR scanning
  • Application: 3D monitoring of underground cavities and inaccessible voids
  • Horizontal Field of View: 360°
  • Vertical Field of View: Approx. 320°
  • Points per Scan: Approx. 57,600
  • Scan Time (Full Scan): Approx. 6 minutes
  • Maximum Range (High Reflectivity): Up to approx. 500 m
  • Maximum Range (Low Reflectivity): Up to approx. 200 m
  • Minimum Measuring Range: Approx. 0.5 m
  • Range Accuracy: 2 cm (typical)
  • Range Resolution: Approx. 1 cm
  • Angular Accuracy: Approx. 0.1°
  • Angular Resolution: Approx. 0.022°
  • Integrated Camera: Yes, built-in visual inspection camera
  • Data Visualization: Real-time 3D visualization during scanning
  • Control Method: Wireless remote control via PC or tablet
  • Data Output: Point cloud data compatible with CAD and mining software
  • Power Supply: Internal rechargeable battery
  • Operating Voltage: Approx. 15 V DC
  • Scanner Weight: Approx. 7 kg (15 lb.)
  • Protection Rating: IP65 (dust and water resistant)
  • Operating Temperature: -20 °C to +60 °C
  • Typical Uses: Mining cavity scanning, void monitoring, volume calculation, stability analysis
