Description
| Specifications | |
|---|---|

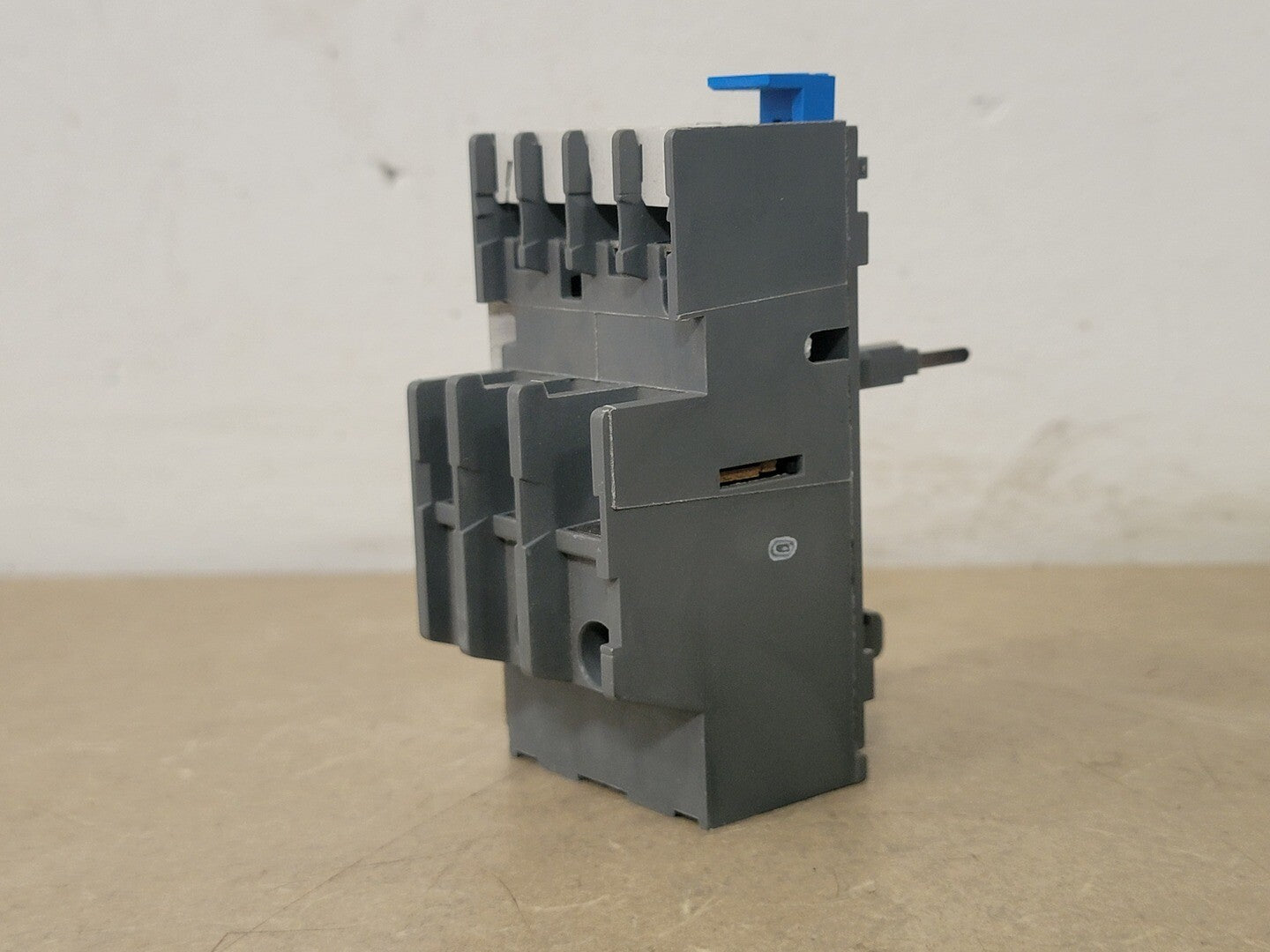

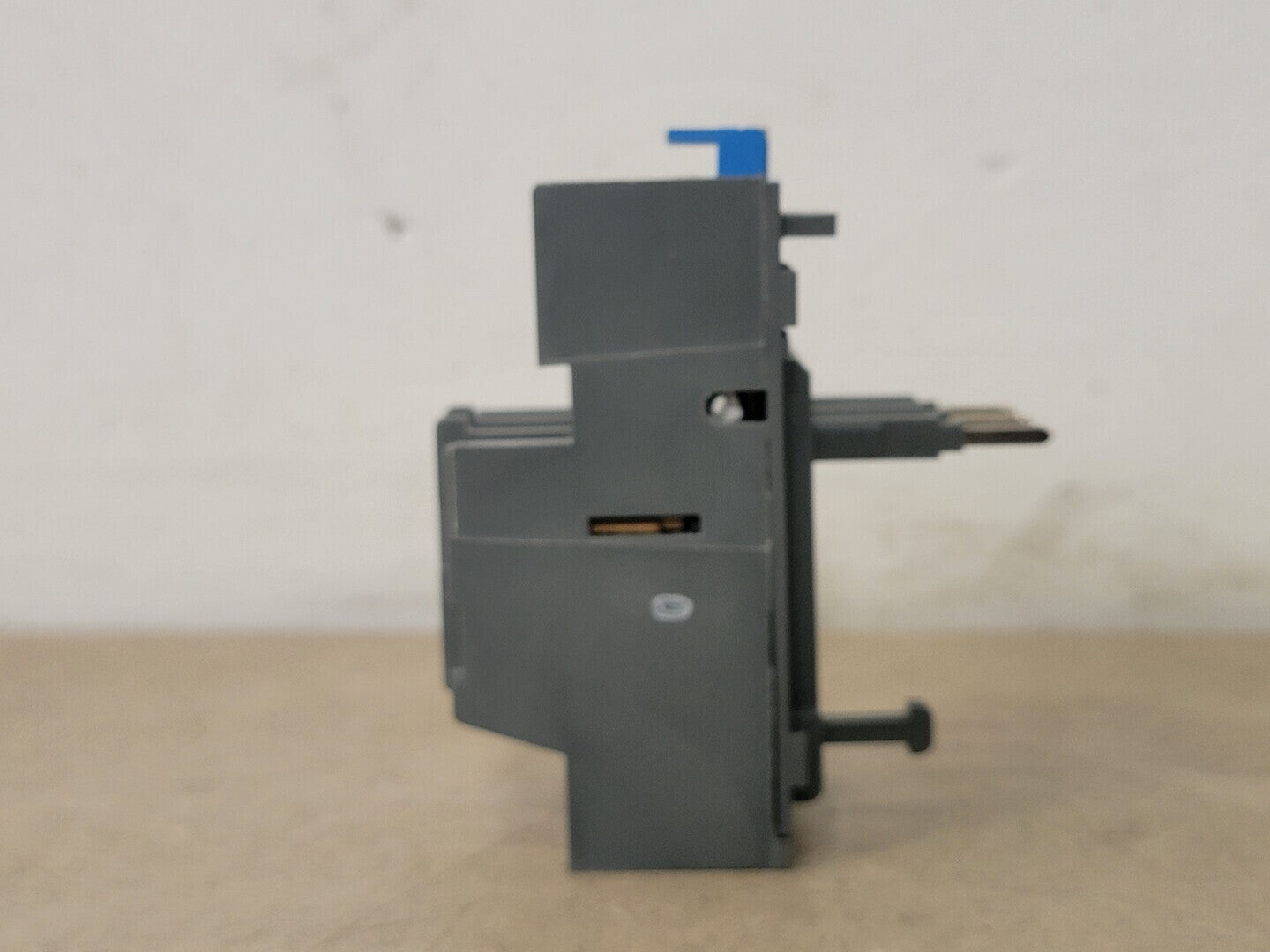

| Model | TA25DU |
| Condition | Used | General |
| Amps | 10 amps |
| Voltage | 600 volts |
| Other Specifications |
|---|
|

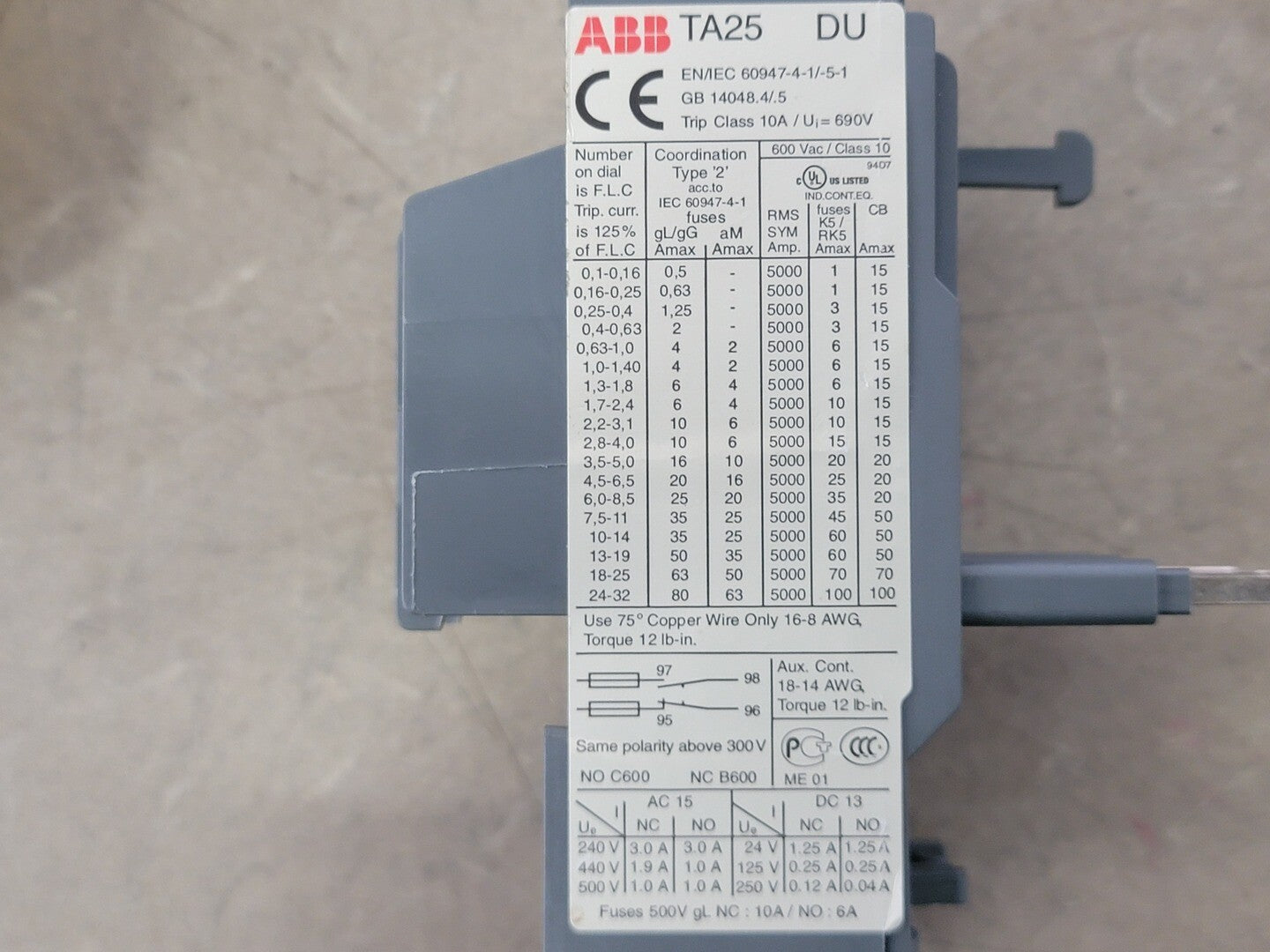

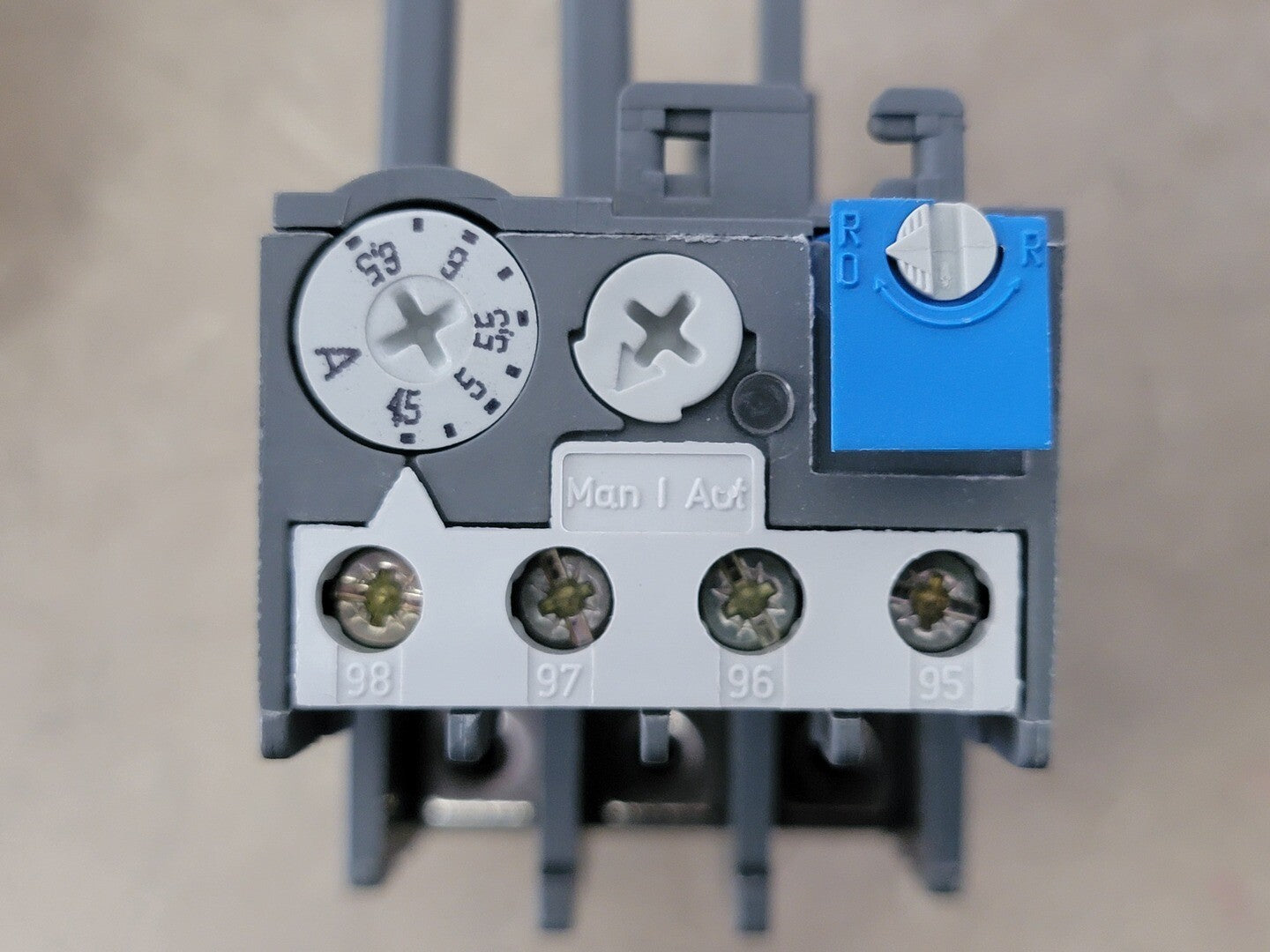

Current Adjustment Range: 0.1 A to 25 A Trip Class: Class 10A Standards Compliance: EN/IEC 60947-4-1/-5-1, GB 14048.4/.5 Rated Insulation Voltage (Ui): 690 V Rated Operational Voltage: 600 V AC Rated Frequency: 50/60 Hz Auxiliary Contacts: 1 Normally Closed (95-96), 1 Normally Open (97-98) Coordinated Fuse Types: gG/gL and aM Maximum Fuse Size: Up to 100 A depending on current setting Mounting Type: Contactor-mounted (typically used with ABB contactors) Wiring Type: Copper wire only, 16-8 AWG Terminal Torque: 12 lb-in Ambient Temperature Range: -20C to +60C (typical for this series) Short-Circuit Protection: Requires external fuses or circuit breakers Control Voltage for Aux Contacts: 250 V max Switching Capacity (AC-15): 240 V, 3 A (NO), 1.9 A (NC) Switching Capacity (DC-13): 250 V, 0.27 A (NO), 0.15 A (NC) |
