Description
| Specifications | |
|---|---|

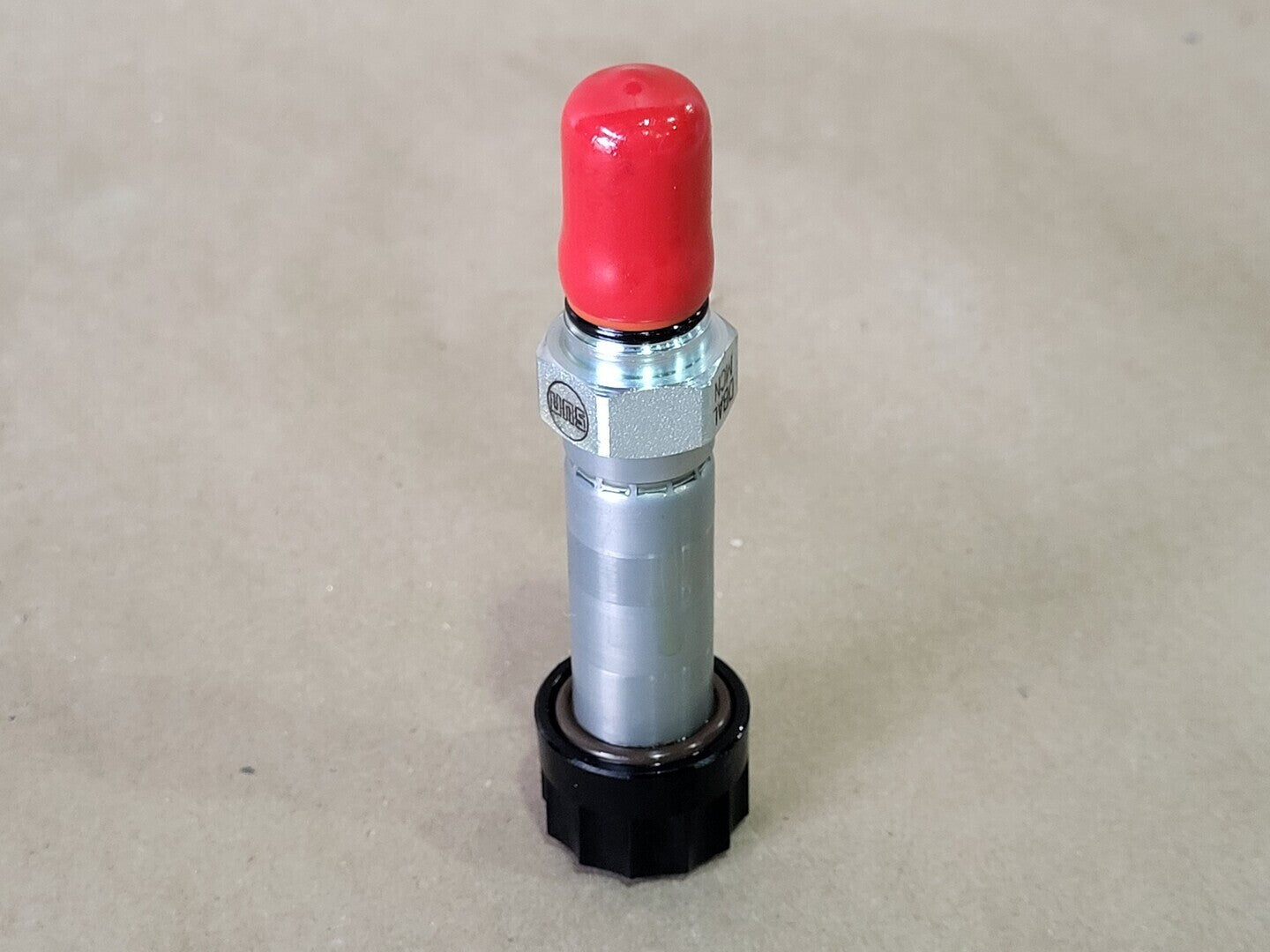

| Model | DBALMCN |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Cavity: T-9A Series: P Capacity: 0.25 gpm Maximum Operating Pressure: 5000 psi Maximum Valve Leakage at 110 SUS (24 cSt): 10 drops/ min. @ 5000 psi Manual Override Force Requirement: 10 lbs/ 1000 psi @ Port 1 Manual Override Stroke: .10 in. Response Time - Typical: 50 ms Switching Frequency: 15,000 max. cycles/hr Solenoid Tube Diameter: 0.75 in. Valve Hex Size: 7/8 in. Valve Installation Size: 20-25 lbf ft |
