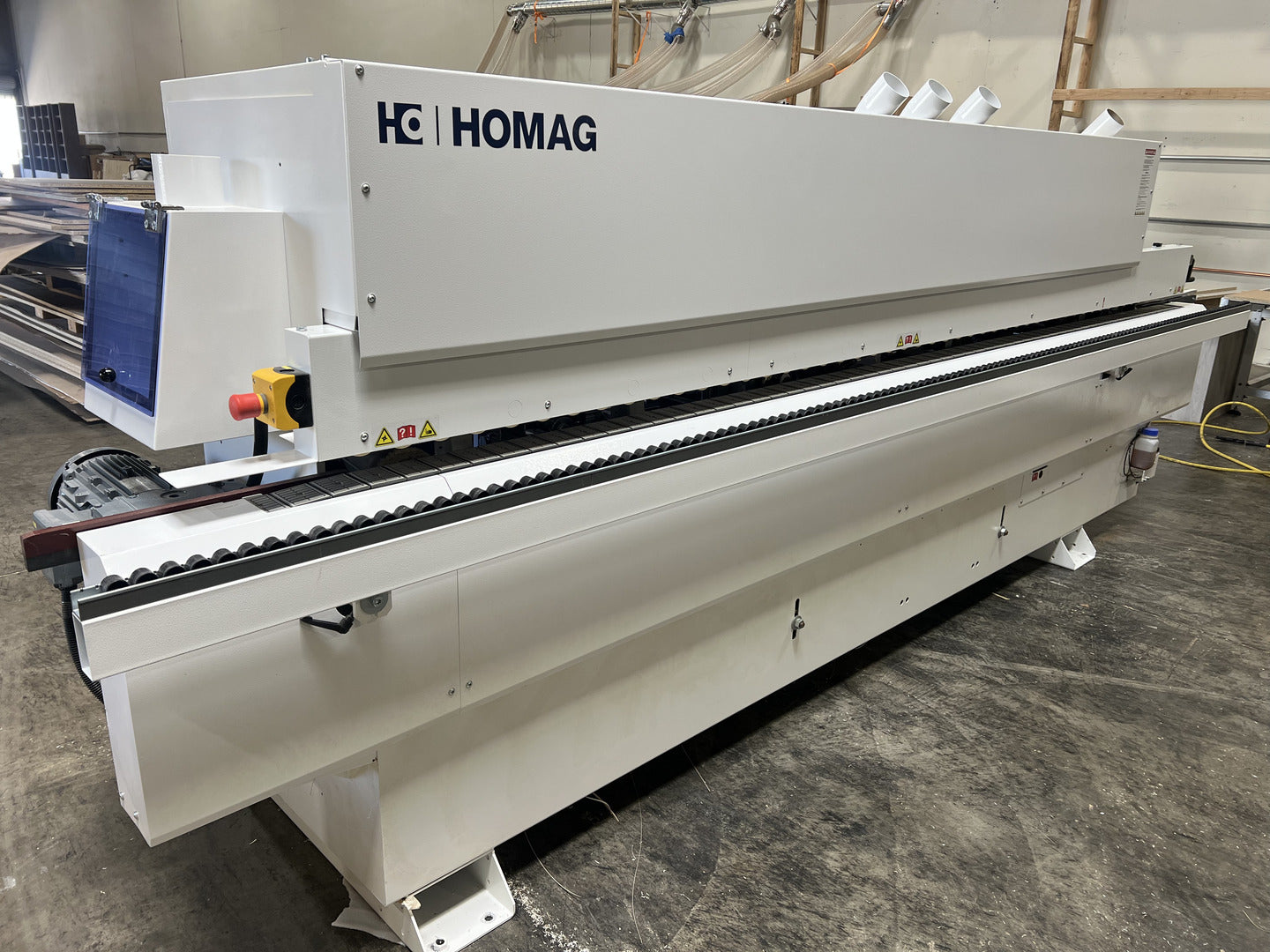

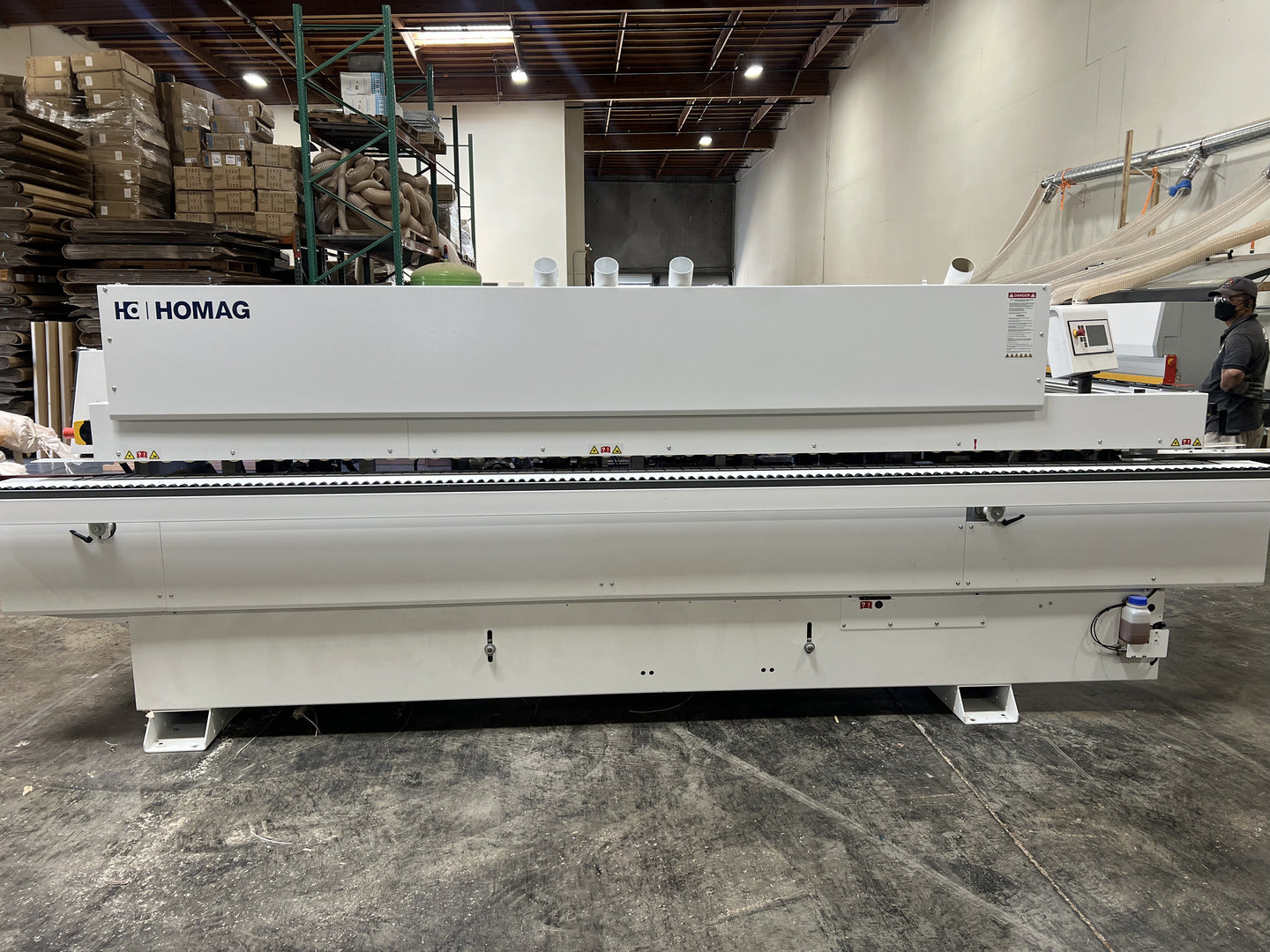

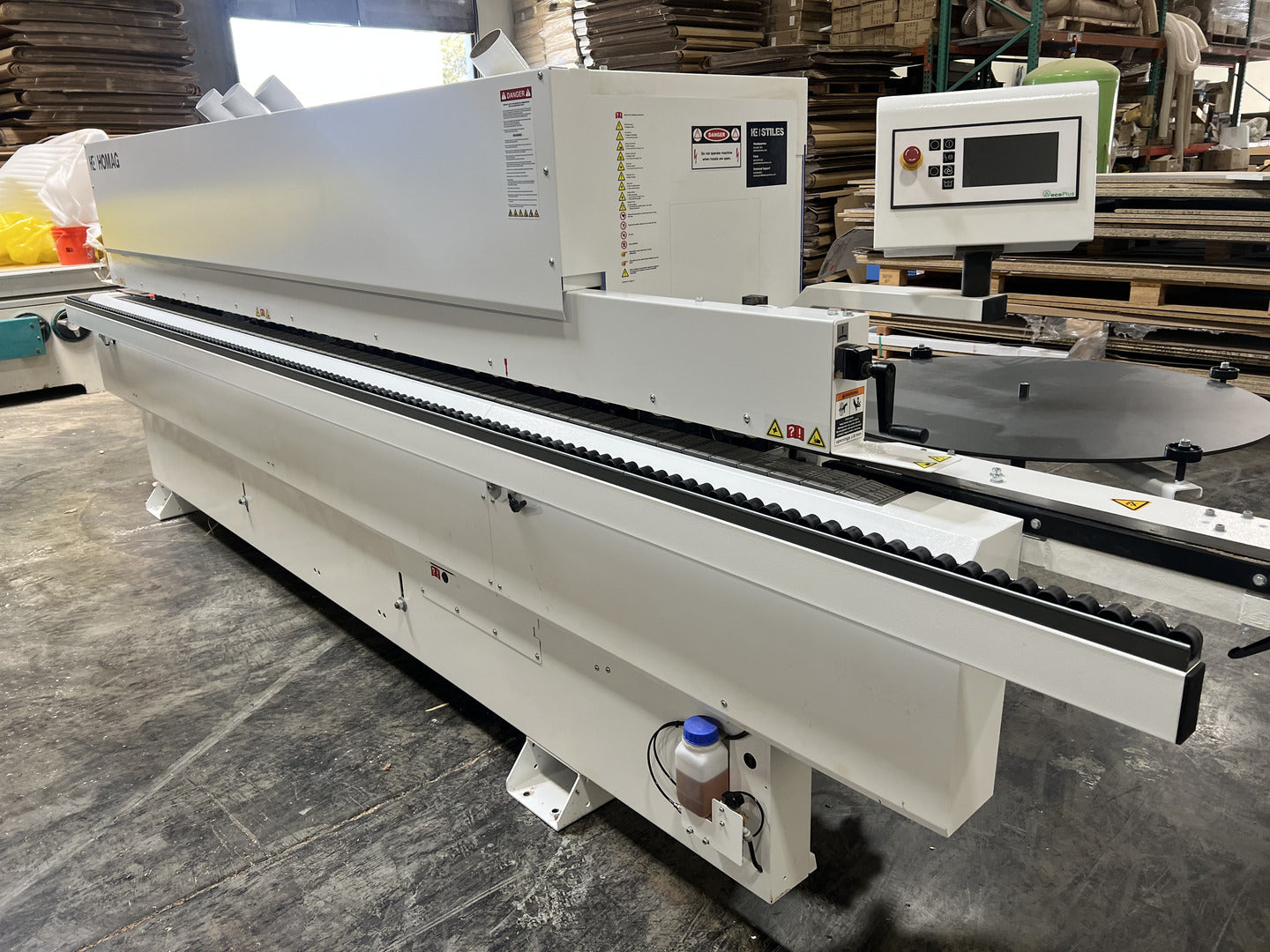

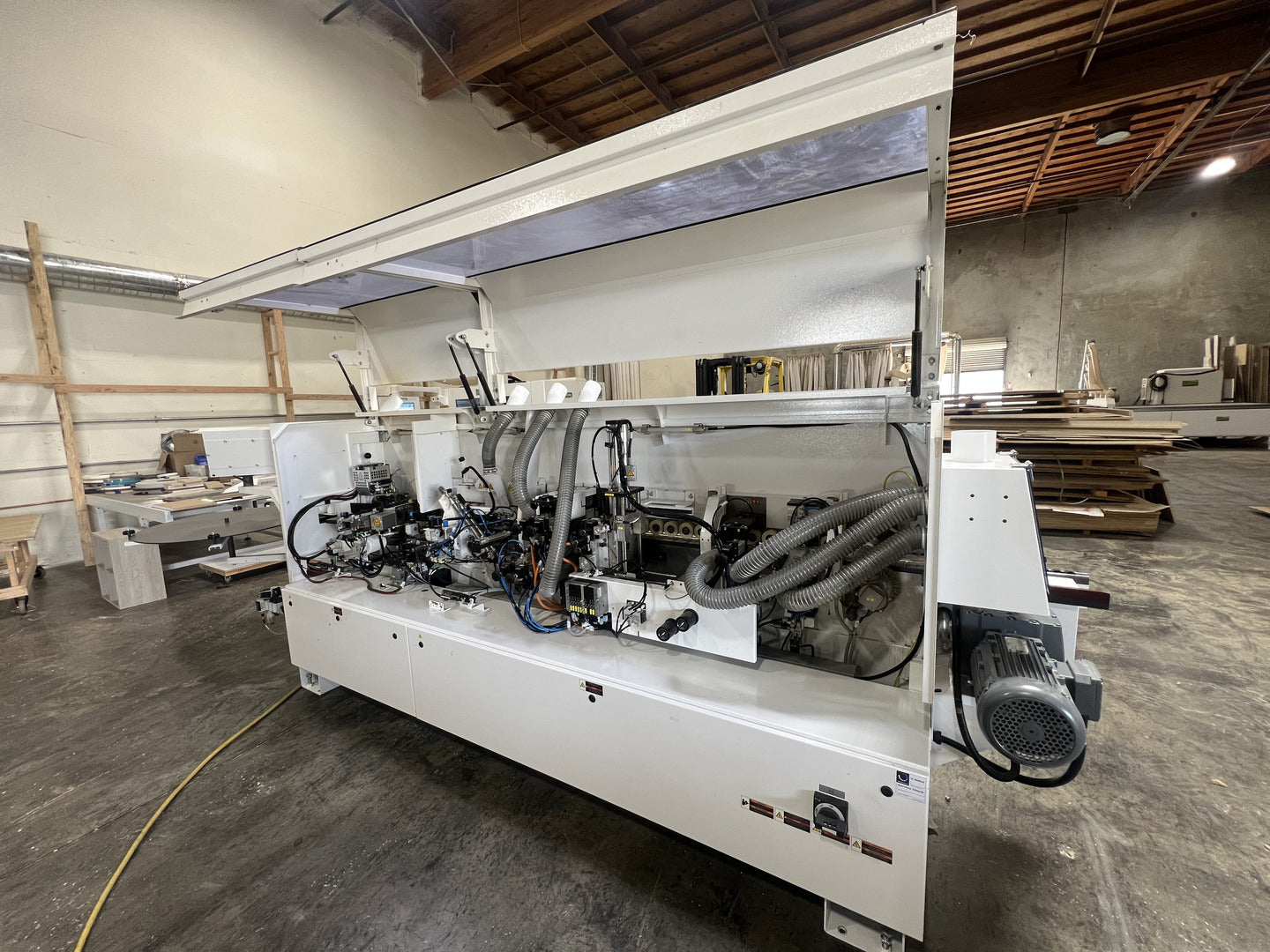

Edge Banding Machine EDGETEQ S-240 1230HF w/ one extra glue pot

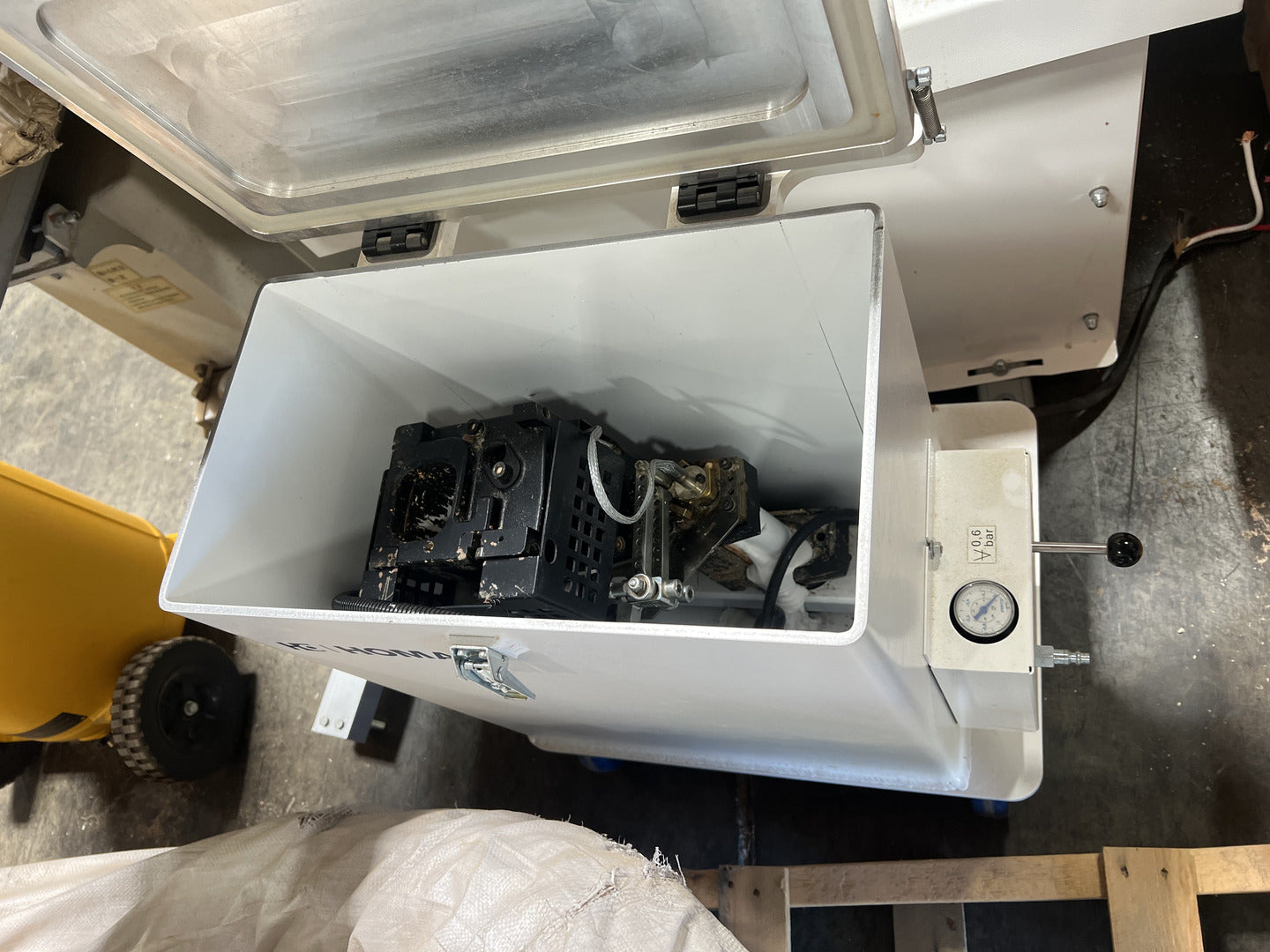

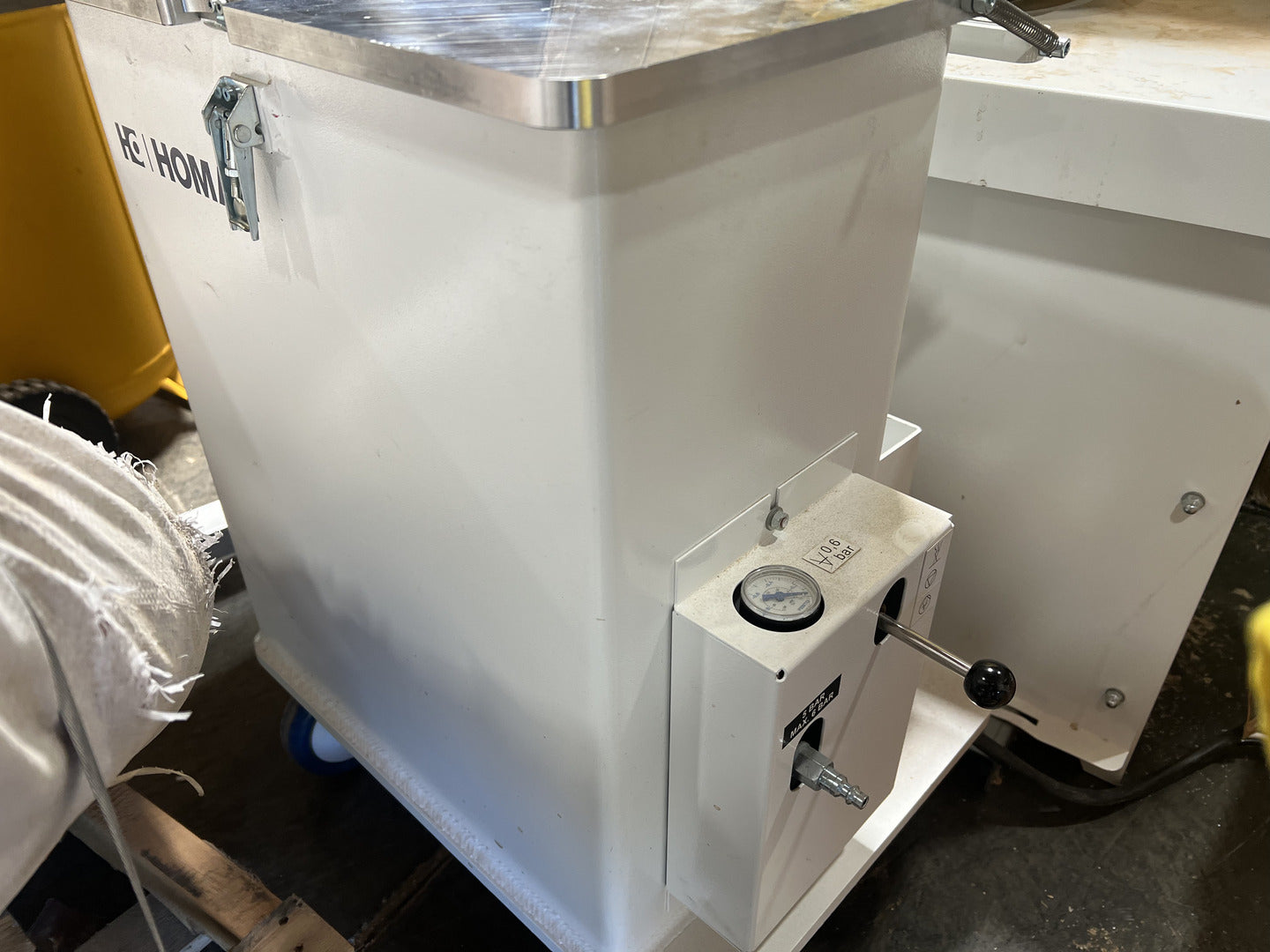

**Includes 1 extra glue bucket

Video

HOMAG EDGETEQ S-240 FC AUTO Edgebander PDF

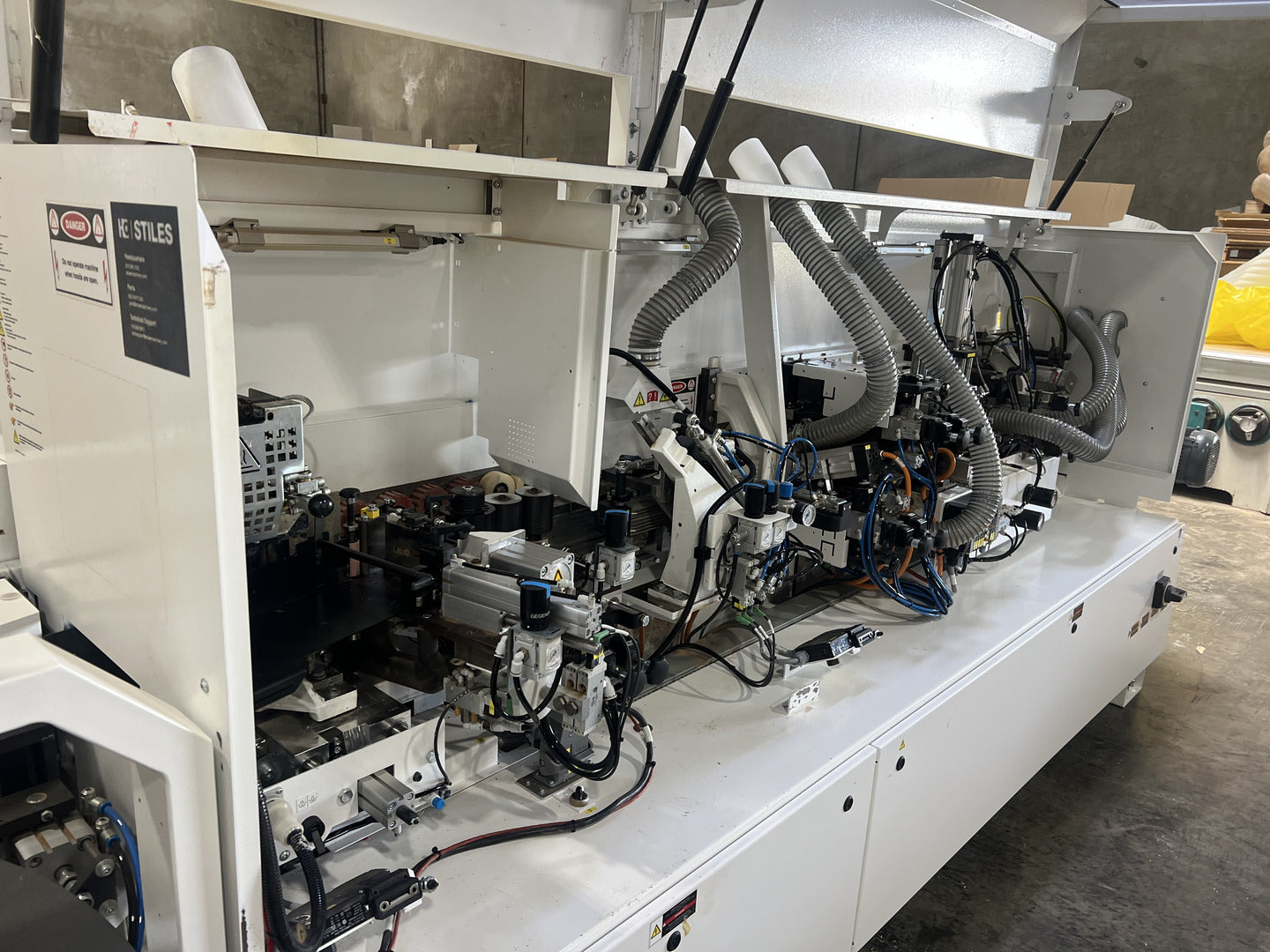

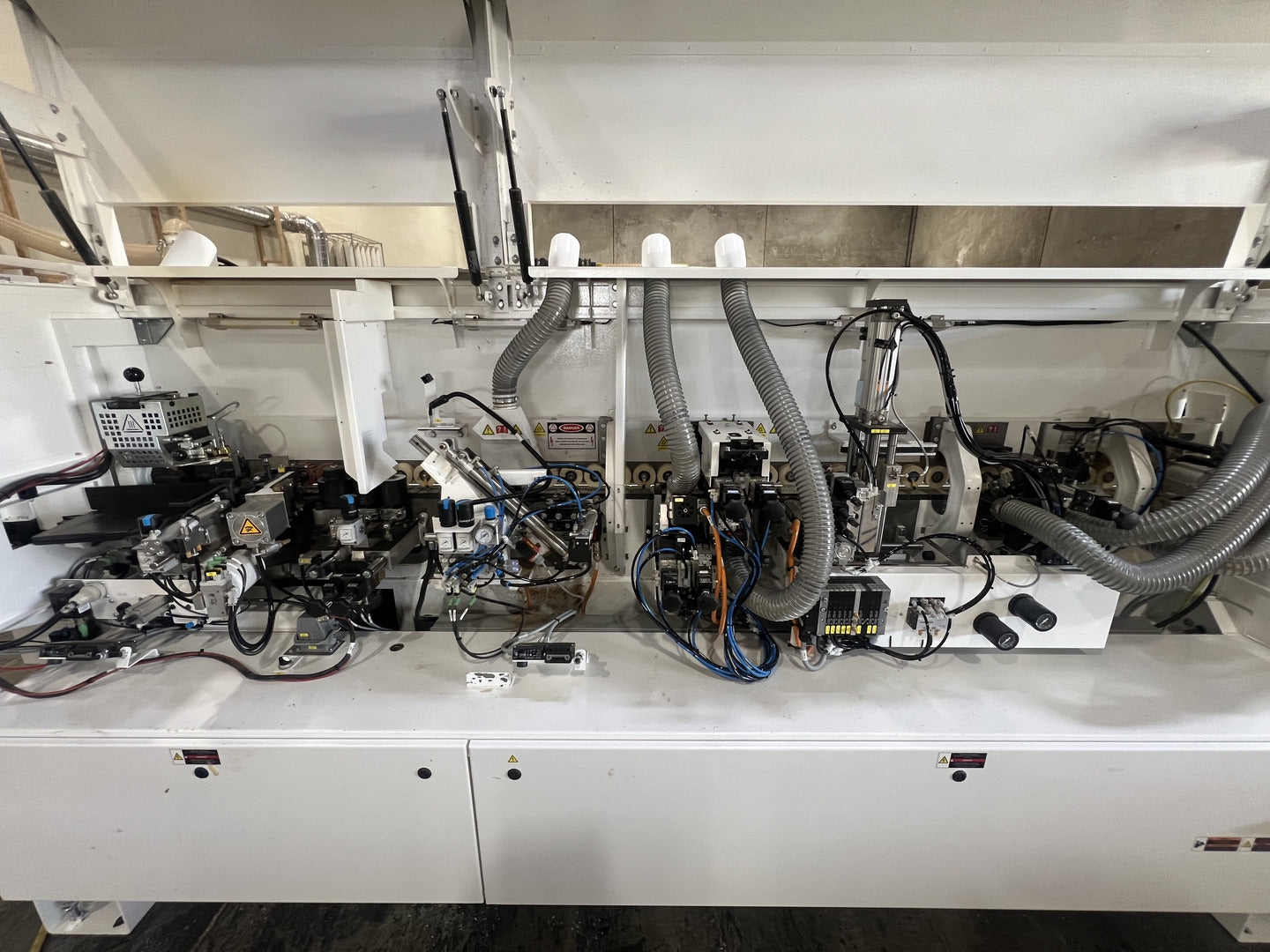

Stations:

1. Pre-Milling Unit
2. pre-trimming of the workpiece edge prior to gluing
3. two (2) motors each 12,000 rpm
4. one (1) motor clockwise rotation, one (1) motor counter-clockwise rotation
5. vertical spindle adjustment via digital settings
6. horizontal positioning via electro-pneumatic control
7. dust extraction hood included with 120 mm diameter outlet
8. diamond insert cutter heads, 100 mm diameter
9. Automatic Magazine for Strip and Coil Feeding

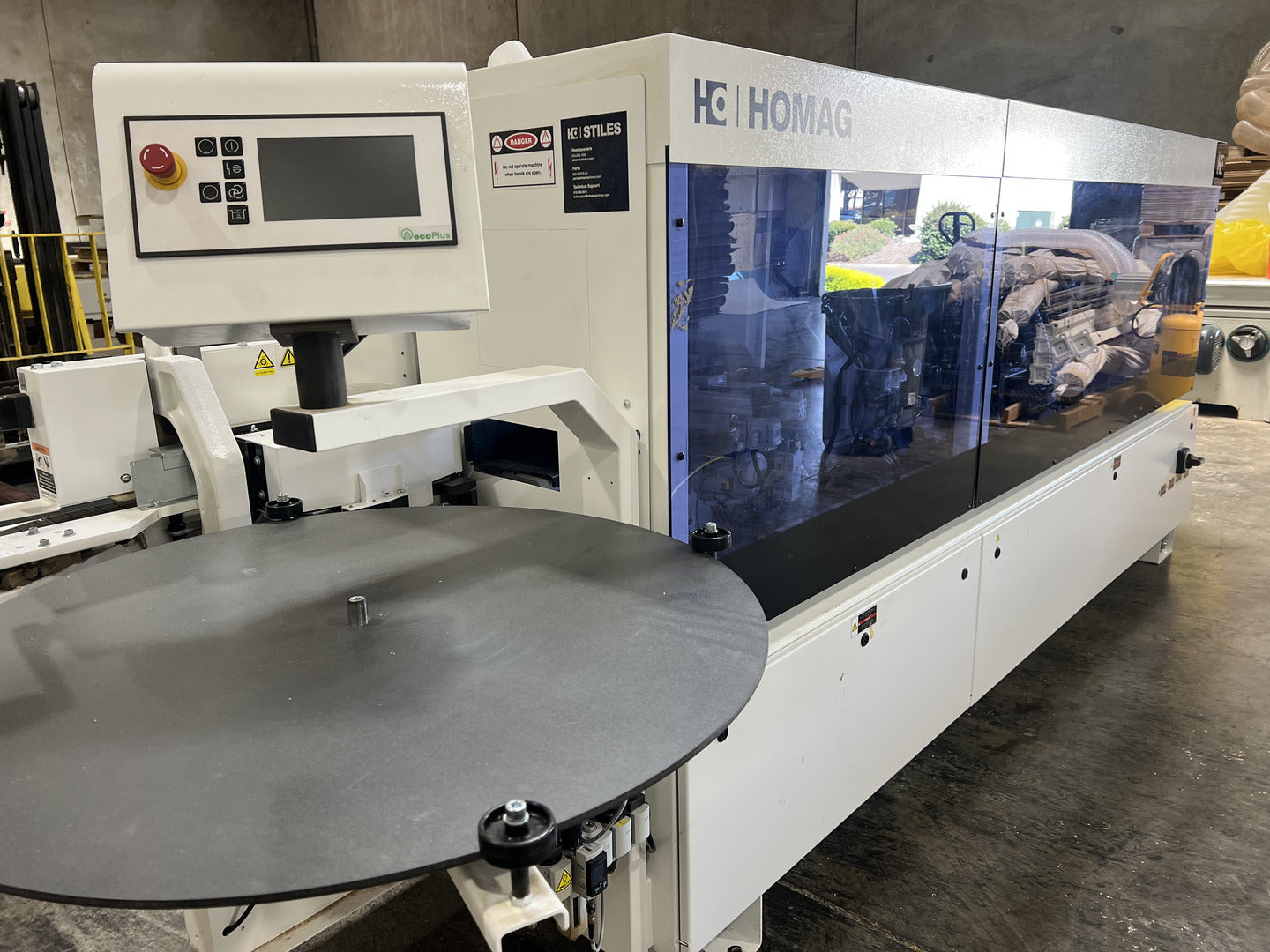

10. large coil table (800 mm diameter) with built-in rollers to allow for 3 mm PVC coils
11. edge strip capacity: 4 - 6 mm
12. direction of glue rollers reversible and glue roller section retractable
13. one (1) large driven pressure roller with pneumatic pressure control
14. two (2) secondary rollers, all with controlled side pressure
15. manual setting of pressure zone via digital mechanical counter
16. strengthened pre-cutter for cutting thick PVC edges from the coil; maximum 3 x 45 mm; precutting system equipped with air volume reservoir for on-demand activation required for short workpieces
17. Hot Melt Gluing Unit
18. quick purge feature to remove the glue and replace with different color or change to PUR glue
19. Two level system: 350 g with 8-minute heat up time, 800 g with 15 minute heat up time.
20. infrared radiant glue heat zone control for optimum gluing strength. Automatic temperature reduction if not run within 15 minutes. This feature reduces the temperature automatically by 50°C.
21. Double-Motor End Trimming Unit
22. straight/chamfer end trim unit equipped with two (2) 0.18 kW 12,000 rpm motors
23. electronic motor brakes
24. end trim unit utilizes drawing cut system for reduced blade projection when working on thick workpieces
25. tooling also included
26. program-controlled indexing from straight to bevel end trimming
27. Straight/Radius Top & Bottom Trimmers
28. equipped with two (2) 0.27 kW 12,000 rpm trimming motors
29. electronic motor brakes
30. program-controlled positioning when processing thin edge, thick PVC and solid wood edges; positioning done pneumatically via the EasyTouch controller
31. horizontal and vertical tracing with lateral location indexing via digital "Quickset" system
32. each trimming motor is equipped with one dust hood and dust extraction hose
33. equipped with two (2) DFC combination straight / radius cutter heads, including four (4) carbide knife inserts with flush trimming possible up to 6 mm edge thickness
34. nested top copy system
35. Single-Motor Corner Rounding Unit
36. corner rounding of thick PVC edging material
37. includes diamond tooling
38. Quick Change Profile Scraping Unit
39. scraping of roughly trimmed thick PVC edges in order to remove the cutter marks
40. vertical and horizontal tracing wheels
41. radius knives included (quickly changeable to different radii)
42. program-controlled indexing
43. one (1) set of tooling standard
44. one (1) set of tooling with nested top and bottom copy system
45. Edging Scraper
46. Quick Change
47. Glue Scraper
48. flat knives remove any unwanted material from the trimmed / scraped edge
49. Buffing Unit
50. two (2) 2,800 rpm buffing motors (one top, one bottom) for polishing of longitudinal edges
51. inclinable vertically and horizontally
52. two (2) buffing wheels included

Features:

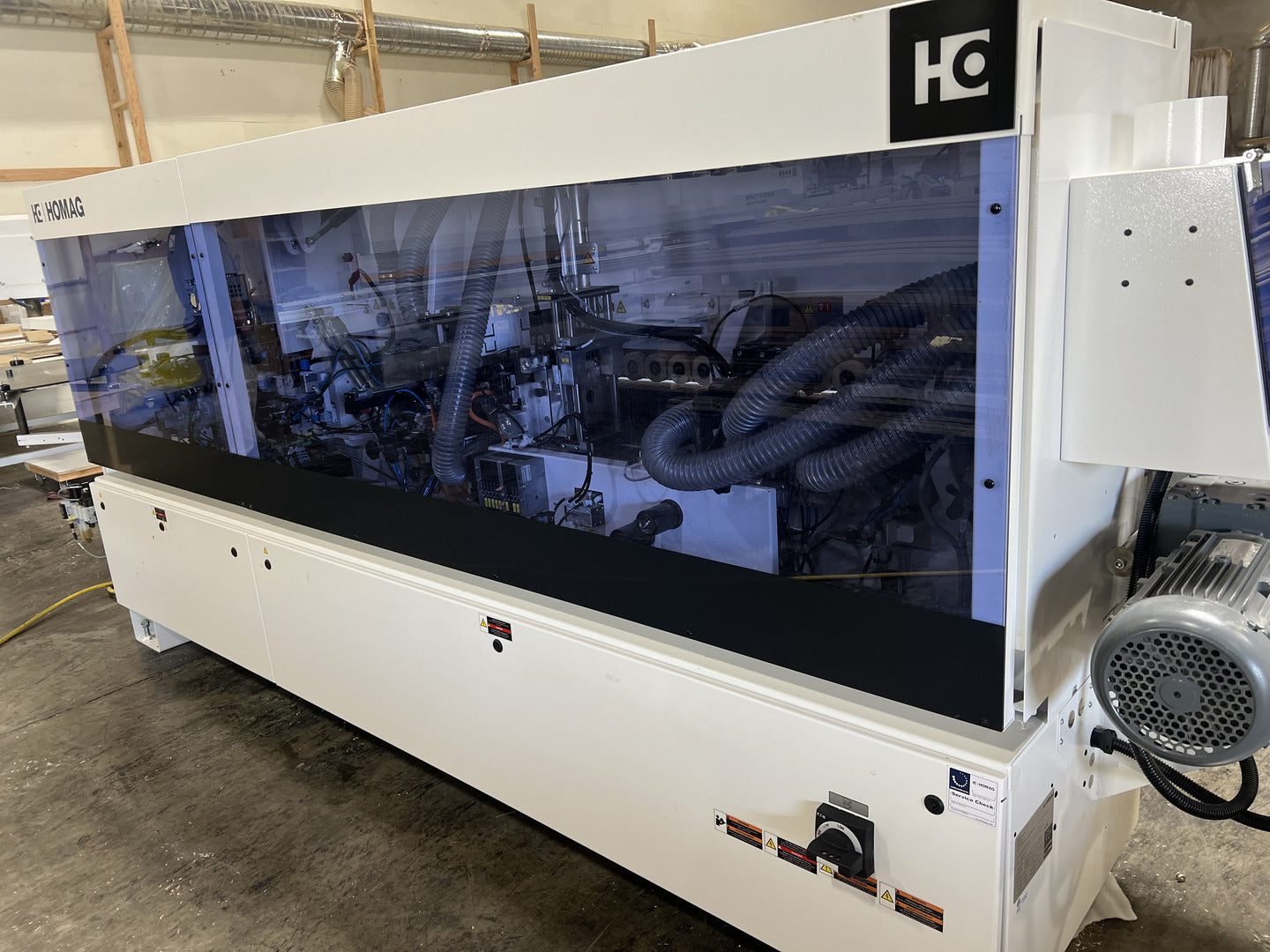

1. Sound Cover

Machine length: 4740 mm // 186.6 in.

Feed speed: 11 m/min // 36 ft./min

Workpiece width (in case of thickness 8 - 22 mm): 70 mm // 2.8 in.

Workpiece thickness: 8 - 60 mm // 0.3 - 2.4 in.

Edge thickness coils: 0.3 - 3 mm // 0.012 - 0.12 in.

Edge thickness strips / solid strips: 0.4 - 6 mm // 0.016 - 0.24 in.

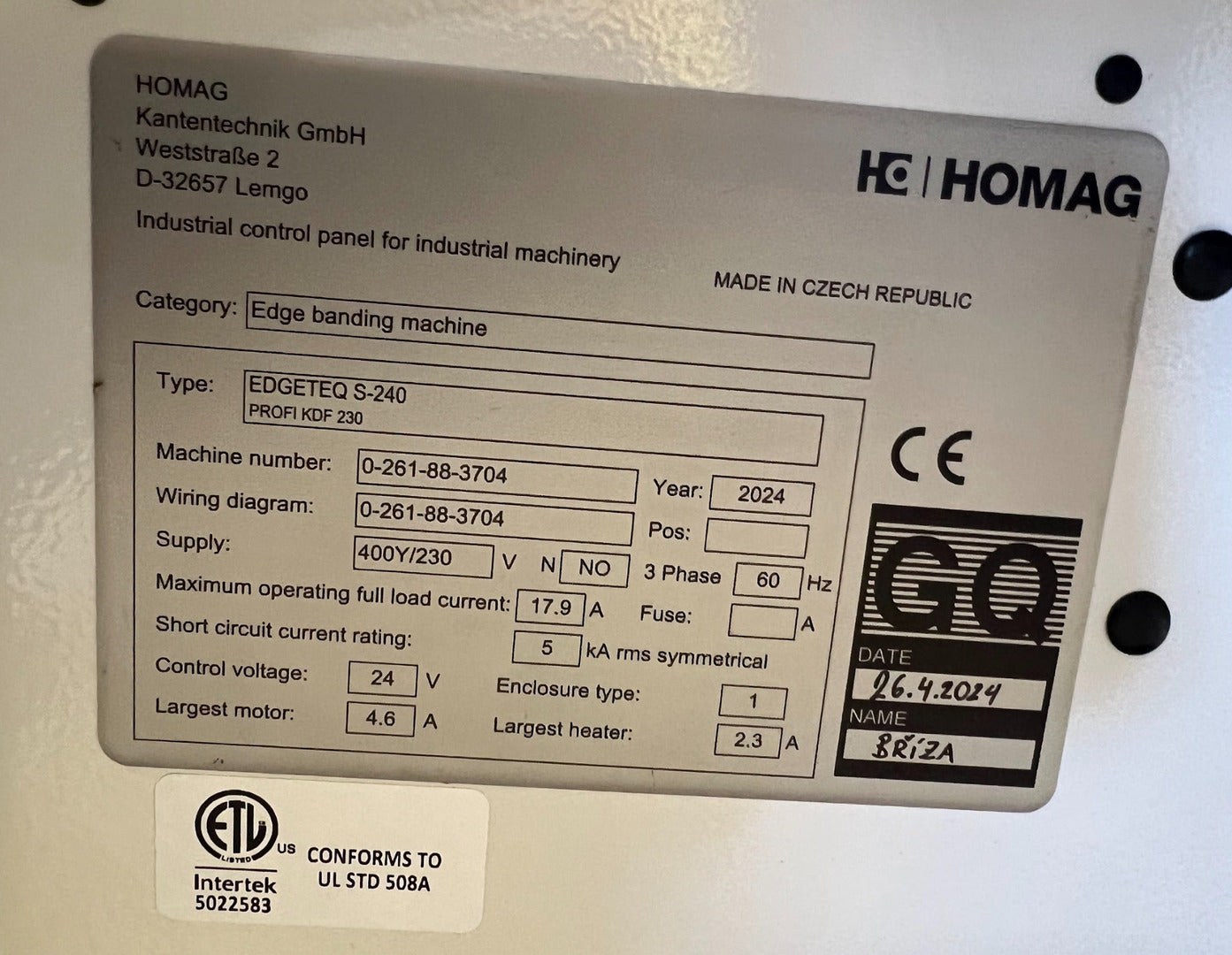

Voltage: 400Y / 230 volts

Phase: 3

Frequency: 60 Hz

Full load current: 17.9 amps

Short circuit current rating: 5 kA rms symmetrical

Control voltage: 24 volts

Largest motor: 4.6 amps

Enclosure type: 1

Largest heater: 2.3 amps
