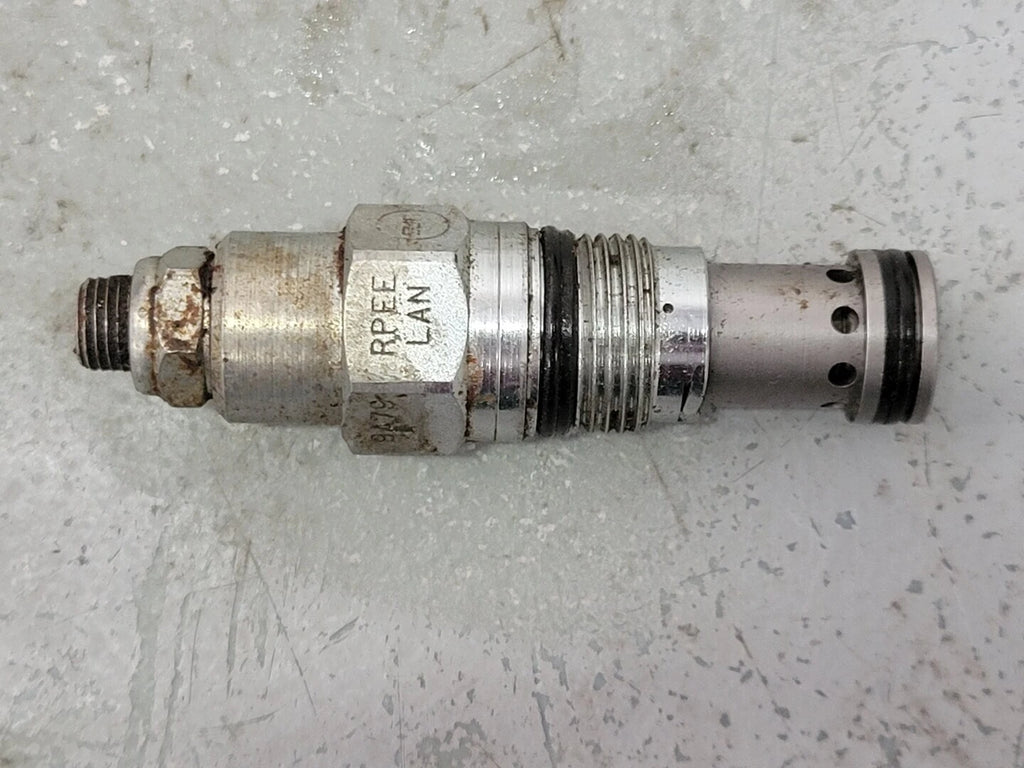

Fast-acting Pilot-Operated Balanced Piston Relief Valve RPEE-LAN 25 GPM

SKU: 31000
Price:
$23

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

Specifications
Model RPEE-LAN
Condition Used
General
Max. Pressure 5000 psi
Other Specifications
Cavity: T-10A
Flow Capacity: 25 GPM
Max Operating Pressure: 5000 psi
Factory Pressure Settings Established at: 4 gpm
Max Valve Leakage at 110 SUS (24 cSt): 2 in³/min.@1000 psi
Response Time - Typical: 2 ms
Adjustment - No. of CW Turns from Min. to Max. setting: 5
Valve Hex Size: 7/8 in.
Valve Installation Torque: 30 - 35 lbf ft
Adjustment Screw Internal Hex Size: 5/32 in.
Locknut Hex Size: 9/16 in.
Locknut Torque: 80 - 90 lbf in.
Seal: Buna-N
