Description
| Specifications | |
|---|---|

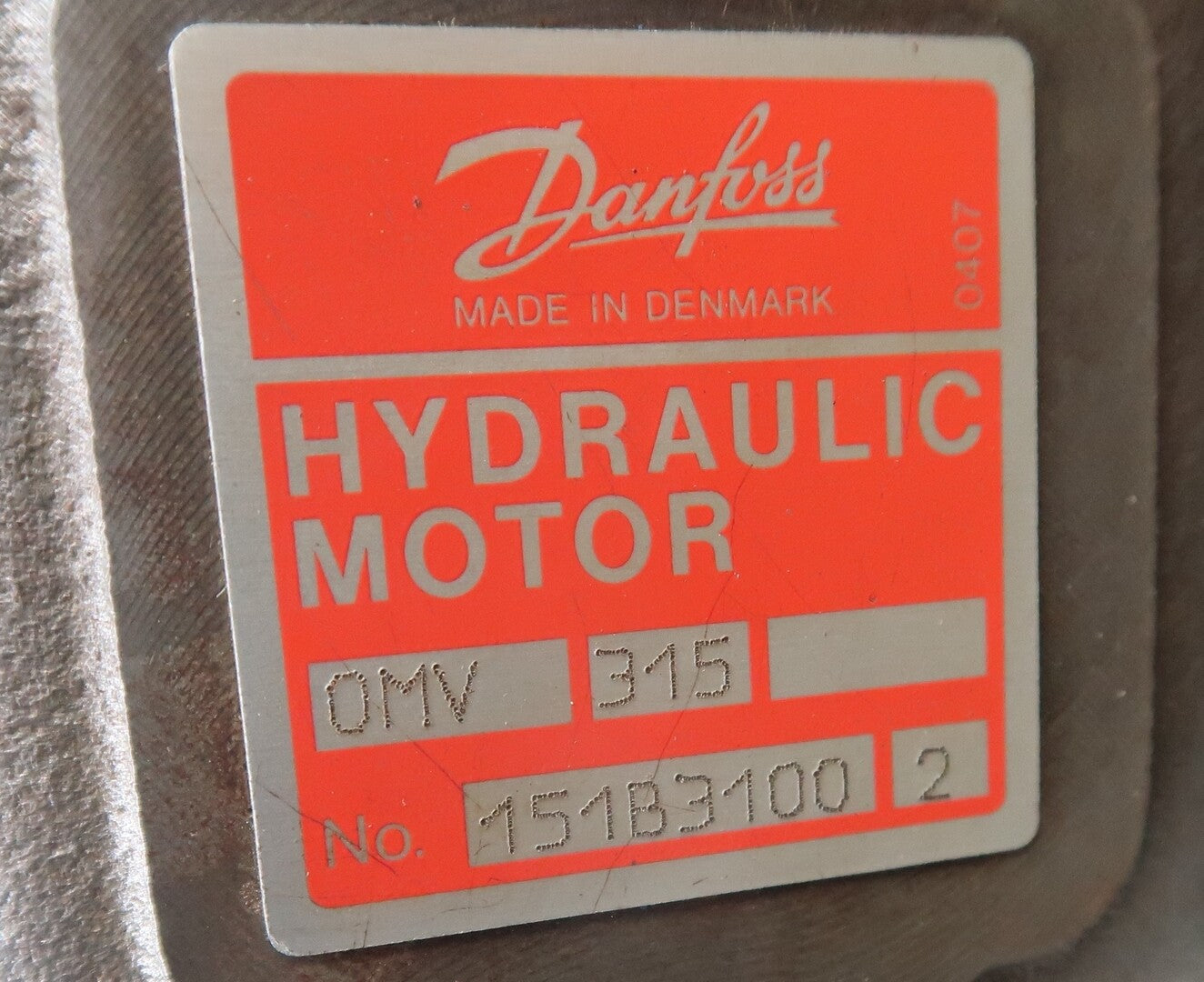

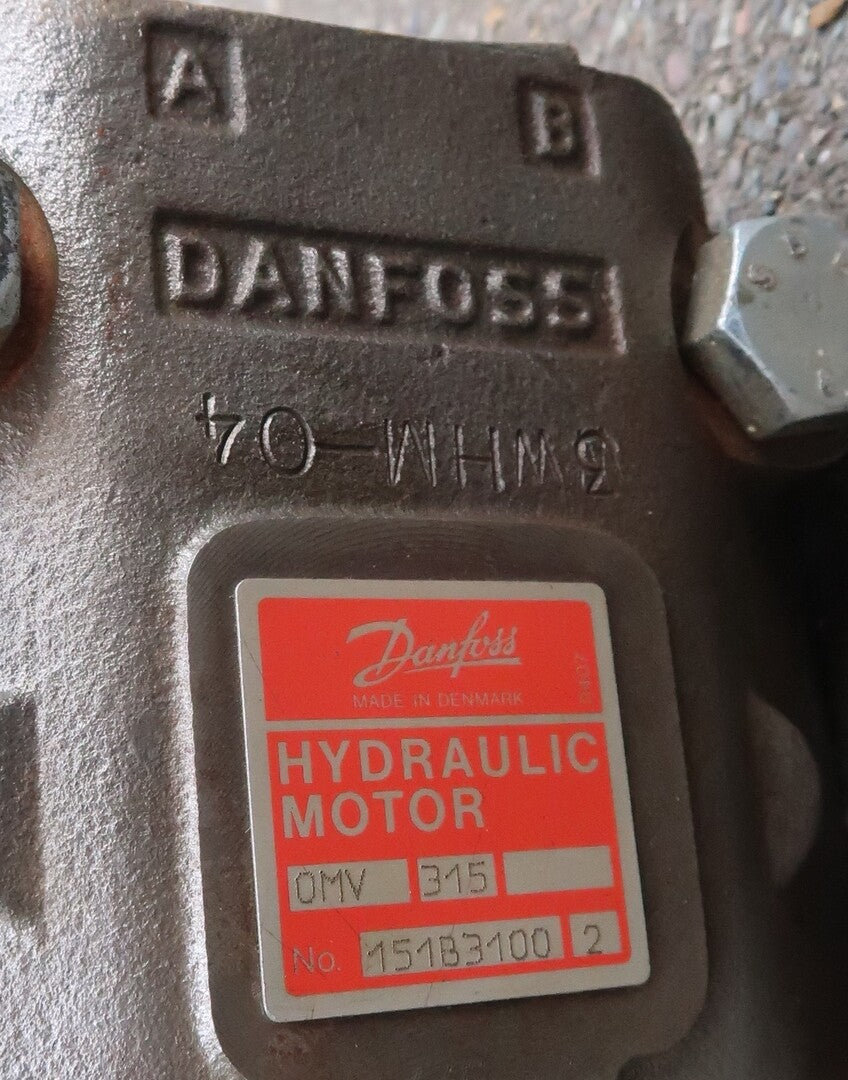

| Model | OMV315-151B3100 |
| Condition | Used |
| Other Specifications |
|---|
|
Motor Series: OMV Valve System: Disc valve with valve drive Orbital Gearwheel Set Type: Geroler Motor Size: 315 Geometric Displacement: 314.5 cm3/r Motor Type: Standard Motor Function: Standard Mounting Flange Type: 4 Bolt-Square Shaft Type: Straight Shaft Dimension: Dia. 50 mm, M12 x 1.75-6H thread in shaft end Shaft Key: Rectangular key, A14 x 9 x 70 mm, DIN 6885 Main Port Thread Type: BSP Main Port Style: Sideport - Staggered Main Port Dimension: G1,4 x M12 black mounting threads Drain Port Dimension: G1/4 Shaft Seal: NBR-Standard Front Bearing Type: Tapered roller bearing Rear Bearing Type: Tapered roller bearing |
