Description

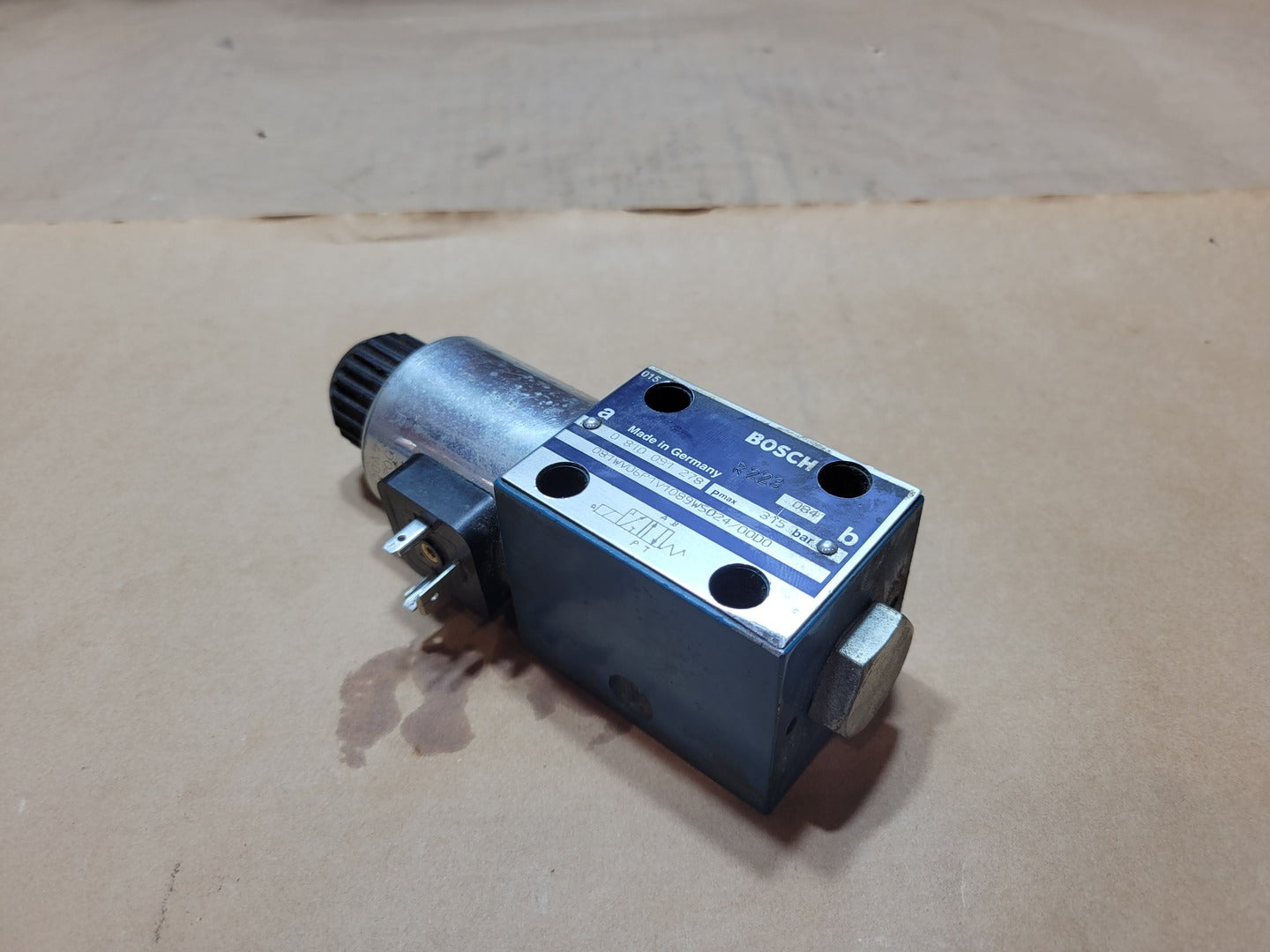

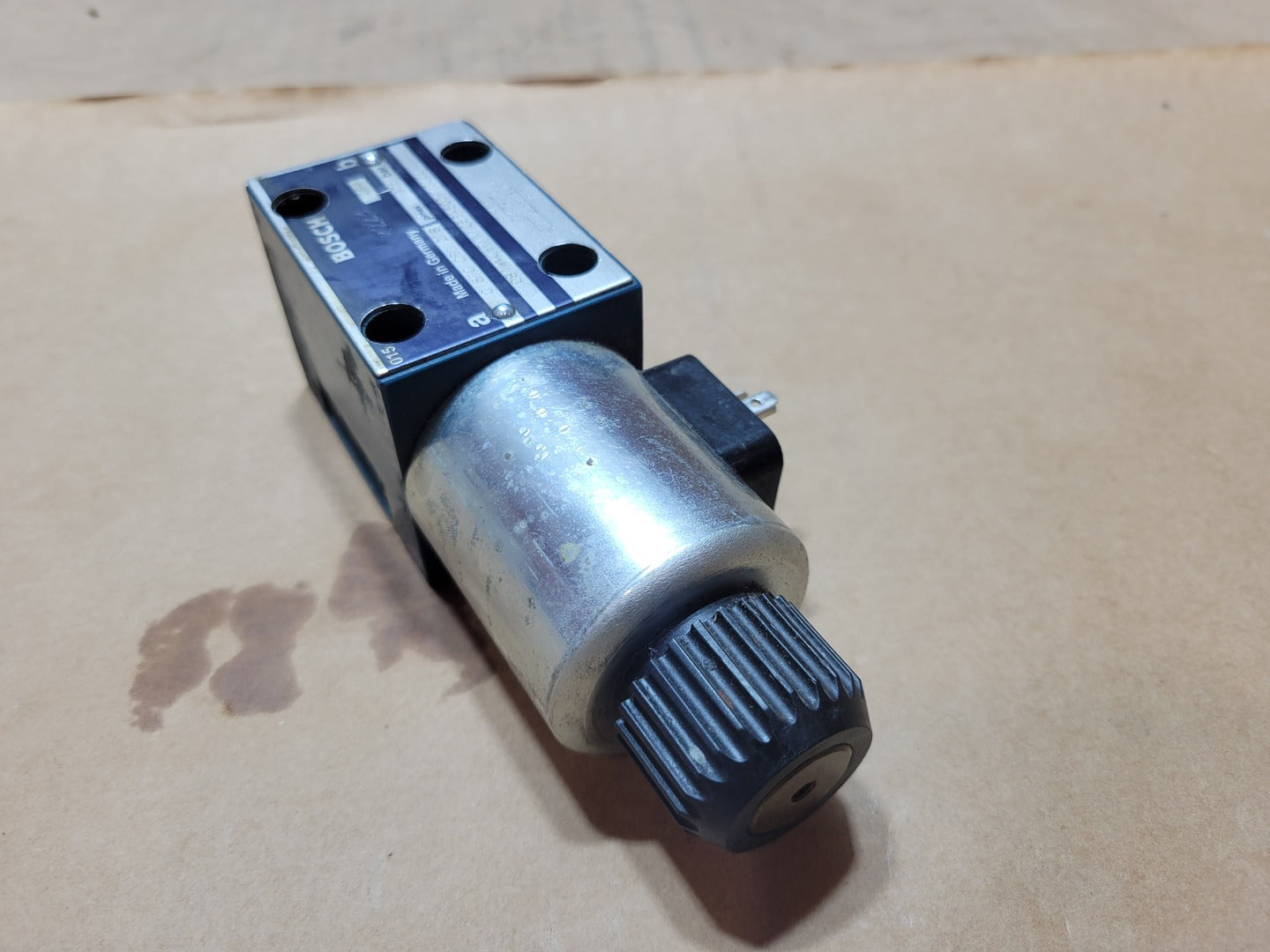

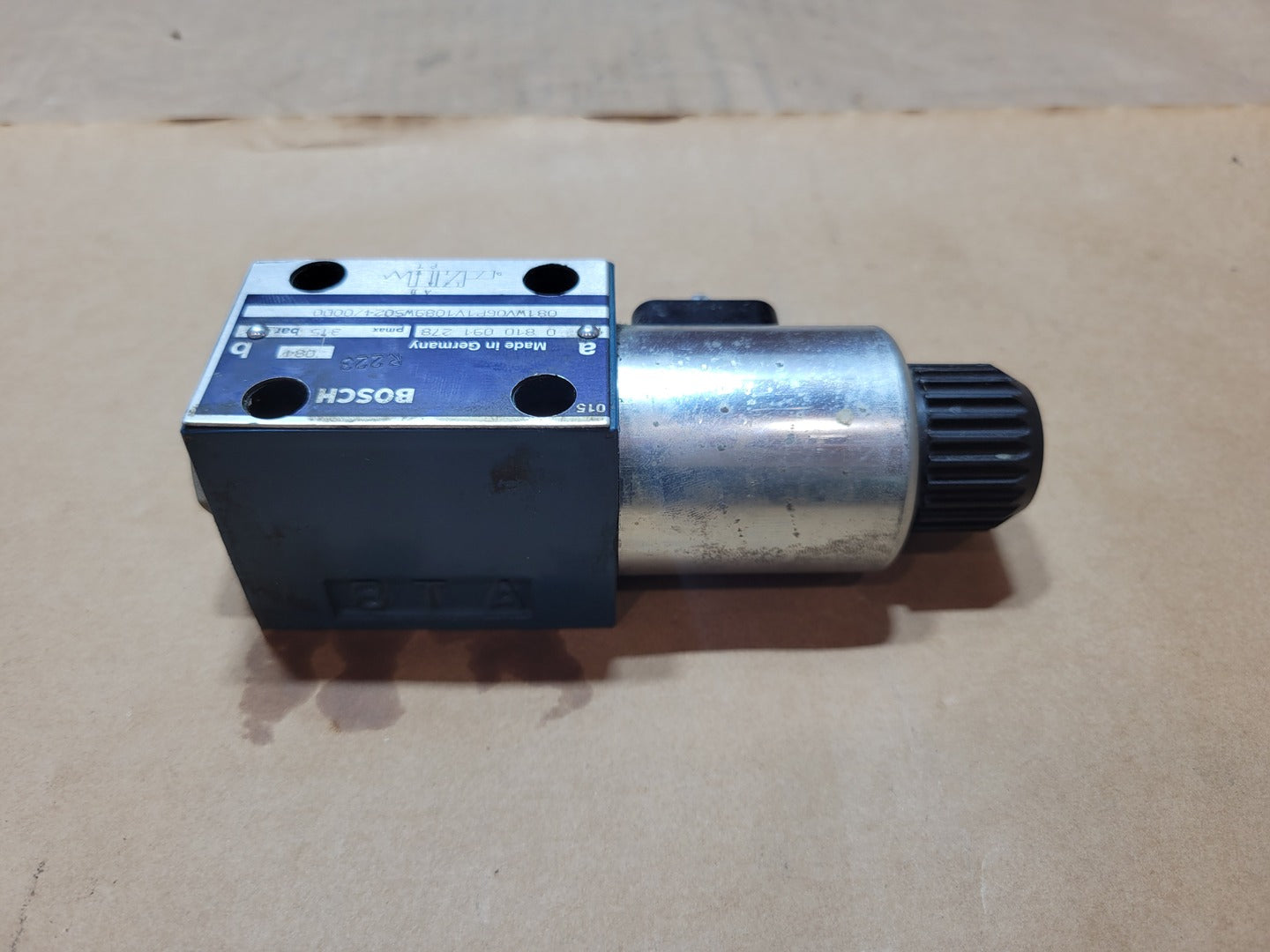

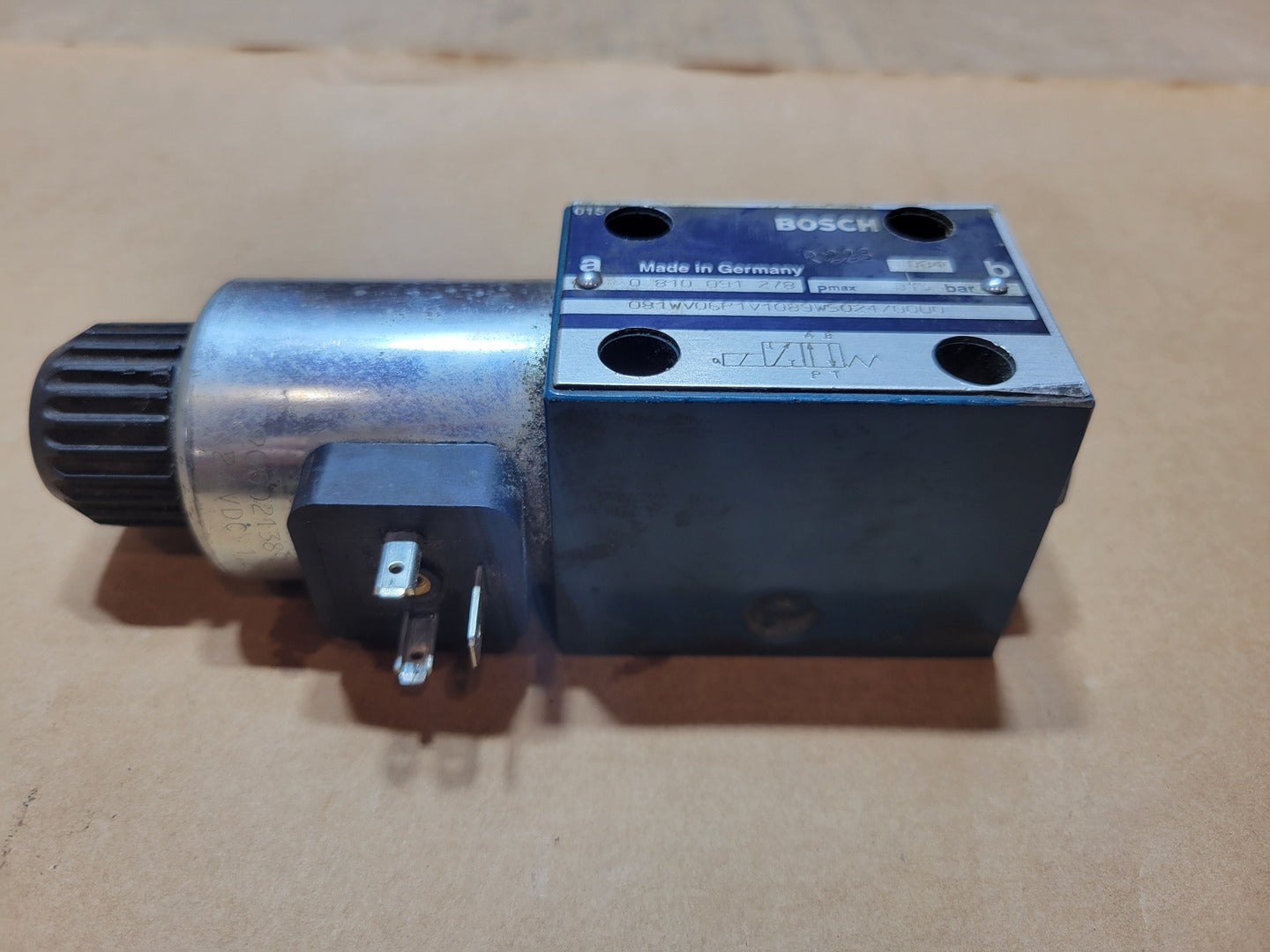

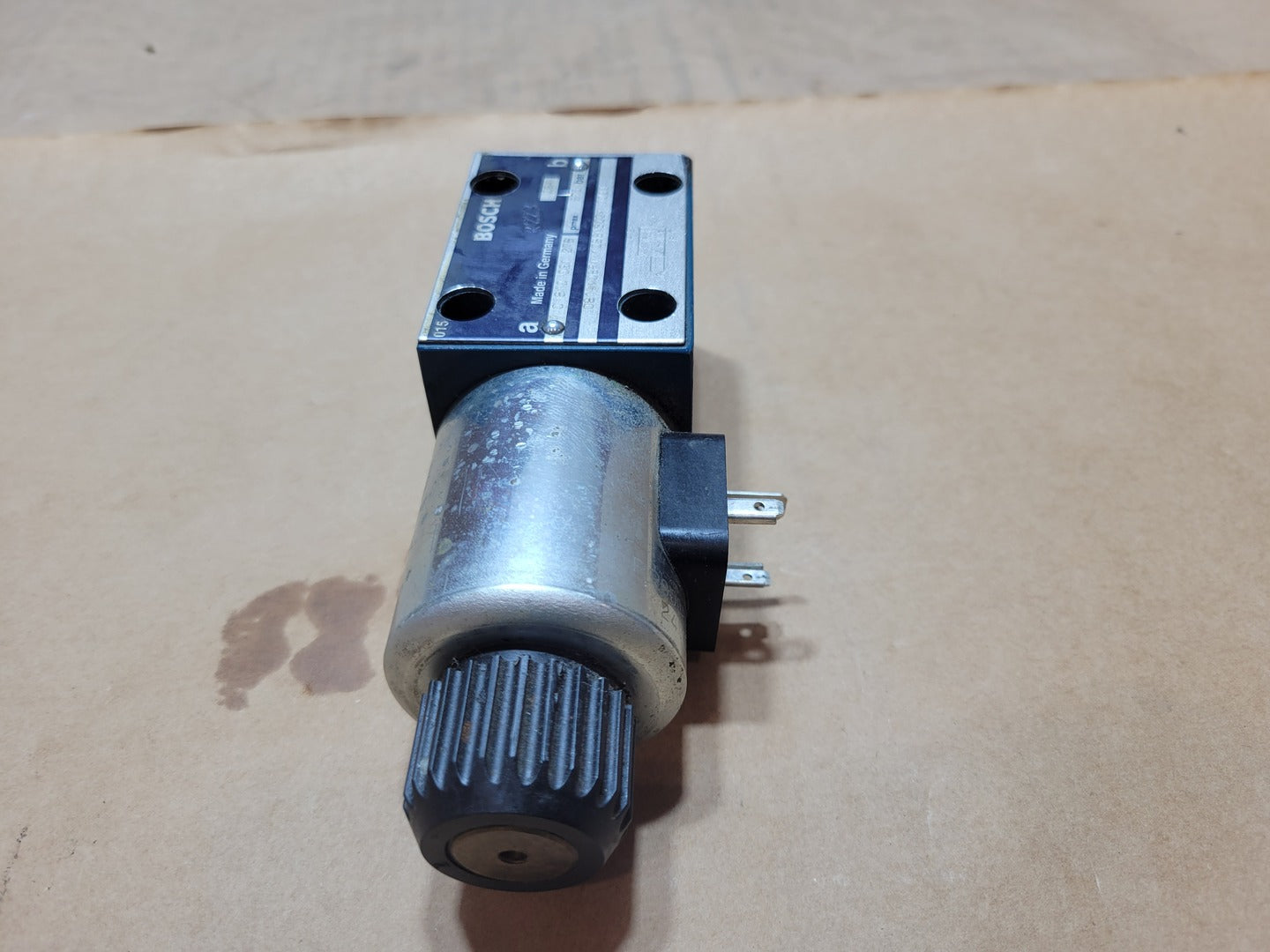

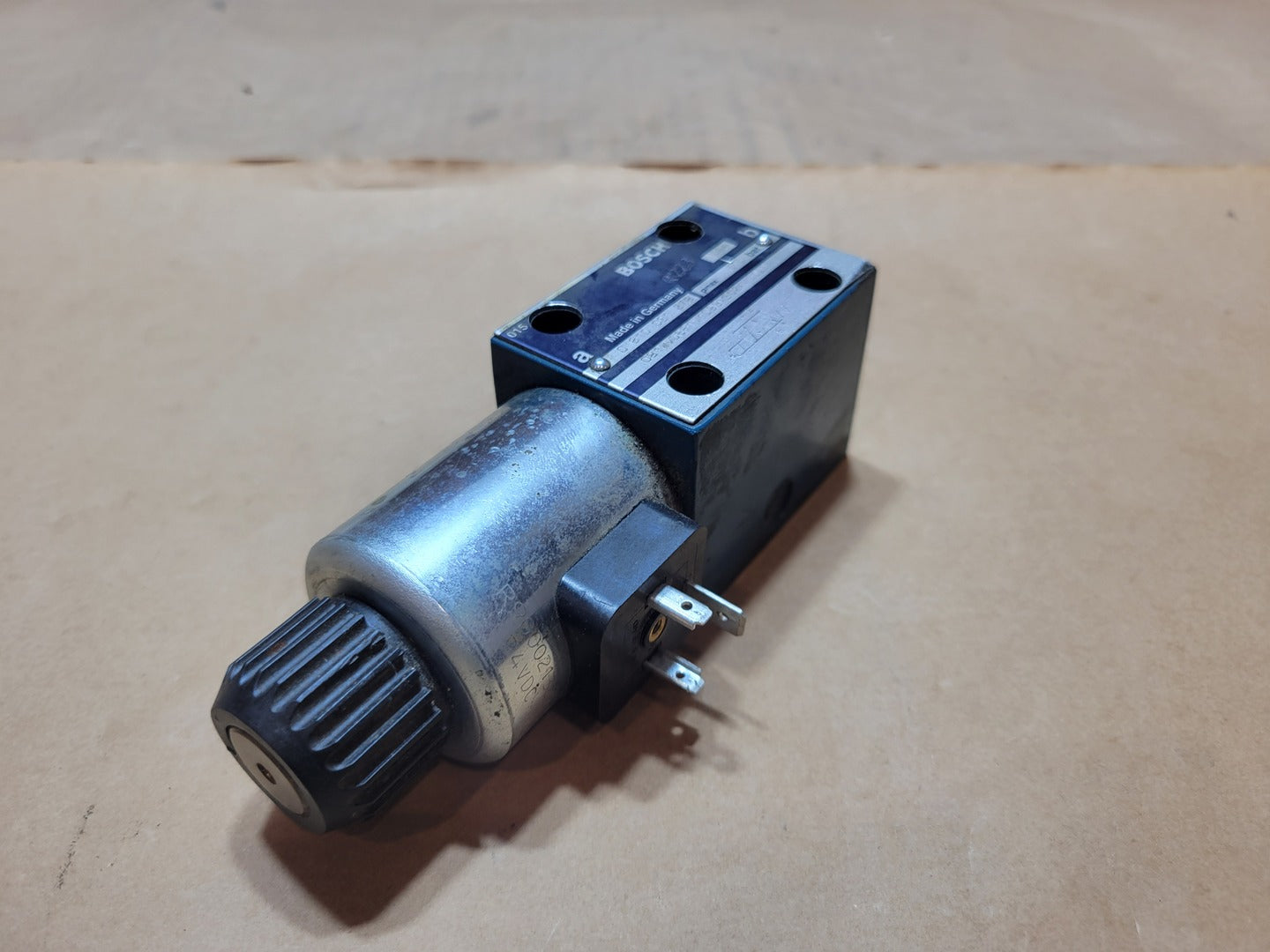

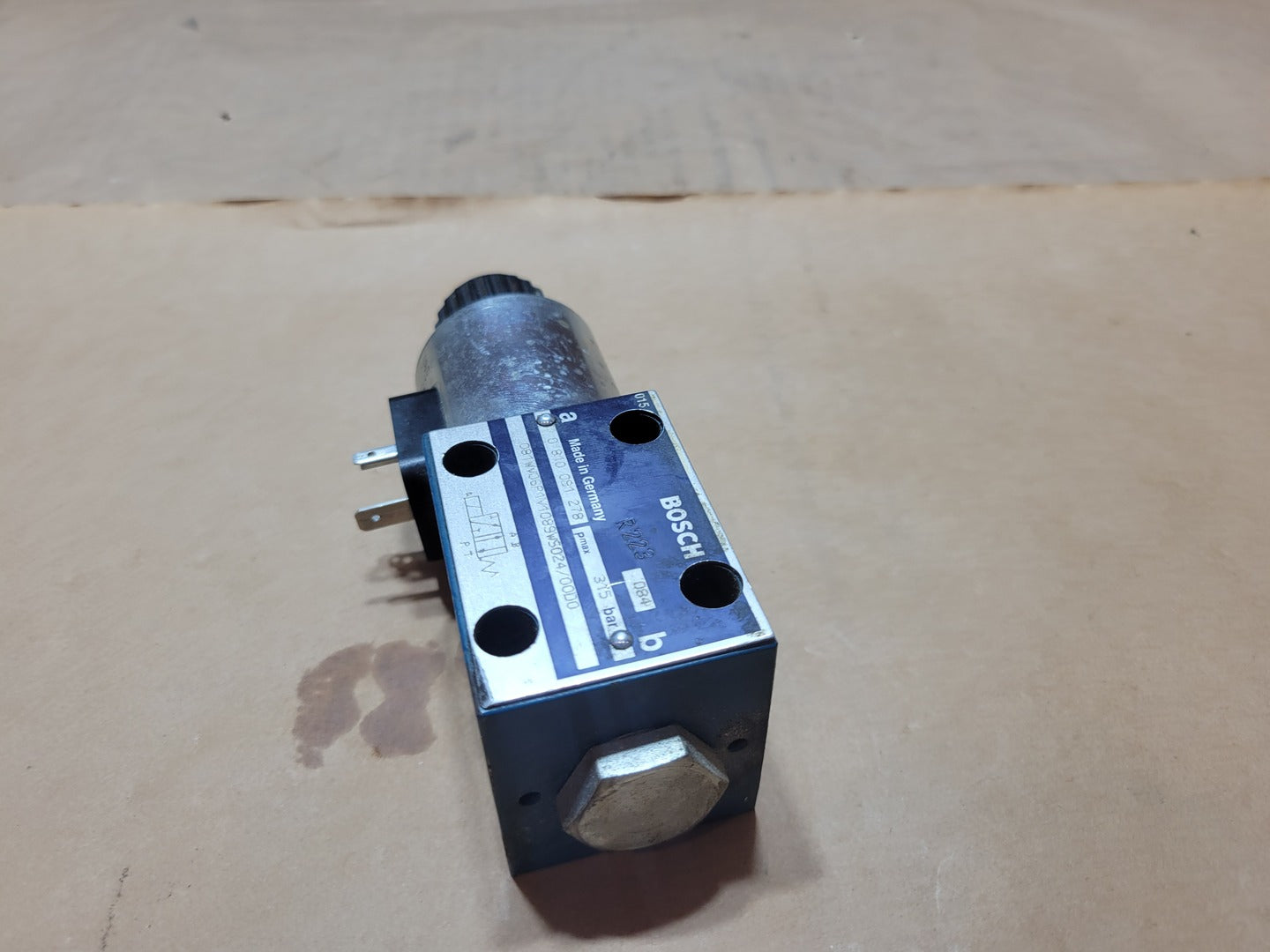

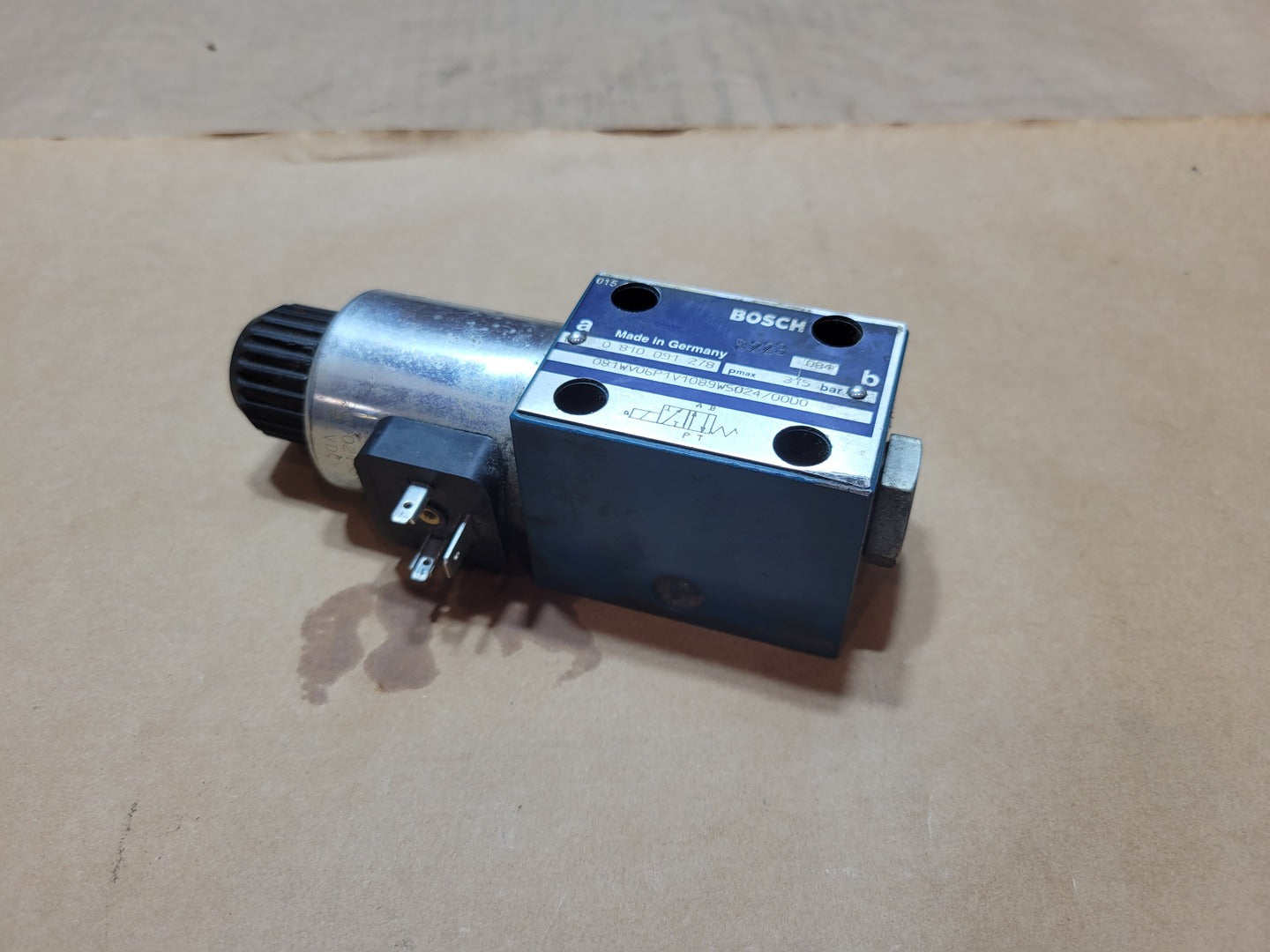

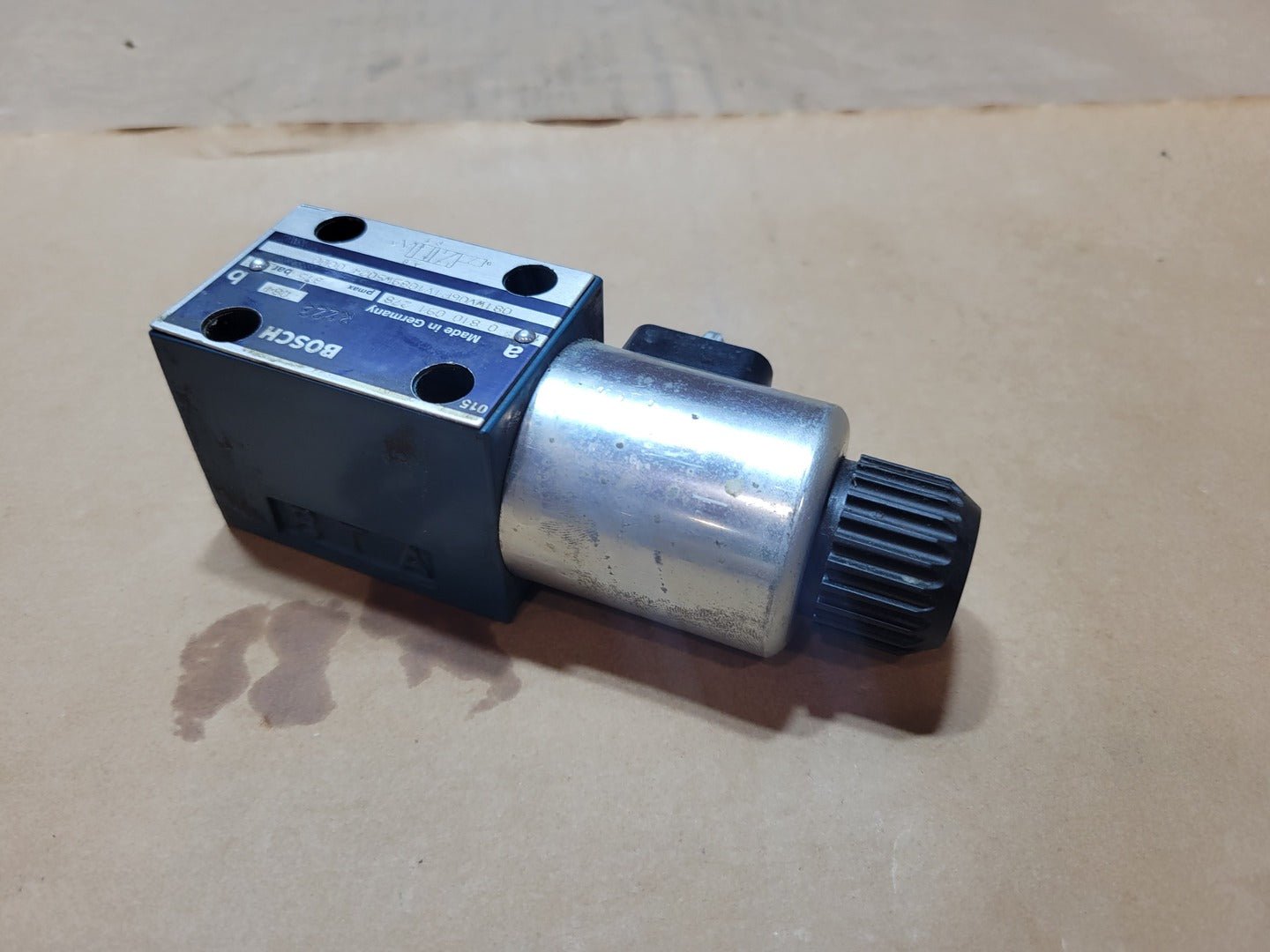

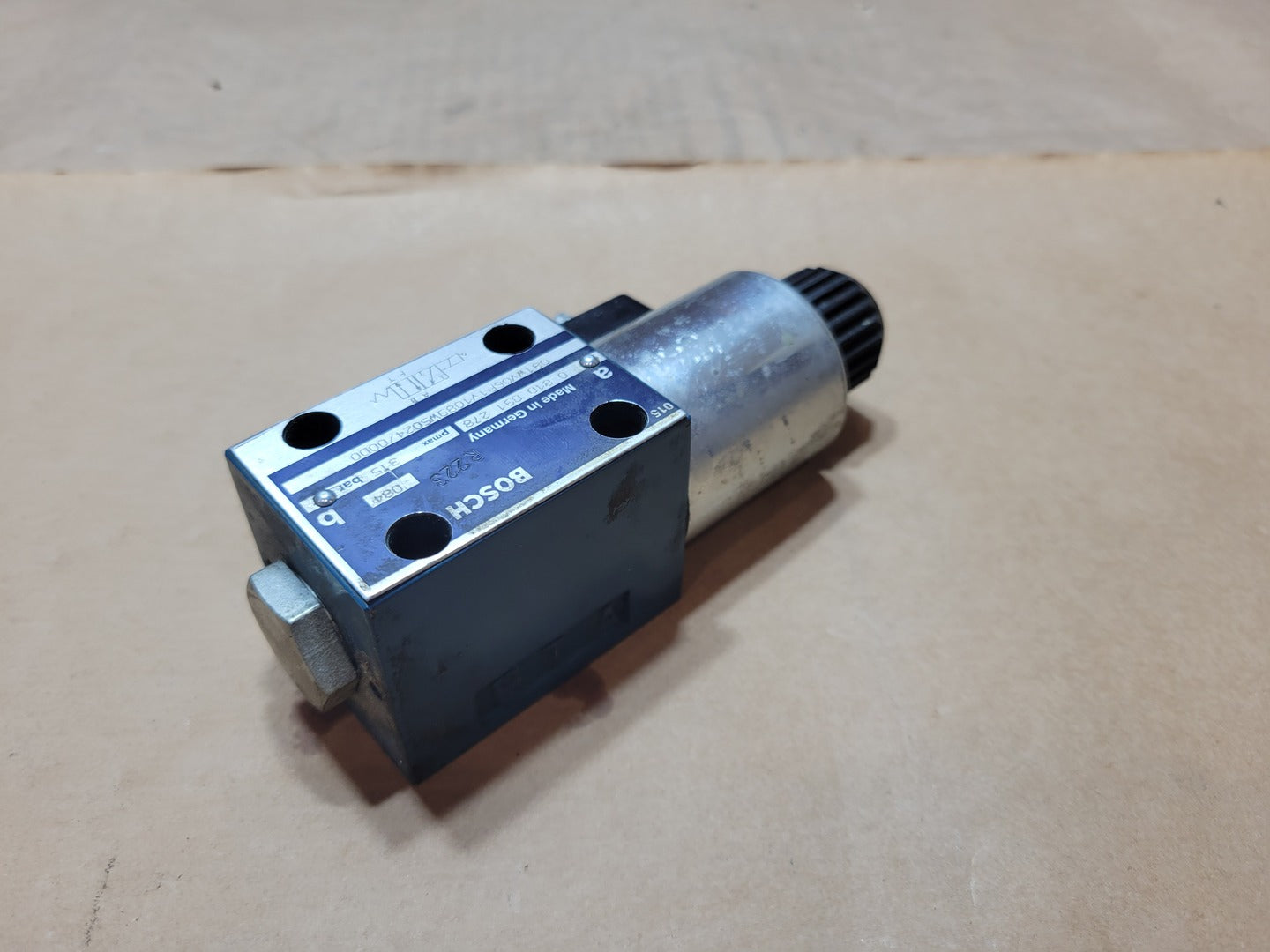

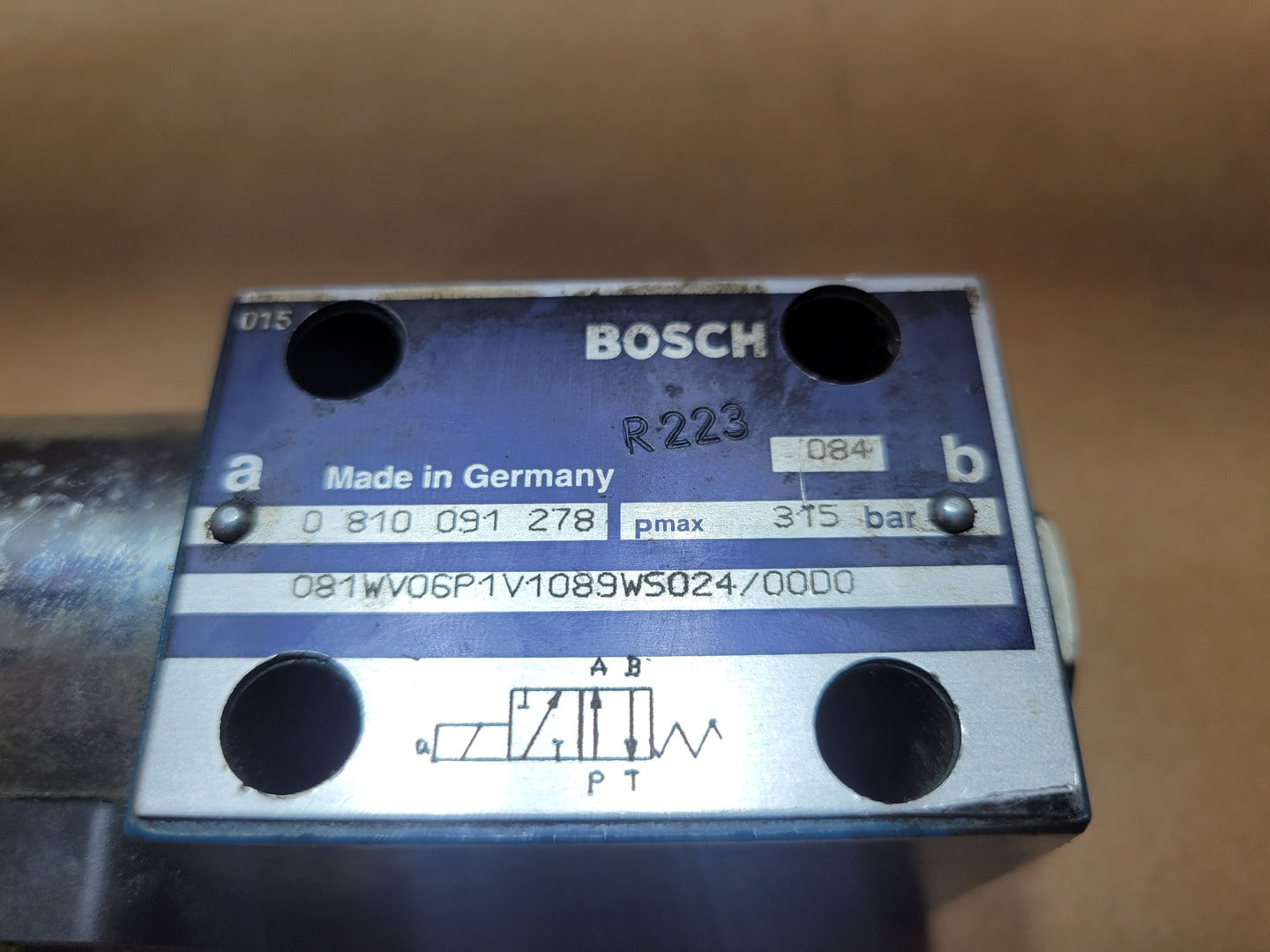

Bosch solenoid-operated hydraulic directional control valve, part number 0 810 091 278 and type code 081WV06P1V1089WS024/00D0. The nameplate identifies a maximum working pressure of 315 bar. Its hydraulic symbol indicates a four-port, two-position spool arrangement with single-solenoid actuation and spring return.
| Specifications | |
|---|---|
| Model | 0-810-091-278 |
| Condition | Used |
| Other Specifications |
|---|
|

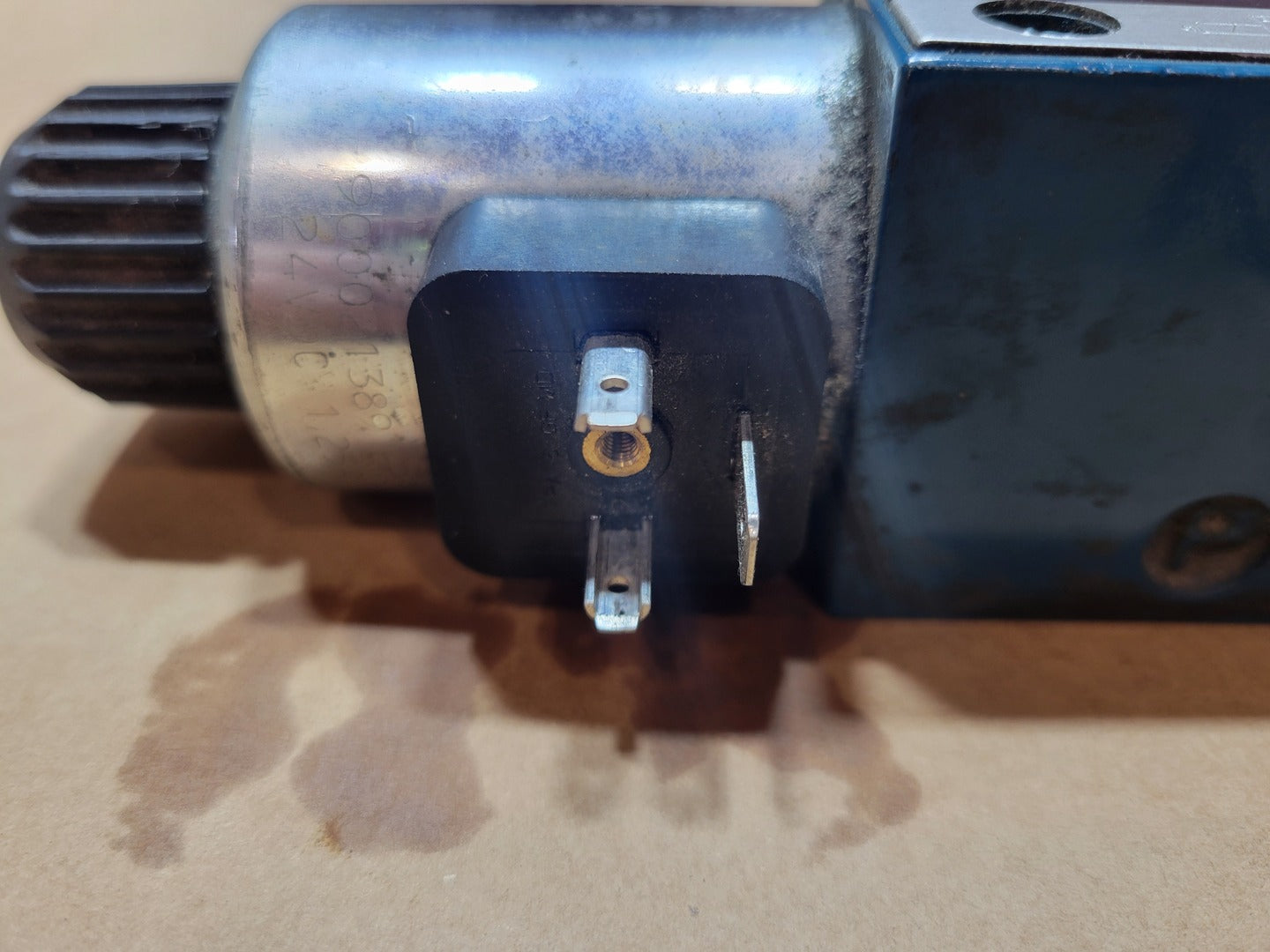

Part Number: 0 810 091 278 Type Code: 081WV06P1V1089WS024/00D0 Valve Type: Hydraulic directional spool valve Operation: Electrically actuated solenoid Return Method: Spring return Positions: 2 Hydraulic Ports: 4 - P, T, A and B Nominal Size: NG6 / size 6, Maximum Working Pressure: 315 bar / approximately 4,568 psi Nominal Coil Voltage: 24 VDC Mounting Style: Subplate/manifold-mounted Electrical Connection: Three-pin DIN-style coil terminals |
