Description

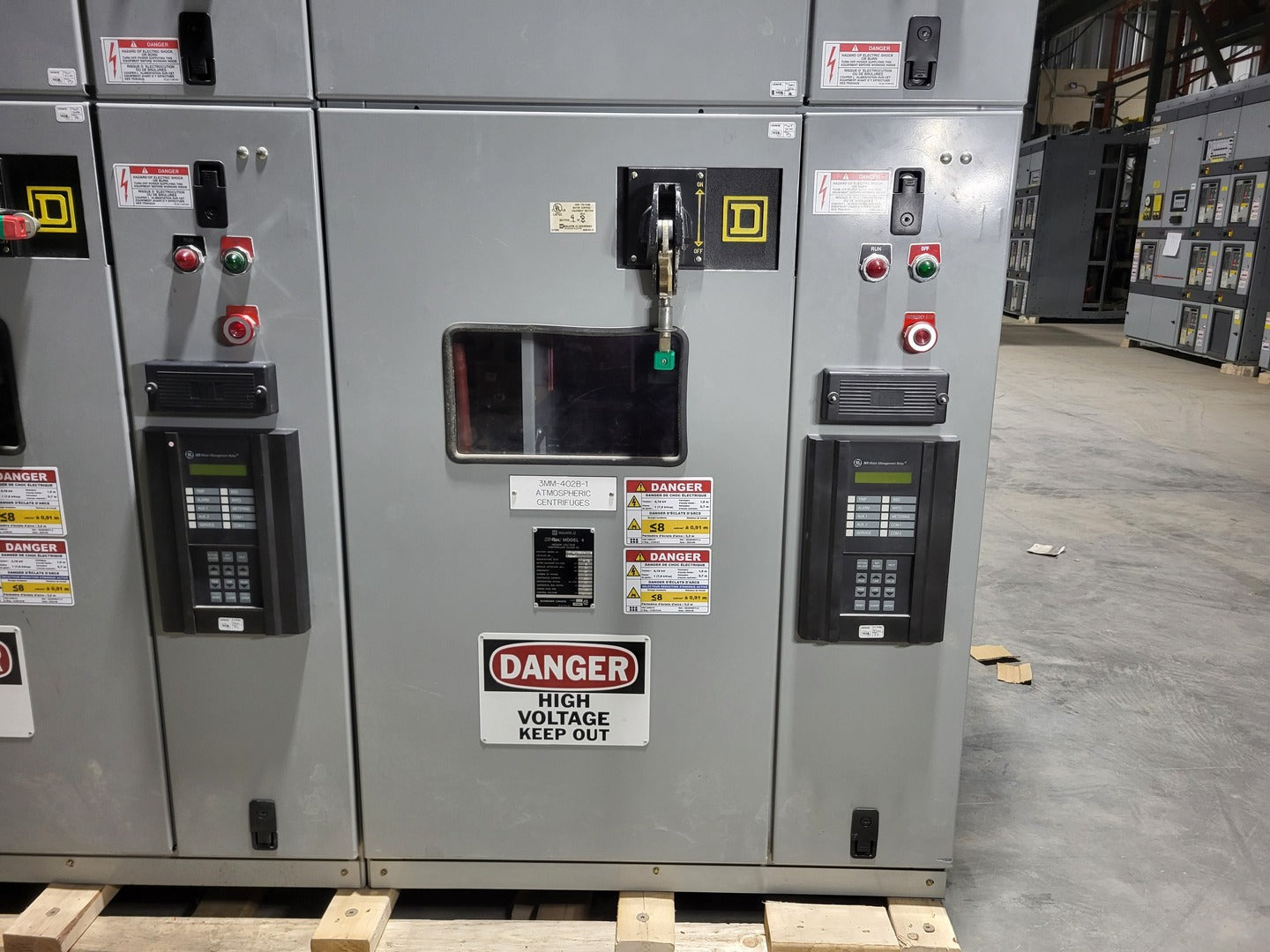

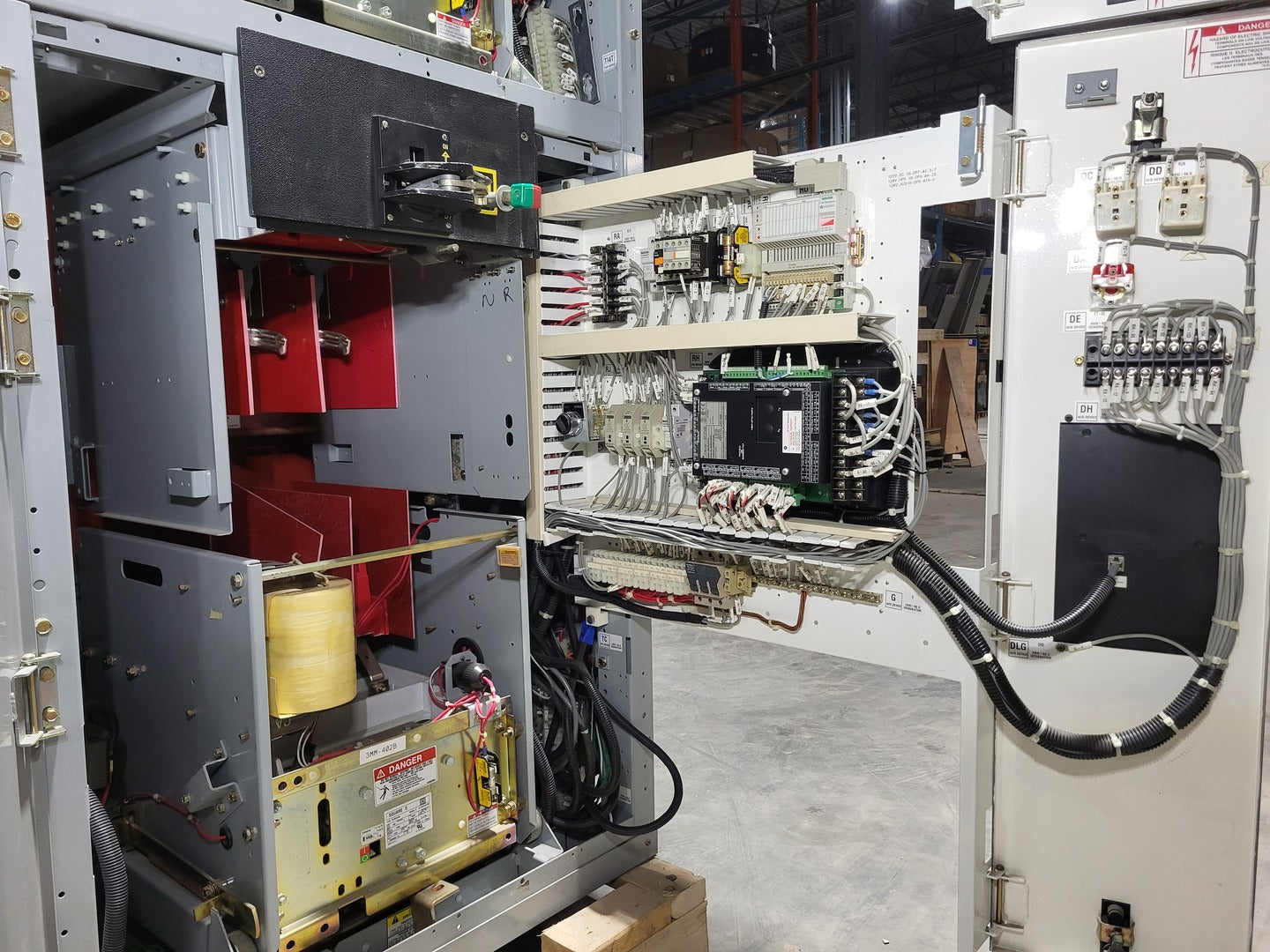

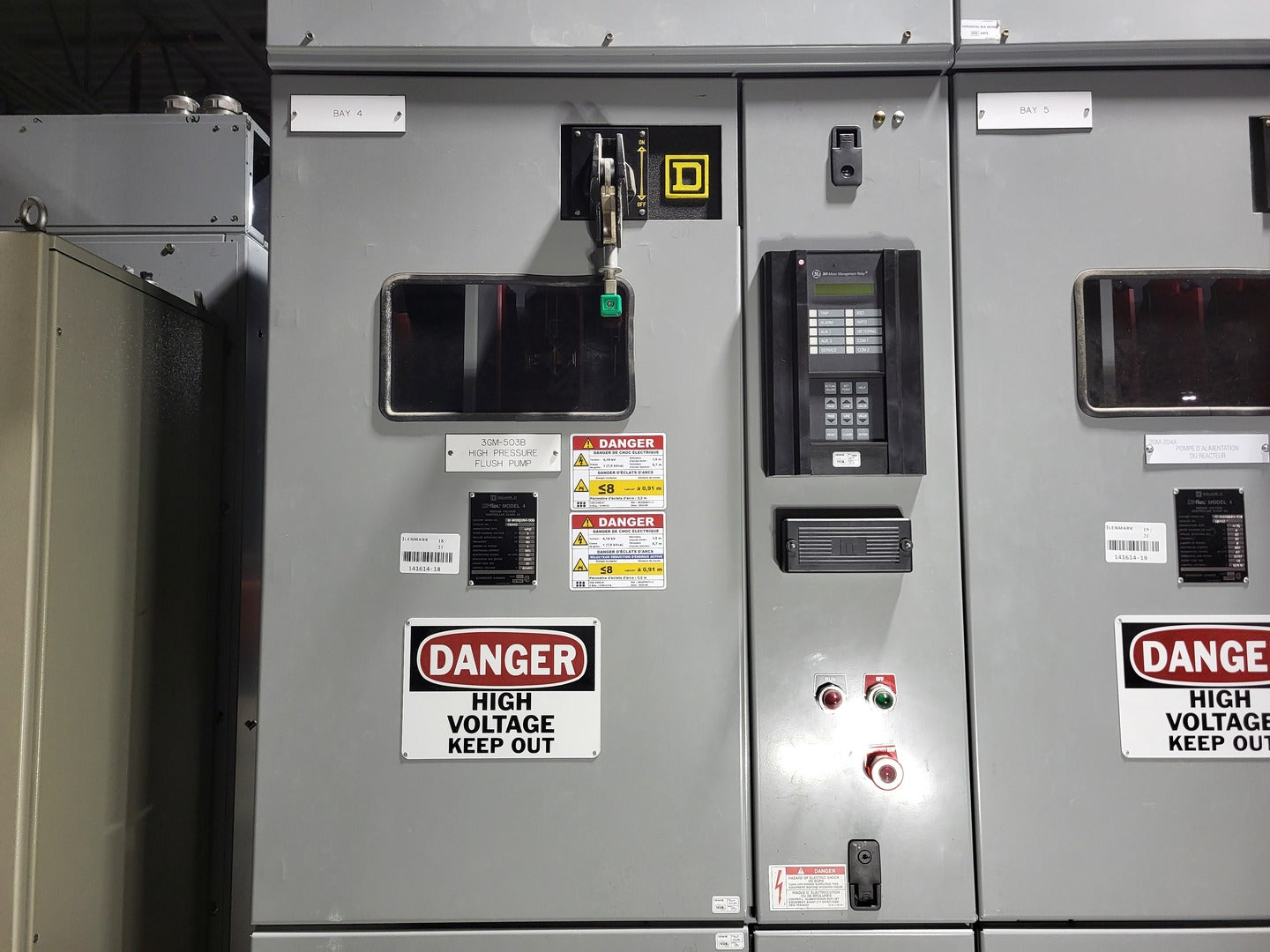

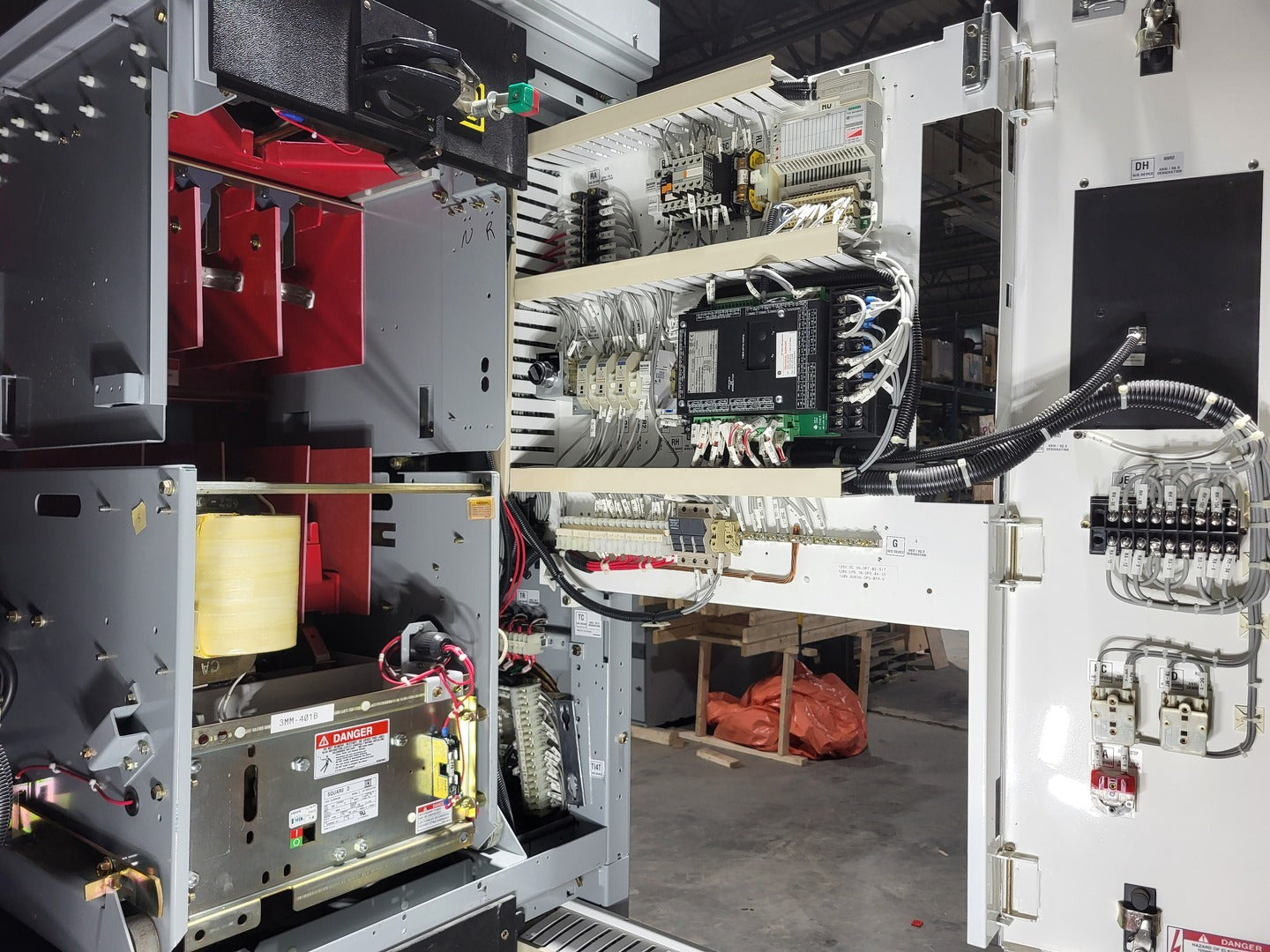

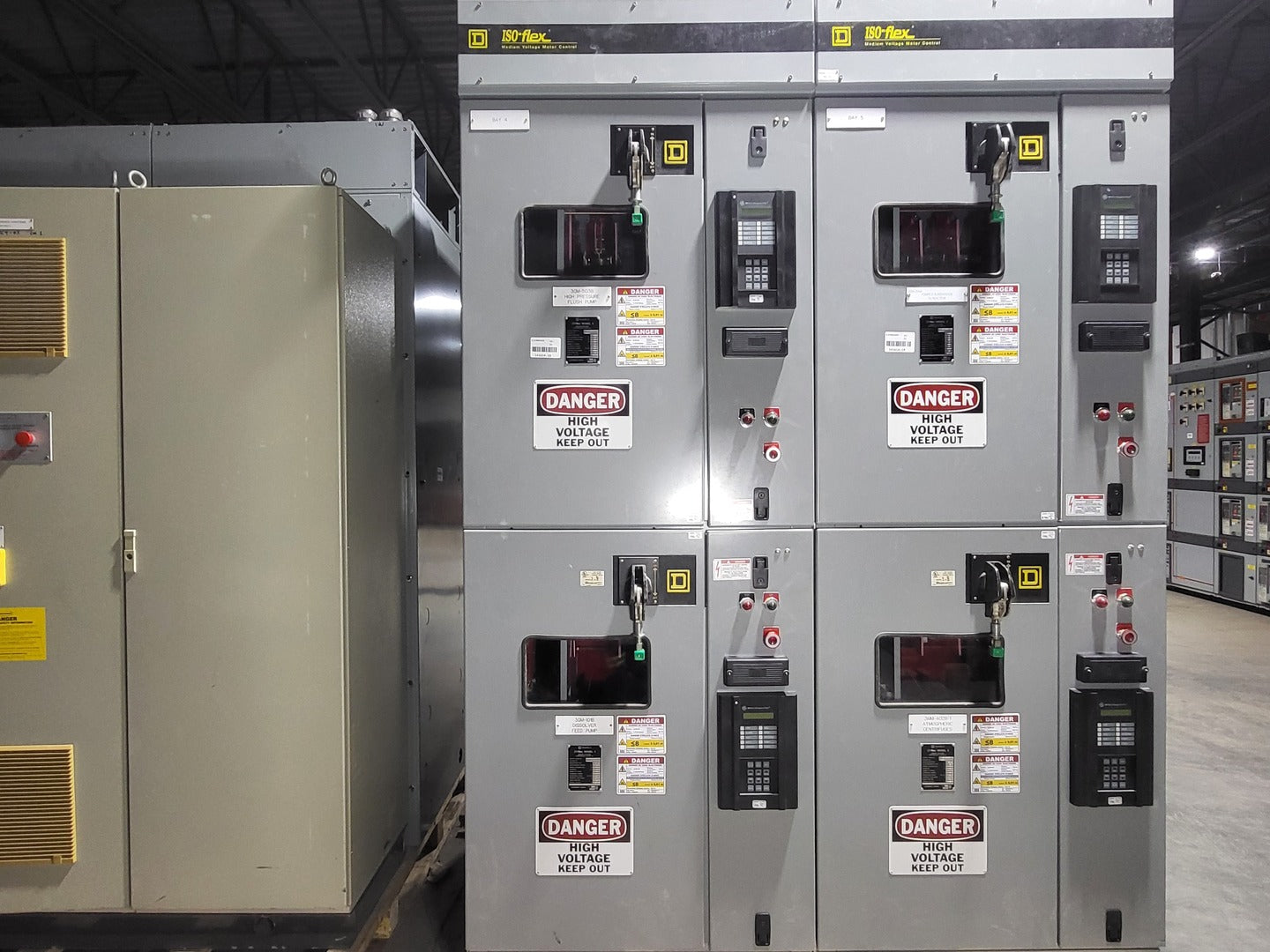

Square D / Schneider ISO-Flex Model 4 medium voltage motor control center rated 4.16kV, 3-phase, 60Hz with 2000A horizontal bus. This assembly includes two vertical sections with four fused vacuum contactor motor starters. Equipped with SEL protection relays and indoor metal-clad construction. Ideal for mining, pulp & paper, water treatment, and heavy industrial motor applications.
| Specifications | |
|---|---|
| Model | EG44D |
| Condition | Used | Electrical |
| Amps | 360 amps |
| Voltage | 5000 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

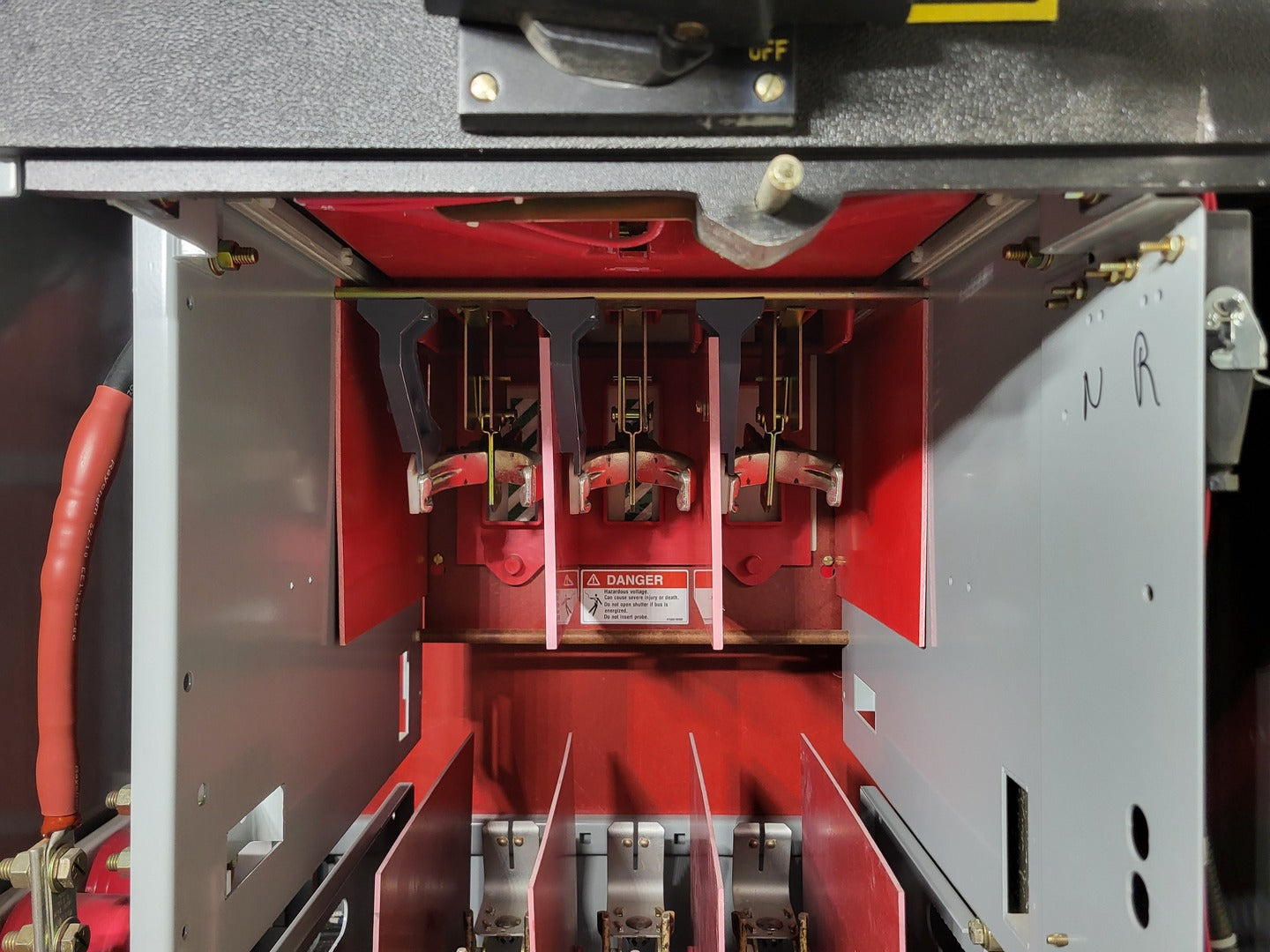

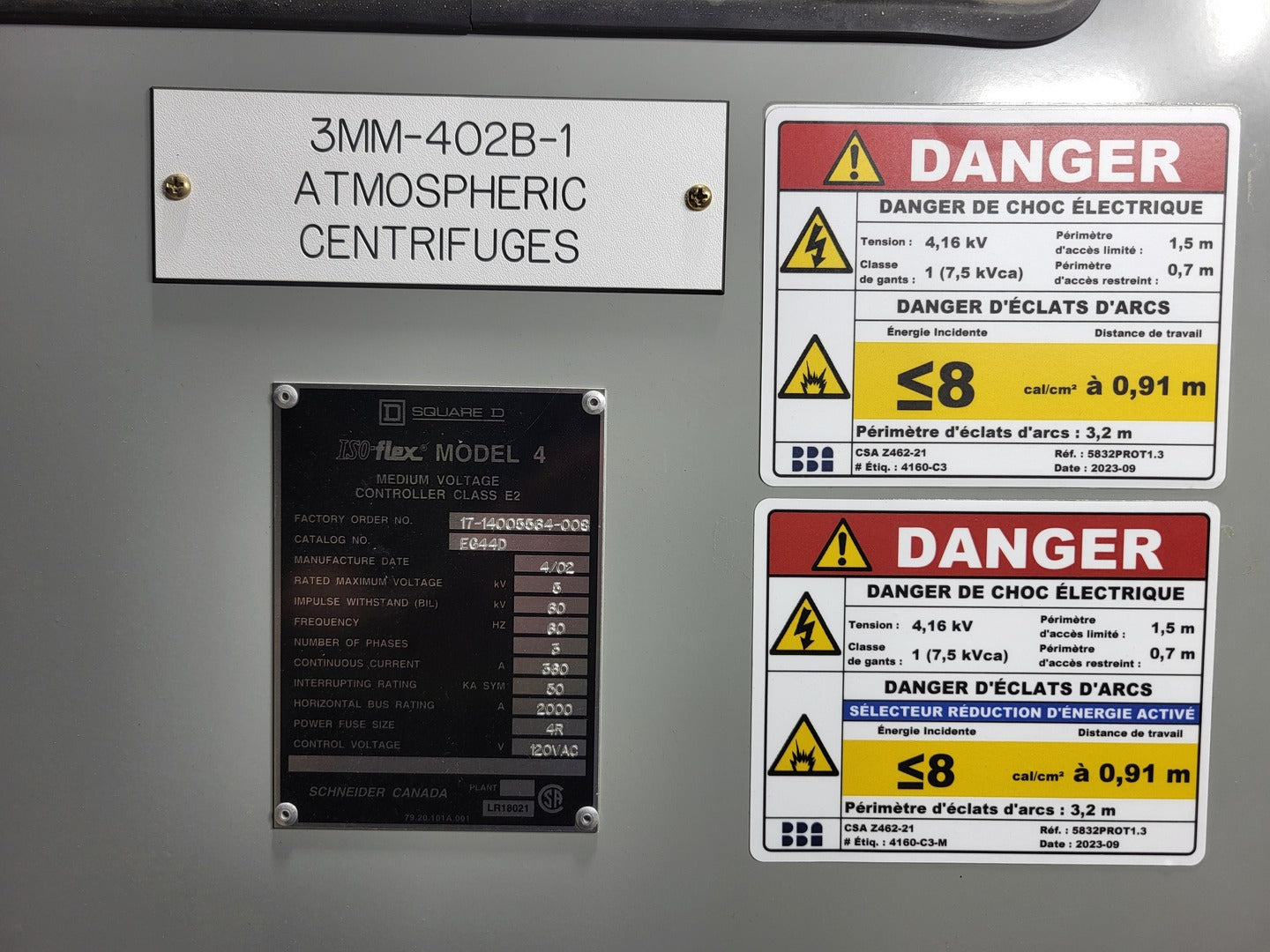

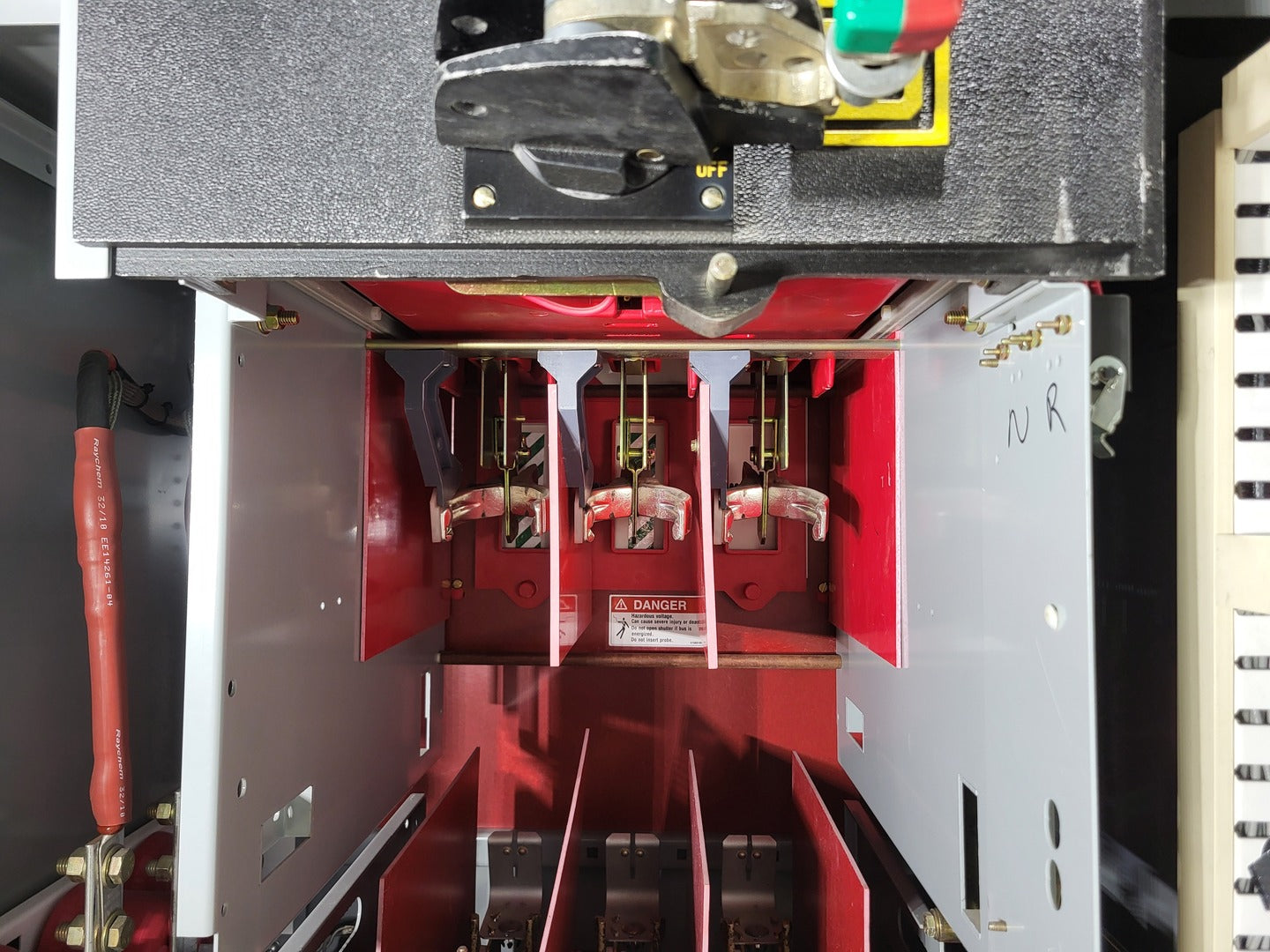

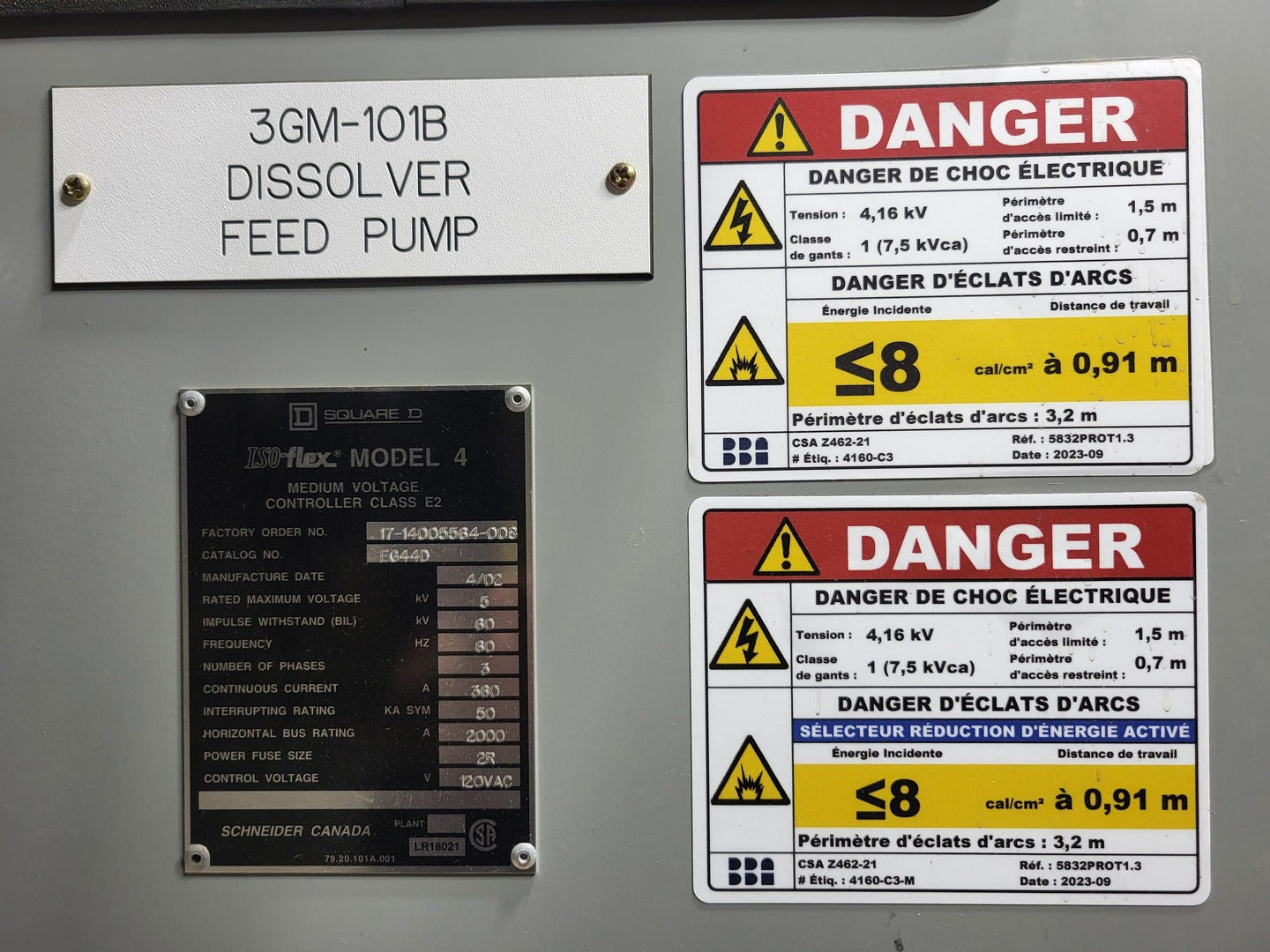

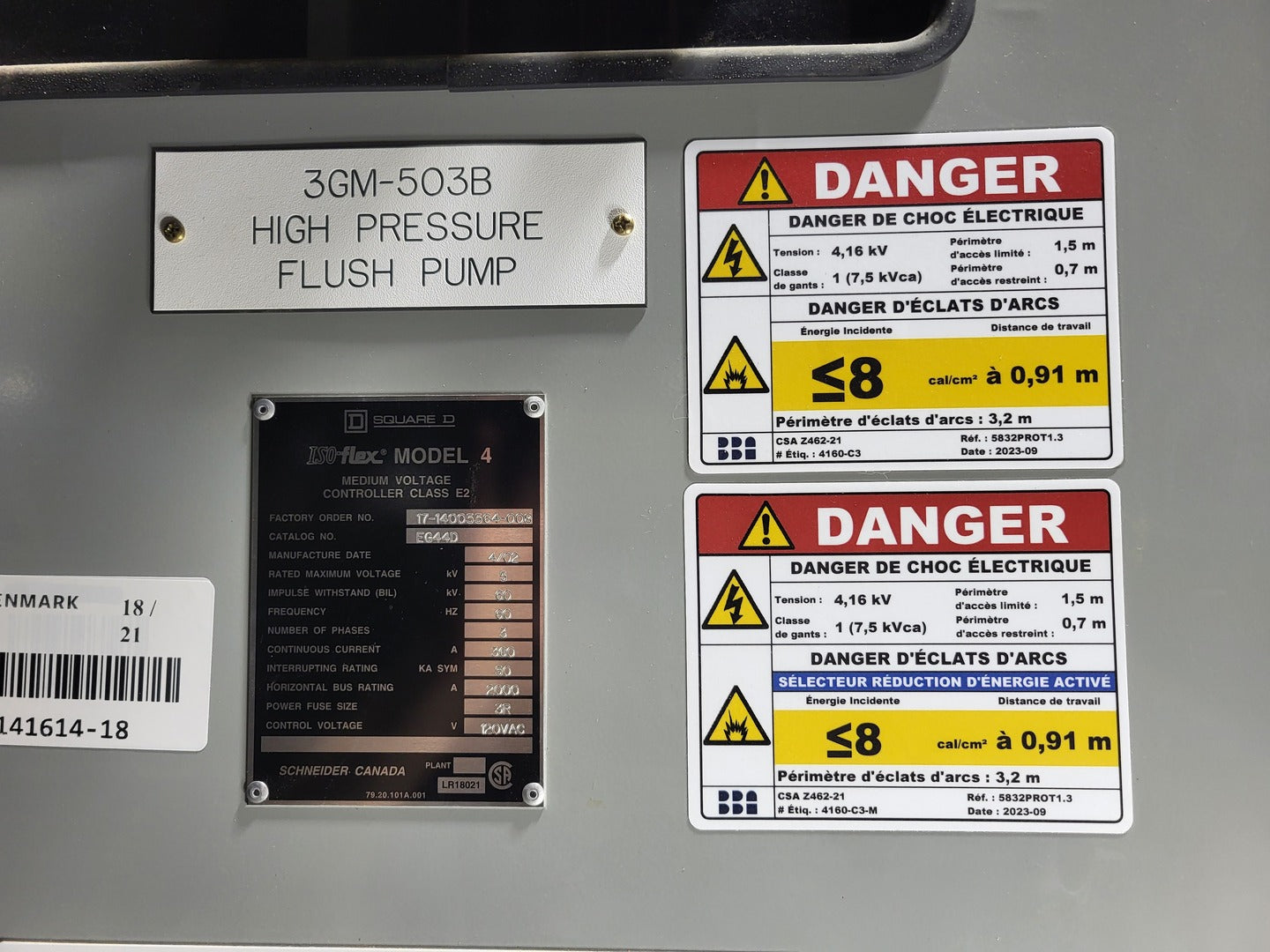

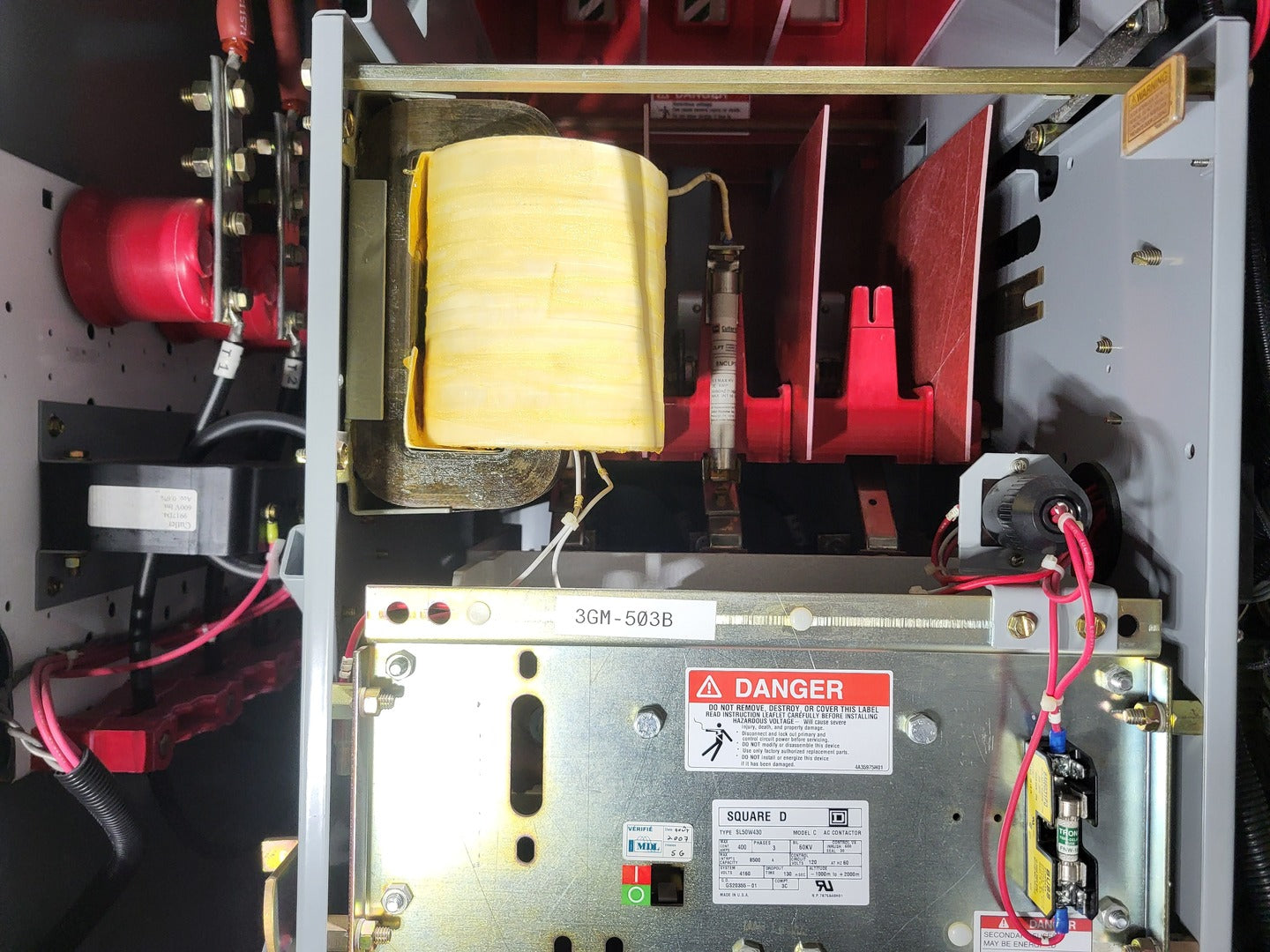

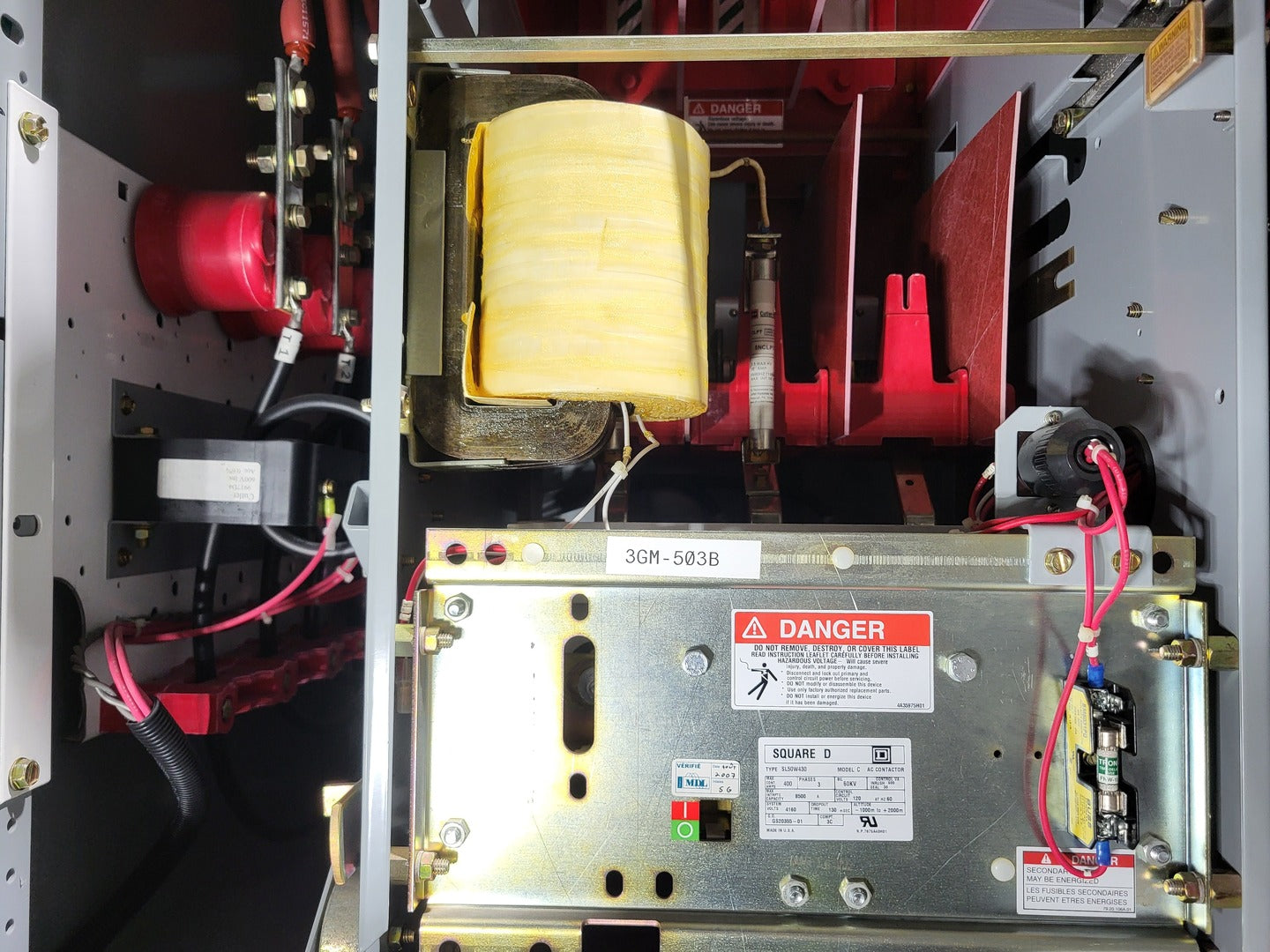

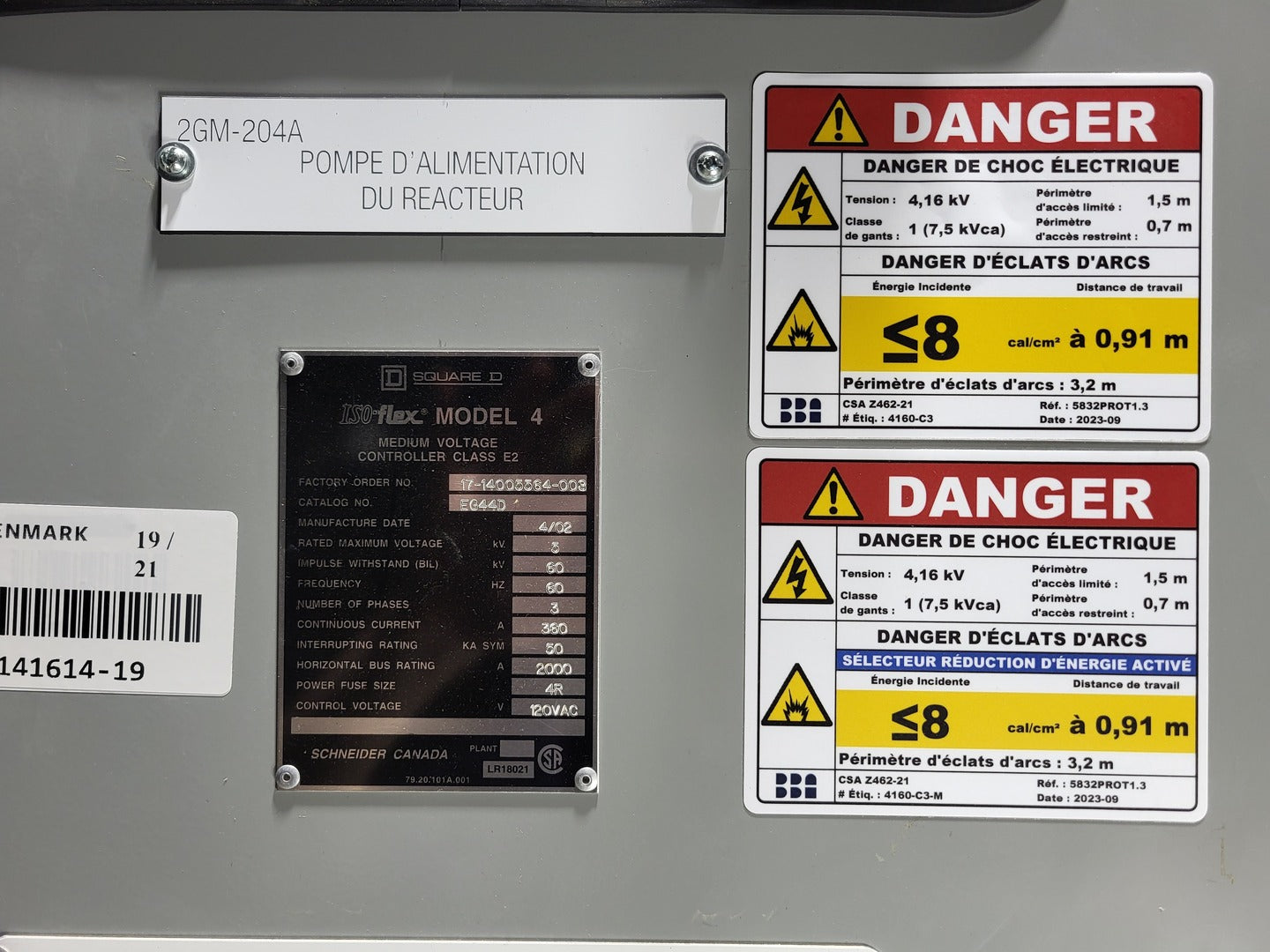

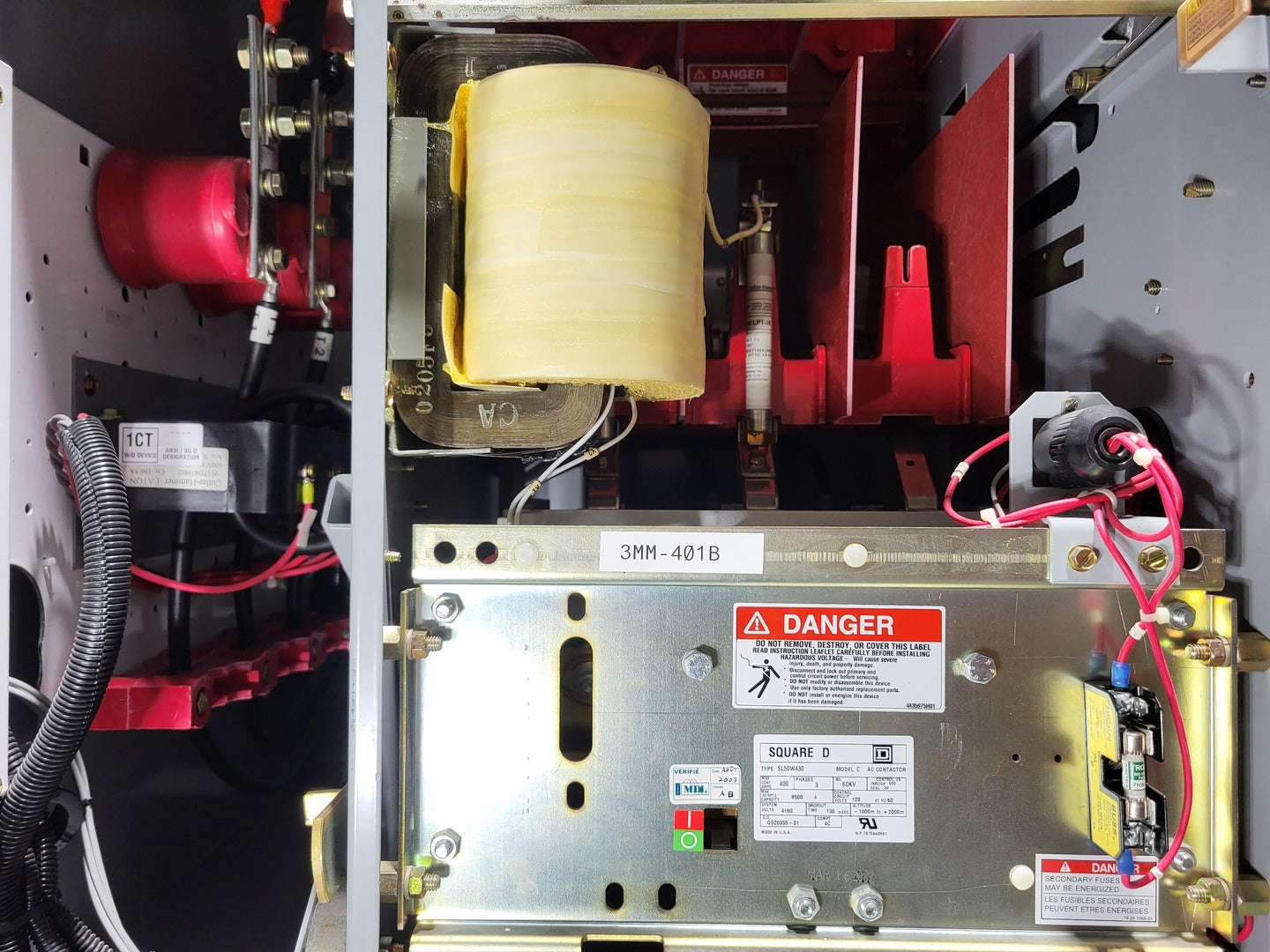

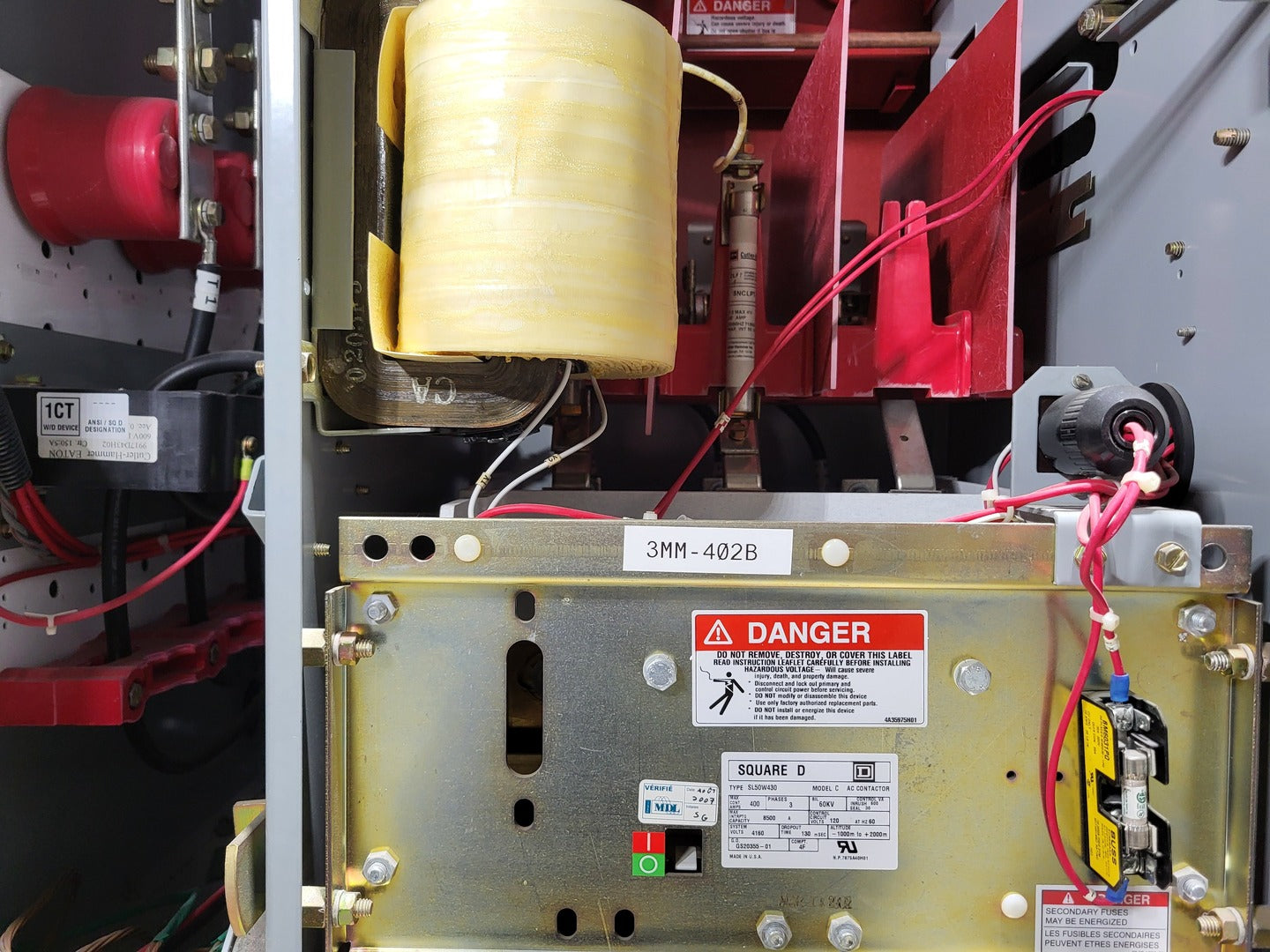

General Manufacturer: Square D / Schneider Electric Product Line: ISO-Flex Model 4 Equipment Type: Medium Voltage Motor Control Center (MV MCC) Installation: Indoor Year: 2002 Phase: 3 Frequency: 60 Hz Electrical Ratings System Voltage: 4.16 kV (5 kV Class) Horizontal Bus Rating: 2000 A Interrupting Rating: 50 kA Symmetrical Insulation Level (BIL): 60 kV Configuration Number of Vertical Sections: 2 Number of Motor Starters: 4 Starter Type: Fused Vacuum Contactor Controller Class: E2 Protection Relays: SEL Control Voltage: 120V Construction Metal-Clad Enclosure Front Access Drawout Starter Cells Primary Current Limiting Fuses |
