Description

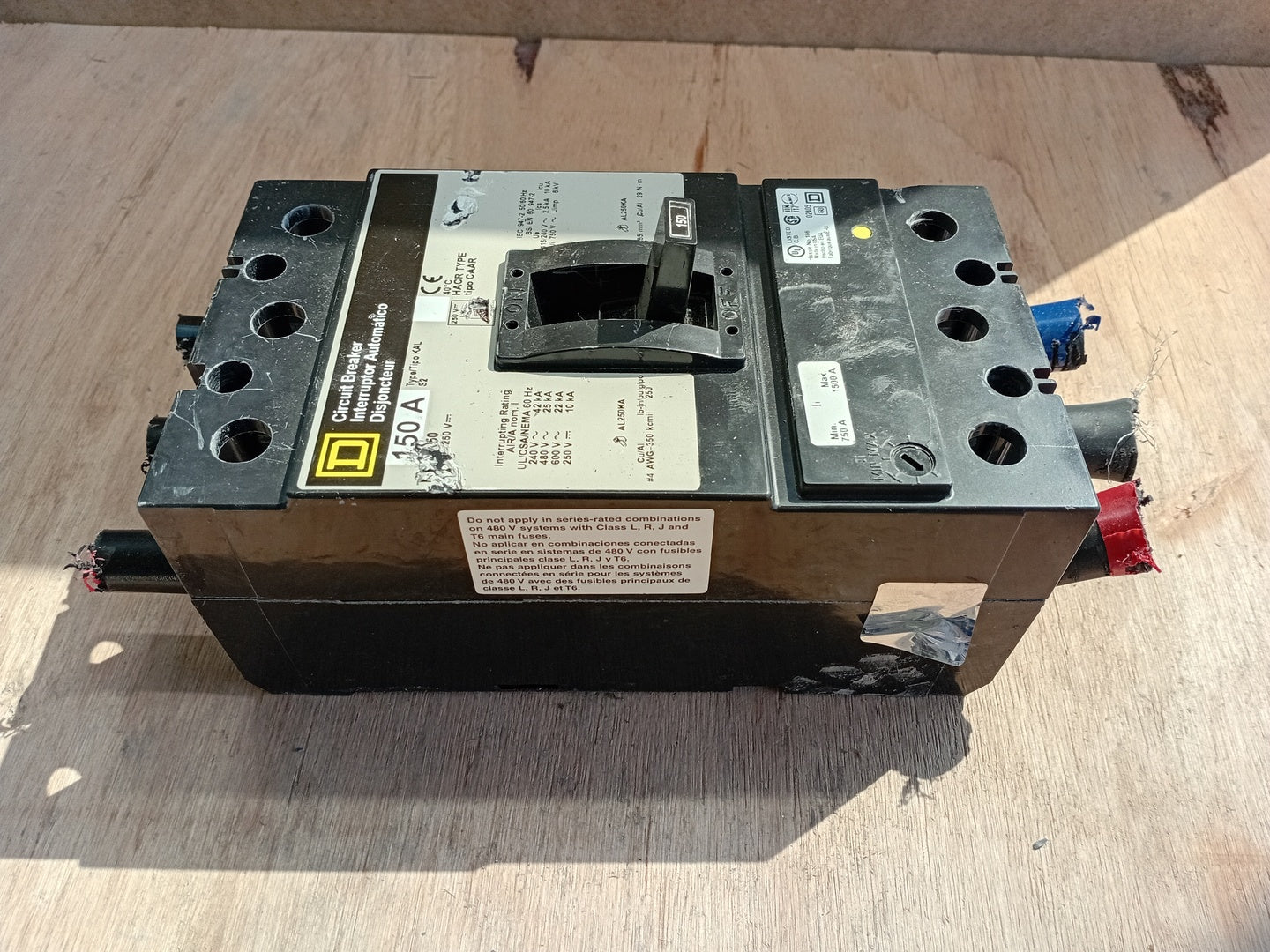

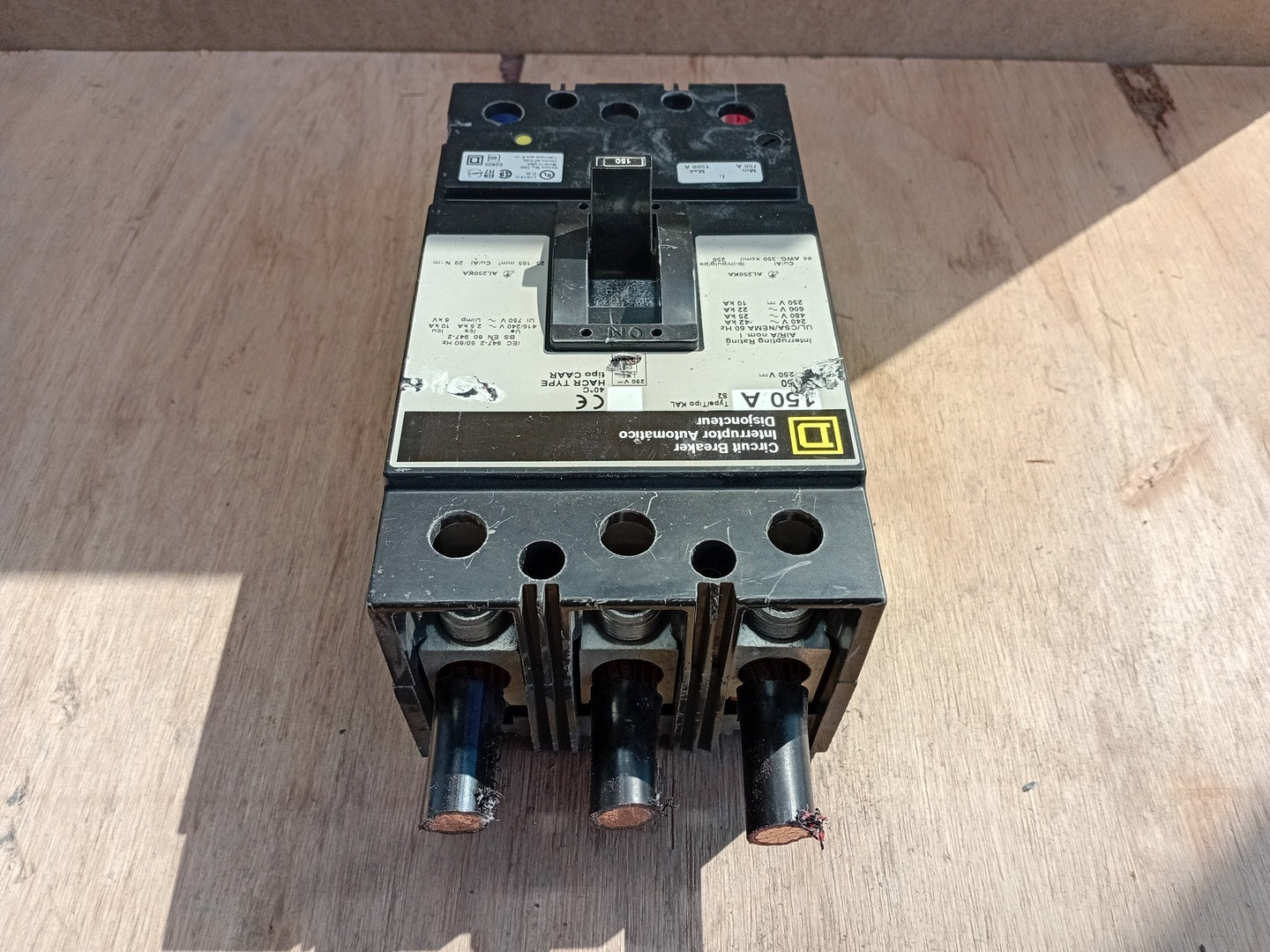

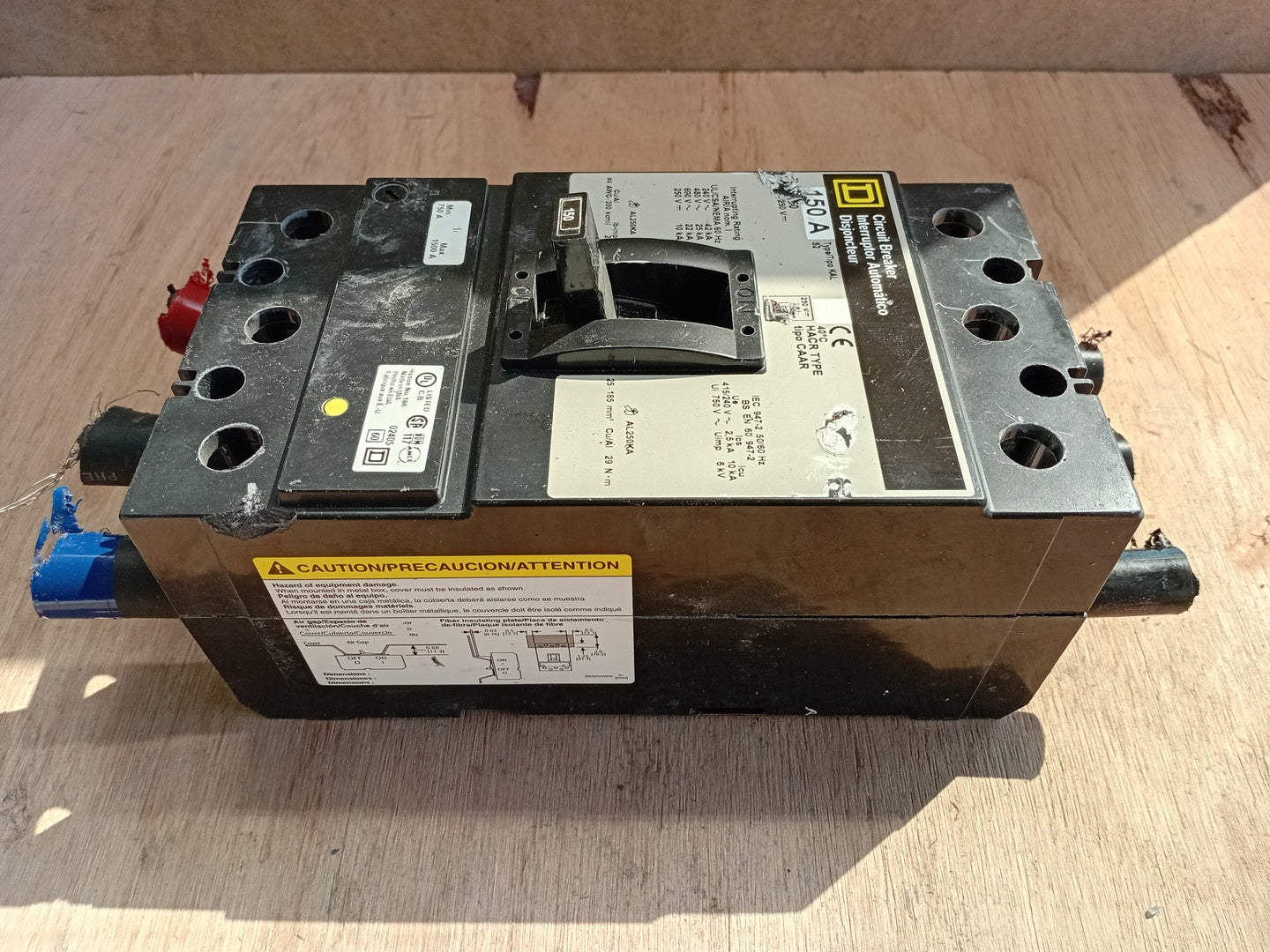

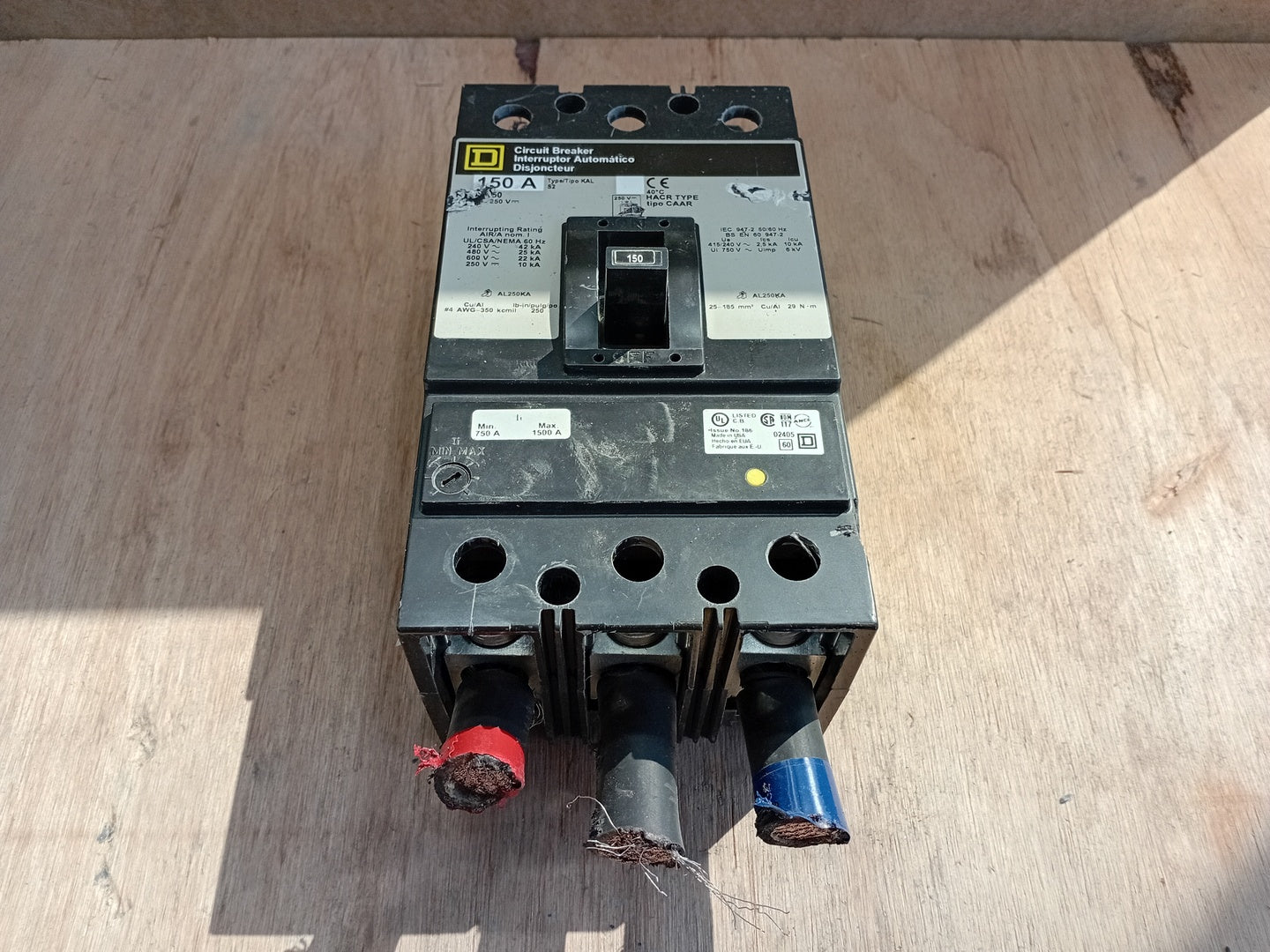

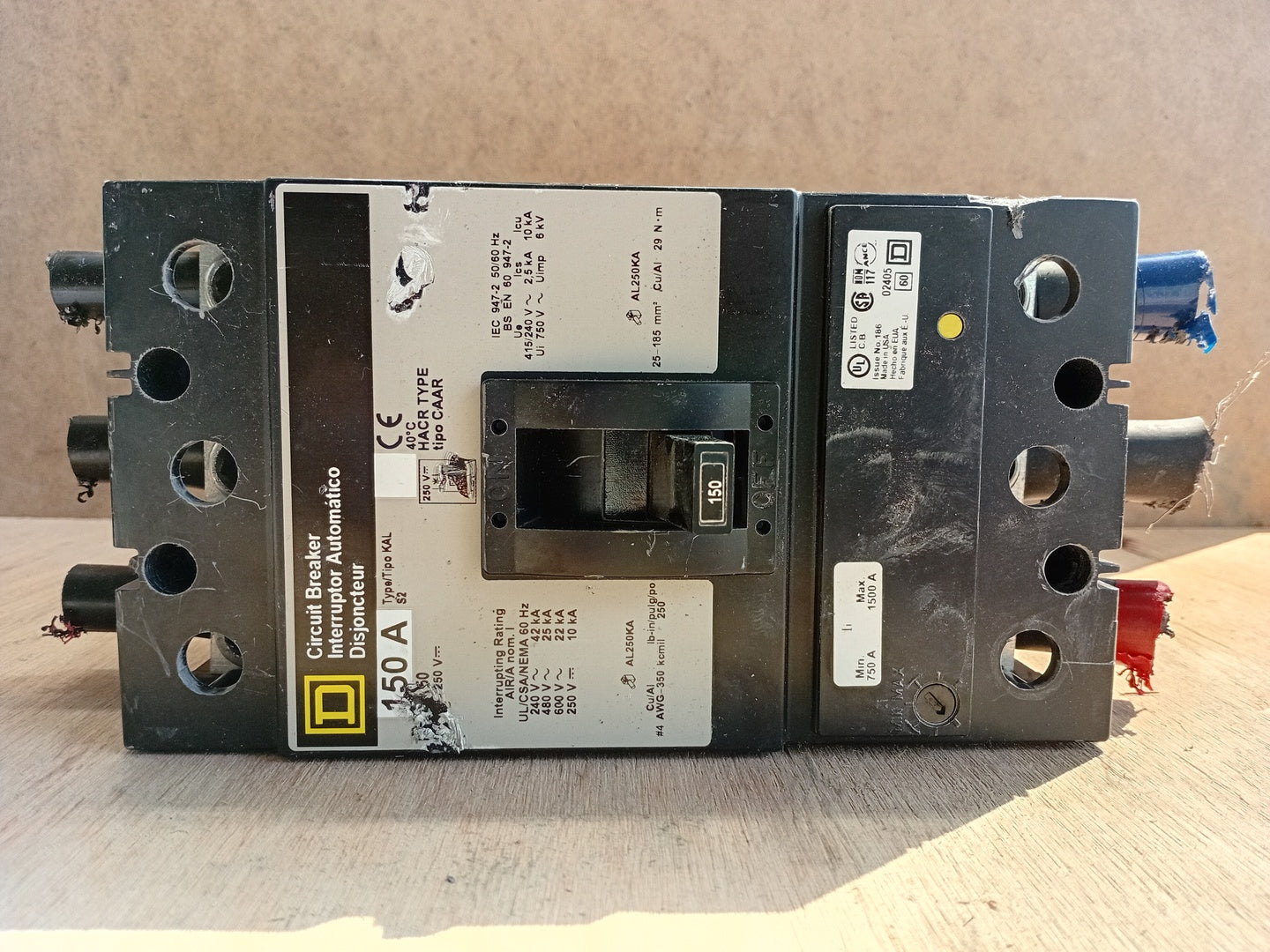

Square D KAL series 150 A, 3-pole molded-case circuit breaker for industrial and commercial electrical distribution applications. The breaker is marked for operation up to 600 VAC and 250 VDC, with an adjustable instantaneous pickup of 750-1500 A.
| Specifications | |
|---|---|
| Model | KAL36150 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Amps | 150 amps |
| Series | KAL |
| # of Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

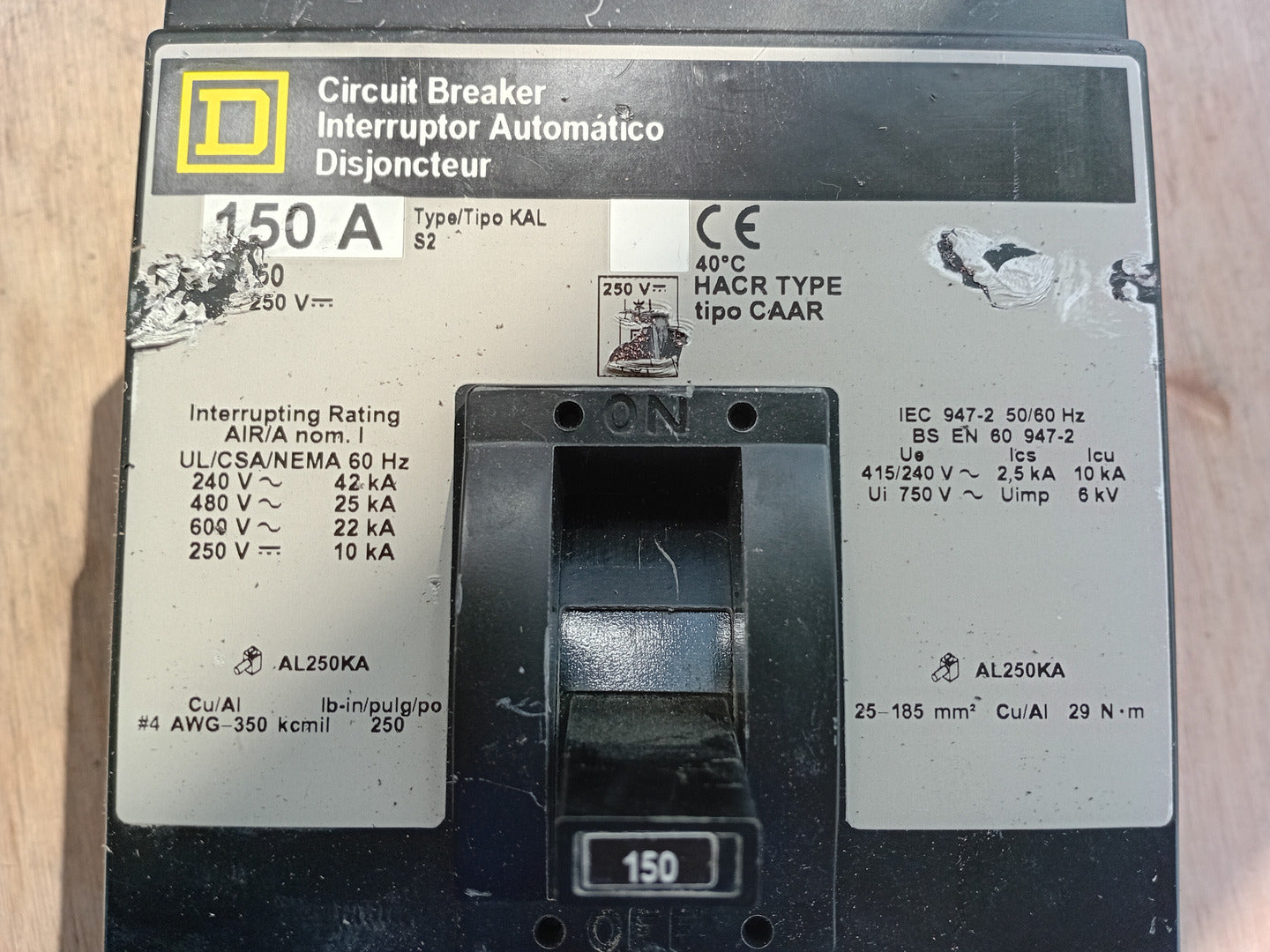

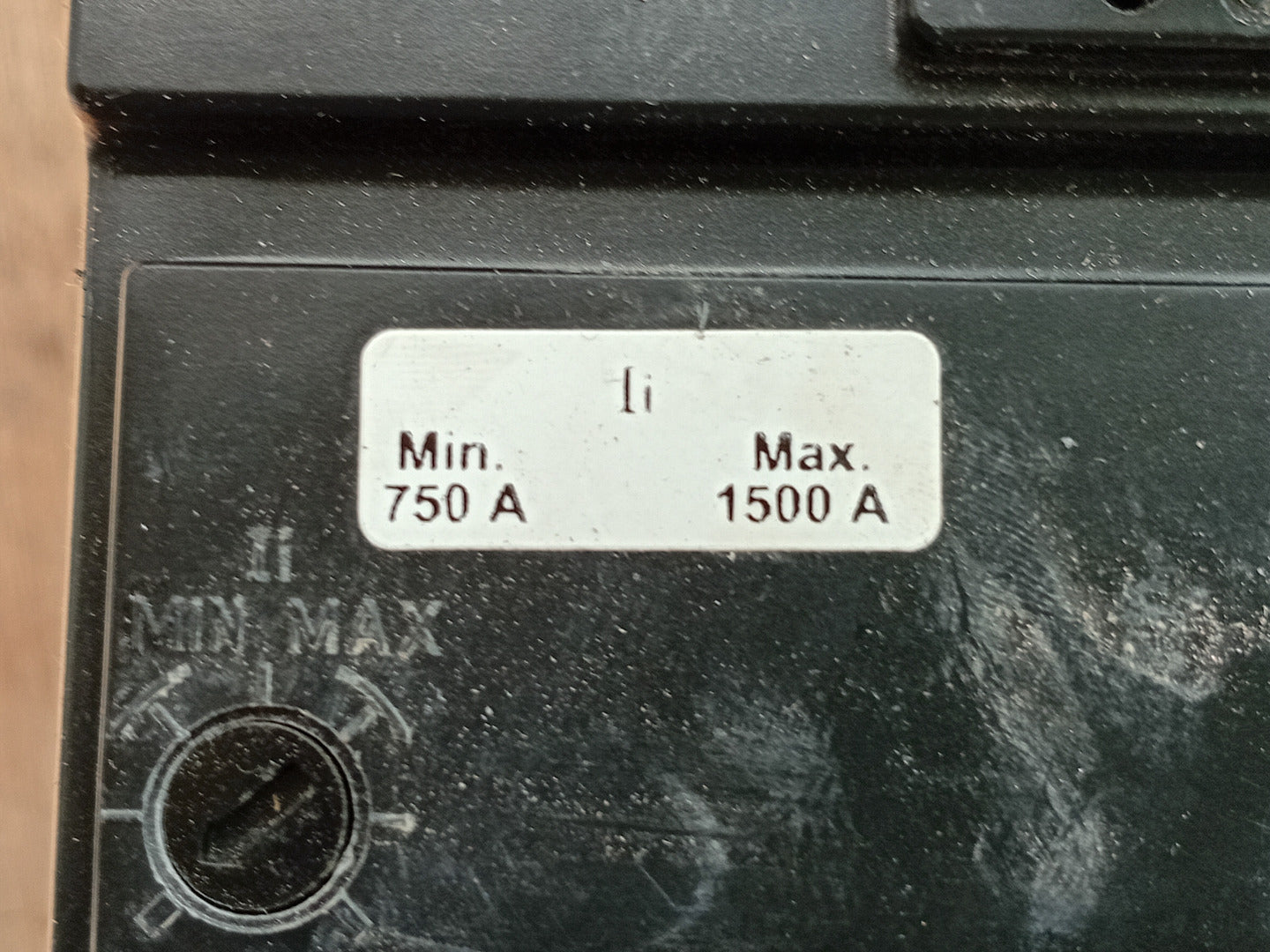

Series / Type: KAL, S2 DC Voltage Rating: 250 VDC Frequency: 60 Hz under UL/CSA/NEMA ratings Trip Type: Thermal-magnetic Instantaneous Pickup (Ii): Adjustable 750-1500 A Temperature Rating: 40°C HACR Rating: HACR Type Interrupting Rating:

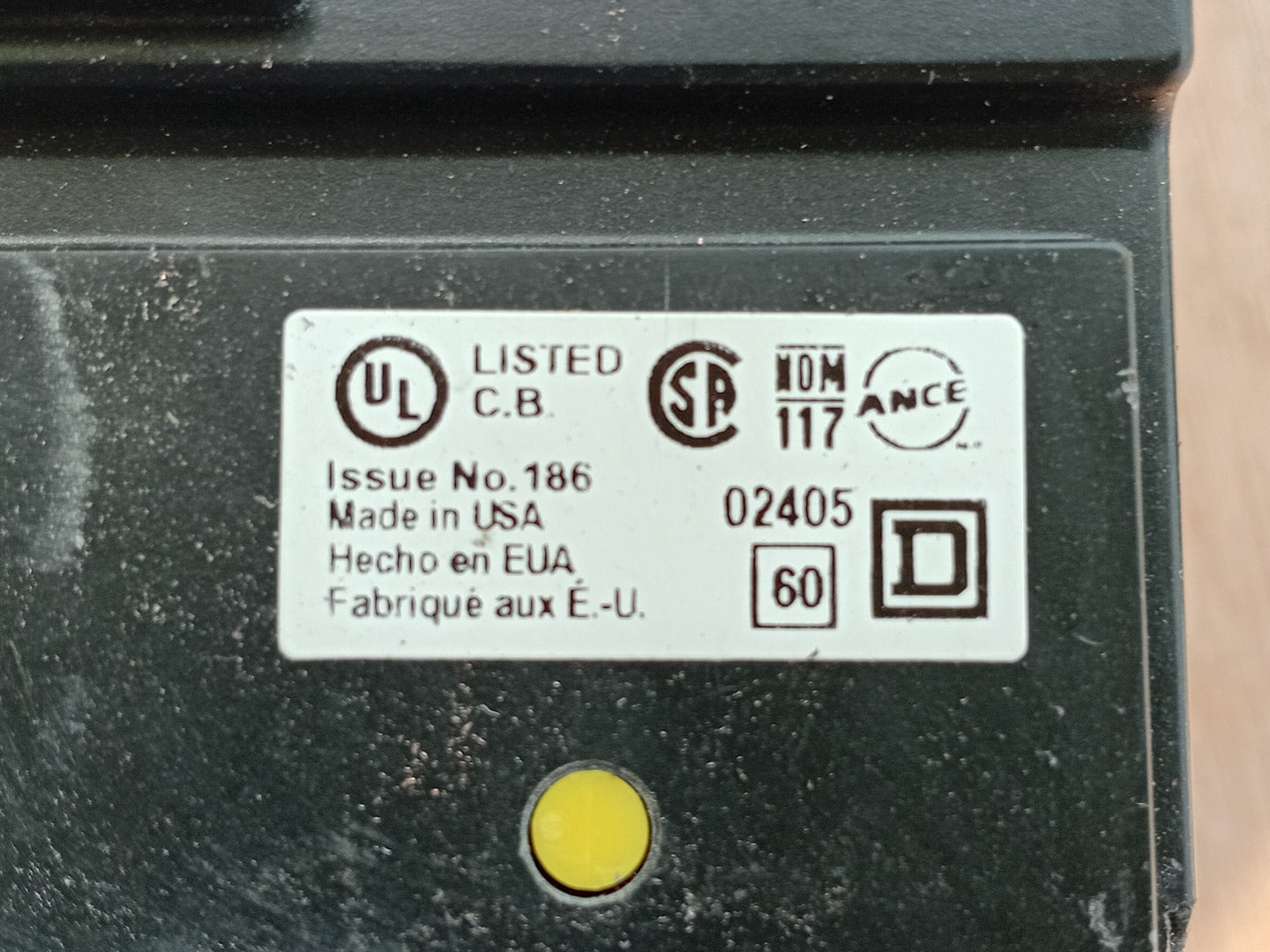

IEC Standard Marking: IEC 947-2 / BS EN 60947-2 IEC Ue: 415/240 VAC IEC Ics: 2.5 kA IEC Icu: 10 kA Ui: 750 V Uimp: 6 kV Terminal/Lug Type: AL250KA Conductor Material: Cu/Al Conductor Range: #4 AWG-350 kcmil Metric Conductor Range: 25-185 mm2 Terminal Torque: 250 lb-in / 29 N-m Certifications Visible: UL Listed, CSA, NOM/ANCE, CE |
