Description

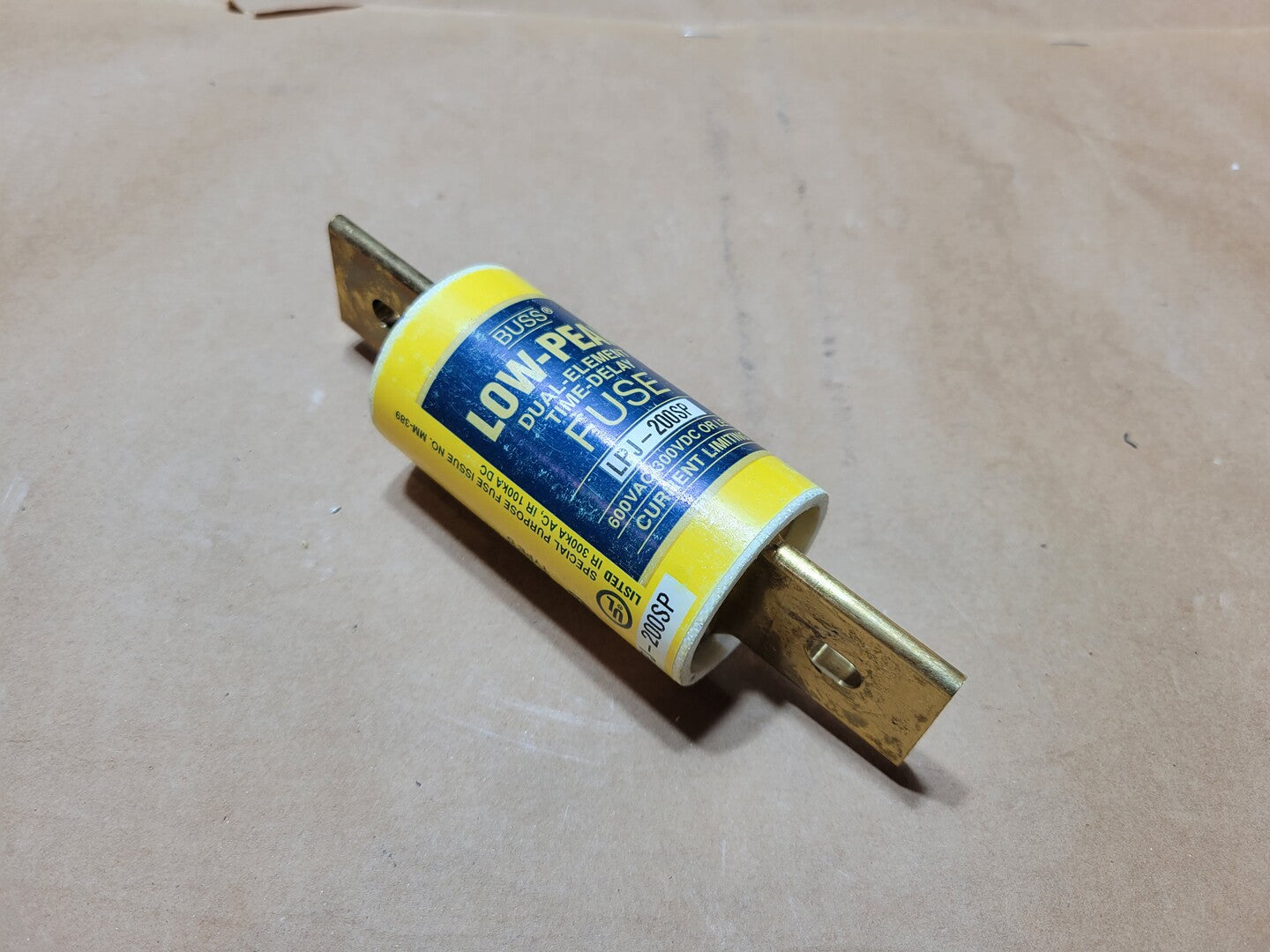

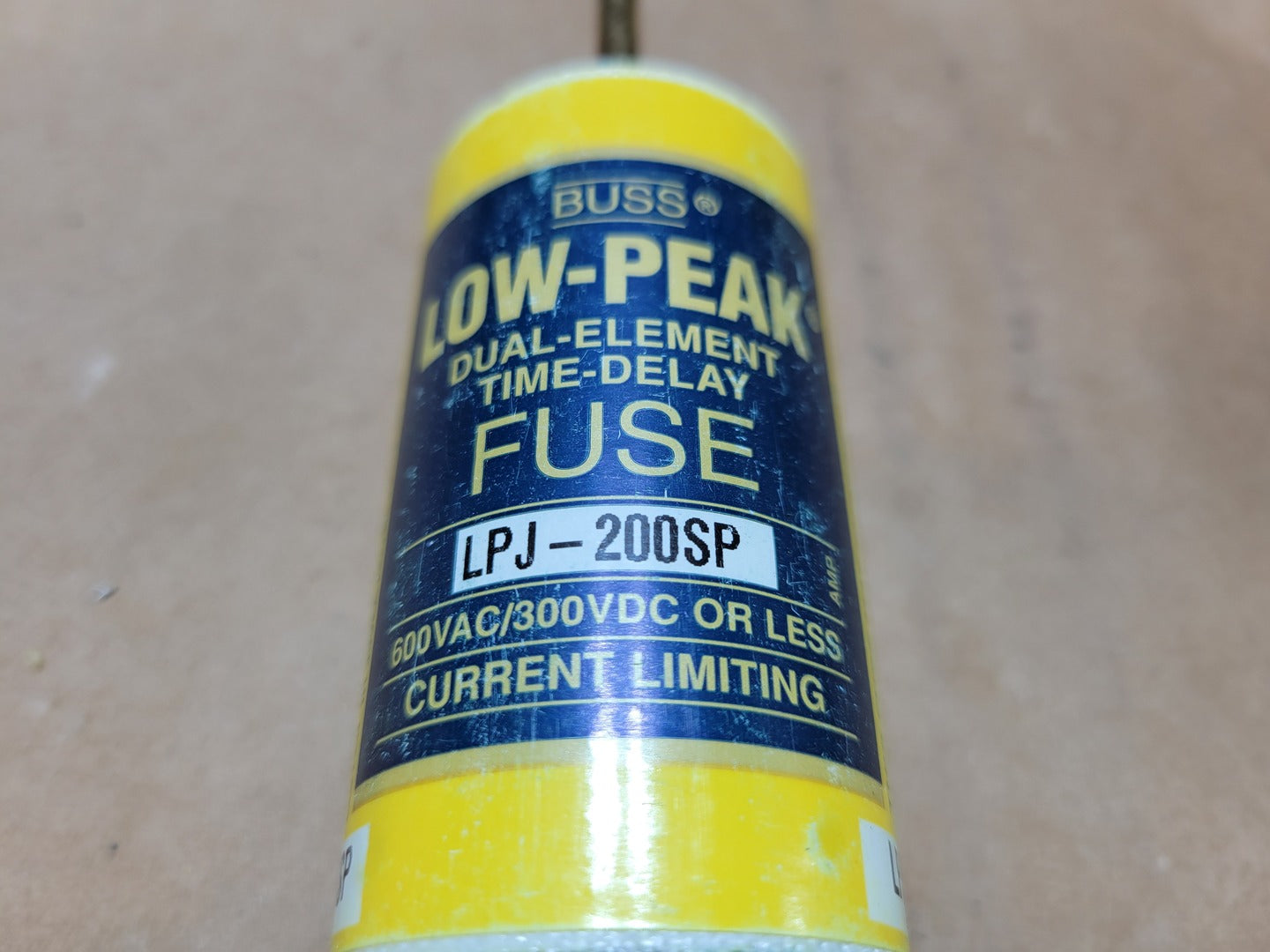

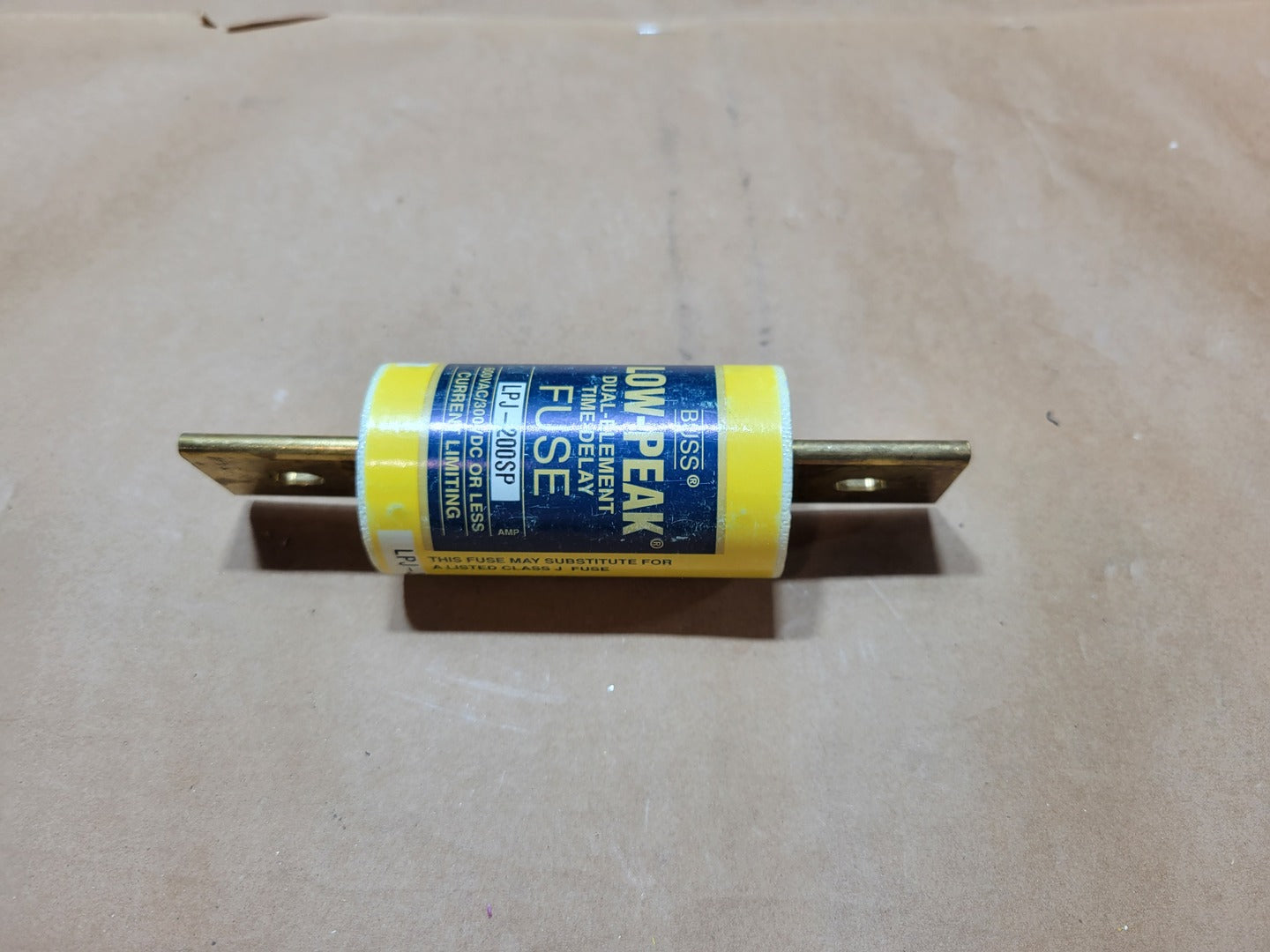

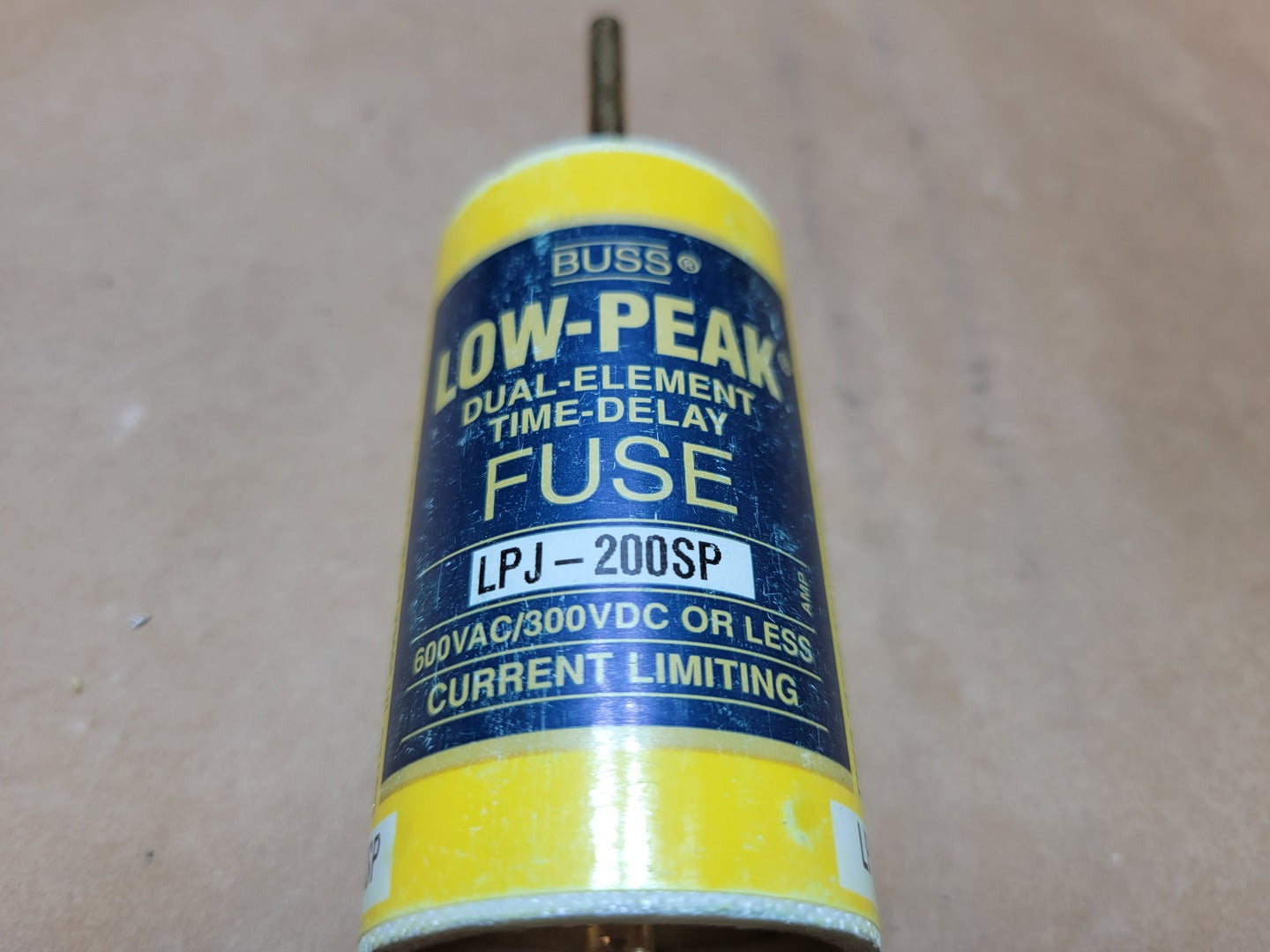

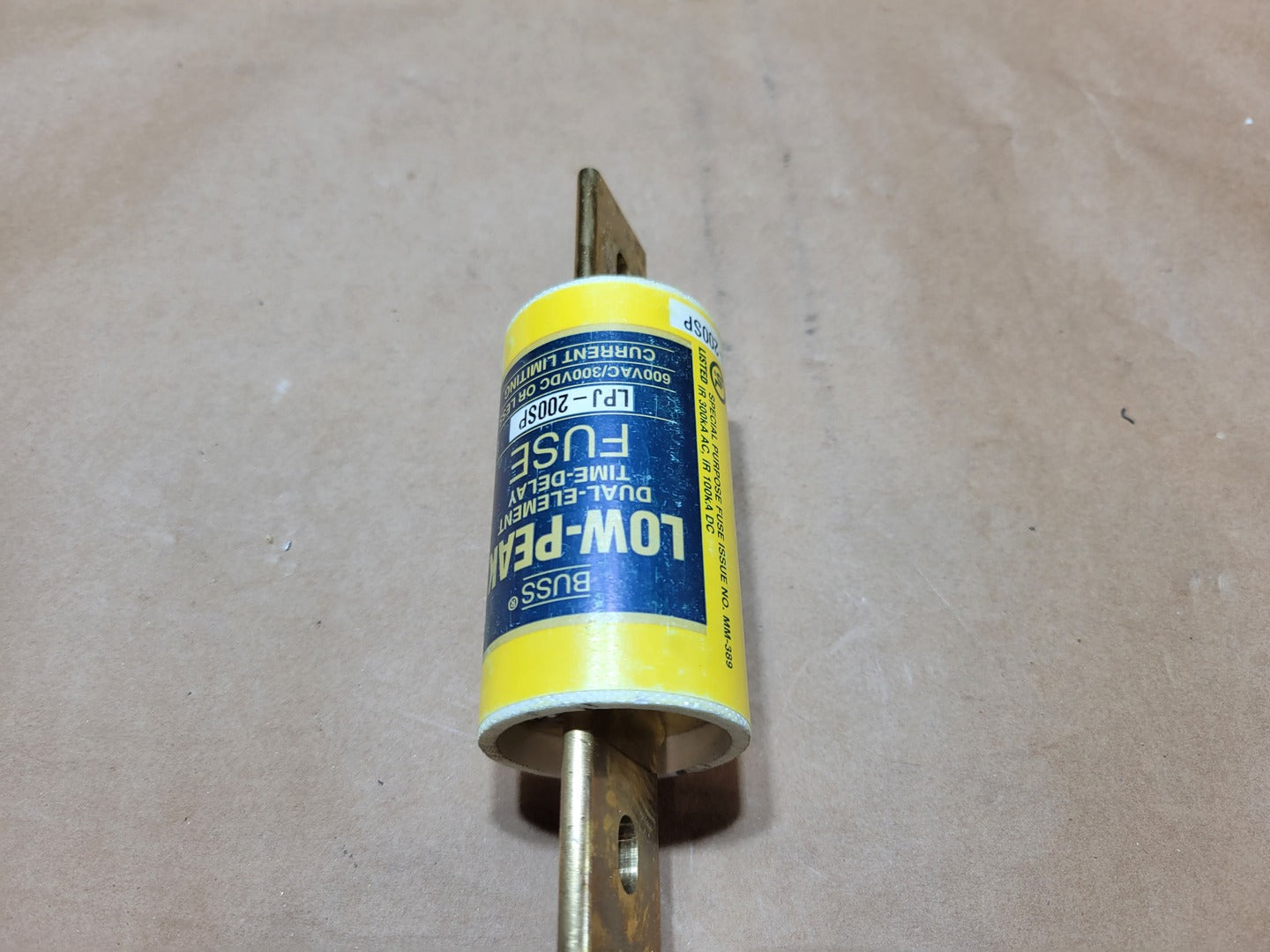

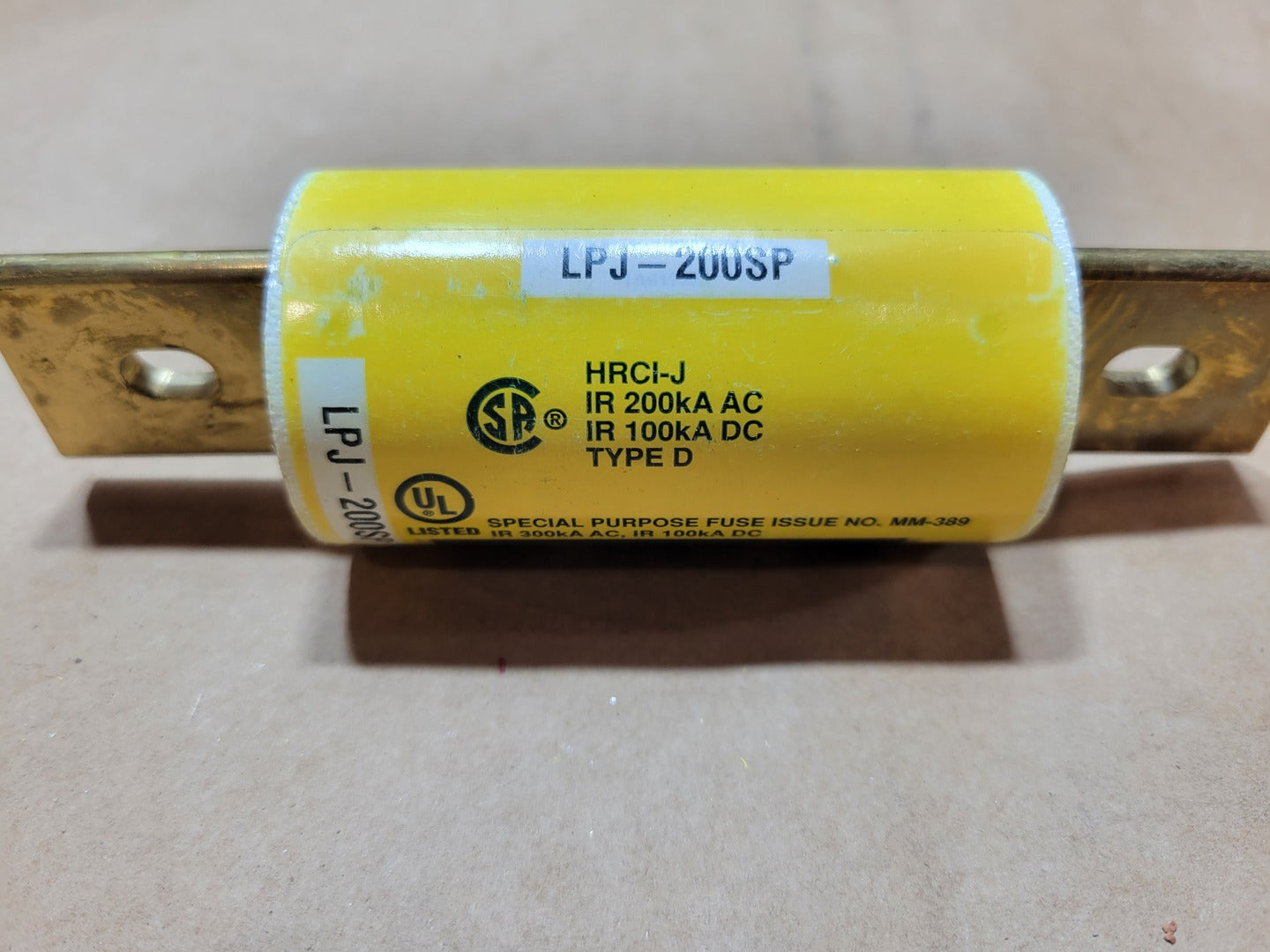

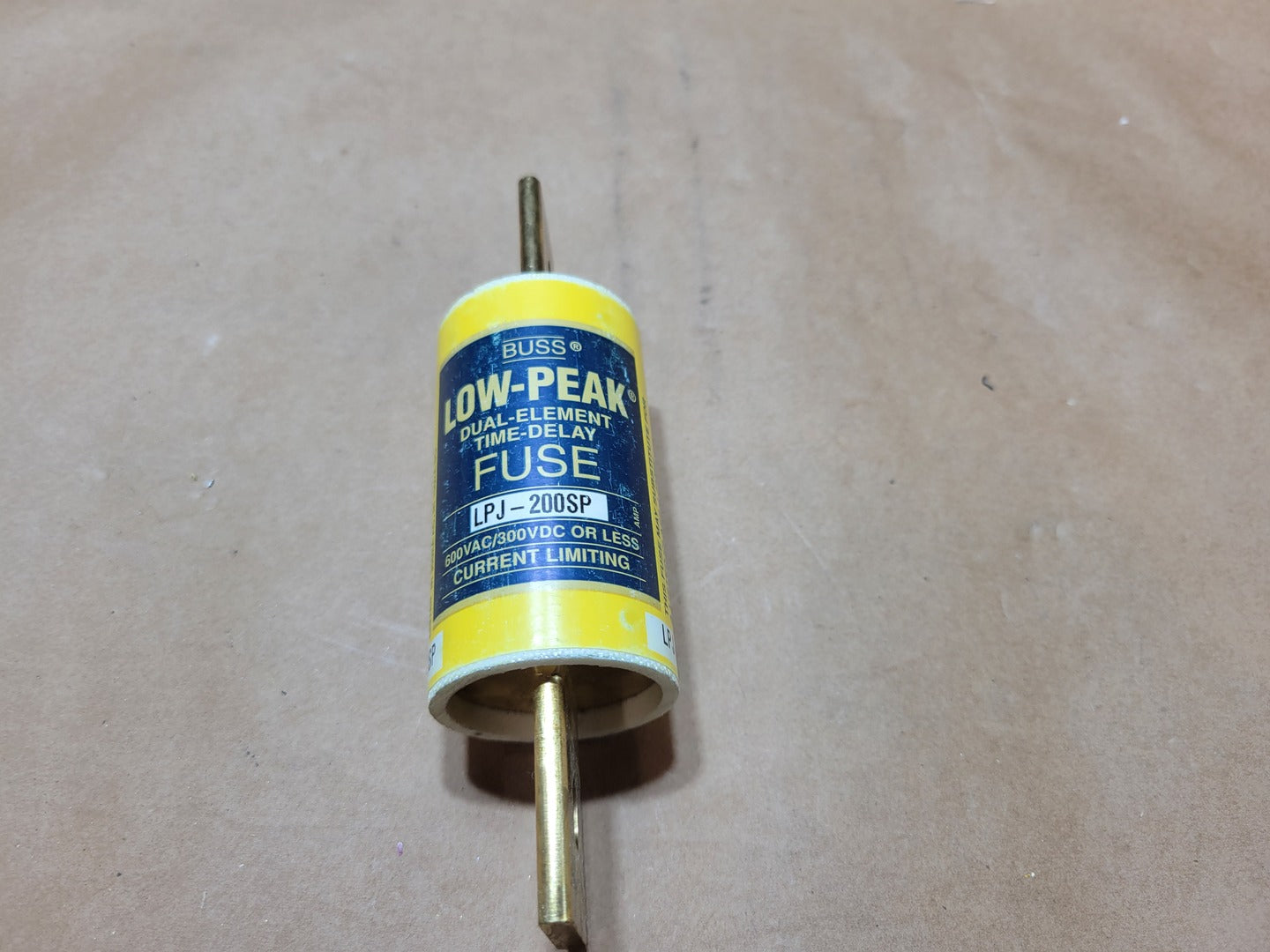

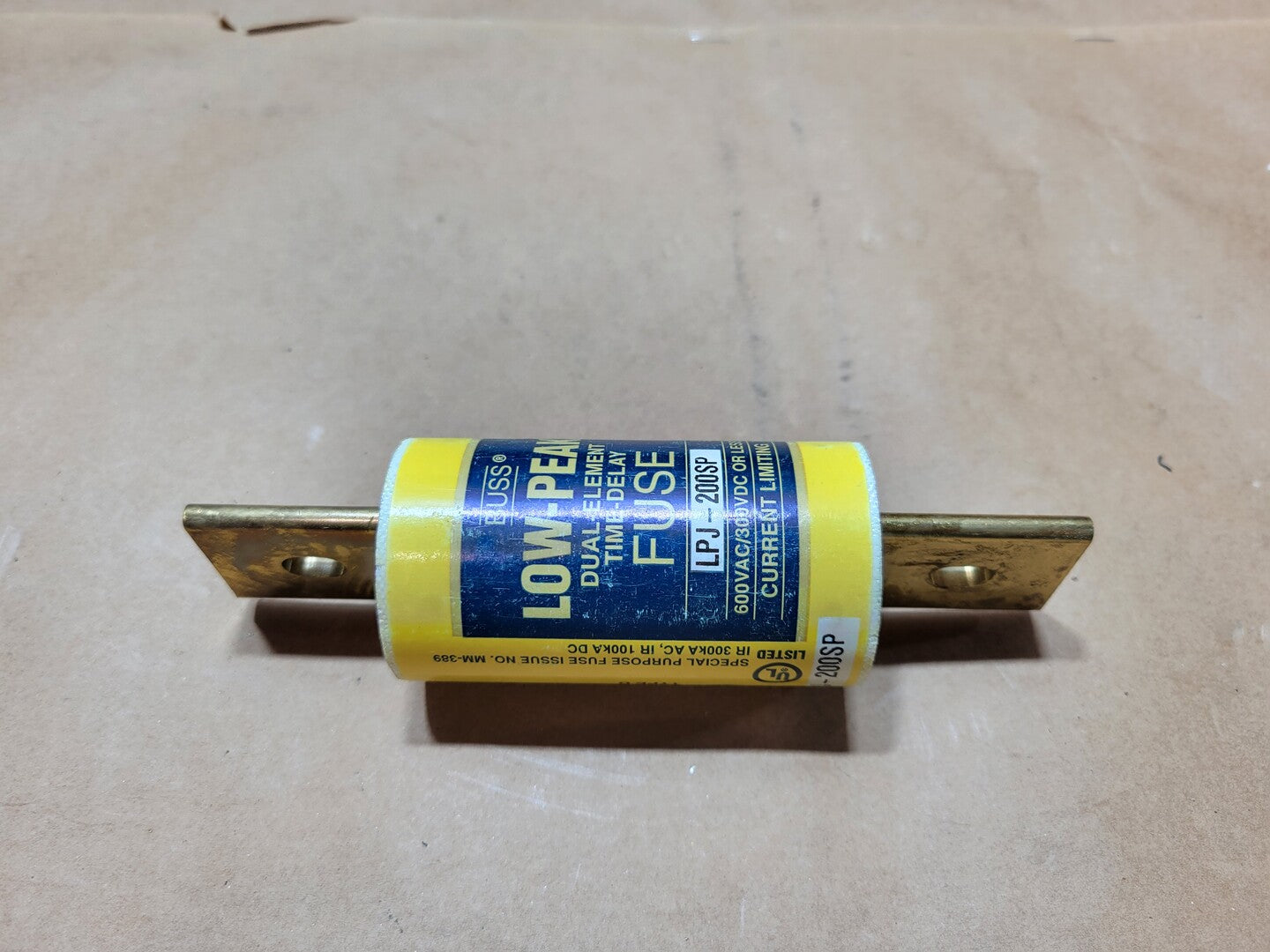

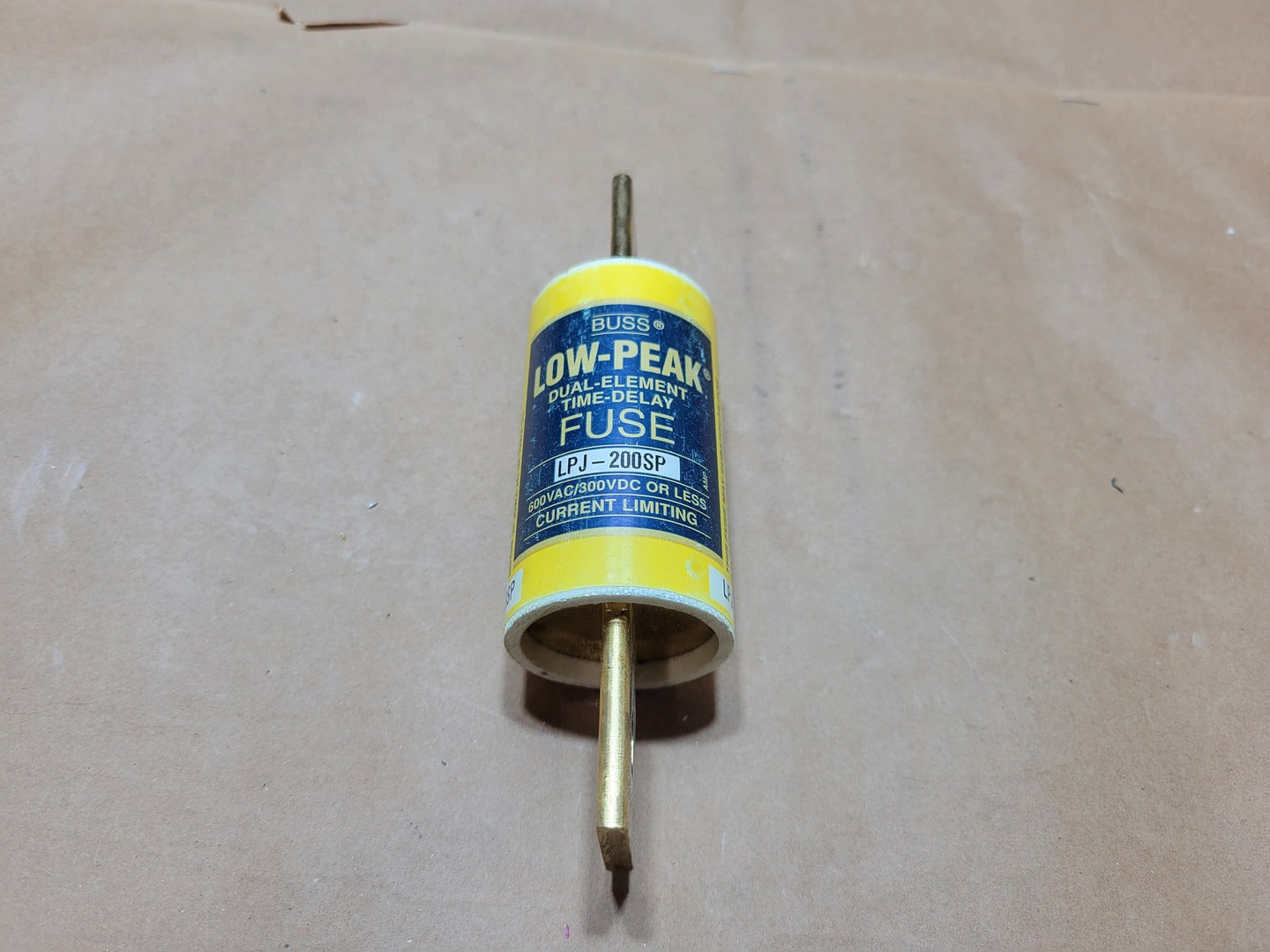

Cooper Bussmann LPJ-200SP Low-Peak Class J fuse rated for 200 A, 600 VAC and 300 VDC. This dual-element, time-delay, current-limiting fuse features bolted blade terminals and is intended for industrial circuit and high-inrush load protection.
| Specifications | |
|---|---|
| Model | LPJ-200SP |
| Made In | MEXICO |
| Condition | Used | Electrical |
| Amps | 200 amps |
| Voltage | 600 volts |
| Phase | Single-phase |
| Fuse Type | Low Volt |
| Current Type | AC |
| Class | J |
| Interrupting Rating | 300 kA |
| Other Specifications |
|---|
|
Series: LPJ Low-Peak Product Type: Industrial Fuse DC Voltage Rating: 300 VDC Fuse Type: Dual-Element Time-Delay, Current-Limiting Number of Elements: Dual Connection: Bolted Blade End x Bolted Blade End Indicator: Non-Indicating Response Time: 10 seconds at 500% rated current UPC: 051712523455 CSA Classification Visible: HRCI-J, Type D |
