LASERMAX ROLL SYSTEMS LX535 Slit Merge + LX561 Cutter + LX566 Stacker Roll-to-Sheet Finishing Line
LASERMAX ROLL SYSTEMS

LX535 Slit Merge + LX561 Cutter + LX566 Stacker Roll-to-Sheet Finishing Line

SKU: 143515
Price:
$13,534

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

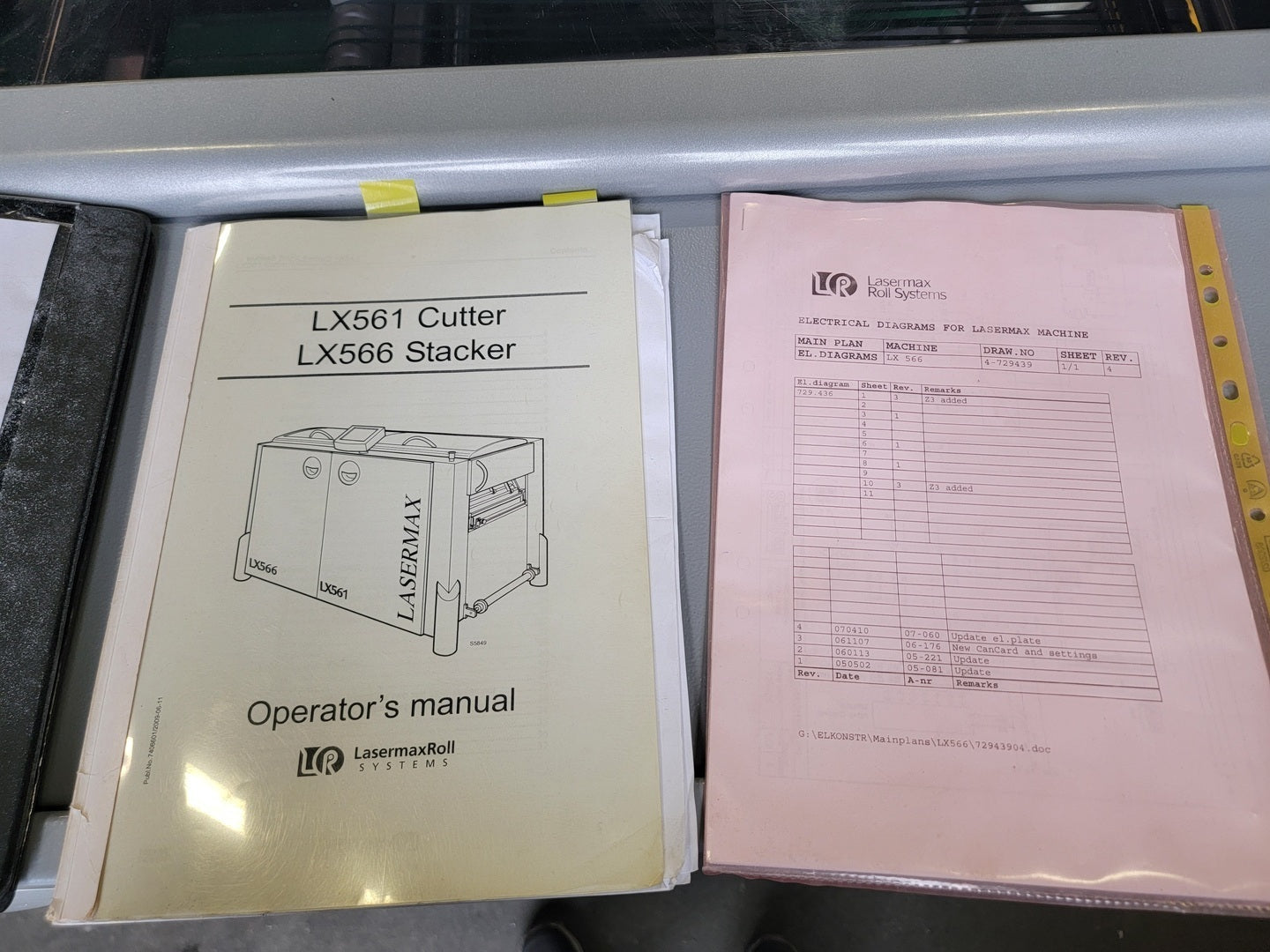

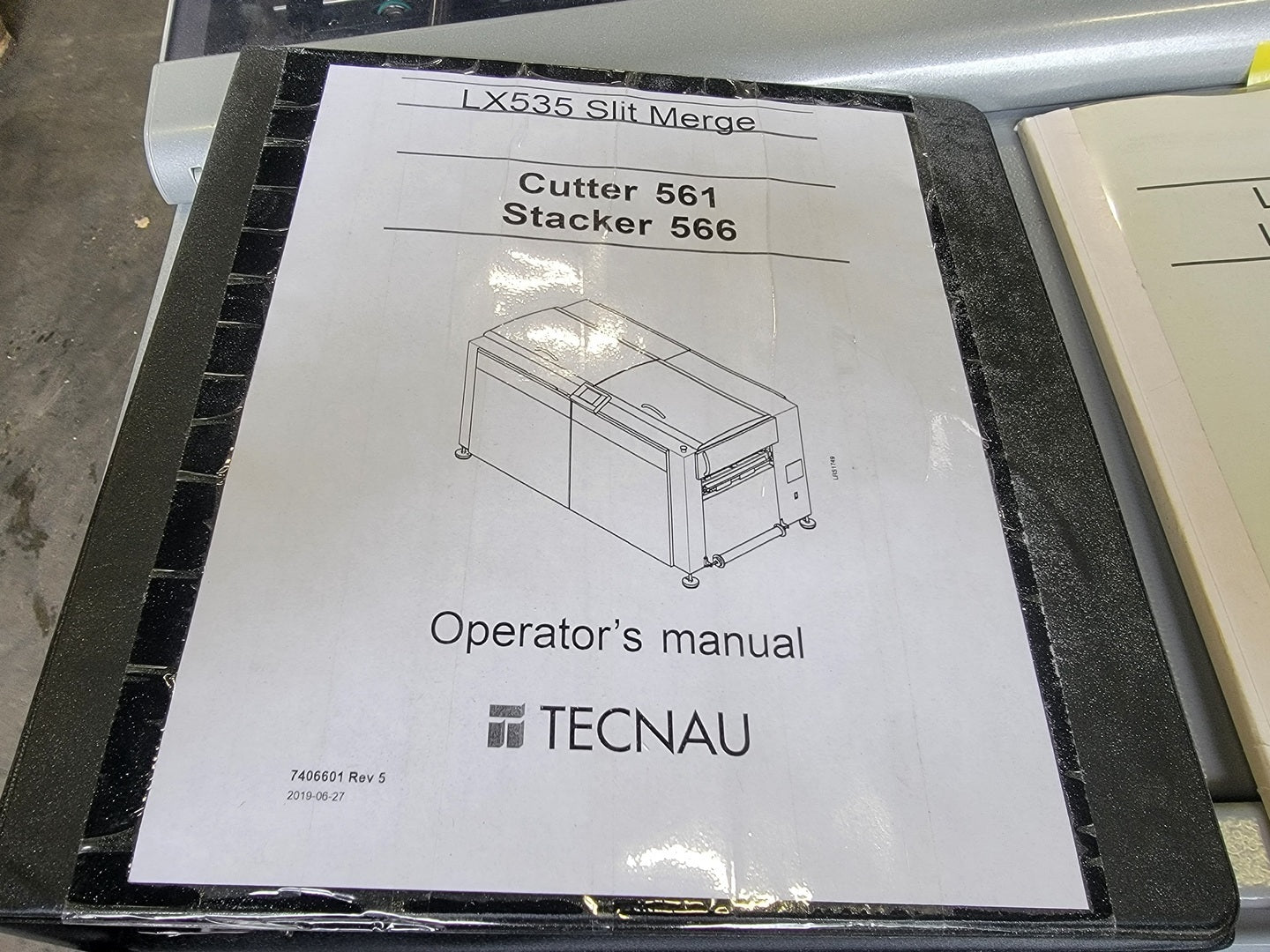

Complete Lasermax roll-fed finishing system including LX535 Slit/Merge, LX561 Cutter, and LX566 Stacker. Designed for high-speed continuous feed printers, this system converts roll paper into cut sheets with precision slitting and stacking. Ideal for transactional print, book production, and mail operations. Clean condition with manuals included.
Specifications

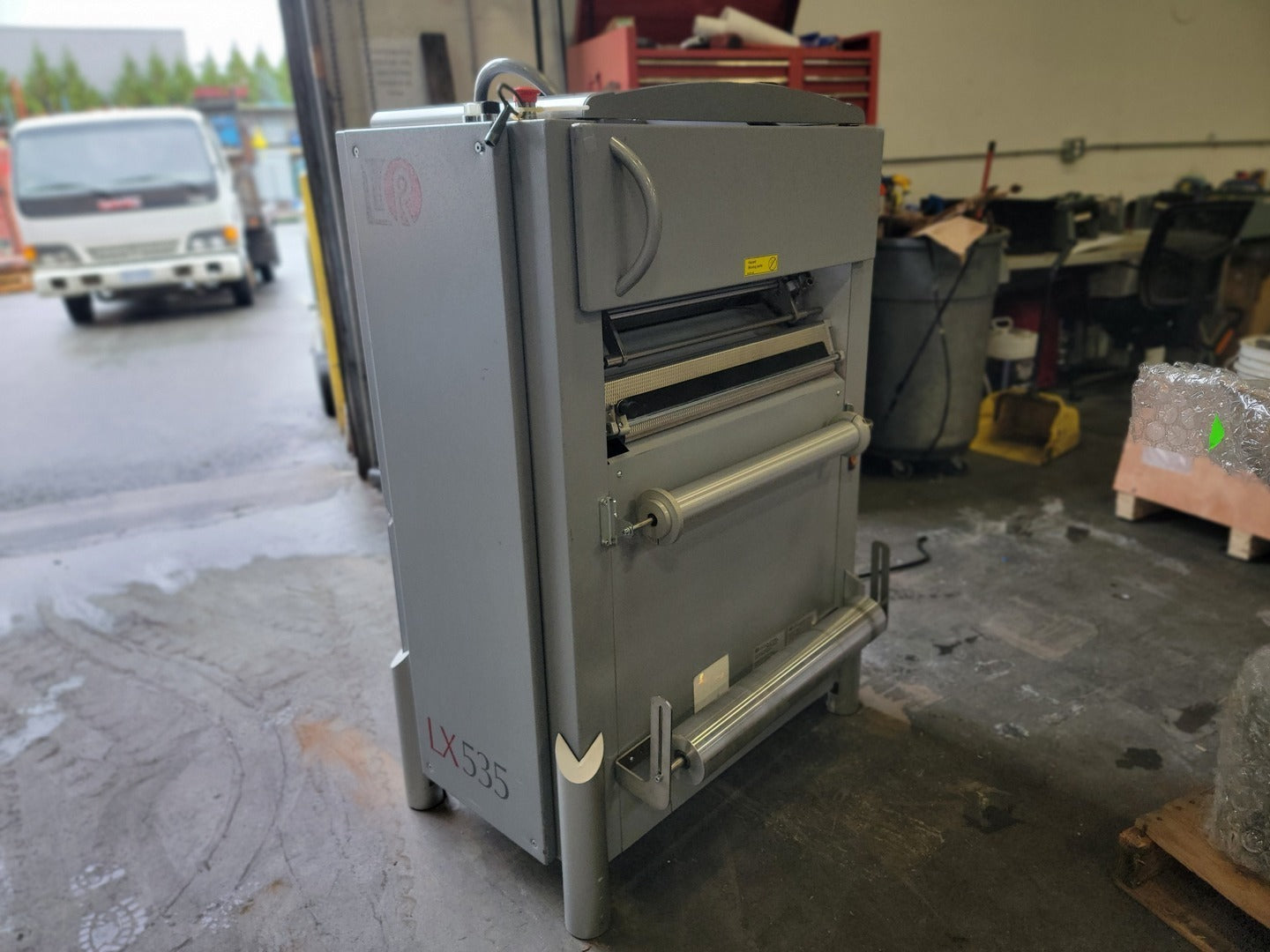

Model LX535
Condition Used
Other Specifications

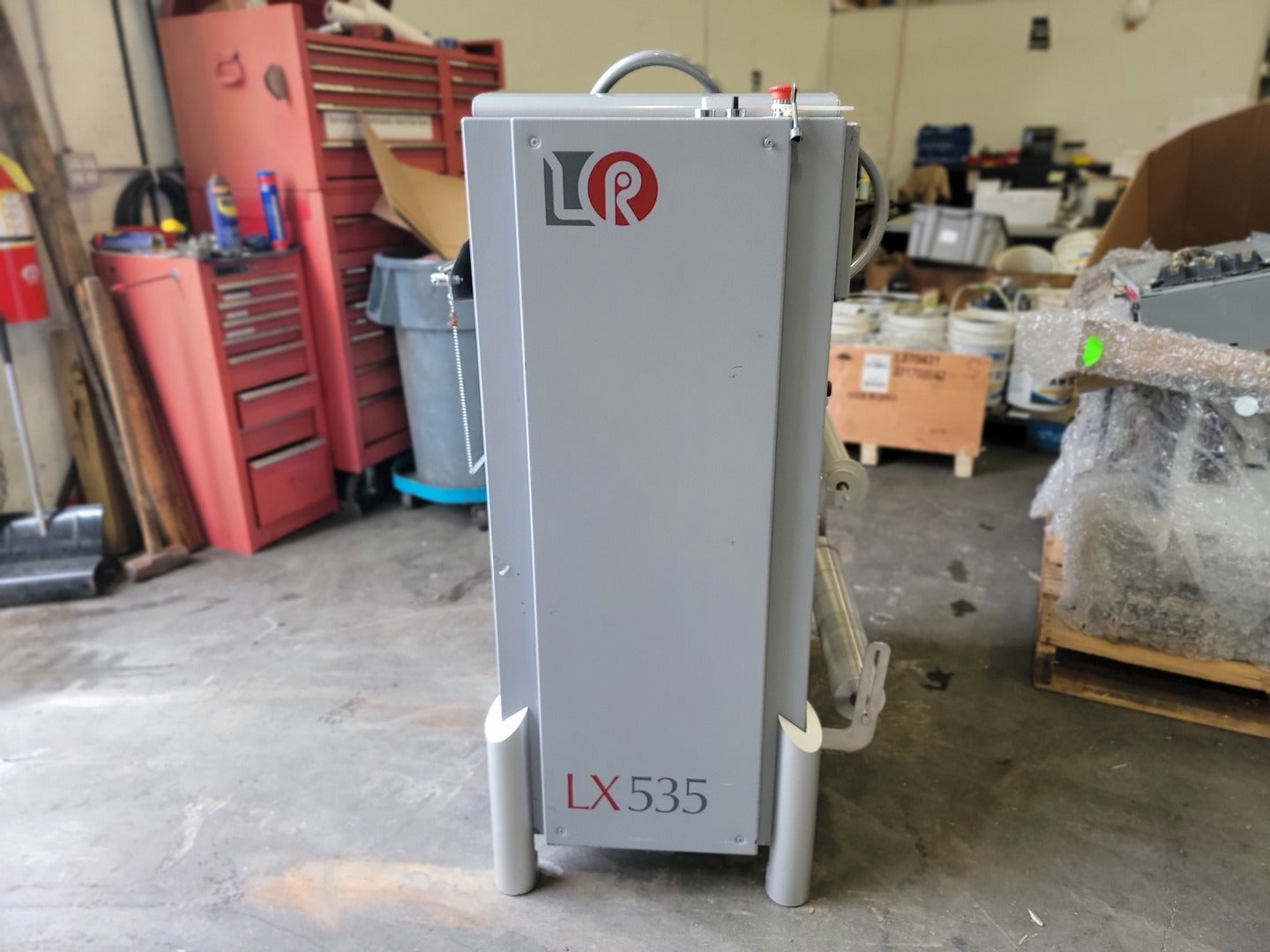

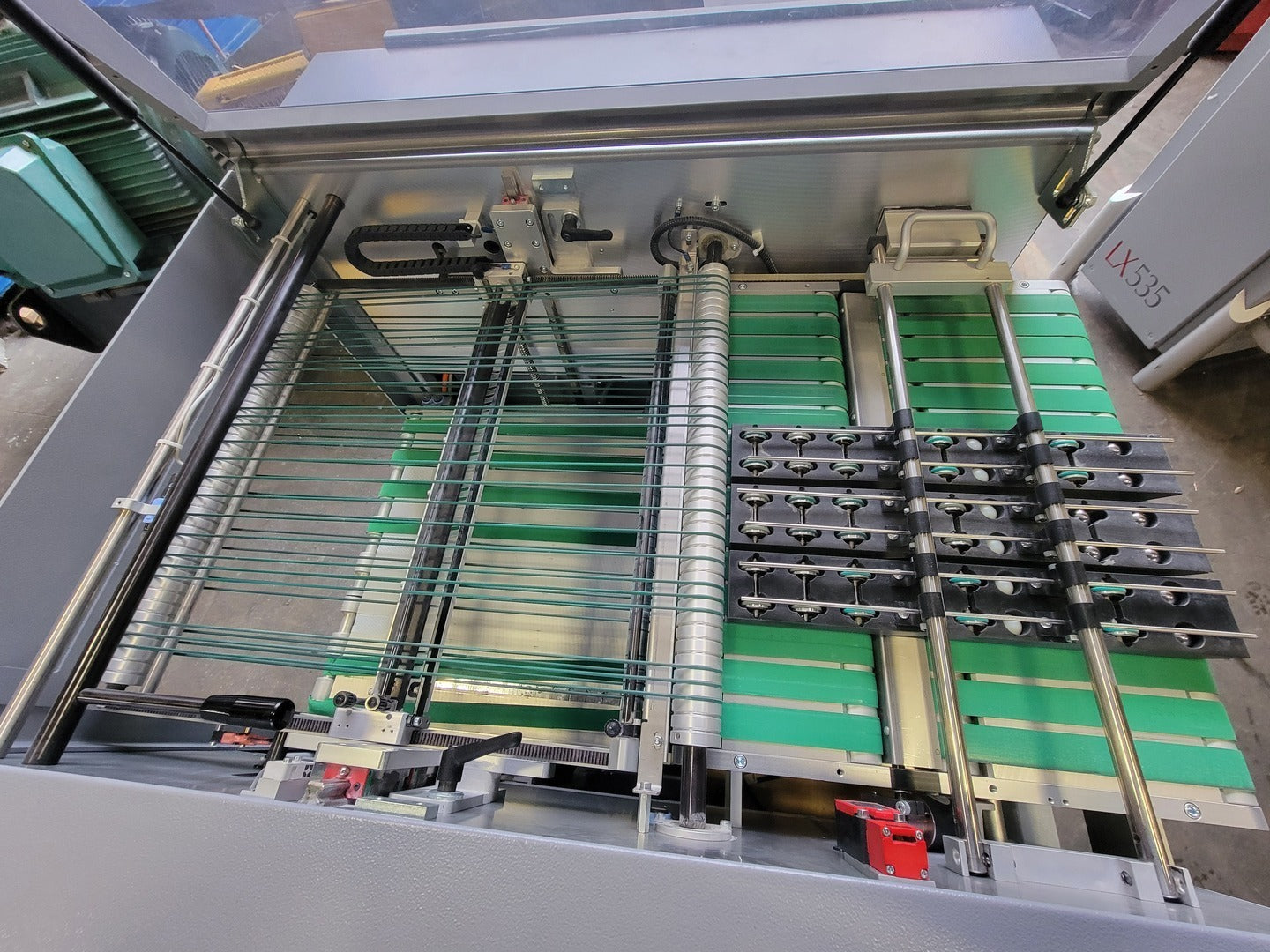

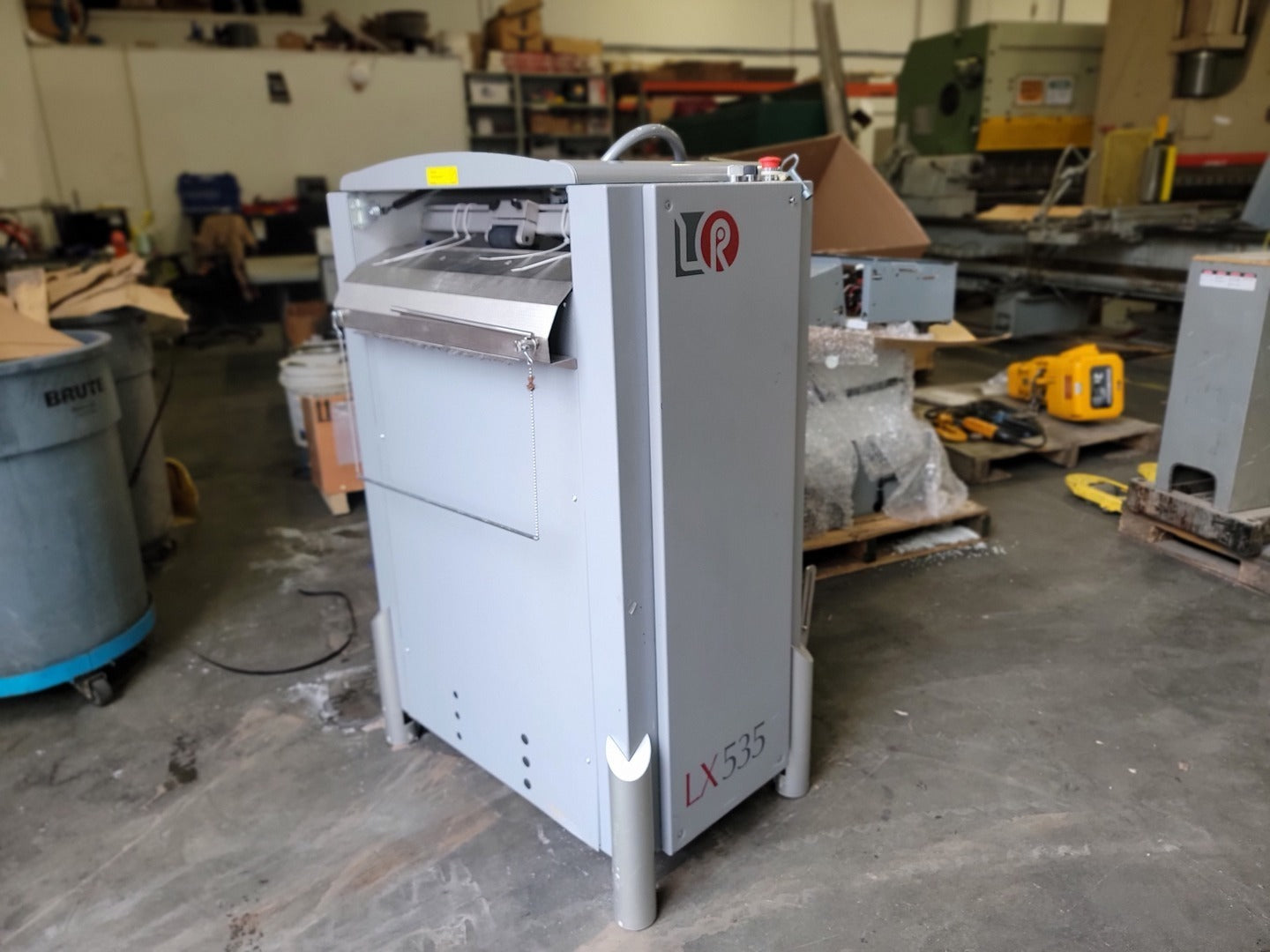

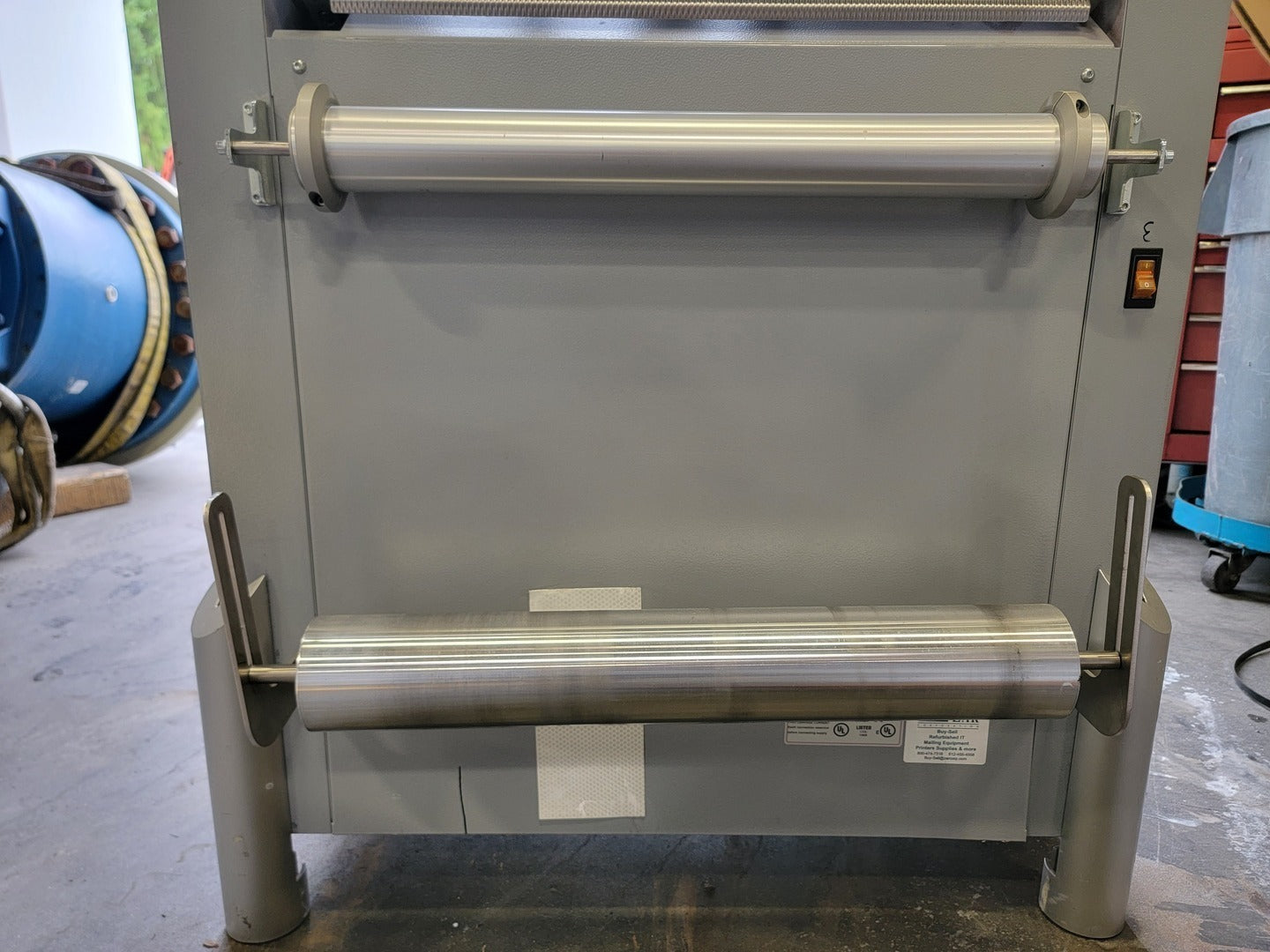

Slit merger LX535

  1. Enables flexible delivery options - 1-up, 2-up, 3-up, slit merge, single sheet bypass
  2. Easy changeover between slit merge and multiple-up jobs
  3. Greater throughput - up to 450 ft/min
  4. Compatible with lightweight papers
  5. Flexible page formats
  6. Automatic loading of webs
  7. Dynamic center slit justification
  8. Controlled web feeding

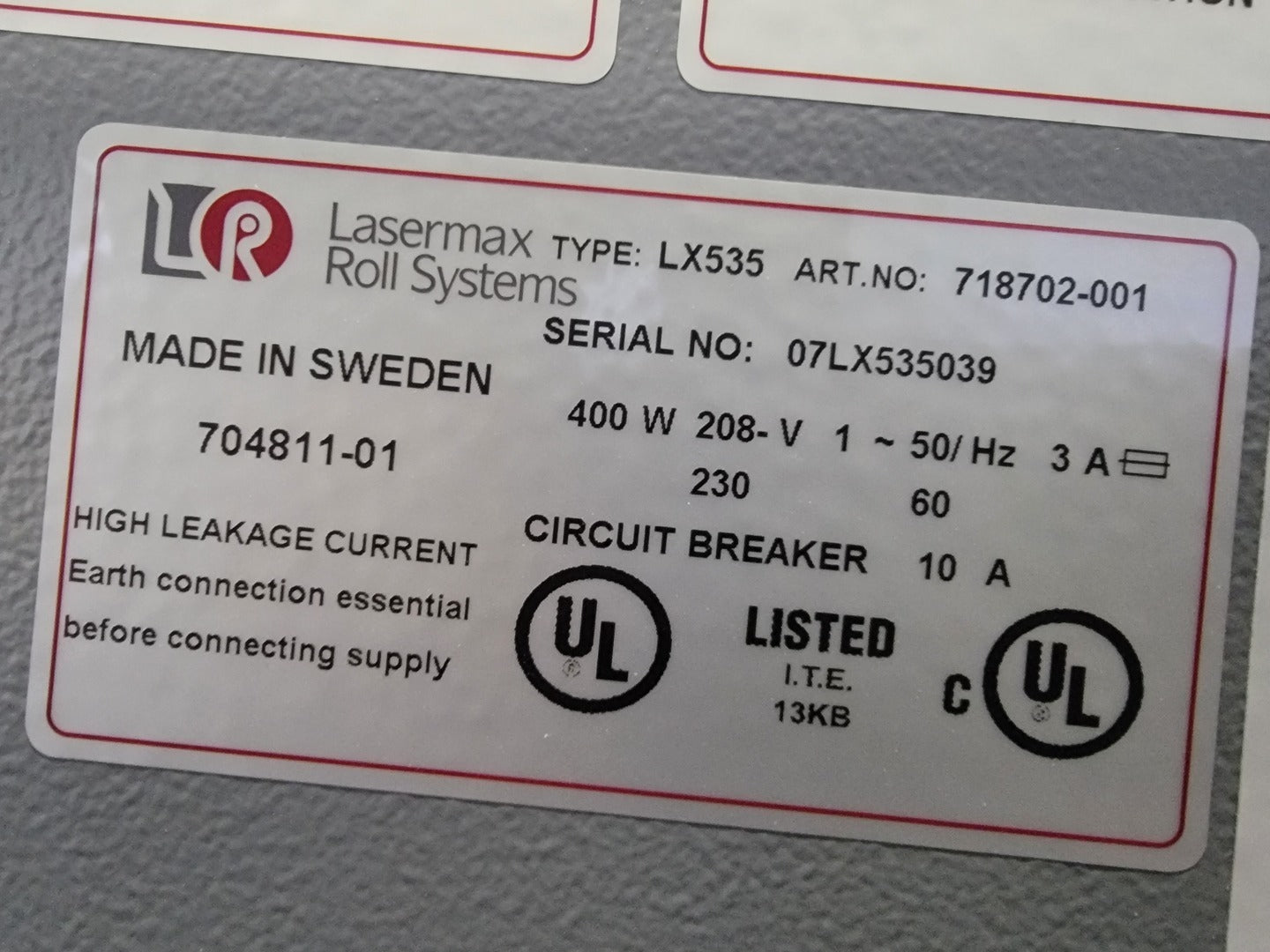

  9. Watt: 400 W
  10. Voltage: 208-230 volts
  11. Phase: single
  12. Frequency: 50/60 Hz
  13. Ampere: 3 amps
  14. Circuit breaker: 10 amps

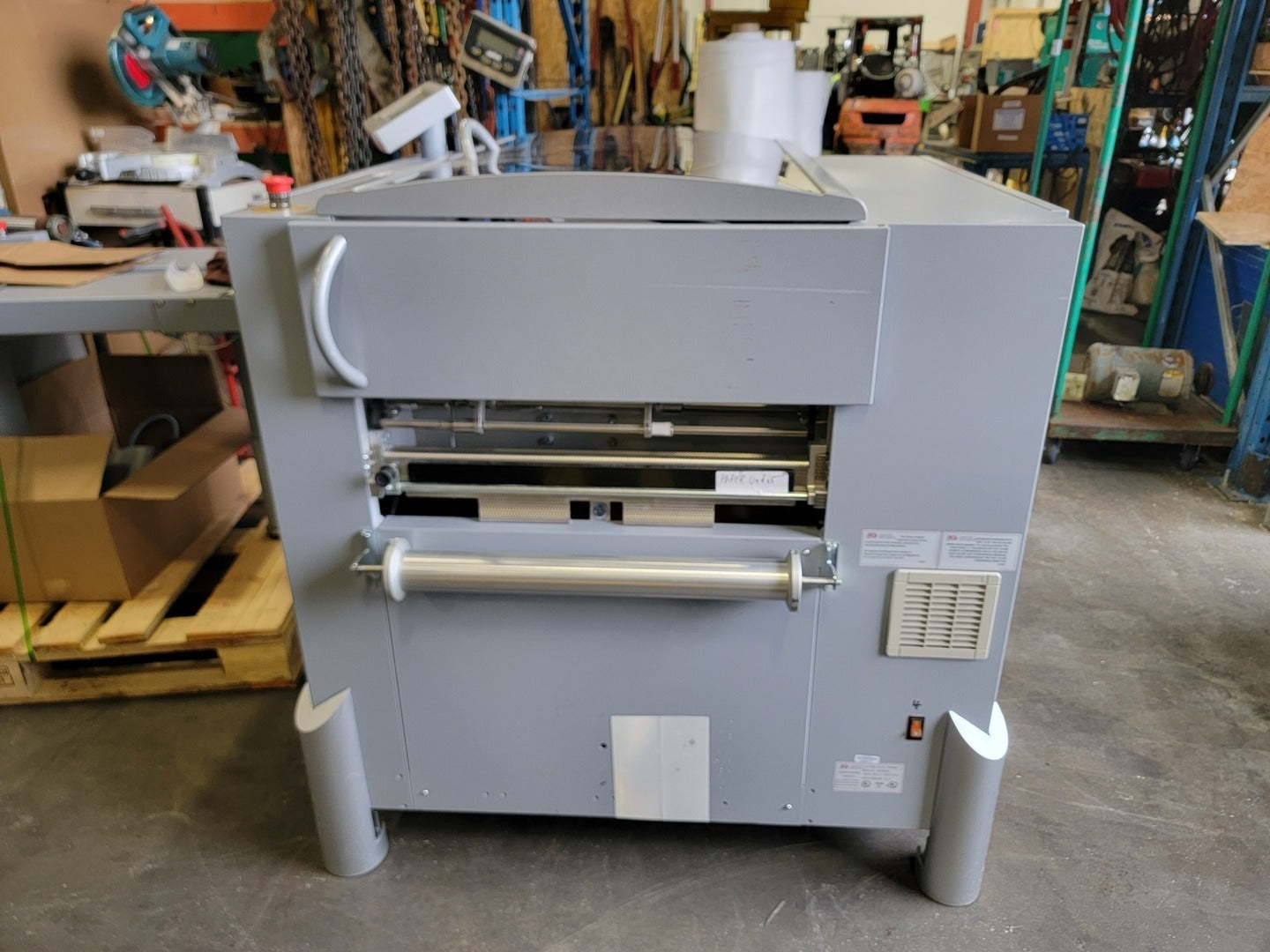

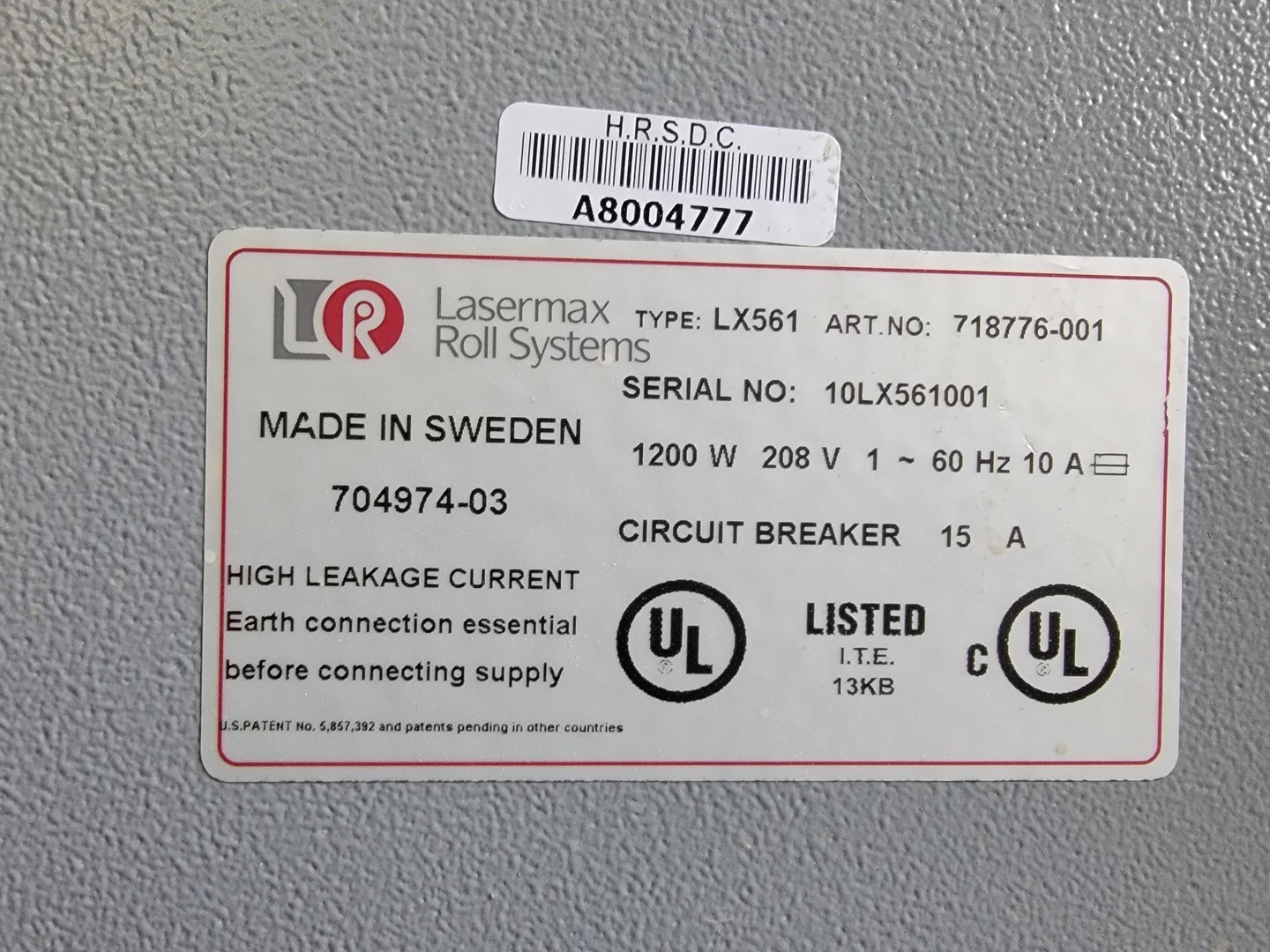

Cutter LX561

  1. Speed: Up to 450 feet per minute
  2. Cut Length: Handles forms up to 18 inches
  3. Paper Weight: Supports down to 11 lb bond (40 gsm)
  4. Core Size: 70mm airshaft diameter
  5. Watt: 1200 W
  6. Voltage: 208 volts
  7. Phase: single
  8. Frequency: 60 Hz
  9. Ampere: 10 amps
  10. Circuit breaker: 15 amps

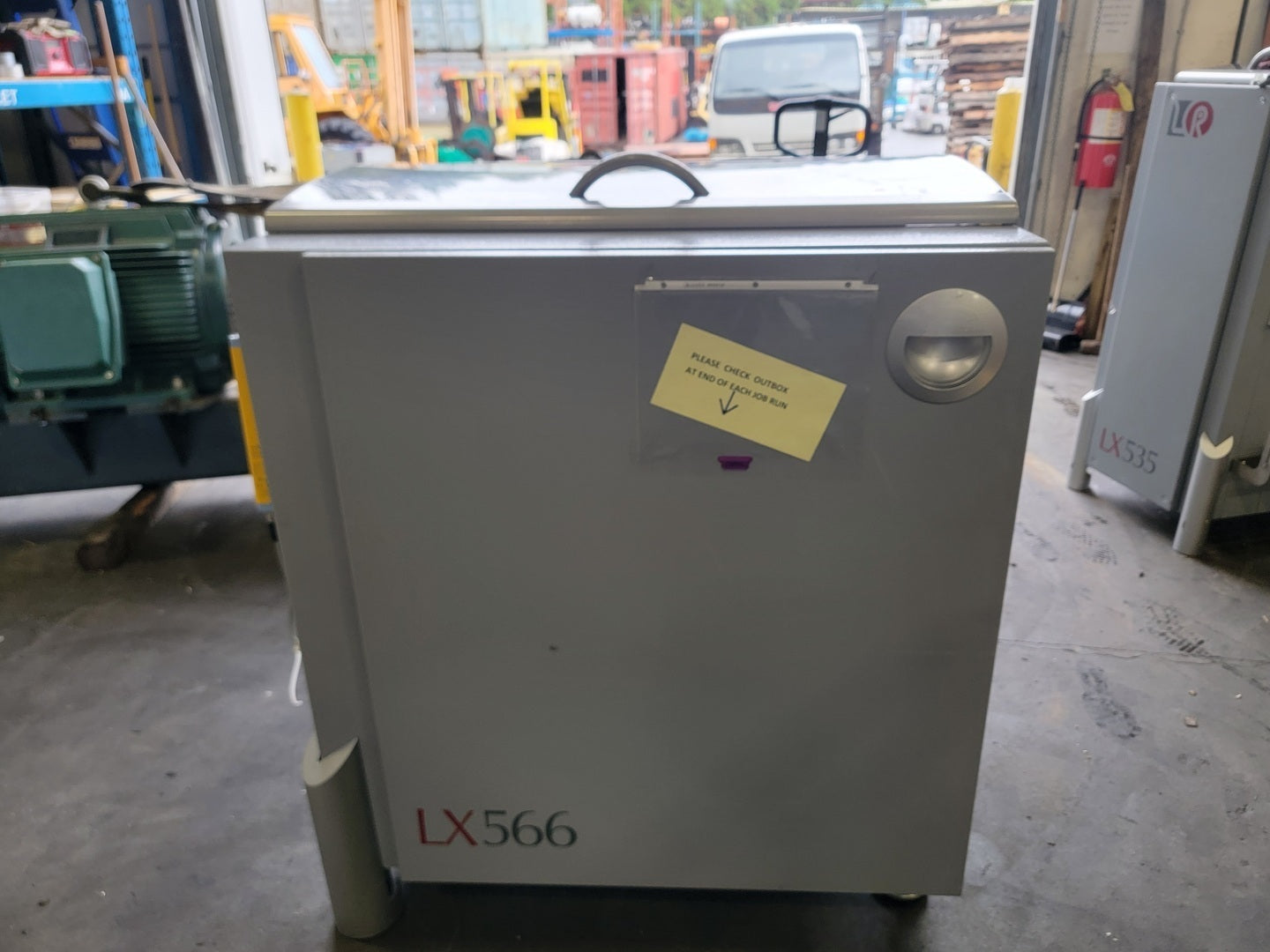

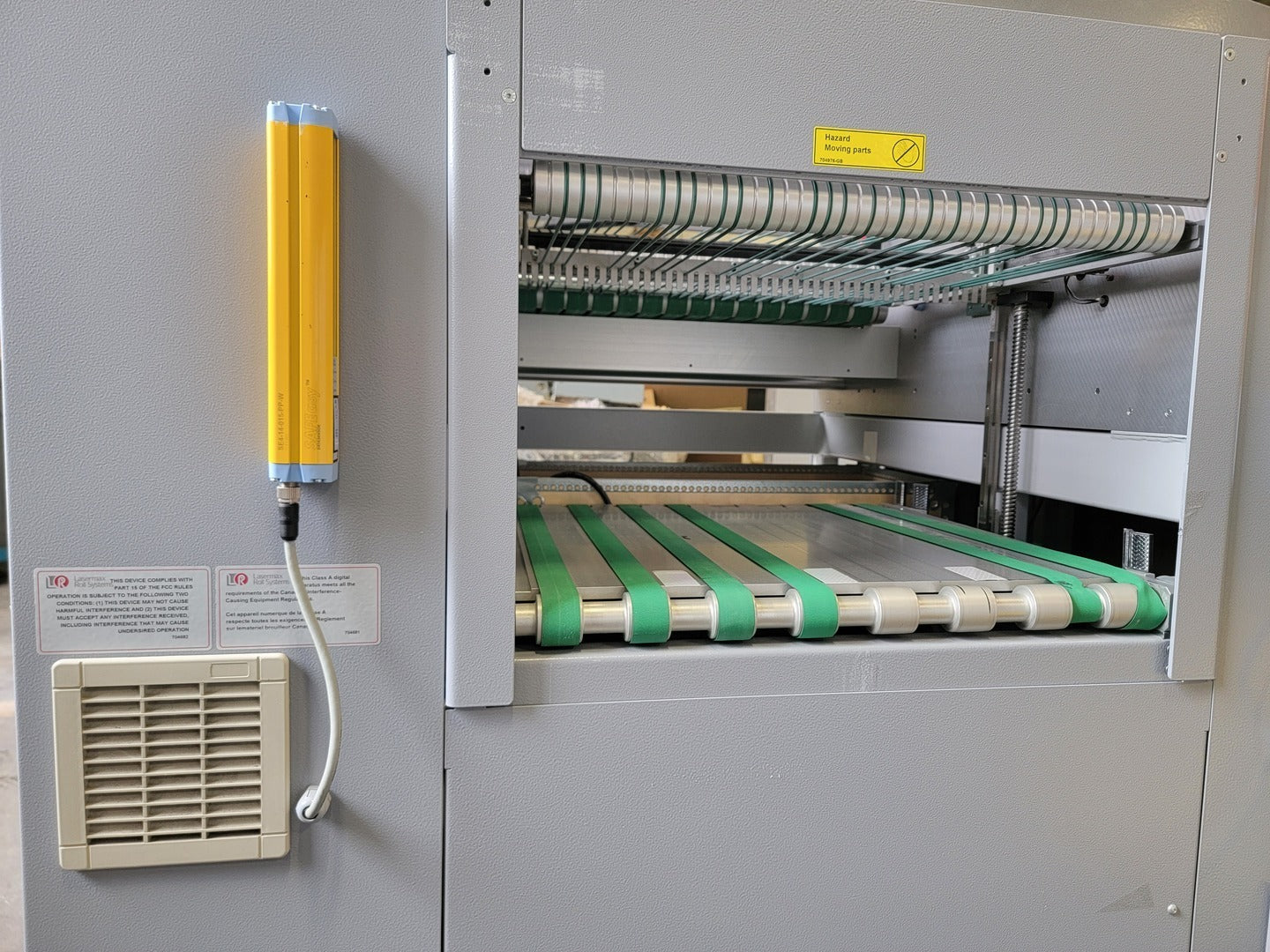

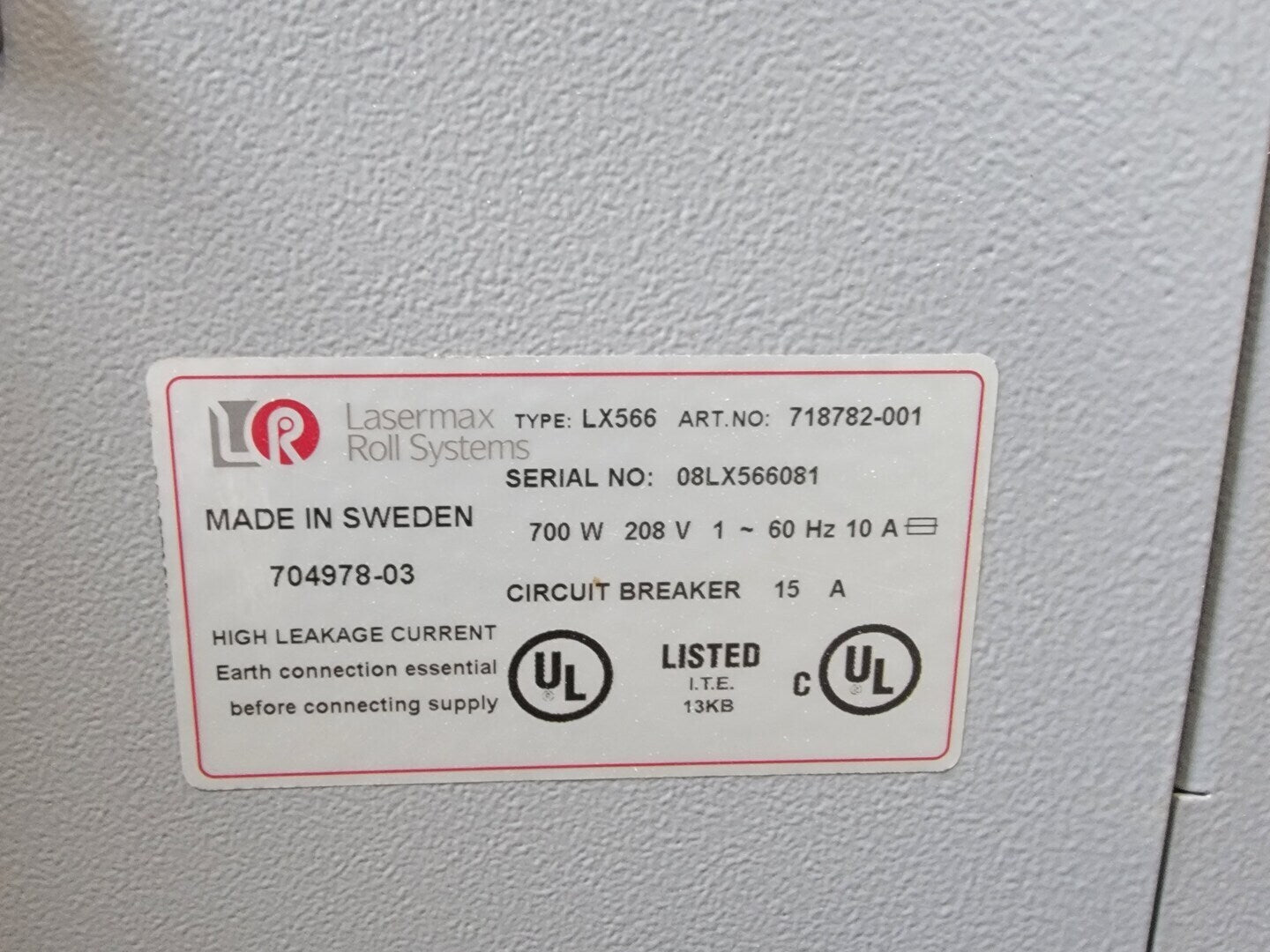

Stacker LX566

  1. Speed: Up to 450 feet per minute
  2. Cut Length: Handles forms up to 18 inches
  3. Paper Weight: Supports down to 11 lb bond (40 gsm)
  4. Watt: 700 W
  5. Voltage: 208 volts
  6. Phase: single
  7. Frequency: 60 Hz
  8. Ampere: 10 amps
  9. Circuit breaker: 15 amps
