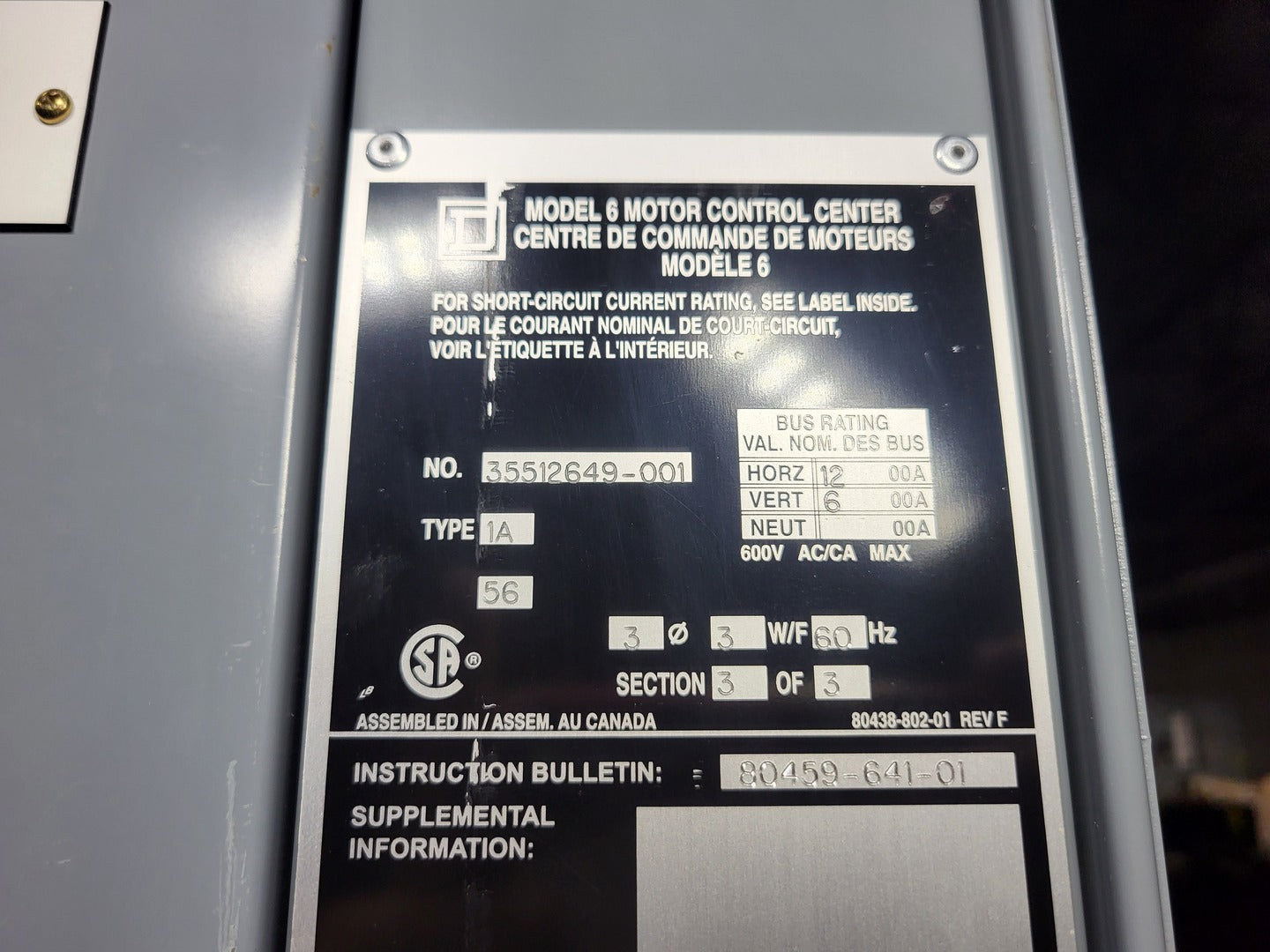

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151901
Price:
$2,562

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

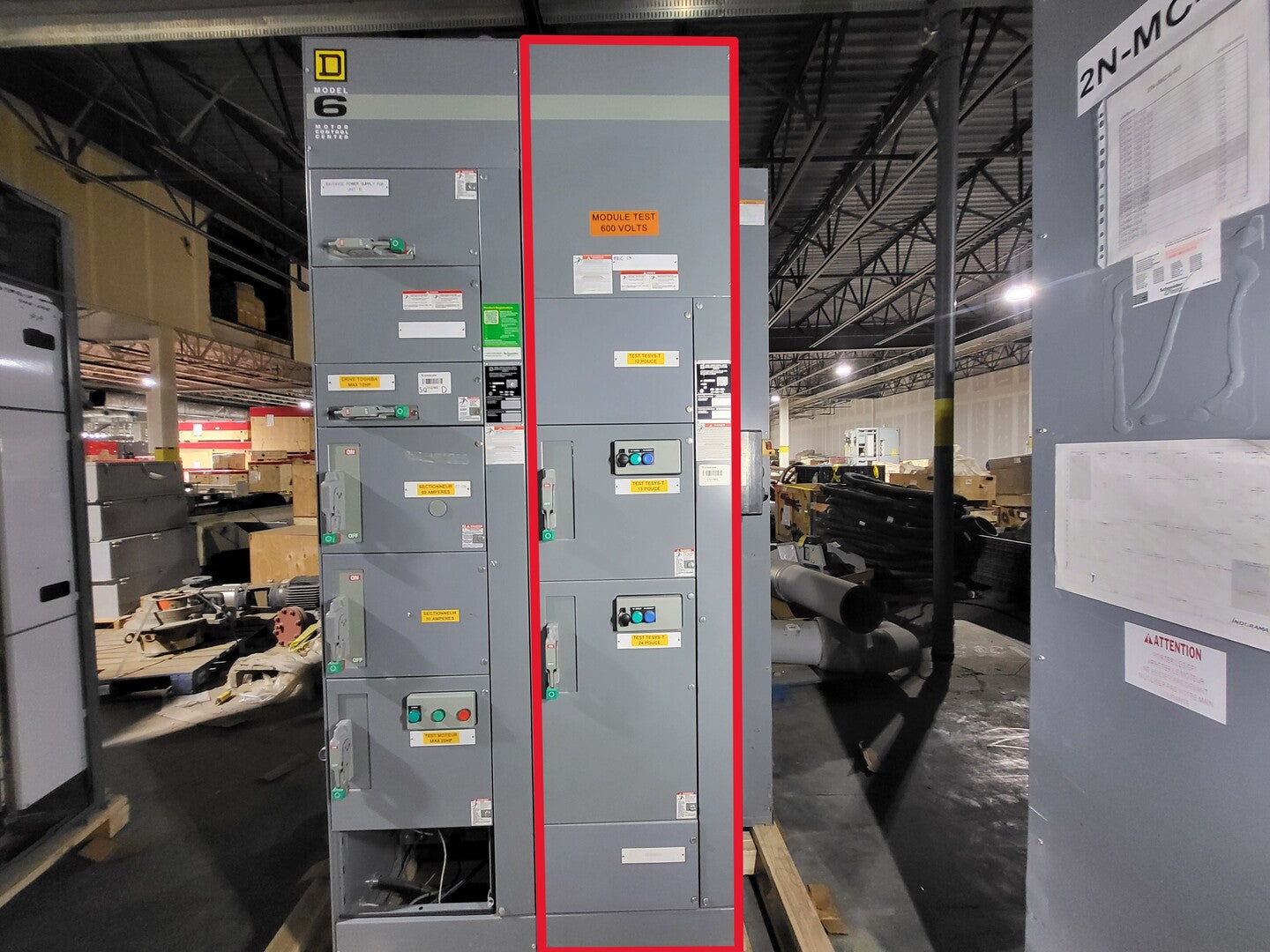

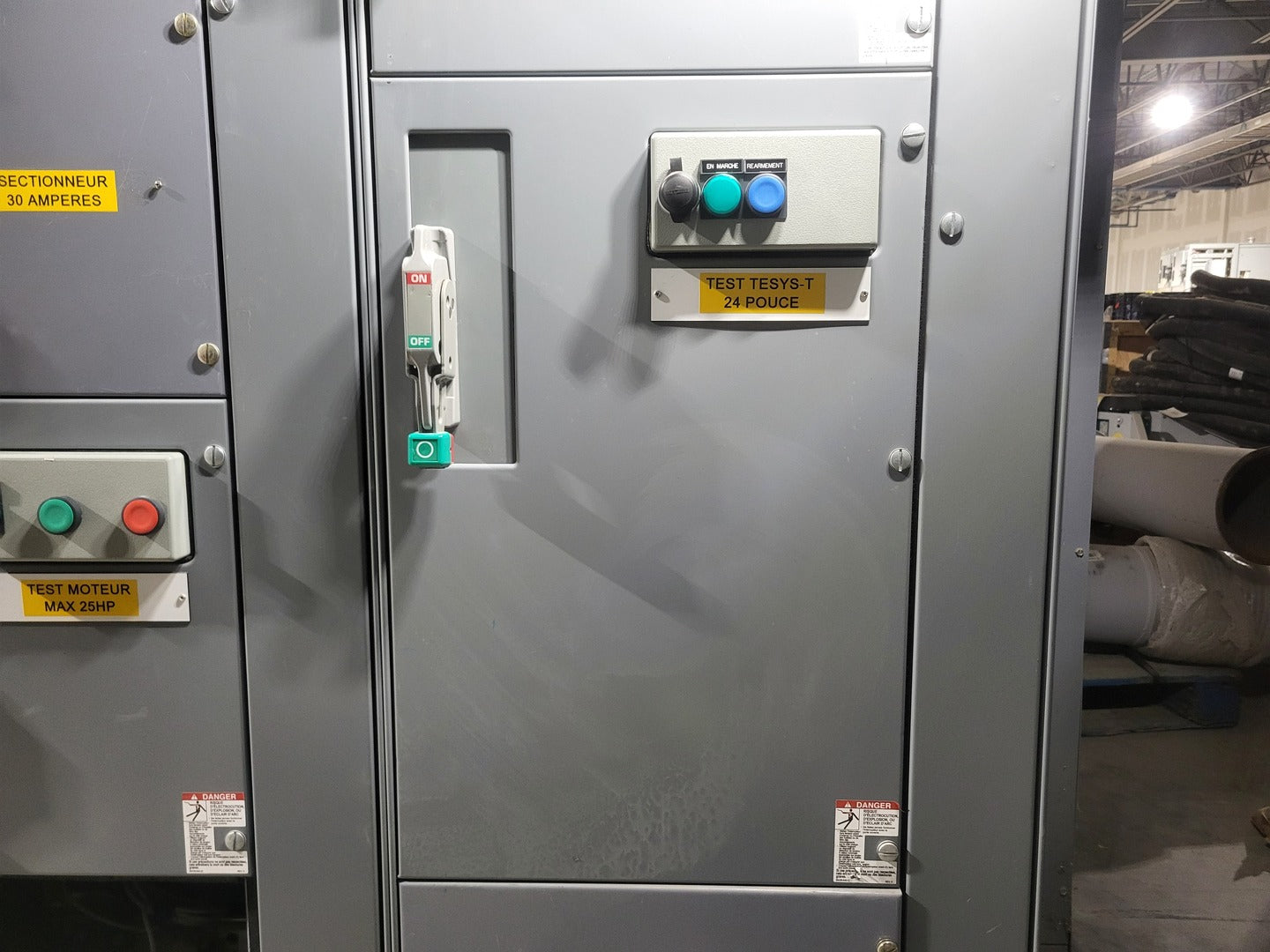

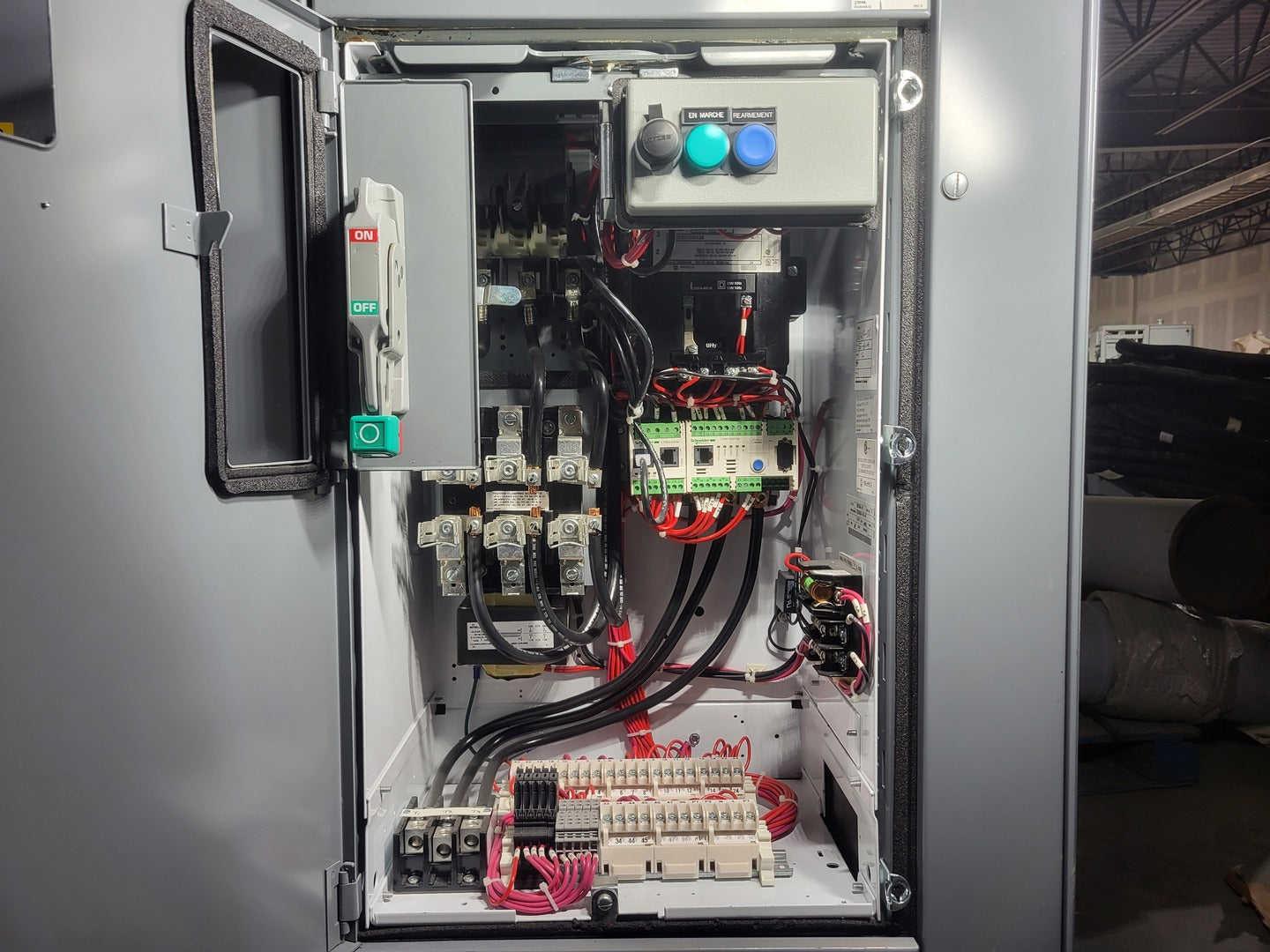

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

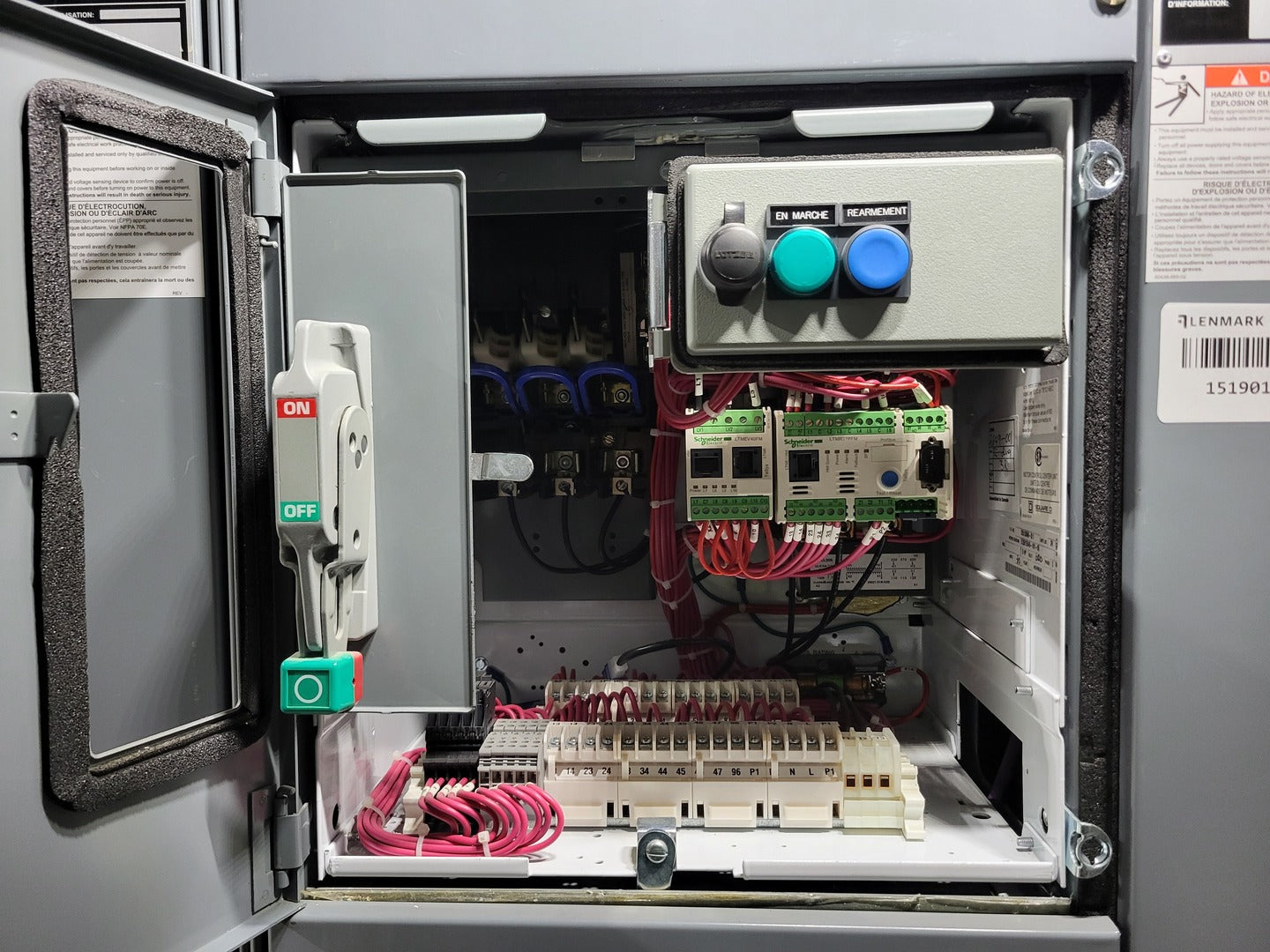

Bucket #1

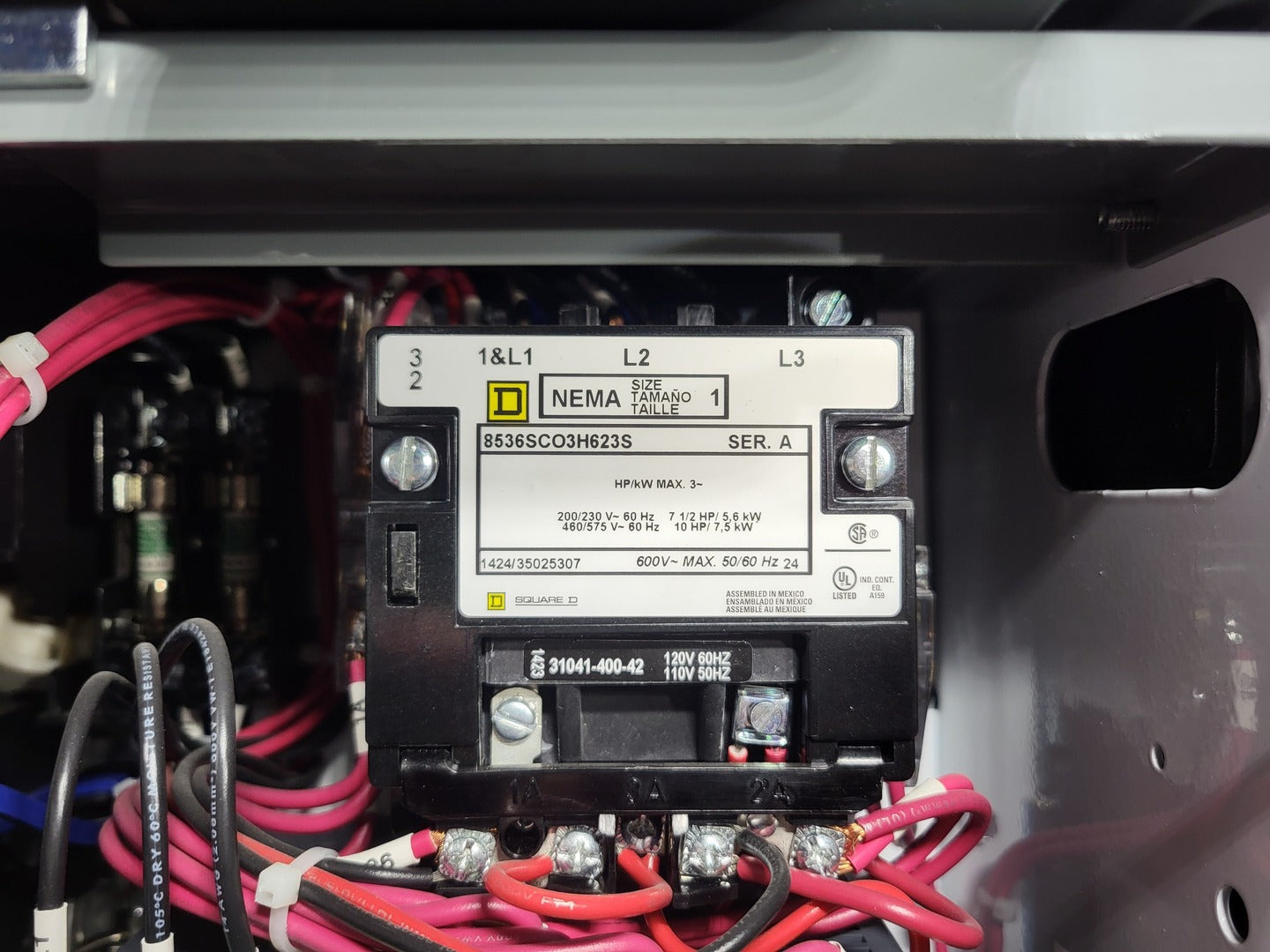

  1. Square D 8536SCO3H623S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120V coil

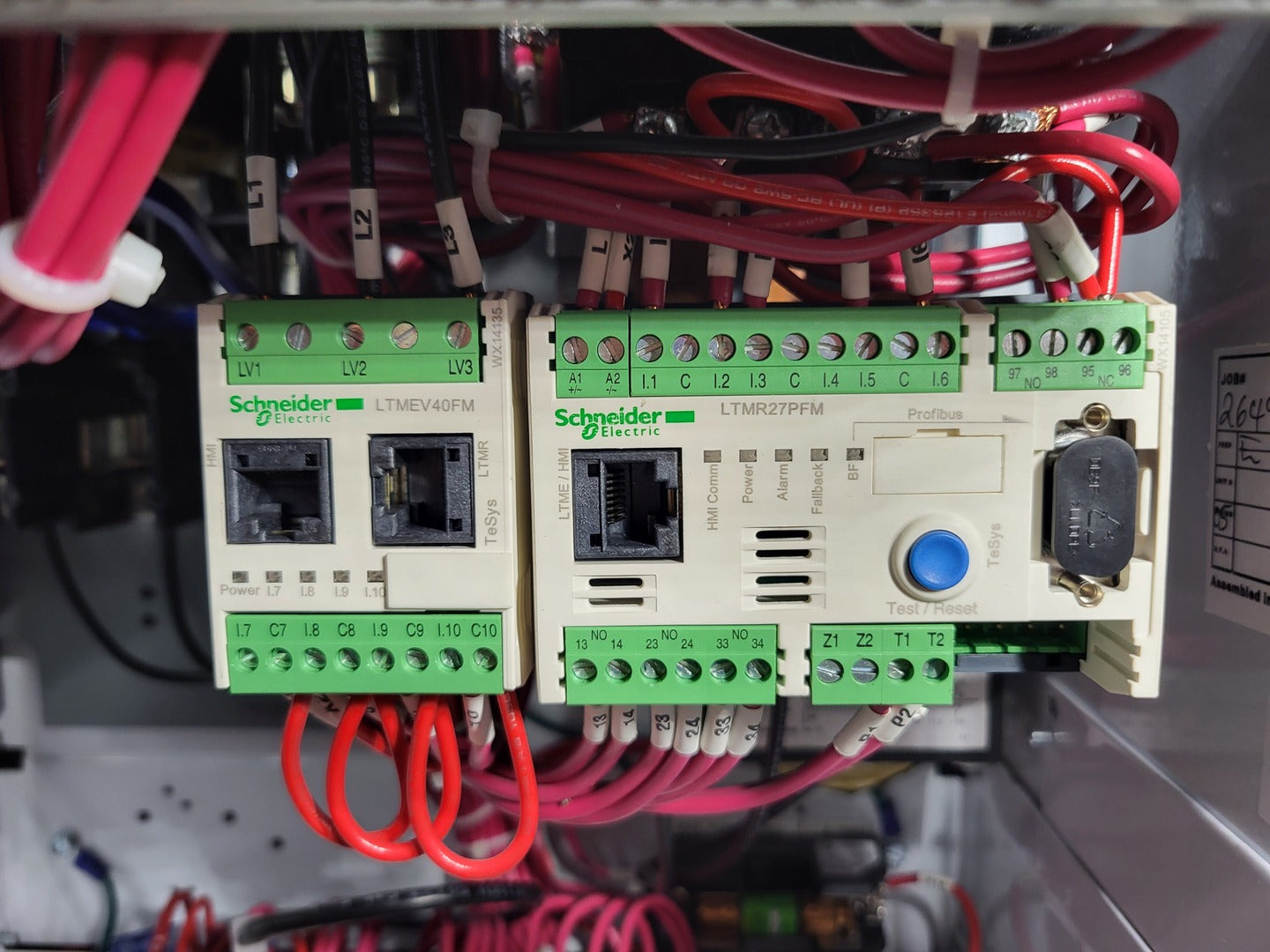

  2. Schneider Electric LTMR27PFM TeSys T motor management controller, Profibus, 0.35-27A range

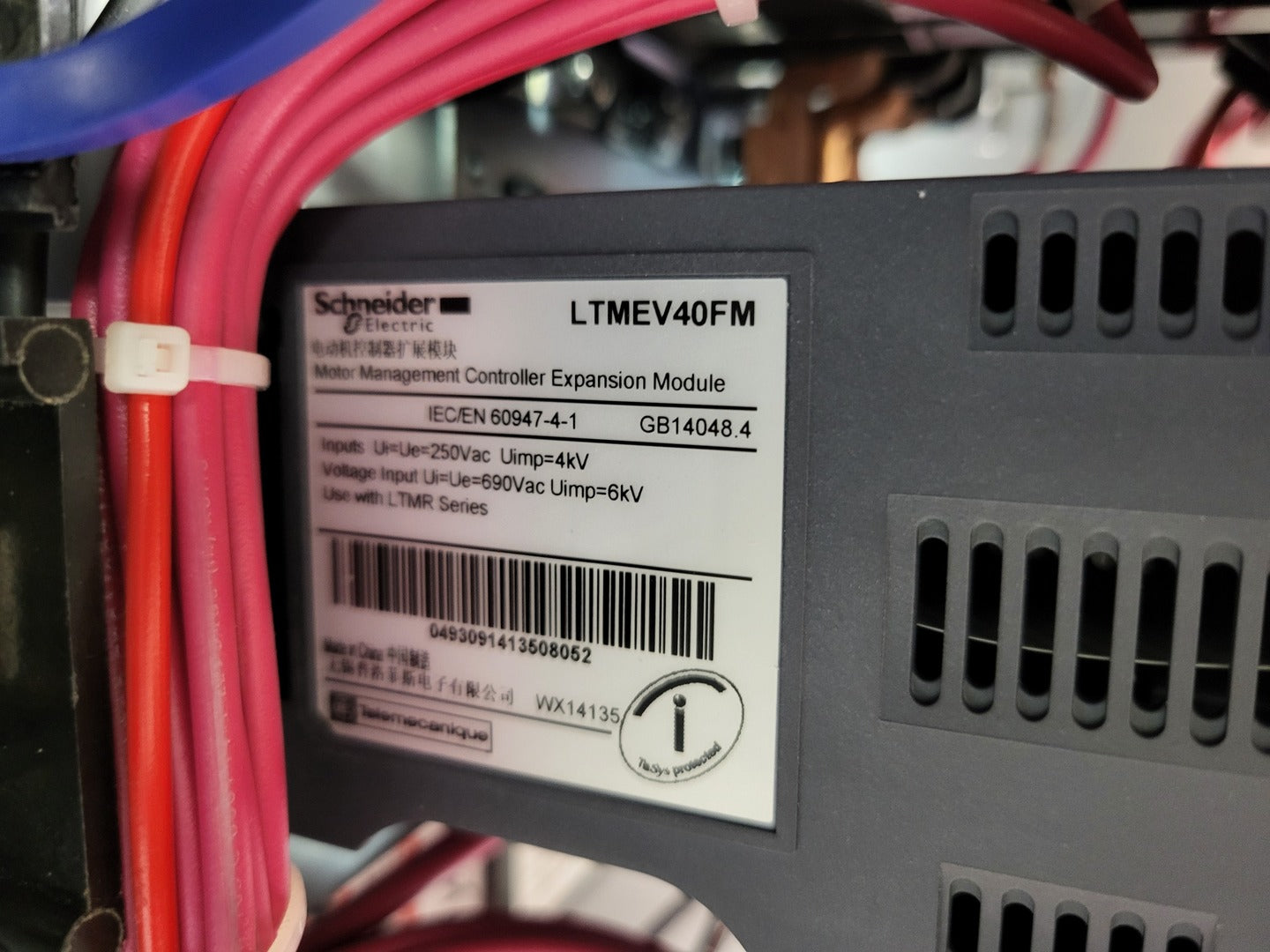

  3. Schneider Electric LTMEV40FM TeSys T motor management controller expansion module, 250V inputs / 690V voltage input

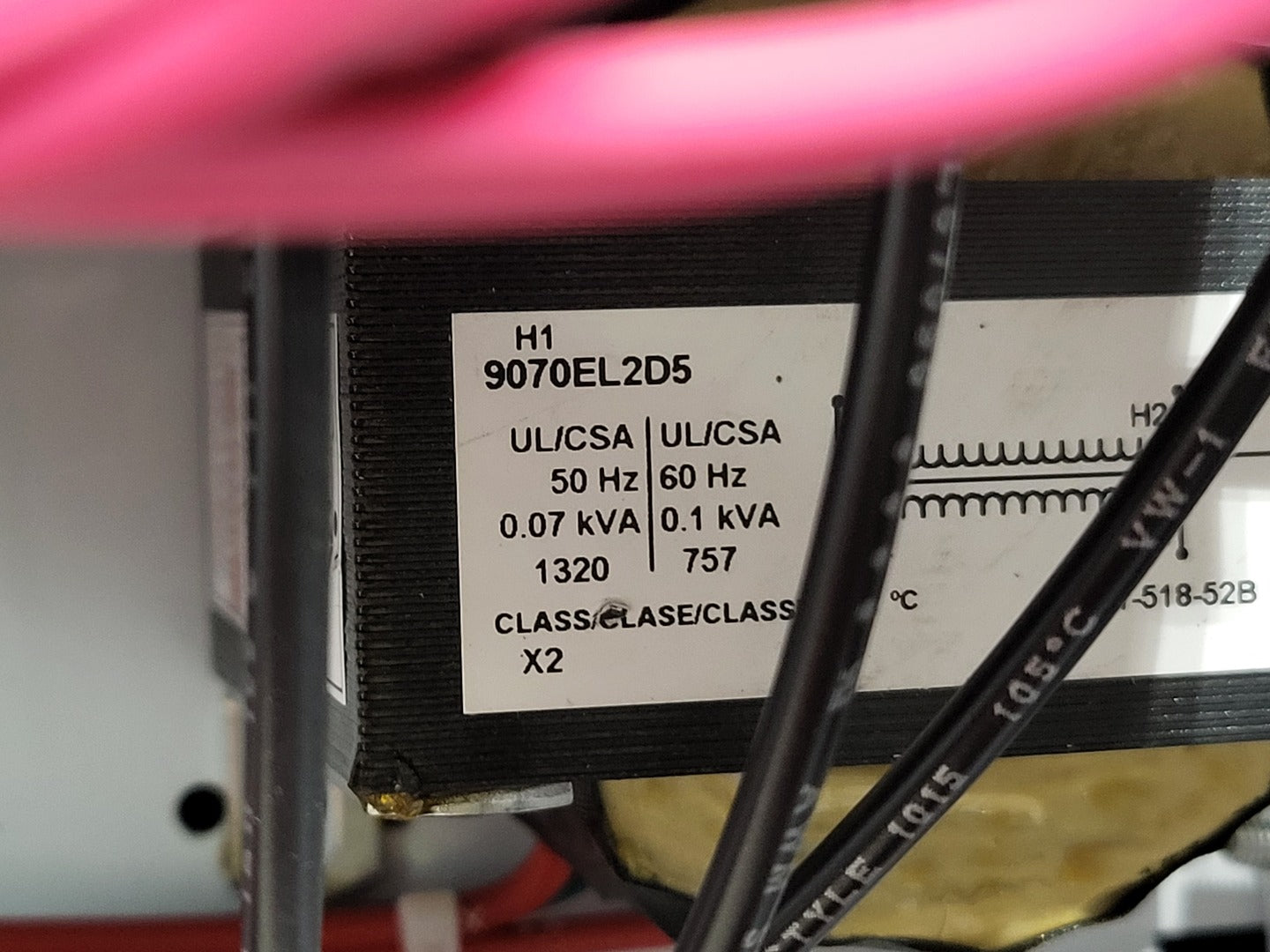

  4. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

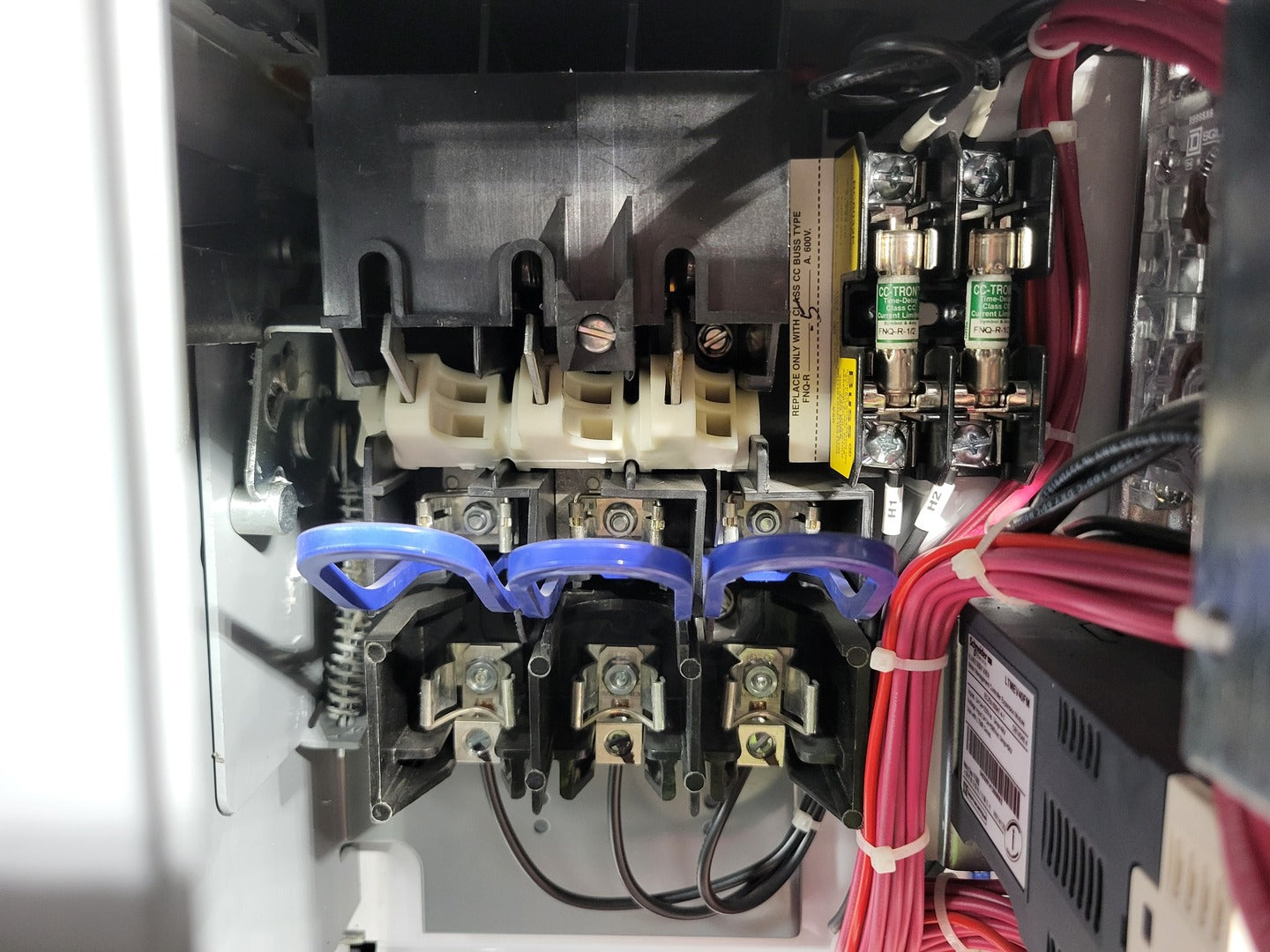

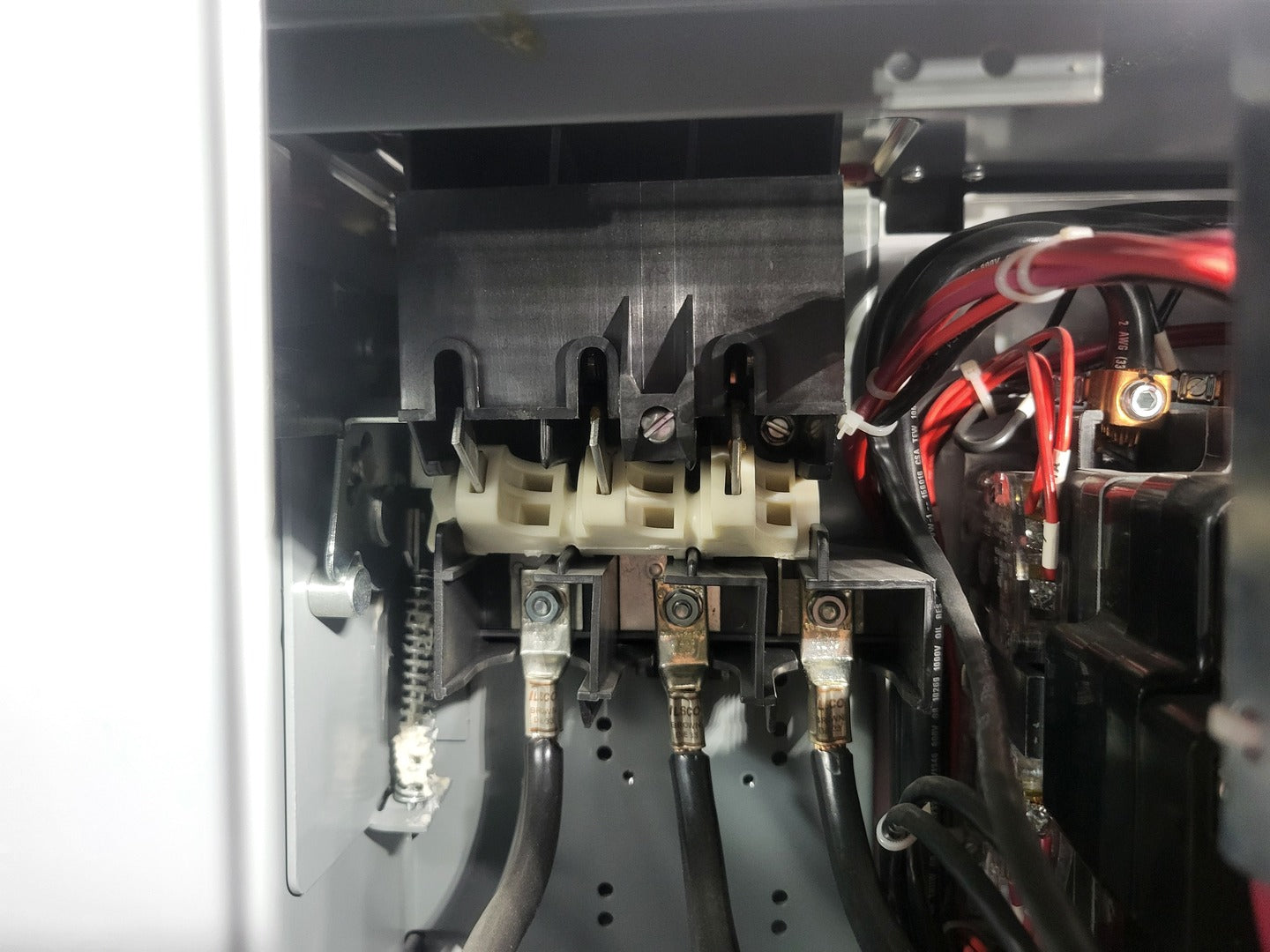

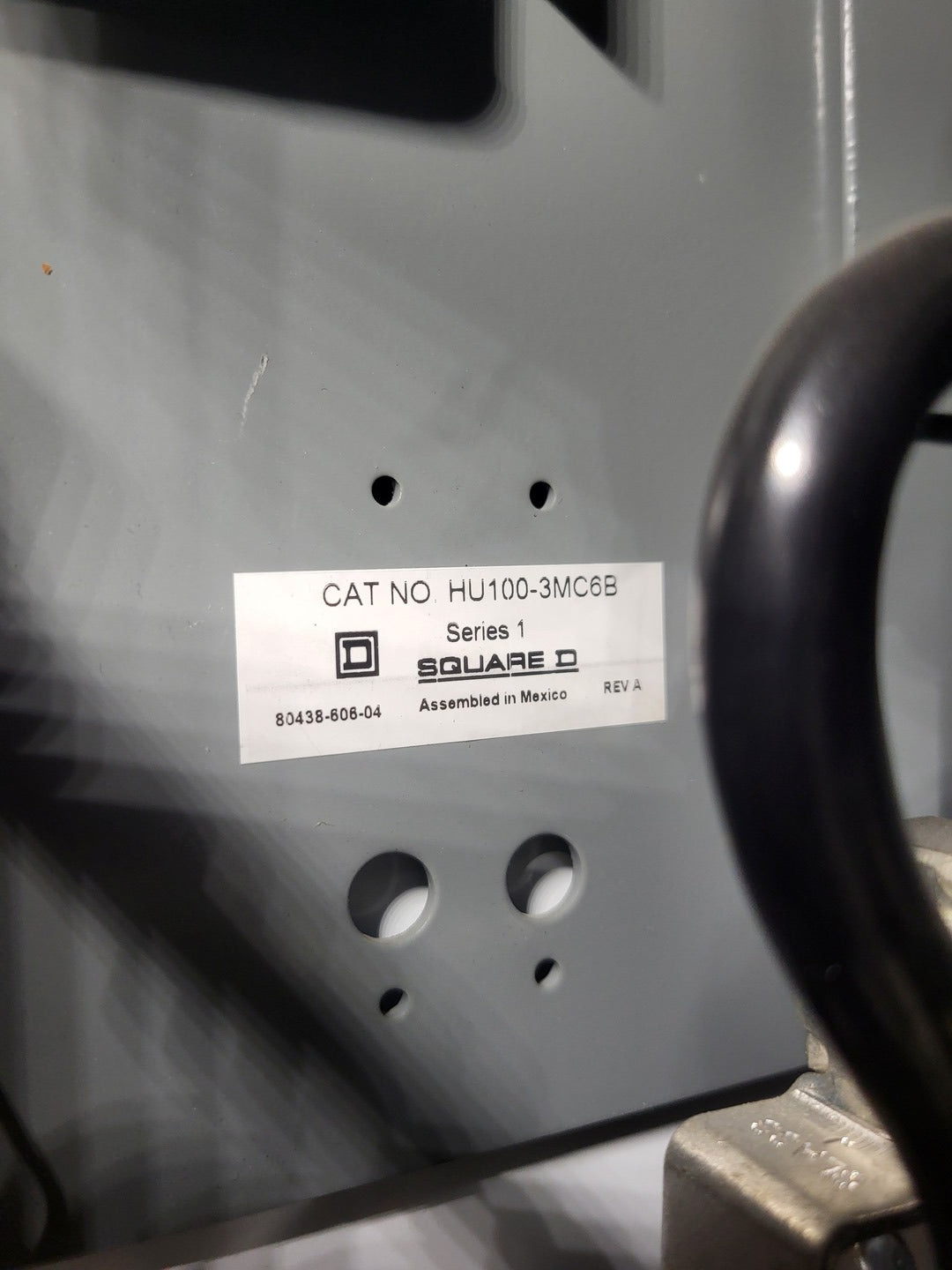

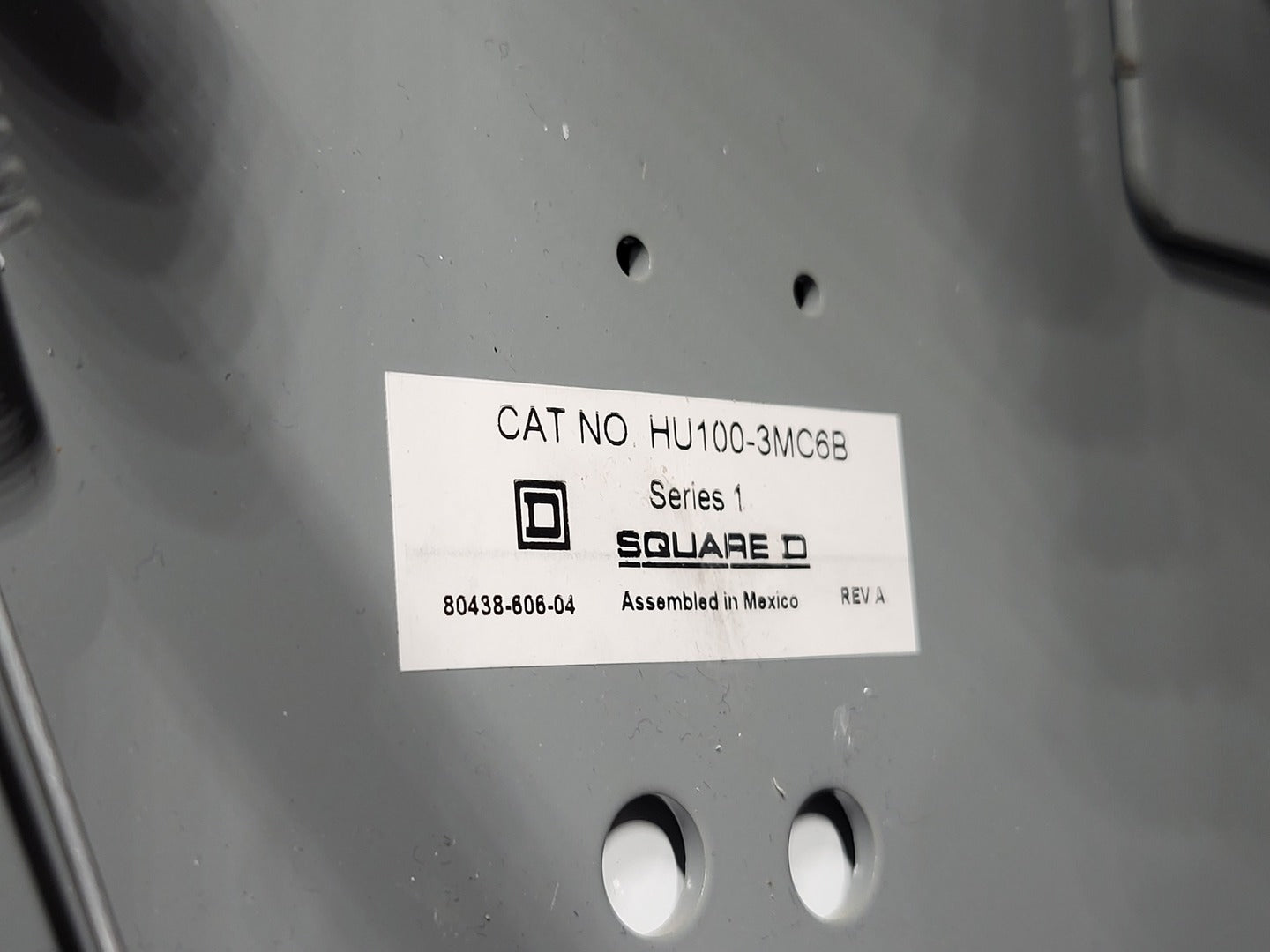

  5. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

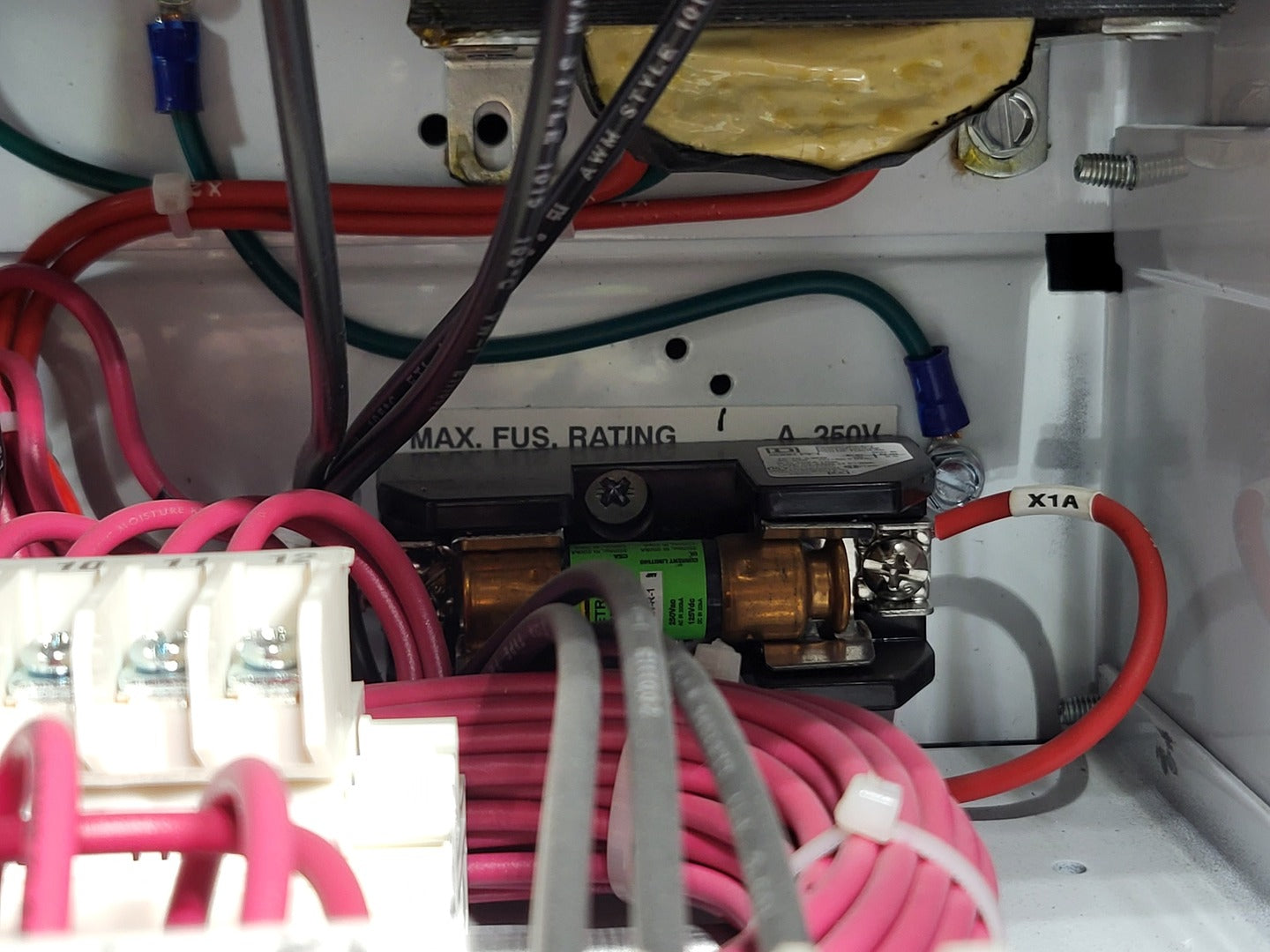

  6. 2 x Bussmann CC-Tron time-delay Class CC fuses, FNQ-R-1/2
  7. 1 x Bussmann Fusetron fuse FRN-R-1

Bucket #2

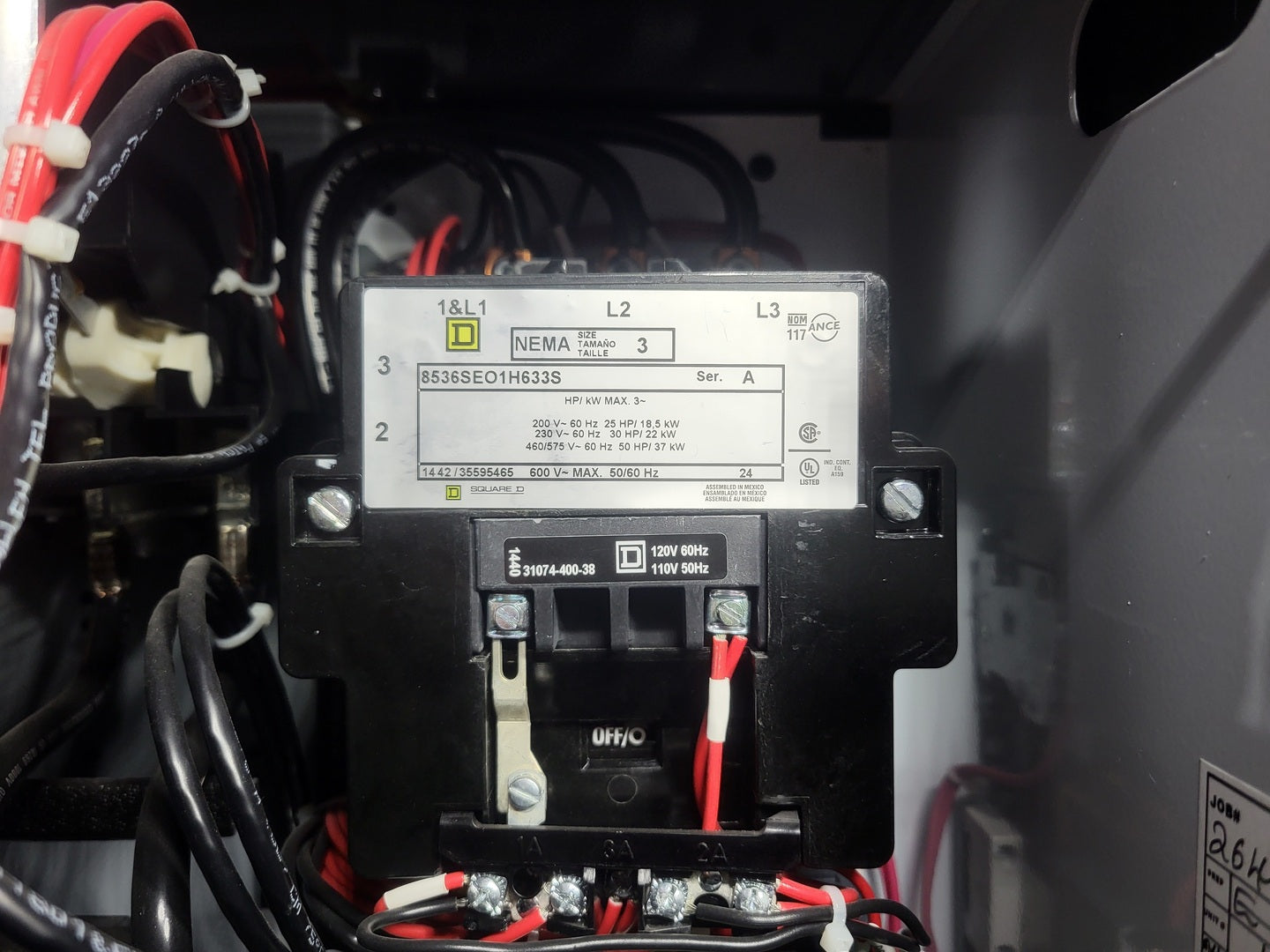

  1. Square D 8536SEO1H633S, NEMA Size 3 contactor, 30 HP @ 600V / 50 HP max @ 460/575V

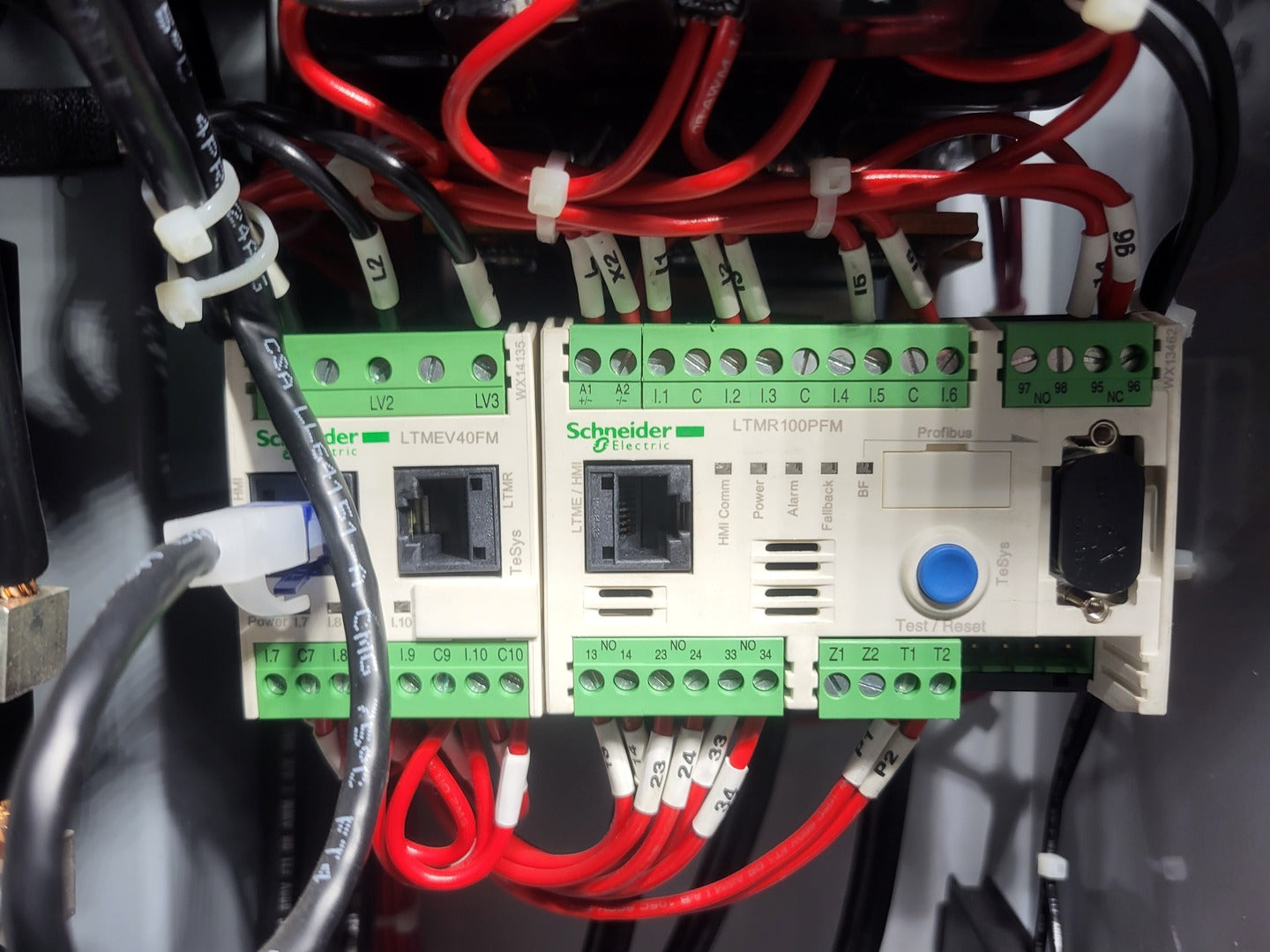

  2. Schneider Electric LTMR100PFM TeSys T motor management controller, Profibus, 1.35-100A range
  3. Schneider Electric LTMEV40FM TeSys T motor management controller expansion module, 250V inputs / 690V voltage input

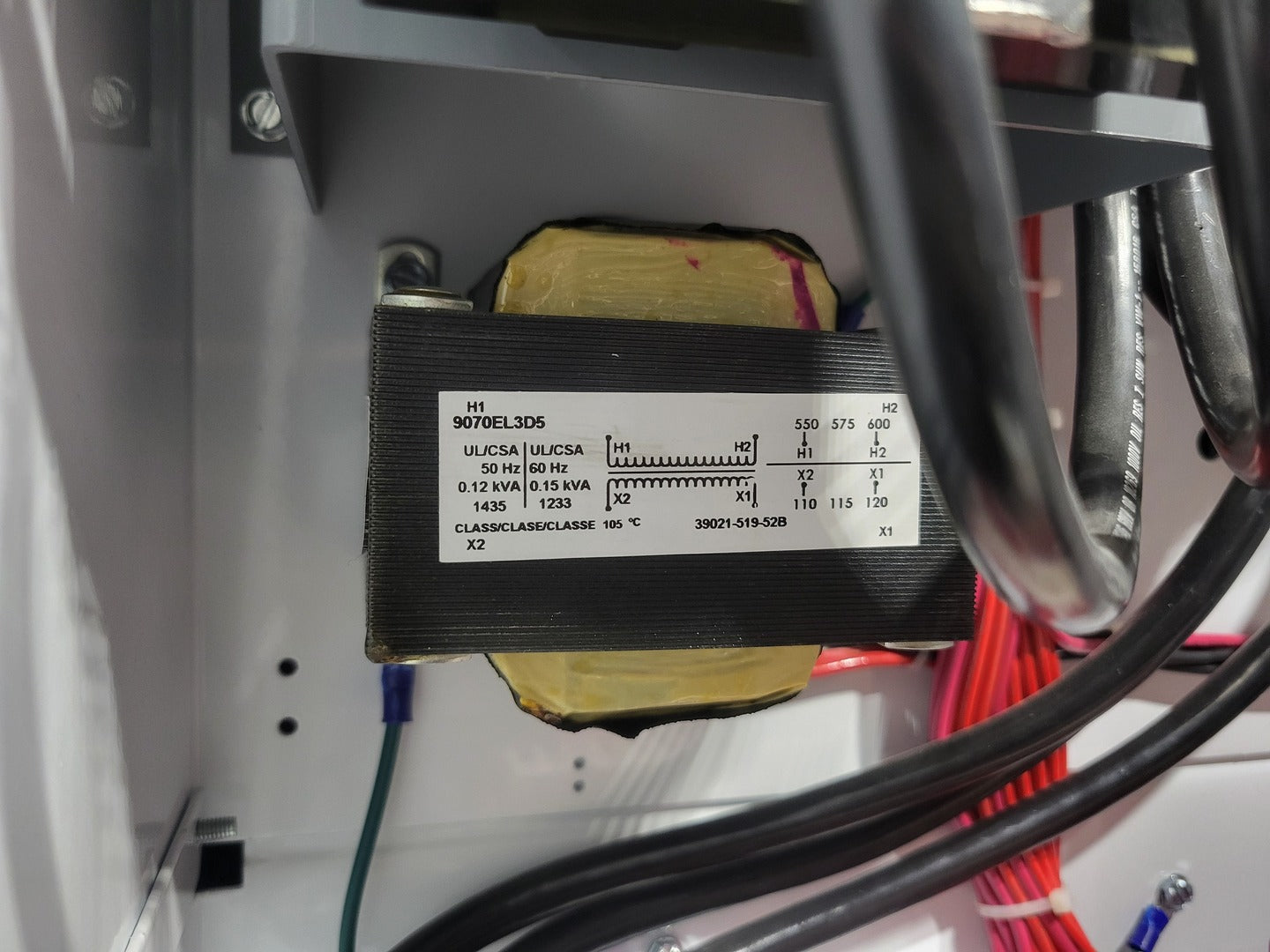

  4. Square D 9070EL3D5, control transformer, 0.12 kVA @ 50Hz / 0.15 kVA @ 60Hz

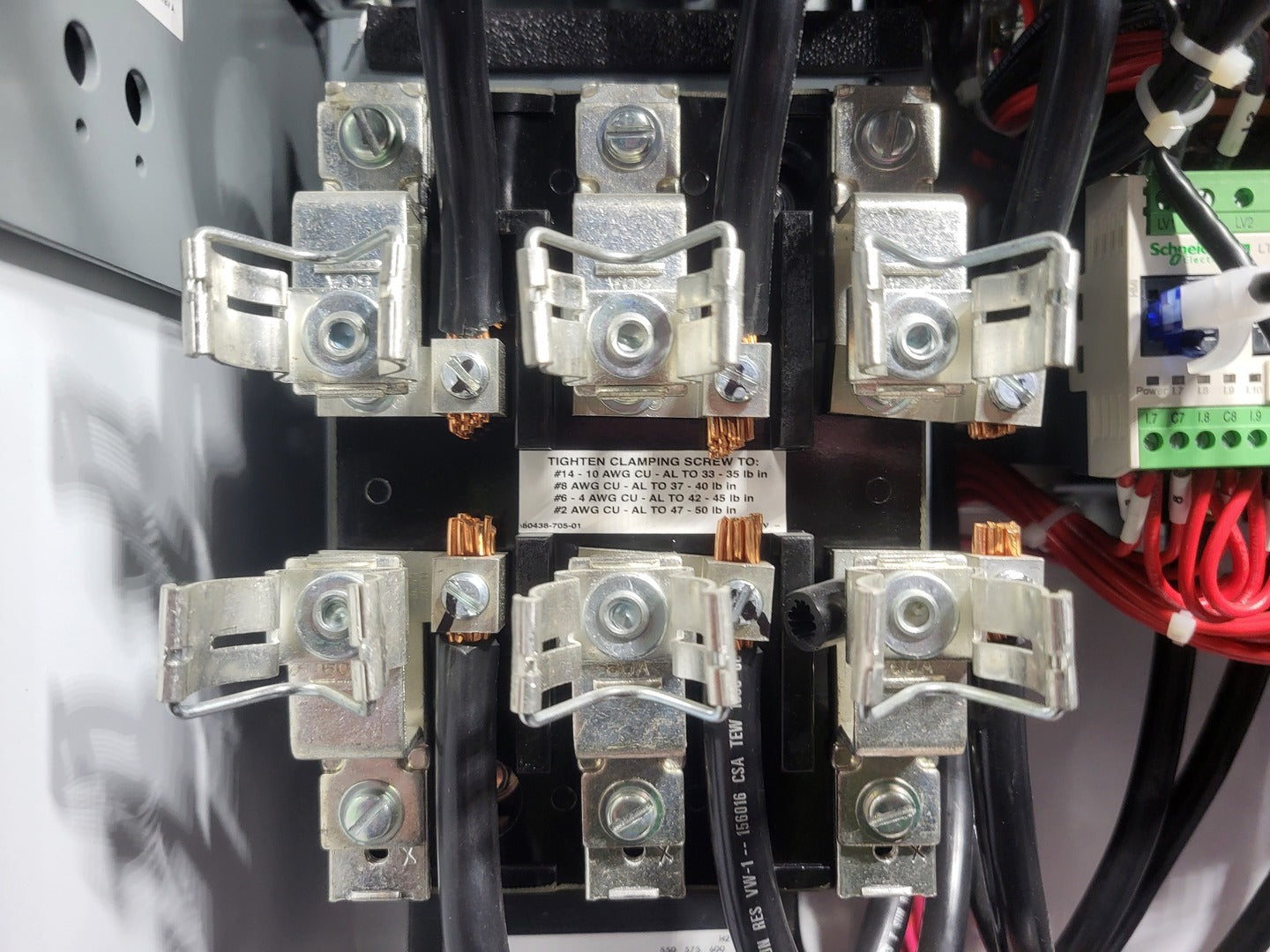

  5. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

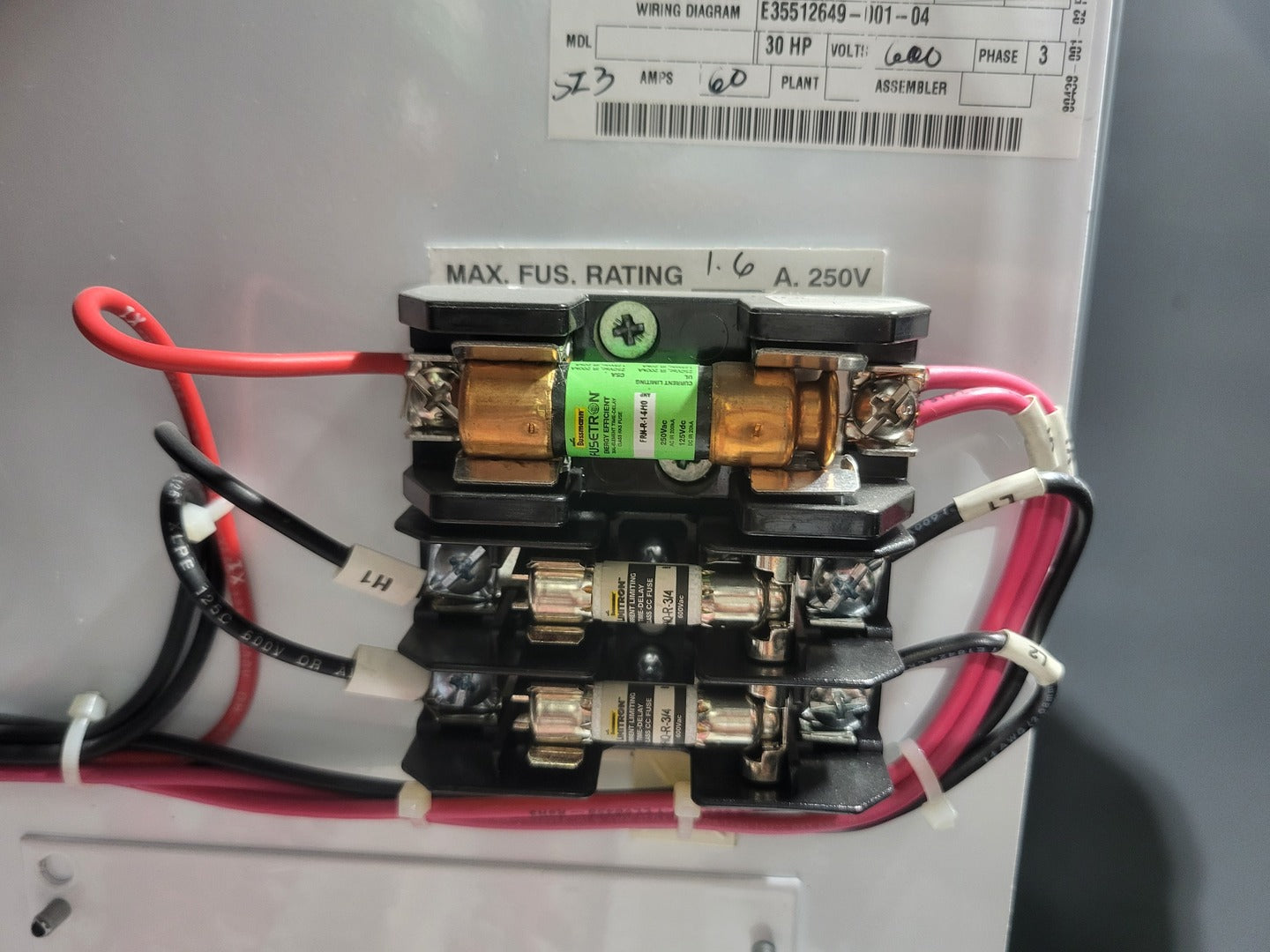

  6. 1 x Bussmann Fusetron fuse FNM-R-1-6/10
  7. 2 x Bussmann Fusetron fuses FNM-R-3/4
