SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151549
Price:
$2,560

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

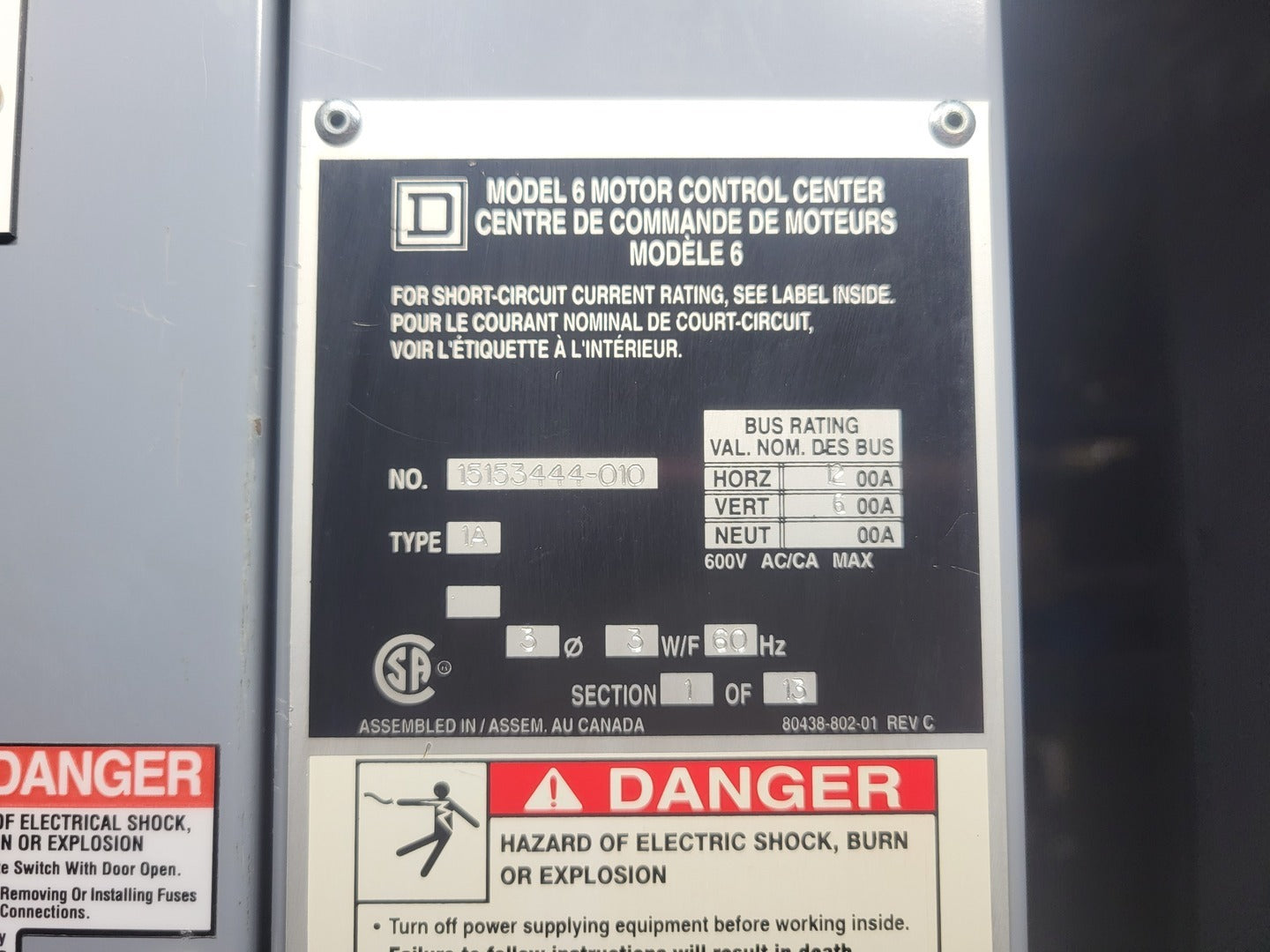

Model Model 6
Condition Used
Other Specifications

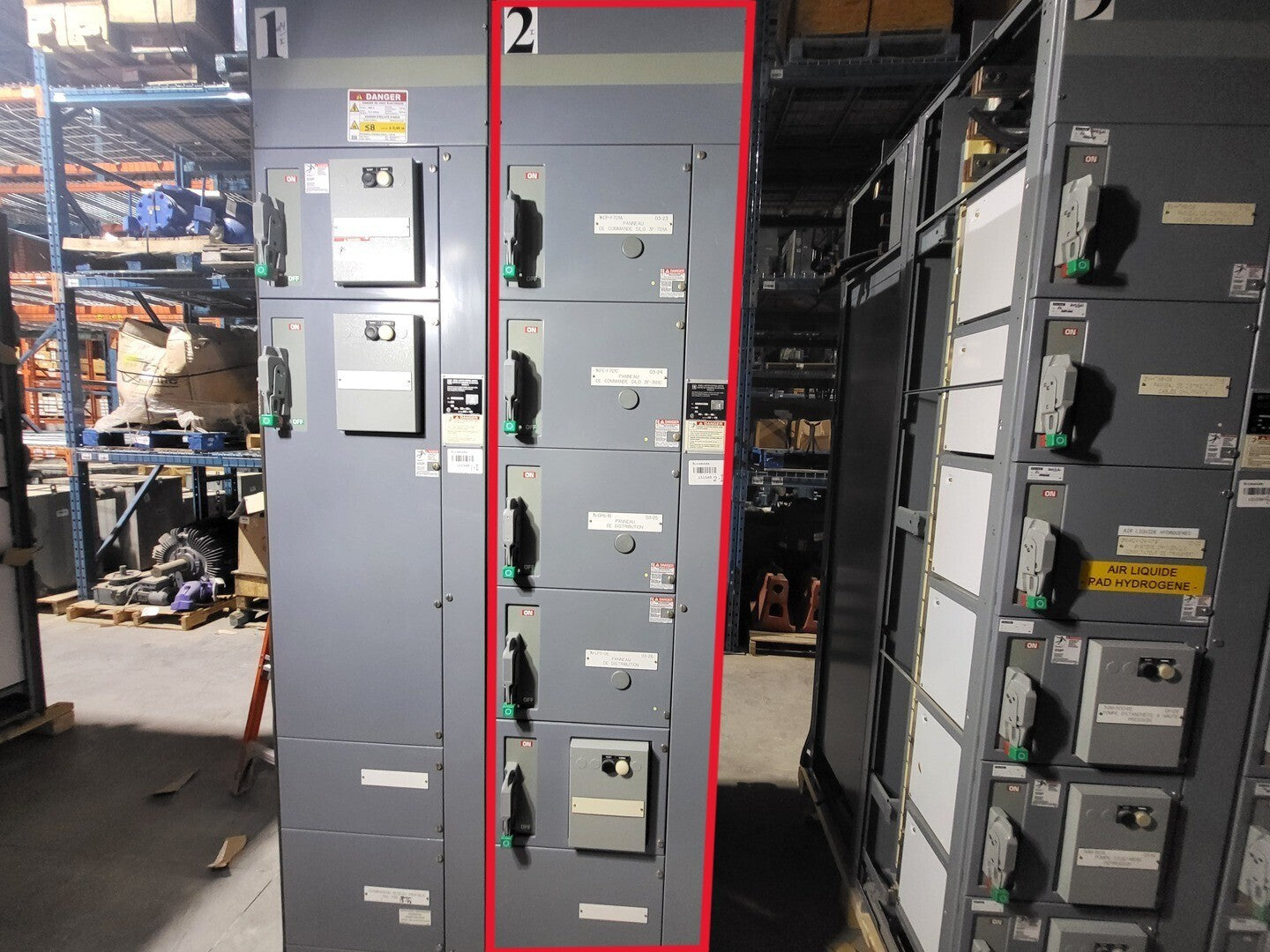

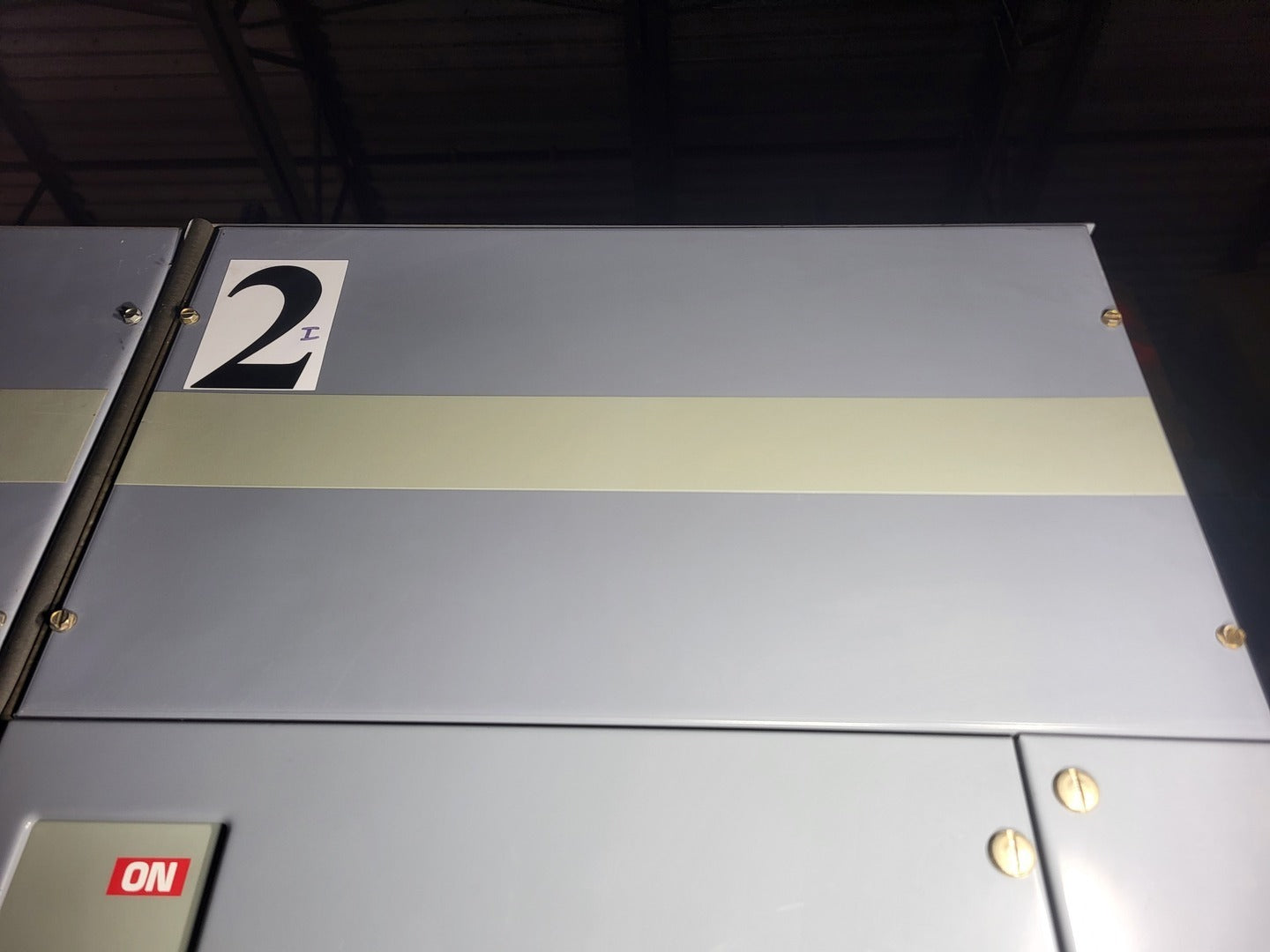

Note: Section 2 only

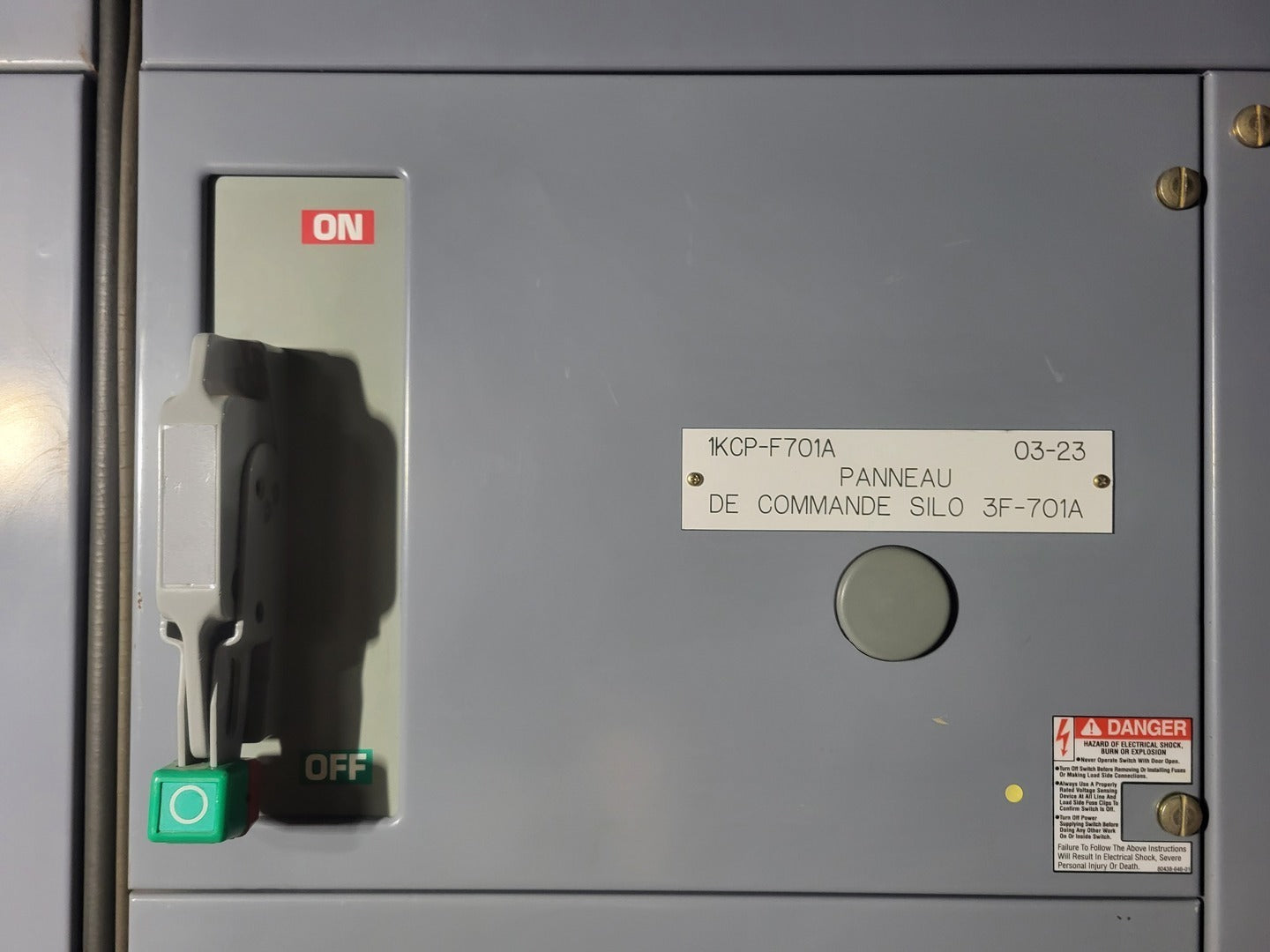

Bucket #1 1KCP-F701A

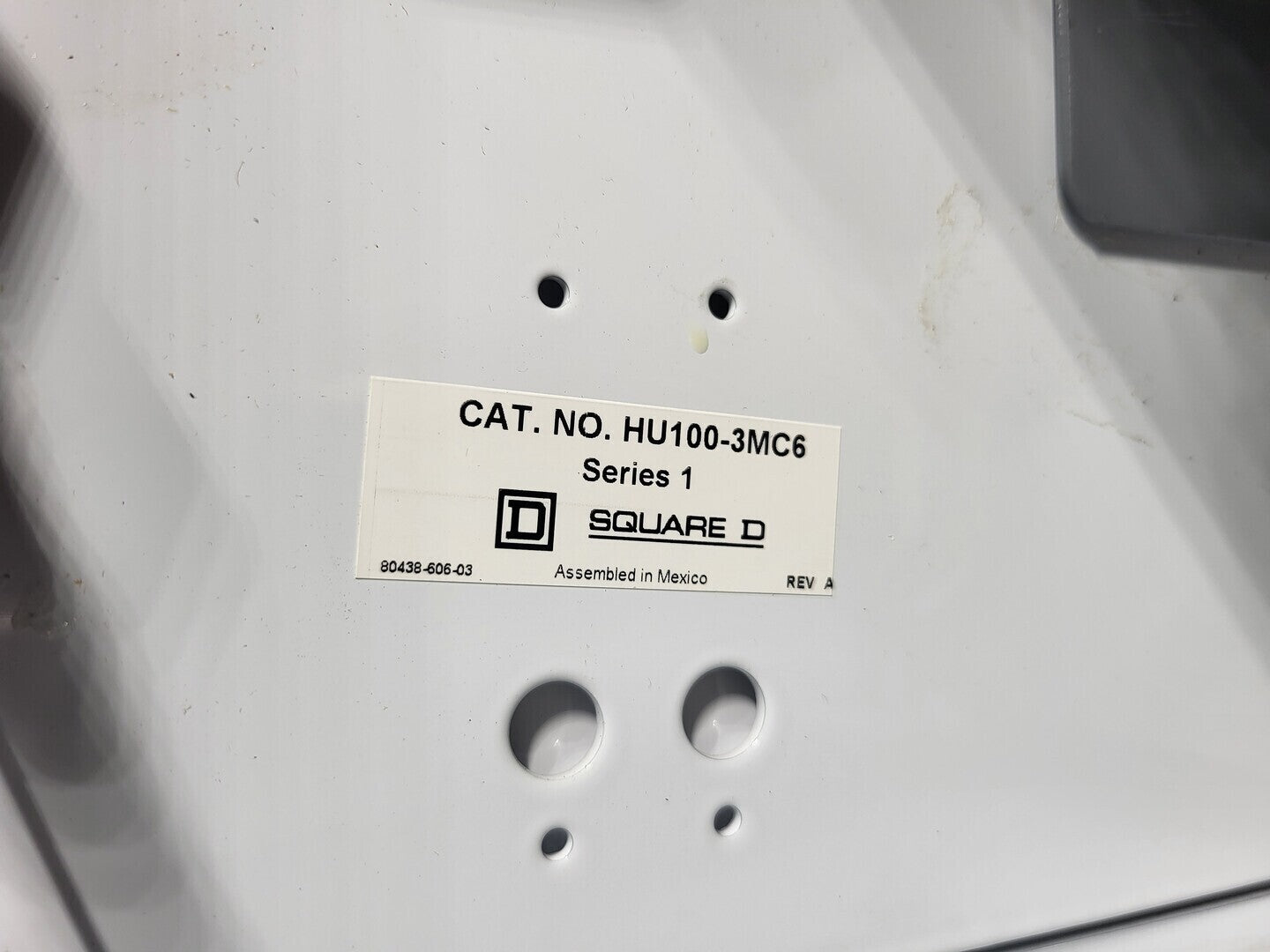

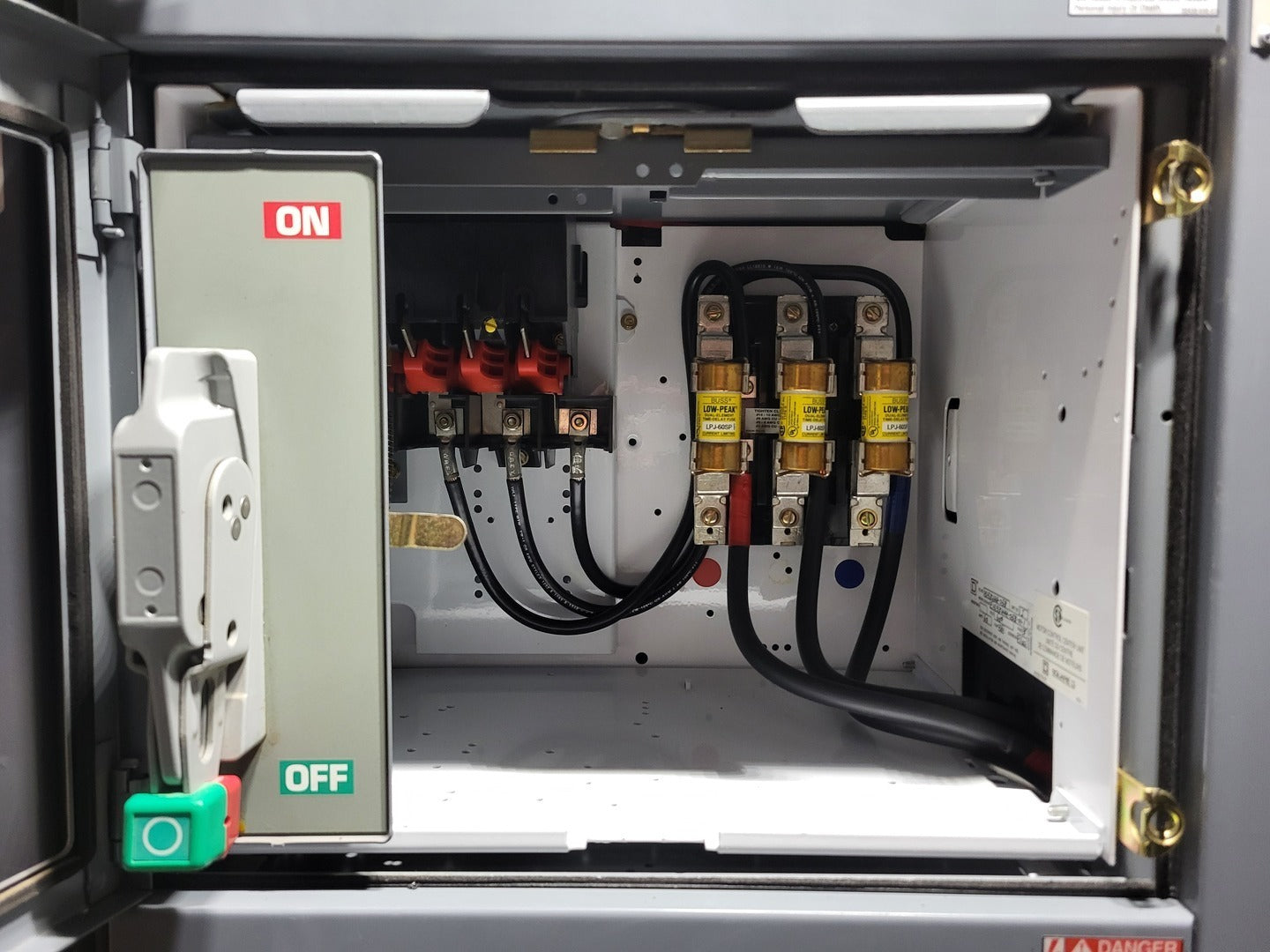

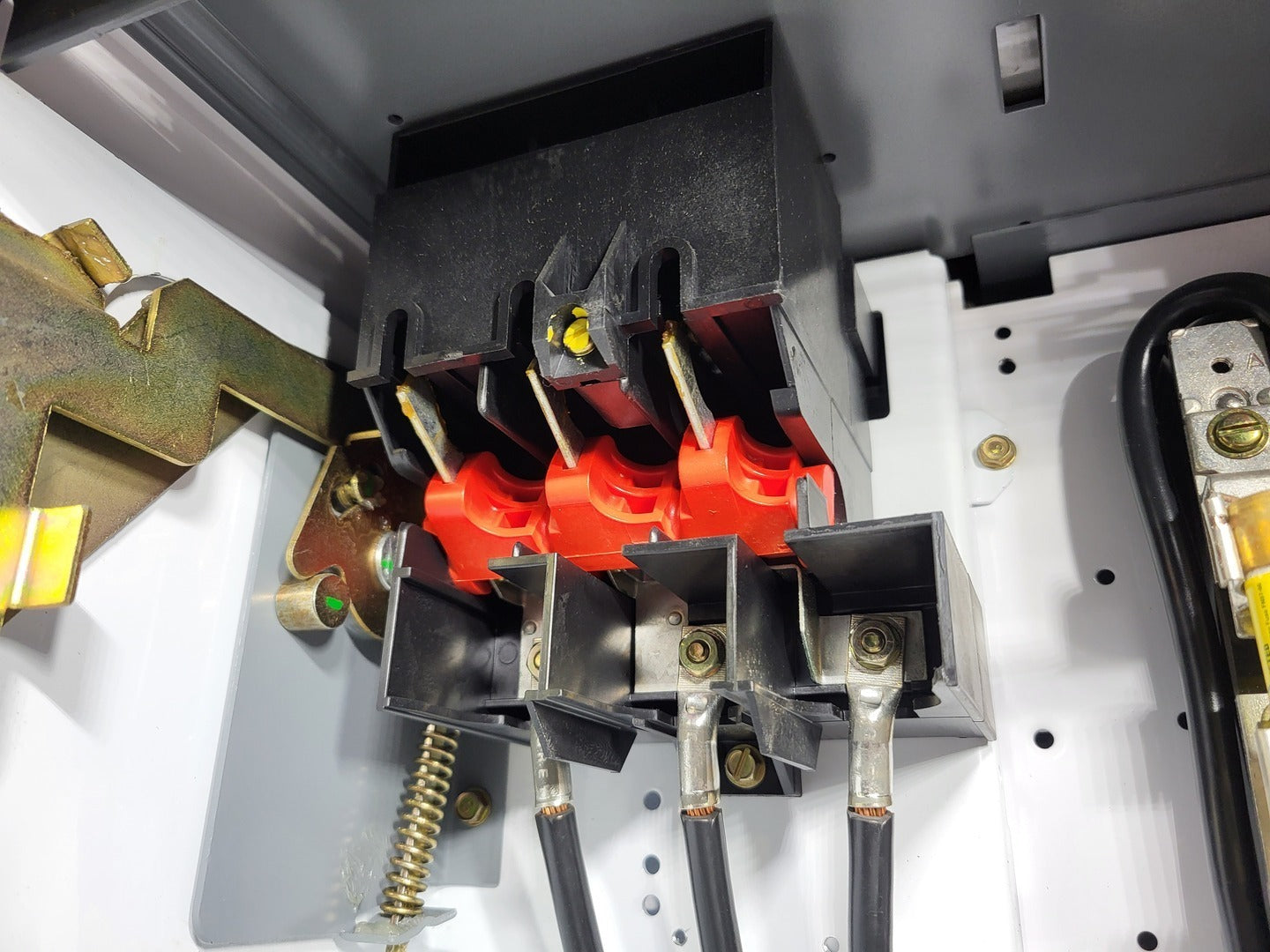

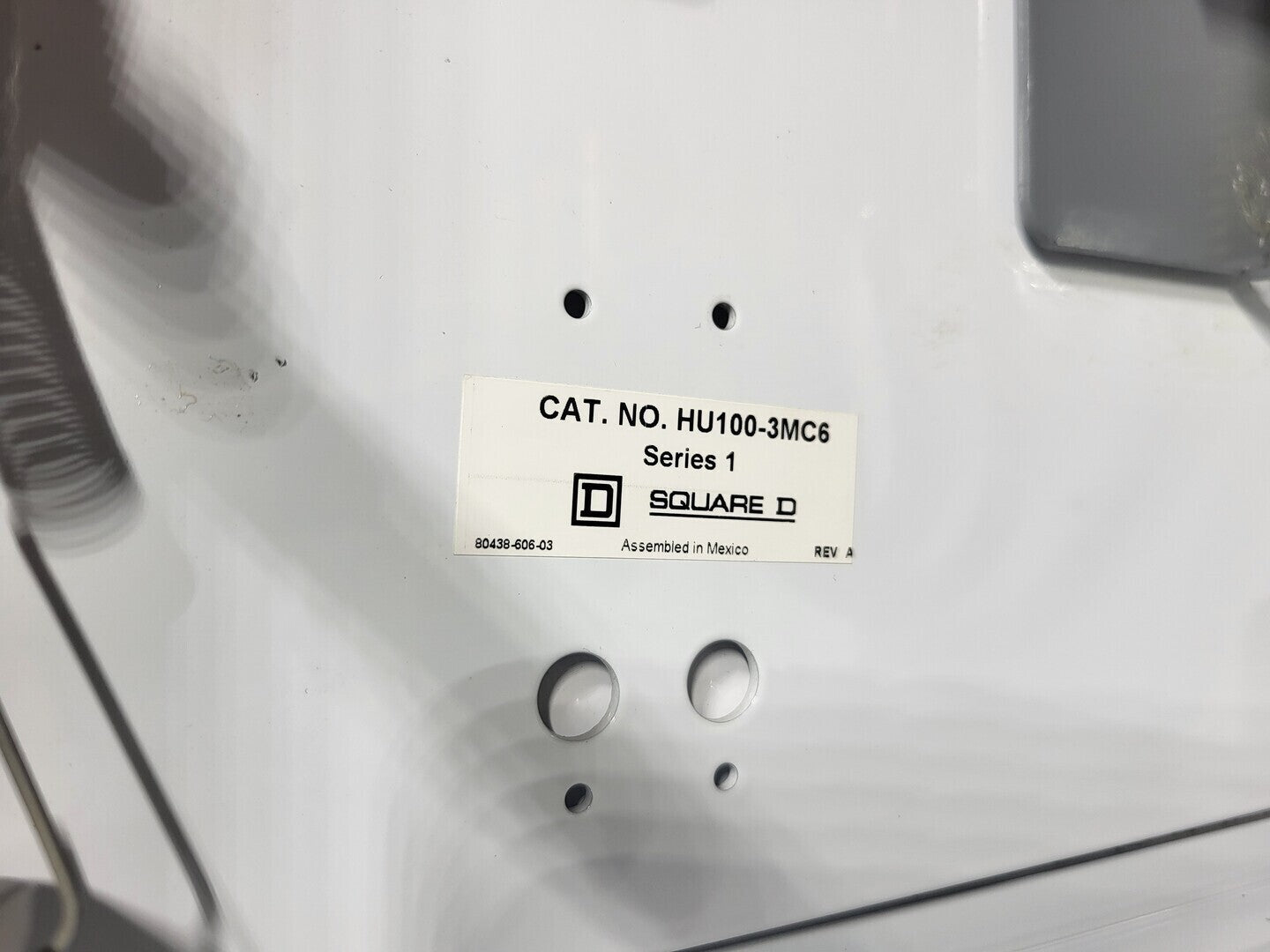

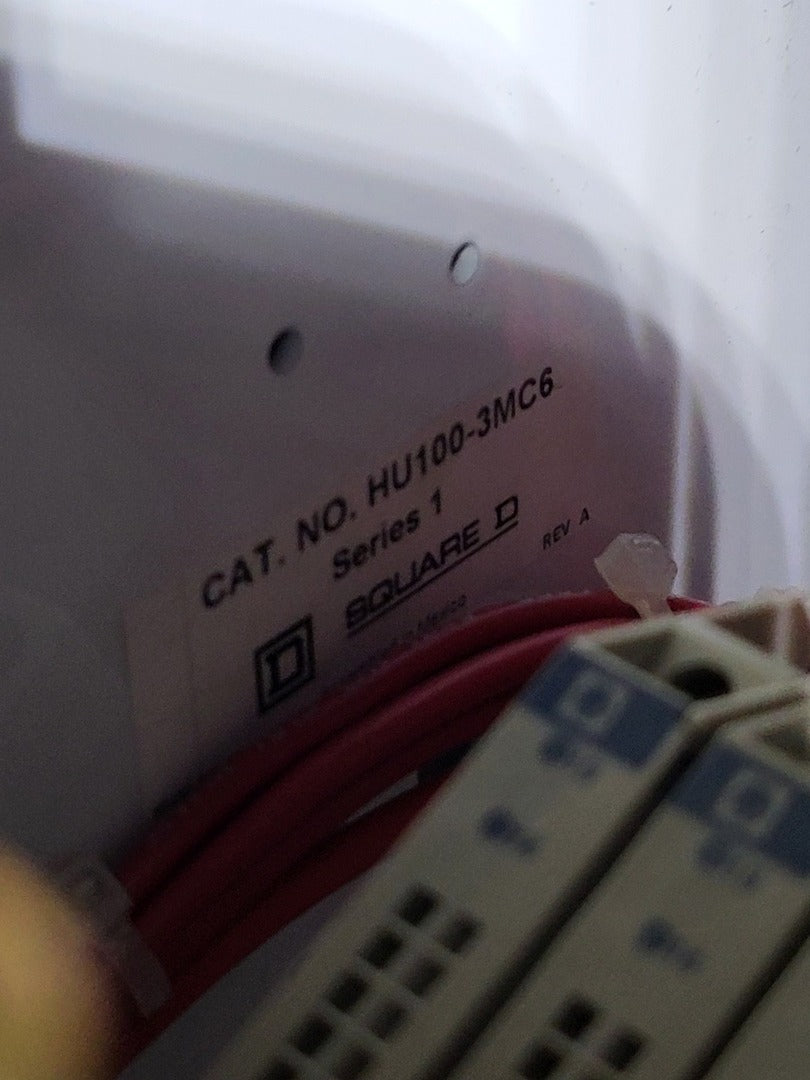

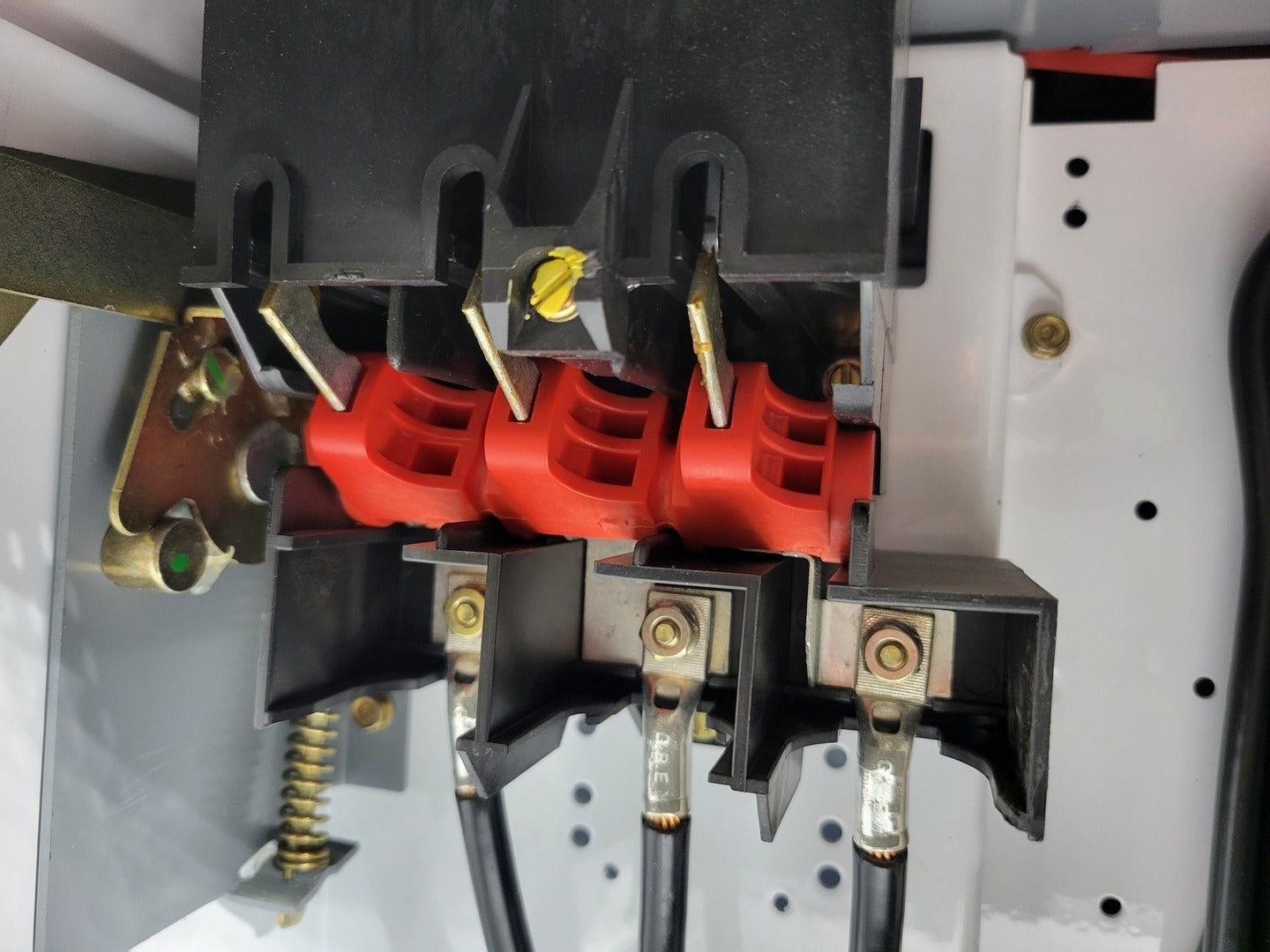

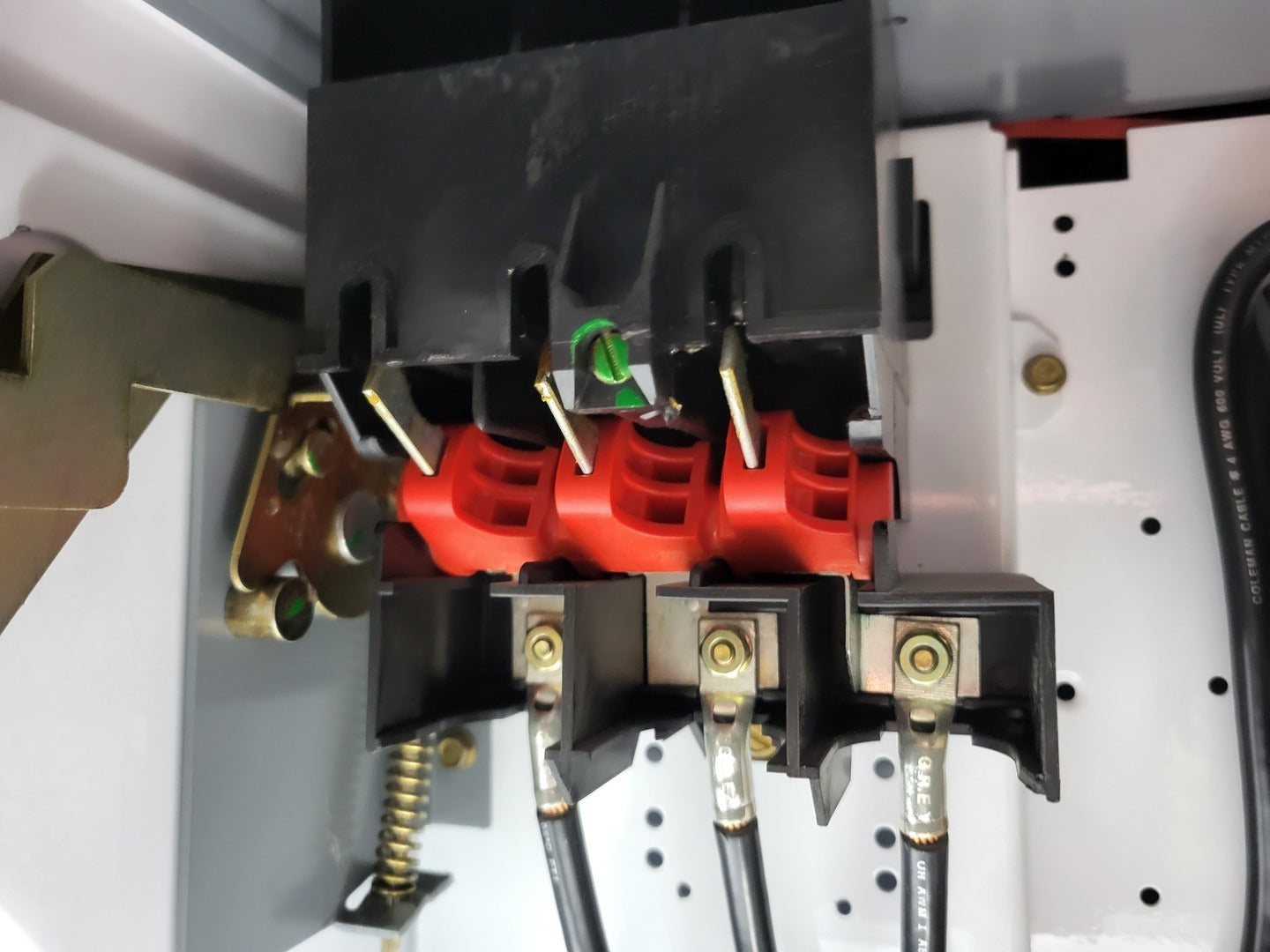

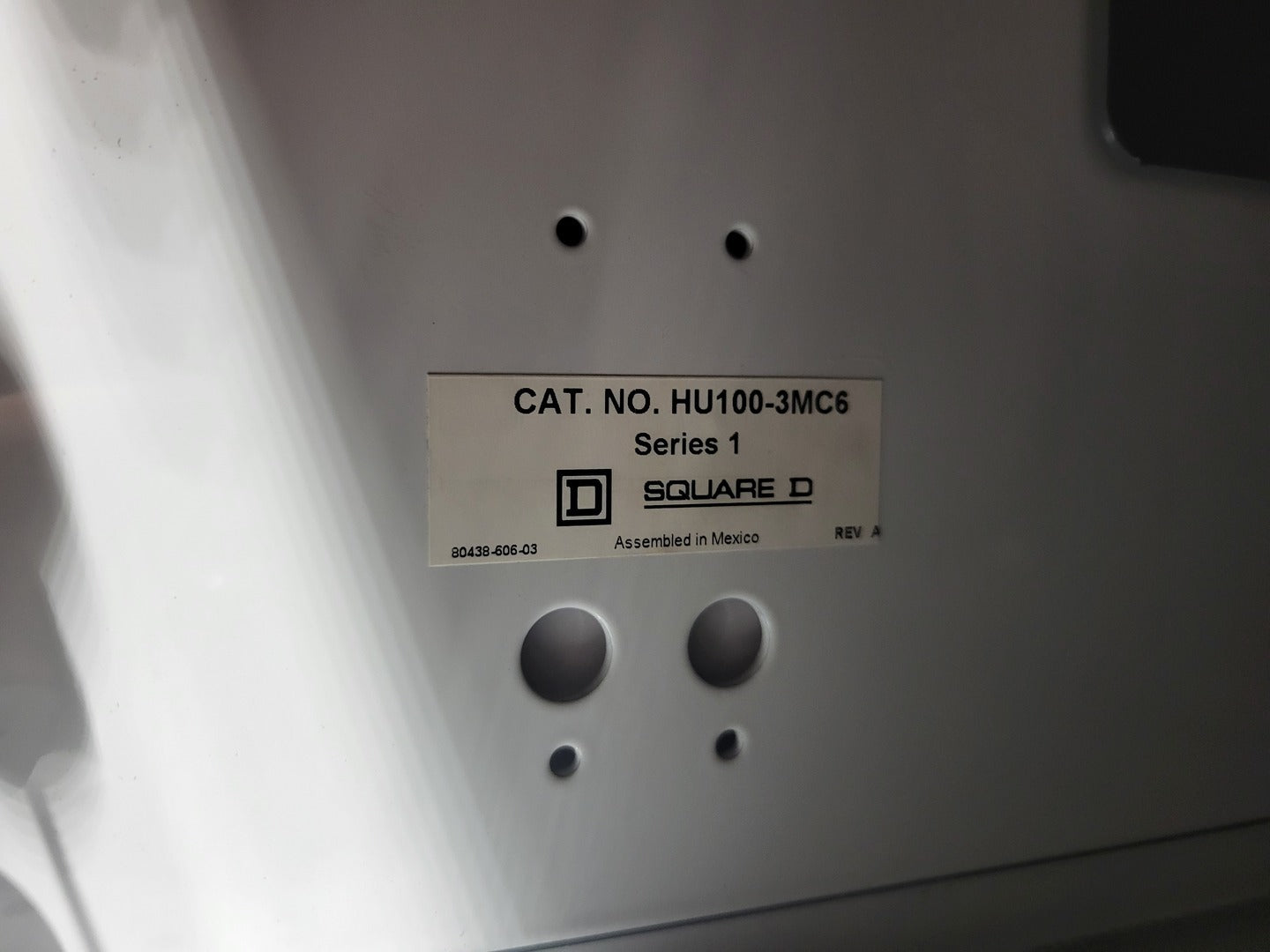

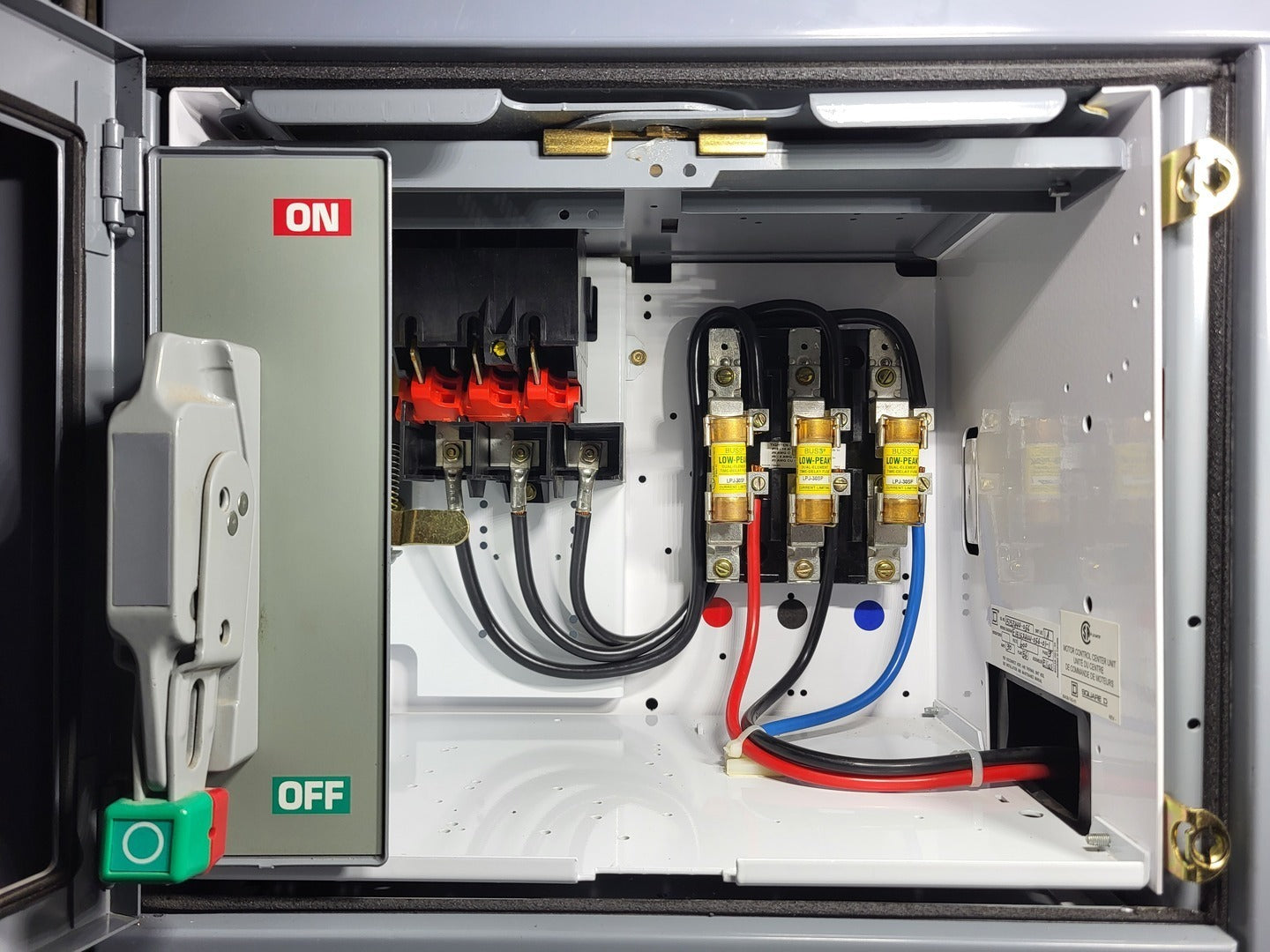

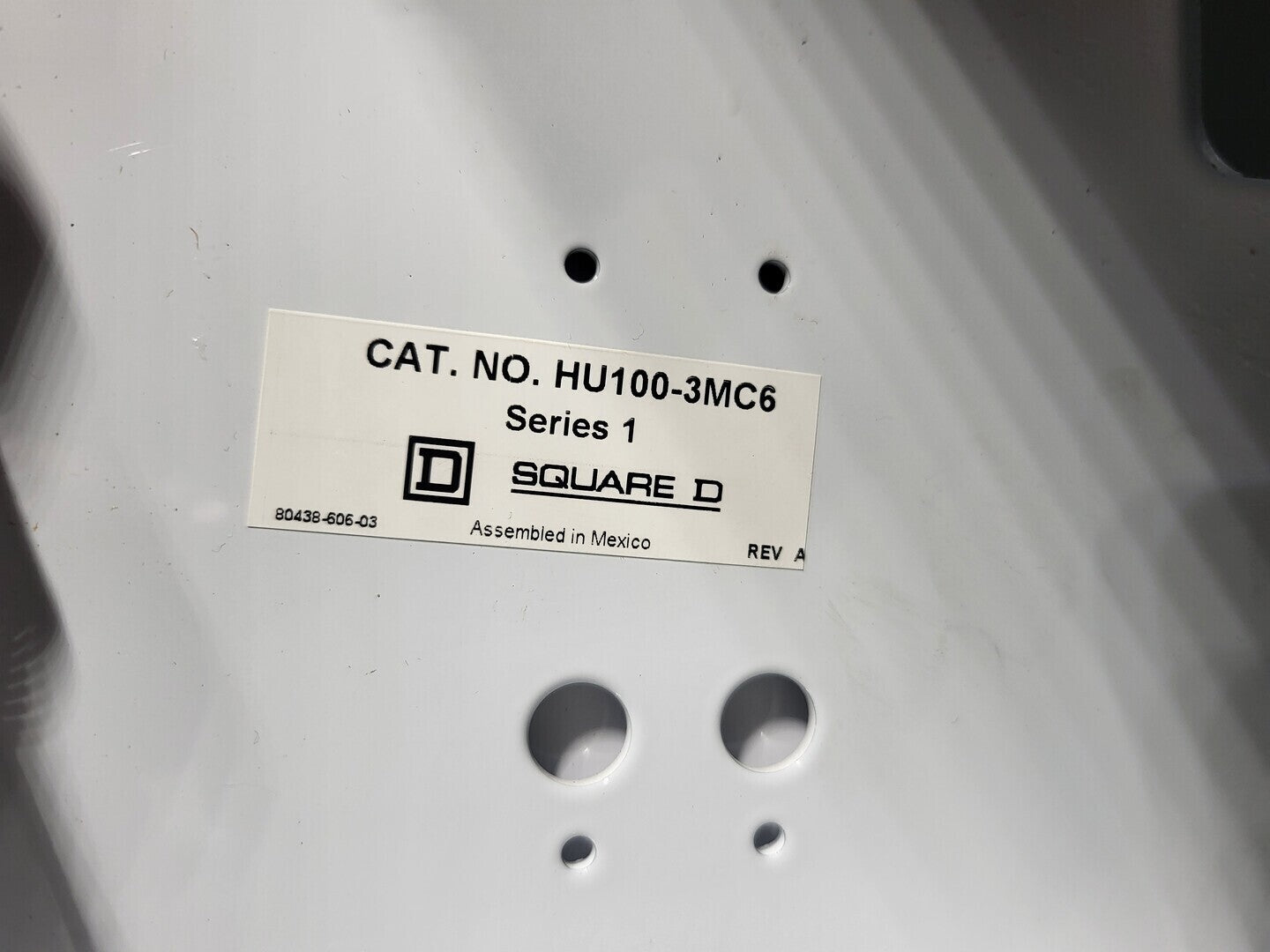

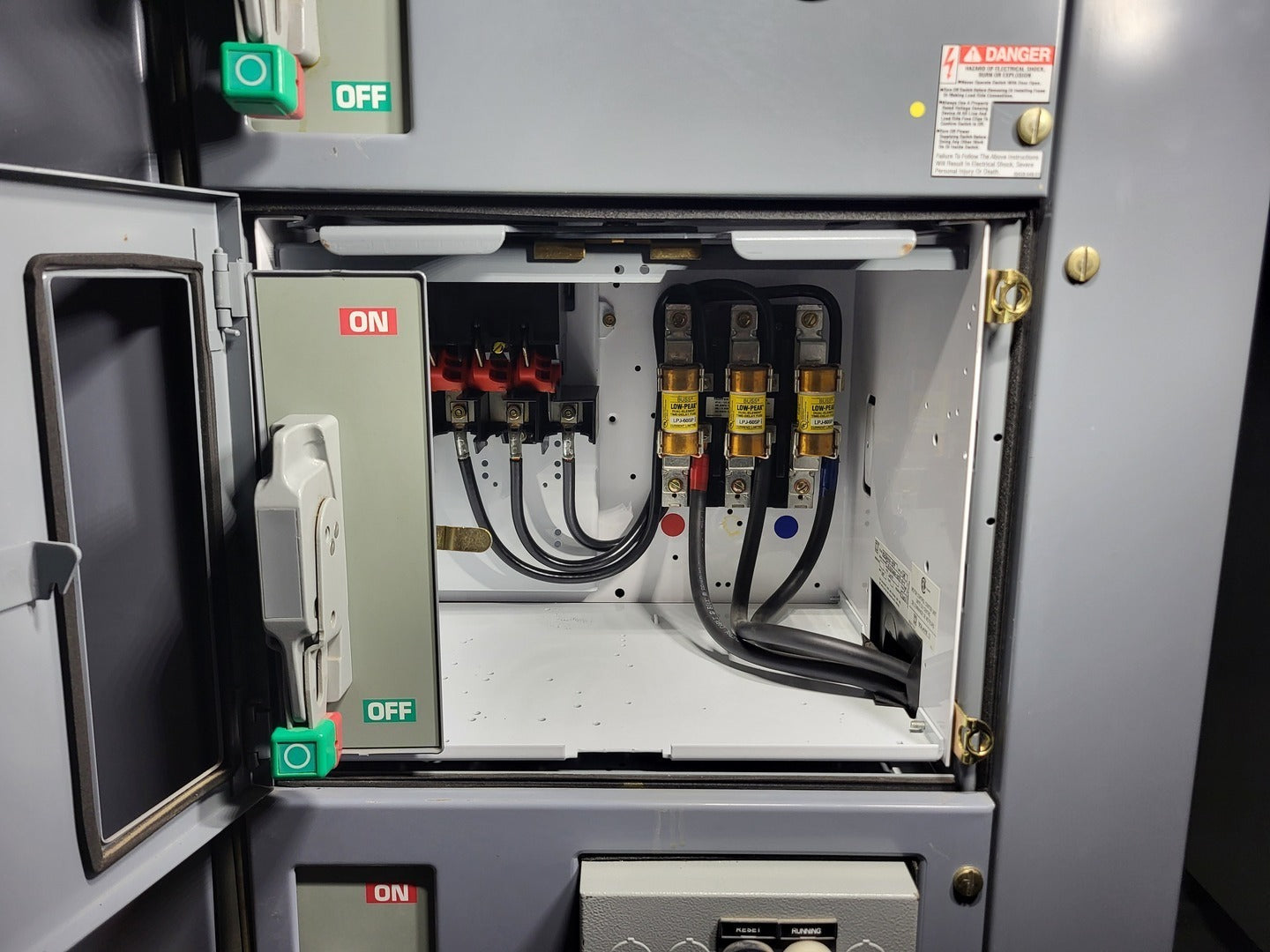

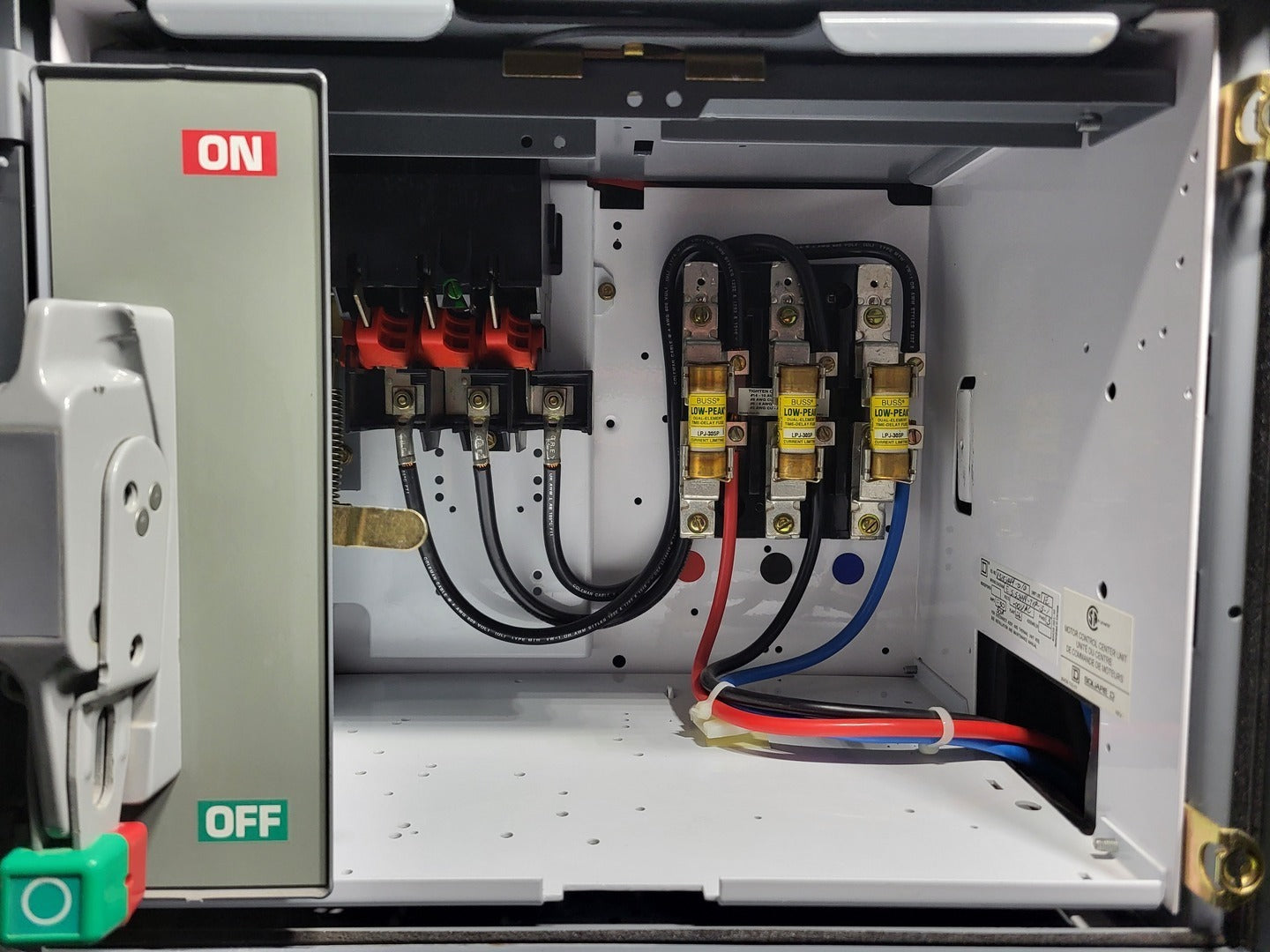

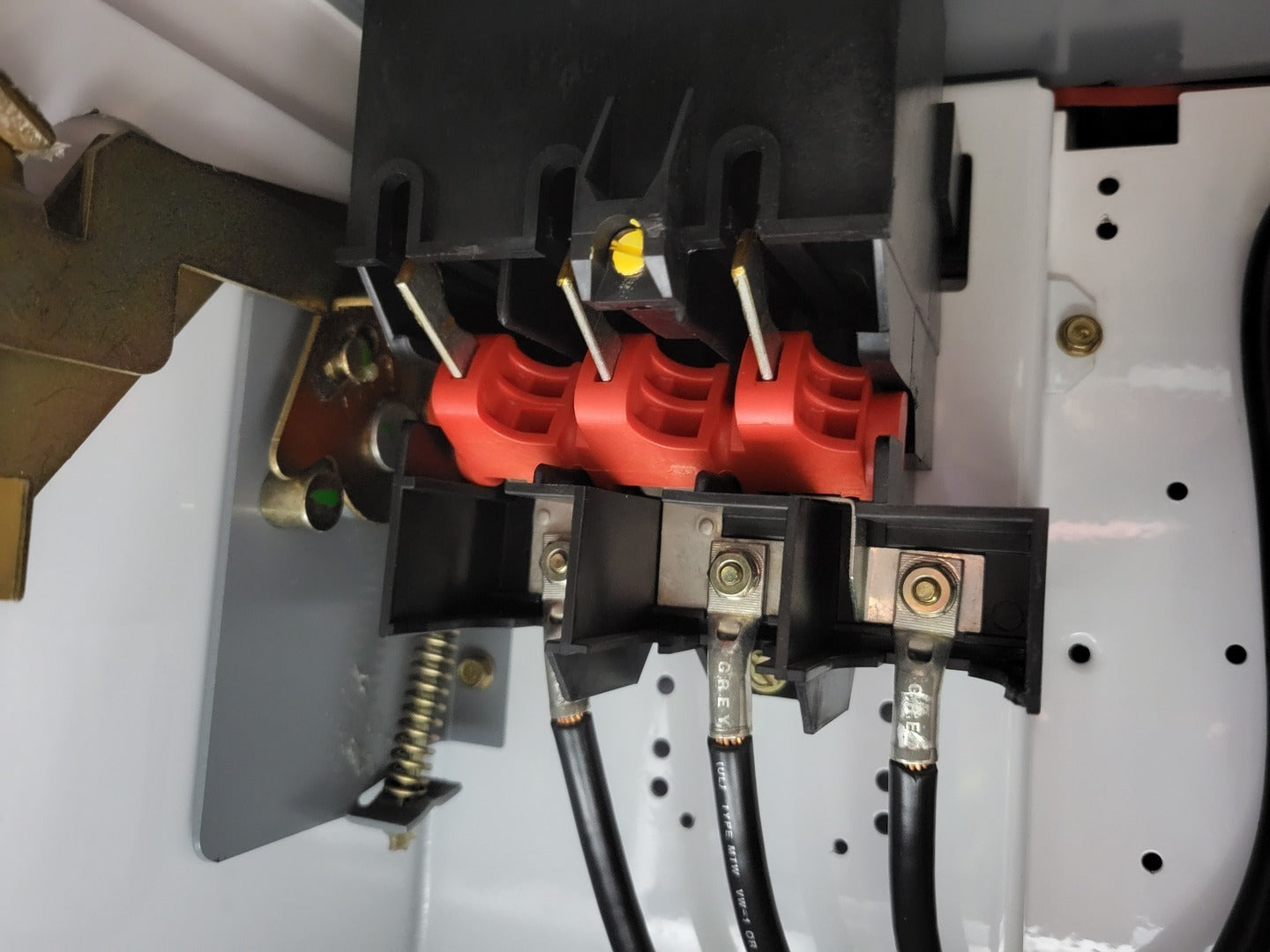

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

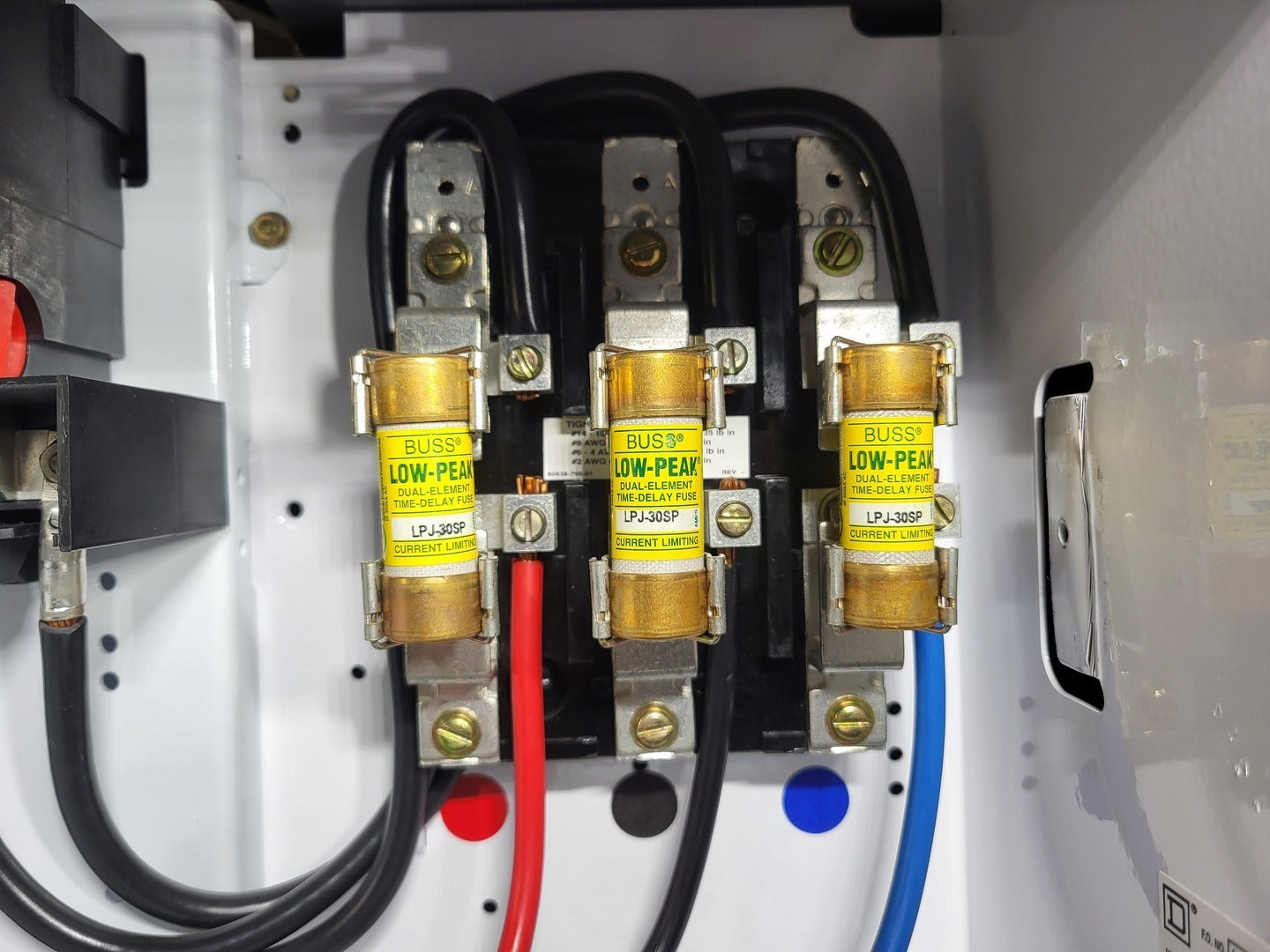

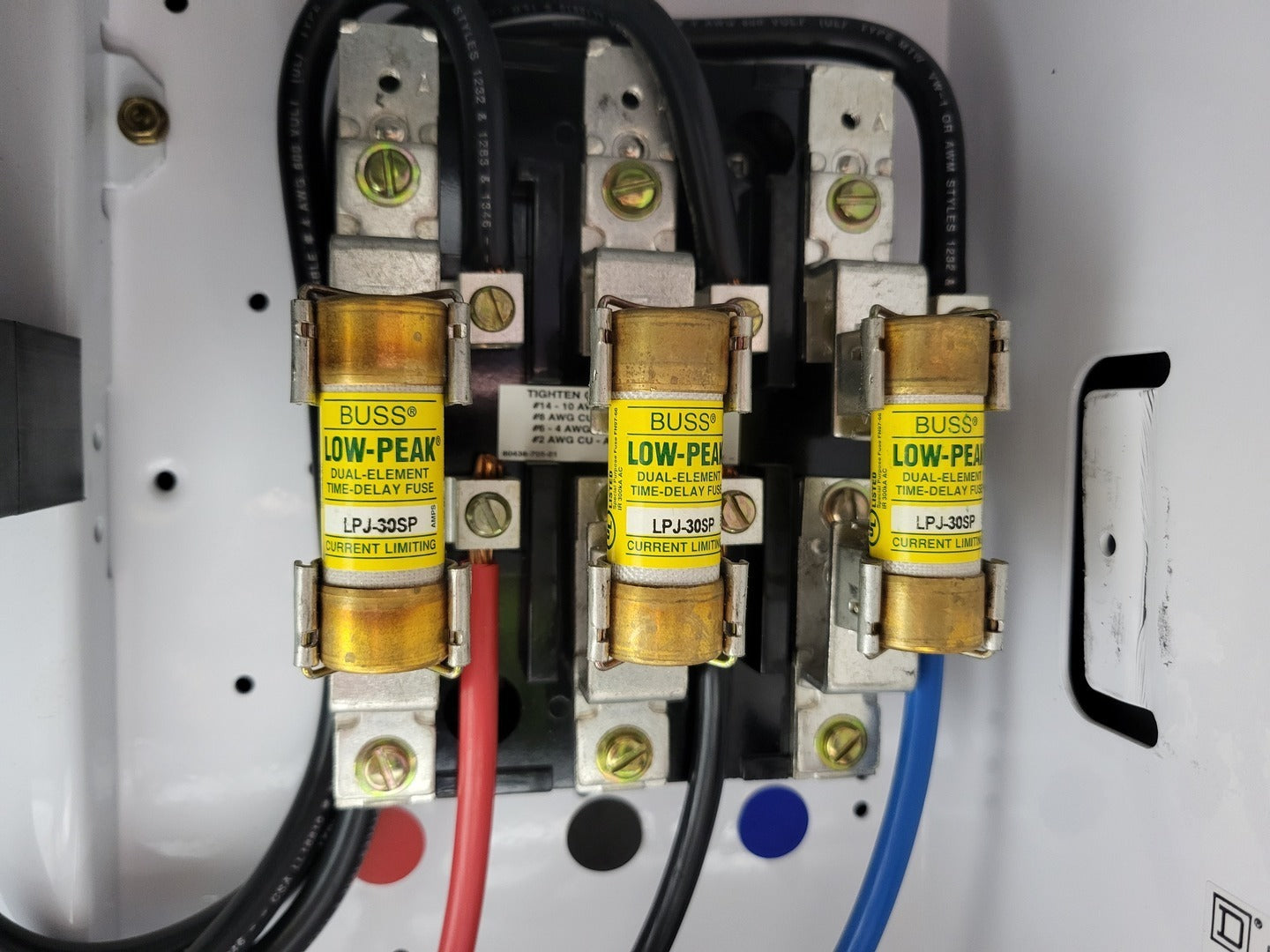

  2. 3 x Bussmann Low-Peak fuses LPJ-30SP

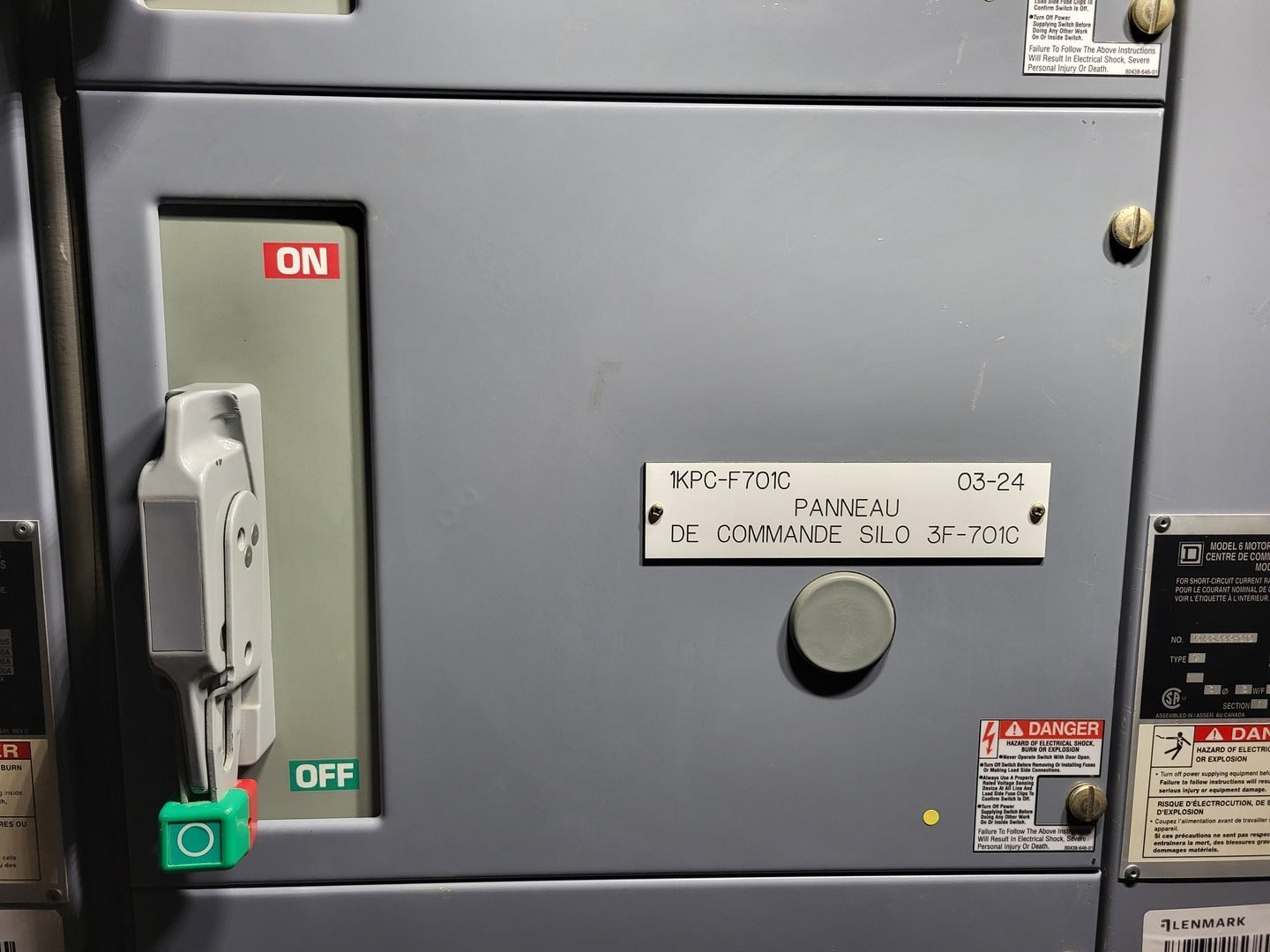

Bucket #2 1KPC-F701C

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  2. 3 x Bussmann Low-Peak fuses LPJ-30SP

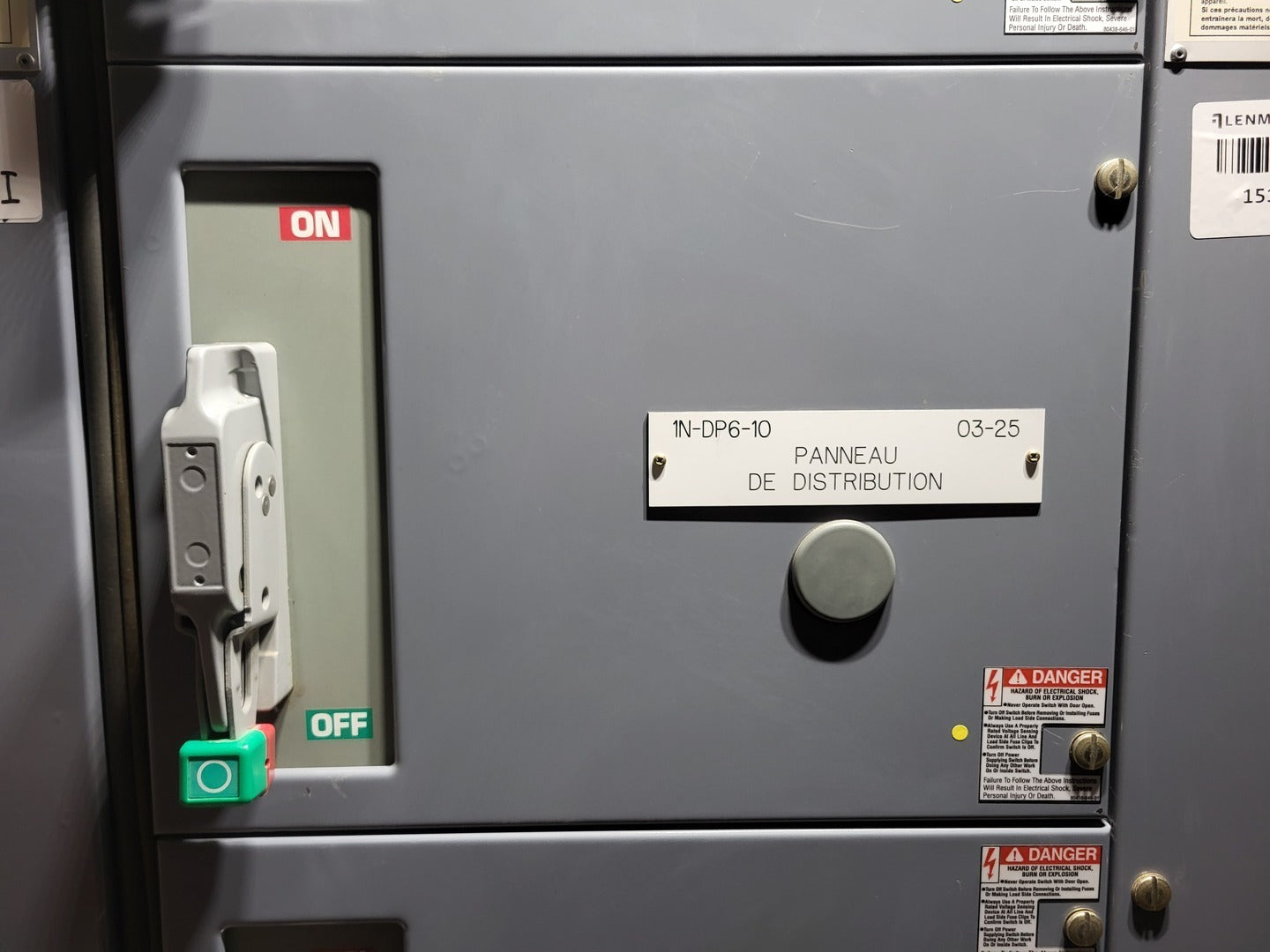

Bucket #3 1N-DP6-10

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

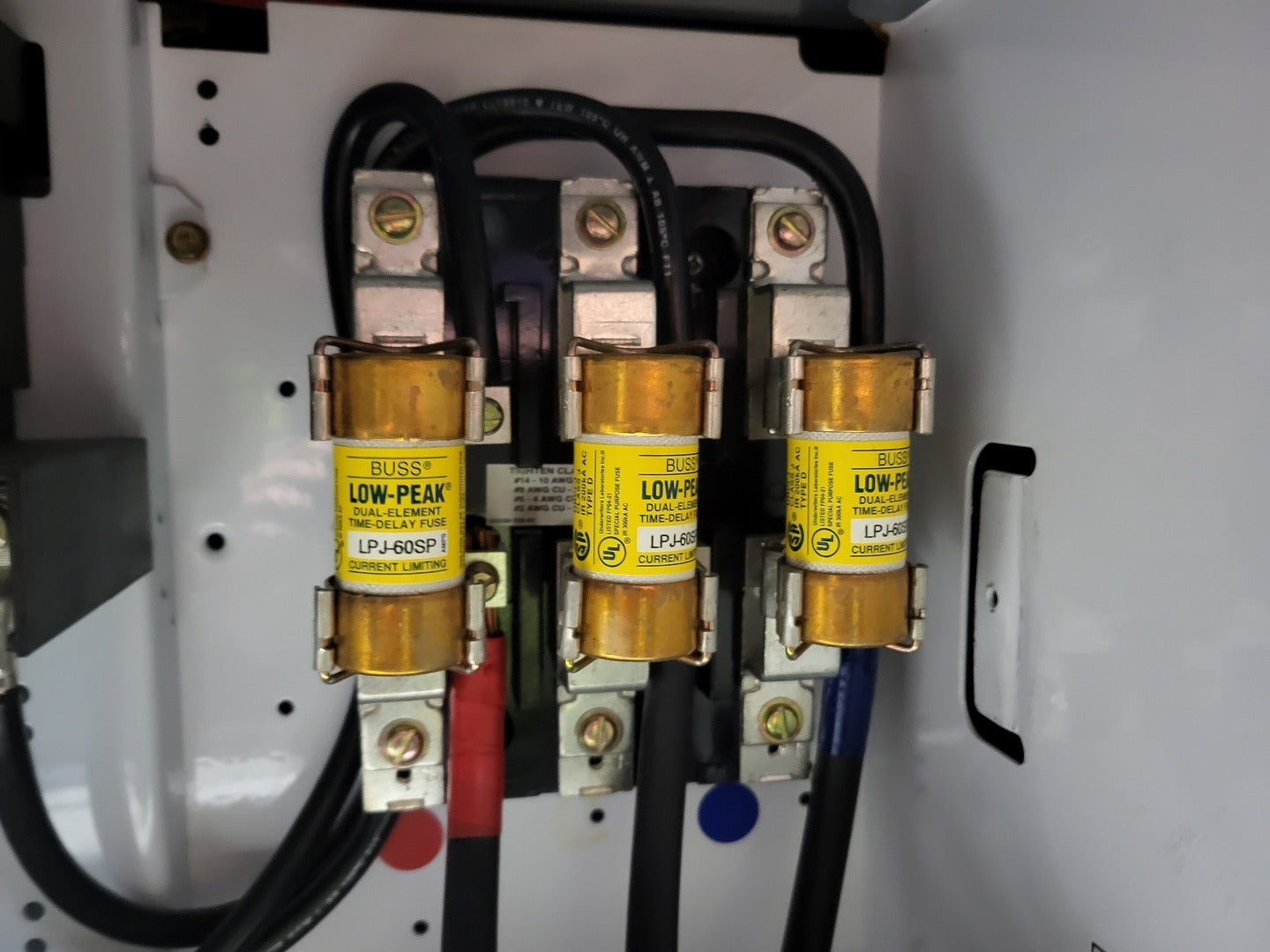

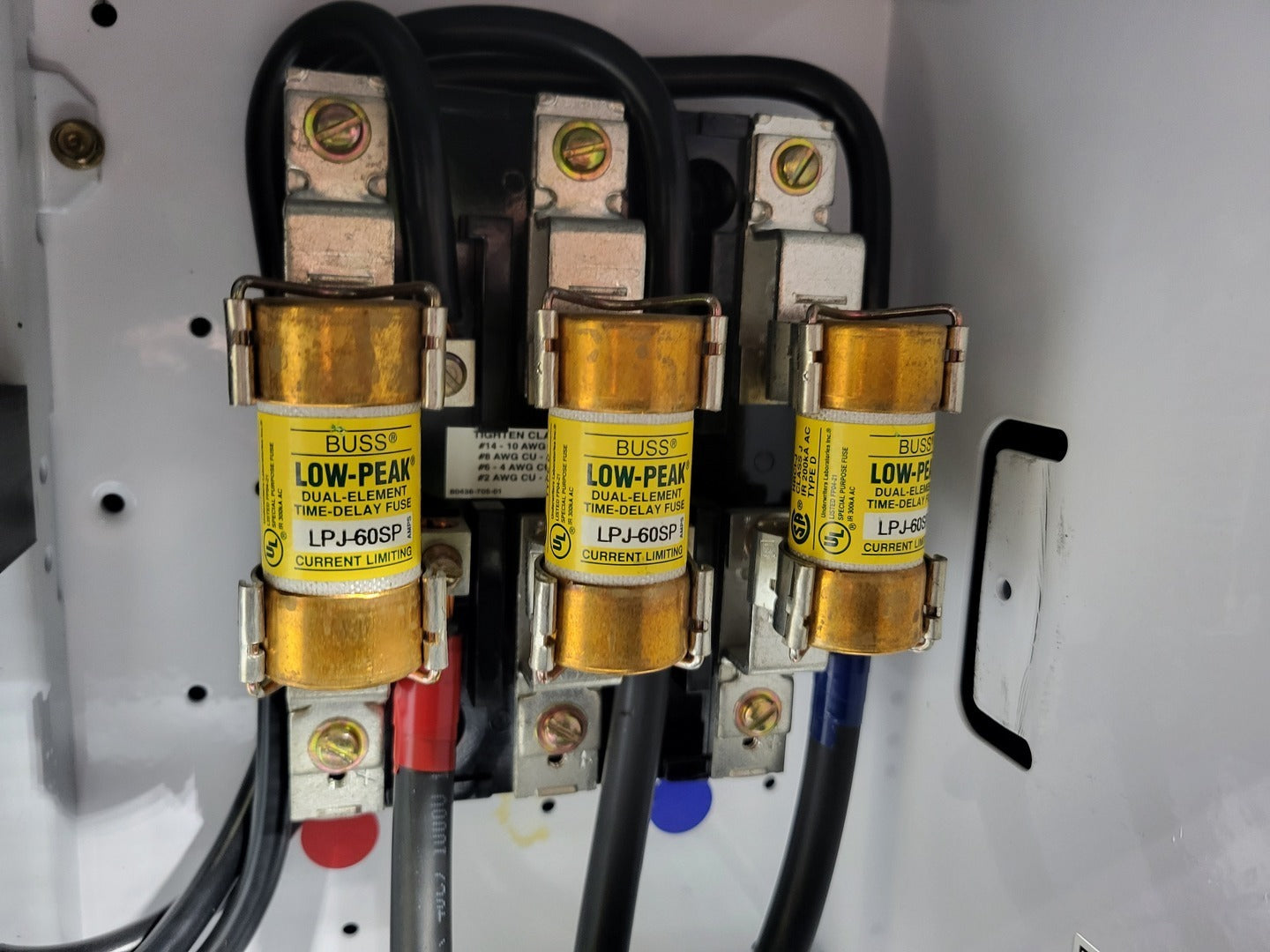

  2. 3 x Bussmann Low-Peak fuses LPJ-60SP

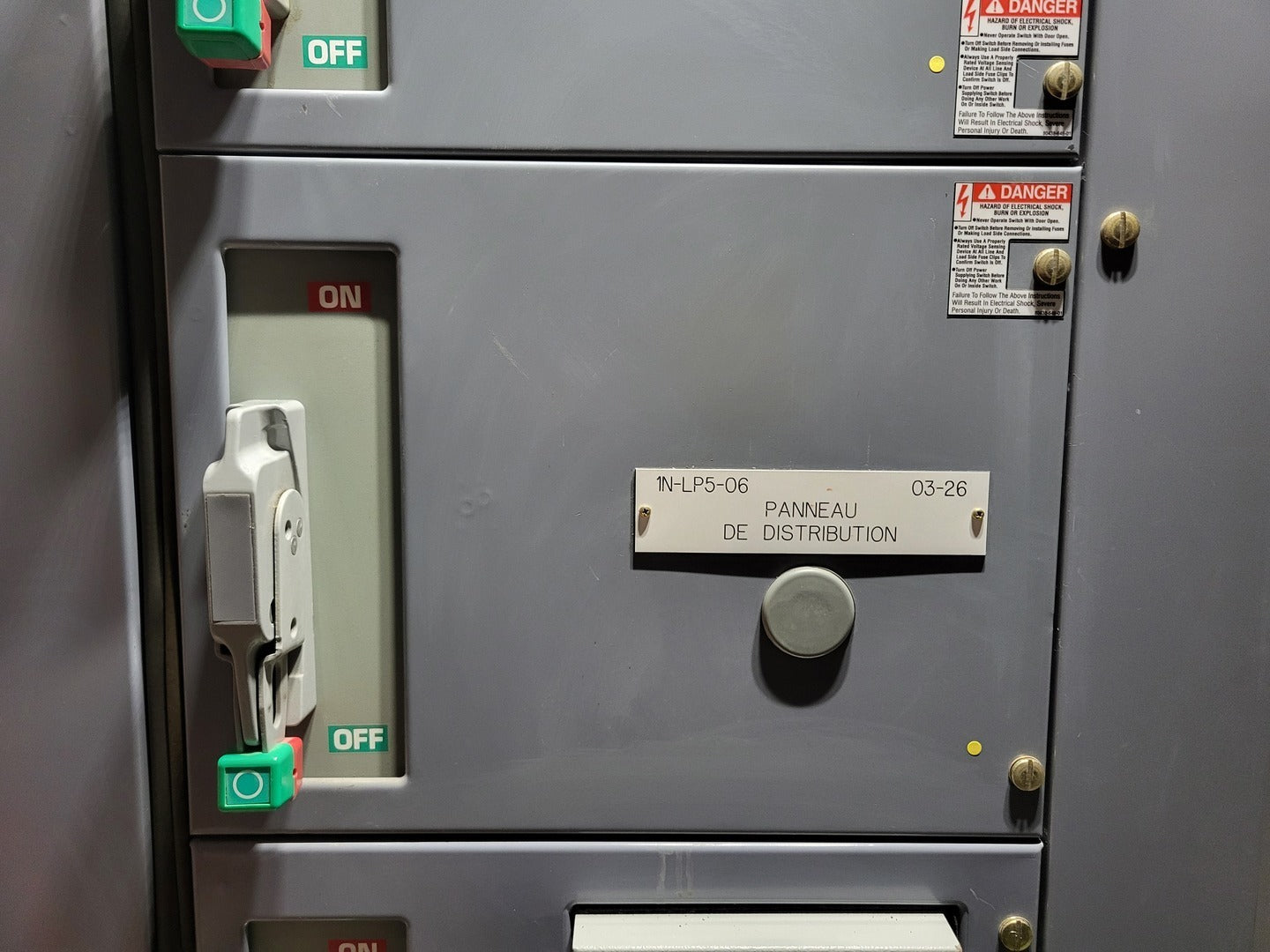

Bucket #4 1N-LP5-06

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  2. 3 x Bussmann Low-Peak fuses LPJ-60SP

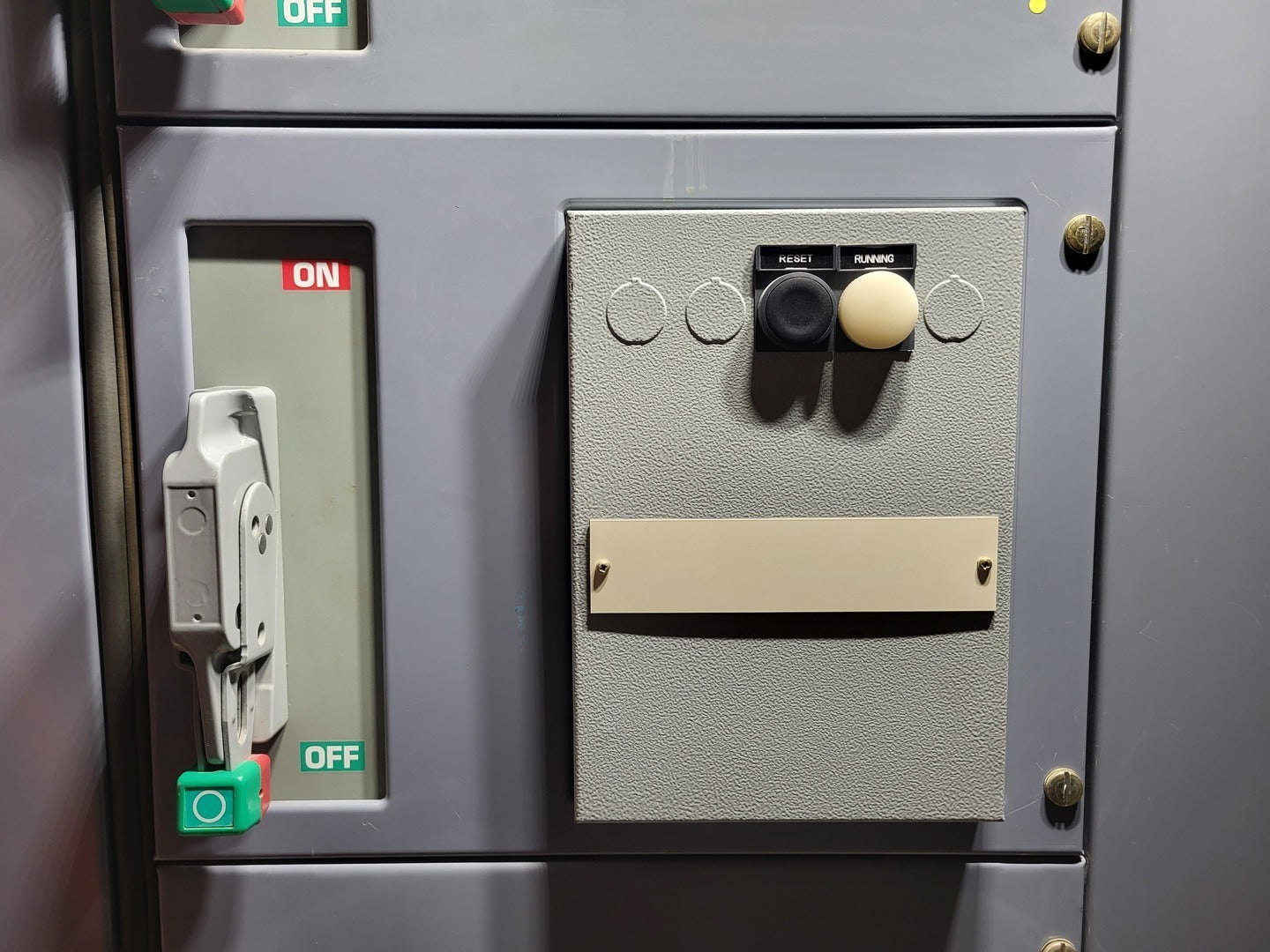

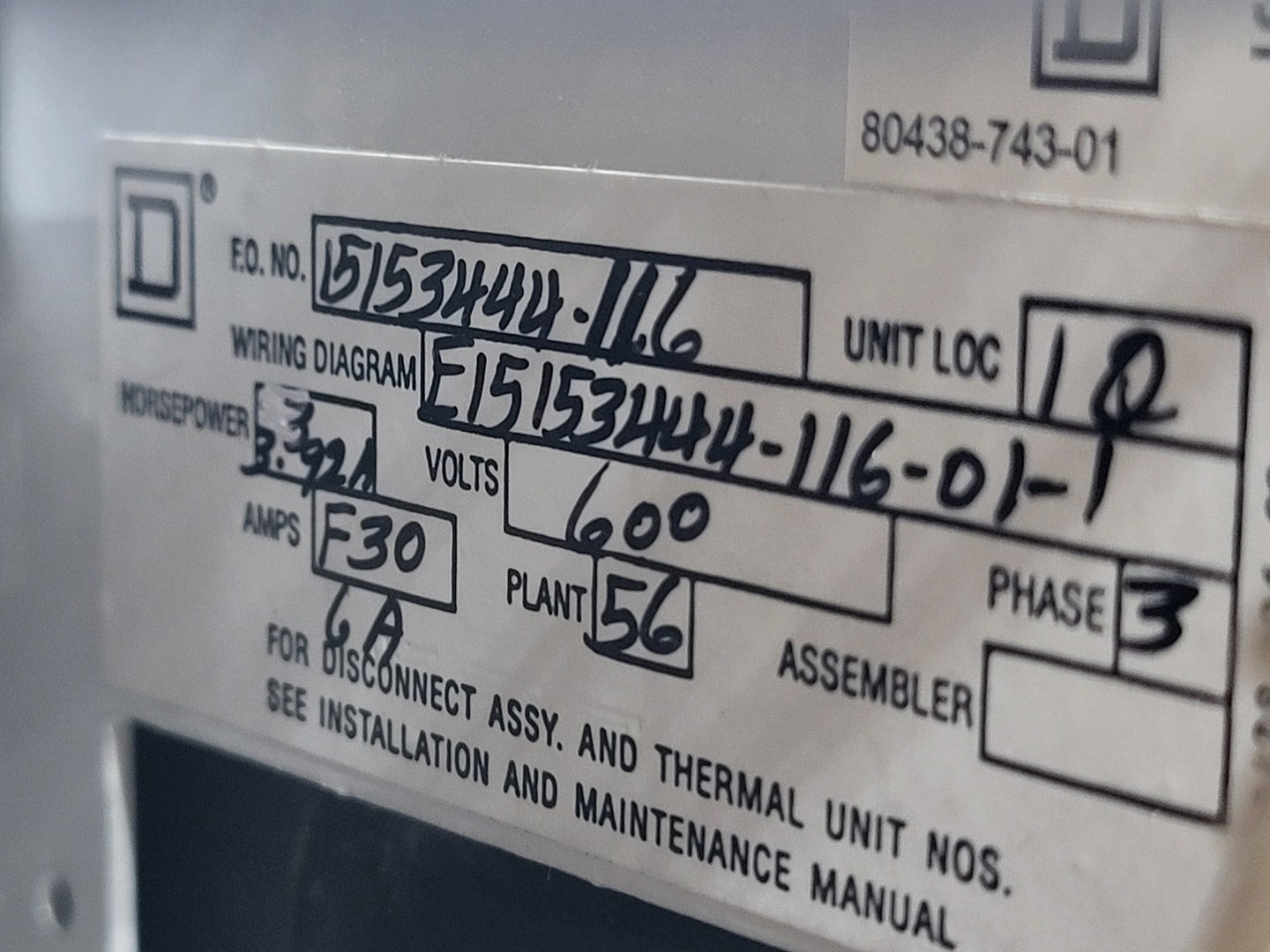

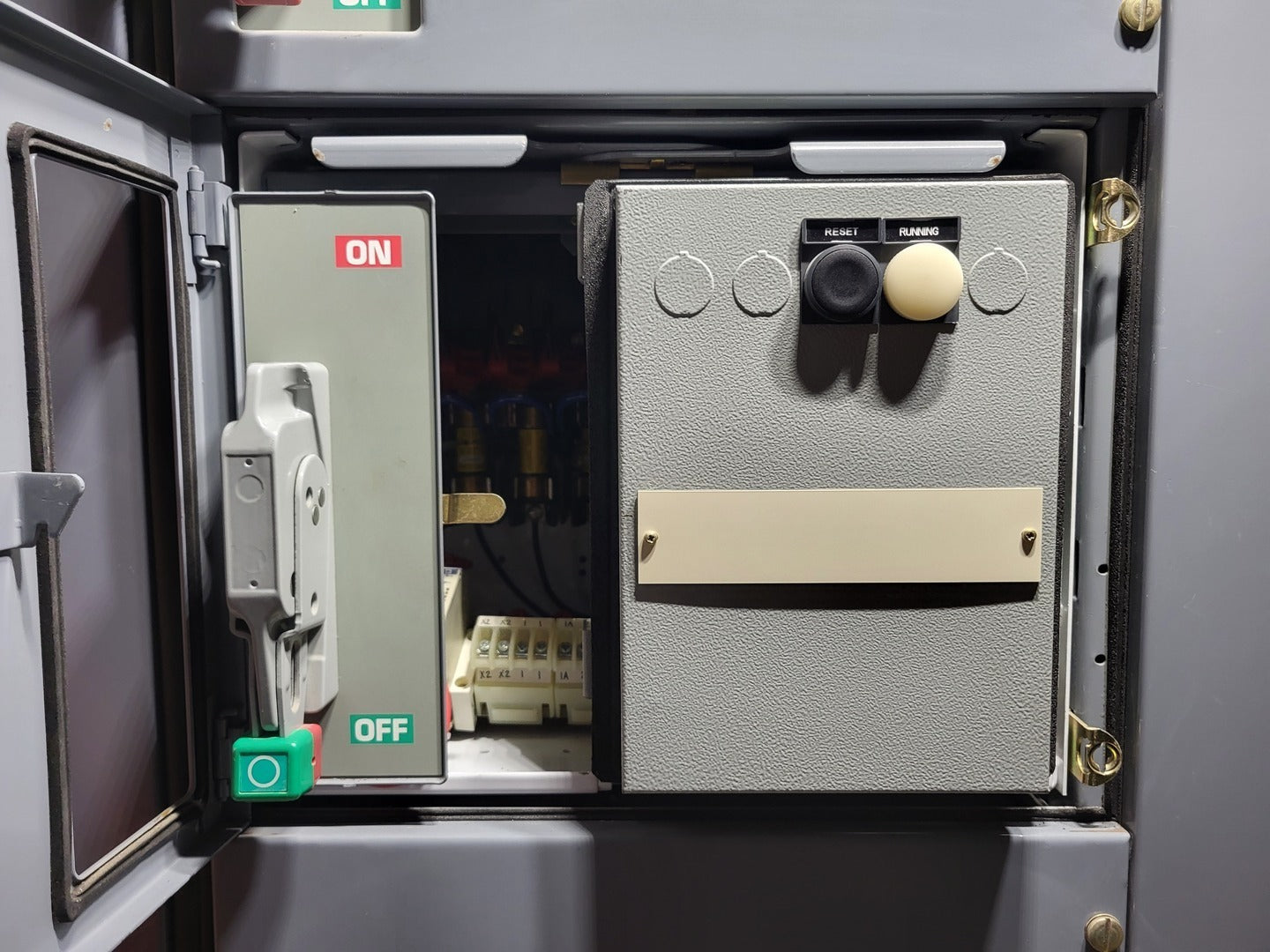

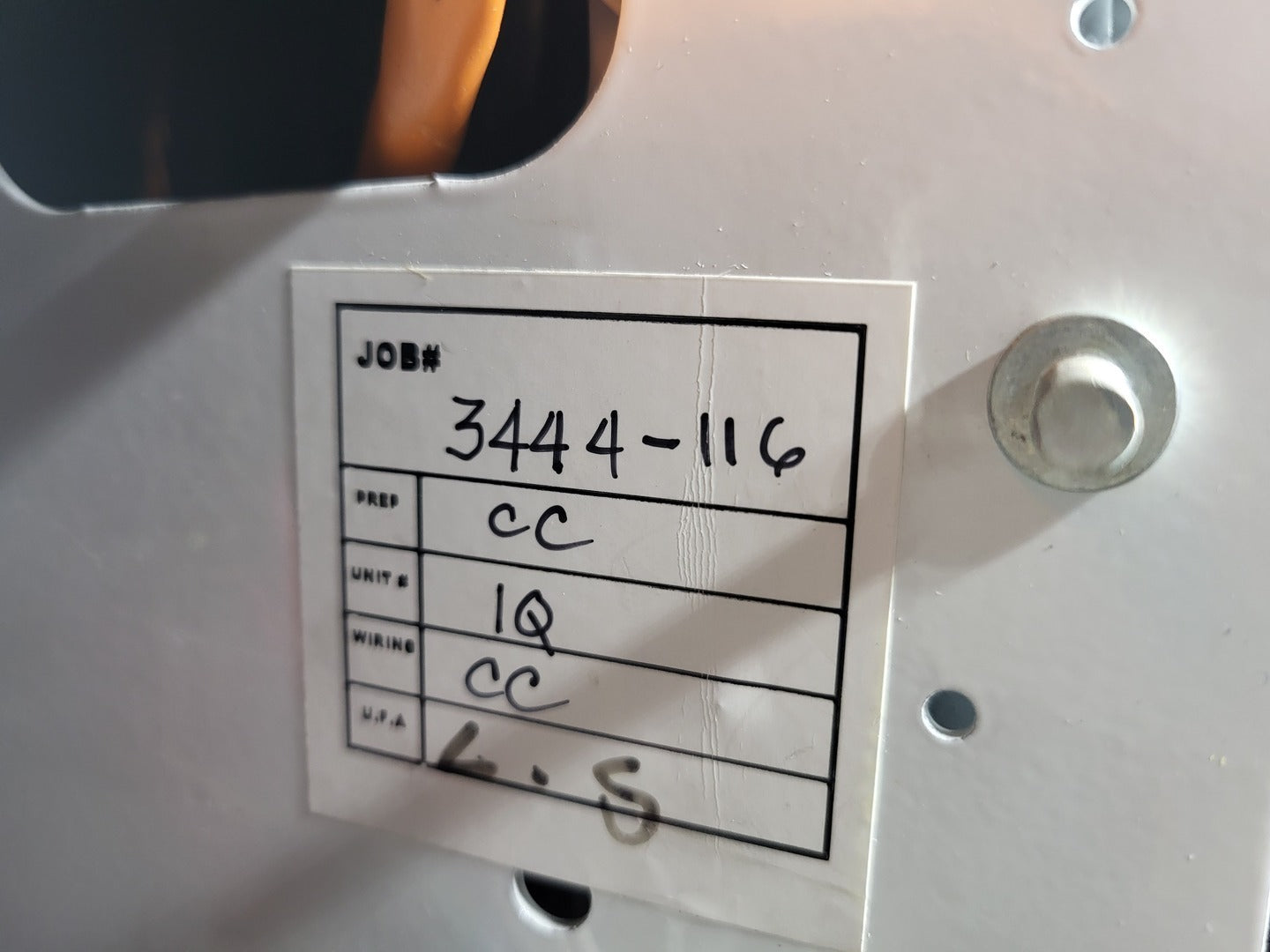

Bucket #5 3444-116

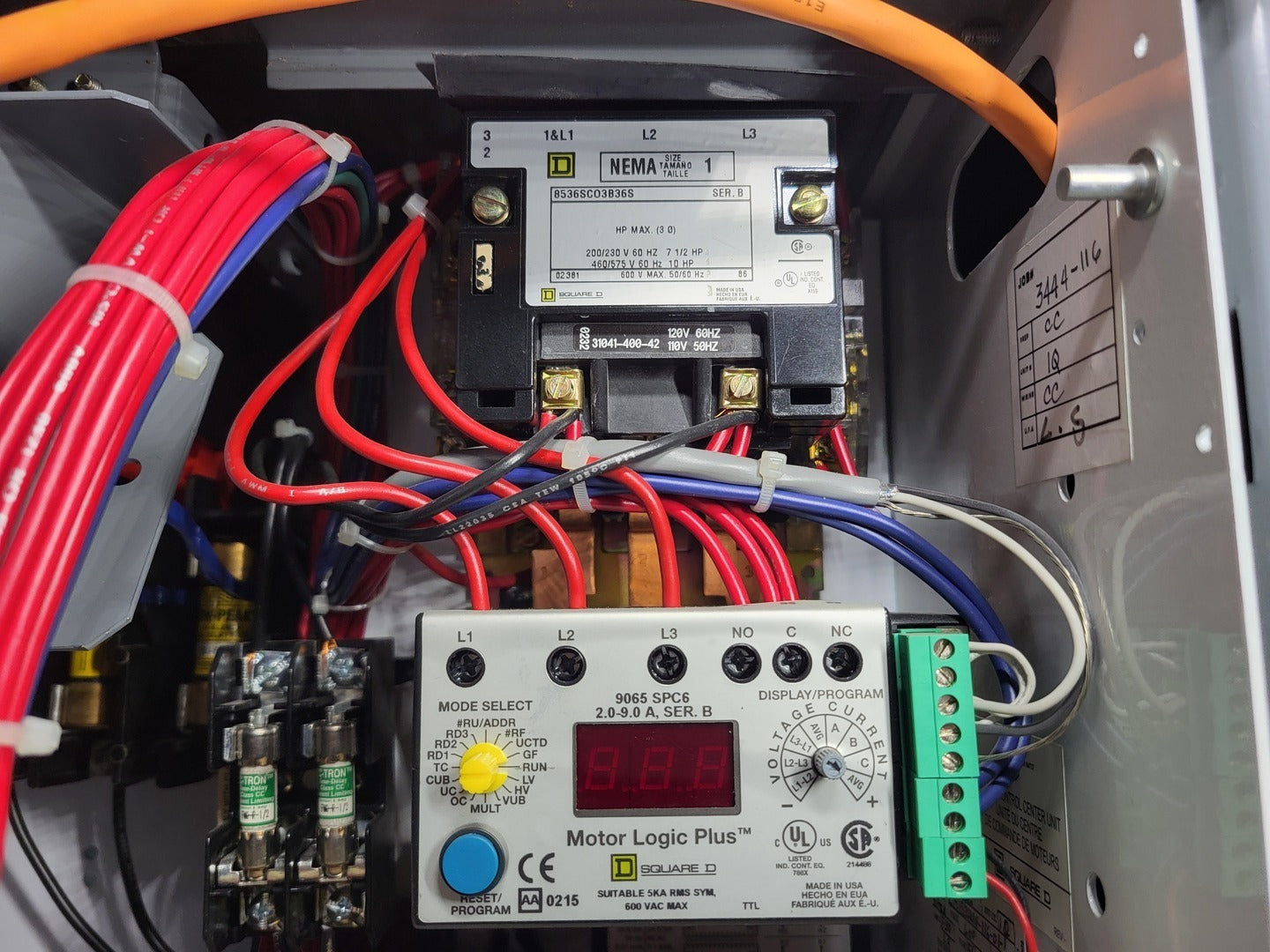

  1. Square D 8536SCO3B36S, NEMA Size 1 contactor, 7.5 HP @ 460/575V, 120V 60Hz coil
  2. Square D Motor Logic Plus 9065 SPC6, motor protection relay, 2.0-9.0A range, 600VAC max

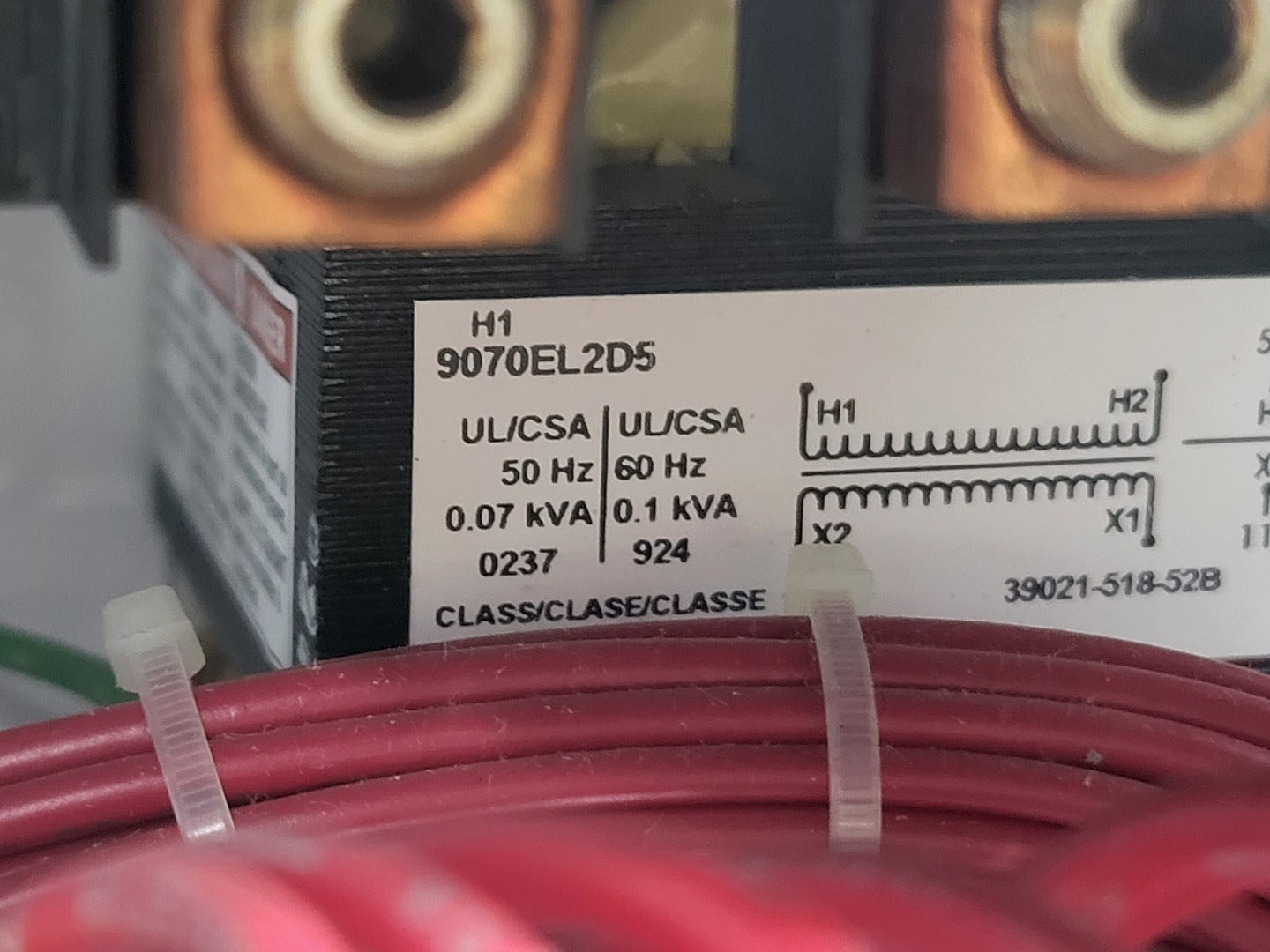

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

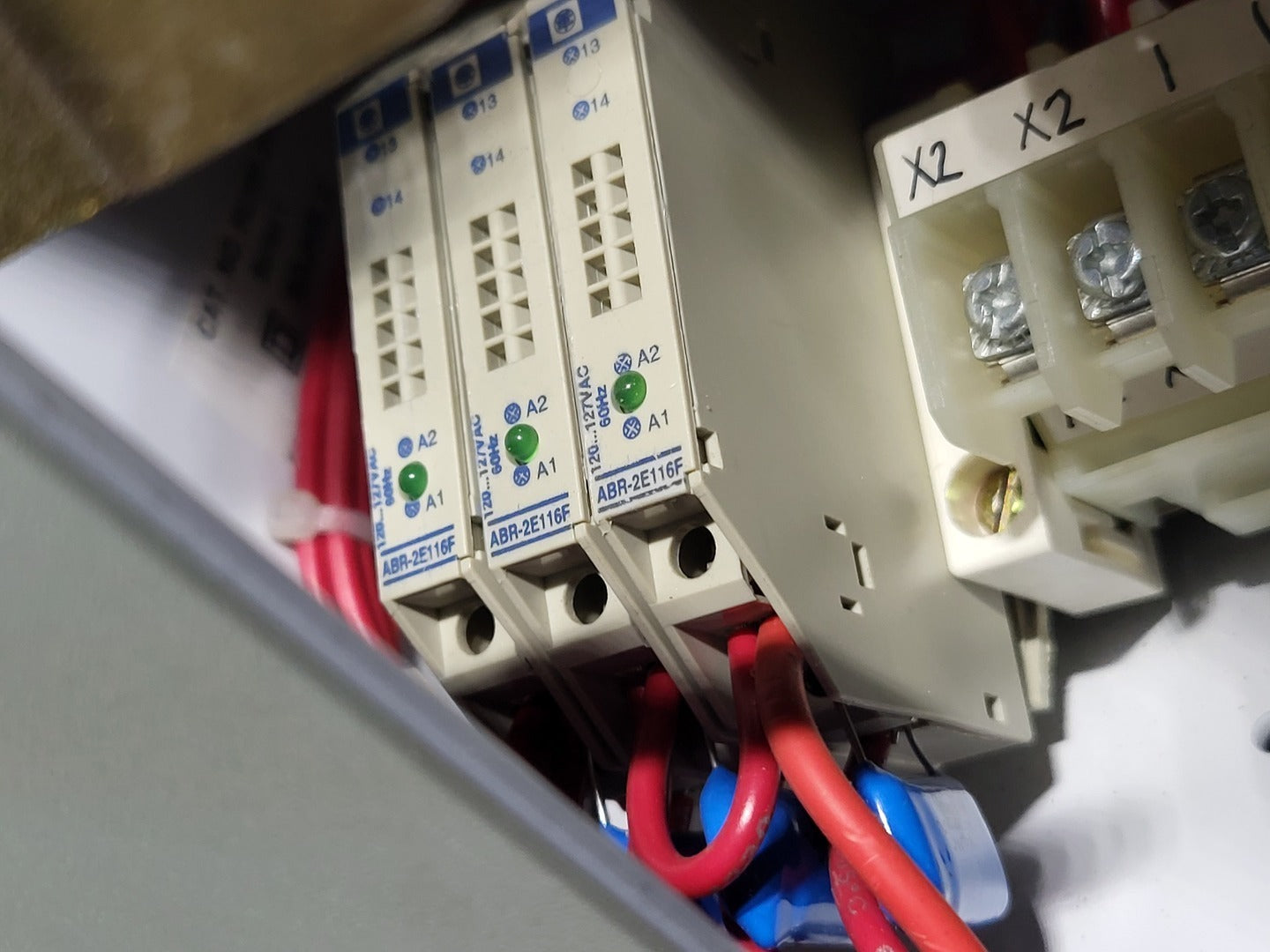

  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

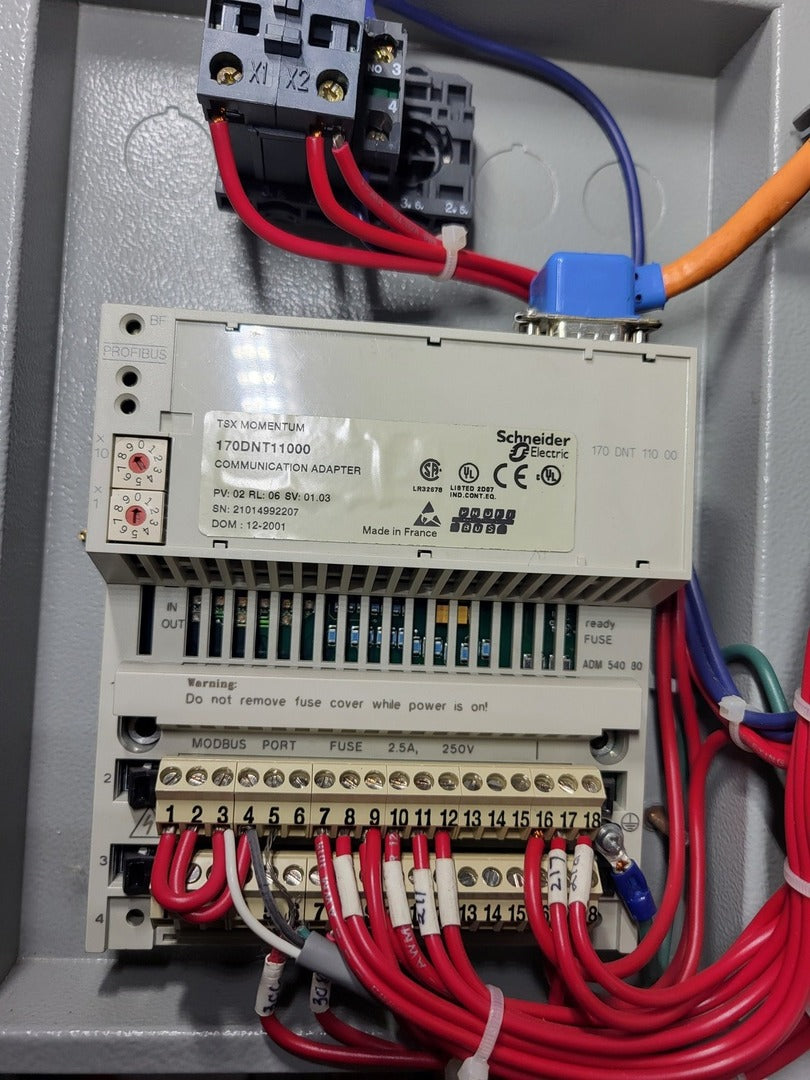

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

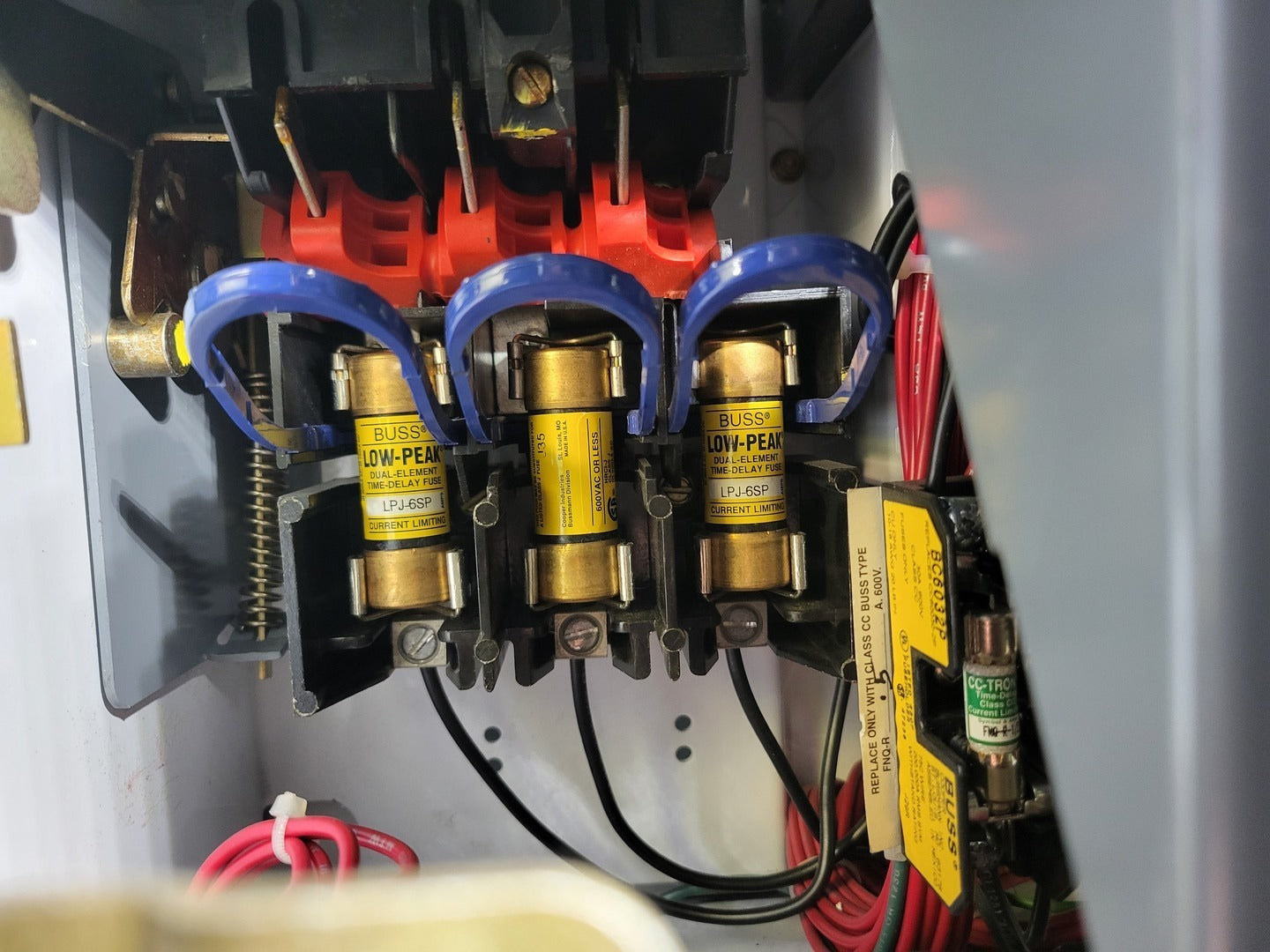

  7. 3 x Bussmann Low-Peak fuses LPJ-6SP
  8. 2 x Bussmann Fusetron fuses FNQ-R-1/2
