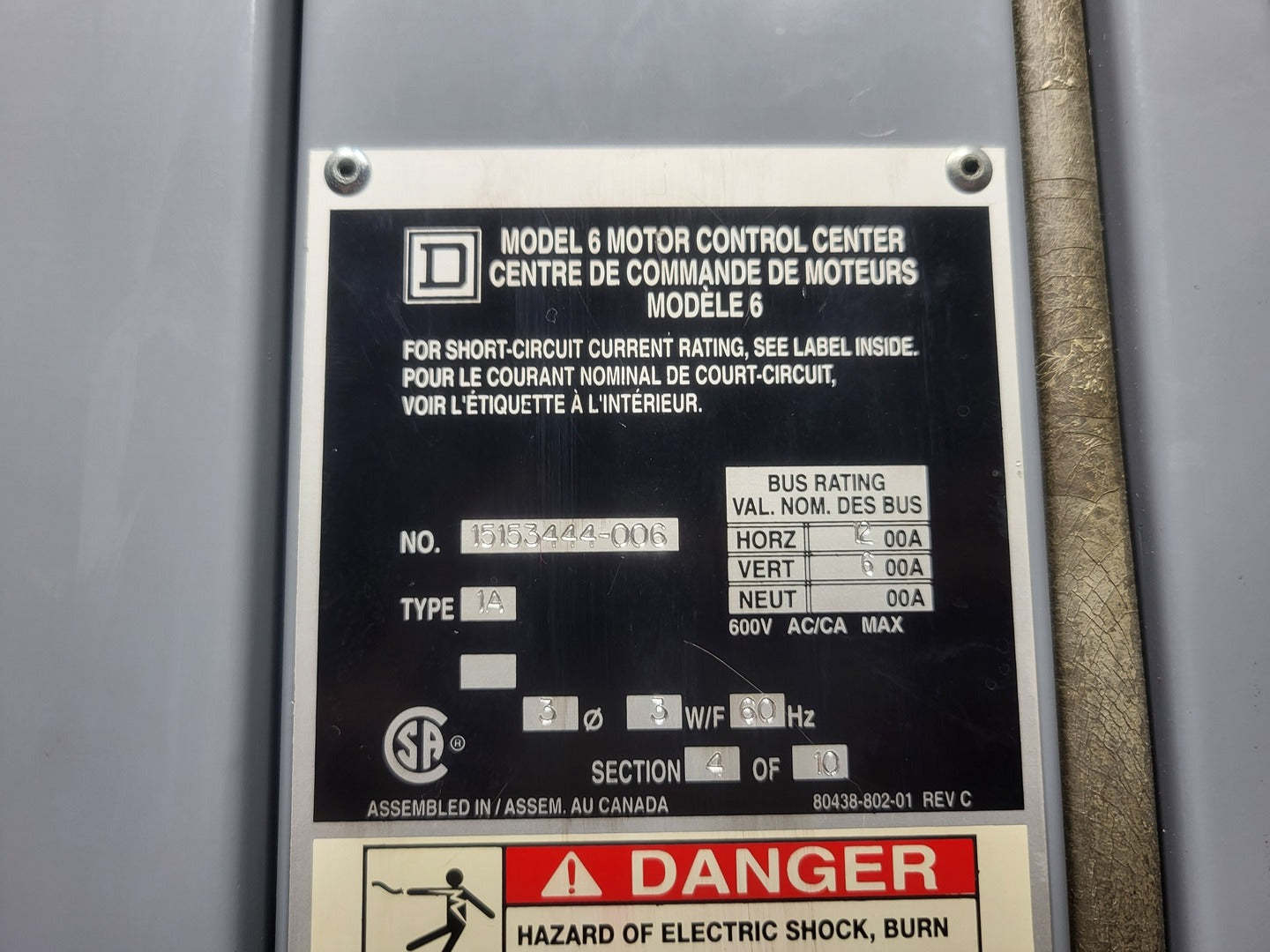

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151923
Price:
$4,167

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

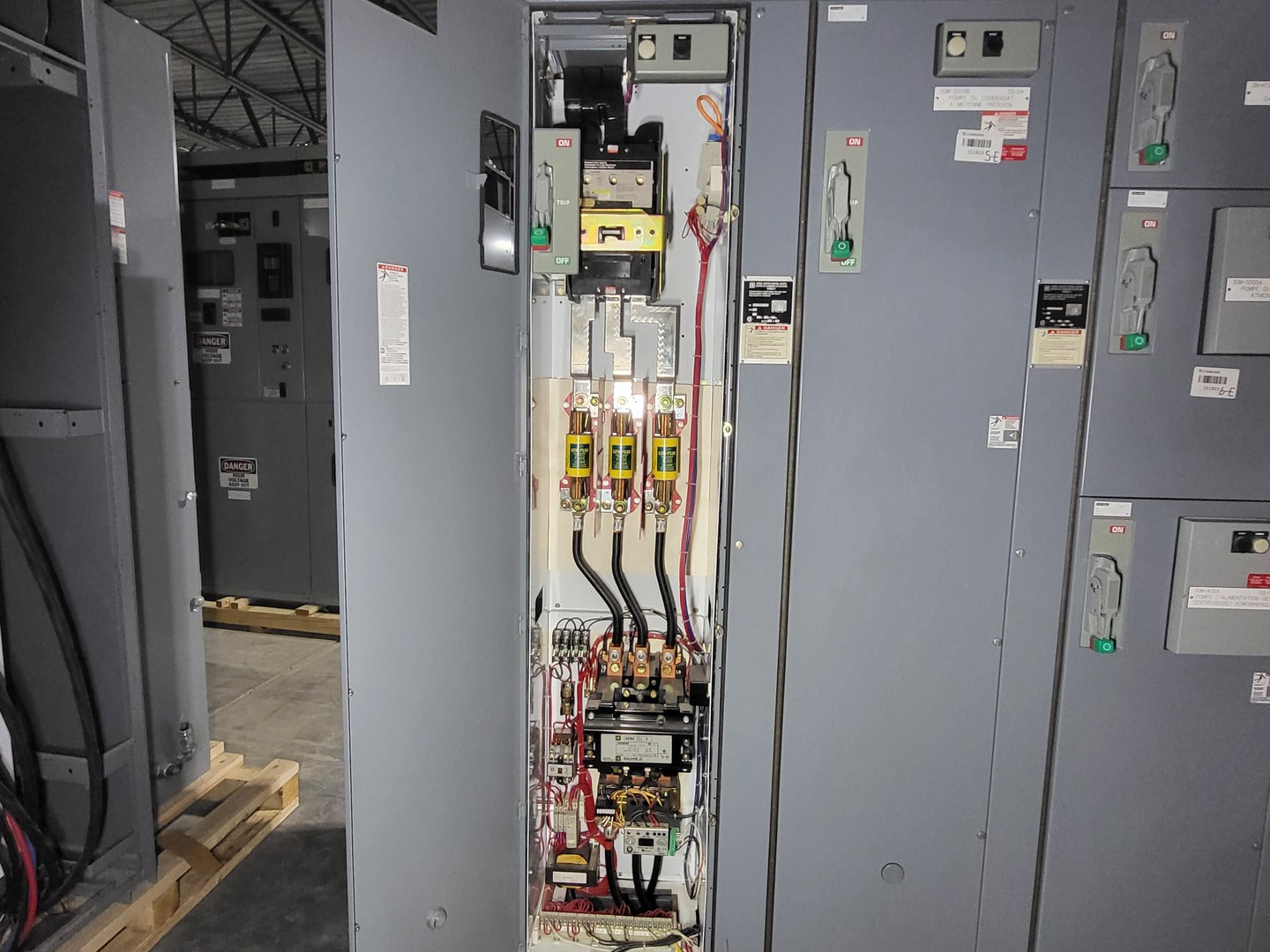

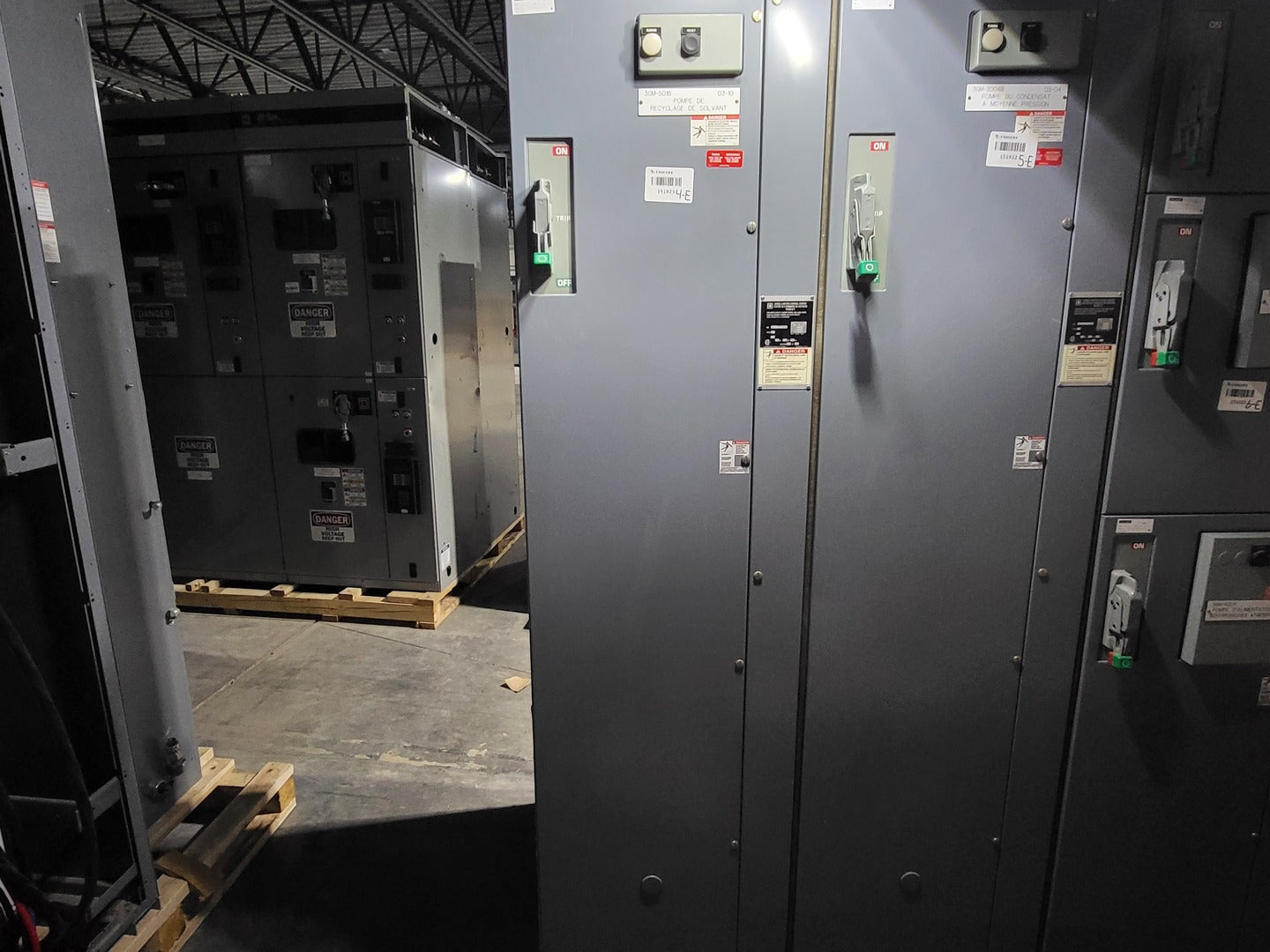

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

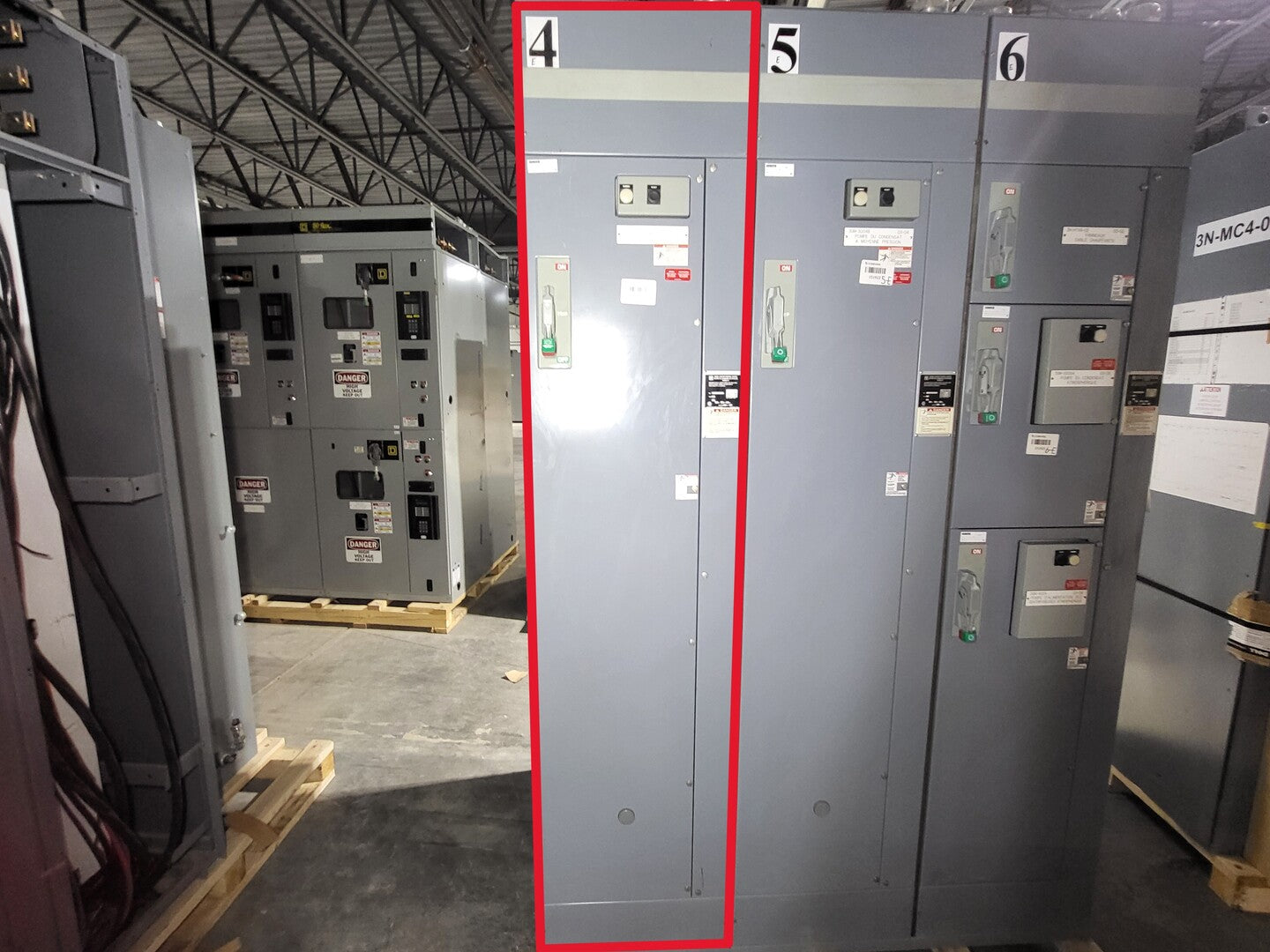

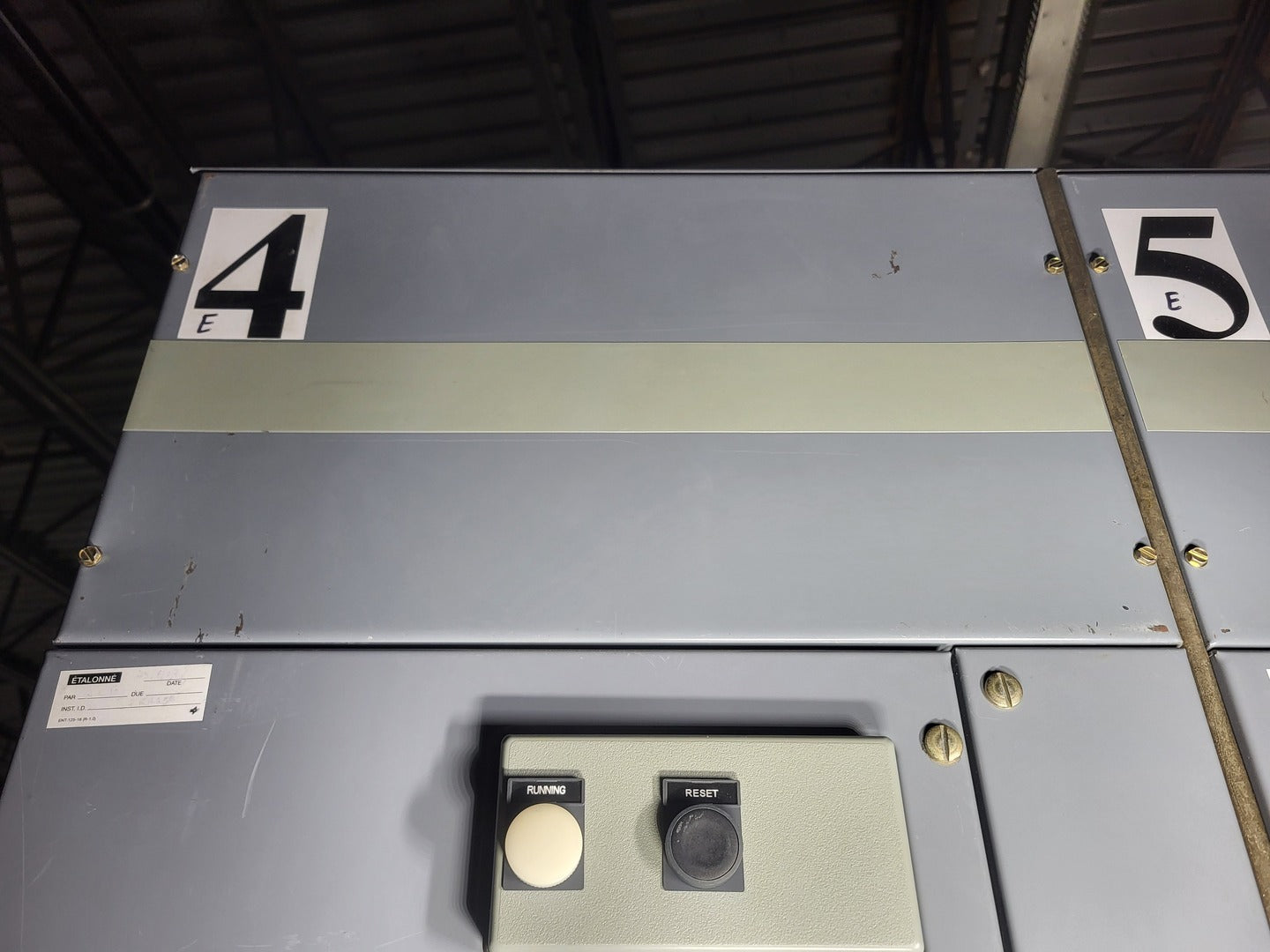

Note: Section 4 only

Section 3GM-501B

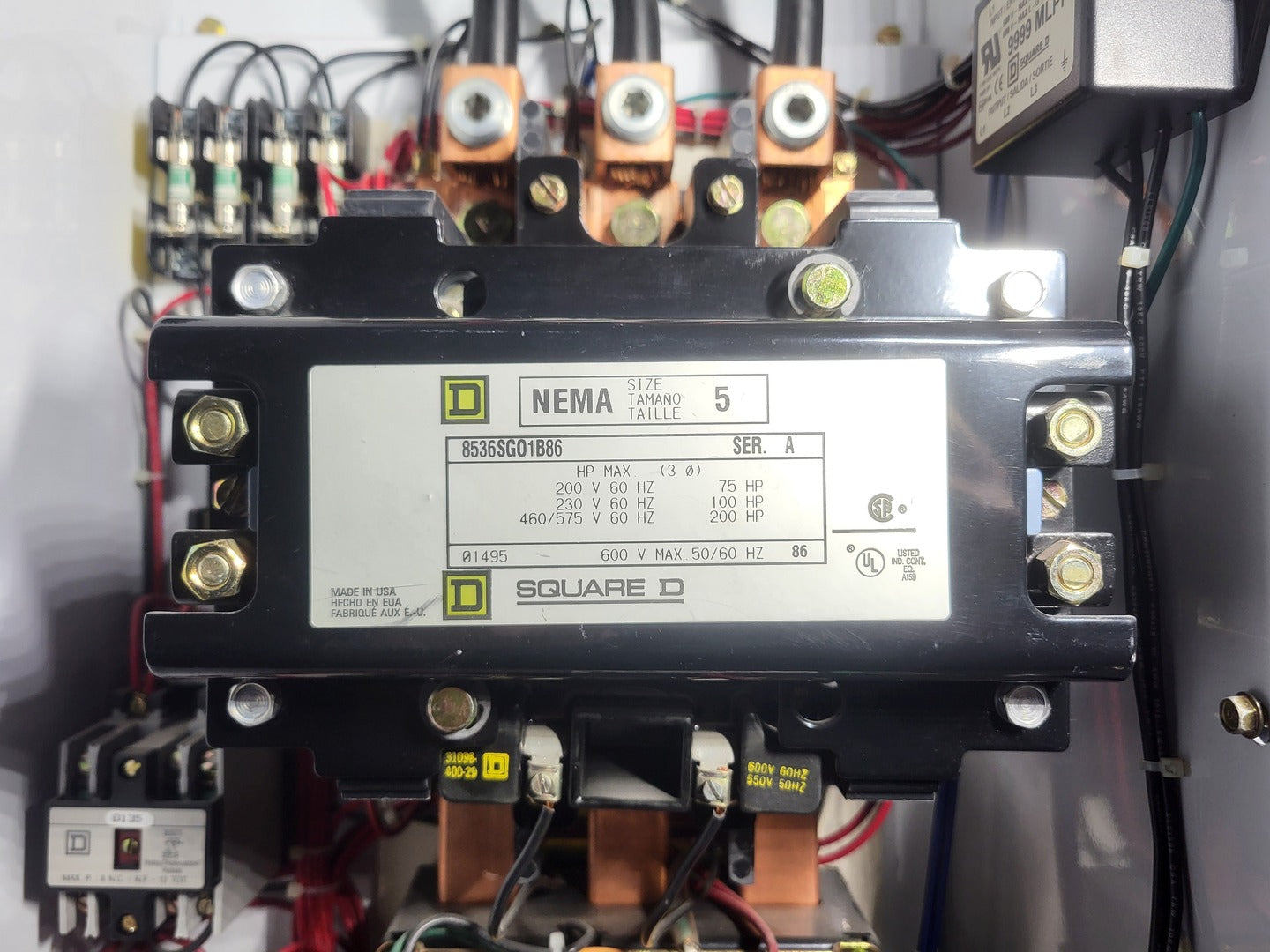

  1. Square D 8536SGO1B86, NEMA Size 5 contactor, 75 HP @ 200V / 100 HP @ 230V / 200 HP @ 460/575V, 600V max

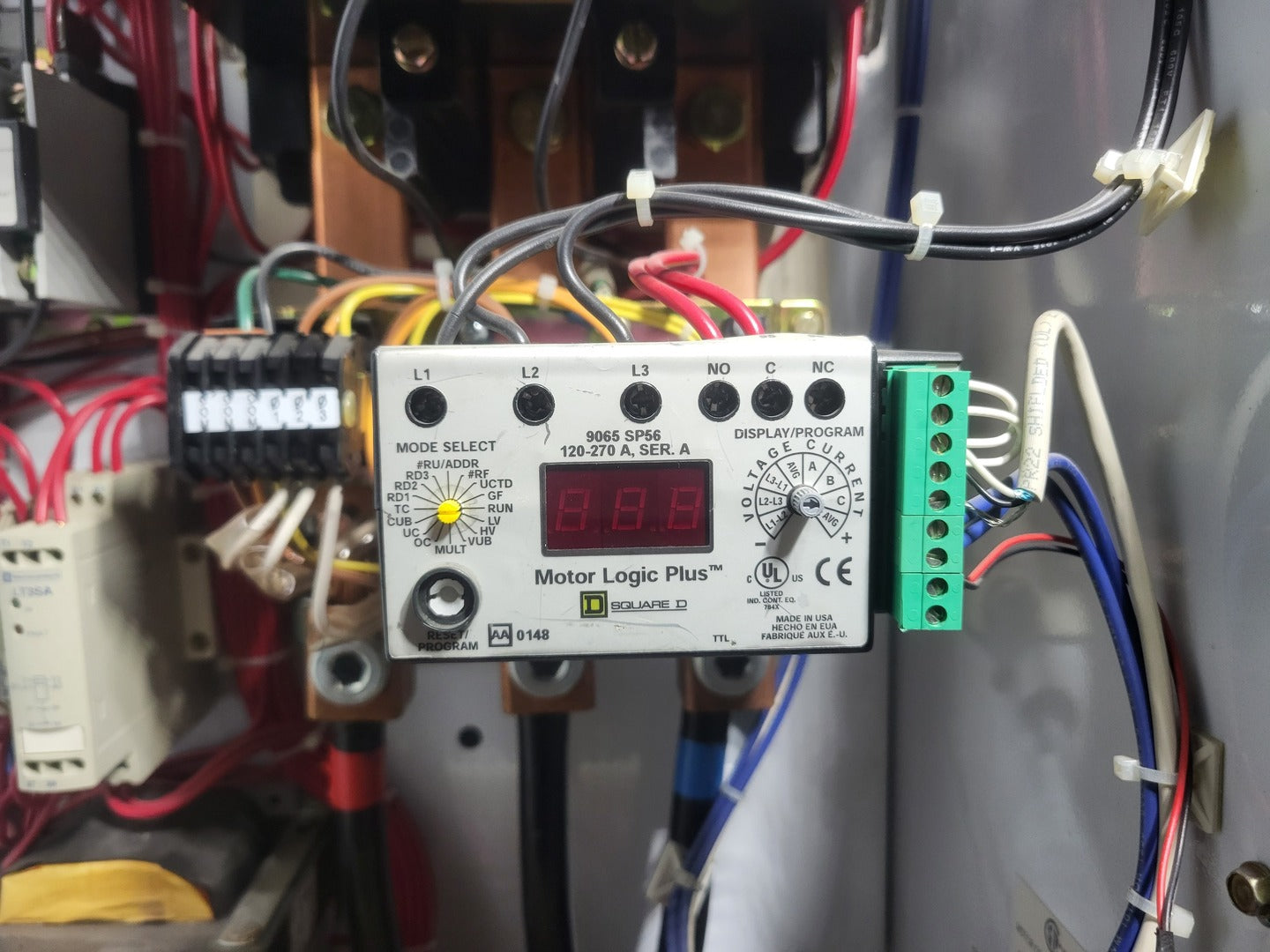

  2. Square D Motor Logic Plus 9065 SP56, motor protection relay, 120-270A range, 600VAC max

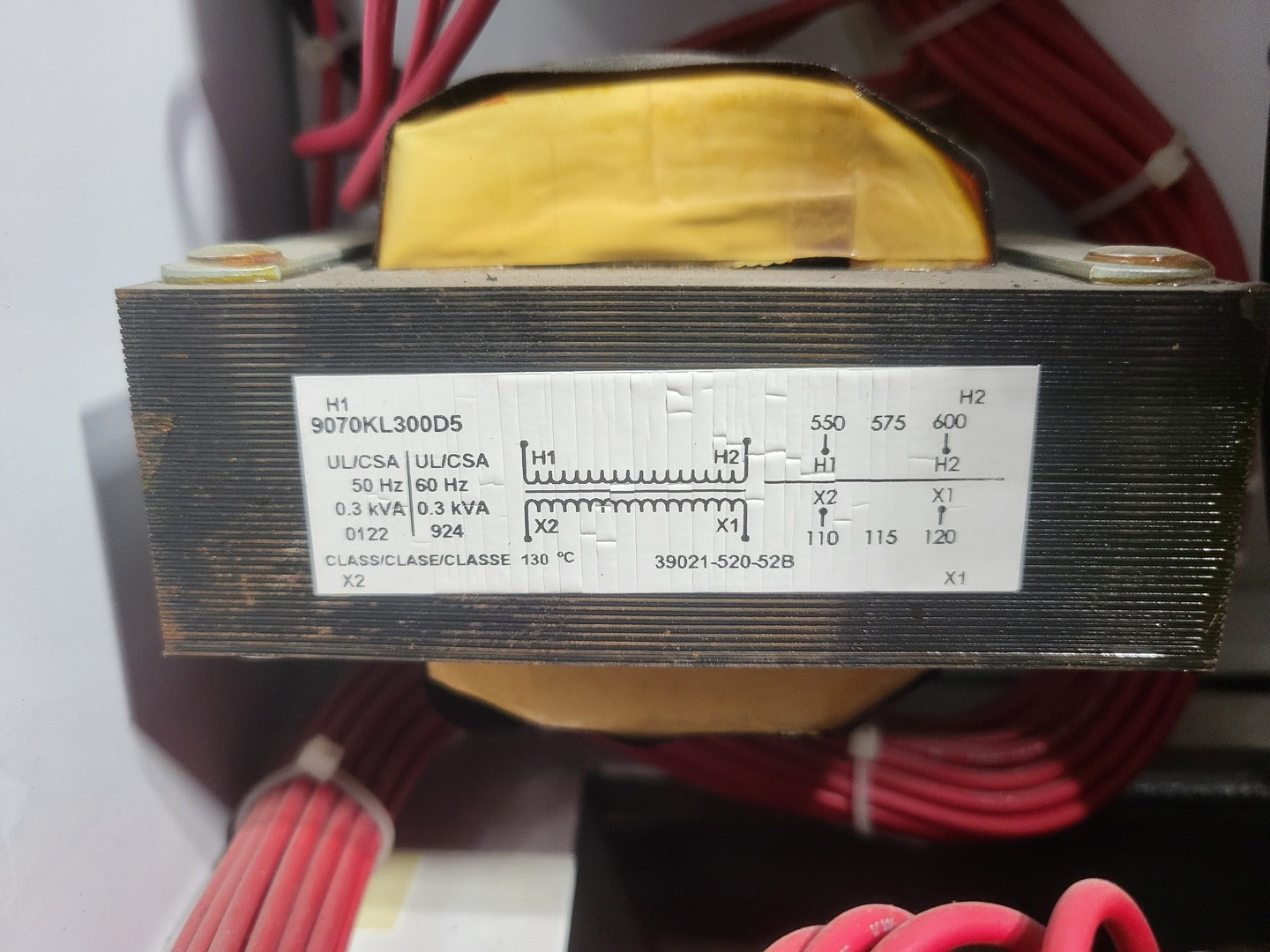

  3. Square D 9070KL300D5, control transformer, 0.3 kVA @ 50/60Hz, 550/575/600V primary, 110/115/120V secondary

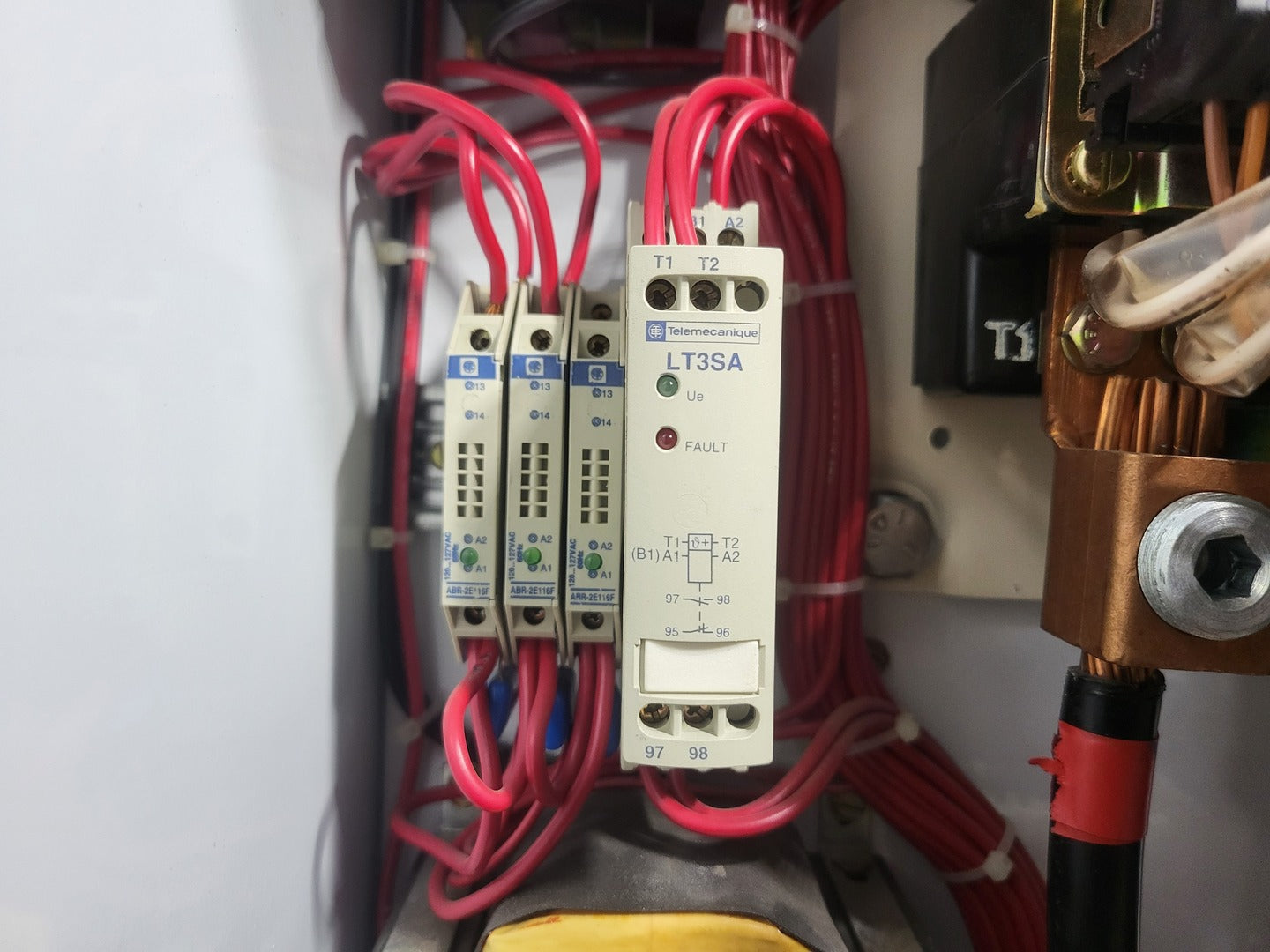

  4. Telemecanique LT3SA thermistor protection relay
  5. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

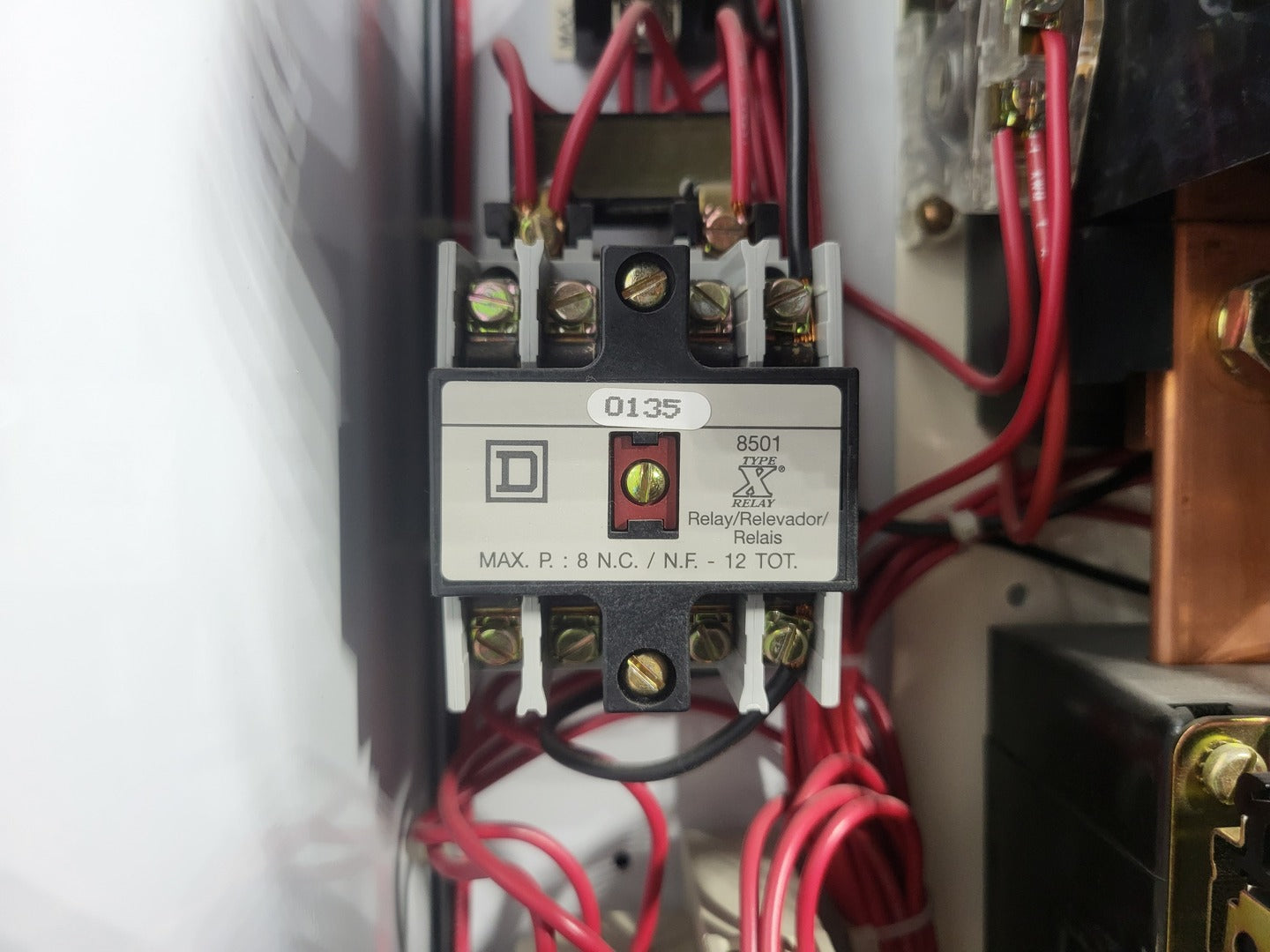

  6. Square D 8501 Type X relay, max 8 N.C. / 12 total contacts

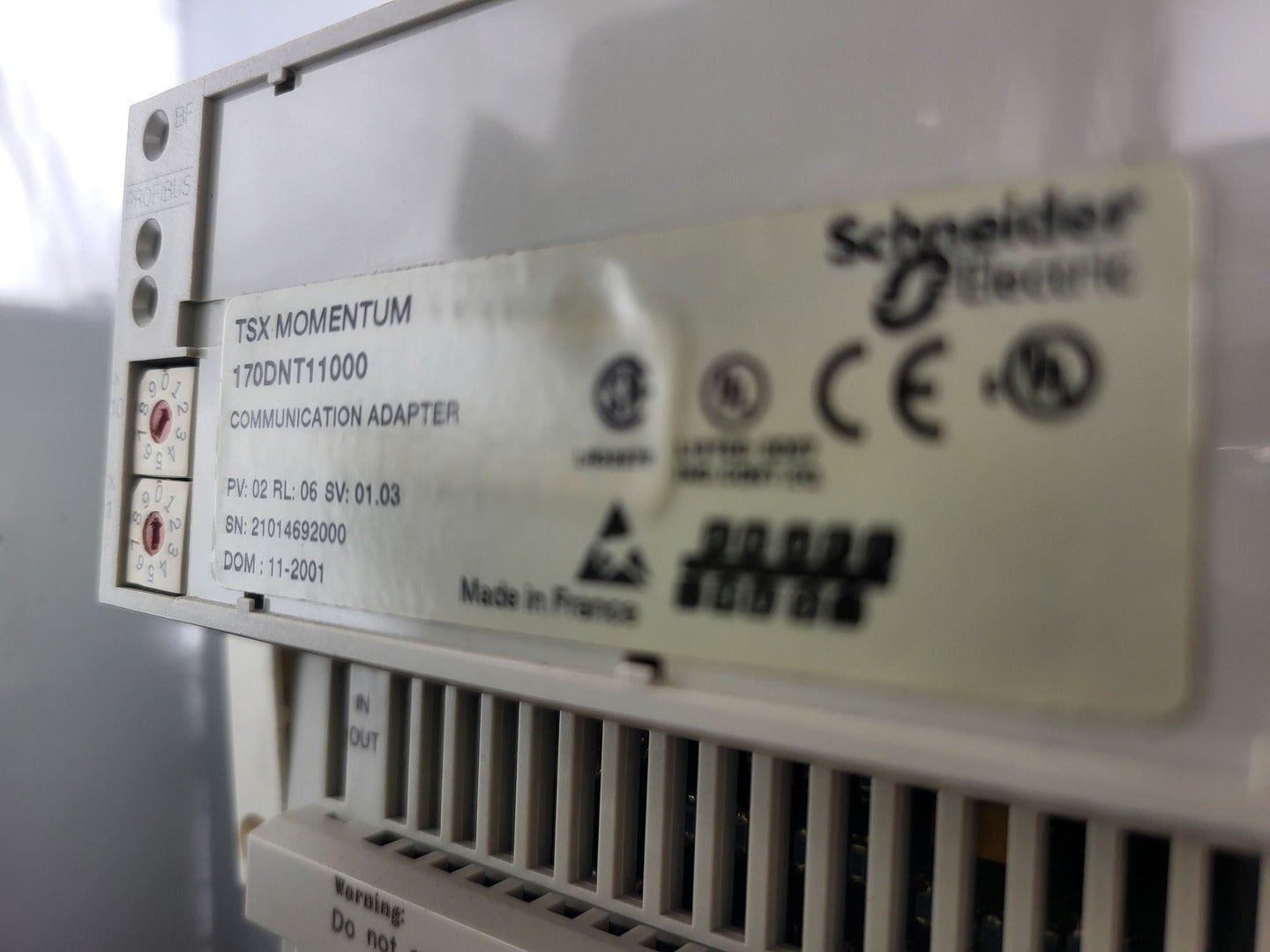

  7. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

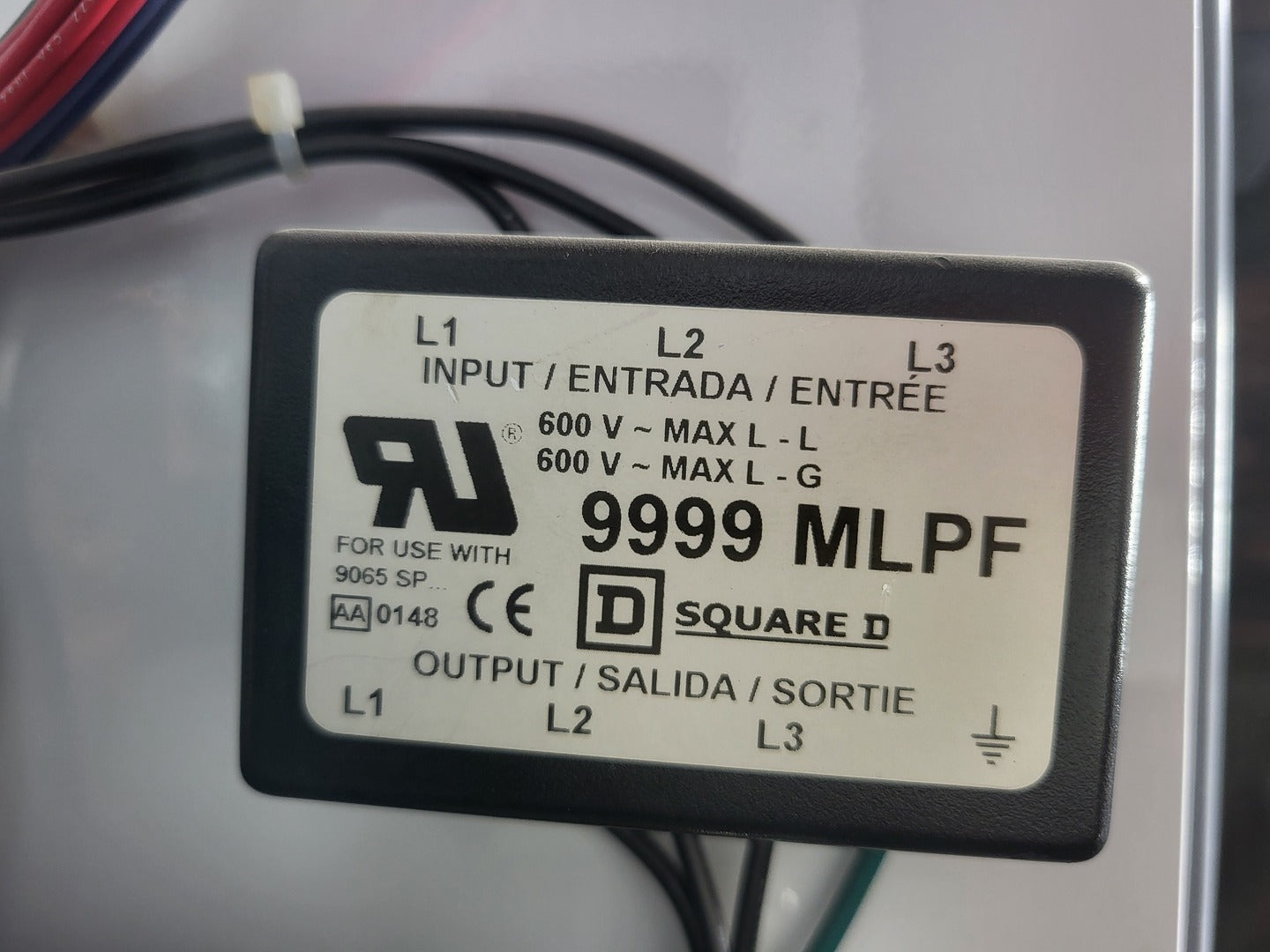

  8. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max

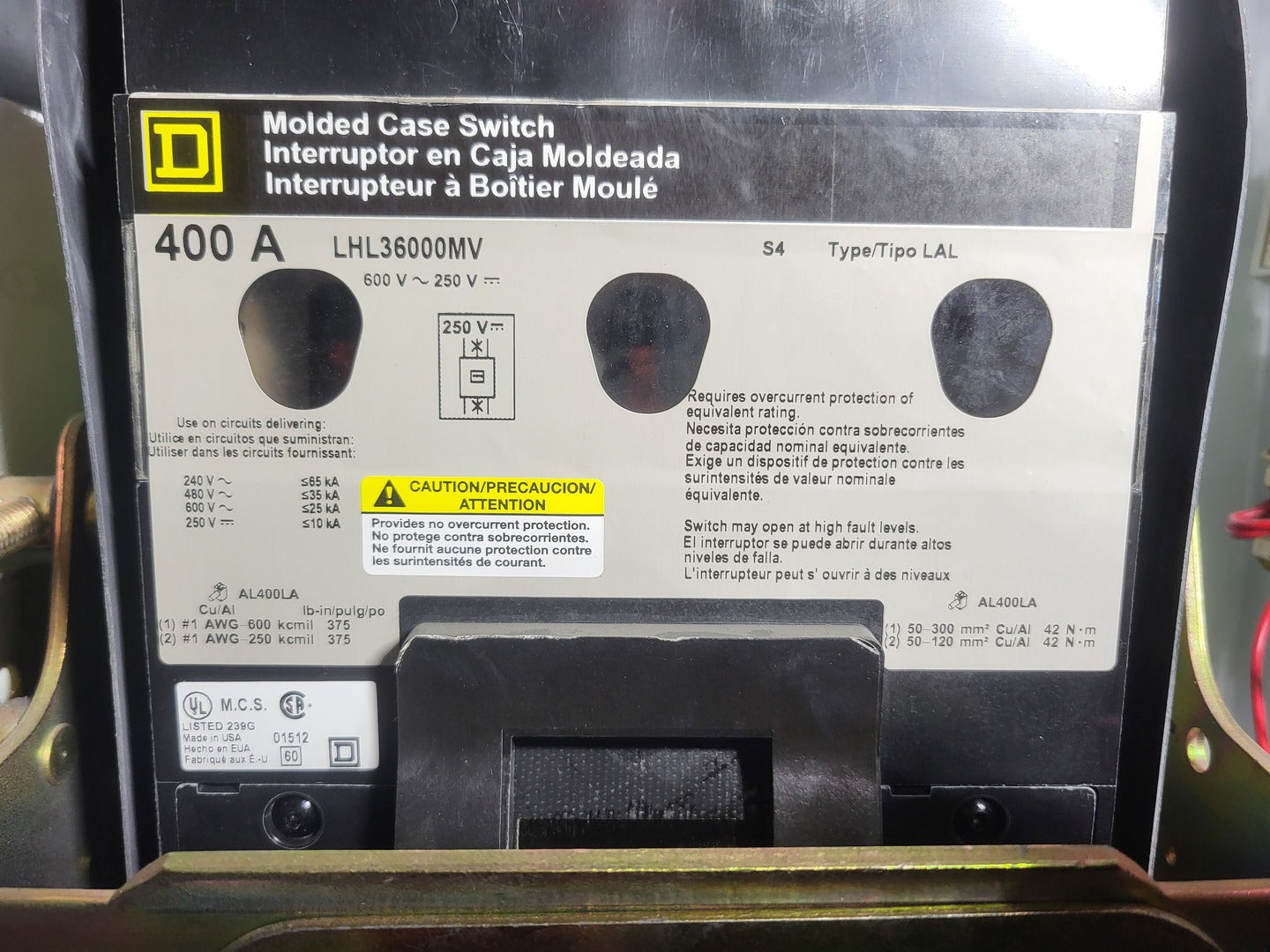

  9. Square D LHL36000MV, 400A molded case switch, Type LAL, 600VAC / 250VDC

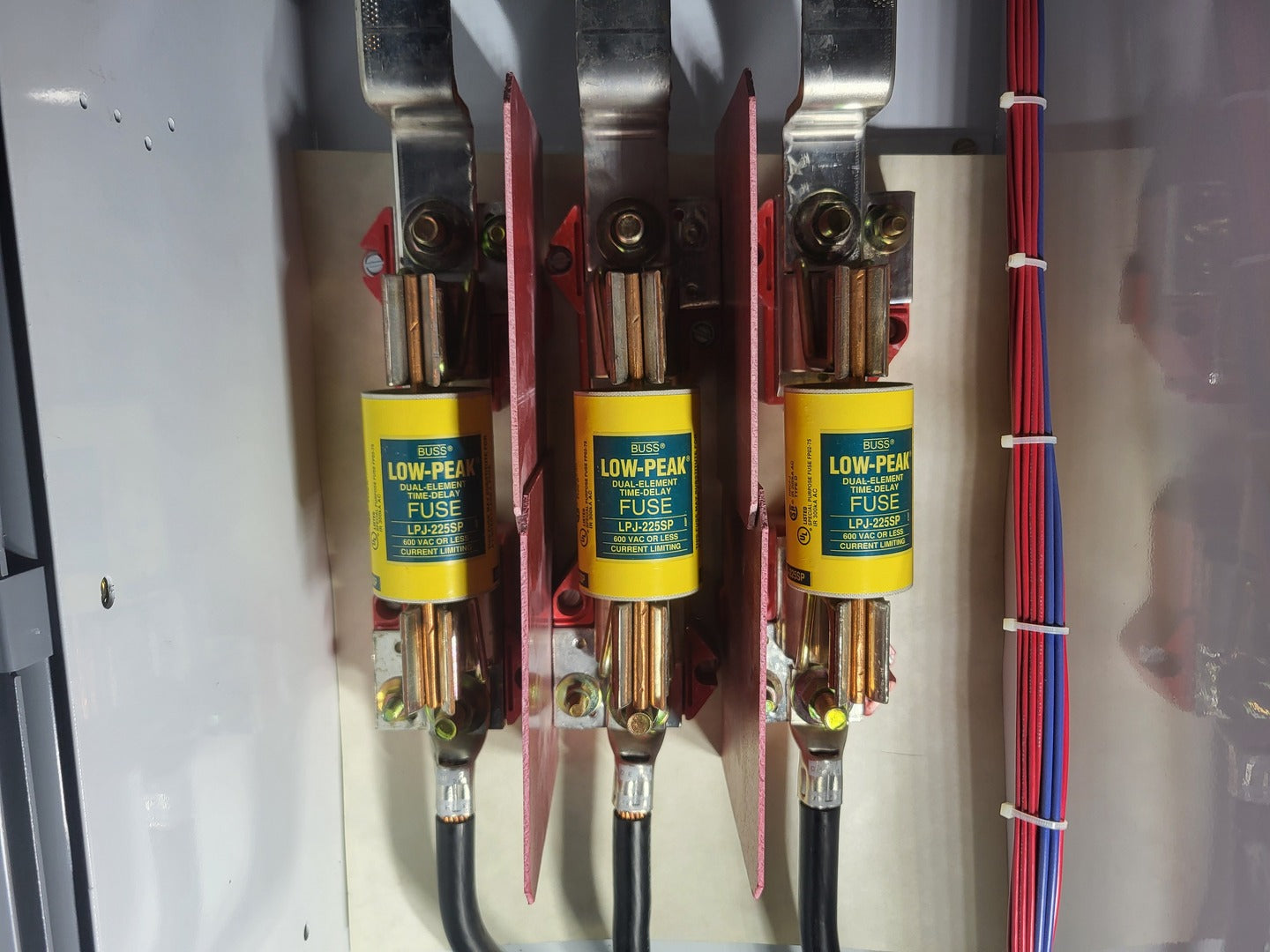

  10. 3 x Bussmann Low-Peak fuses LPJ-225SP

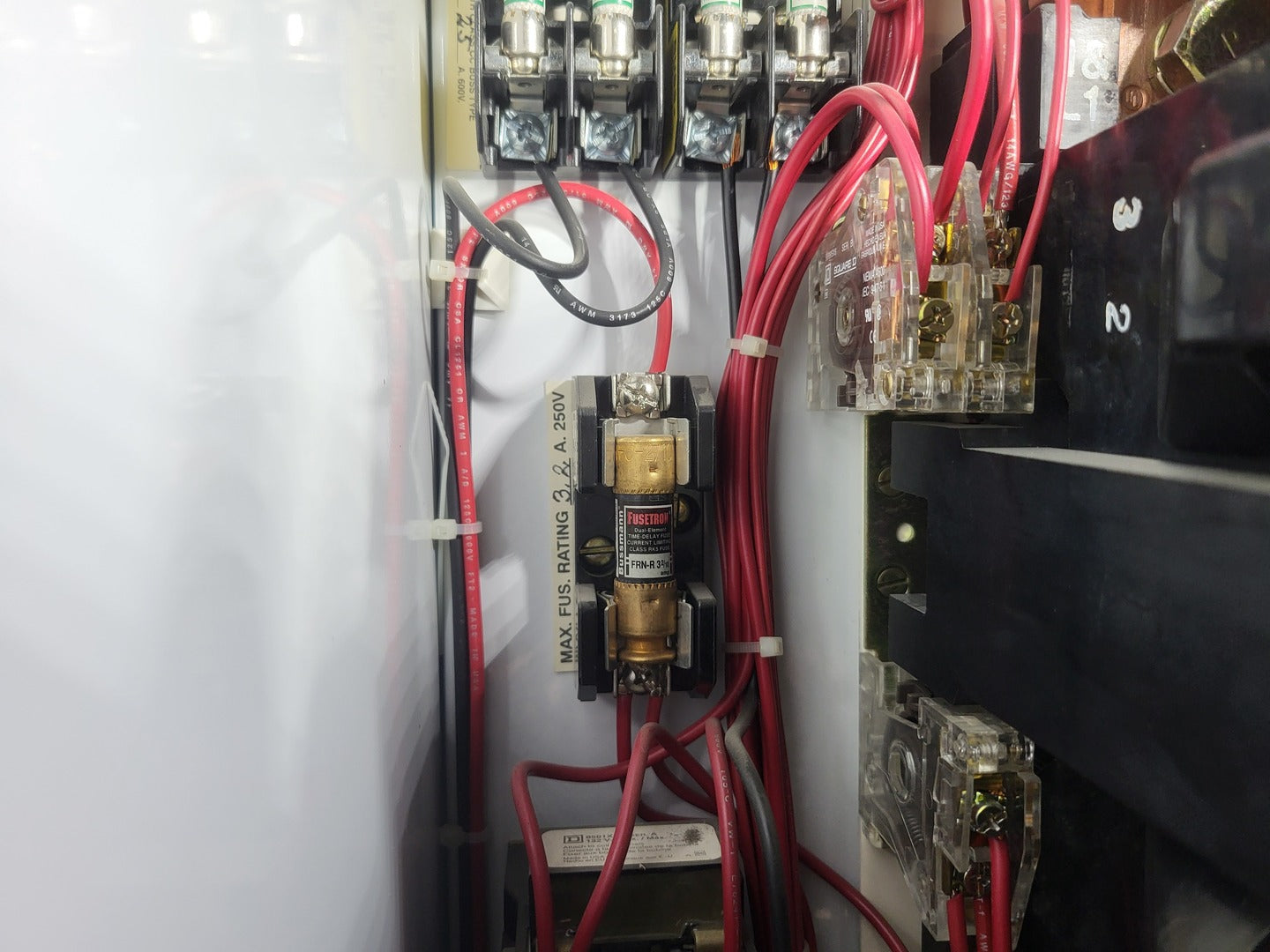

  11. 1 x Bussmann Fusetron fuse FRN-R-3-2/10

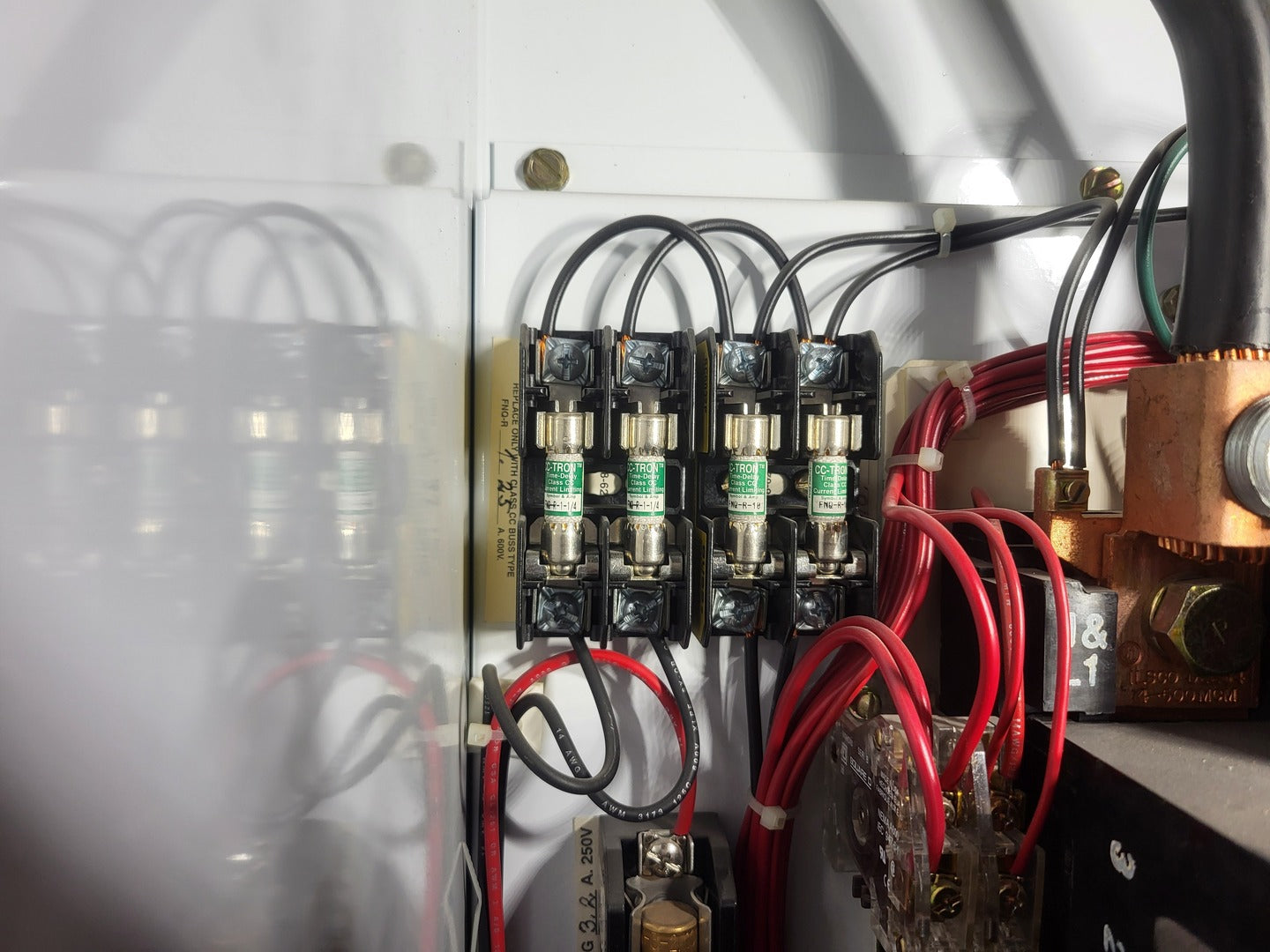

  12. 2 x Bussmann CC-Tron fuses FNQ-R-10
  13. 2 x Bussmann CC-Tron fuses FNQ-R-1-1/4
