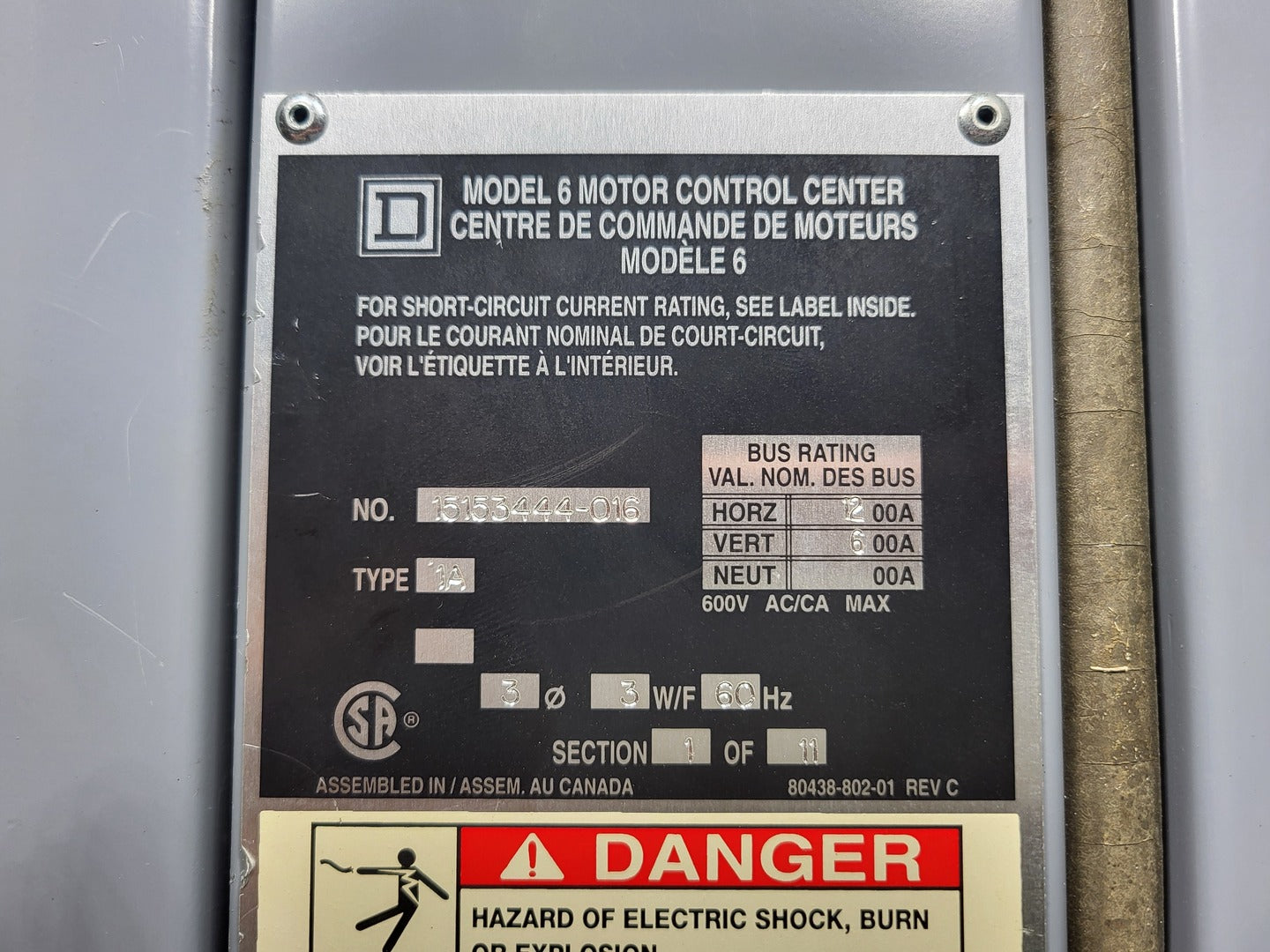

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 152217
Price:
$5,780

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

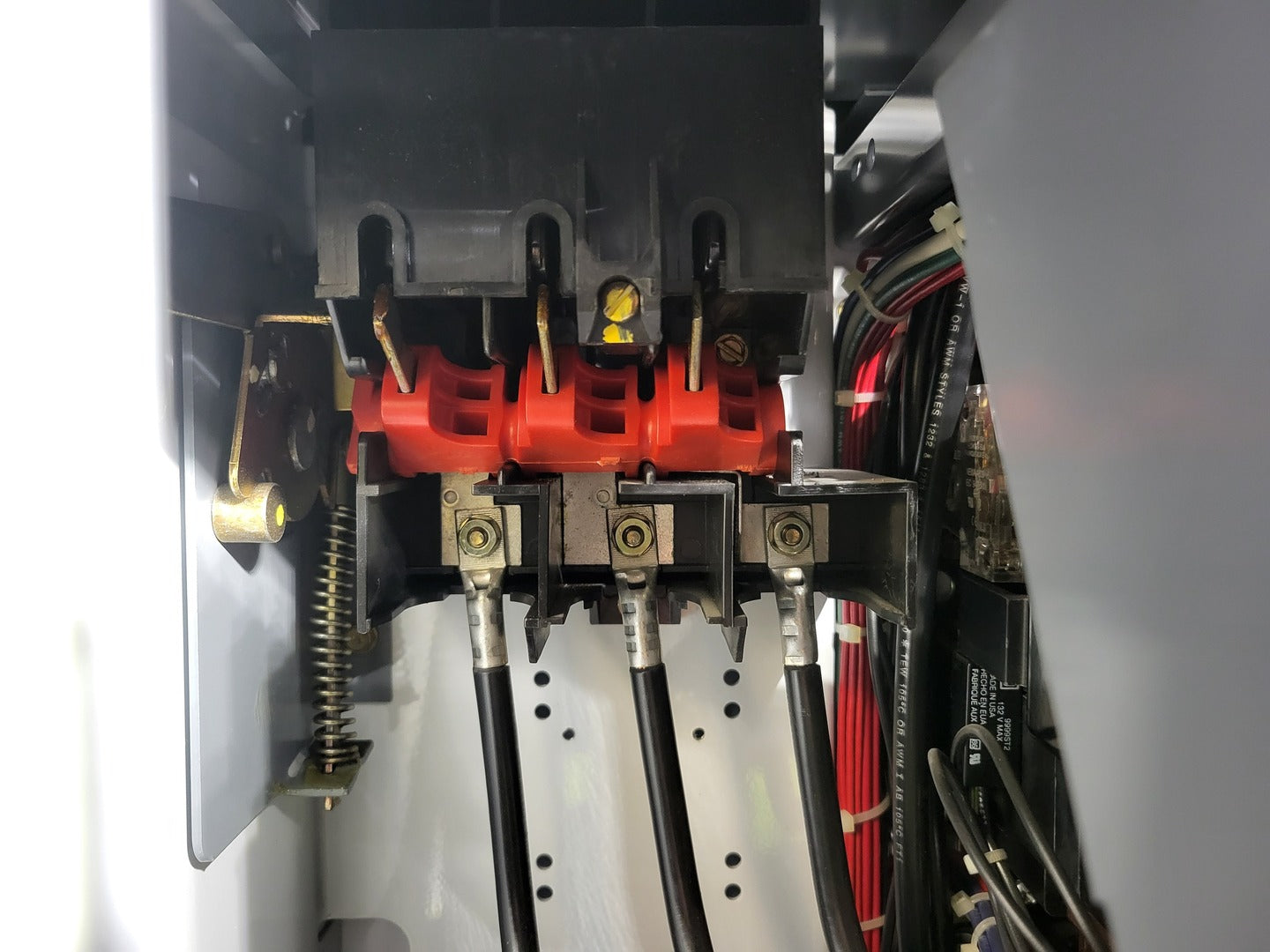

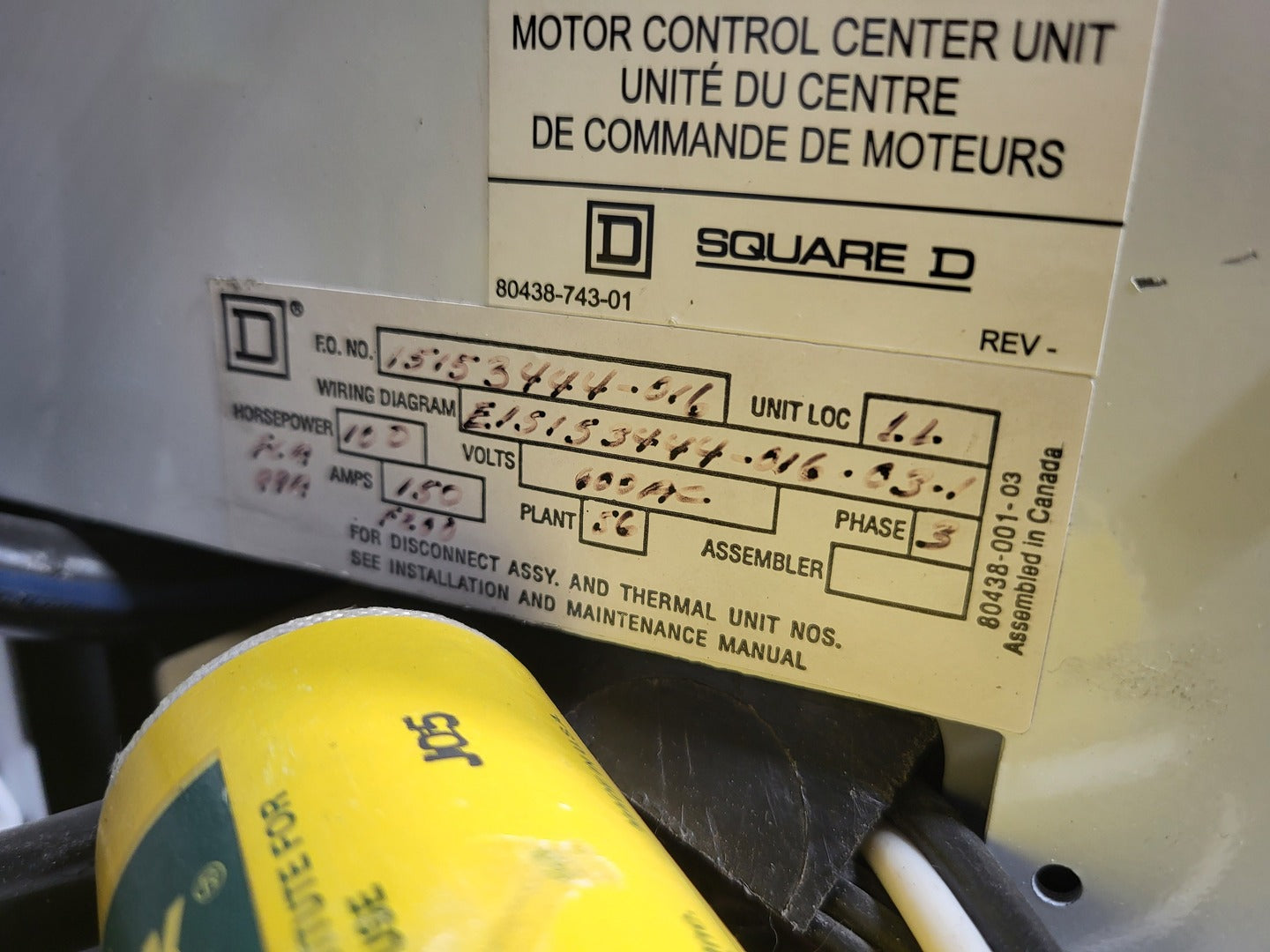

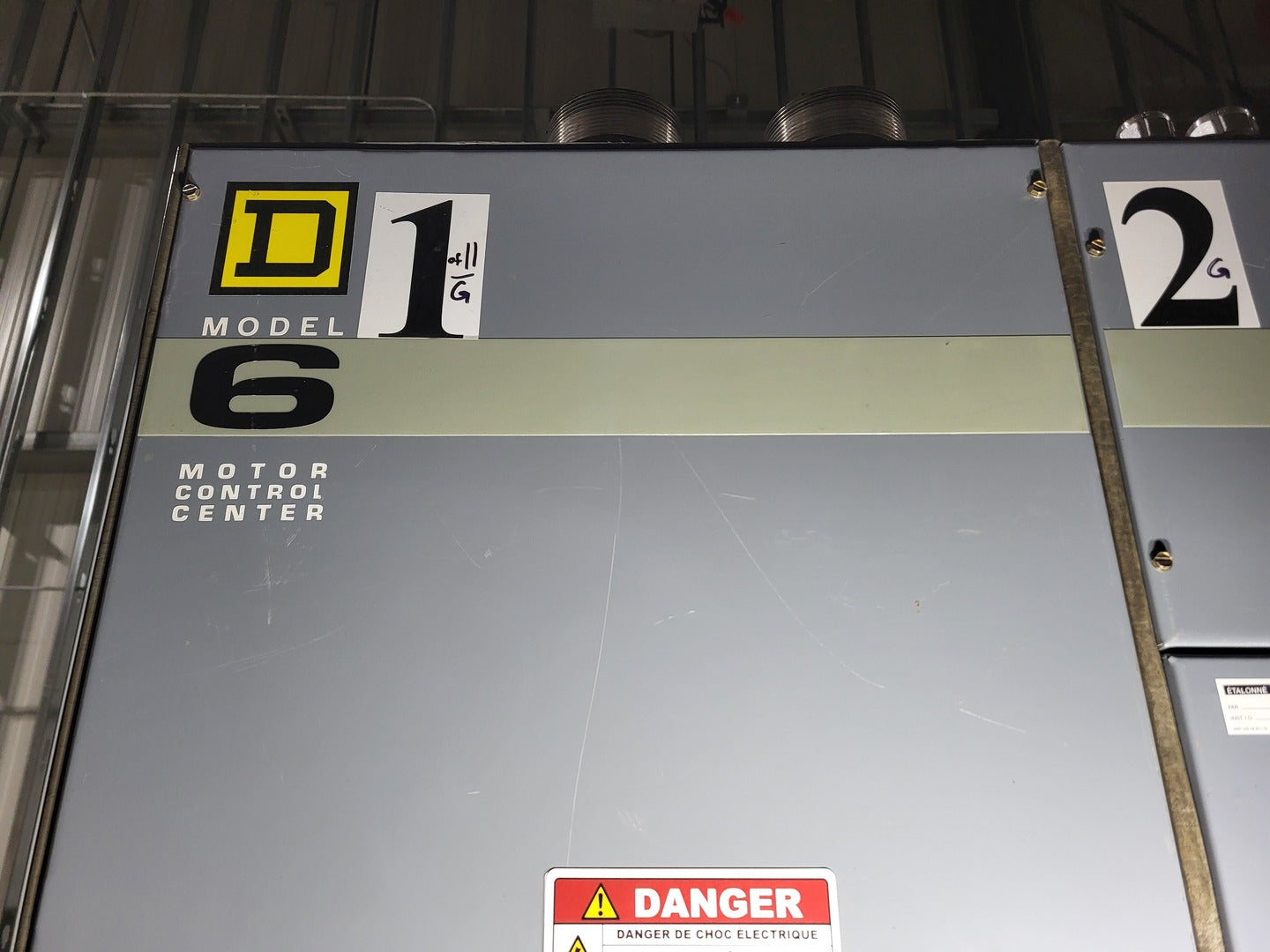

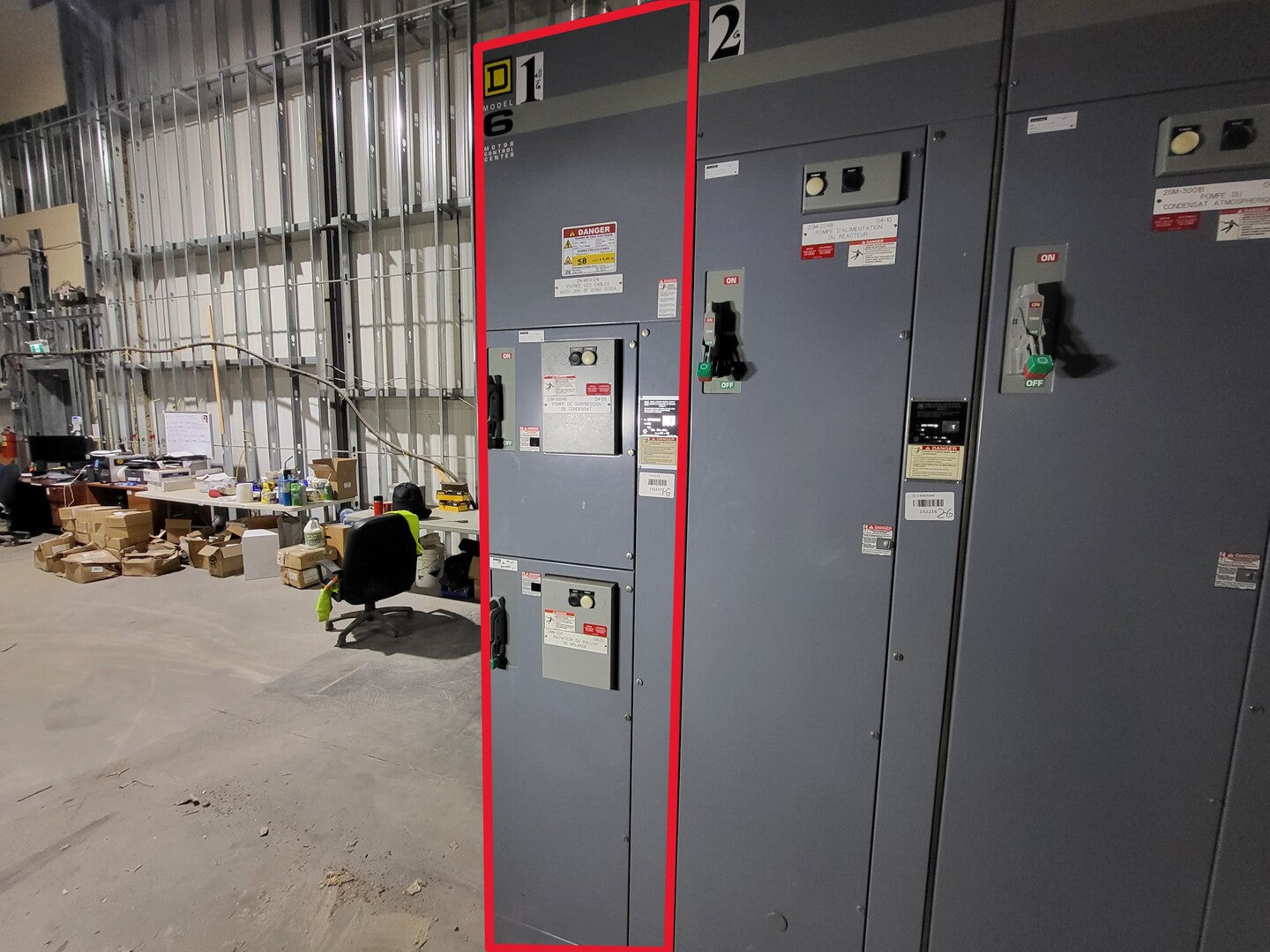

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
General
Size 3
HP Rating 30 hp
Electrical
Max. Voltage 600
Other Specifications

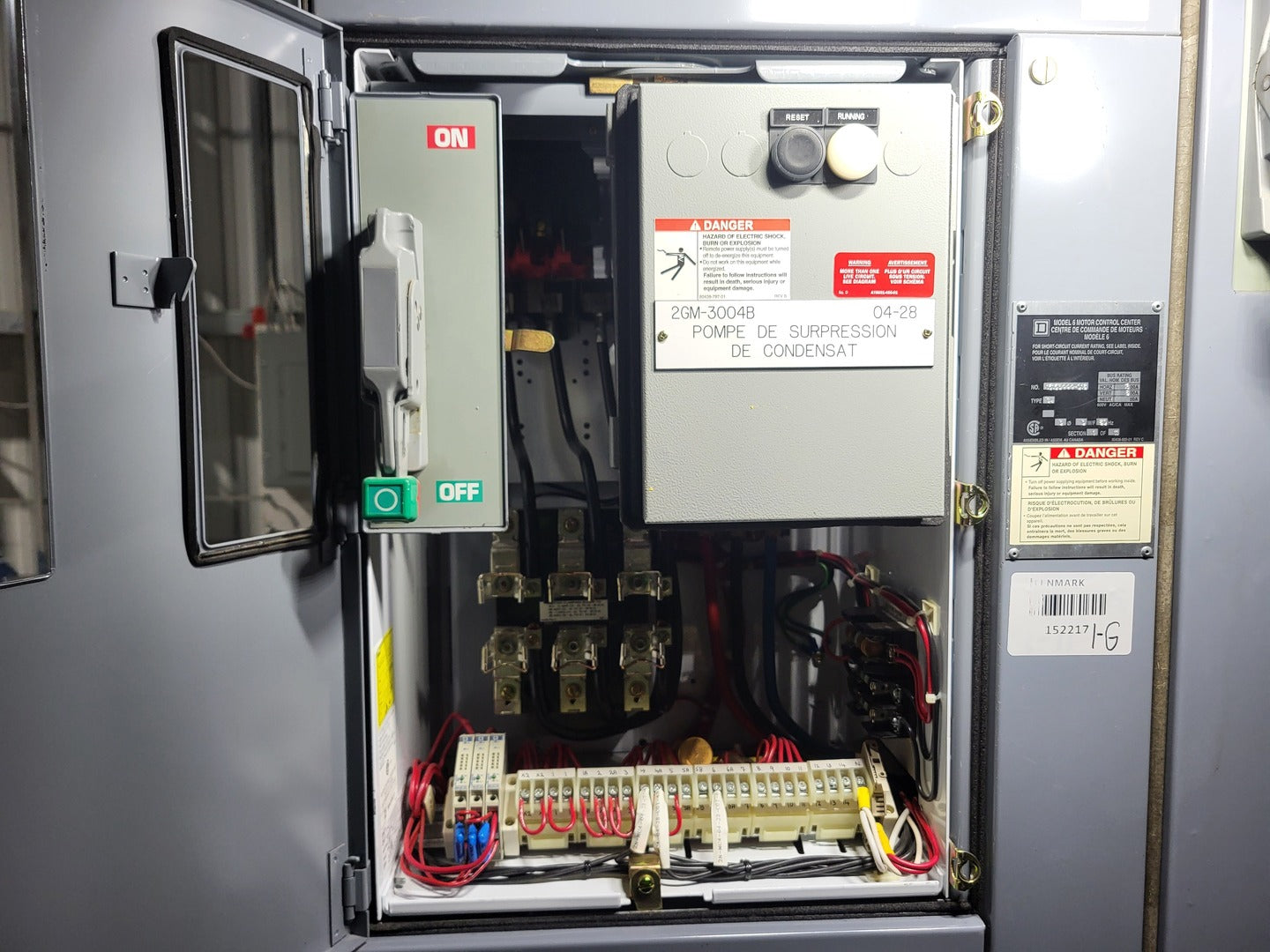

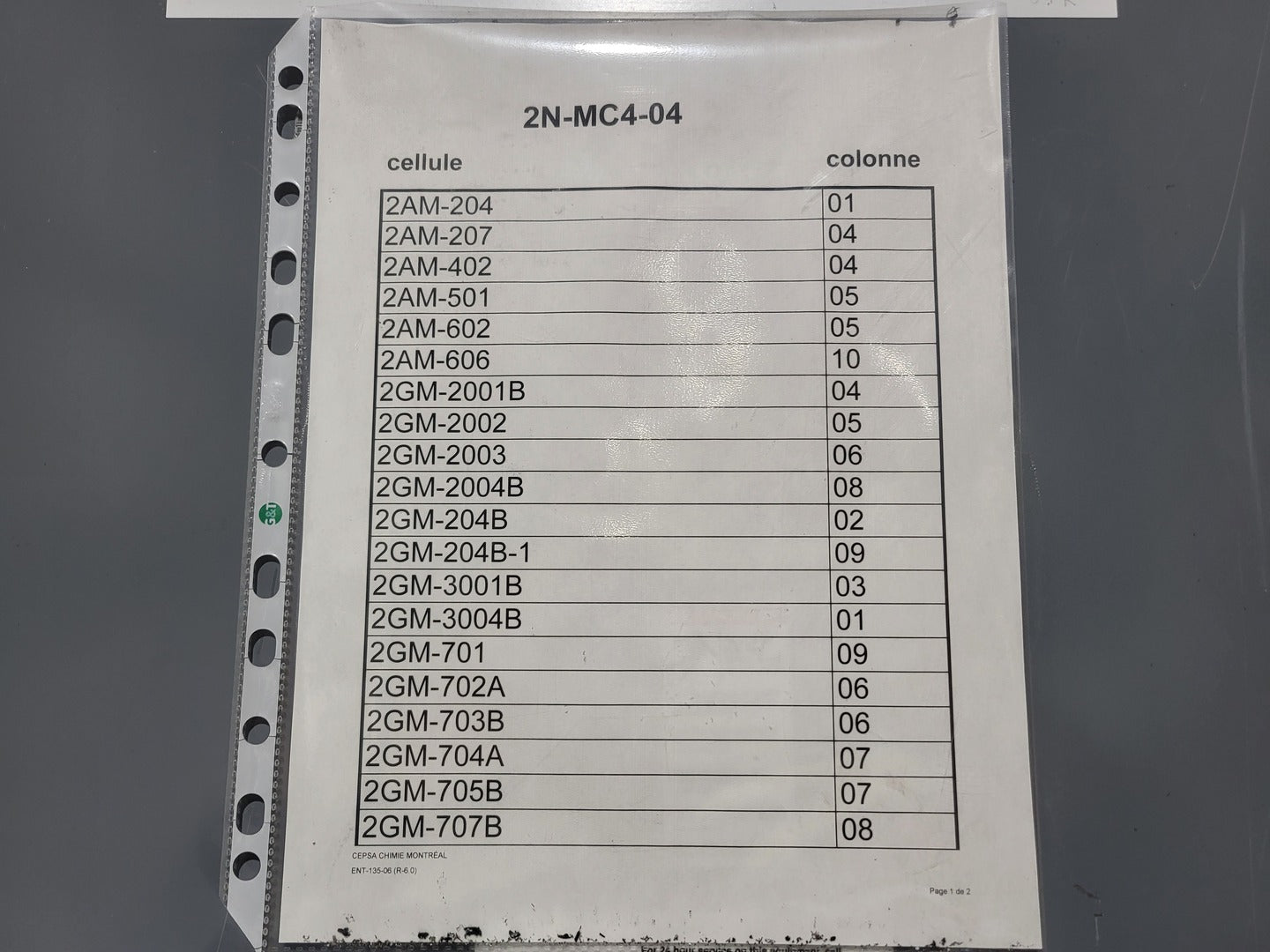

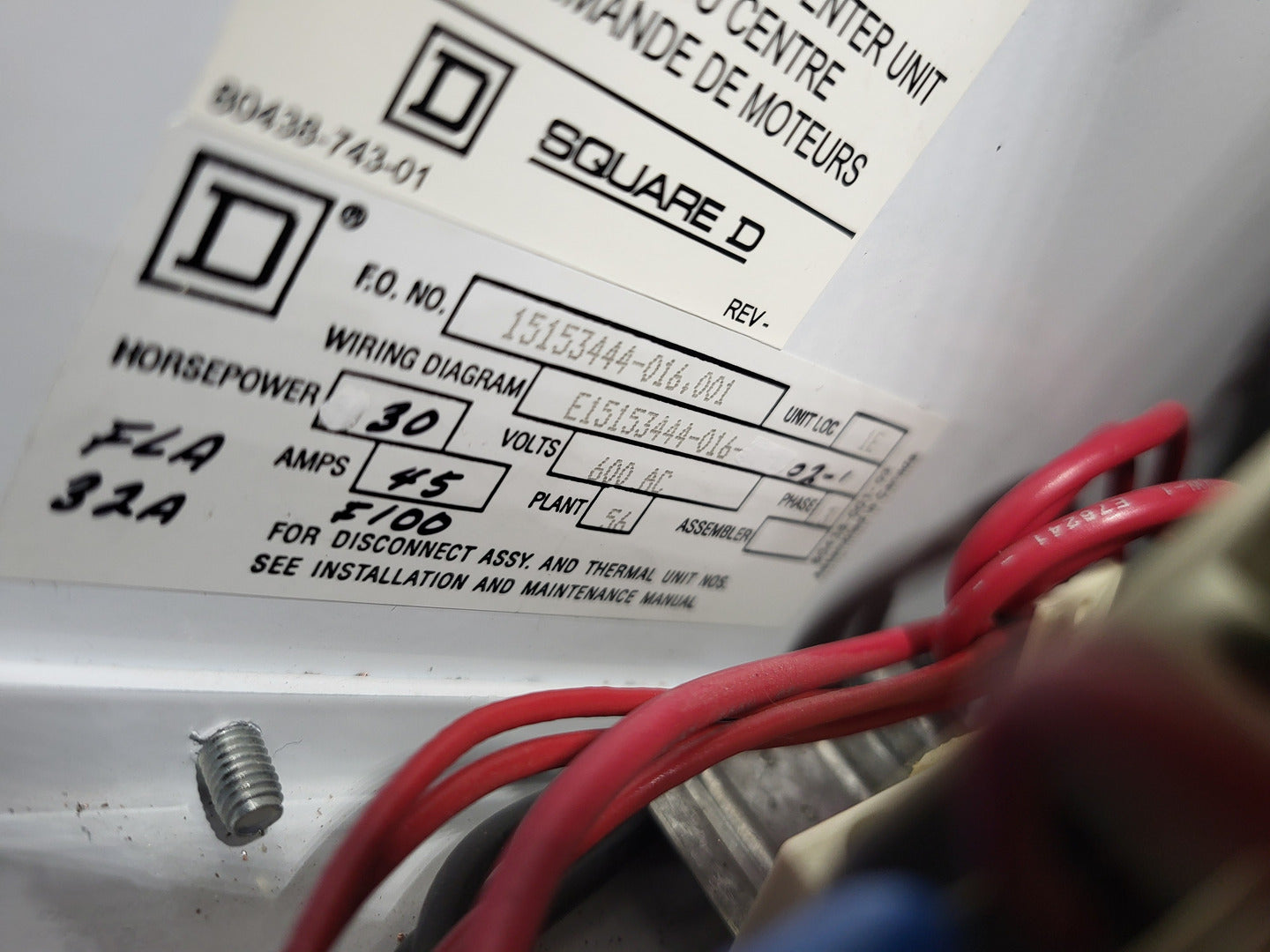

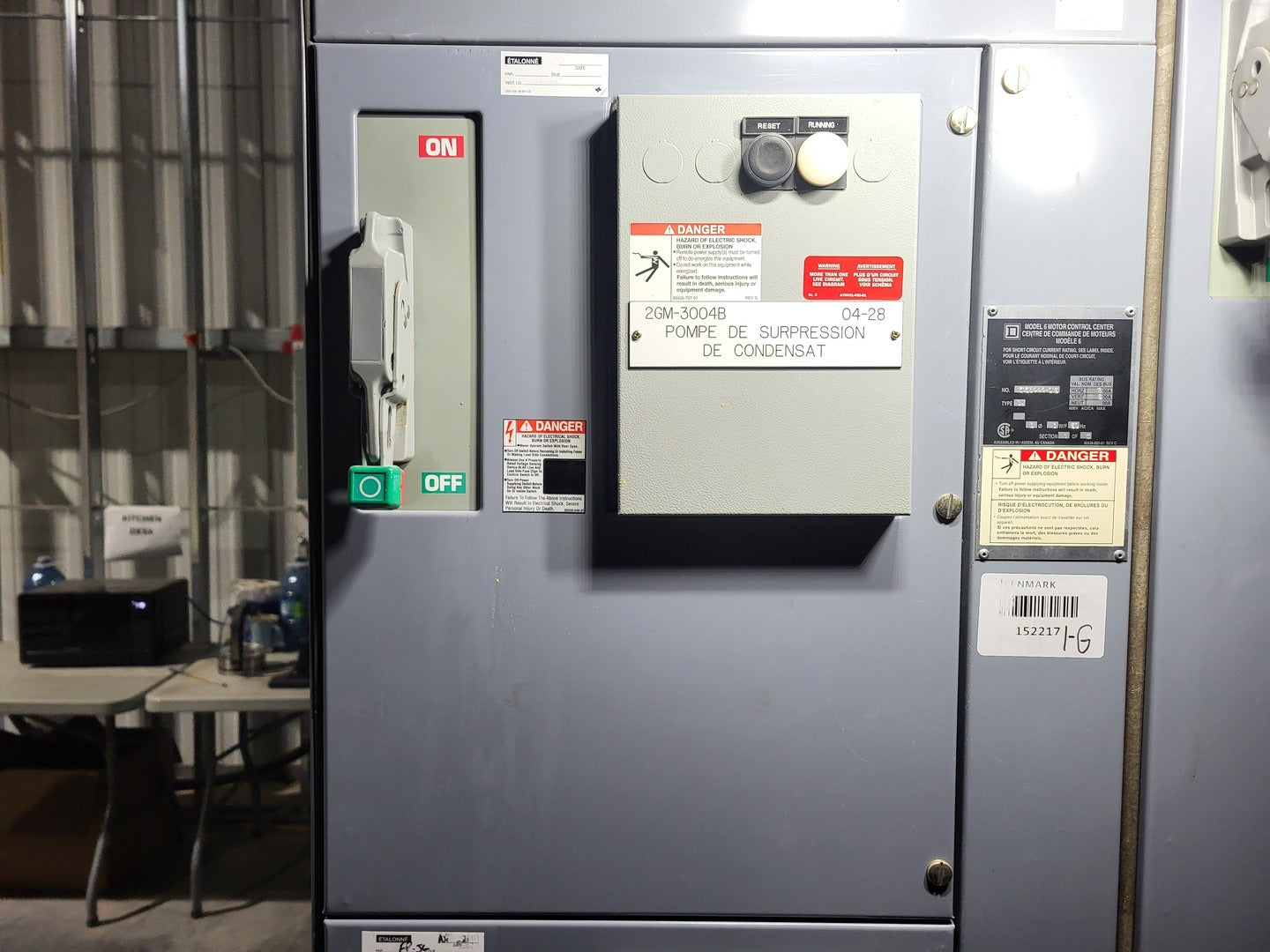

Bucket #1 2GM-3004B

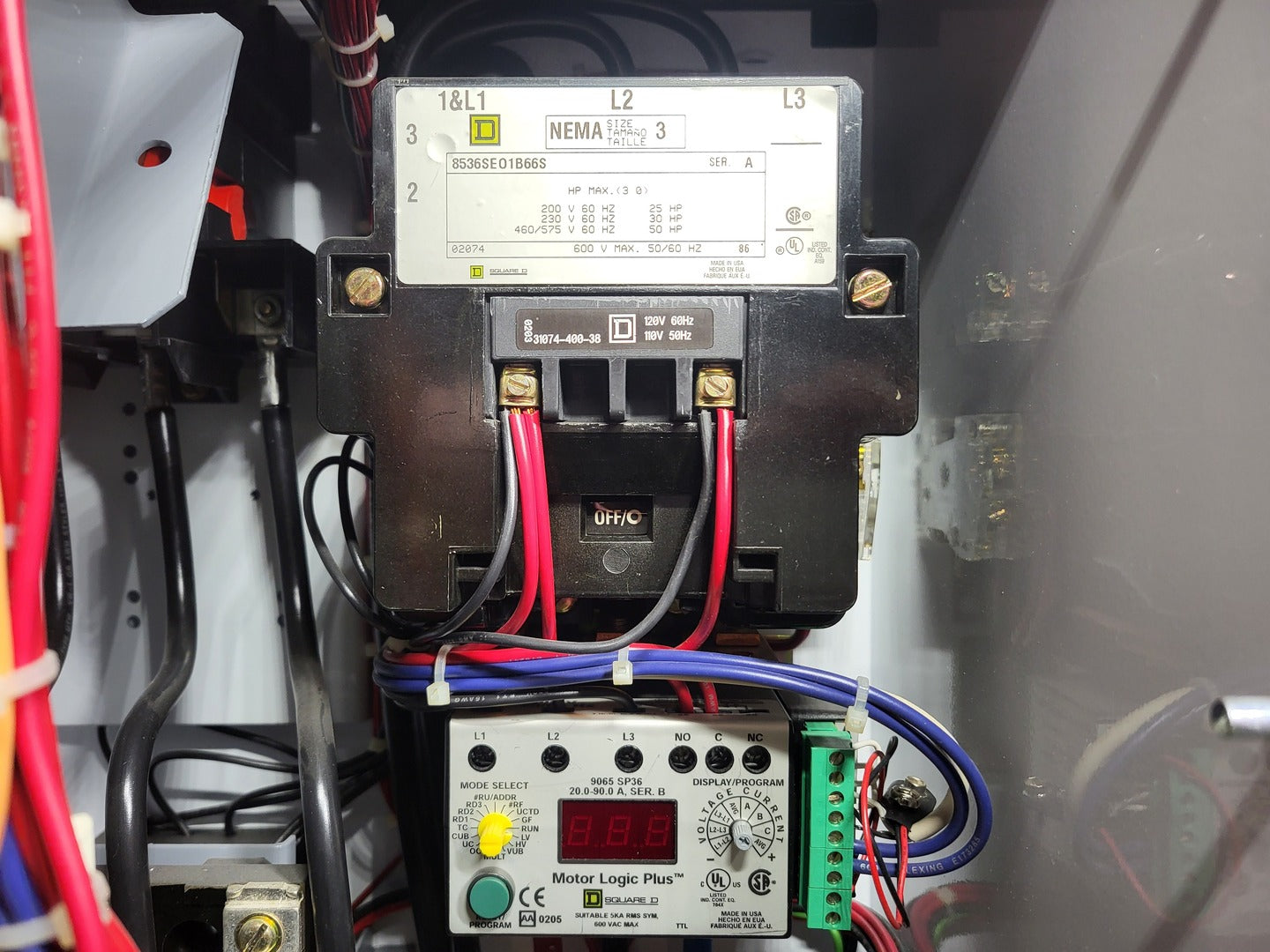

  1. Square D 8536SEO1B66S, NEMA Size 3 contactor, rated up to 50 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP36, 20-90 A protection relay

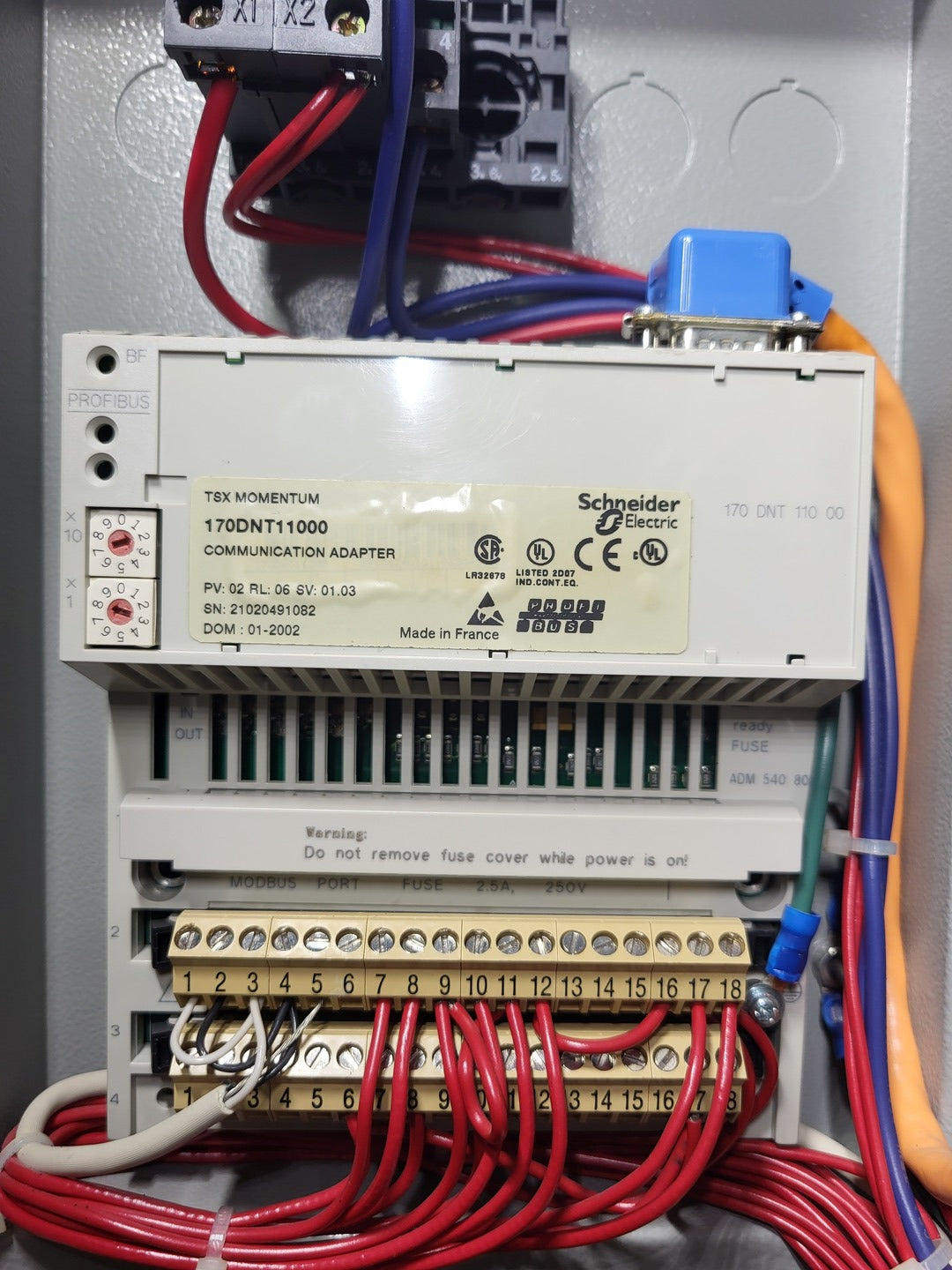

  3. Schneider Electric TSX Momentum 170DNT11000, profibus communication adapter

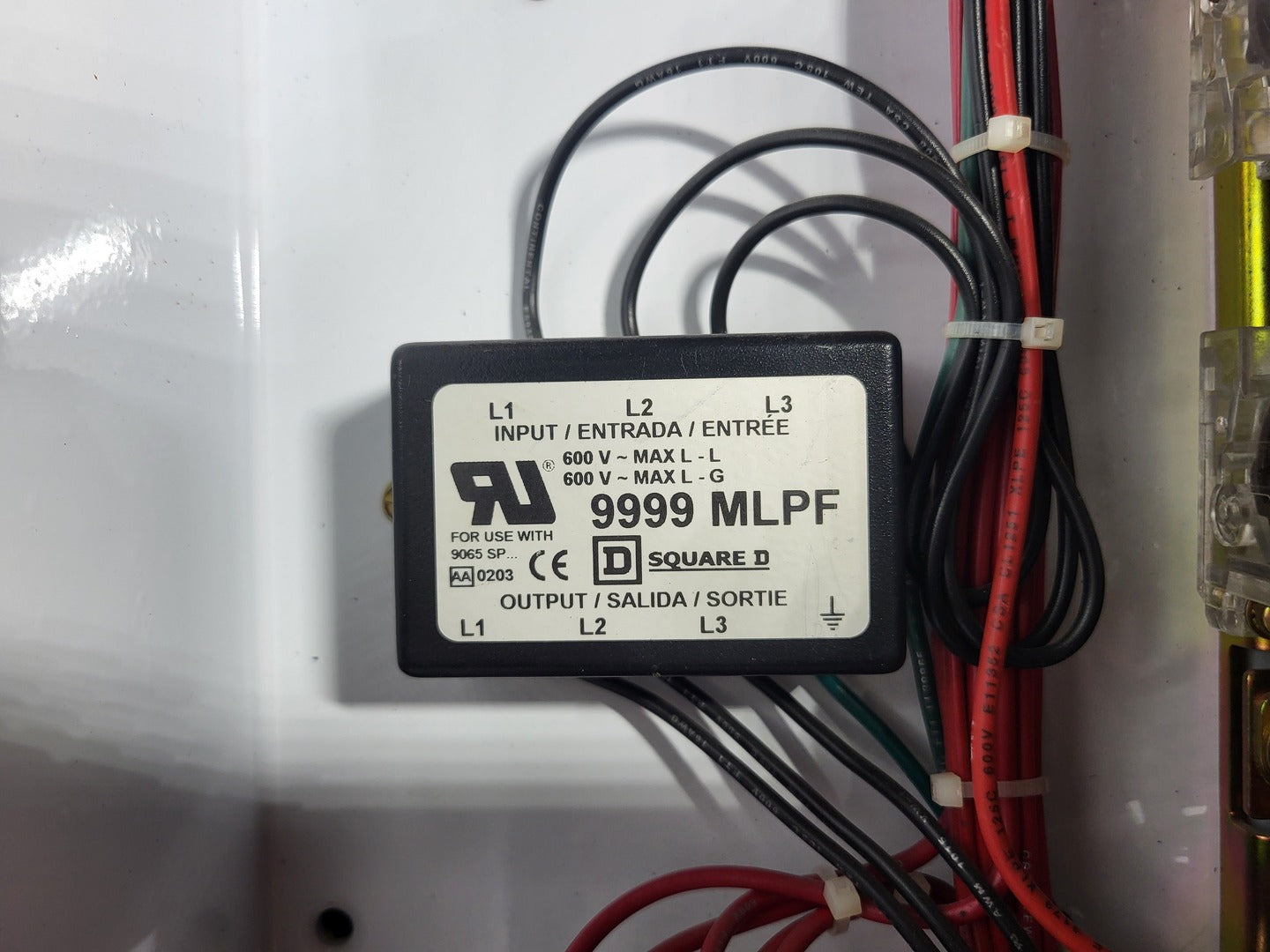

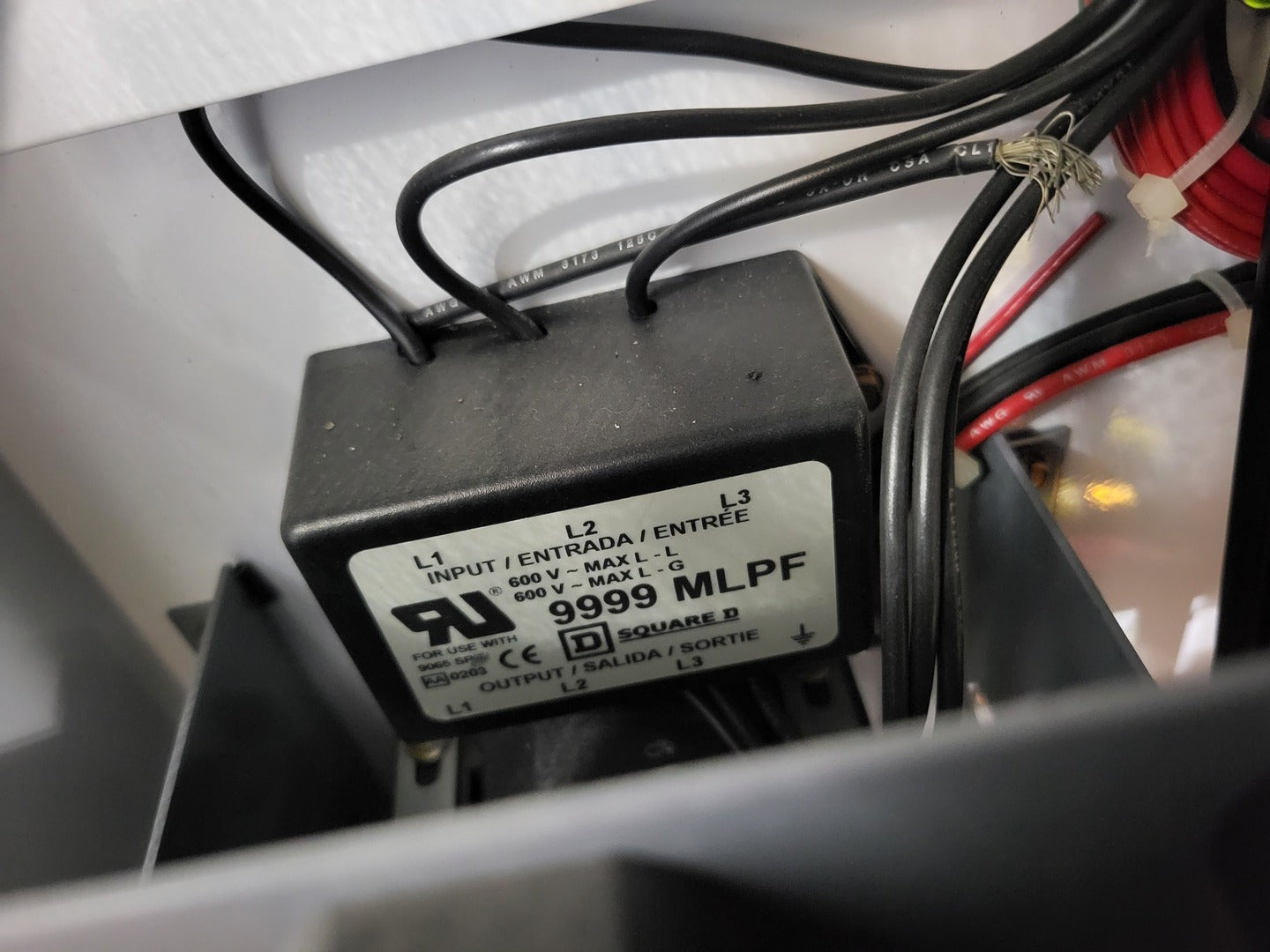

  4. Square D 9999 MLPF noise filter

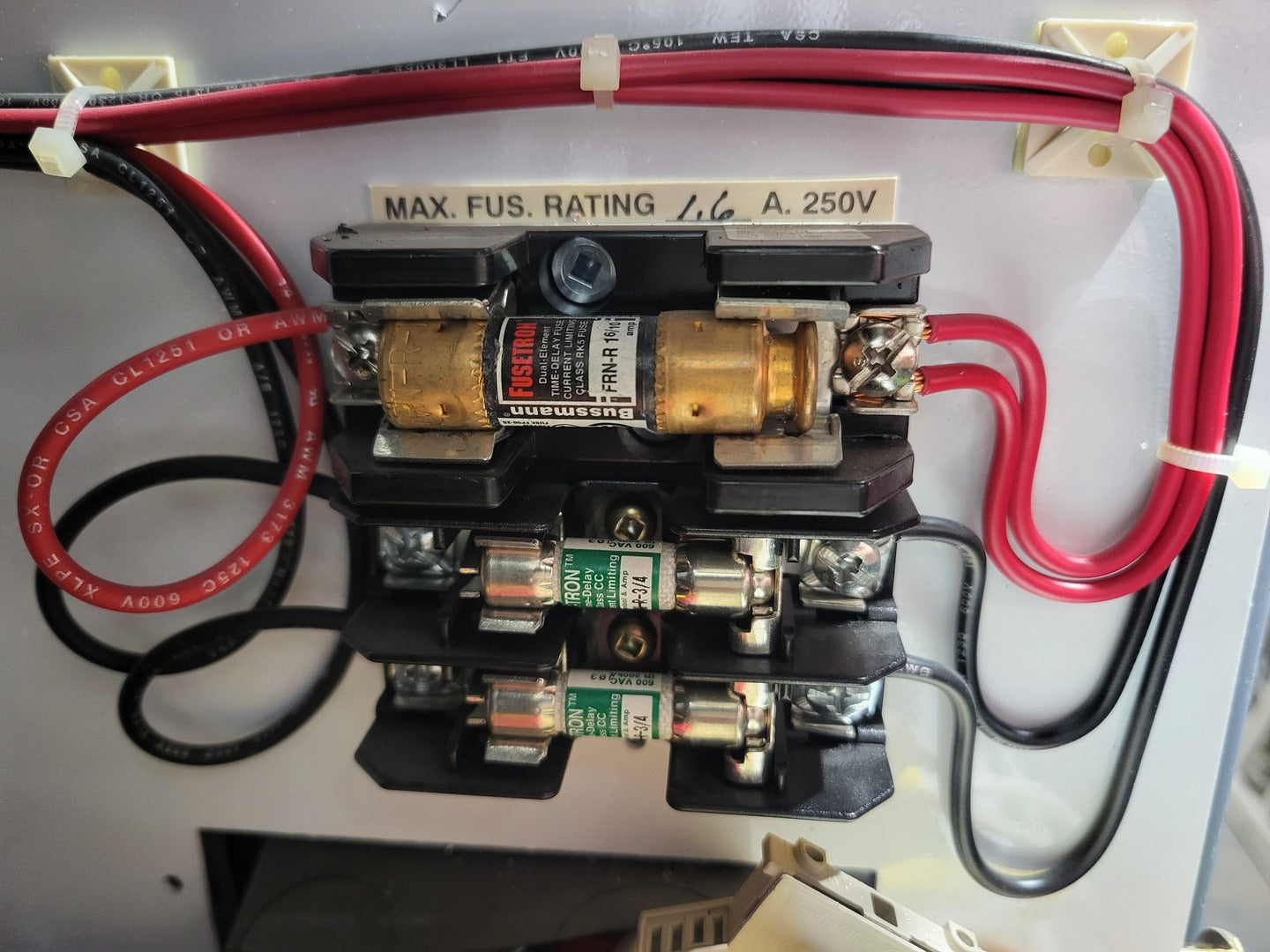

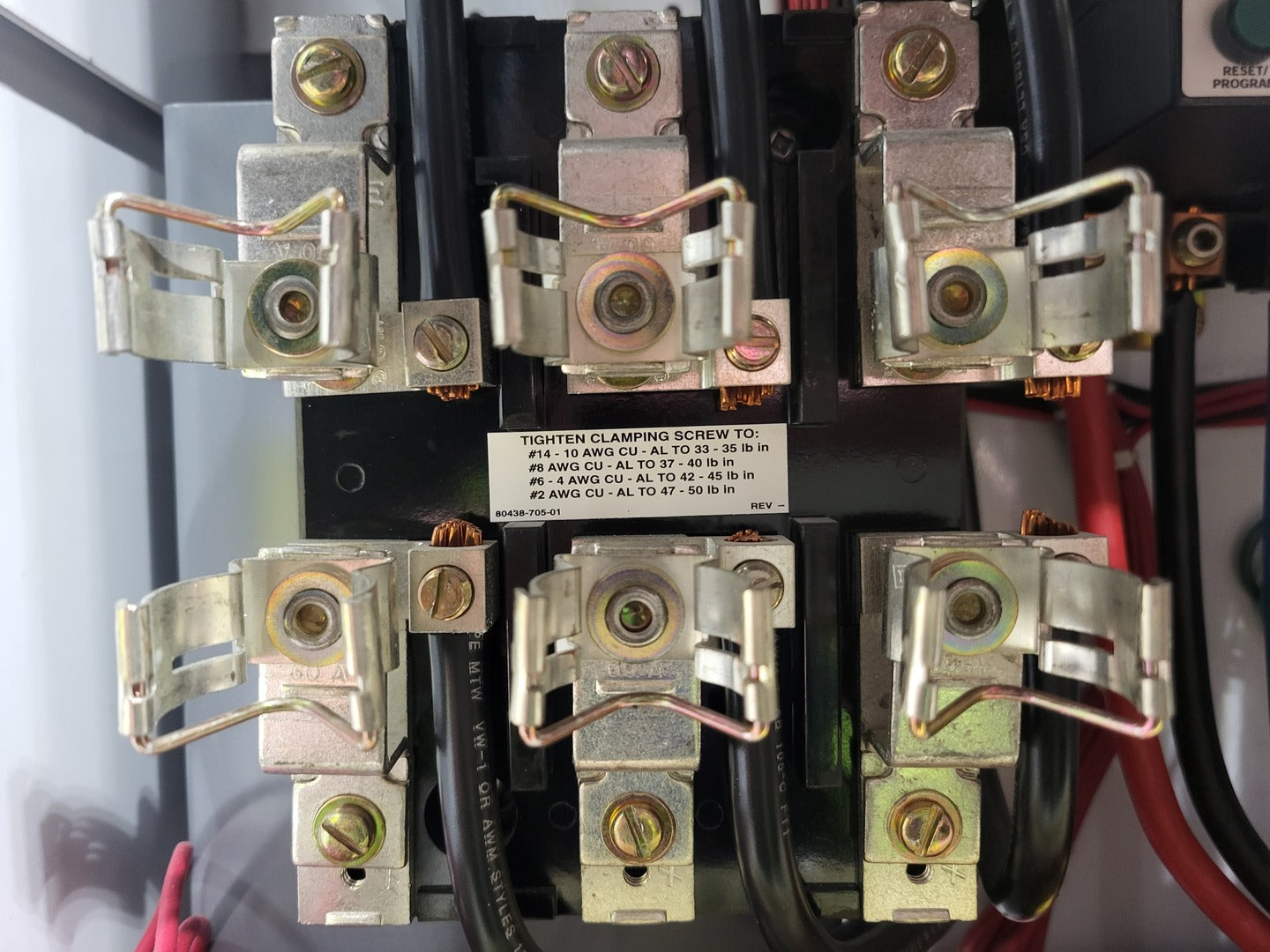

  5. 3 x Bussmann fuses

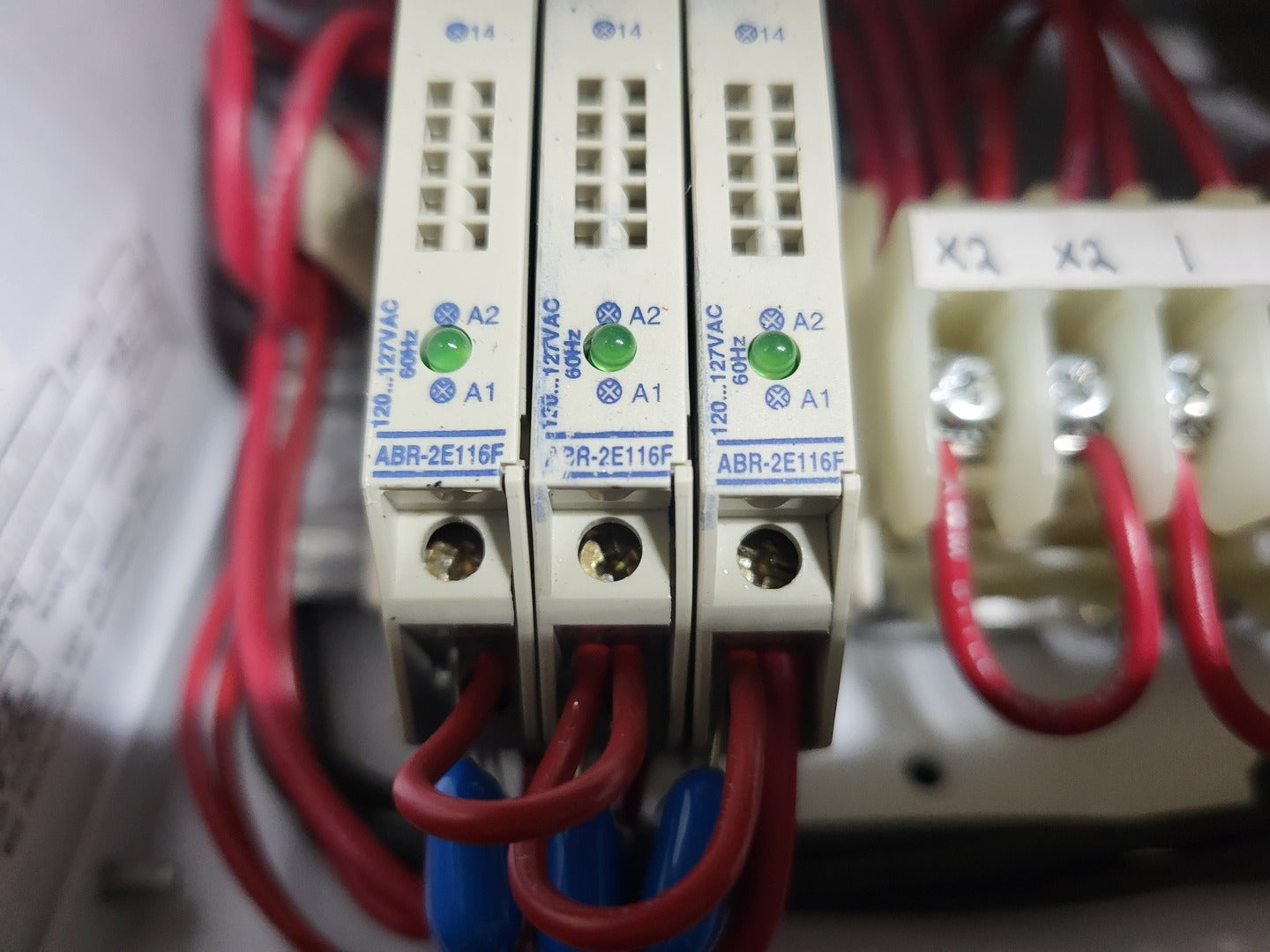

  6. 3 x Telemecanique input interface module ABR-2E116F

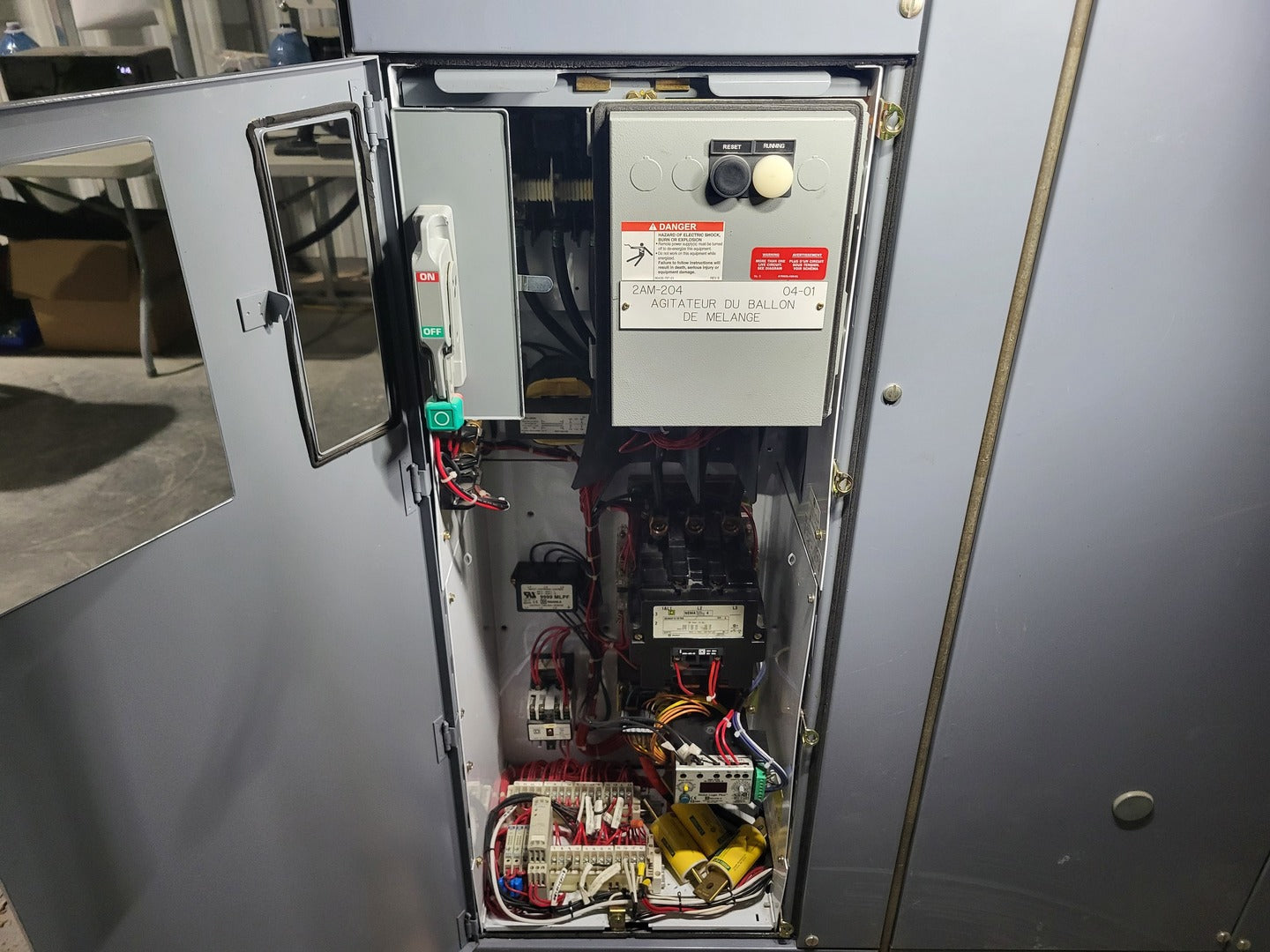

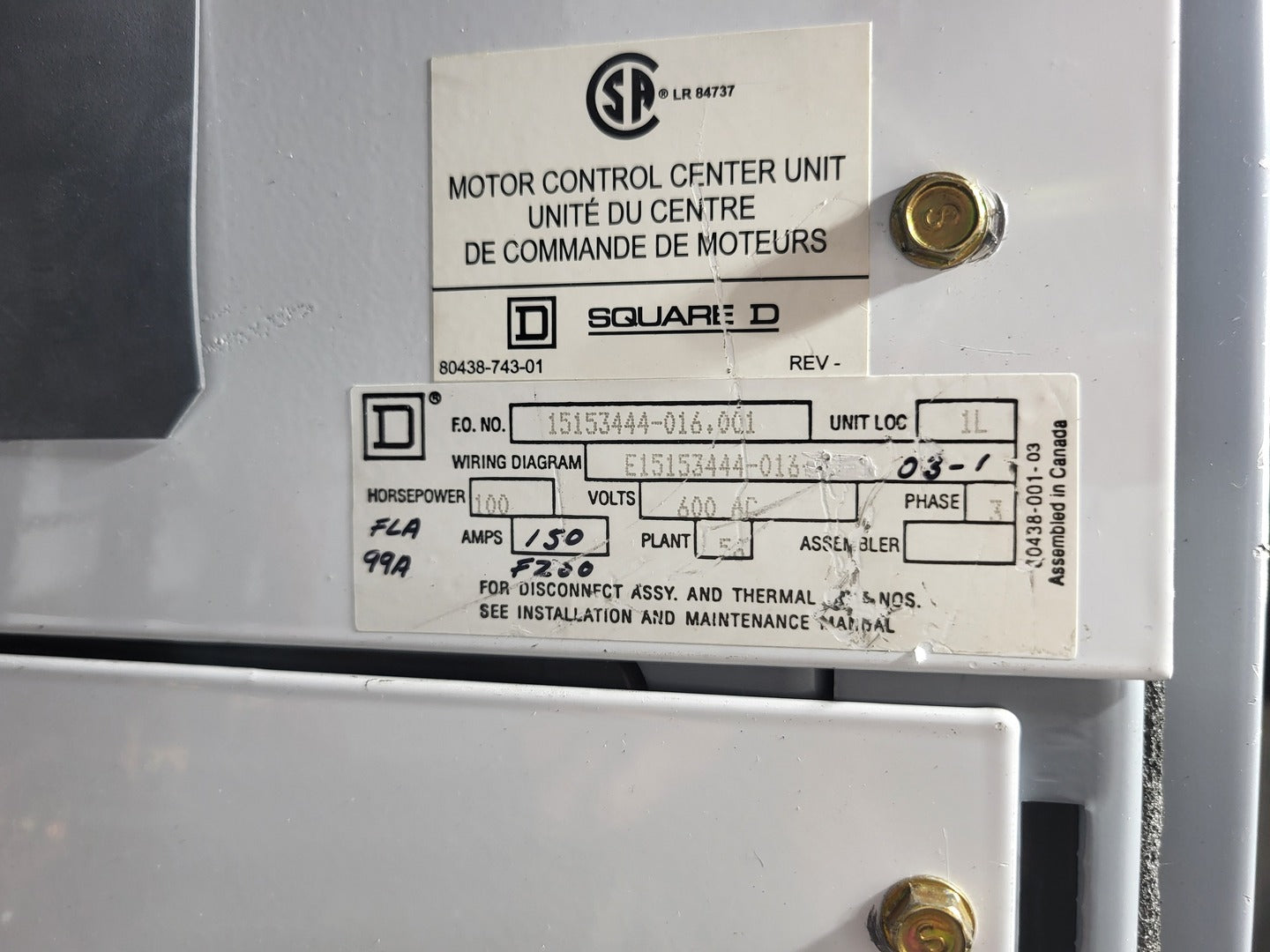

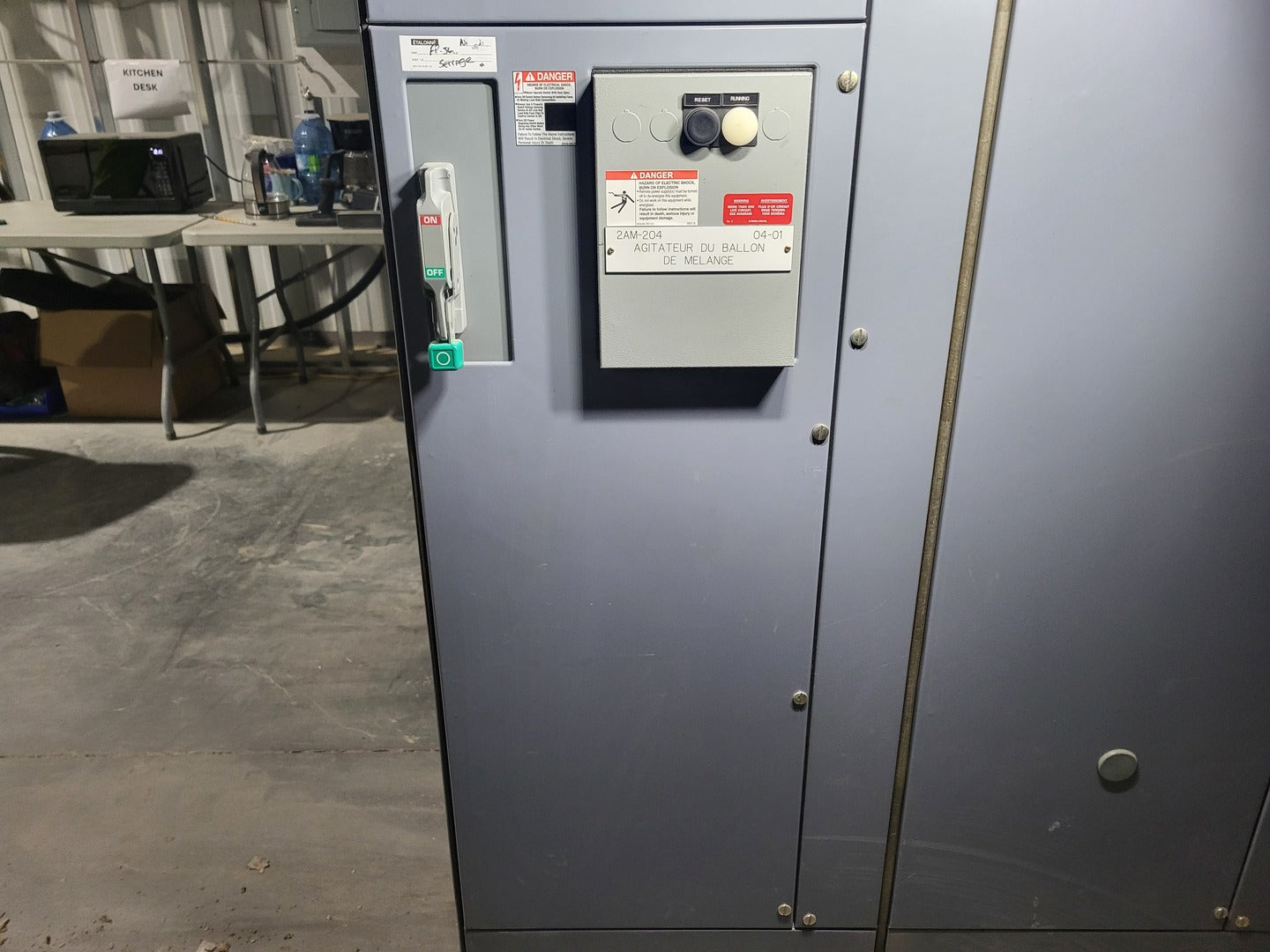

Bucket #2 2AM-204

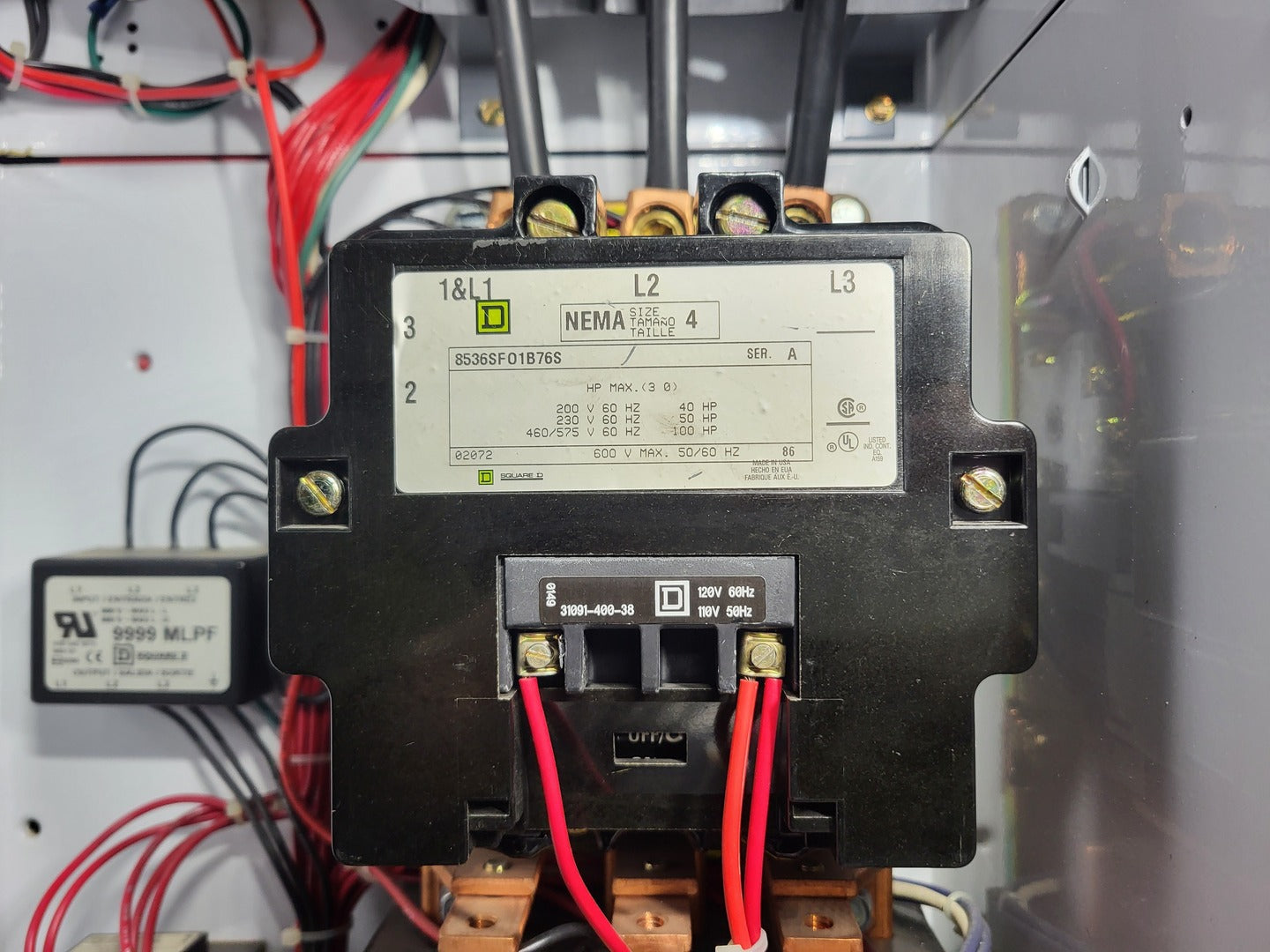

  1. Square D 8536SFO1B76S, NEMA Size 4 Contactor, rated up to 100 HP @ 460/575V

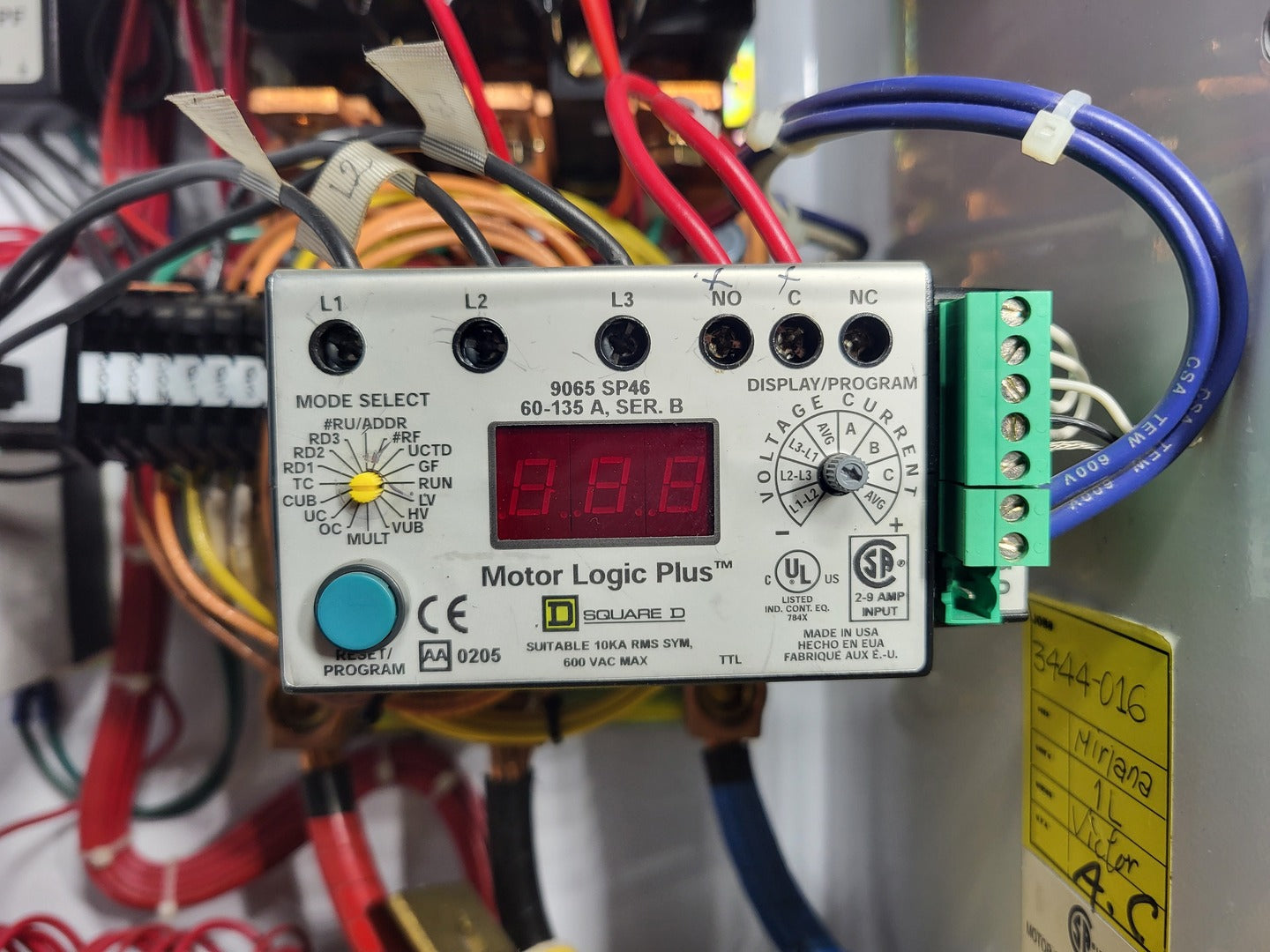

  2. Square D Motor Logic Plus 9065 SP46, 60-135 A motor protection relay

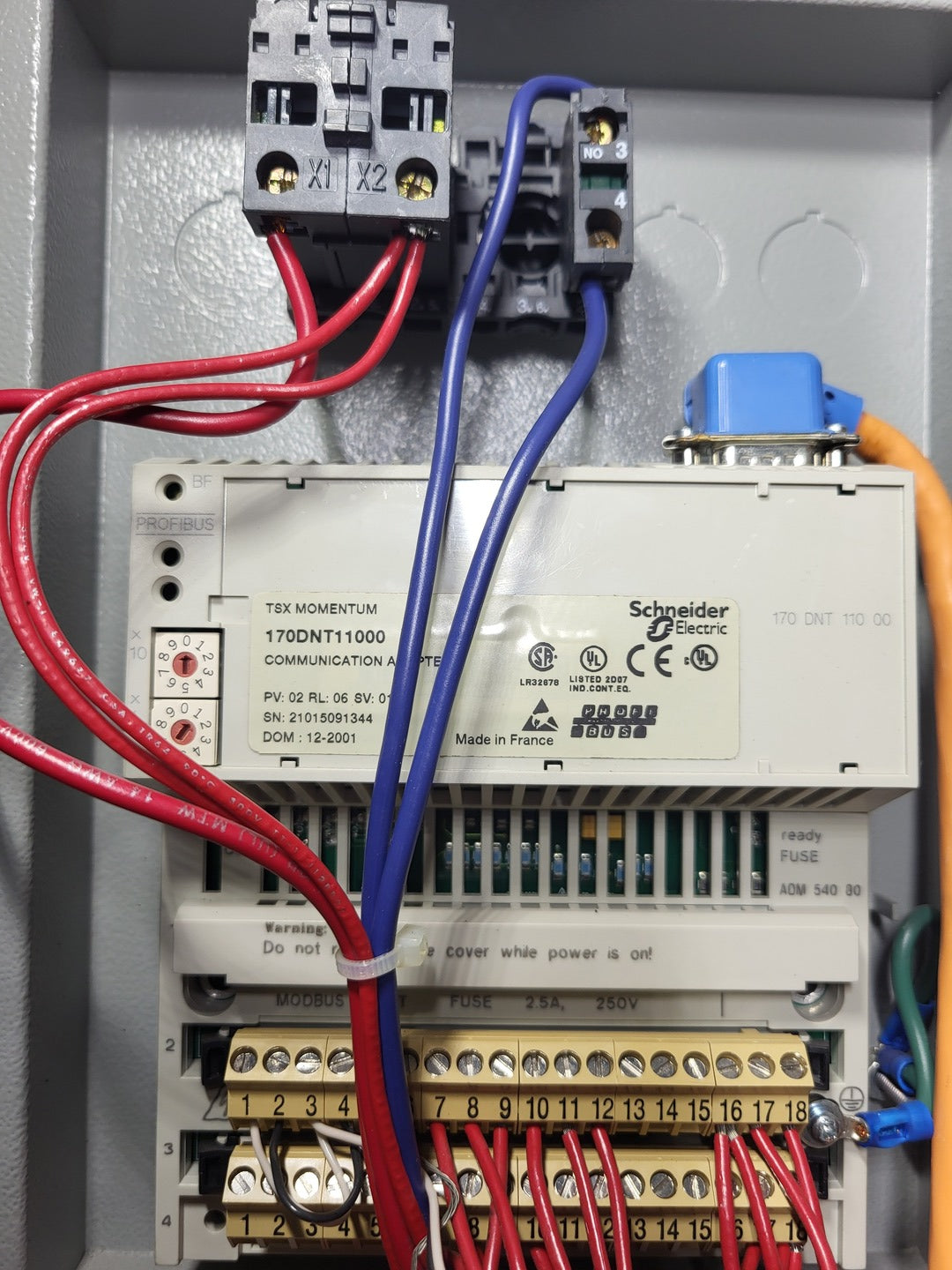

  3. Schneider Electric / Modicon TSX Momentum 170DNT11000, communication adapter
  4. Square D 9999 MLPF noise filter

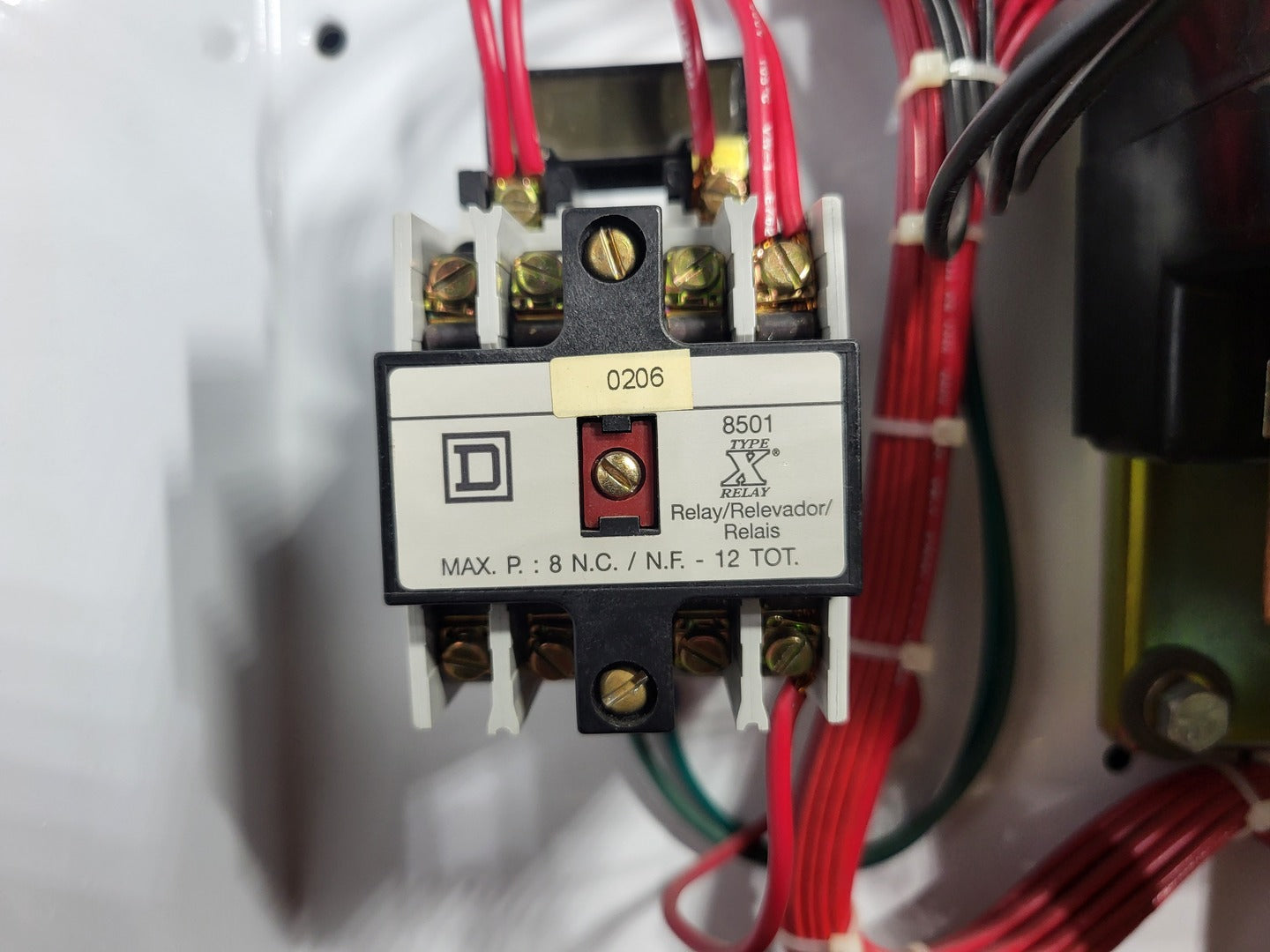

  5. Square D 8501 Type X relay, control relay, max 8 N.C. / 12 total contacts

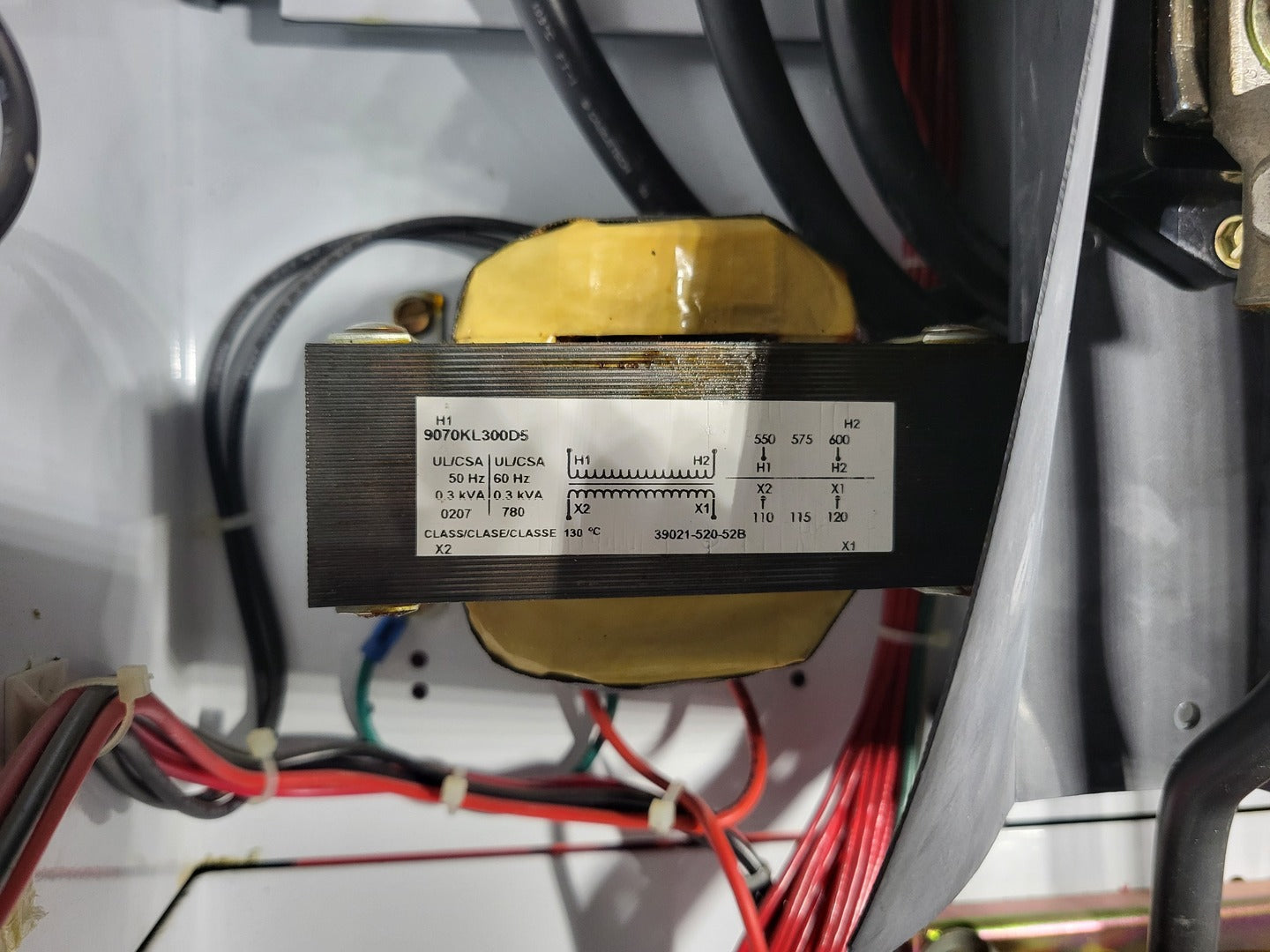

  6. Square D / Schneider 9070KL300D5, 0.3 kVA control transformer, 550/575/600V primary to 110/115/120V secondary

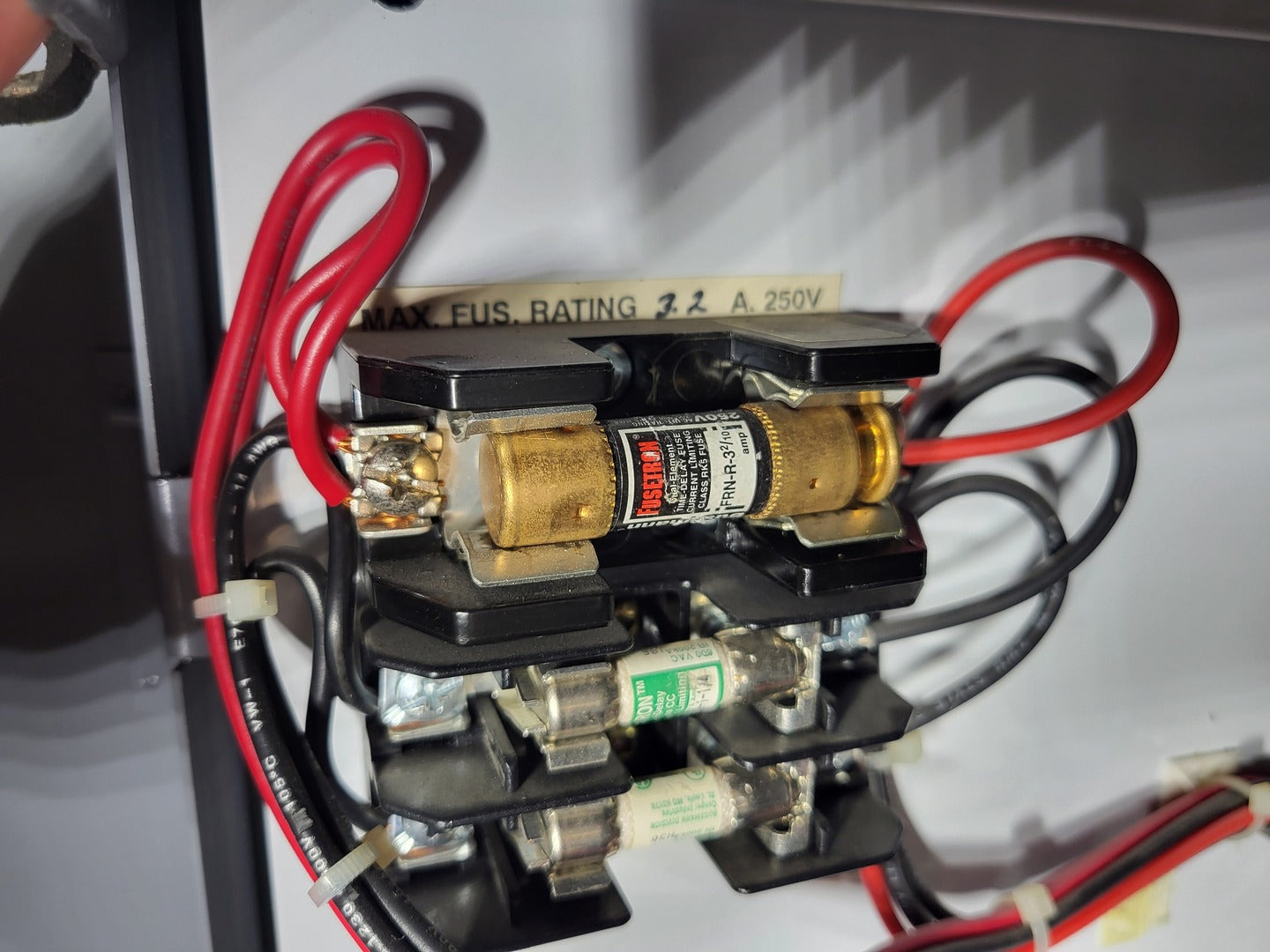

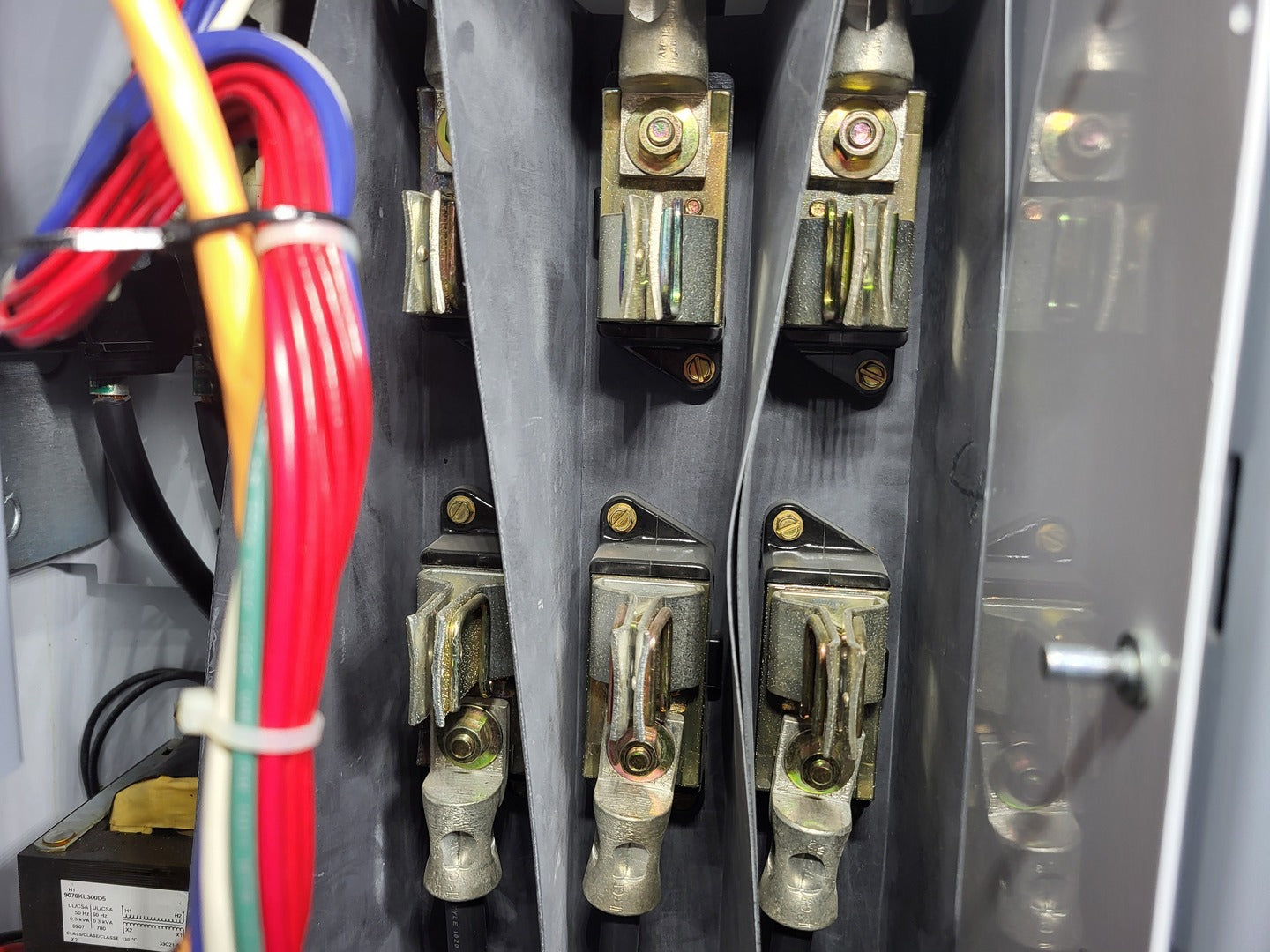

  7. 3 x Bussmann fuses

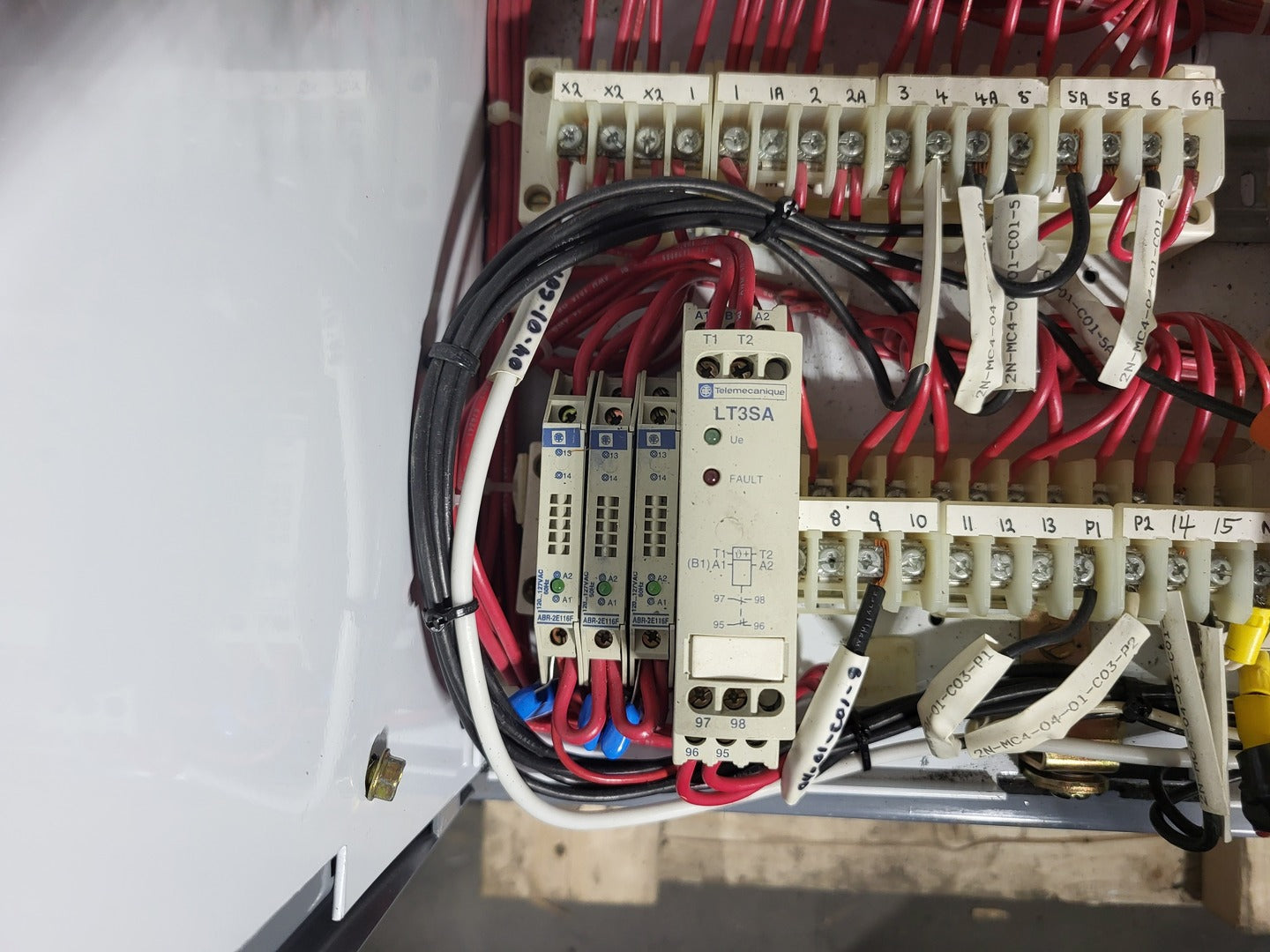

  8. Telemecanique LT3SA, thermistor / PTC motor protection relay
  9. 3 x Telemecanique input interface module ABR-2E116F
