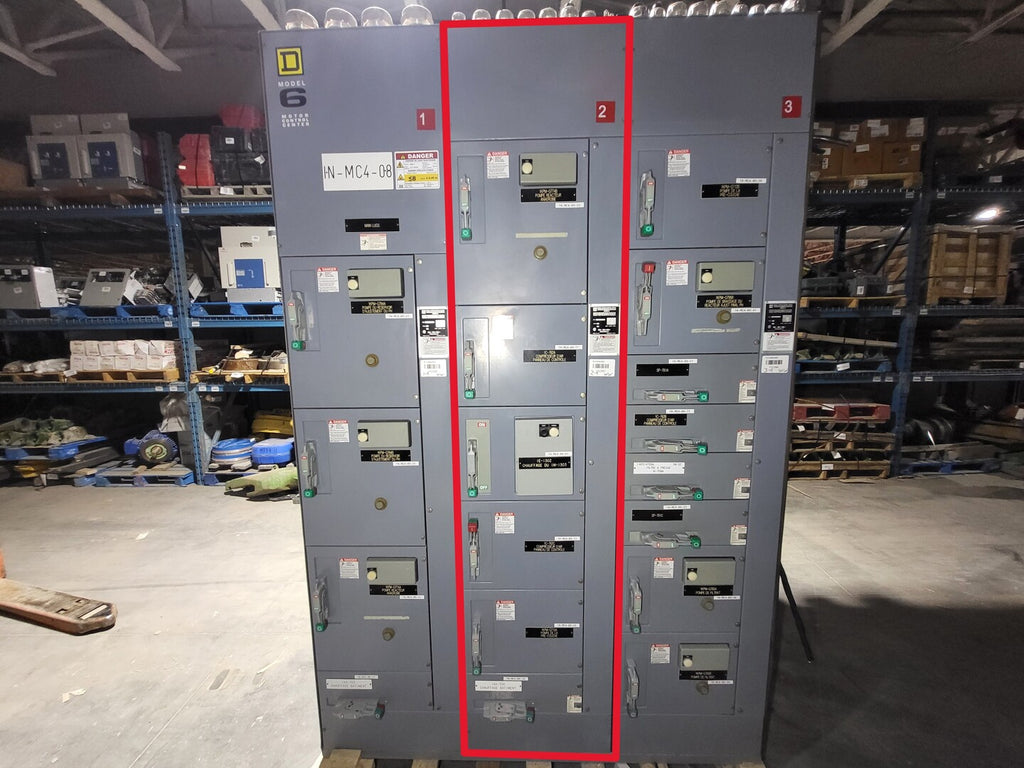

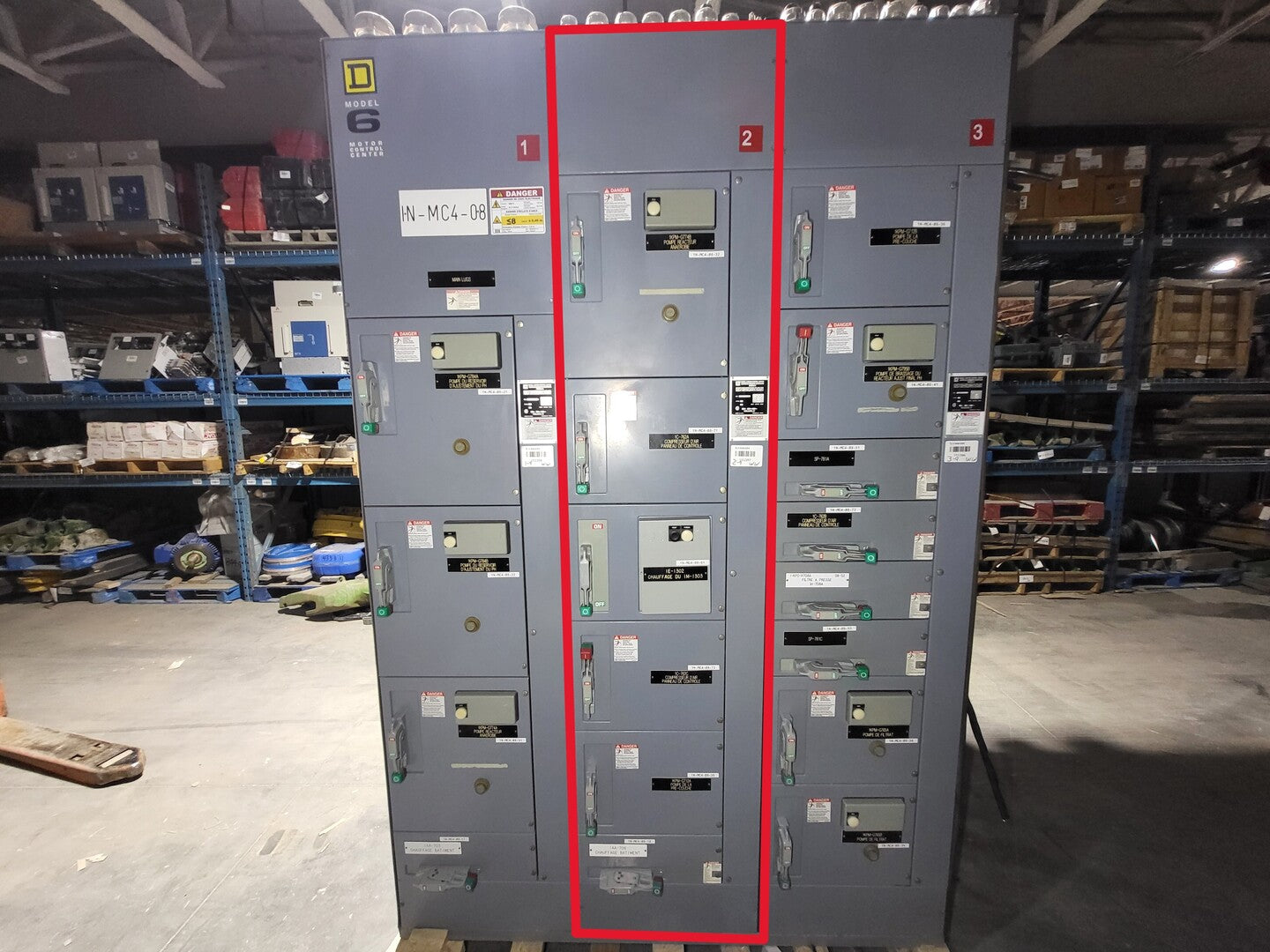

Note: Section 2 only

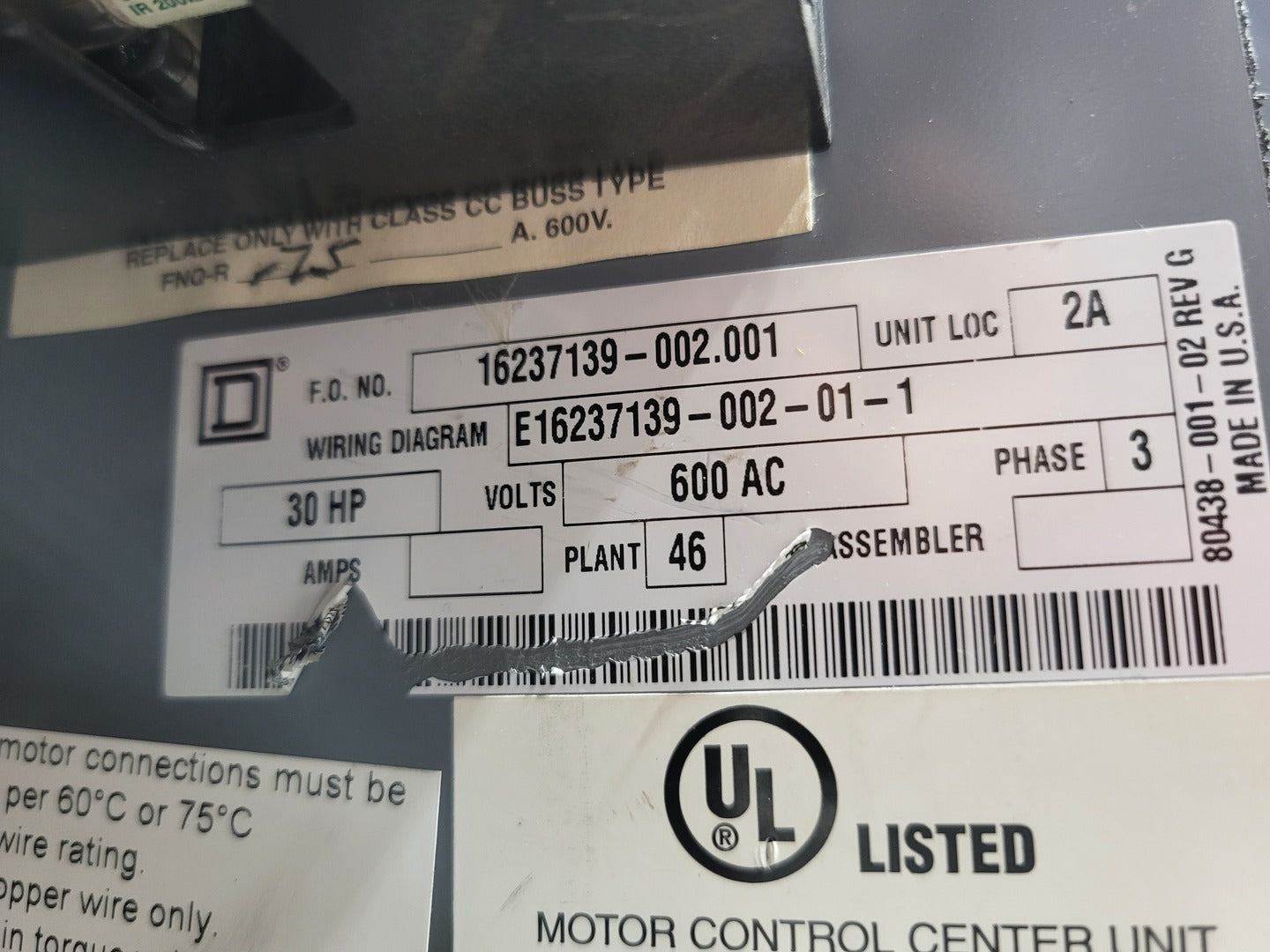

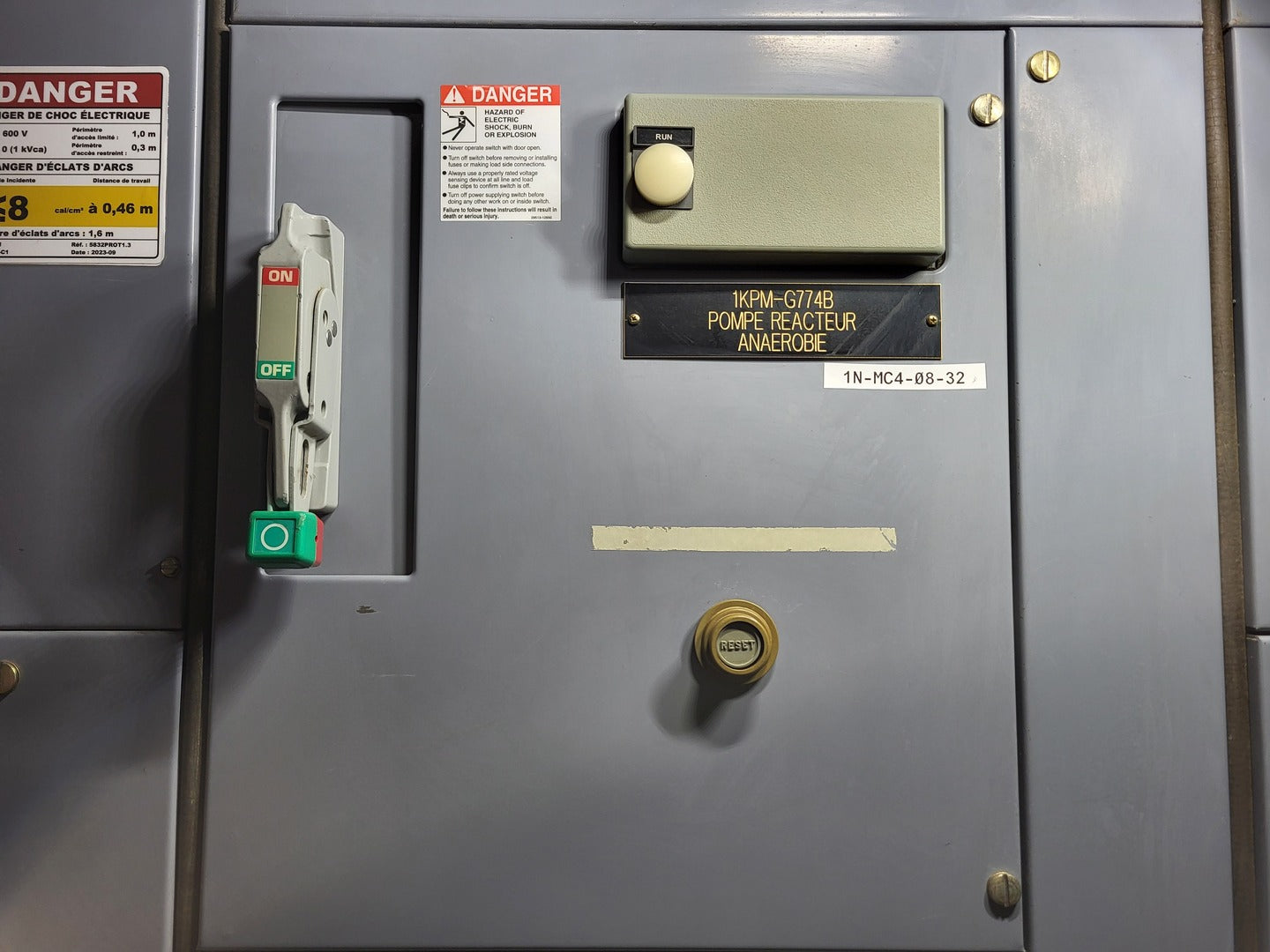

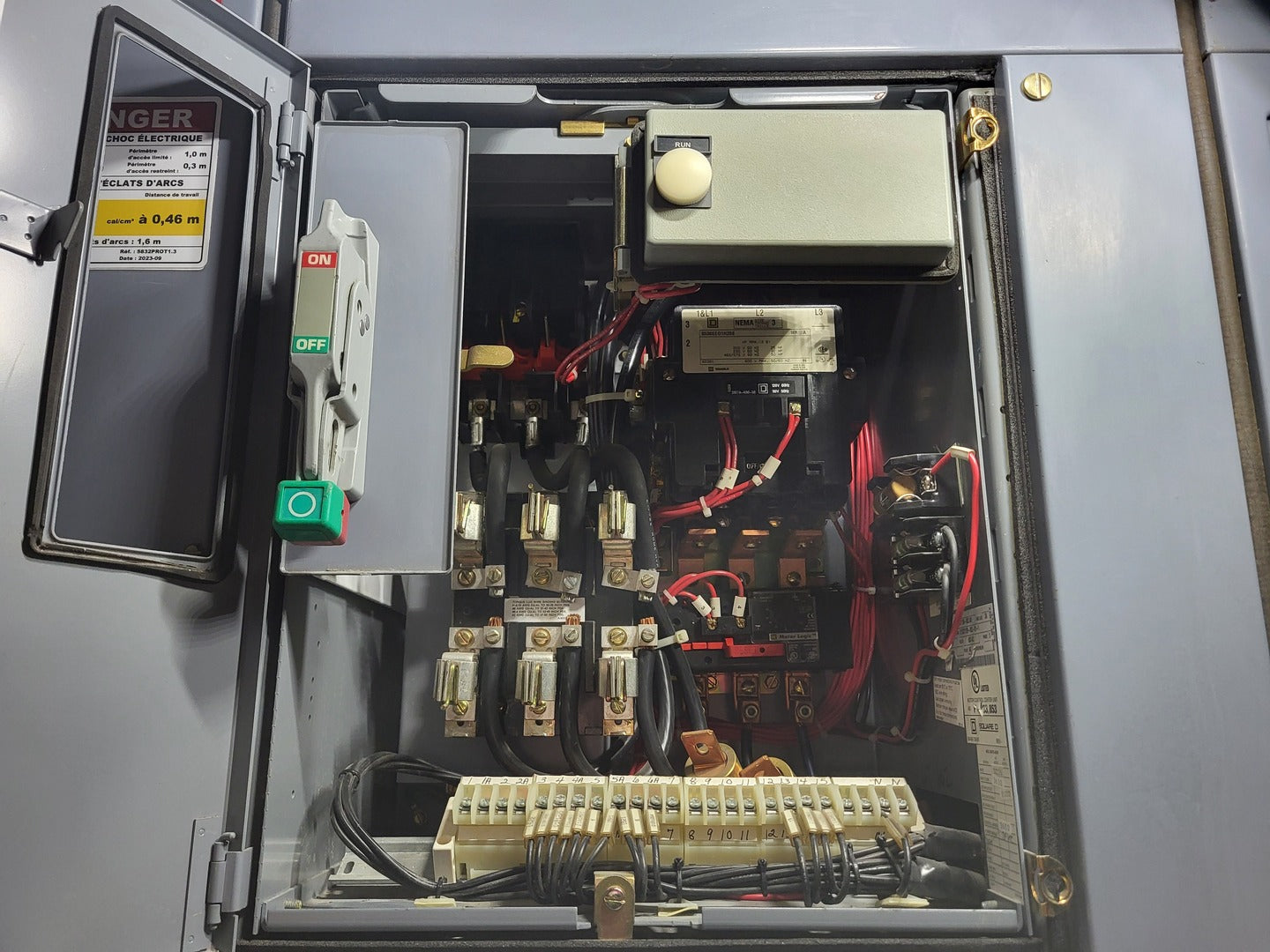

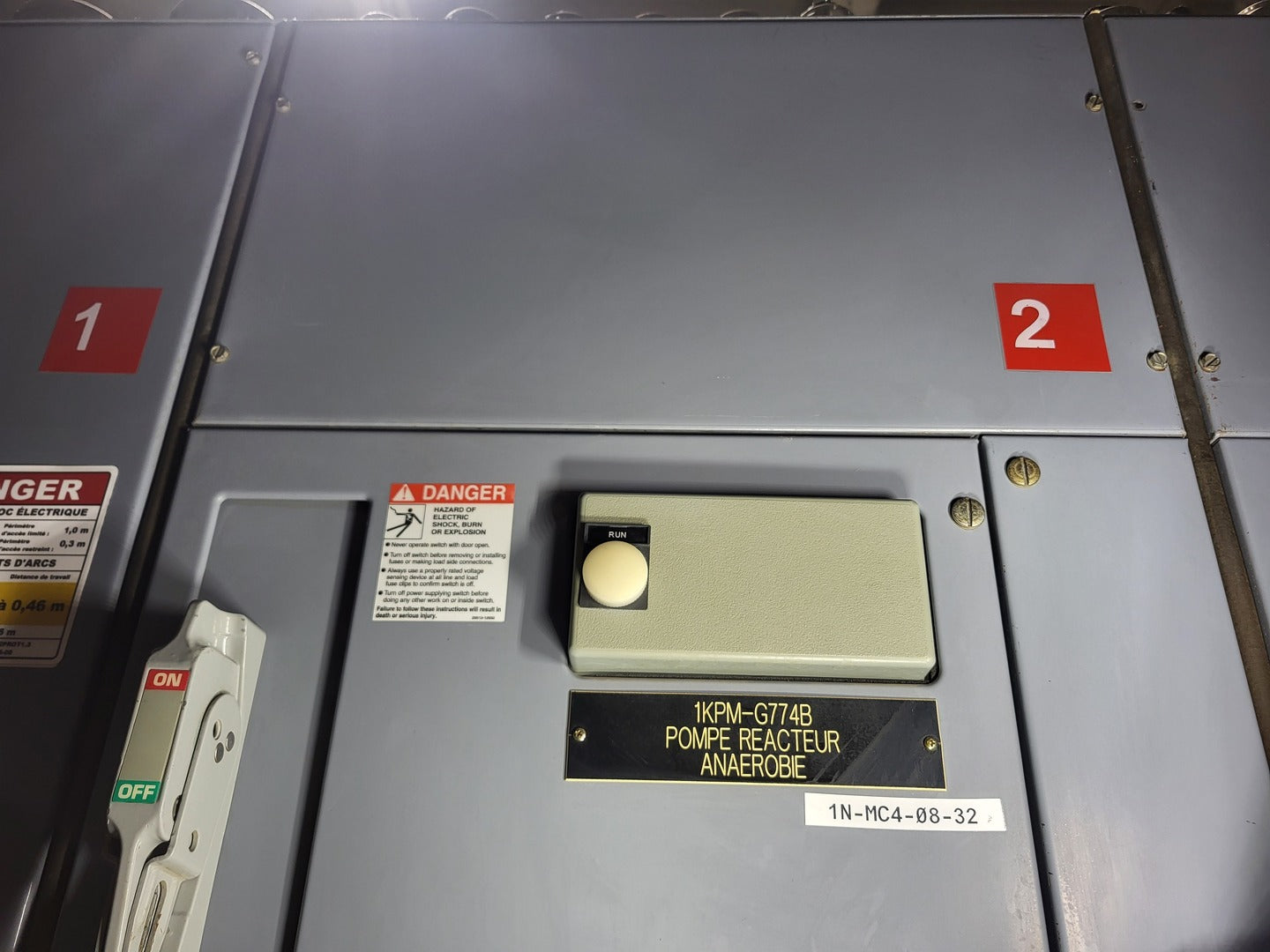

Bucket #1 1KPM-G774B
-

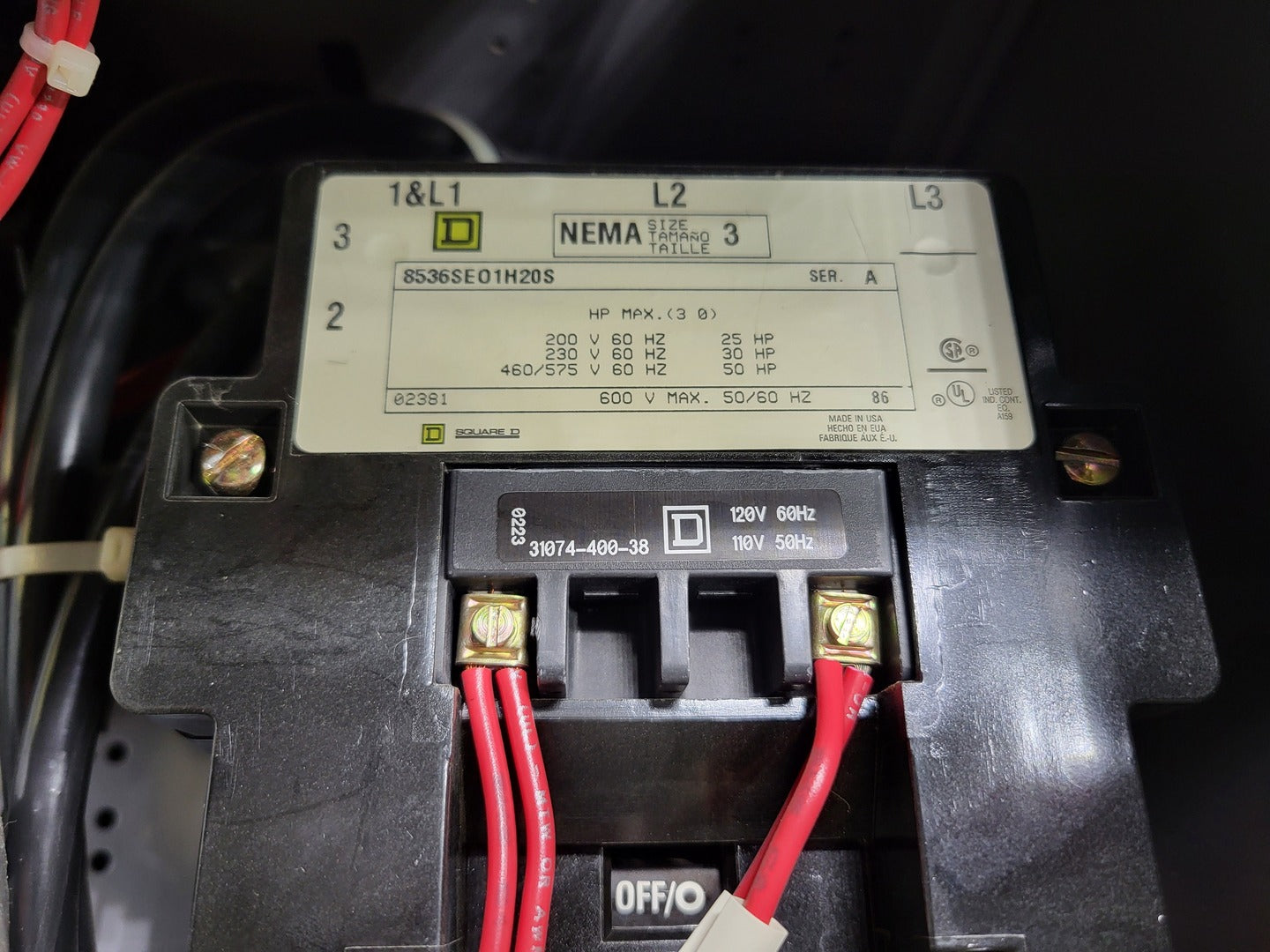

Square D 8536SE01H20S, NEMA Size 3 contactor, 25 HP @ 200V, 30 HP @ 230V, 50 HP @ 460/575V, 600V max
-

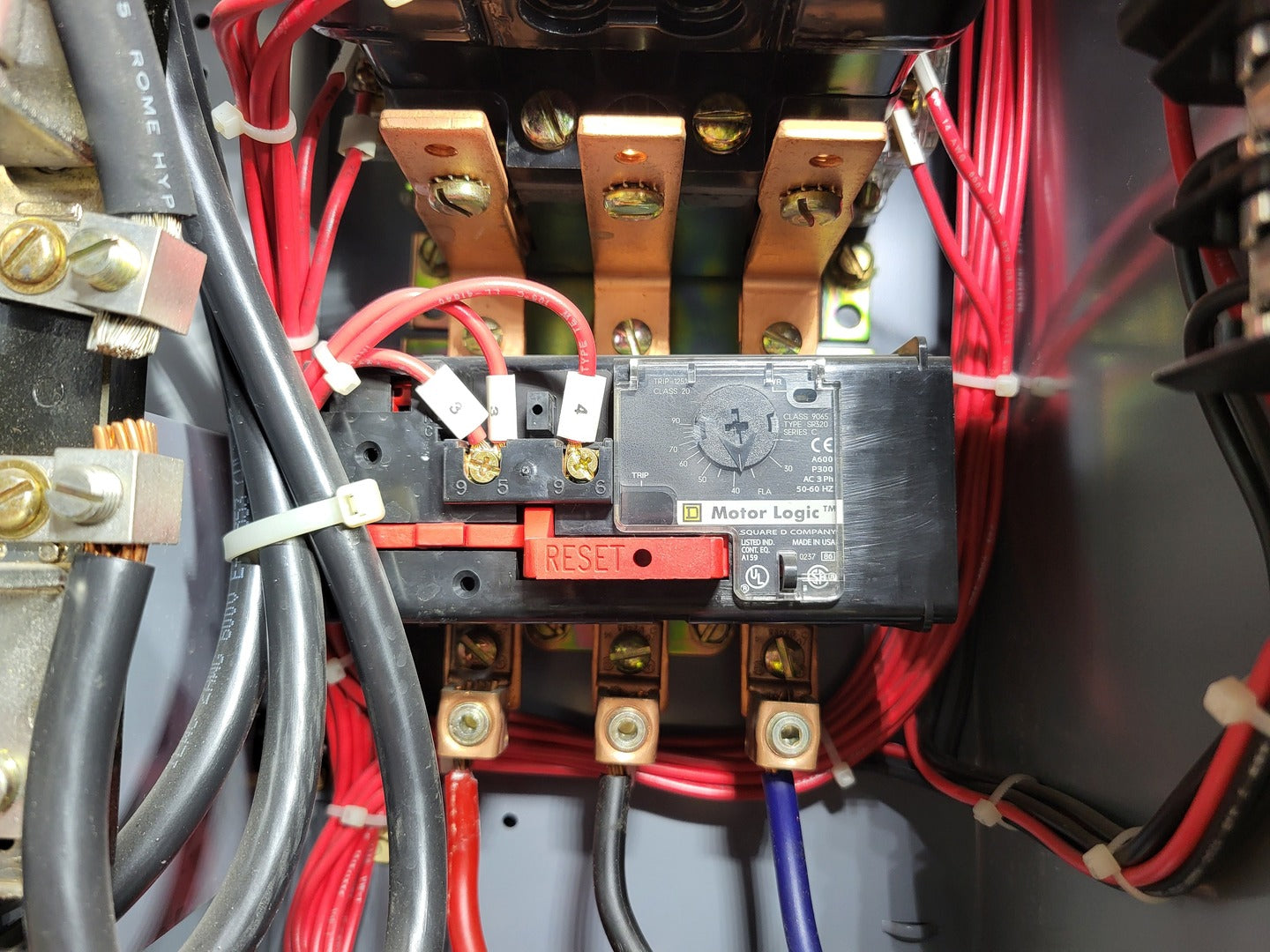

Square D Motor Logic 9065, motor protection relay, Class 20, 3-phase, 600V max
-

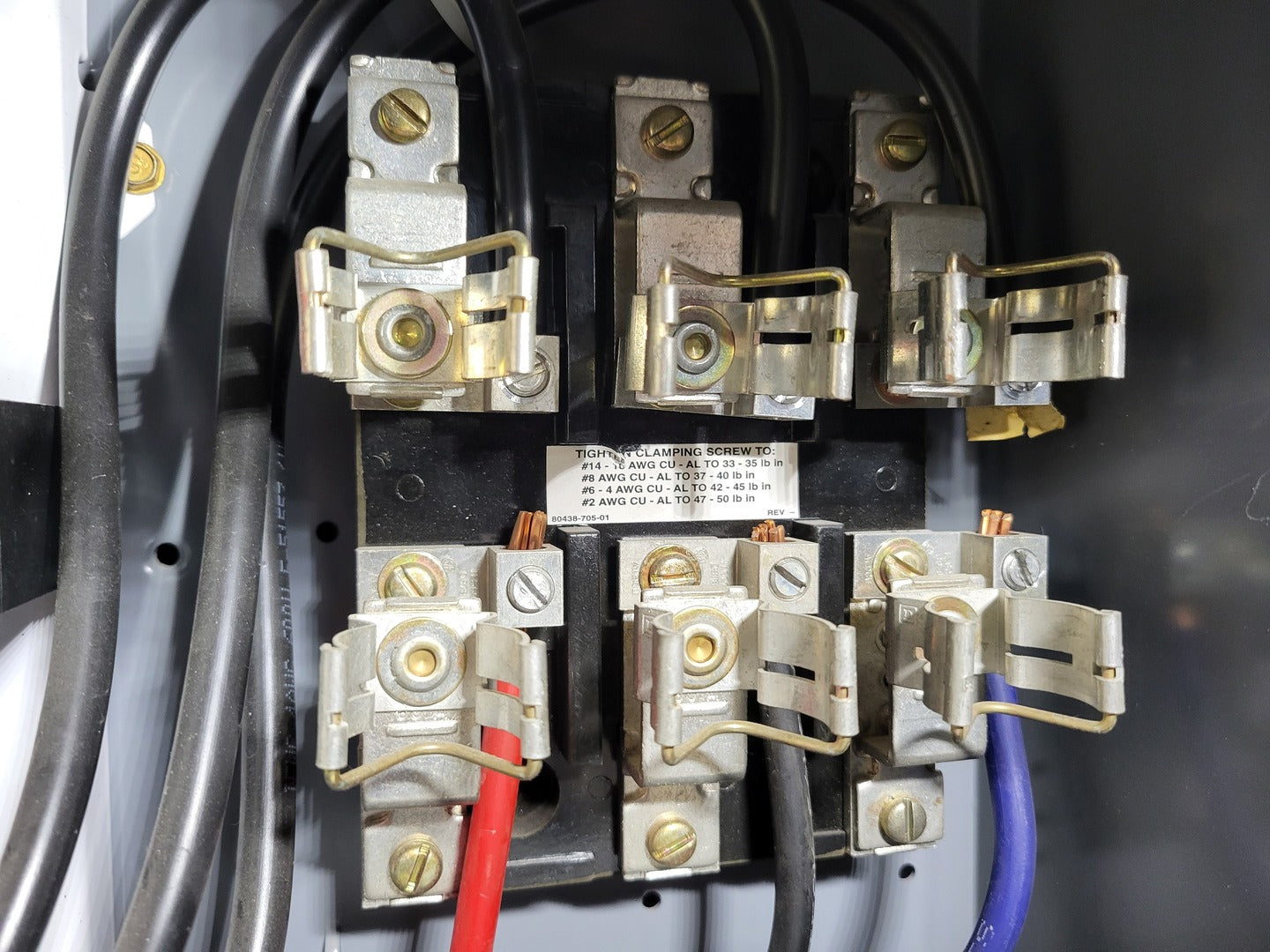

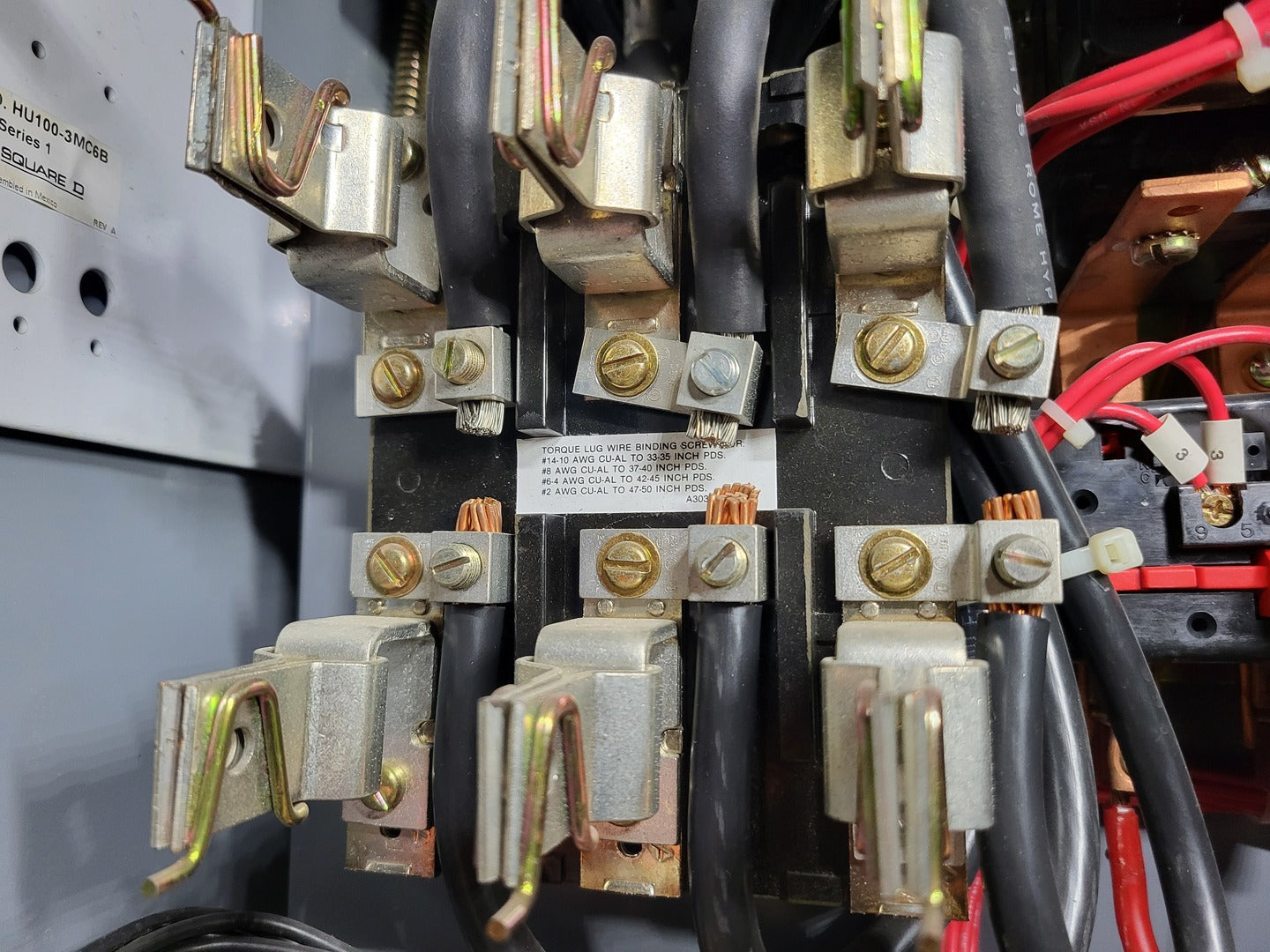

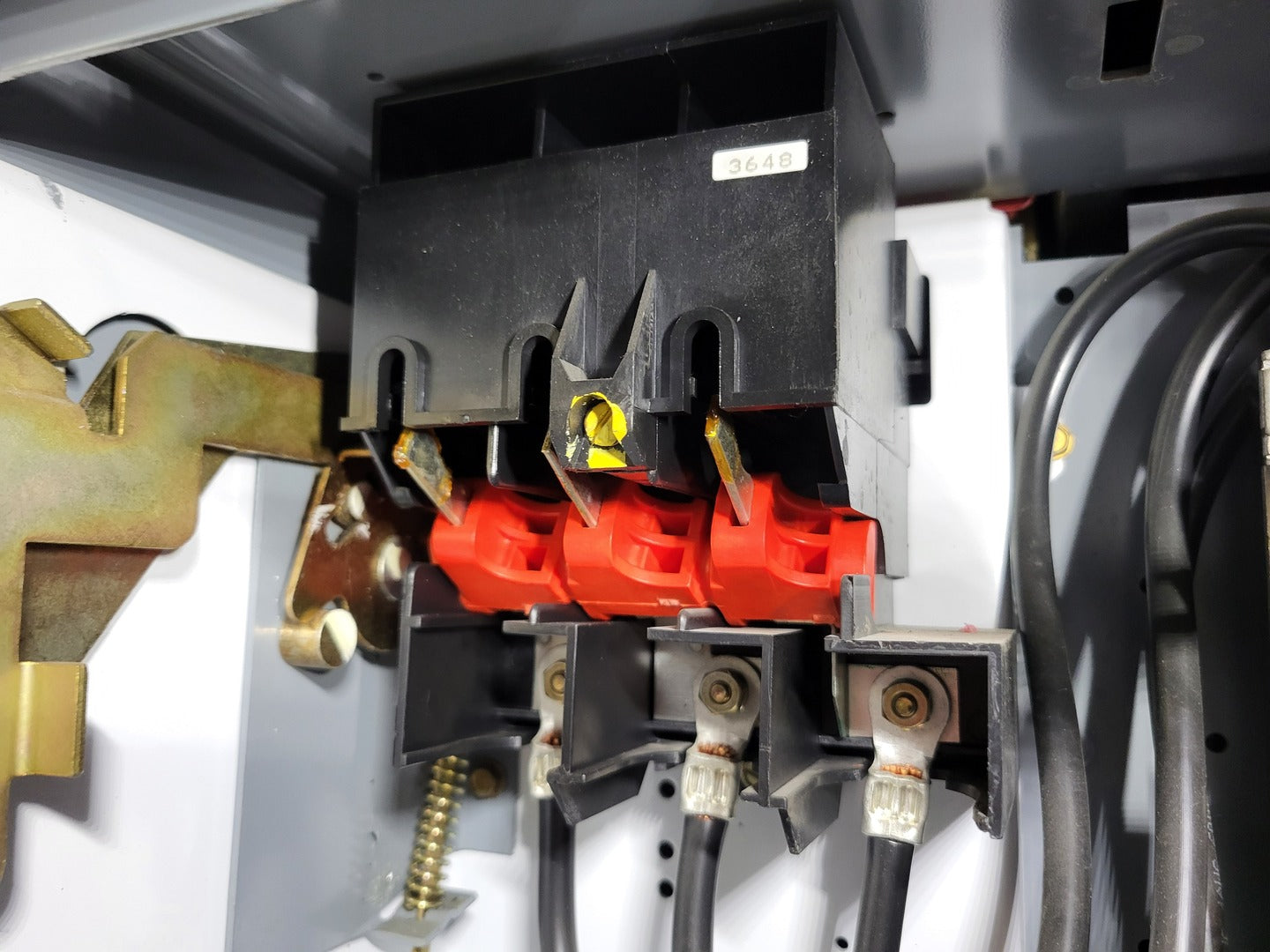

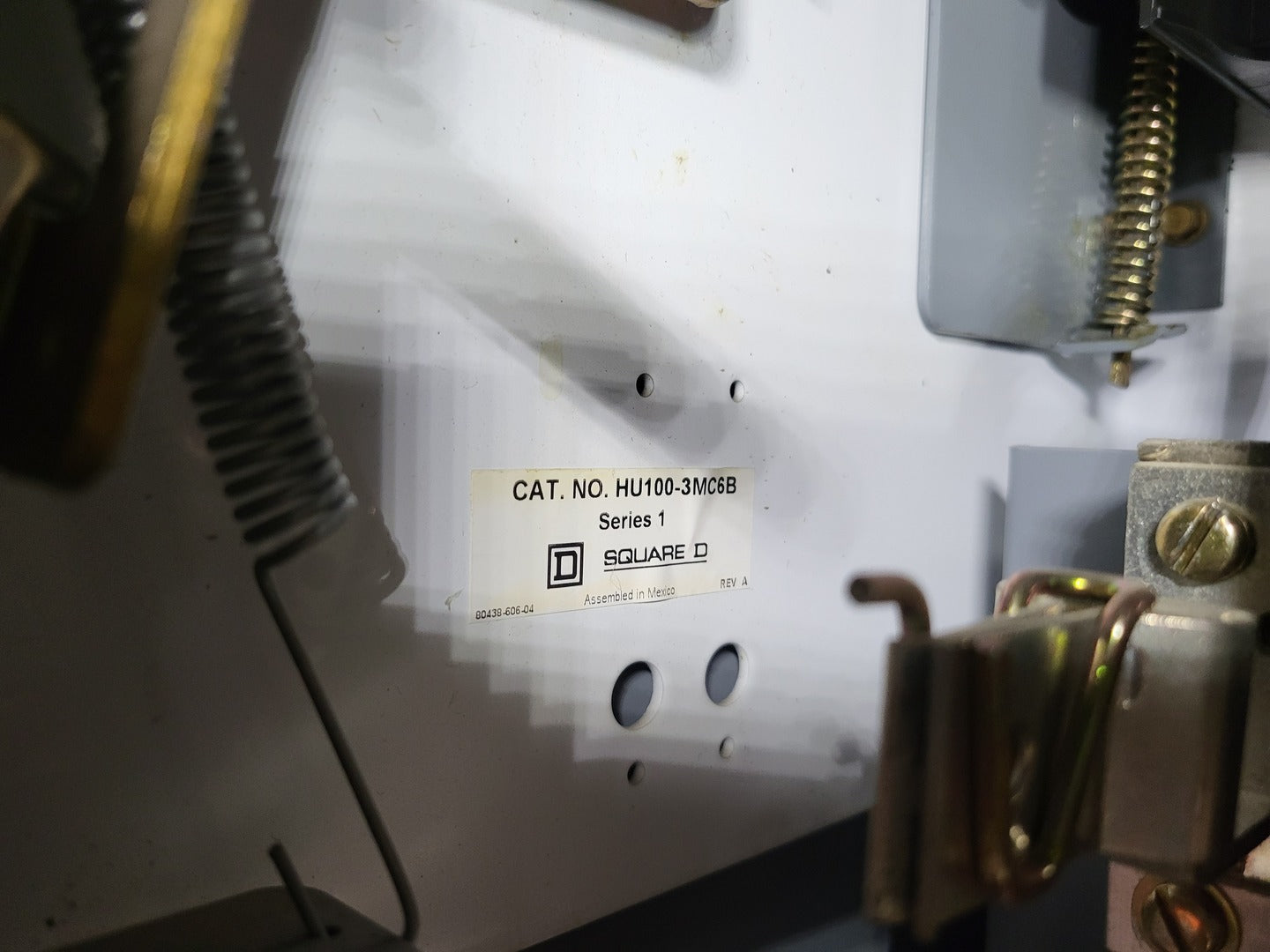

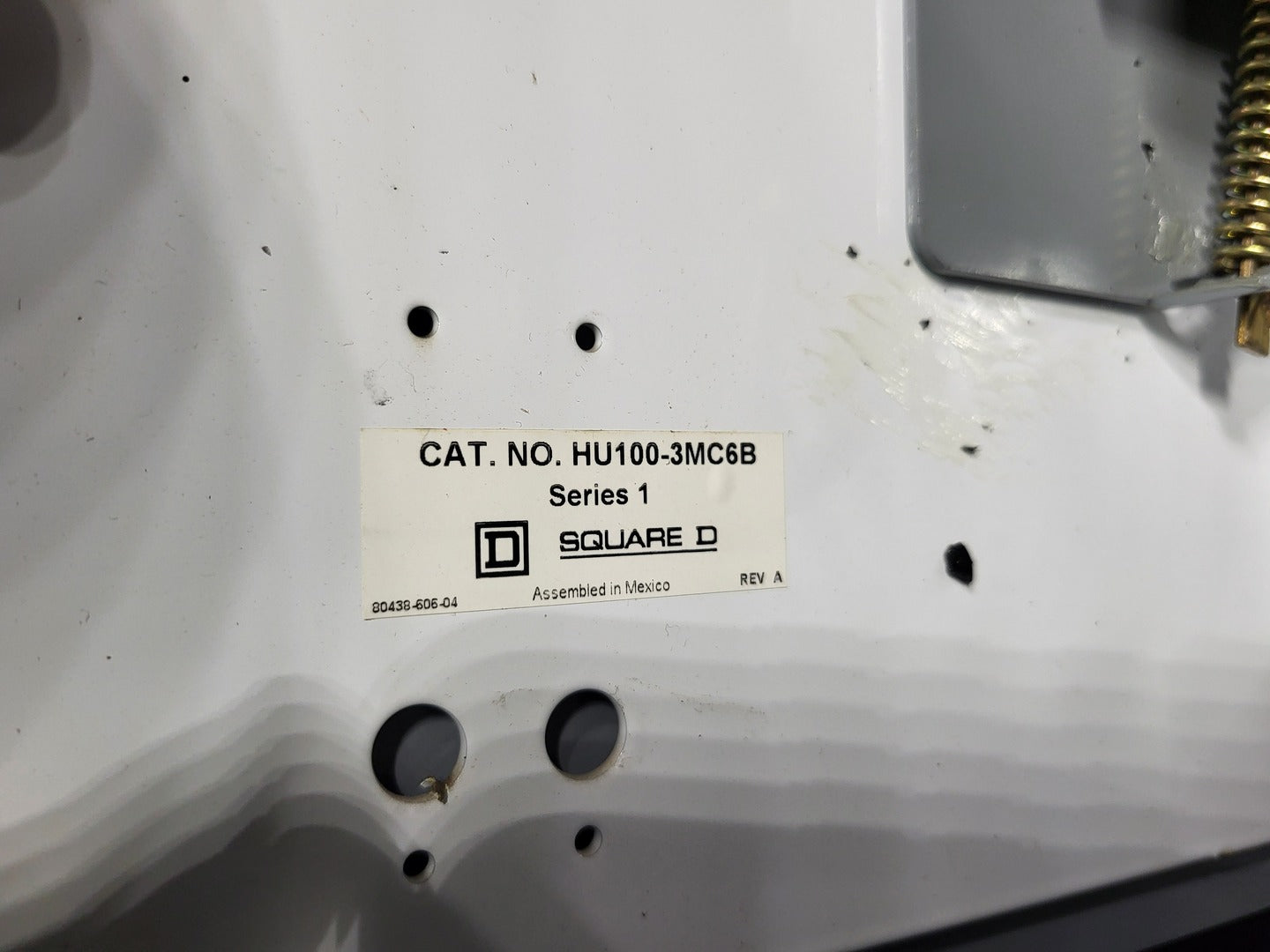

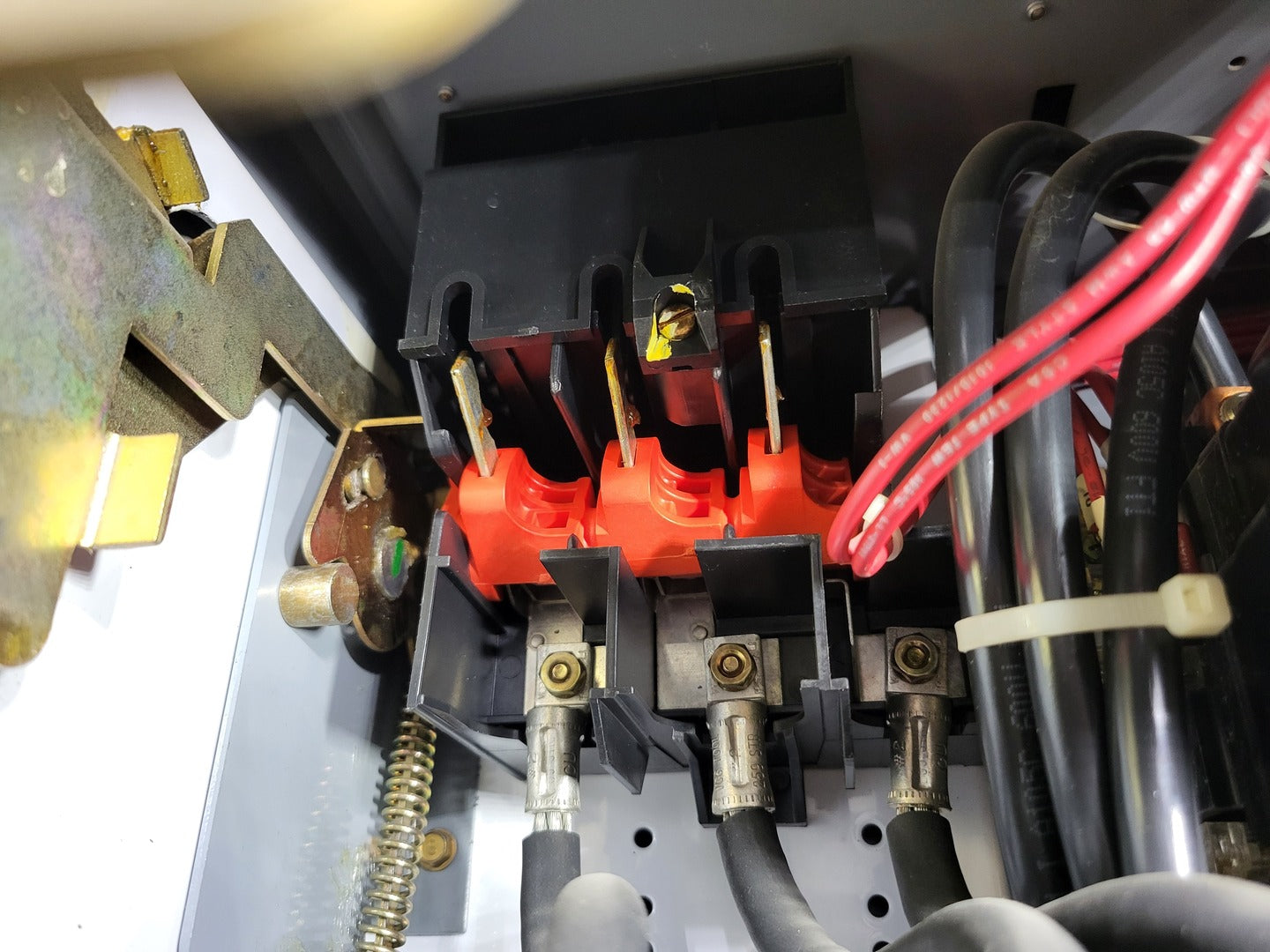

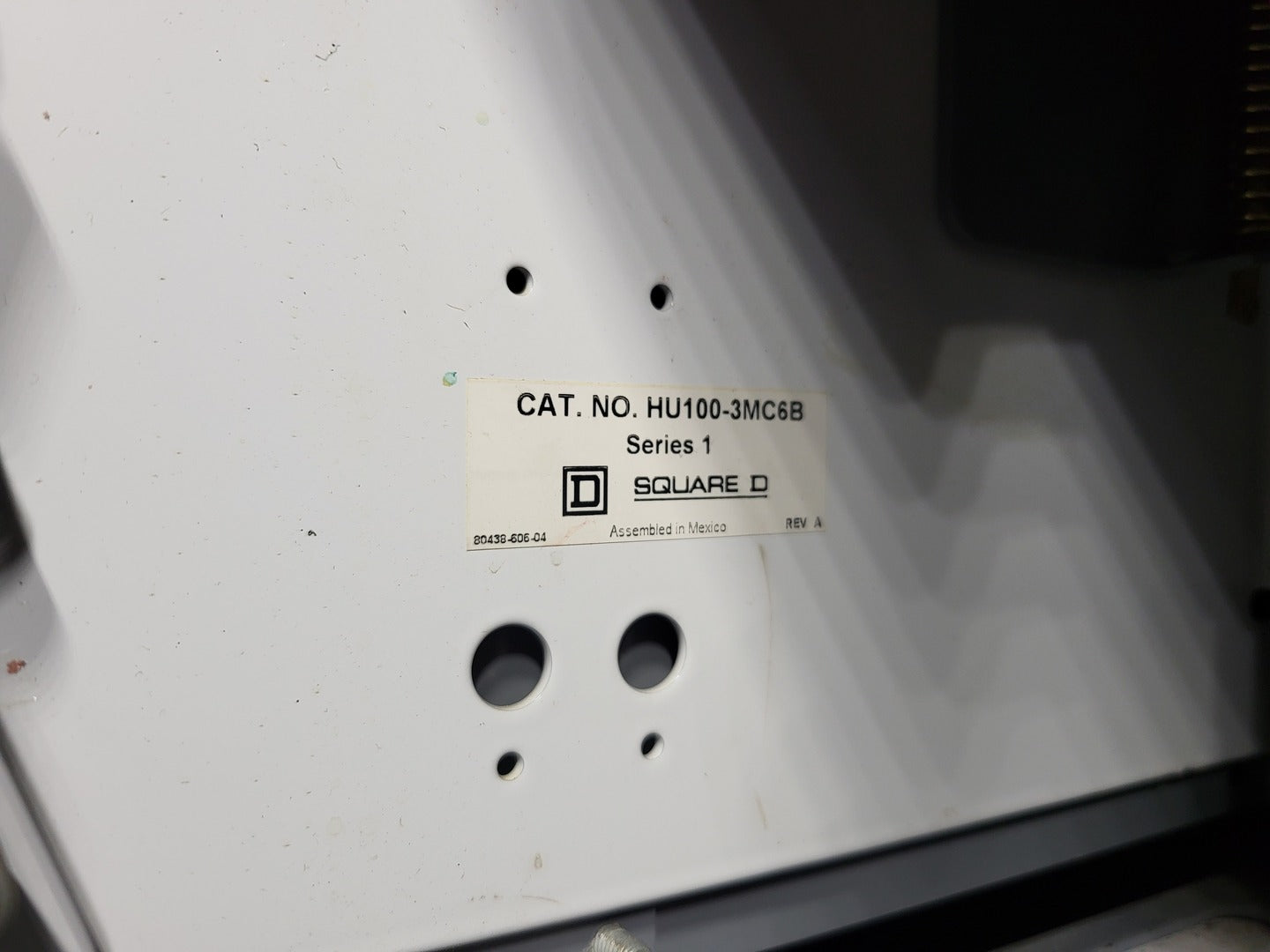

Square D HU100-3MC6B, Series 1, MCC bucket disconnect unit
-

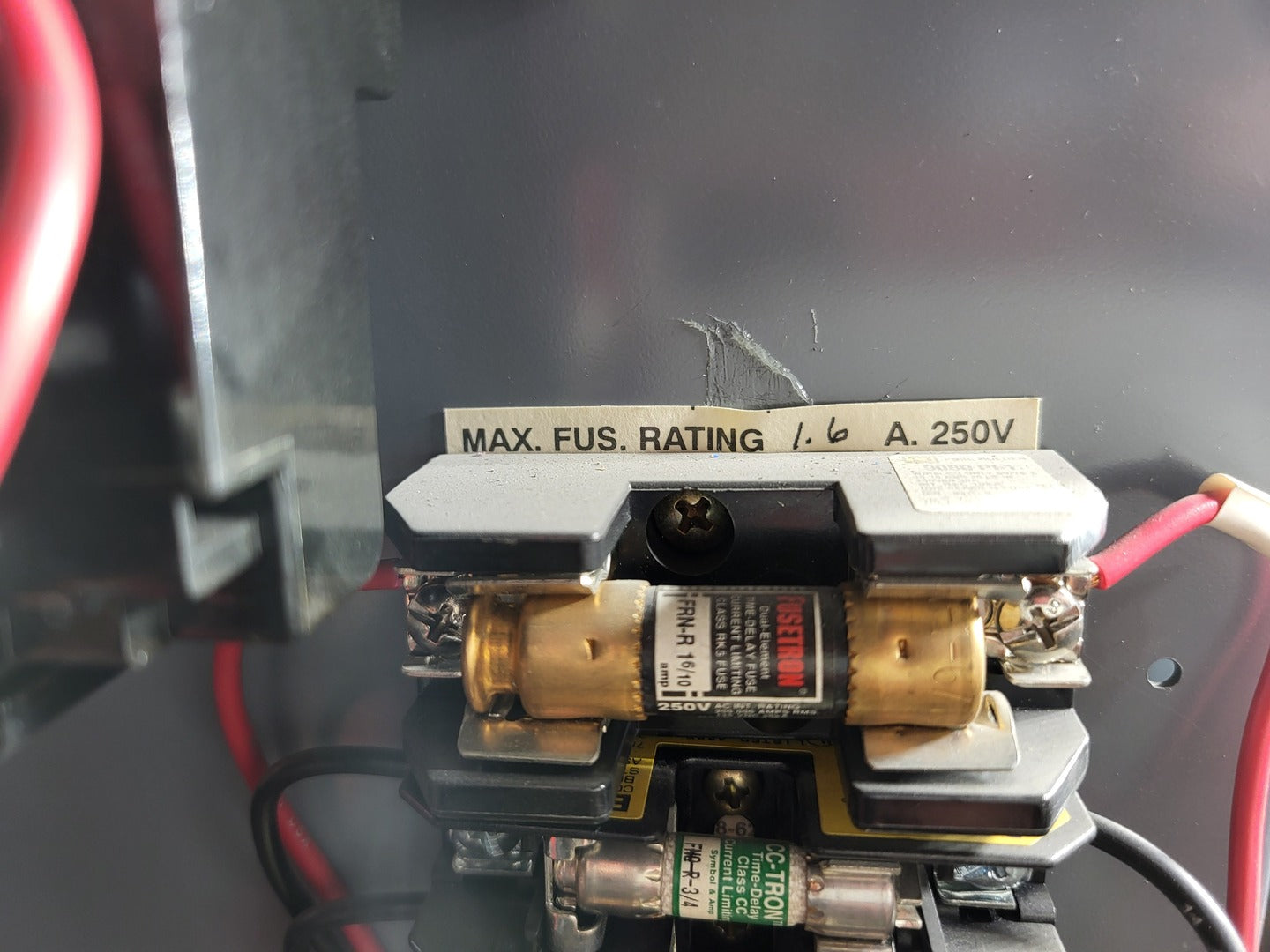

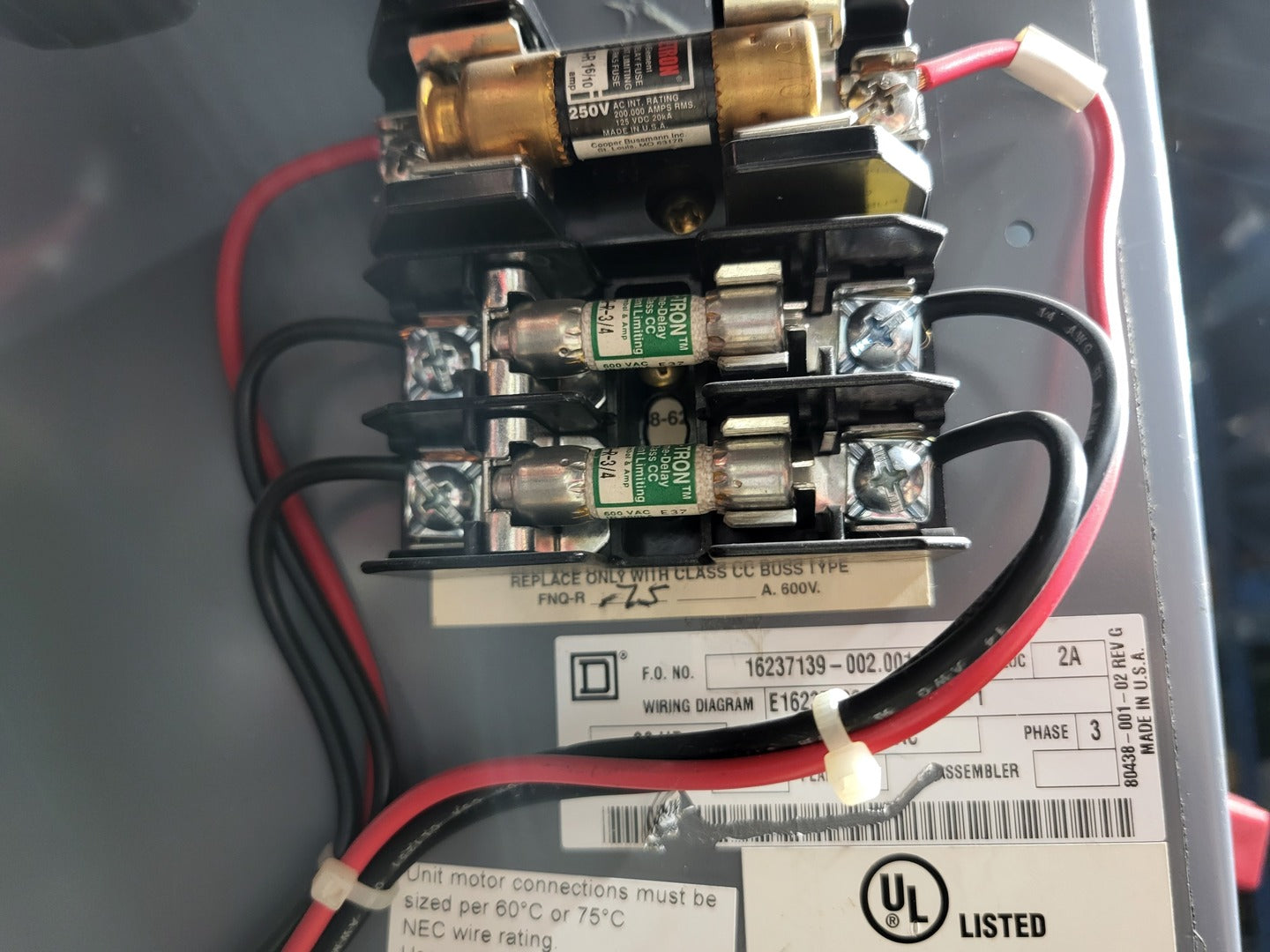

1 x Bussmann Fusetron fuse FRN-R-1-6/10
-
2 x Bussmann CC-Tron fuses FNQ-R-3/4

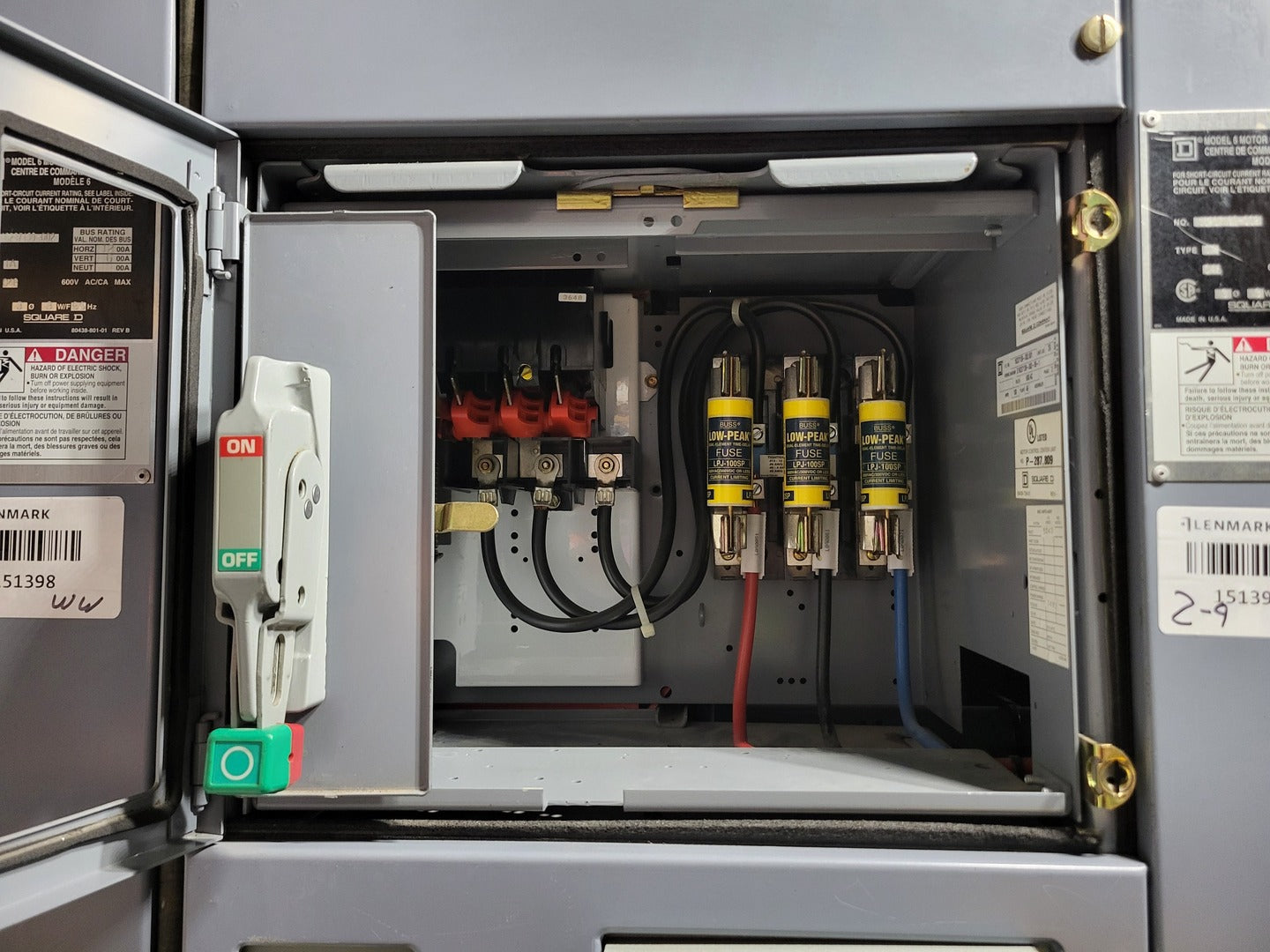

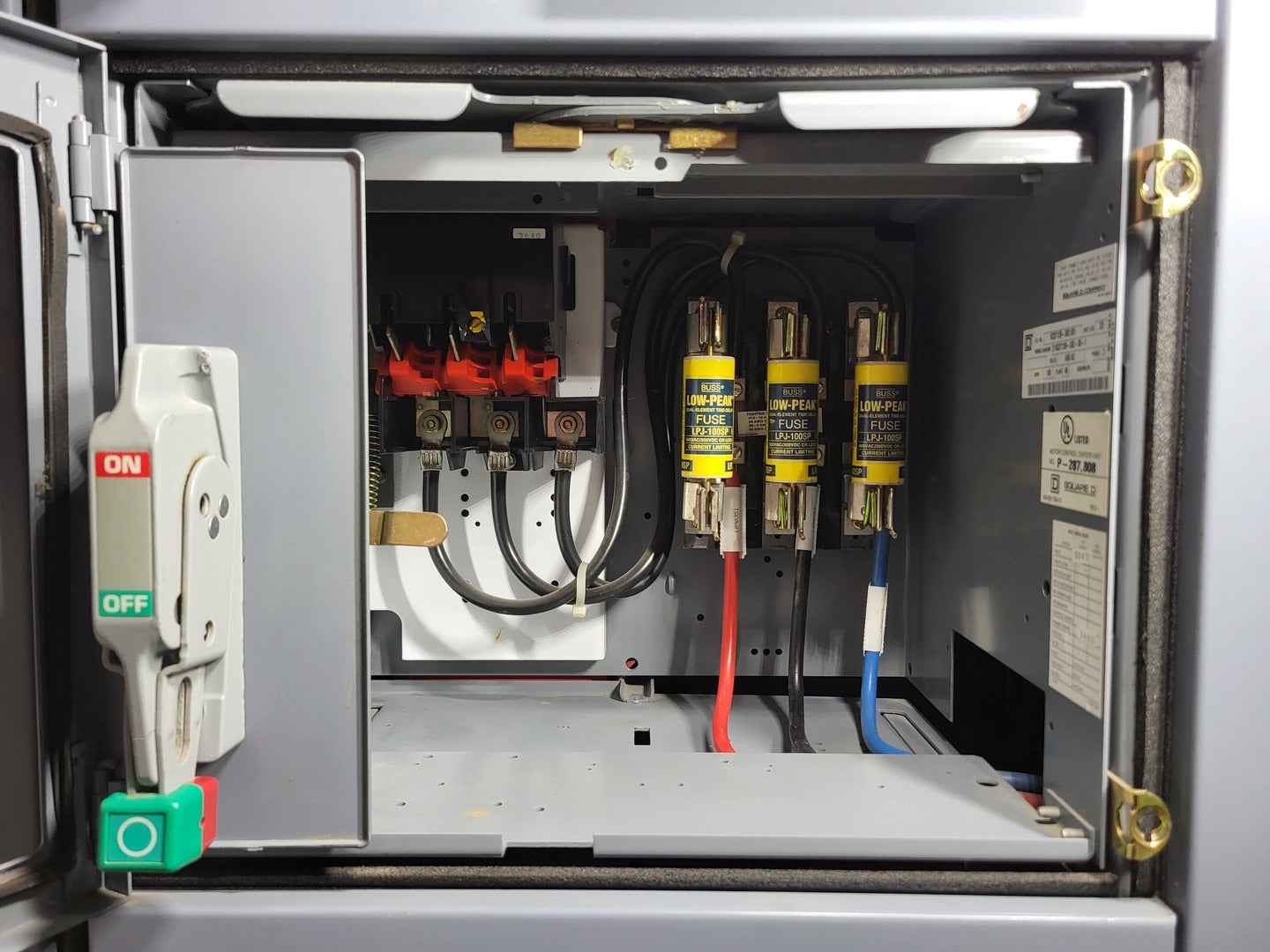

Bucket #2 1C-762A
-

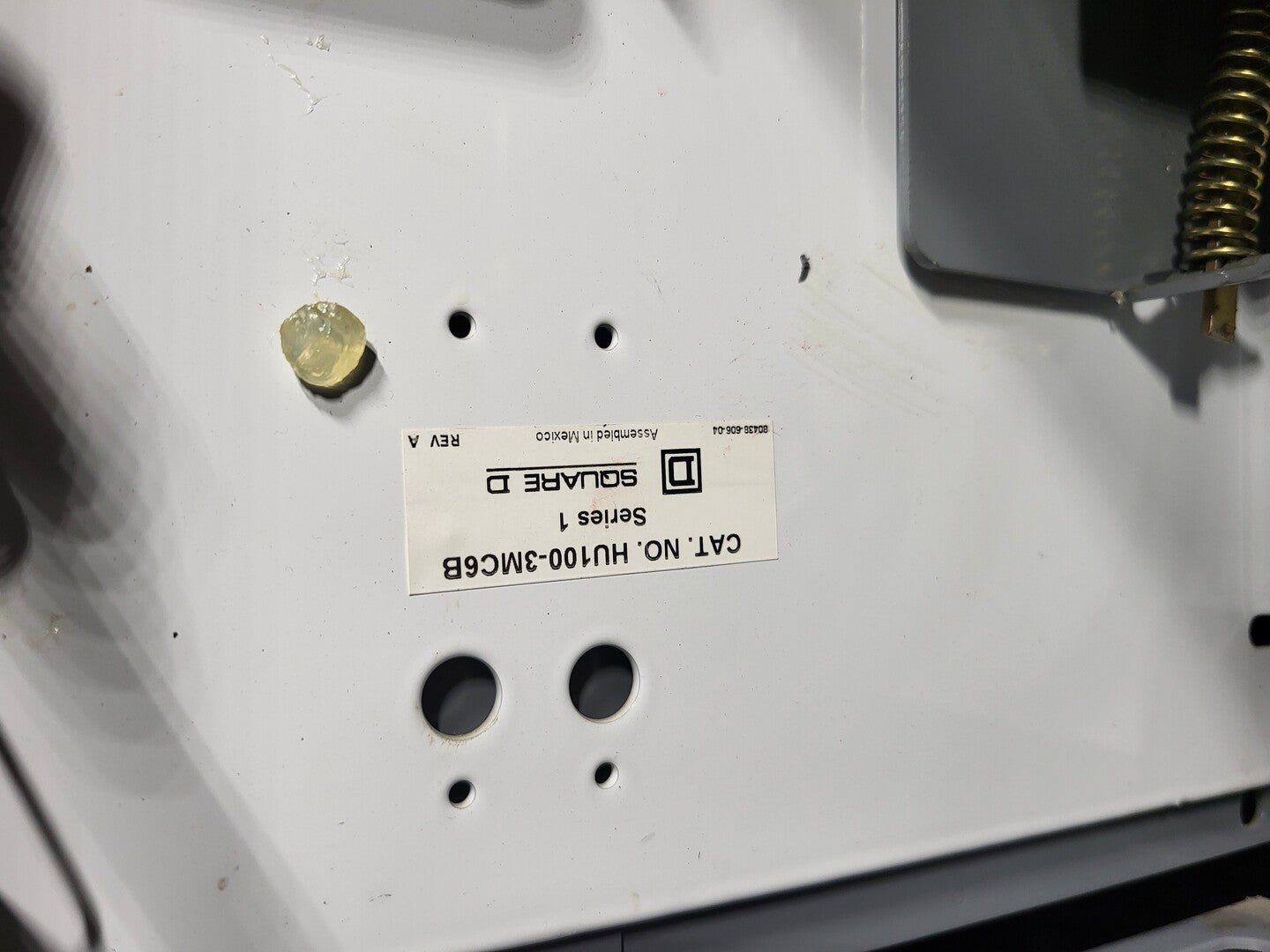

Square D HU100-3MC6B, Series 1, MCC bucket disconnect unit
-

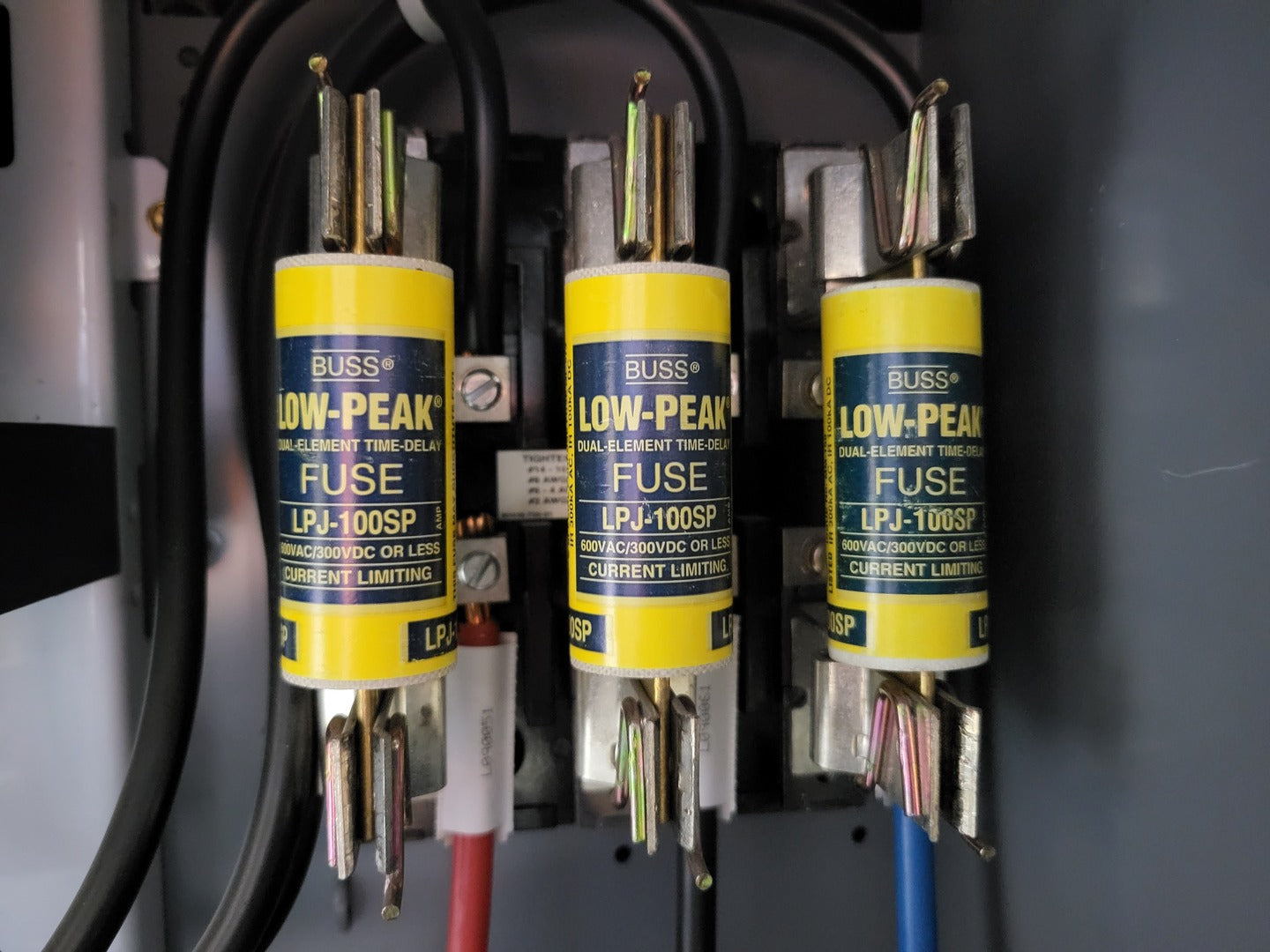

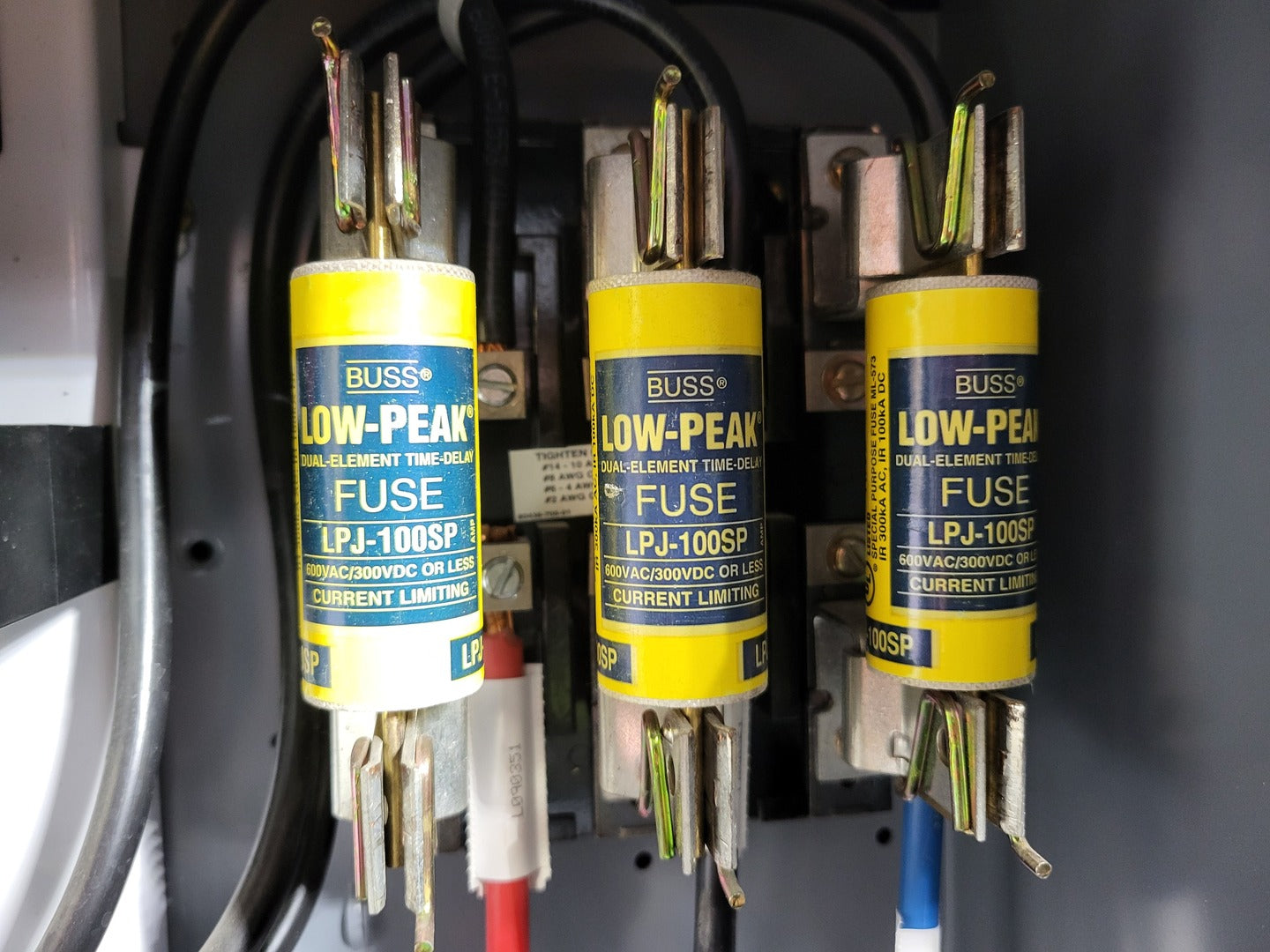

3 x Bussmann Low-Peak fuses LPJ-100SP

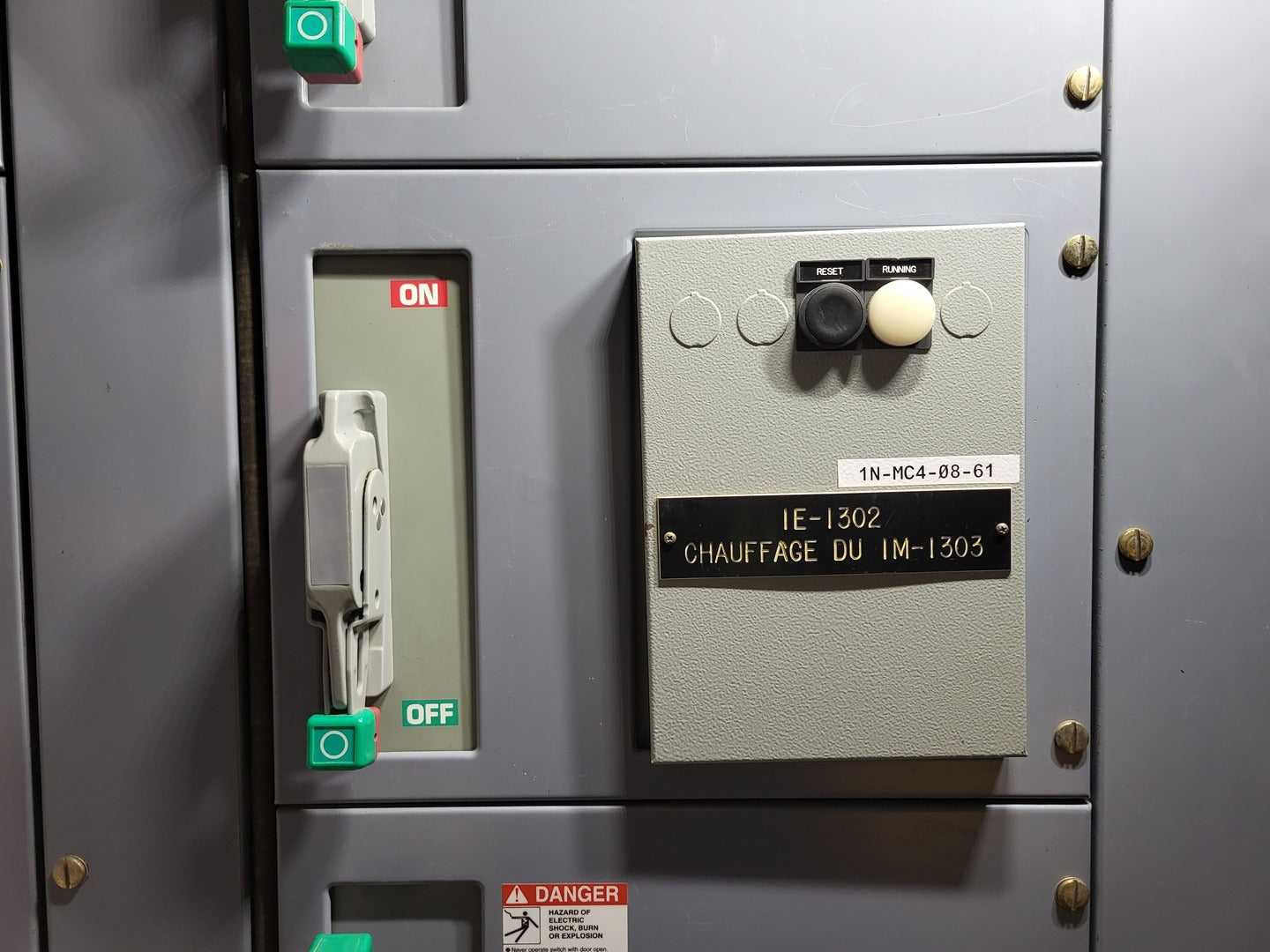

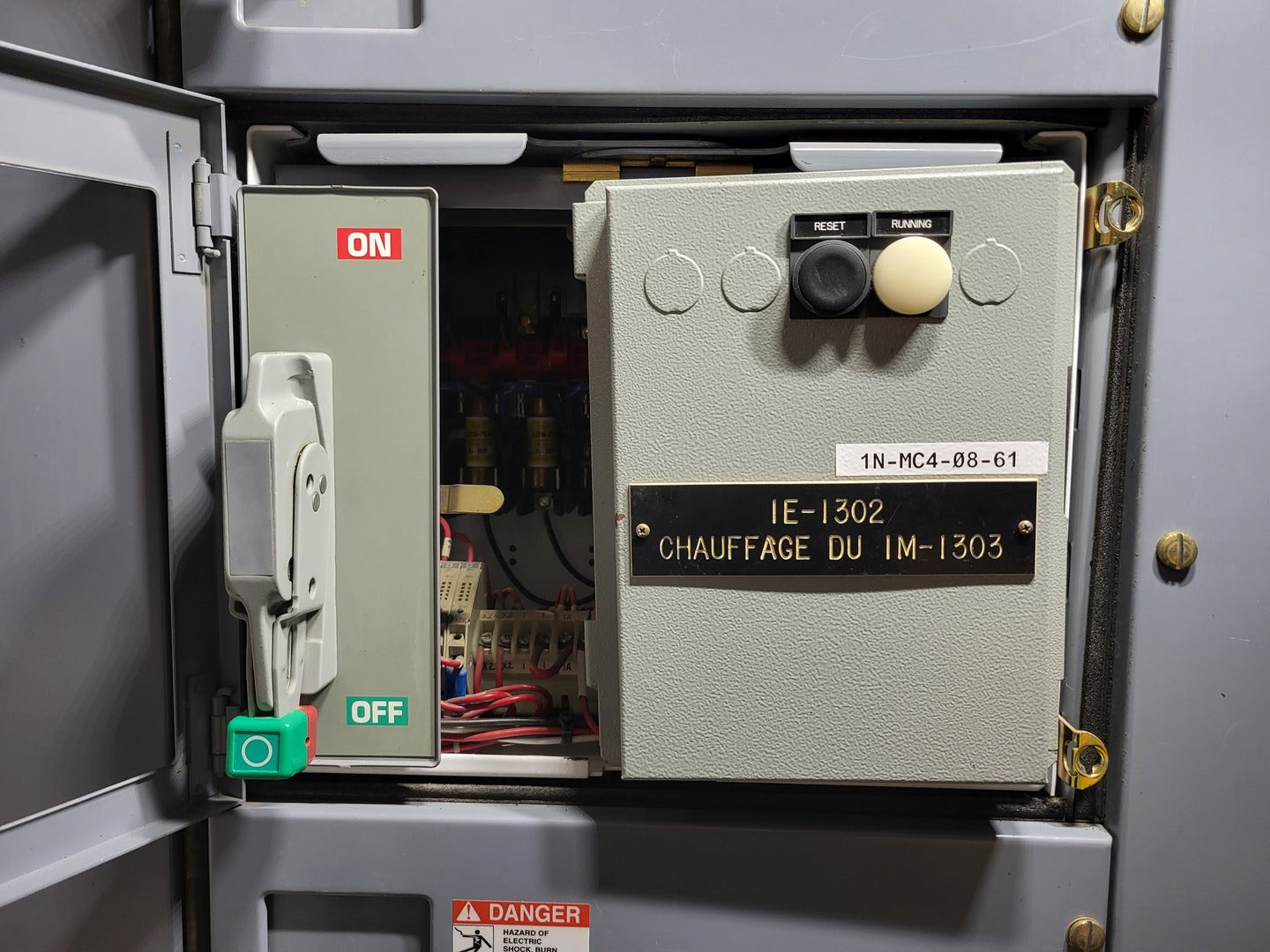

Bucket #3 IE-1302
-

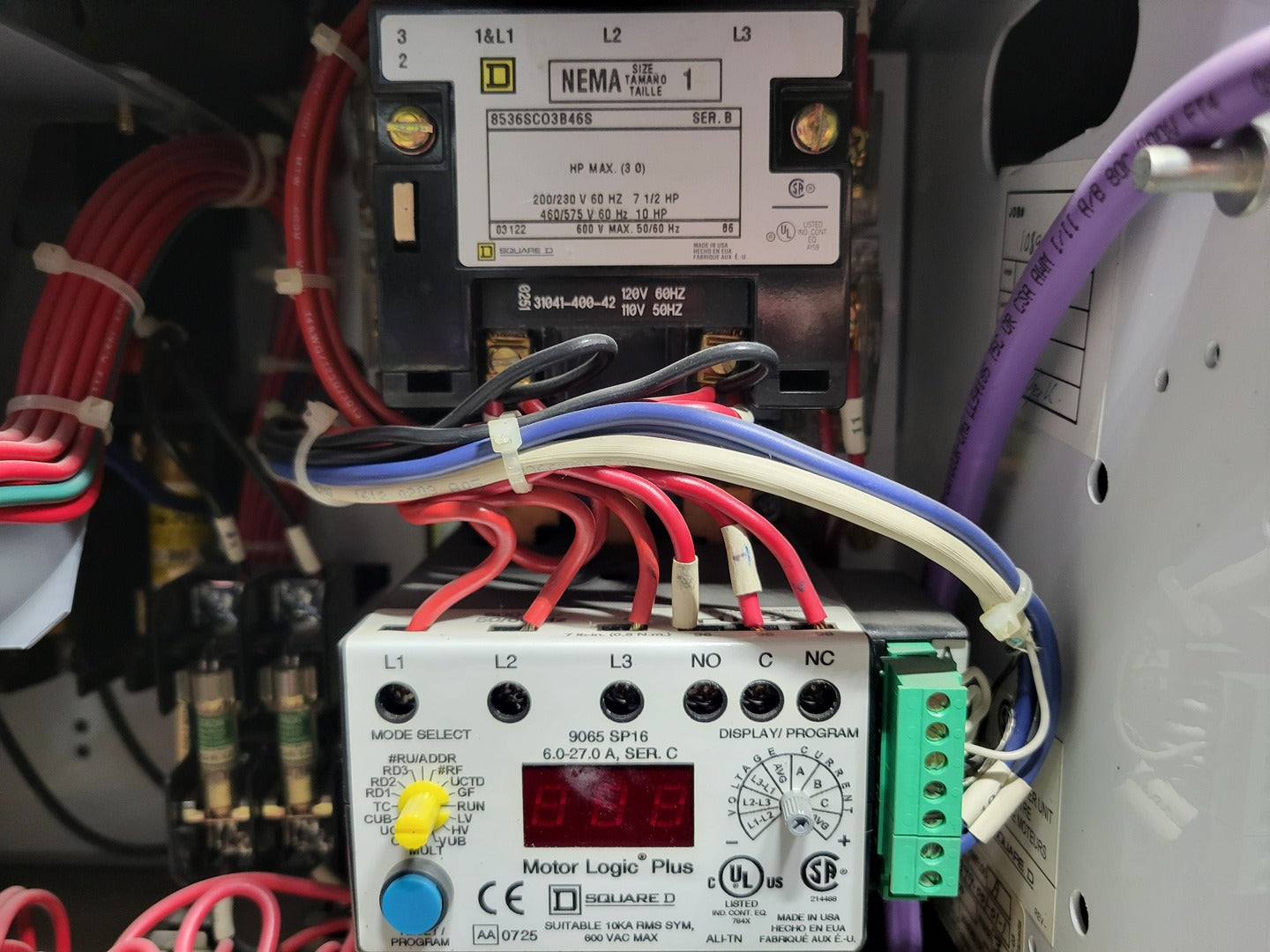

Square D 8536SCO3B46S, NEMA Size 1 contactor, 7.5 HP @ 200/230V / 10 HP @ 460/575V
-
Square D Motor Logic Plus 9065 SP16, motor protection relay, 6.0-27.0A range, 600VAC max
-

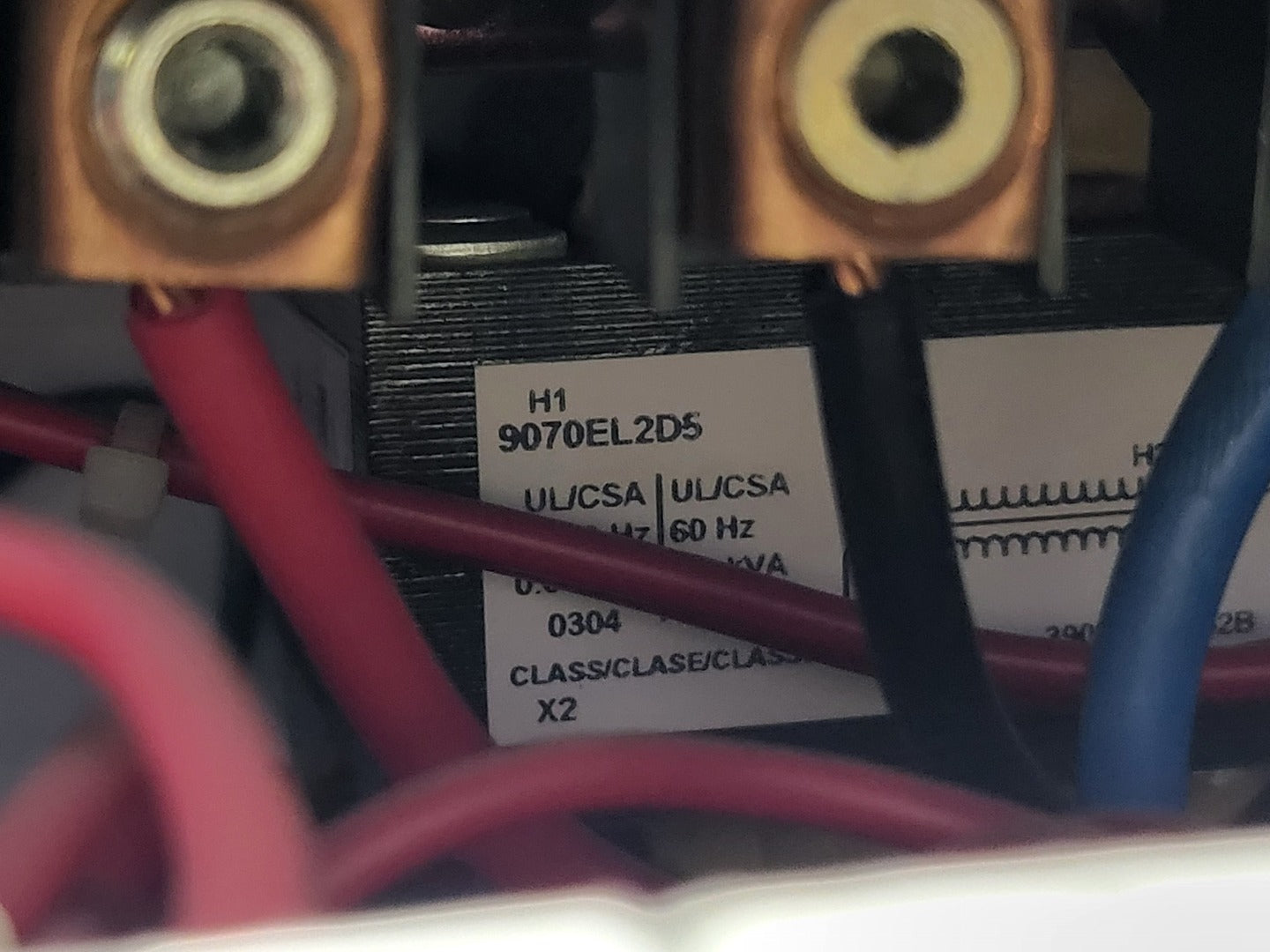

Square D 9070EL2DS, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
-

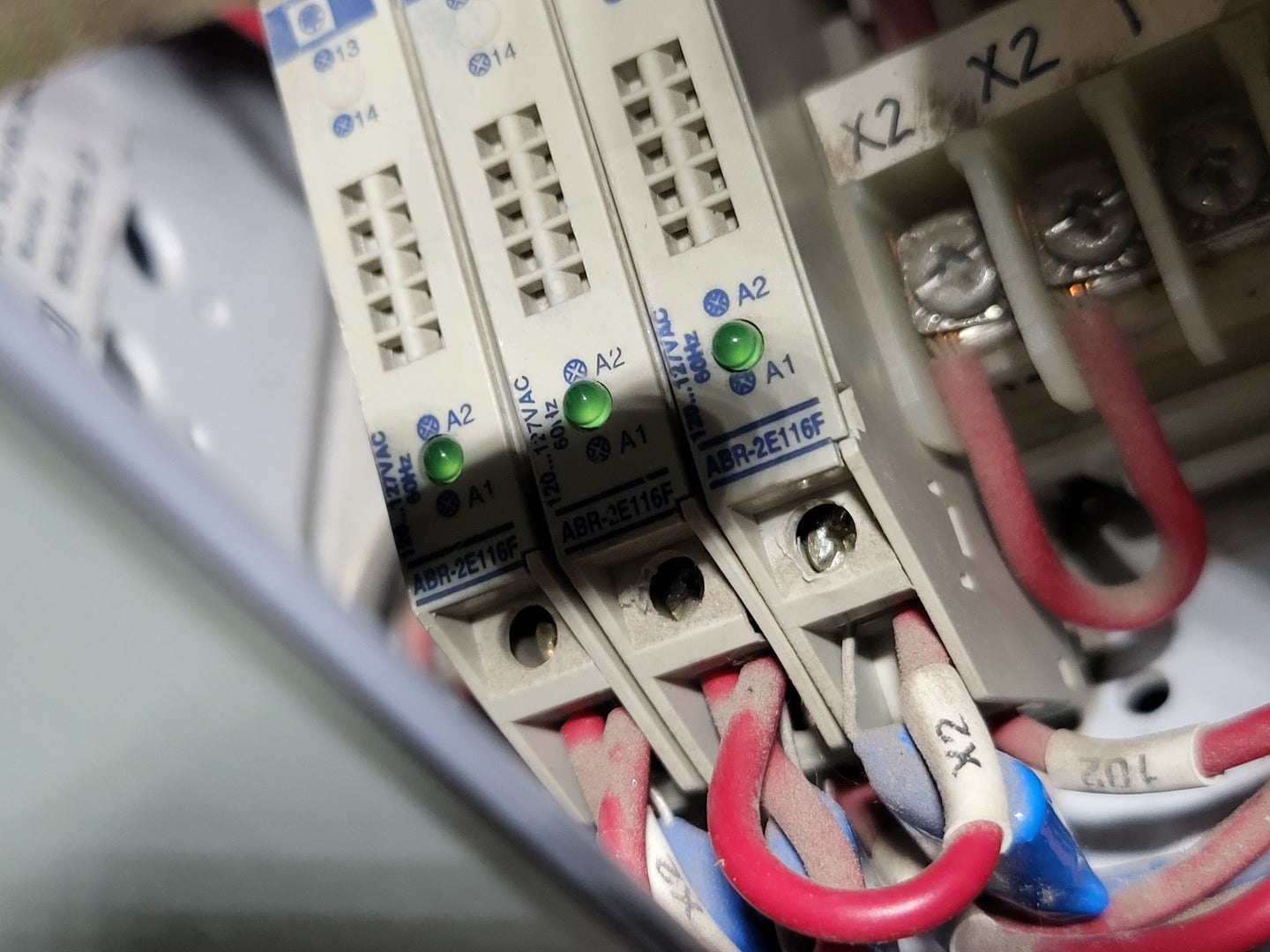

3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
-

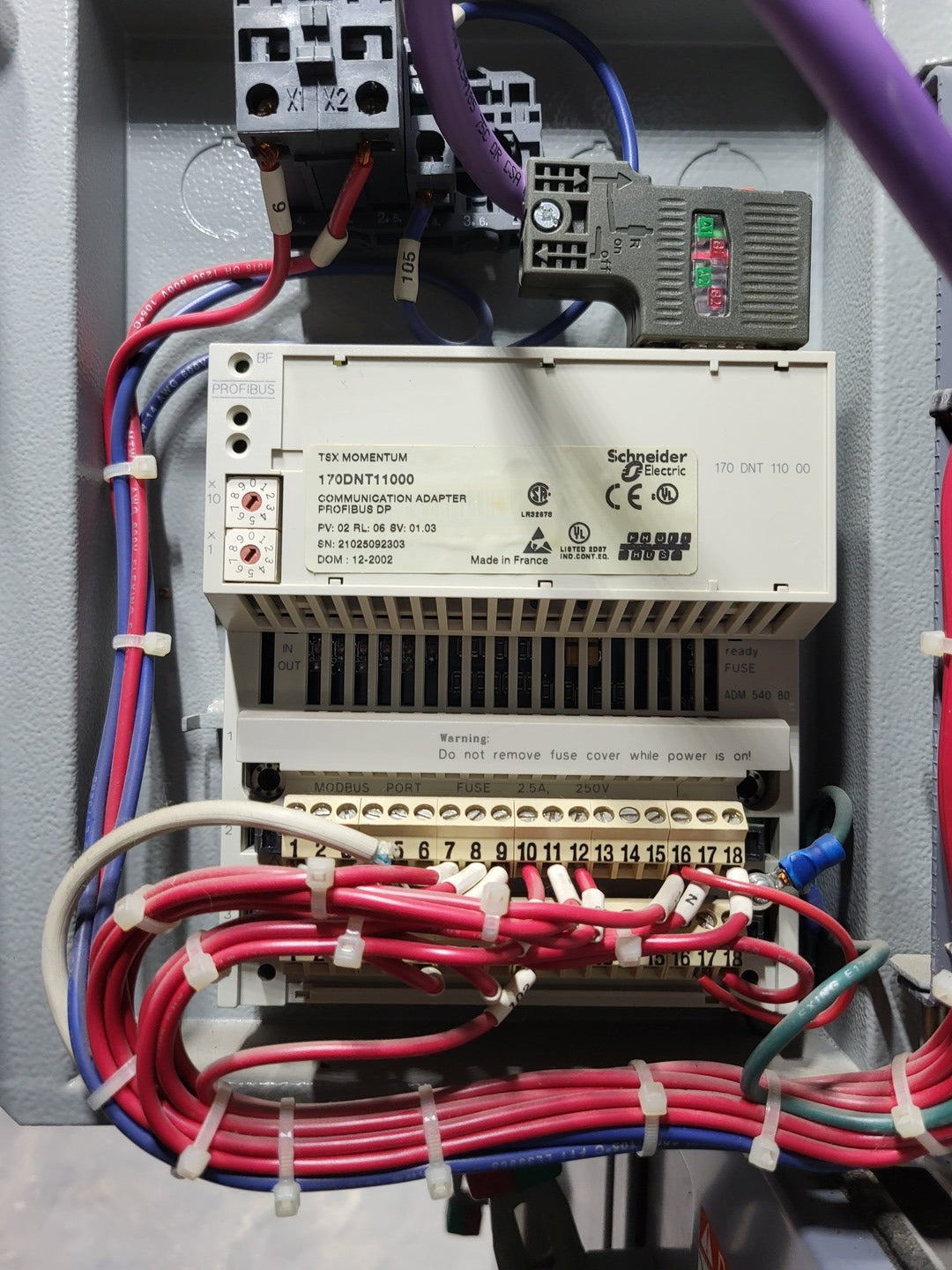

Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
-

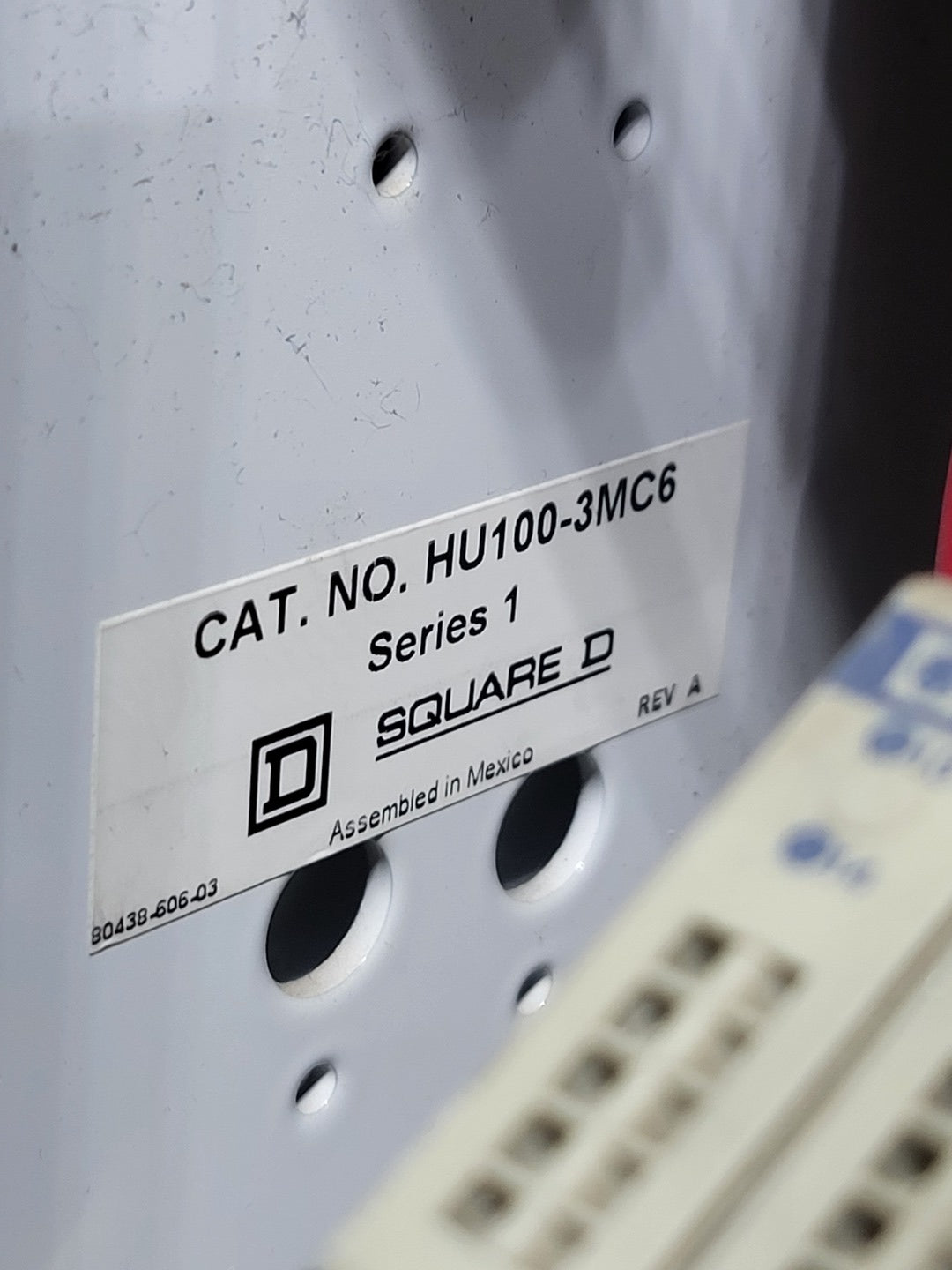

Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
-

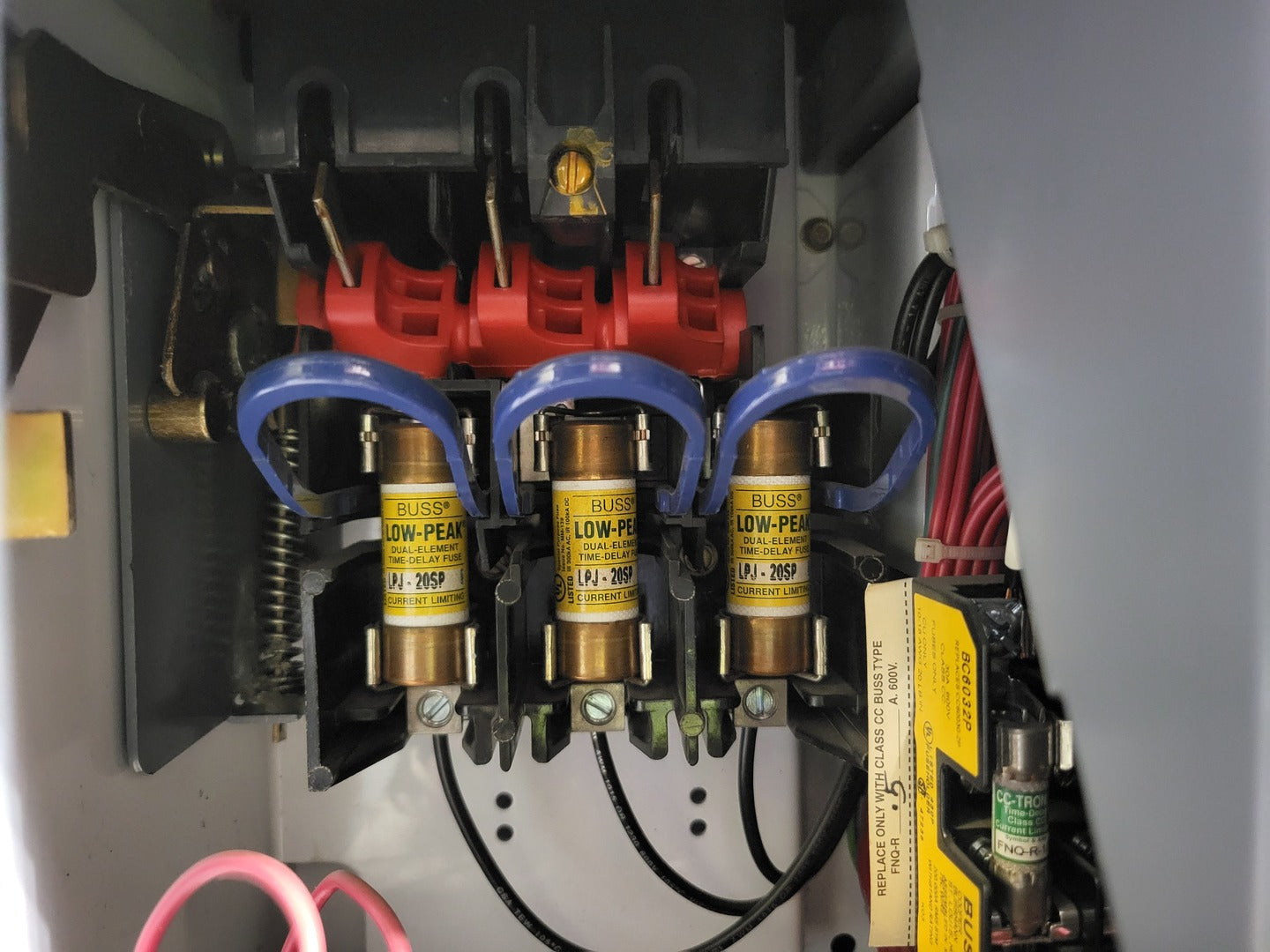

3 x Bussmann Low-Peak fuses LPJ-20SP
-

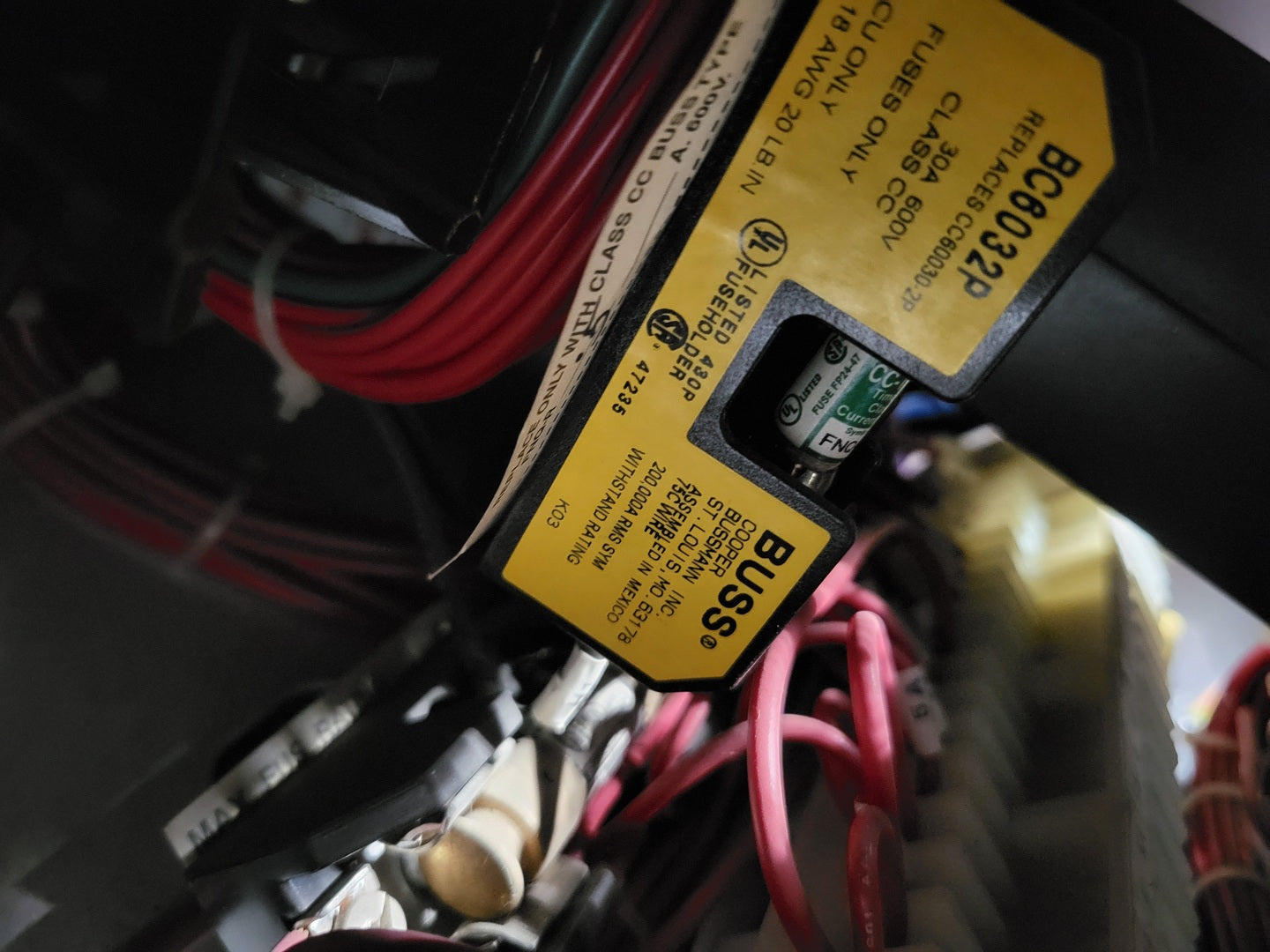

2 x Bussmann CC-Tron fuses FNQ-R

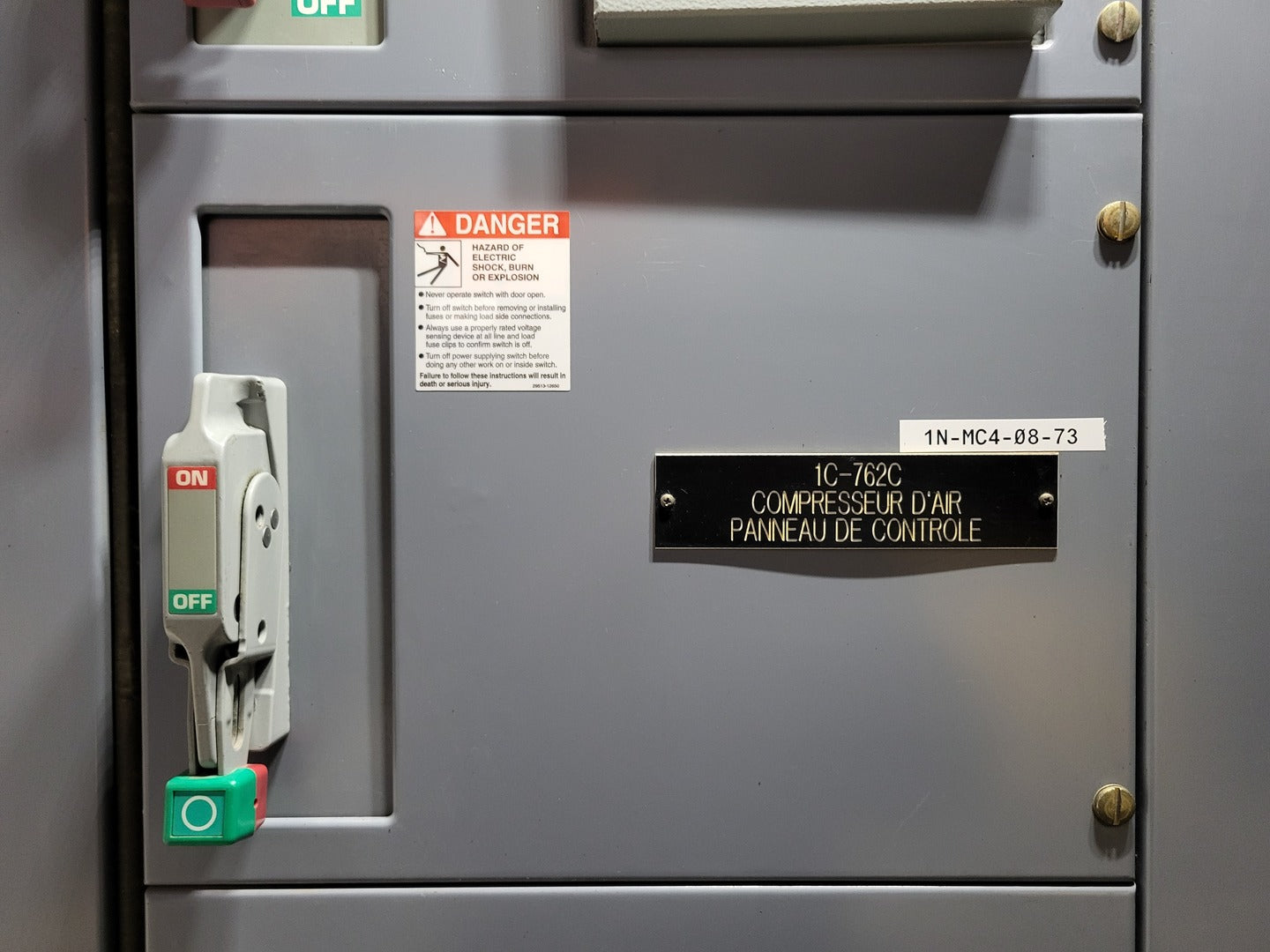

Bucket #4 1C-762C
-
Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
-
3 x Bussmann Low-Peak fuses LPJ-100SP

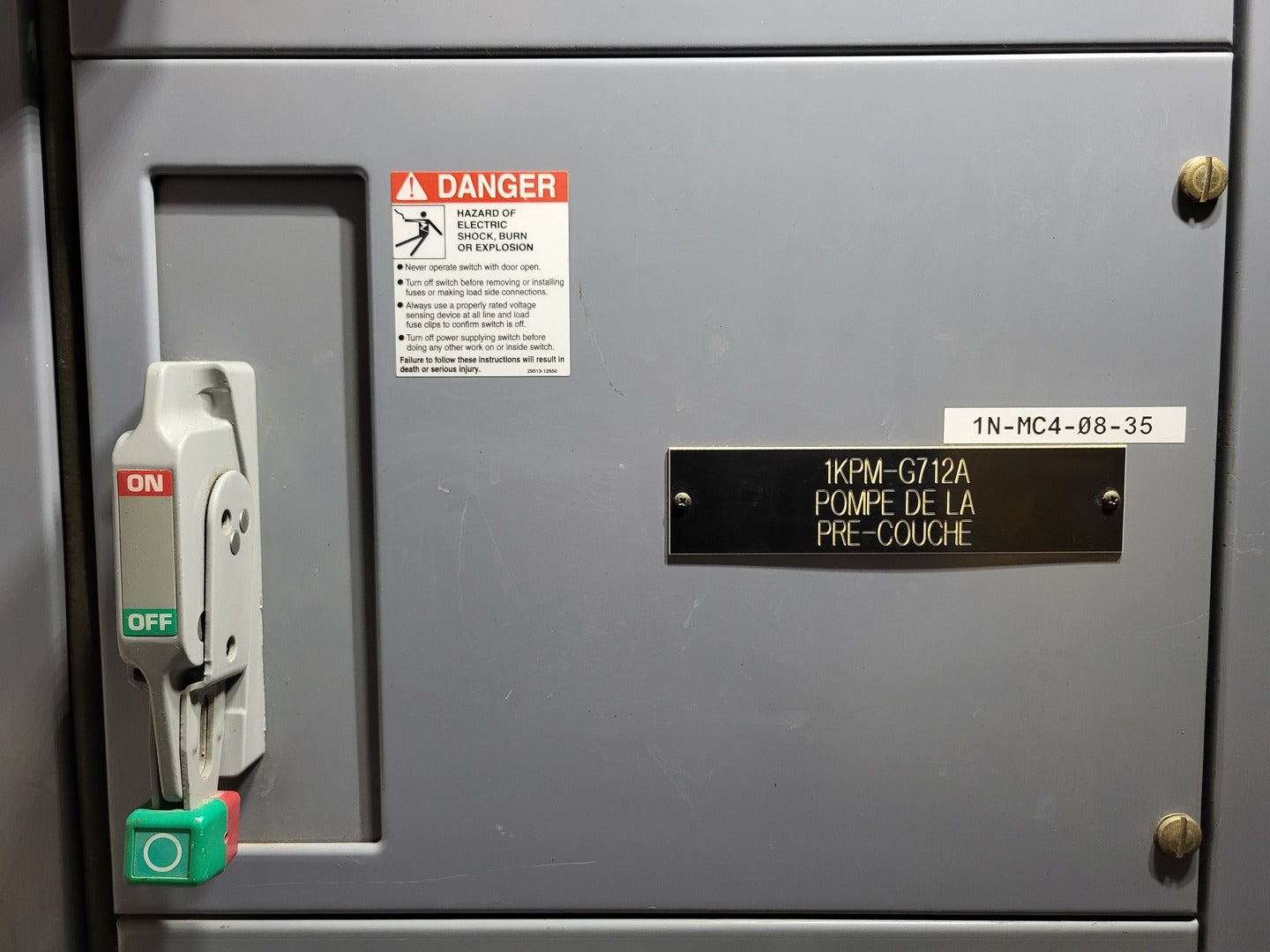

Bucket #5 1KPM-G712A
-
Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

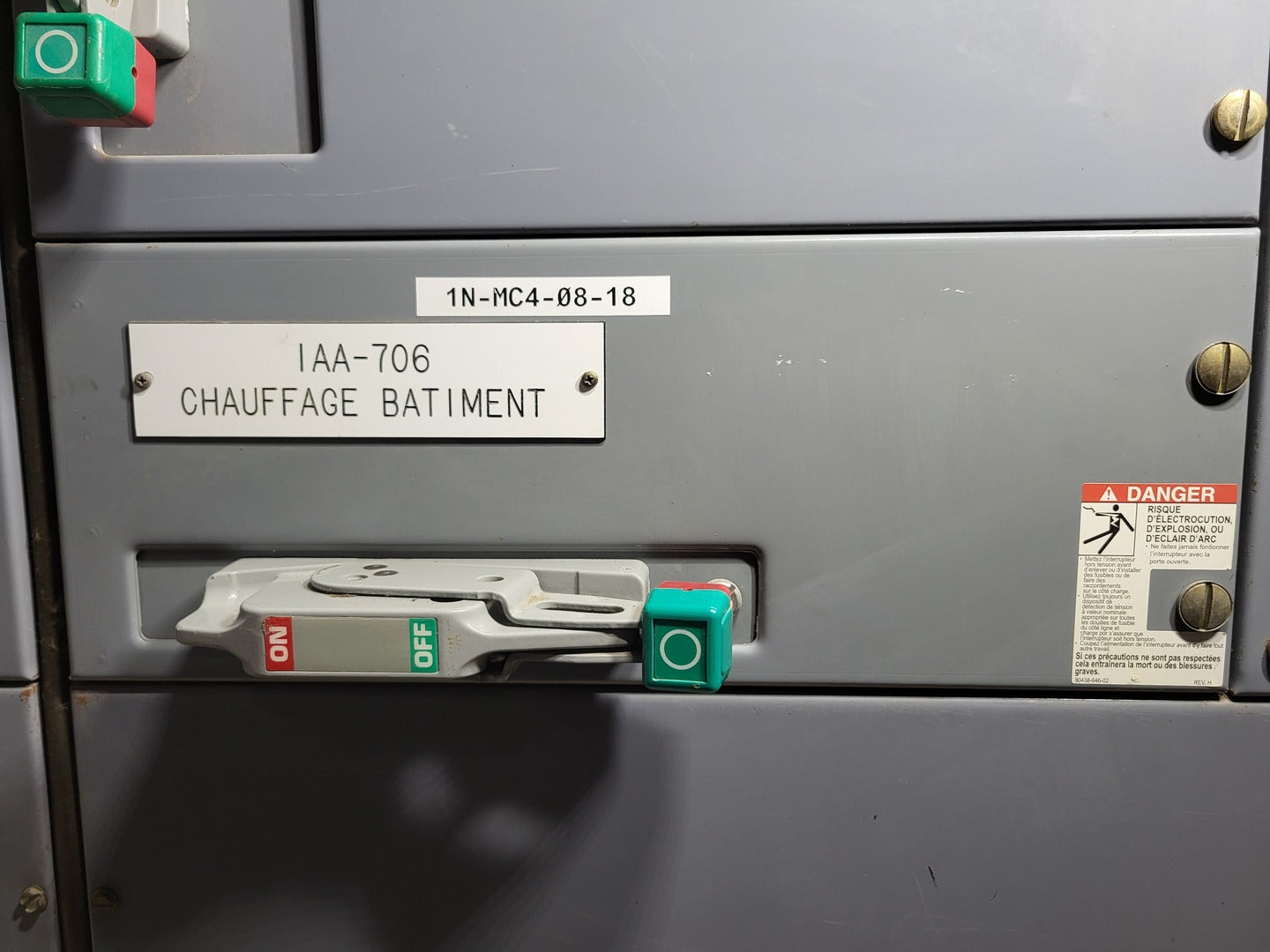

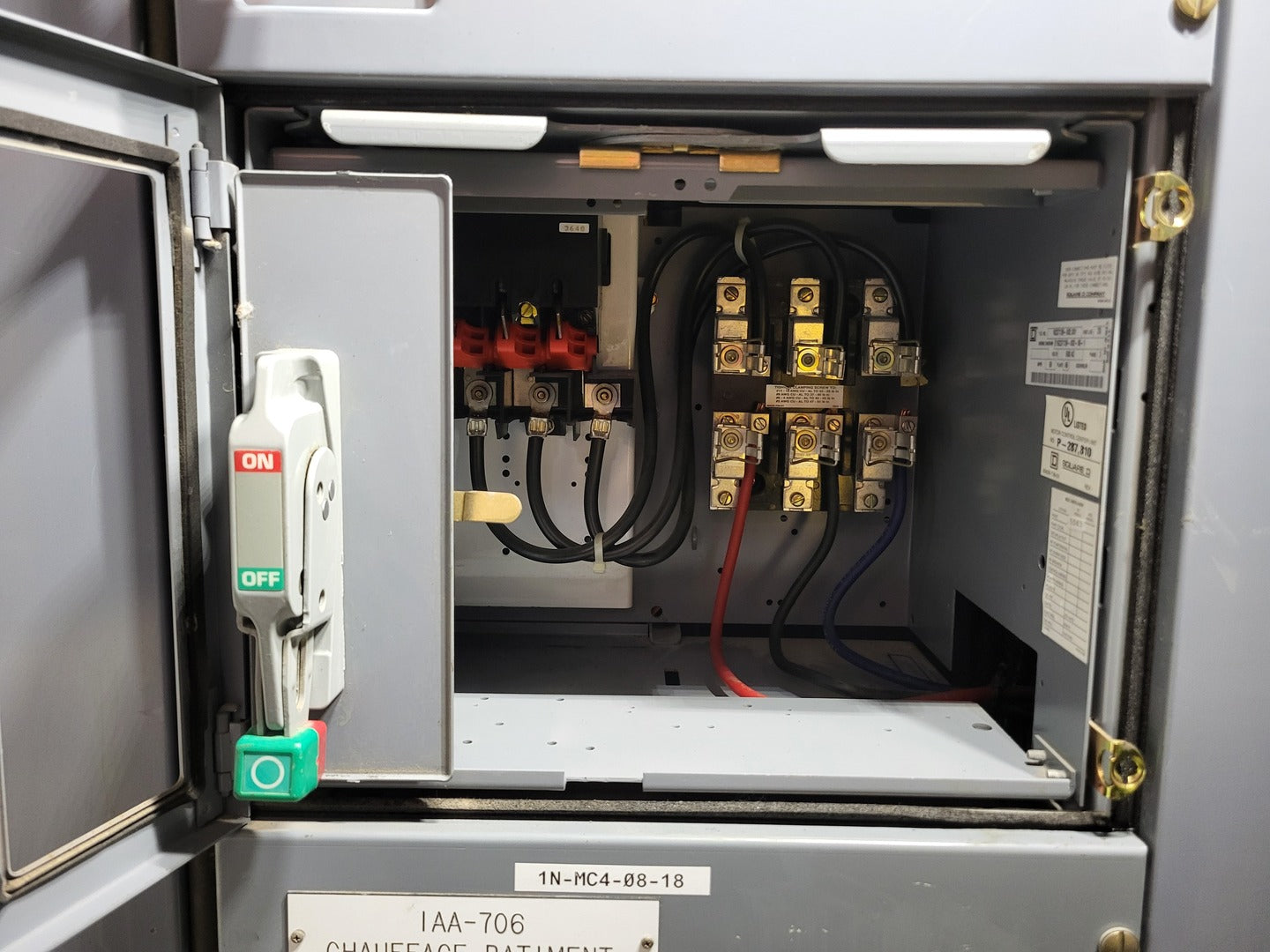

Bucket #6 1AA-706
-
Square D / Schneider Electric MCC bucket disconnect unit, 60A, 600V
-

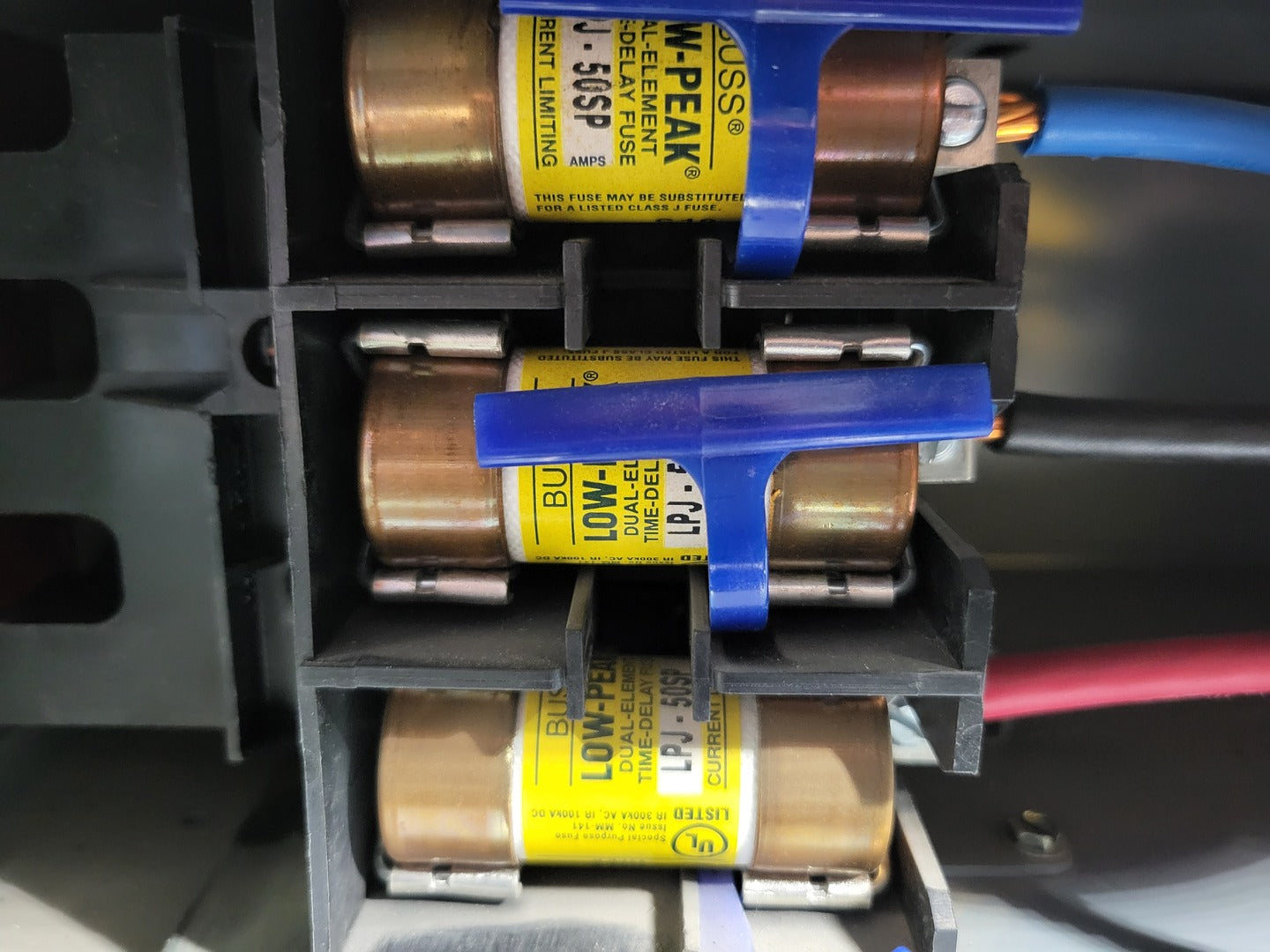

3 x Bussmann Low-Peak fuses LPJ-50SP
|
