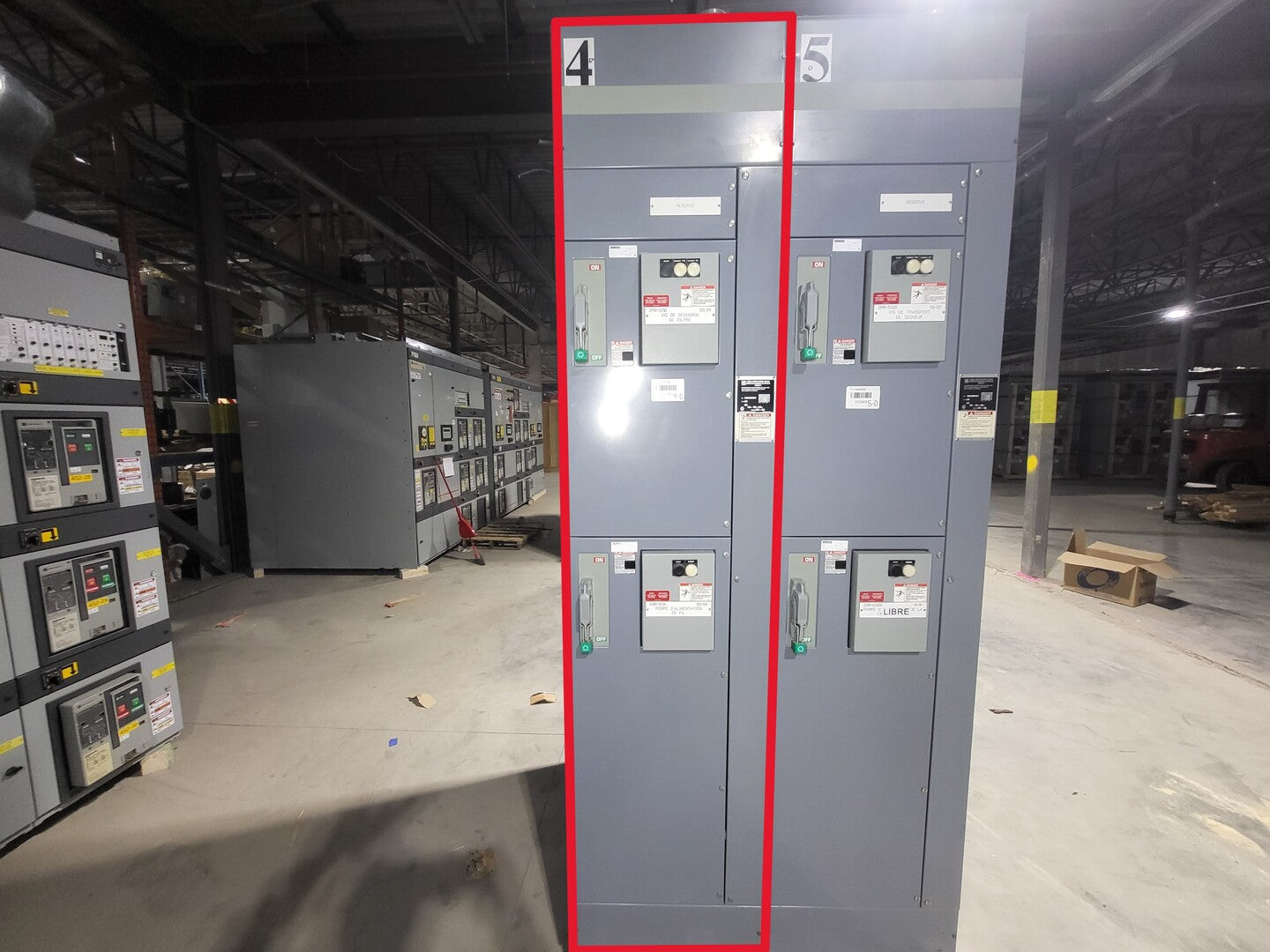

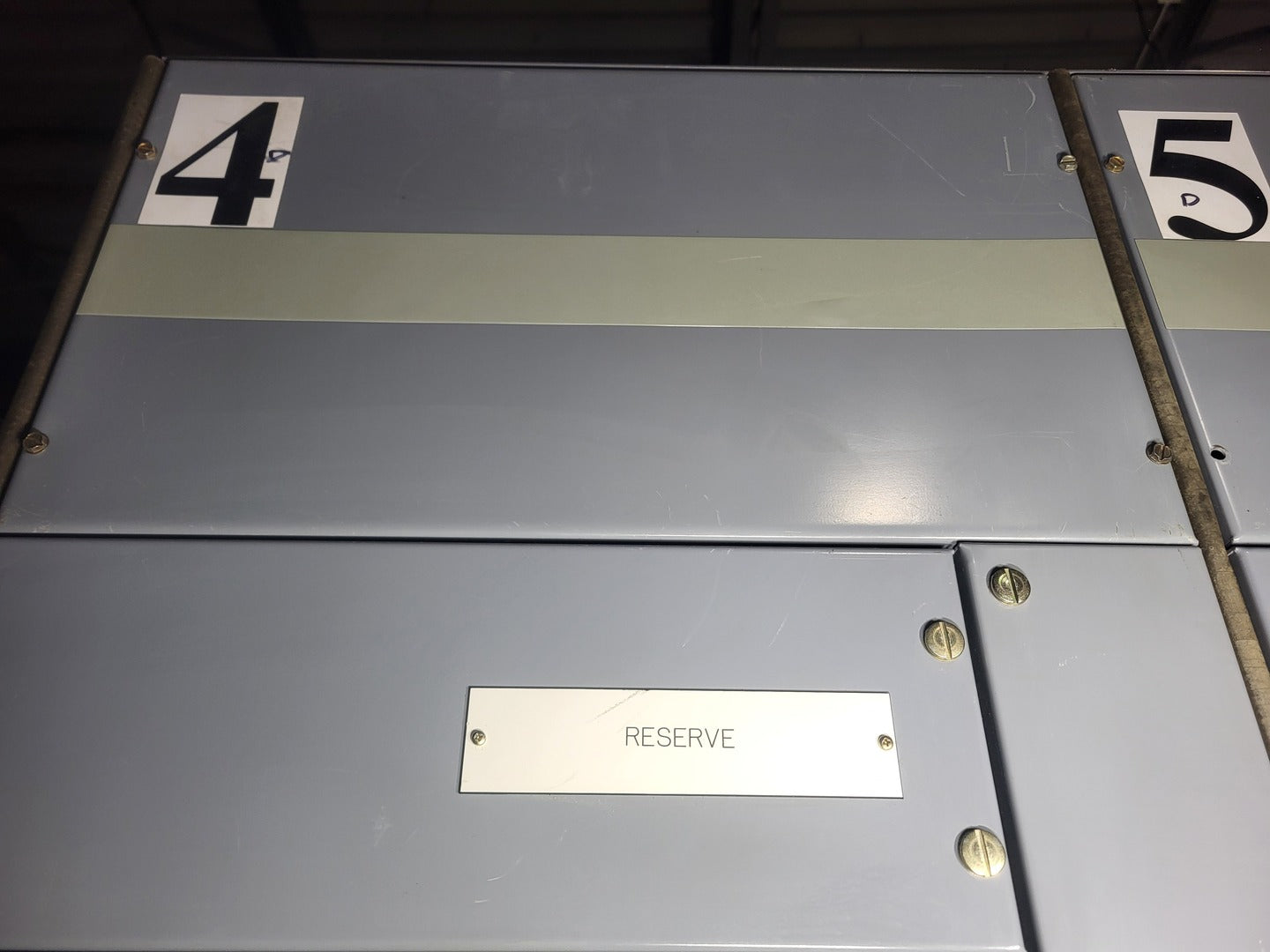

Note: Section 4 only

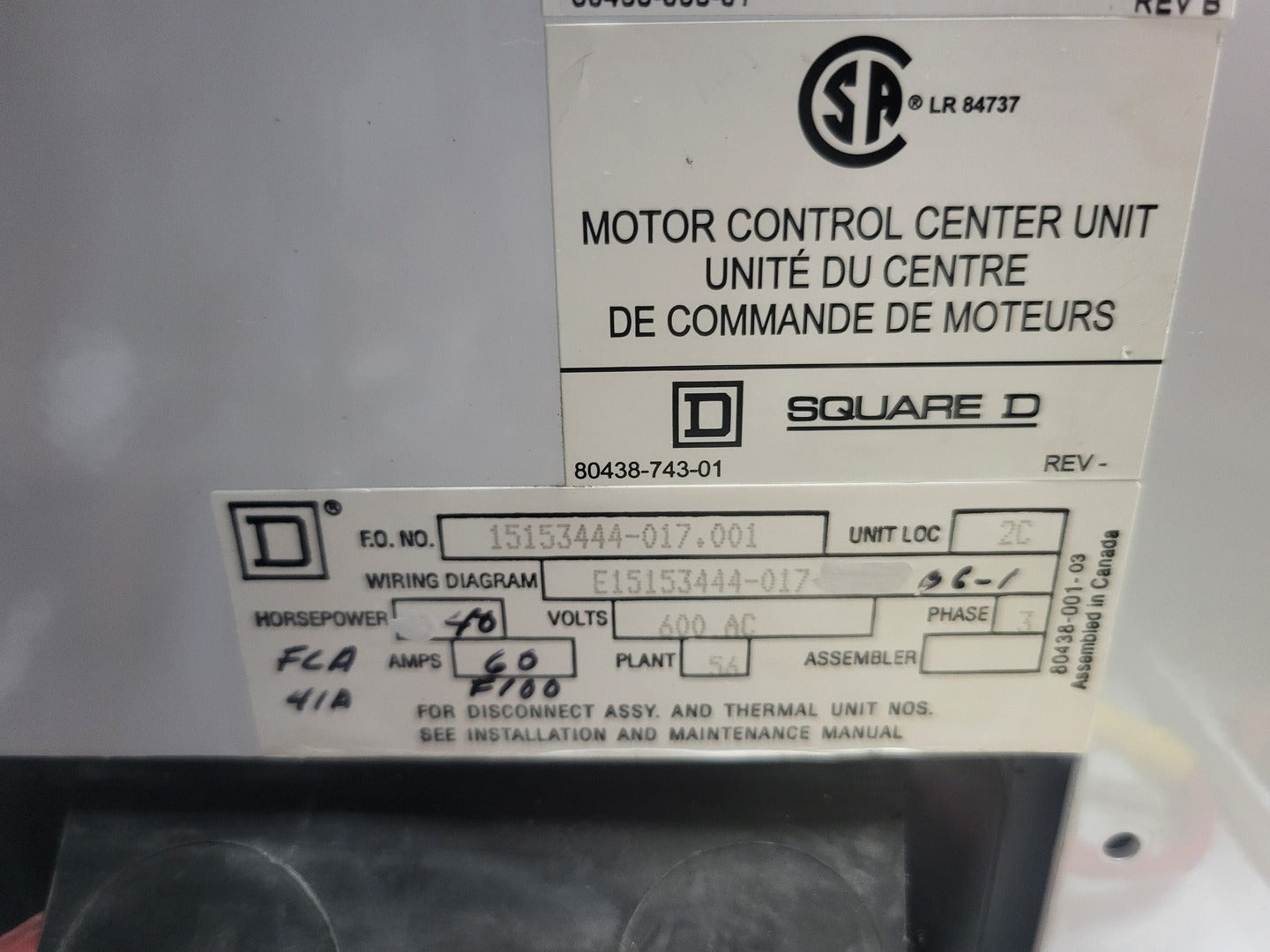

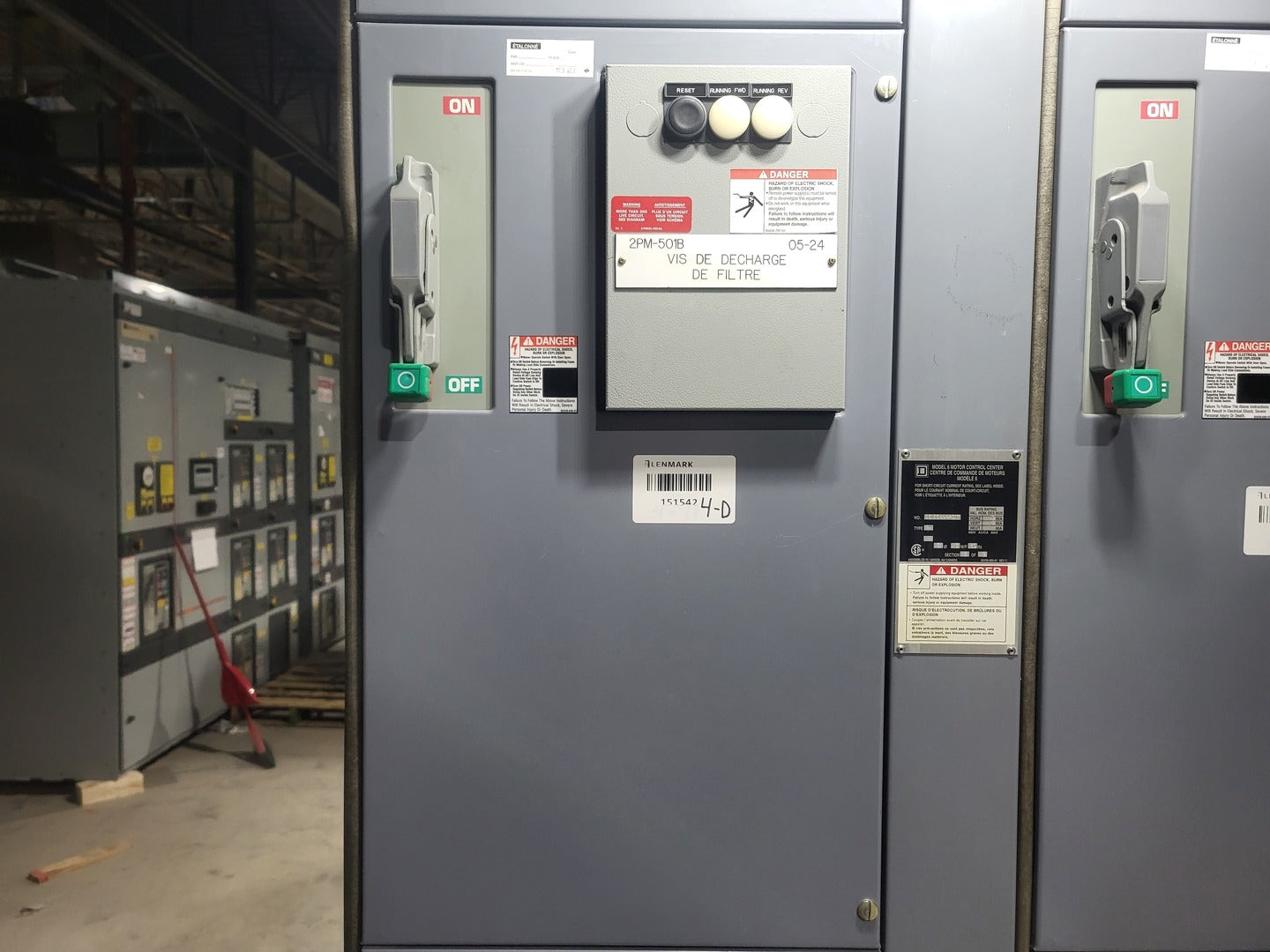

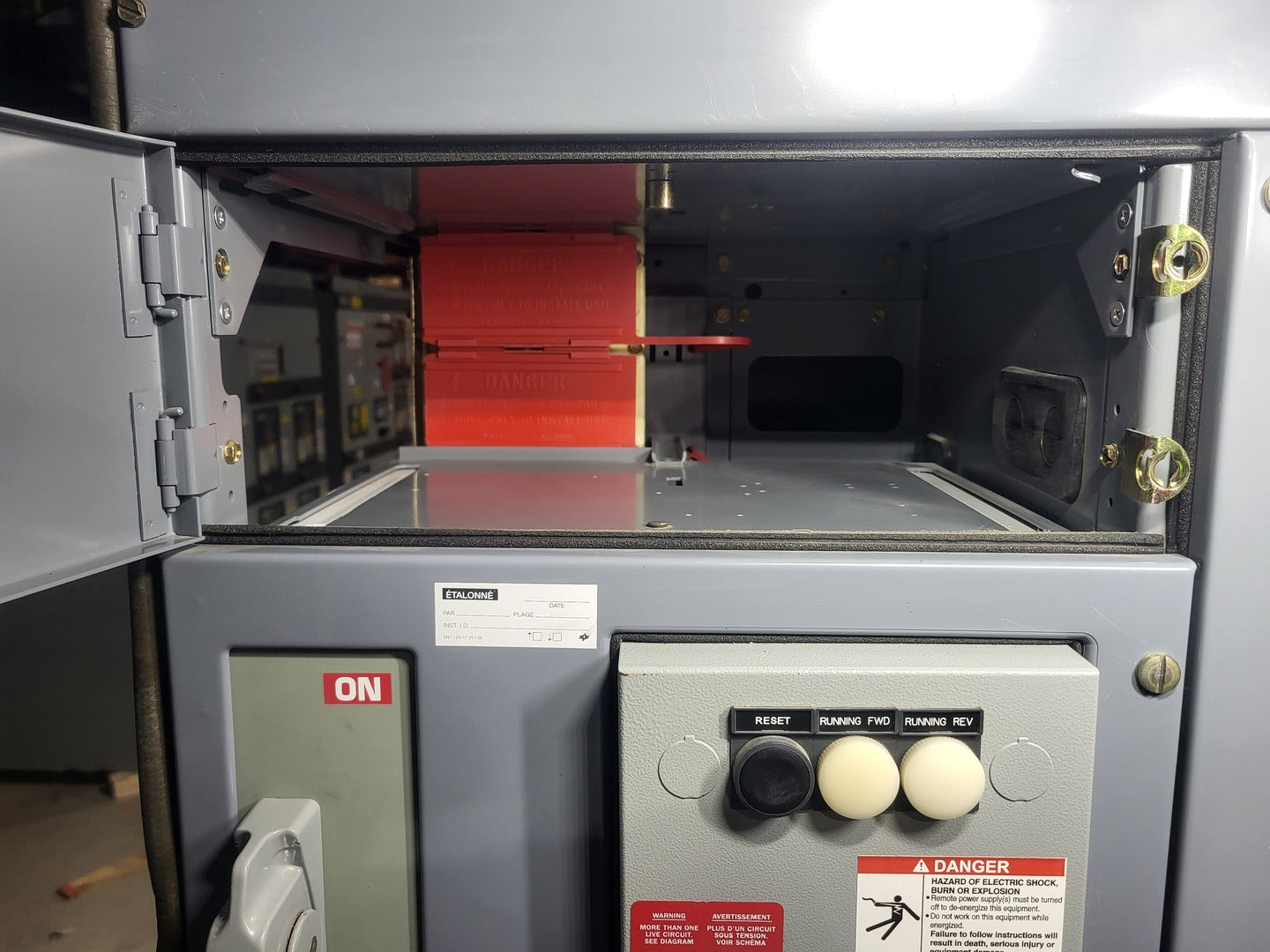

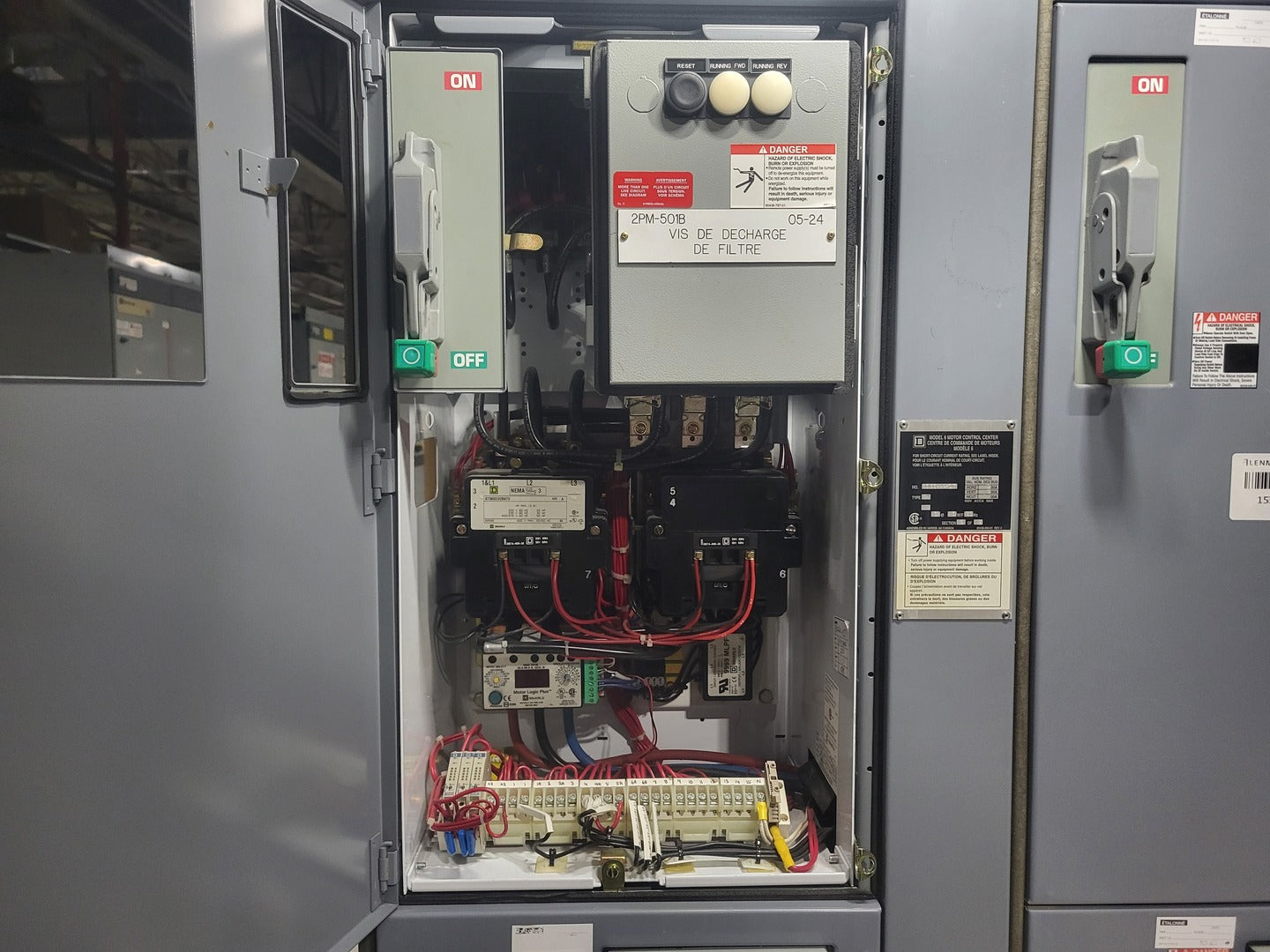

Bucket #1 2PM-501B
-

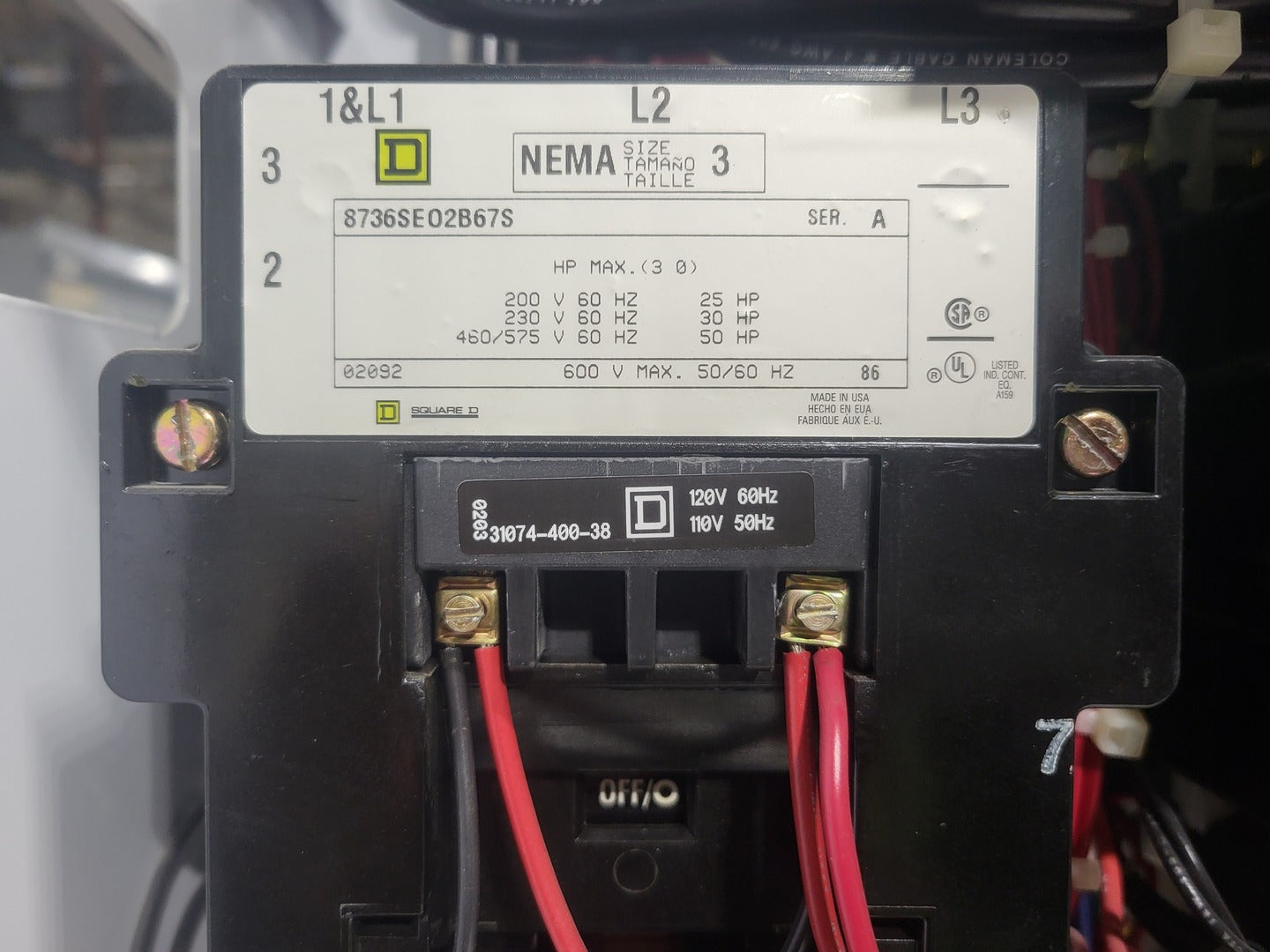

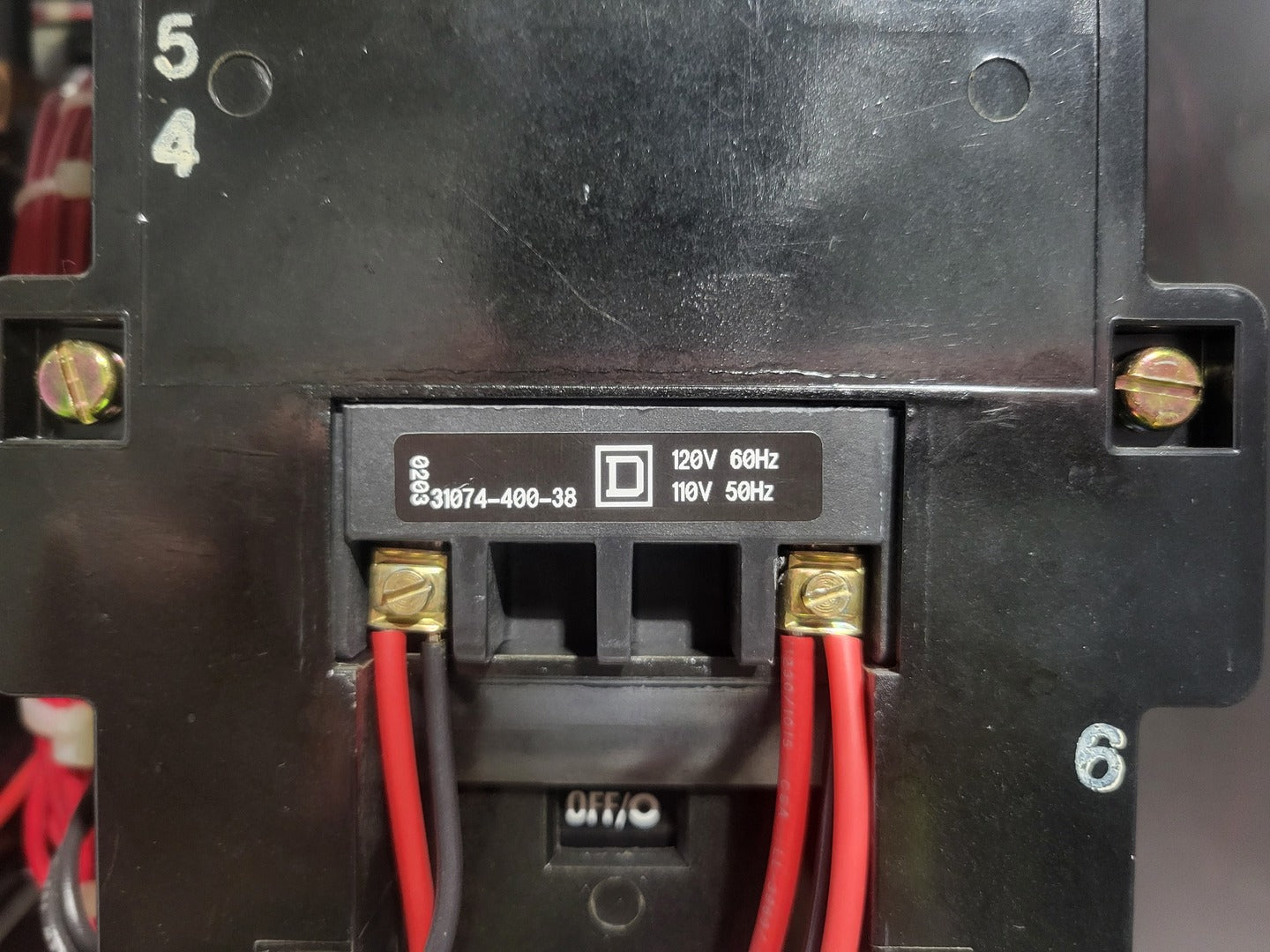

2 x Square D 8736SEO2B67S, NEMA Size 3 reversing contactors/starters, 50 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
-

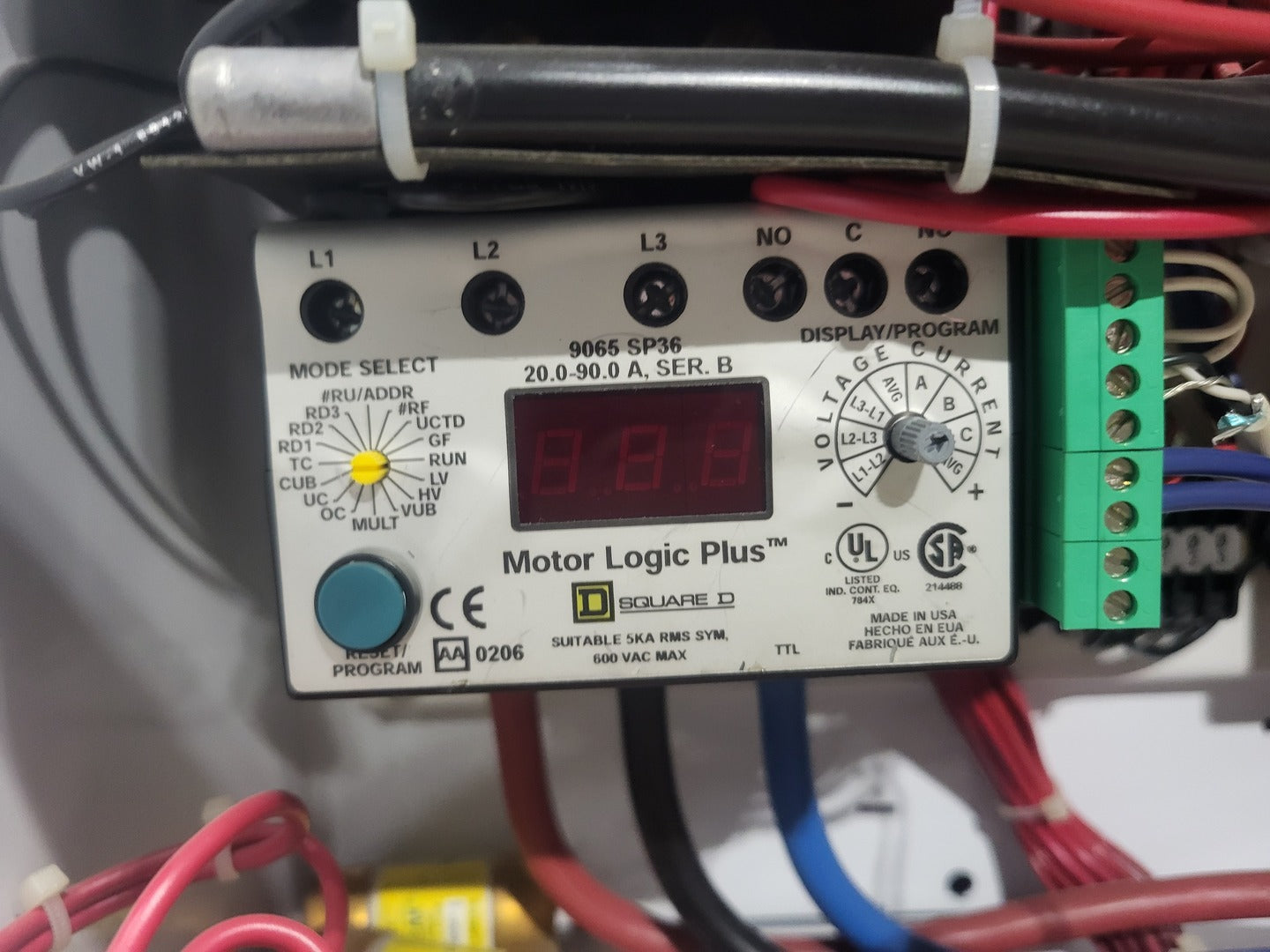

Square D Motor Logic Plus 9065 SP36, motor protection relay, 20.0-90.0A range, 600VAC max
-

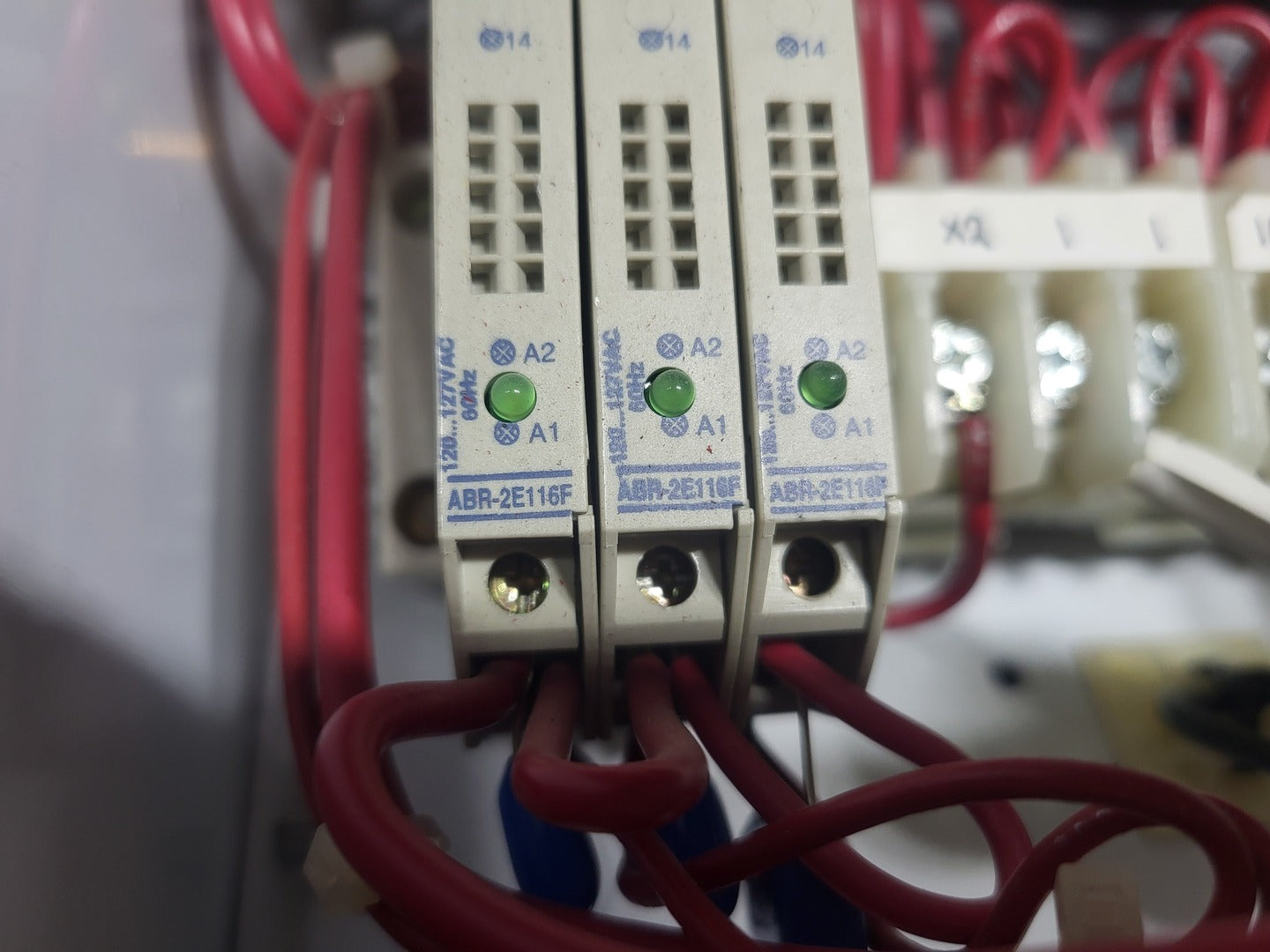

3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
-

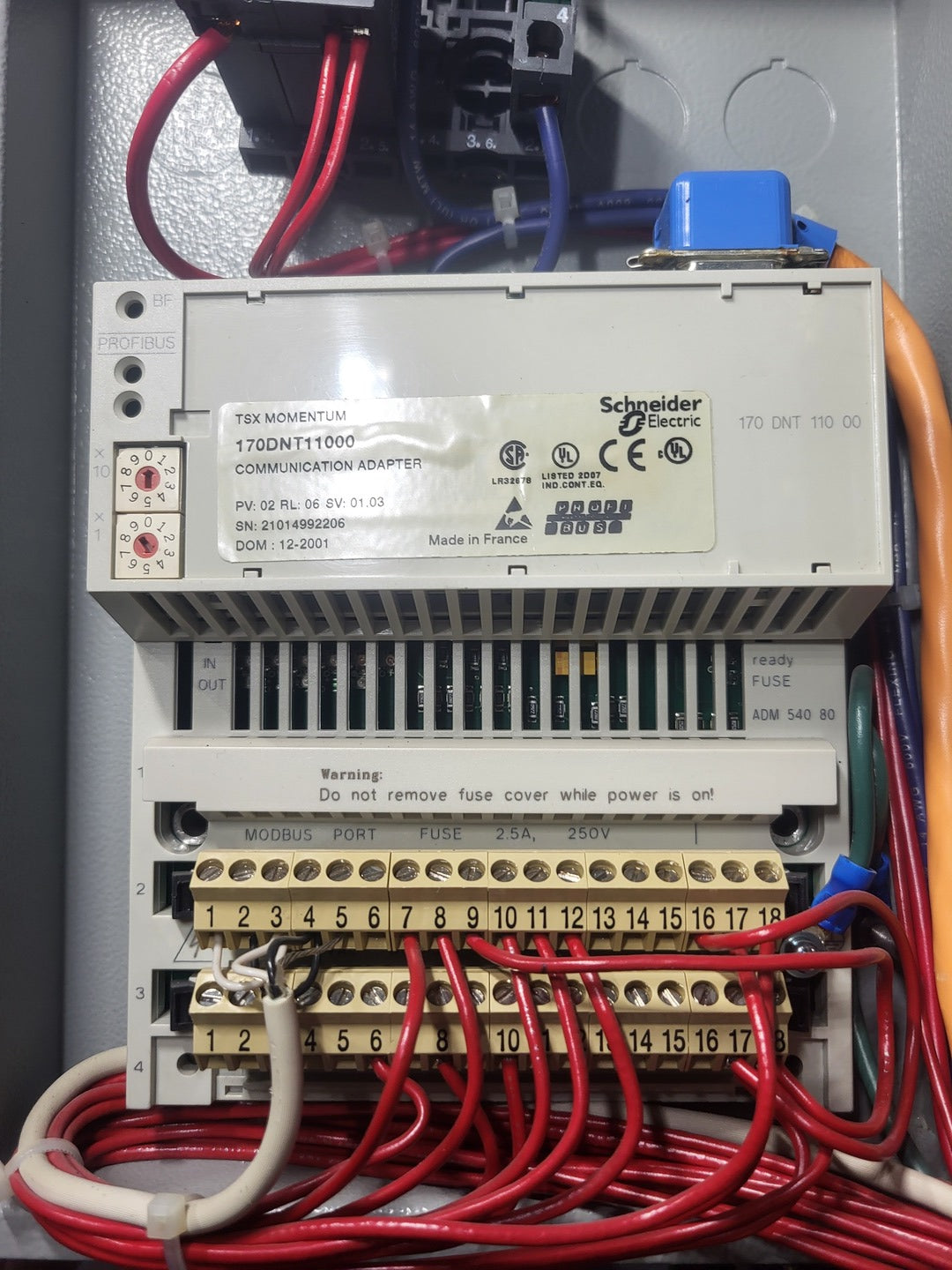

Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
-

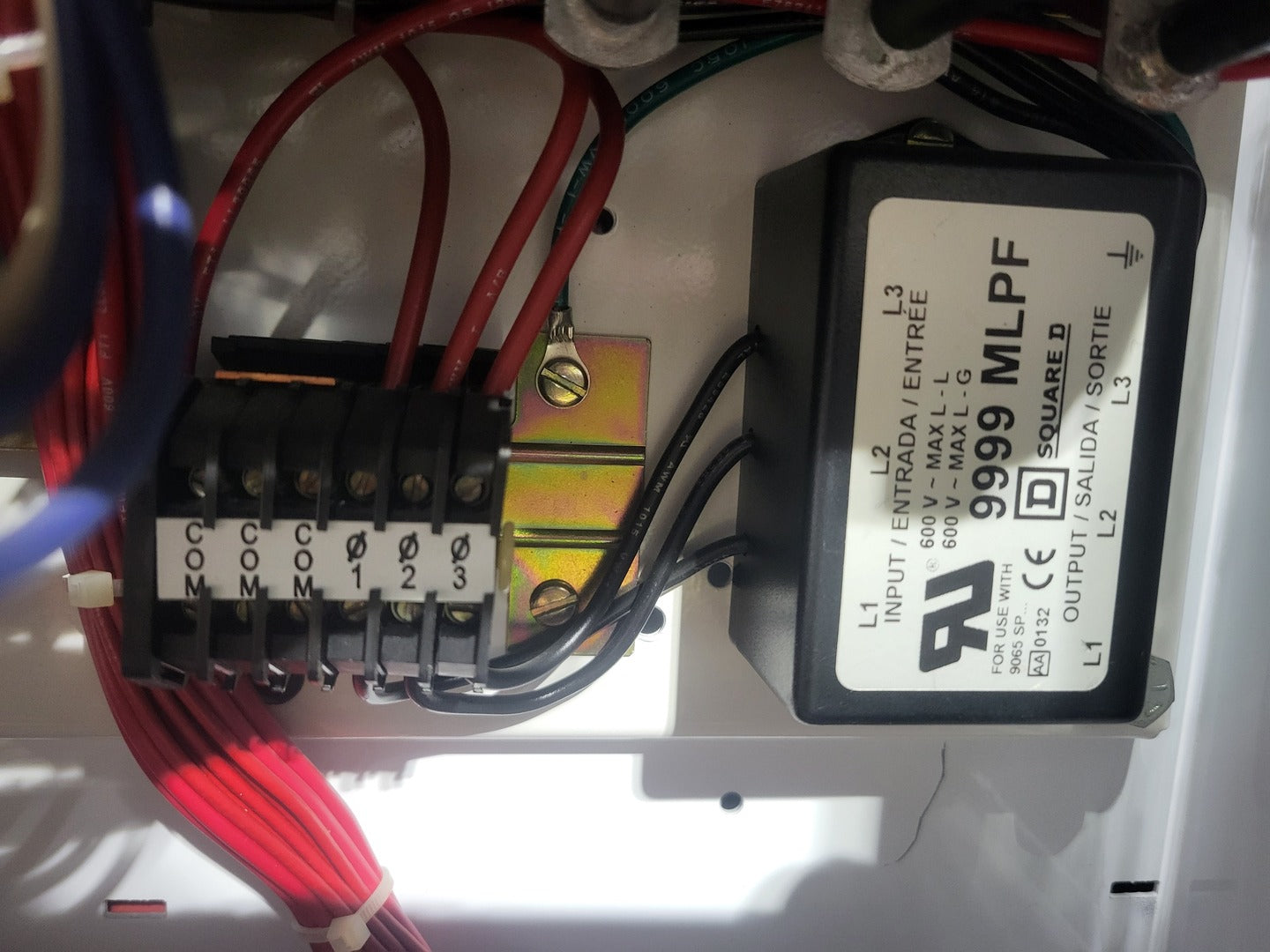

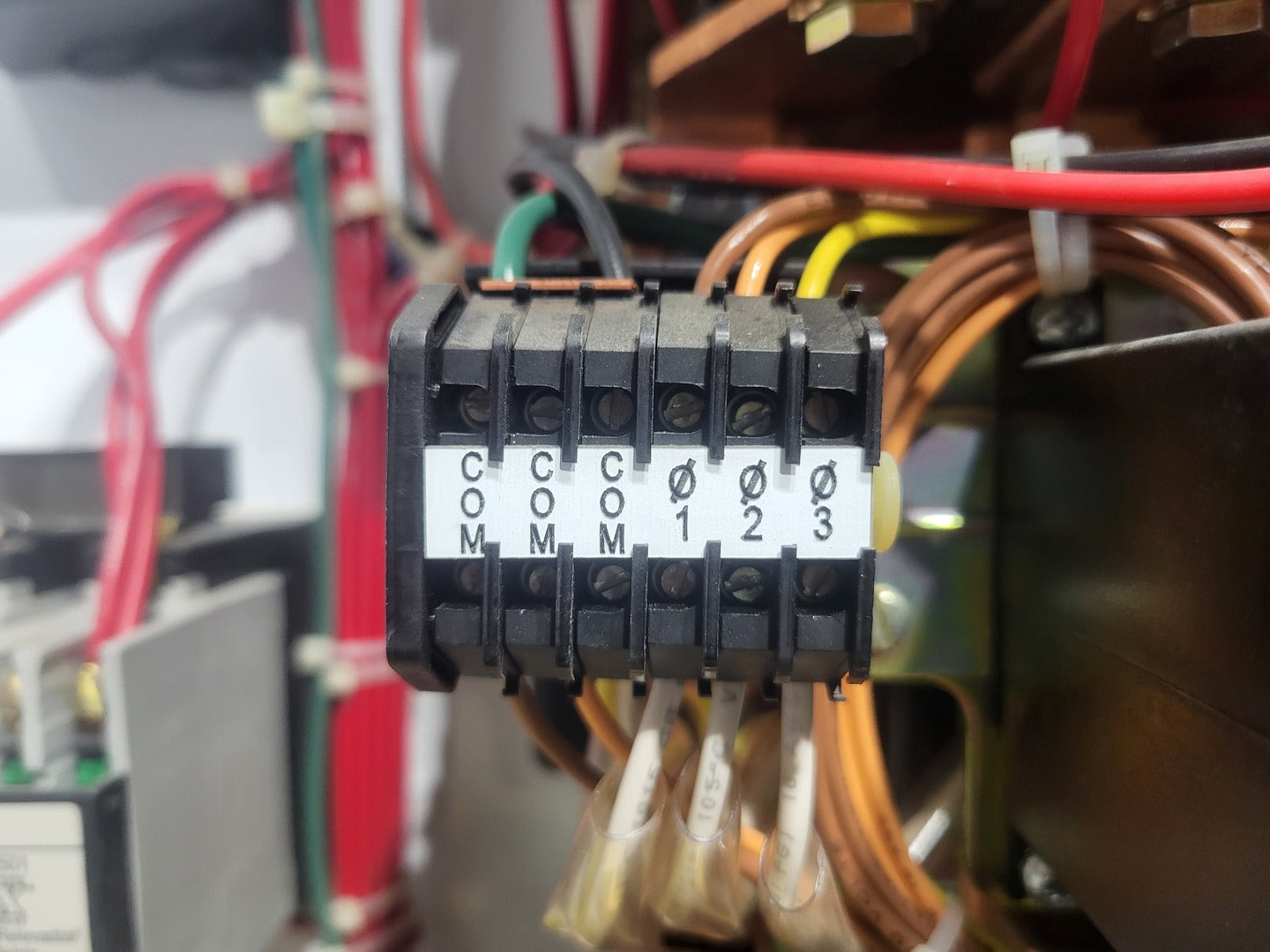

Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max
-

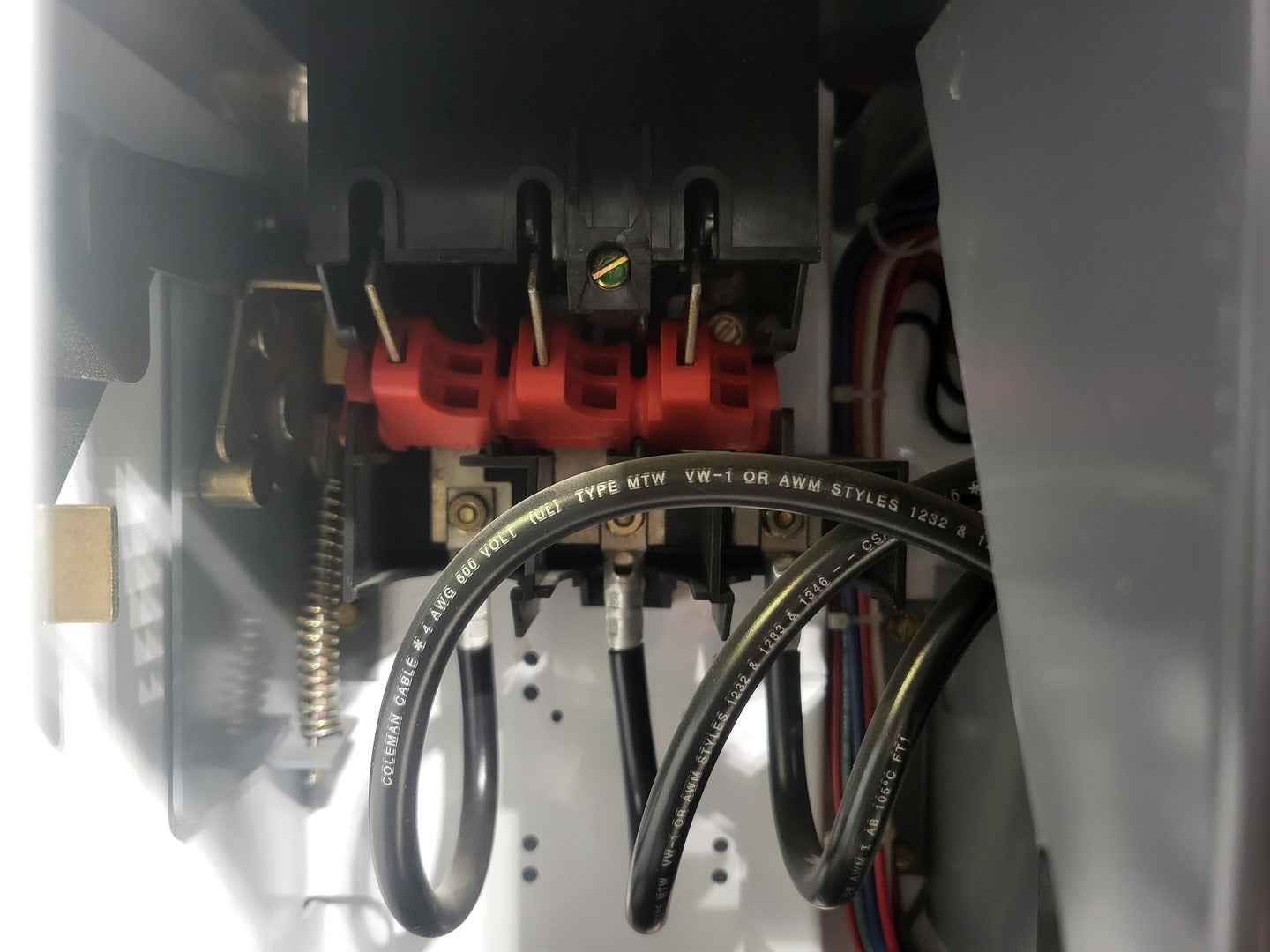

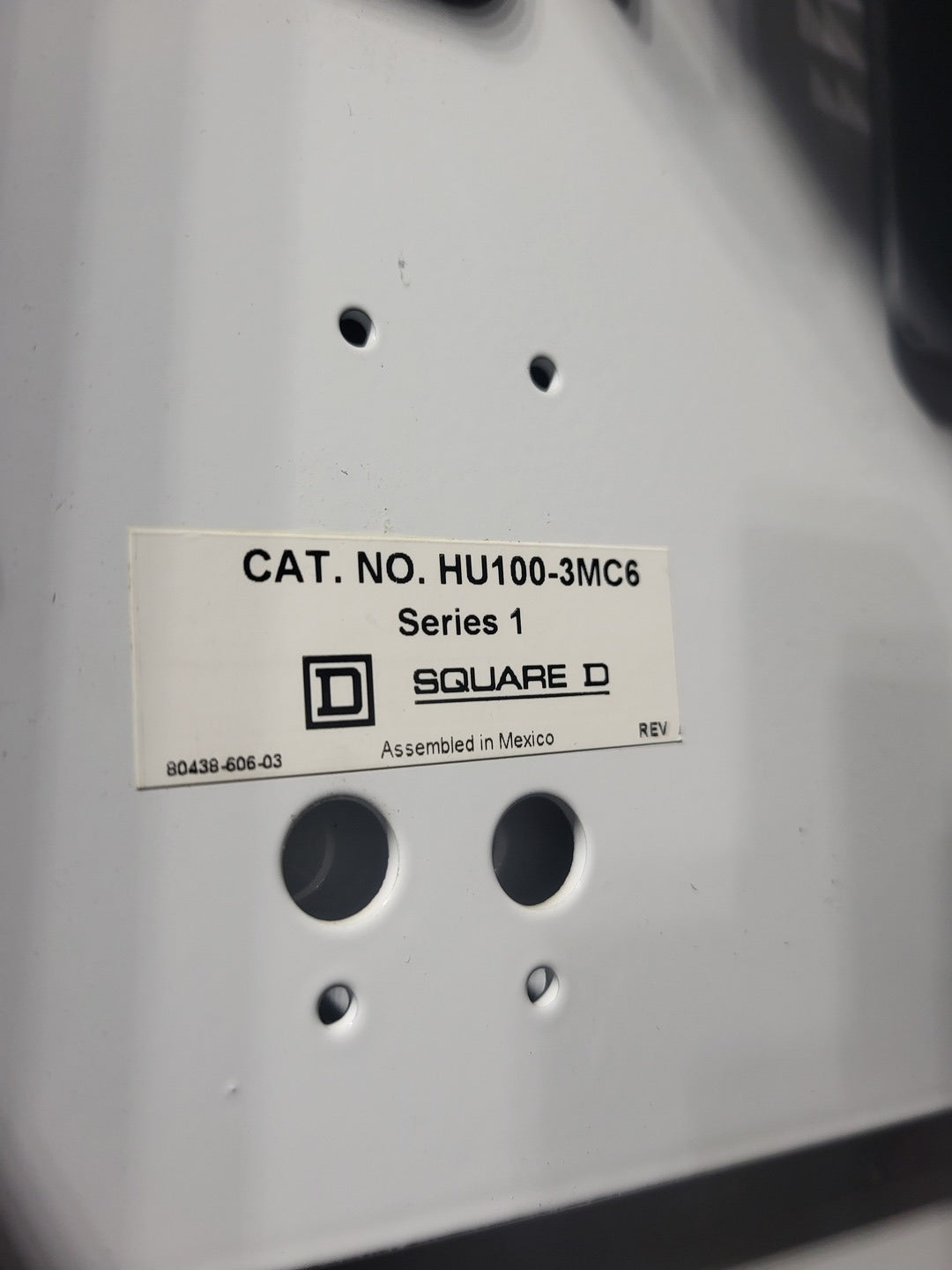

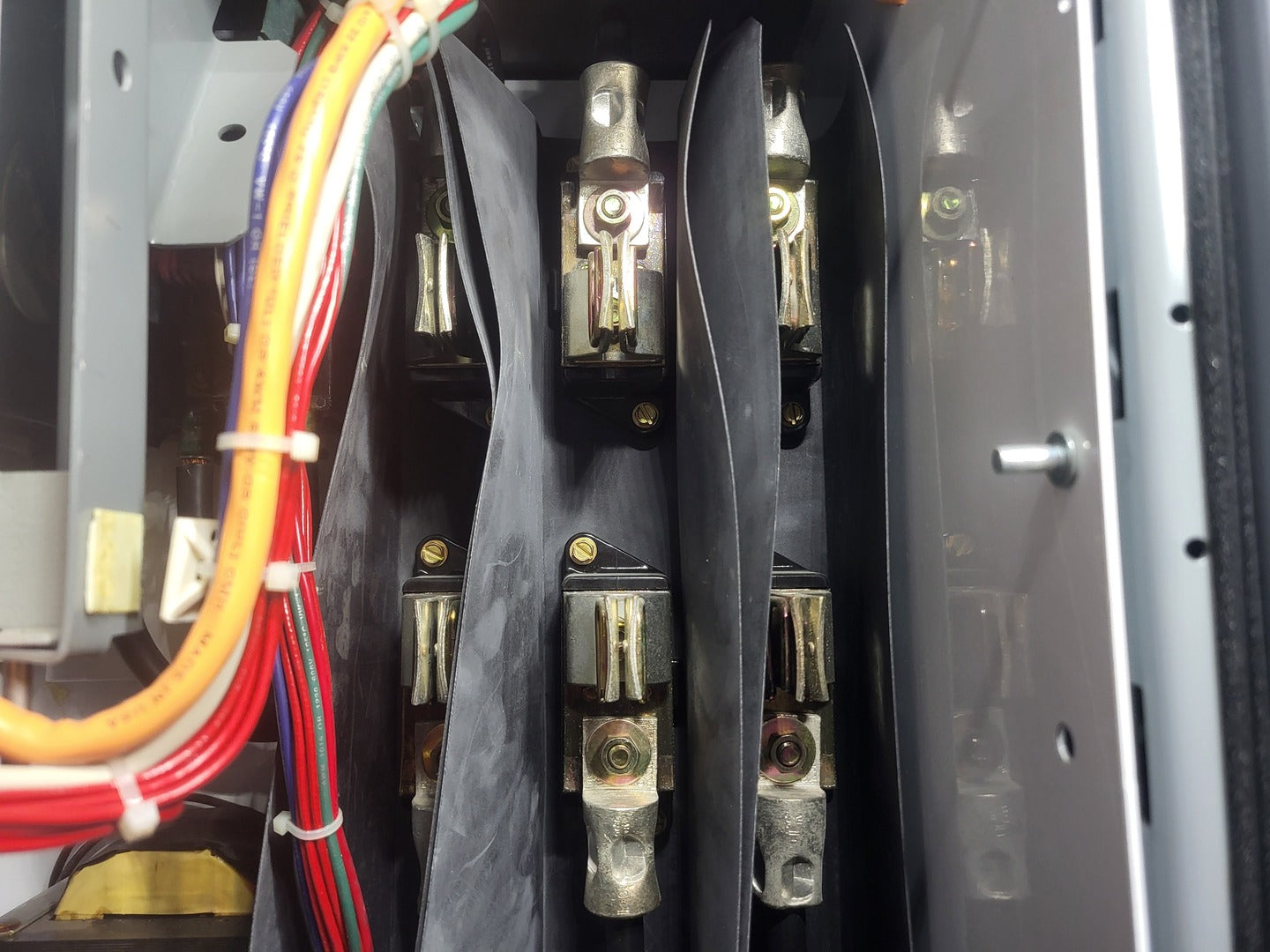

Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
-

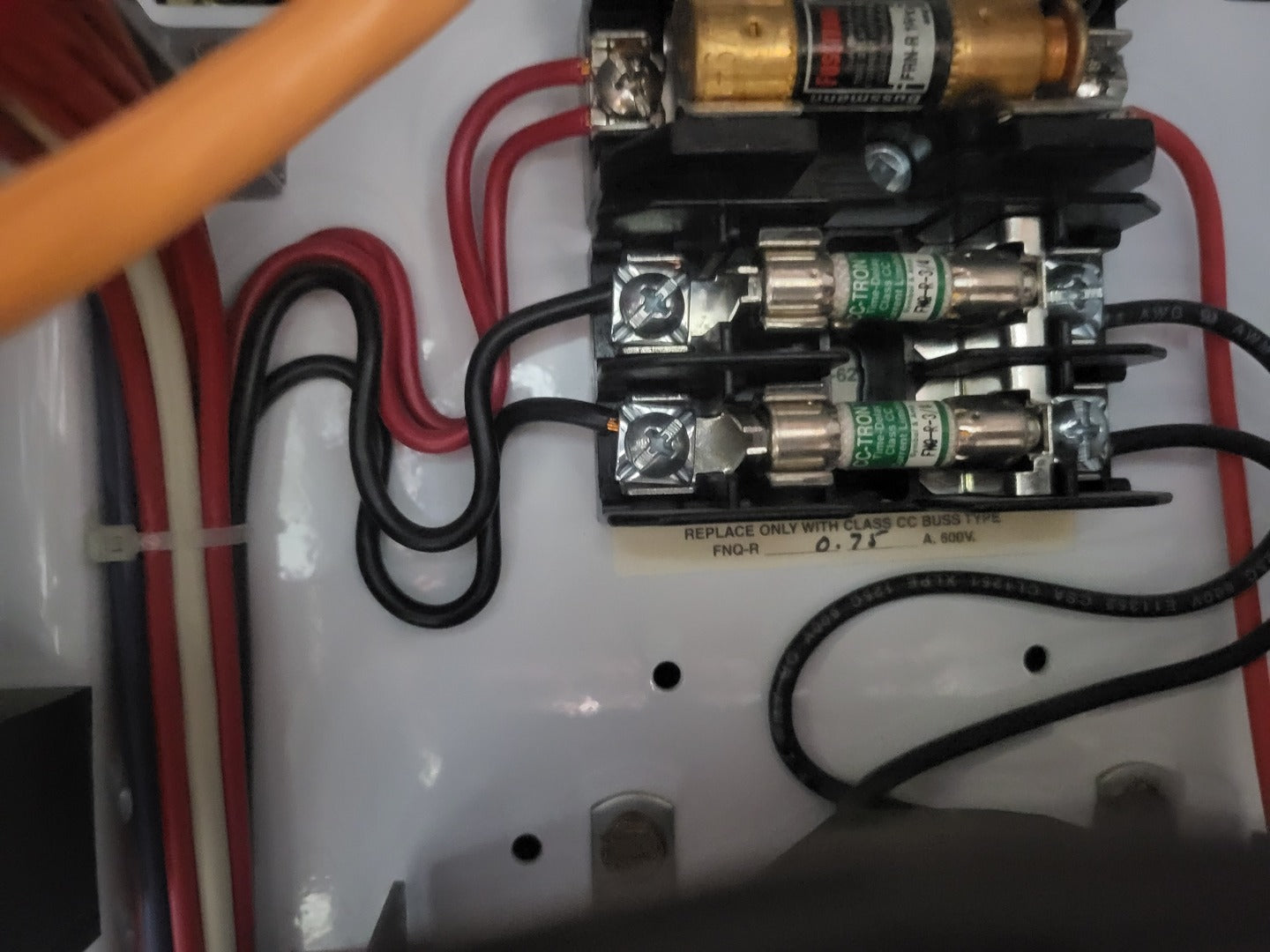

1 x Bussmann Fusetron fuses
-
2 x Bussmann CC-Tron fuses FNQ-R-3/4

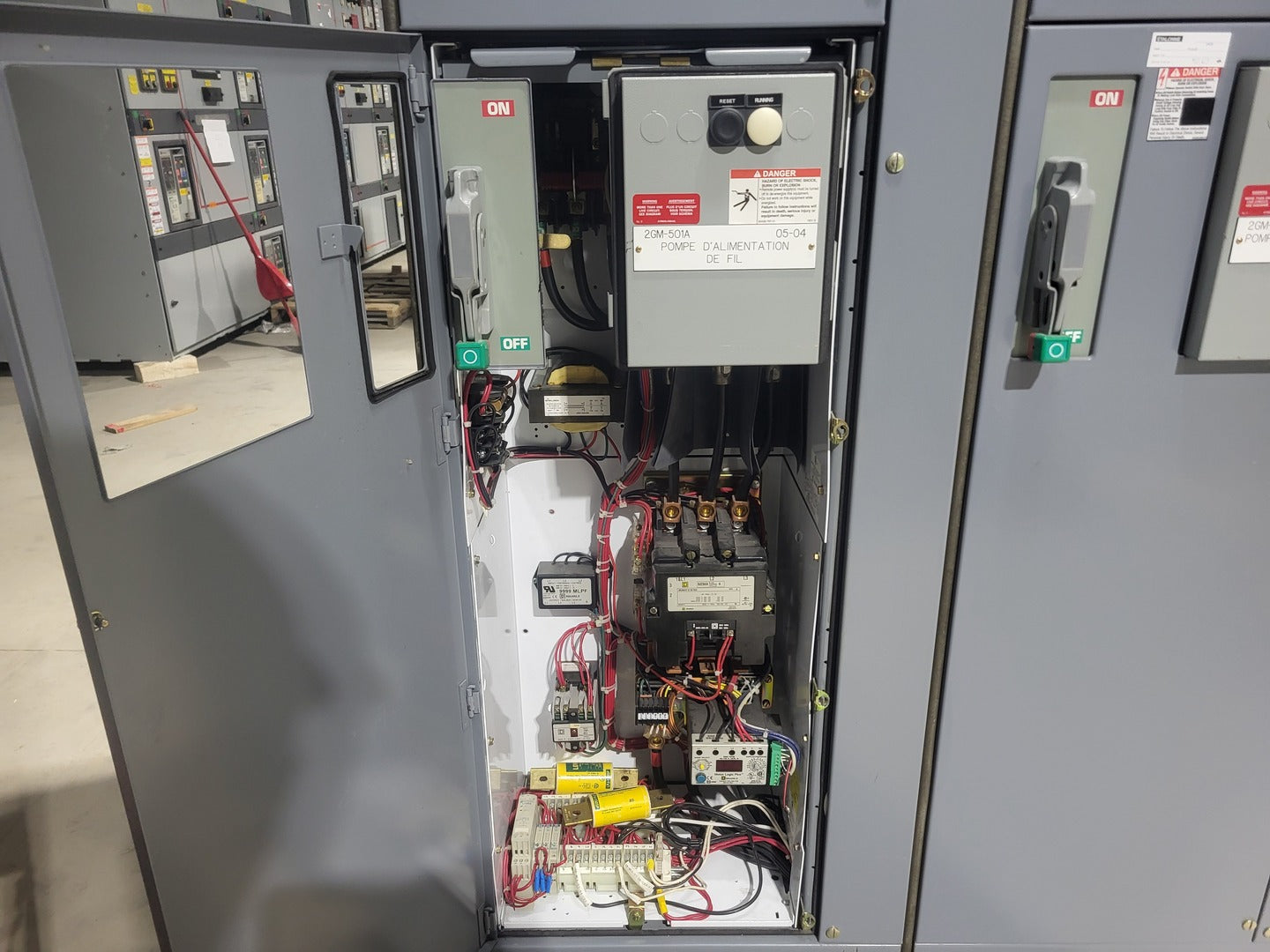

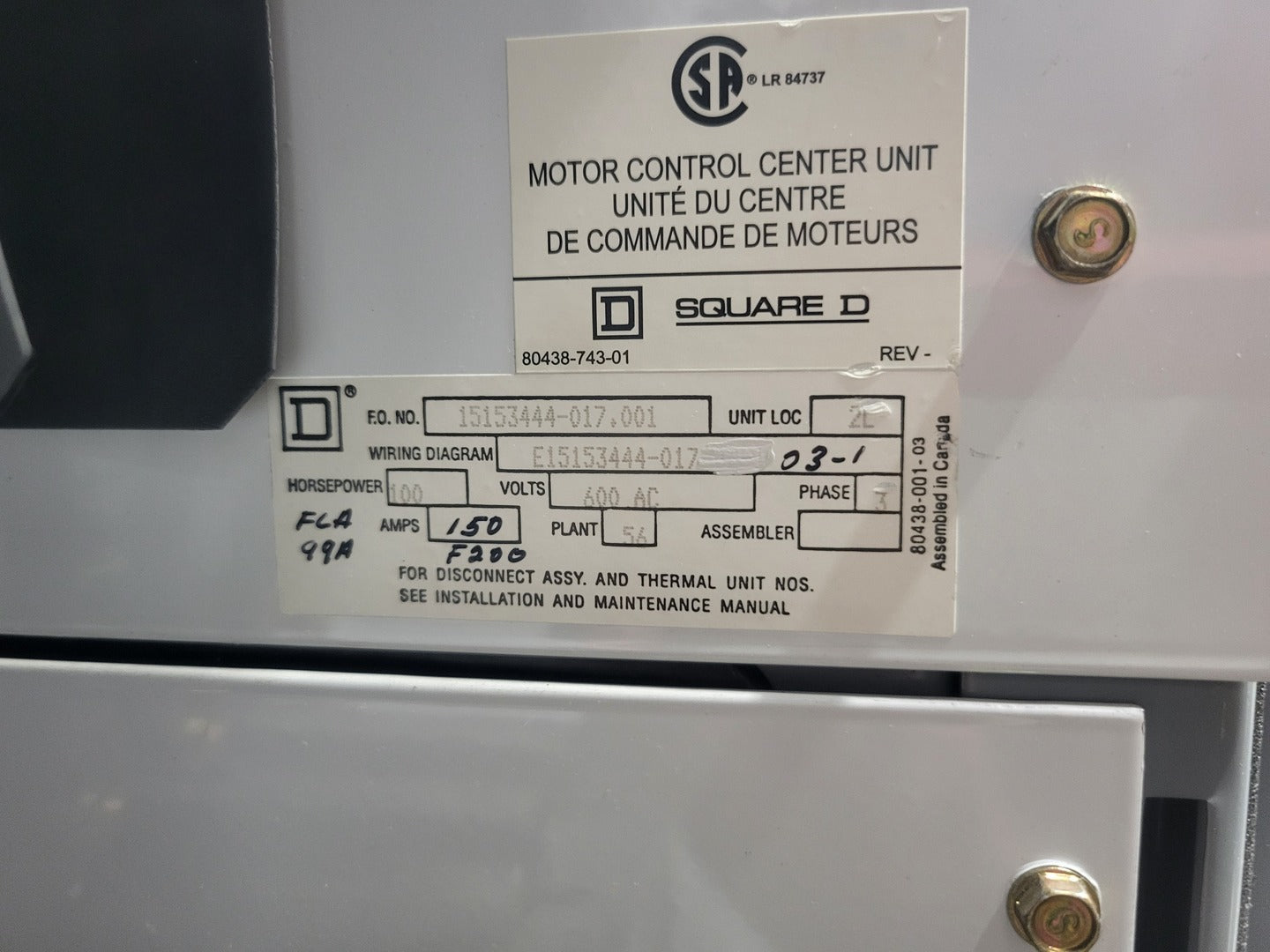

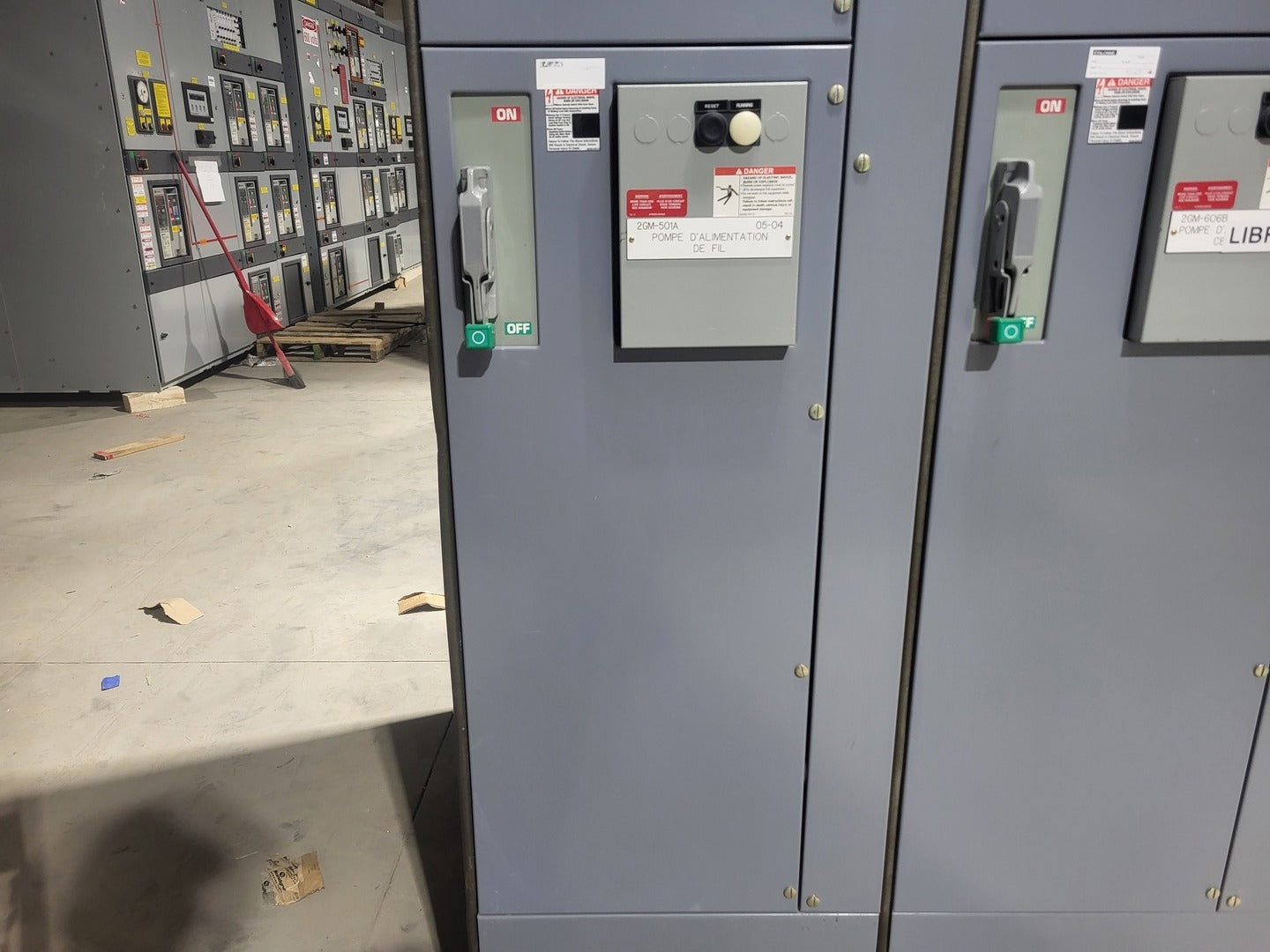

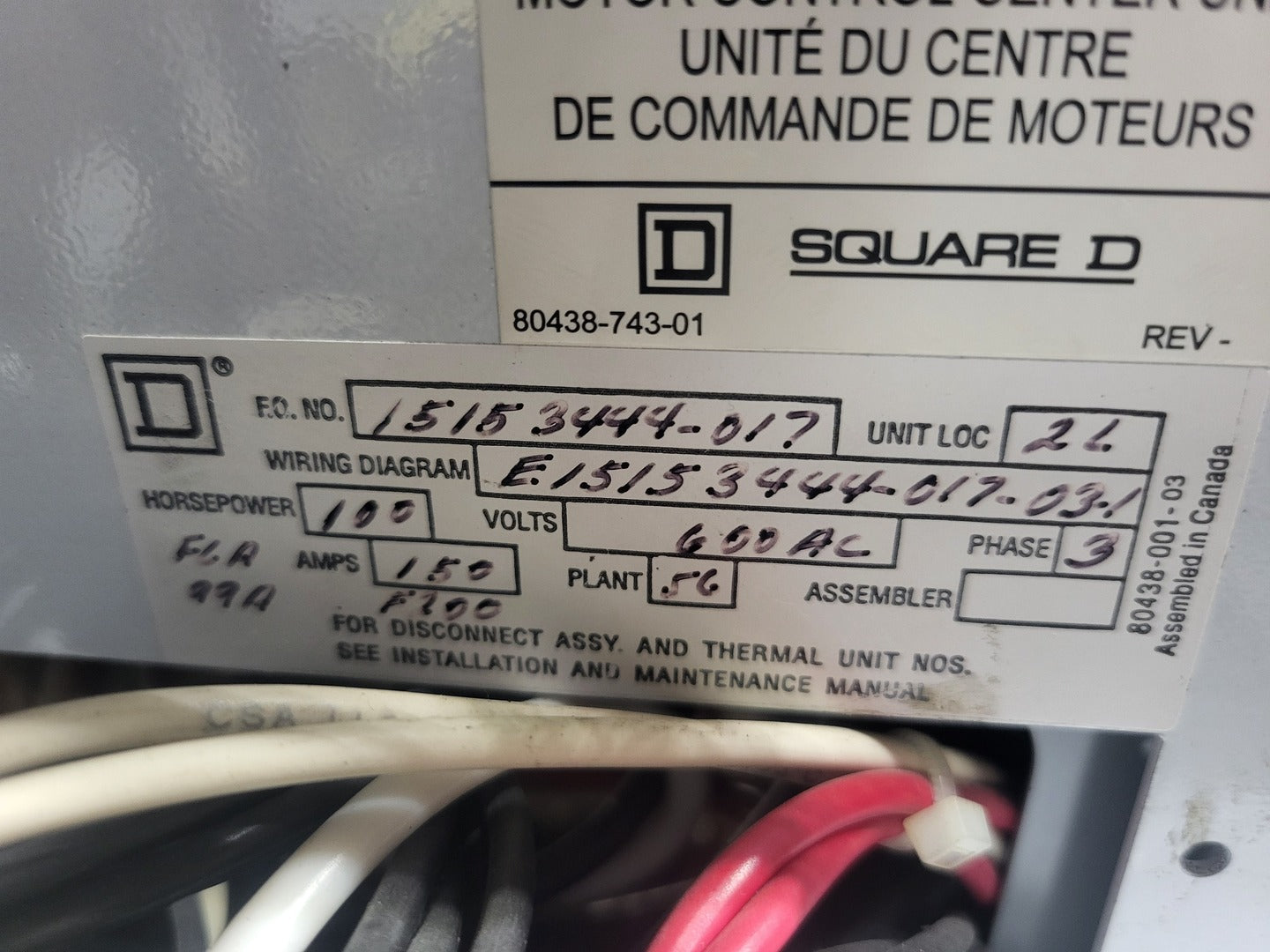

Bucket #2 2GM-501A
-

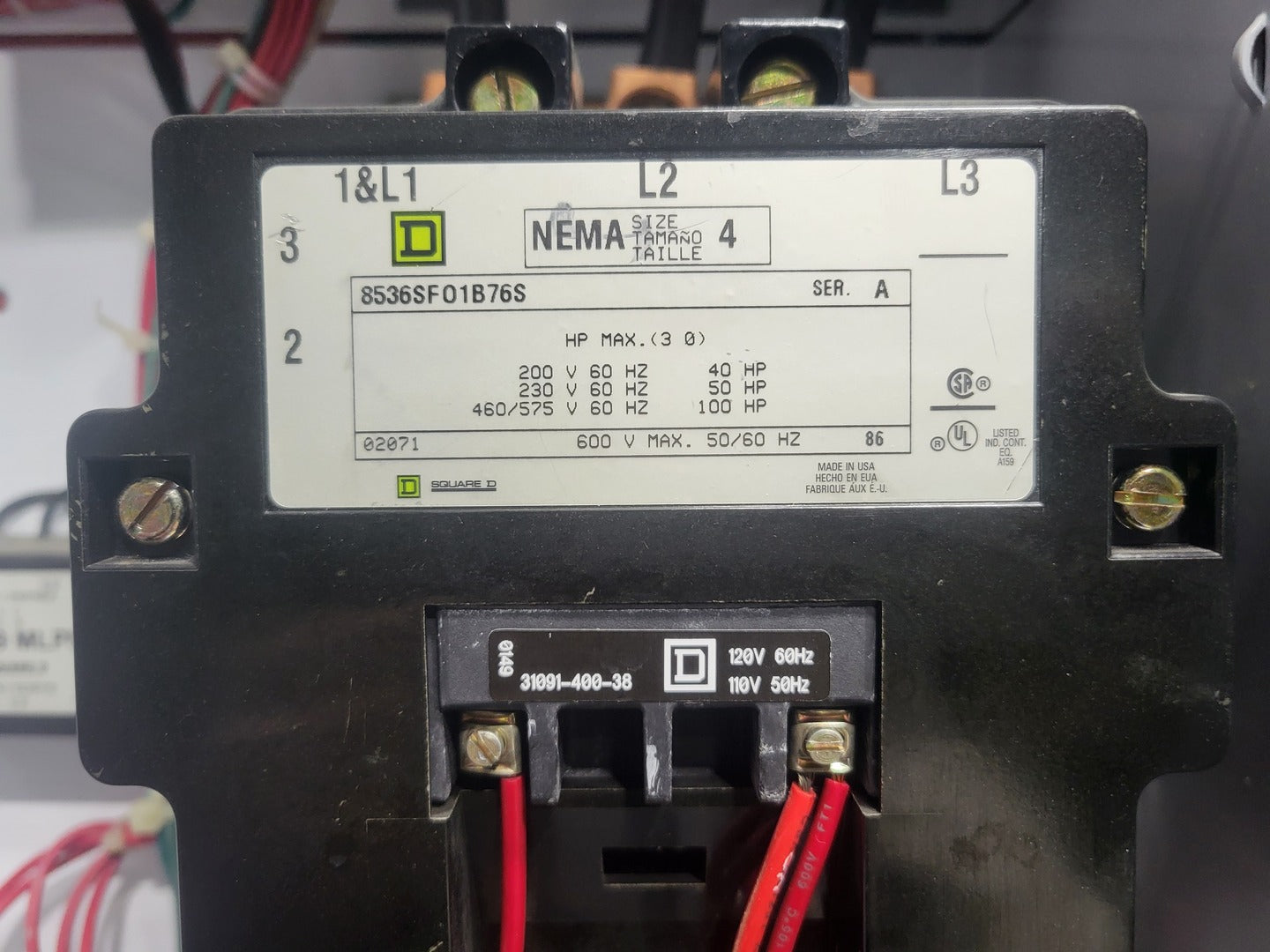

Square D 8536SFO1B76S, NEMA Size 4 contactor, 100 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
-

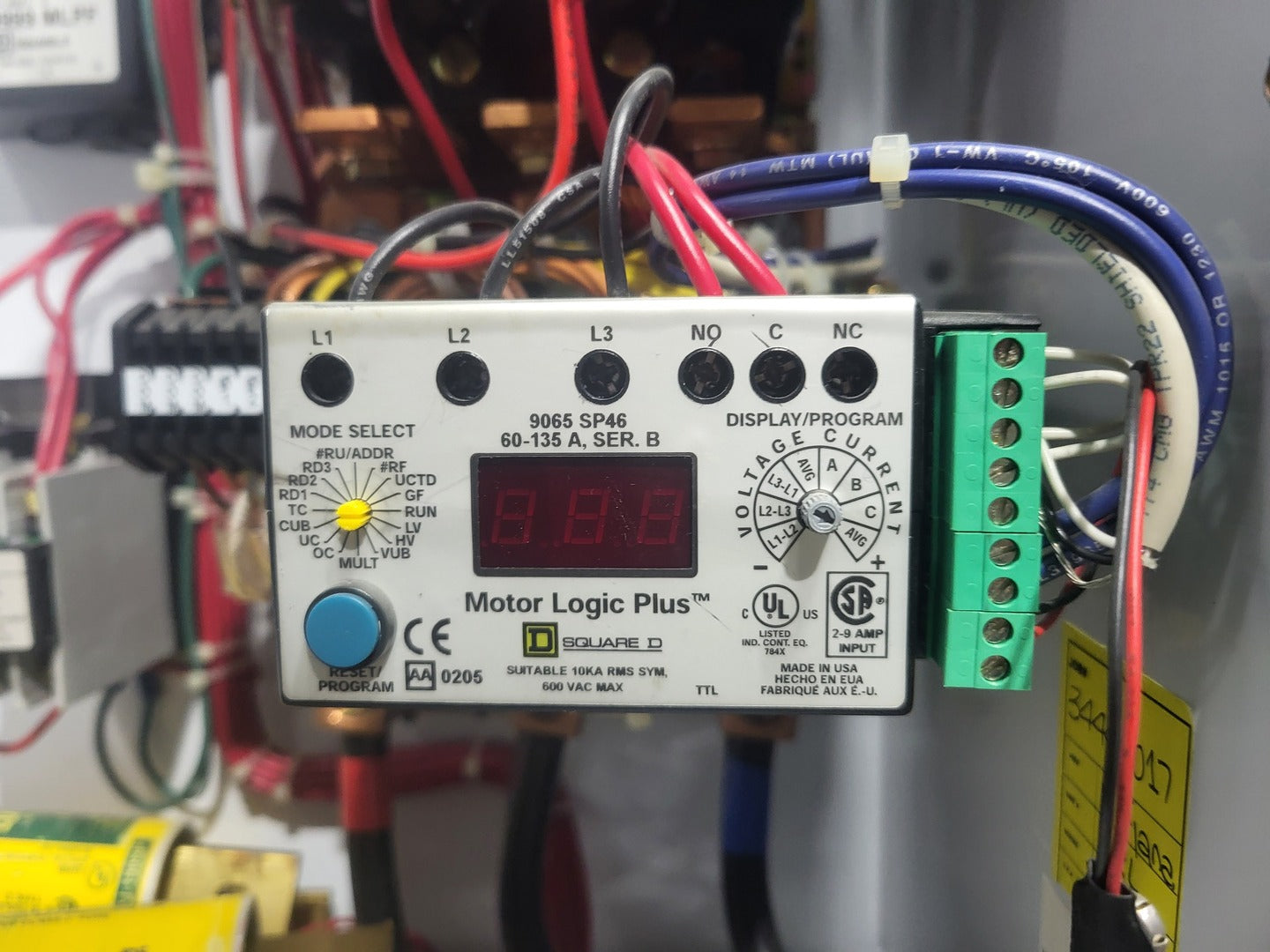

Square D Motor Logic Plus 9065 SP46, motor protection relay, 60-135A range, 600VAC max
-

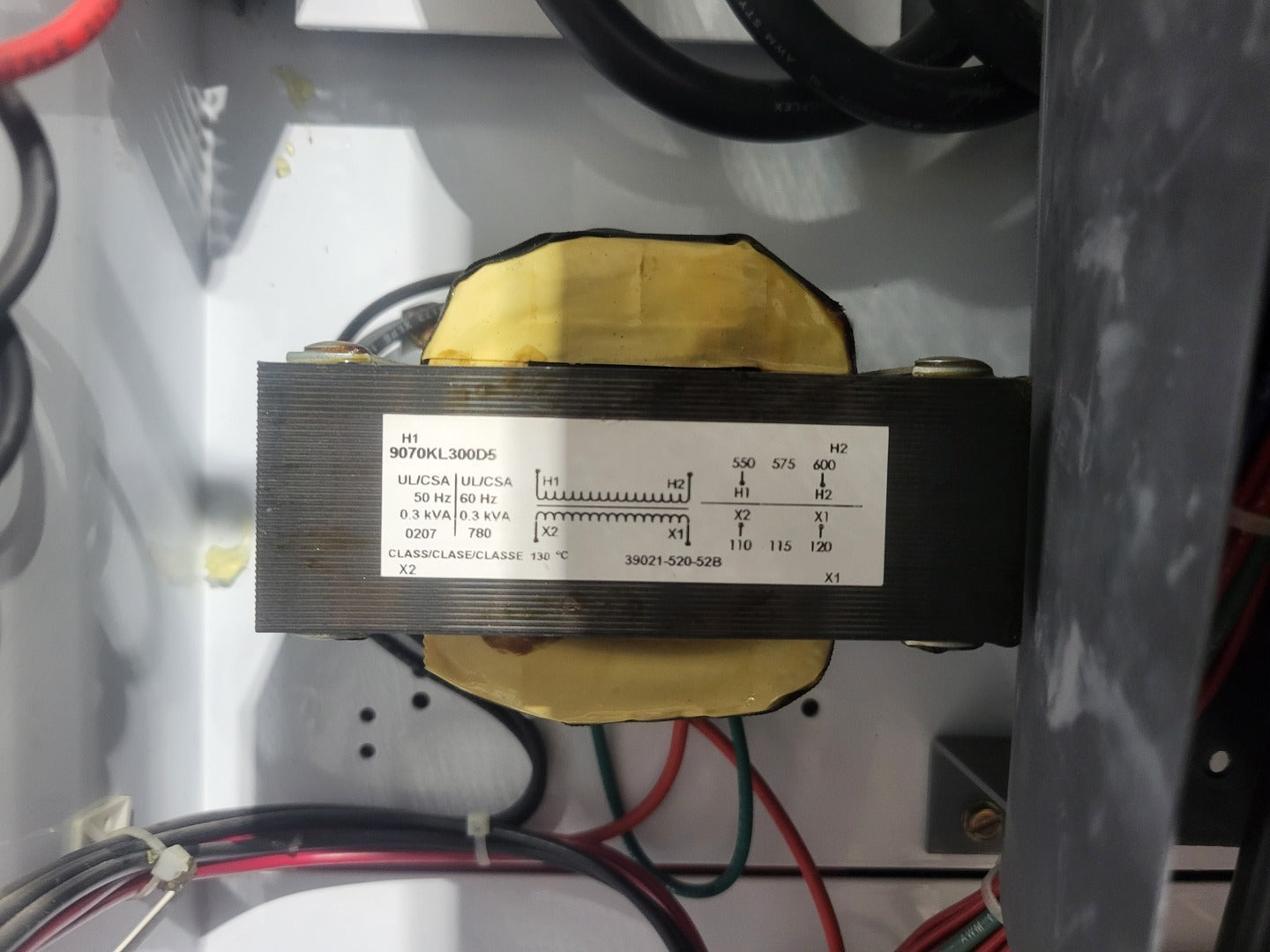

Square D 9070KL300D5, control transformer, 0.3 kVA, 550/575/600V primary, 110-120V secondary
-

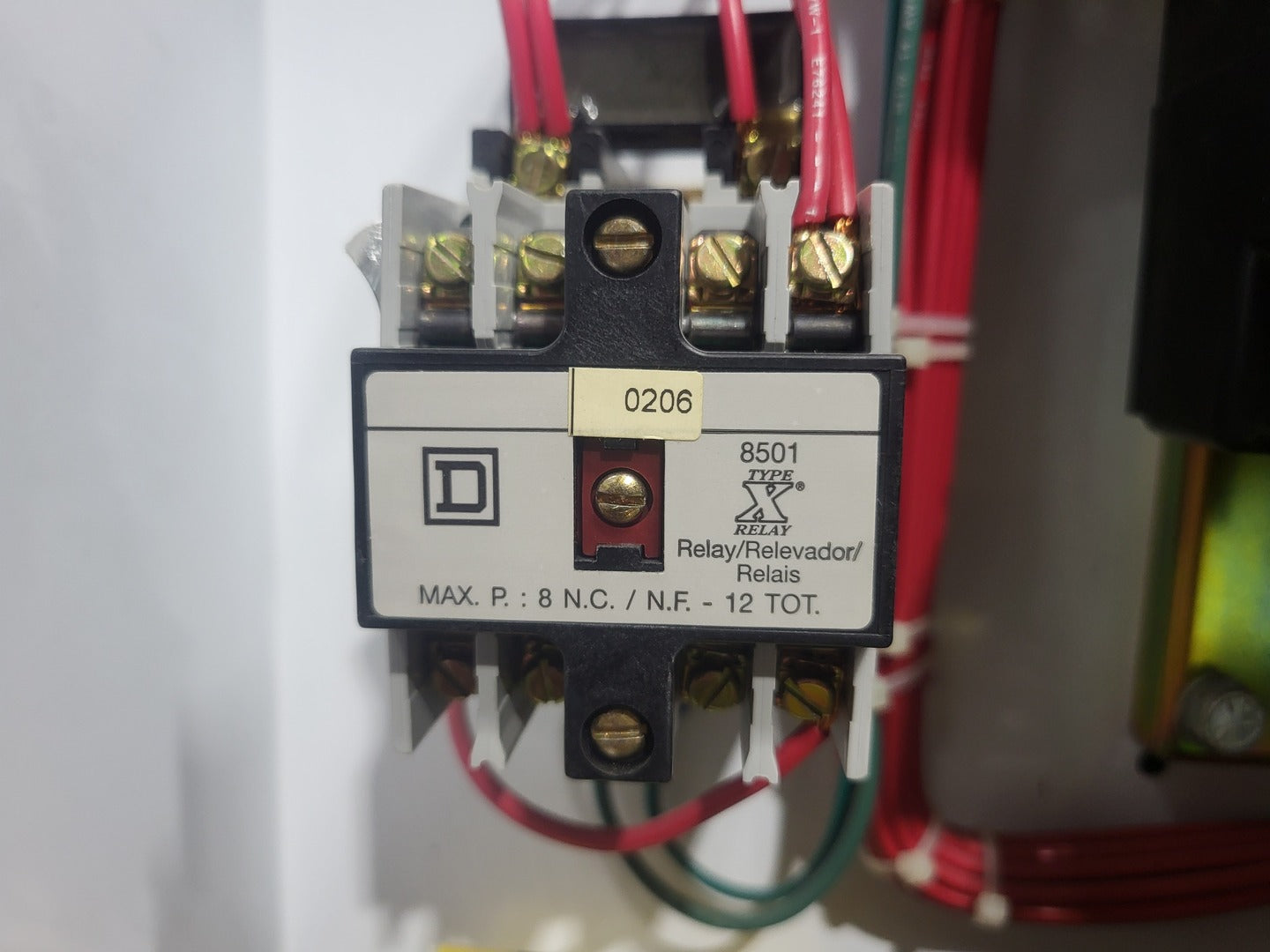

Square D 8501 Type X relay, 8 N.C. max / 12 total contacts
-

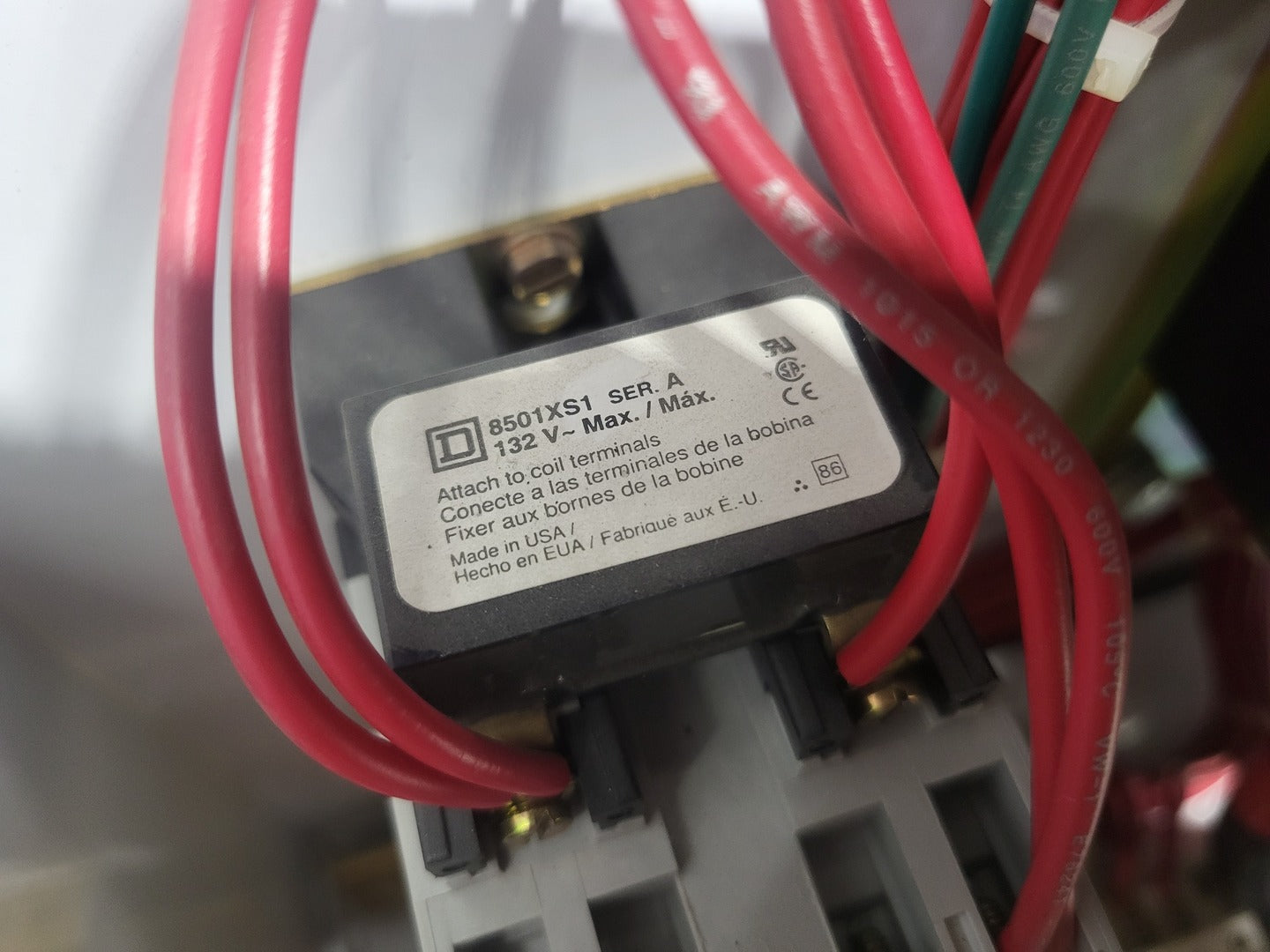

Square D 8501XS1, relay coil module, 132V max
-

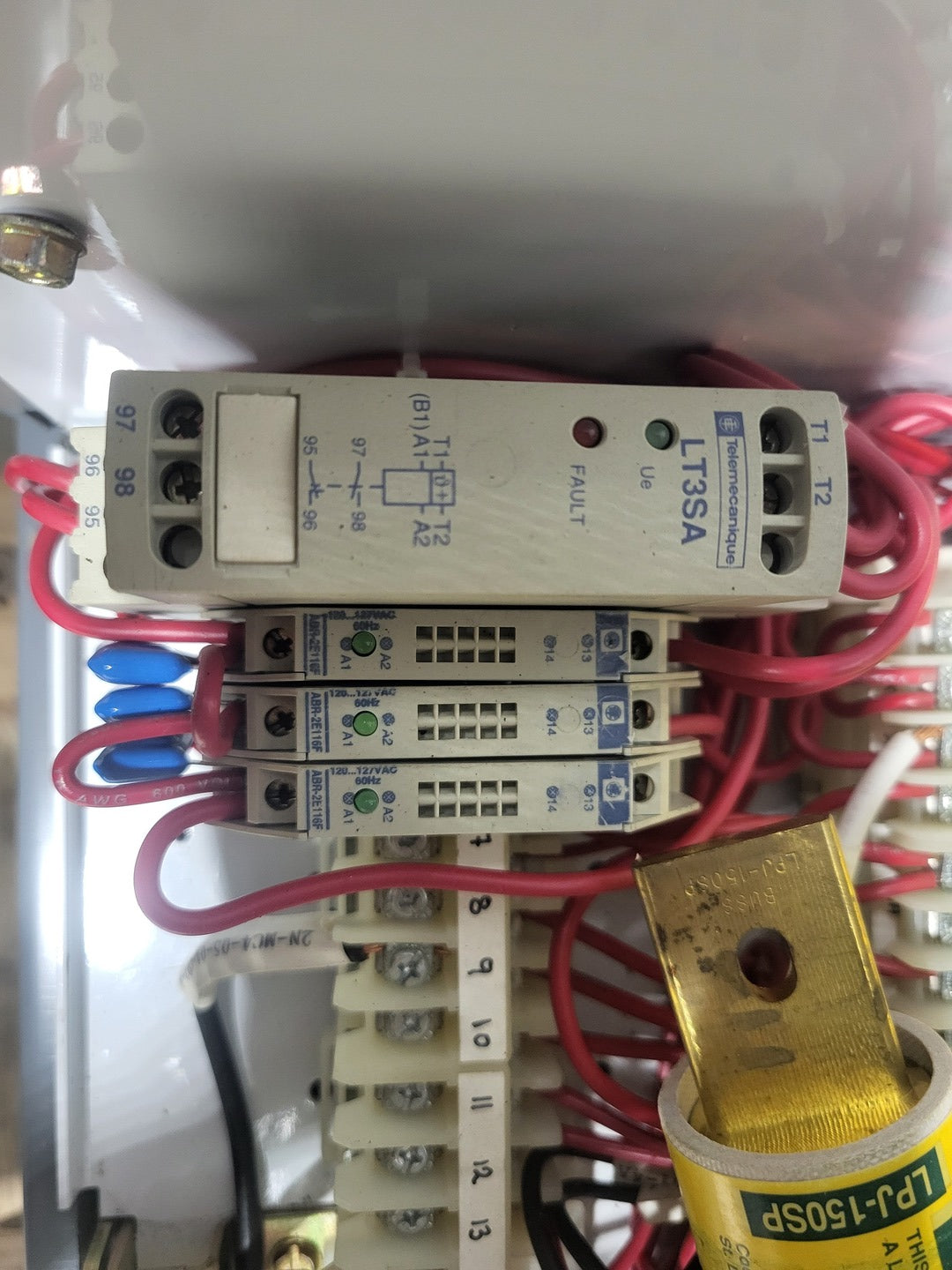

Telemecanique LT3SA motor/thermistor protection relay module
-
3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
-

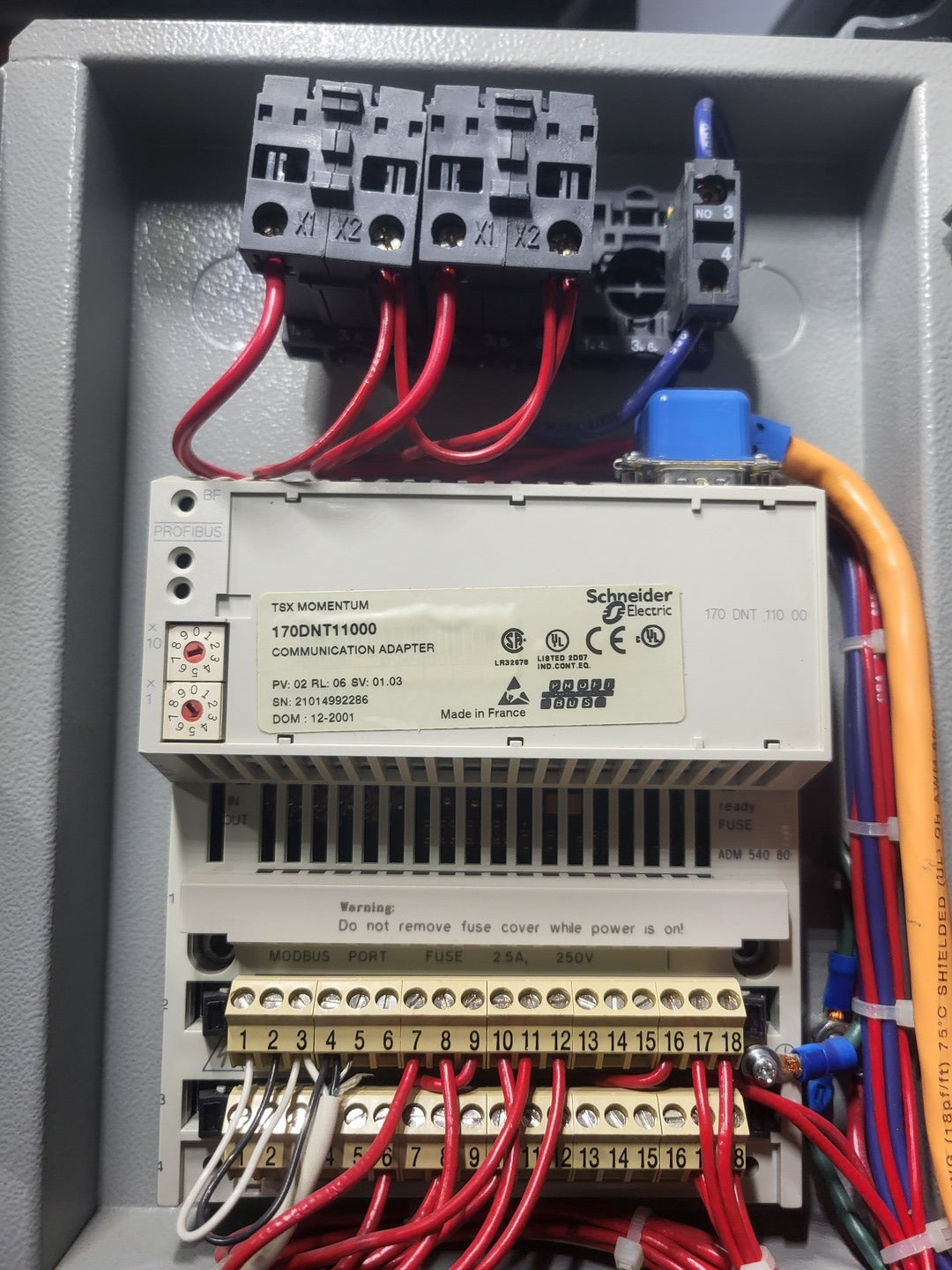

Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
-

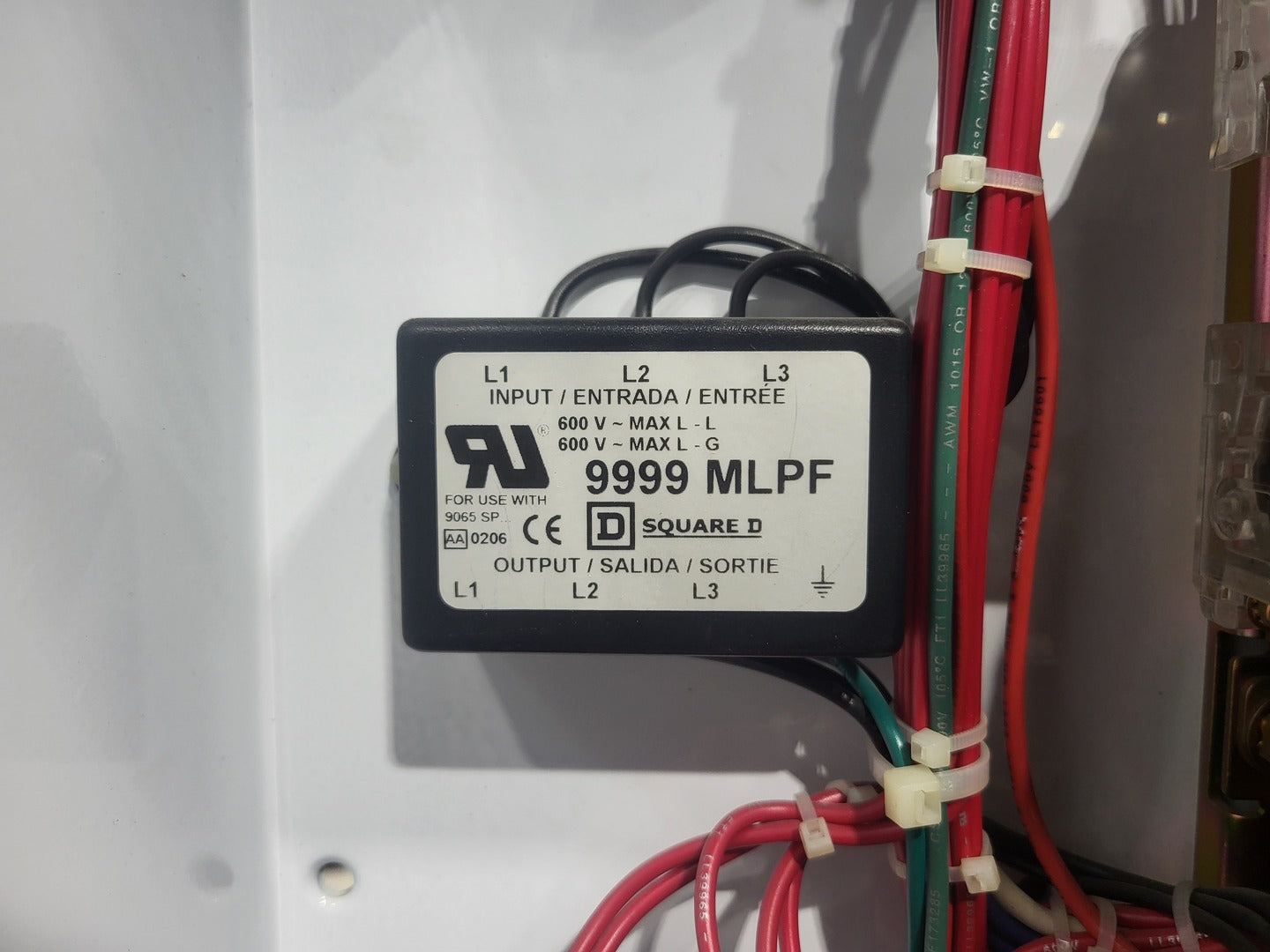

Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max
-

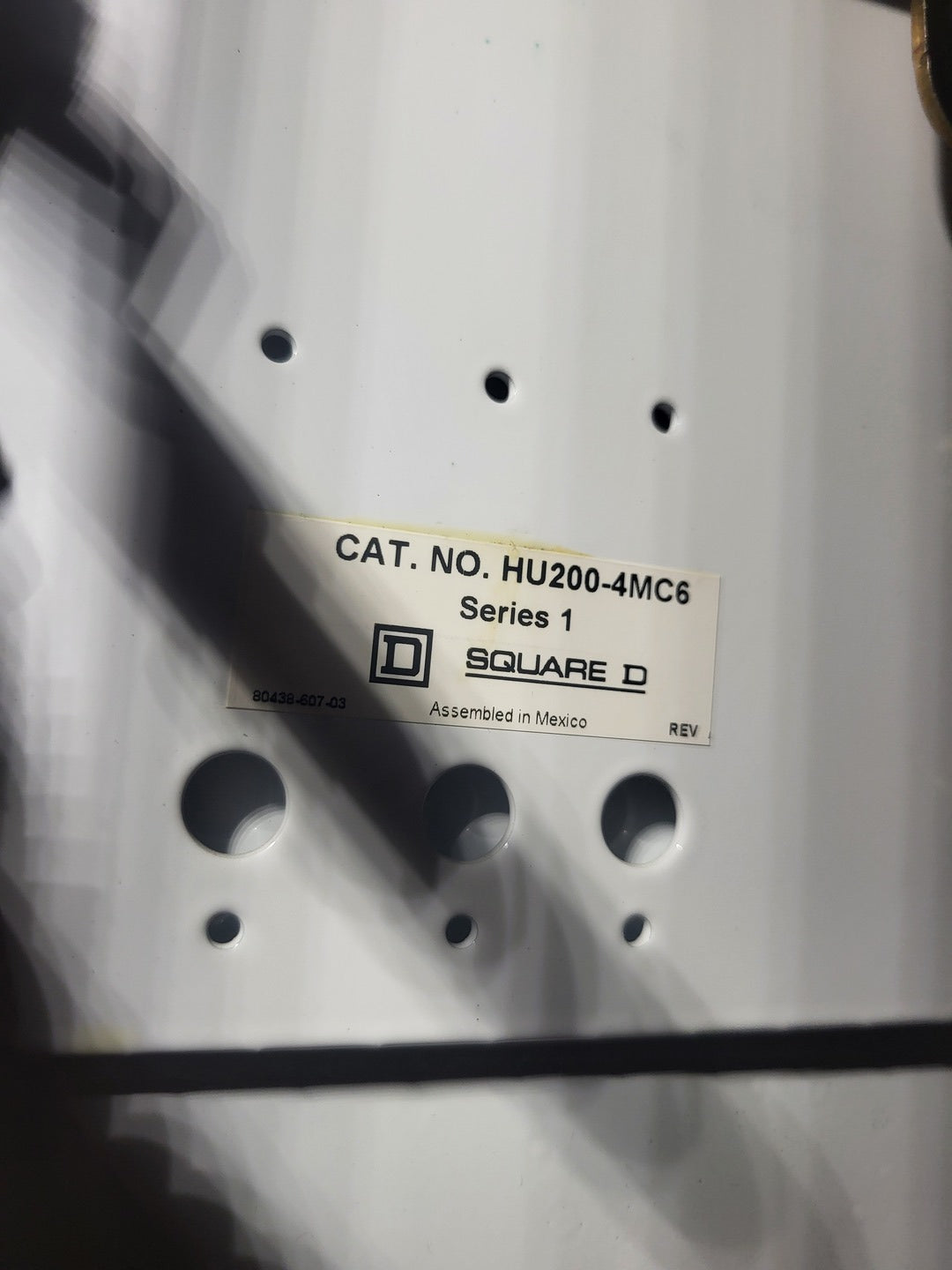

Square D HU200-4MC6, Series 1, 200A MCC bucket disconnect unit
-

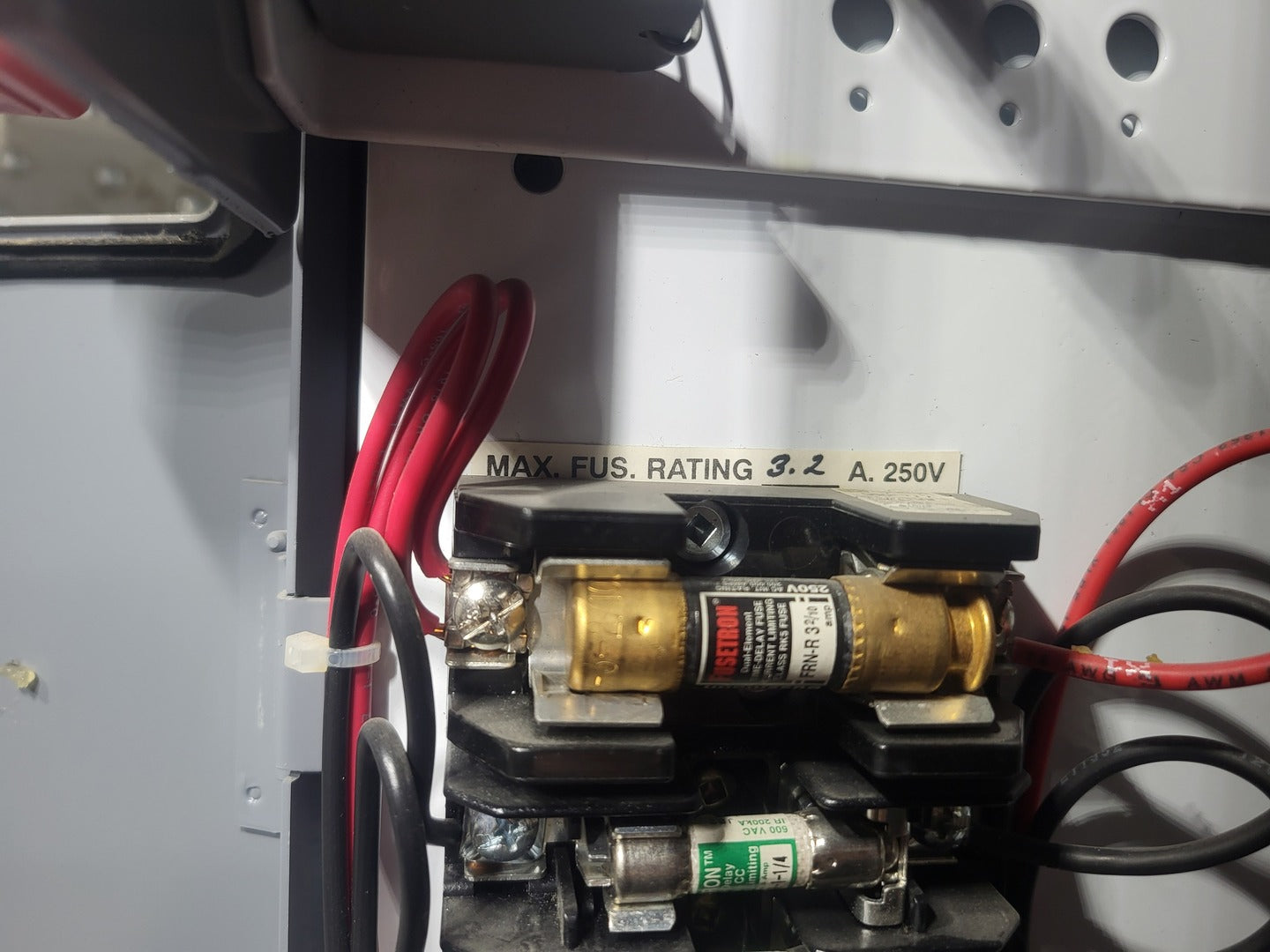

1 x Bussmann Fusetron fuse FRN-R-3-2/10, 250V
-

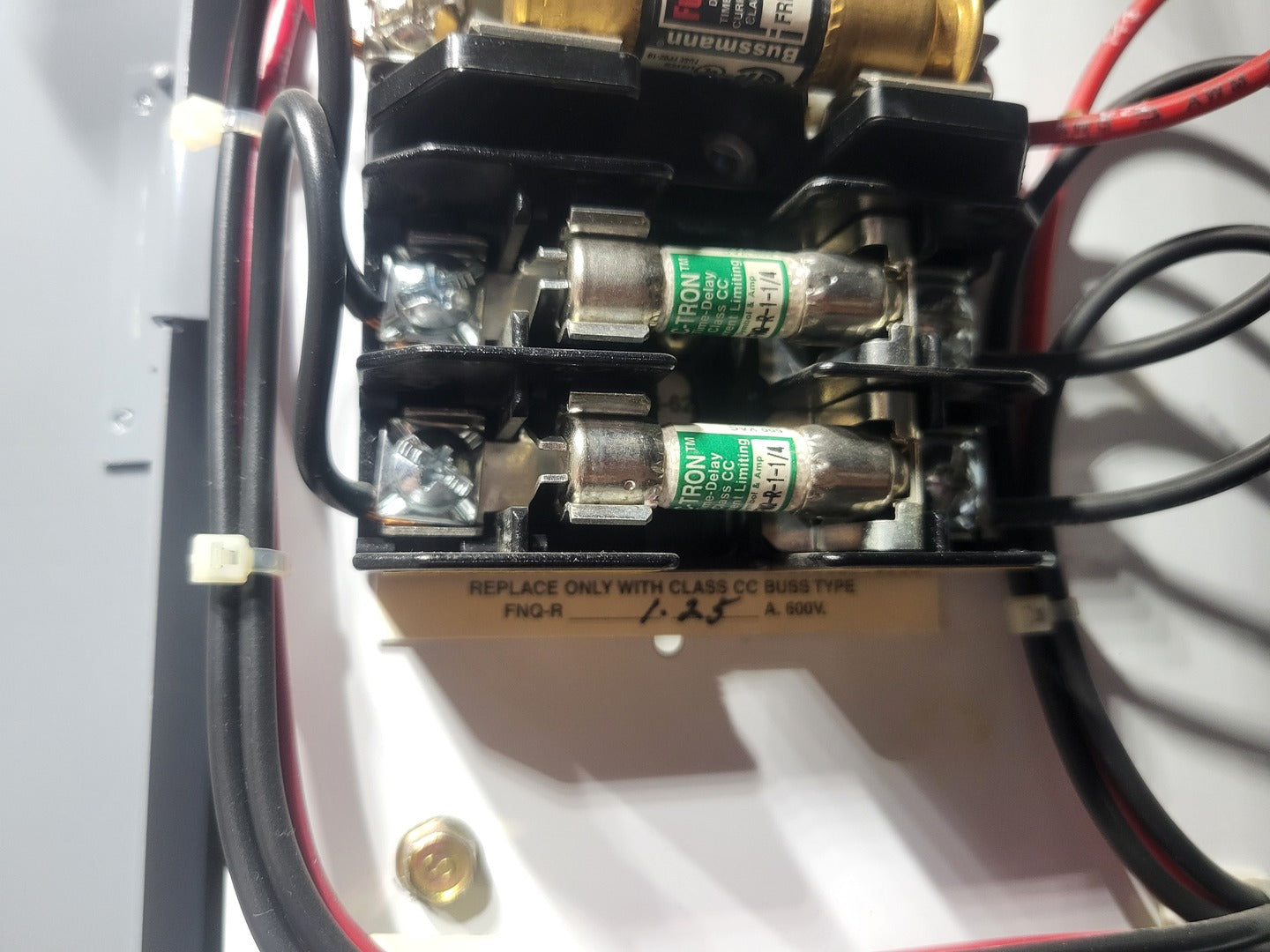

2 x Bussmann Fusetron fuses FNQ-R-1-1/4, Class CC, 600V
-
3 x Bussmann Low-Peak fuses LPJ-150SP
|
