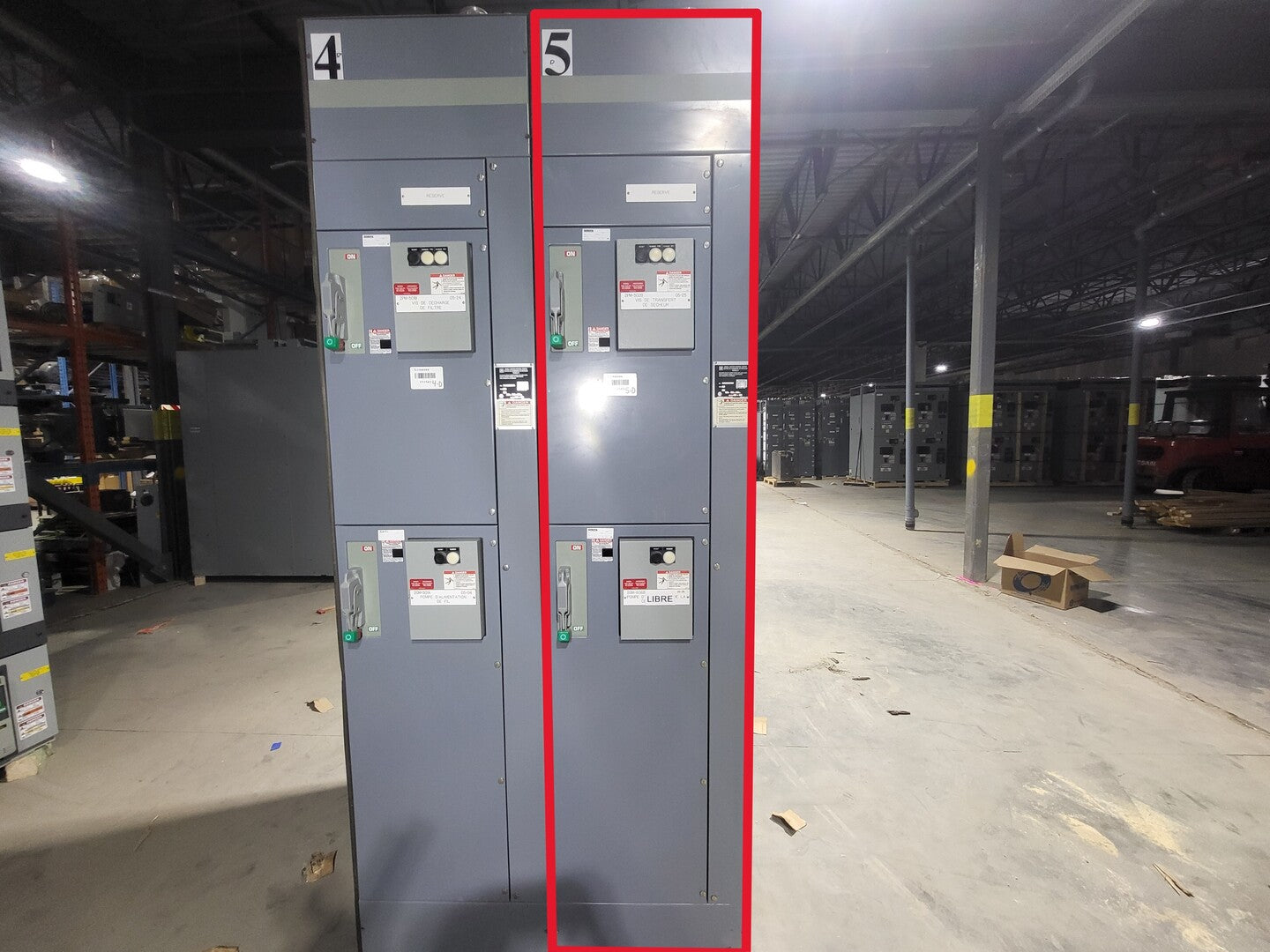

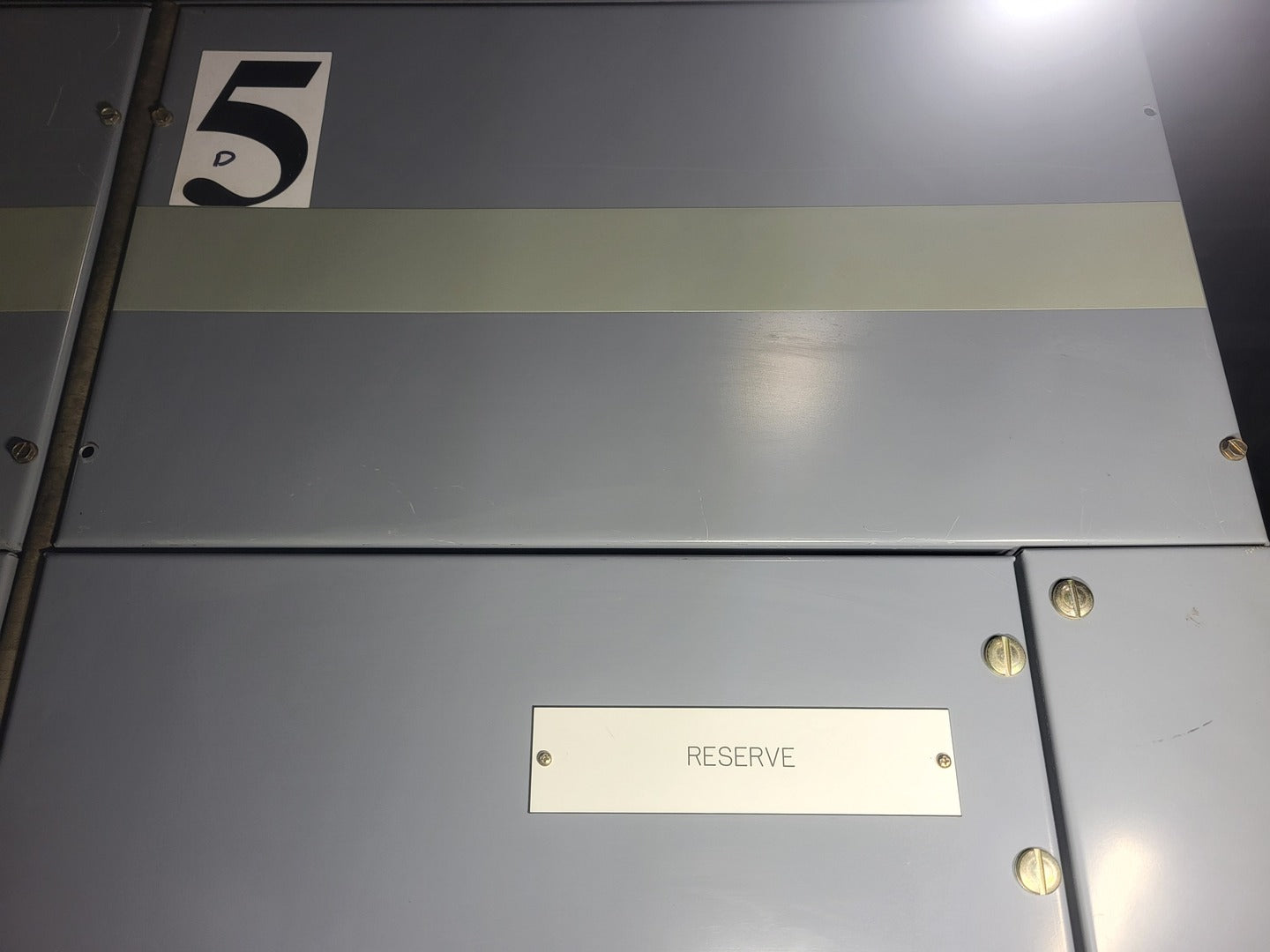

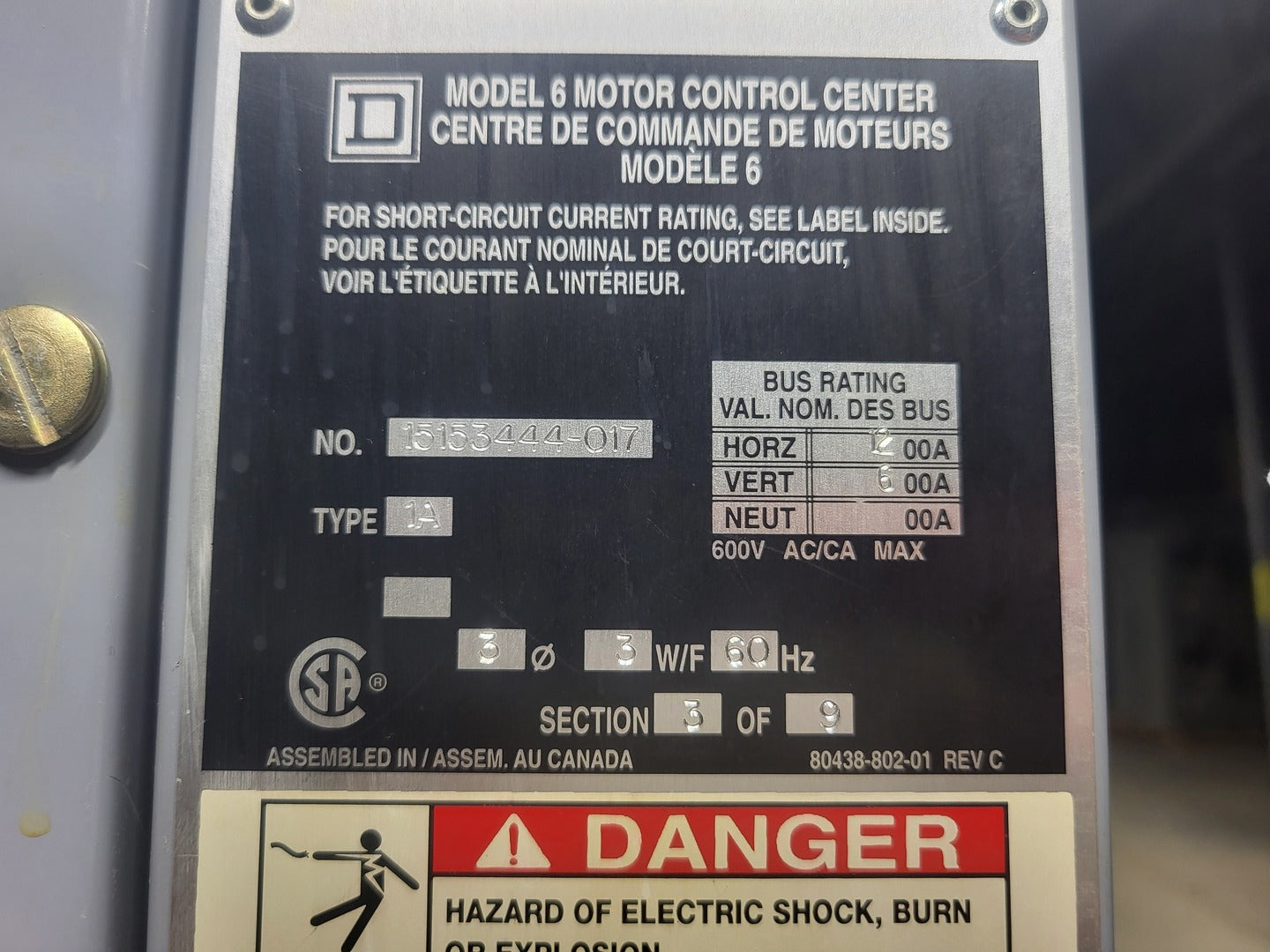

Note: Section 5 only

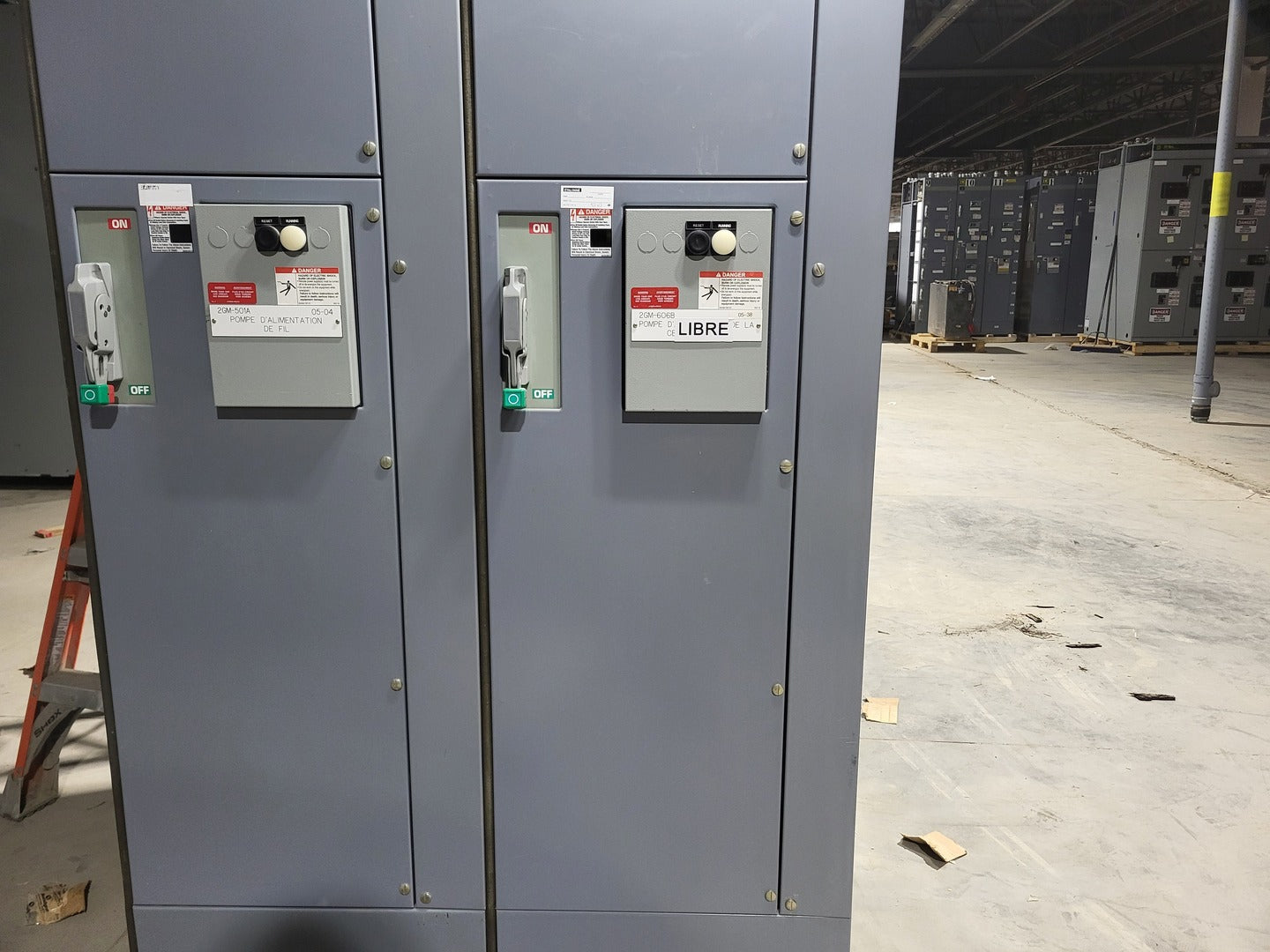

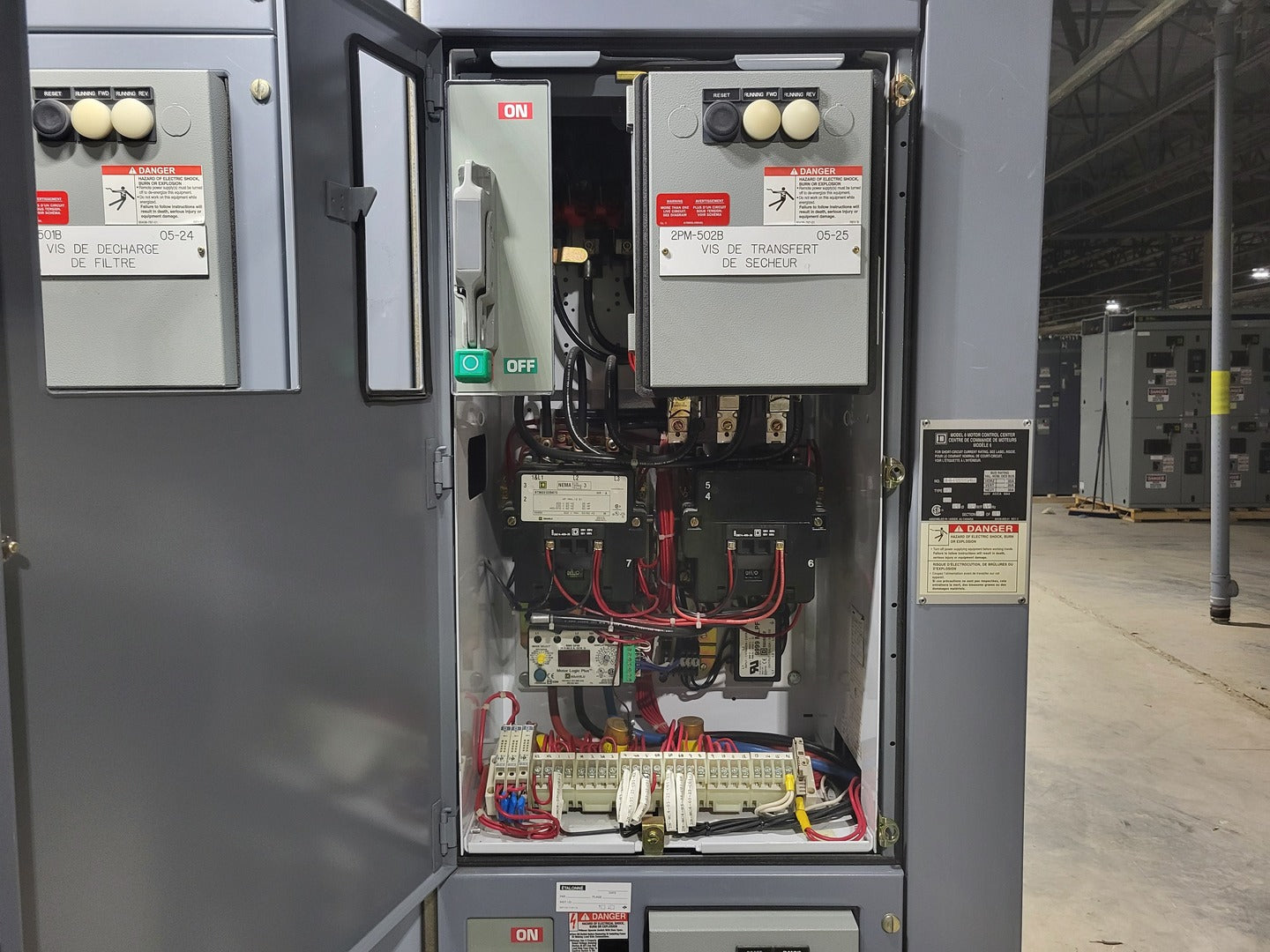

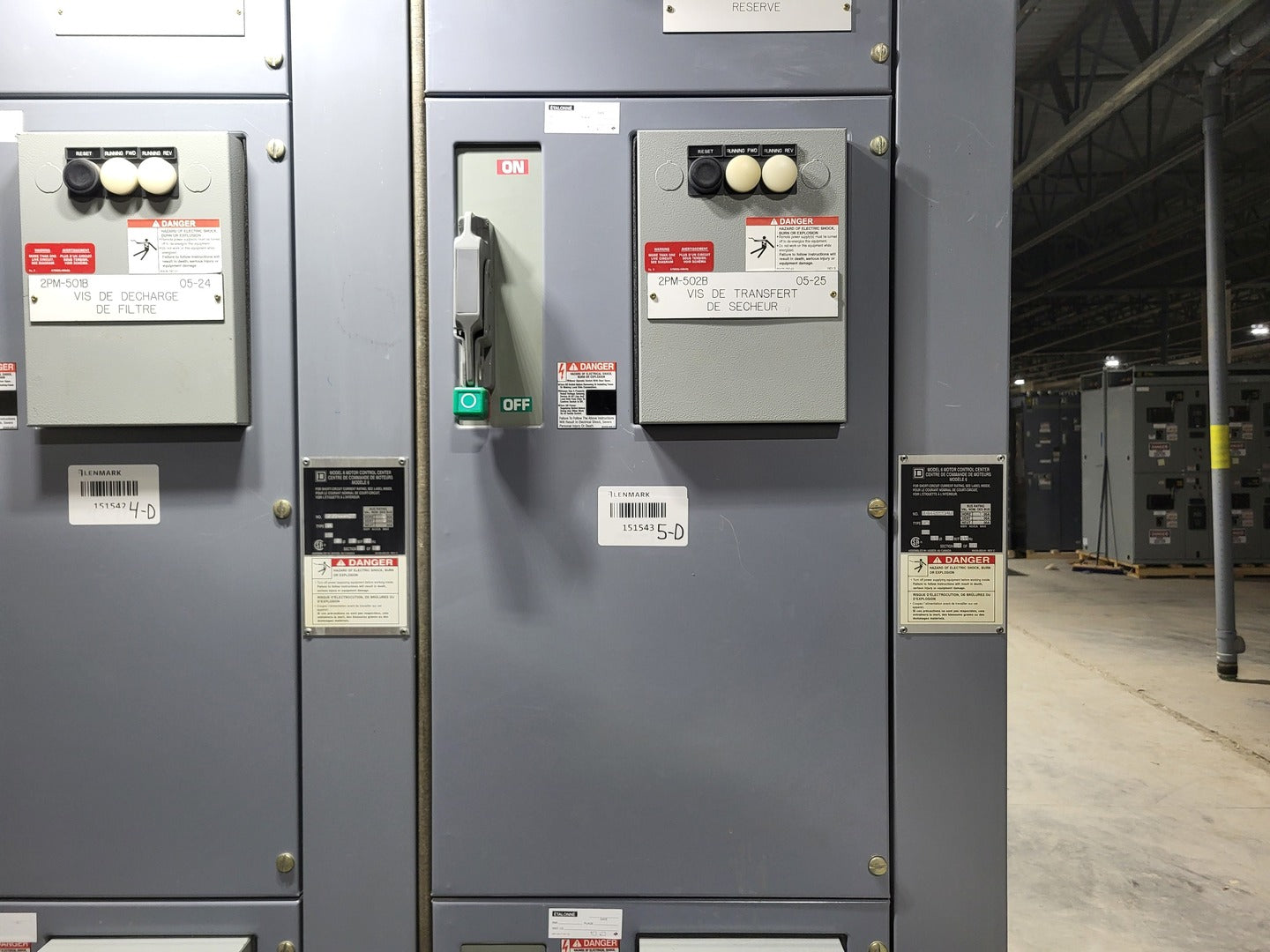

Bucket #1 2PM-502B
-

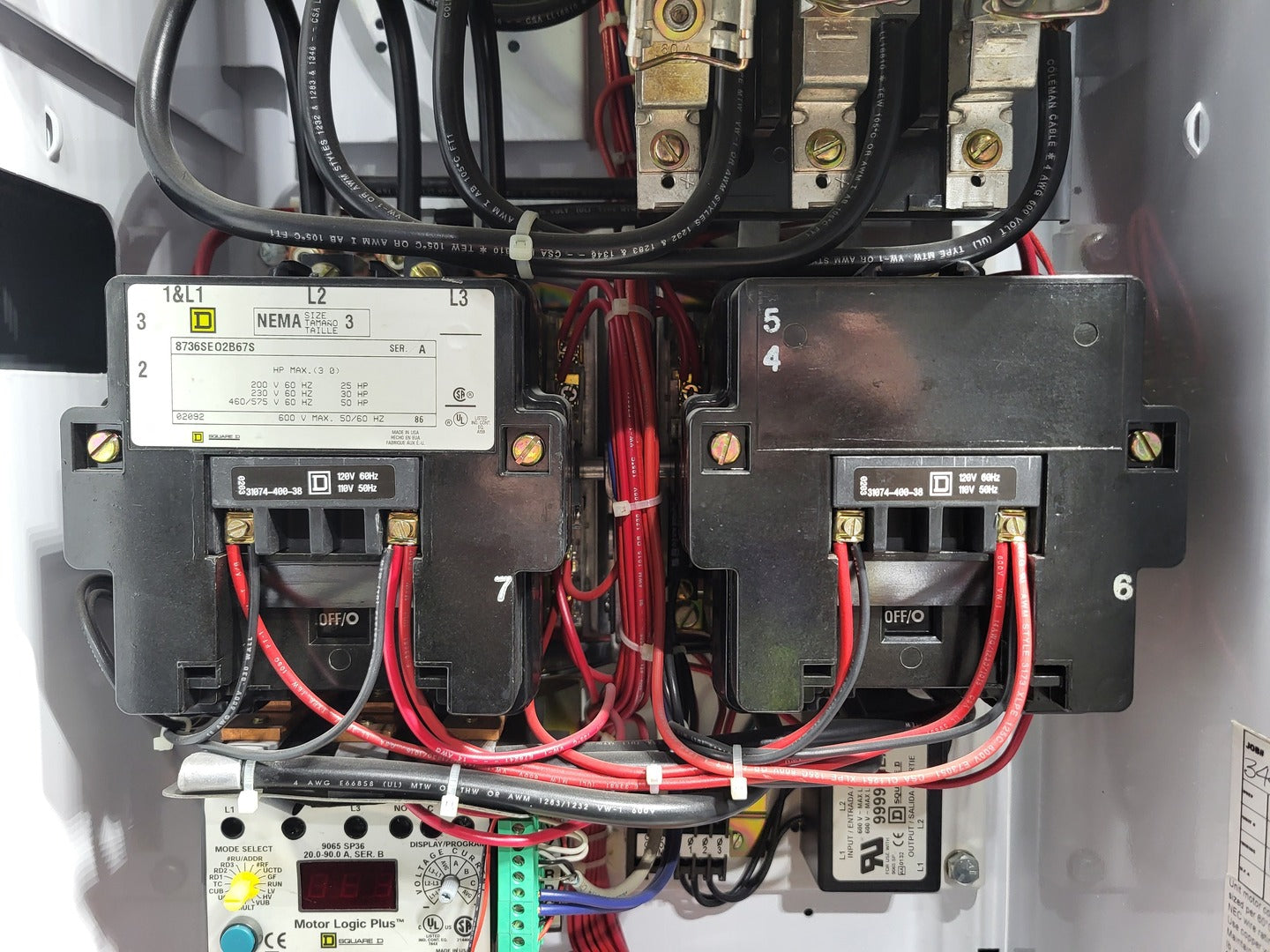

Square D 8736SEO2B67S, NEMA Size 3 reversing contactor / starter, 50 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
-

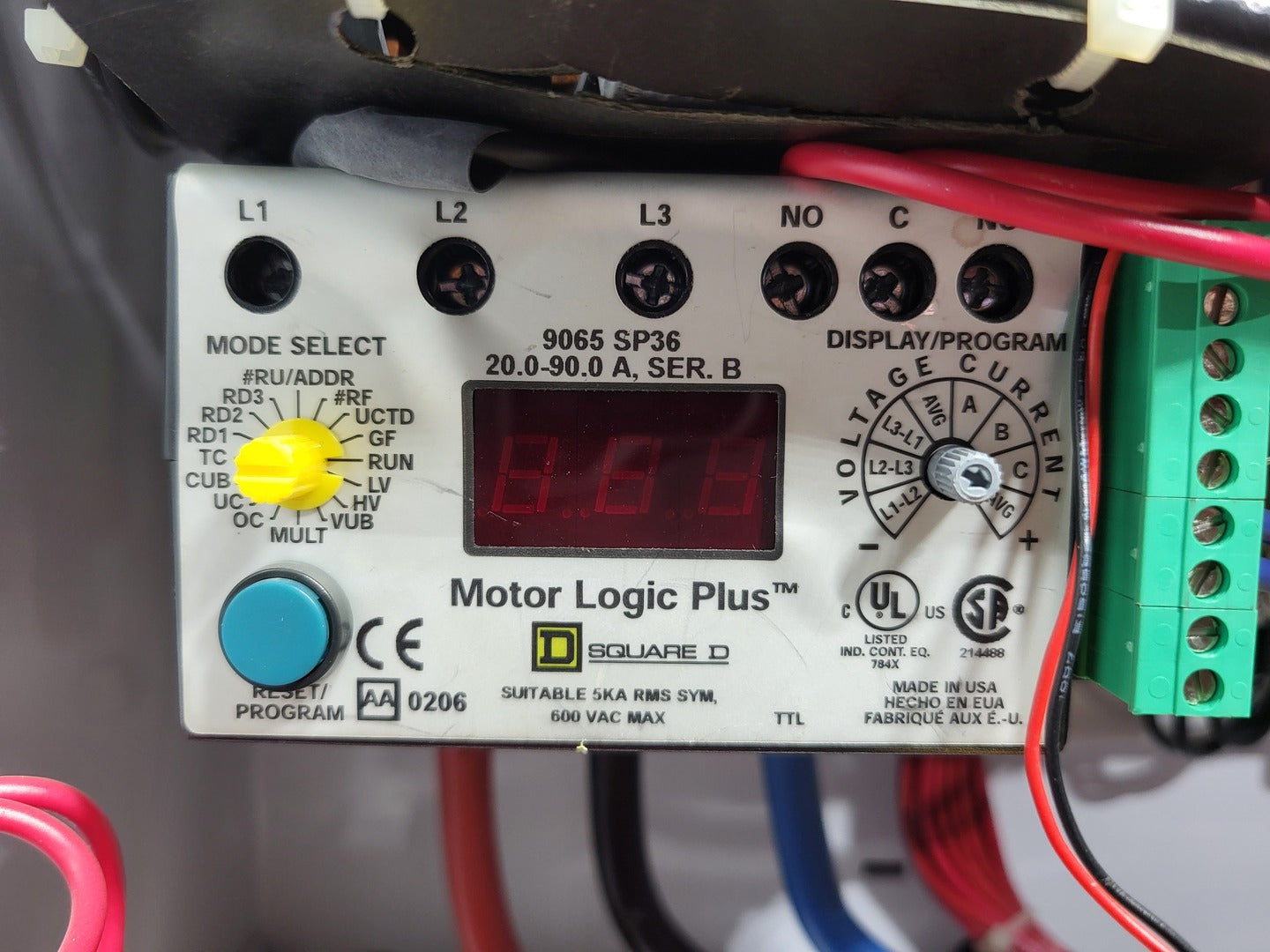

Square D Motor Logic Plus 9065 SP36, motor protection relay, 20.0-90.0A range, 600VAC max
-

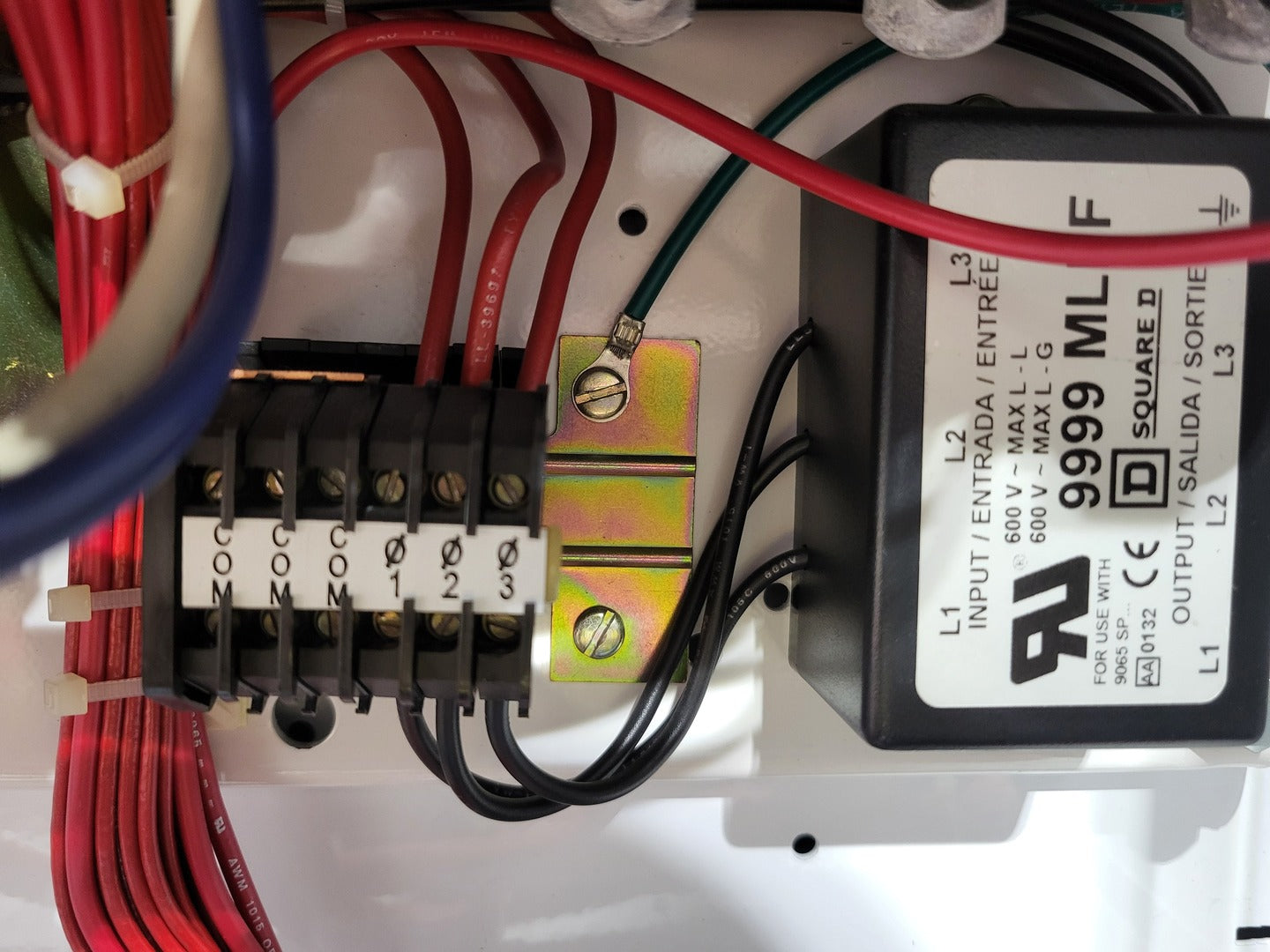

Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max
-

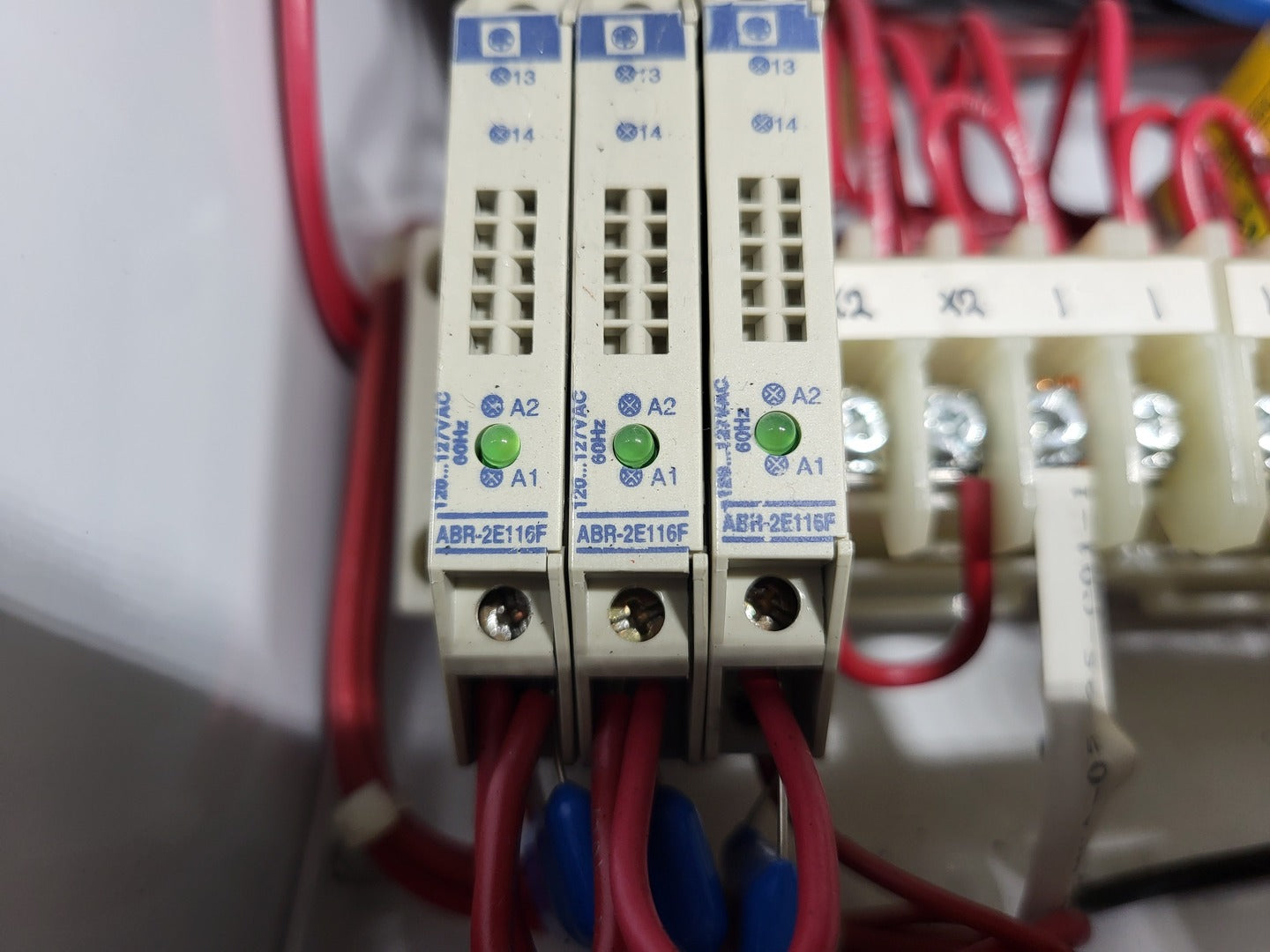

3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
-

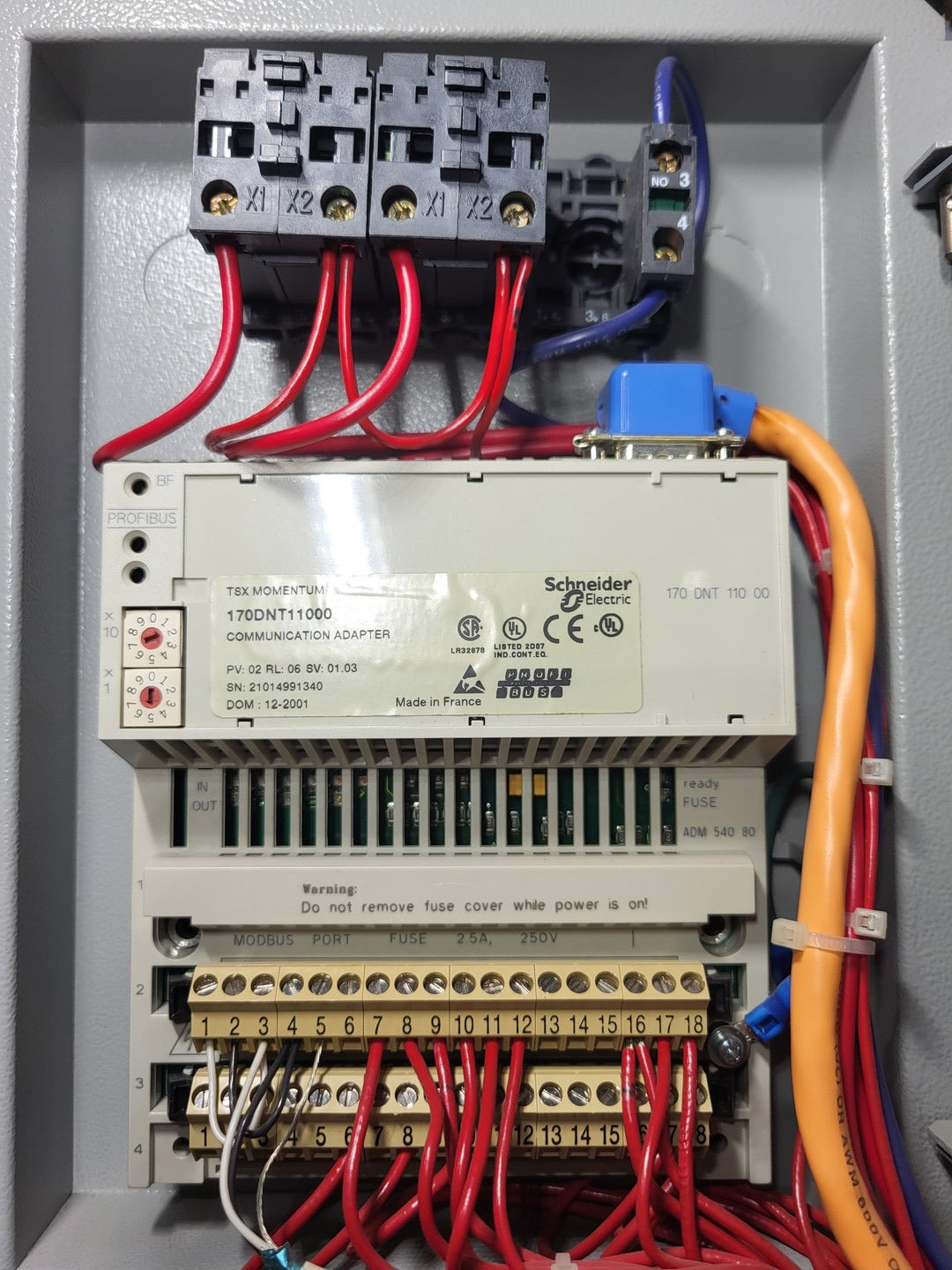

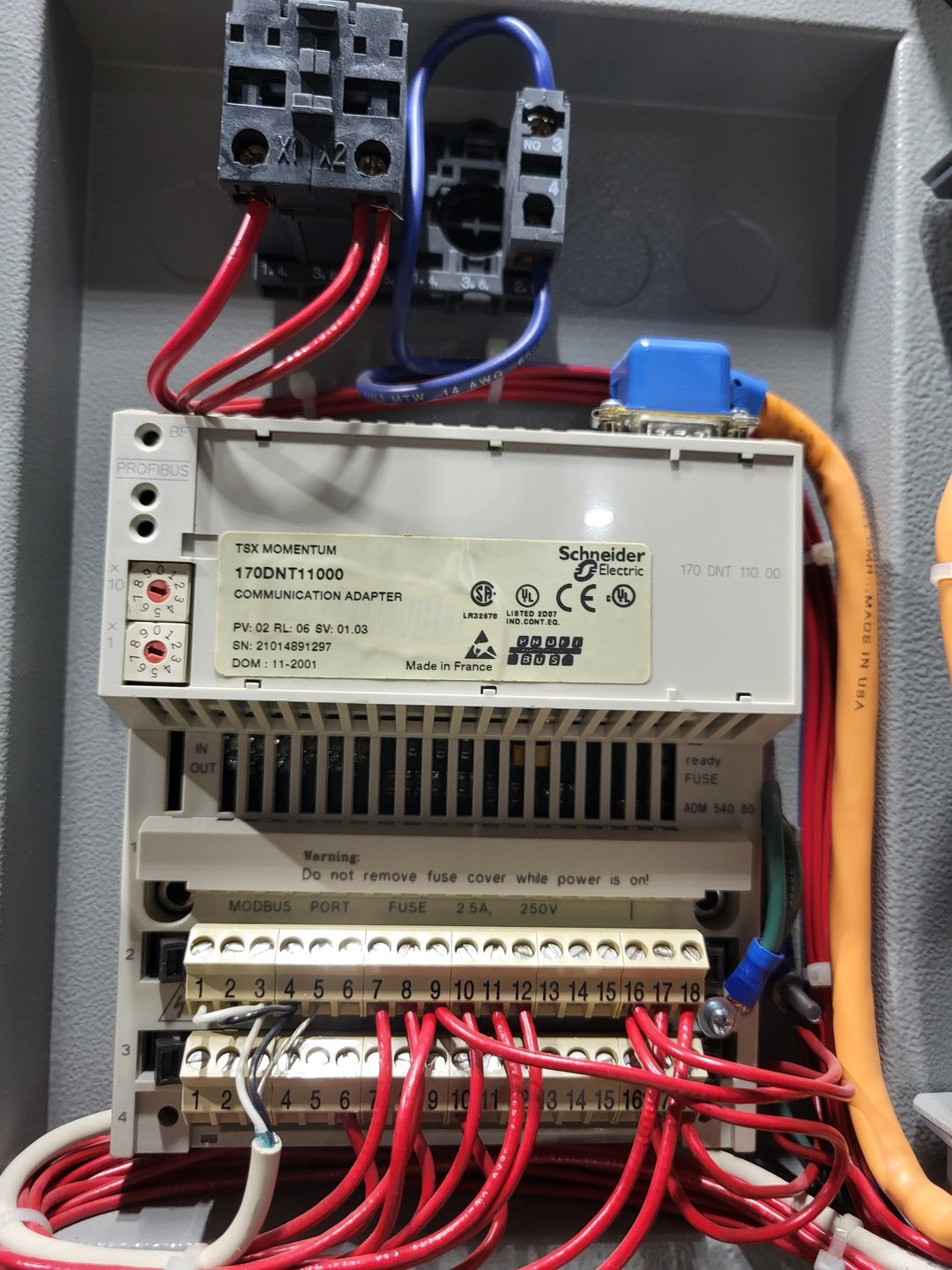

Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
-

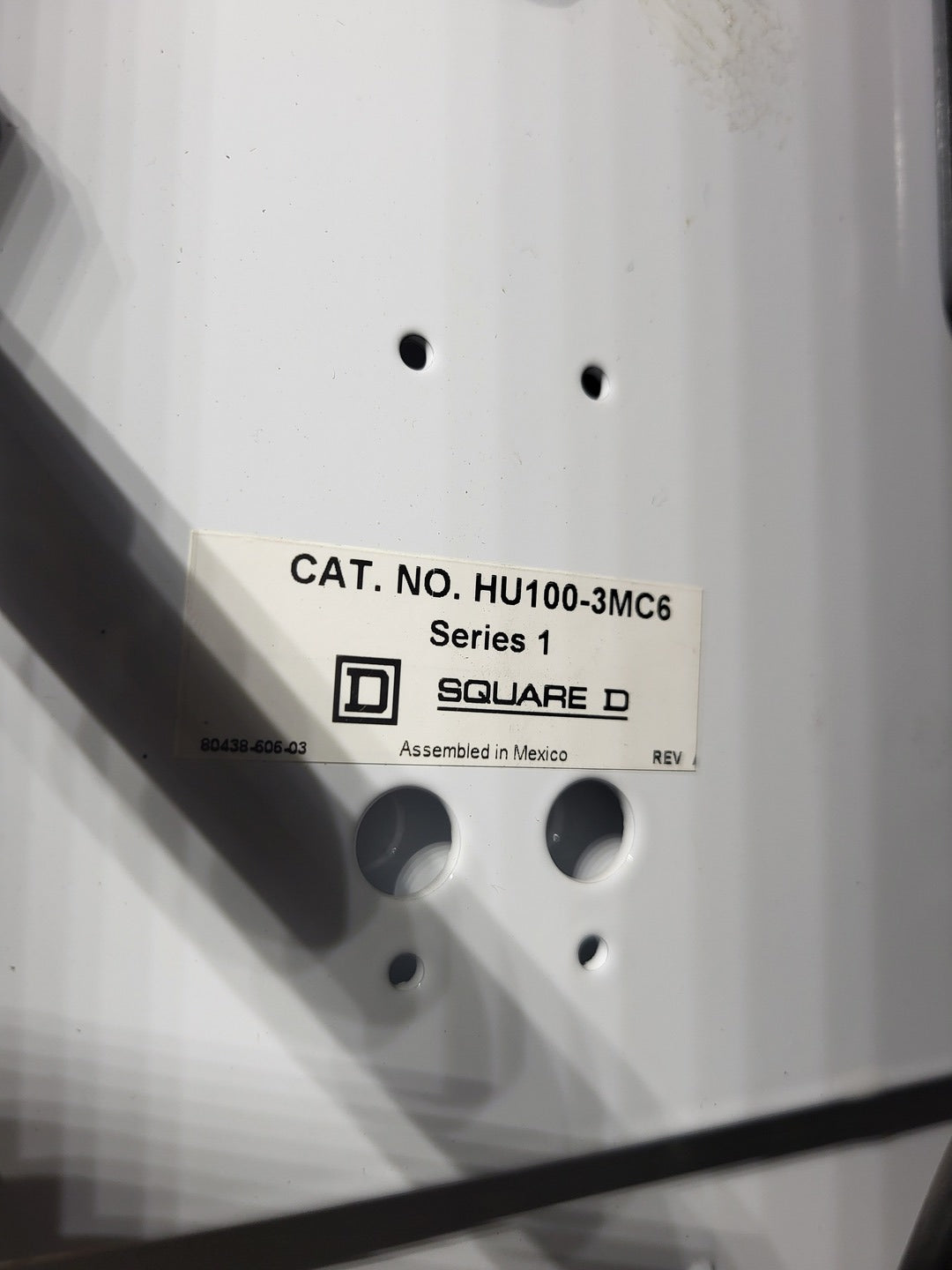

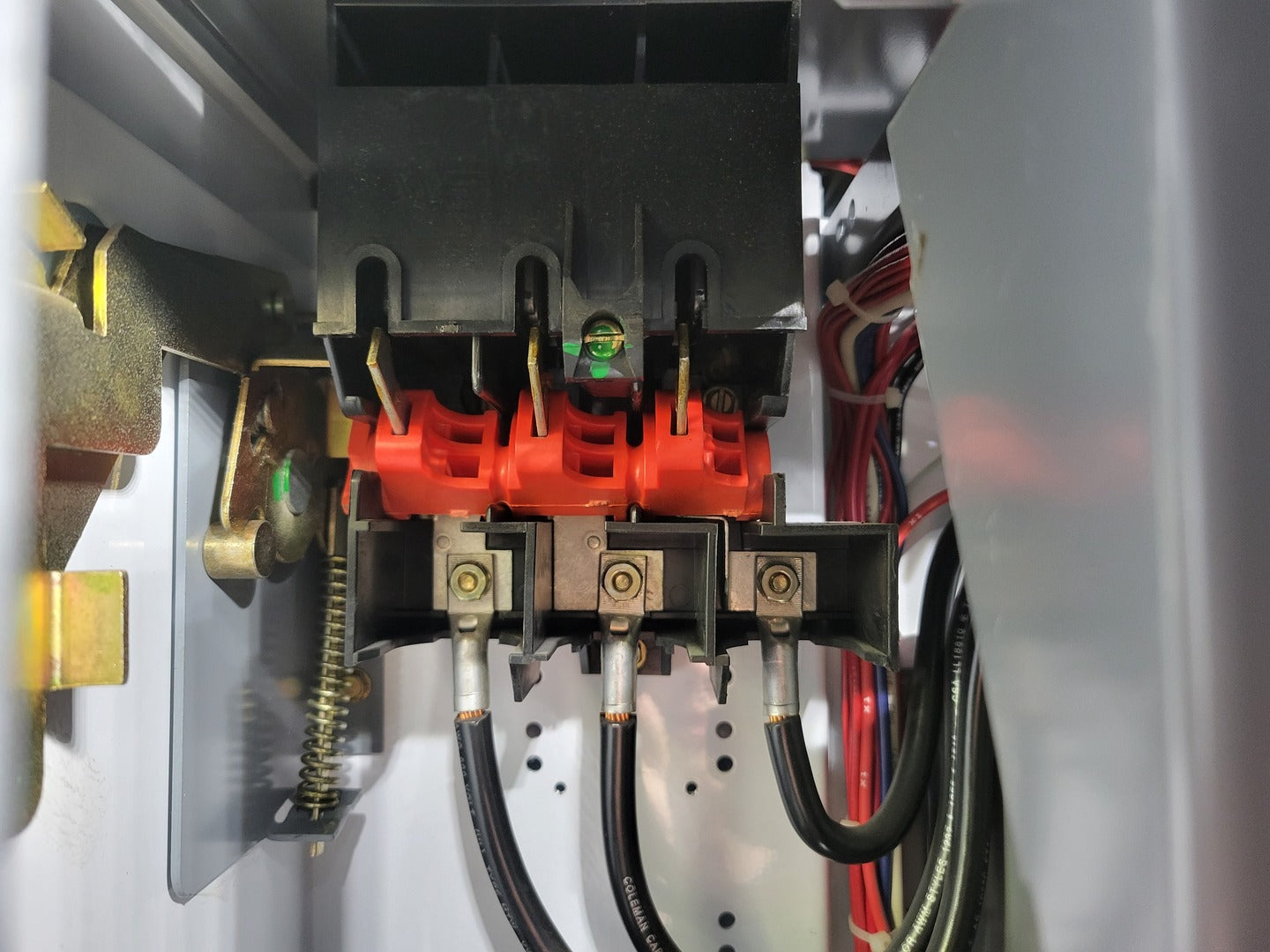

Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
-

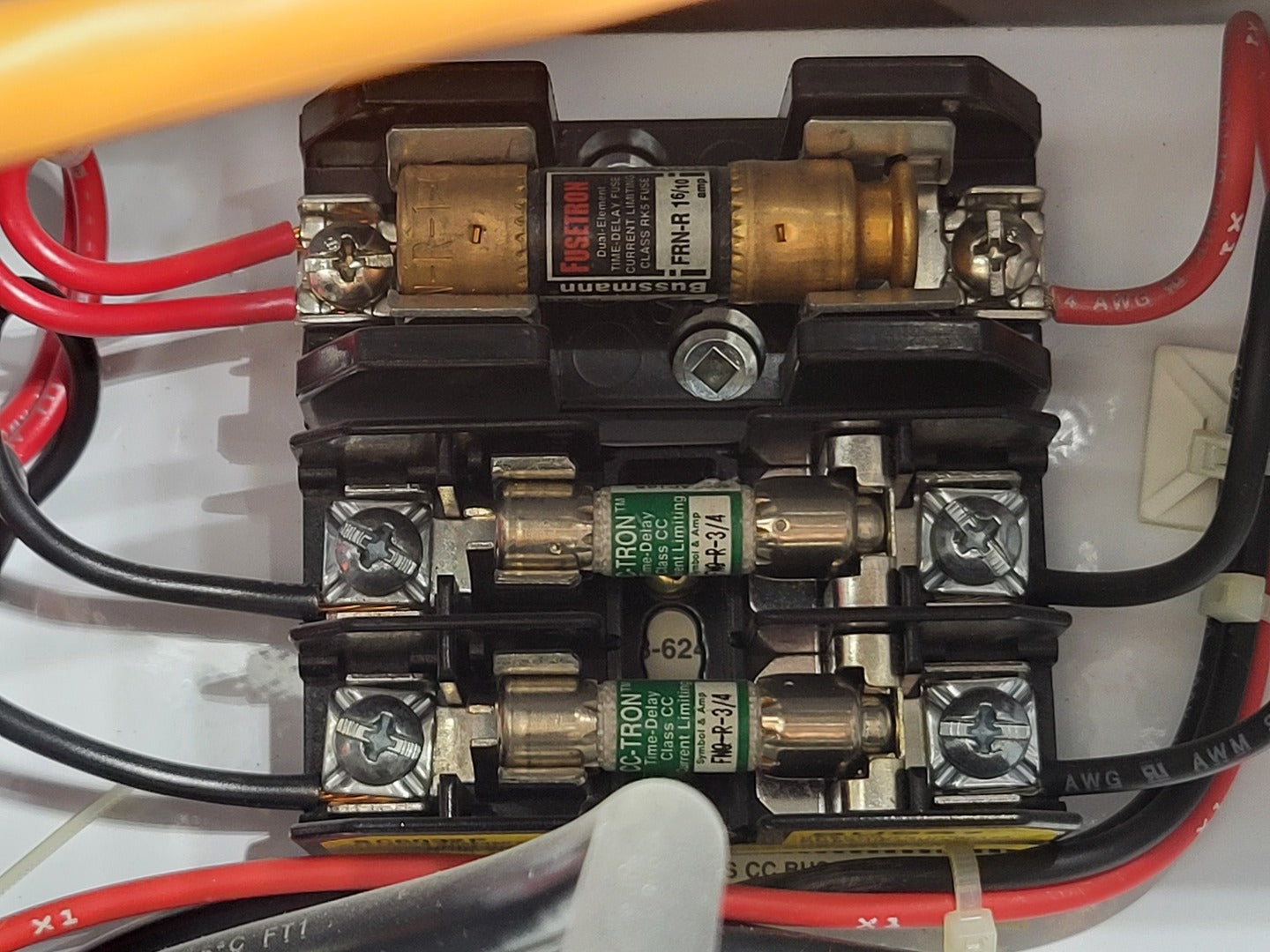

1 x Bussmann Fusetron fuse FRN-R-1-6/10
-
2 x Bussmann CC-Tron fuses FNQ-R-3/4

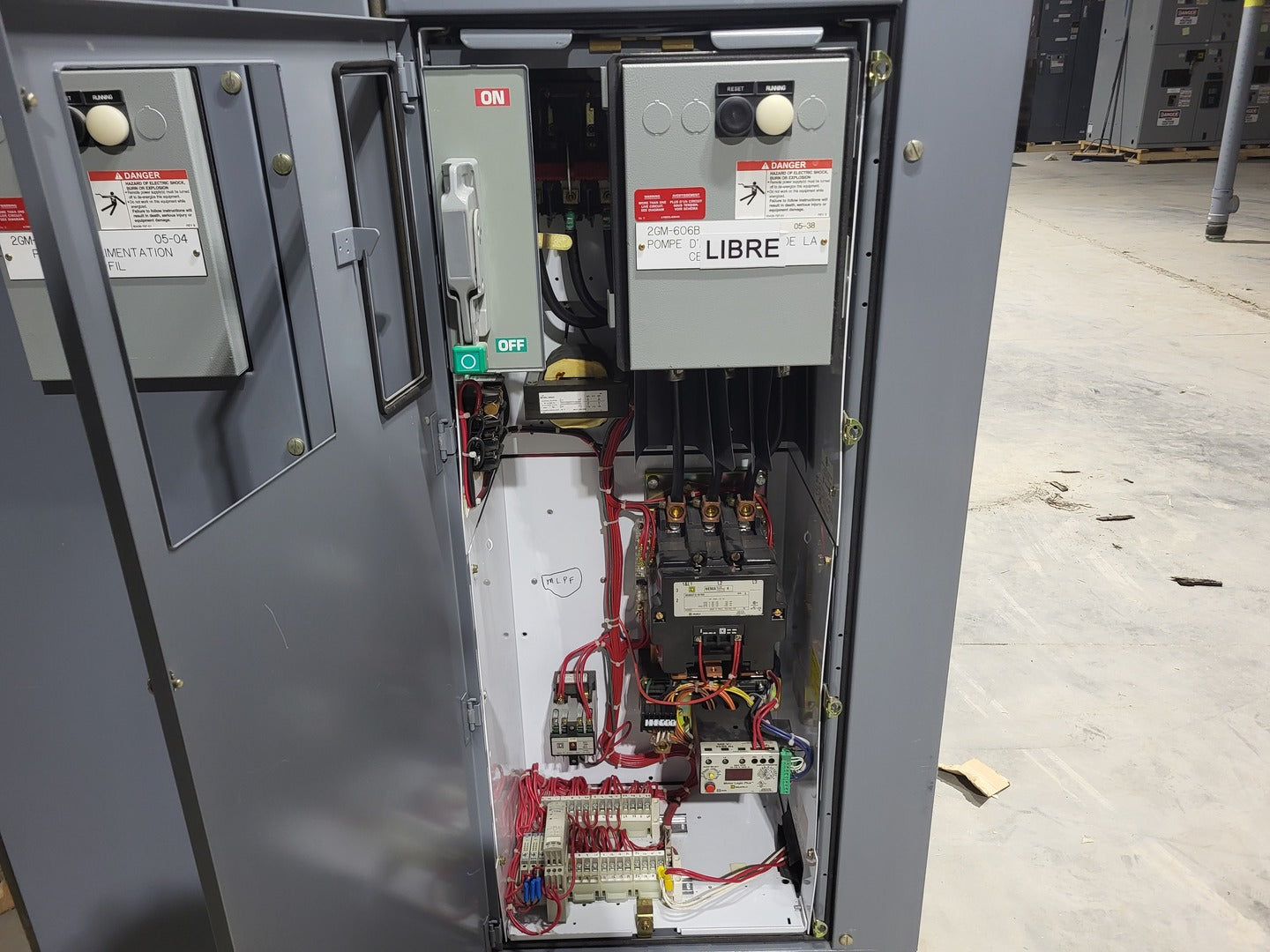

Bucket #2 2GM-606B
-

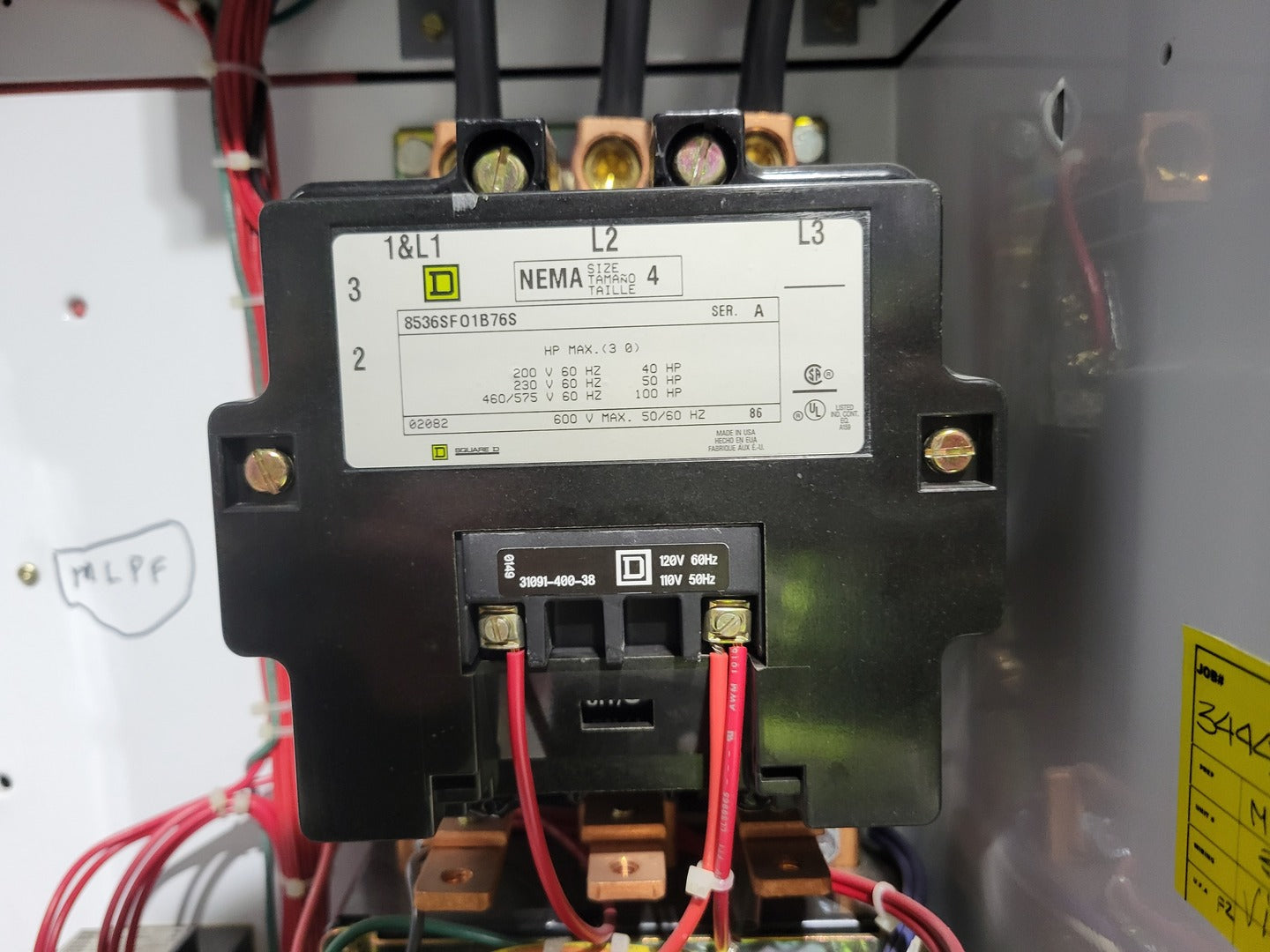

Square D 8536SFO1B76S, NEMA Size 4 contactor / starter, 100 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
-

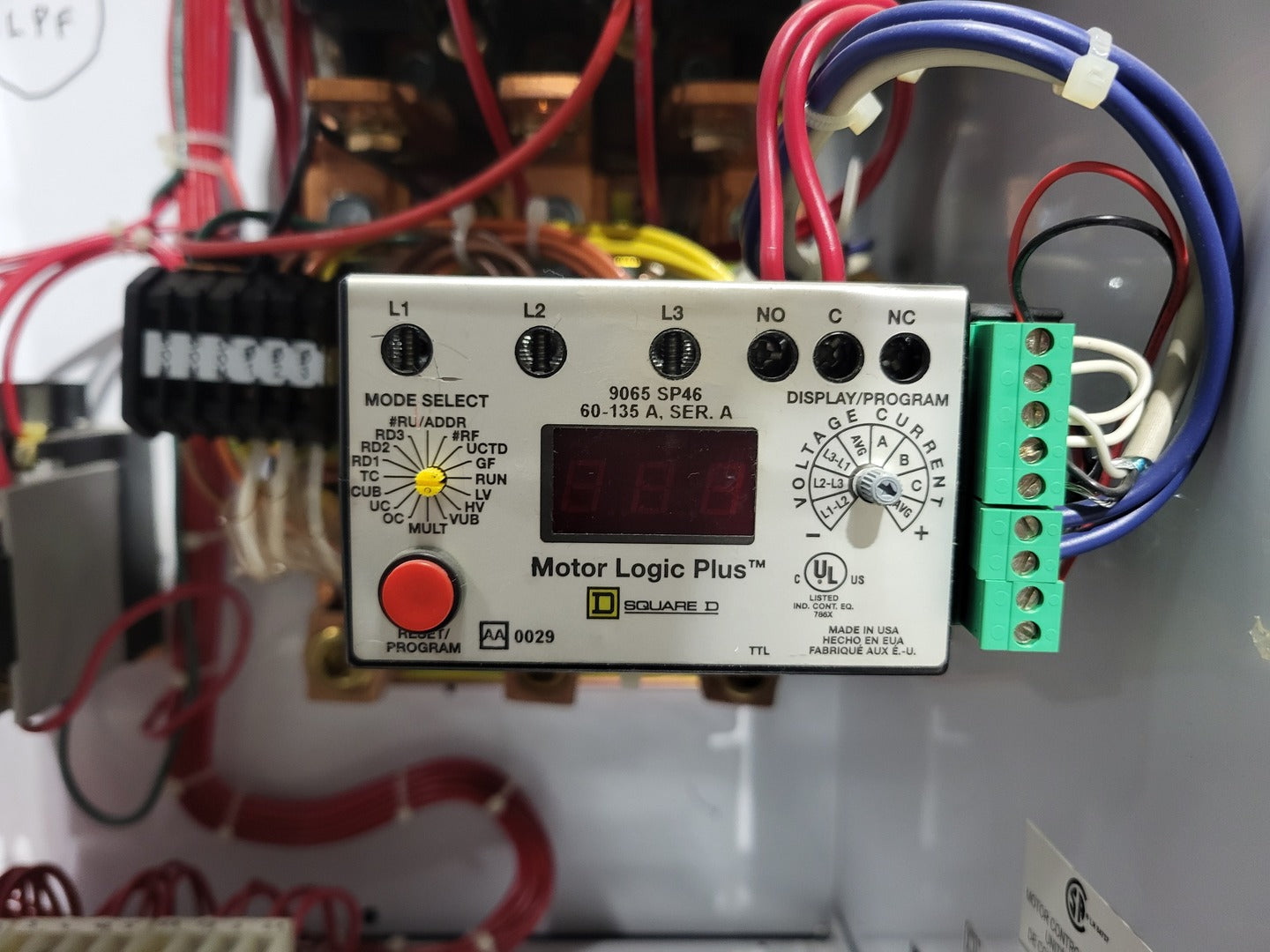

Square D Motor Logic Plus 9065 SP46, motor protection relay, 60-135A range, 600VAC max
-

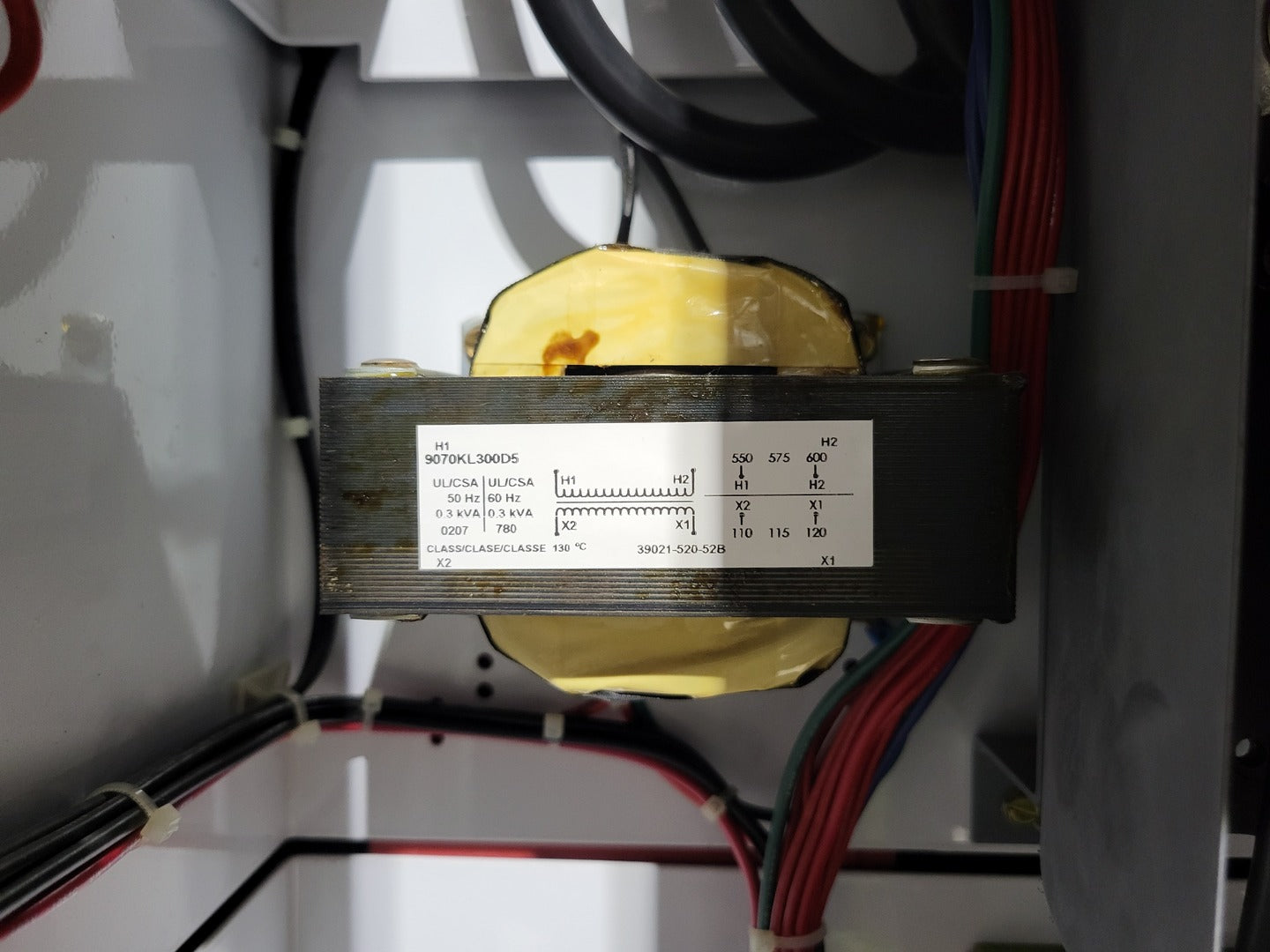

Square D 9070KL300D5, control transformer, 0.3 kVA, primary 550/575/600V, secondary 110/115/120V
-

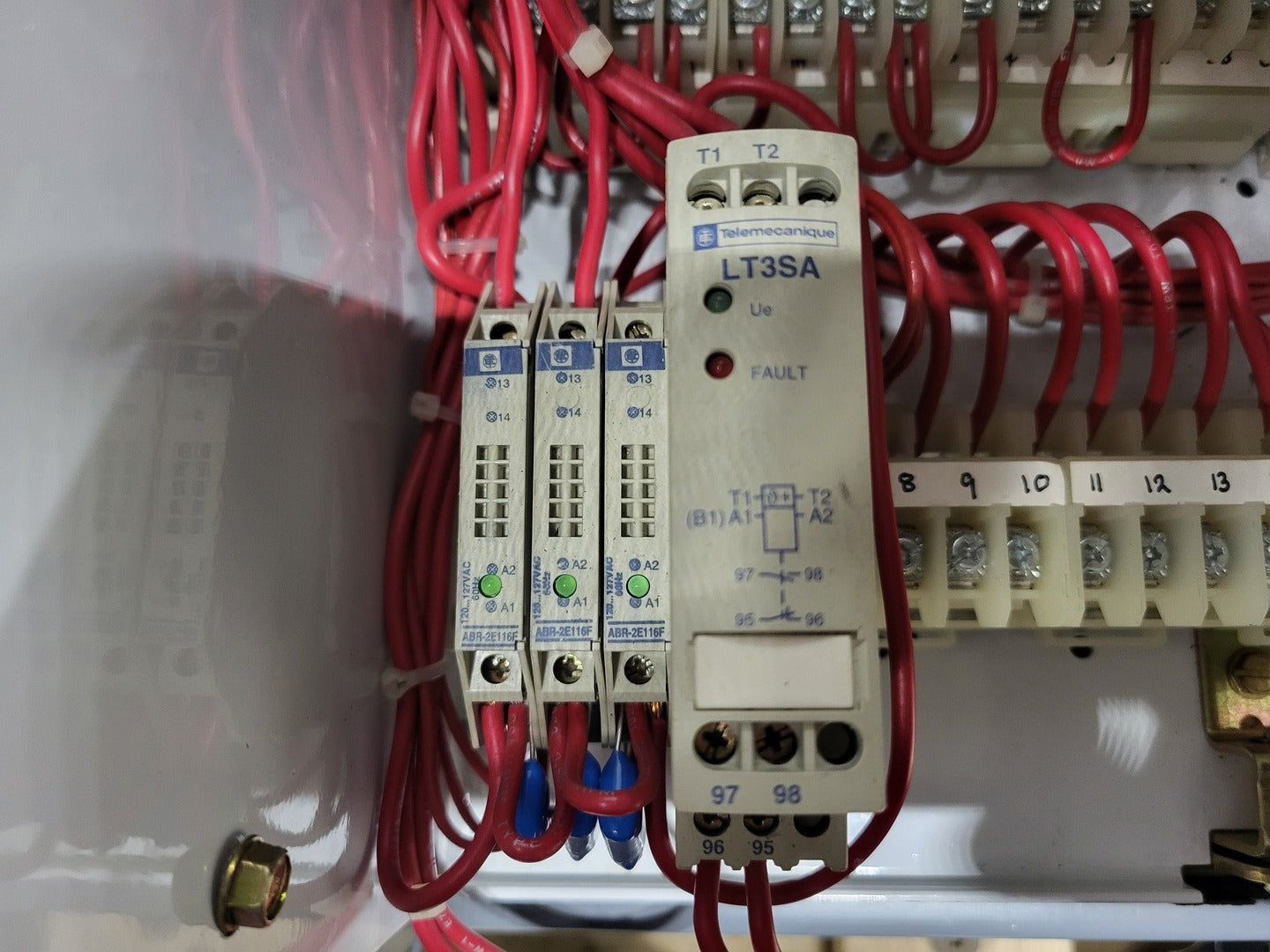

Telemecanique LT3SA thermistor / motor protection relay module
-

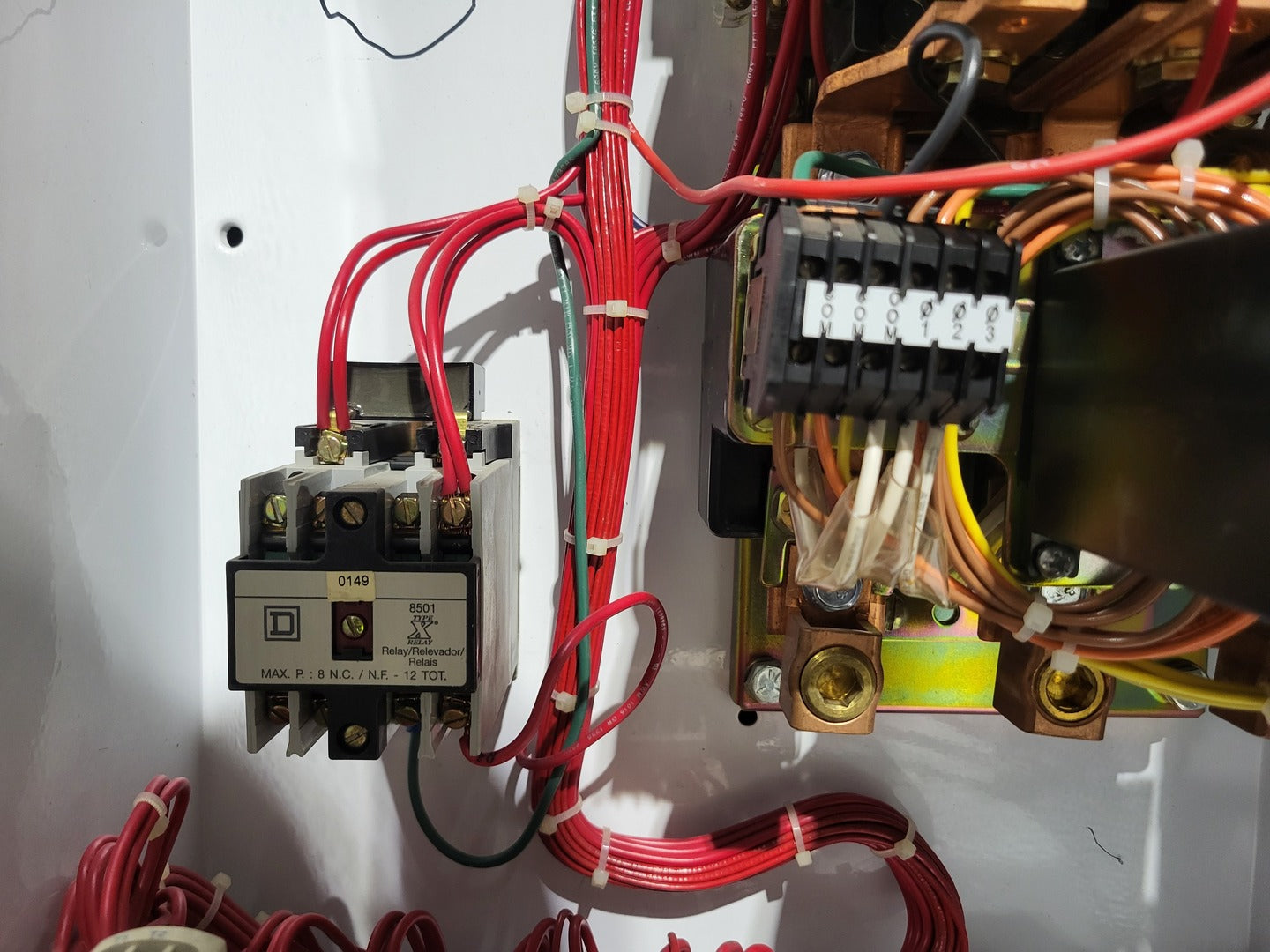

Square D 8501 Type X relay
-
3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
-
Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
-
Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max
-

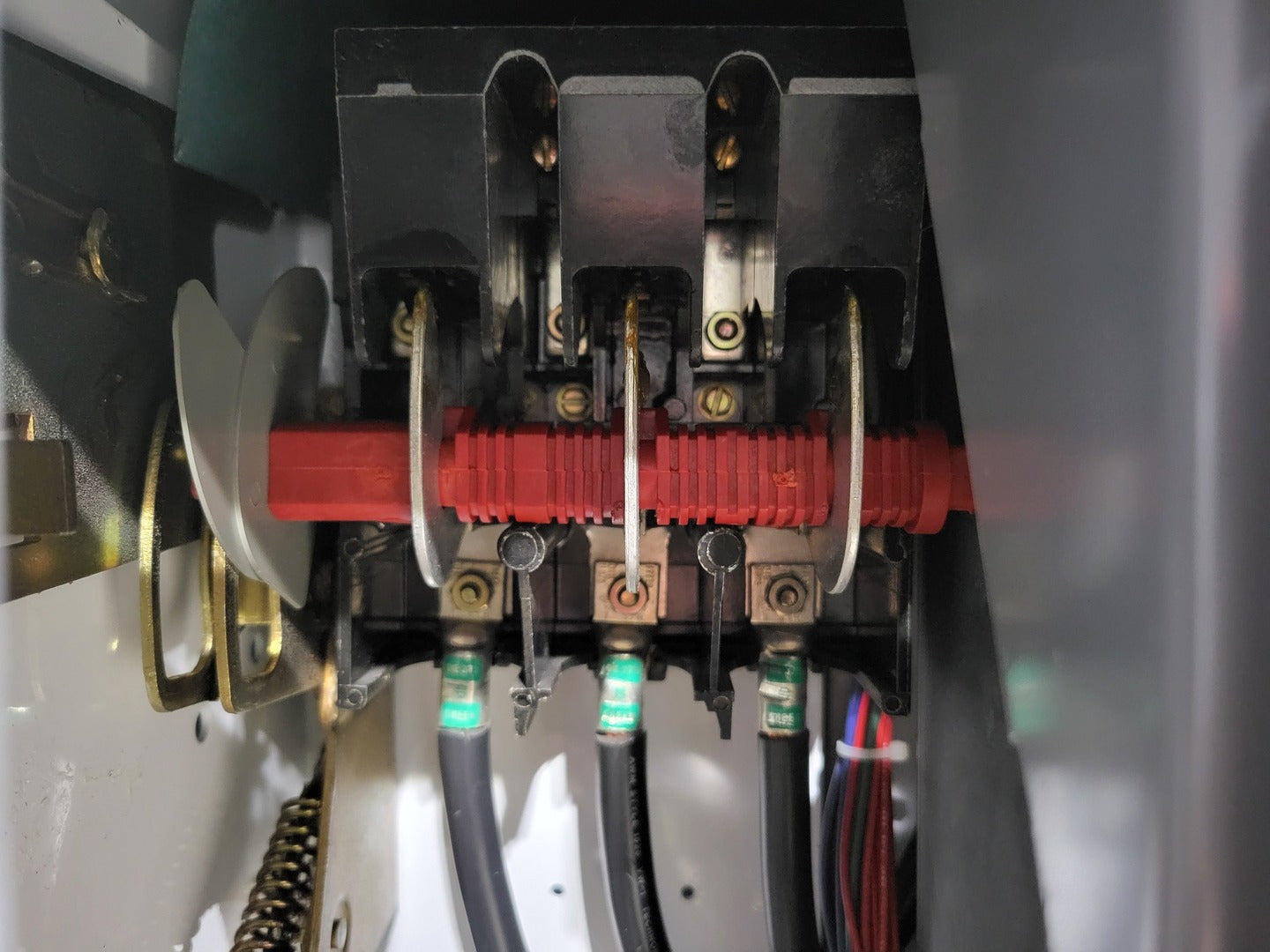

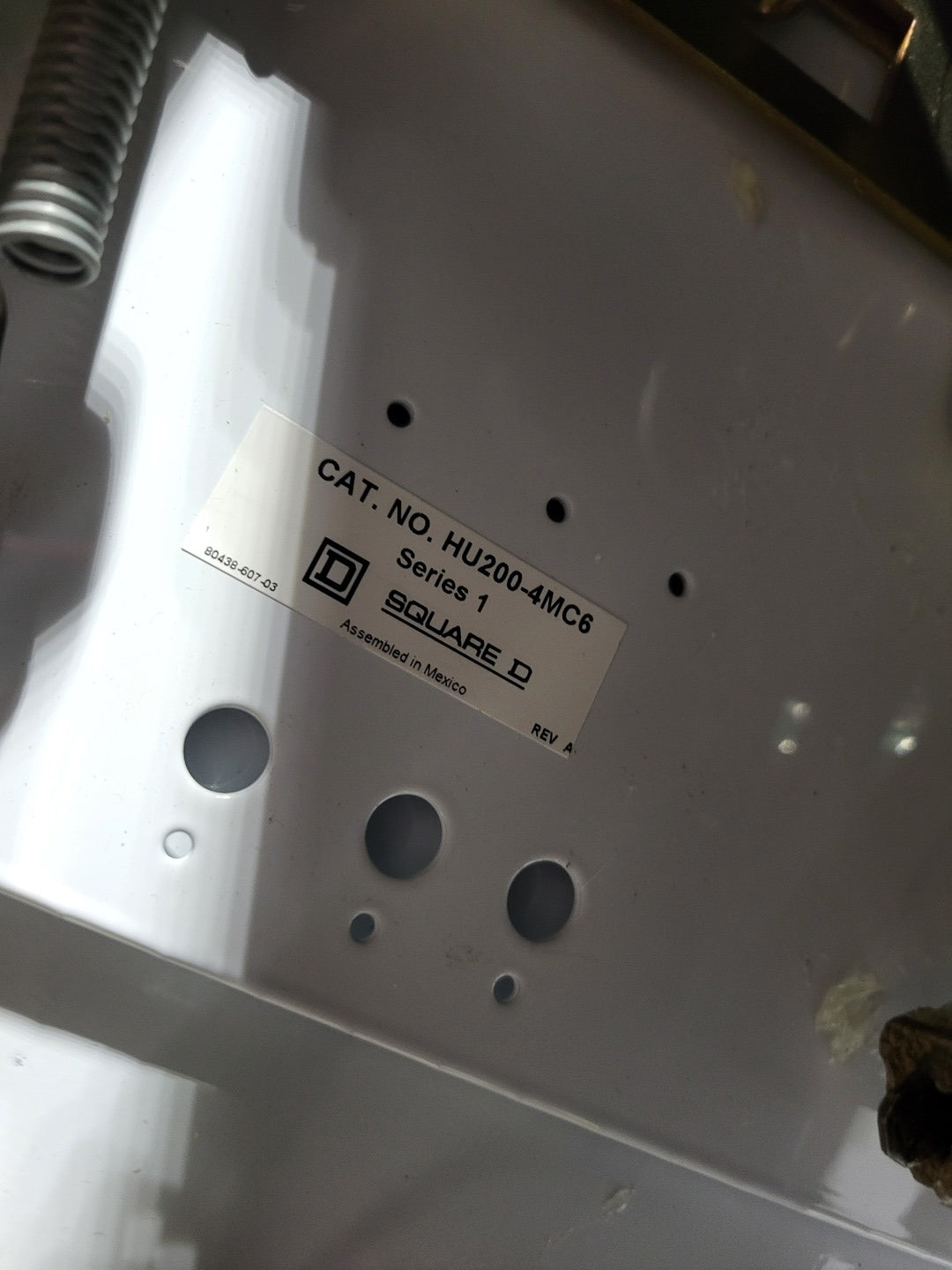

Square D HU200-4MC6, Series 1, 200A MCC bucket disconnect unit
-

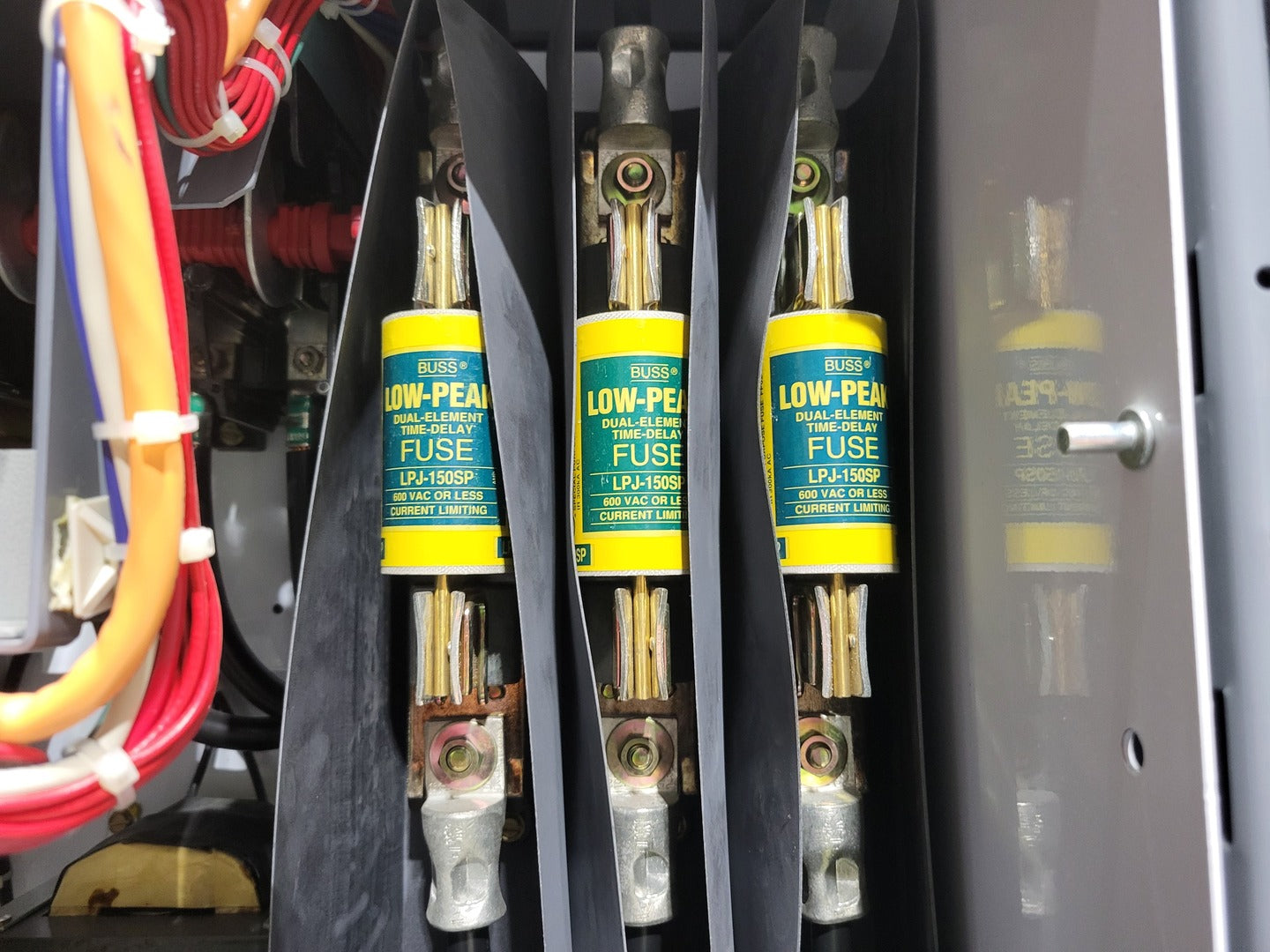

3 x Bussmann Low-Peak fuses LPJ-150SP, 150A, 600V
-

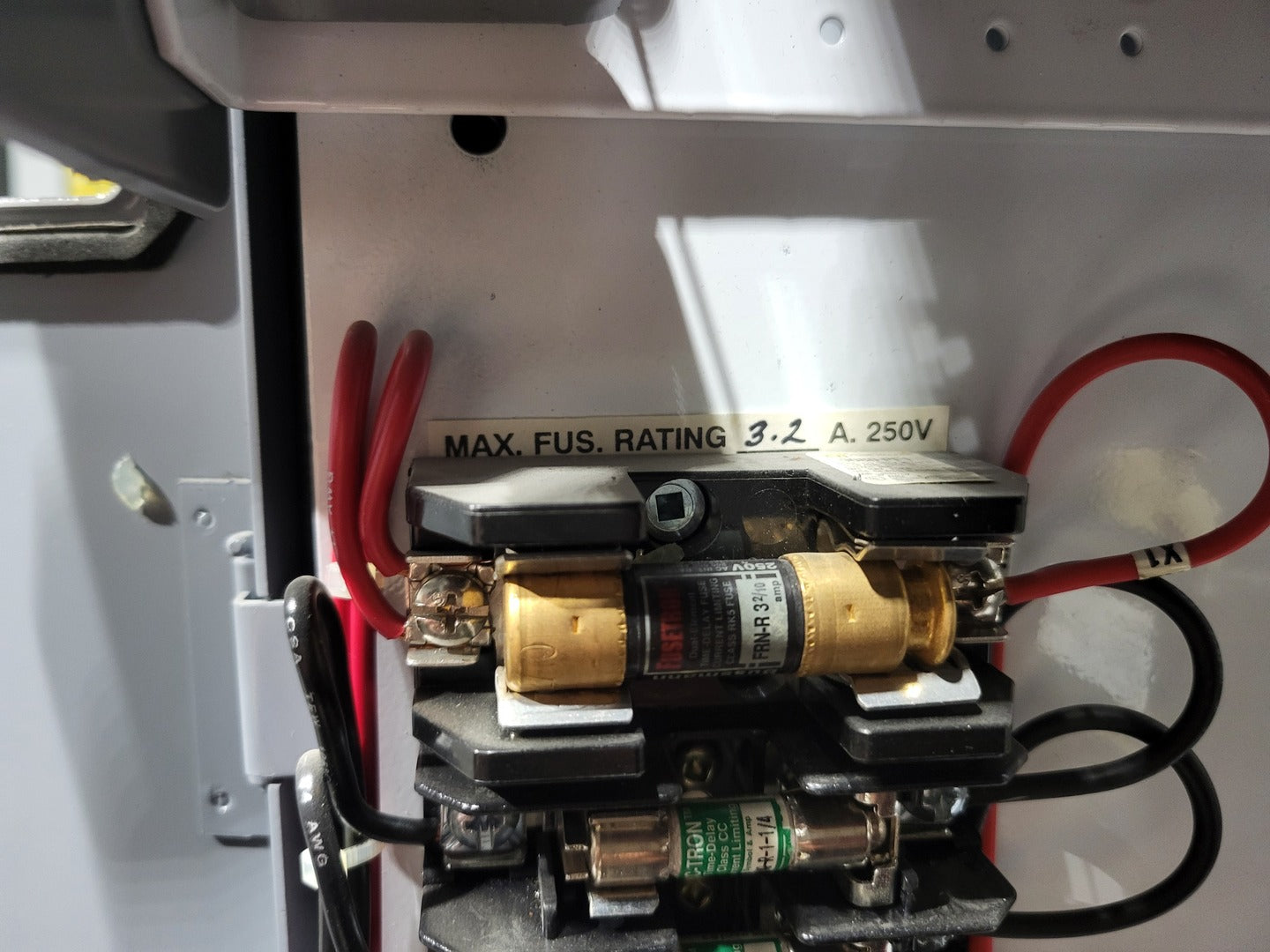

1 x Bussmann Fusetron fuse FRN-R-3-2/10
-

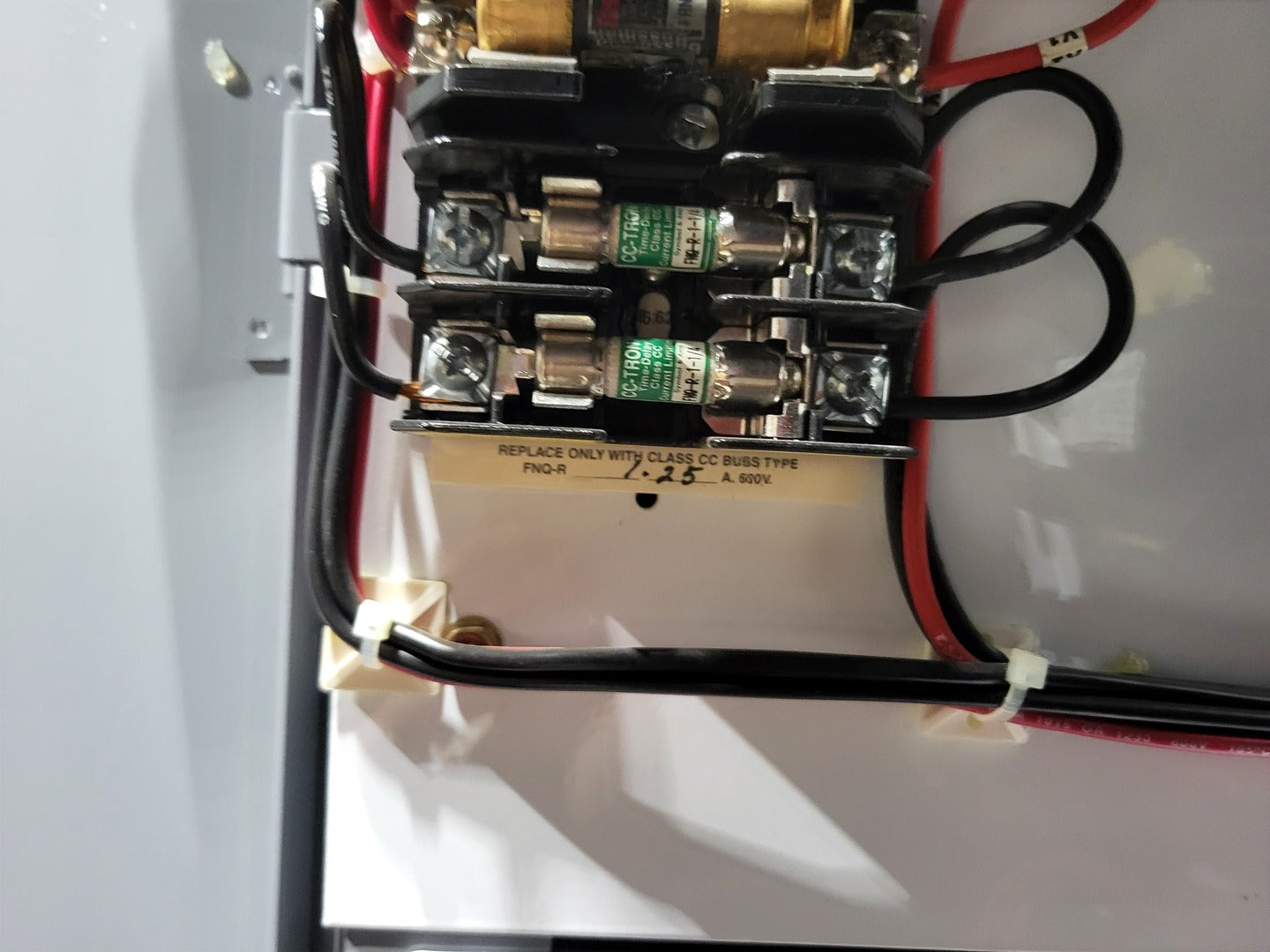

2 x Bussmann CC-Tron fuses FNQ-R-1-1/4
|
