SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151773
Price:
$8,779

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications
Model Model 6
Condition Used
Other Specifications

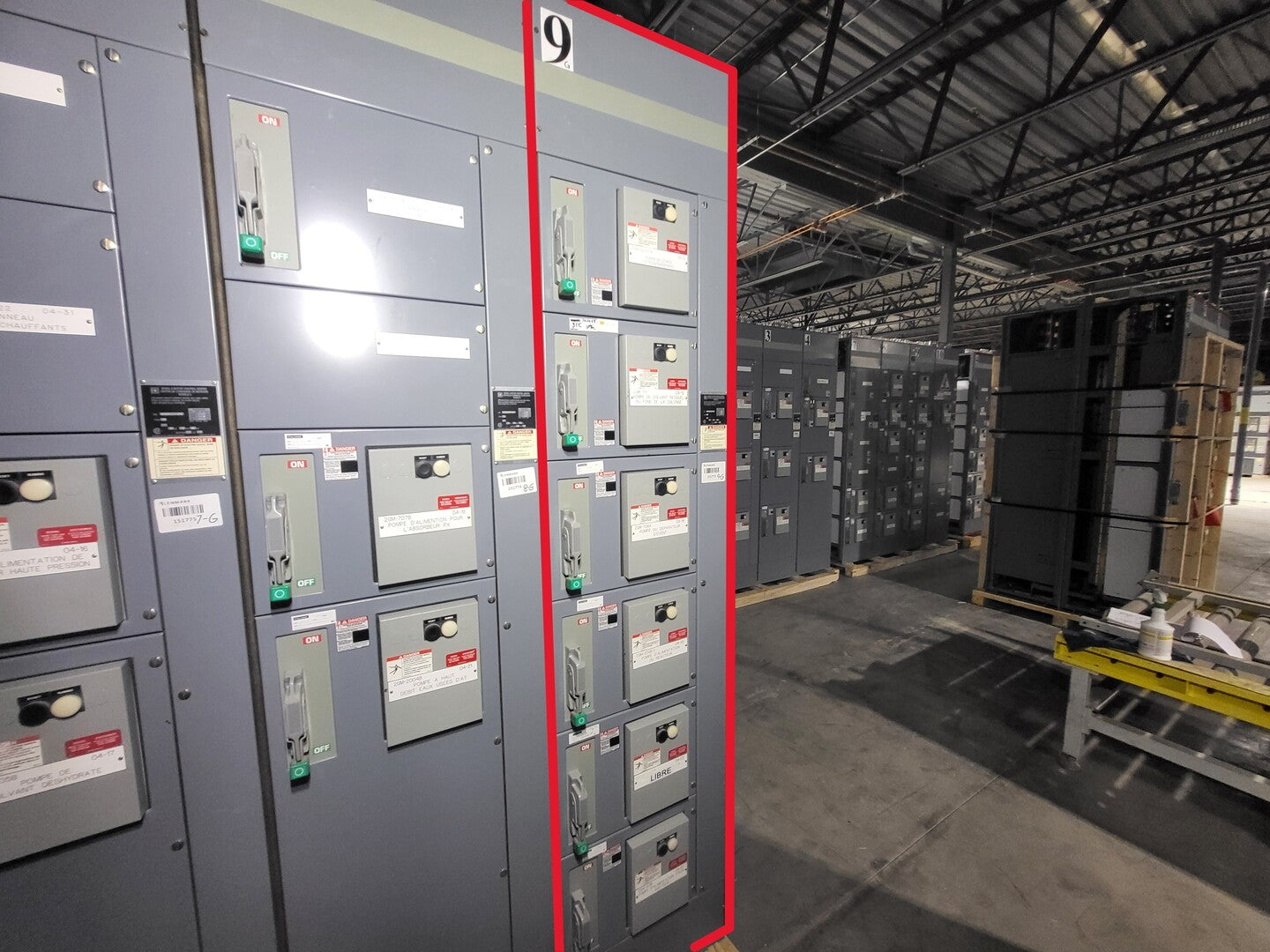

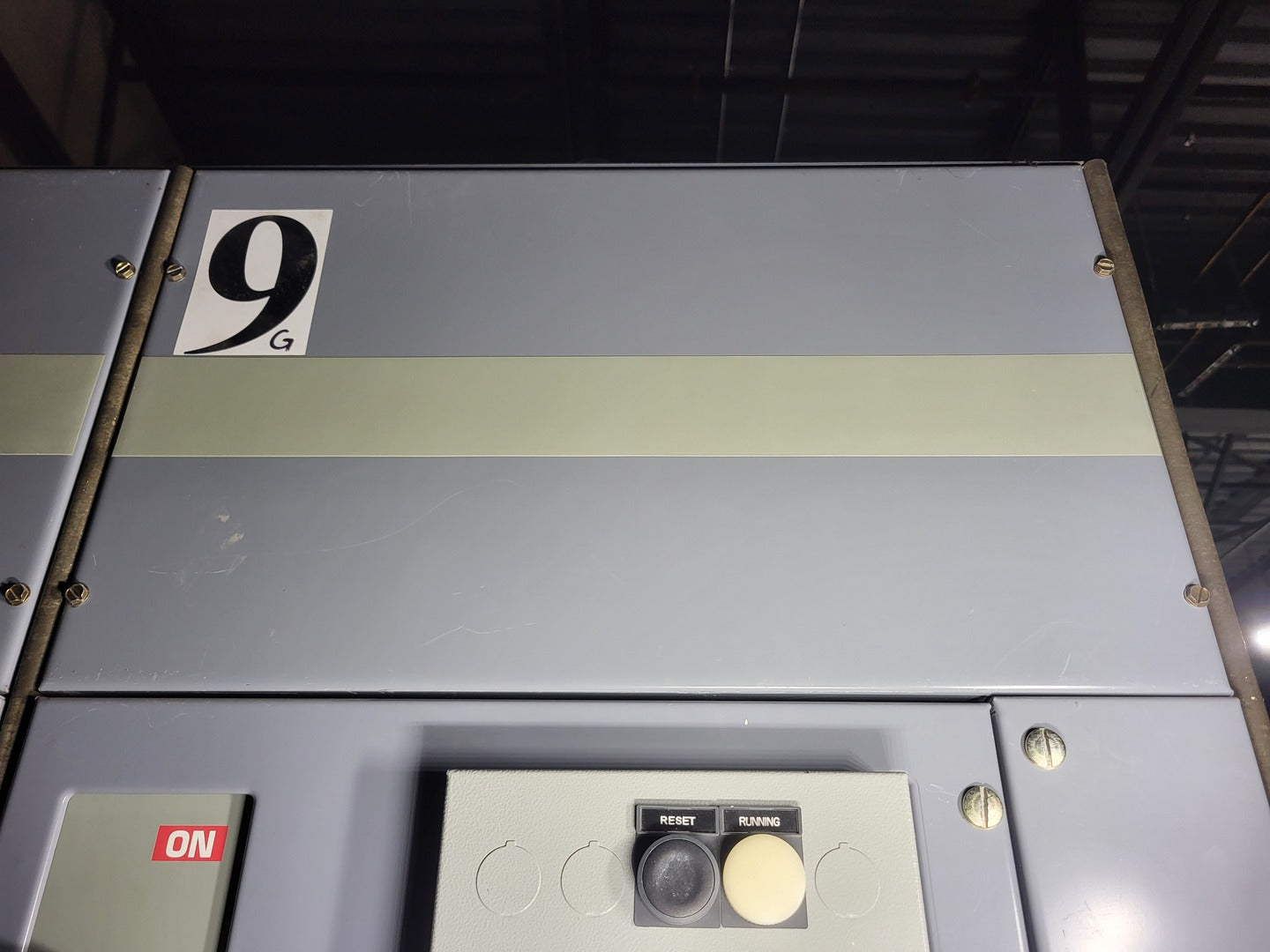

Note: Section 9 only

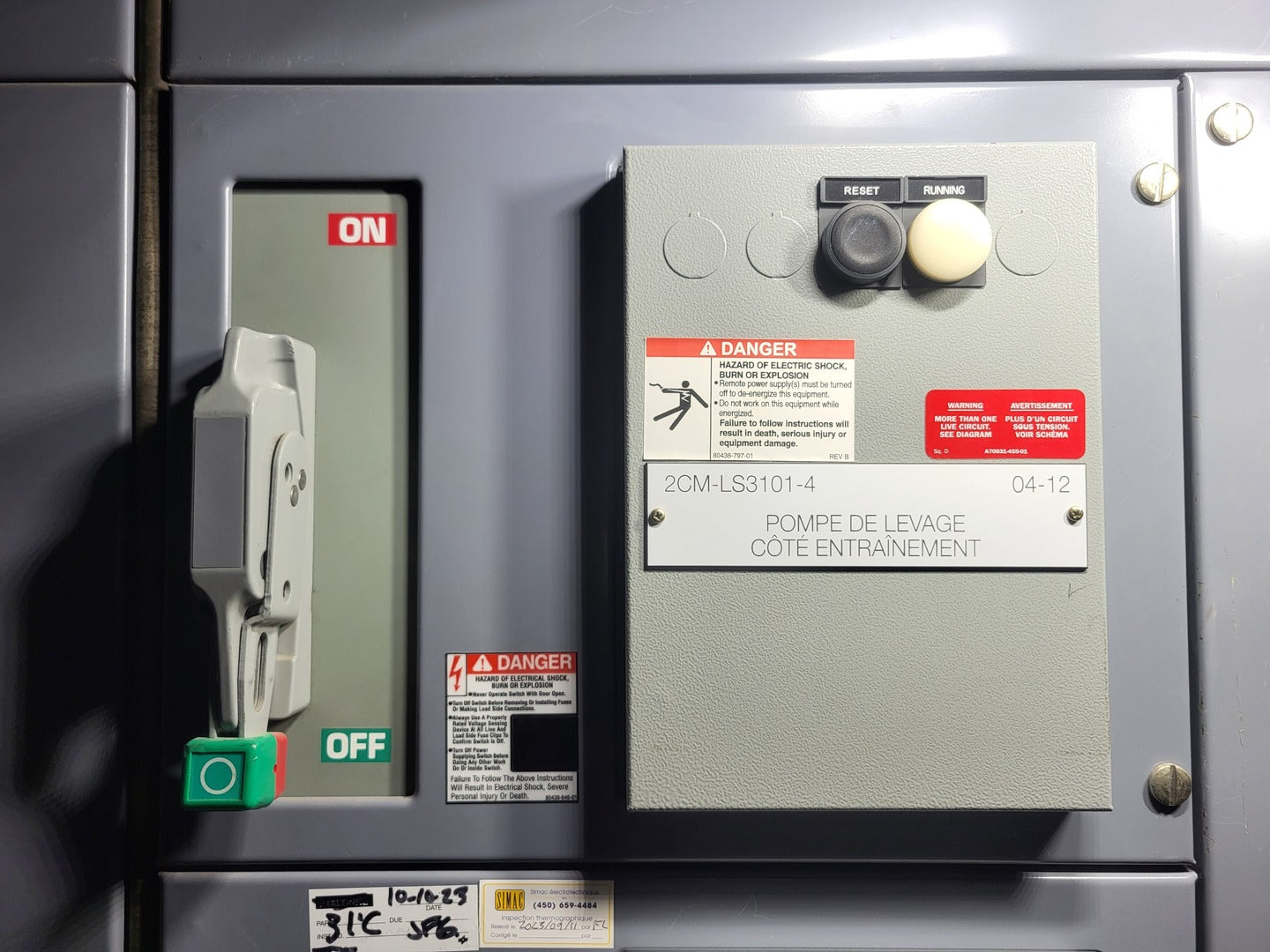

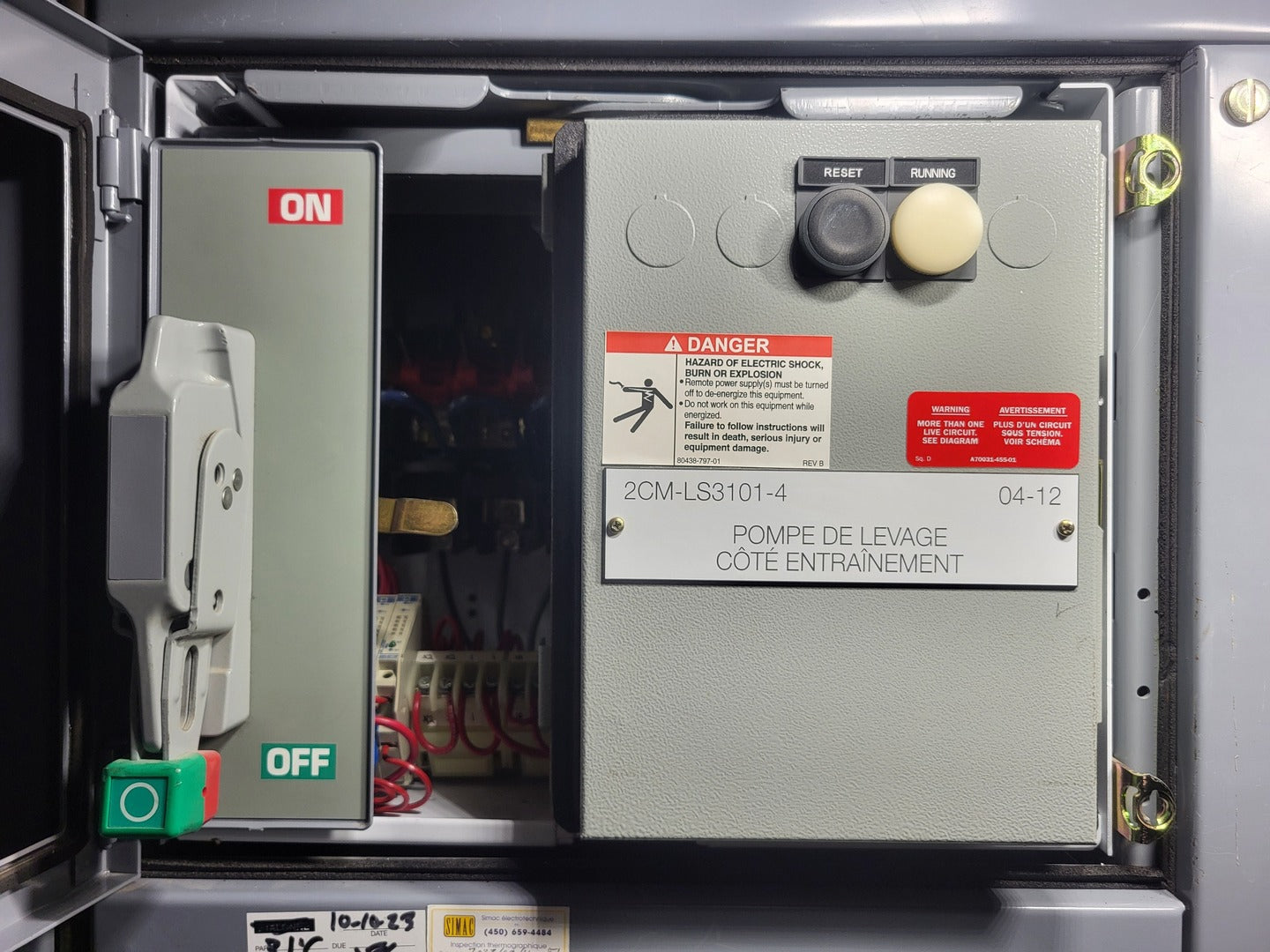

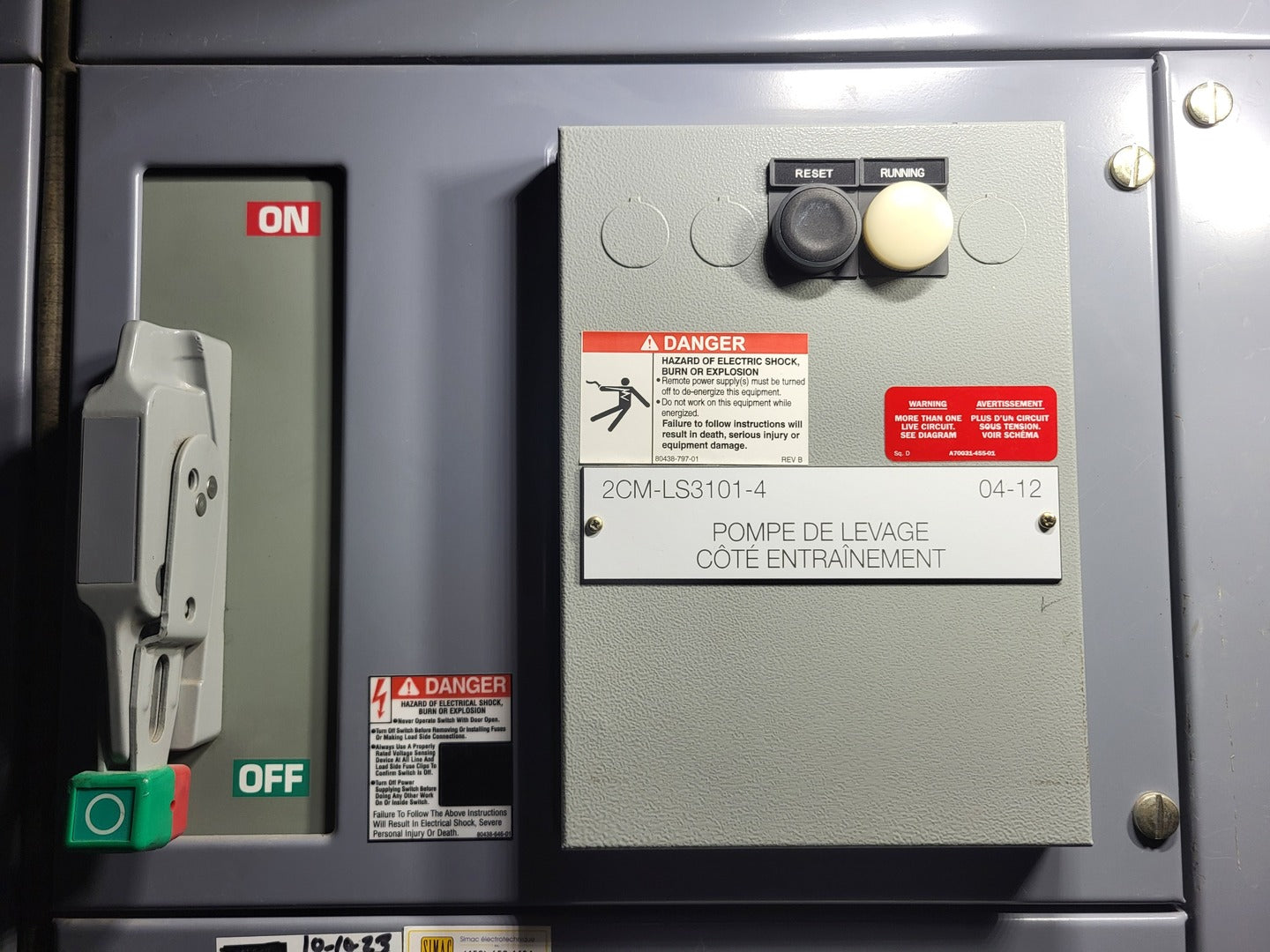

Bucket #1 2CM-LS3101-4

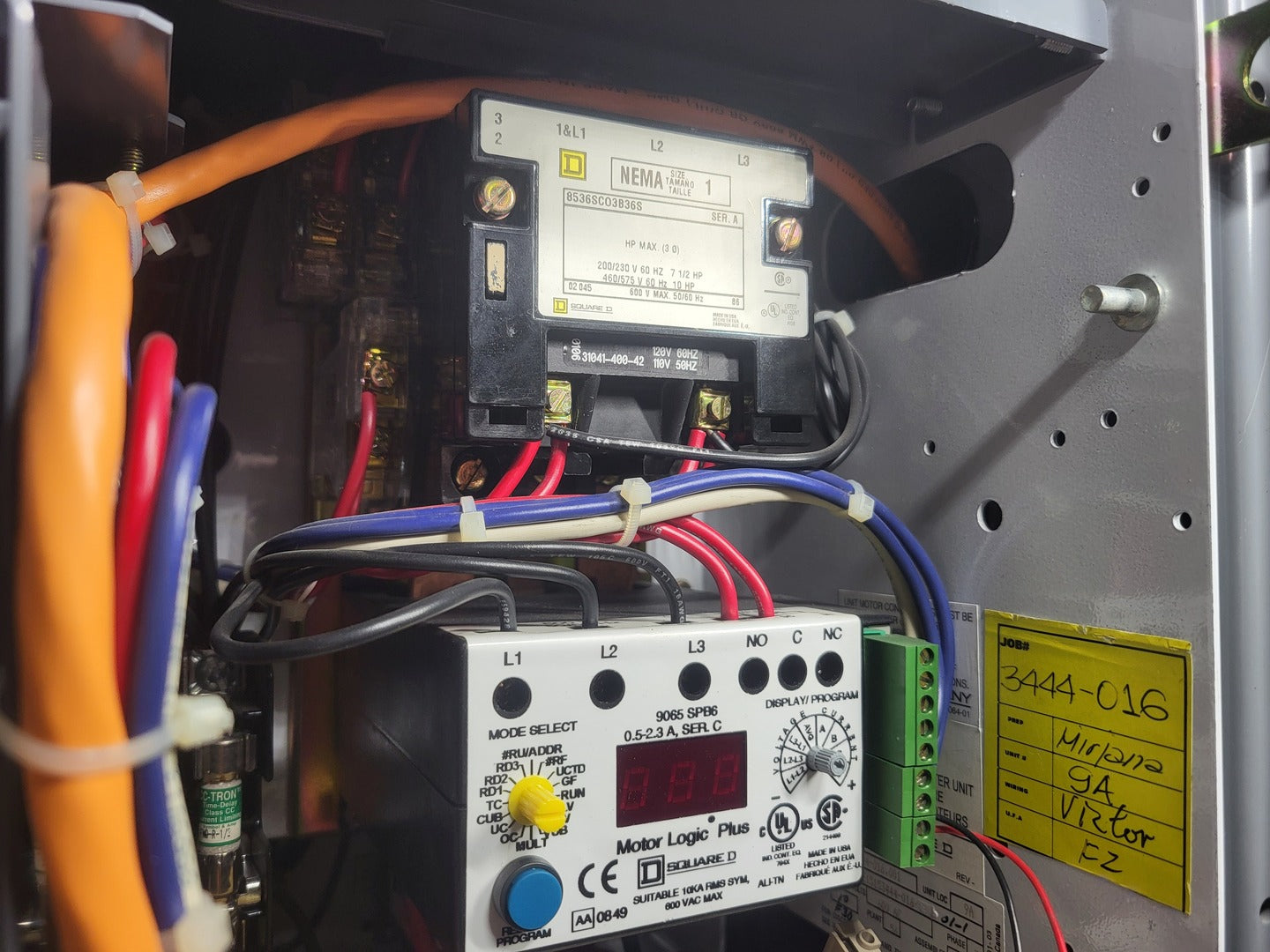

  1. Square D 8536SCO3B36S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max

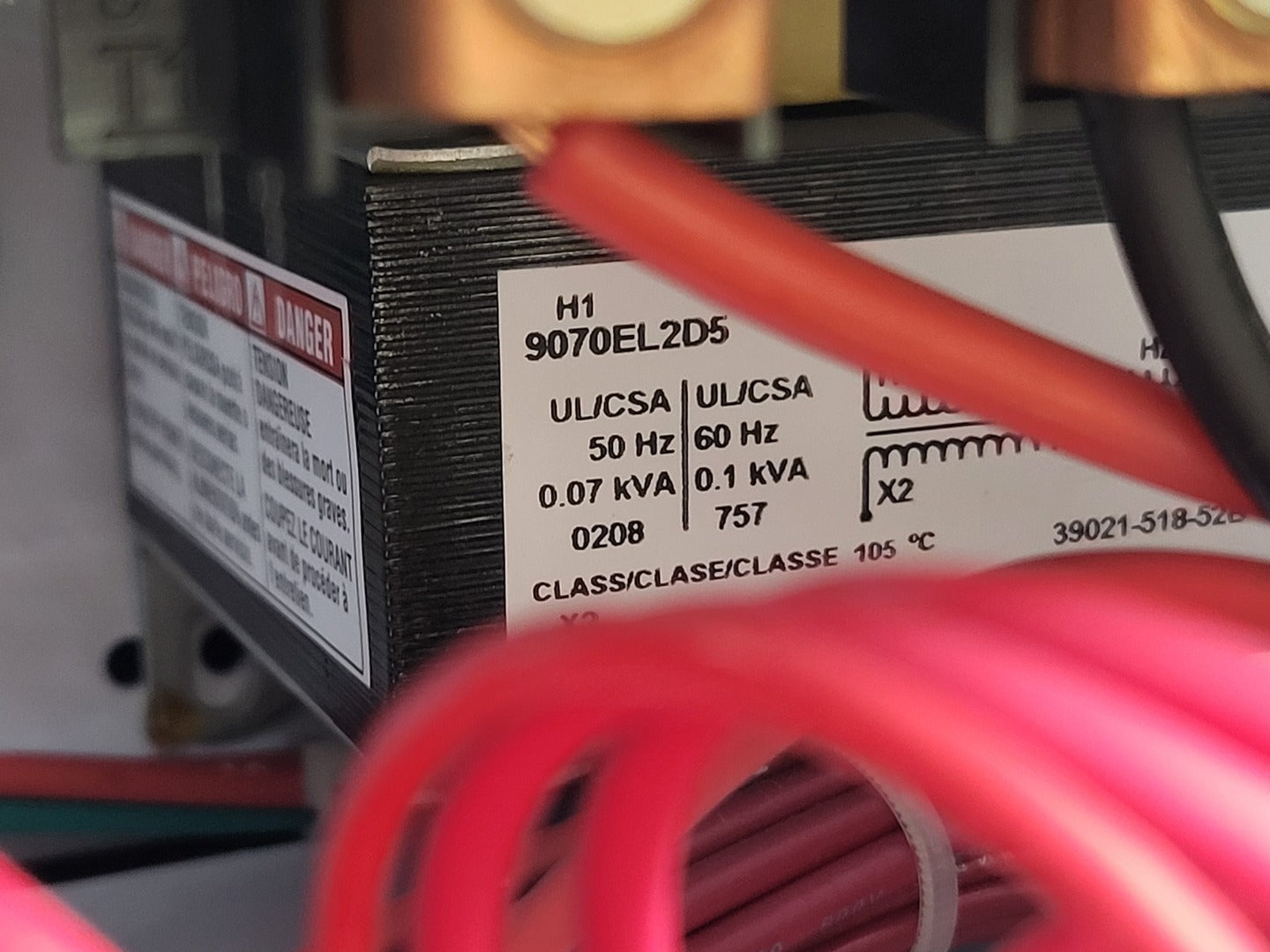

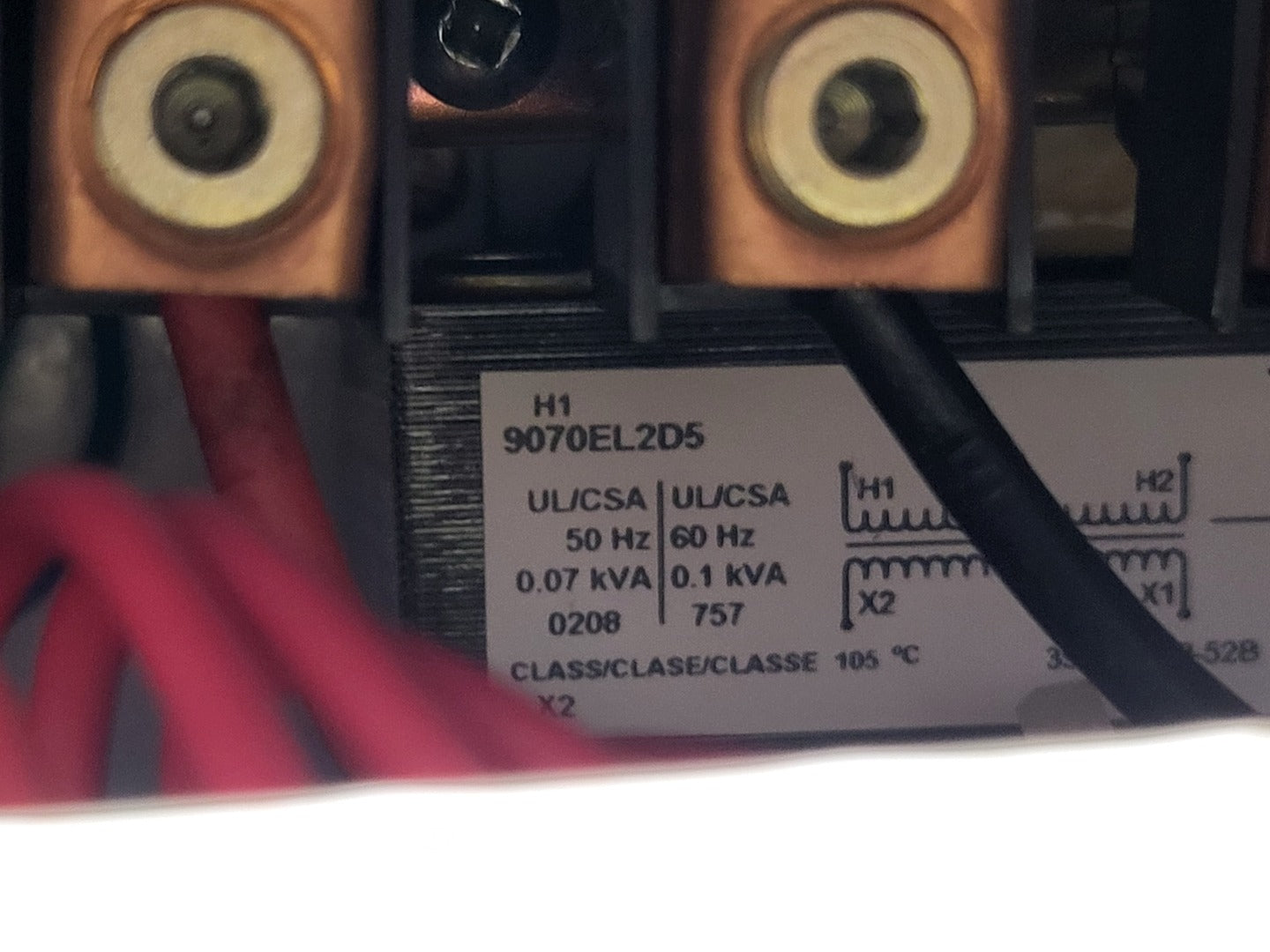

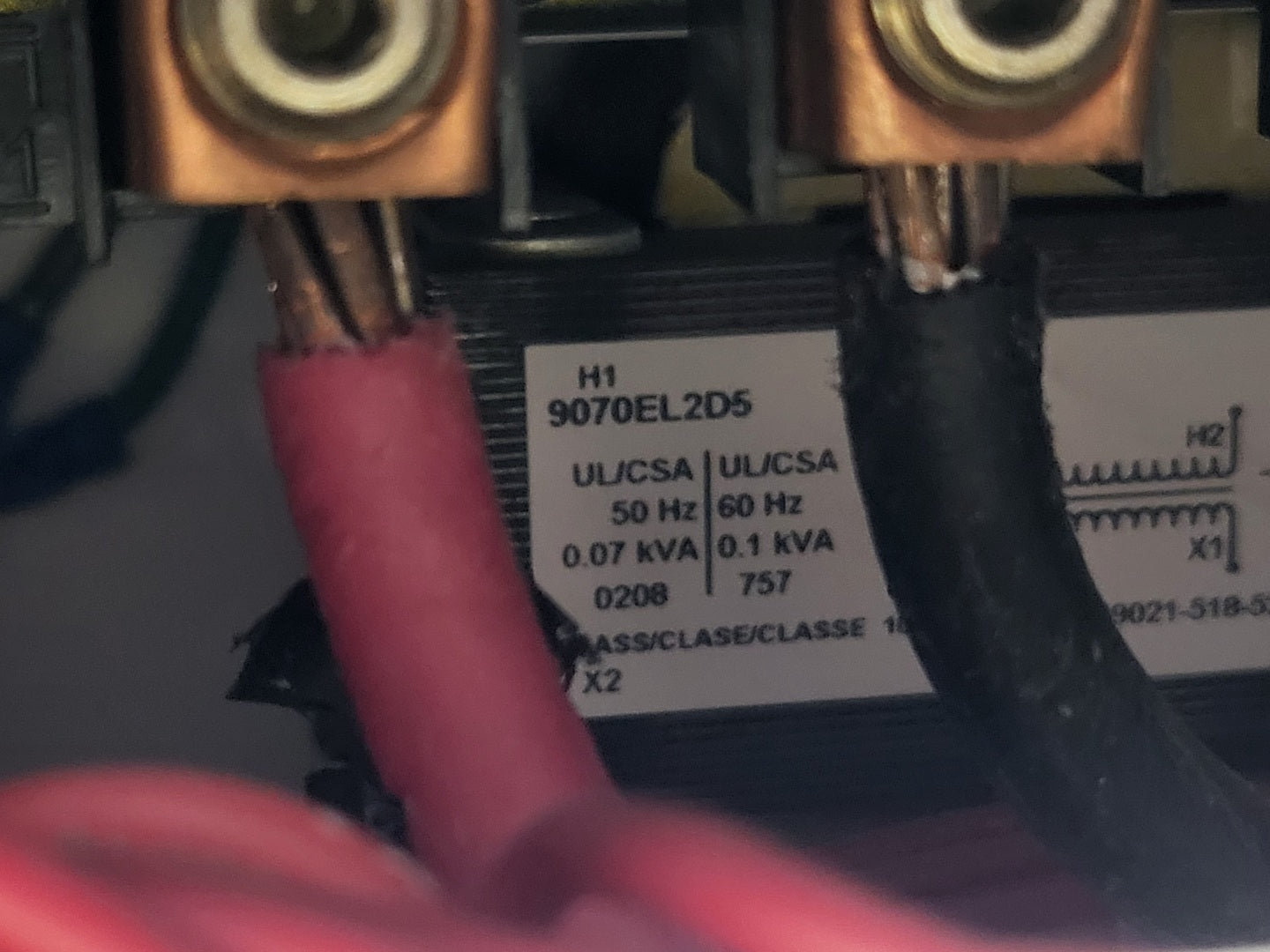

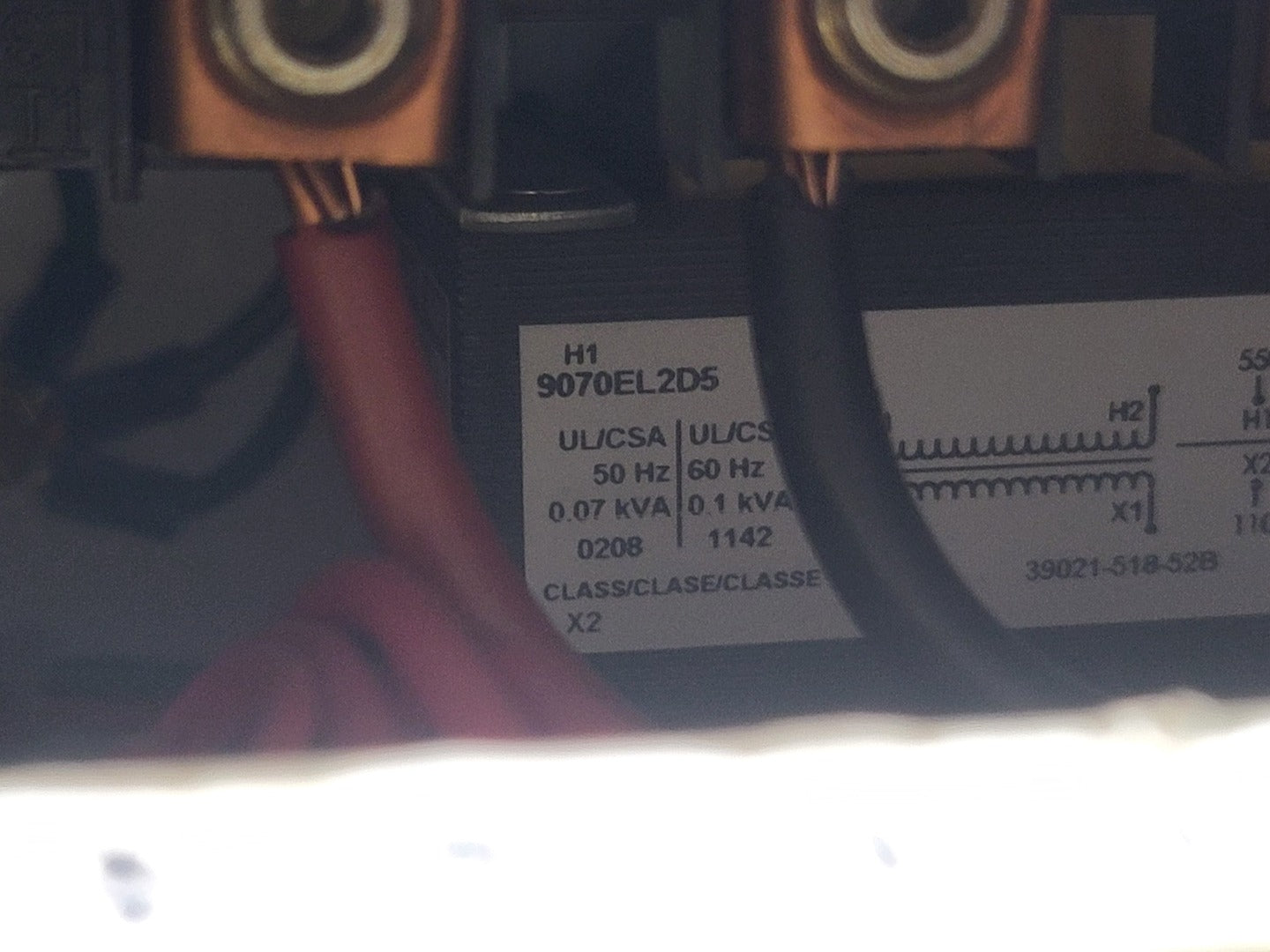

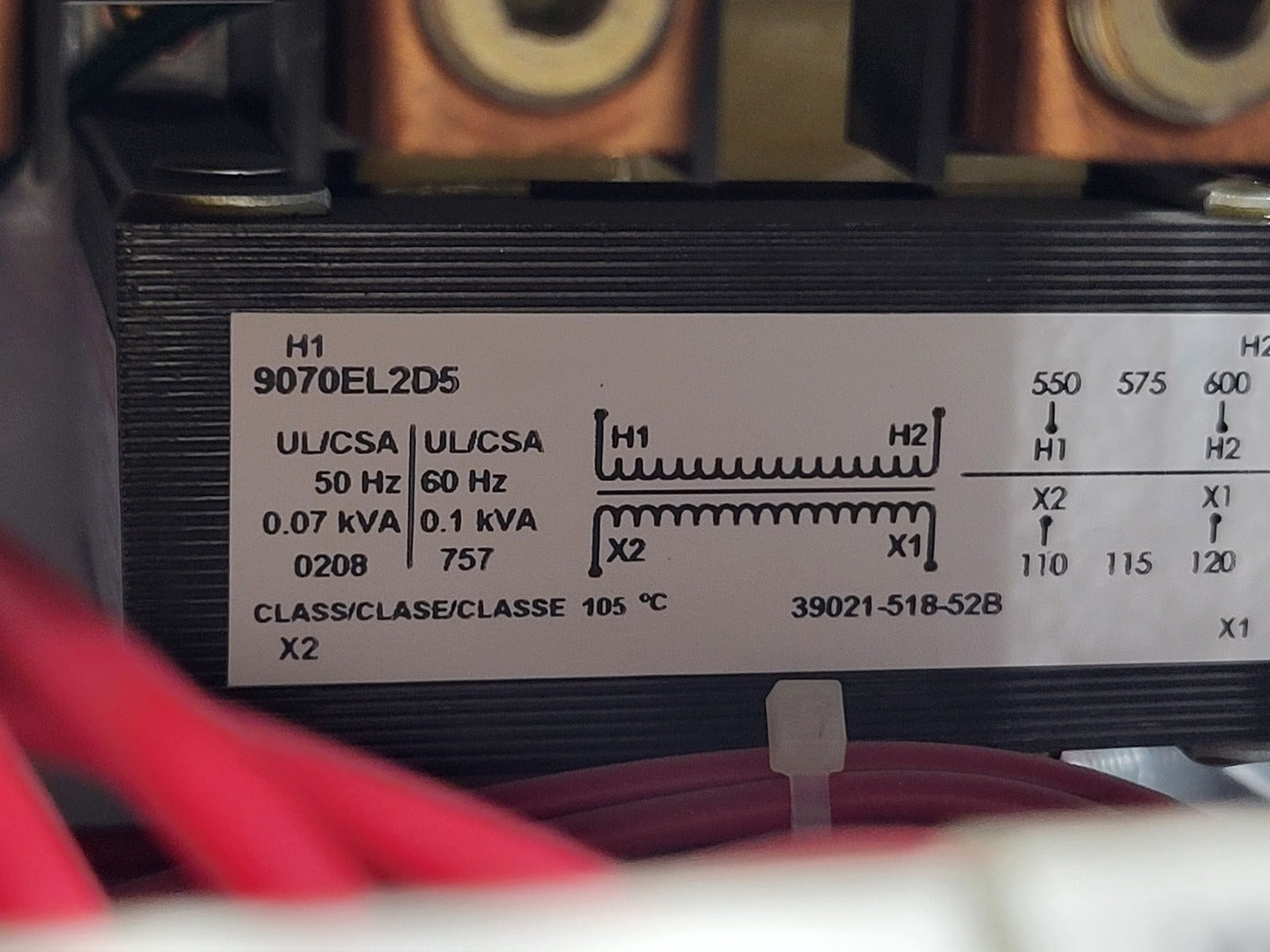

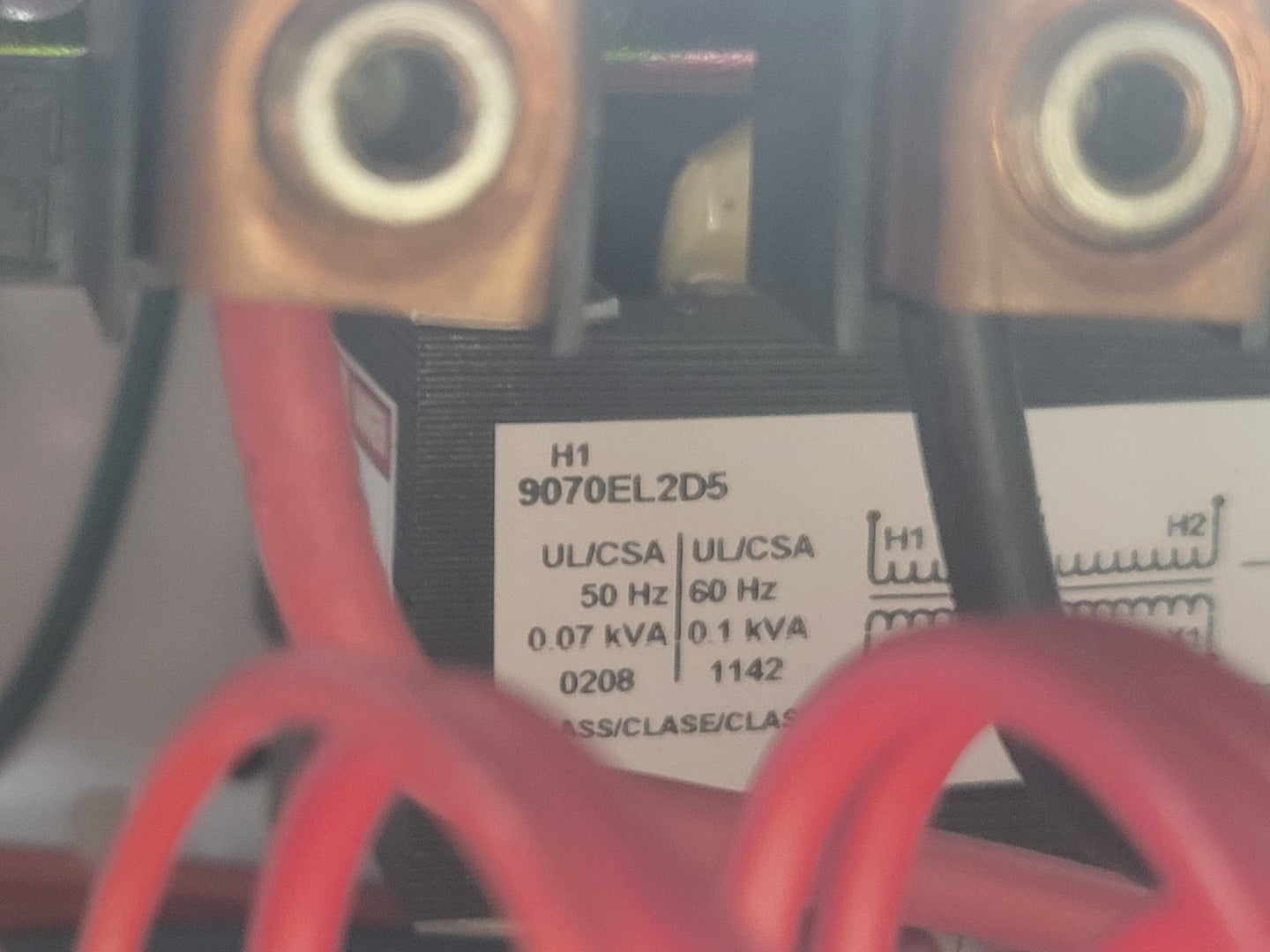

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

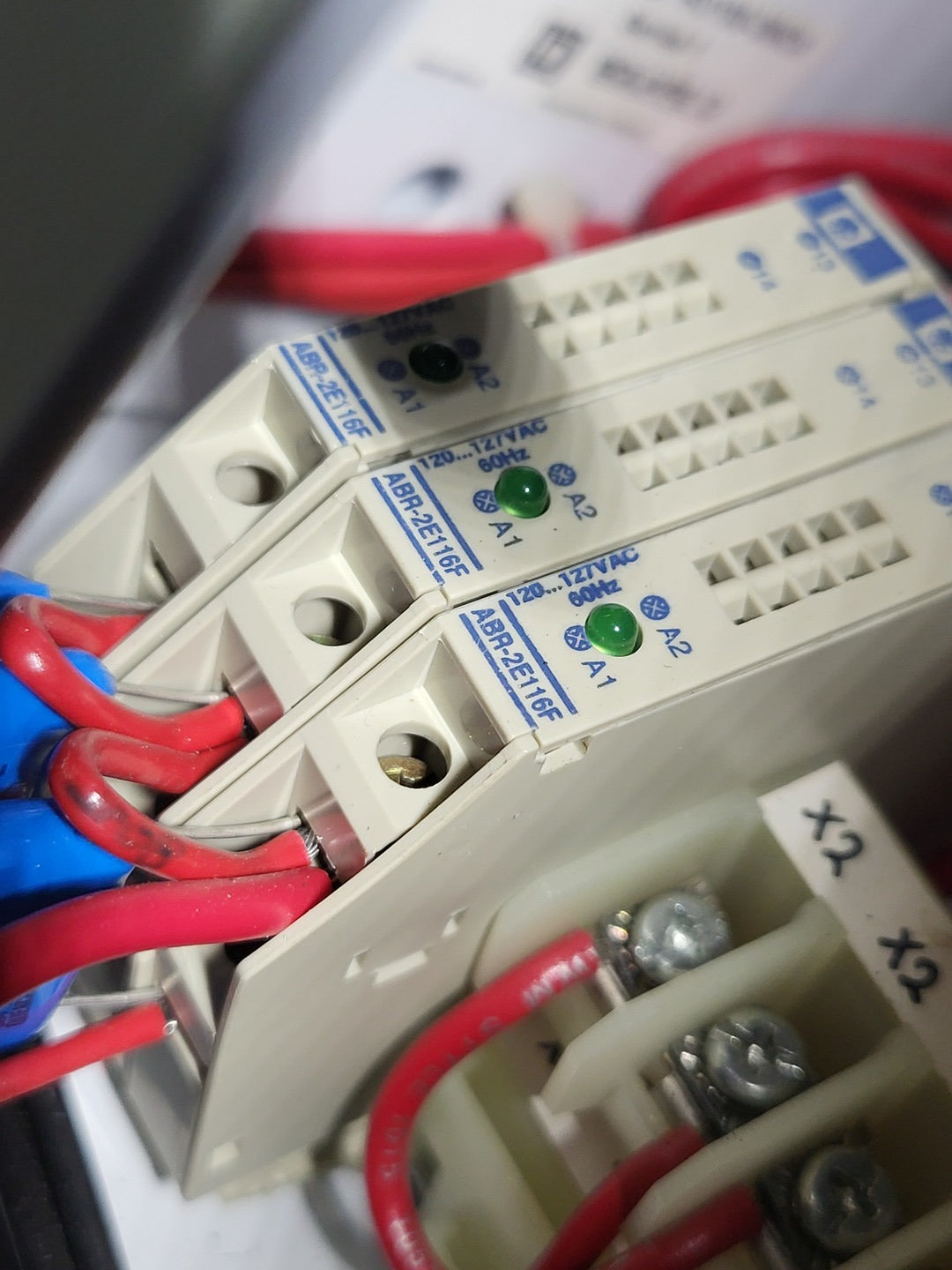

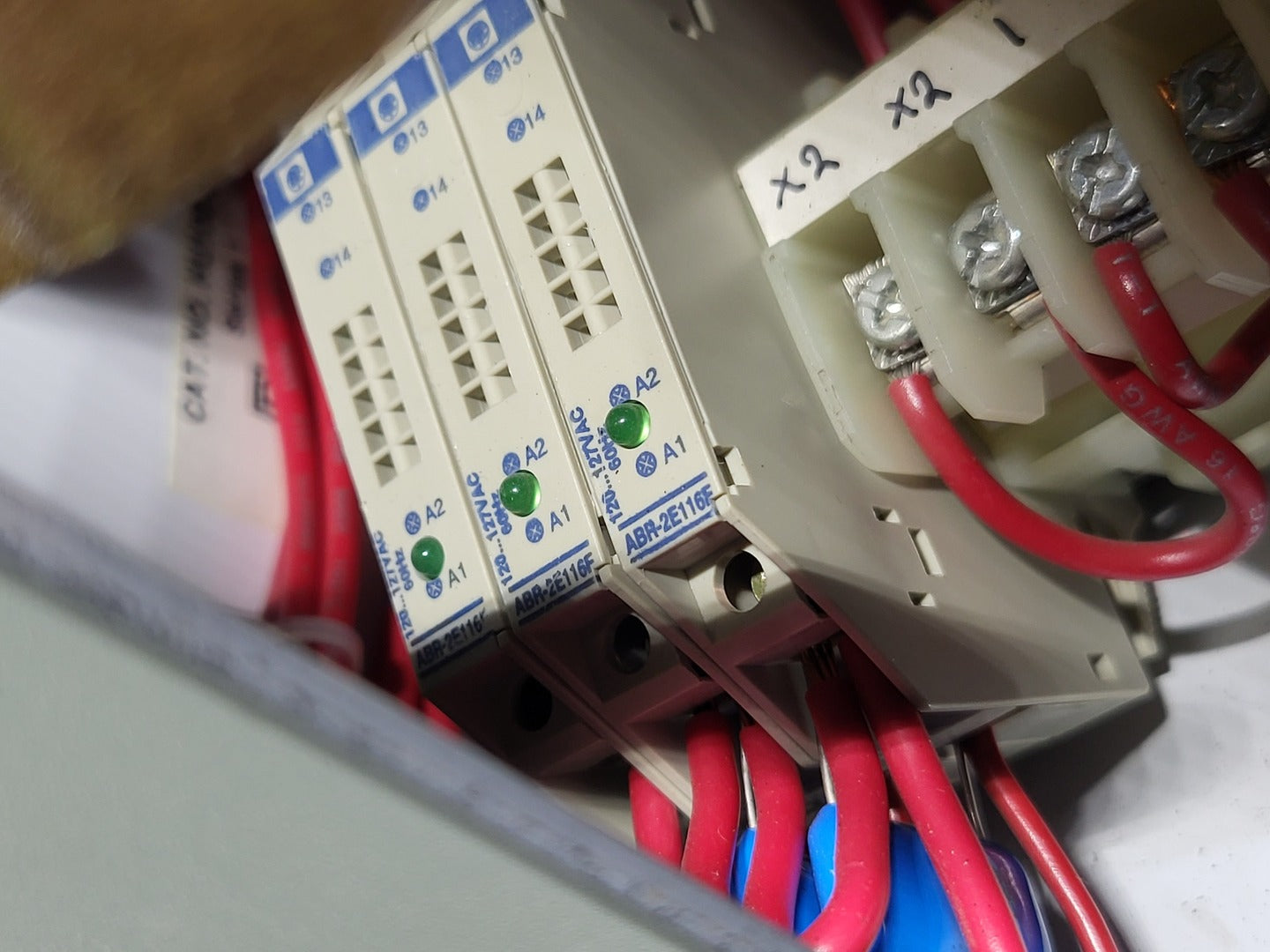

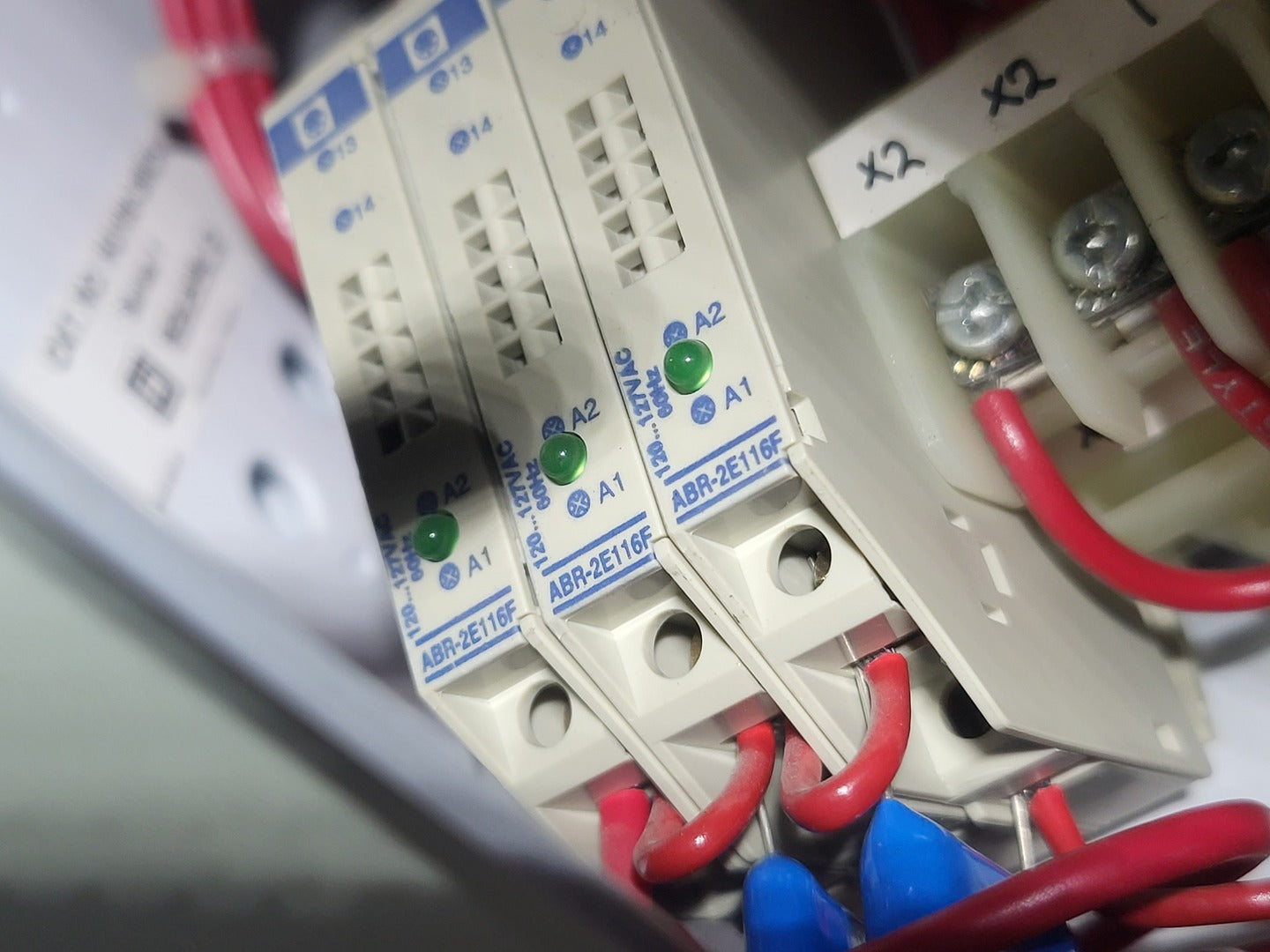

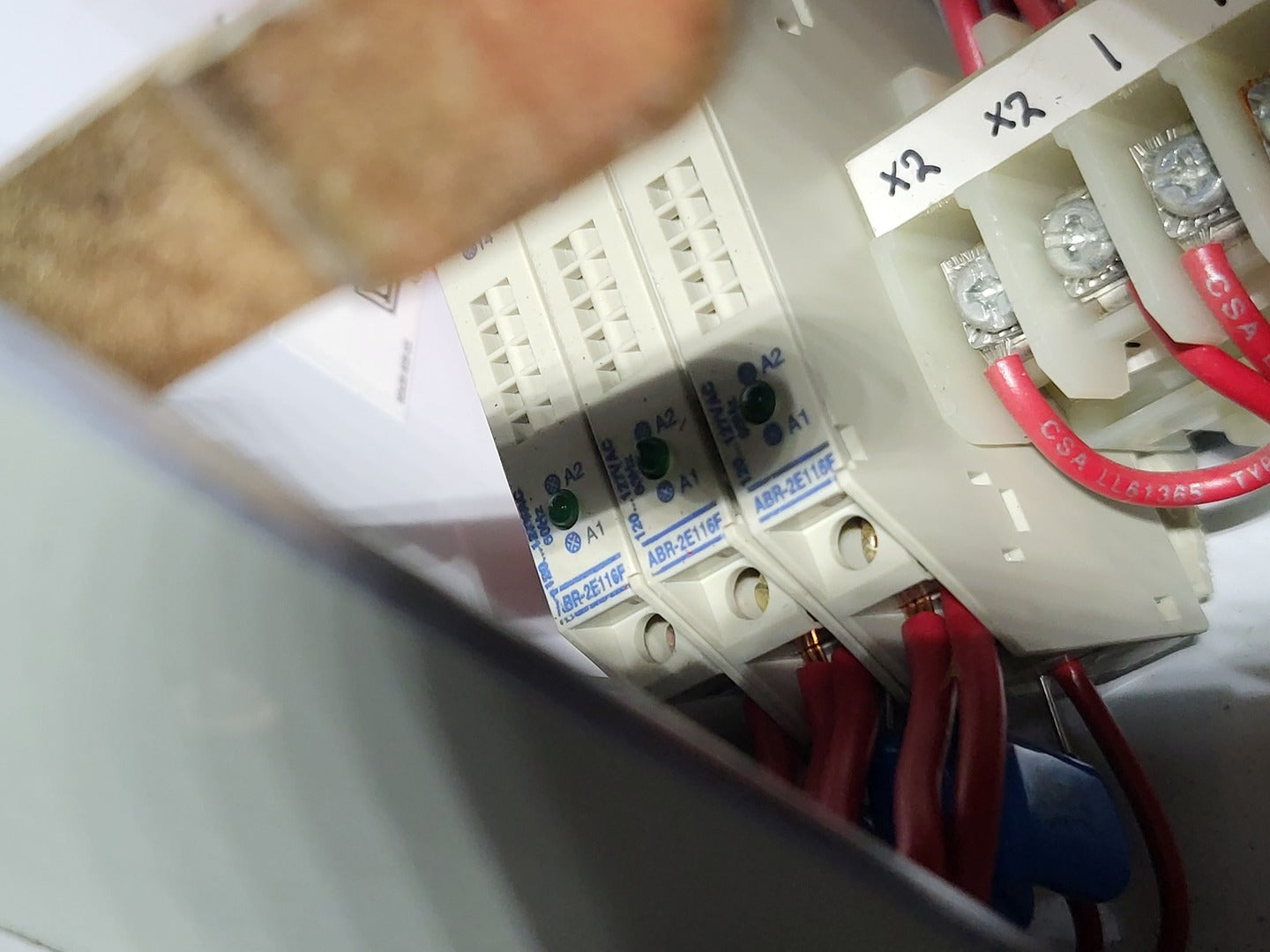

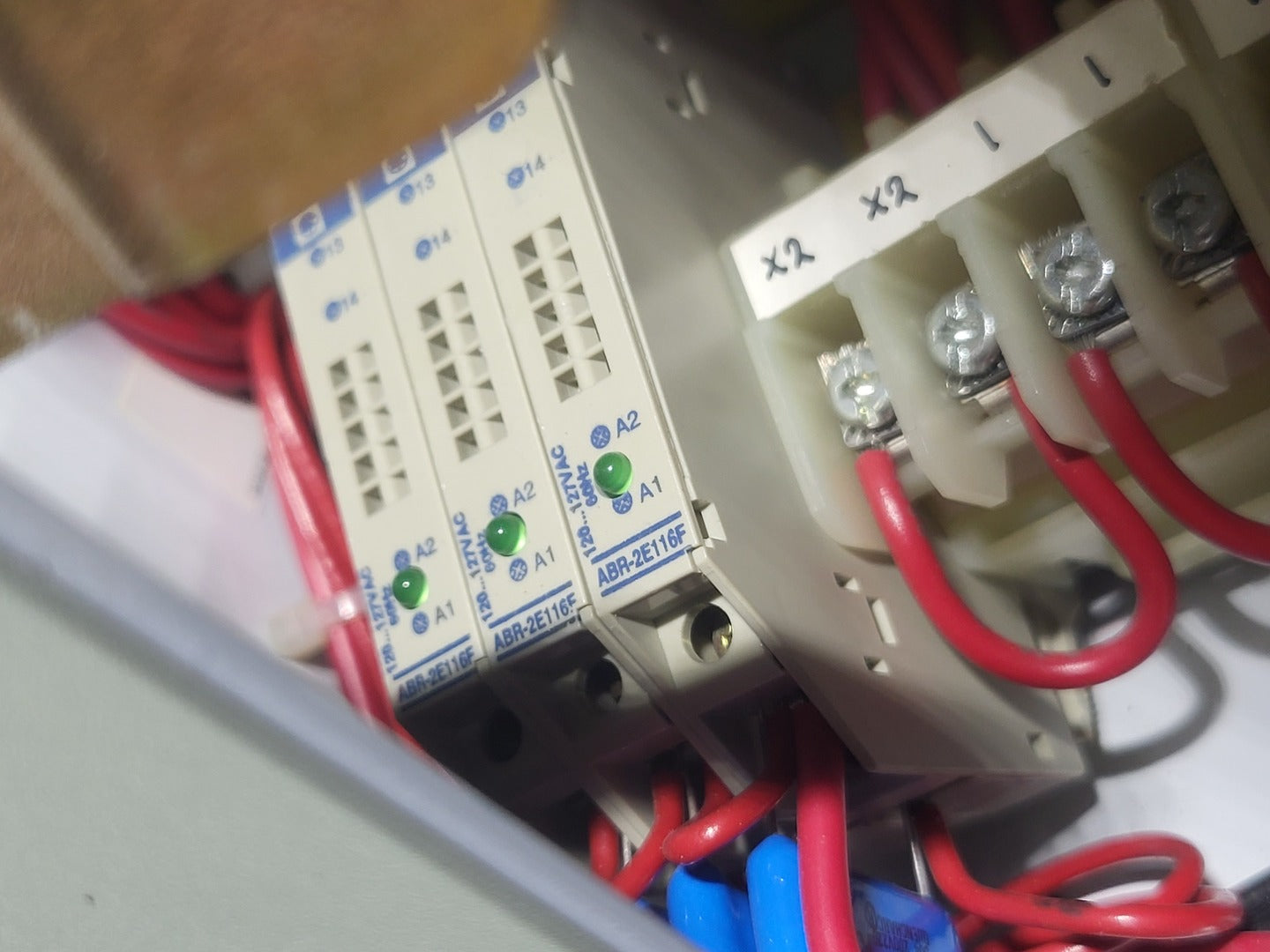

  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

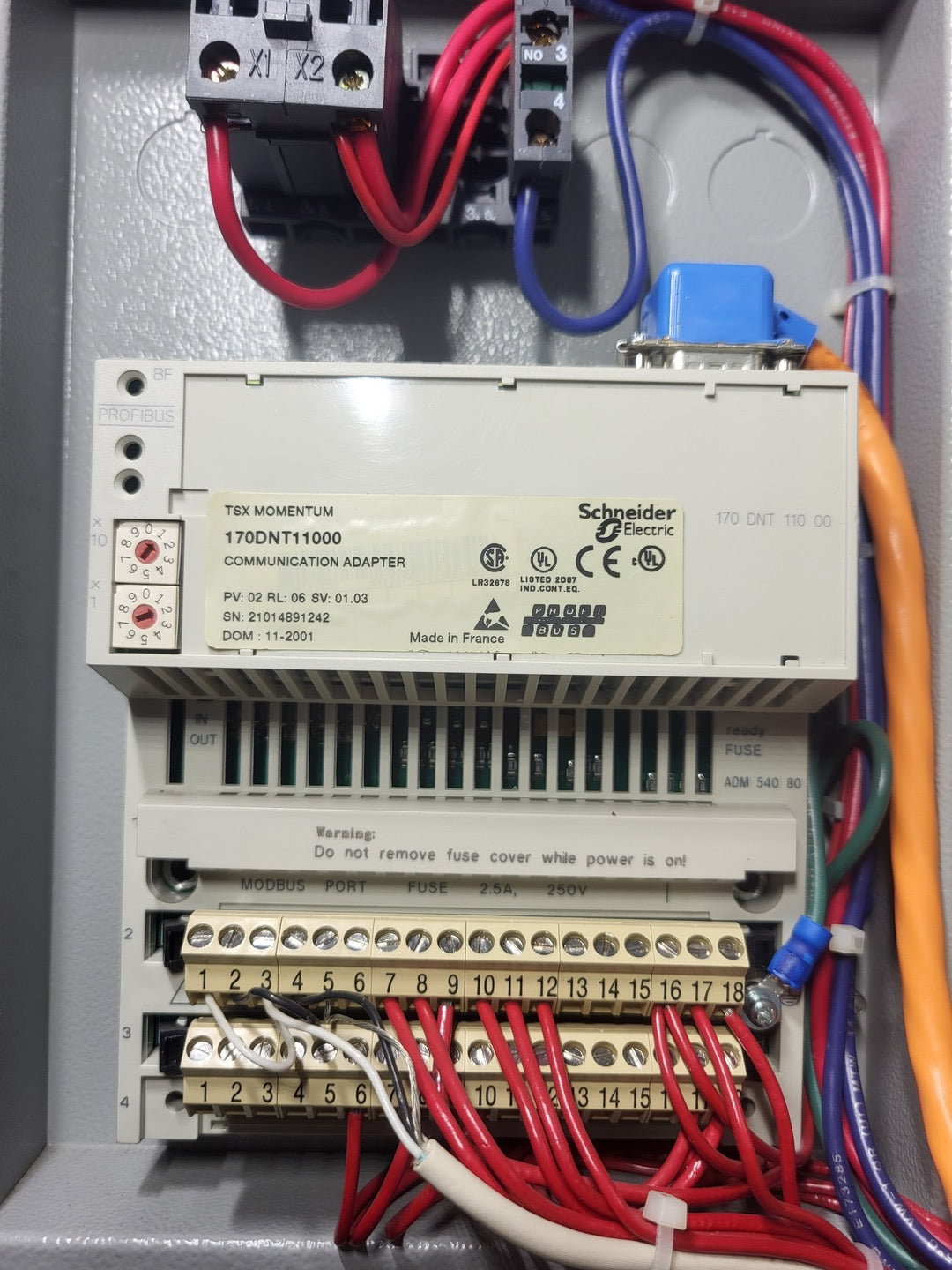

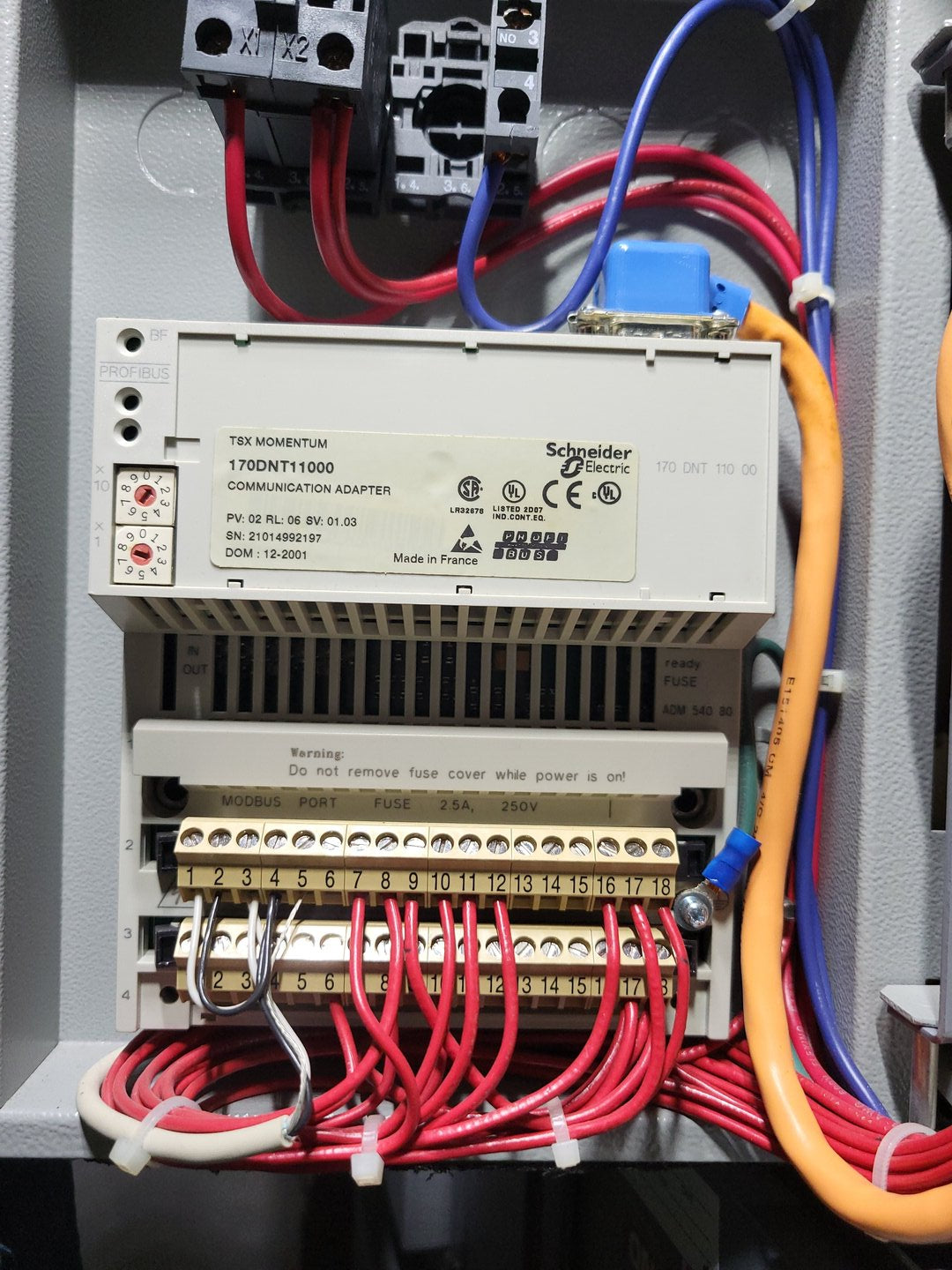

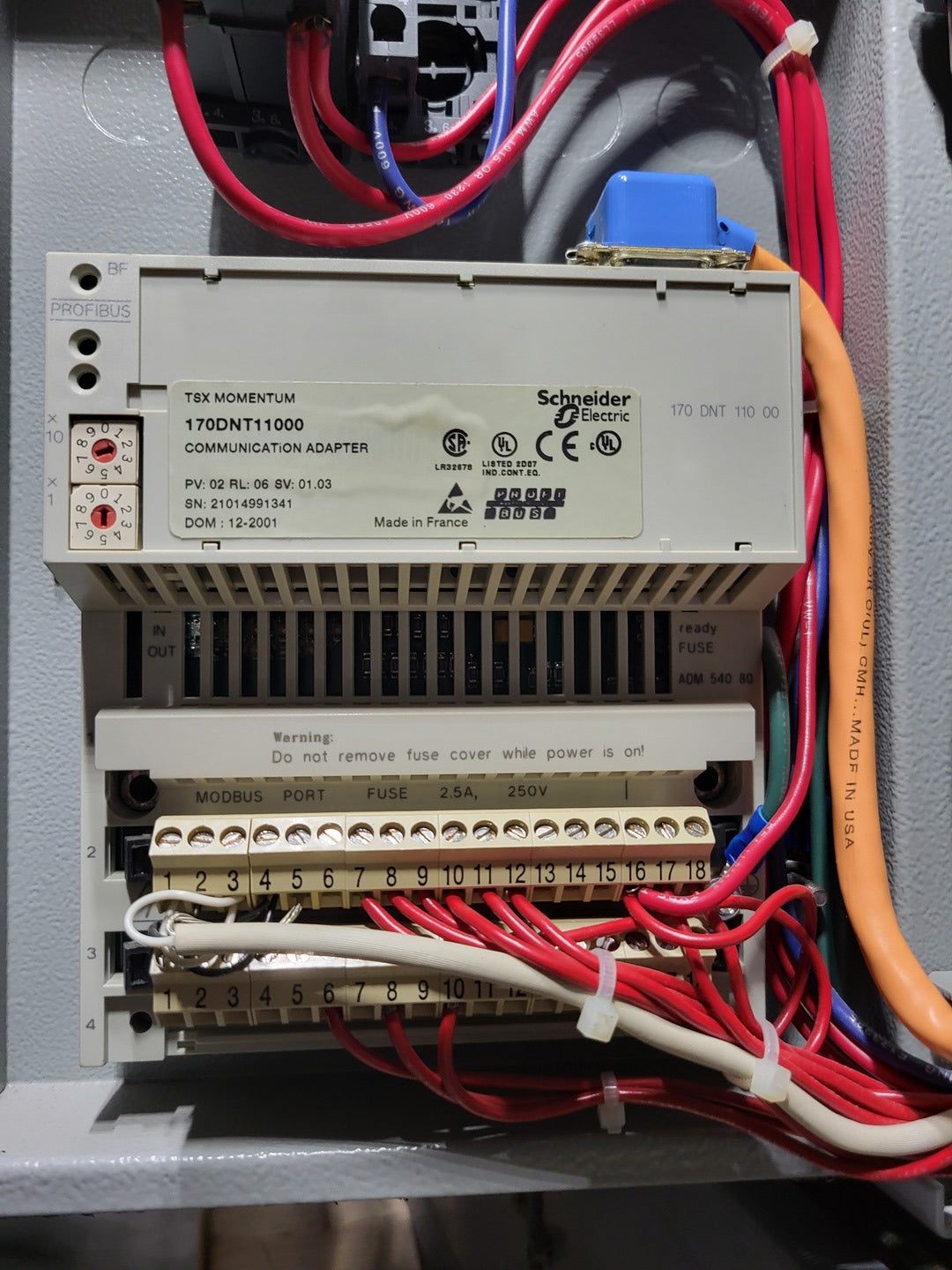

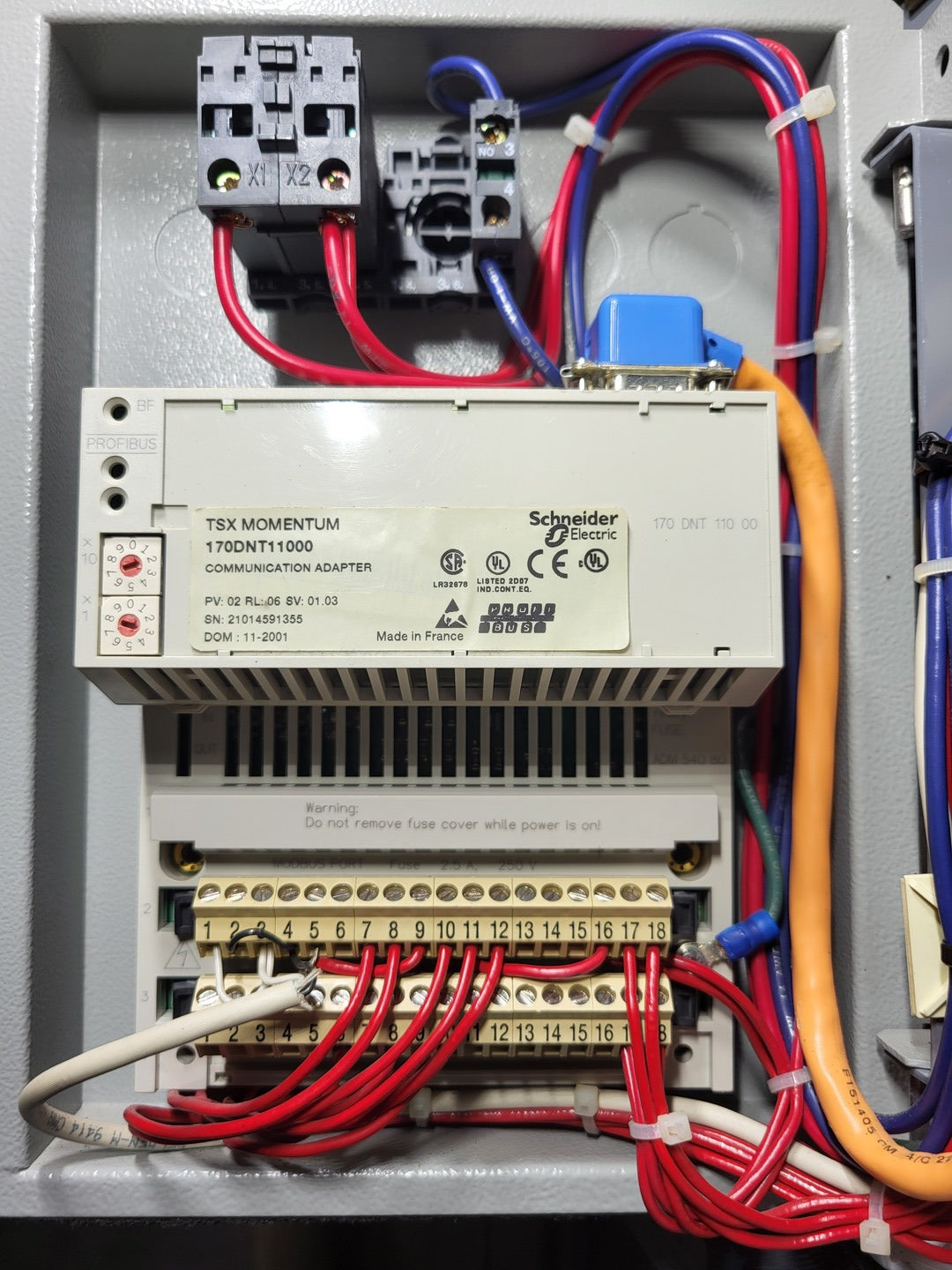

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

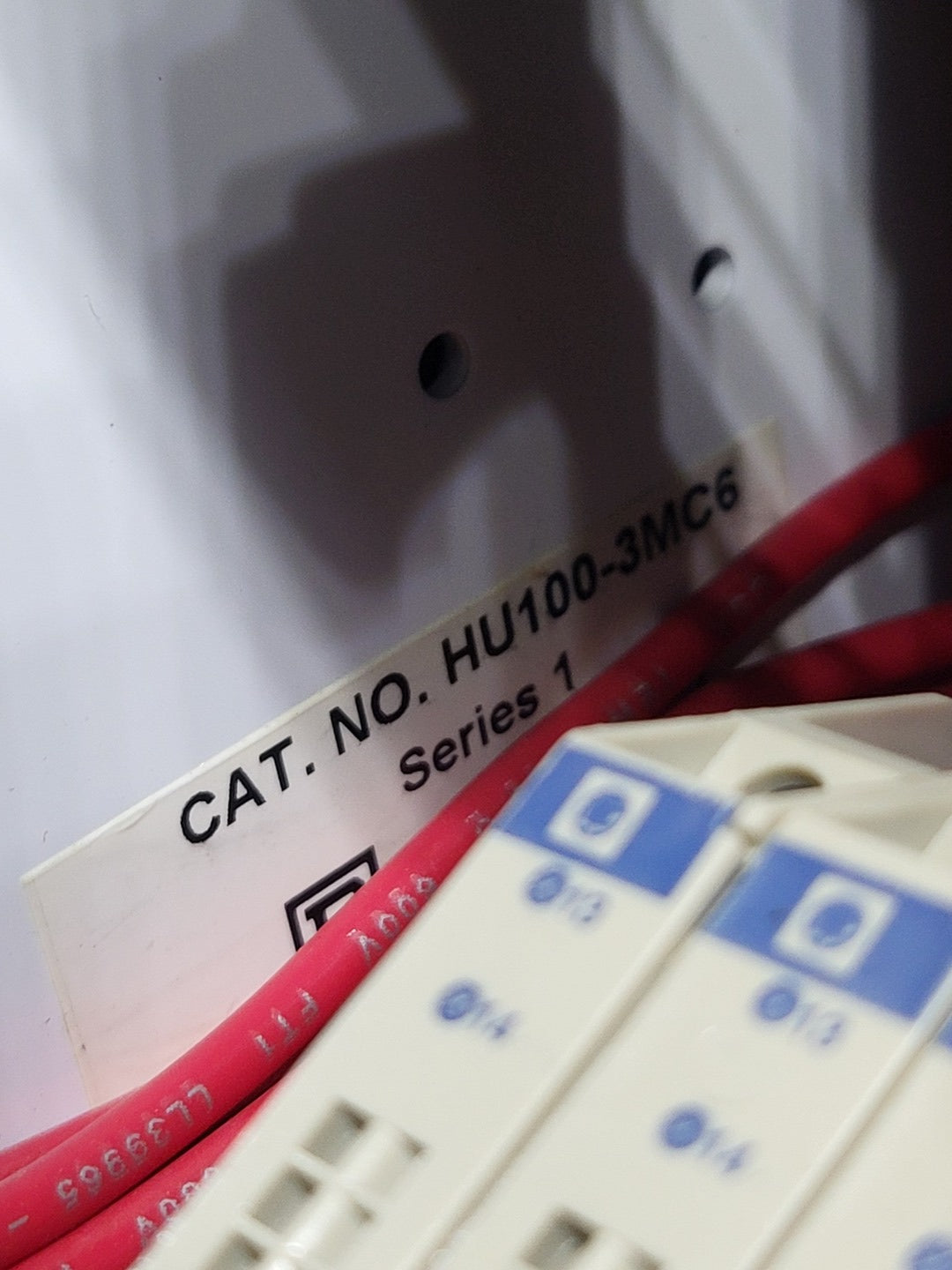

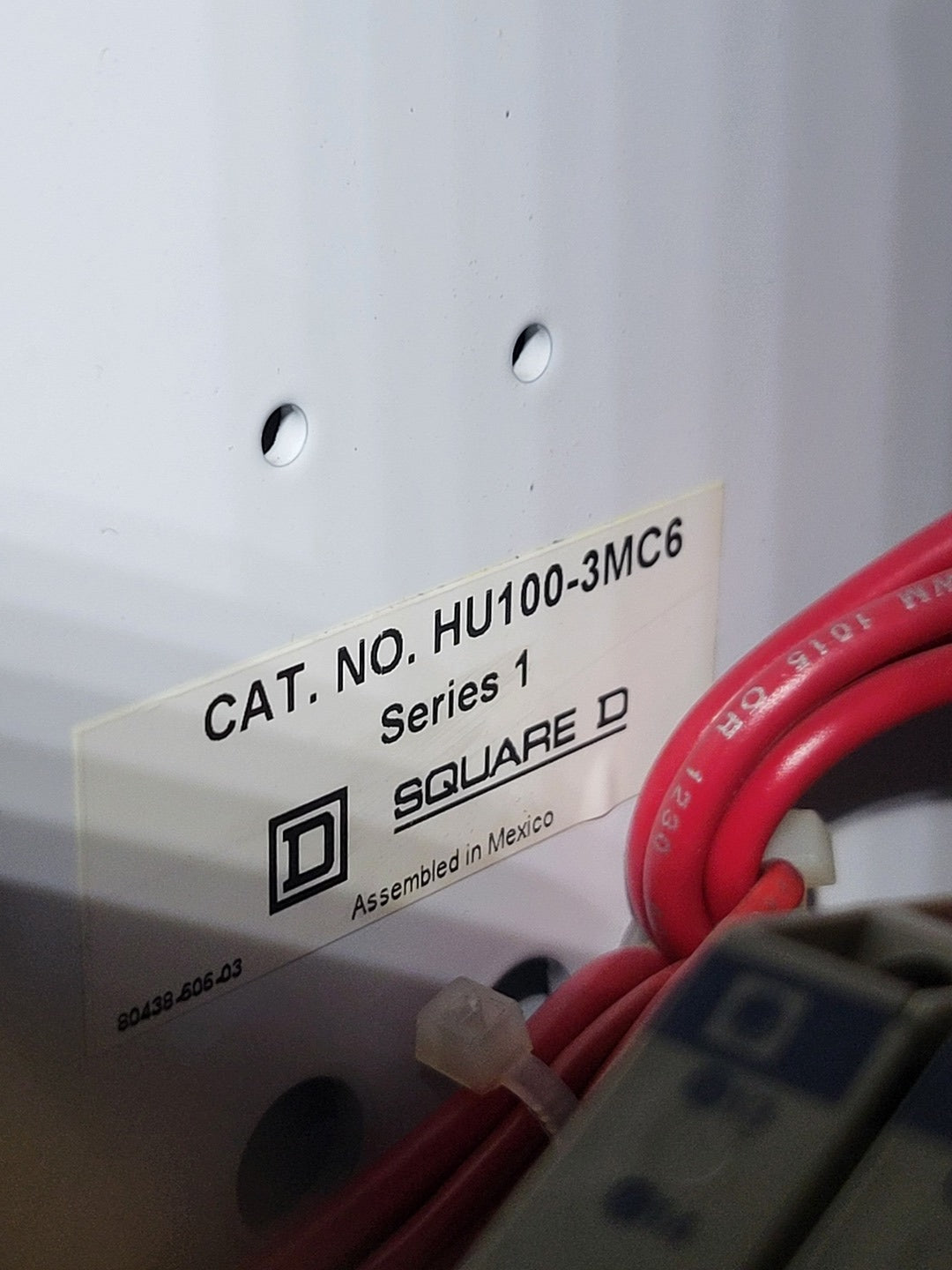

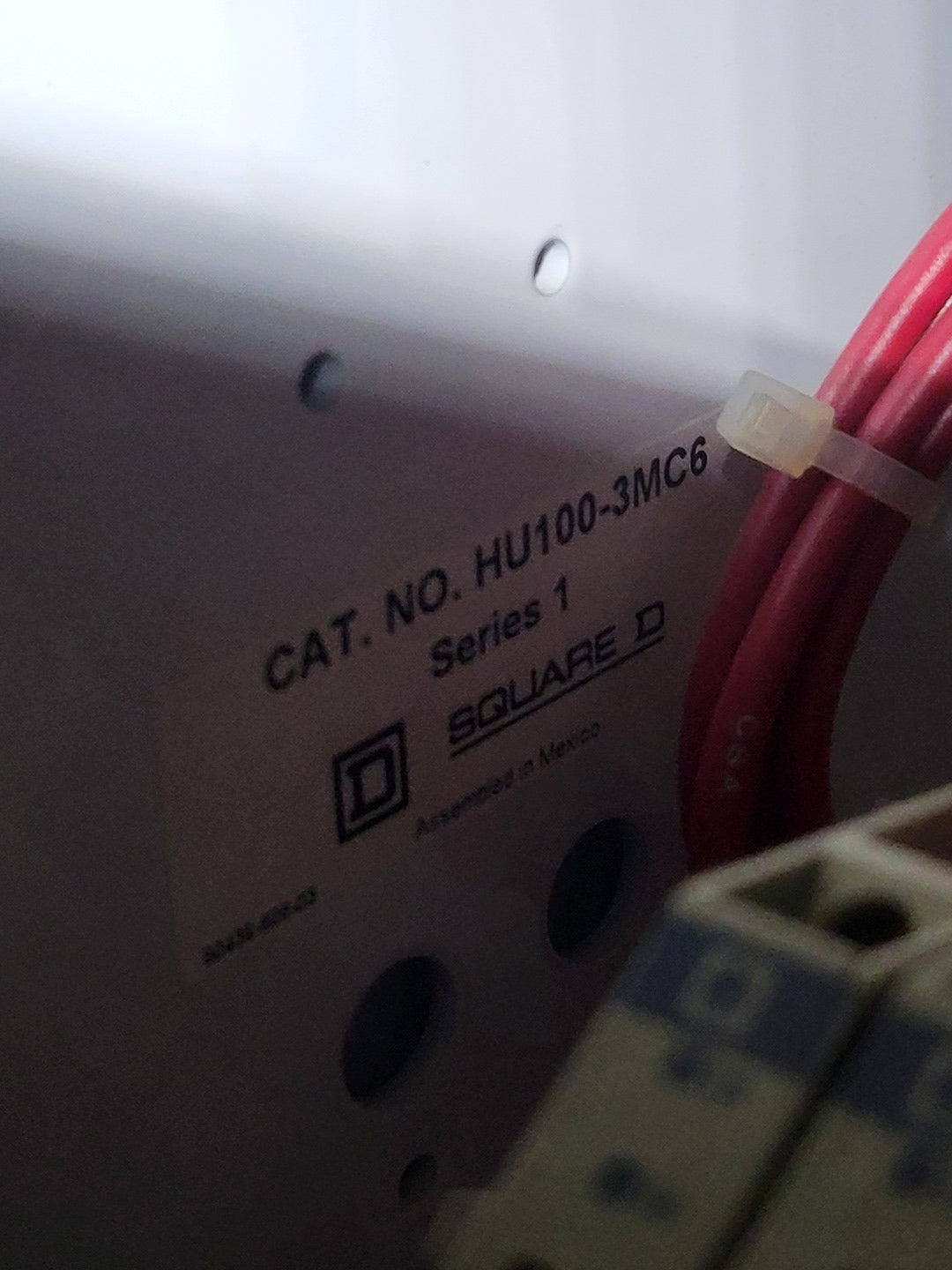

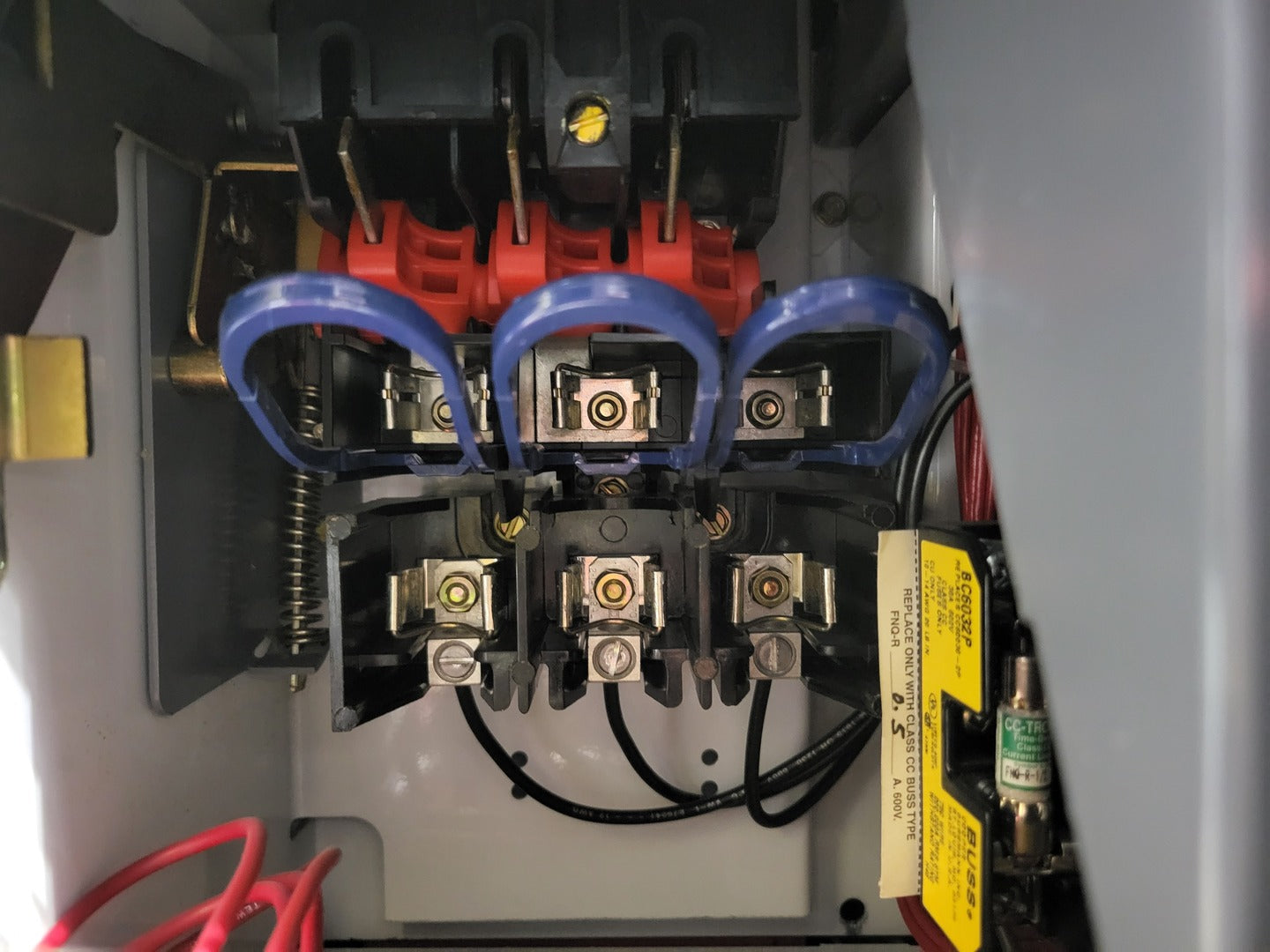

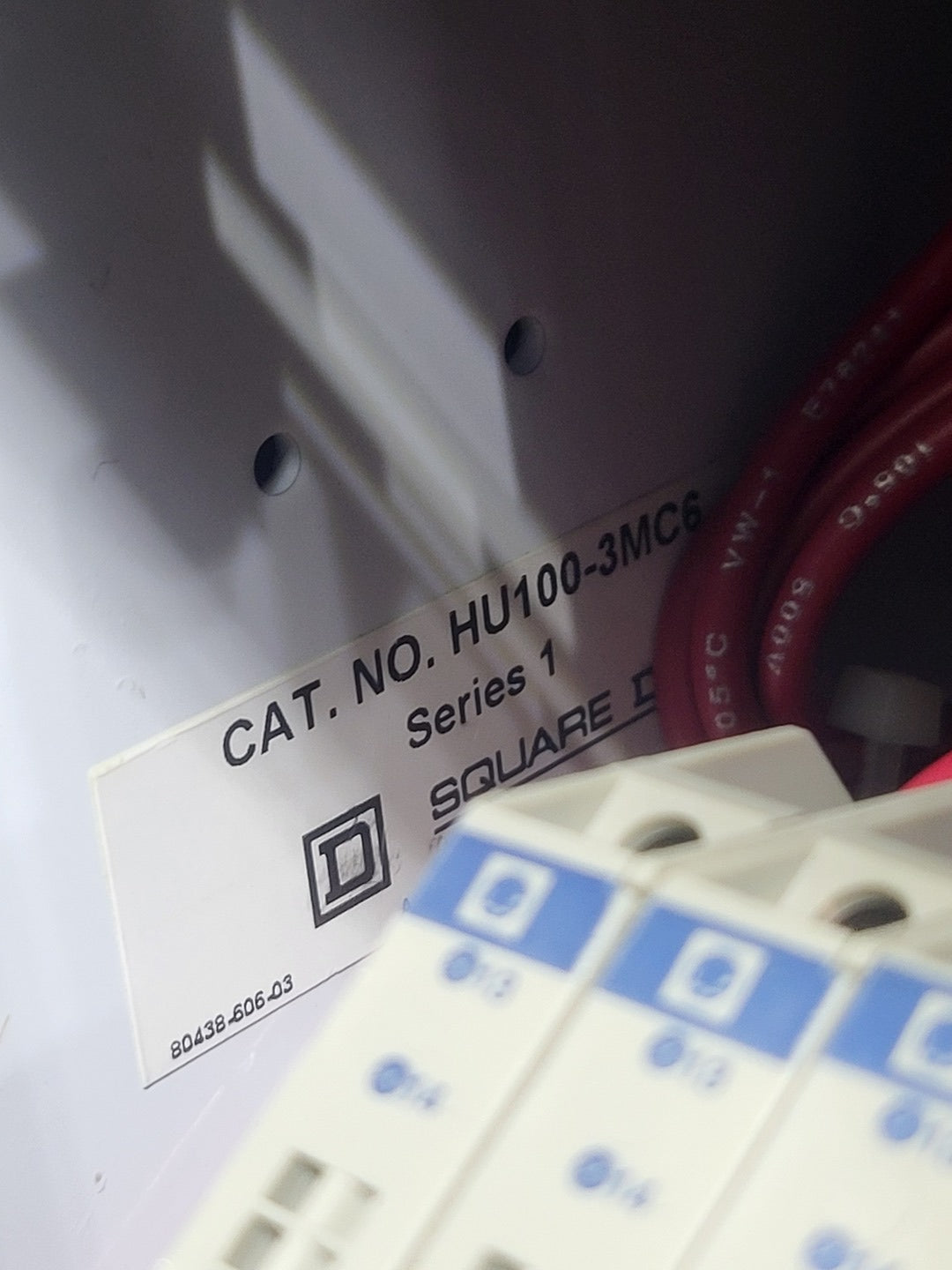

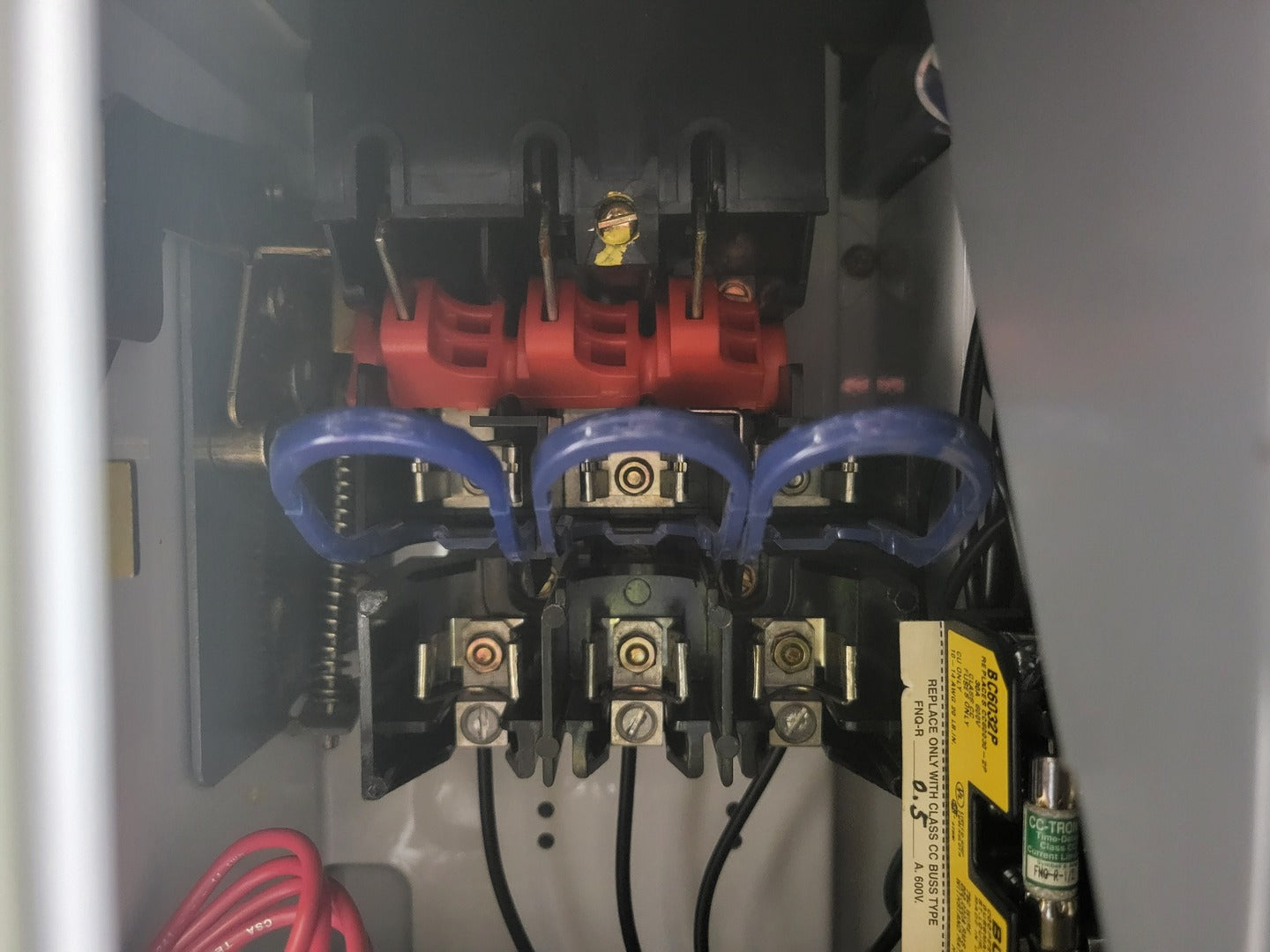

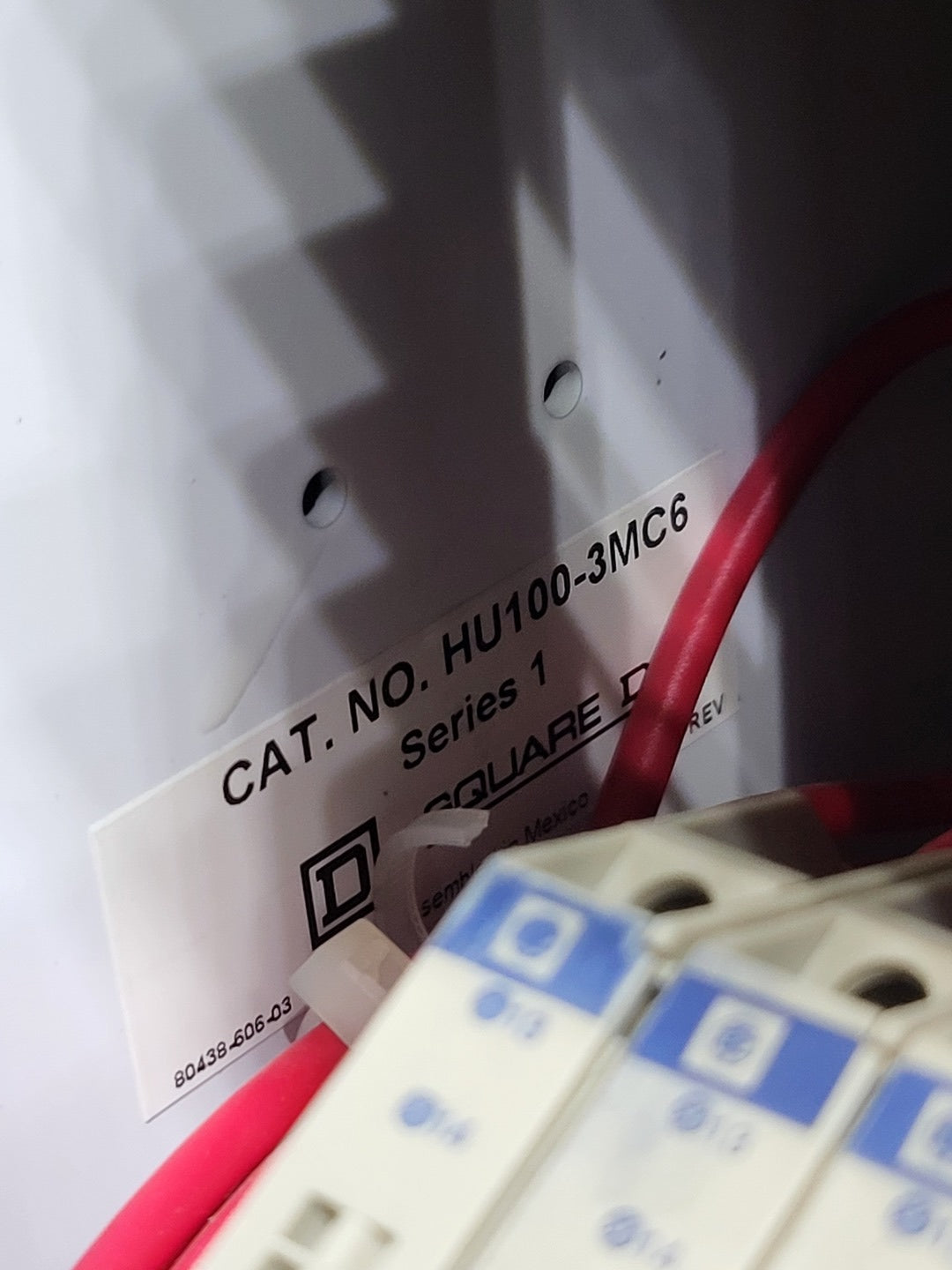

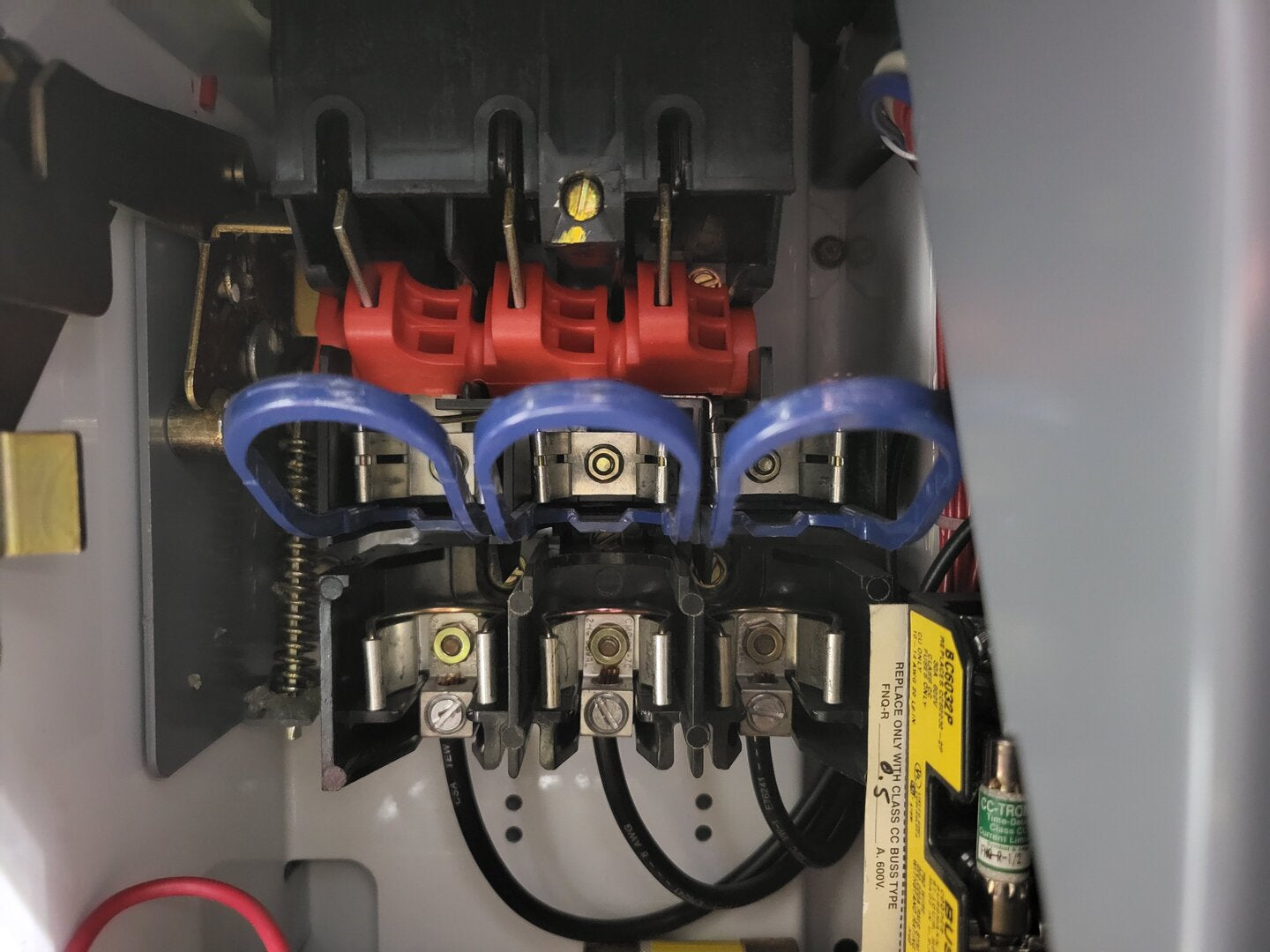

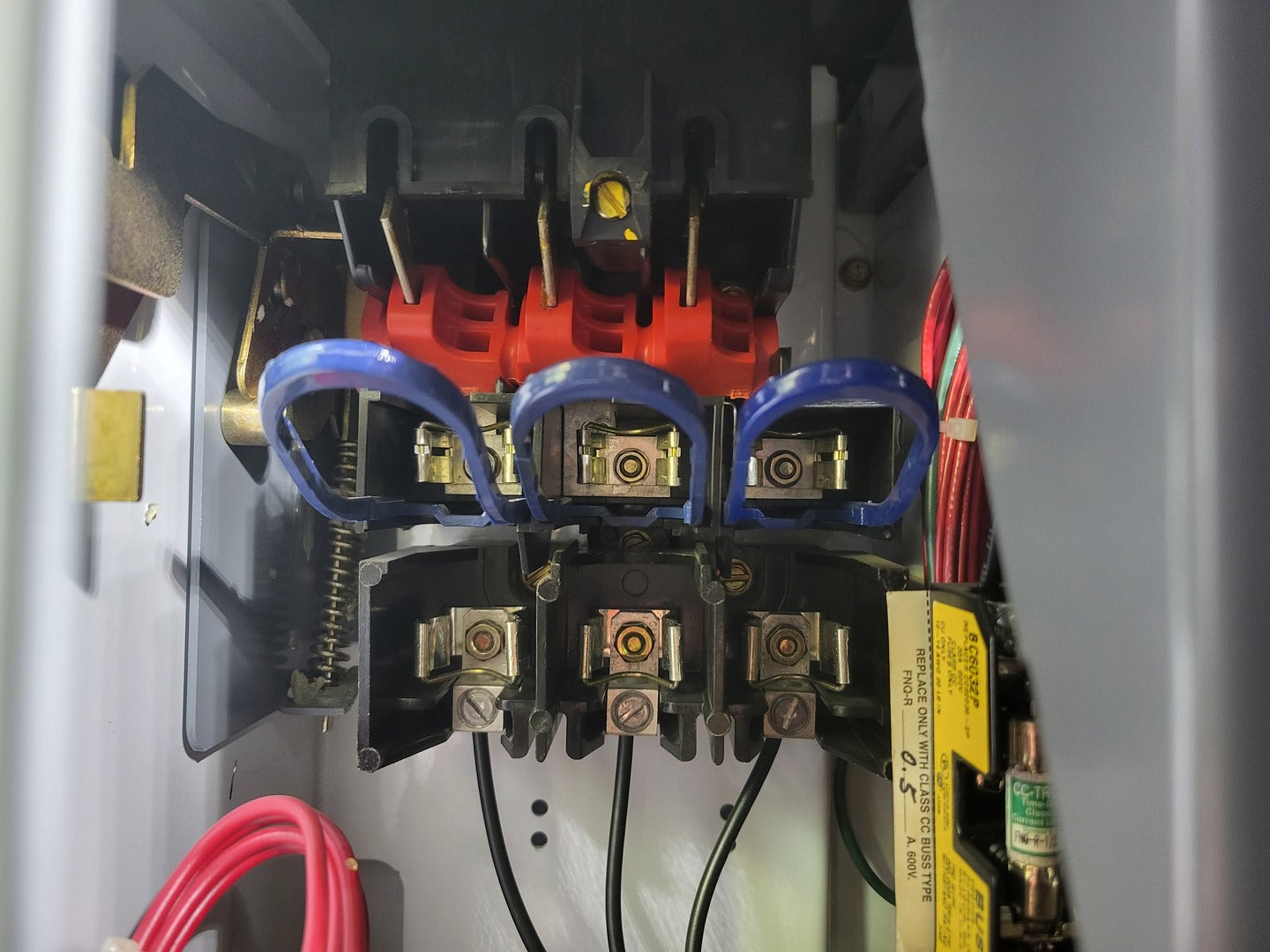

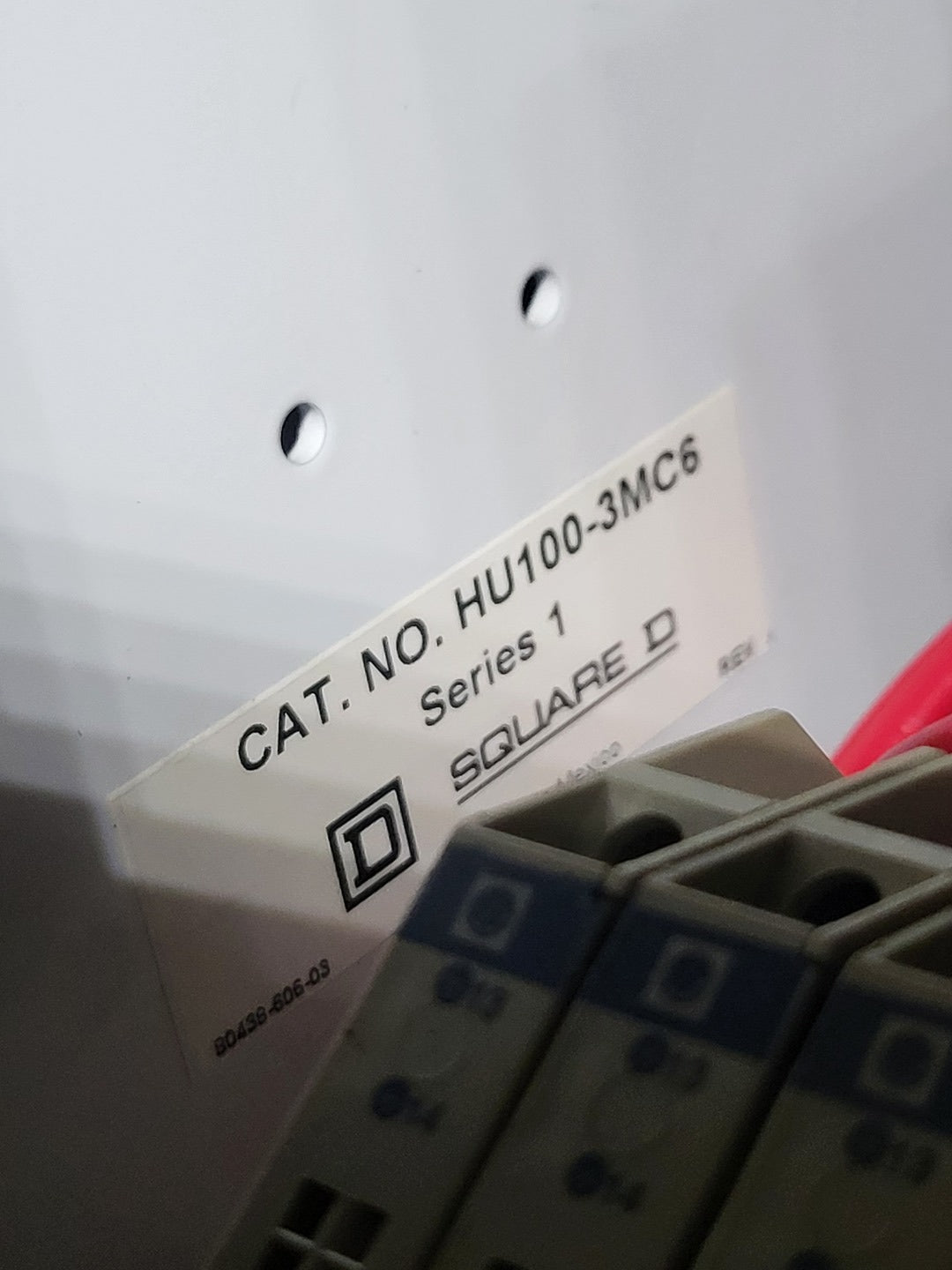

  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

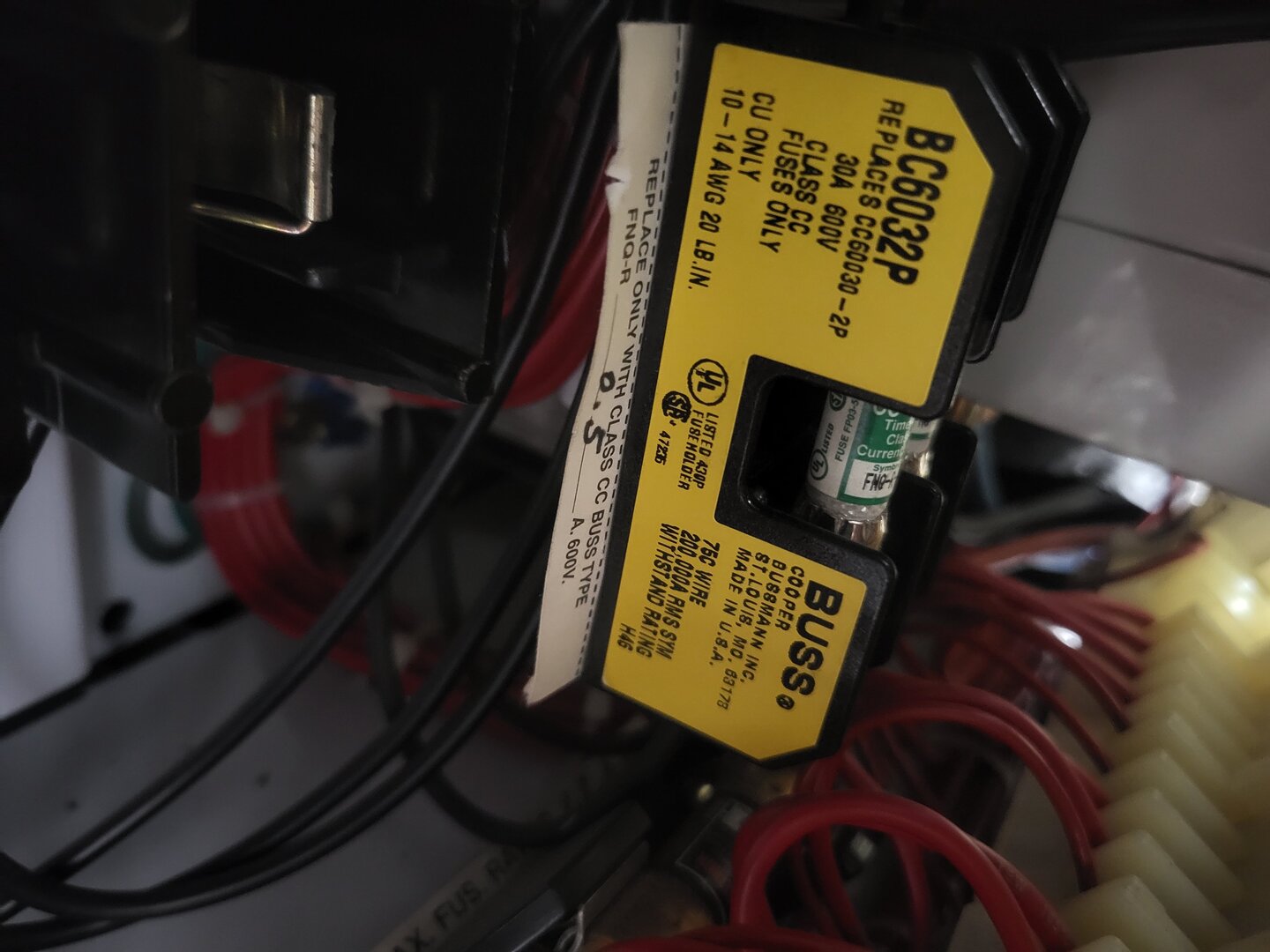

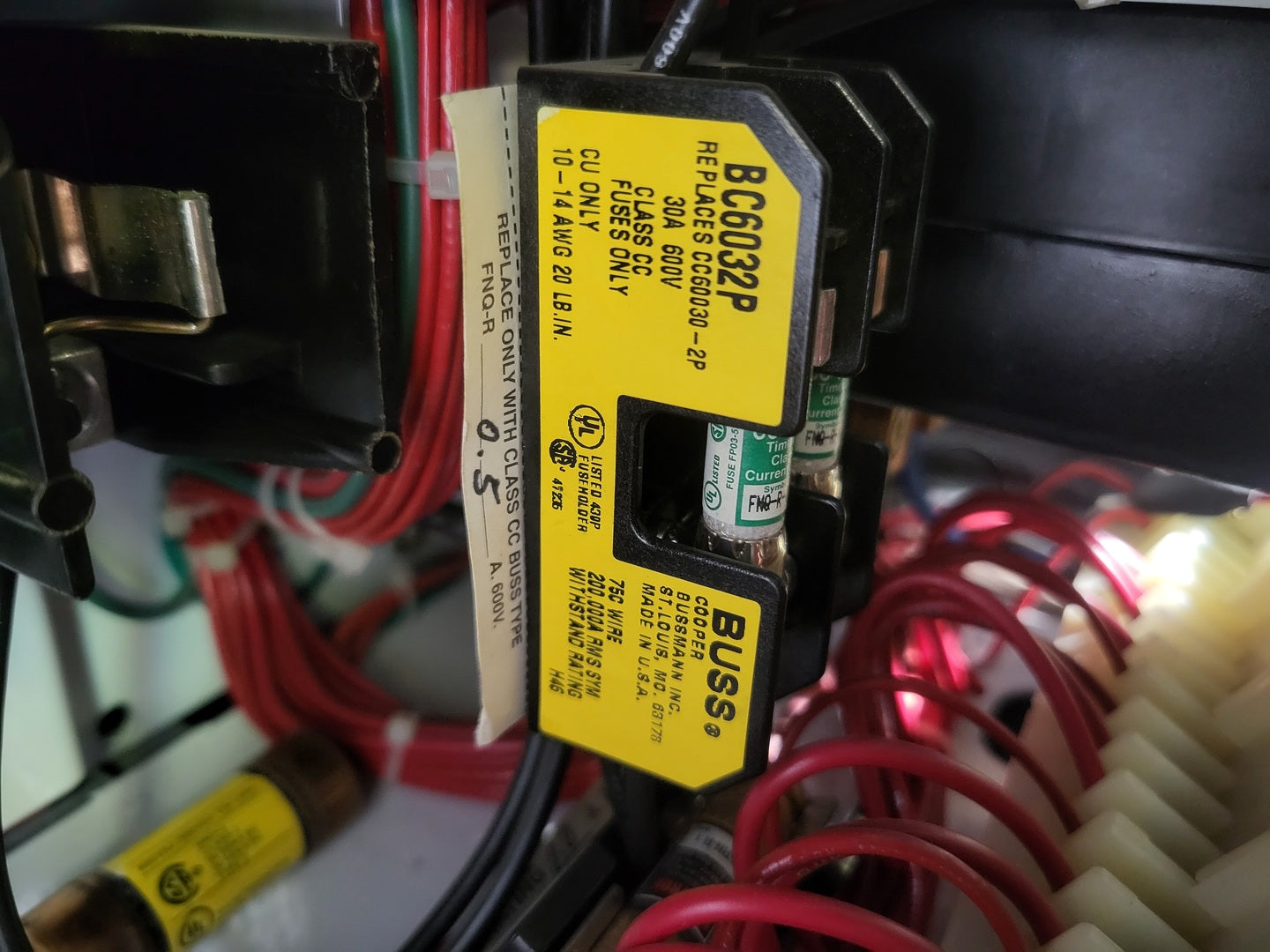

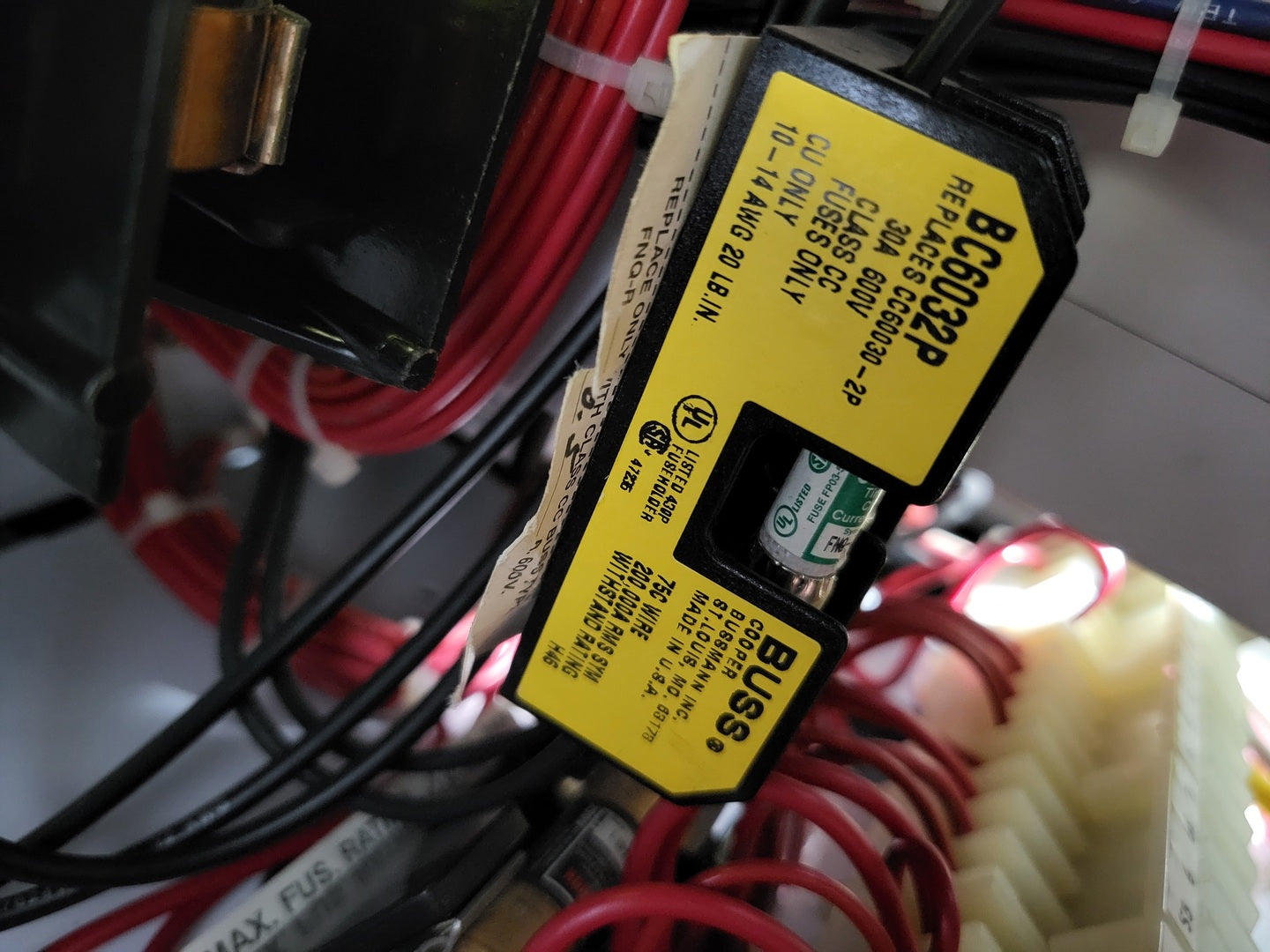

  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

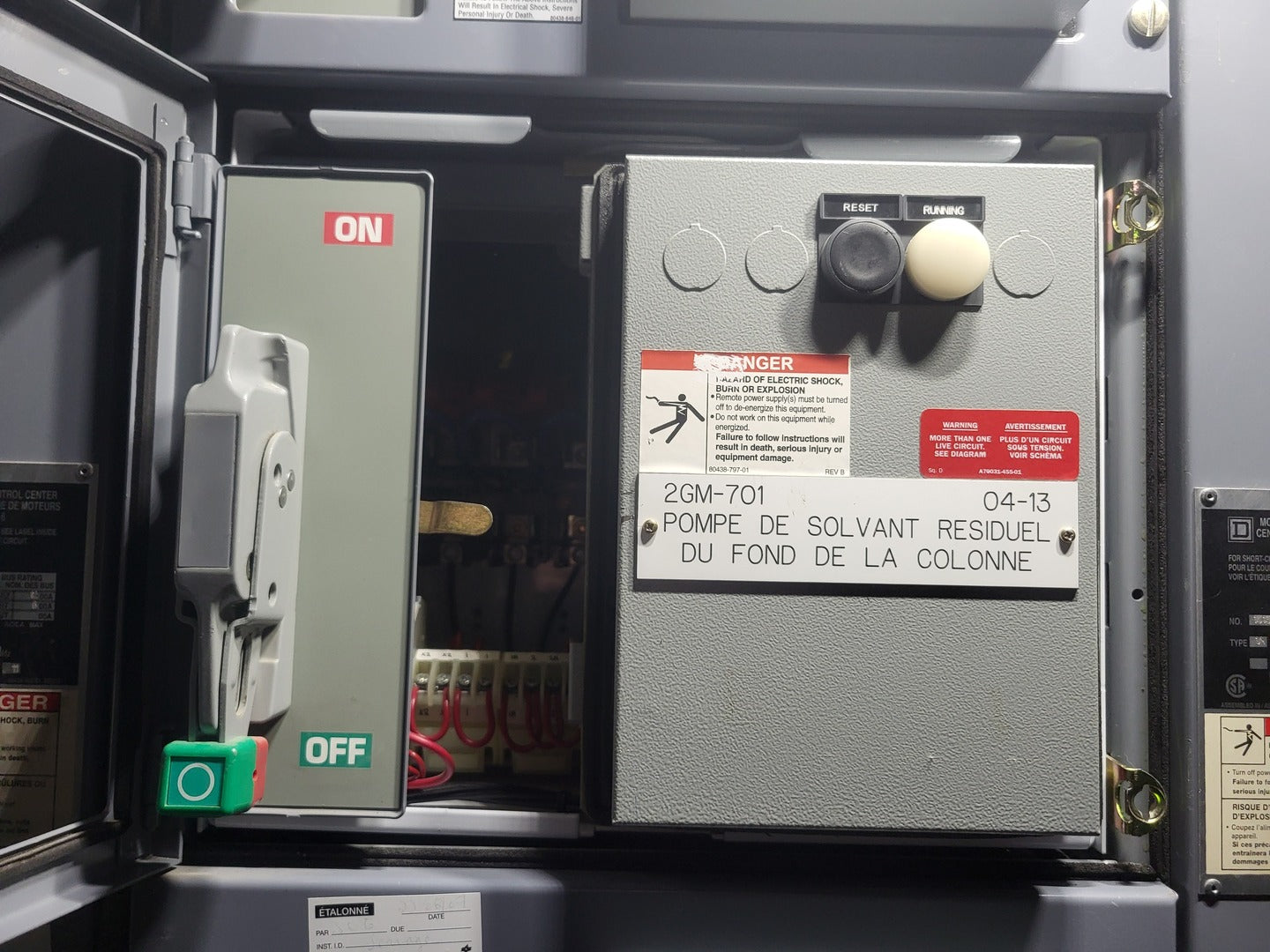

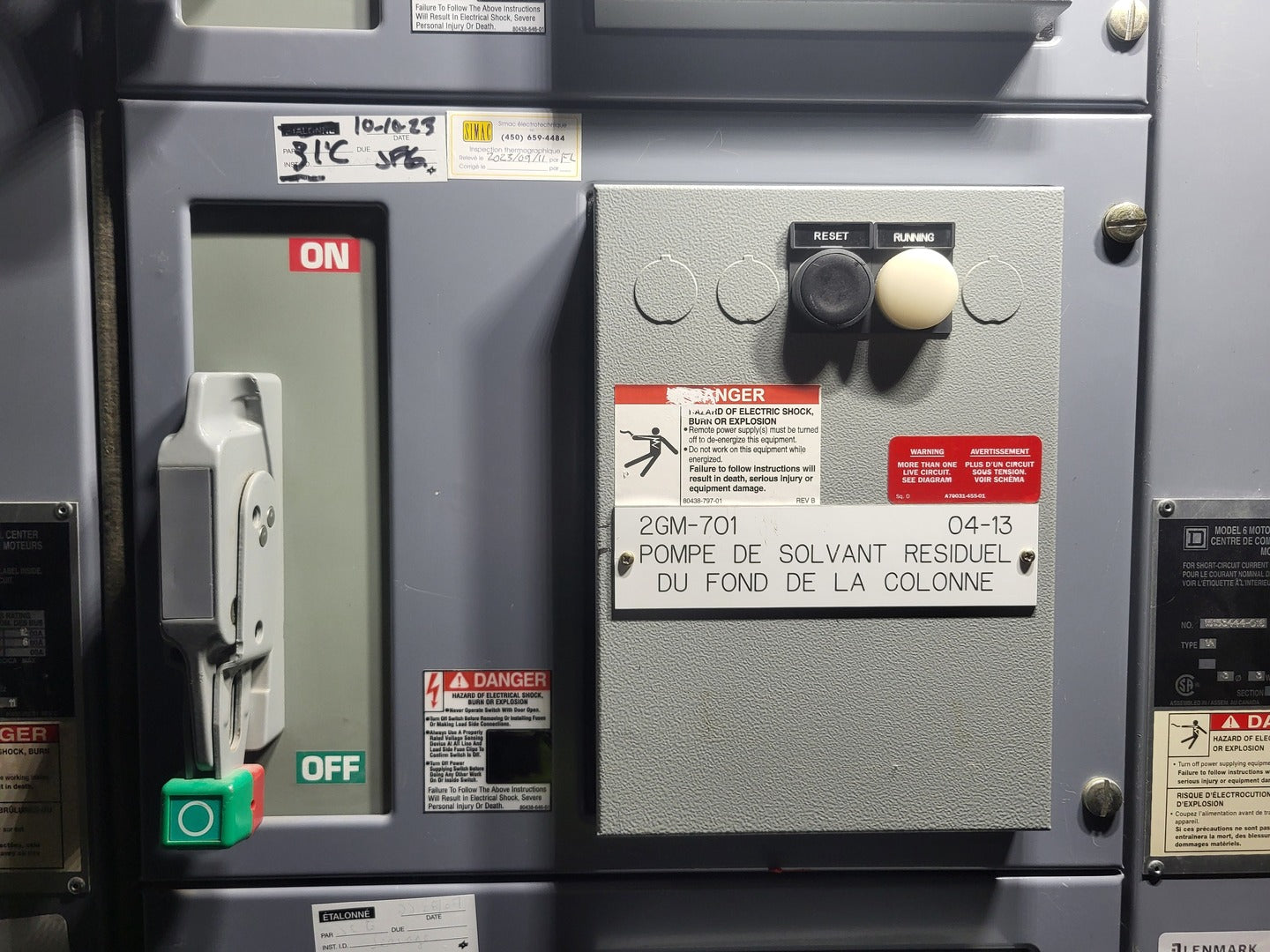

Bucket #2 2GM-701

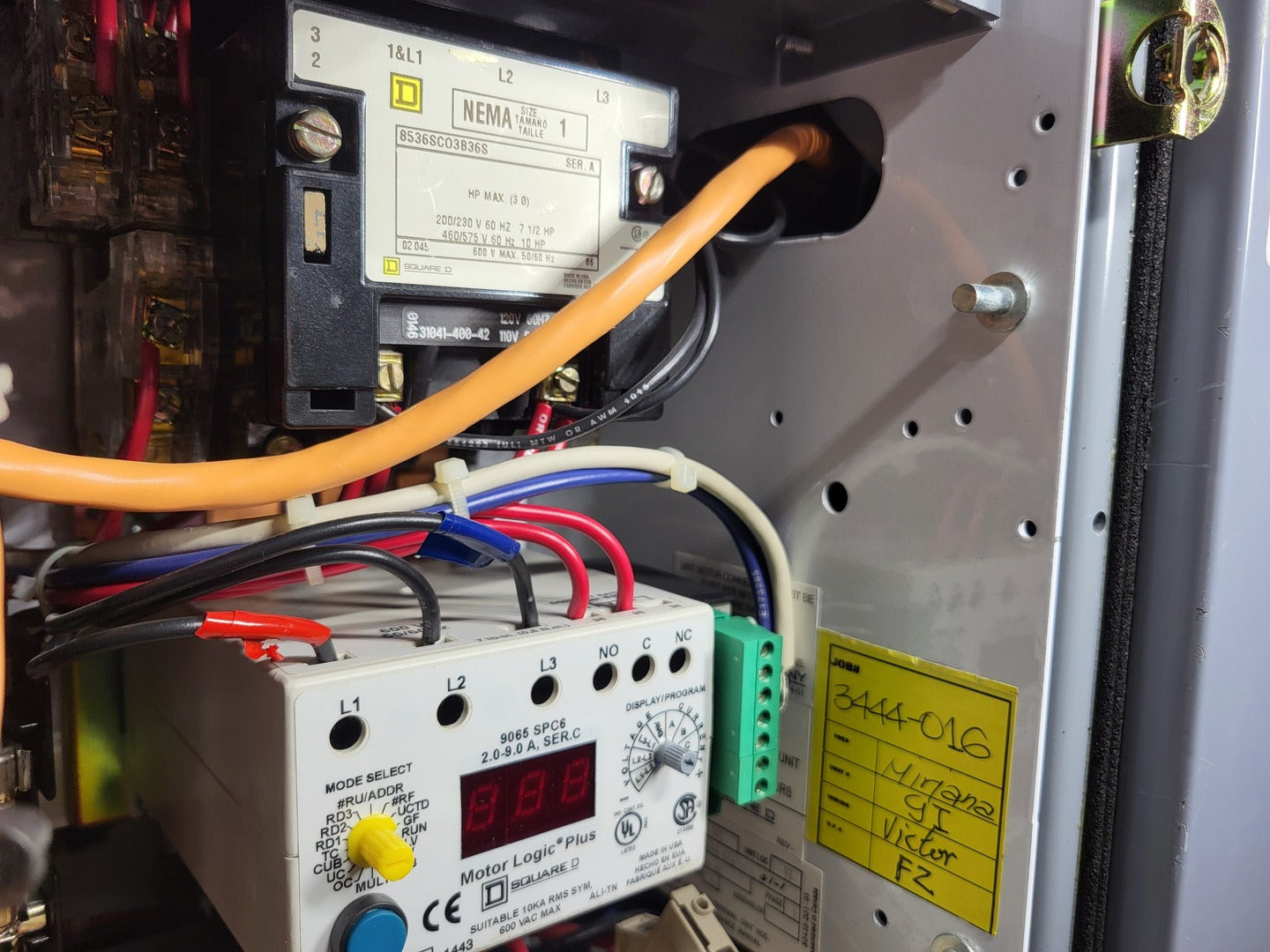

  1. Square D 8536SCO3B36S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SPC6, motor protection relay, 2.0-9.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

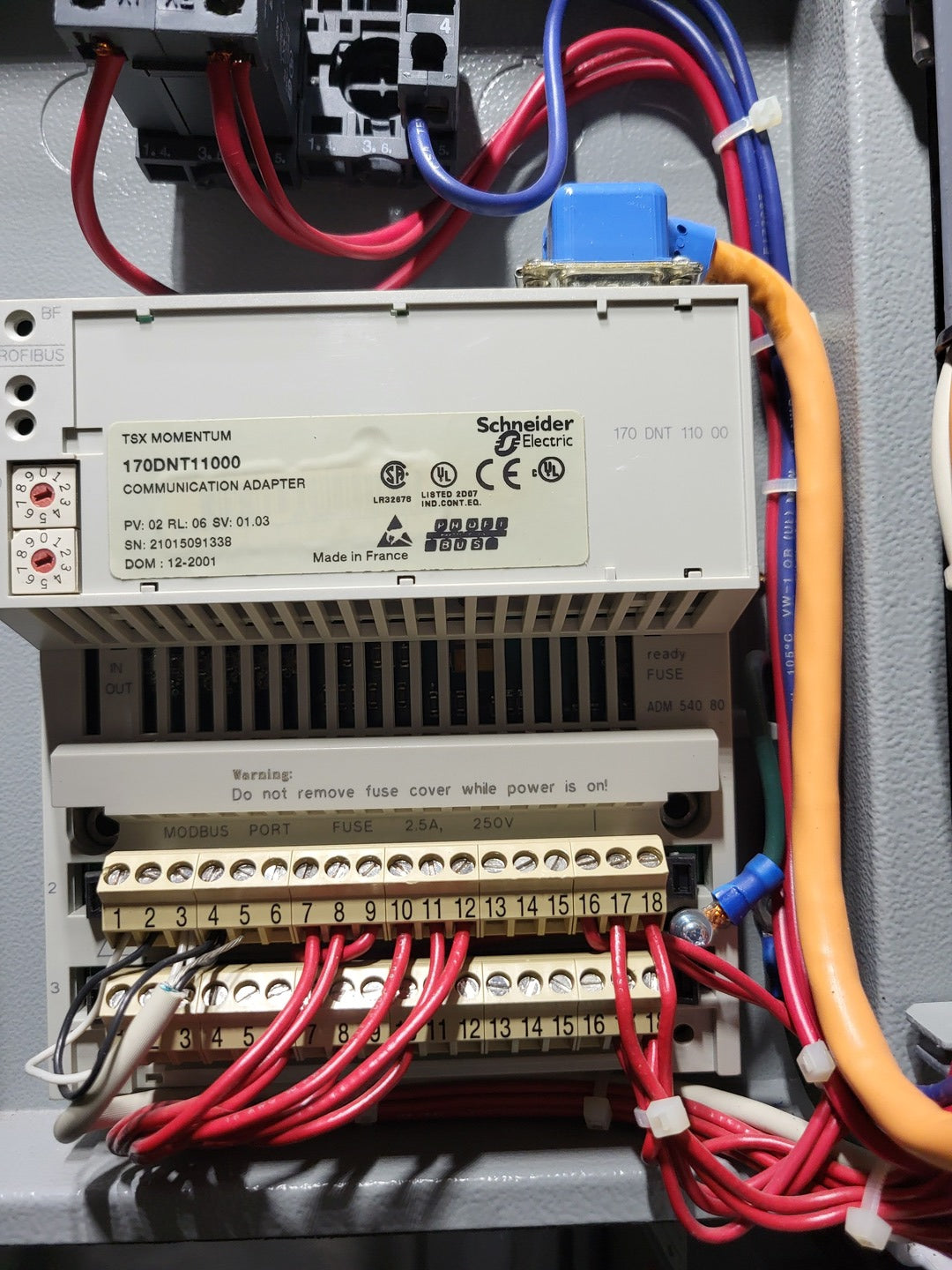

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

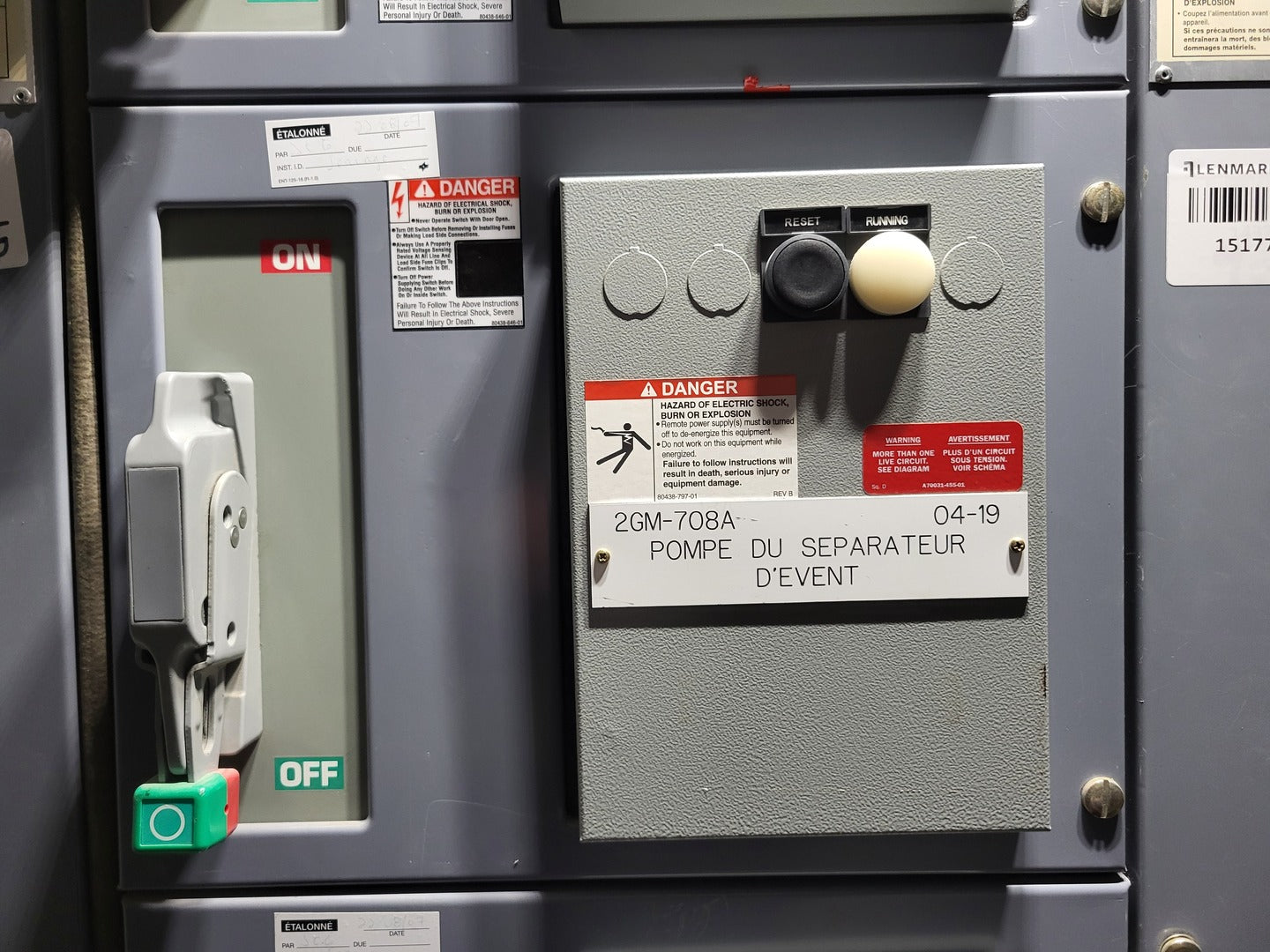

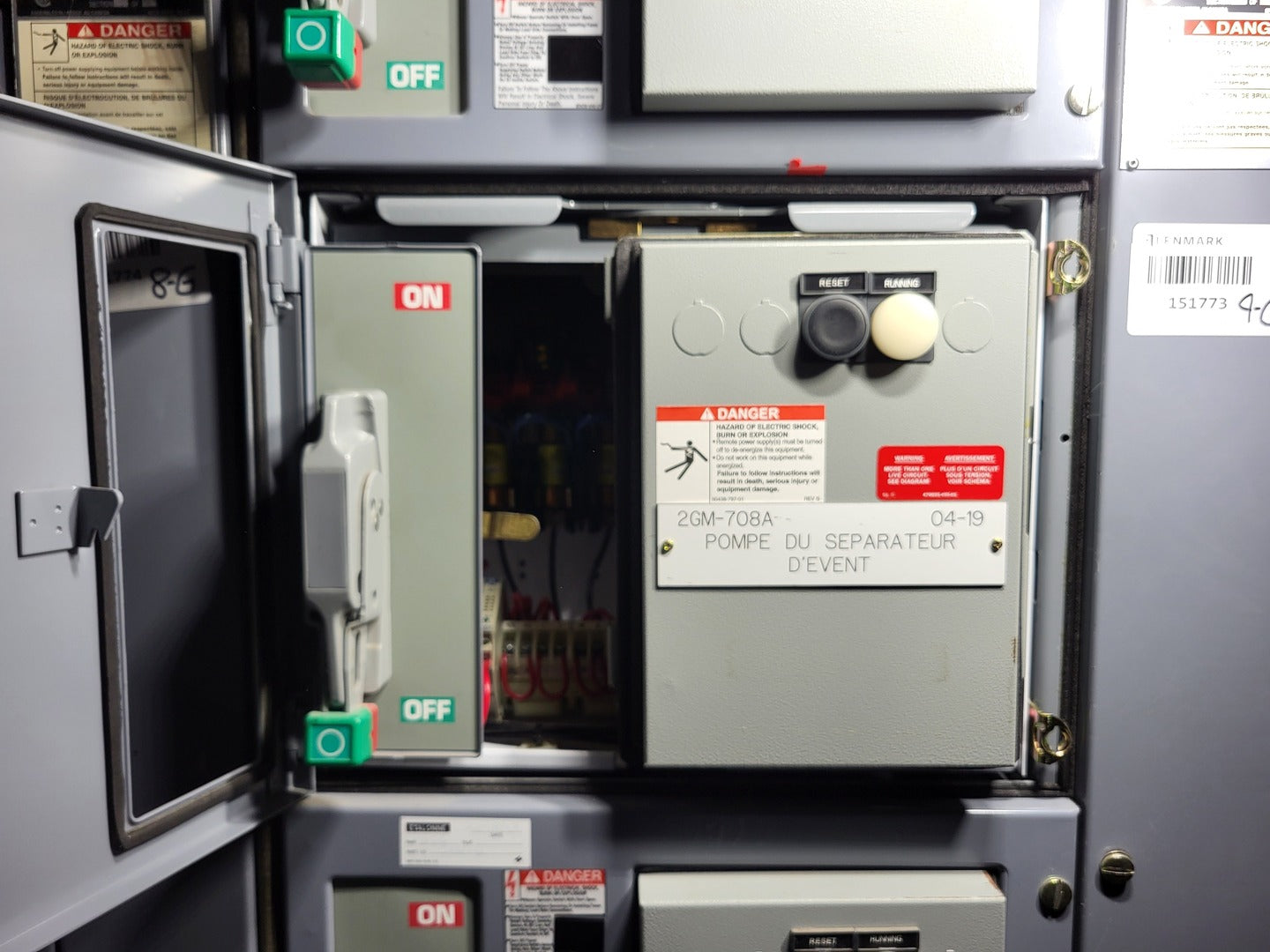

Bucket #3 2GM-708A

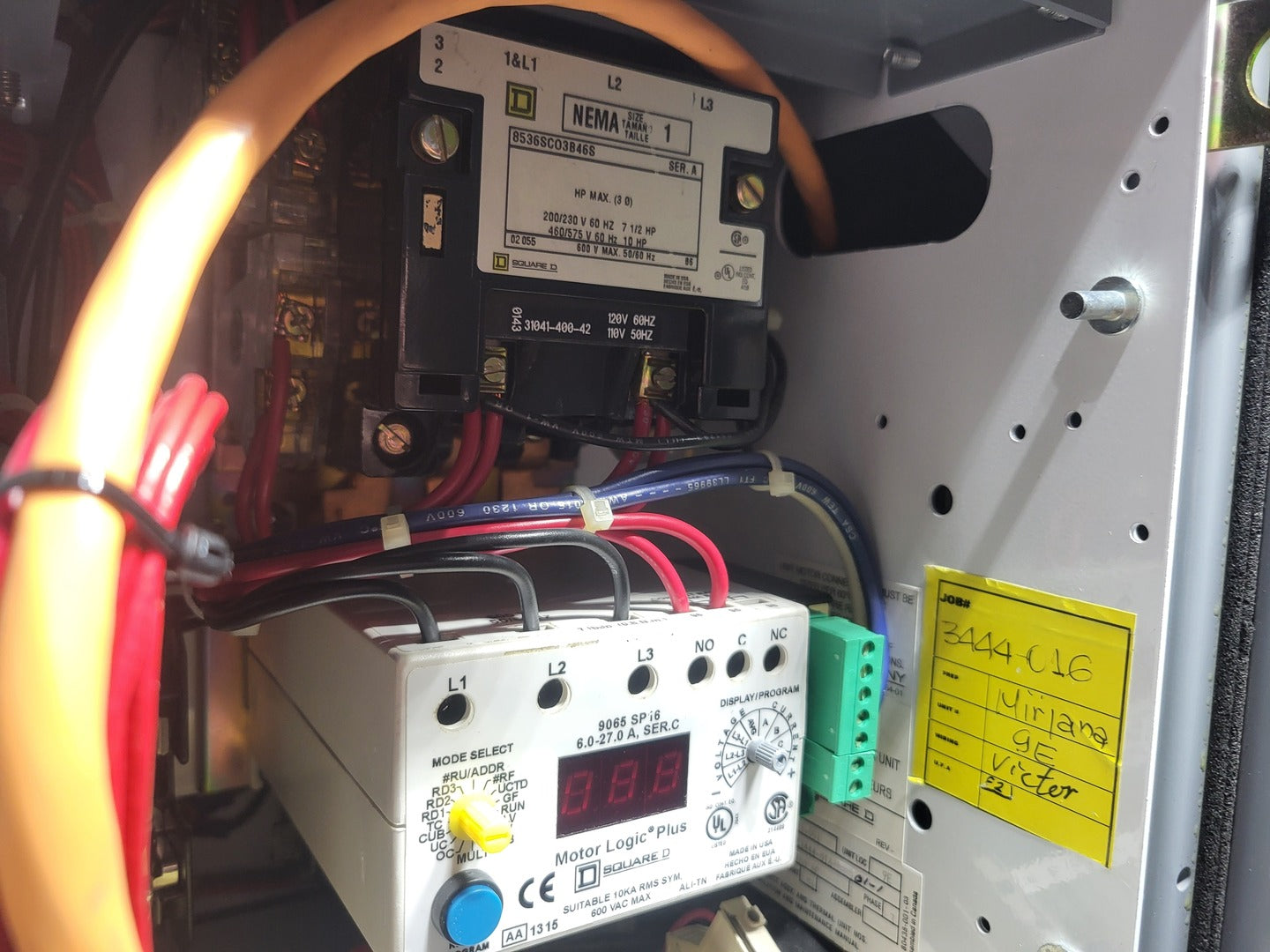

  1. Square D 8536SCO3B46S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP16, motor protection relay, 6.0-27.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

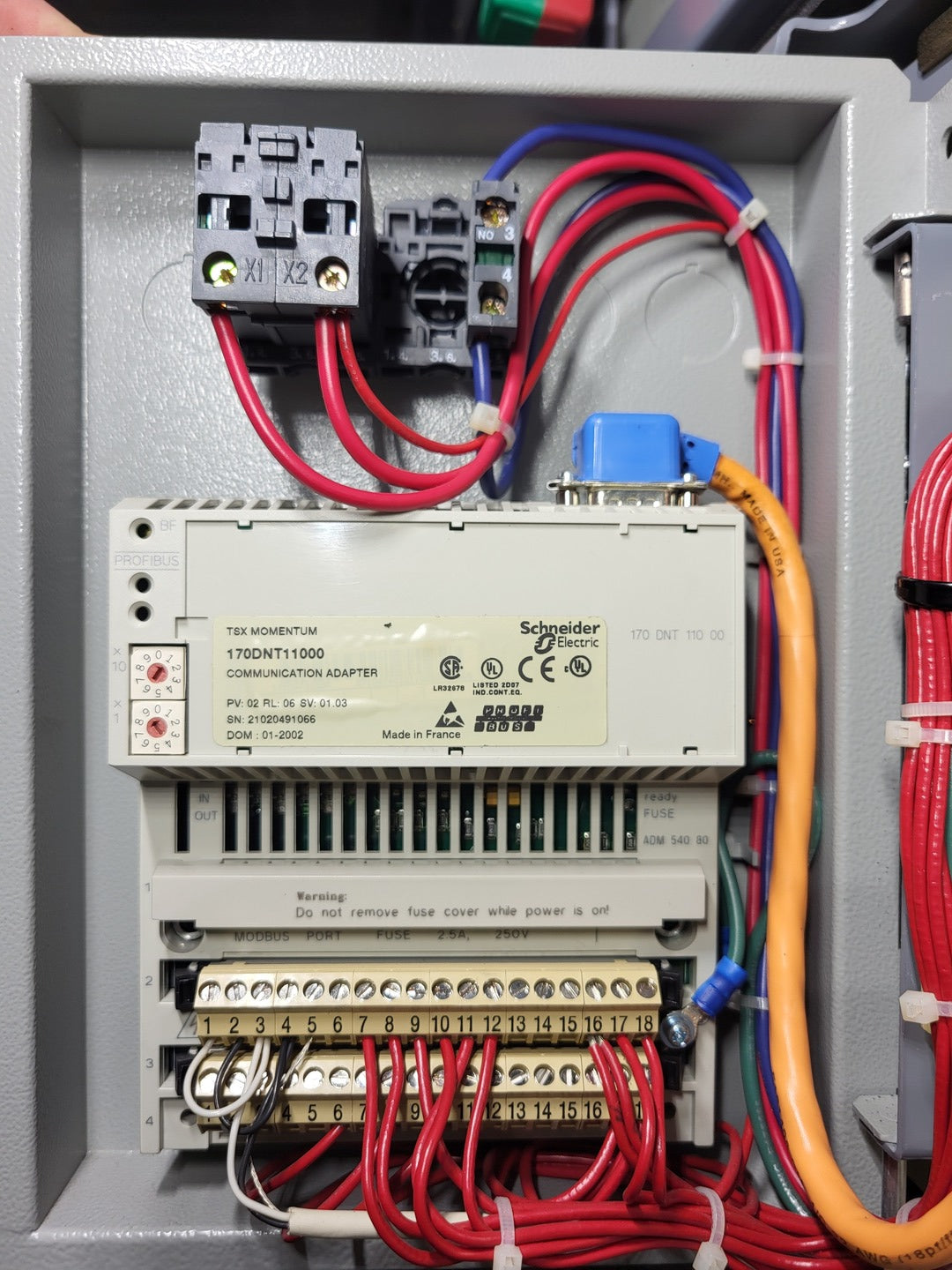

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

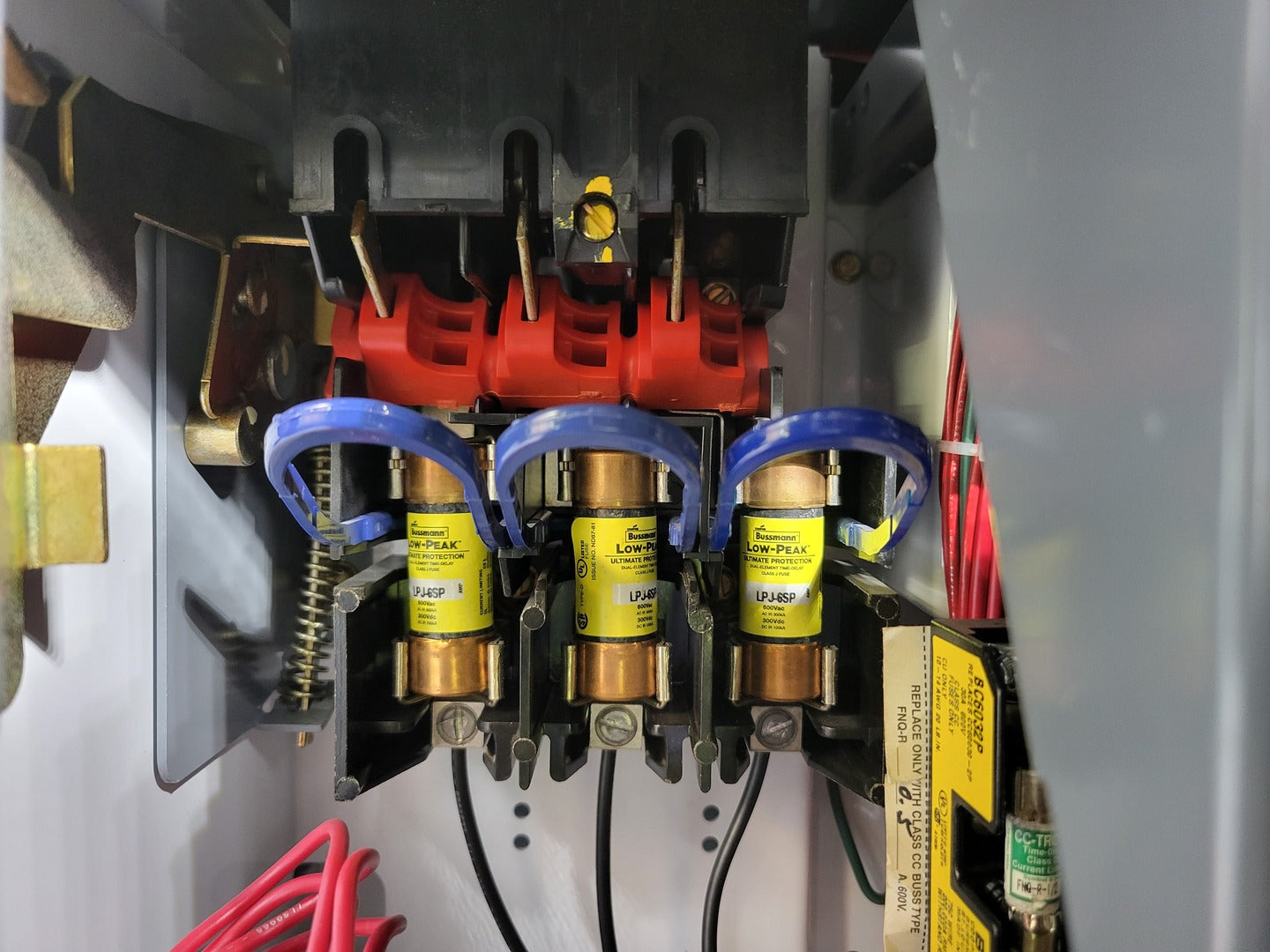

  7. 3 x Bussmann Low-Peak fuses LPJ-6SP
  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

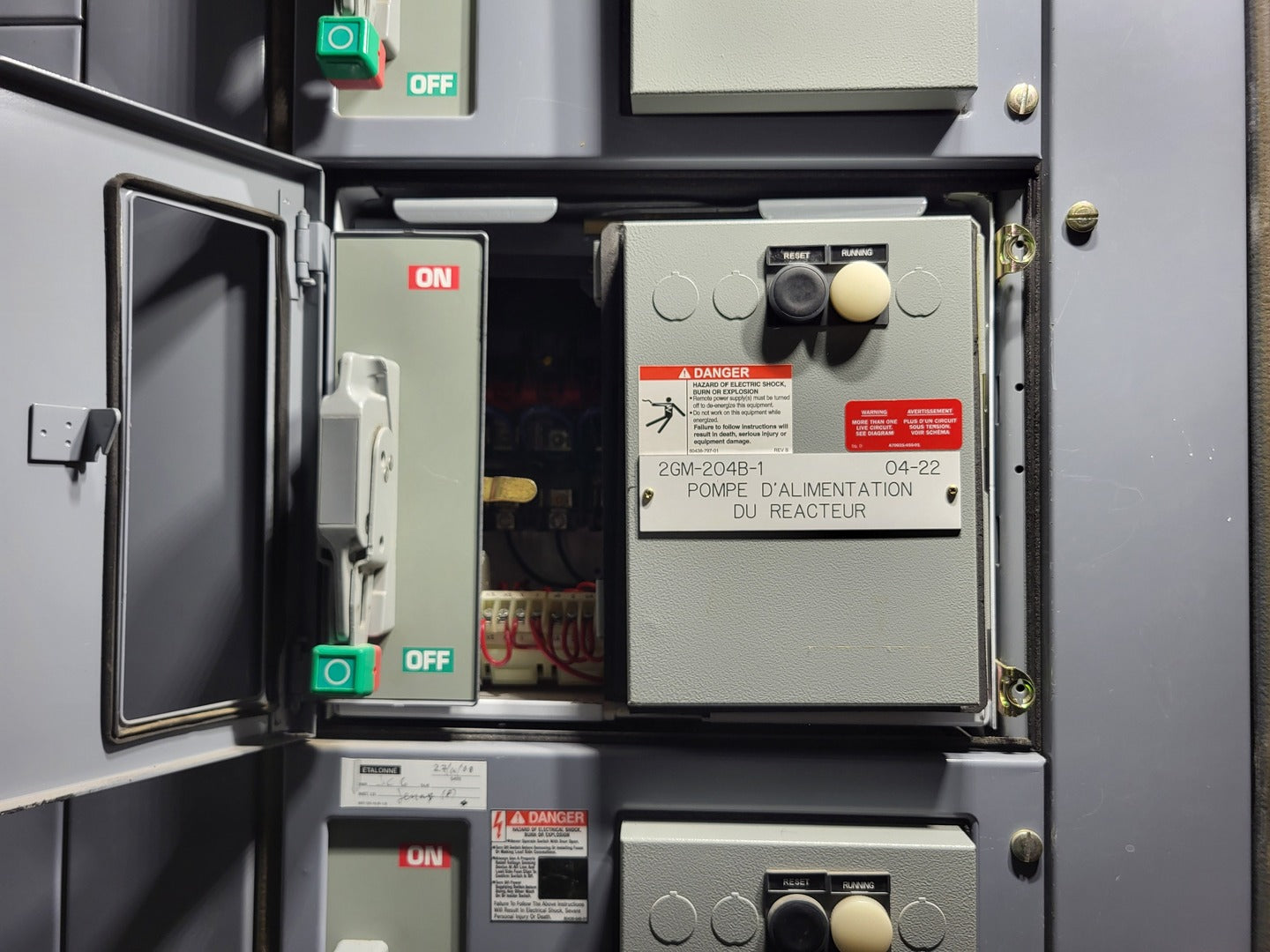

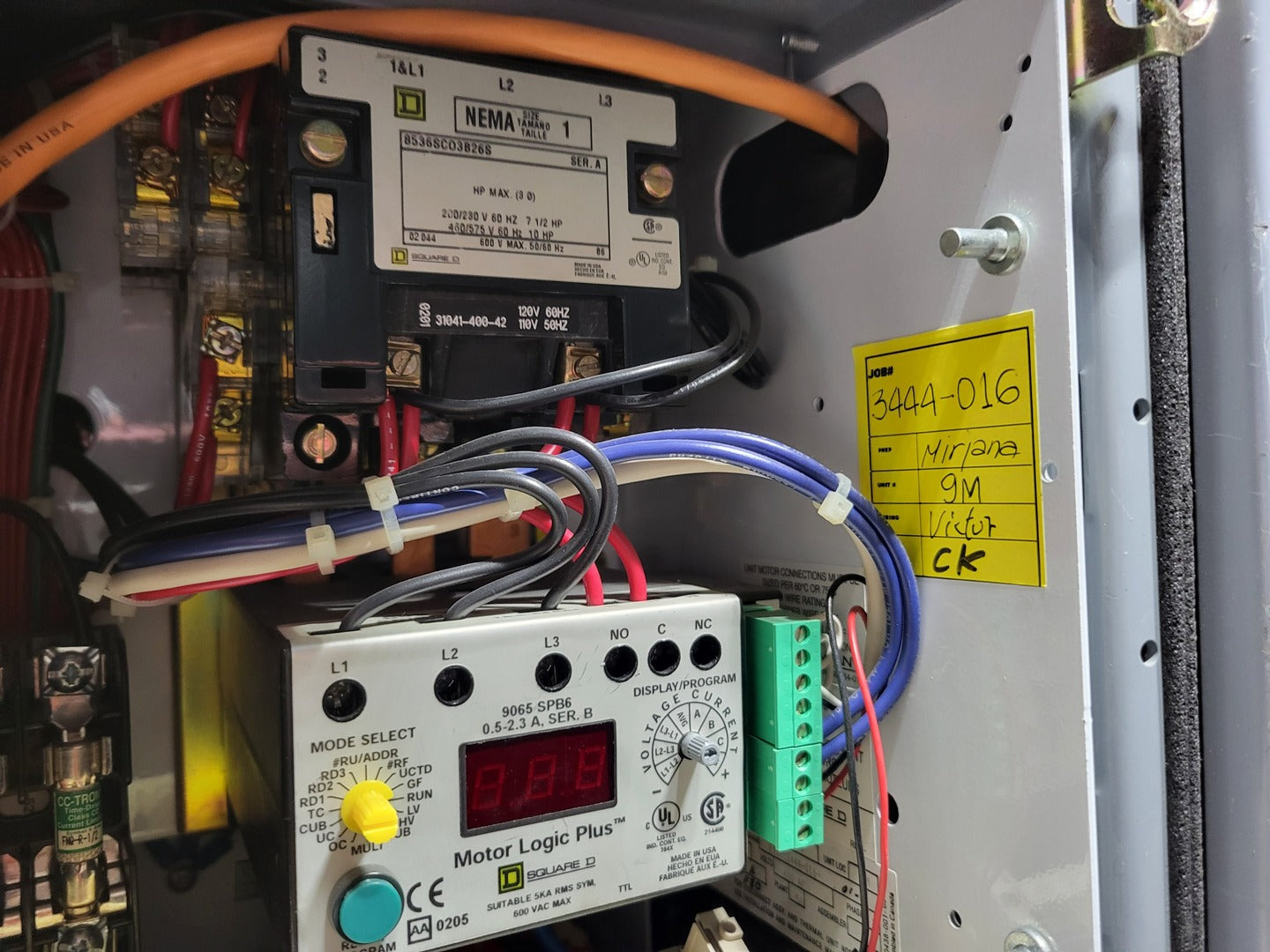

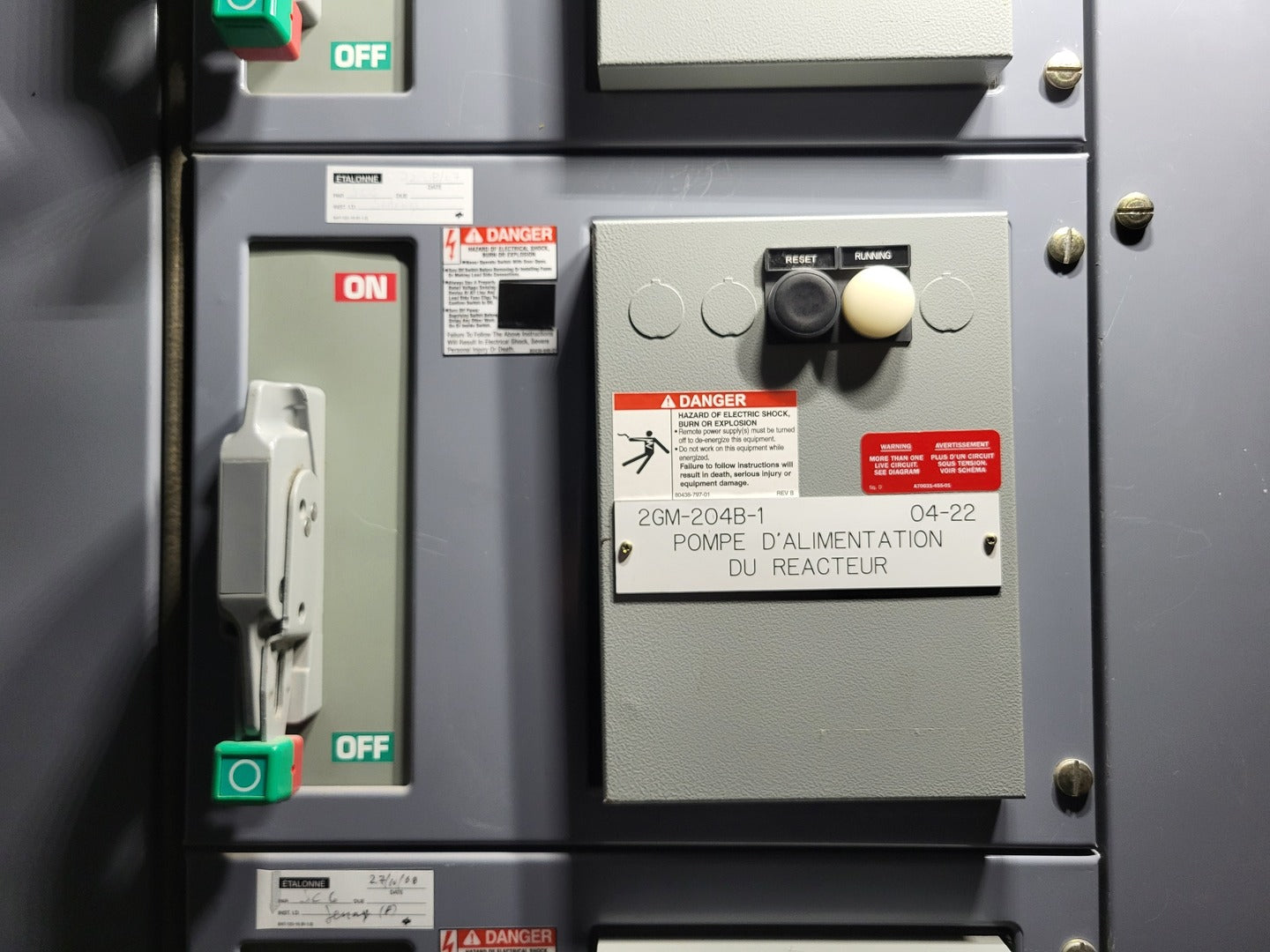

Bucket #4 2GM-204B-1

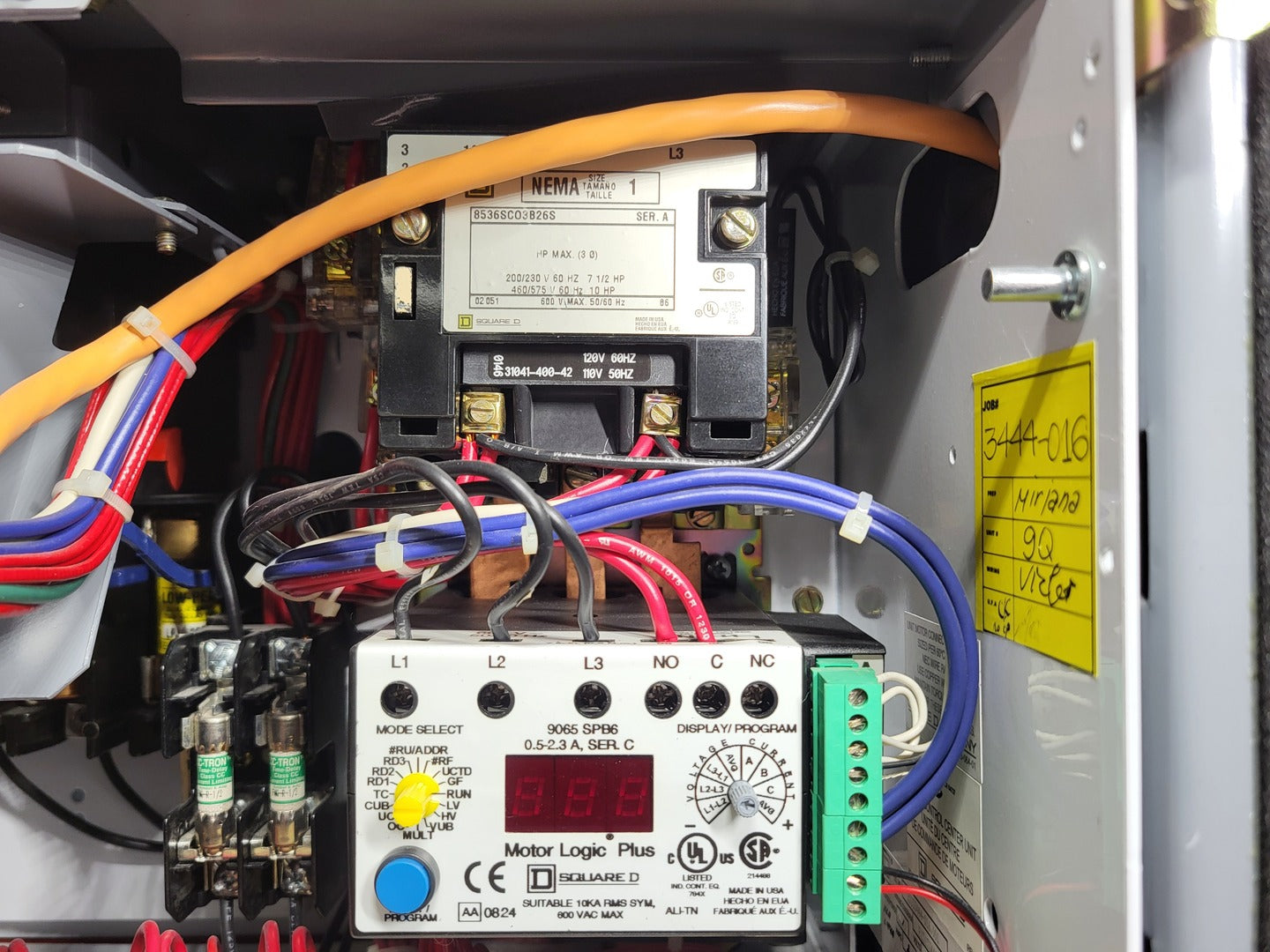

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

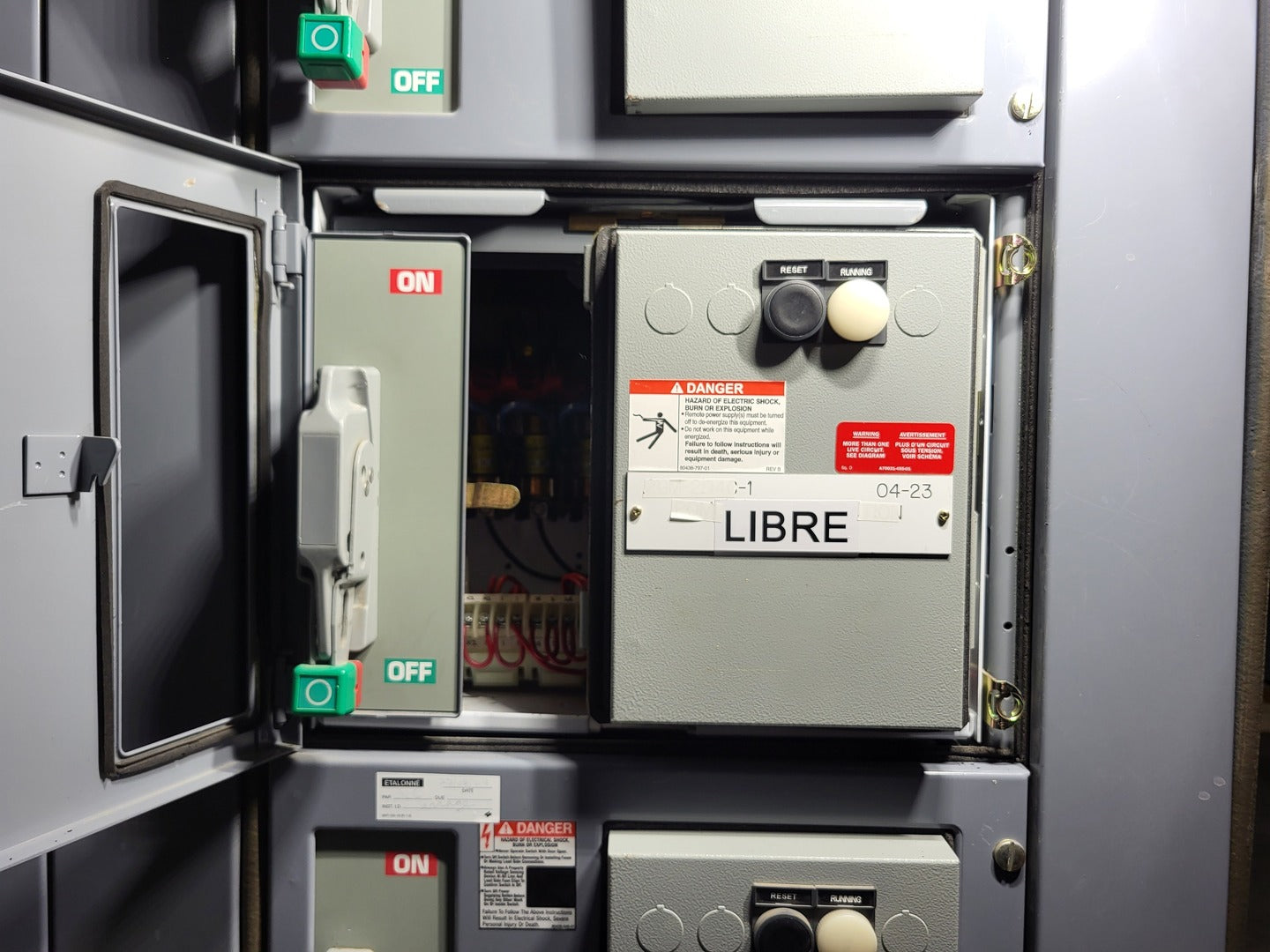

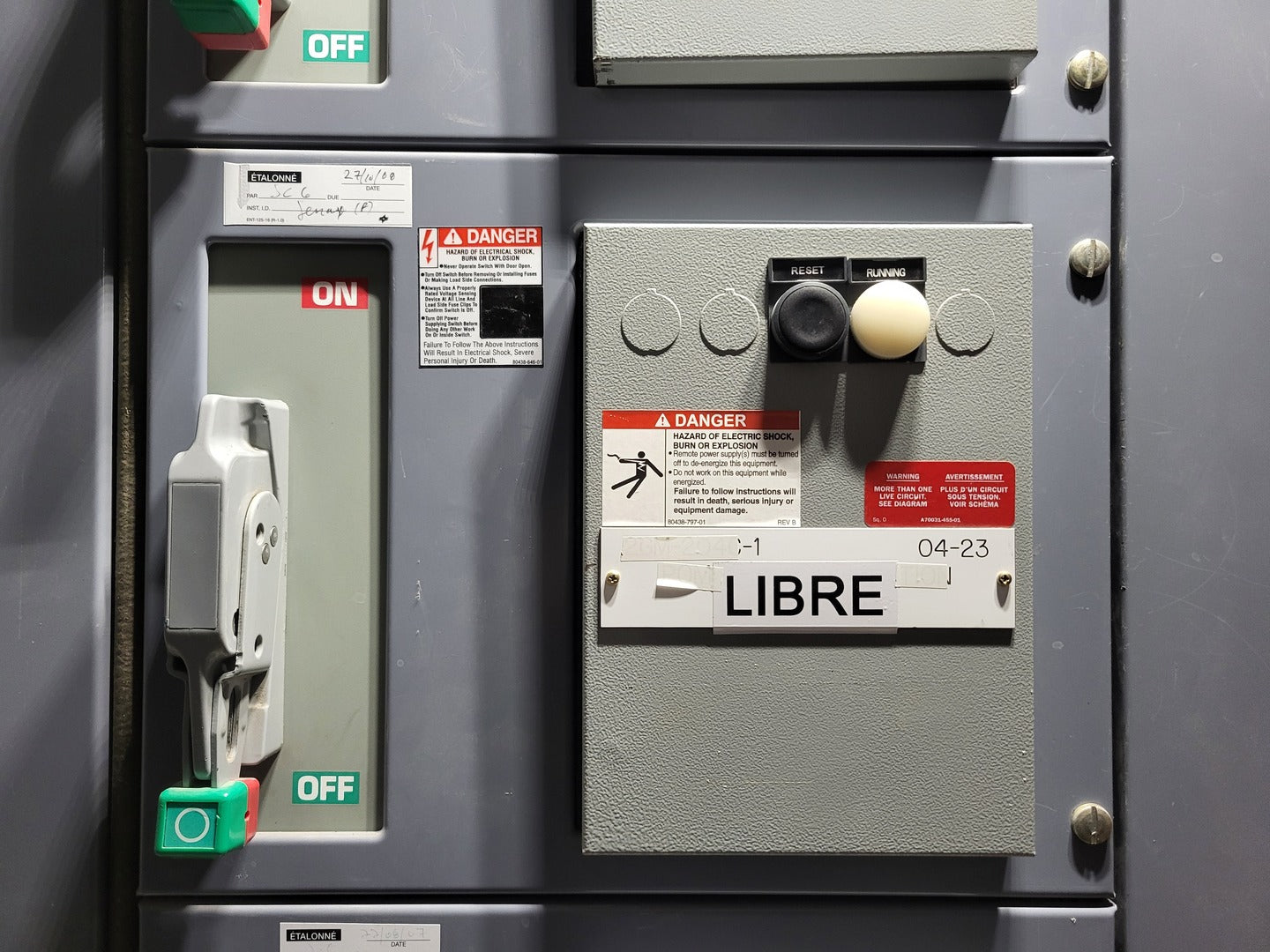

Bucket #5 LIBRE

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  4. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  5. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

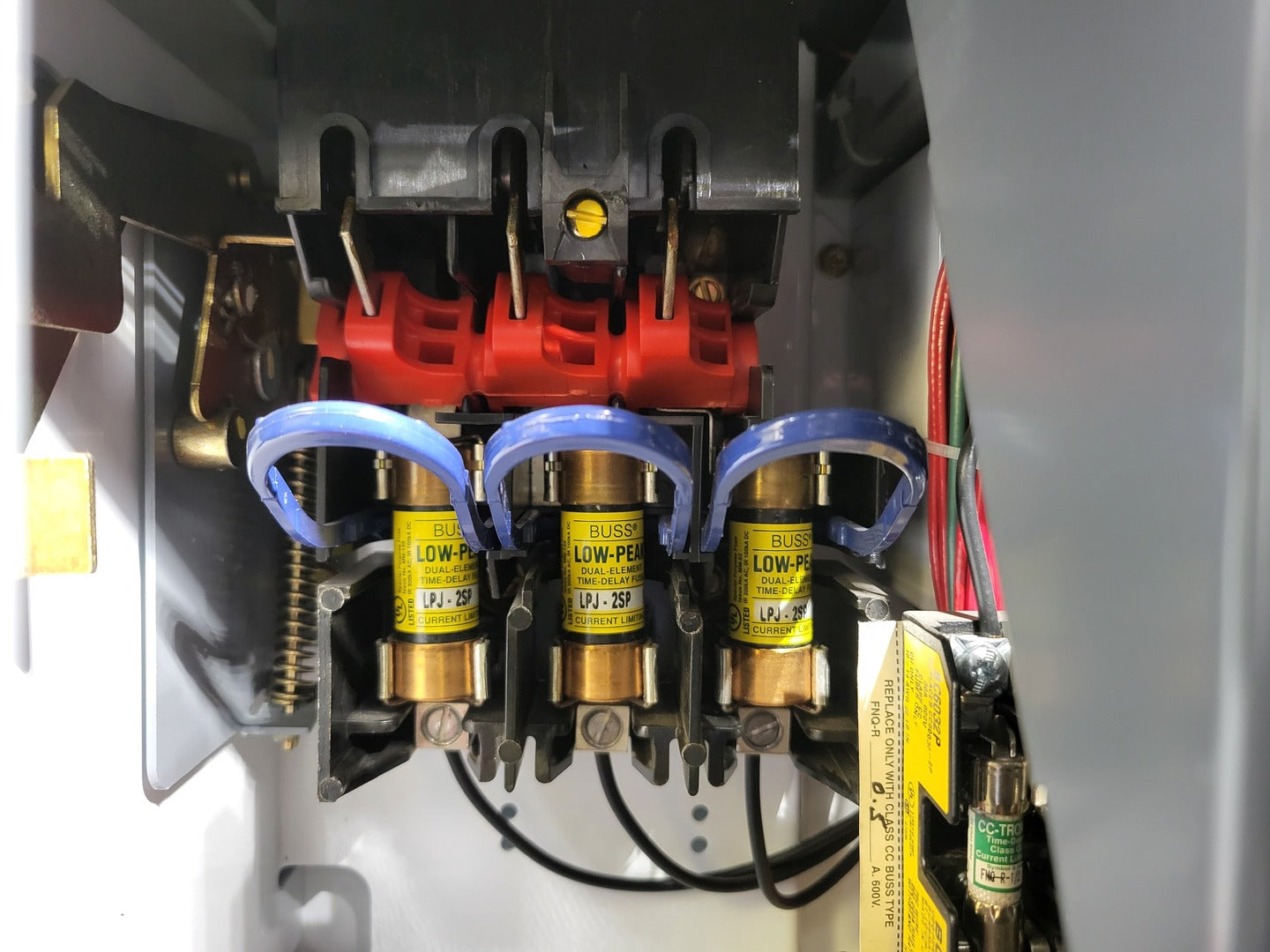

  6. 3 x Bussmann Low-Peak fuses LPJ-2SP
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

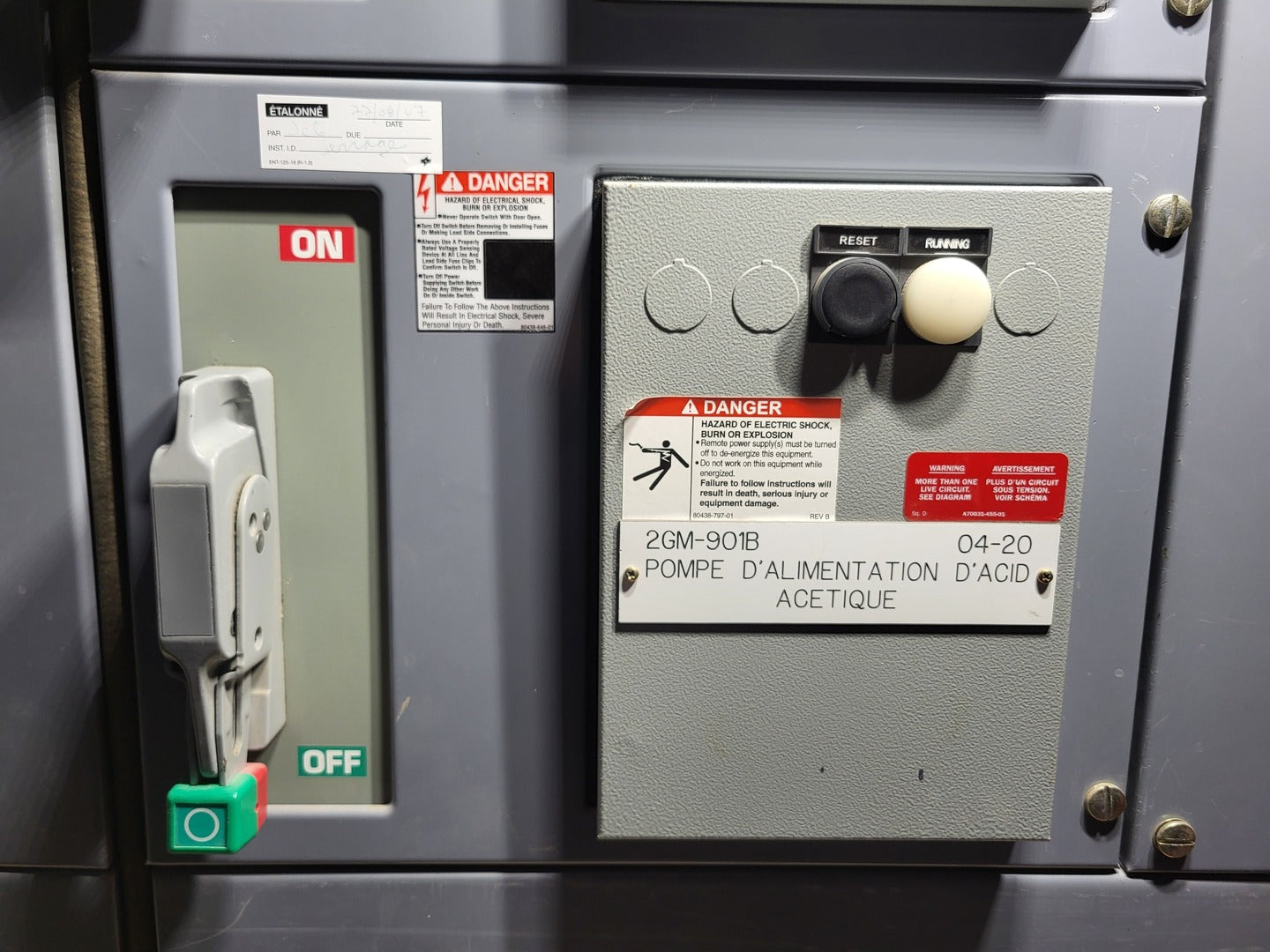

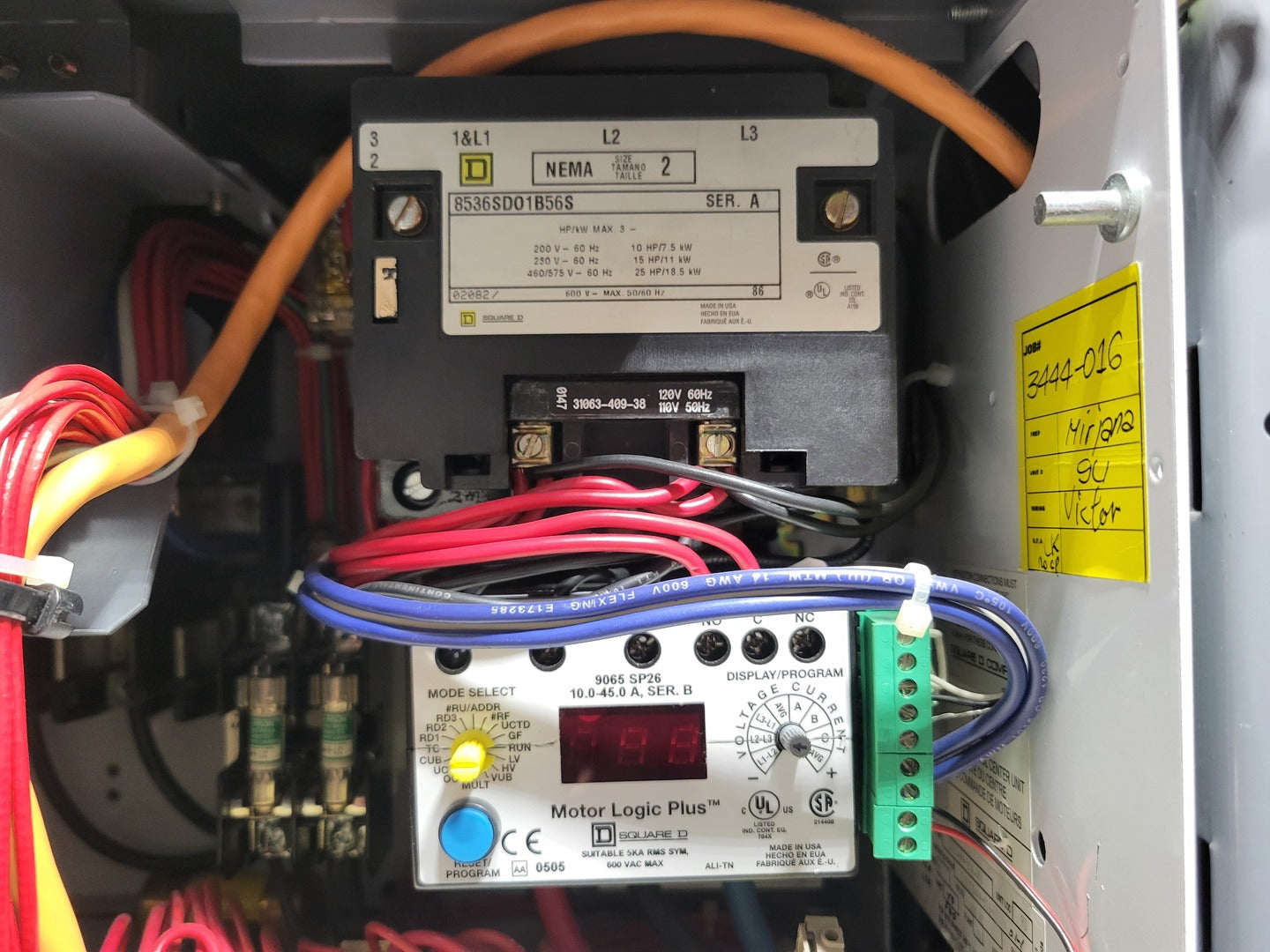

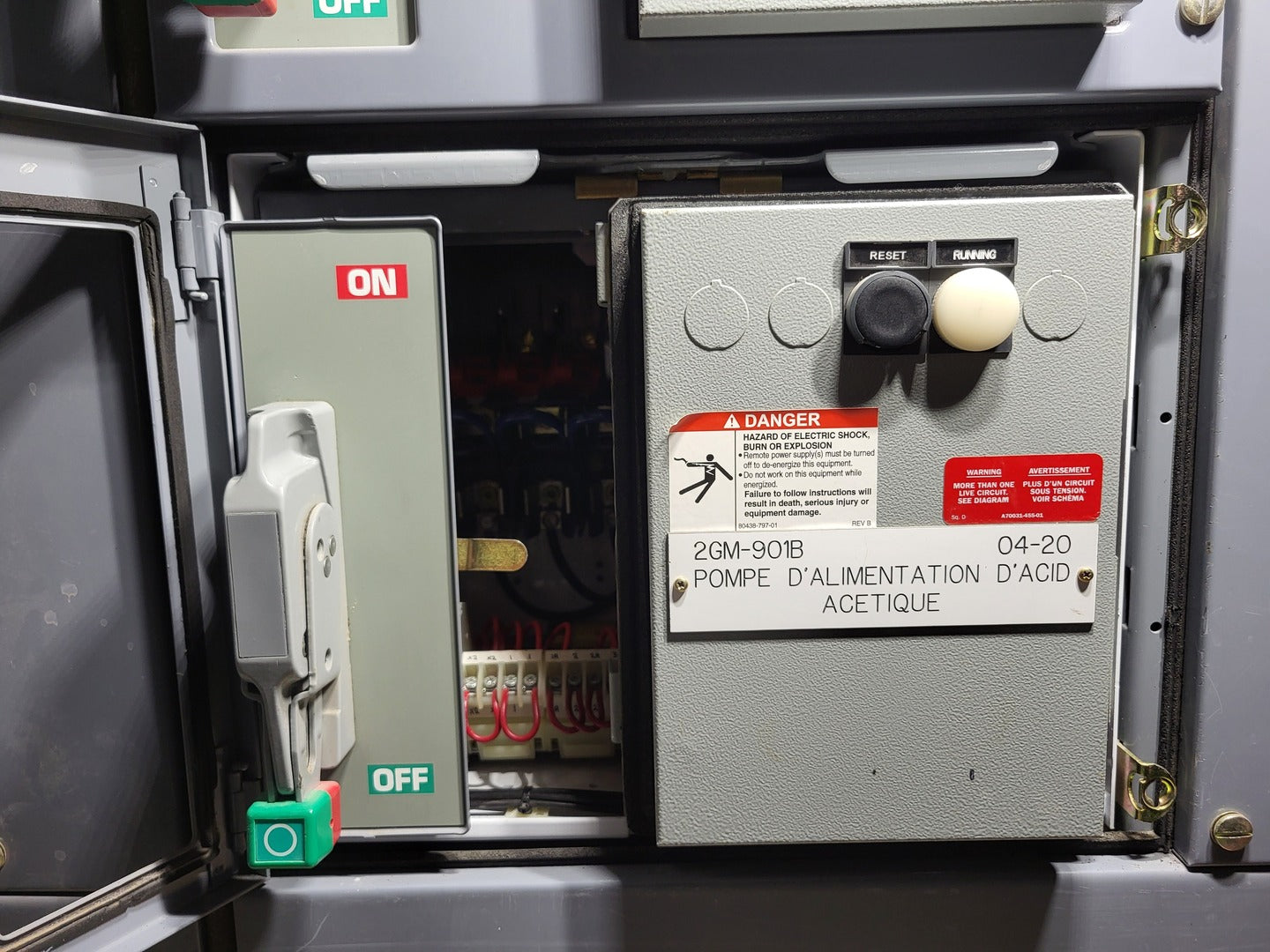

Bucket #6 2GM-901B

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 10 HP @ 200V, 15 HP @ 230V, 25 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
