SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151782
Price:
$6,928

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications

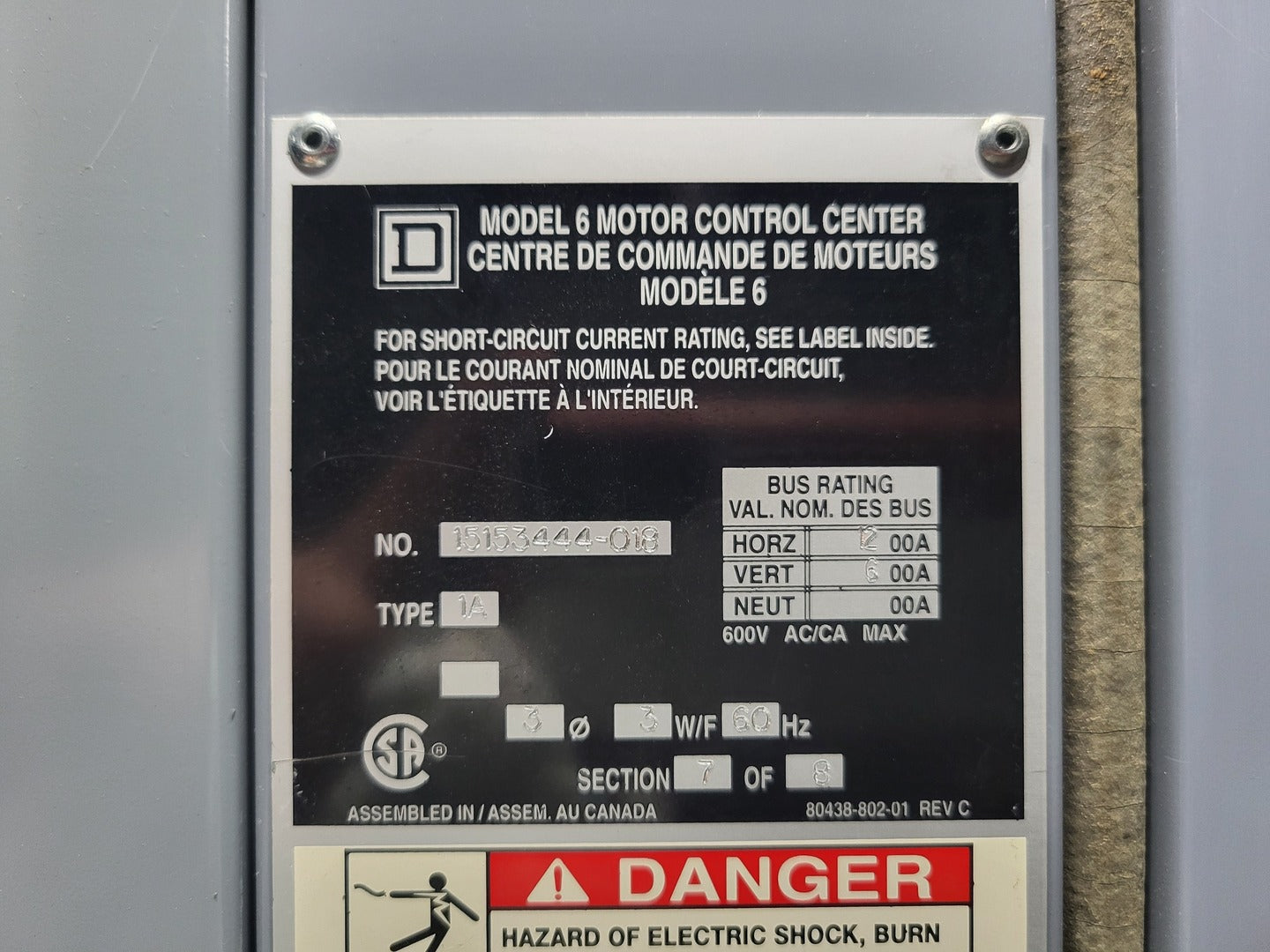

Model Model 6
Condition Used
Other Specifications

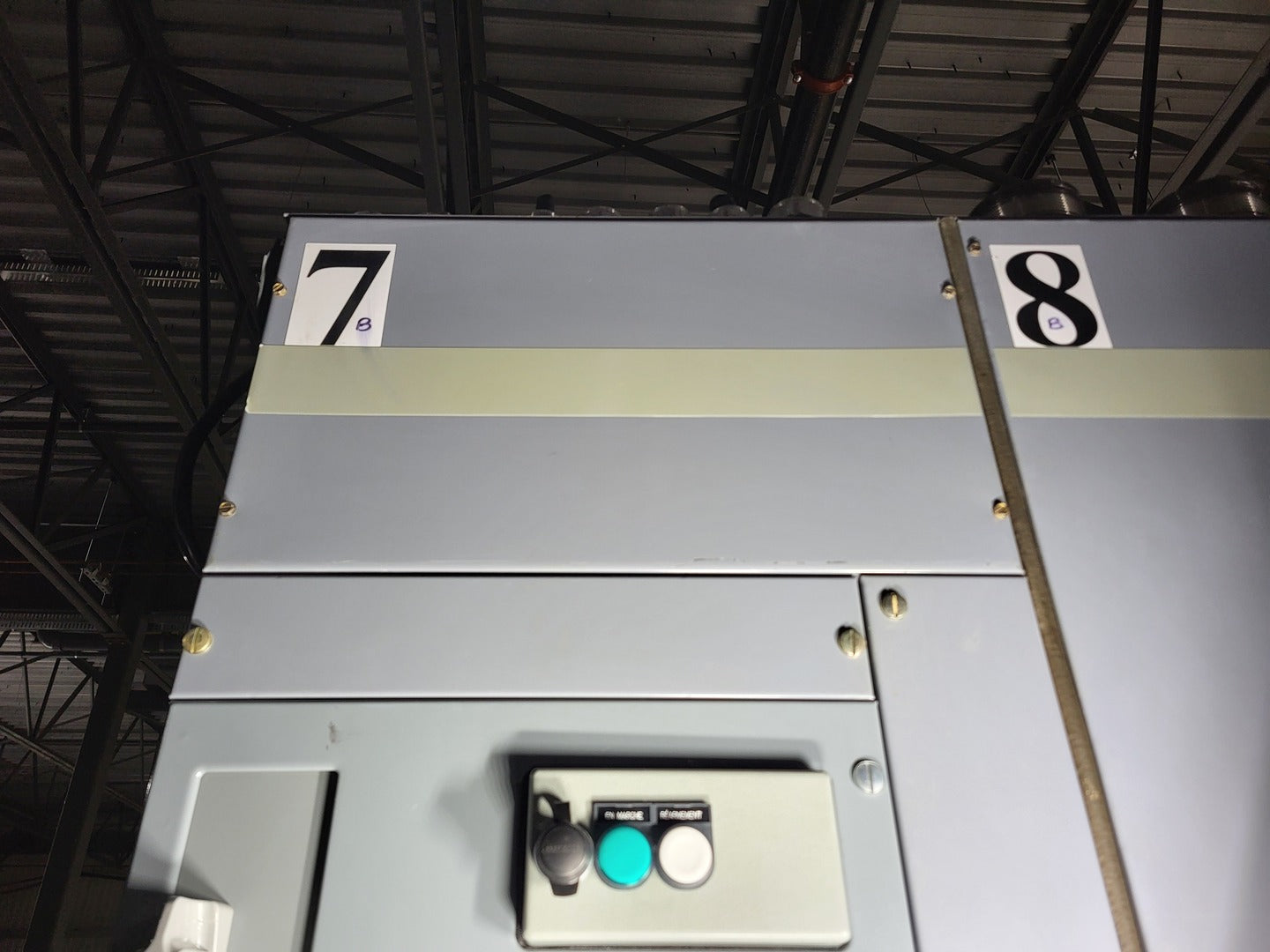

Note: Section 7 only

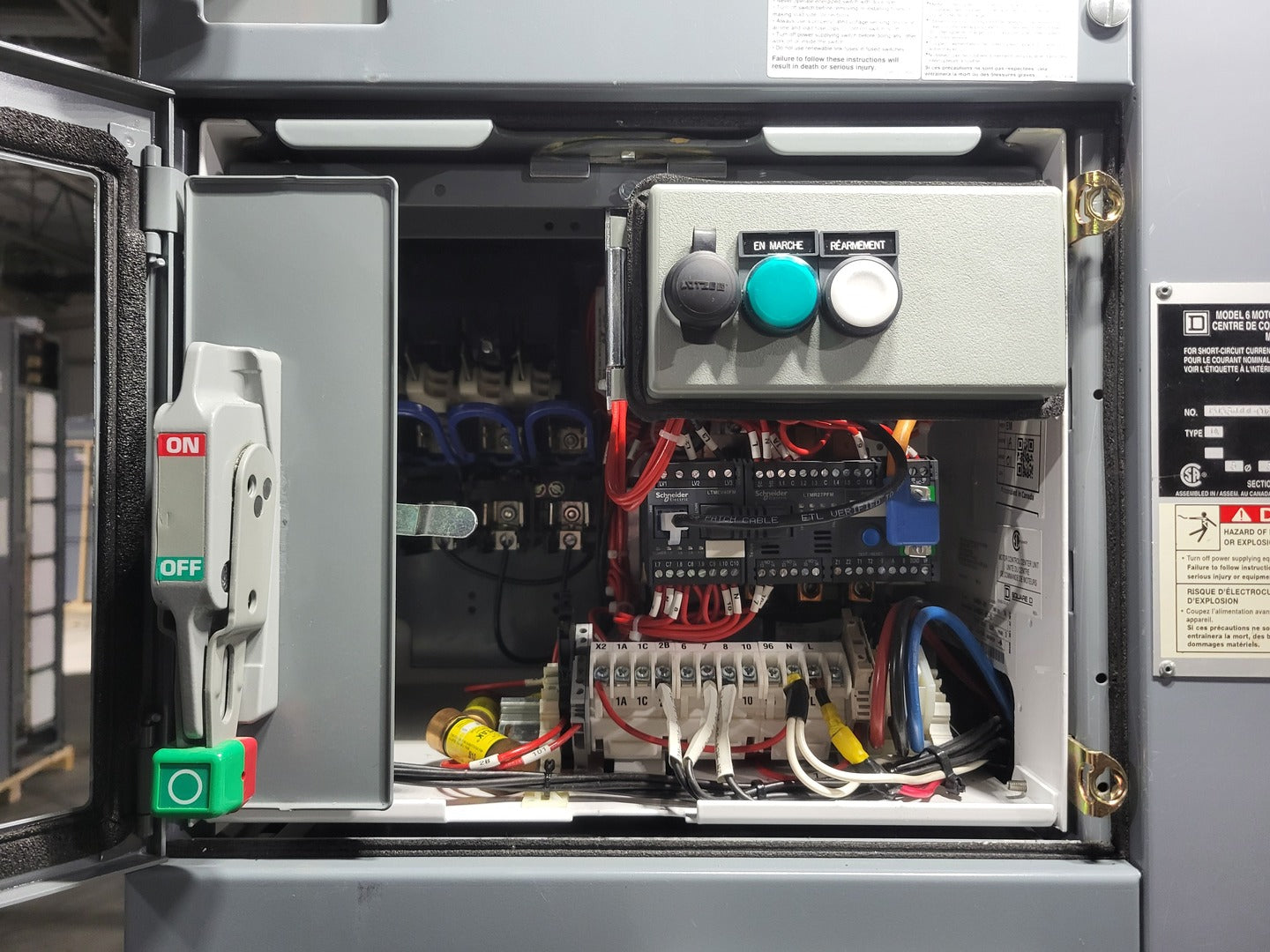

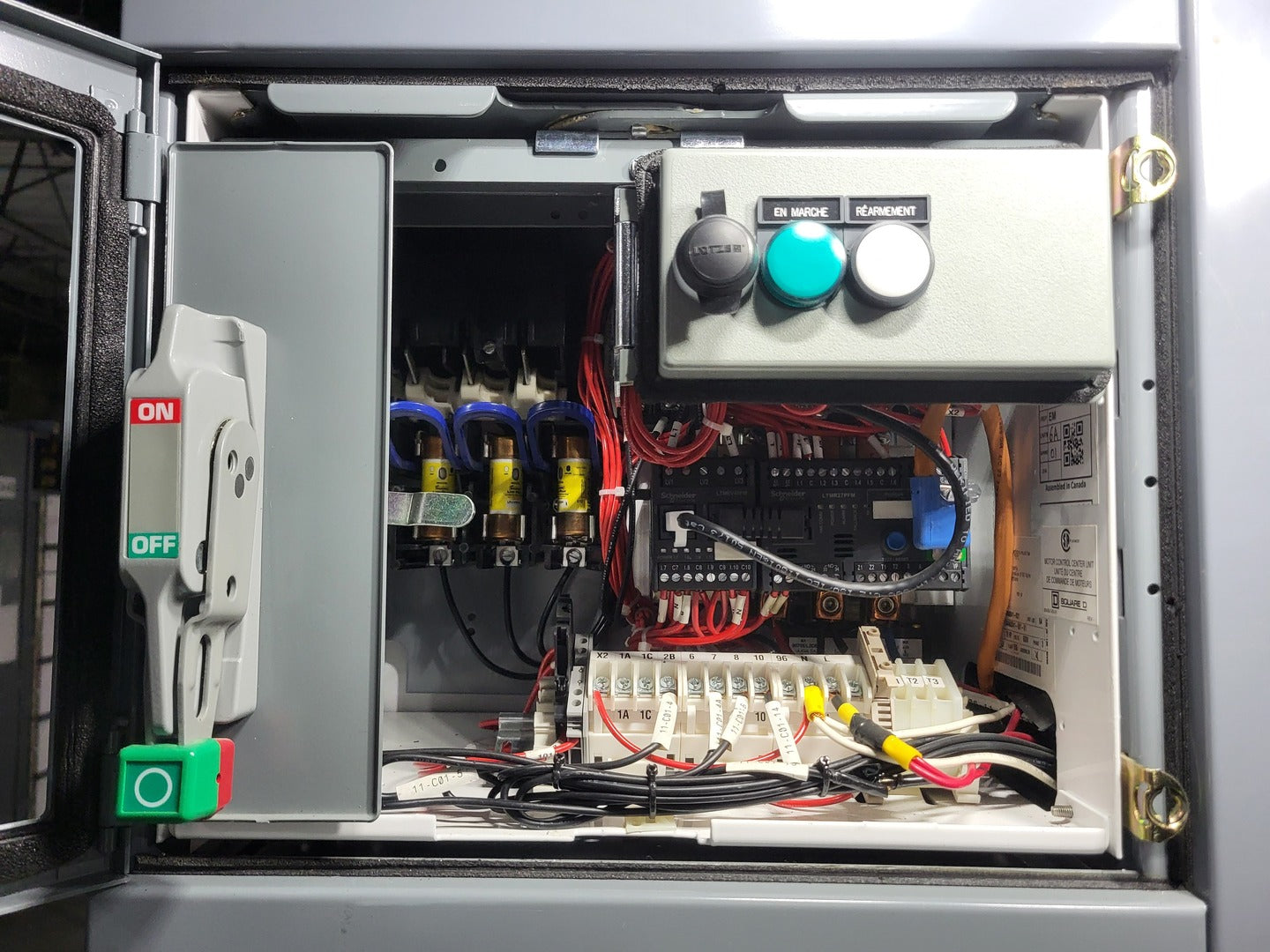

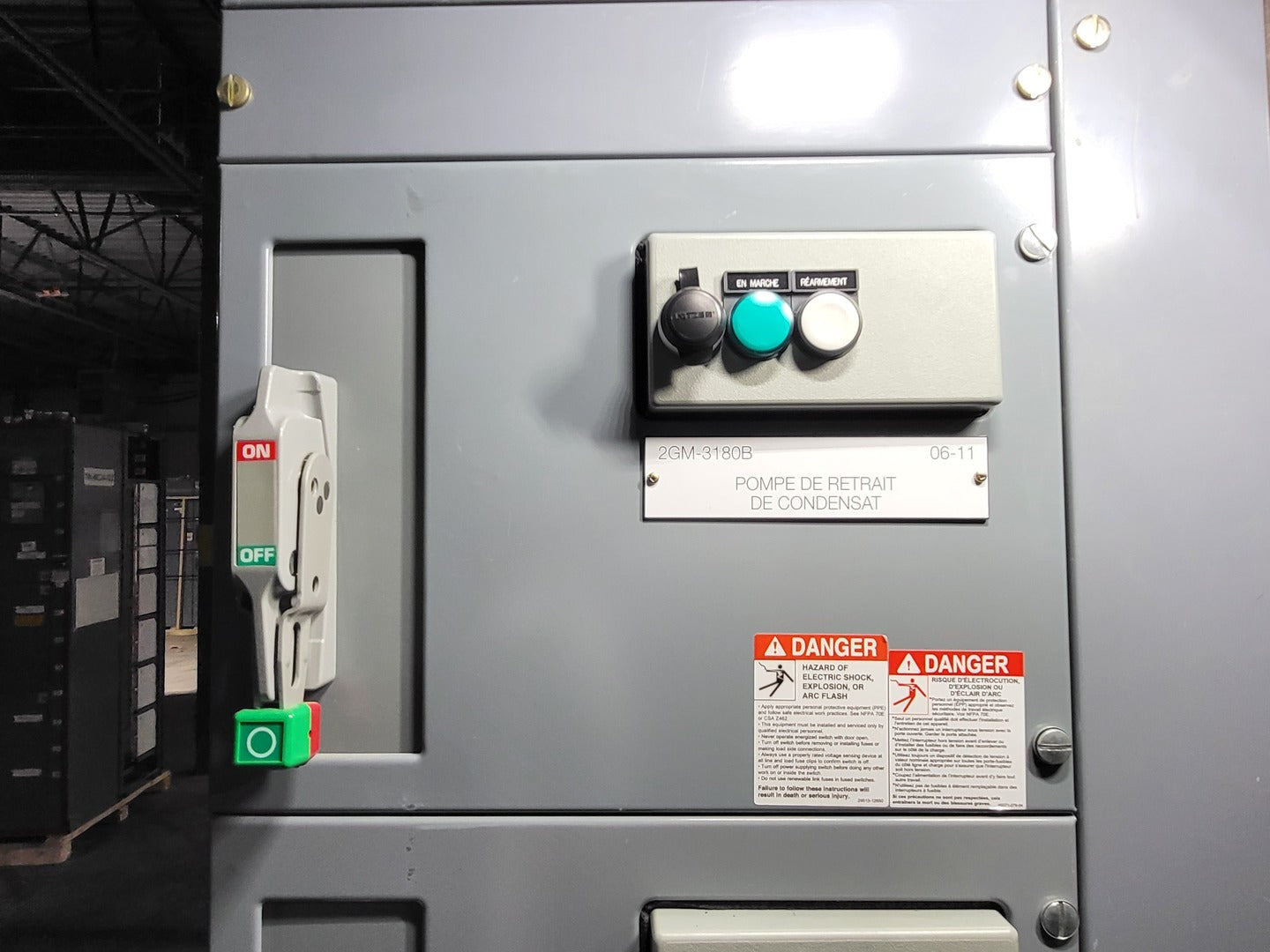

Bucket #1 2GM-3180B

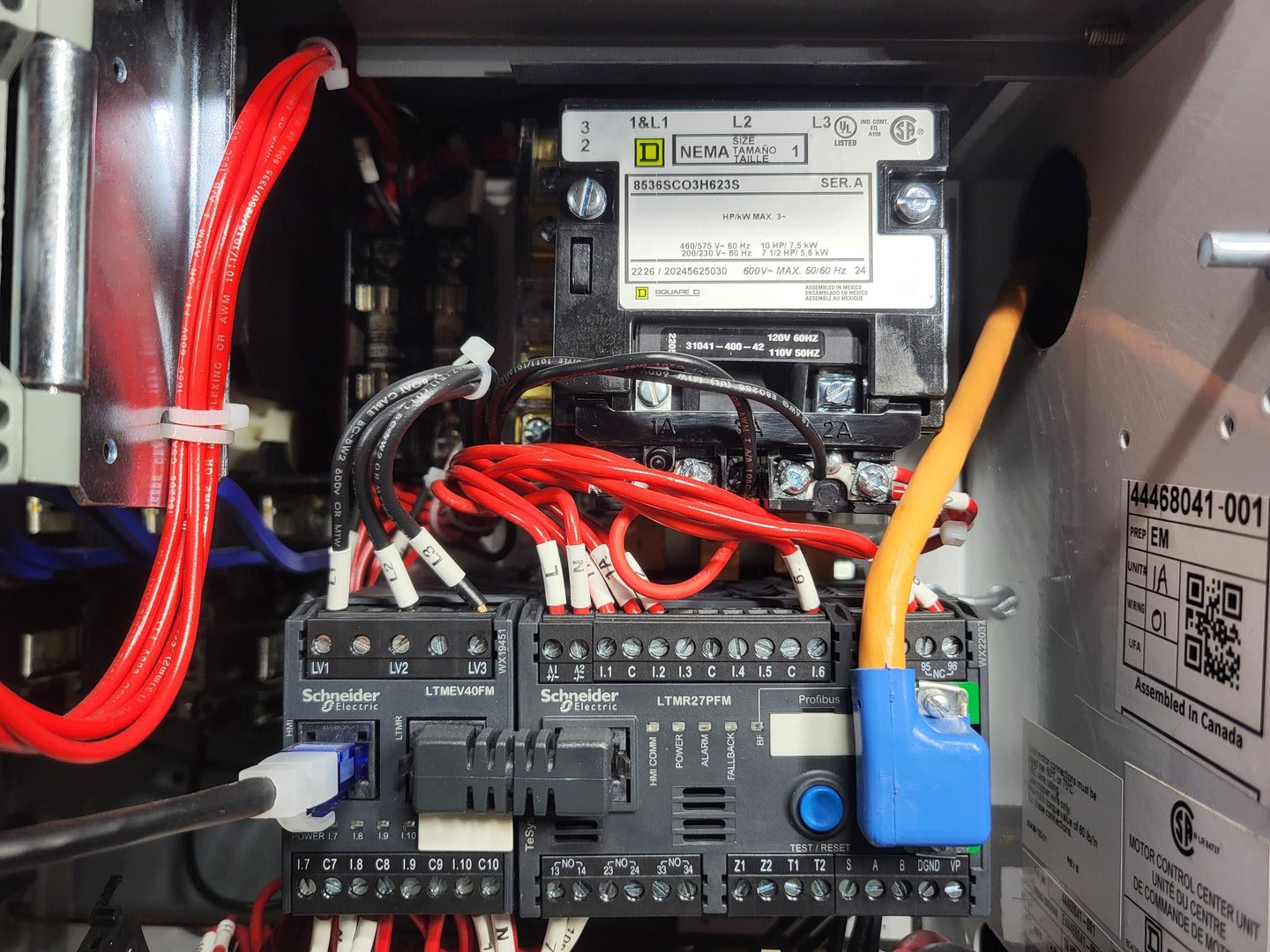

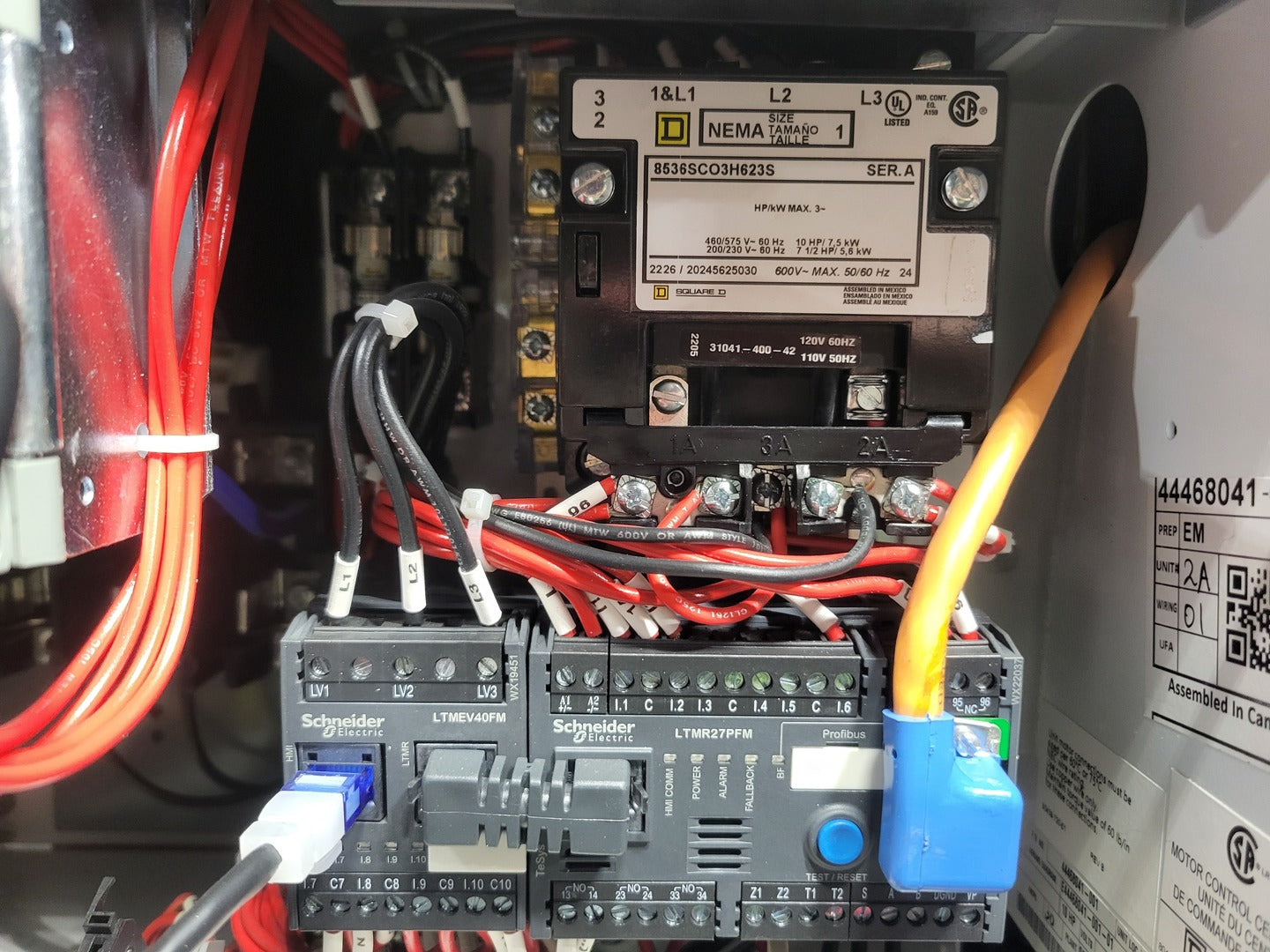

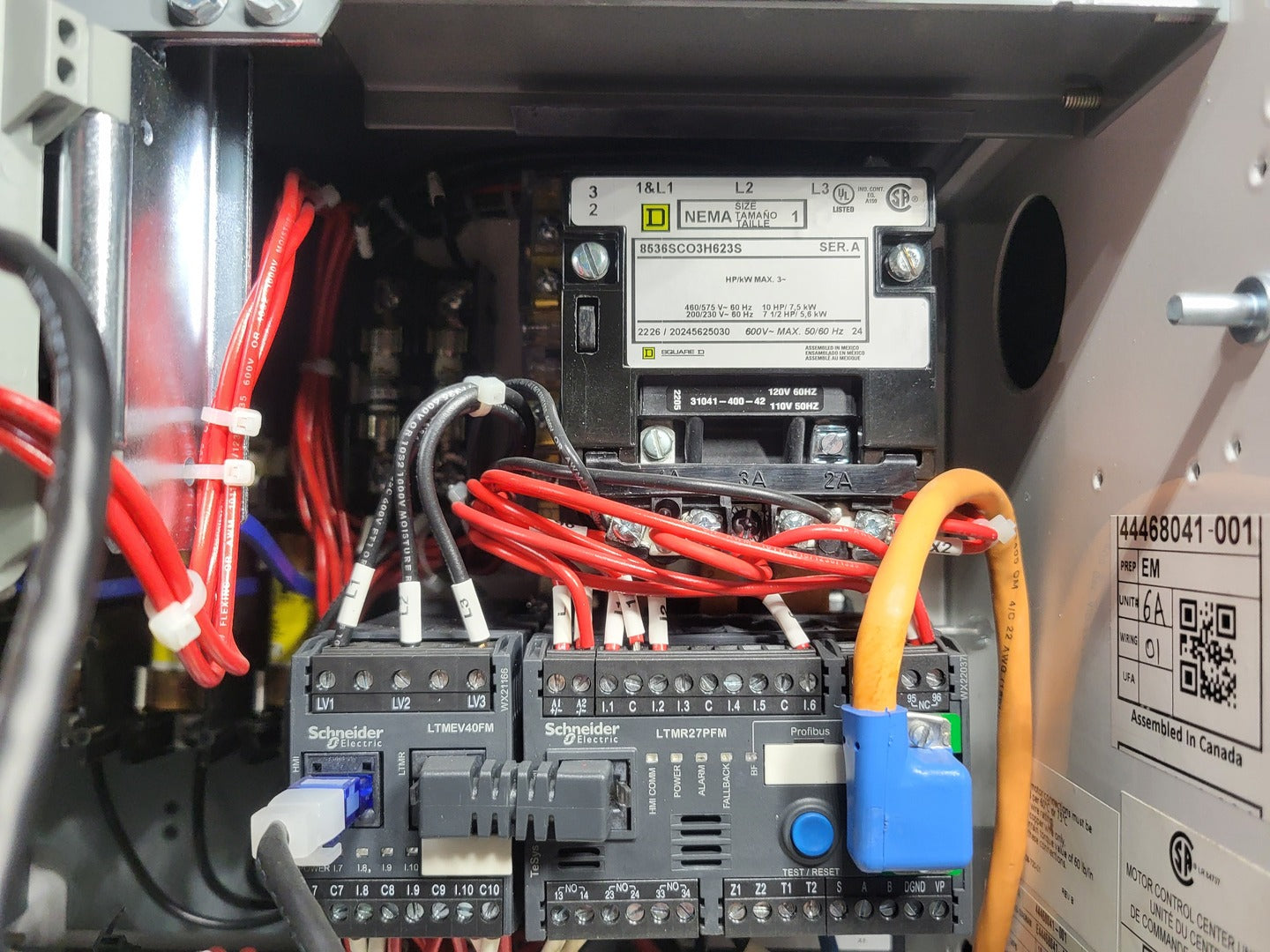

  1. Square D 8536SCO3H623S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120VAC coil
  2. Schneider Electric TeSys T LTMR27PFM, motor management controller, 1.35-27A range, PROFIBUS communication

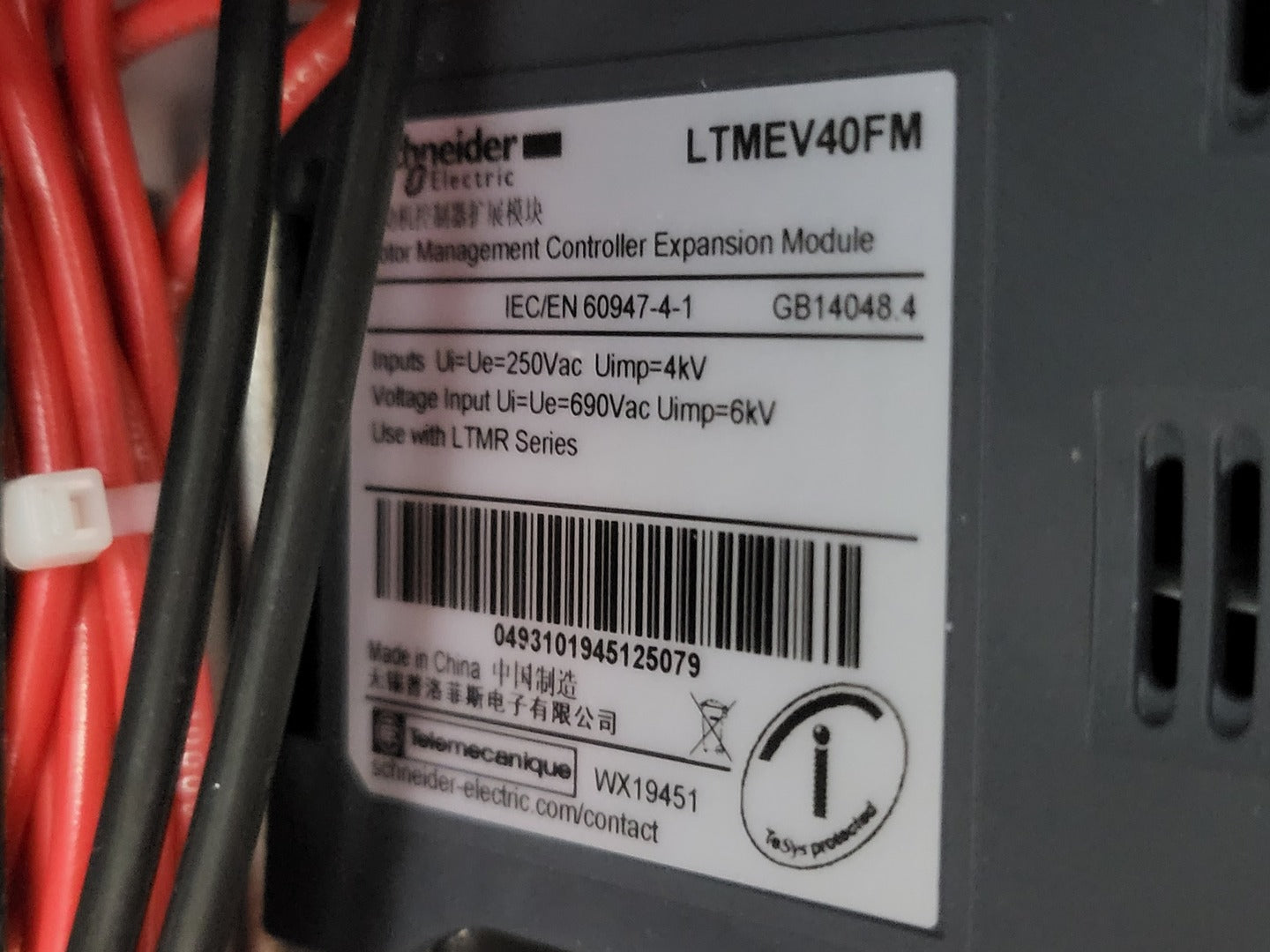

  3. Schneider Electric LTMEV40FM, TeSys T current controller expansion module

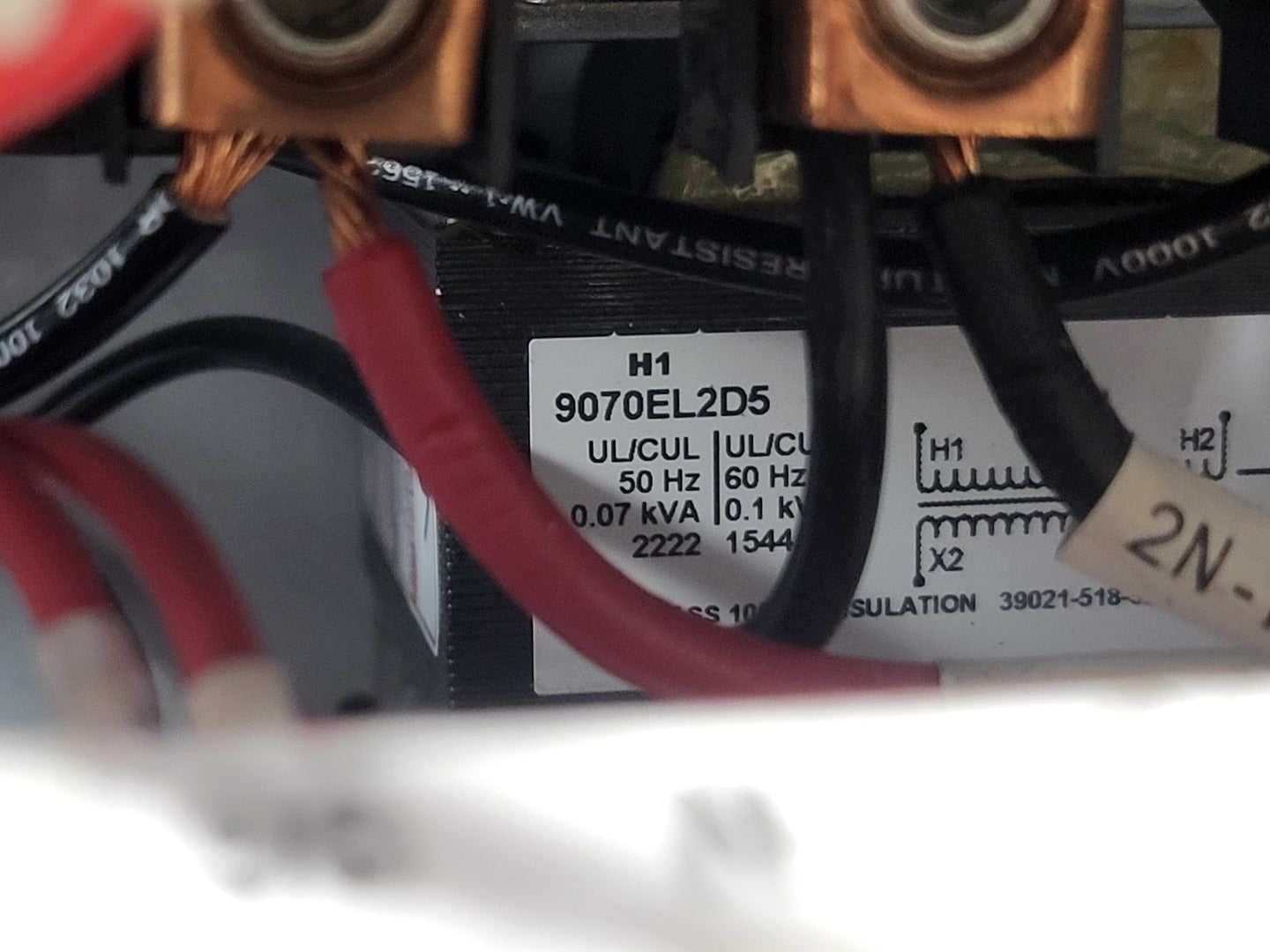

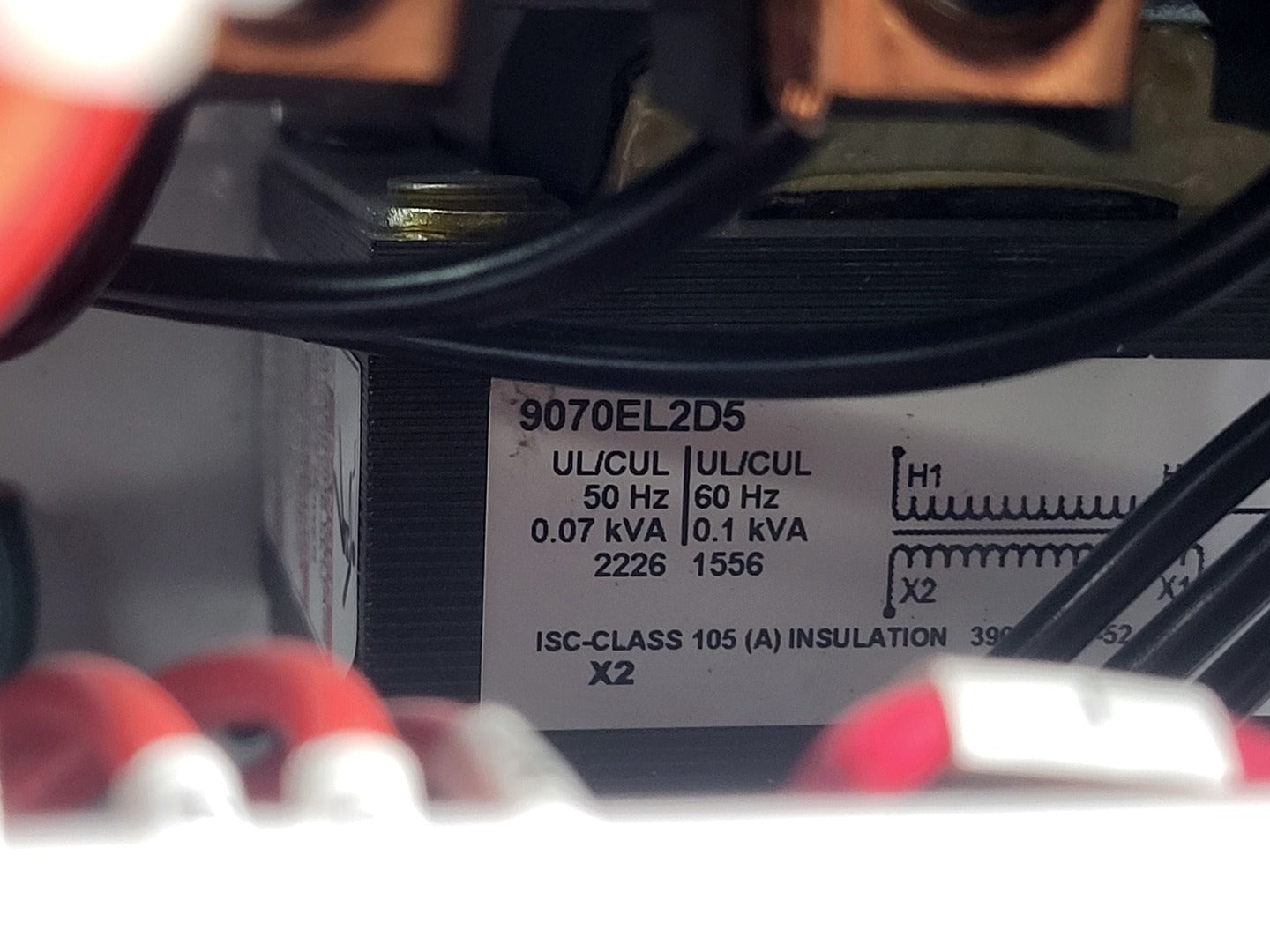

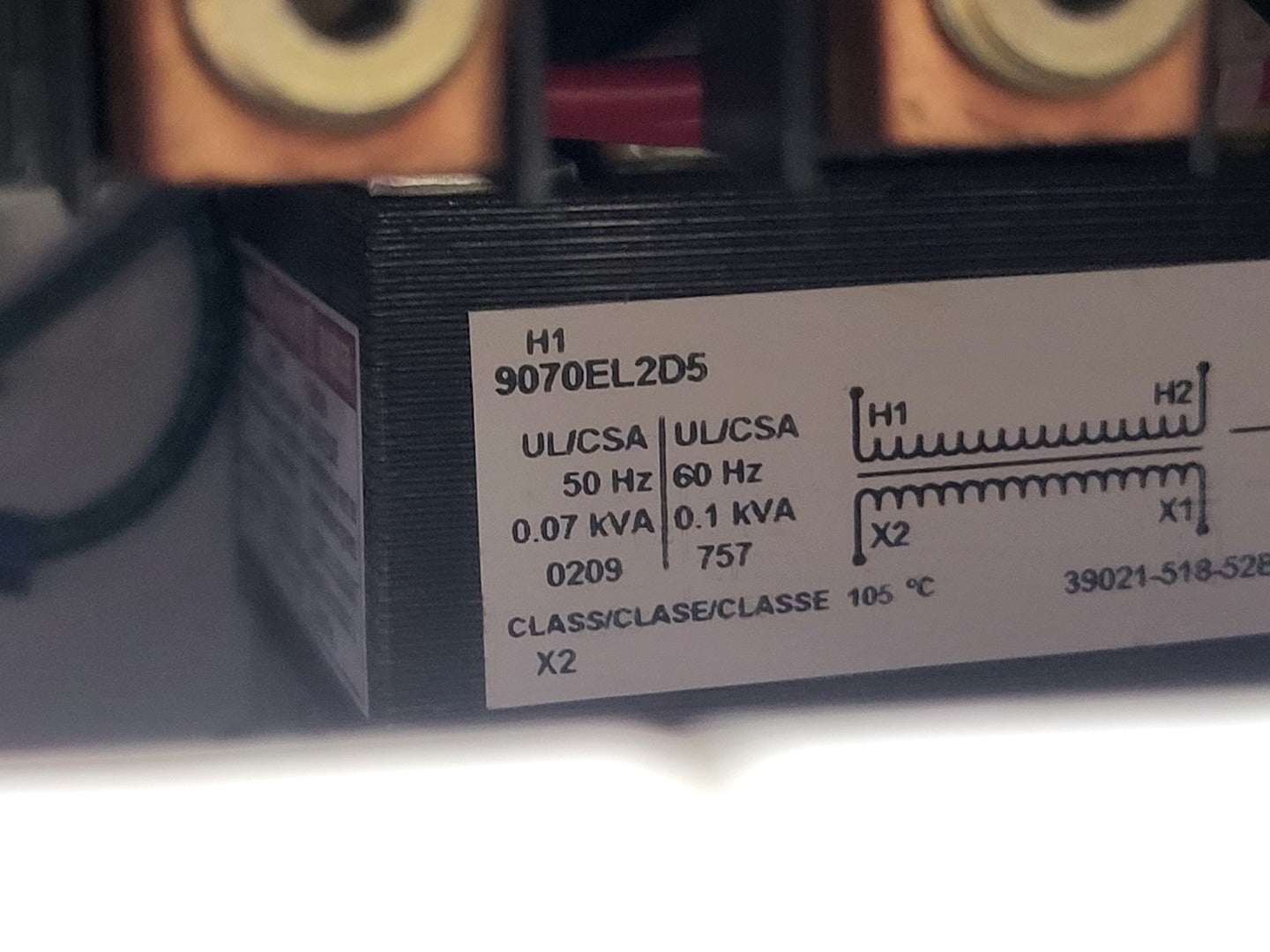

  4. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

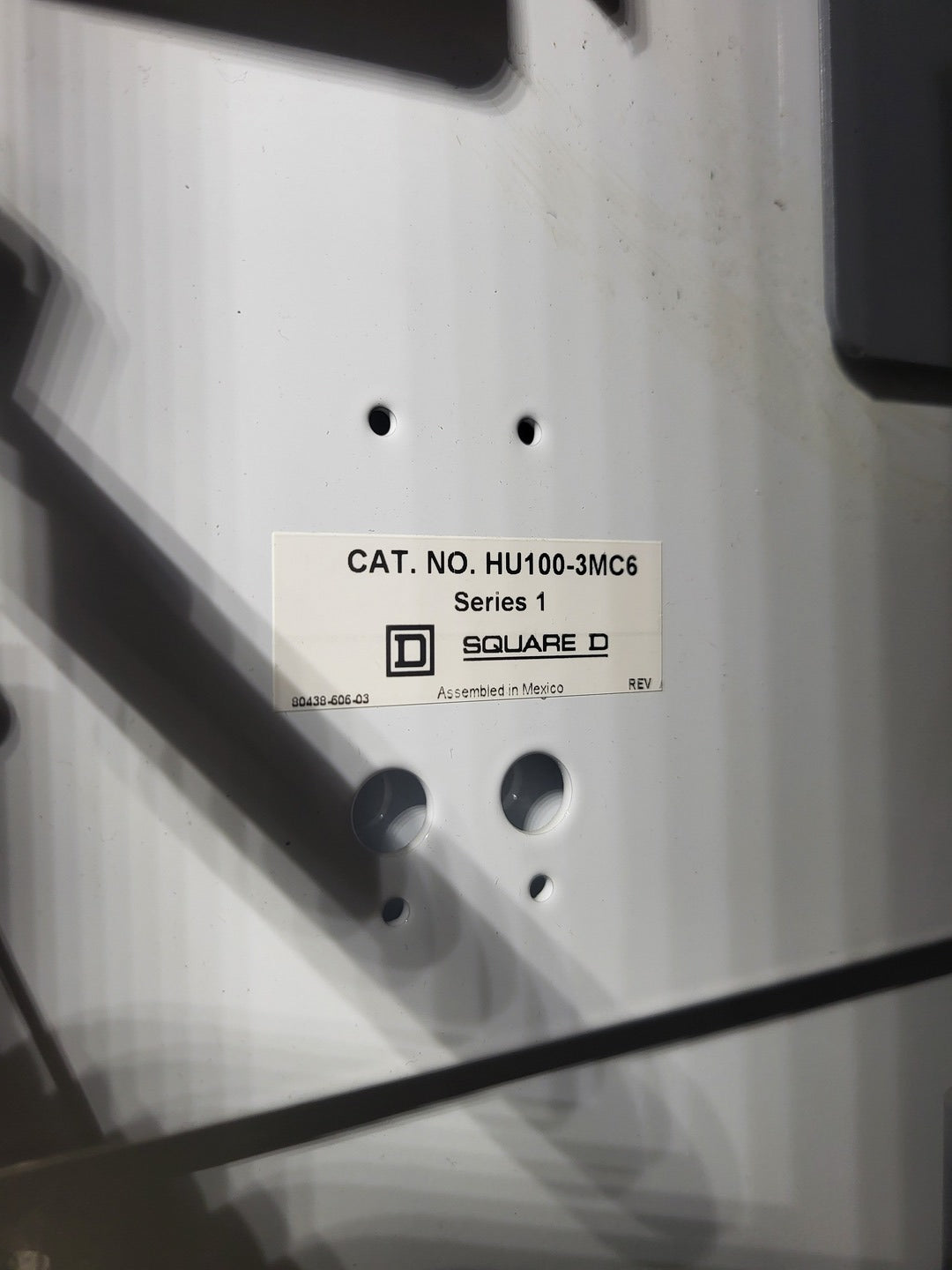

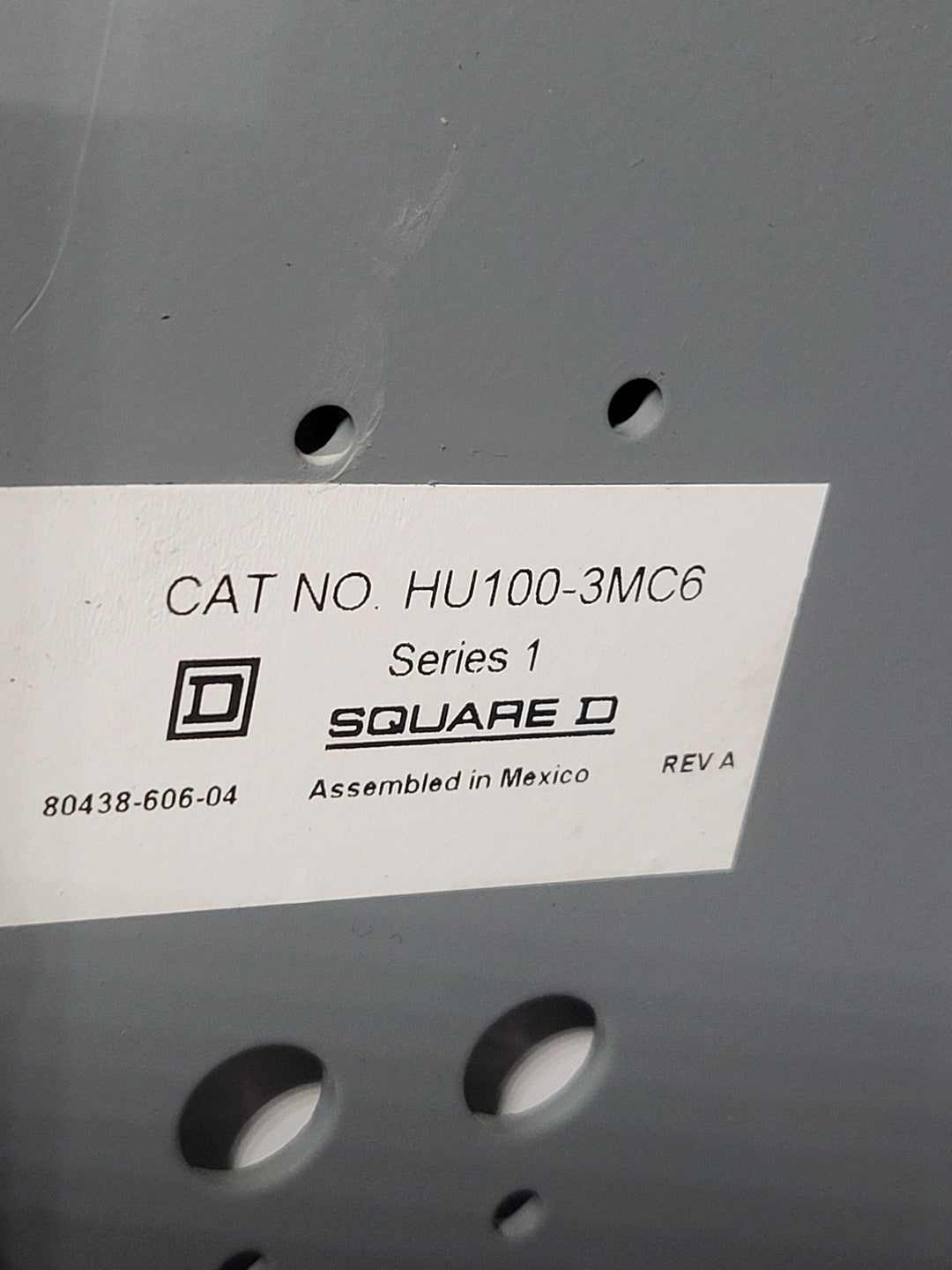

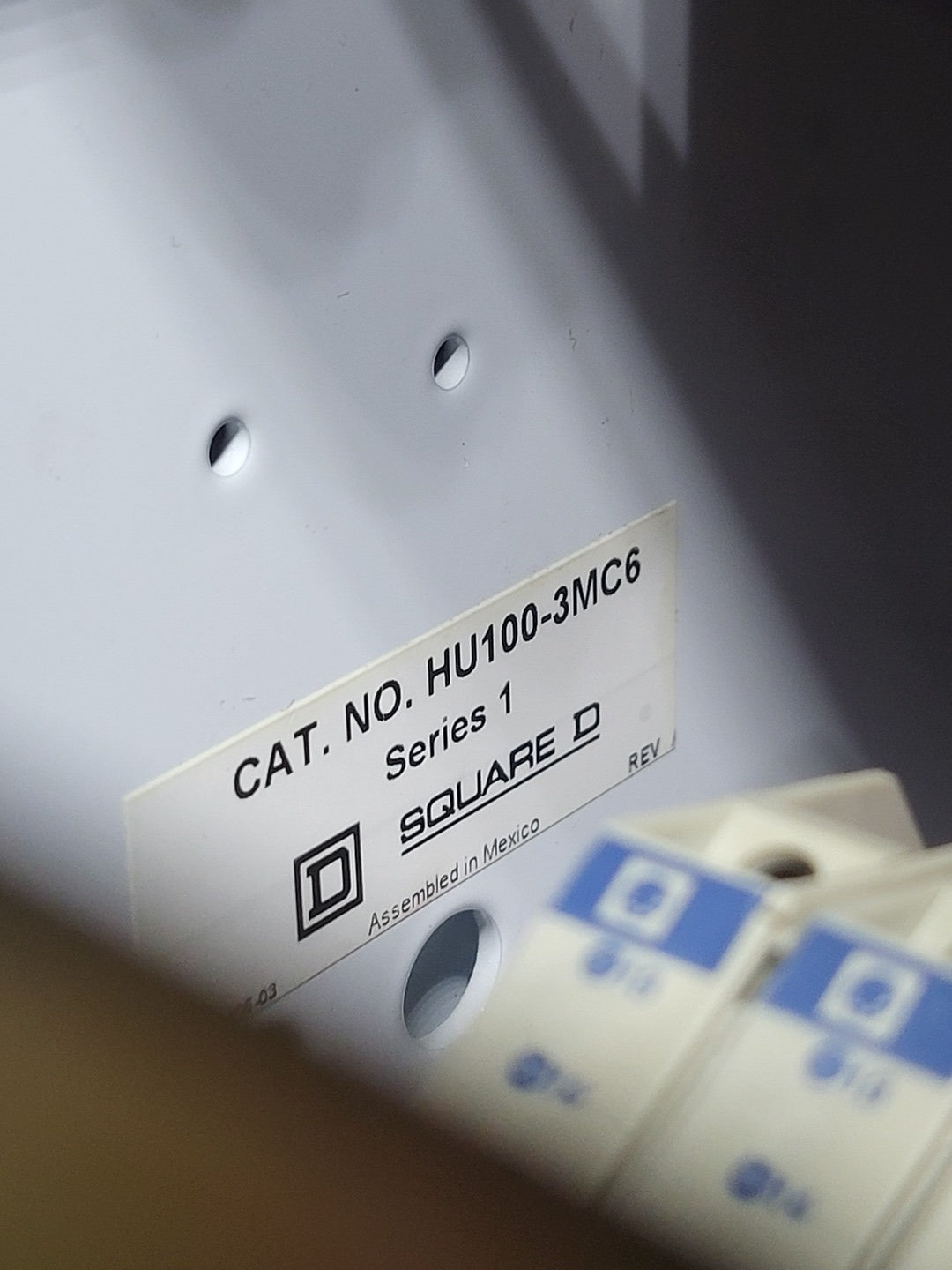

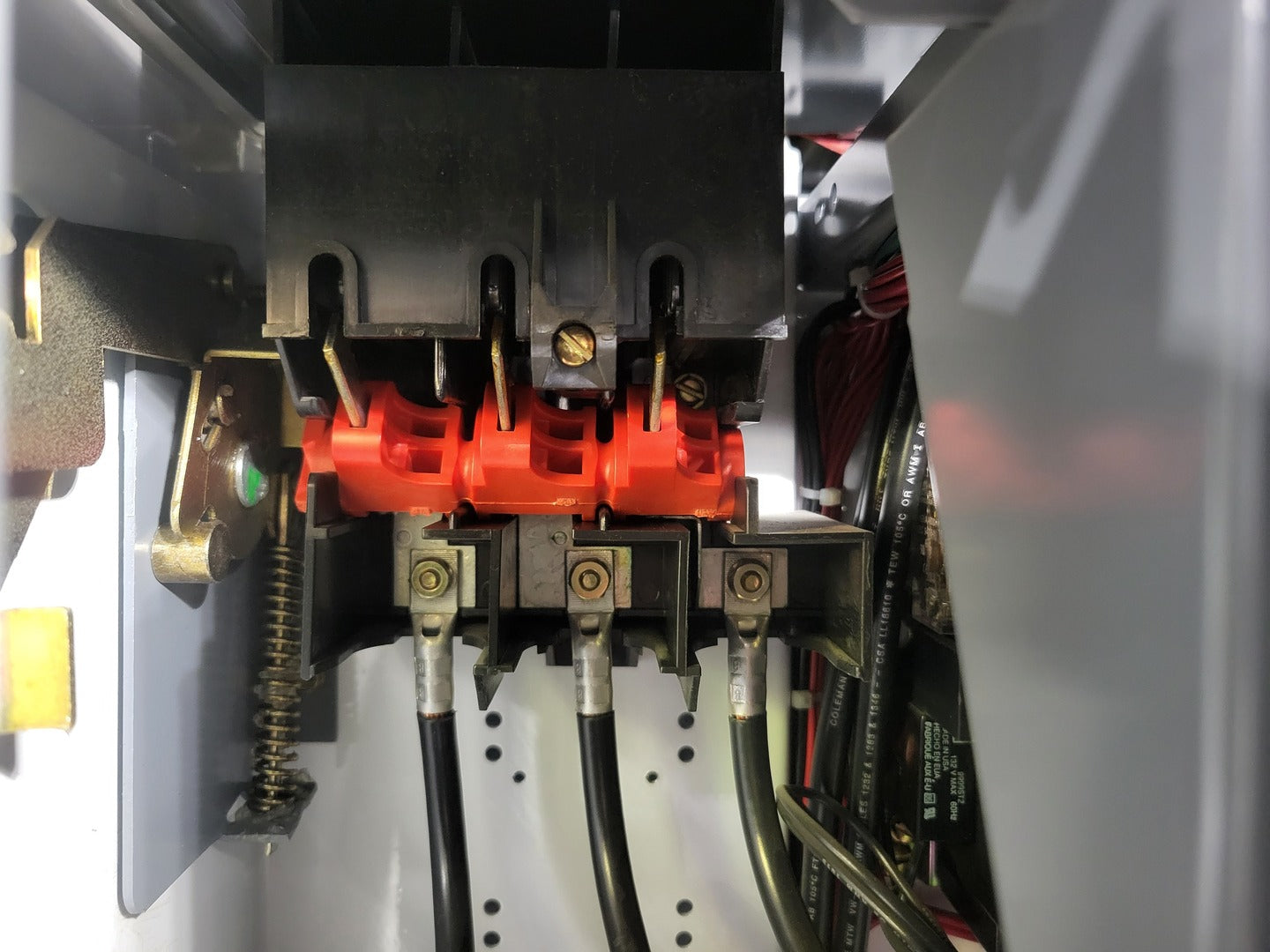

  5. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

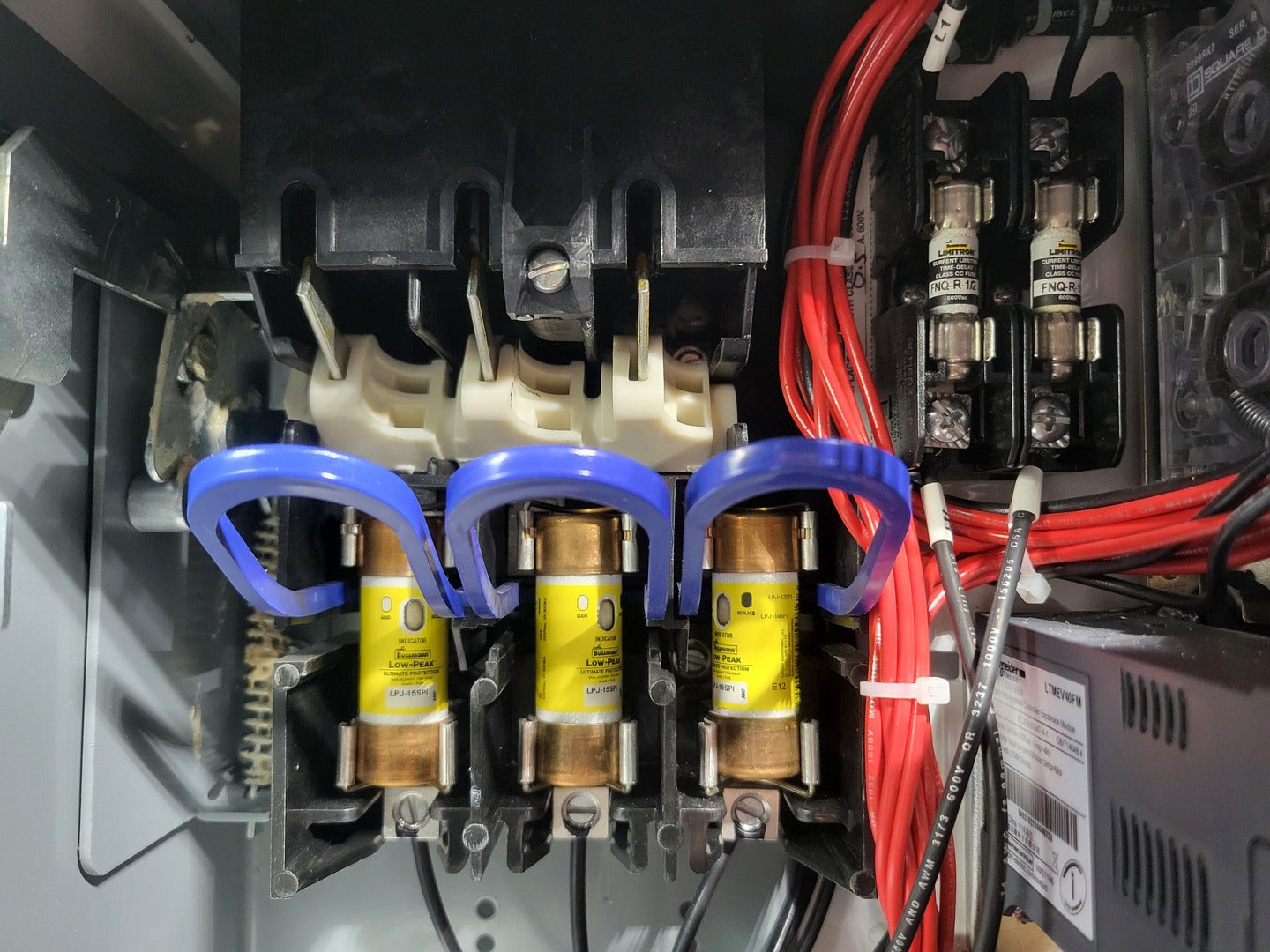

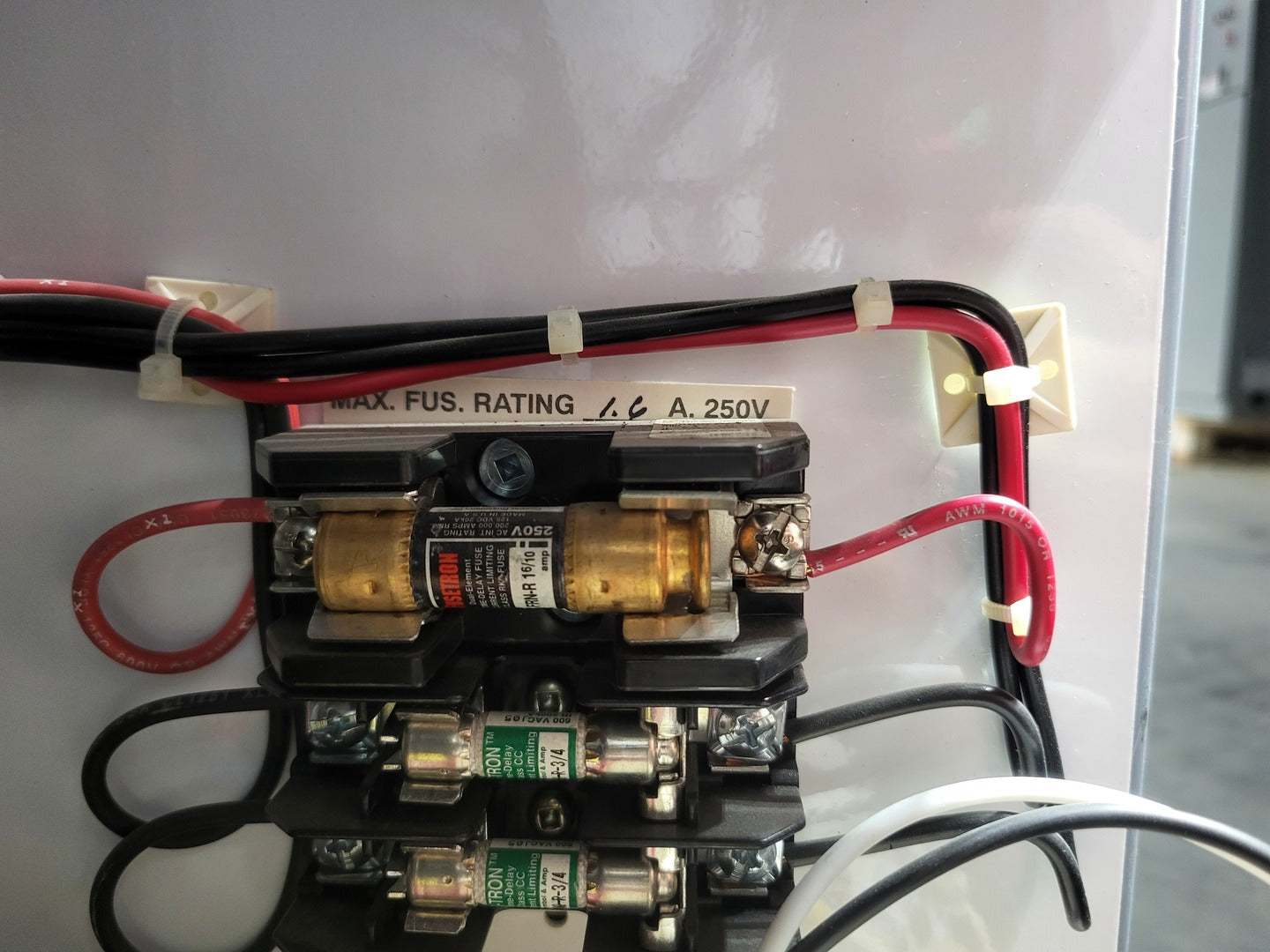

  6. 3 x Bussmann Low-Peak fuses LPJ-15SP
  7. 2 x Bussmann Limitron fuses FNQ-R-1/2

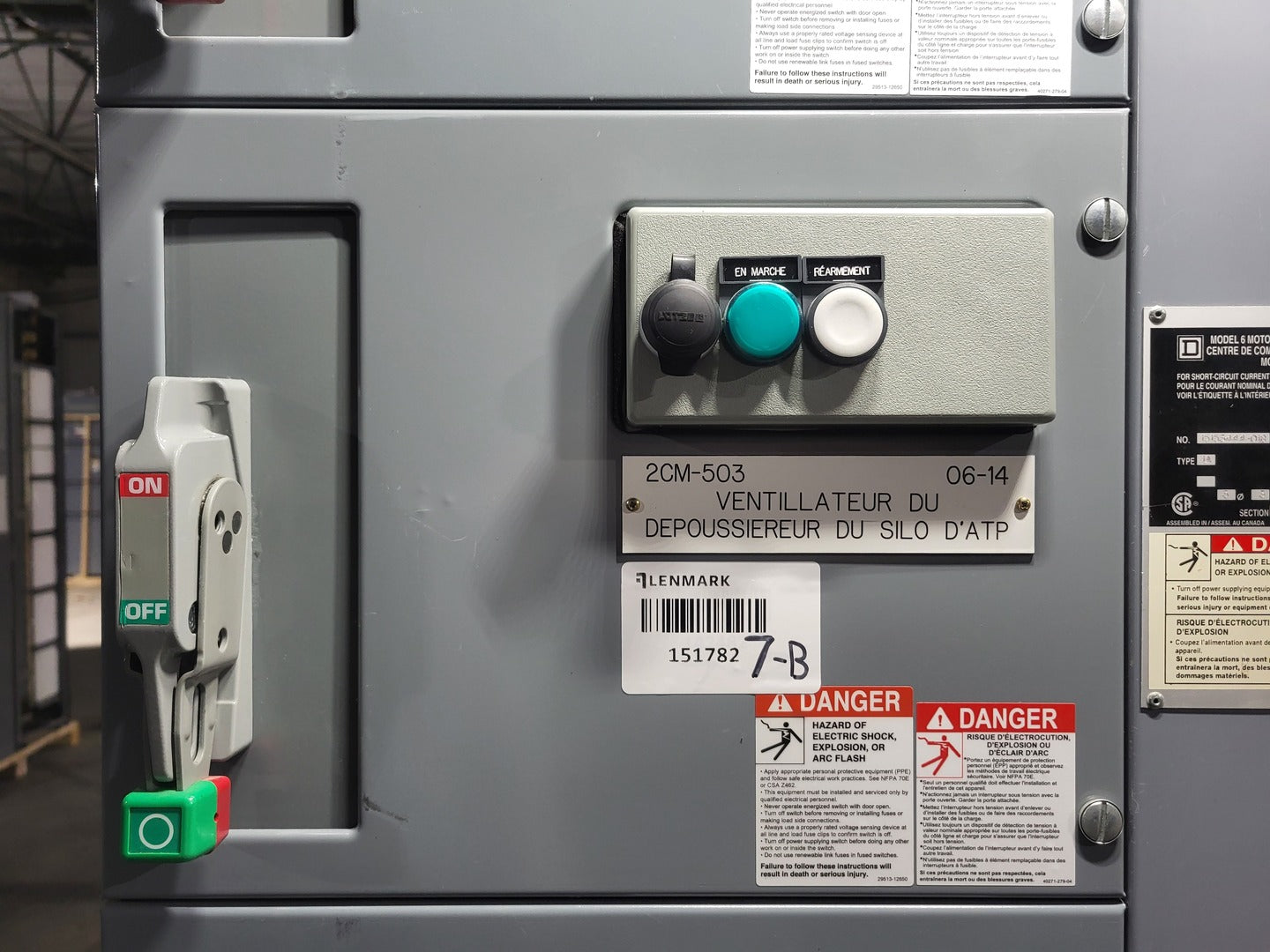

Bucket #2 2CM-503

  1. Square D 8536SCO3H623S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120VAC coil
  2. Schneider Electric TeSys T LTMR27PFM, motor management controller, PROFIBUS communication
  3. Schneider Electric LTMEV40FM, TeSys T current controller expansion module
  4. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  5. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  6. 2 x Bussmann Limitron fuses FNQ-R-1/2

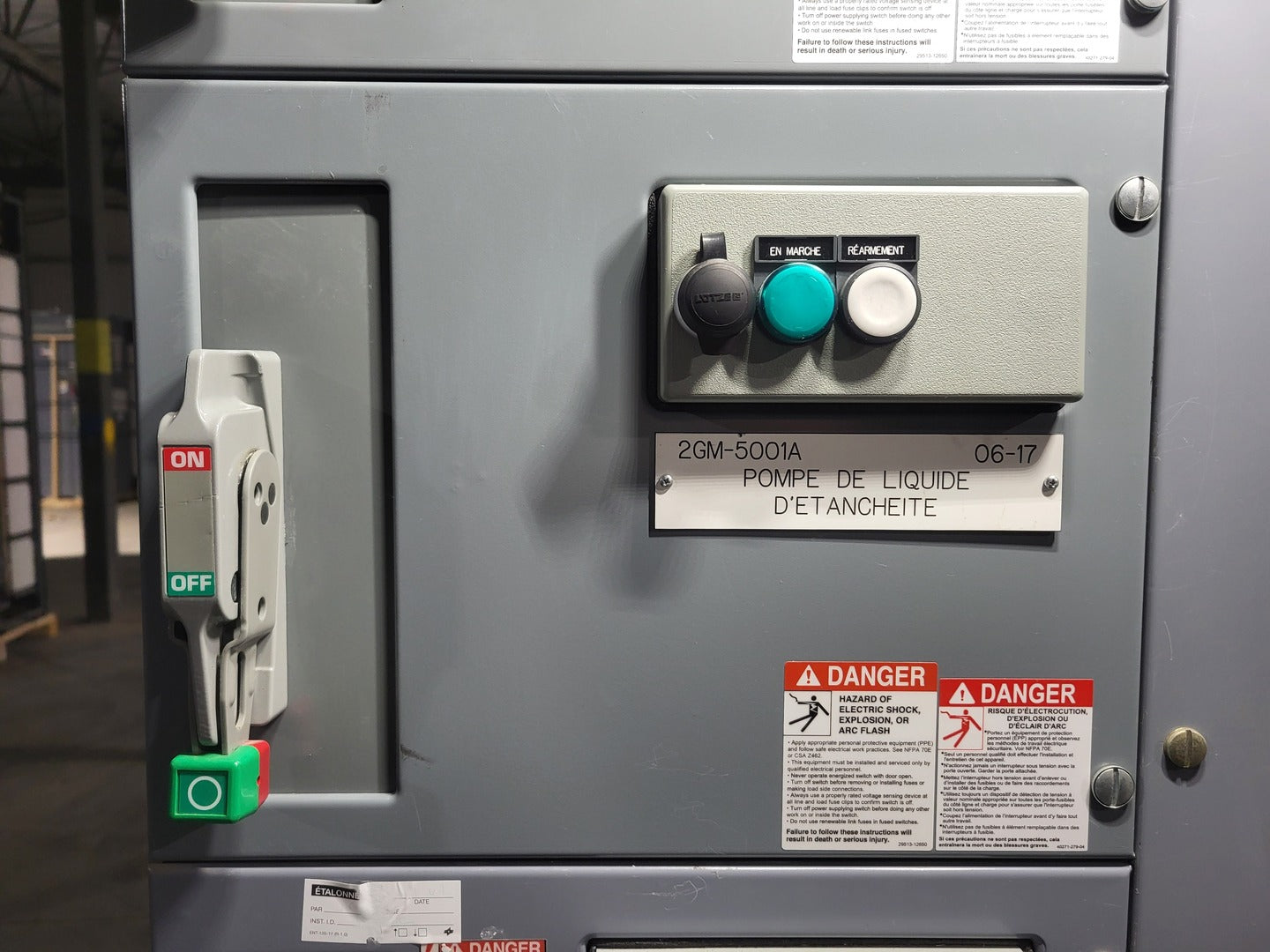

Bucket #3 2GM-5001A

  1. Square D 8536SCO3H623S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120VAC coil
  2. Schneider Electric TeSys T LTMR27PFM, motor management controller, PROFIBUS communication
  3. Schneider Electric LTMEV40FM, TeSys T current controller expansion module
  4. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  5. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  6. 3 x Bussmann Low-Peak fuses LPJ-15SP
  7. 2 x Bussmann Limitron fuses FNQ-R-1/2

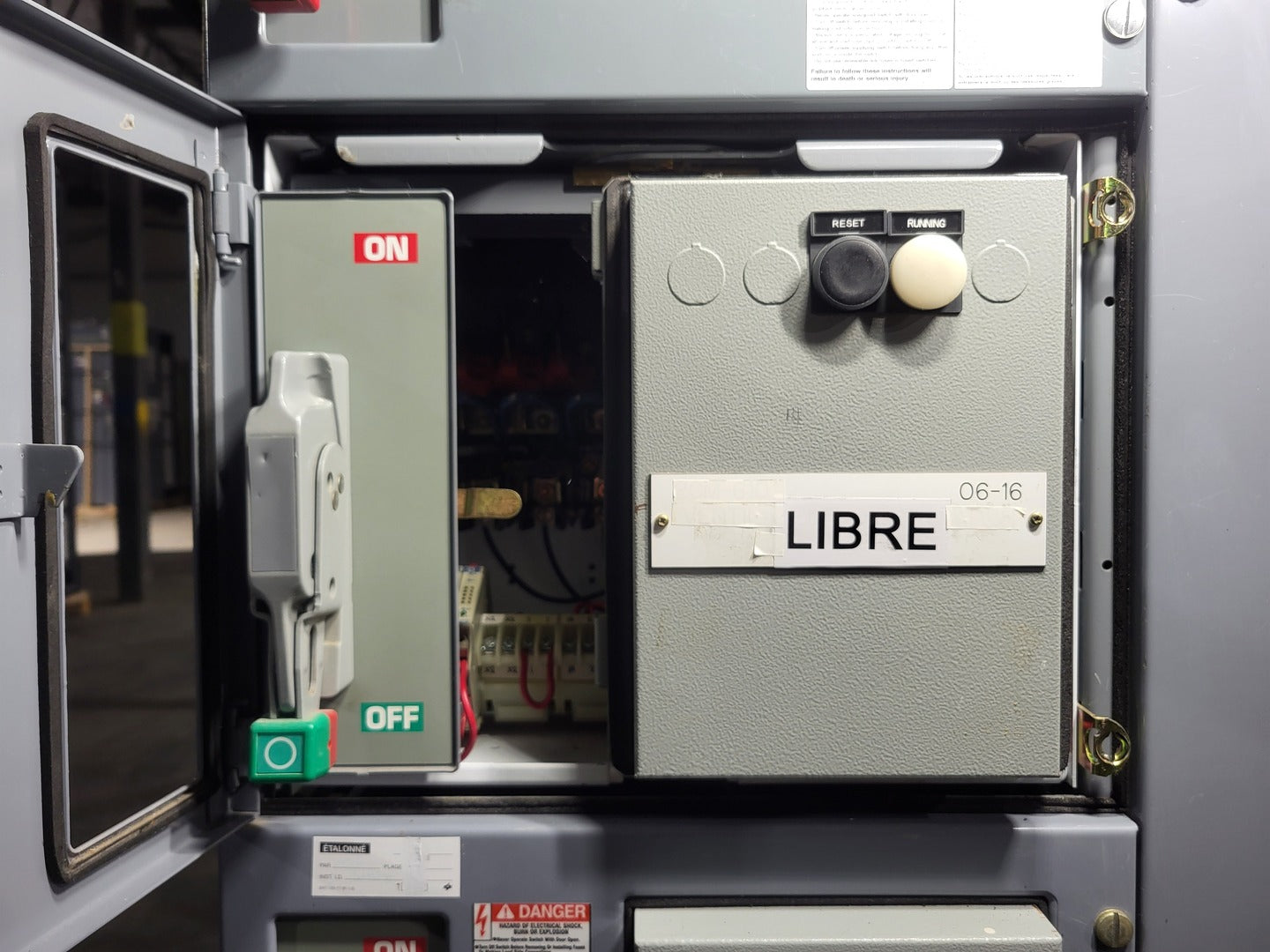

Bucket #4

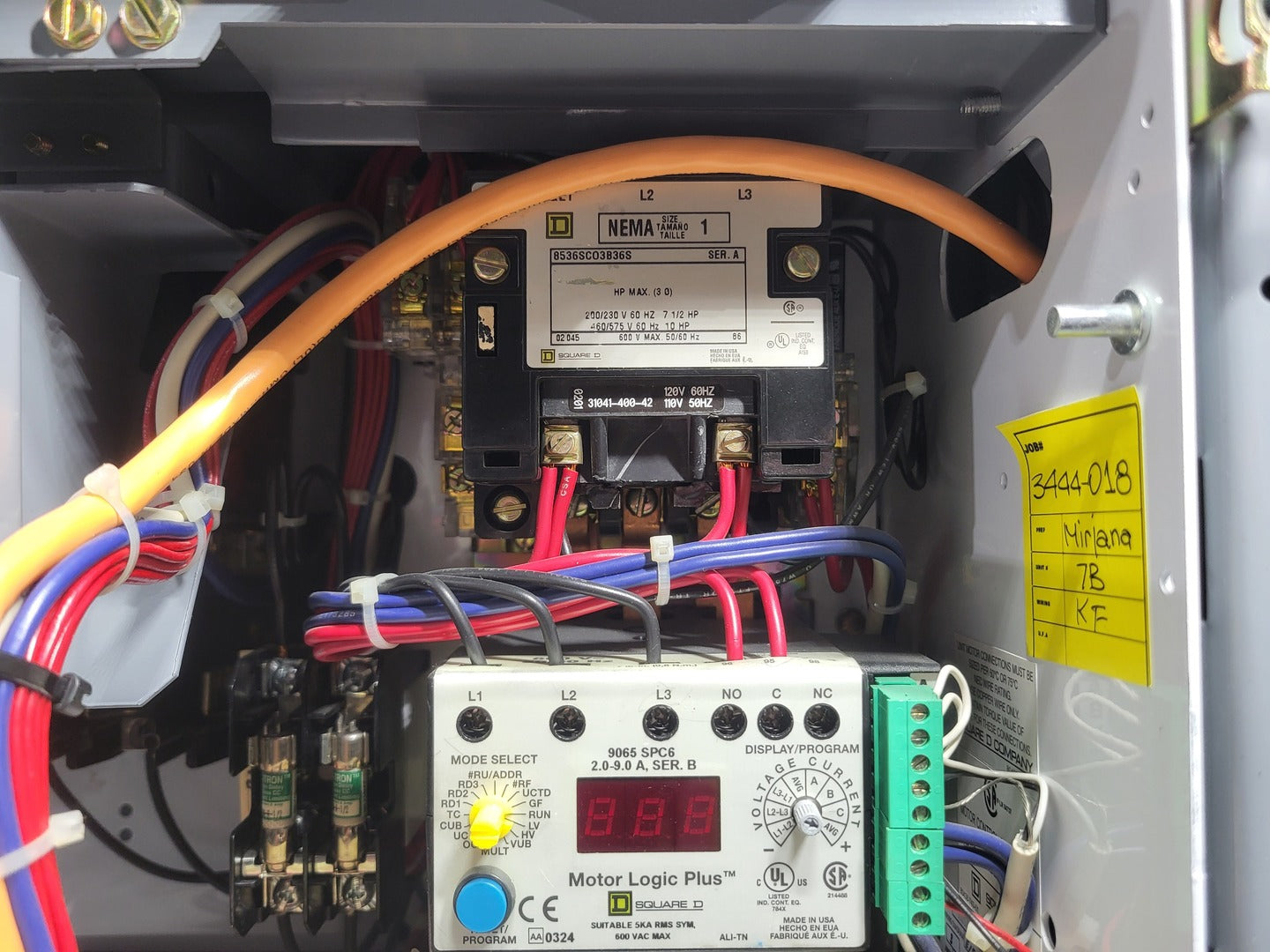

  1. Square D 8536SCO3B36S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120VAC coil
  2. Square D Motor Logic Plus 9065 SPC6, motor protection relay, 2.0-9.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

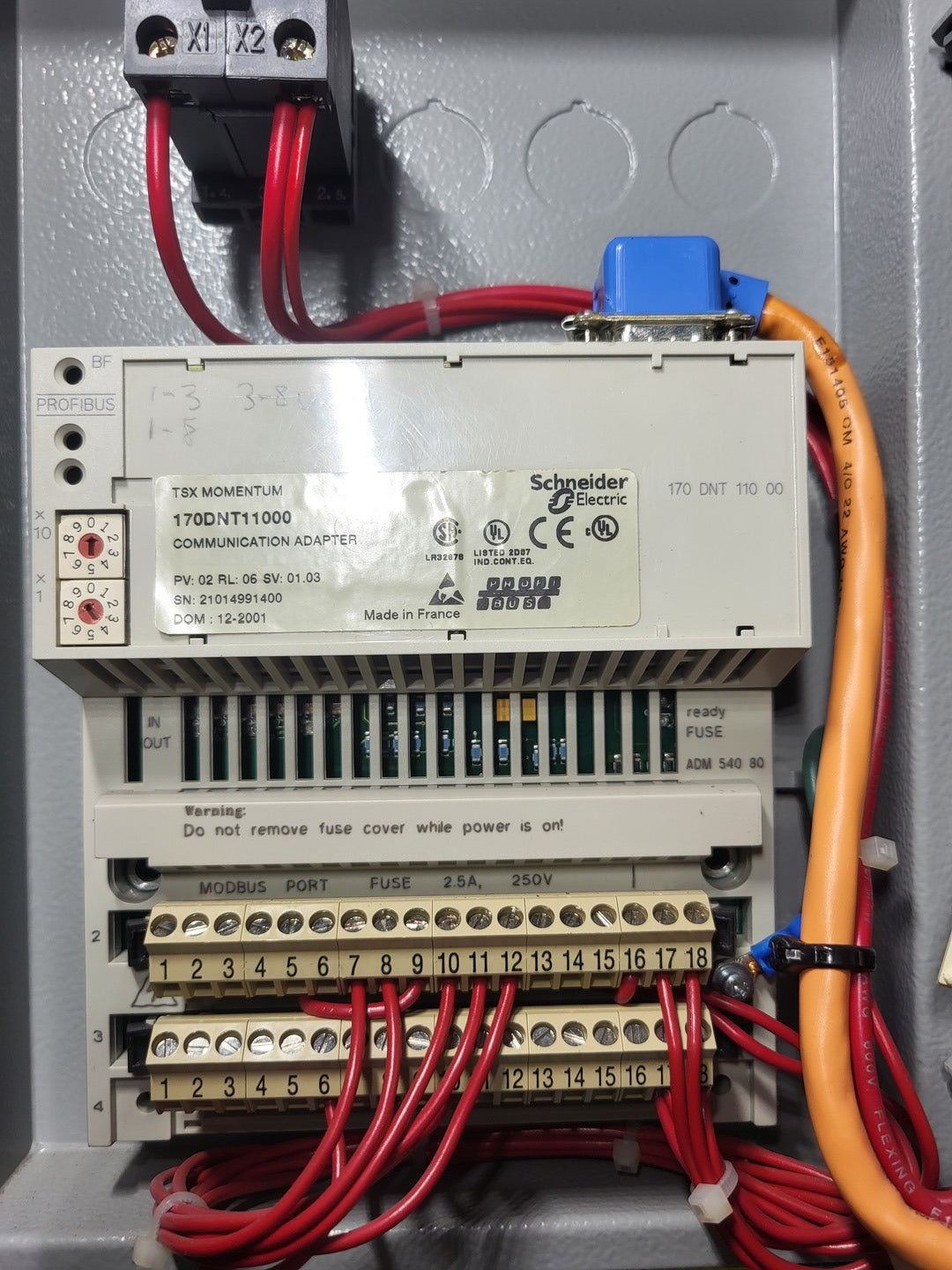

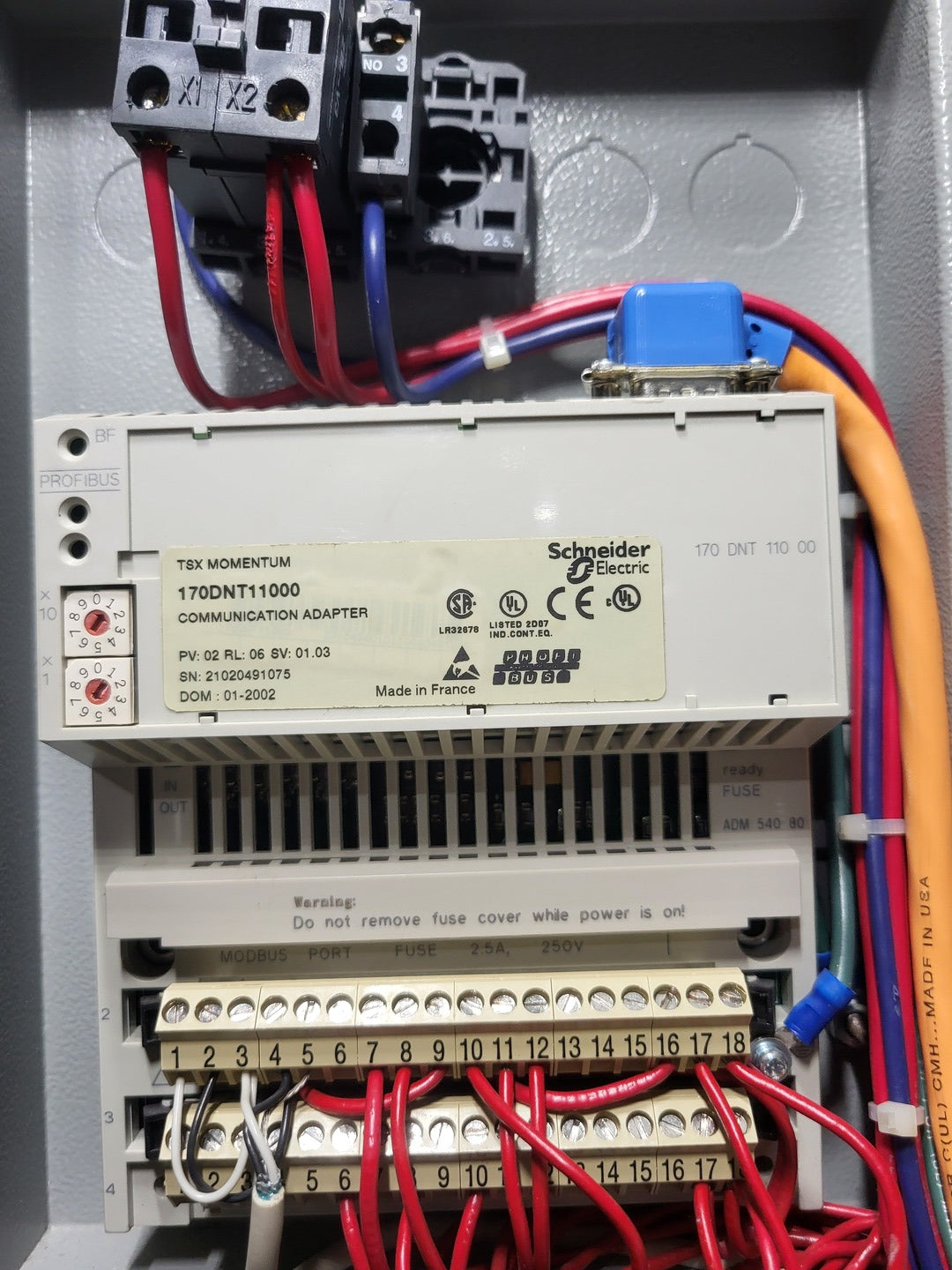

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

Bucket #5 2CHT-101

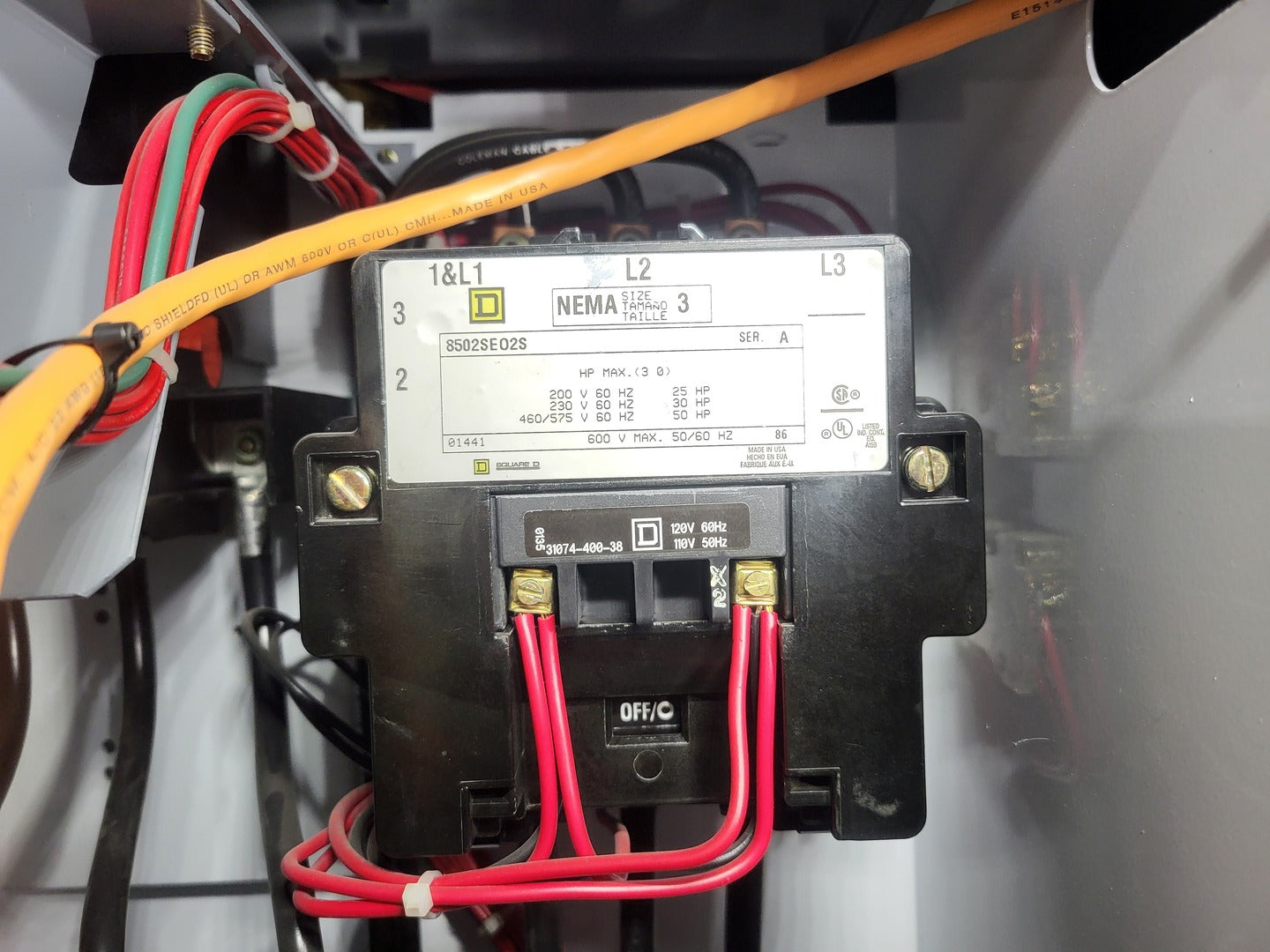

  1. Square D 8502SEO2S, NEMA Size 3 contactor, 50 HP @ 460/575V, 120VAC coil
  2. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  4. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

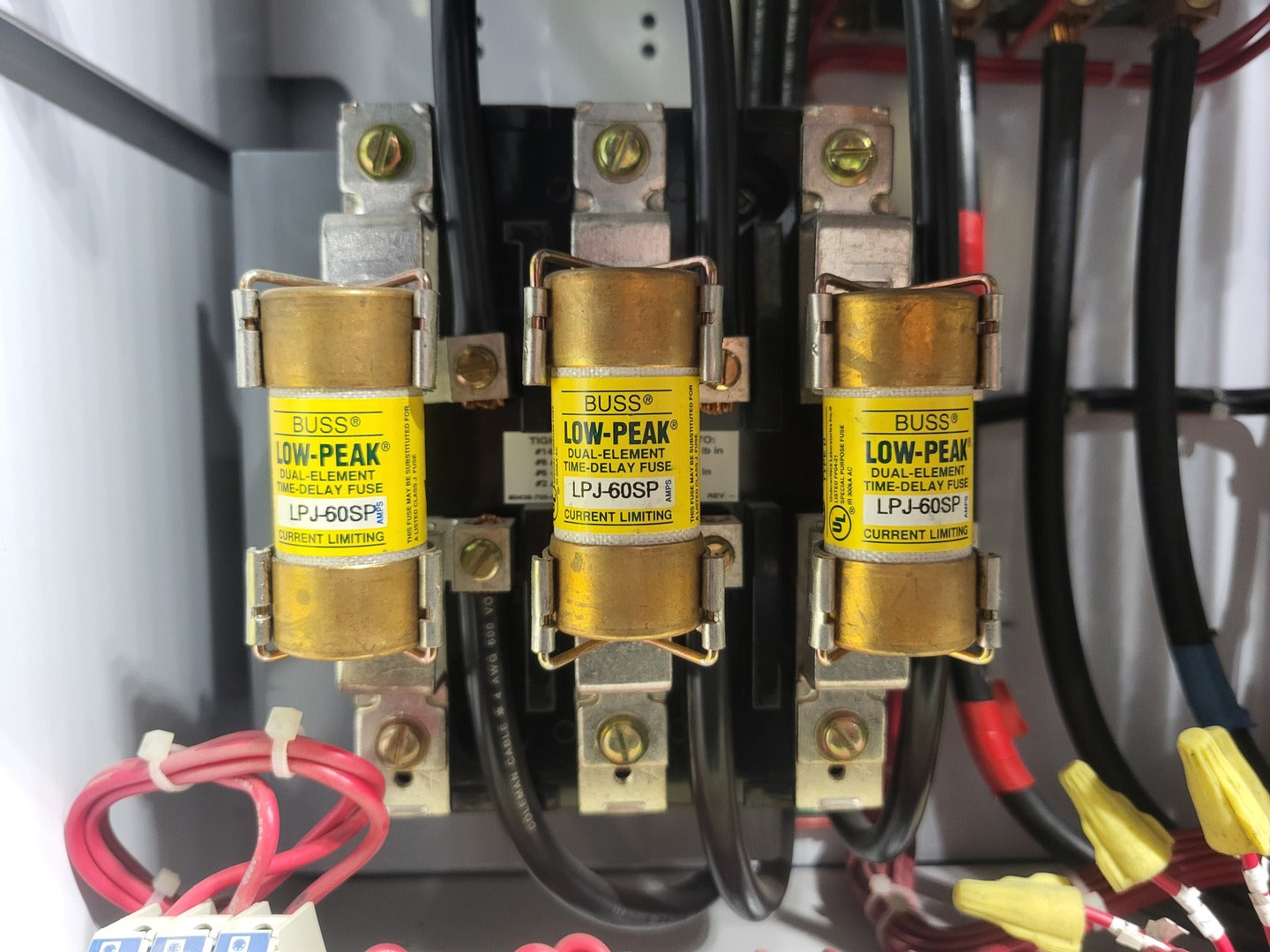

  5. 3 x Bussmann Low-Peak fuses LPJ-60SP
  6. 1 x Bussmann Fusetron fuse FRN-R-1-6/10
  7. 2 x Bussmann CC-Tron fuses FNQ-R-3/4
