SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151209
Price:
$10,089

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

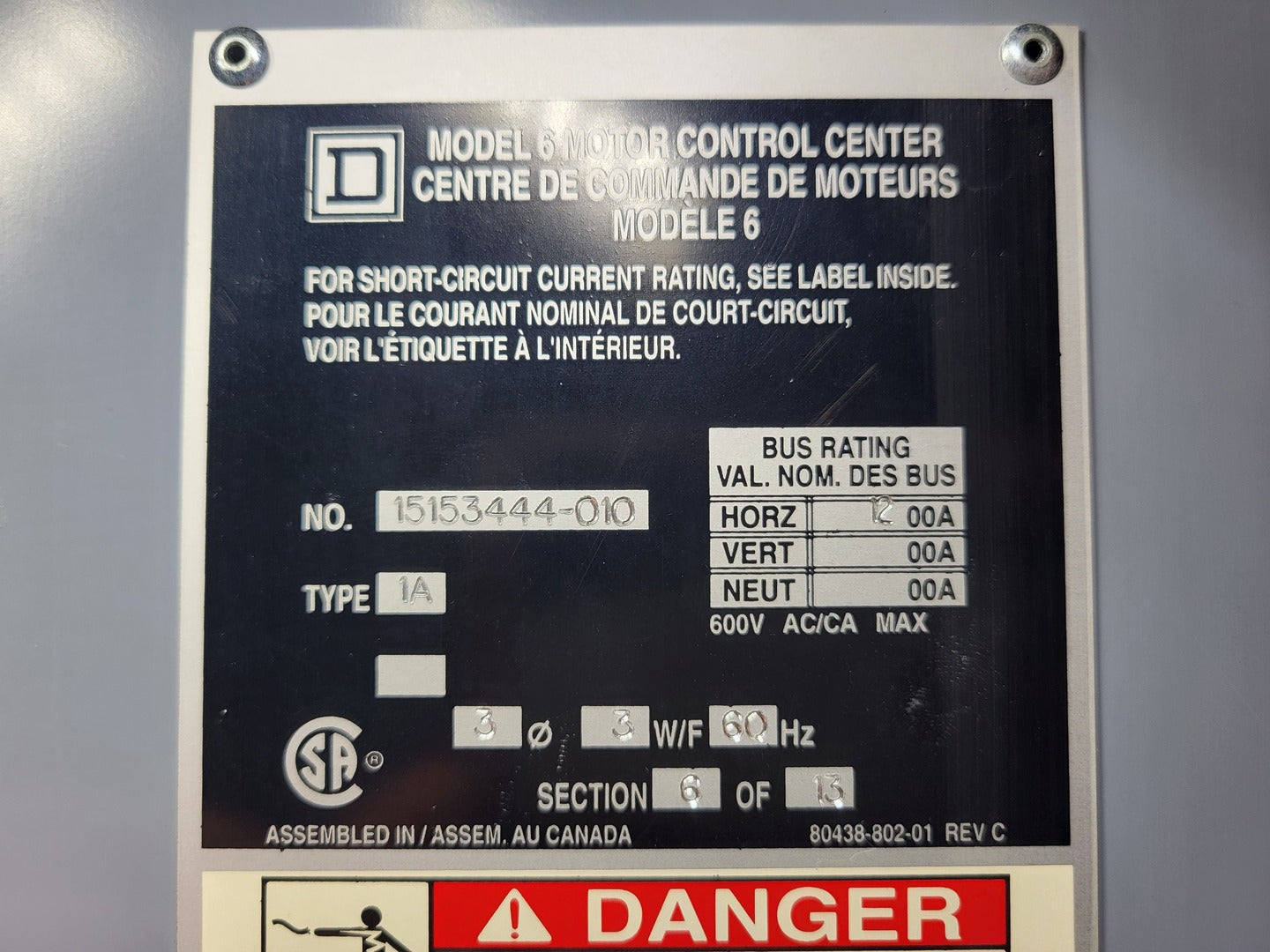

Model Model 6
Condition Used
Other Specifications

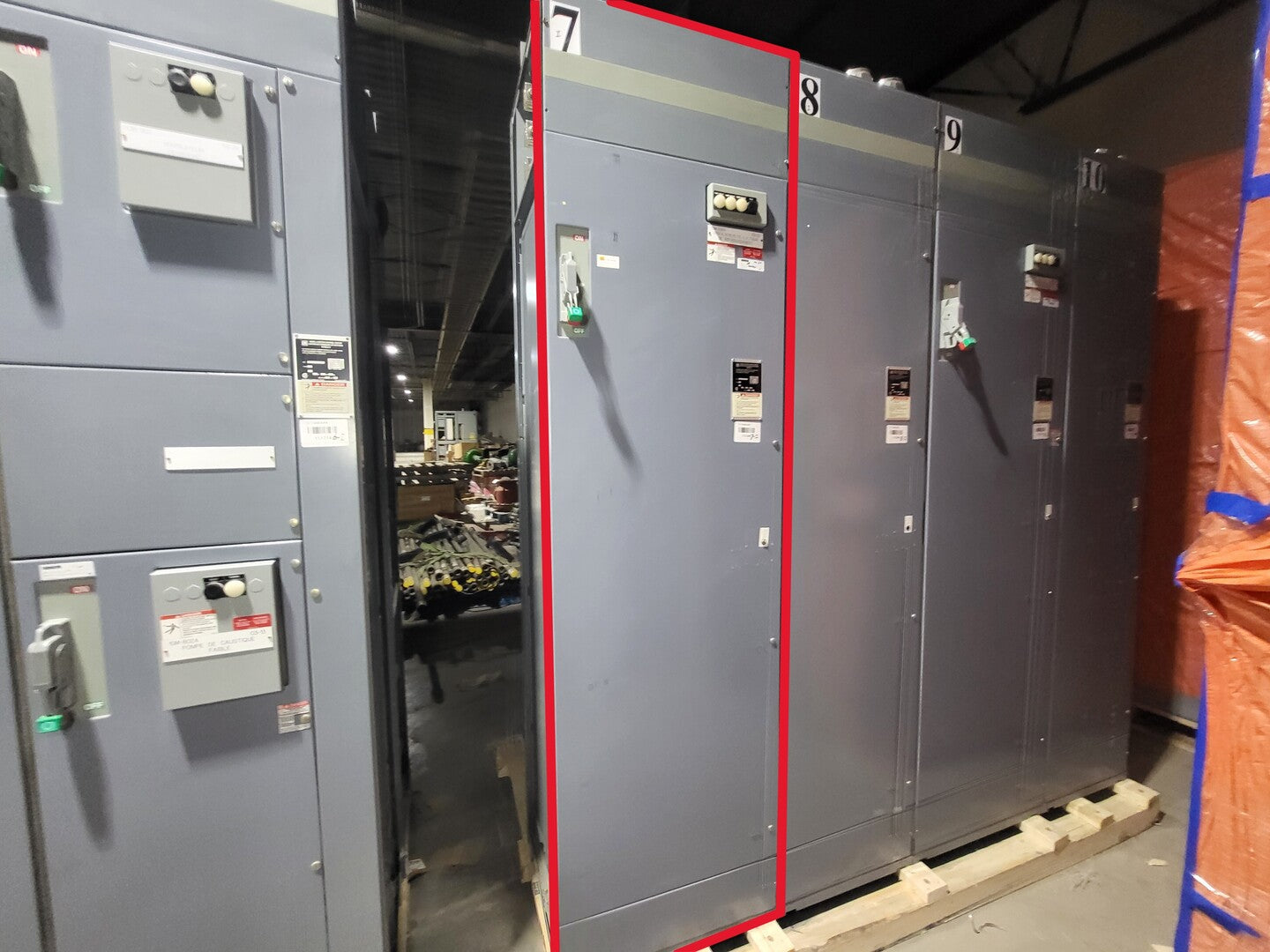

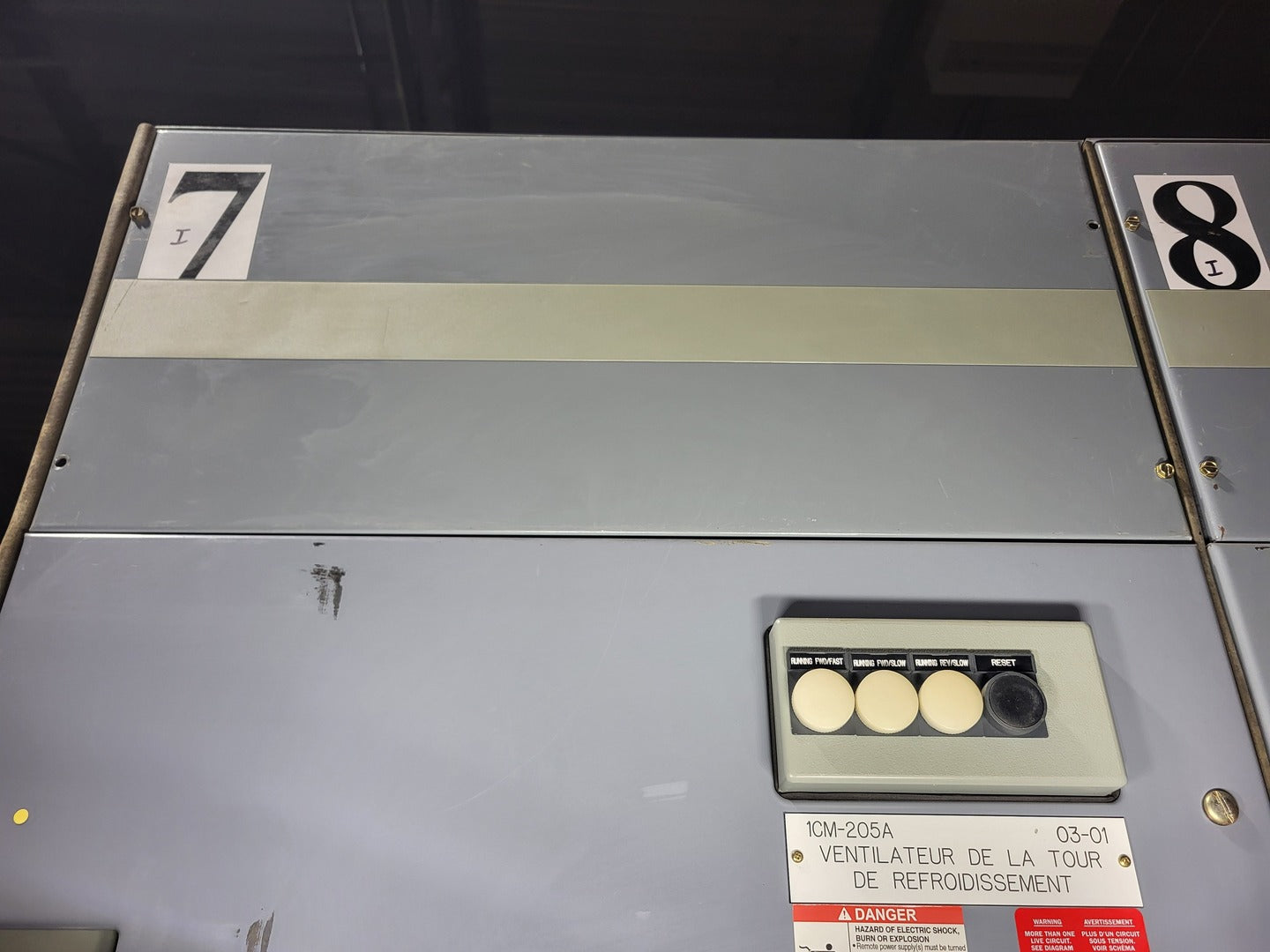

Note: Section 7 only

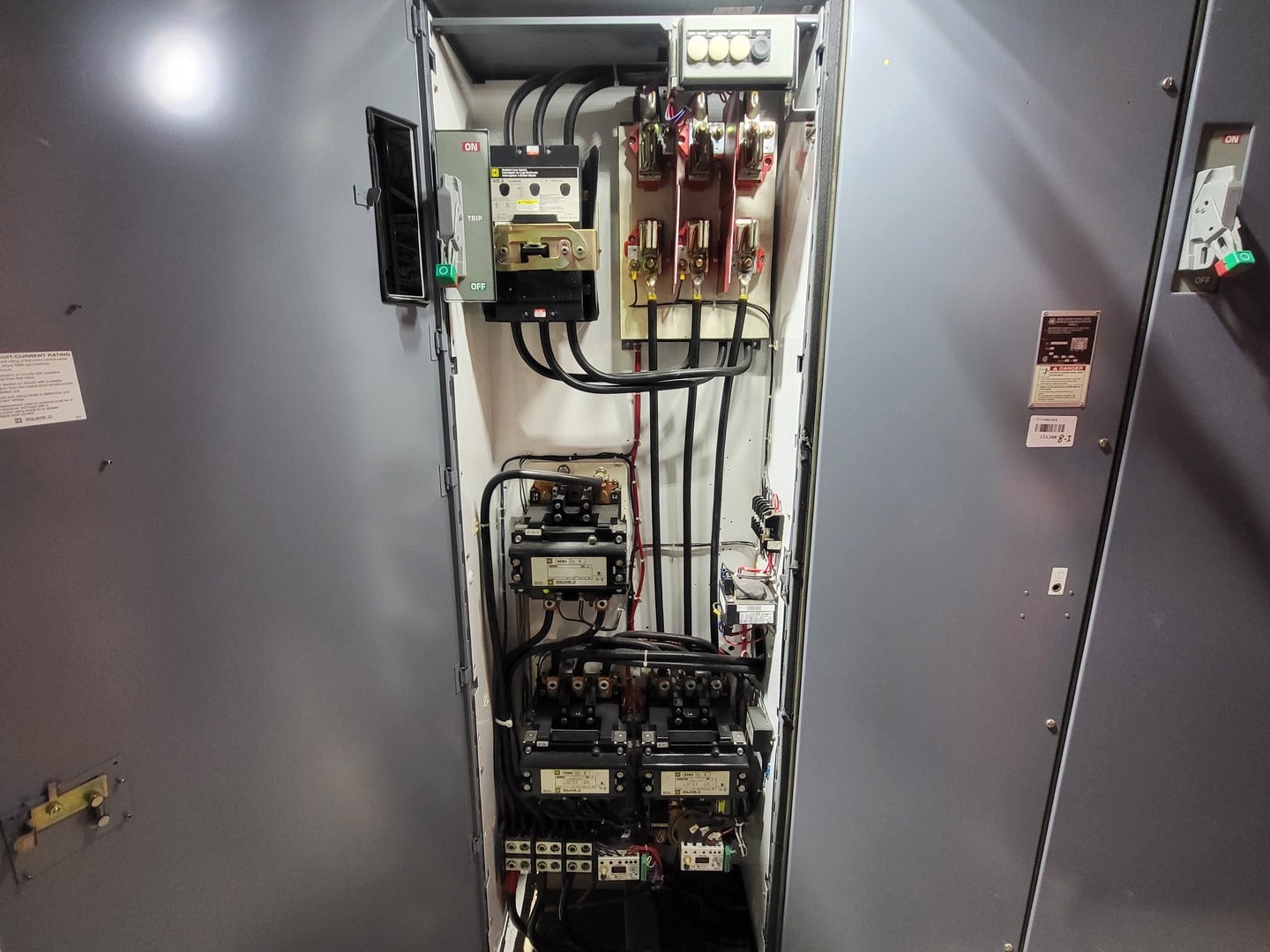

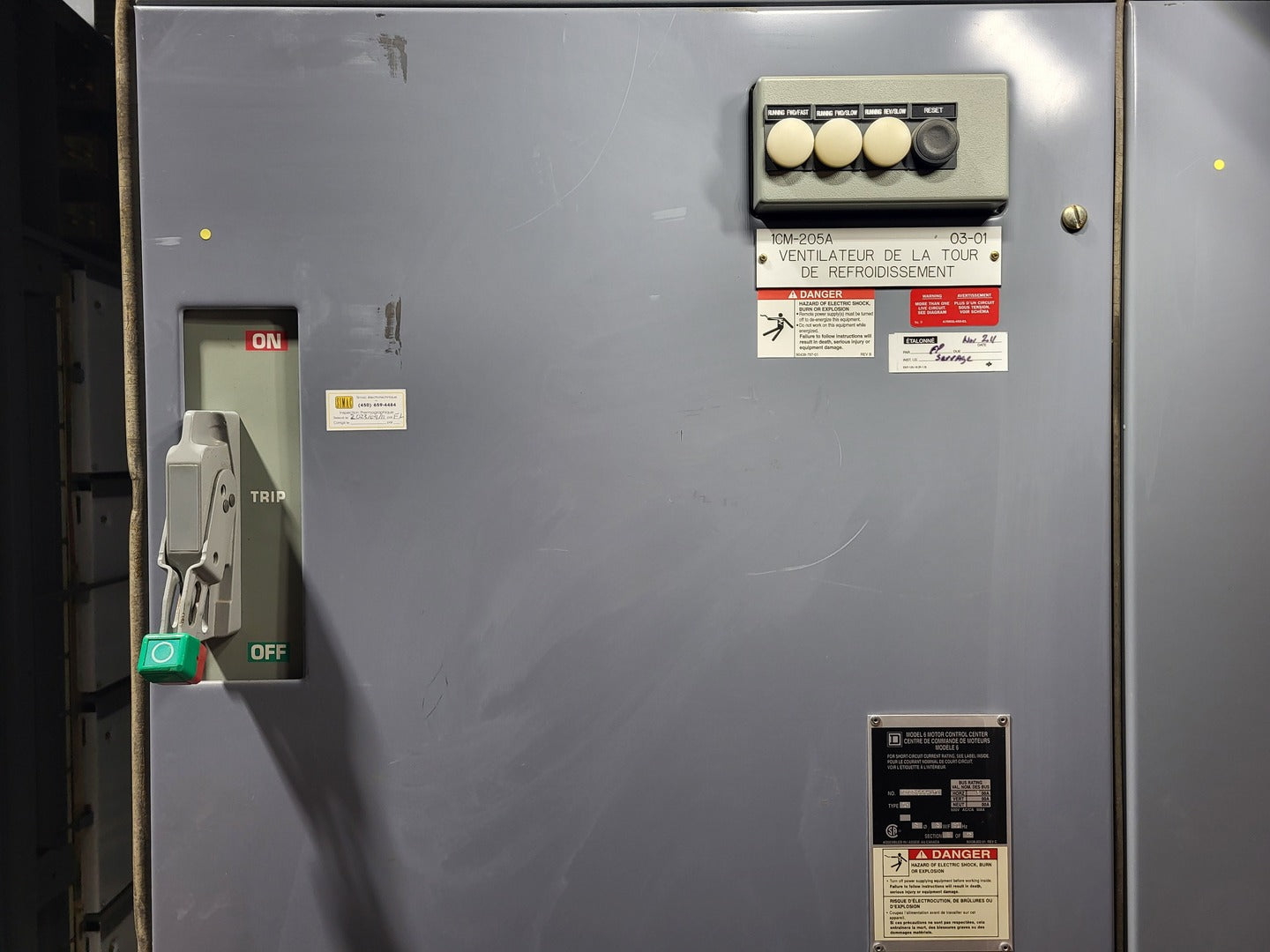

Bucket #1 1CM-205A

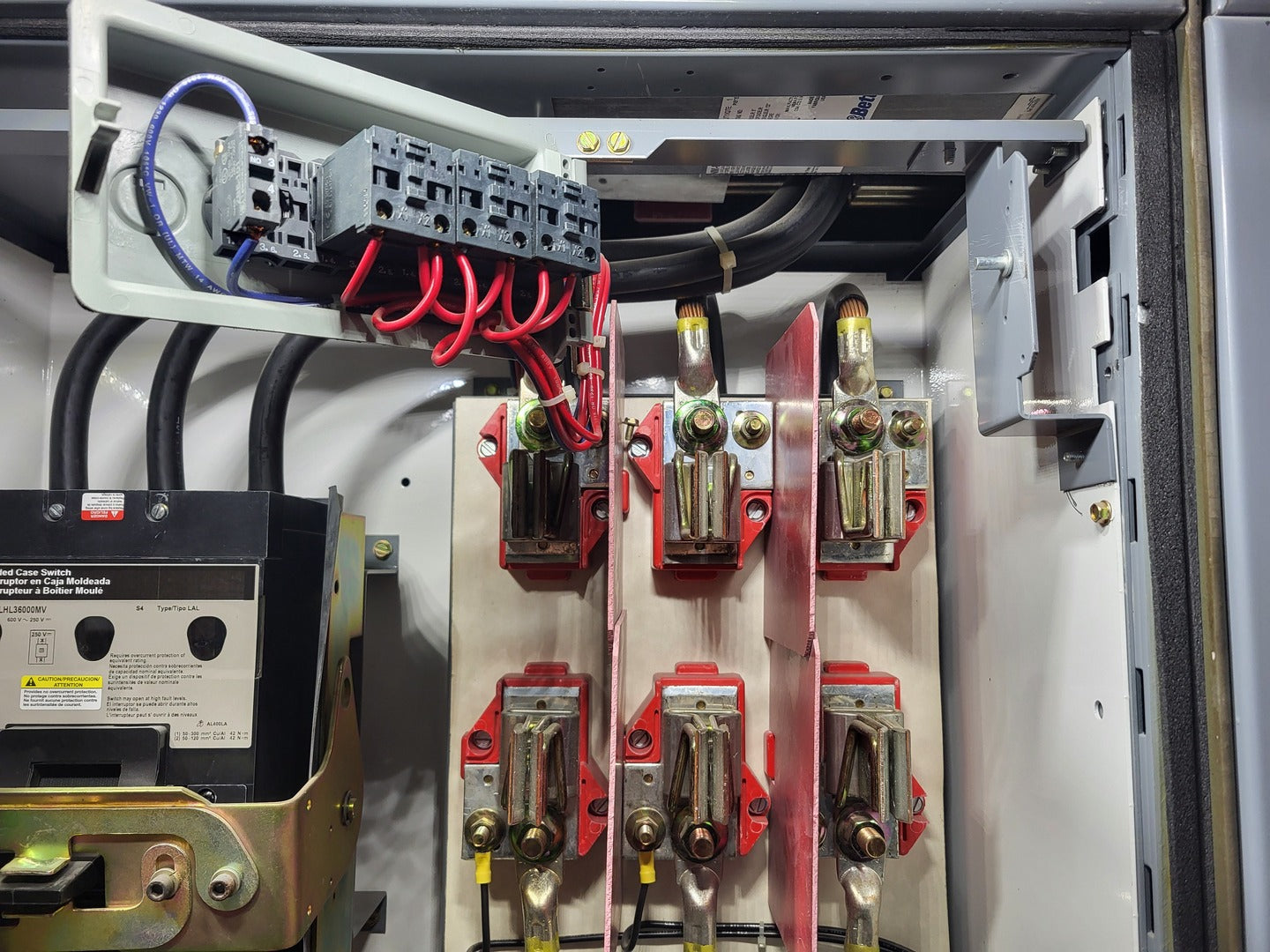

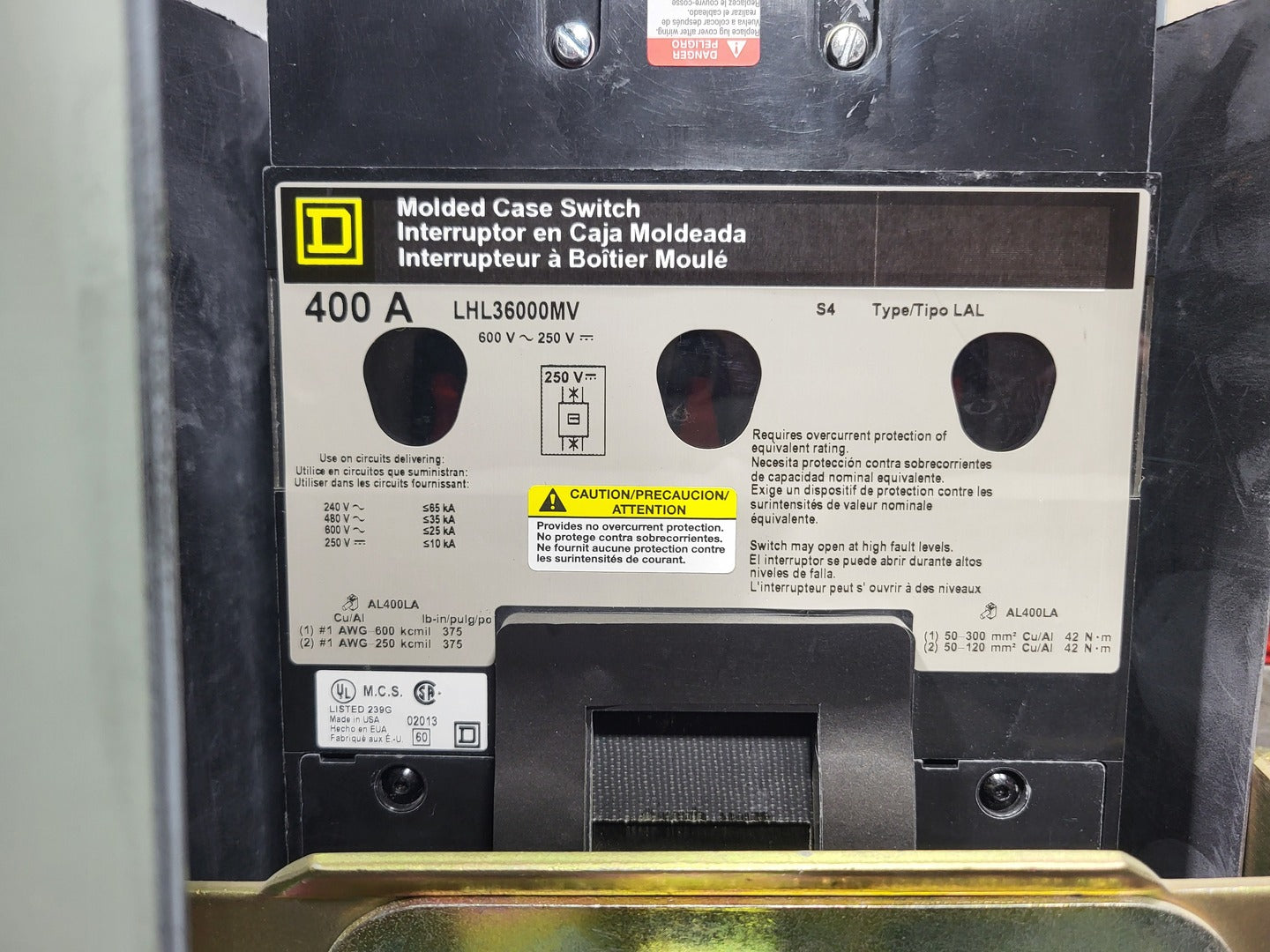

  1. Square D LHL36000MV, 400A molded case switch, Type LAL, 600V max

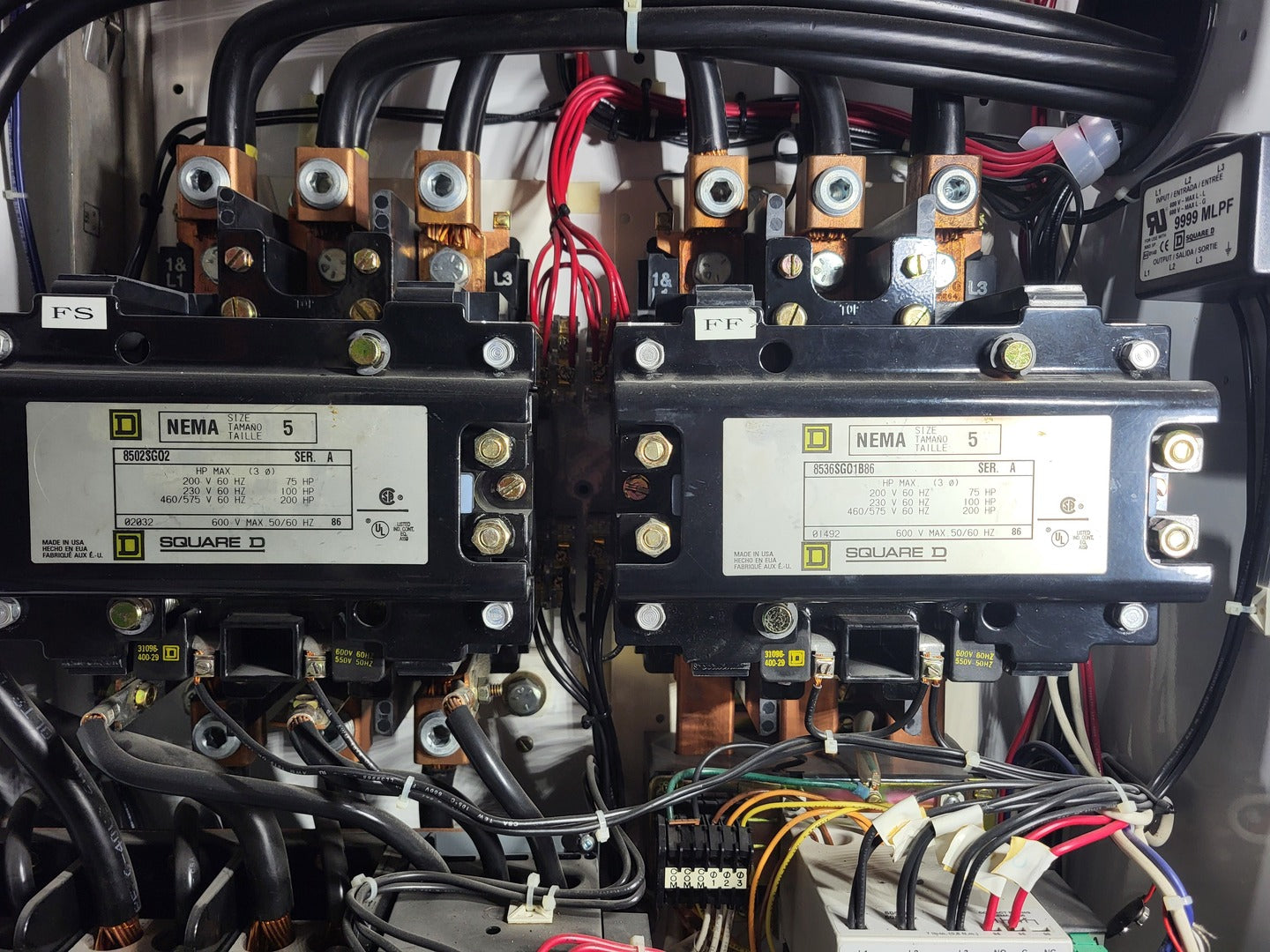

  2. Square D 8502SGO2, NEMA Size 5 contactor, 75 HP @ 200V / 100 HP @ 230V / 200 HP @ 460/575V
  3. Square D 8536SGO1B86, NEMA Size 5 starter/contactor, 75 HP @ 200V / 100 HP @ 230V / 200 HP @ 460/575V

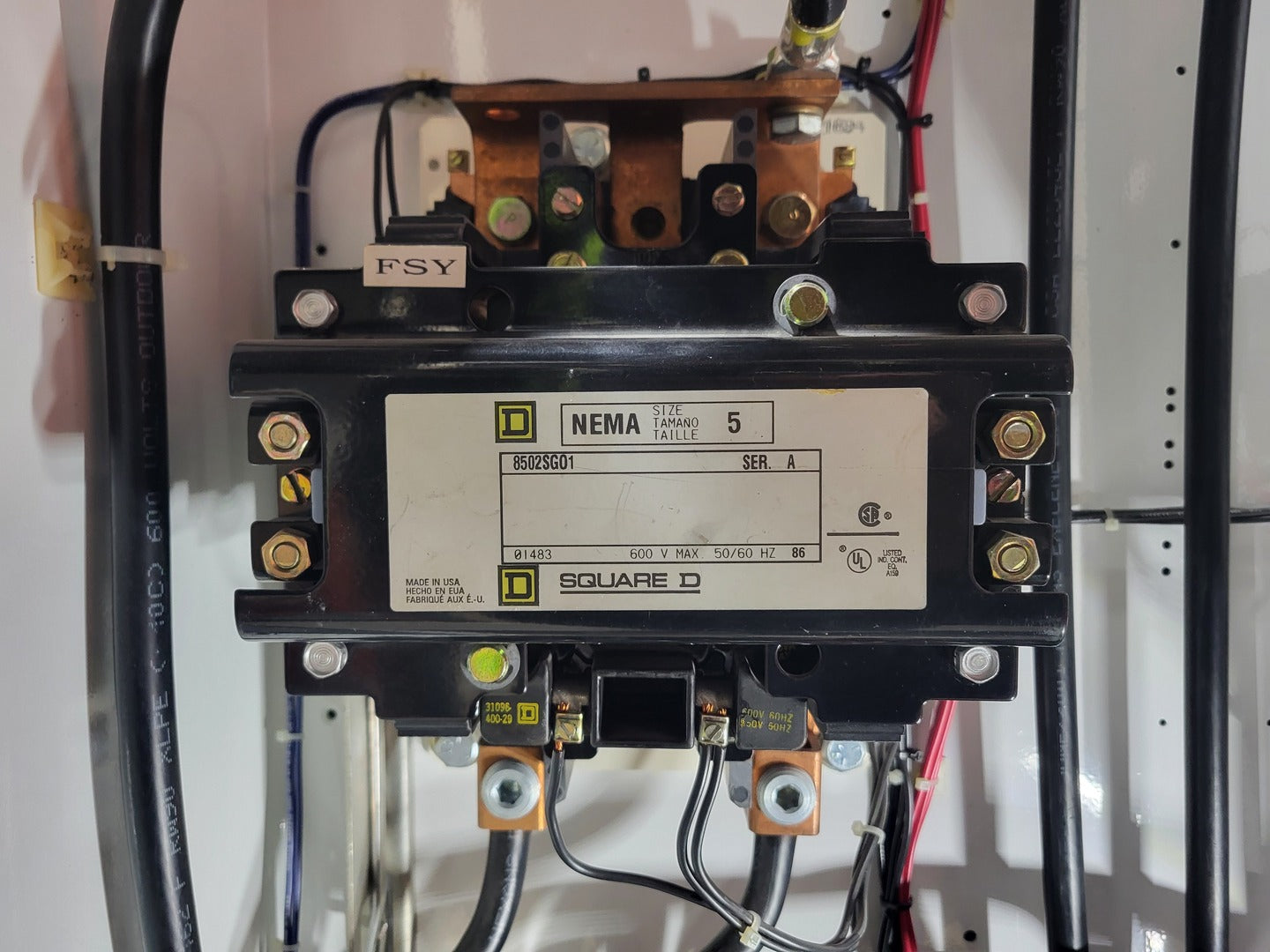

  4. Square D 8502SGO1, NEMA Size 5 starter/contactor

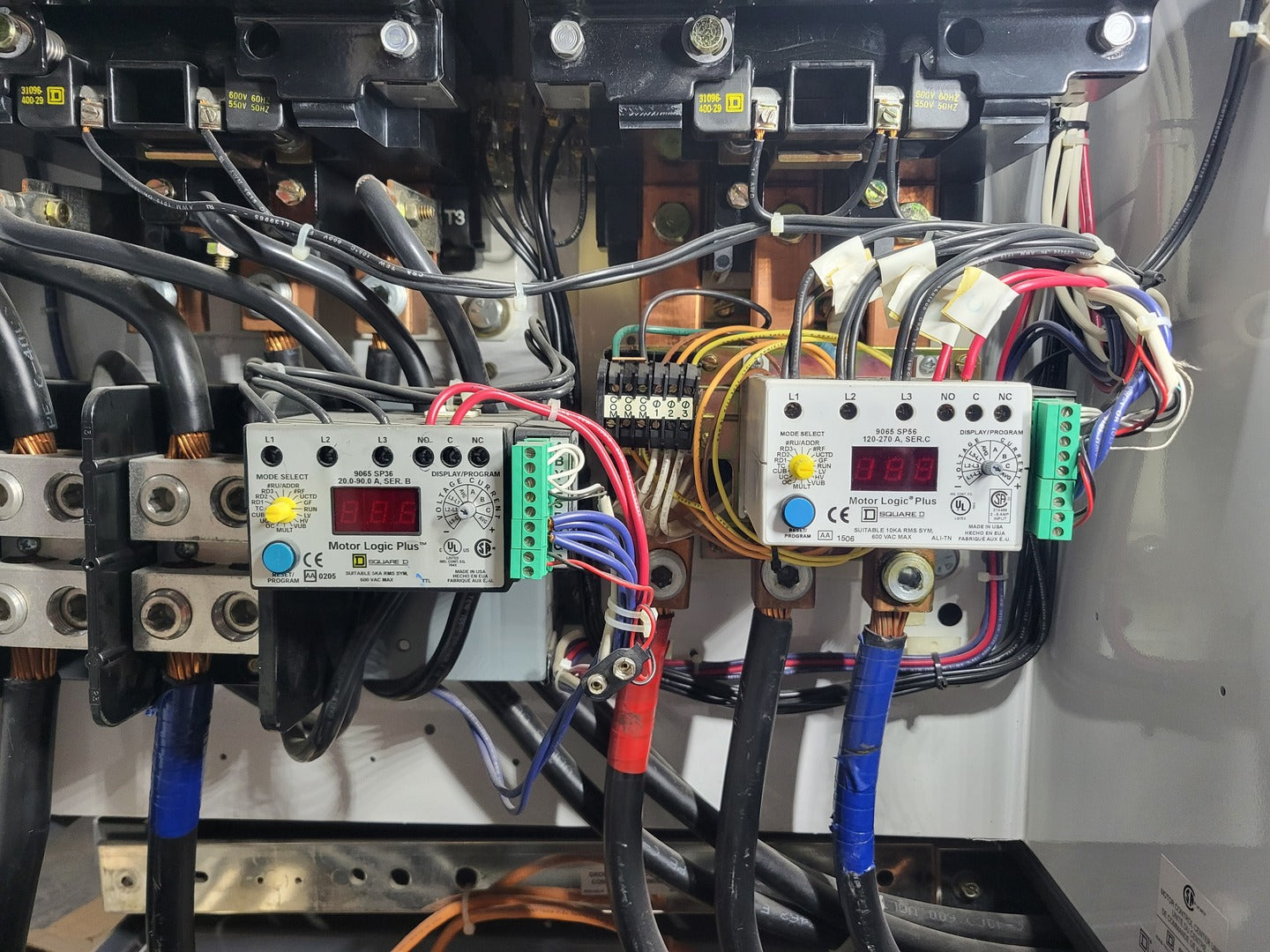

  5. Square D Motor Logic Plus 9065 SP36, motor protection relay, 20.0-90.0A range, 600VAC max
  6. Square D Motor Logic Plus 9065 SP56, motor protection relay, 120-270A range, 600VAC max

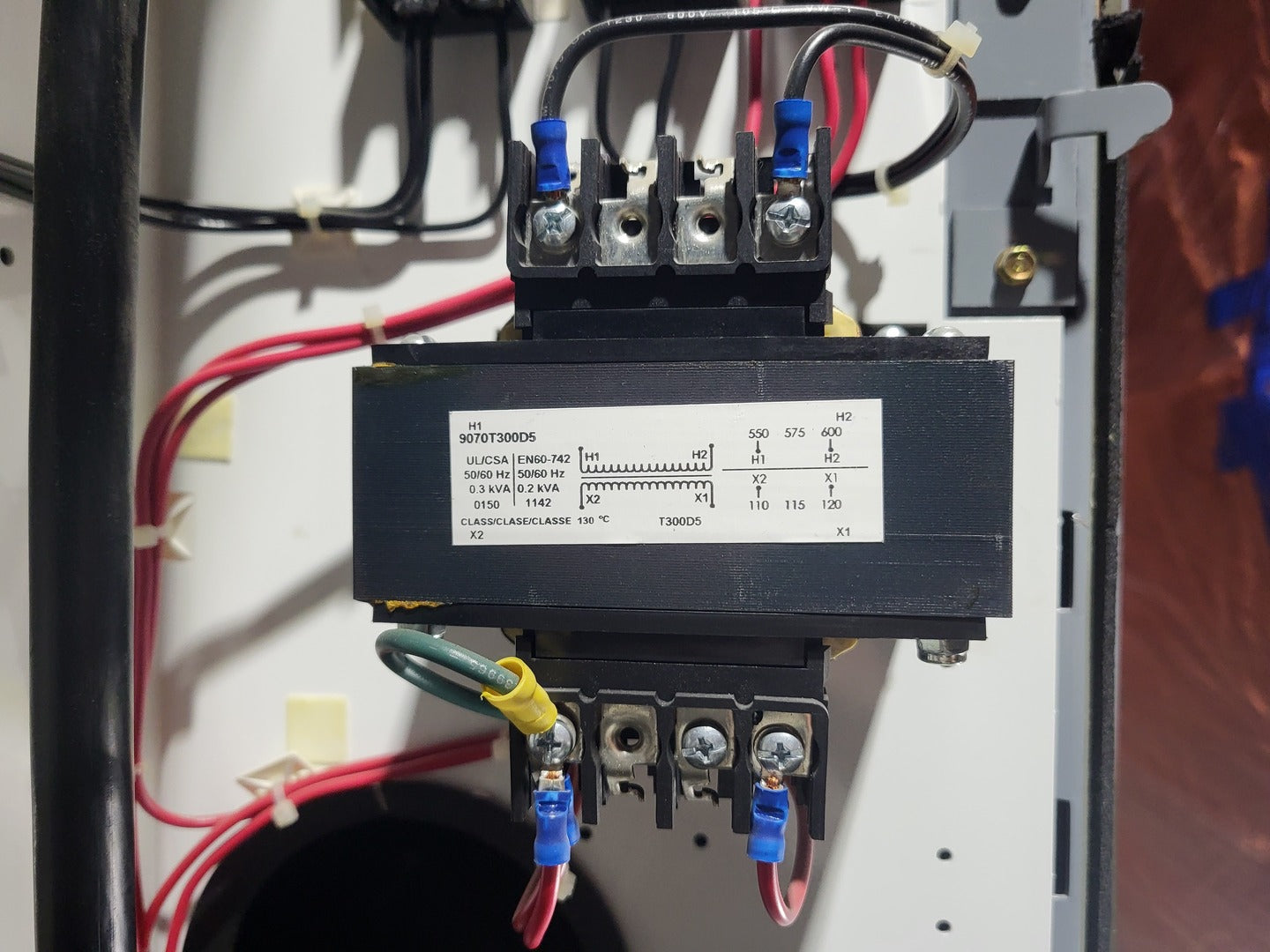

  7. Square D 9070T300D5, control transformer, 0.3 kVA @ 50/60Hz, 550/575/600V primary, 110/115/120V secondary

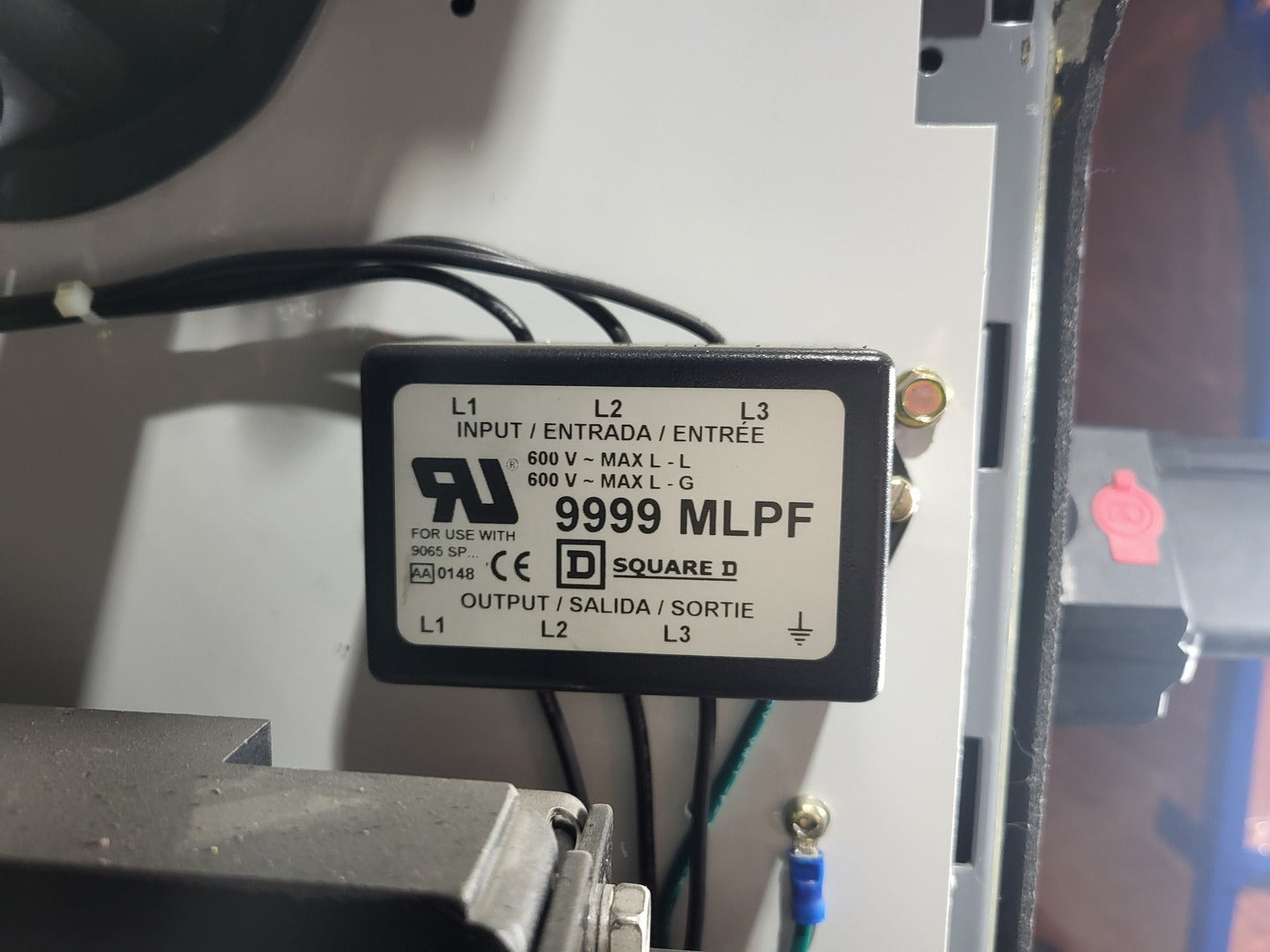

  8. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max

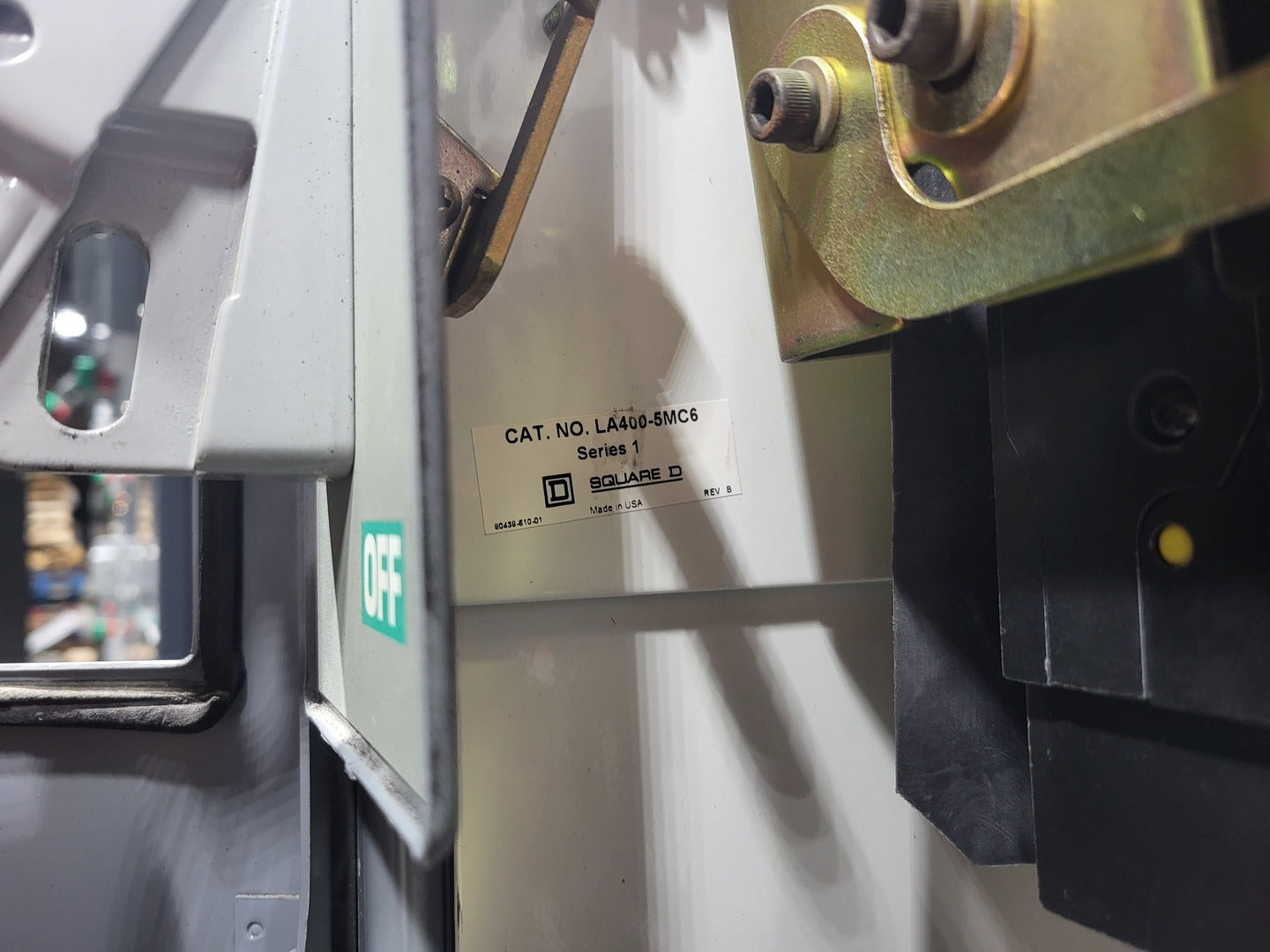

  9. Square D LA400-5MC6, Series 1, 400A MCC bucket disconnect unit

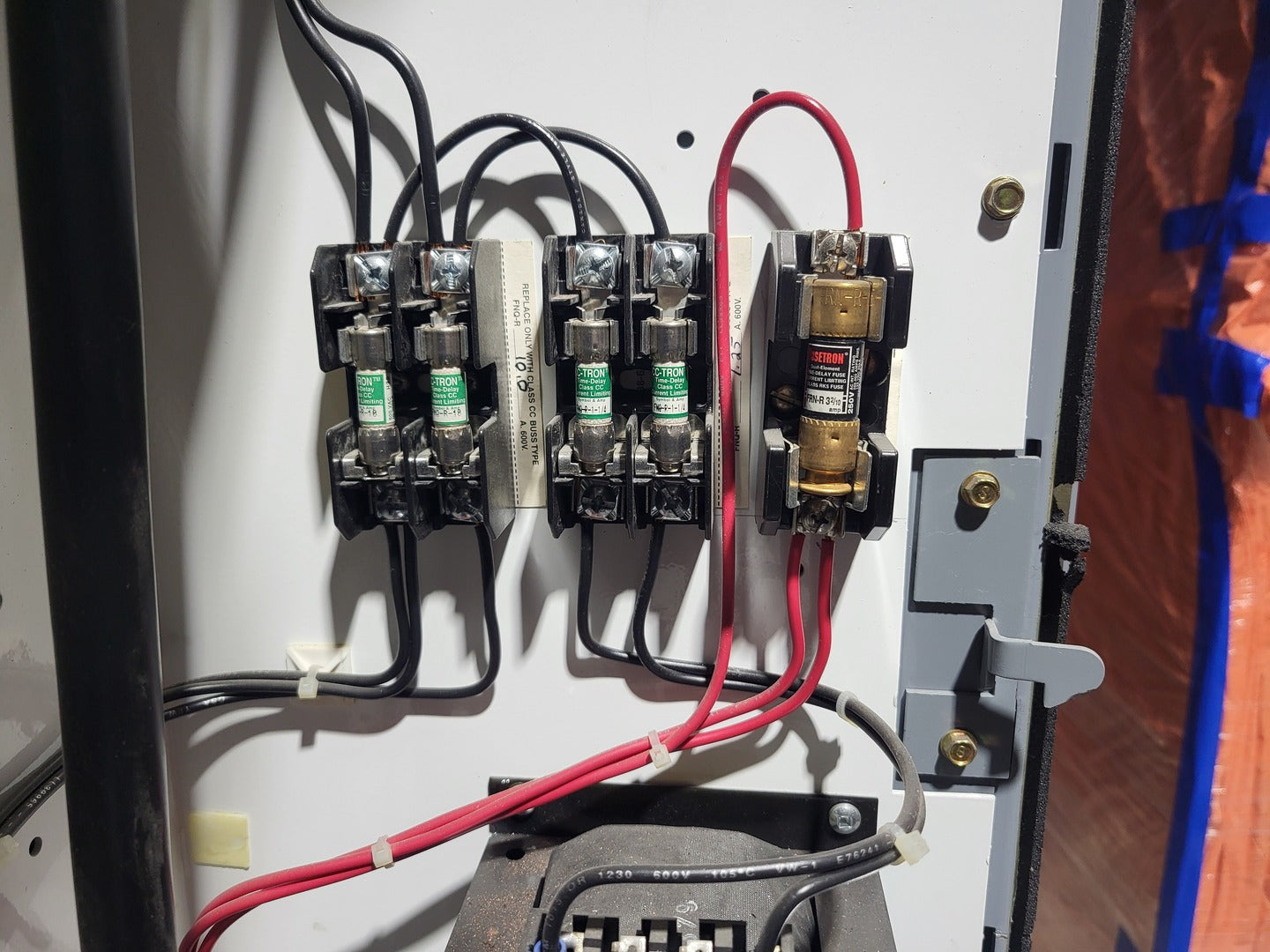

  10. 2 x Bussmann CC-Tron fuses FNQ-R-1-1/4
  11. 2 x Bussmann CC-Tron fuses FNQ-R-10
  12. 1 x Bussmann Fusetron fuse FRN-R-3-2/10
