SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151215
Price:
$3,733

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

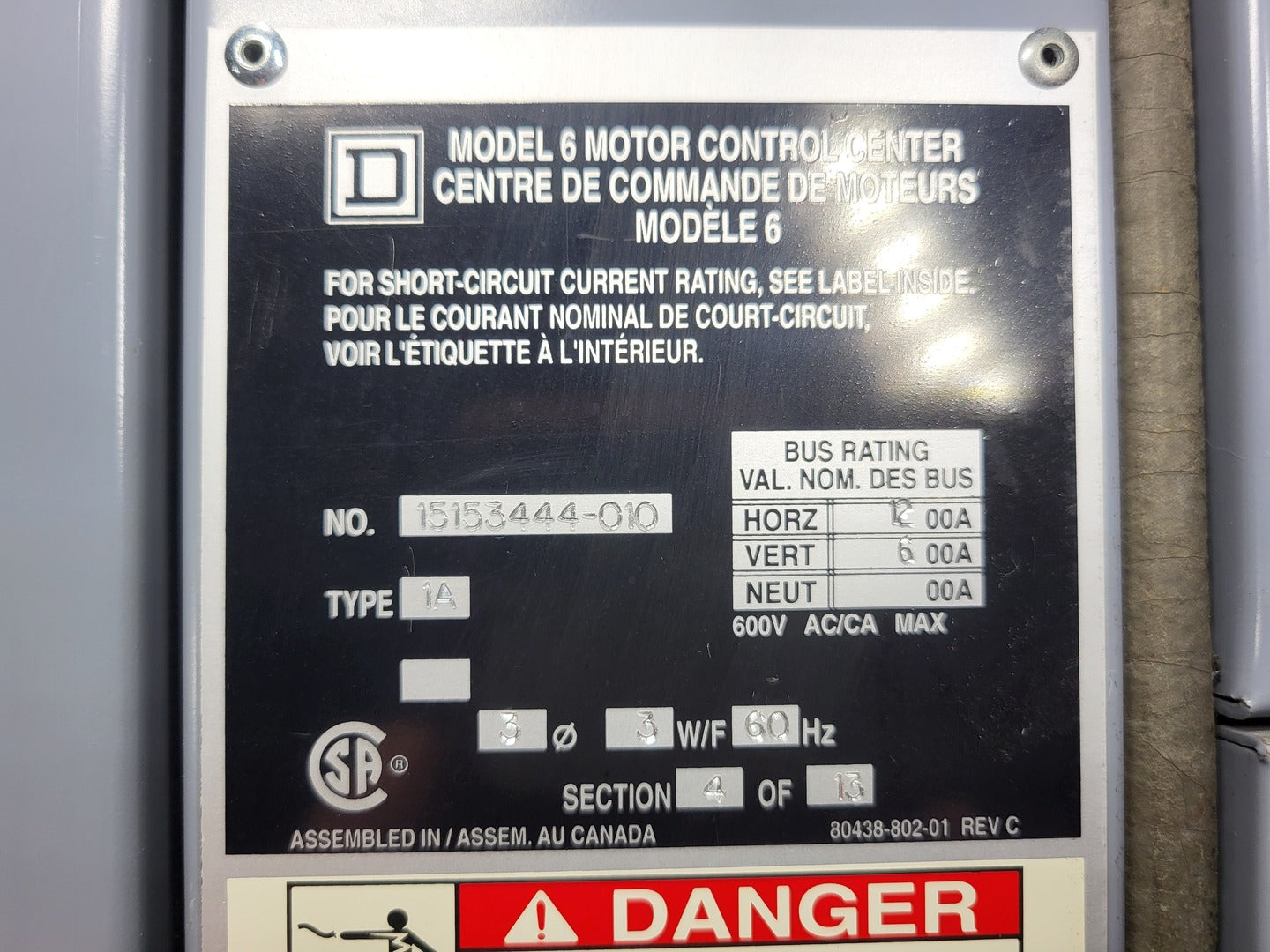

Model Model 6
Condition Used
Other Specifications

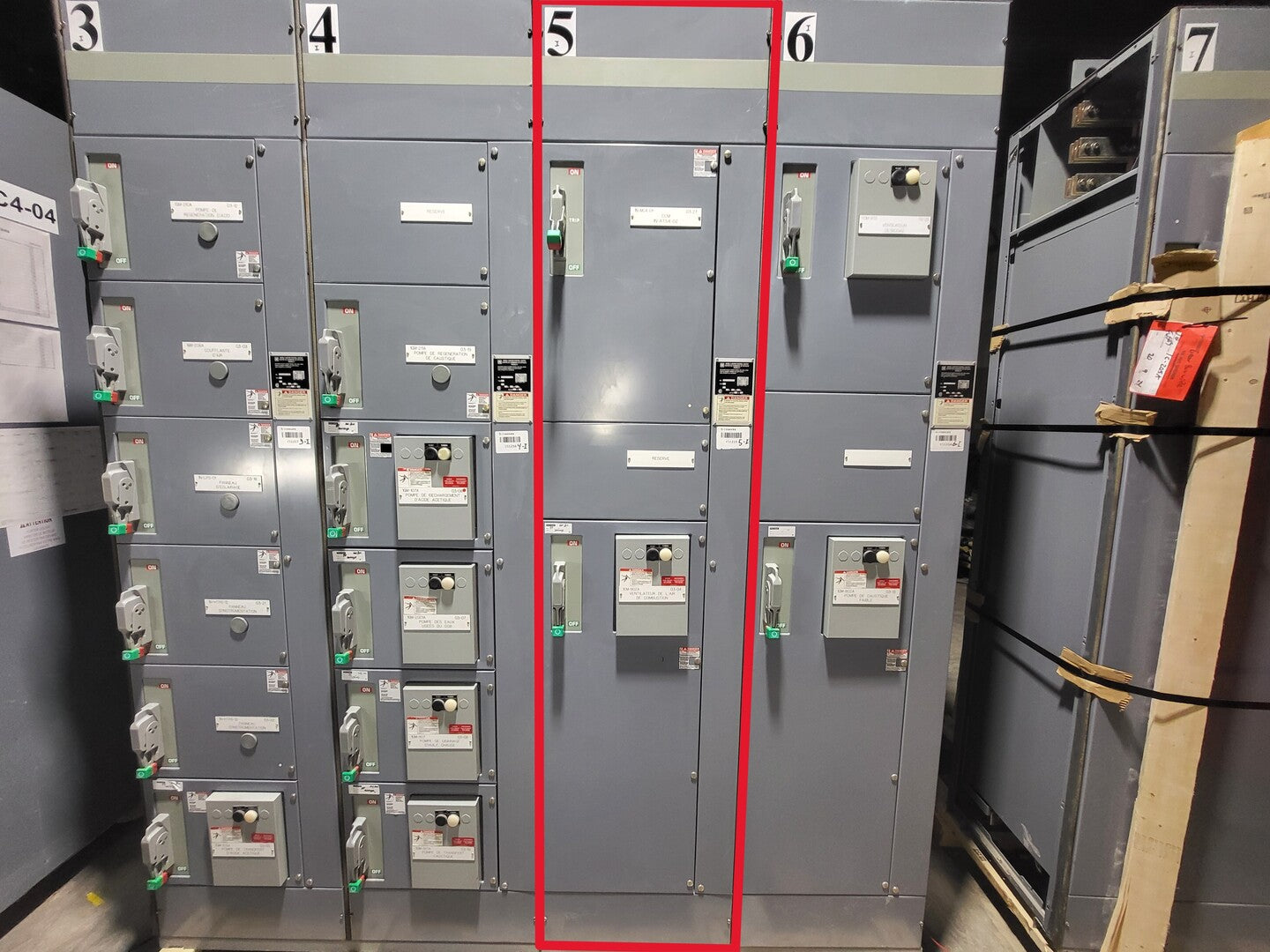

Note: Section 5 only

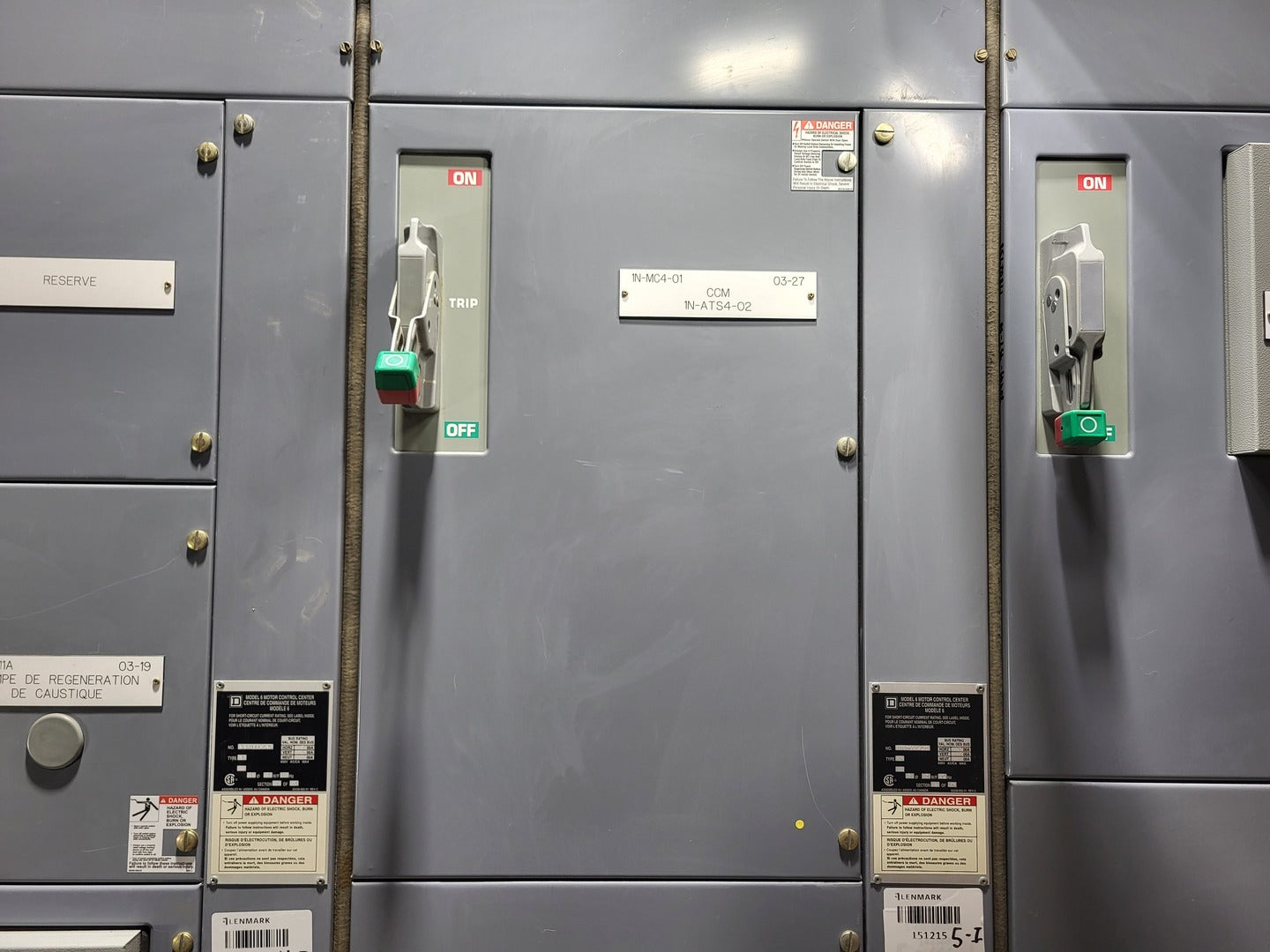

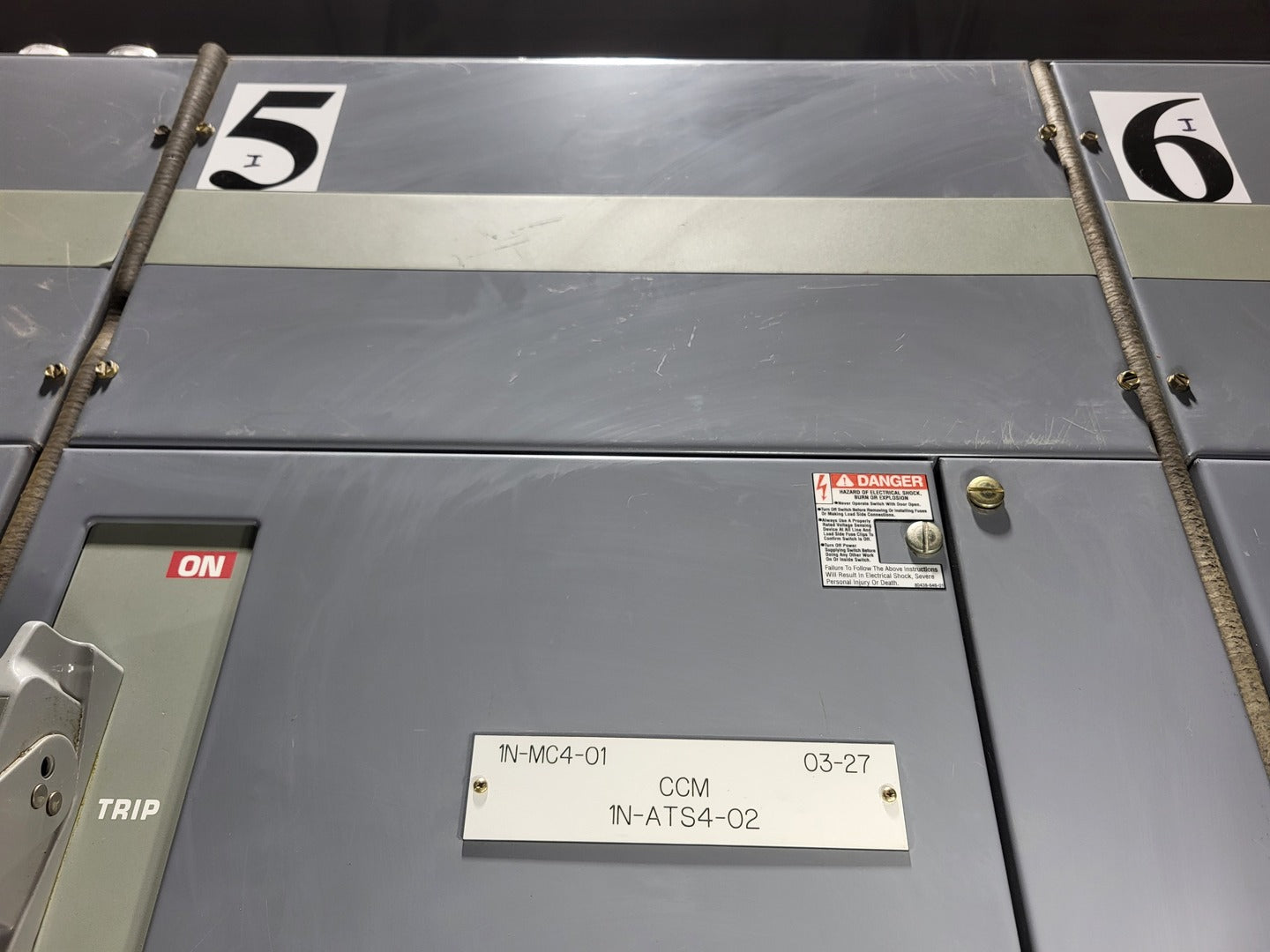

Bucket #1 1N-MC4-01

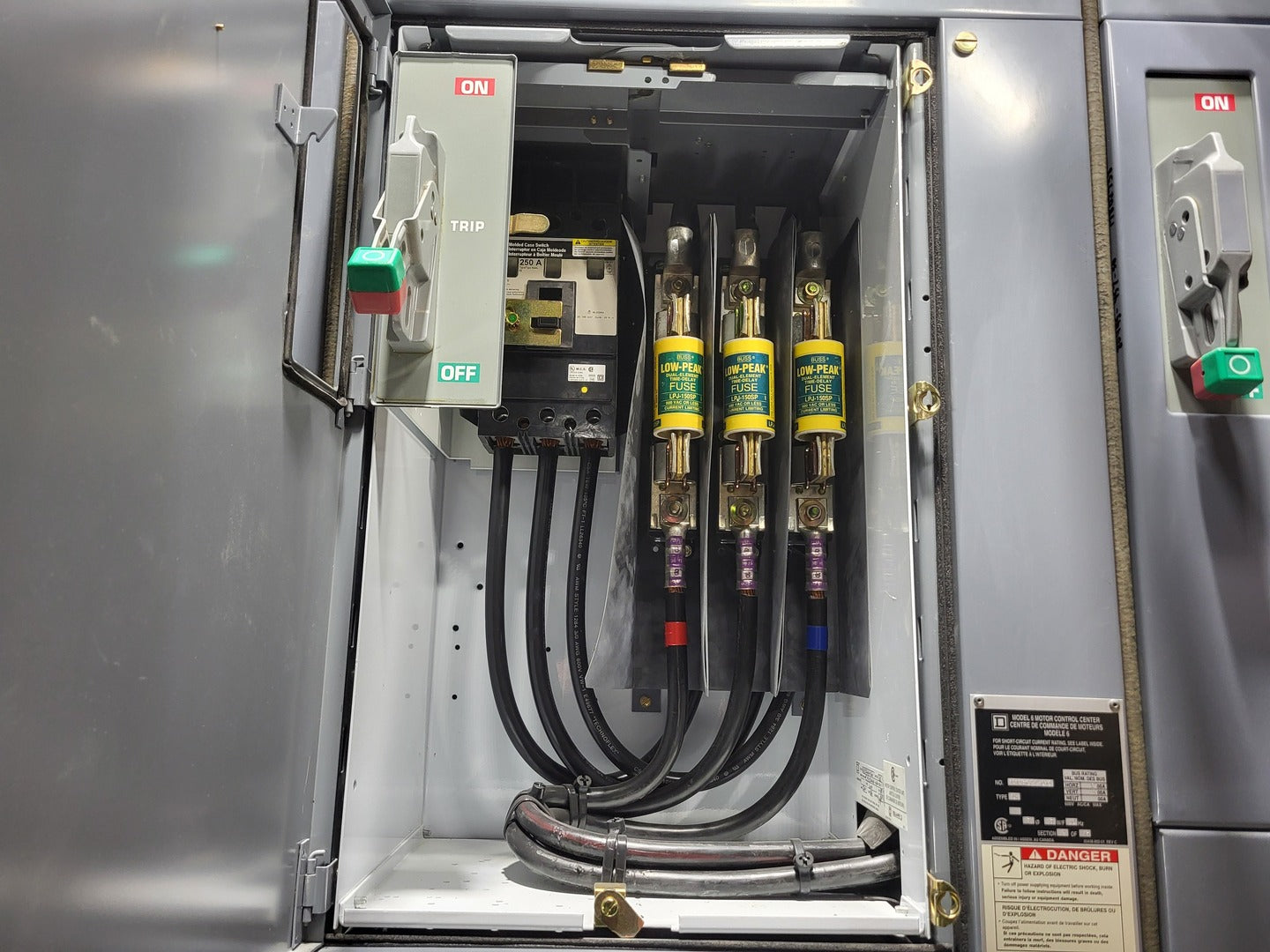

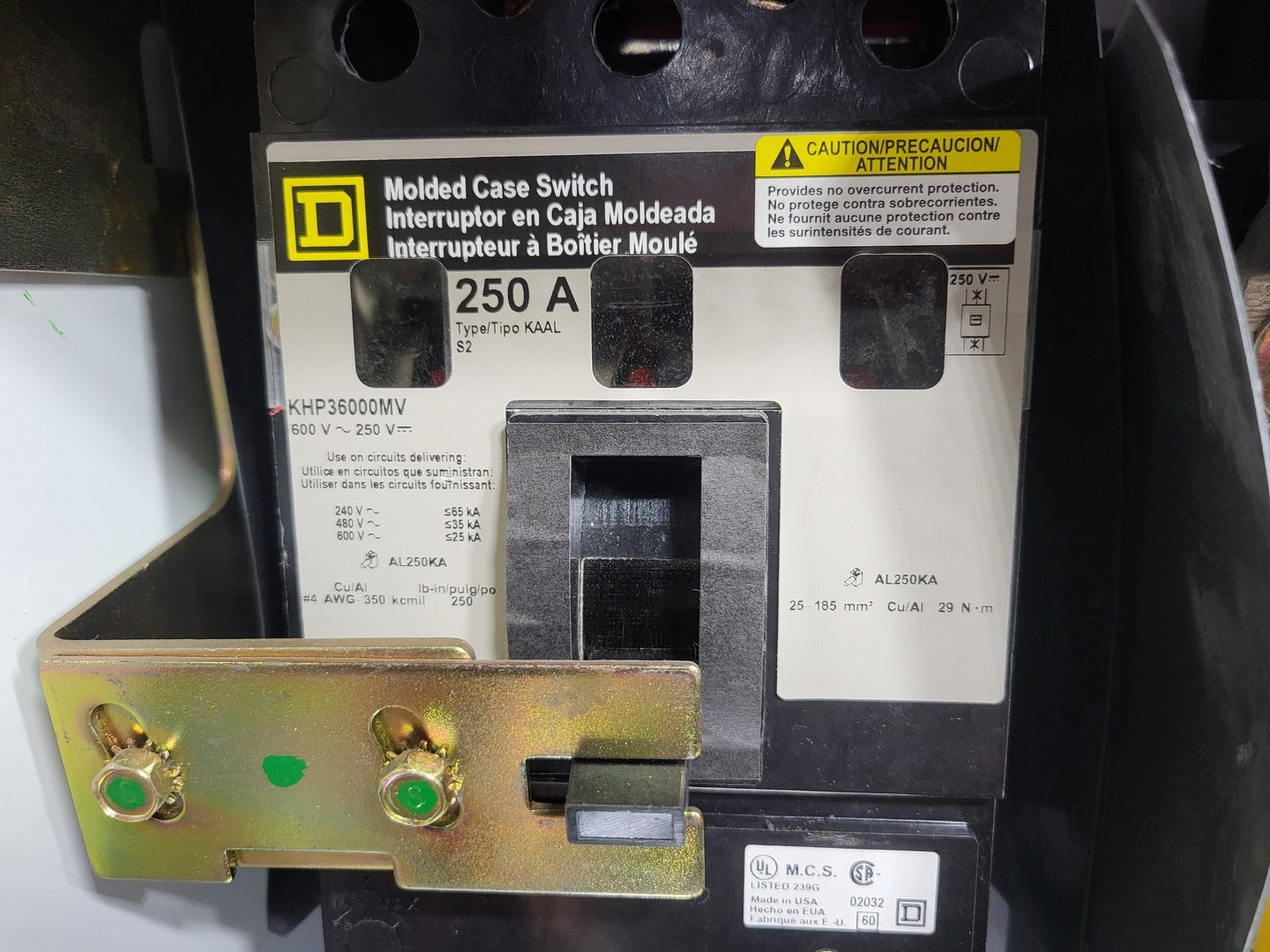

  1. Square D KHP36000MV, Type KAAL molded case switch, 250A, 600VAC max, 3-pole, no overcurrent protection

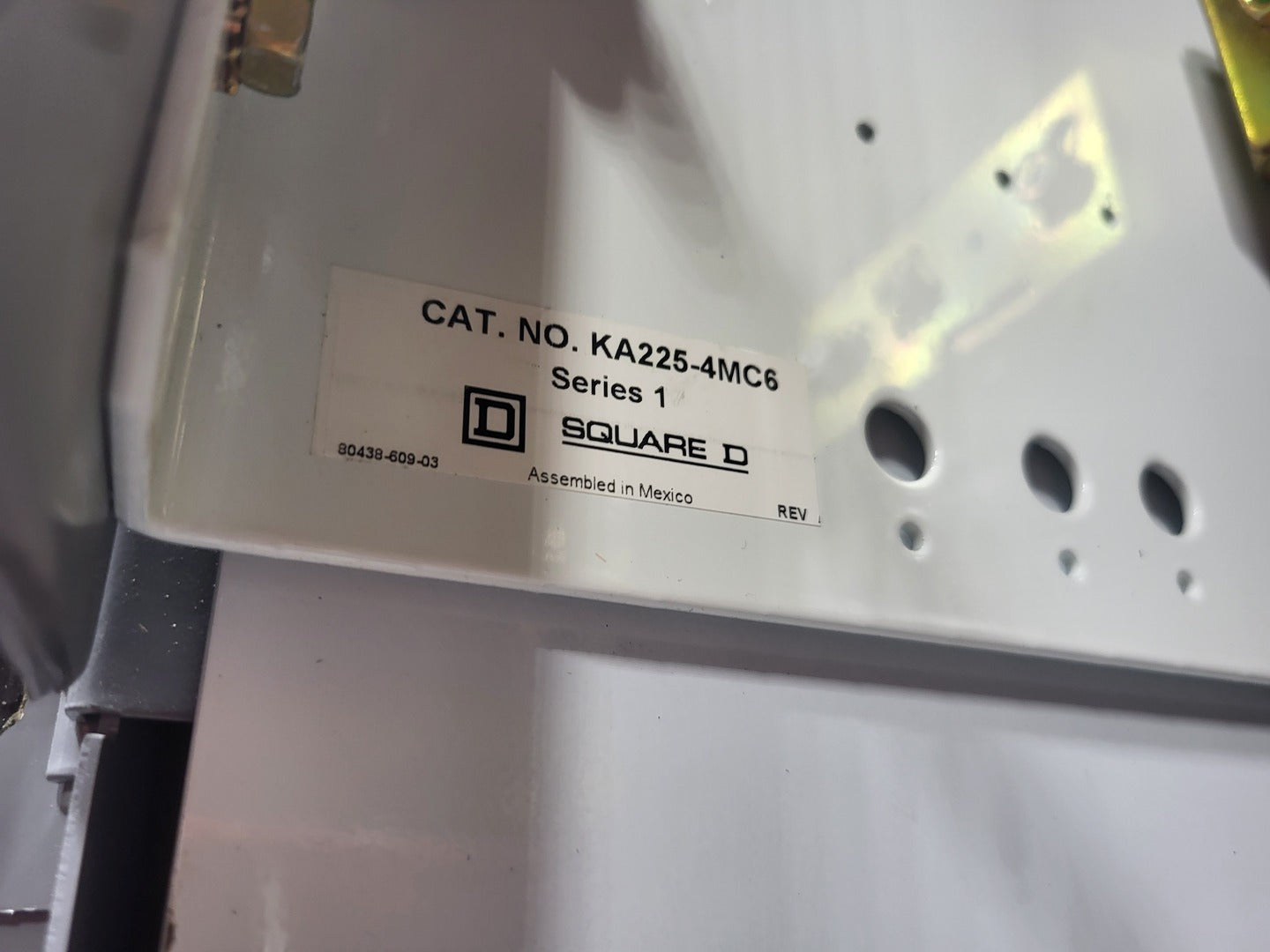

  2. Square D KA225-4MC6, Series 1 MCC bucket / disconnect unit

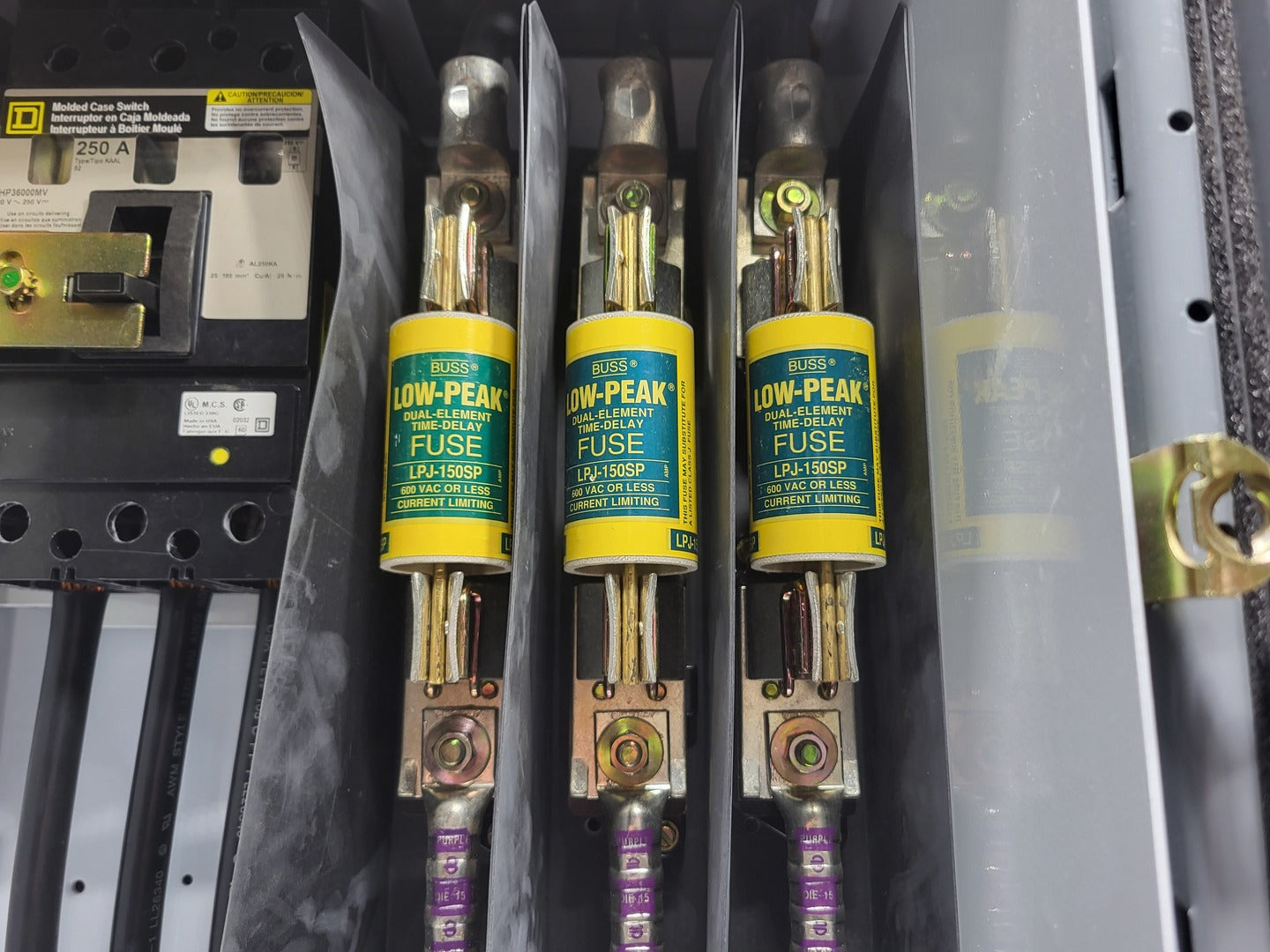

  3. 3 x Bussmann Low-Peak fuses LPJ-150SP

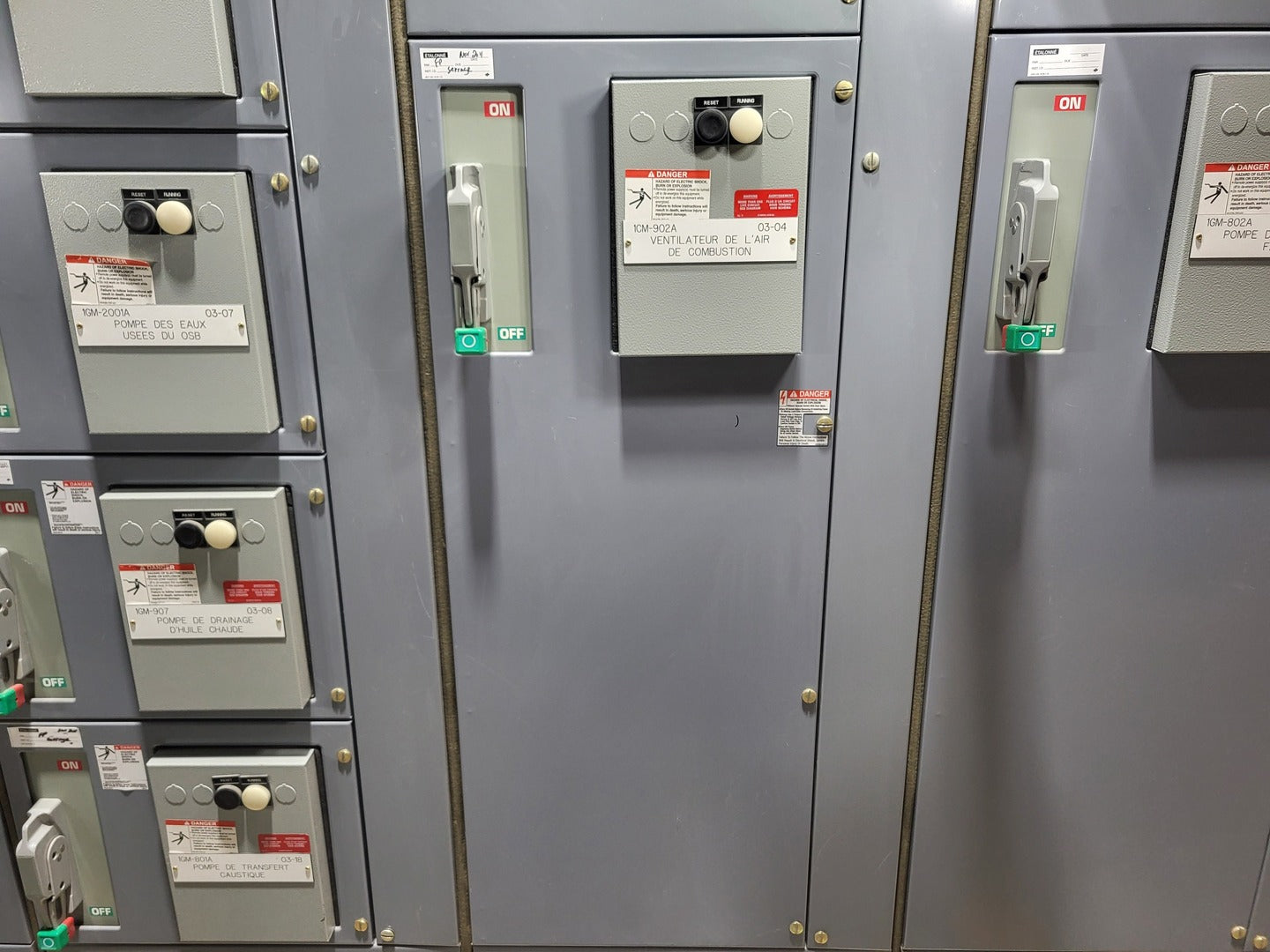

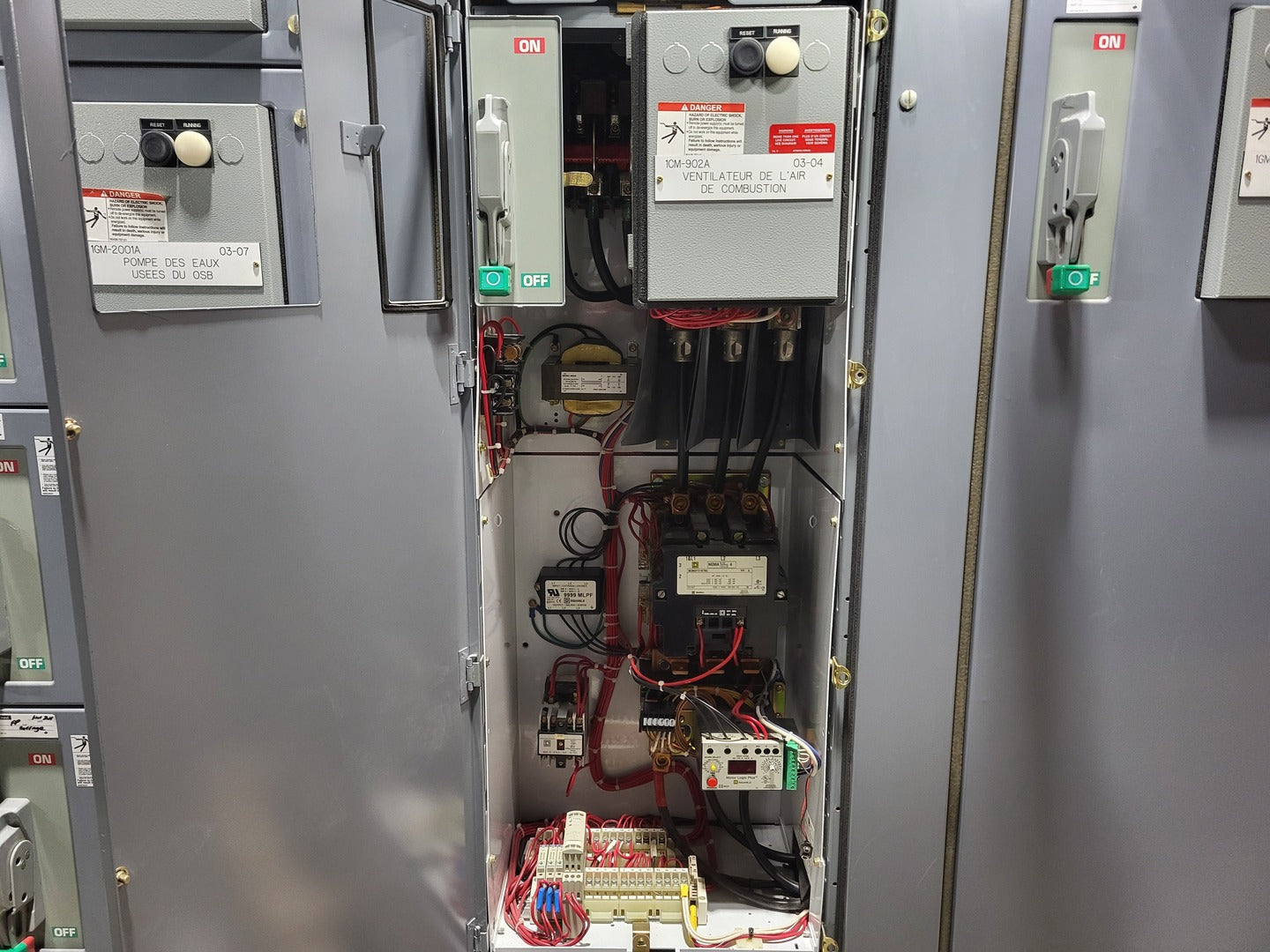

Bucket #2 1CM-902A

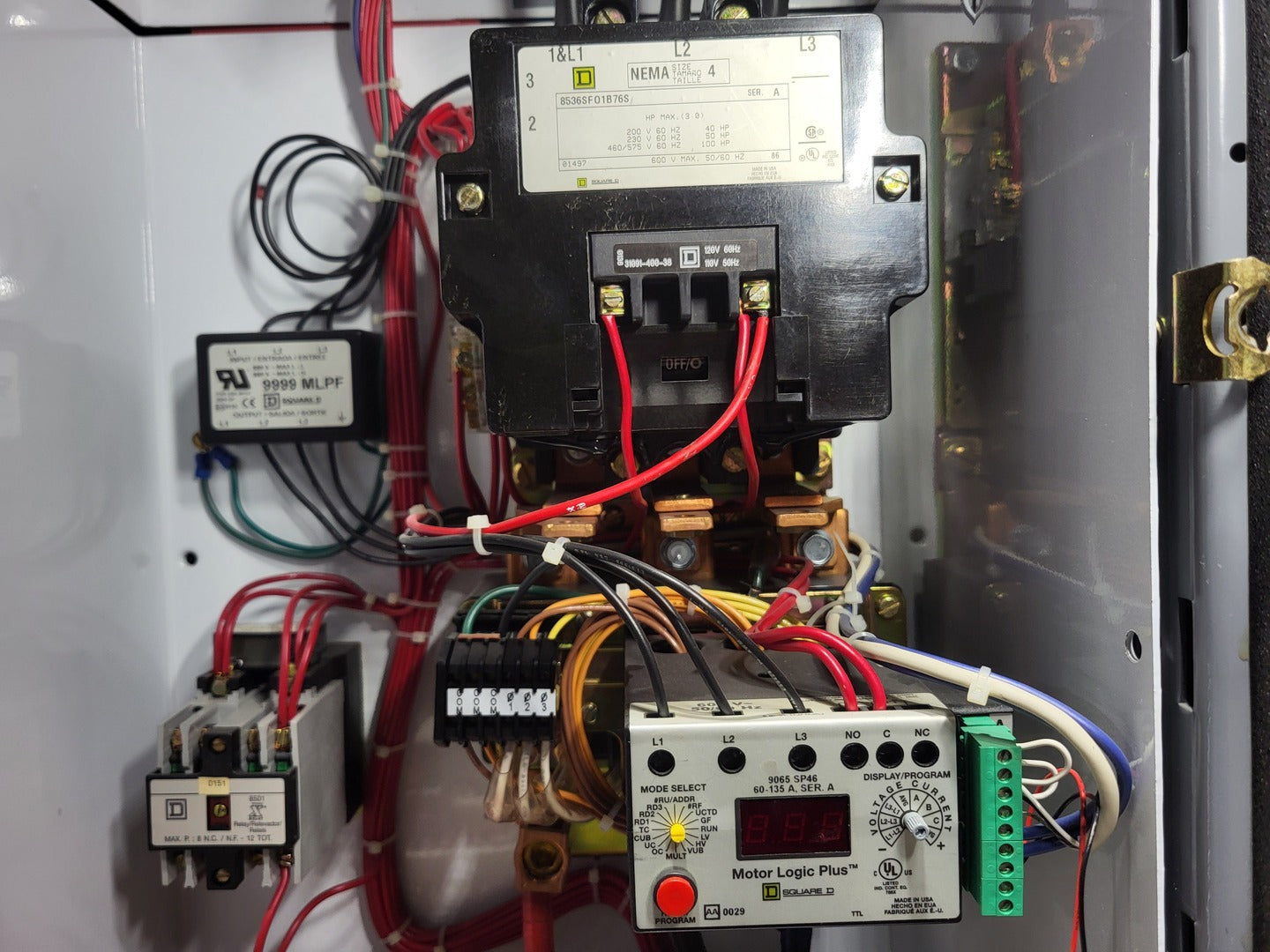

  1. Square D 8536SFO1B76S, NEMA Size 4 contactor, 100 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP46, motor protection relay, 60-135A range, 600VAC max

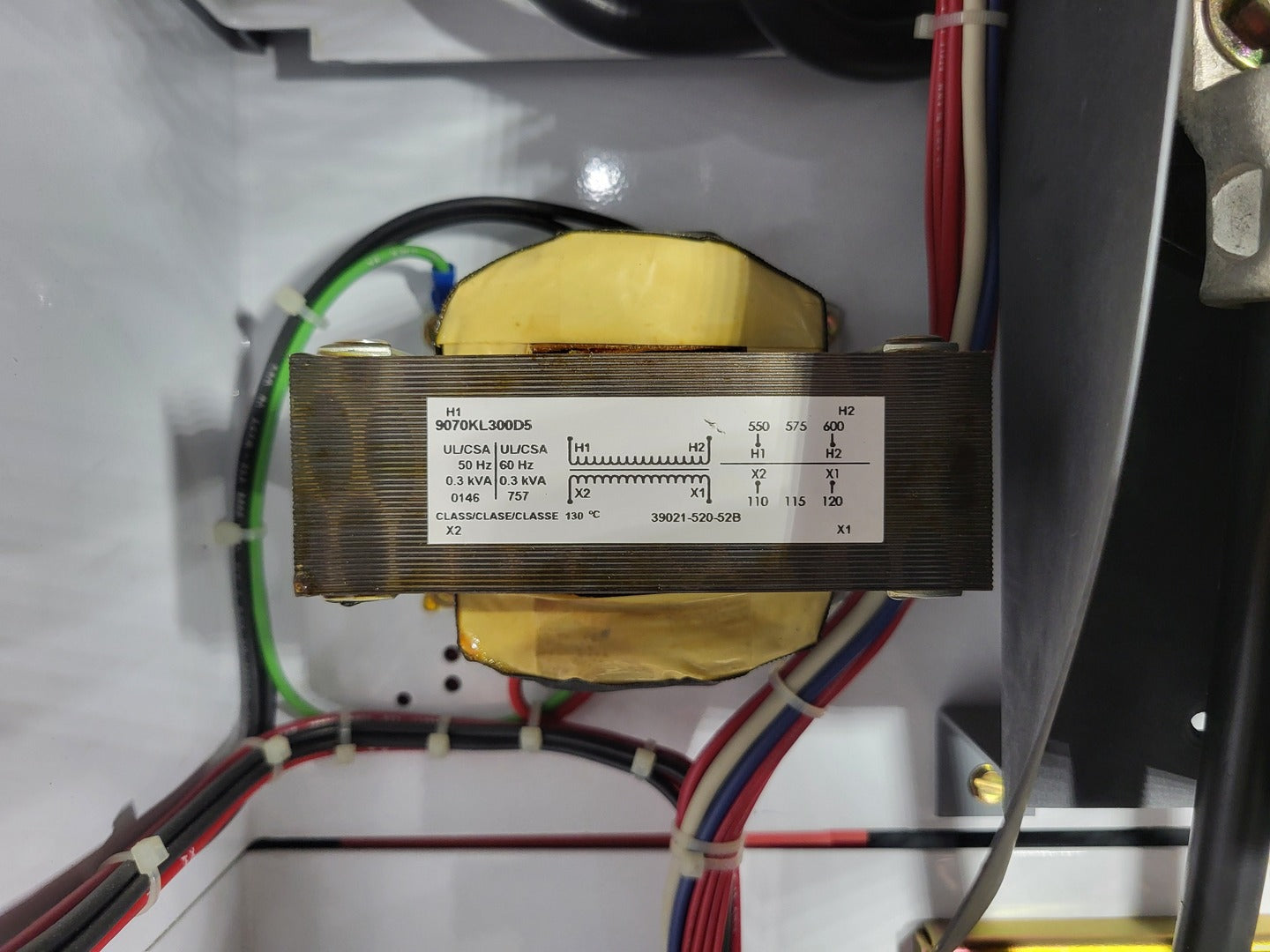

  3. Square D 9070KL30D5, control transformer, 0.3 kVA @ 50/60Hz
  4. Square D 8501 relay, plug-in control relay

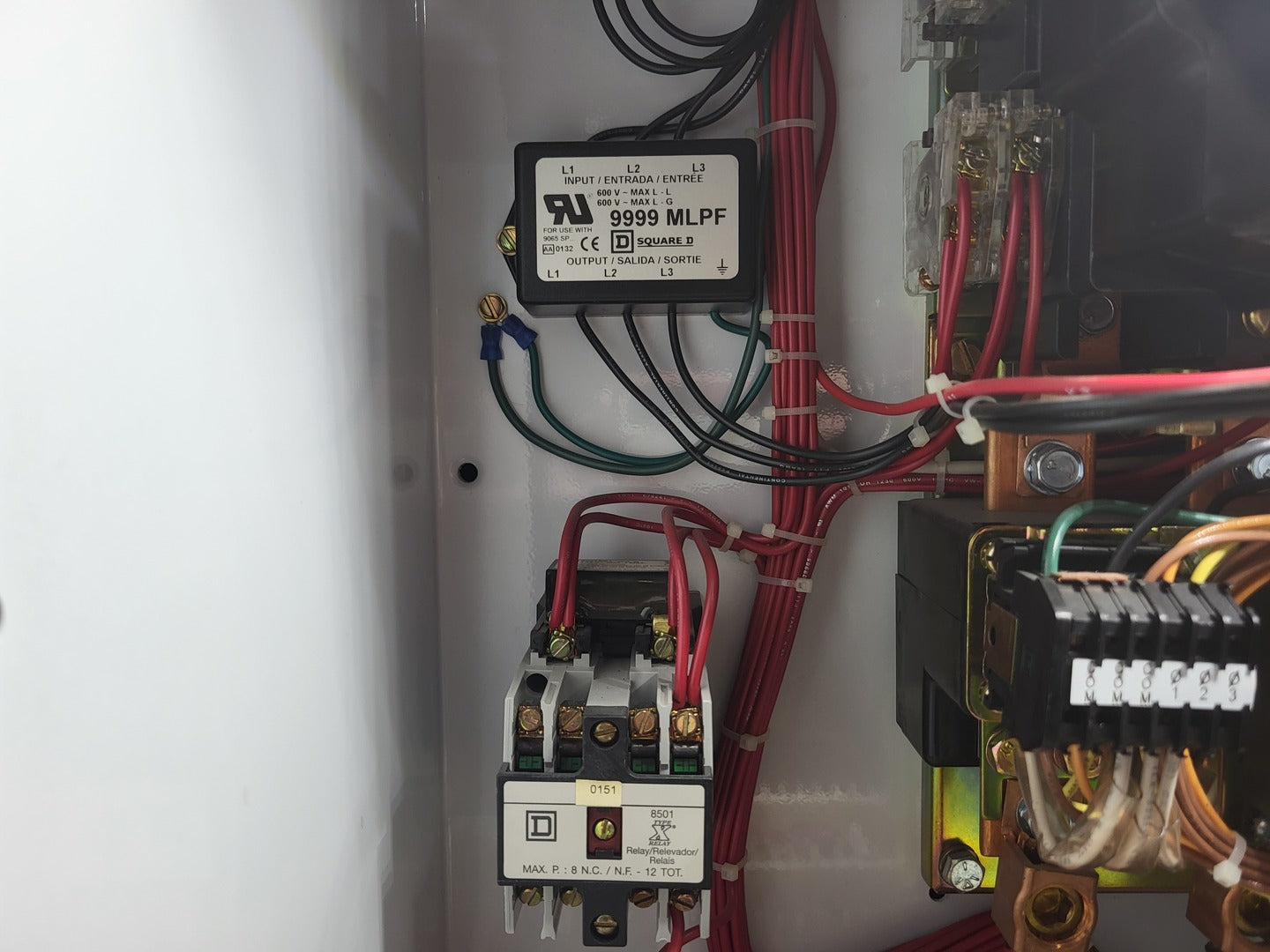

  5. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max

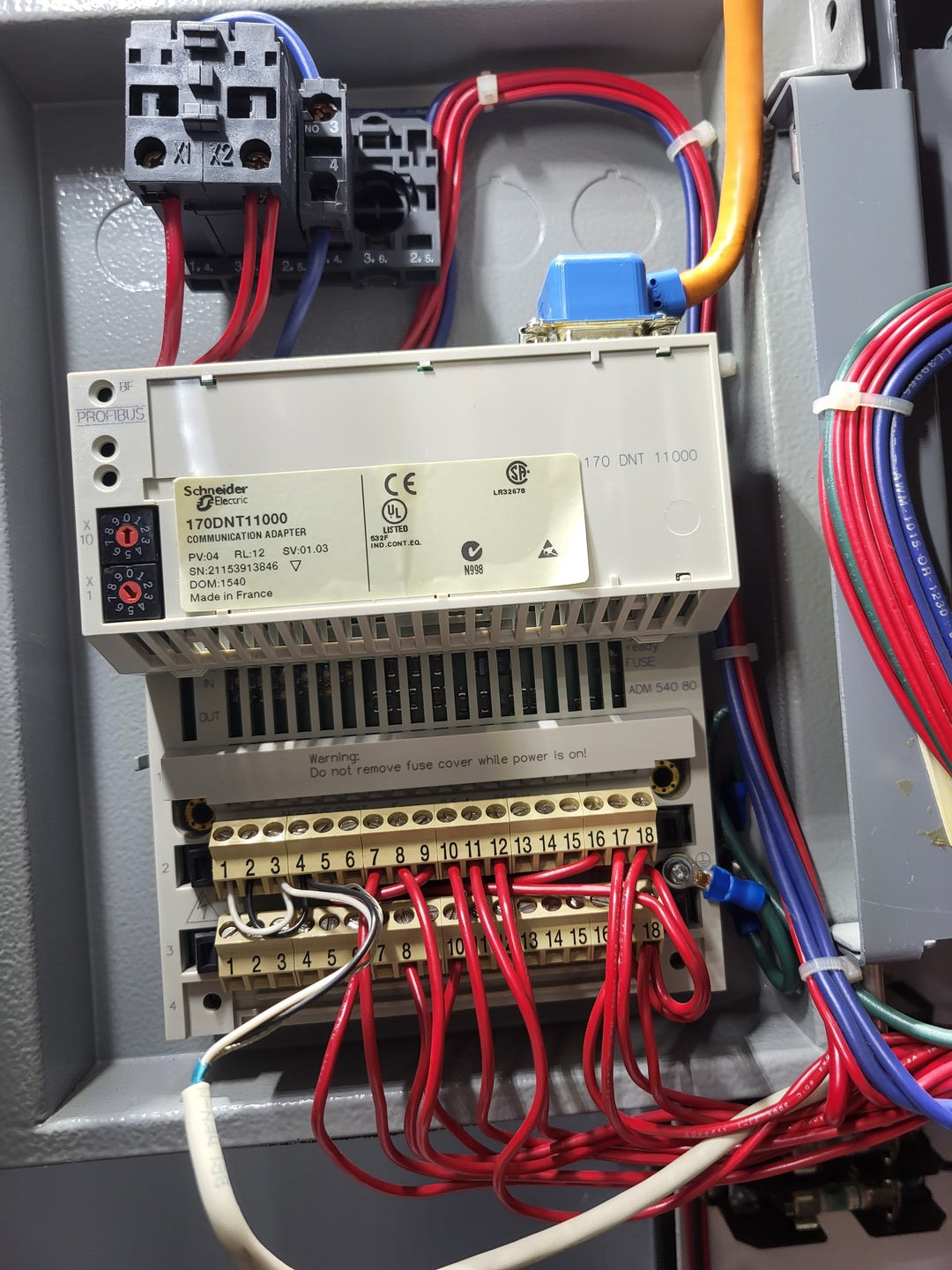

  6. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

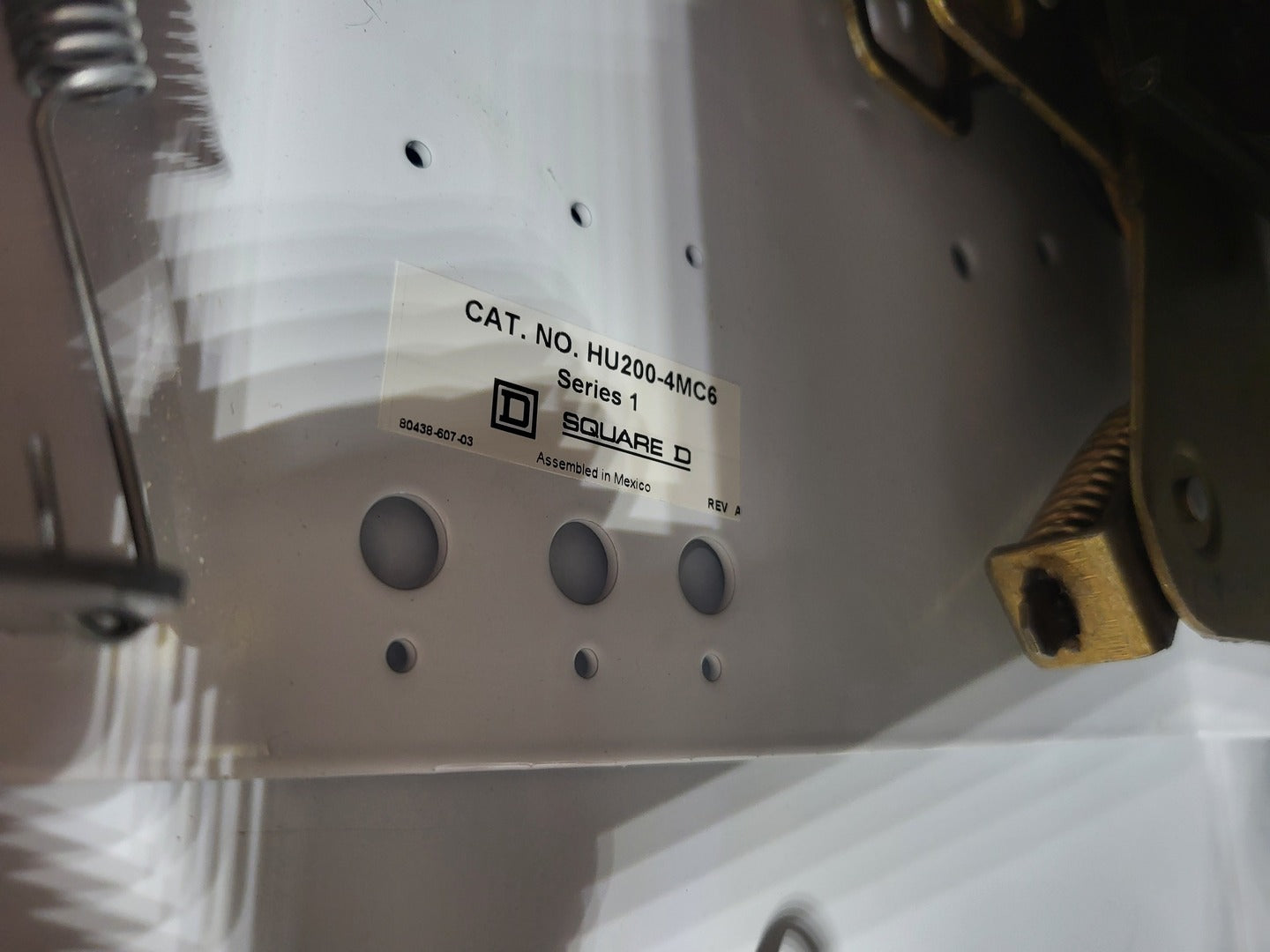

  7. Square D HU200-4MC6, Series 1, 200A MCC bucket disconnect unit

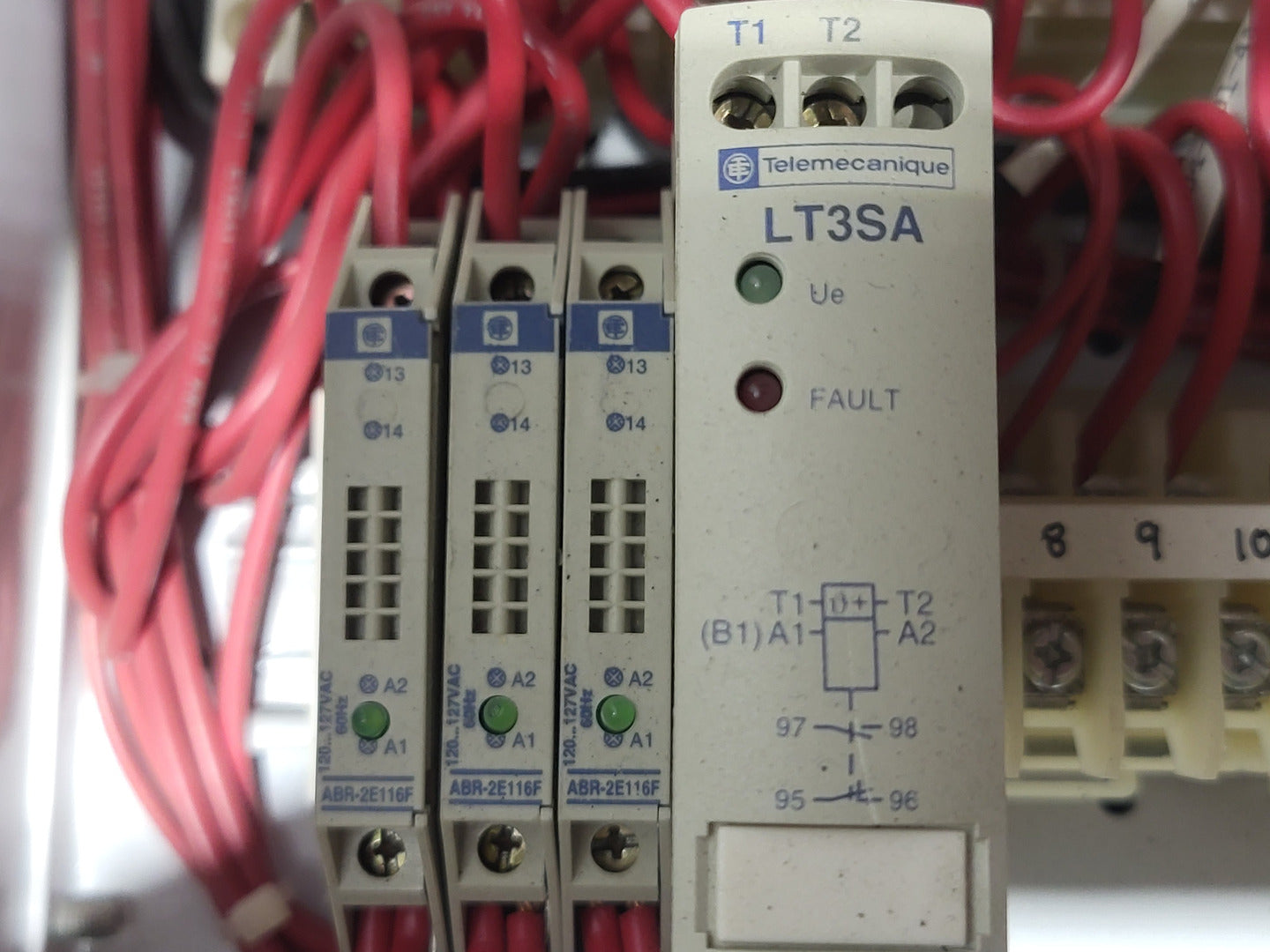

  8. 3 x Allen-Bradley / Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  9. Telemecanique LT3SA thermistor protection relay

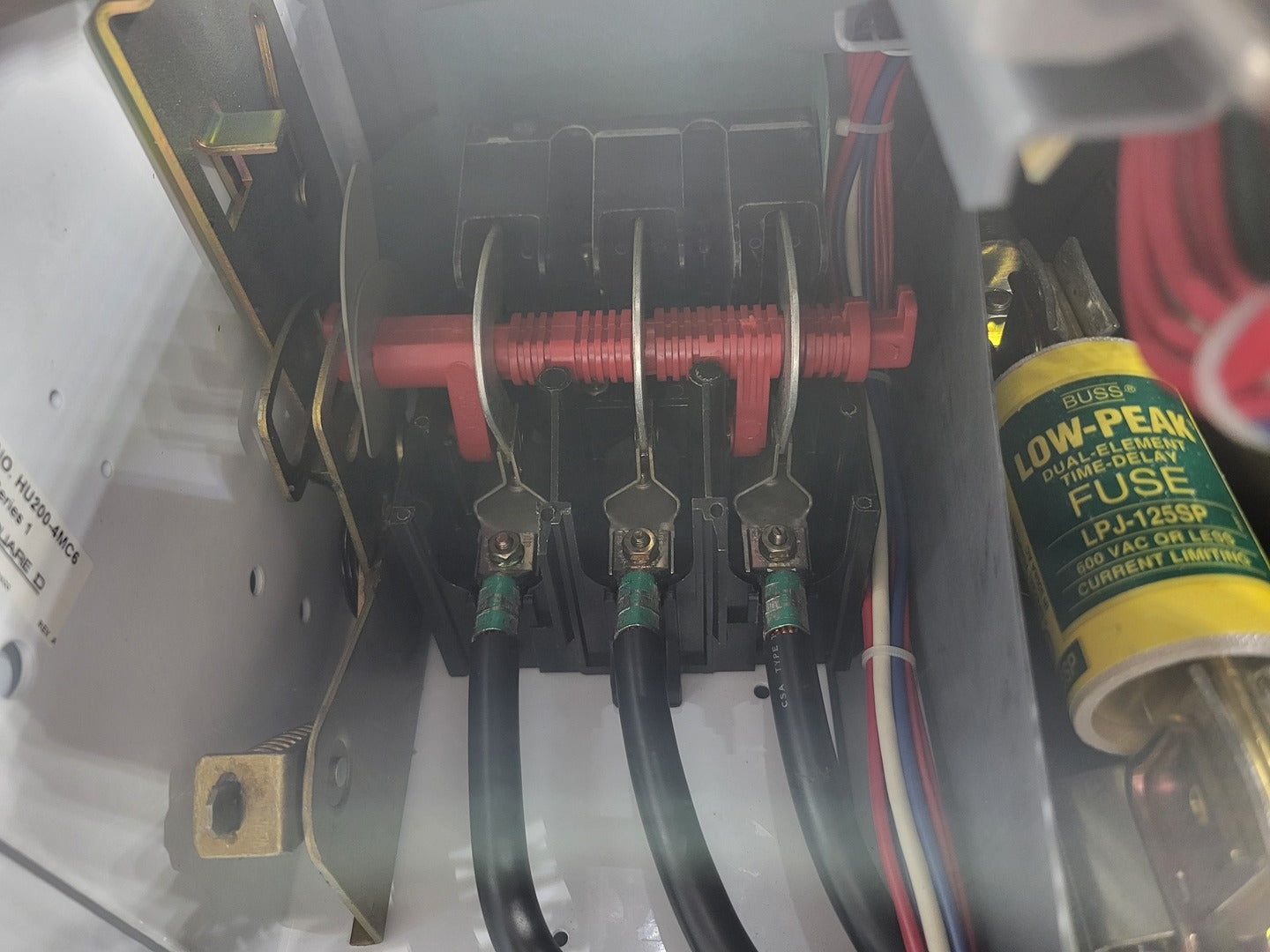

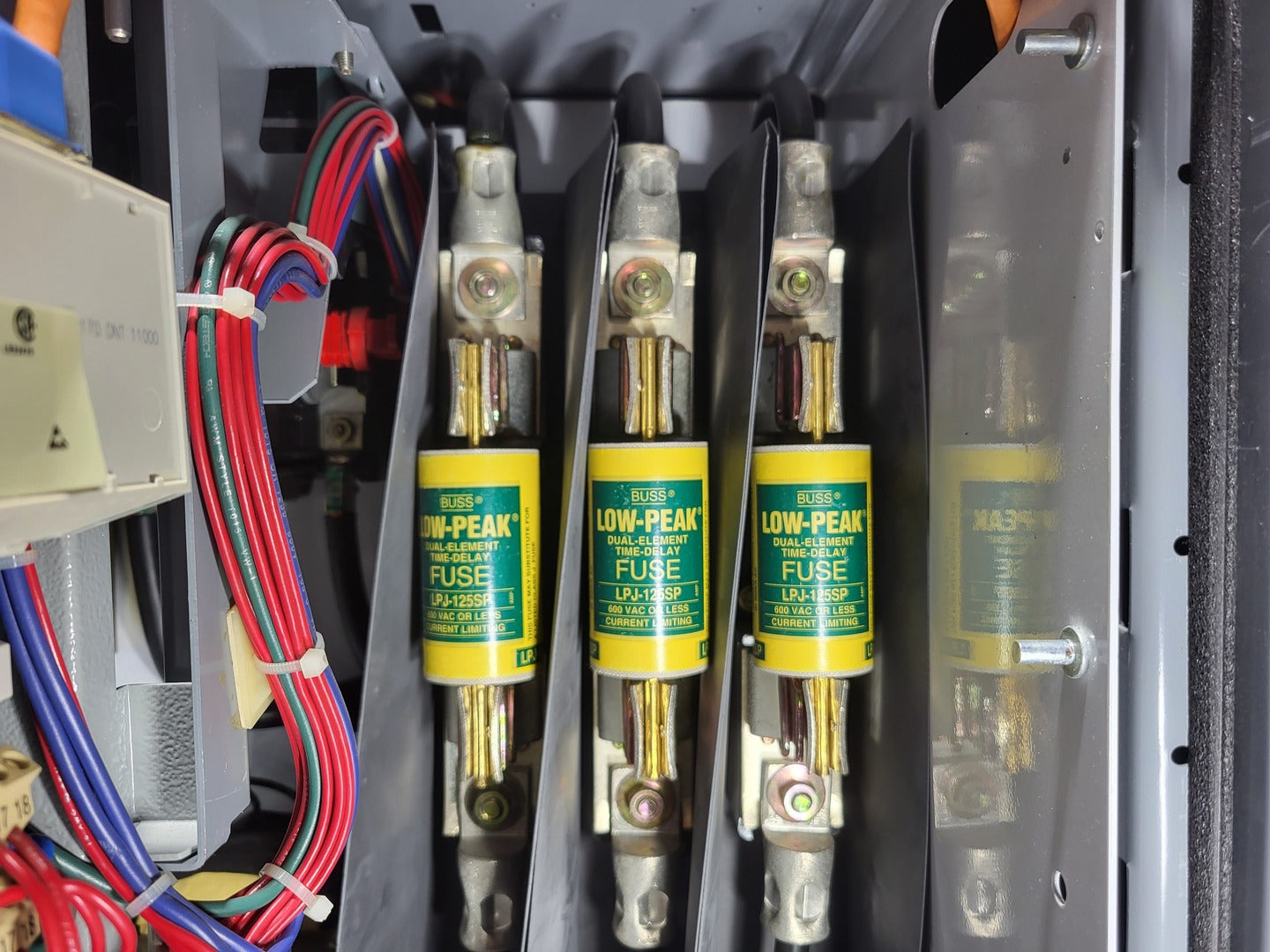

  10. 3 x Bussmann Low-Peak fuses LPJ-125SP

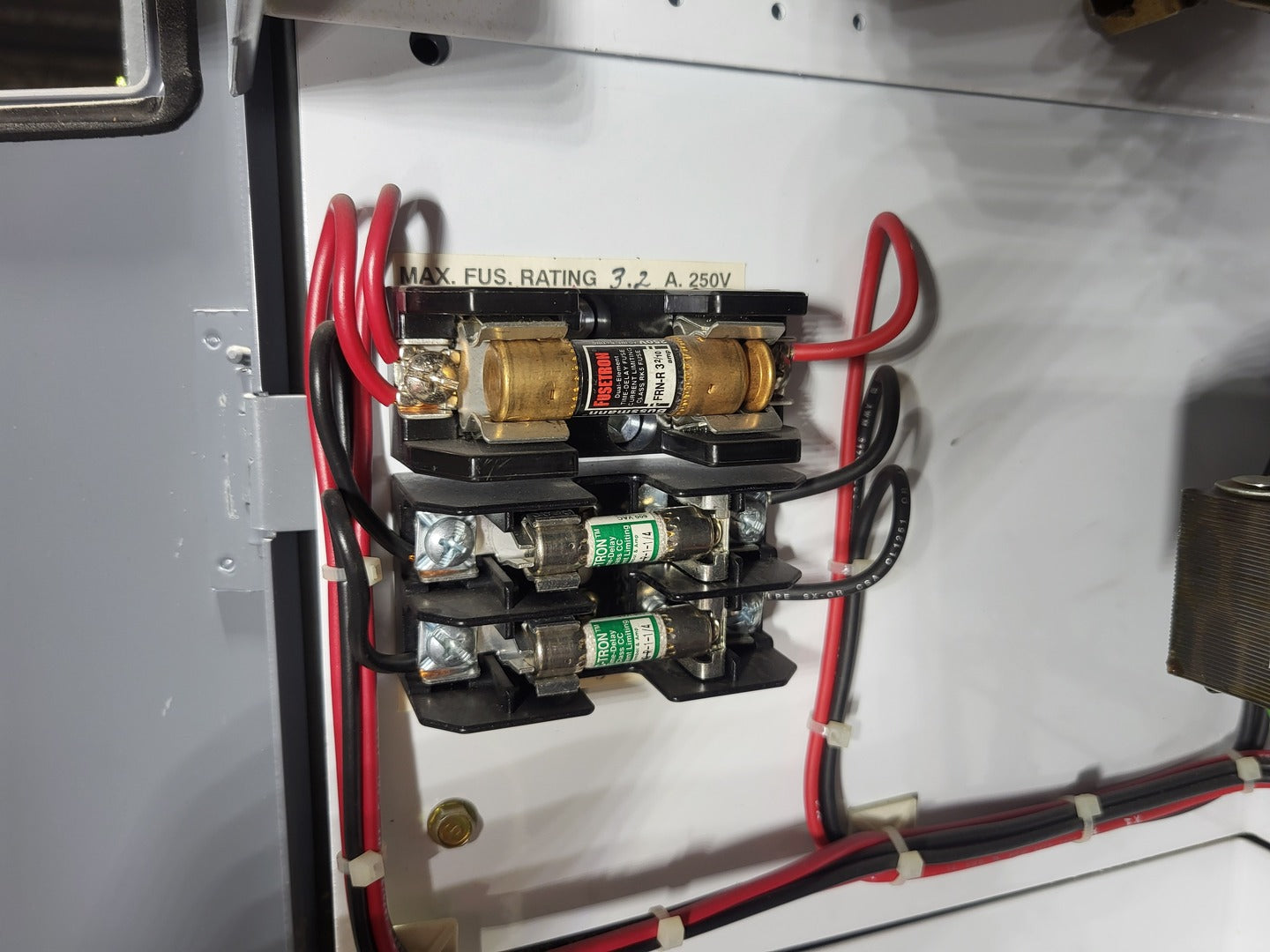

  11. 1 x Bussmann Fusetron fuse FRN-R-3-2/10
  12. 2 x Bussmann CC-Tron fuses FNQ-R-1-1/4
