SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151216
Price:
$7,828

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

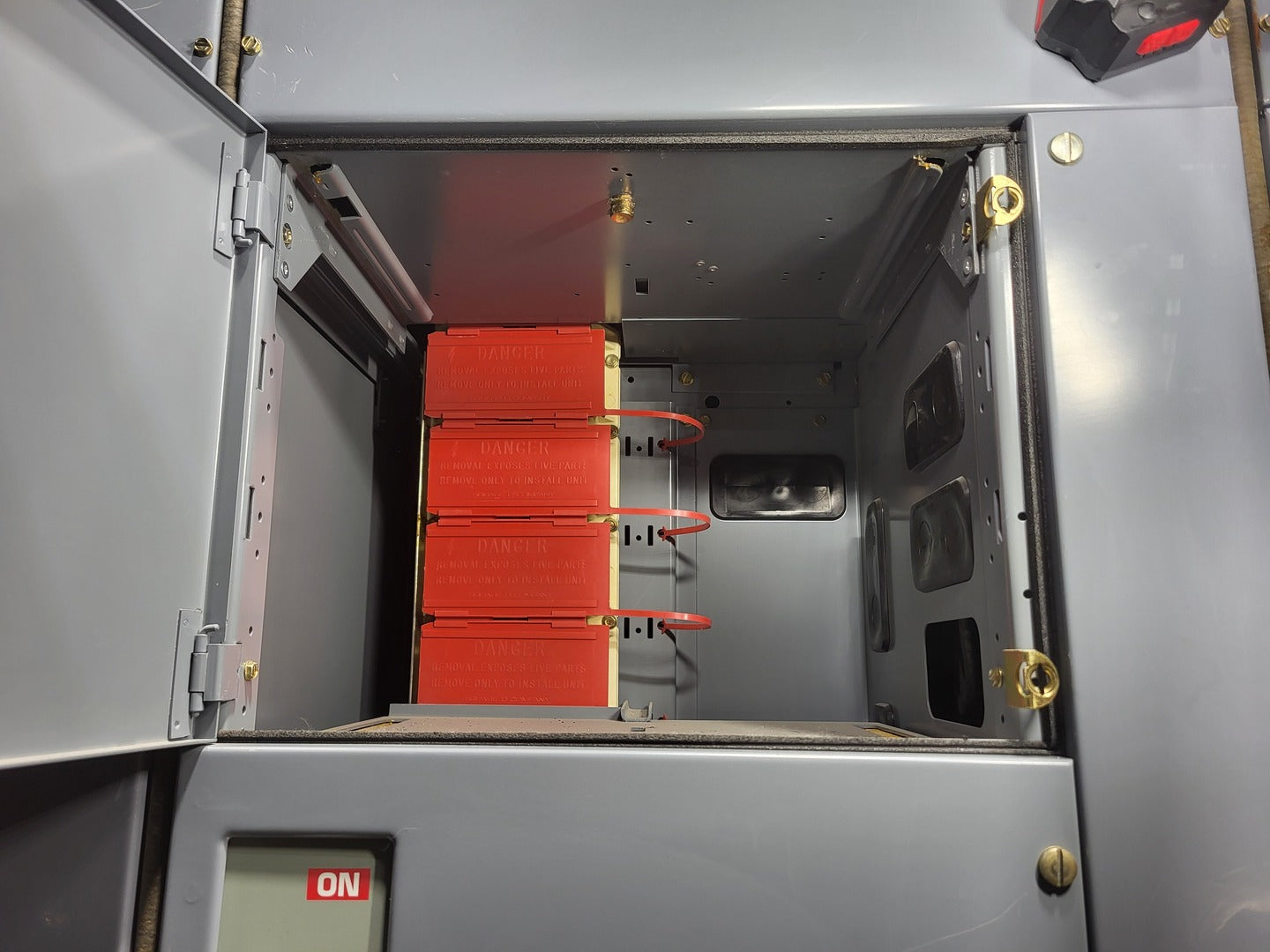

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

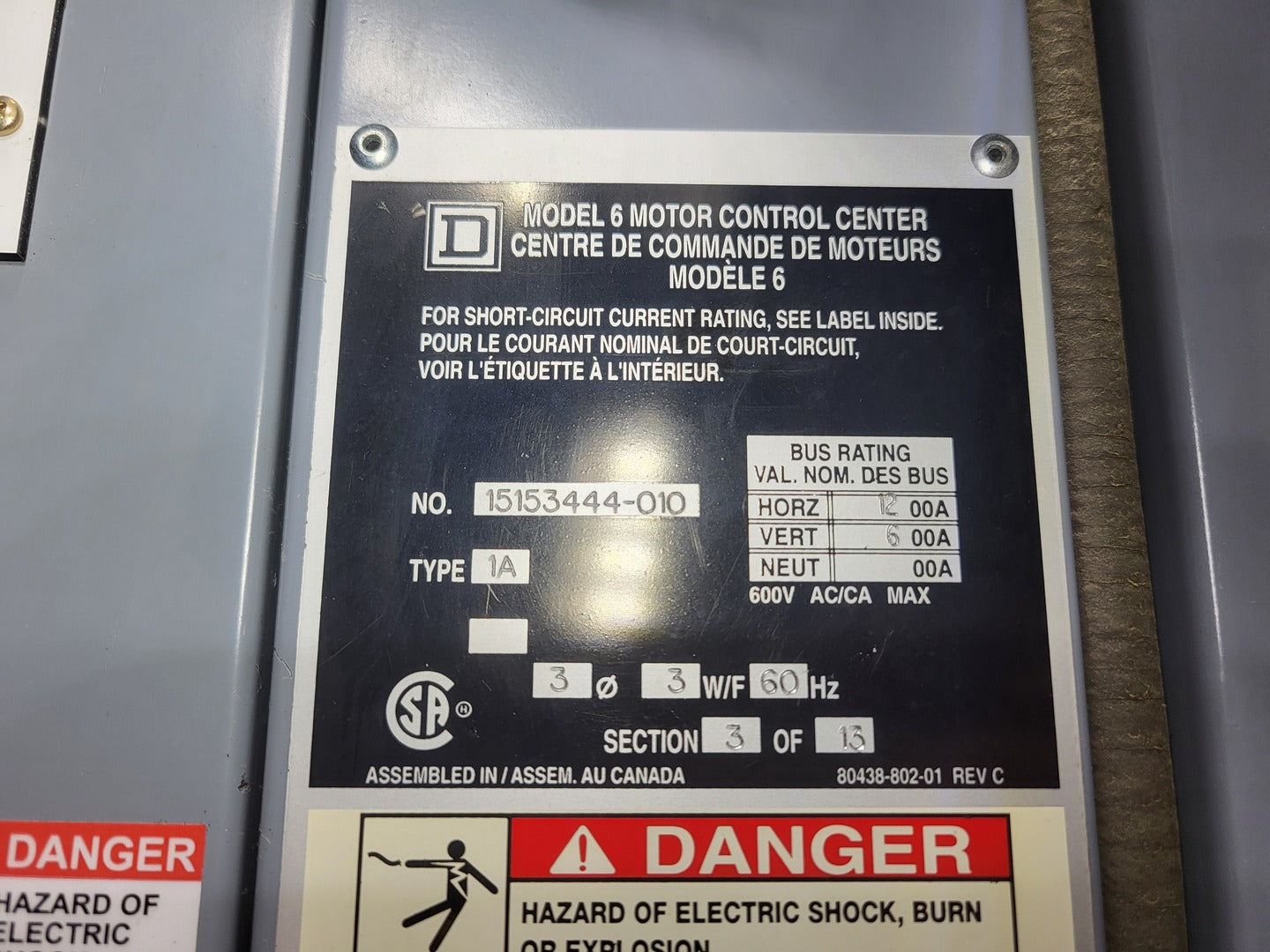

Model Model 6
Condition Used
Other Specifications

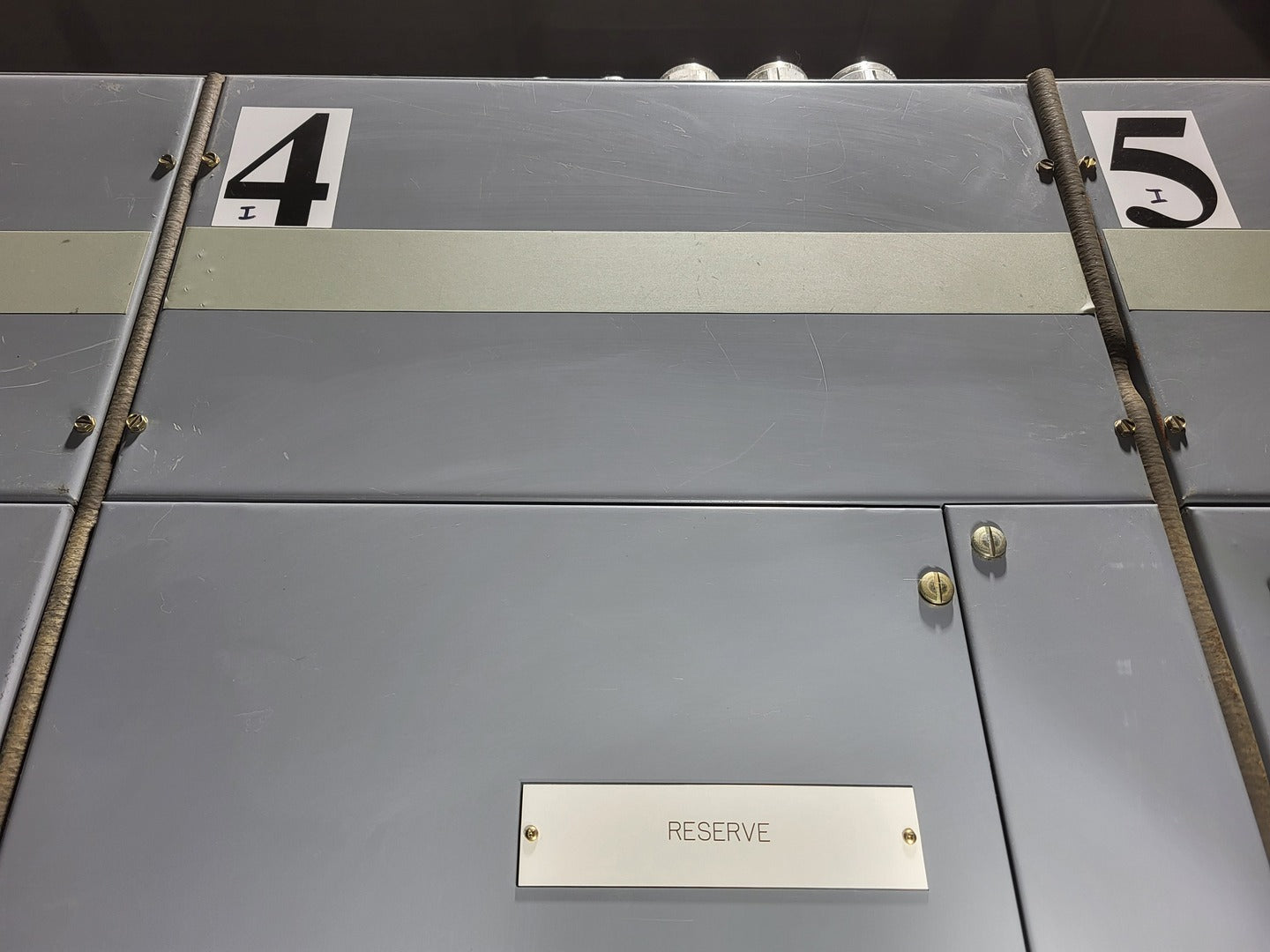

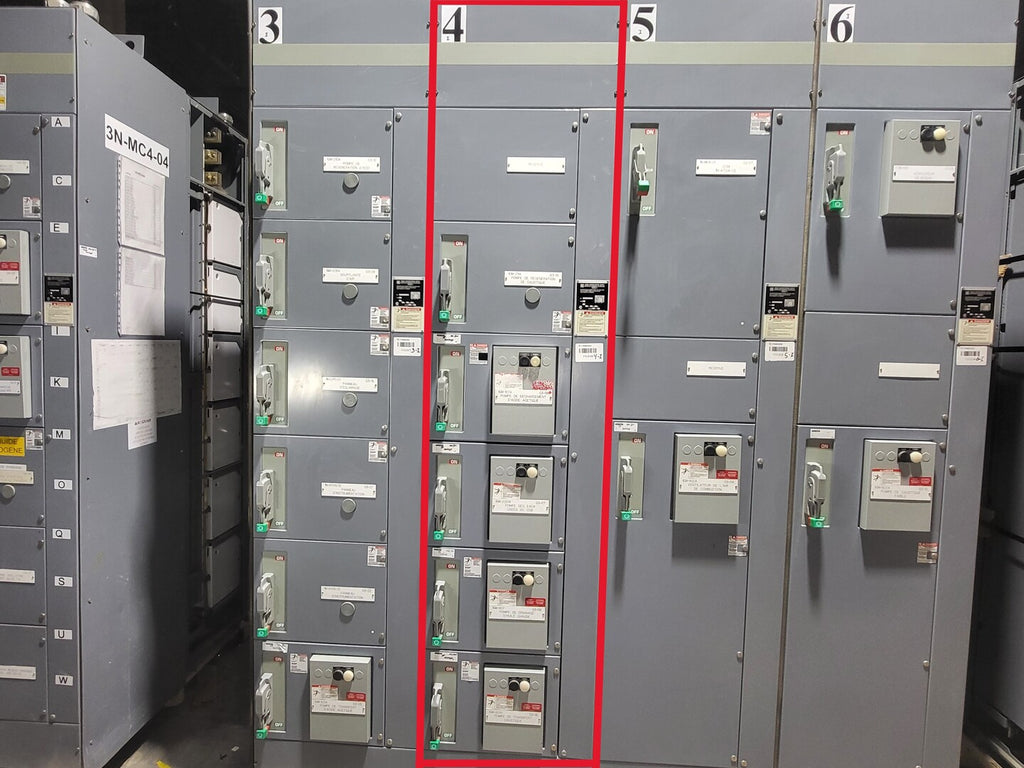

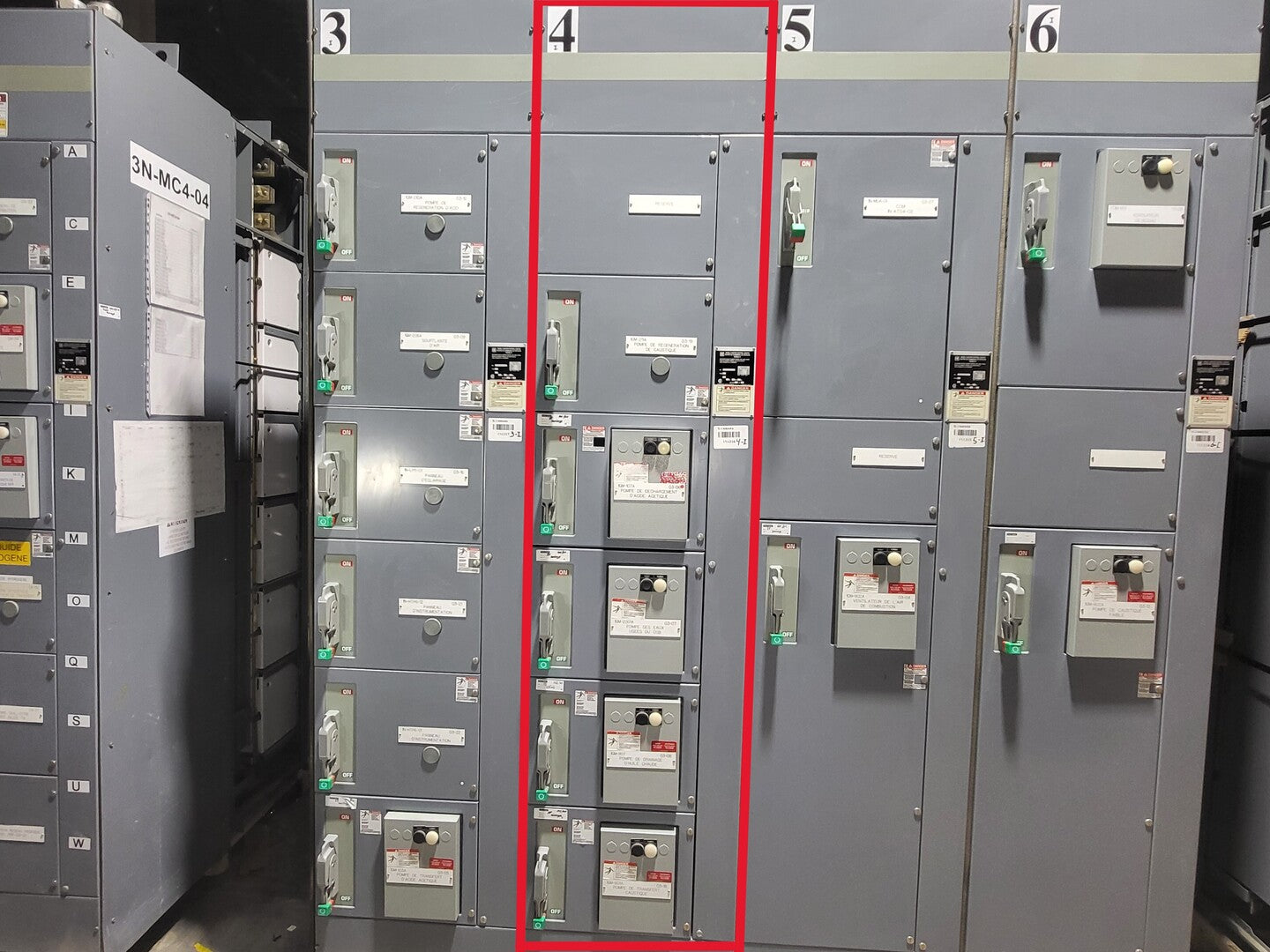

Note: Section 4 only

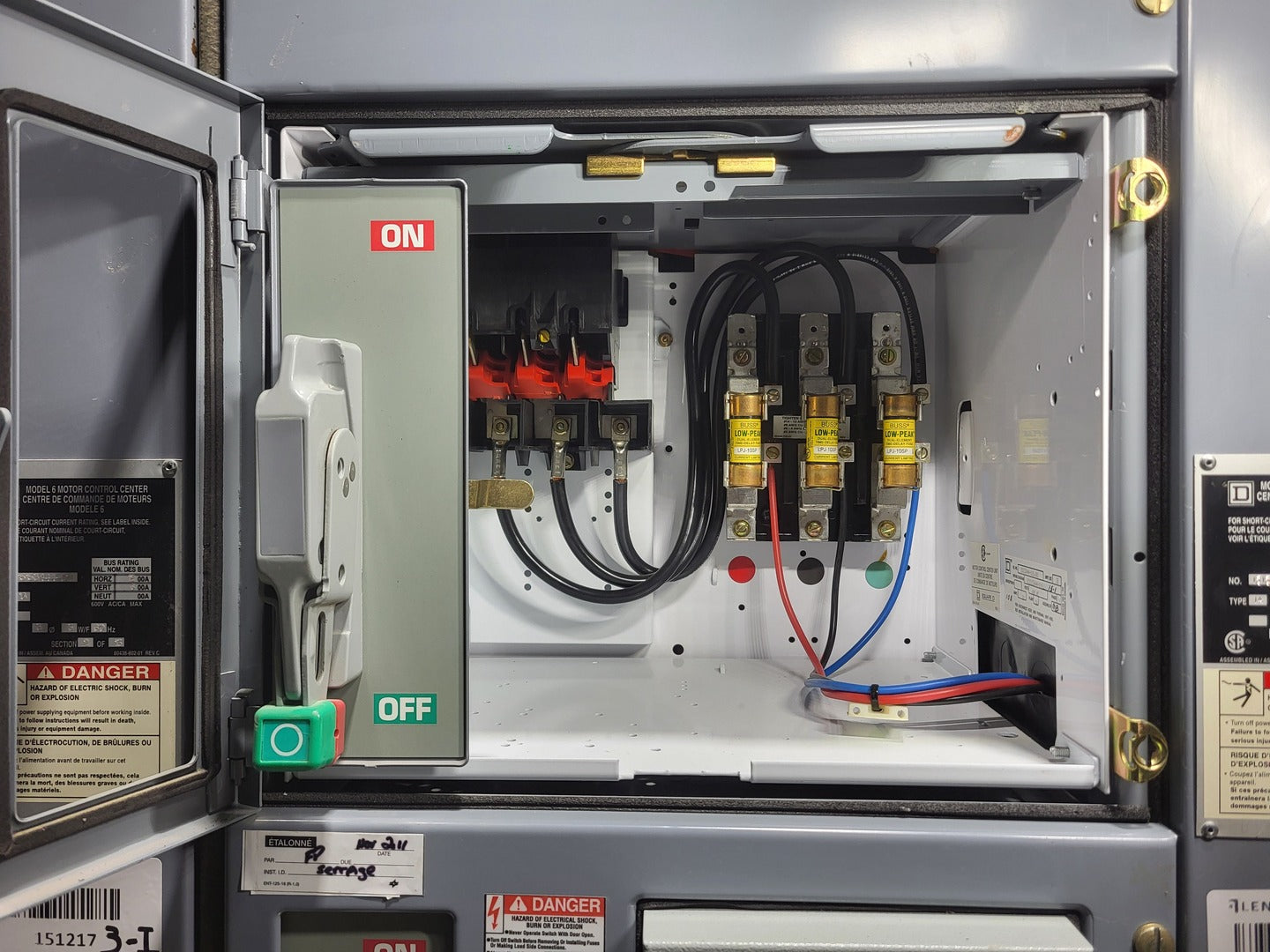

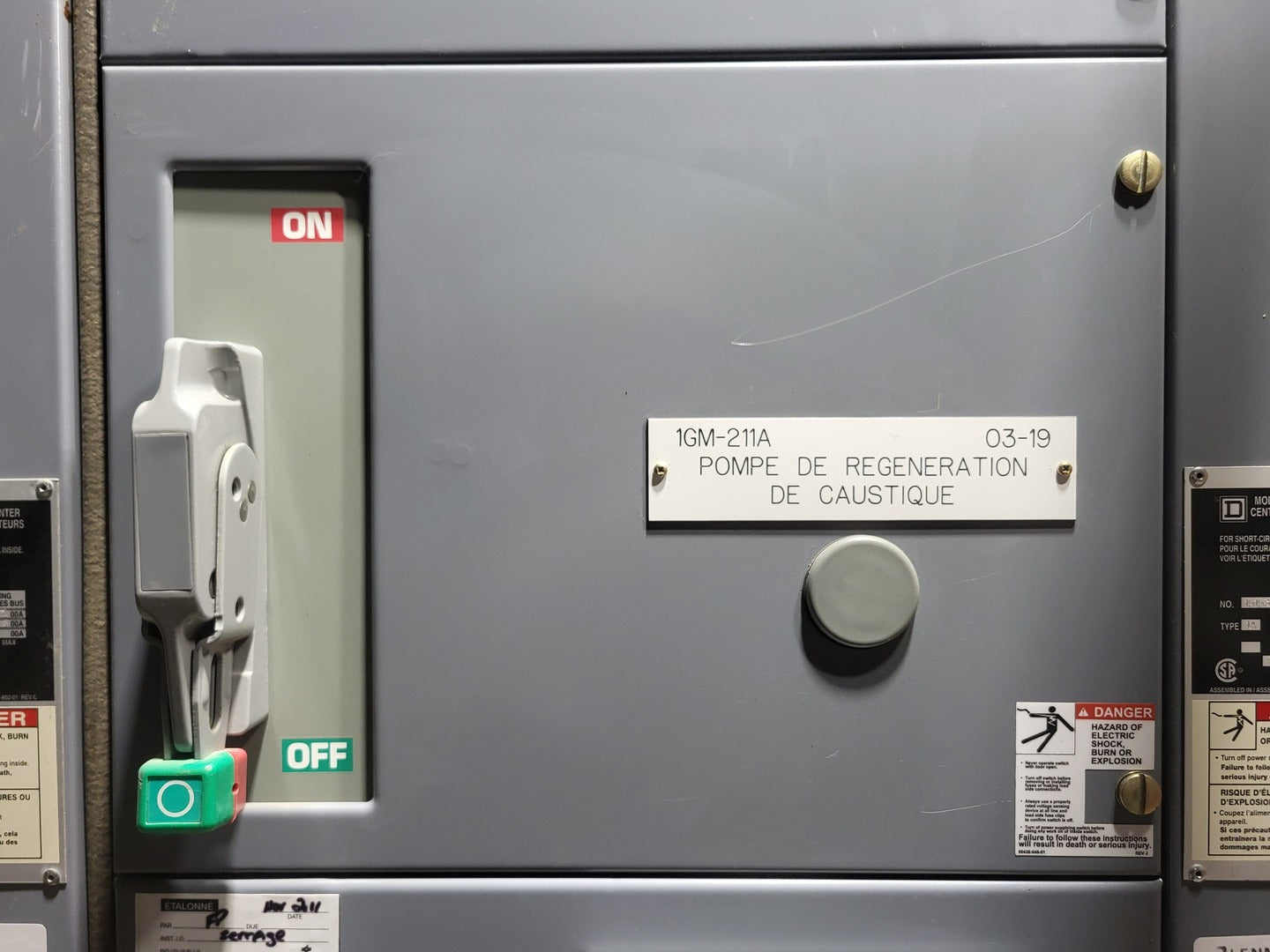

Bucket #1 1GM-211A

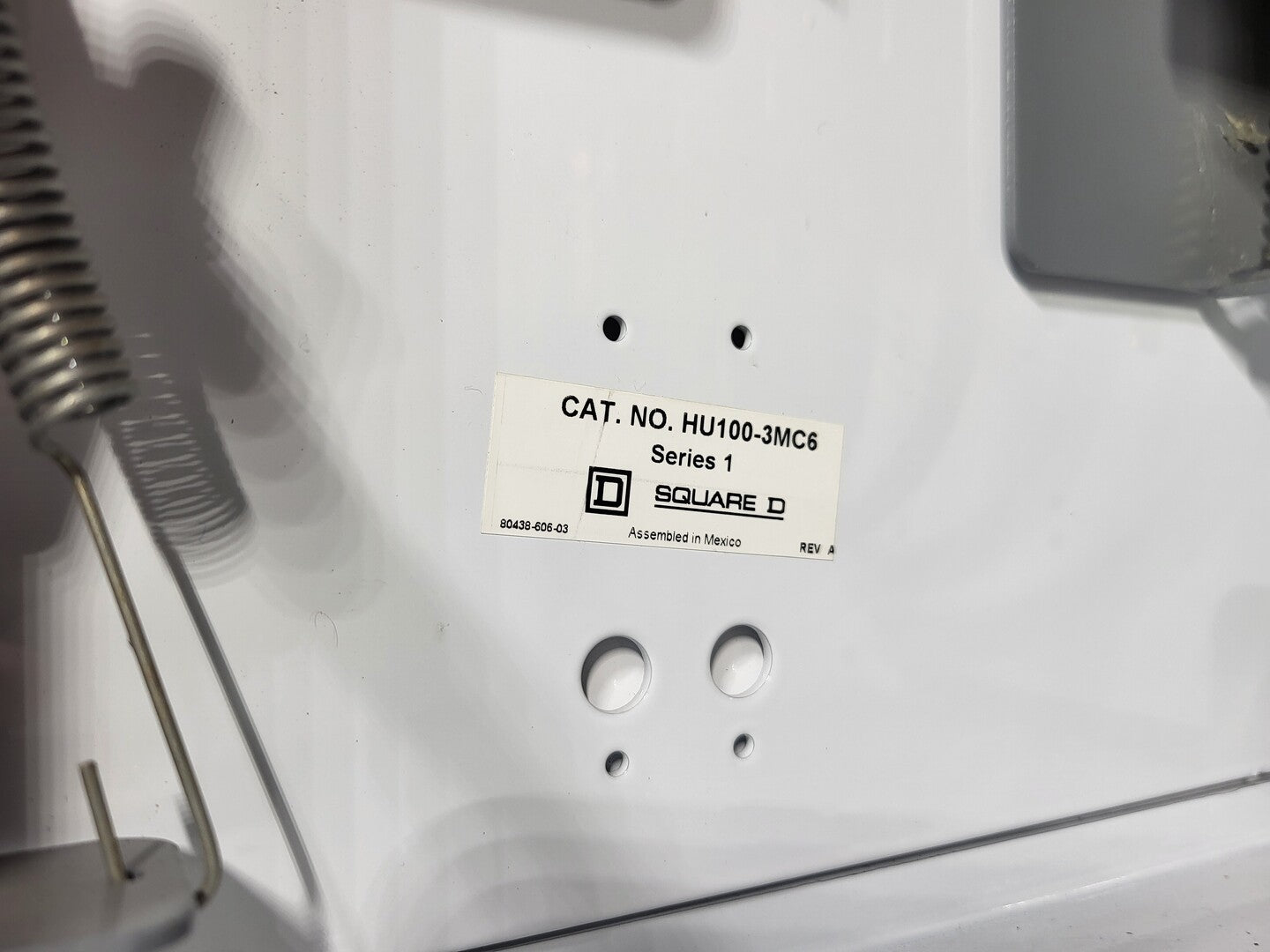

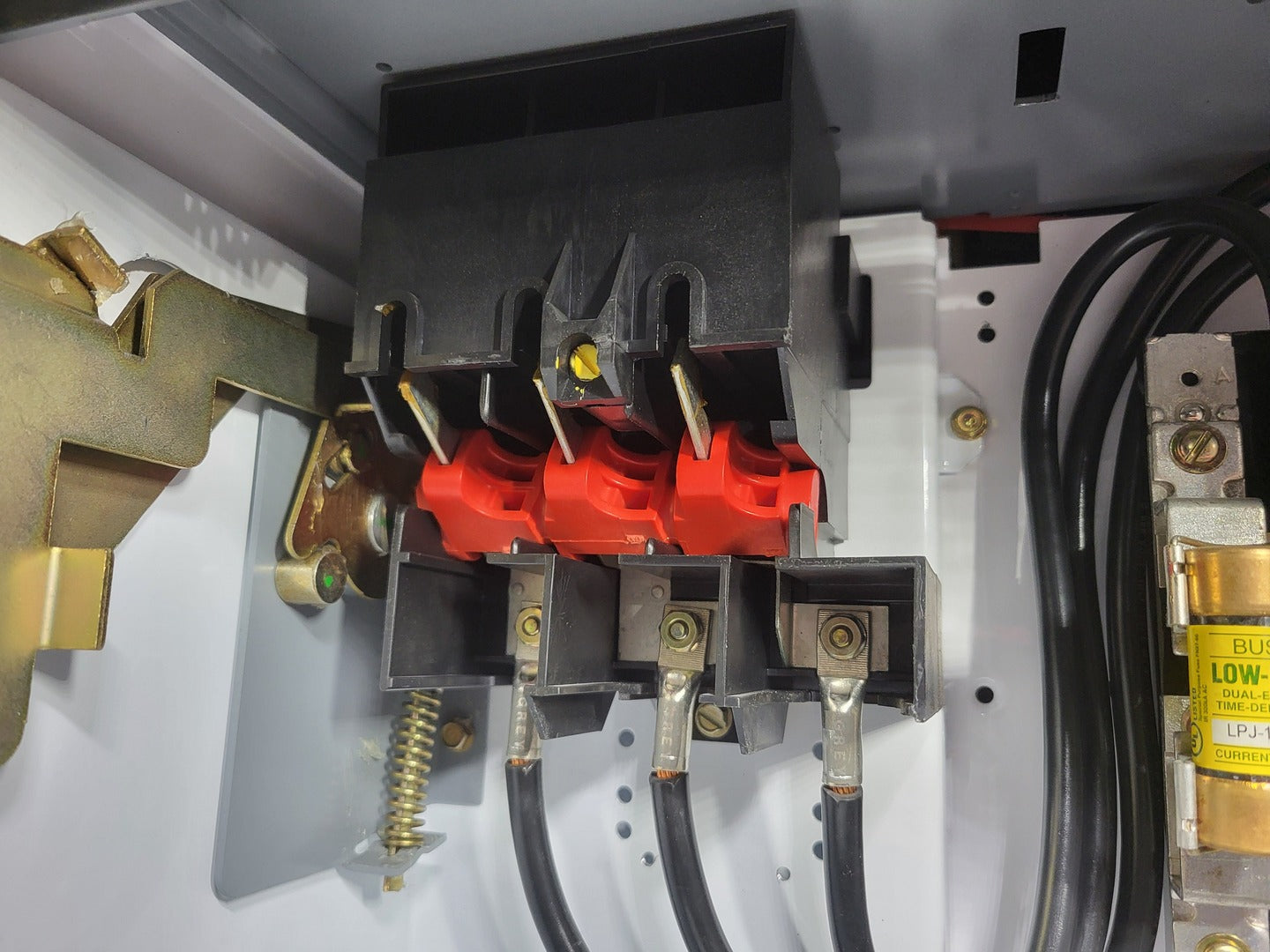

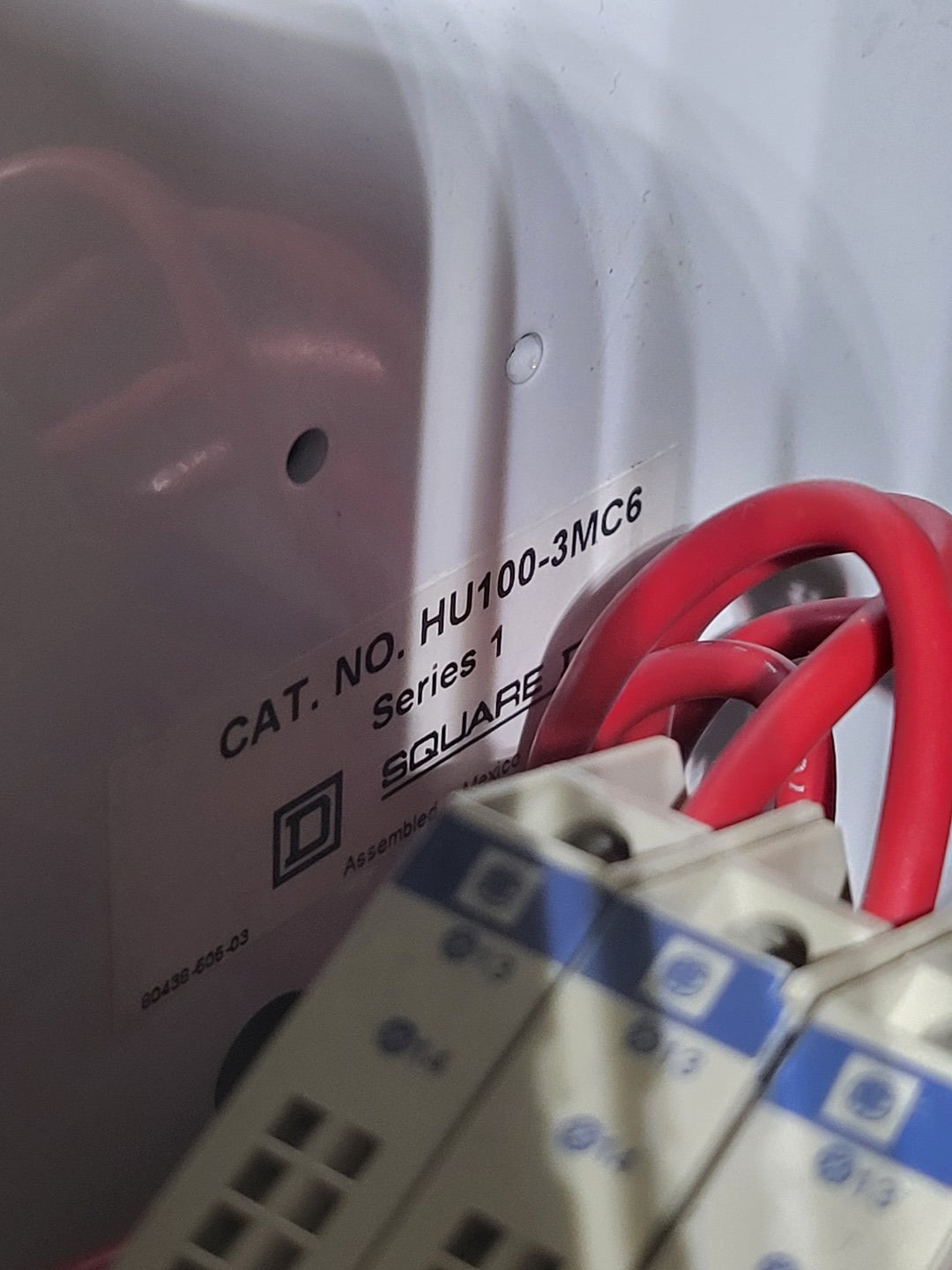

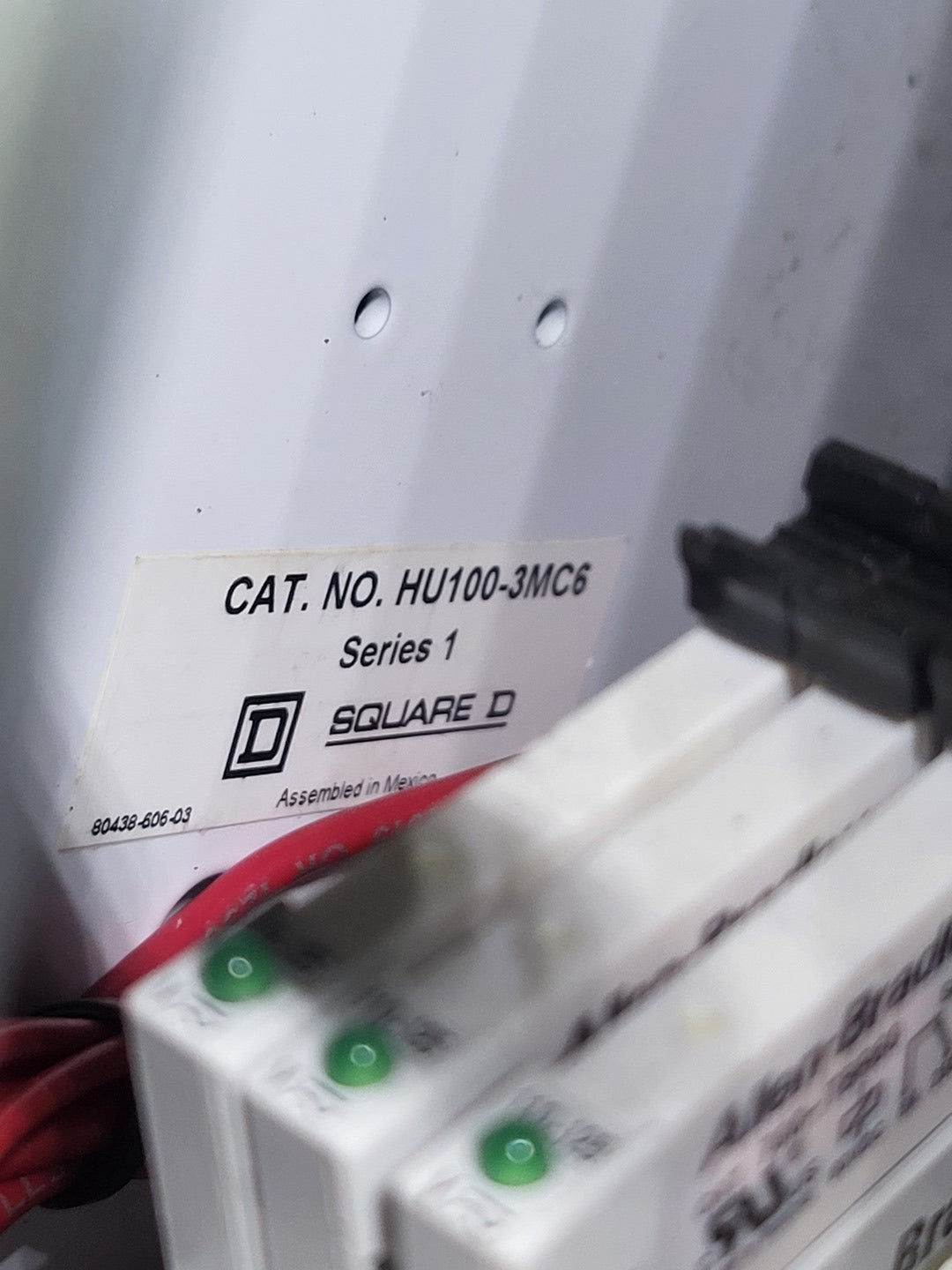

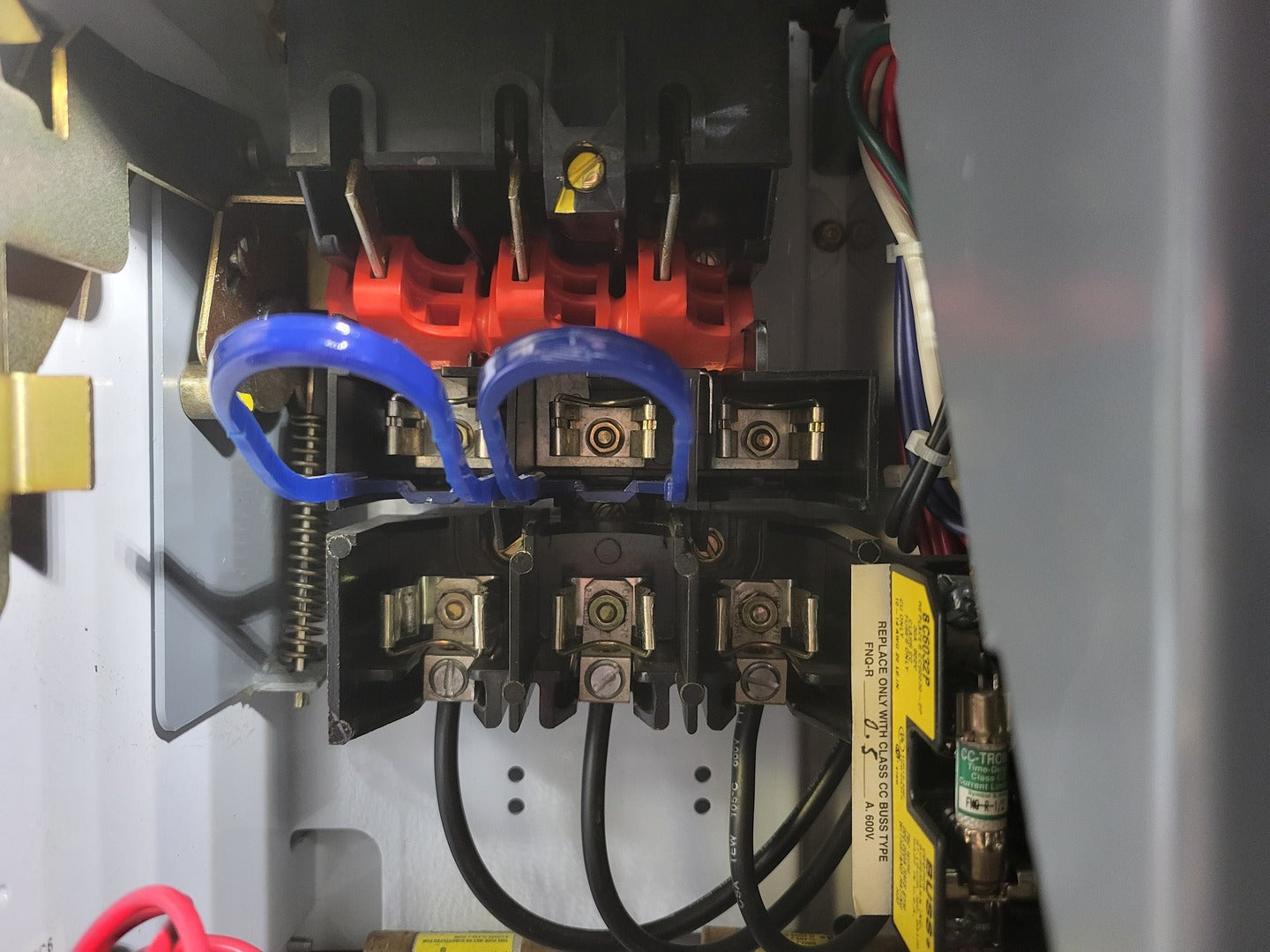

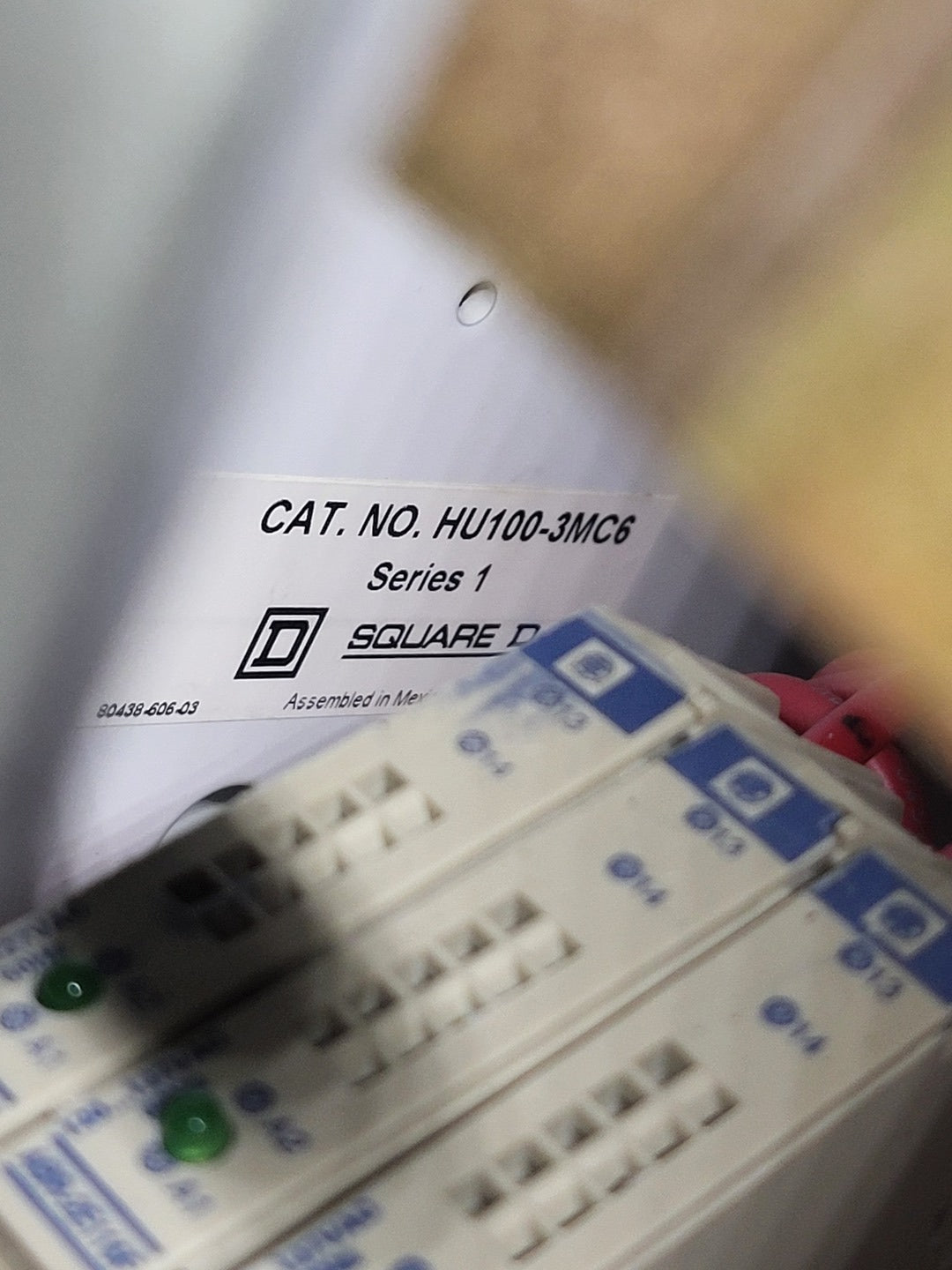

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

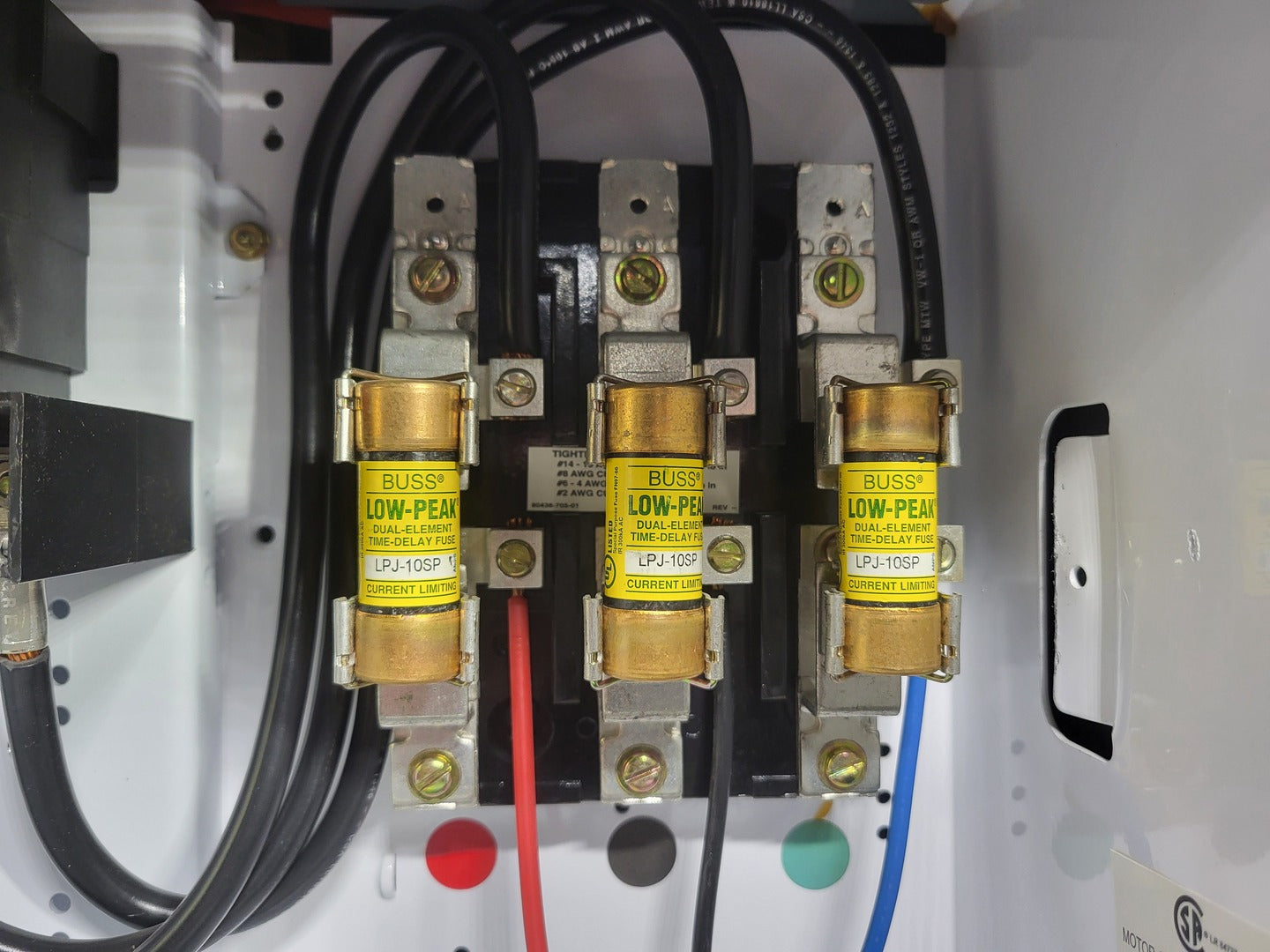

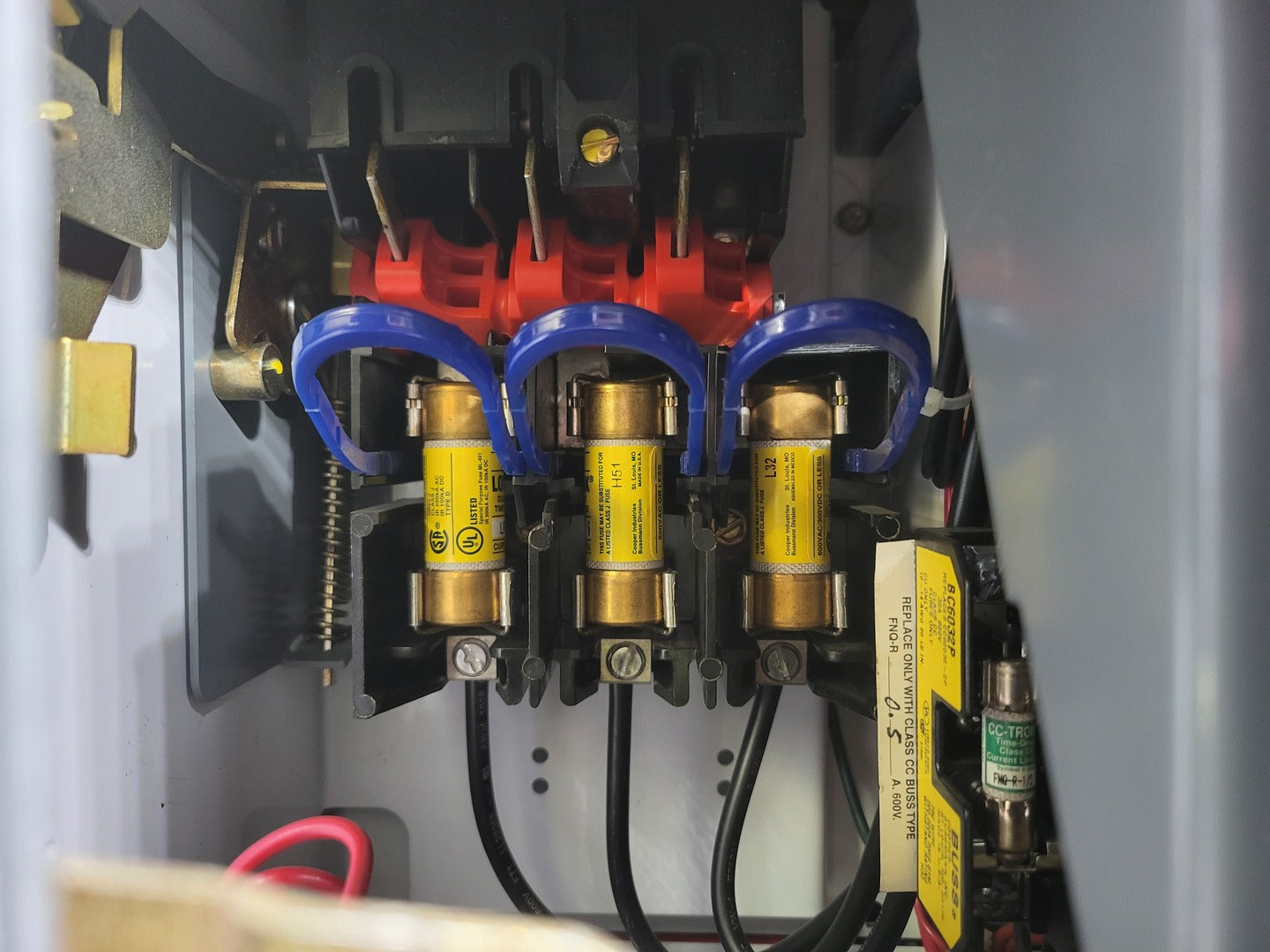

  2. 3 x Bussmann Low-Peak fuses LPJ-10SP

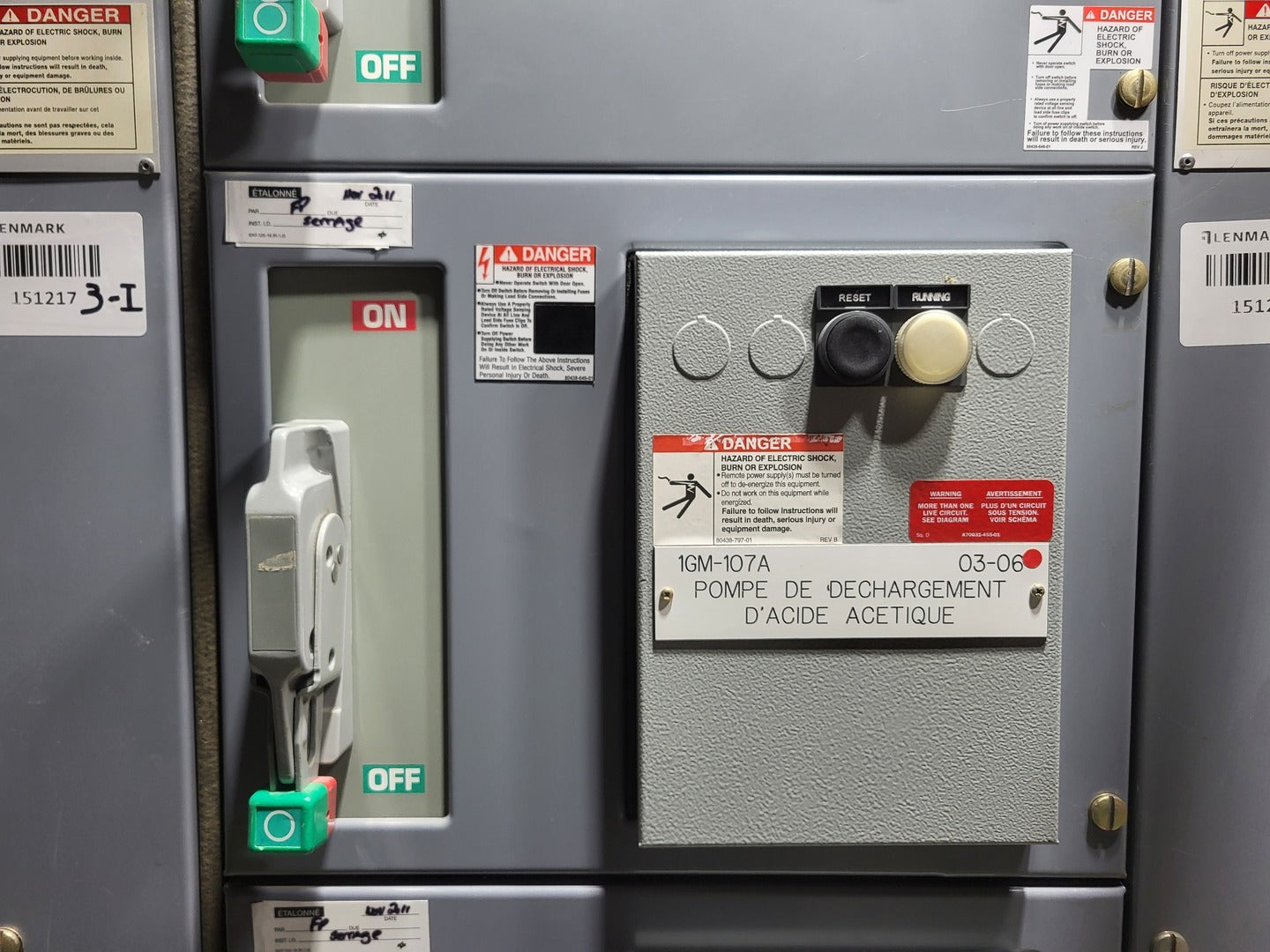

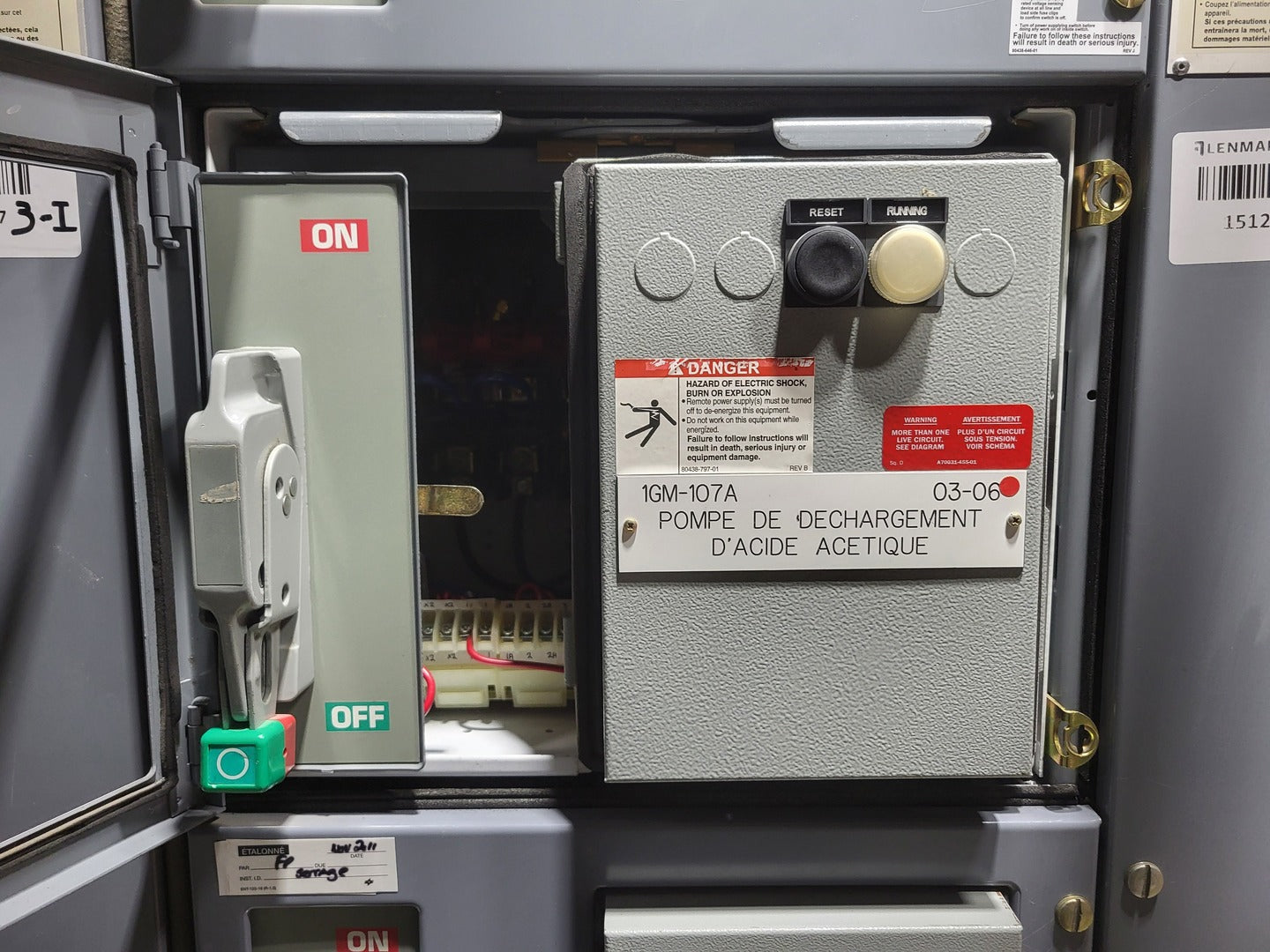

Bucket #2 1GM-107A

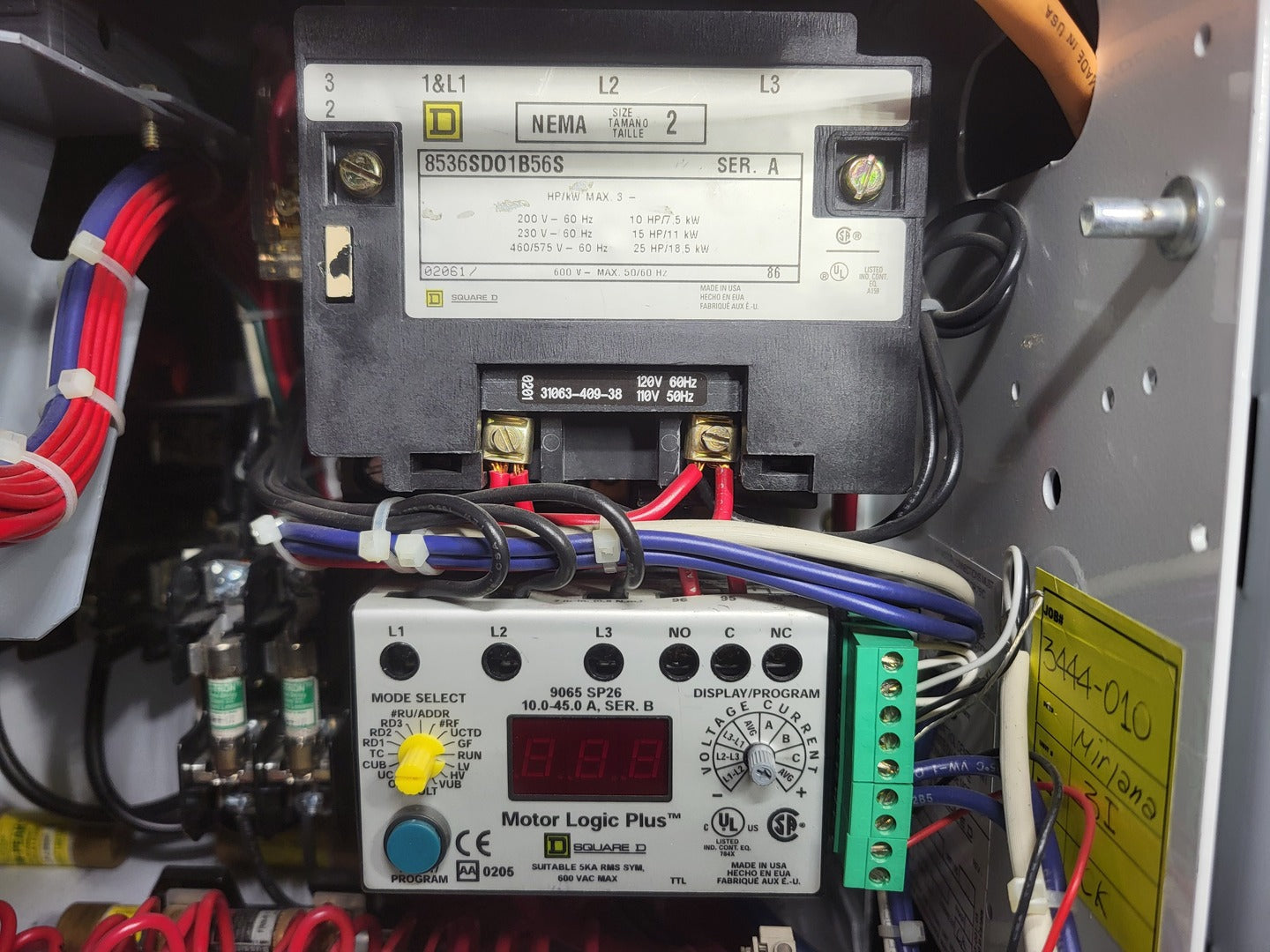

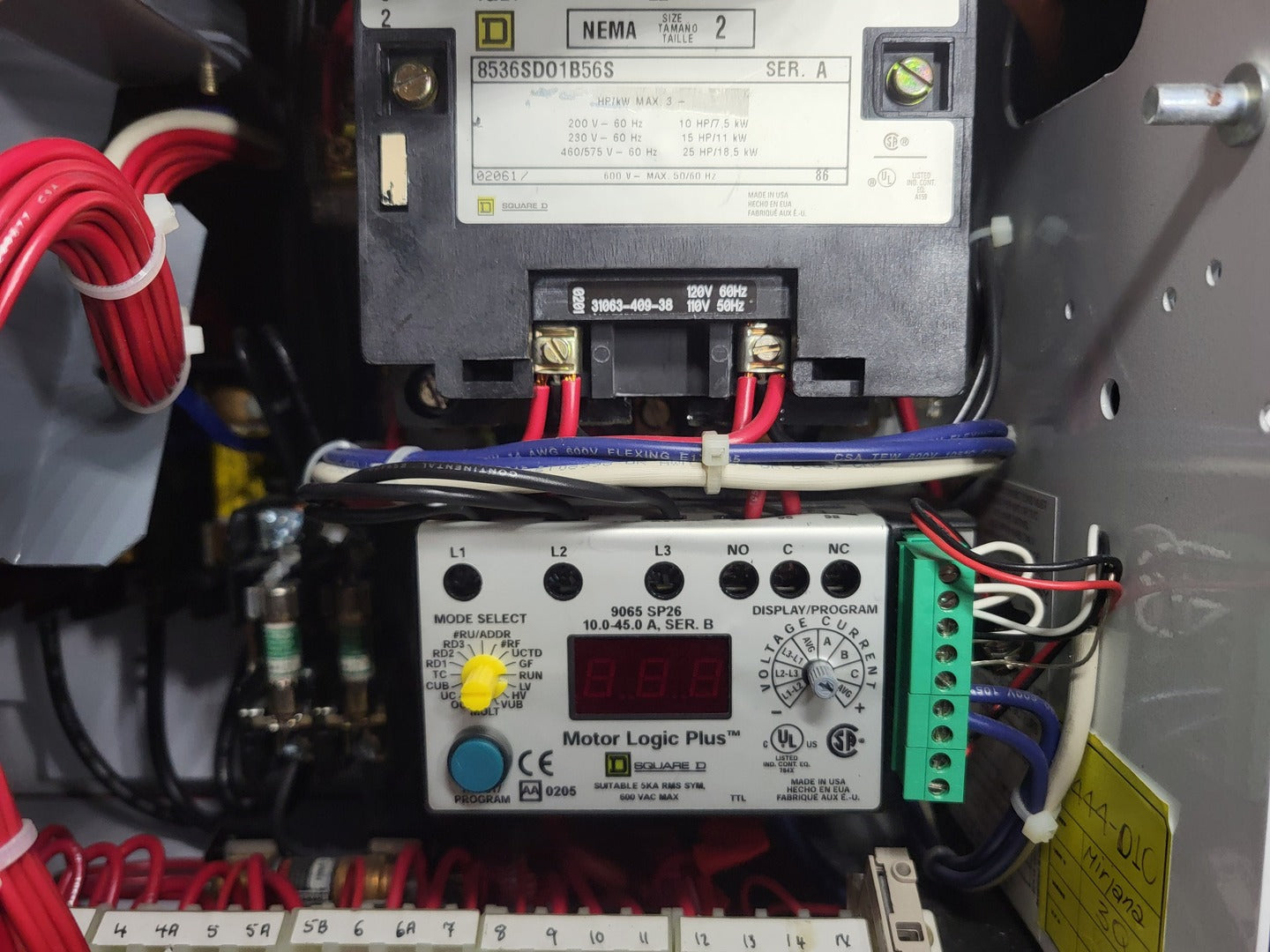

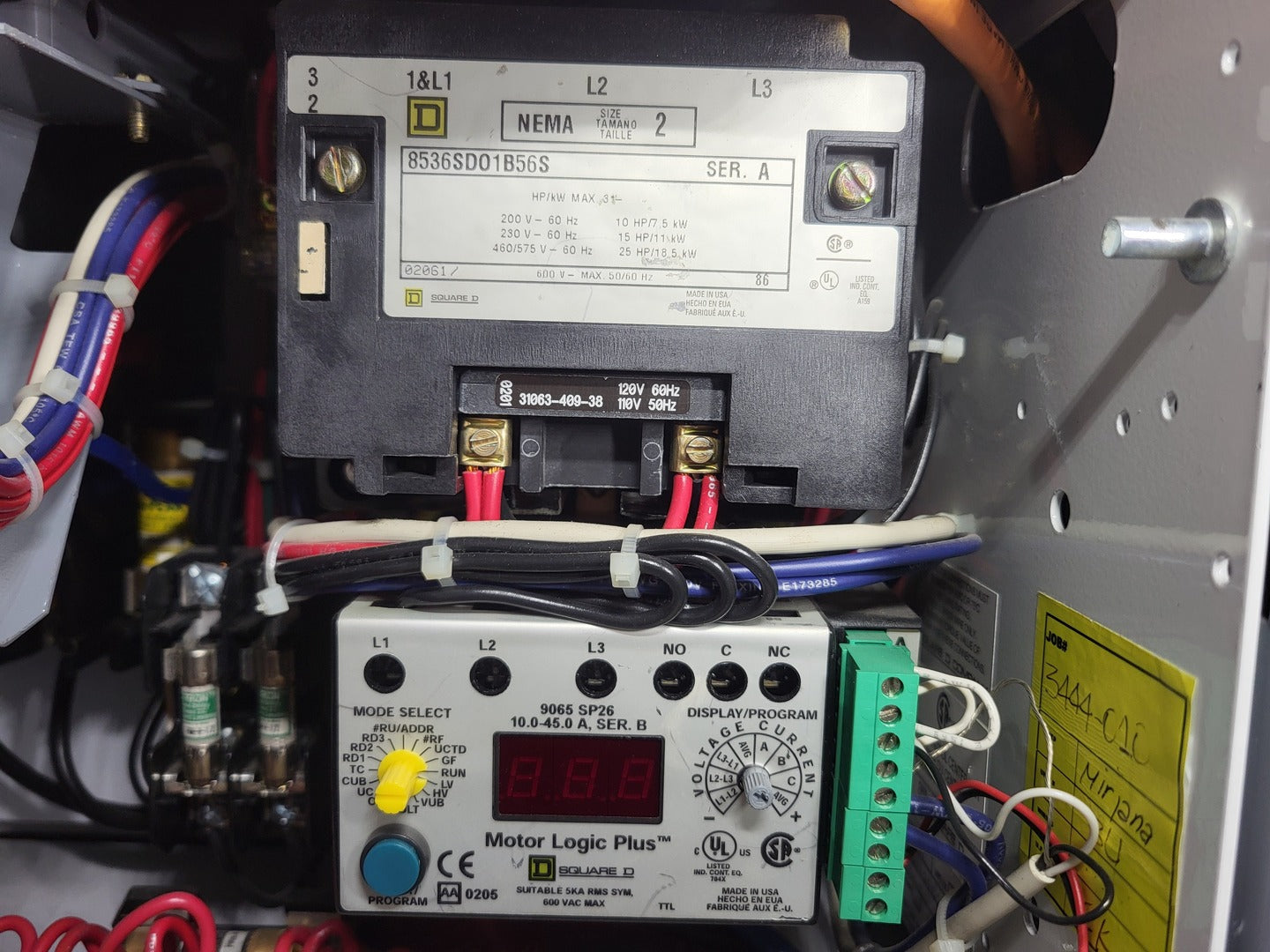

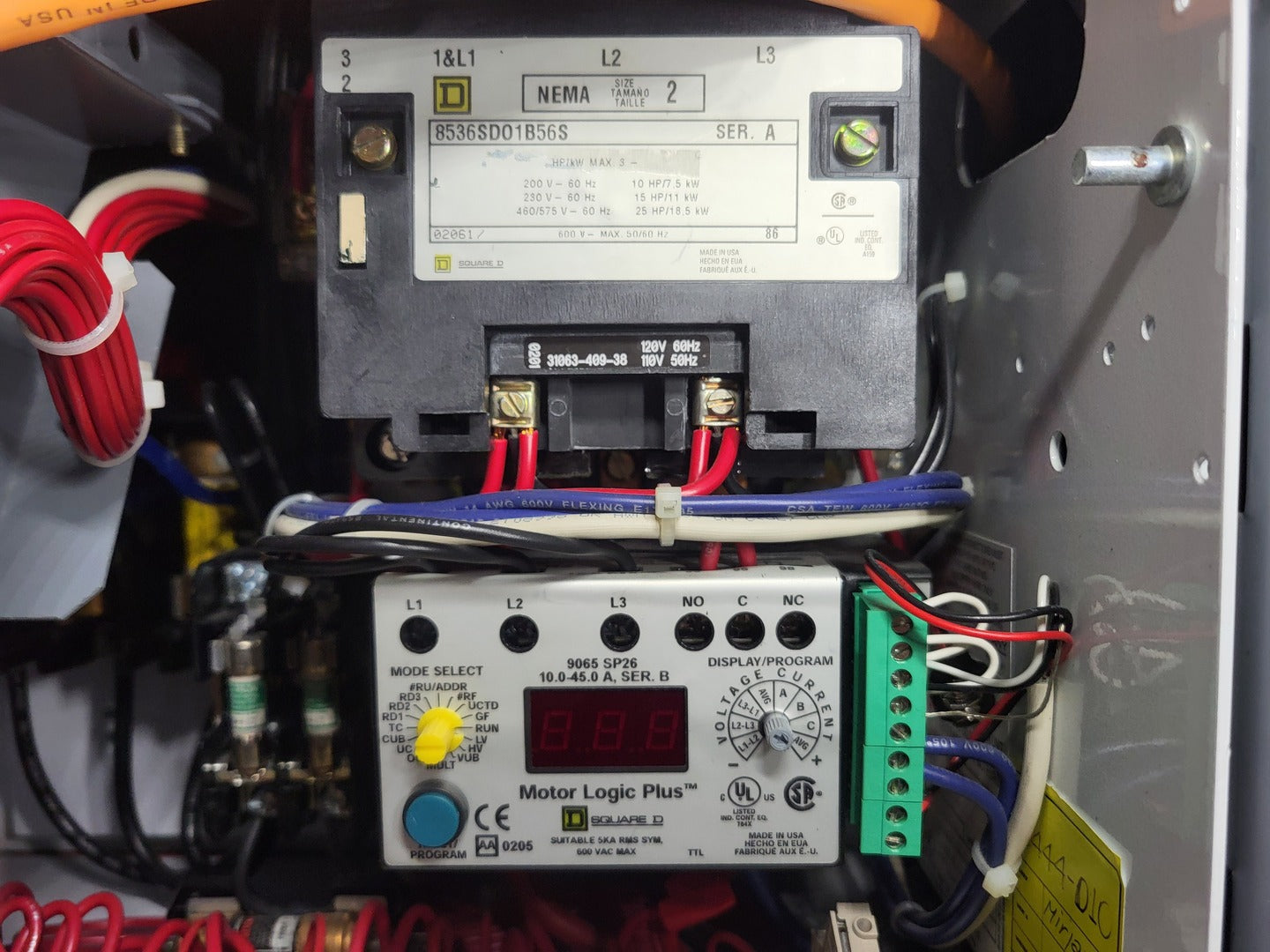

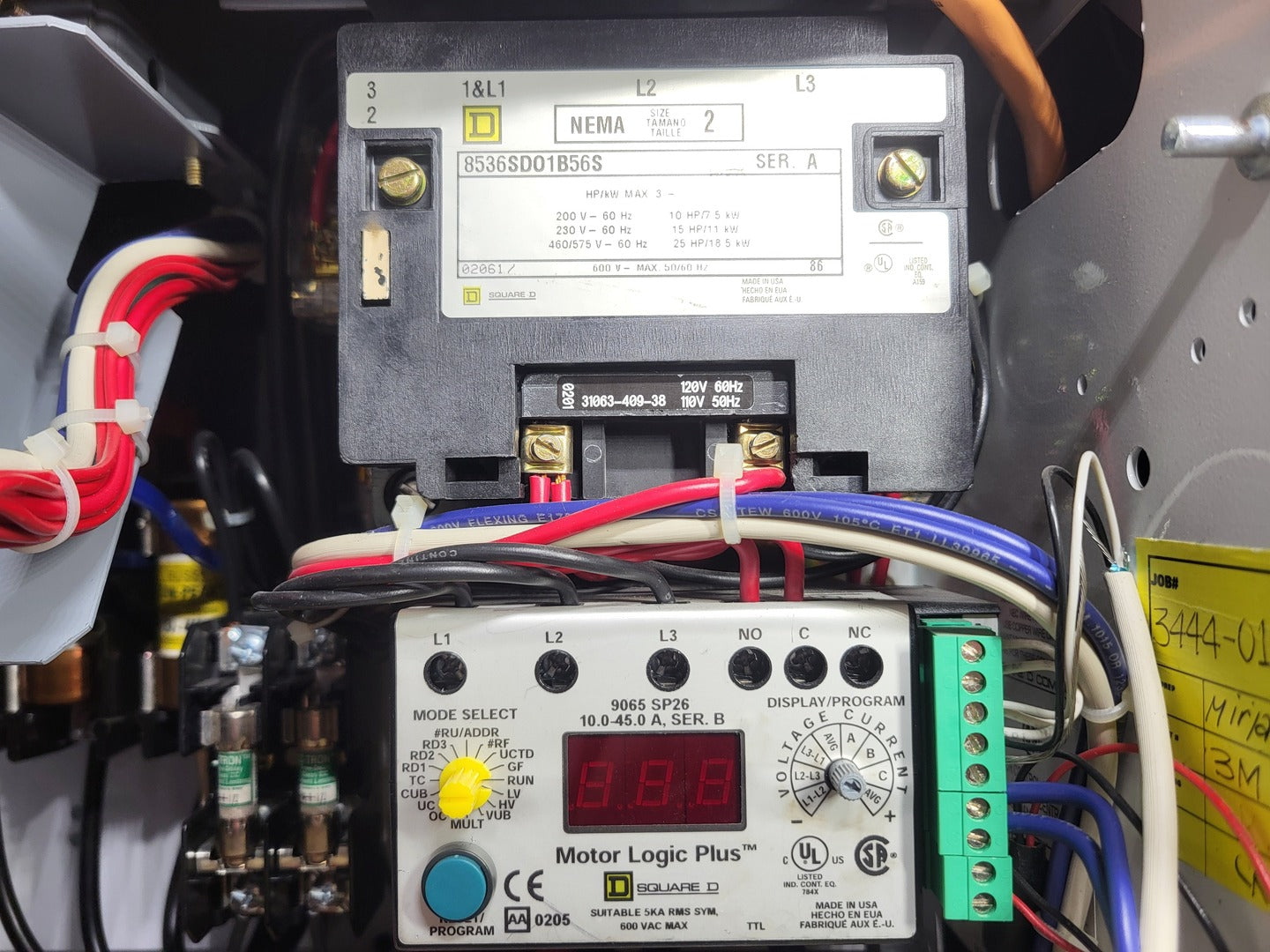

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max

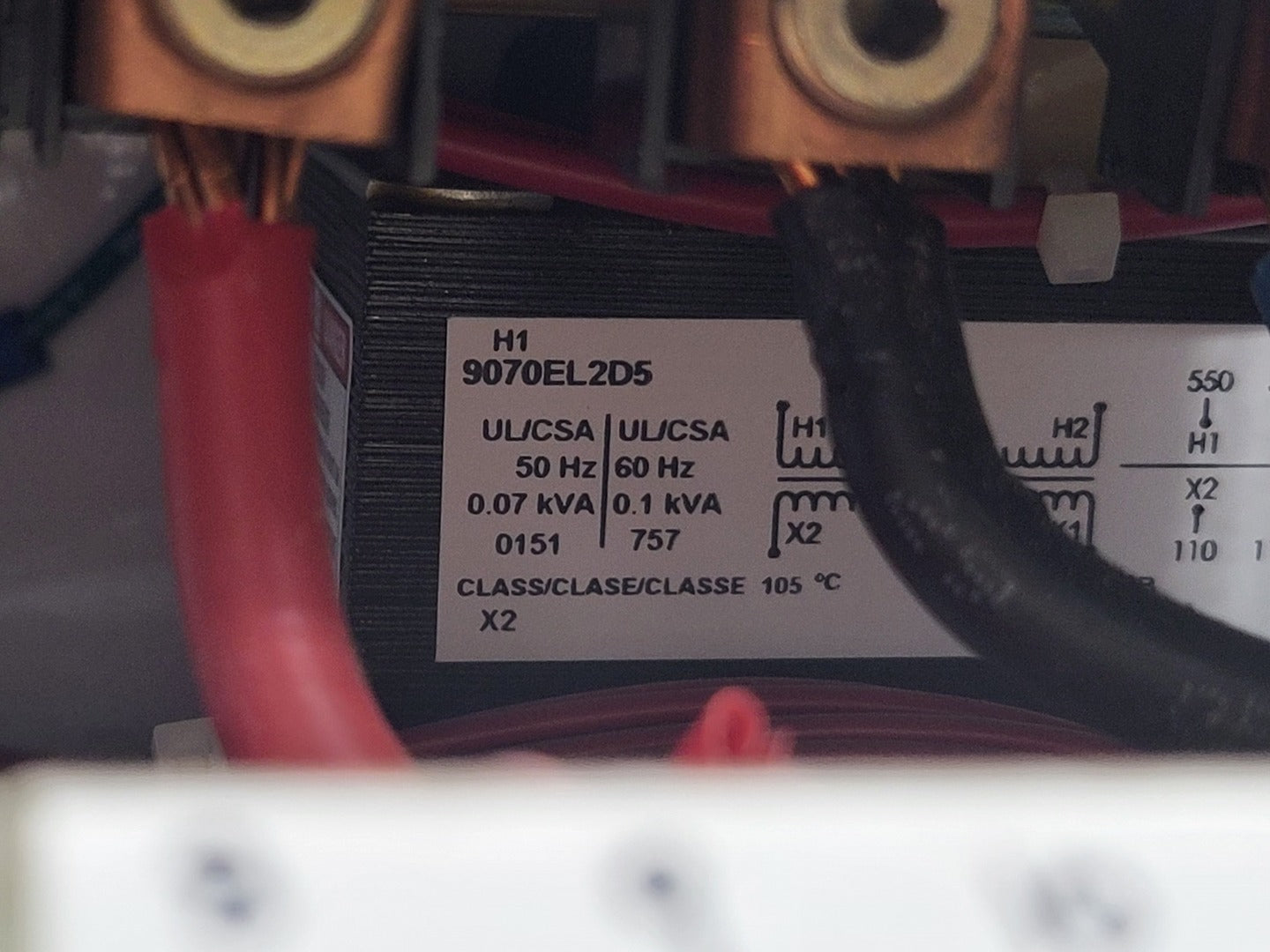

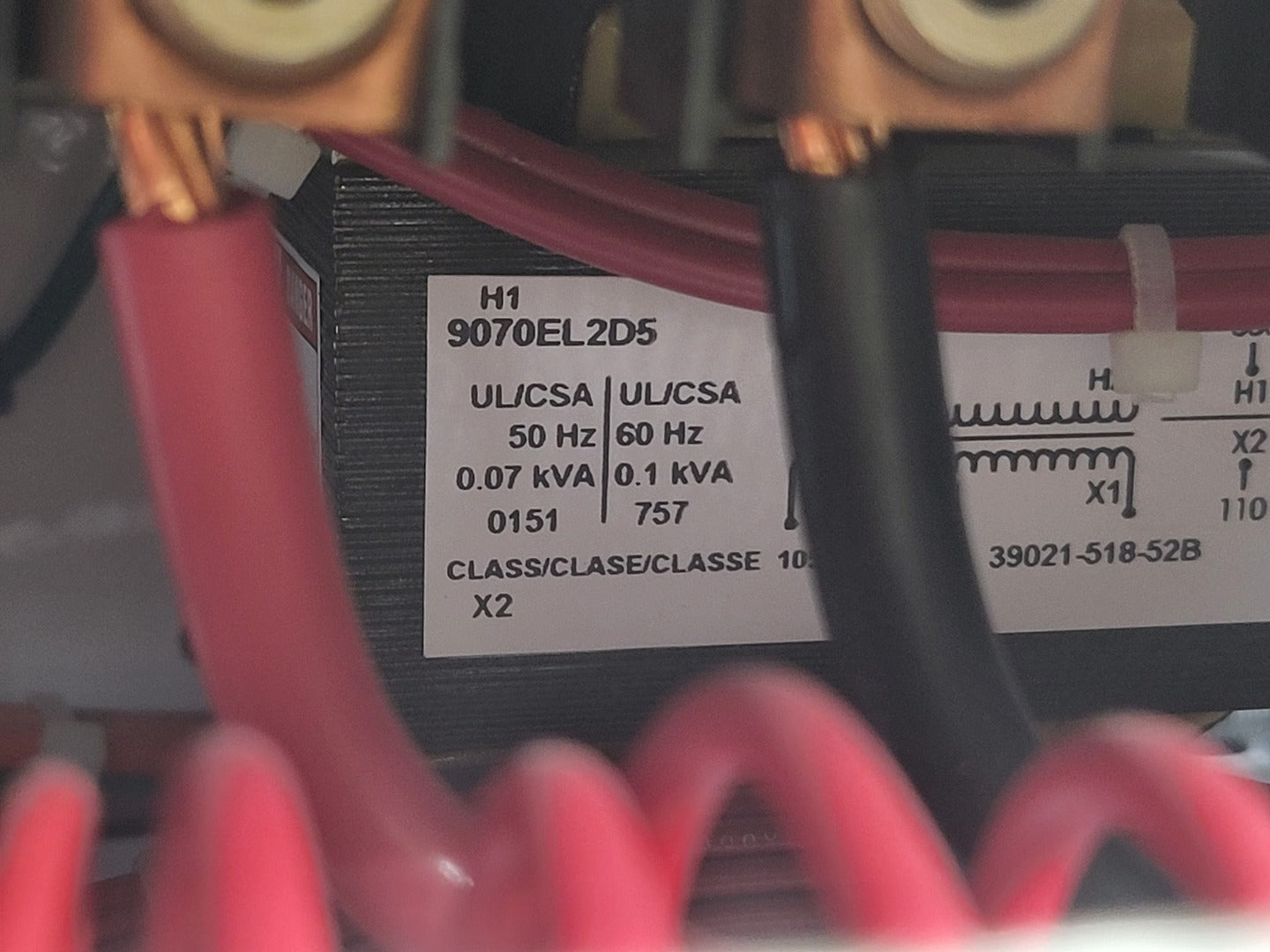

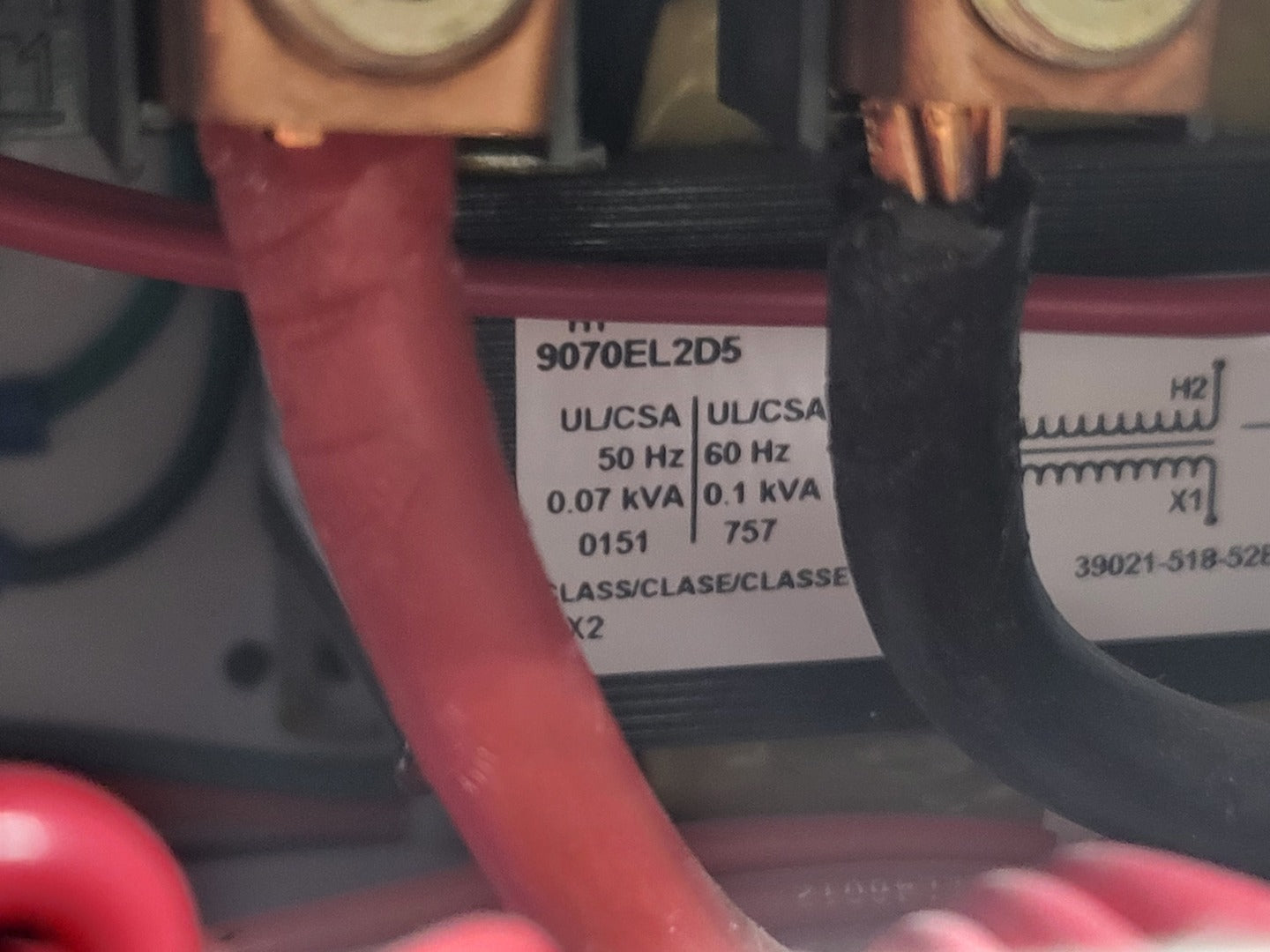

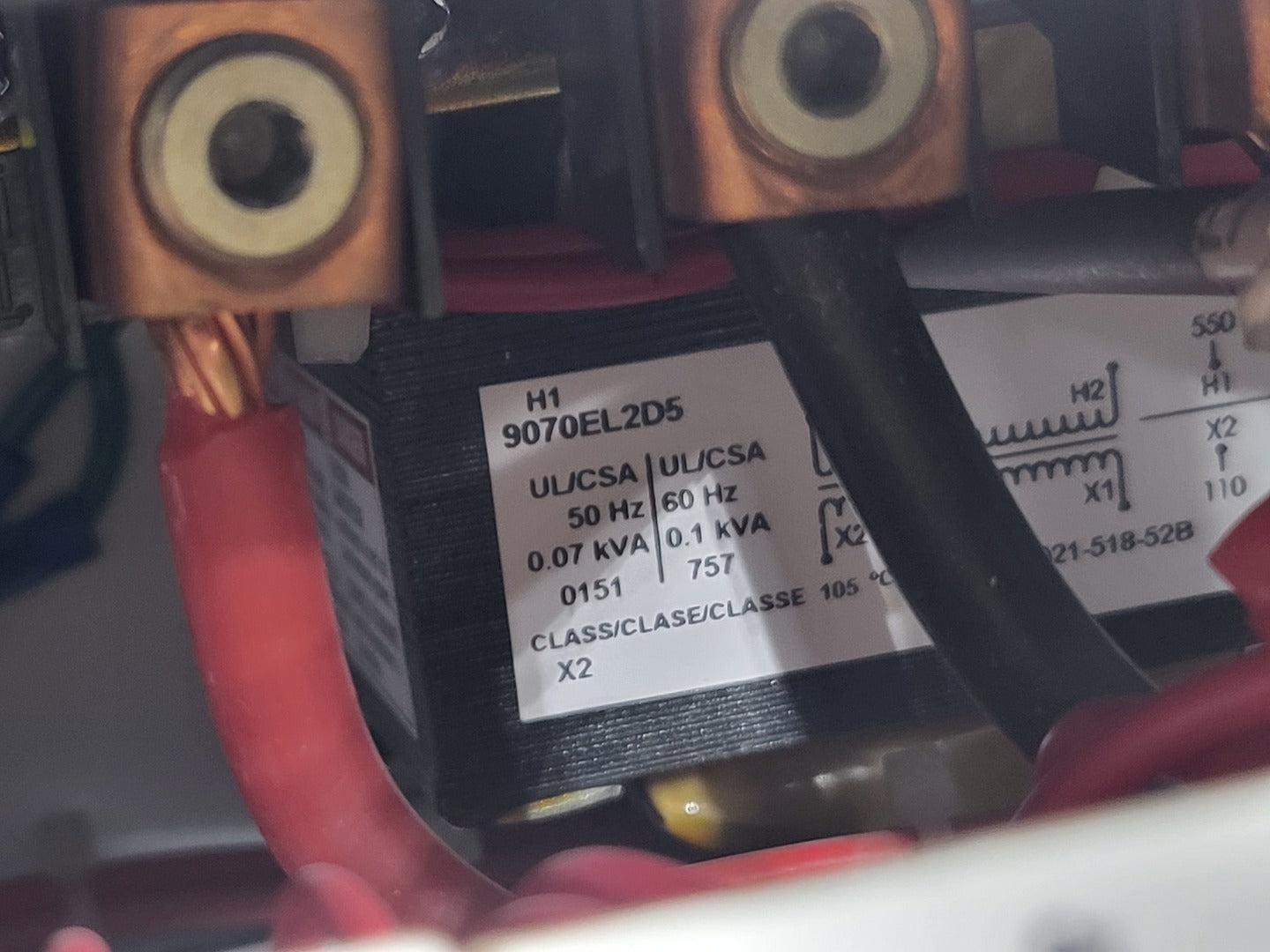

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

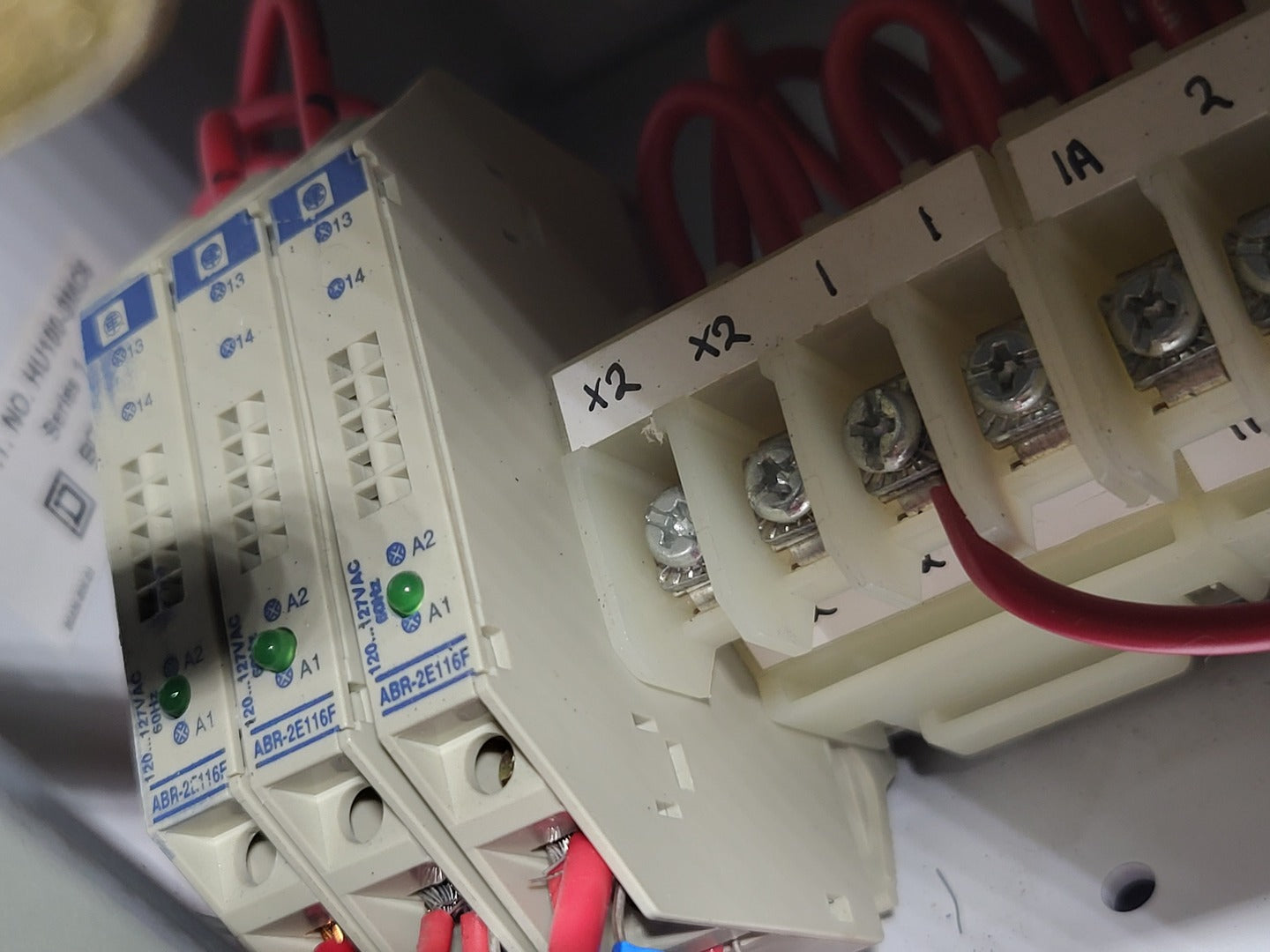

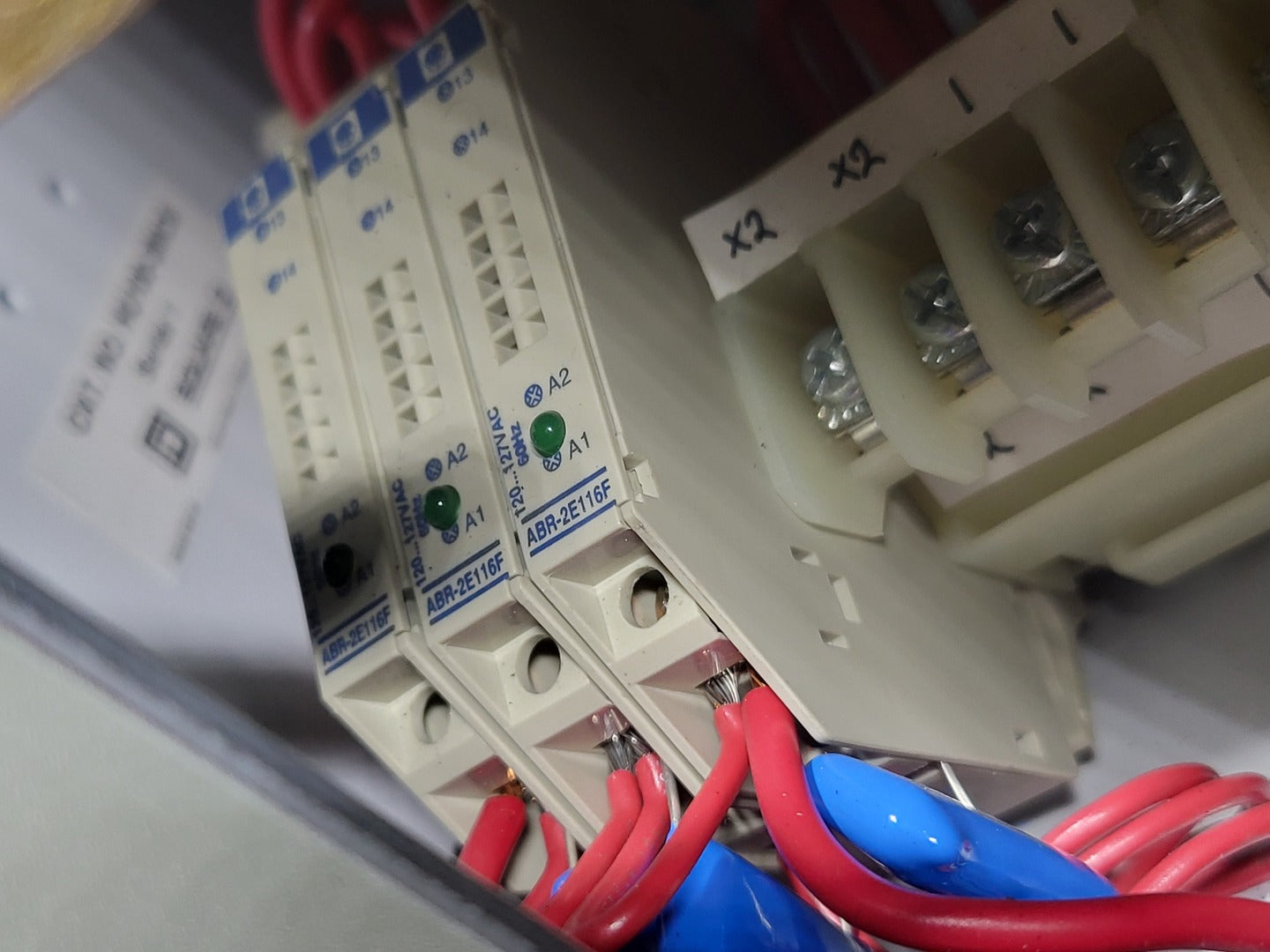

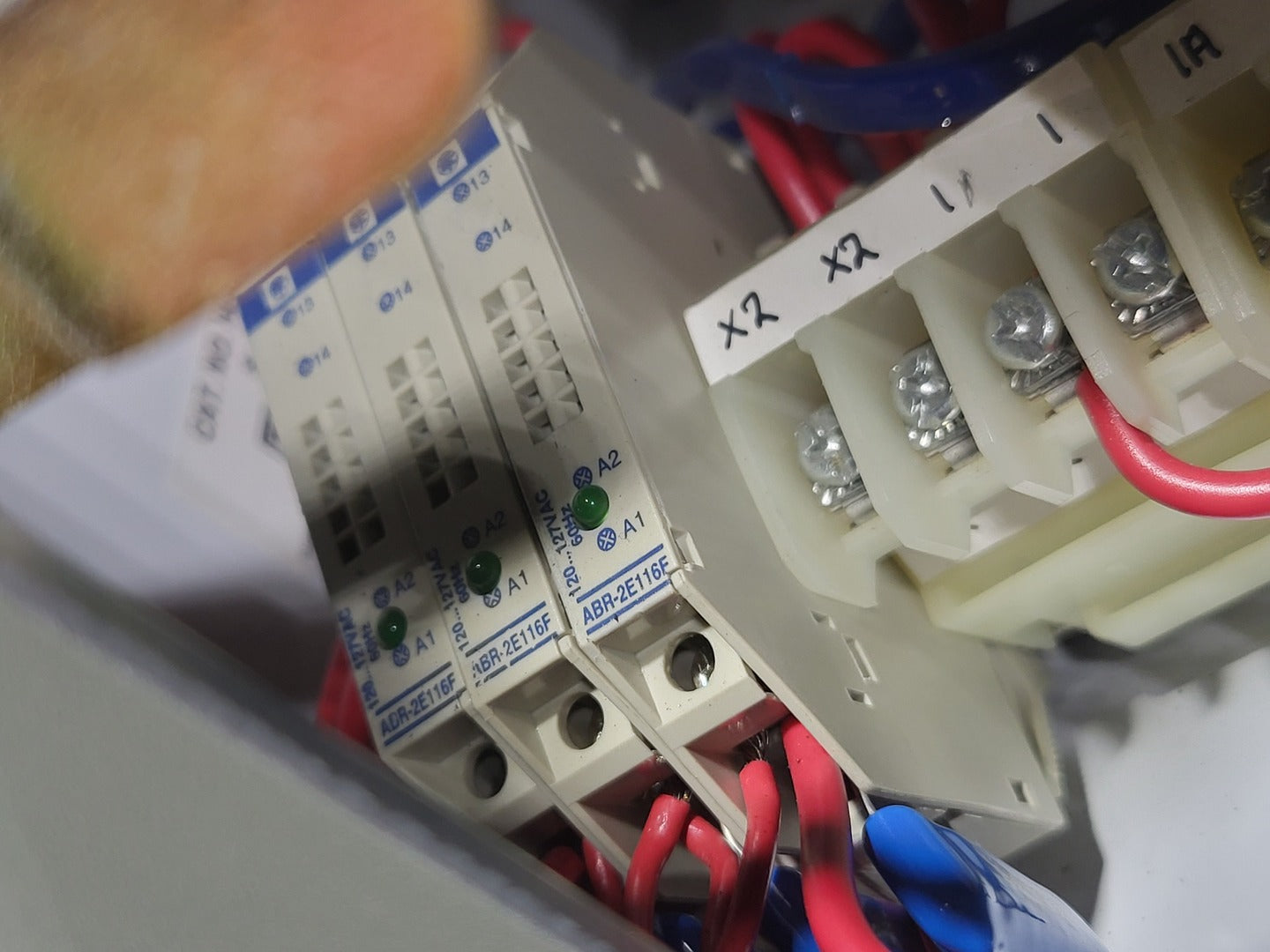

  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

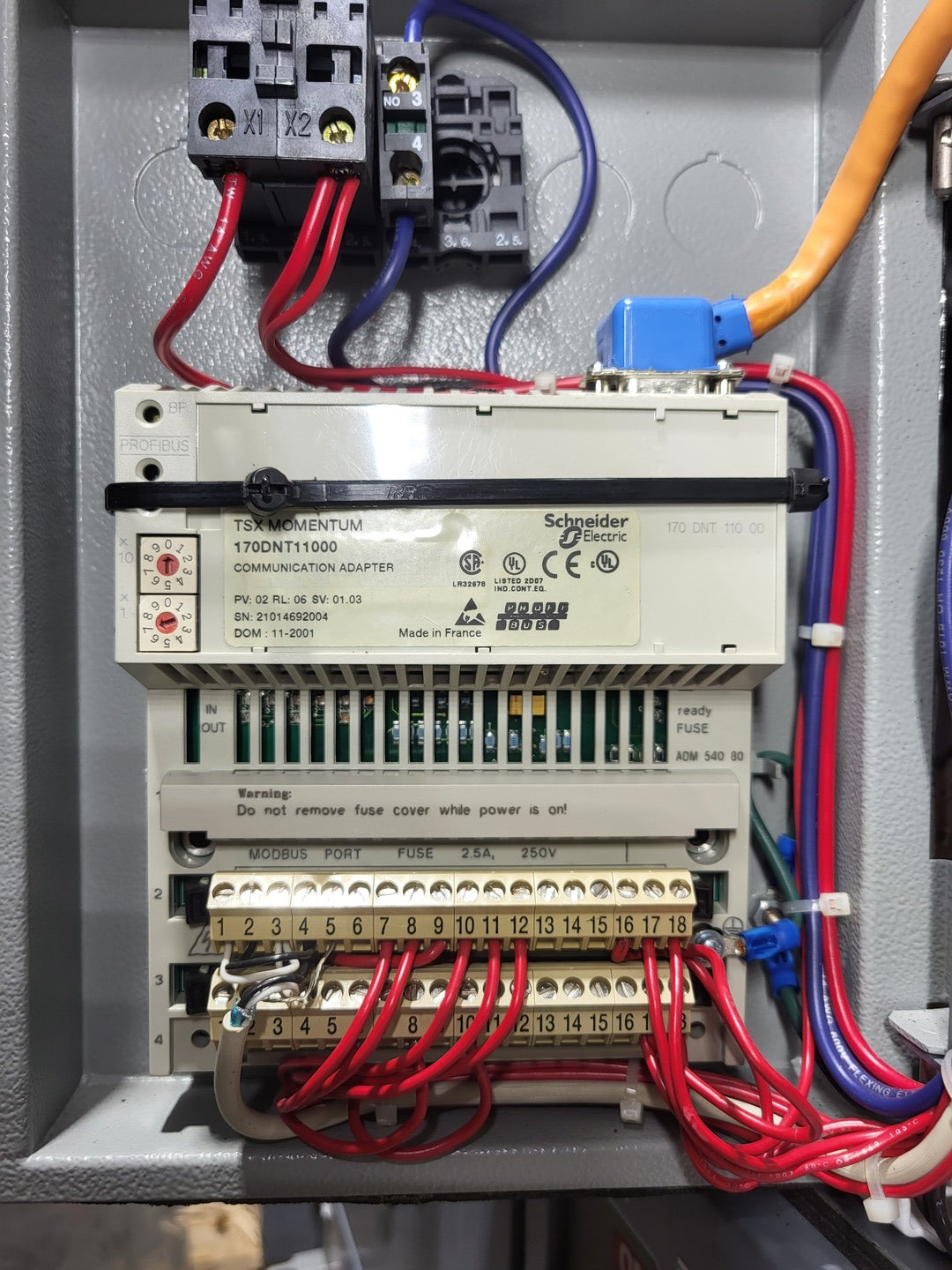

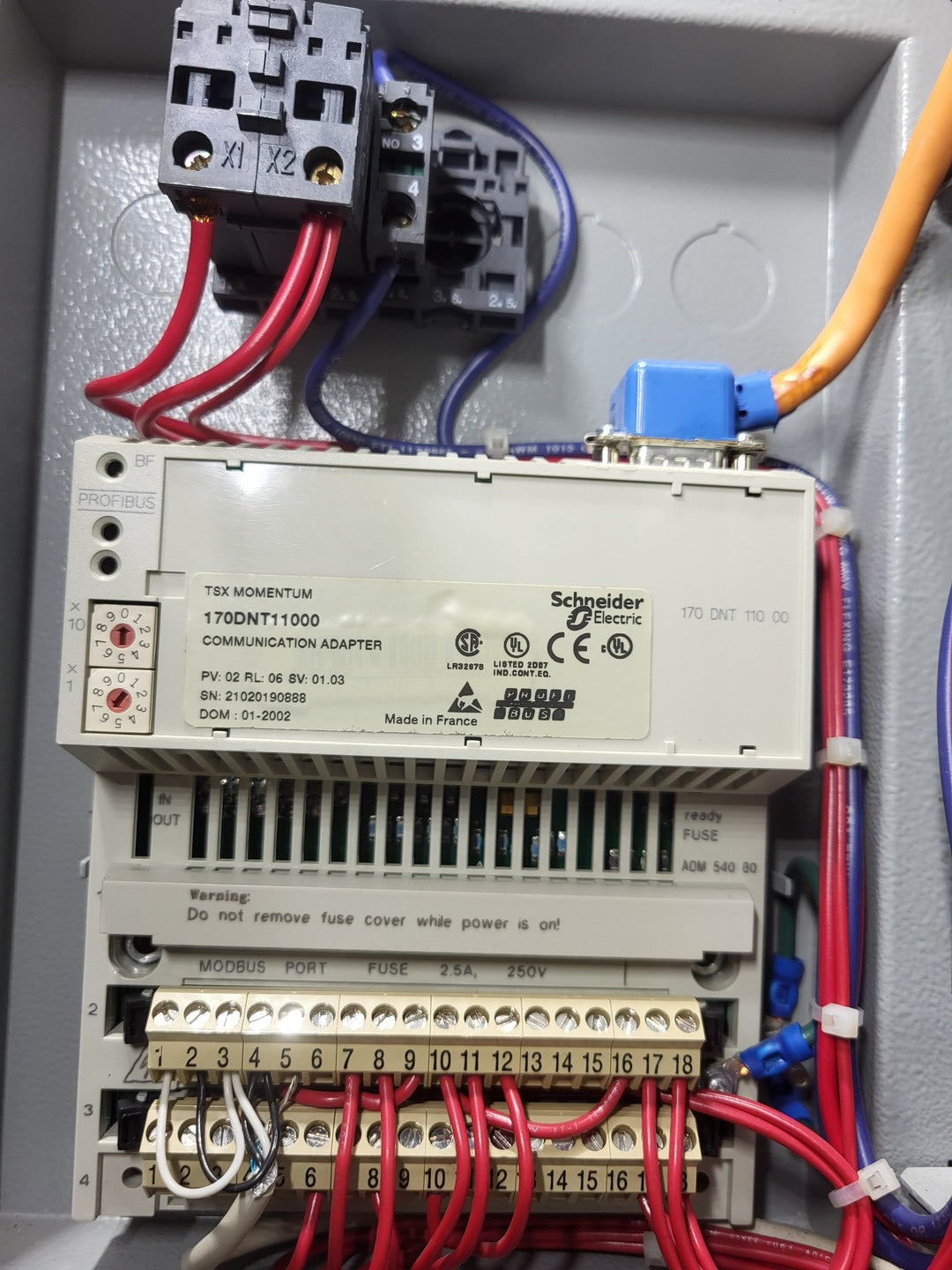

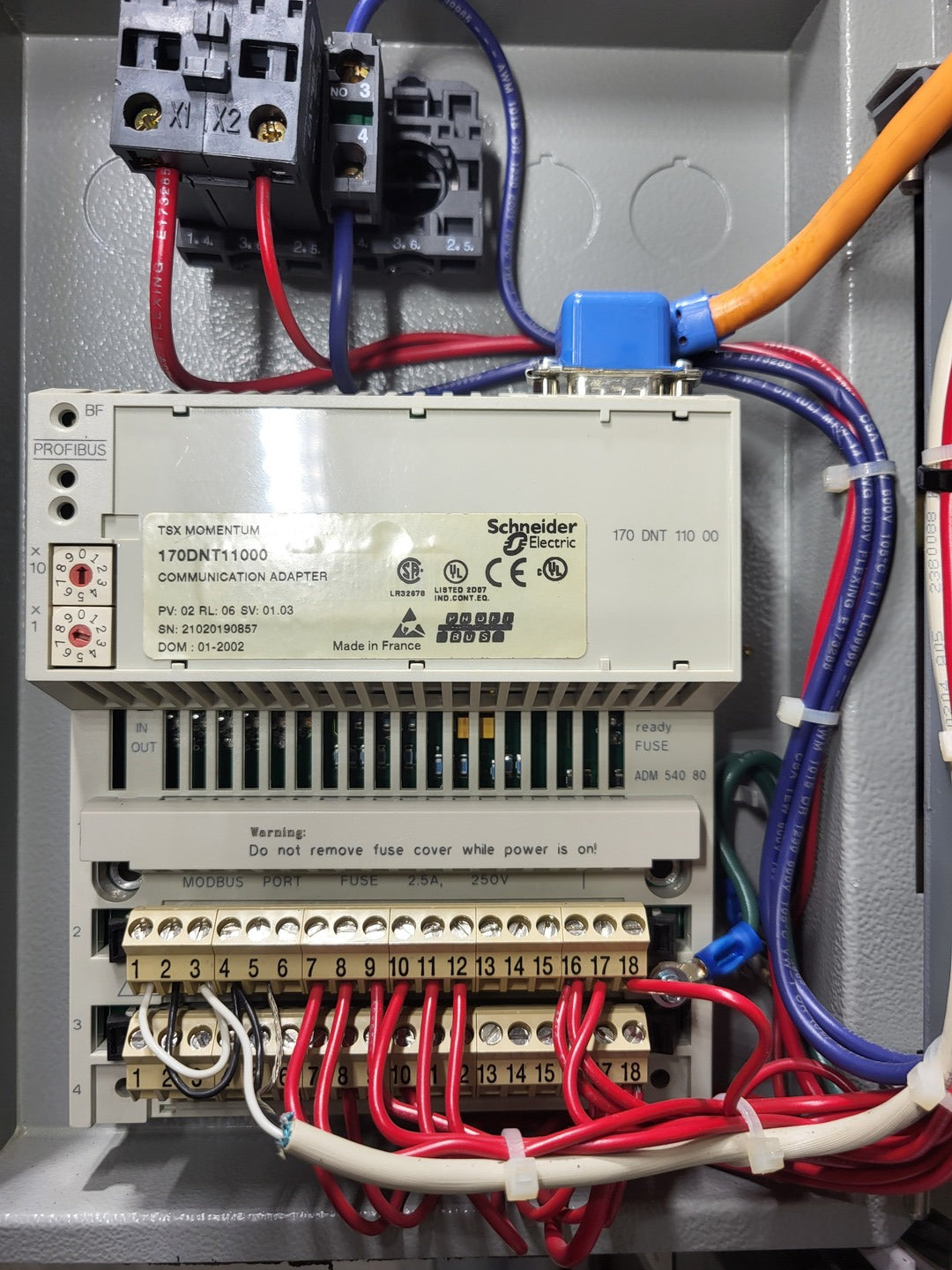

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

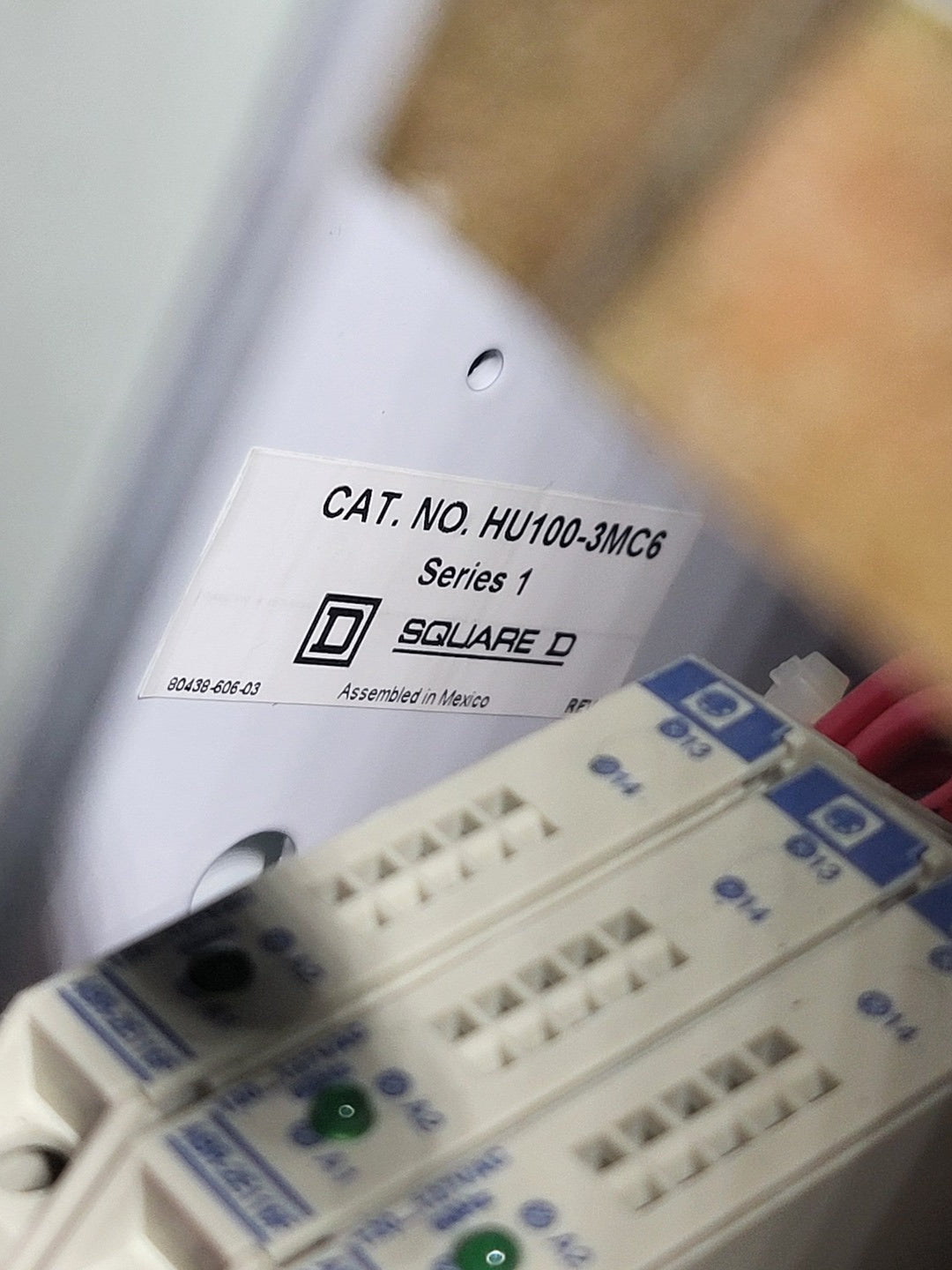

  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

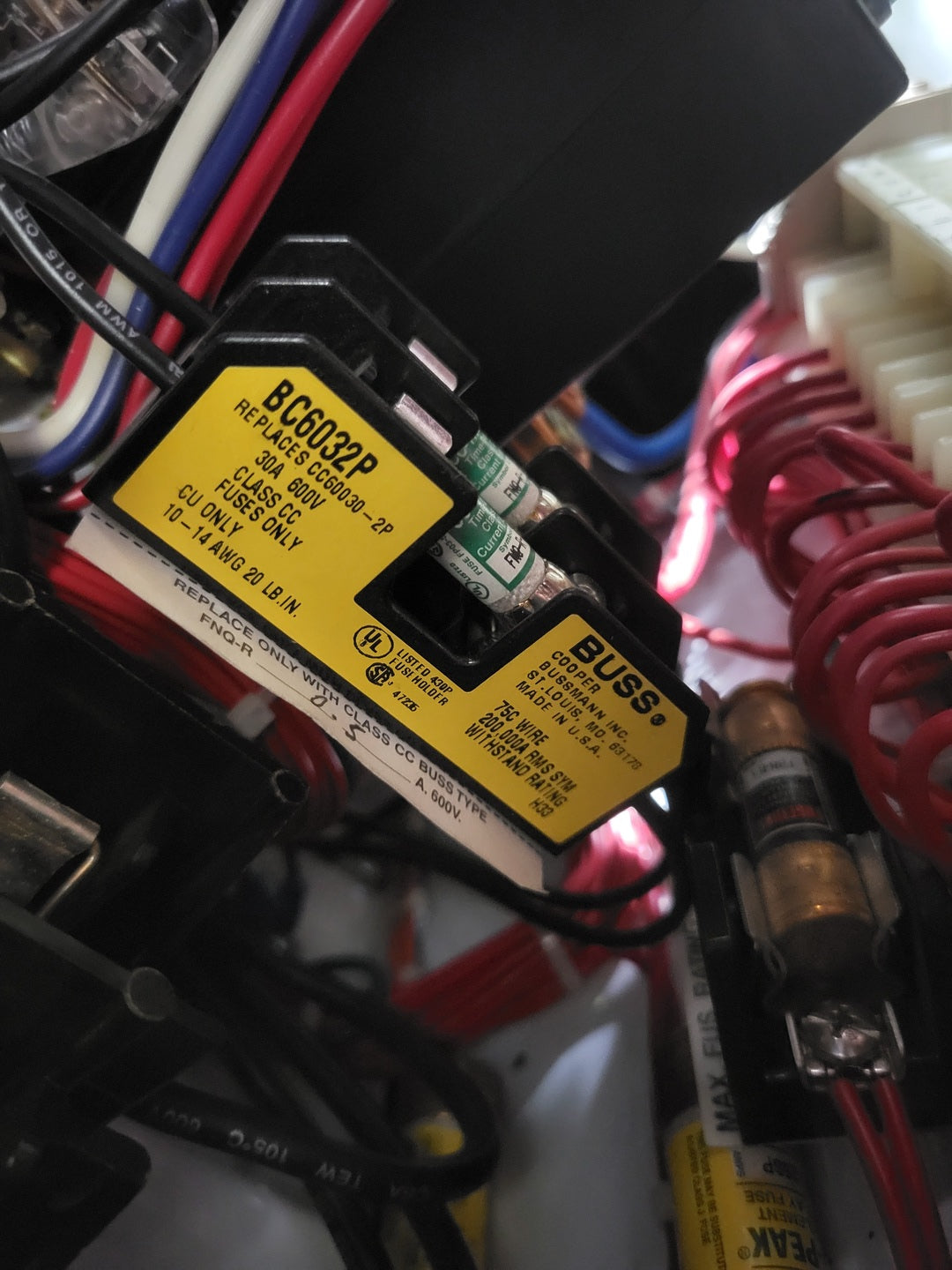

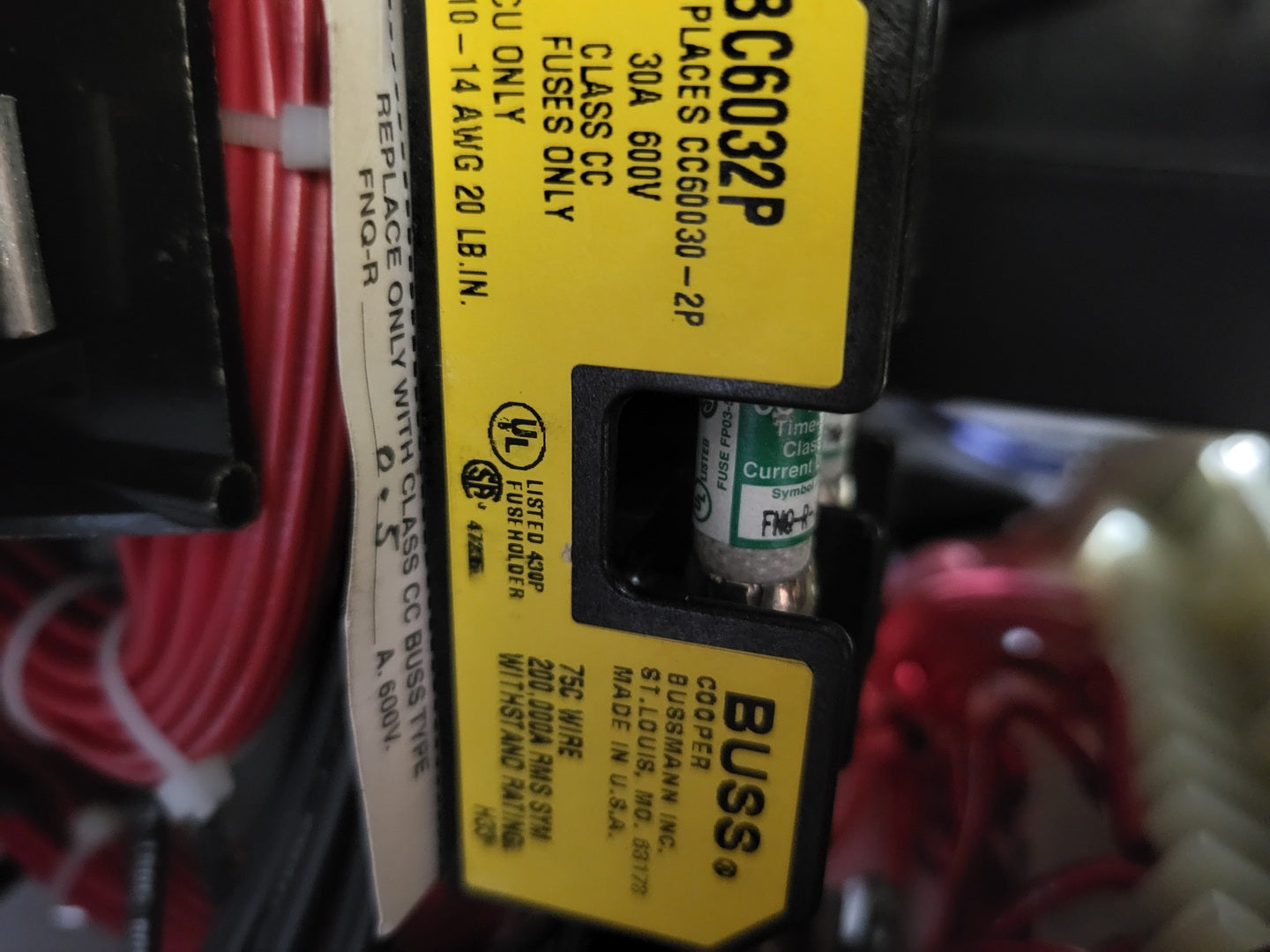

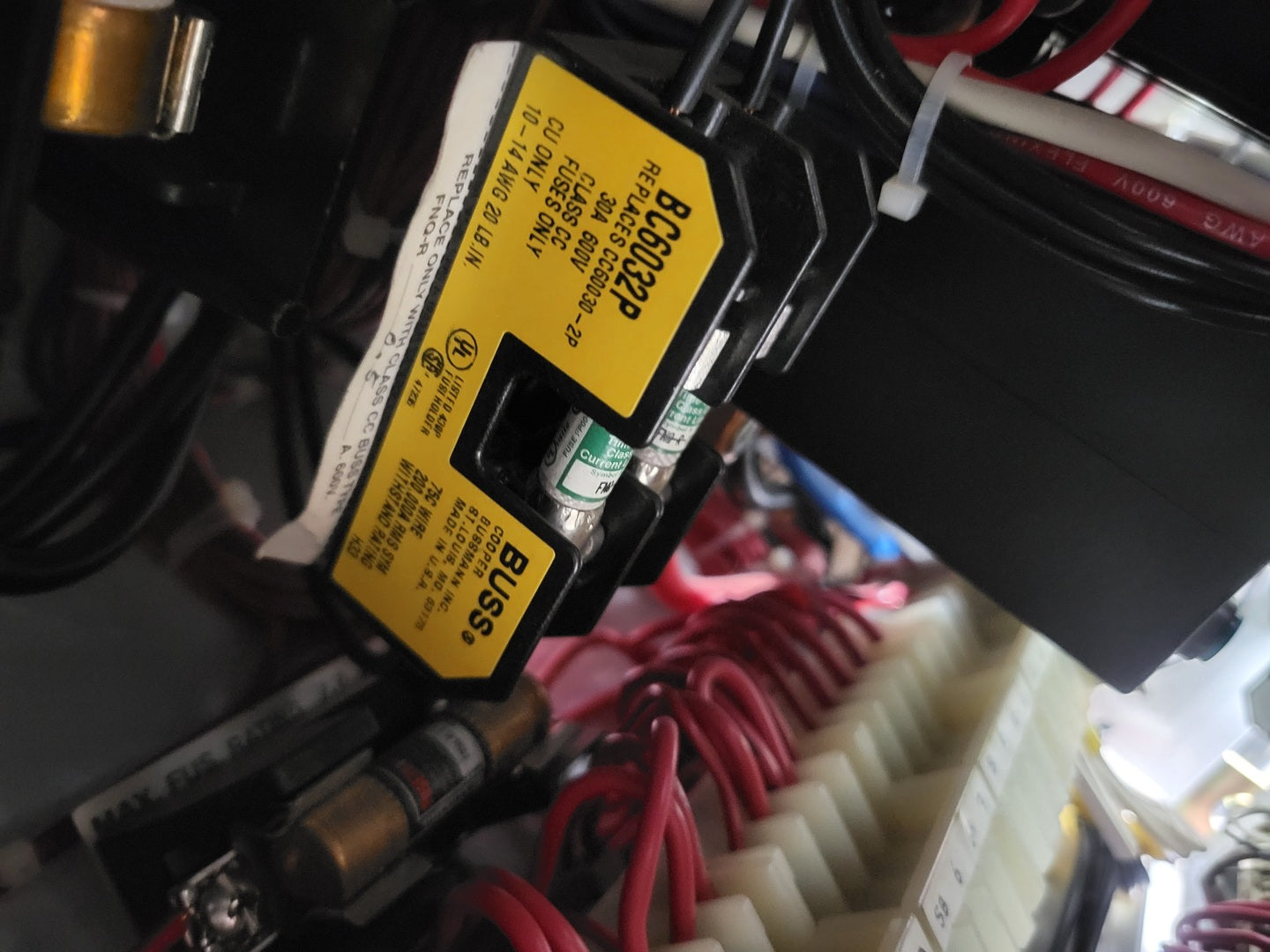

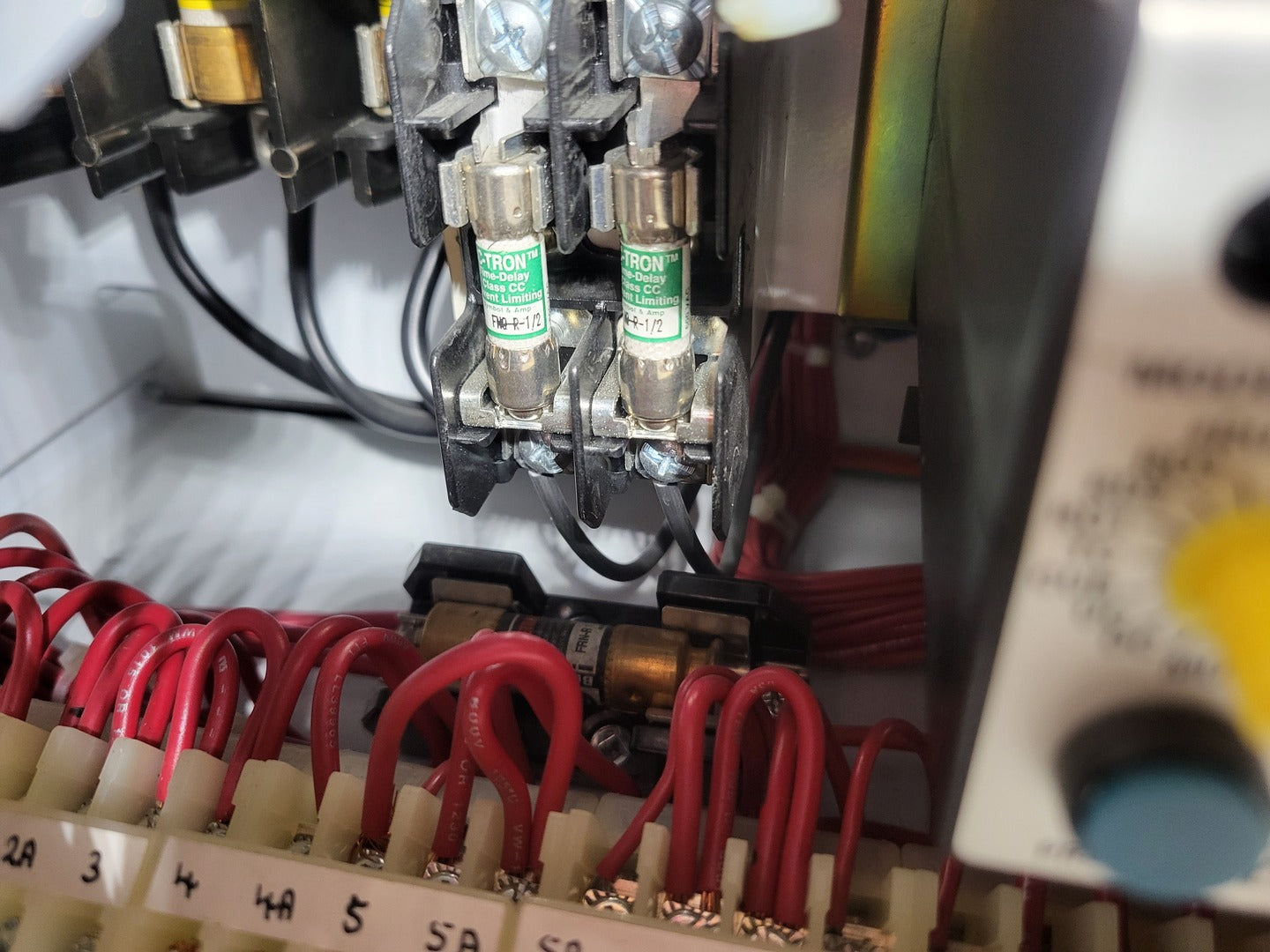

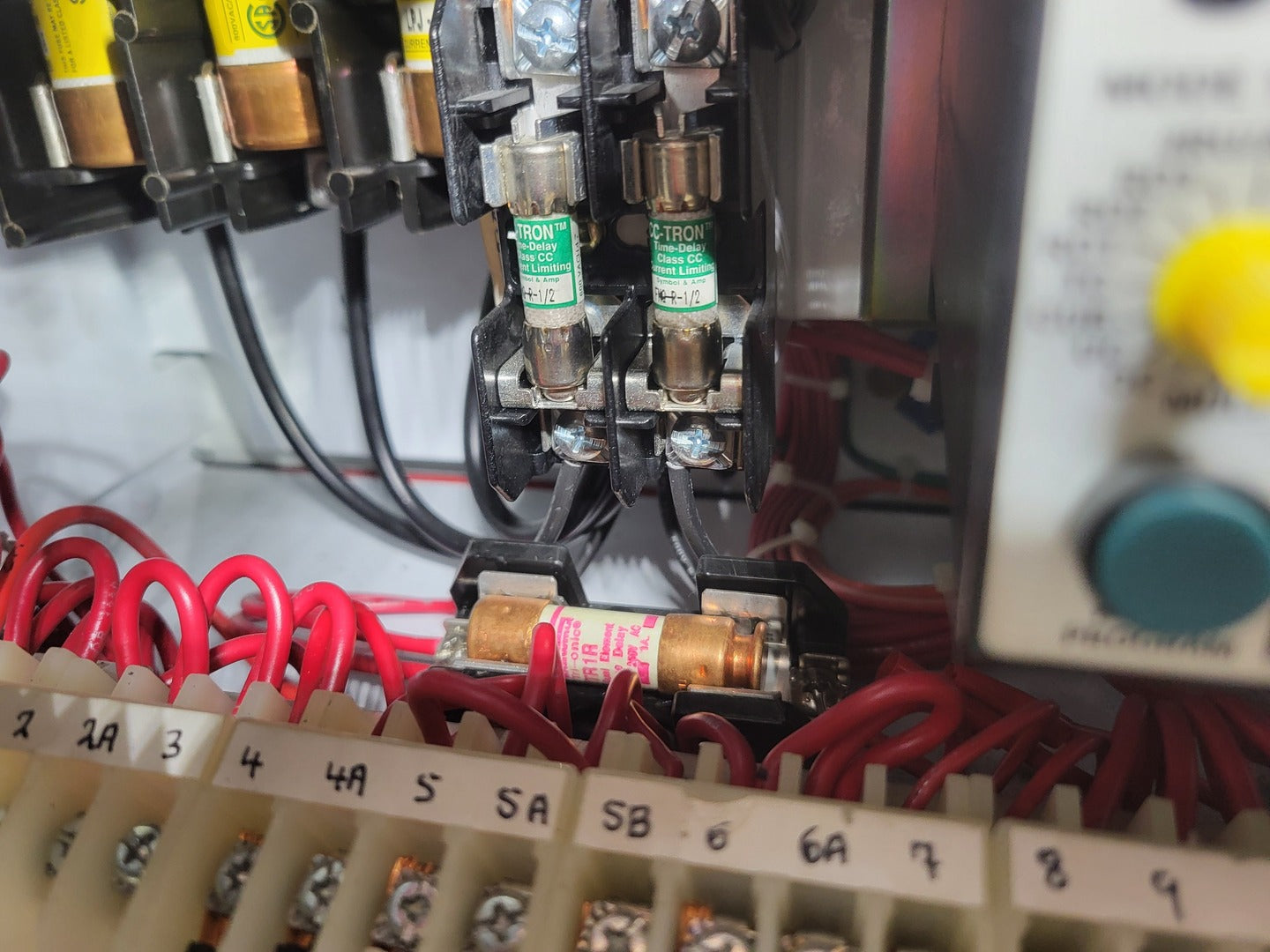

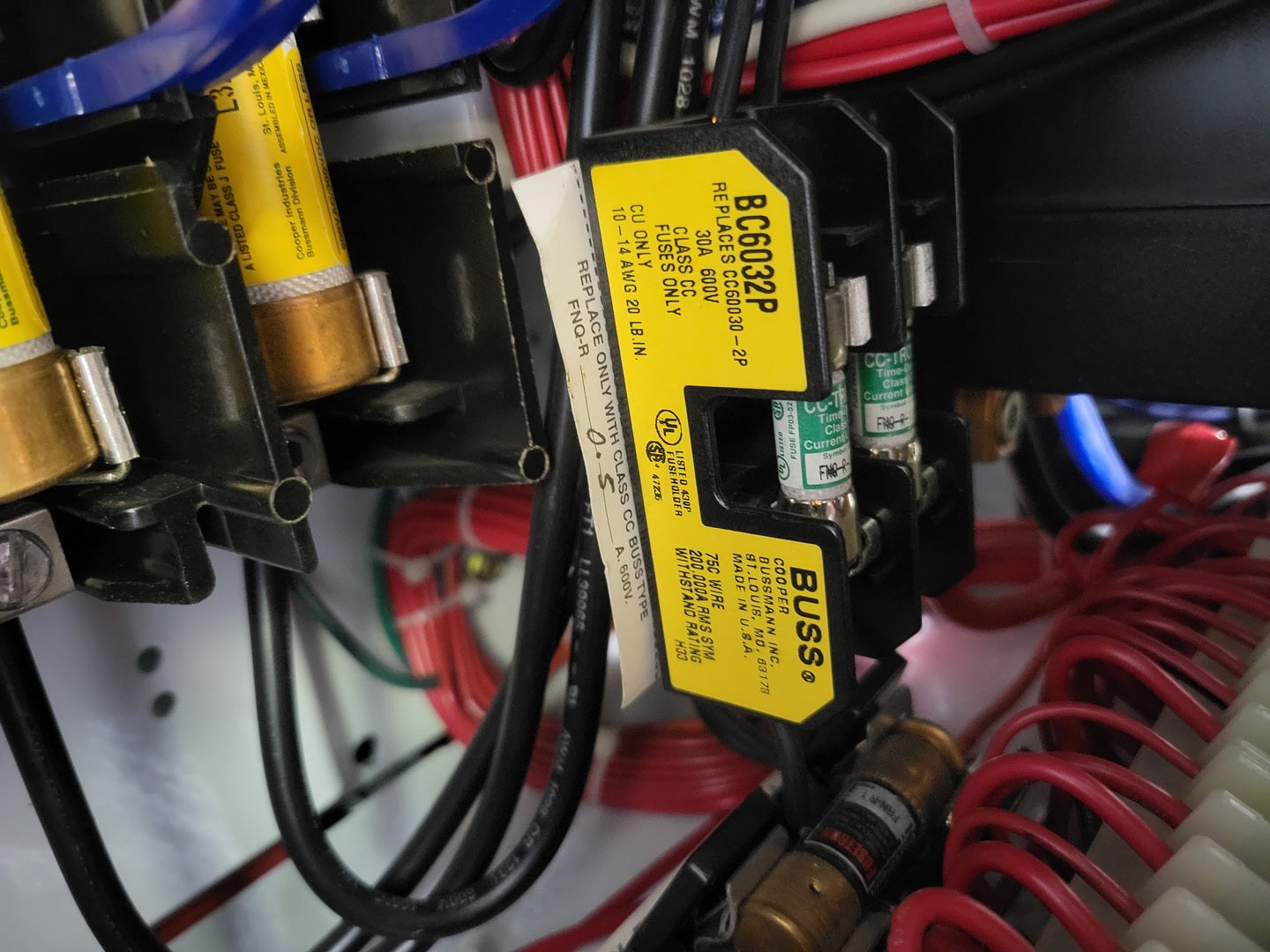

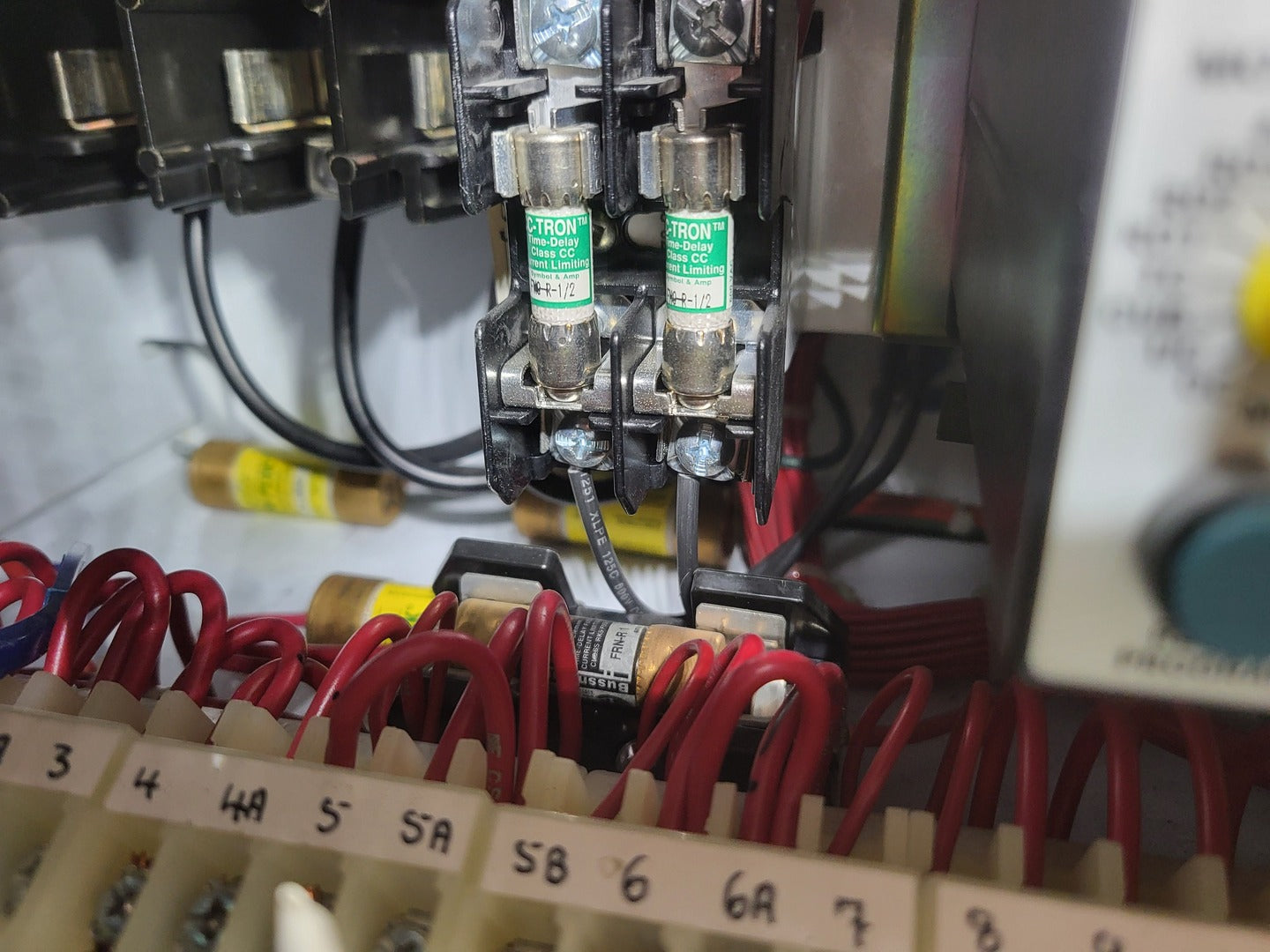

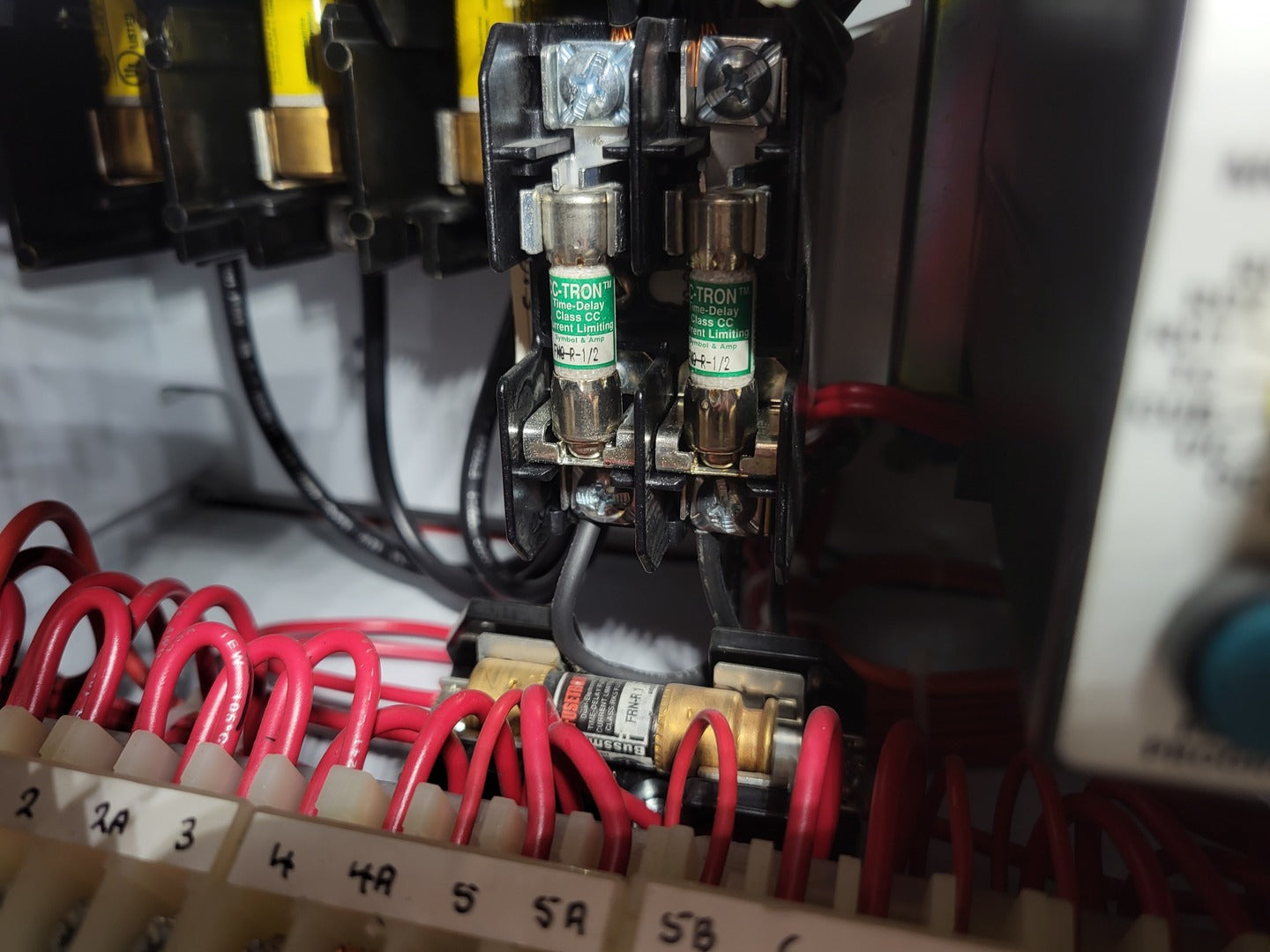

  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
  8. 1 x Bussmann Fusetron fuse FRN-R 1

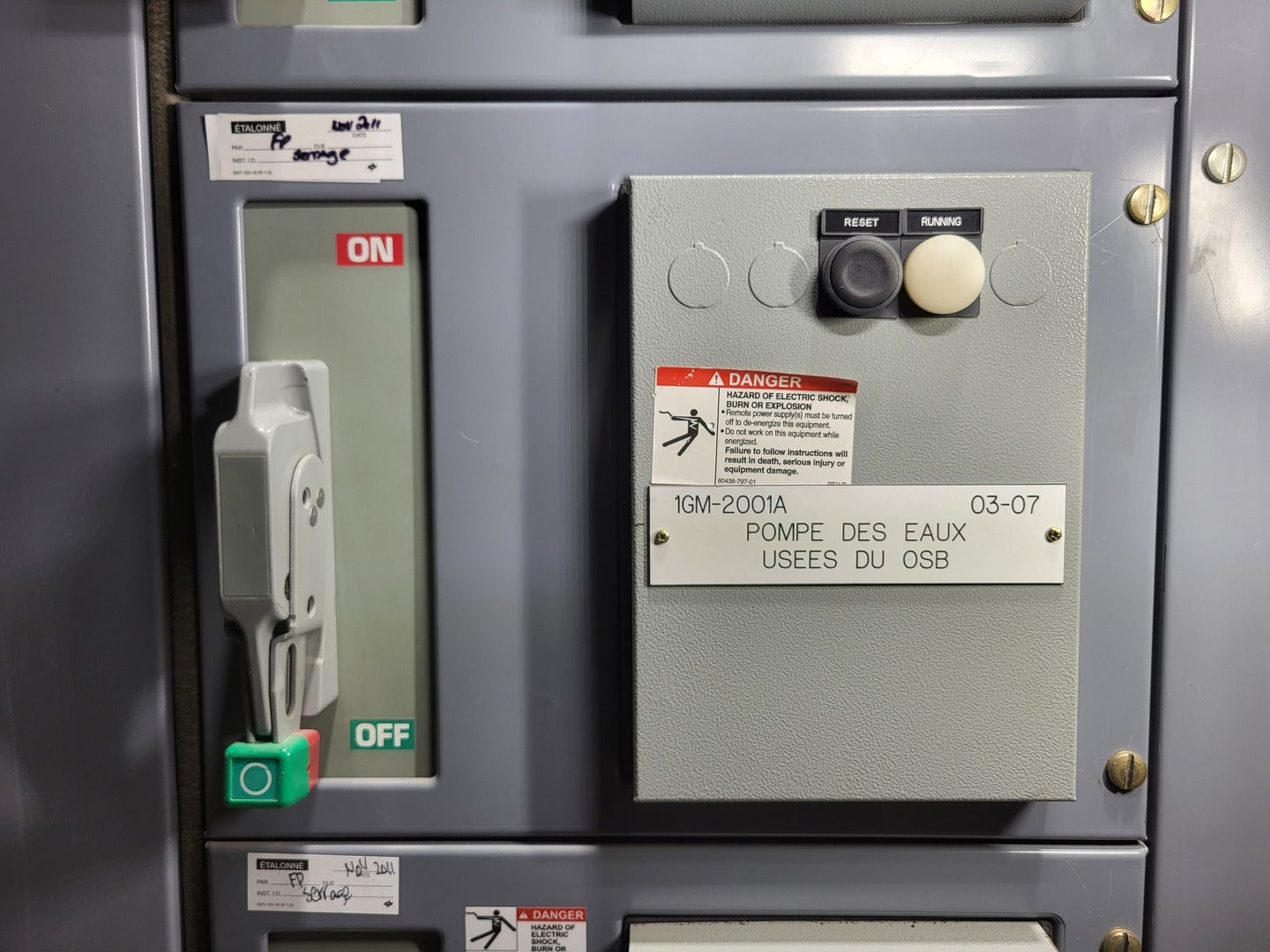

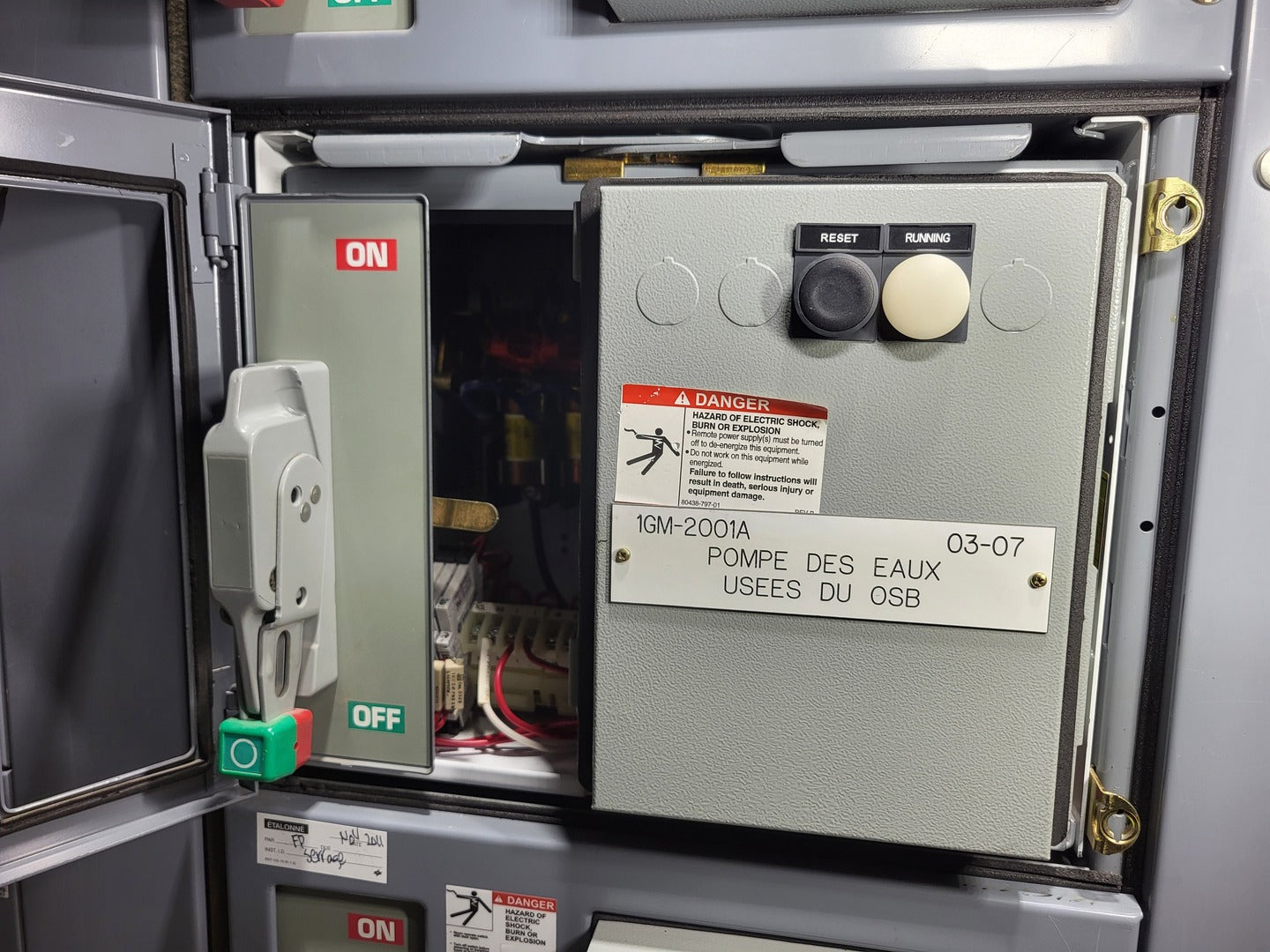

Bucket #3 1GM-2001A

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

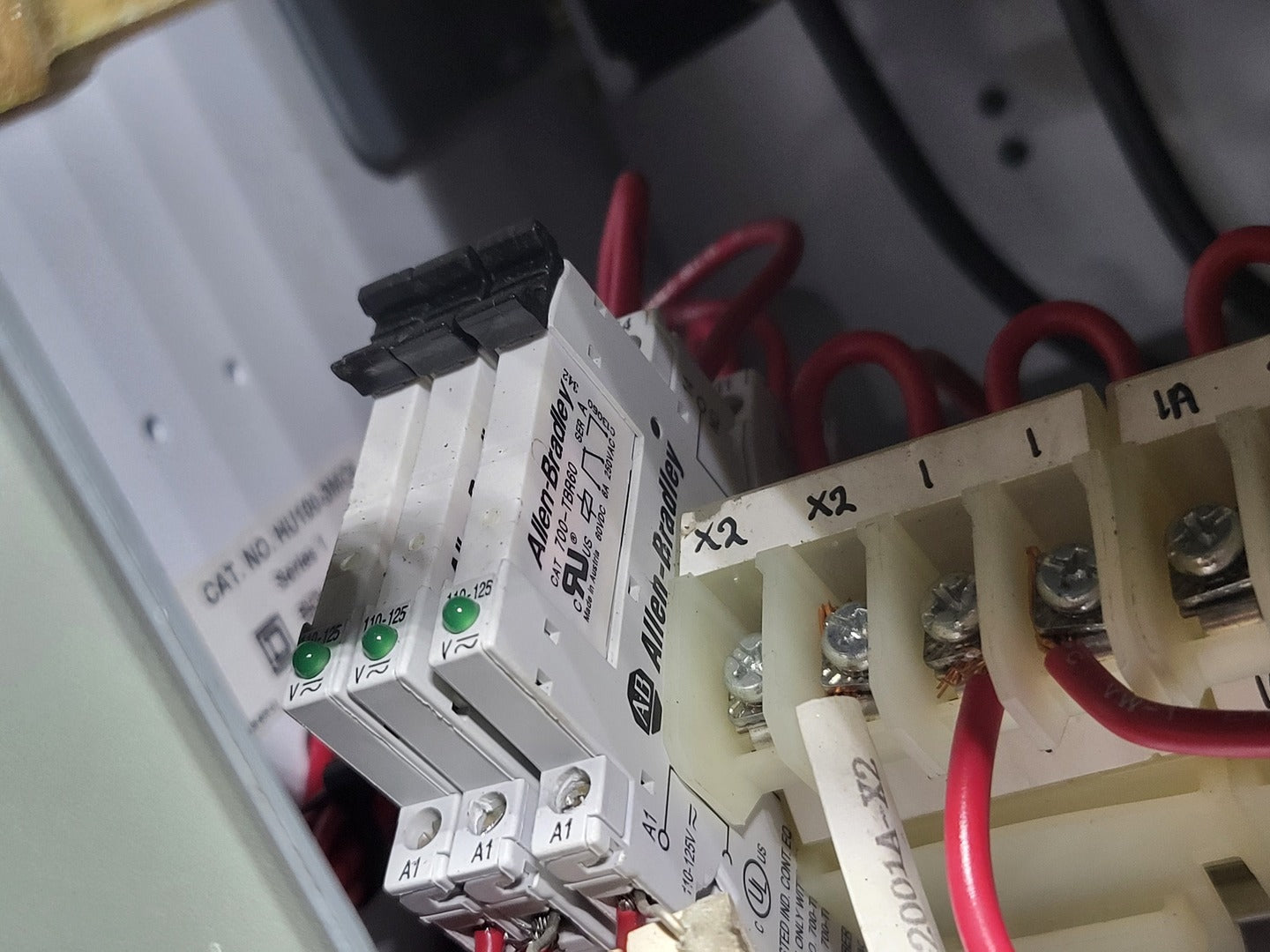

  4. 3 x Allen-Bradley 700-TBR60 slim relay modules, 110-125V coil

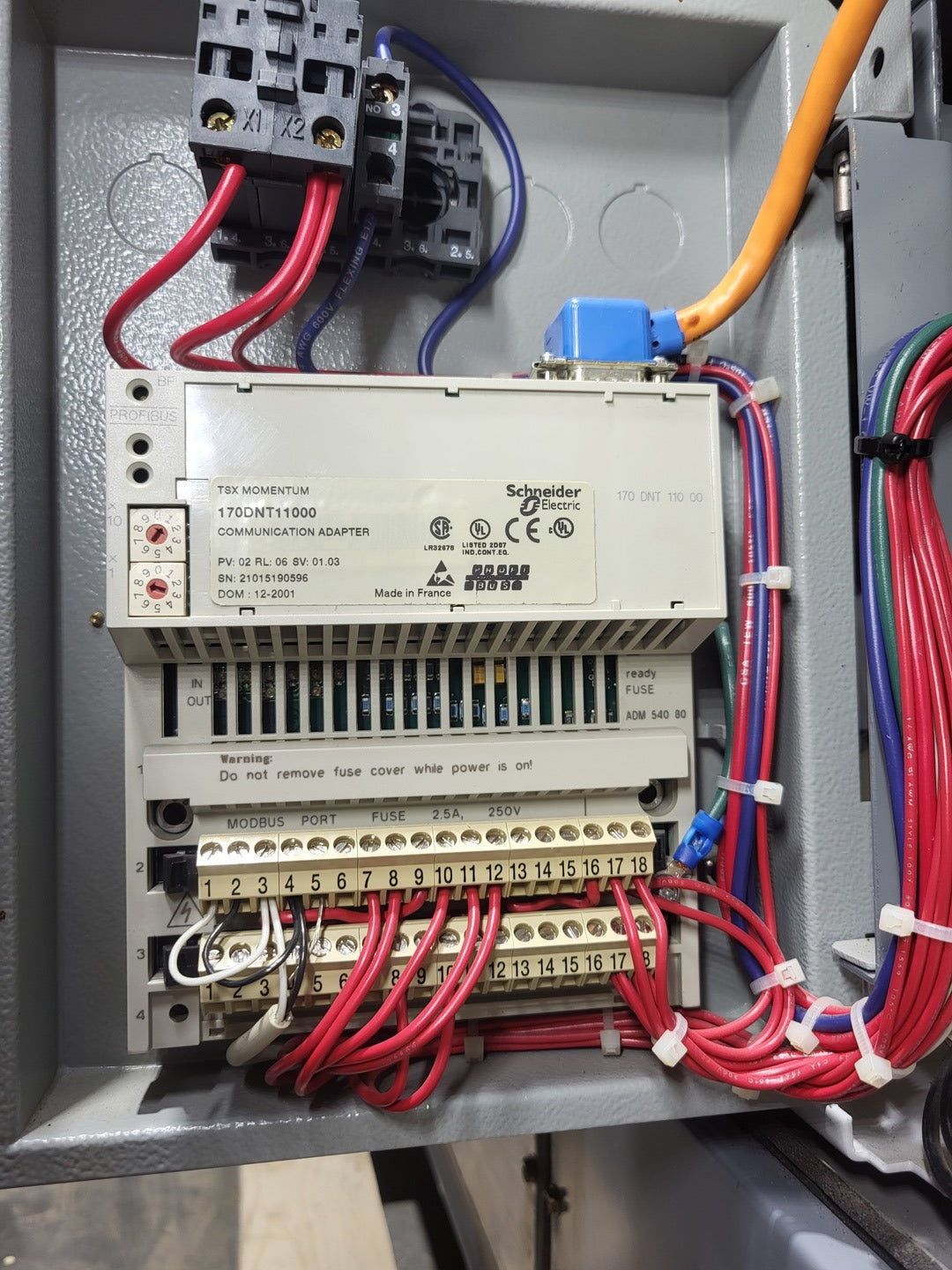

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

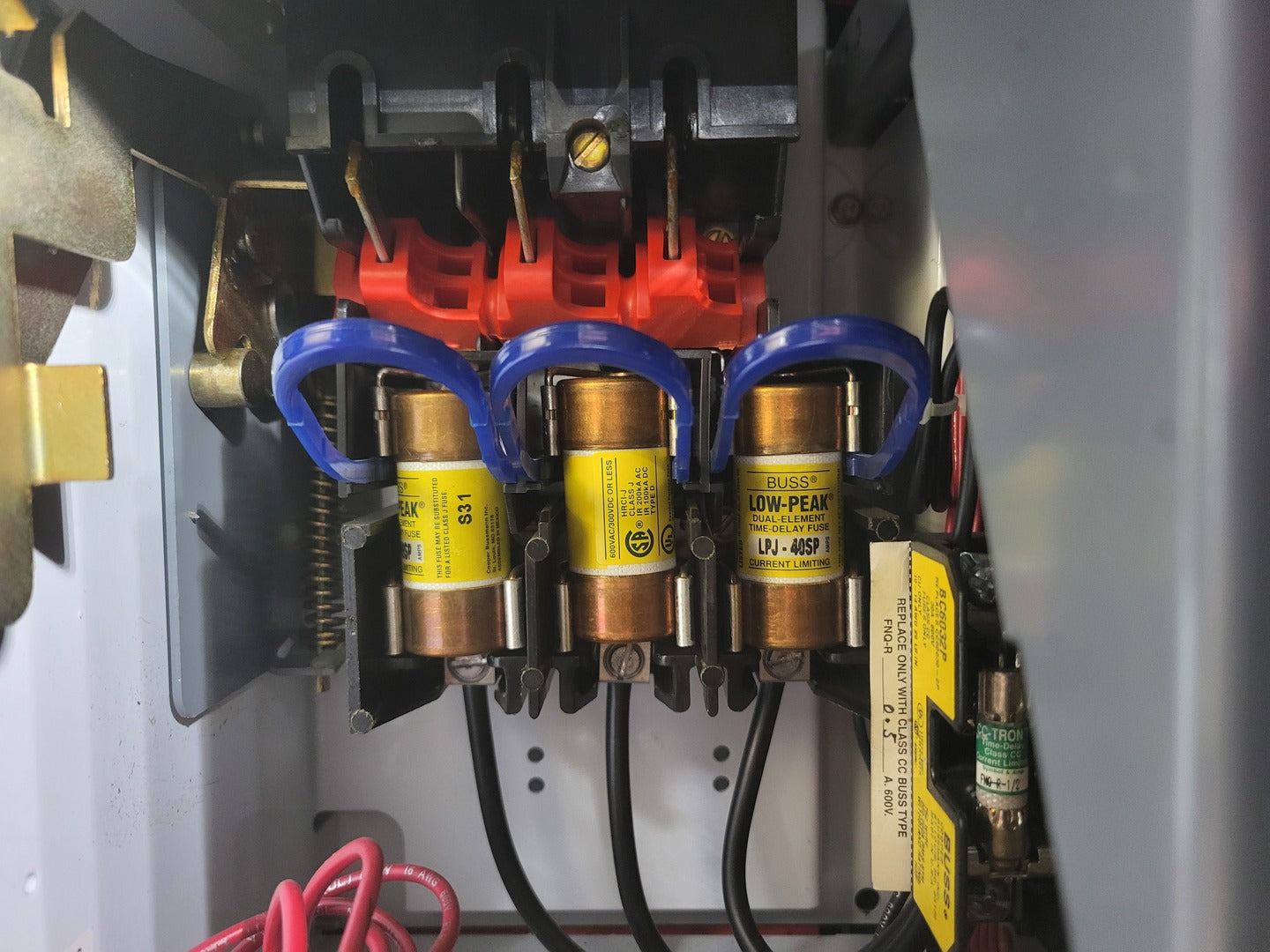

  7. 3 x Bussmann Low-Peak fuses LPJ-40SP
  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
  9. 1 x Bussmann Fusetron fuse FRN-R 1

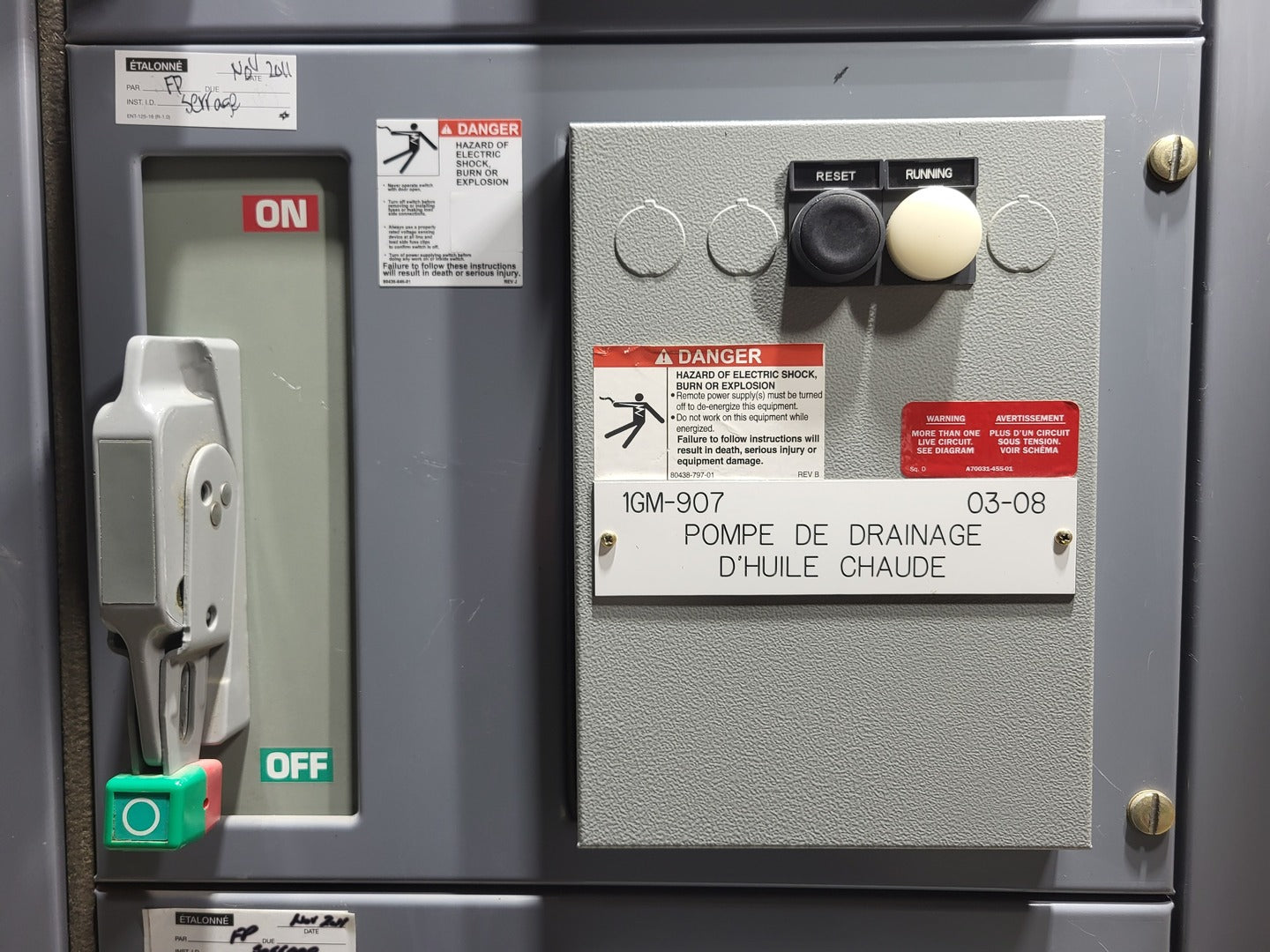

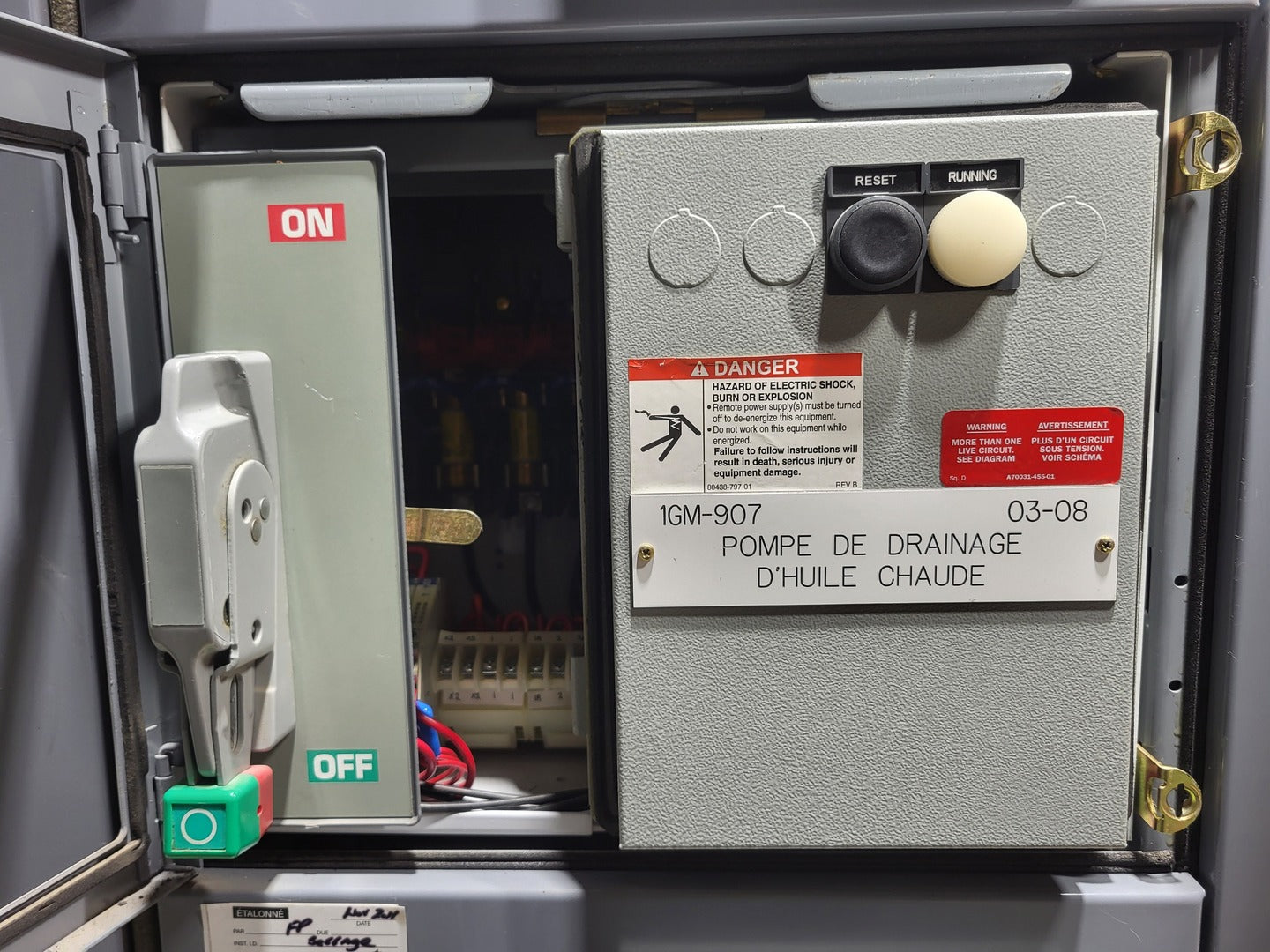

Bucket #4 1GM-907

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Allen-Bradley 700-TBR60 slim relay modules, 110-125V coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 3 x Bussmann Low-Peak fuses LPJ-40SP
  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
  9. 1 x Bussmann Fusetron fuse FNQ-R

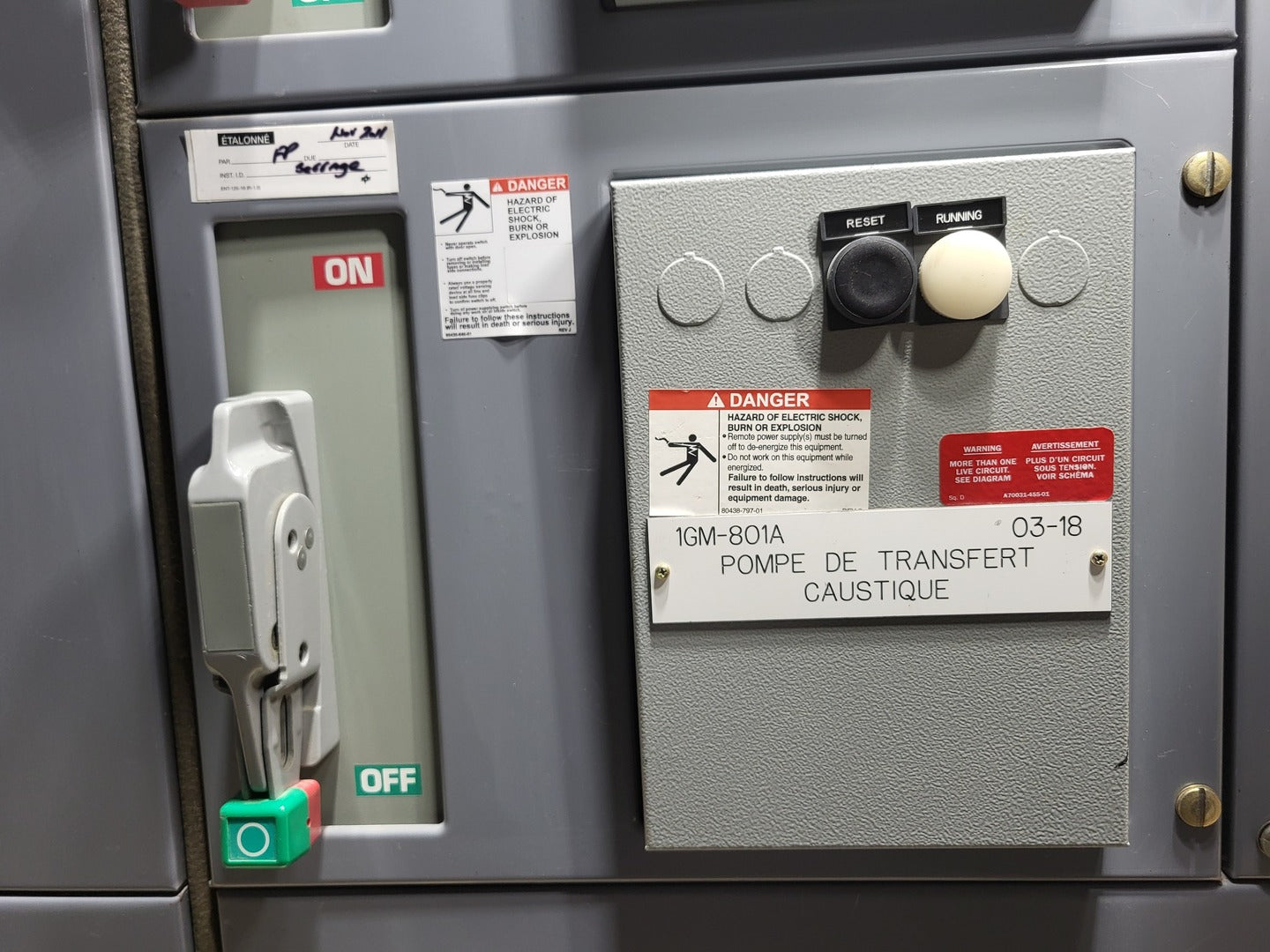

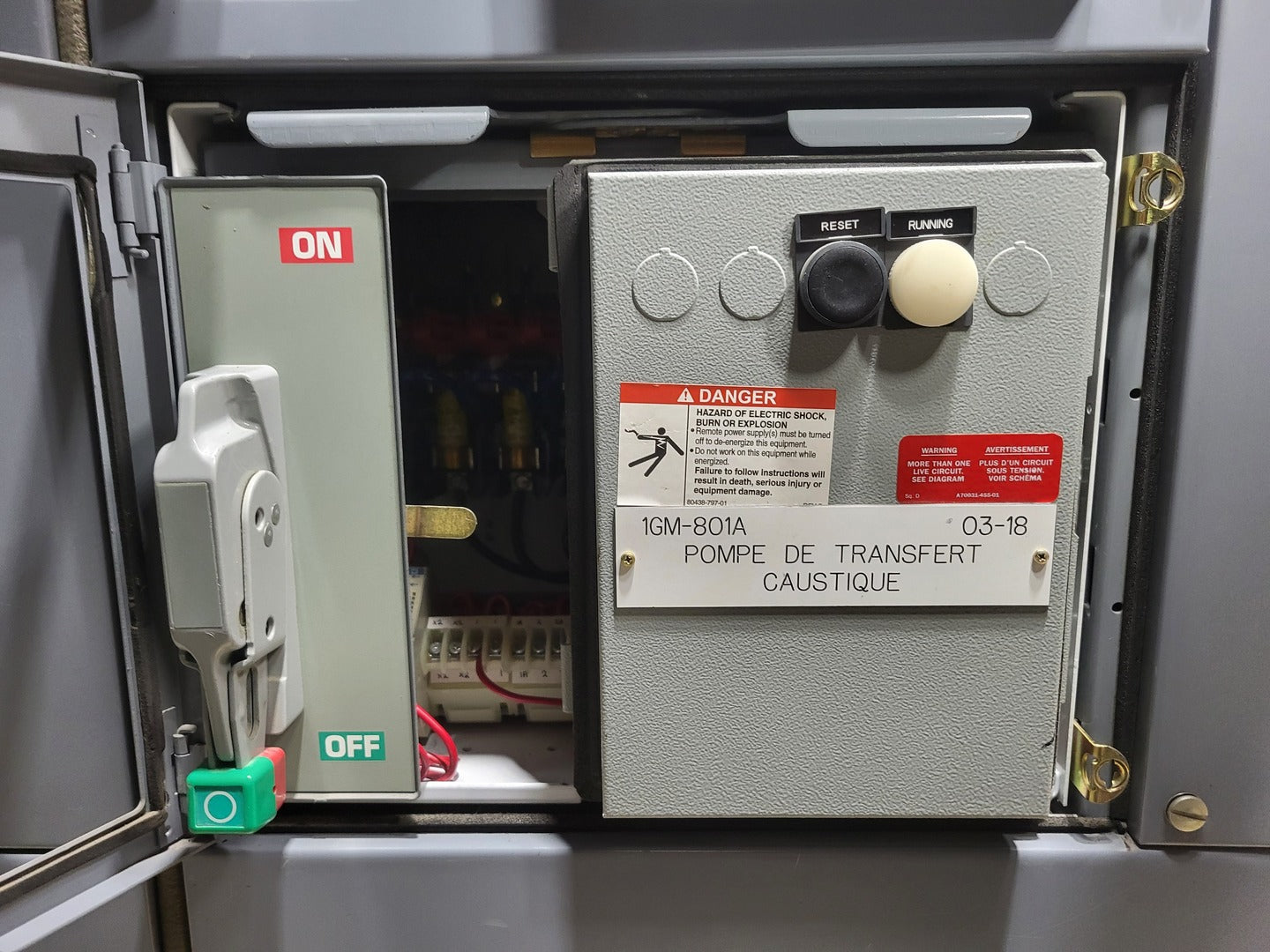

Bucket #5 1GM-801A

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Allen-Bradley 700-TBR60 / ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

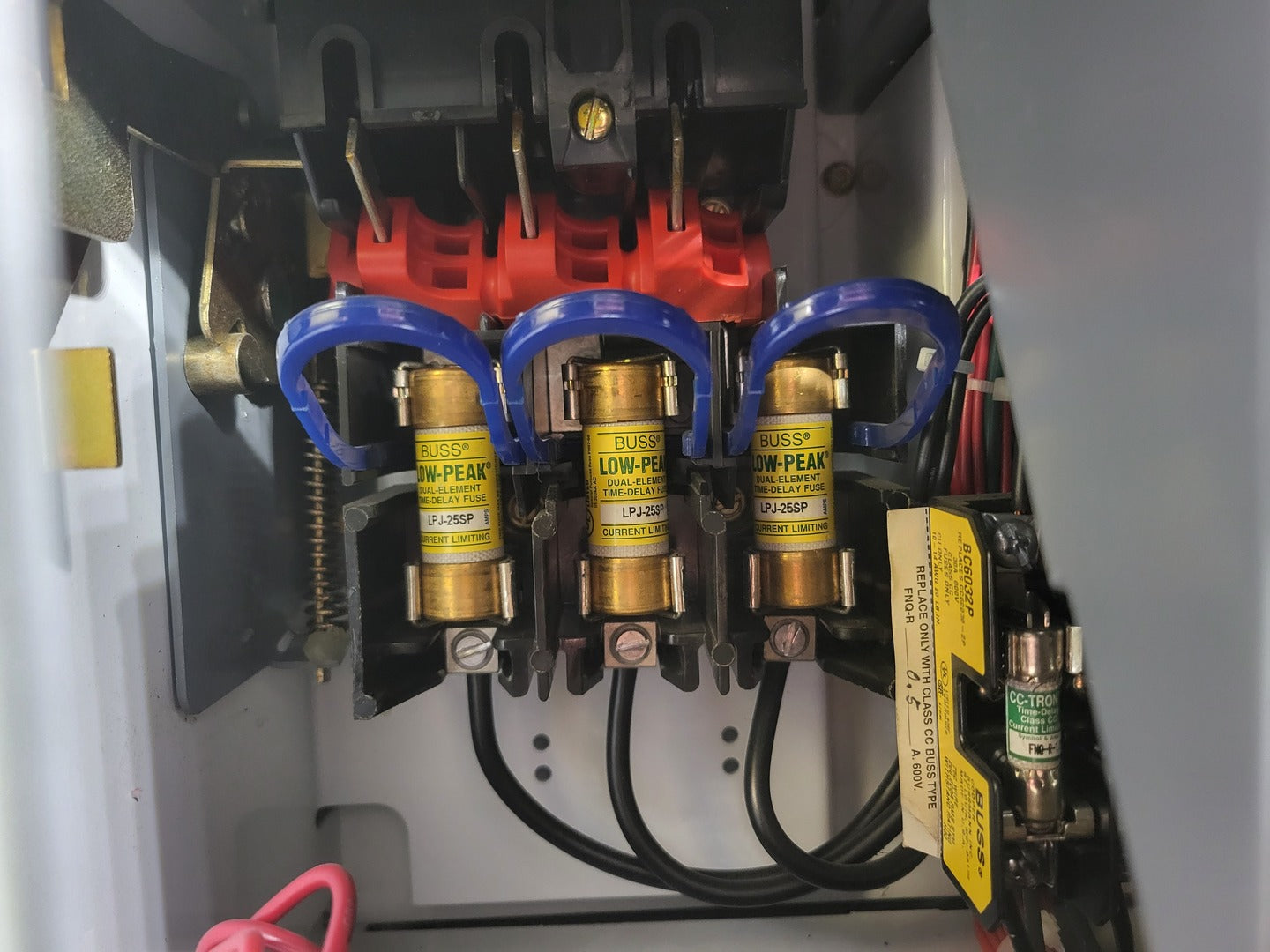

  7. 3 x Bussmann Low-Peak fuses LPJ-25SP
  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
  9. 1 x Bussmann Fusetron fuse FNQ-R 1
