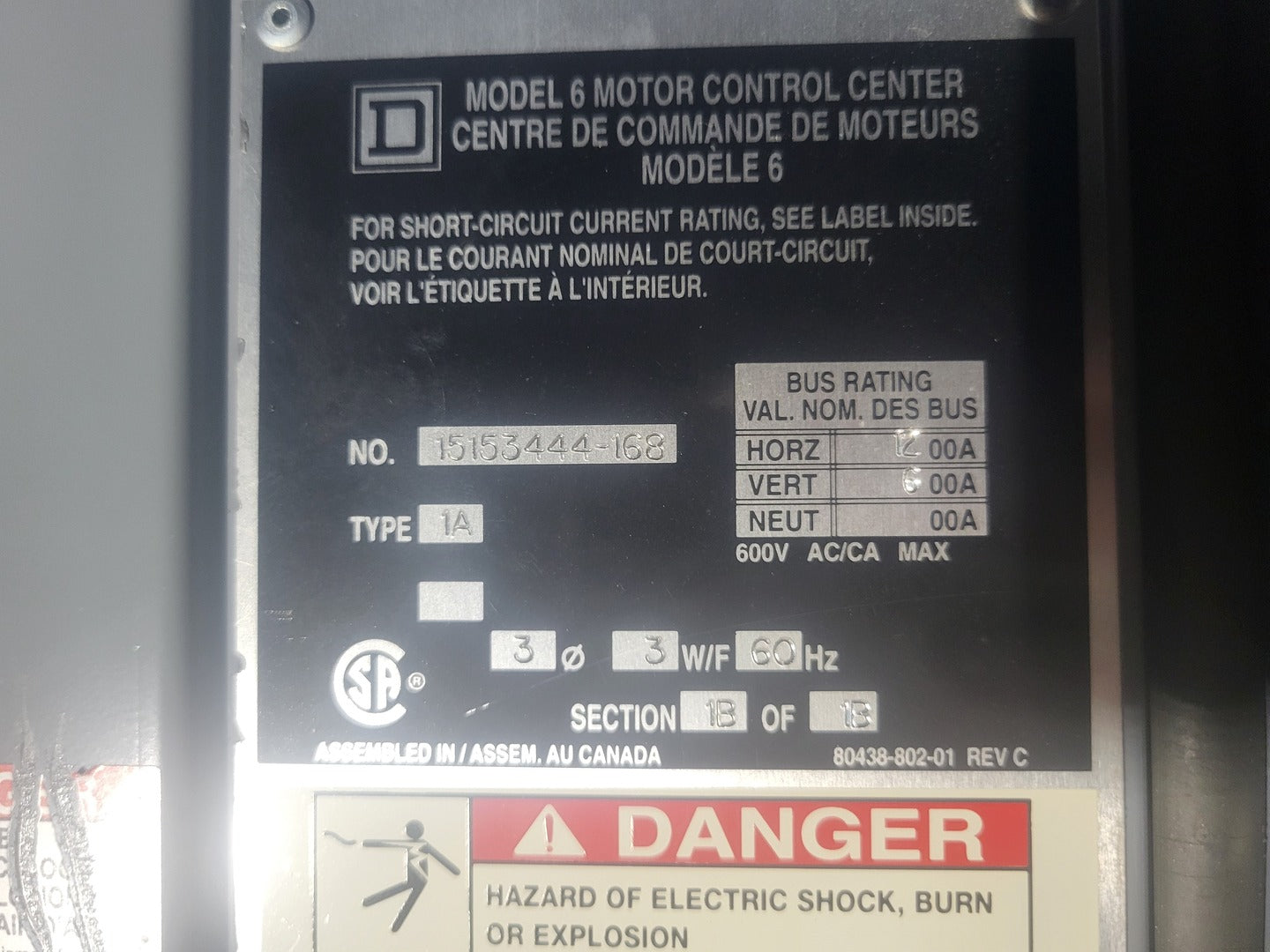

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151298
Price:
$5,266

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

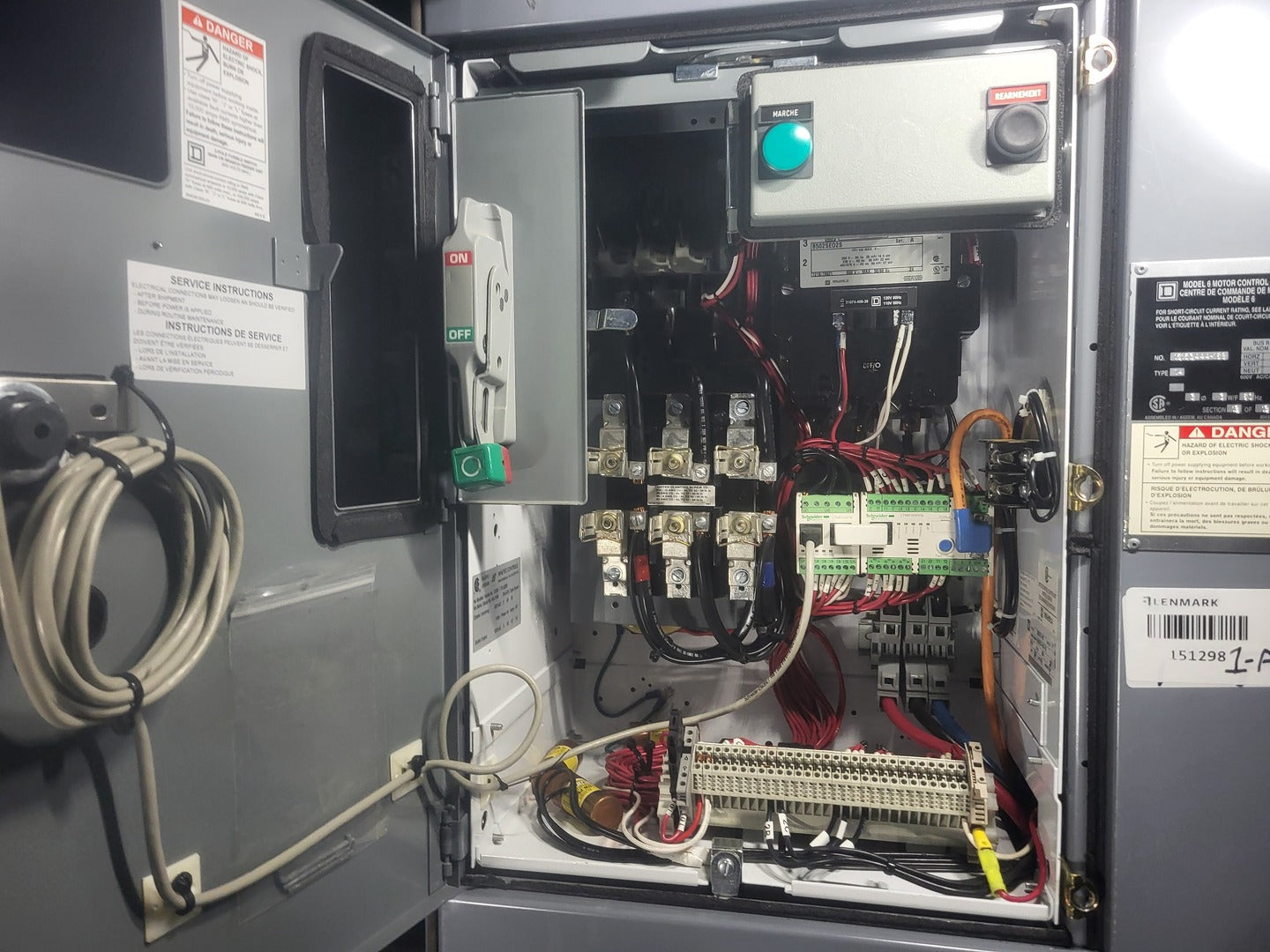

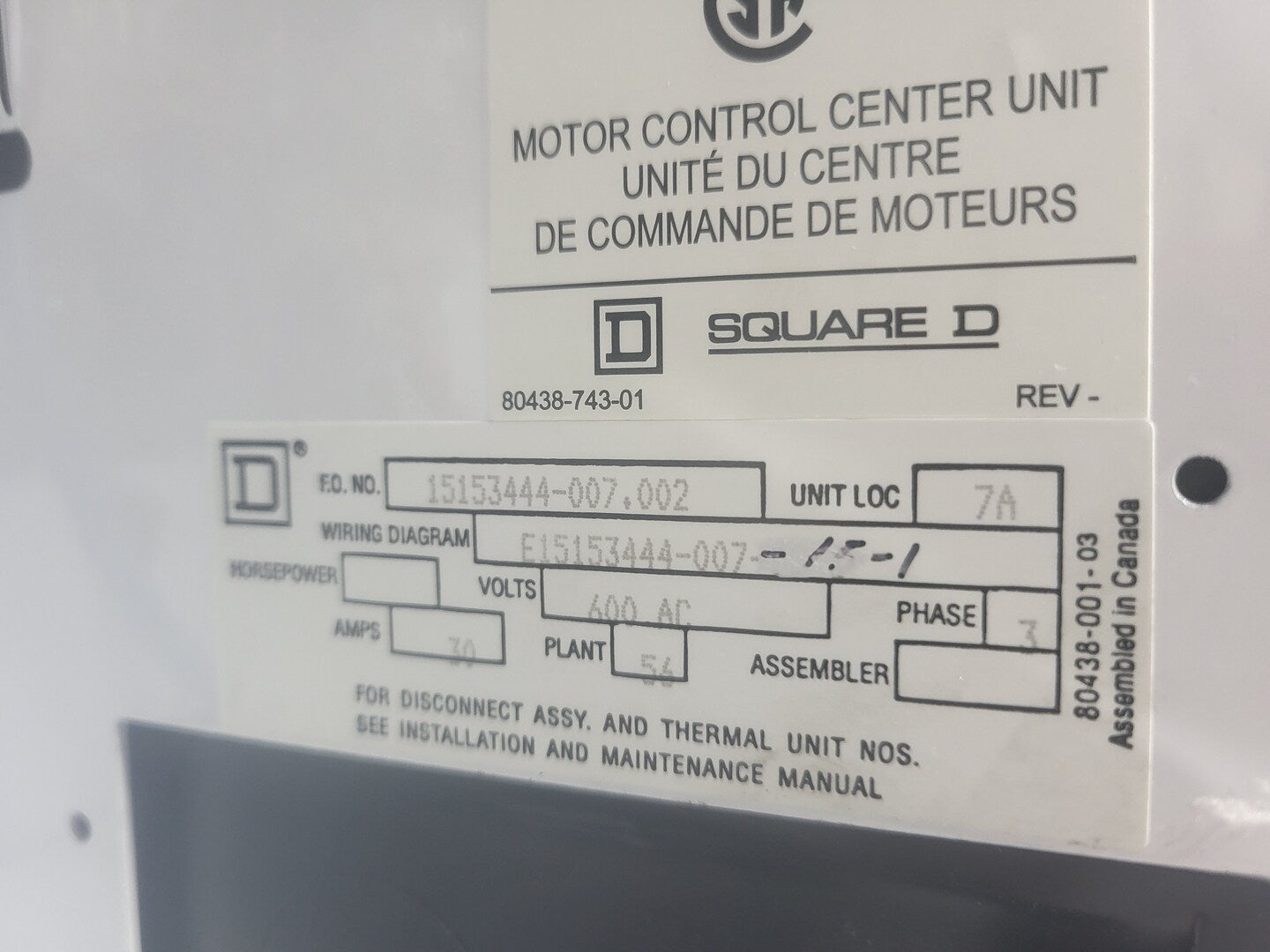

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

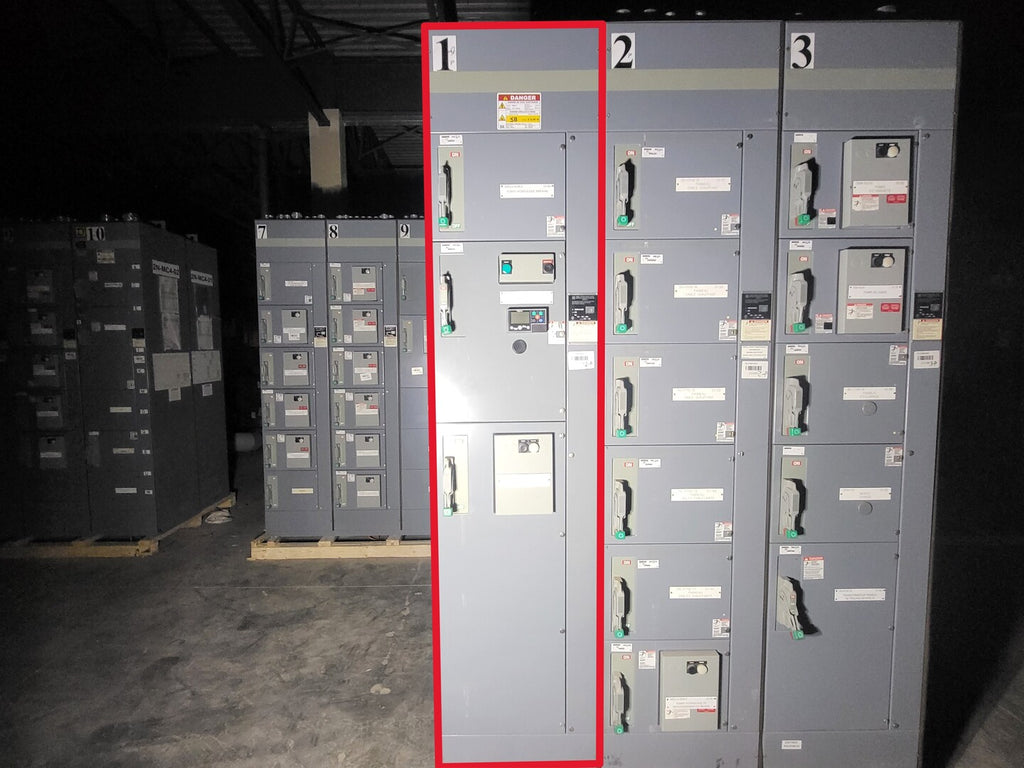

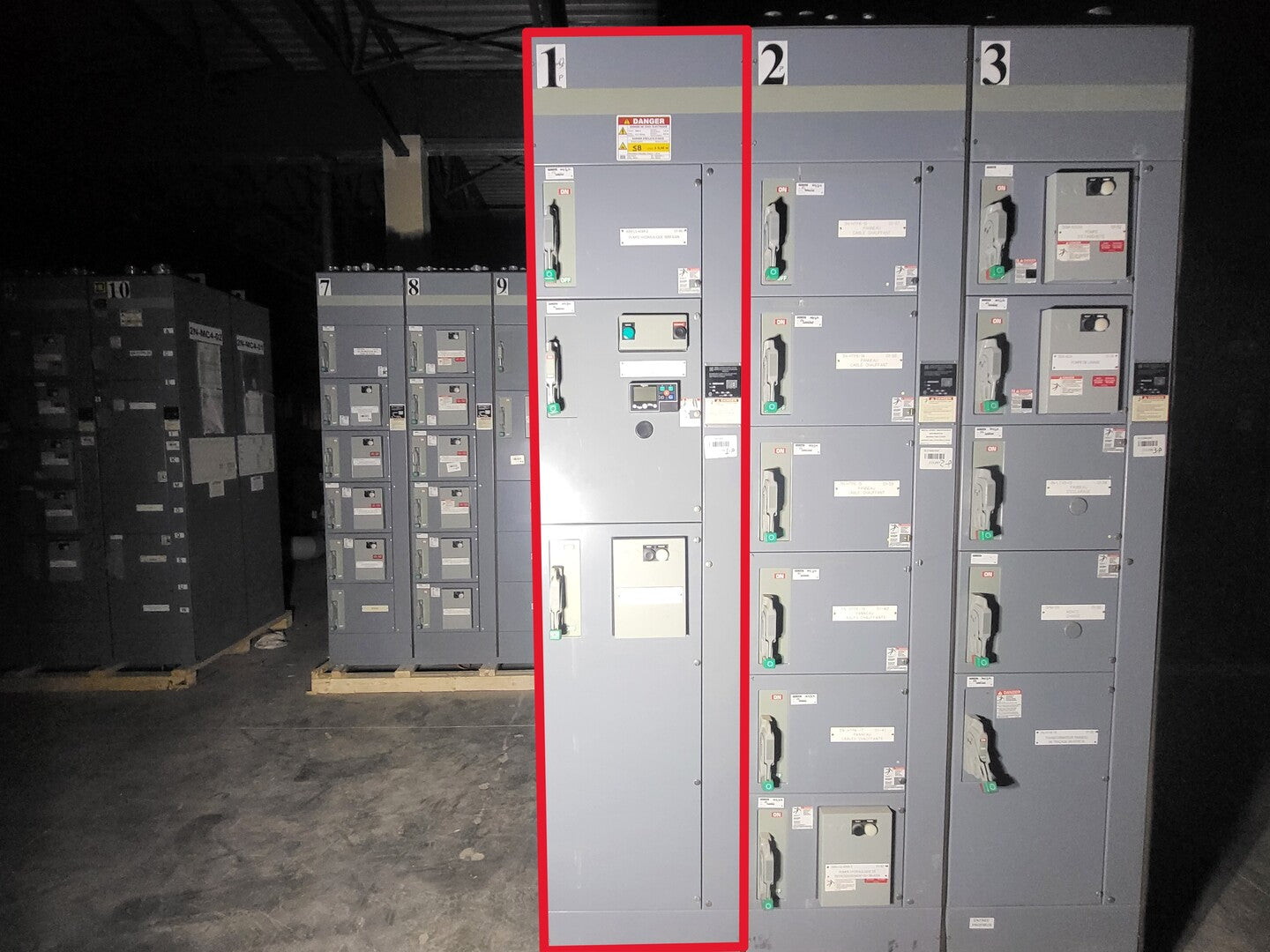

Note: Section 1 only

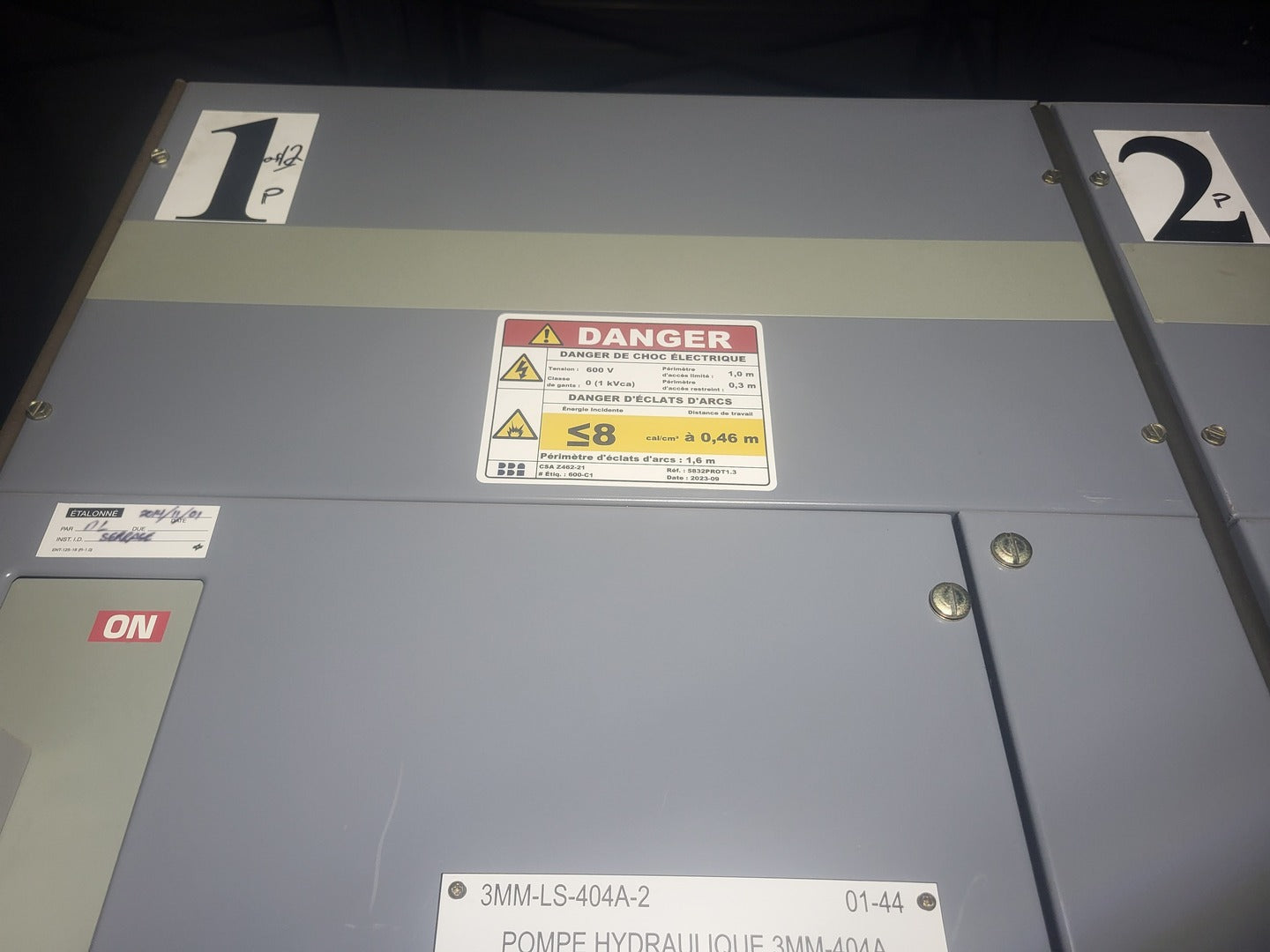

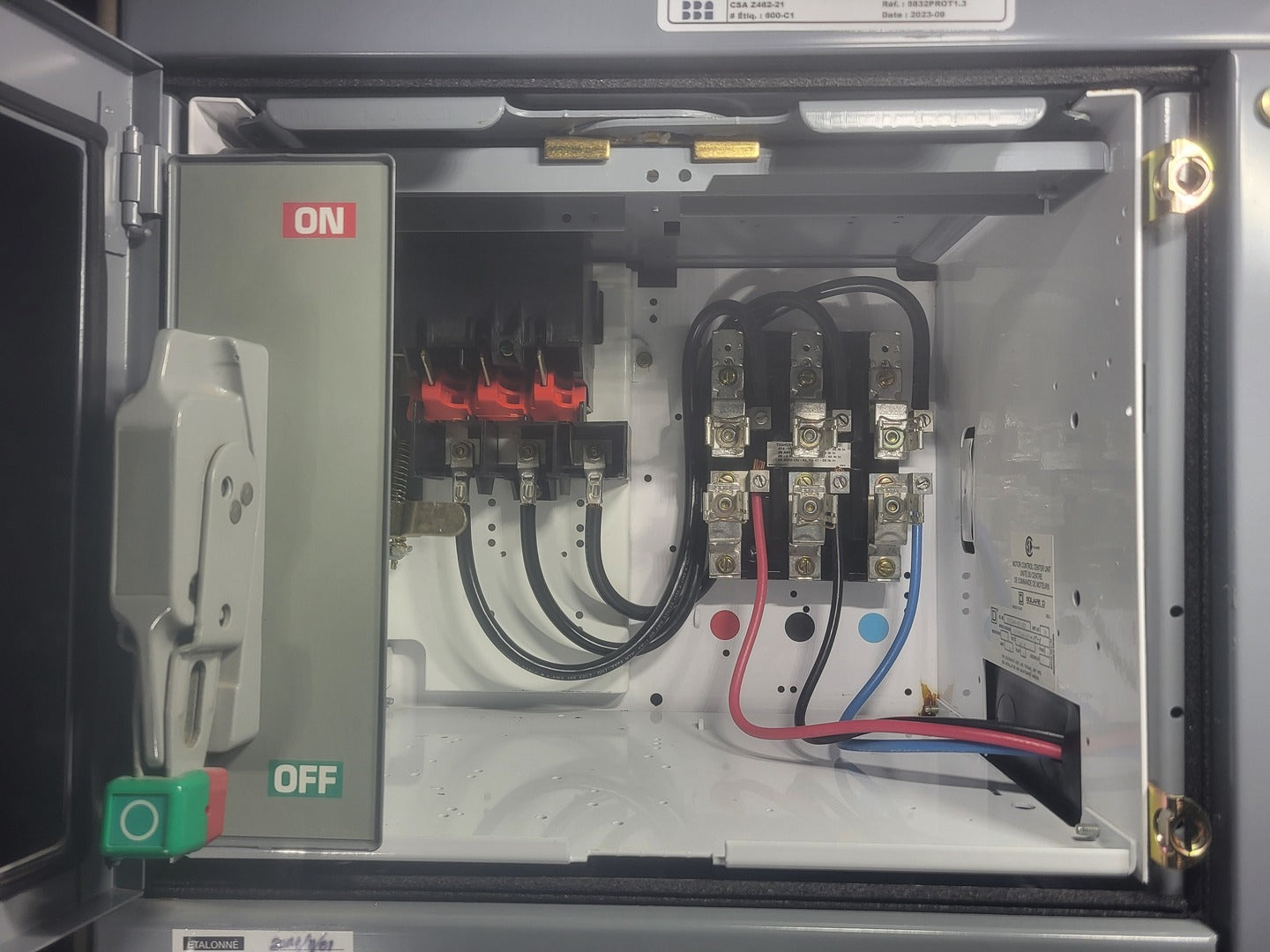

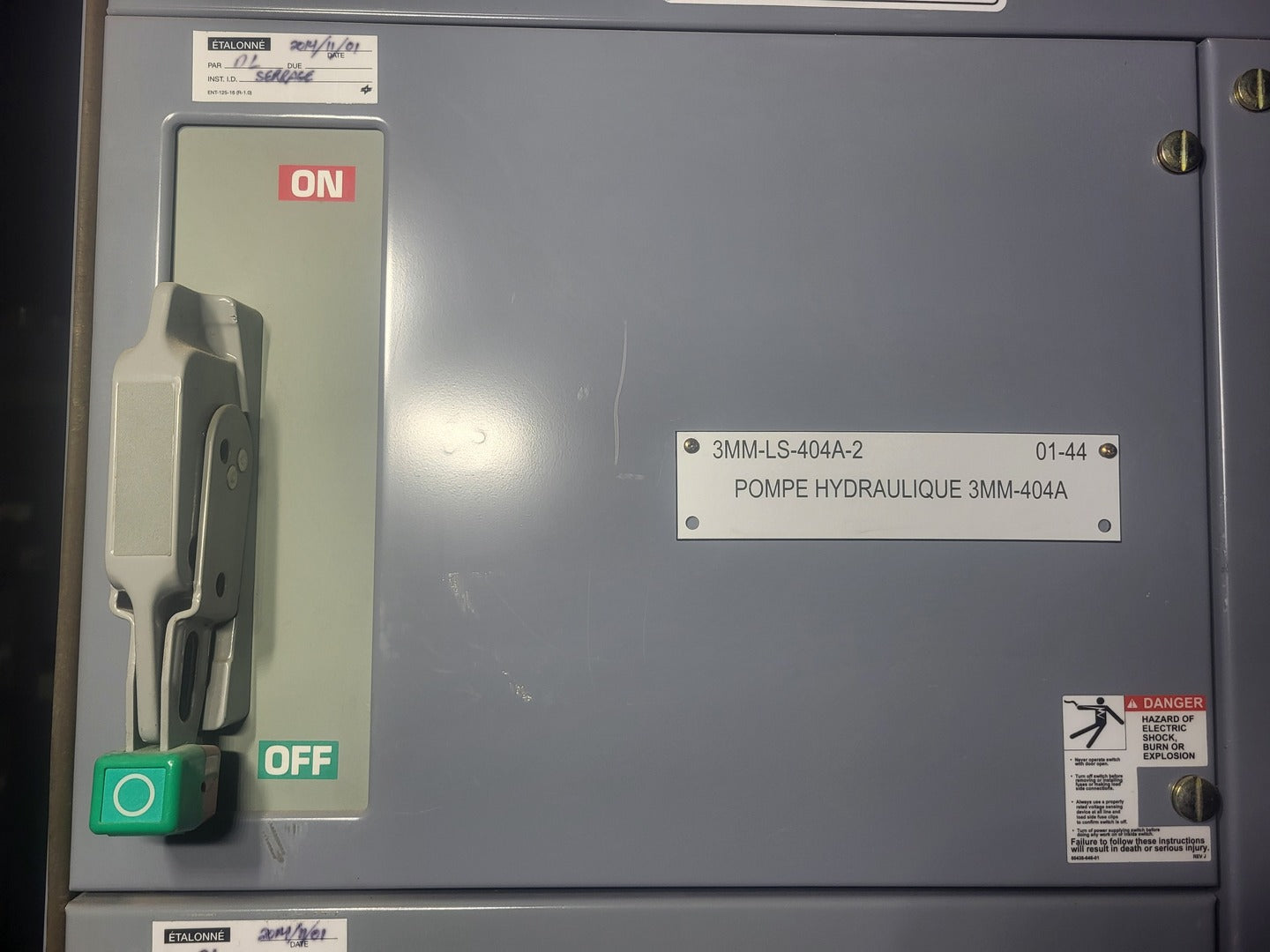

Bucket #1 3MM-LS-404A-2

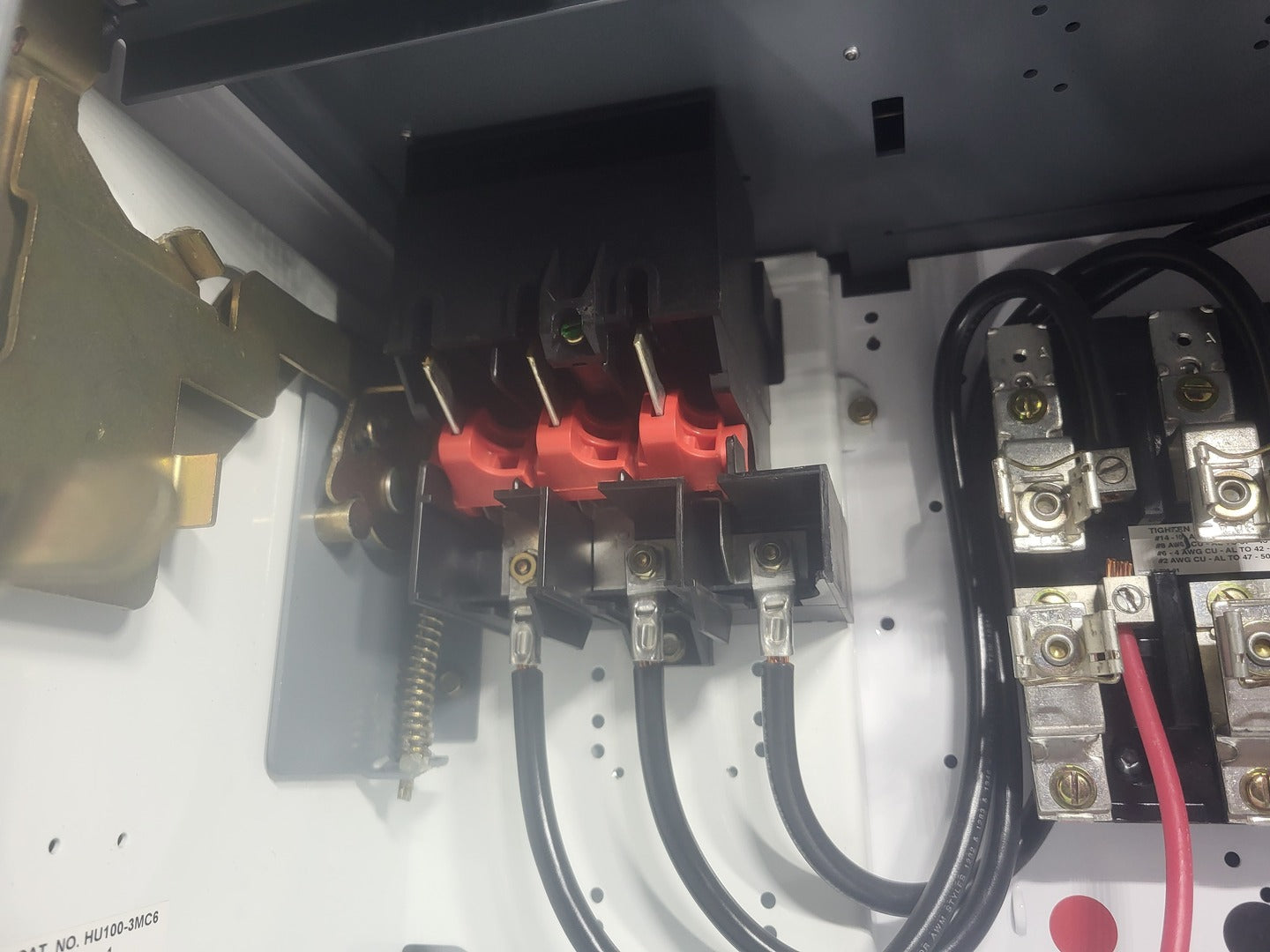

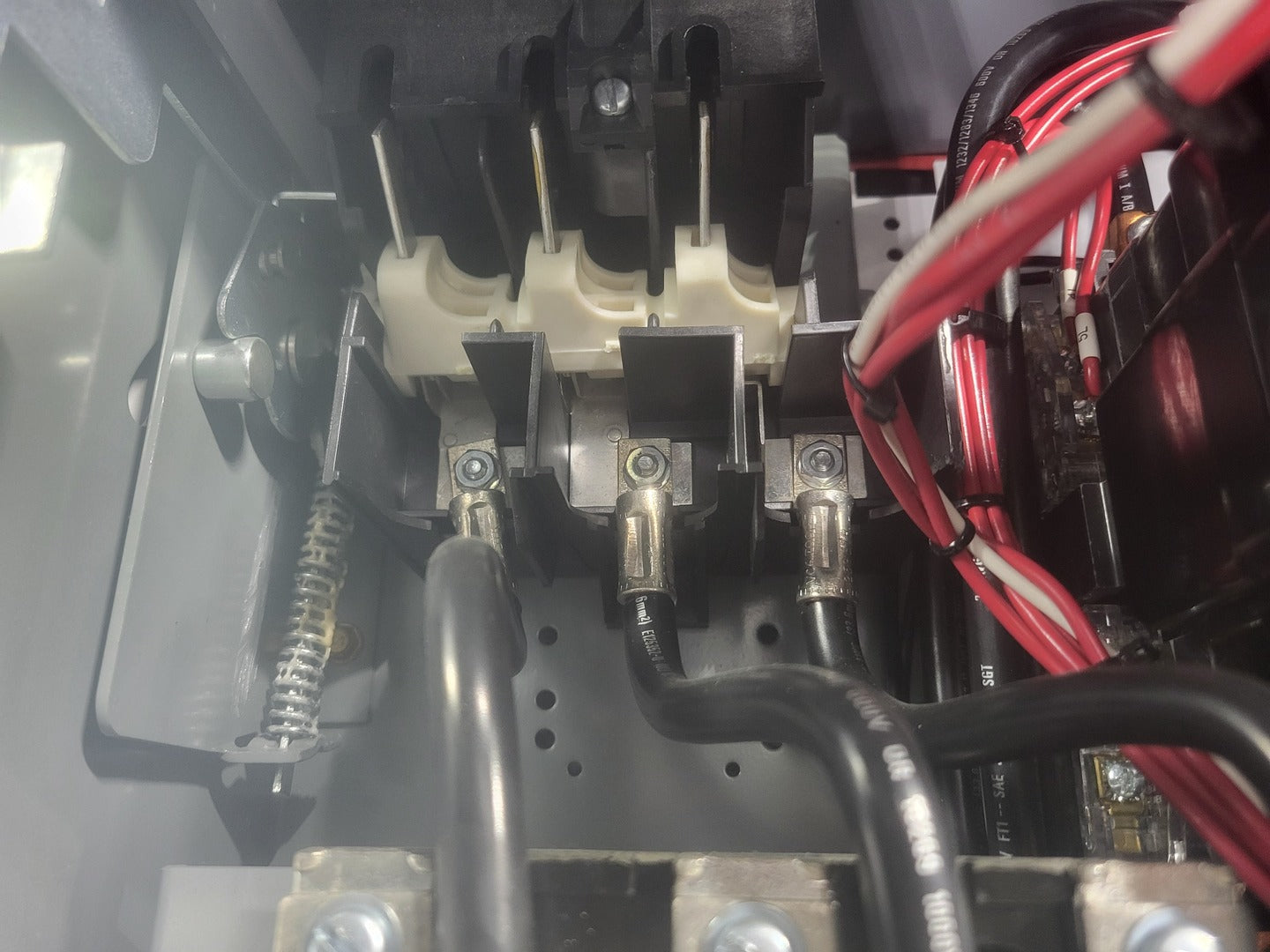

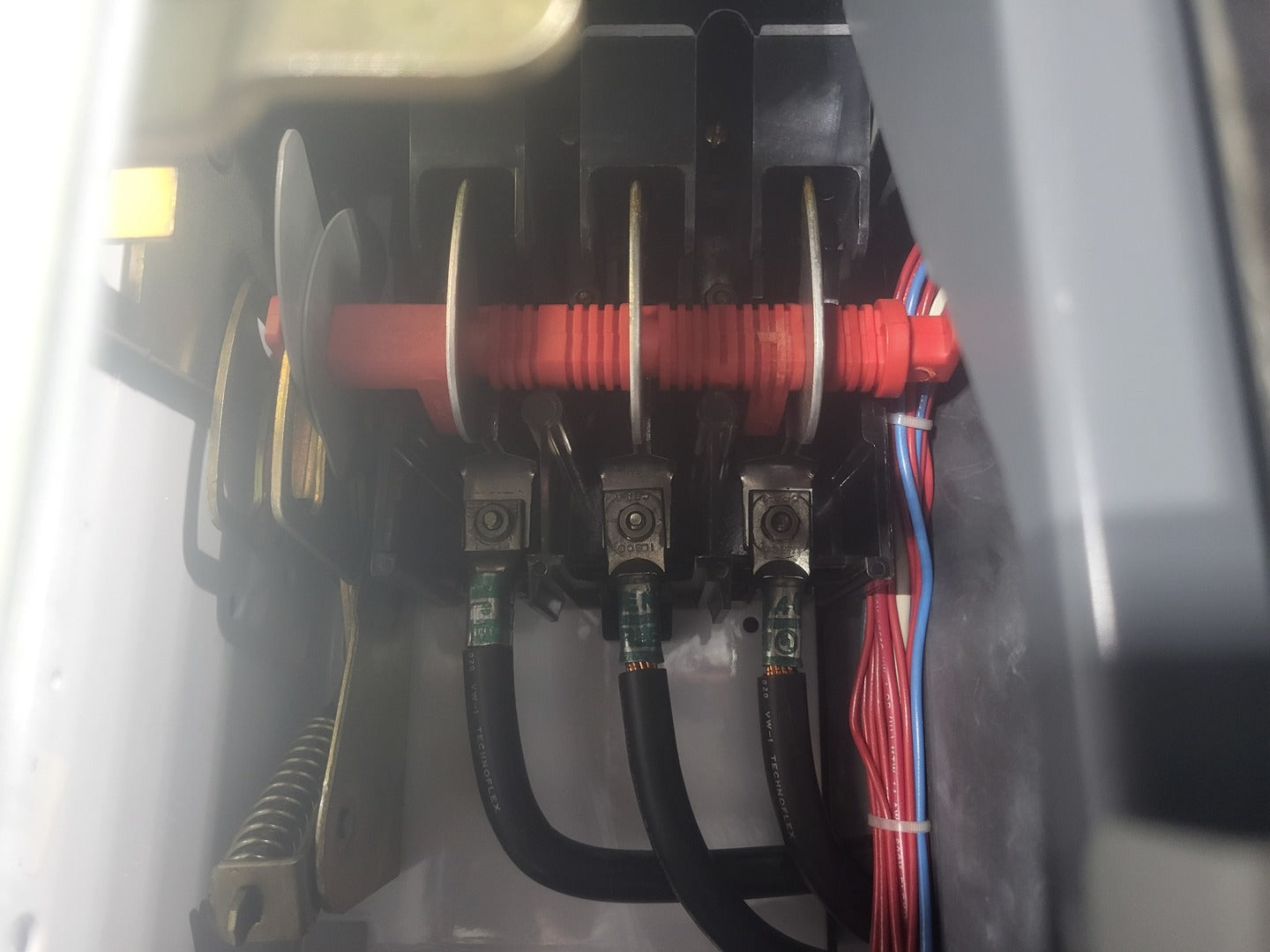

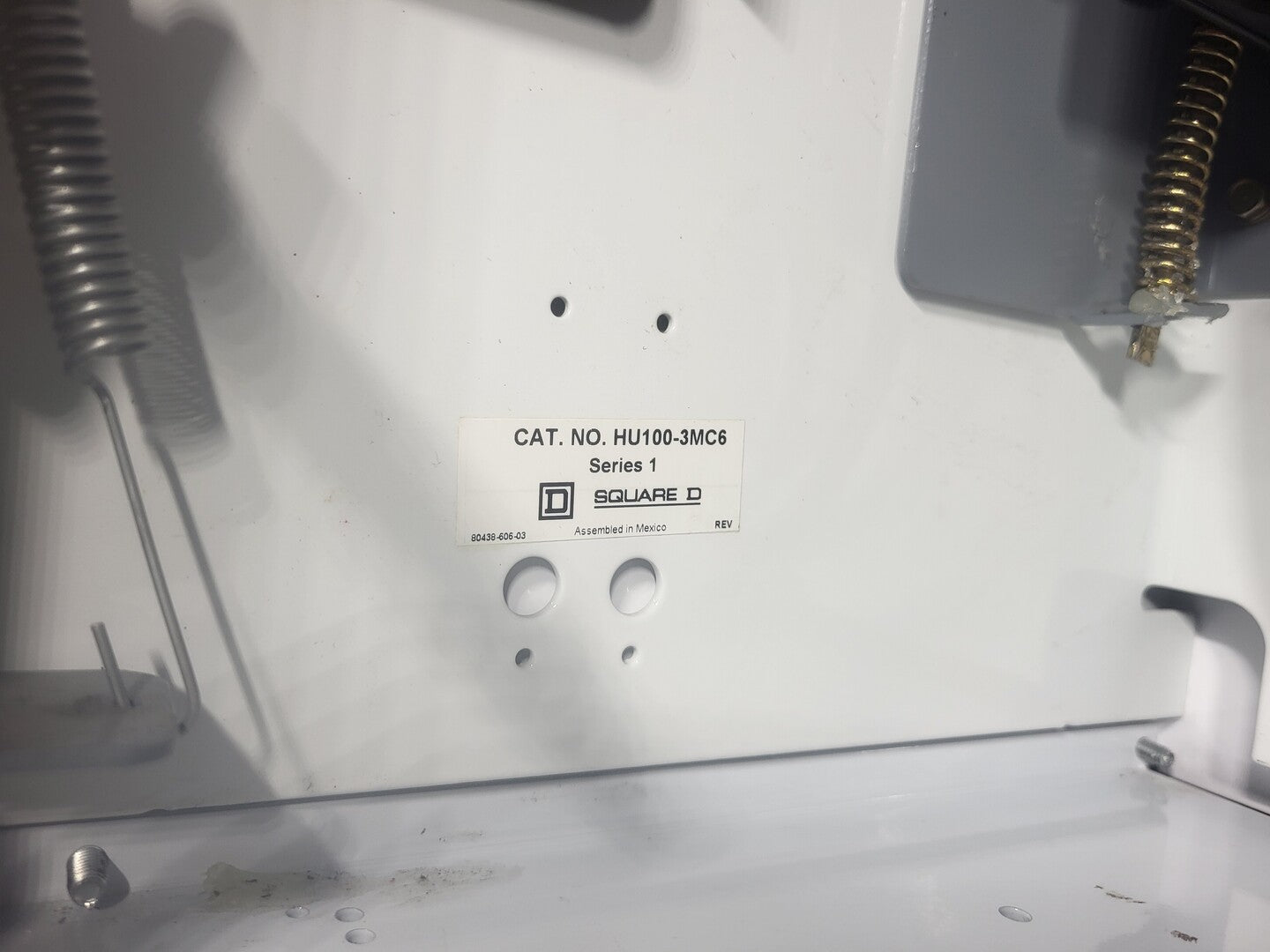

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

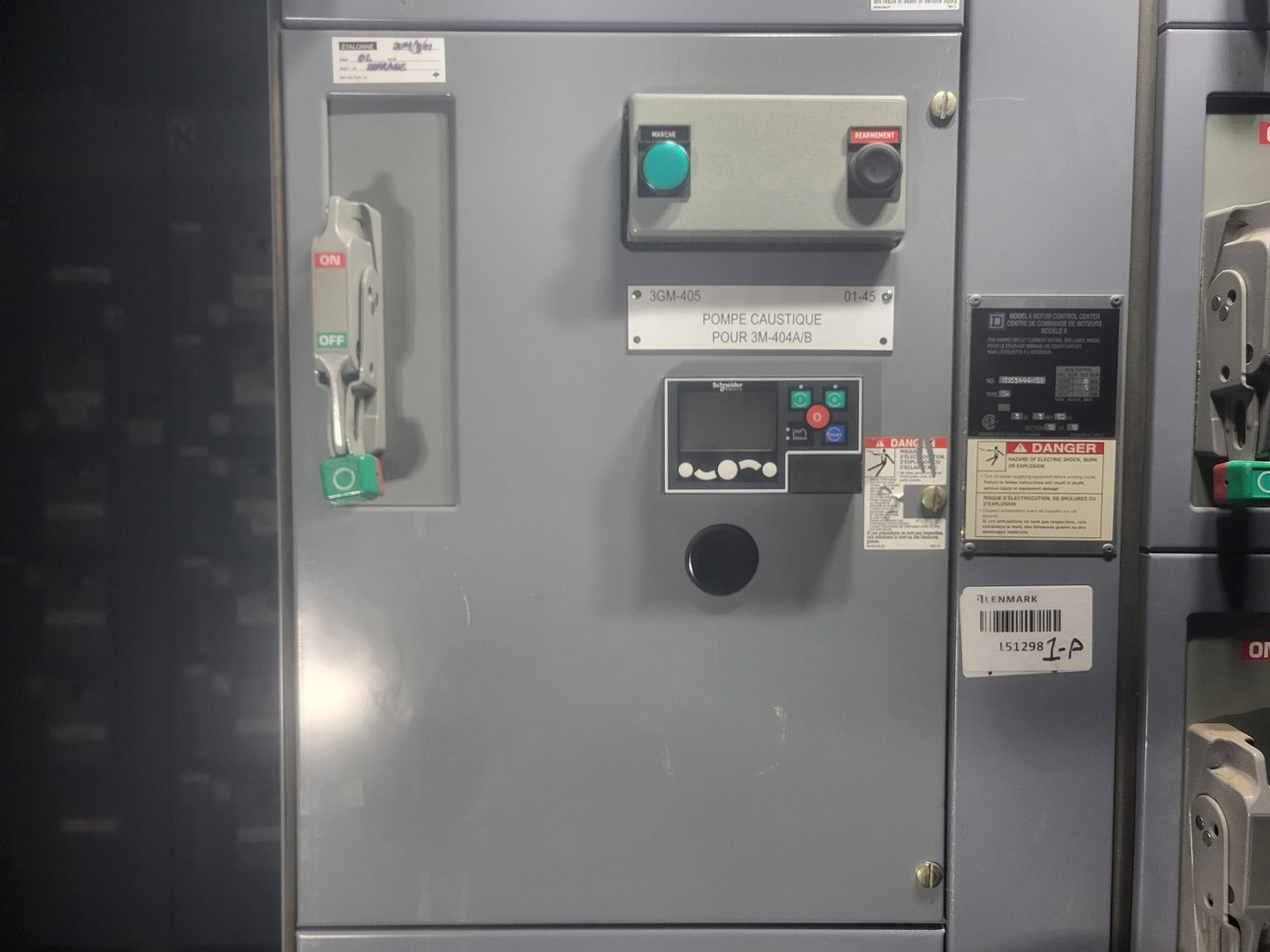

Bucket #2 3GM-405

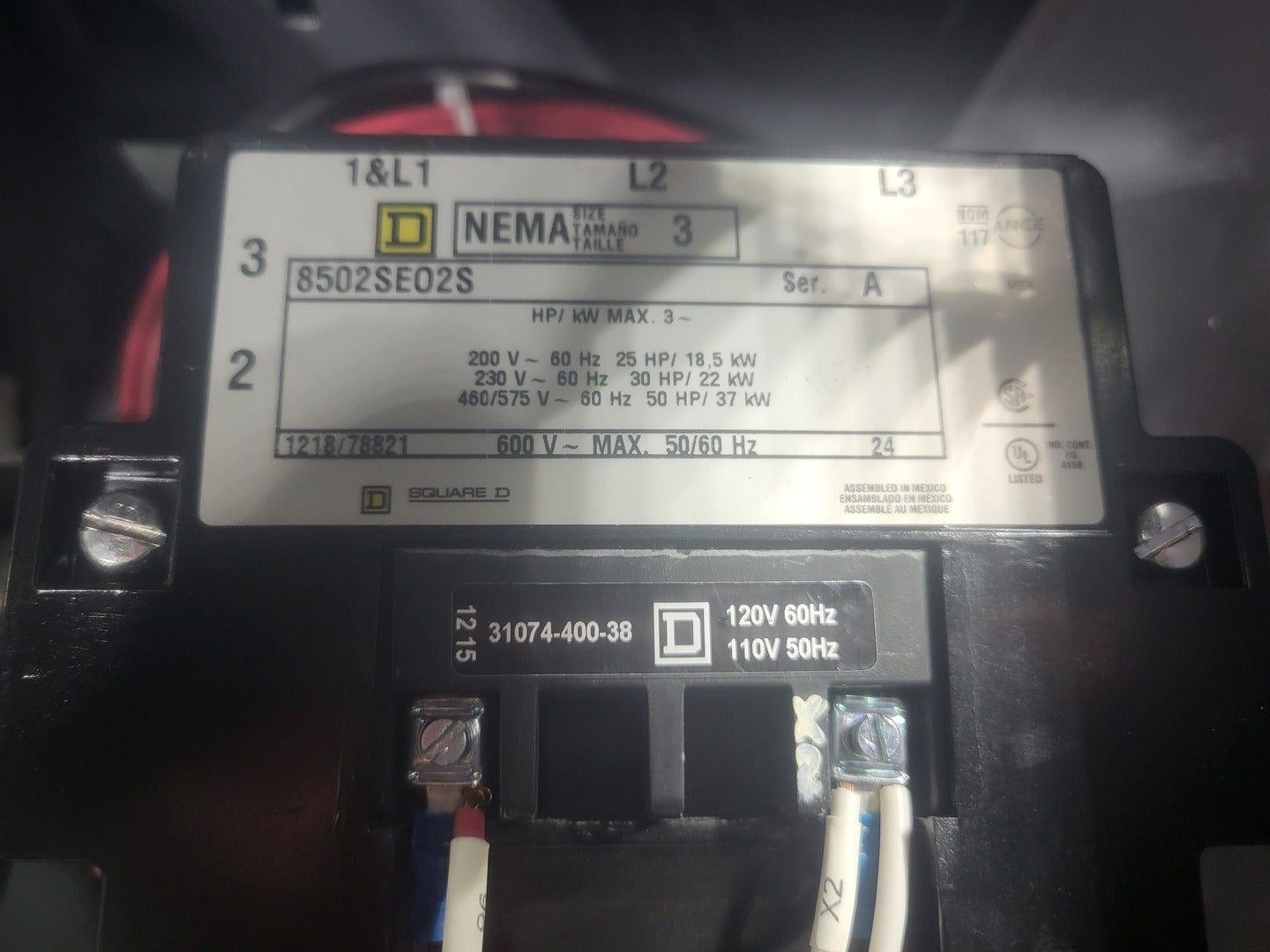

  1. Square D 8502SEO2S, NEMA Size 3 contactor, 50 HP @ 460/575V, 120VAC coil

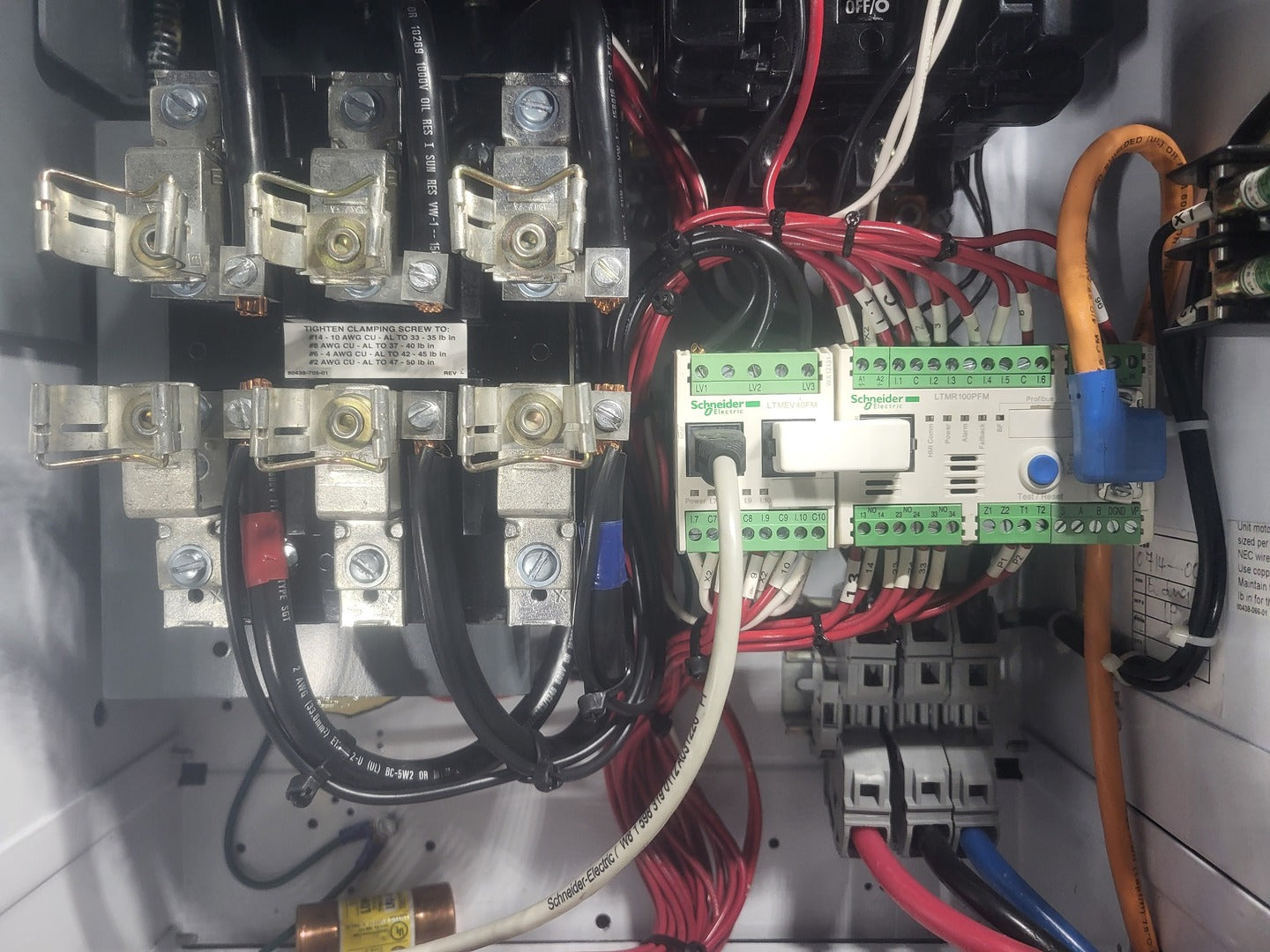

  2. Schneider Electric LTMEV40FM TeSys T motor management controller / expansion module
  3. Schneider Electric LTMR100PFM TeSys T motor management controller, Profibus communication

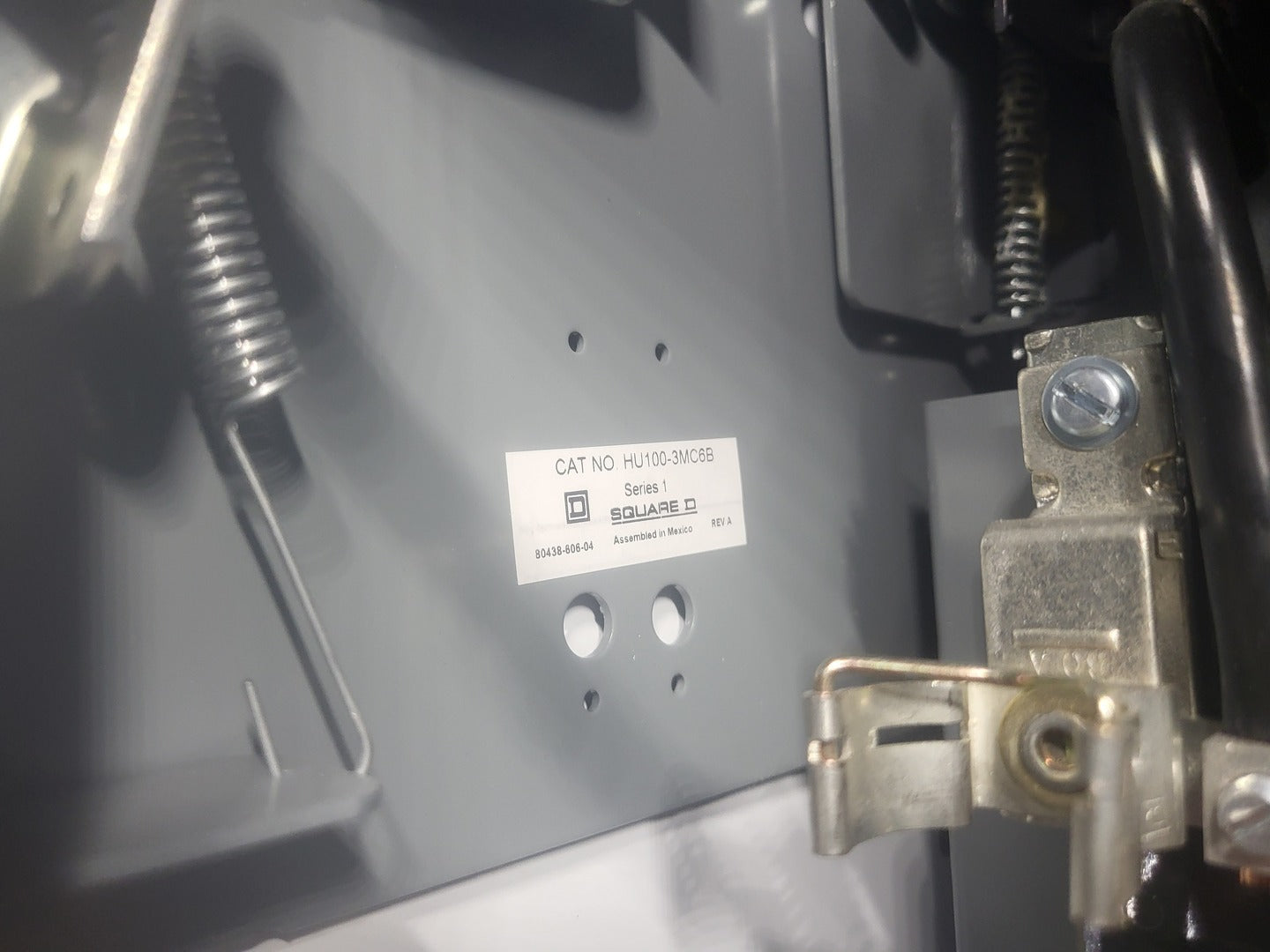

  4. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

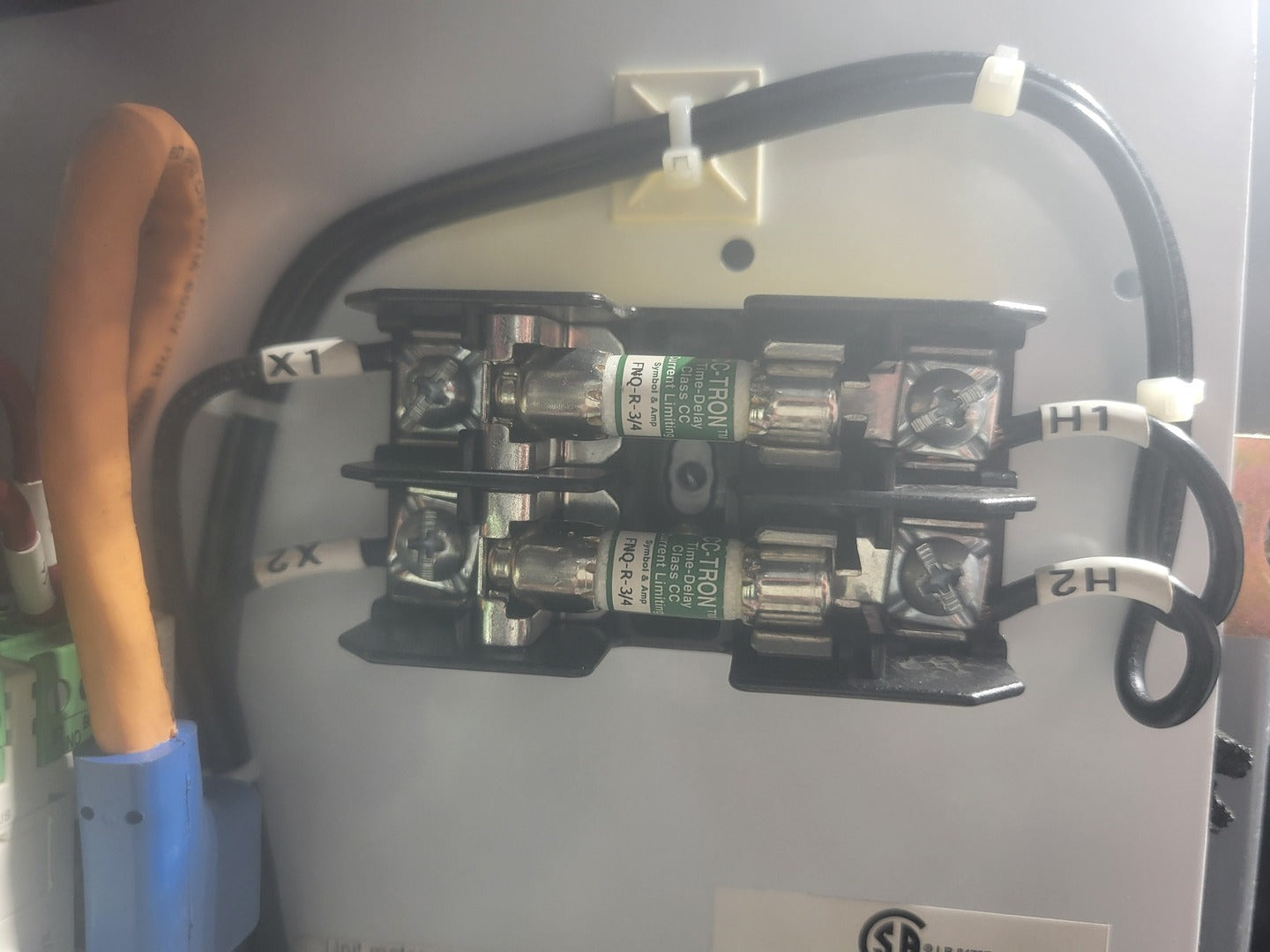

  5. 2 x Bussmann CC-Tron fuses FNQ-R-3/4

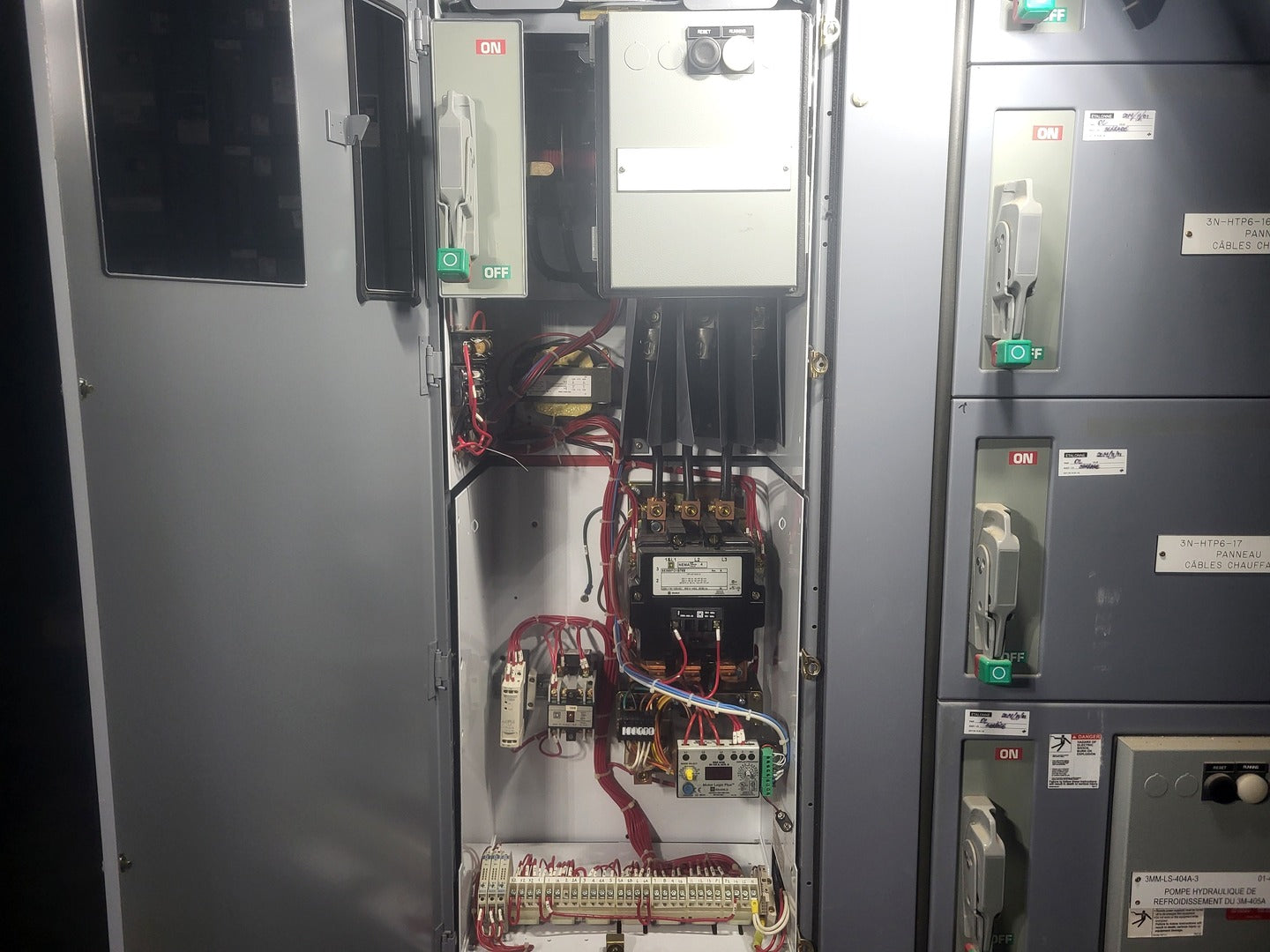

Bucket #3

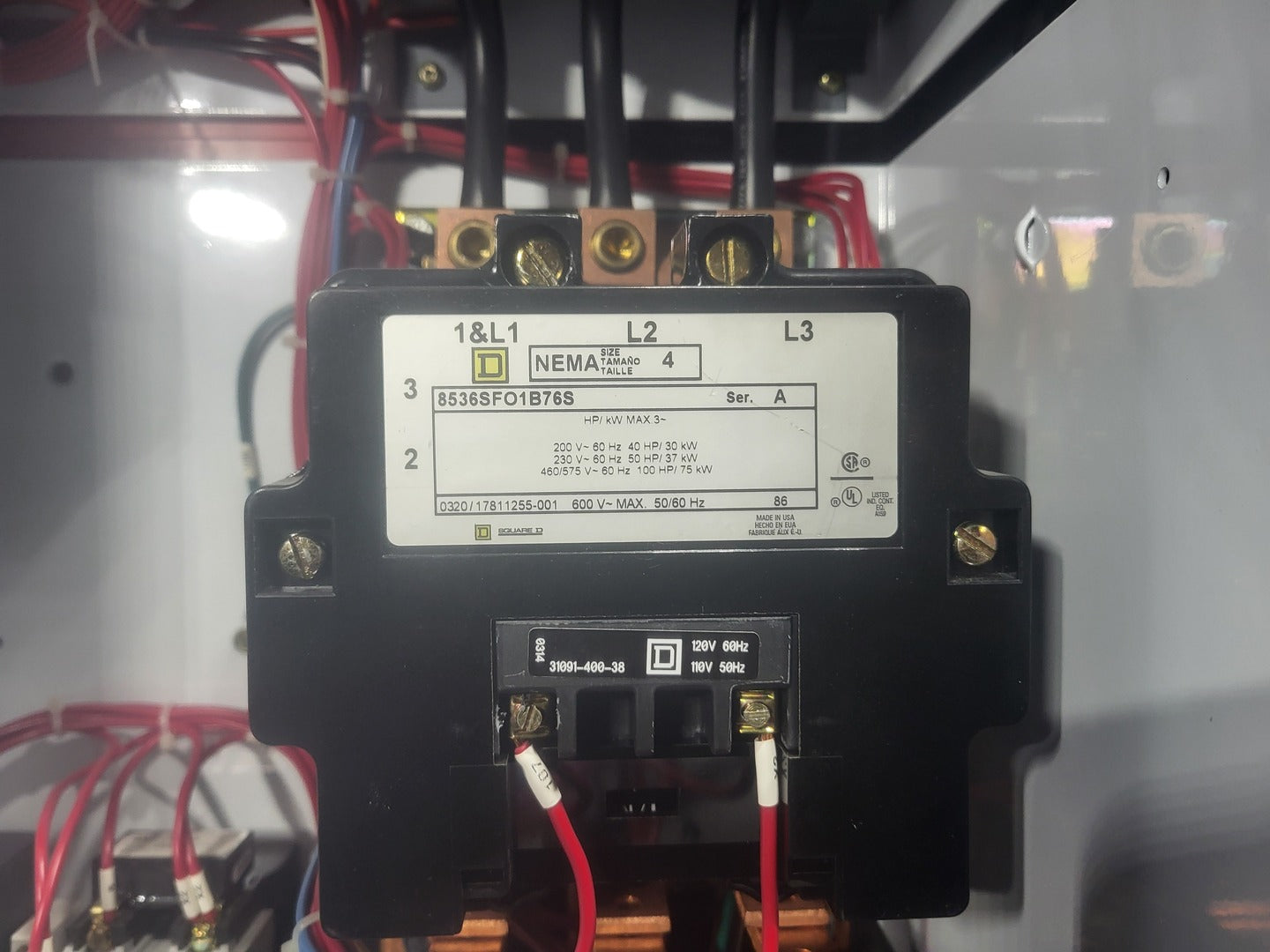

  1. Square D 8536SFO1B76S, NEMA Size 4 contactor, 100 HP @ 460/575V, 120VAC coil

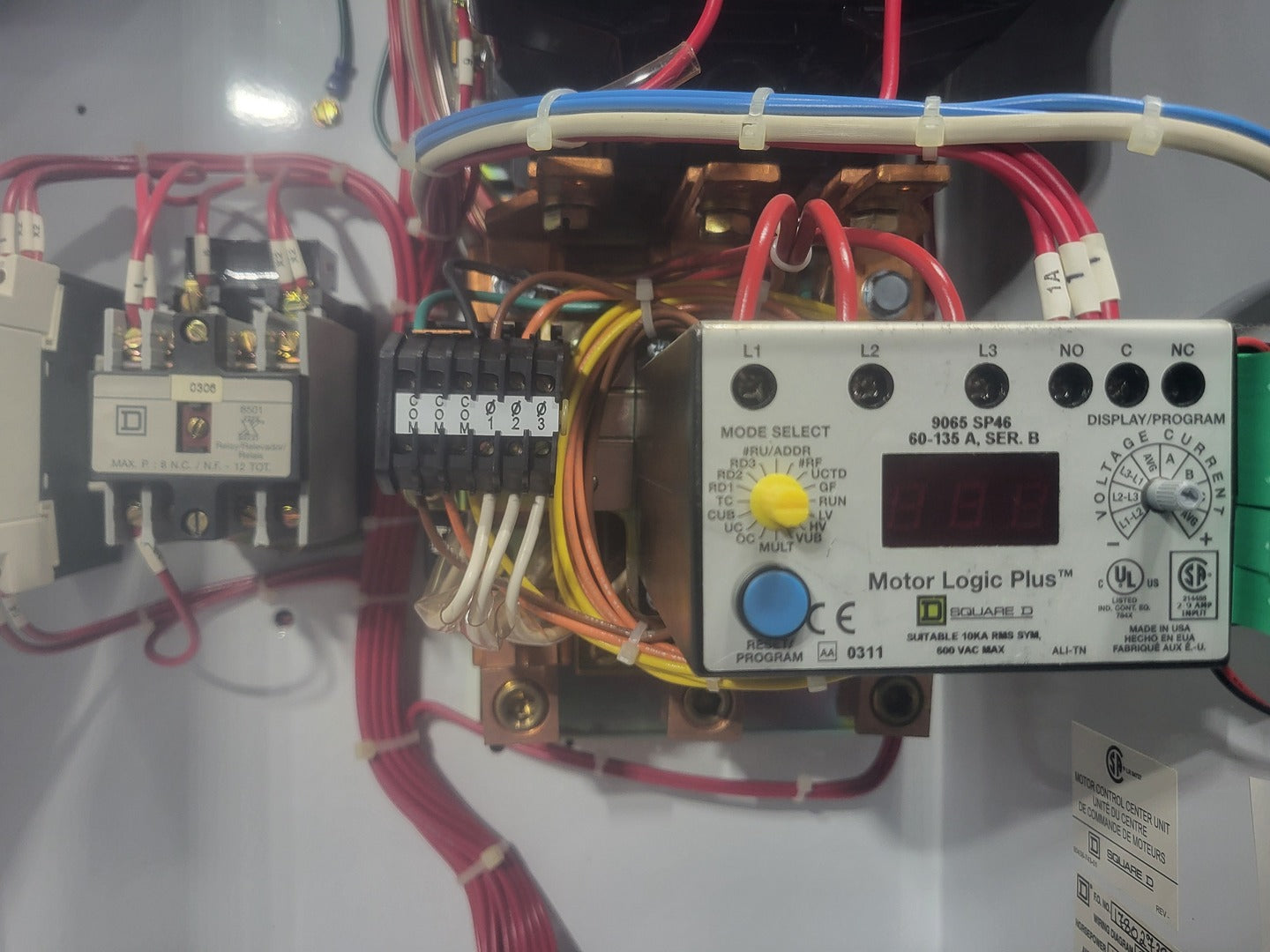

  2. Square D Motor Logic Plus 9065 SP46, motor protection relay, 60-135A range, Series B, 600VAC max

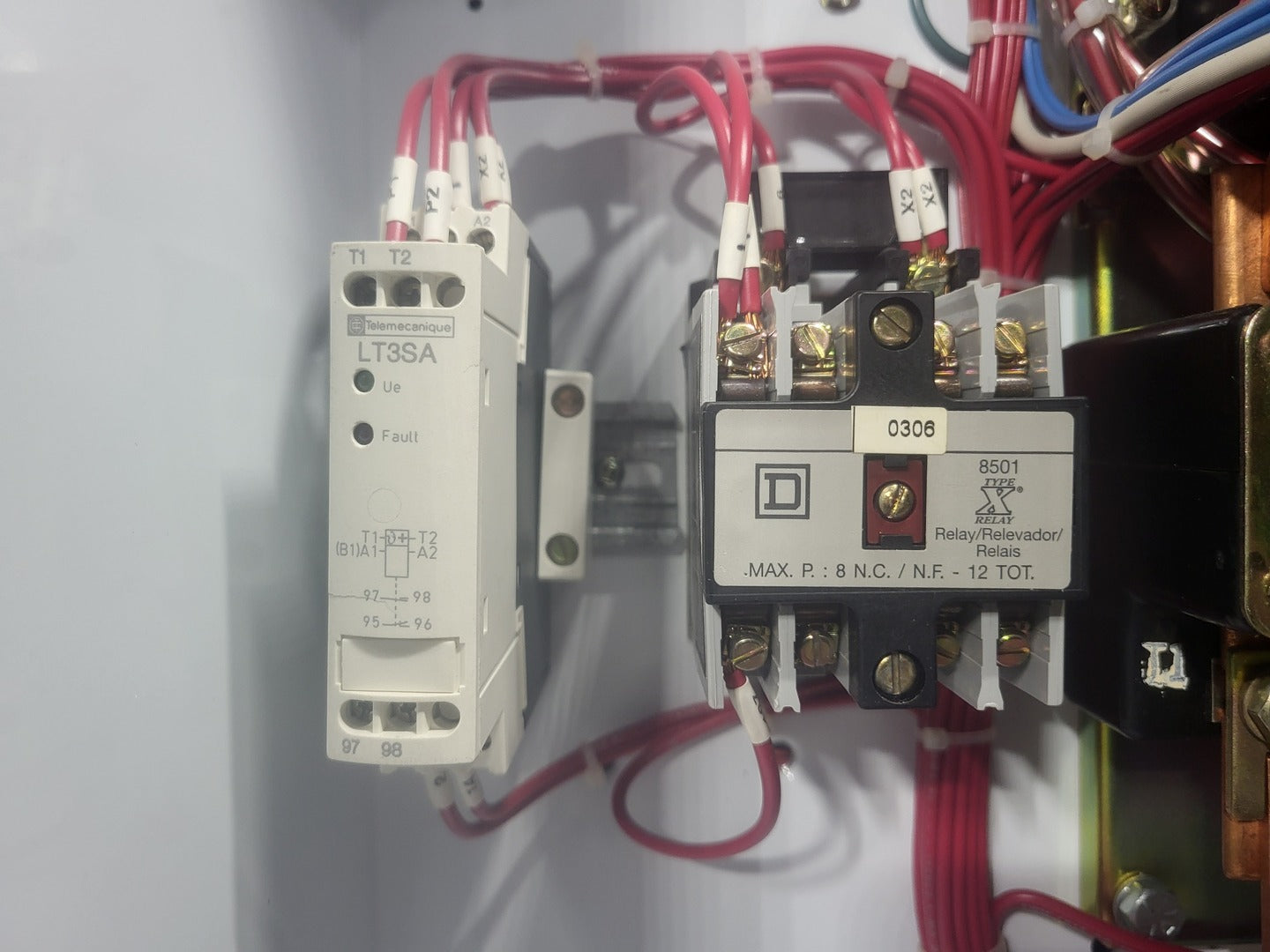

  3. Telemecanique LT3SA, thermistor motor protection relay / fault relay
  4. Square D 8501 Type X relay, 8 N.C. max / 12 total contacts

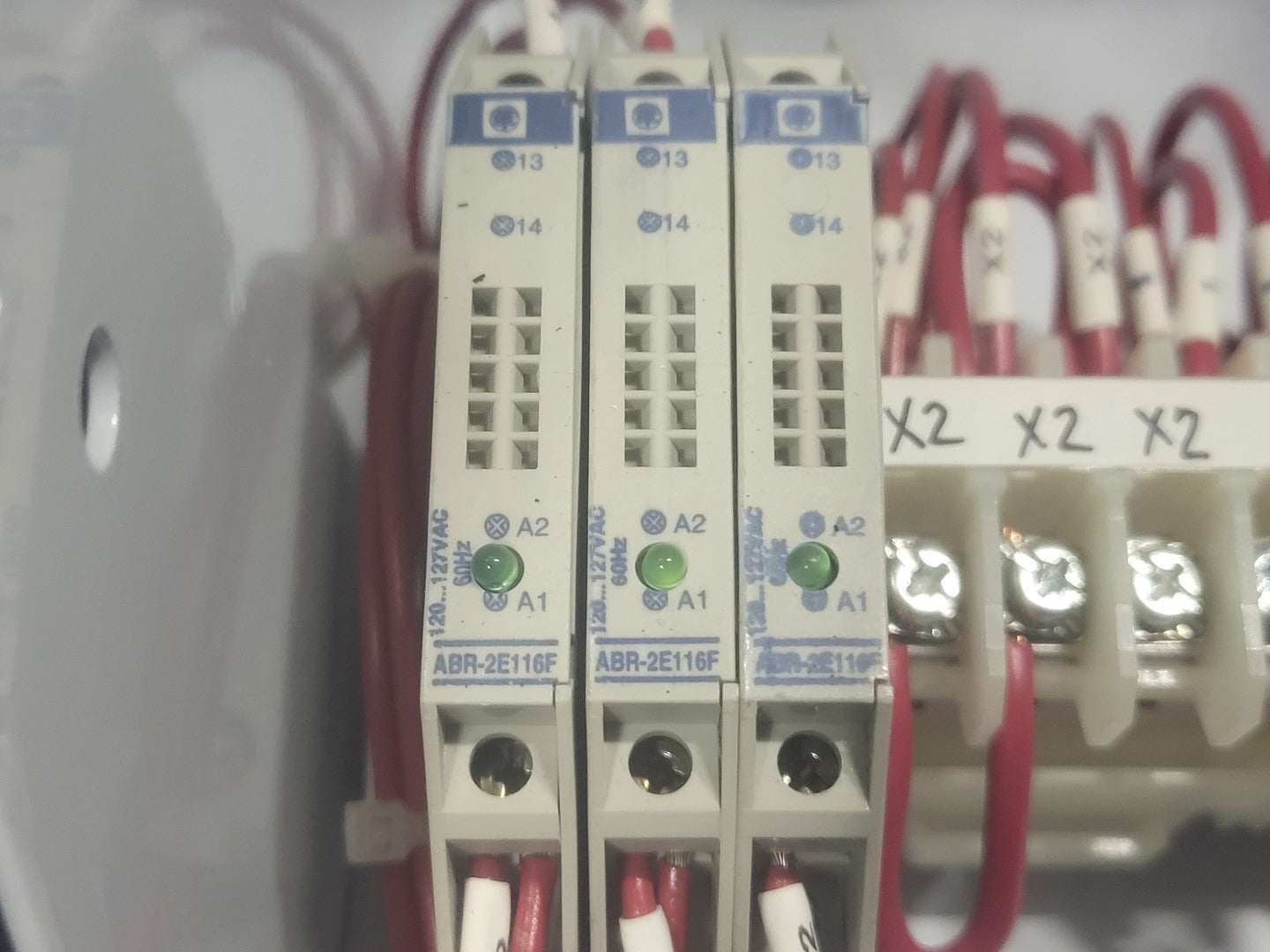

  5. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

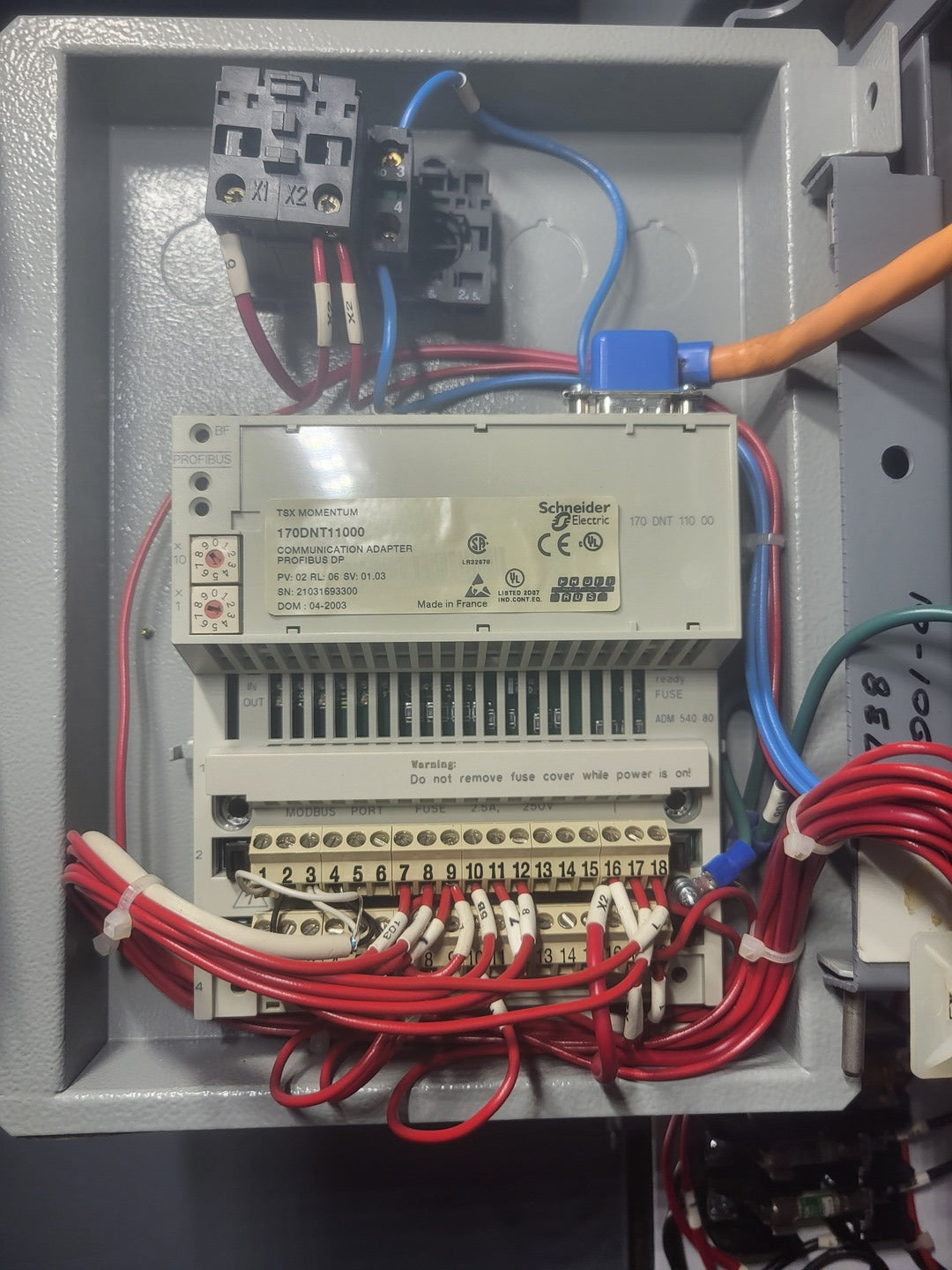

  6. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

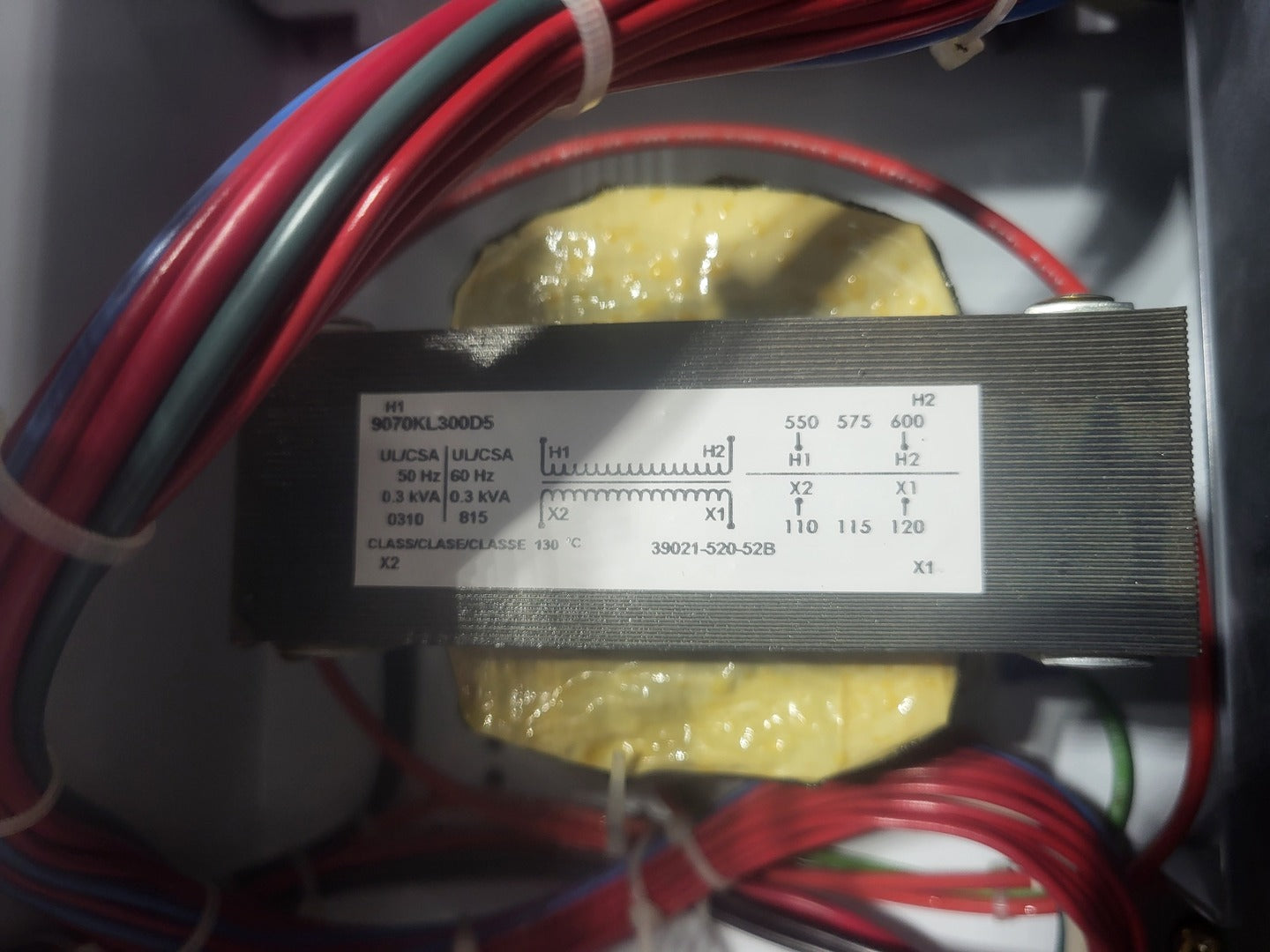

  7. Square D 9070KL300D5, control transformer, 0.3 kVA, 550/575/600V primary to 110/115/120V secondary

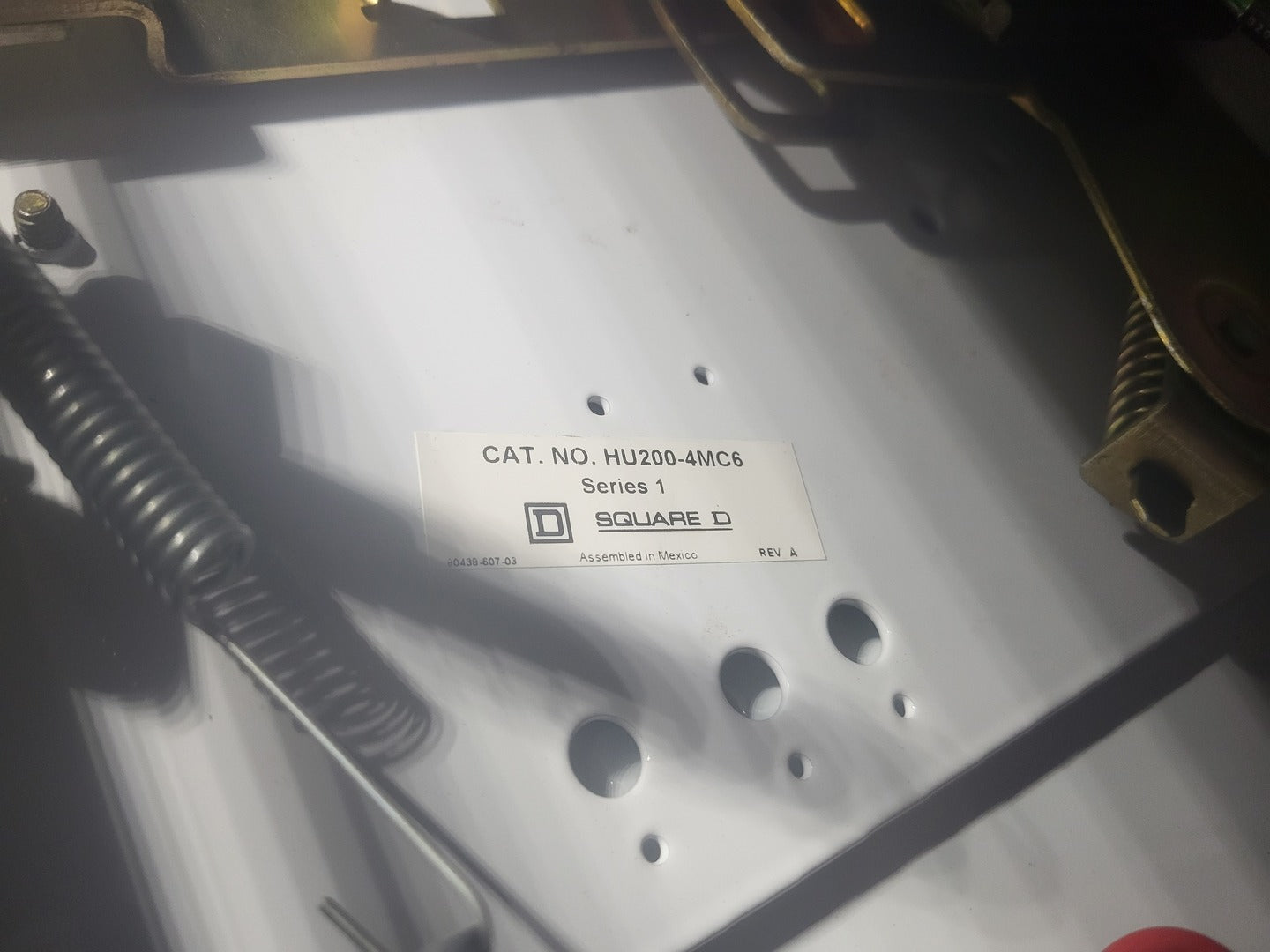

  8. Square D HU200-4MC6, Series 1, 200A MCC bucket disconnect unit

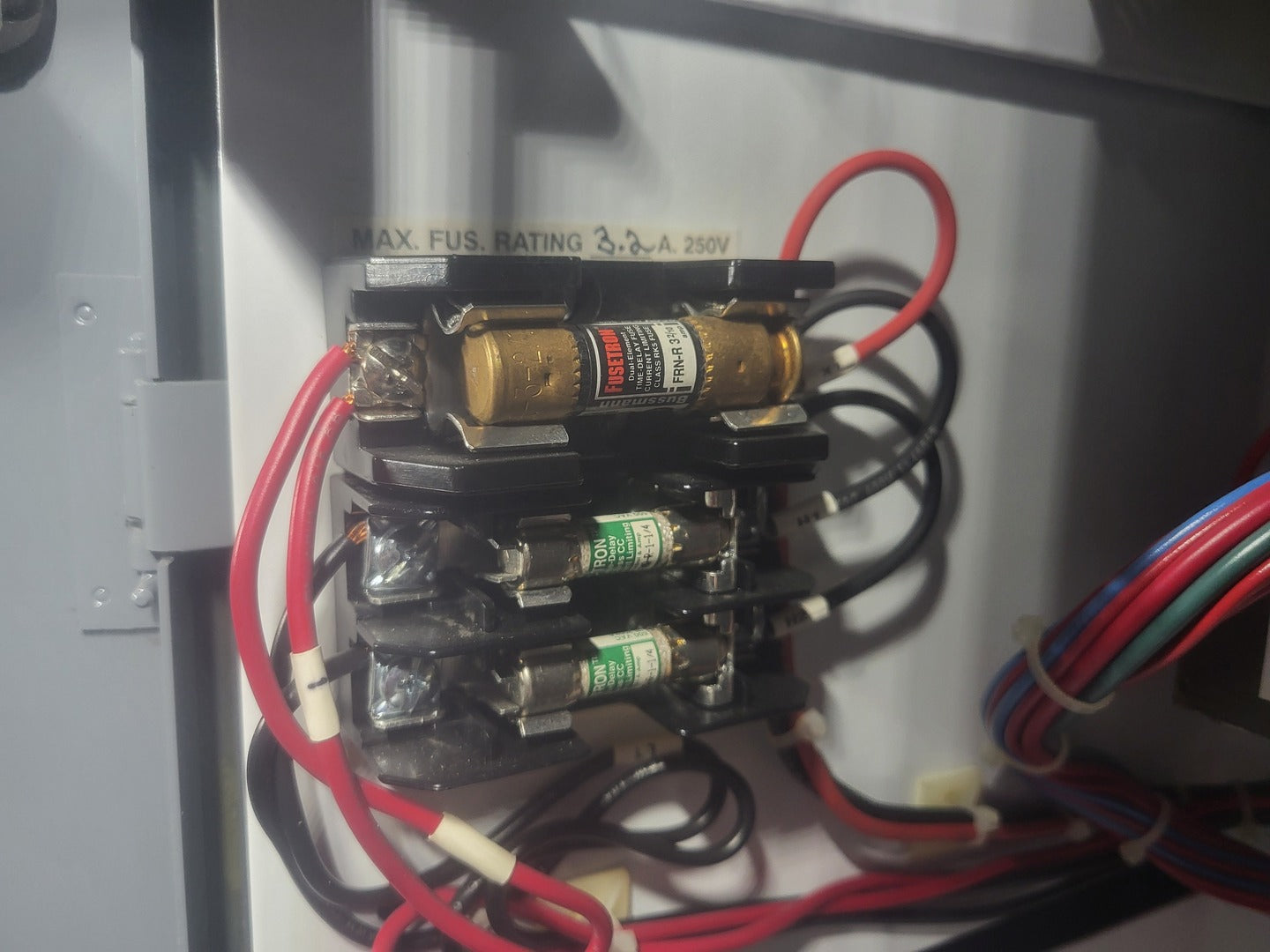

  9. 1 x Bussmann Fusetron fuse FRN-R-3-2/10

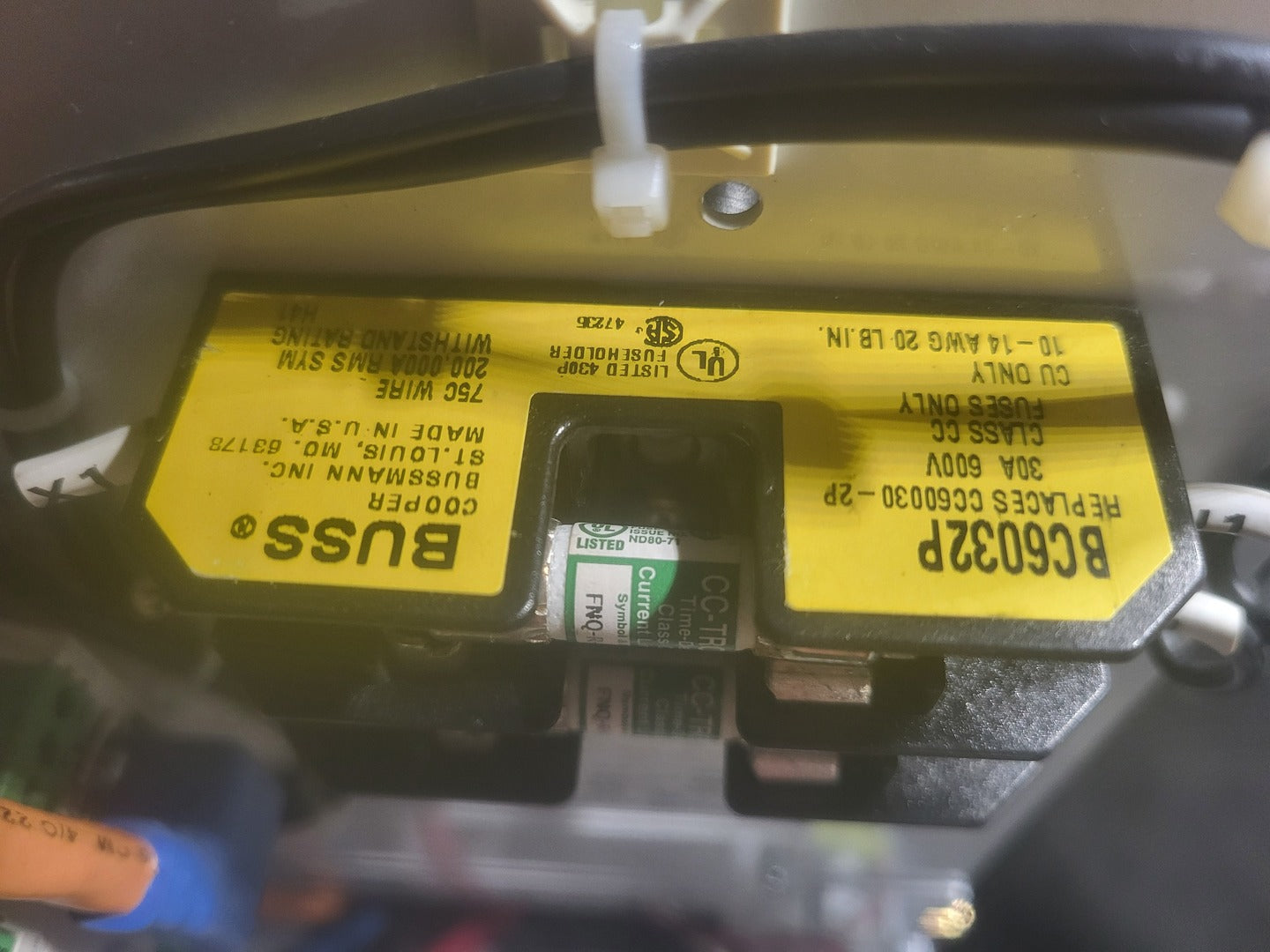

  10. 2 x Bussmann CC-Tron fuses FNQ-R-1-1/4
