Description

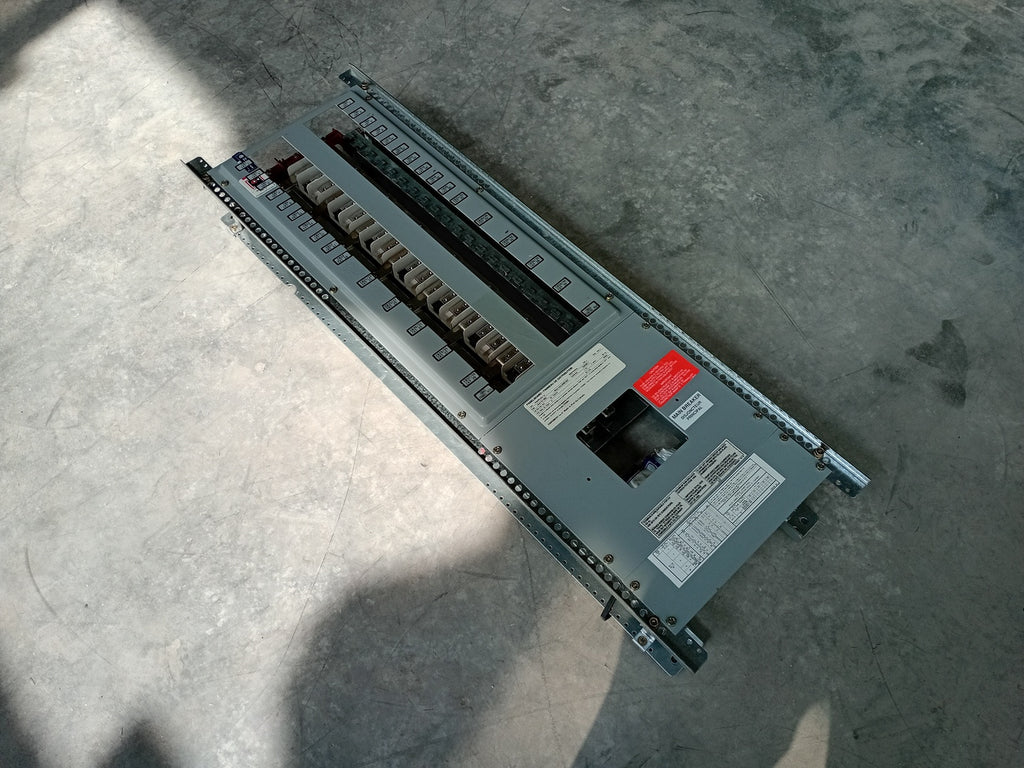

Cutler-Hammer Pow-R-Line 1a panelboard interior rated 225 amps, 120/208 volts, 3-phase, 4-wire, 60 Hz, with 42 circuits. Manufactured in Canada in October 2002 under Job No. 07-155284. This dismantled panelboard is offered as pictured without the main circuit breaker or branch circuit breakers.
| Specifications | |
|---|---|
| Model | Pow-R-Line 1a |
| Made In | CANADA |
| Condition | Used | General |
| Amps | 225 amps |
| Voltage | 120/208 volts |
| # of Circuits | 42 |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Main Bus Rating: 225 A Neutral Rating: 225 A Wire Configuration: 4-wire Frequency: 60 Hz Maximum Sum of Breaker Ratings Per Stab: 140 A Terminal Material Compatibility: Copper or aluminum conductors Conductor Temperature Rating: 60°C or 75°C conductors Maximum RMS Symmetrical Ampere Rating:
|
