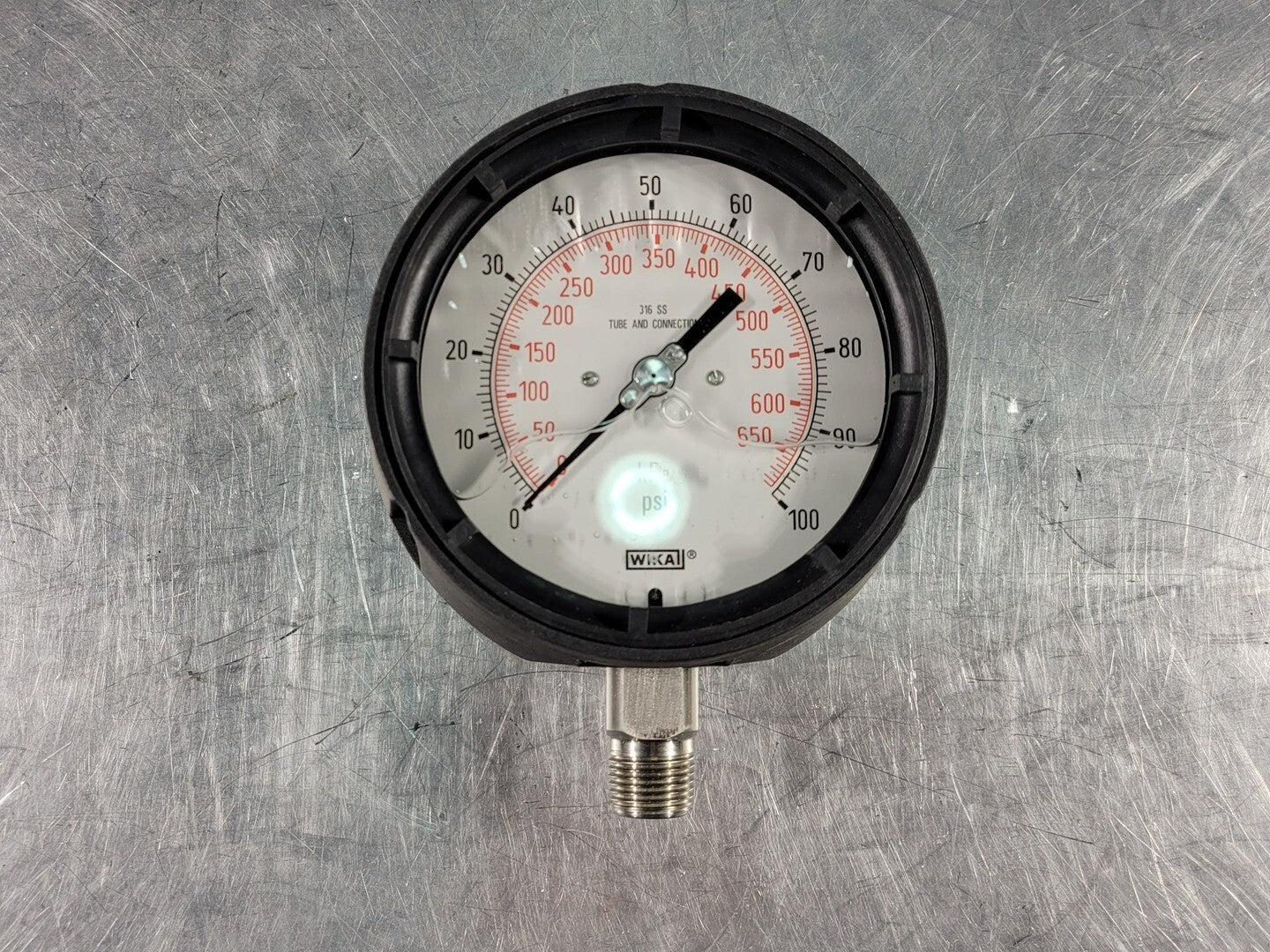

0-100 psi Pressure Gauge 233.34 4.5"

SKU: 84331
Price:
$57

Shipping calculated at checkout

Stock:
2 in Stock
Make an Offer

Need An Answer Now?

Description

The 233.34 gauges are for applications with high dynamic pressure pulsations or vibration. Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system. Features a range of 0 to 100 psi.
Specifications
Model 9837787
Condition Surplus New
General
Gauge Type Pressure
Filling Liquid
Pressure Rating 100
Weight + Dimensions
Size 4.5
Thread Size 1/2" NPT
Other Specifications

Part Number: 9837787

  • Excellent load-cycle stability and shock resistance
  • 4.5" diameter dial size
  • Vacuum / Compound ranges to 400 psi (25 bar); Positive pressure ranges from 15 psi (1 bar) to 30,000 psi (2,000 bar)
  • Accuracy of -/+0.5% of span;-/+1.0% of span for 20,000 psi (1,600 bar) range and above
  • Single scales with large figures at beginning and end for quick and easy range identification
  • Glycerine filled case
  • Black fiberglass-reinforced thermoplastic (POCAN) case, solid front, blow out back, turret-style case with built in rear flange lugs
  • Clear acrylic window with Buna-N gasket
  • 1/2" NPT lower mount process connection
  • Welded stainless steel safety gauge
  • All 316SS wetted parts
  • Weather resistant (NEMA 3/IP54) without membrane; weather tight (NEMA 4X / IP66) filled case with membrane
